oldtube.com / 真空管在庫テーブル/Tube Inventory (更新日/updated on 2005/5/21)
･真空管は､正規動作範囲内におきまして､納品後1ヶ月保証。
･お支払いは､在庫確認の上,銀行口座振替または現金書留でお願いします。
･梱包・送料は1ケ口について￥800。中国・四国地域は￥1,000｡九州･北海道地域は￥1,200。(万一の場合の損害賠償は￥6,000までです｡) 保険付きご希望の場合は1ケ口￥1,200から。中国･四国地域は￥1,300から｡九州･北海道地域は￥1,400から。大型管等は別途料金をお見積もり｡
･お客様の諸事情によります返品送料はお客様負担となります｡
･表示価格は､全て単価です。 また予告/断りなく随時変更されております。タイプミスはご容赦ください。
･お見積りは、ホームページ表示価格と異なることがあります｡
ご注文･お問い合わせありがとうございます。在庫をe-mailにてご確認の上ご注文お願いします。
(ご注意: お問い合わせ、ご発注は電子メールのみで受付・回答いたします。)
oldtube.com
Fluke高圧電源、Hickok-539C、TV-3、TV-7D/U、Funke-W19真空管試験器等で出荷時検査を行って発送します。
･不良品は返金保証。
(We will sell/buy tubes Internationally. Listed prices are shown in Japanese yen (JPY), and for one each tube. USD 1 = JPY 118 approx.)
･sealed/密封品は、ご開封後の返品は、原則的にお断りいたします。
･1930-1940年代等の古典管ではベース内で充填・接着材とガラスの接着度が低下し緩んでいる場合があります。また、ベース内で接着剤のかけらが生じ、揺すると音が出る場合があります。モールドベースの古典管はバヨネットソケットへの装着は好ましくありません。装着された場合の動作保障はできません。
･在庫数) タイプ メーカ 単価 備考 の順で表示しています。
NIB= New In Box 新品OB
NOS= New Old Stock "NOS"表記では、元箱がない場合がほとんどであるとお考えください。
Used = 中古試験選別品です。
WB= WhiteBox 白箱
RB= RedBox 赤箱
MB= MilitaryBox 軍箱
OB= OriginalBox 元箱
[DISPLAY]=ディスプレイ用(回路での使用は不可能。)
･ご注意1: 真空管はピンの十分な清掃と十分な電気的エージングを行ってご使用下さい。旧管種では"必須"です。エージング方法は文献等を適宜ご参照下さい。
･ご注意2: 新品の水銀整流管は、実際の回路でご使用になる前に30分以上のプリヒート/フィラメントエージングが必要です。詳細は真空管マニュアル等をご参照ください｡
･ご注意3: 500Vを越える高圧でご使用予定の送信管は､フィラメントのみで最少6時間(～24時間)、さらに低プレート電圧印加での､数時間オーダーのエージングを事前に行なわれることが必要です｡
･ご注意4: トリタン管では寿命の観点から､フィラメント電圧を規格値の±5%以内の動作条件でご使用ください｡
ご参考 ： Eimac資料から
･ご注意5: 供給電流サージ容量が10A以上に達するような低インピーダンスのフィラメント/ヒータートランス、カーバッテリー、スイッチング電源や安定化電源を用いられます場合､電流制限用のシリーズ抵抗の利用が必要です｡お客様の実際の回路でのご使用にあたられましてのフィラメント/ヒーター断は基本的に保証致しかねます｡（シリーズ抵抗の挿入で電球と同様に長寿命化が期待されます。）古典パワ管のご活用に当たられましては特にご注意が必要です｡(大型の送信管でも「大容量のスイッチング電源」で点灯する場合、数回～数10回の電源ON/OFFで断線することがあります。)
･ご注意6: モールドベースのナス管、ST管、GT管などは製造から数十年を経て、必然的にガラスとベースの接着は製造直後に比較して著しく劣化していると考える必要があります。従いまして、ソケットへの着脱においてはベース部のみを持って抜き差しを行う必要があります。ガラス部分のみを持って着脱した場合、接着がはがれたり、場合によっては致命的にリード線が切れたりすることがあります。とりわけ、モールドベースの古典管をピンロック型の”バヨネットソケット”でご使用になられますと、ガラス把持着脱が必然となり、大きな力が加わり接着はがれが大変生じやすくなります。このような状況に関しましては、当該管の交換に応じることは致しかねます｡
･ご注意7: 長期間ご使用になられておりますアナログテスターでは、確度誤差が10%以上になっている場合があります｡フィラメント電圧のチェックにおかれましては、特にご注意が必要です｡
･ご注意8: ガラスベースやセラミックベースの真空管のソケットとの着脱におきましては、ピンと直交方向に不用意な力を加えますと根元でクラックを生じる事が多くなります。セラミックベースではベースのひび割れや欠けが発生しその後の実装に問題を生じます。ガラスベースでは致命的な真空漏れを生じる事があります。ピンの長手軸方向の力で静かに着脱を行う必要があります。また、ラジオペンチ等でのピンの矯正の折も同じ危険性があります。くれぐれも根元に横方向の力を加えないようにしなければなりません。3C33, 3E29, 832, 5894等の送信管や各種コンパクトロン,マグノーバル管等々のガラス管、あるいは、F2a, F2a11, Z2c, 100TH, 4-125A等のセラミックベースの球では特にご注意ください。
･ご注意9： ヒーターカソード耐圧も製造から数10年を経て、ある程度の劣化を想定する必要があります。規格値に余裕がある設定にしておくこと望まれます。特に直結アンプやカスコードアンプ、差動アンプ、カソードホロワバッファなどを構成する場合、ご注意が必要です。例えば、ミュラード型直結位相反転回路などでは、初段球や位相反転球を交換するたびにチェックが必要です。内部抵抗のばらつきで位相反転段のカソード電位が数10Vオーダーで変化することがあります。このような場合、ヒーターのフローティング回路化が望まれますが、Ehk耐圧規格オーバーの場合は少なくともヒーター回路へのDCバイアス印加が必須です。球交換による音質変化検証実験などの場合は問題が発生しやすくなります。ご購入後のお客様サイドでのH-K絶縁劣化/故障やこれによる部品焼損などに対する保証はできません。
**EIA BASE タイプ など
miniature = 7-pin MT glass base
rimlock = 8-pin MT glass base
noval = 9-pin MT glass base
octal = 8-pin G/GT/metal base
Loktal = 8-pin lock metal-base
NOVAR = 9-pin large-glass base
Magnoval = 9-pin large-pin large-glass base
decal = 10-pin MT glass base
compactron = 12-pin glass base
**[リンク/写真の見方]別ウインドウを開いてリンク/写真テキストをそのウインドウヘ"ドラッグ･アンド･ドロップ "すれば、操作性が向上します**
00A/200A/300A =Detector Triode Amplifier = Ef/If=5V/0.25A Epmax=45V op : Ep=45V Ec=0V Ip=1.5mA rp=30kΩ gm=666μmhos μ=20 (参考 : Ep-Ip特性) 1) C300-globe Radiotron ￥- used TipTop UV GoodFilament VeryLowEmission 0) UV200-globe Radiotron ￥5200 used? TipTop 0) SX-00A-globe Syl ￥3000 used? 0) SX-200A-globe Syl ￥- used? 0) UX200 globe Radiotron ￥- used
01A/201A/301A/501A =Detector Triode Amplifier = Ef/If=5V/0.25A Epmax=135V op :Ep=90V Ec=-4.5V Ip=2.5mA rp=11kΩ gm=725μmhos μ=8 op :Ep=135V Ec=-9V Ip=3mA rp=10kΩ gm=800μmhos μ=8 (参考 : Ep-Ip特性) also see similar types : DeForest DV2, DV5, NothernElectric R-221D/DX, Western Electric 235D 26) C-301A, CX-301-A-globe Cunningham ￥offer NIB * 6pcs=C-301A : ShortPins/Brass-base, 1pc=C-301A : ShortPins/BlackMoldBase w/original solid boxes * 17pcs=CX-301A : later-long-pins/Mold-base w/original solid boxes * 2pcs = CX-301A :later-long-pins BlackMold-base with very-ragged original boxes 0) C-301A-globe Cunnghm ￥- used gm=24,24/18min ShortPins 0) C-301A-globe Cunningham ￥- used BrassBase 690μmho(Ec=-13V) ShortPins 1) C-301A-globe Cunningham ￥６９００ used BrassBase 530μmho(Ec=-13V) ShortPins 2) C-301A-globe Cunningham ￥７９００ used BrassBase 24,30/18min(TV-7B/U) ShortPins 0) C-301A-globe Cunningham ￥７５００ used BlackMoldBase 880μmho(Ec=-14V) ShortPins 1) C-301A-globe Cunningham ￥７３００ used BlackMoldBase 790μmho(Ec=-13V) ShortPins 1) C-301A-globe Cunningham ￥７３００ used BlackMoldBase 750μmho(Ec=-14V) ShortPins 1) C-301A-globe Cunningham ￥６８００ used BlackMoldBase 30/18min ShortPins @@ 1) C-301A-globe Cunningham ￥５３００ used BlackMoldBase 670μmho(Ec=-13V) ShortPins 1) C-301A-globe Cunningham ￥３９００ used BlackMoldBase 510μmho(Ec=-13V) ShortPins 0) C-301A-globe Cunningham ￥1000 used BlackMoldBase SHORT[DISPLAY] Filaments=OK ShortPins 0) UV-201A-globe Radiotron ￥- used? BrassBase ShortPins(sQn) 0) UV-201A-globe Radiotron ￥- used BlkMoldBase ShortPins(qD) 1) UV-01A-globe GoldSeal ￥6000 used BlkMoldBase 27/18min ShortPins @@ 0) UV-201A-globe RCA Radiotron ￥- used BlkMoldBase ShortPins 850μmho(Ec=-13V) ChipInGlass 1) UV-201A-globe RCA Radiotron ￥７７００ used BlkMoldBase ShortPins 1000μmho(Ec=-14V) 1) UV-201A-globe RCA Radiotron ￥７７００ used BlkMoldBase ShortPins 940μmho(Ec=-14V) 1) UV-201A-globe RCA Radiotron ￥７７００ used BlkMoldBase ShortPins 930μmho(Ec=-13V) 1) UV-201A-globe RCA Radiotron ￥６８００ used BlkMoldBase ShortPins 700μmho(Ec=-14V) 1) UV-201A-globe RCA Radiotron ￥４２００ used BlkMoldBase ShortPins 550μmho(Ec=-13V) 1) UV-201A-globe RCA Radiotron ￥６９００ used BlkMoldBase ShortPins 770μmho(Ec=-13V) 1) UV-201A-globe RCA Radiotron ￥６９００ used BlkMoldBase ShortPins 770μmho(Ec=-13V) 1) UV-201A-globe RCA Radiotron ￥６９００ used BlkMoldBase ShortPins 770μmho(Ec=-13V) 1) UV-201A-globe RCA Radiotron ￥６７００ used BlkMoldBase ShortPins 720μmho(Ec=-13V) 0) UV-201-globe Radiotron ￥- used BrassBase ShortPins [DISPLAY] 0) UV-201-globe Radiotron ￥- used BrassBase VeryLowEmission ShortPins[DISPLAY] 1) UV-201A-globe ? ￥2000 used BrassBase ShortPins [DISPLAY] 0) UV-201-globe Radiotron ￥- used BlkMoldBase ShortPins[DISPLAY]@@ 1) UV-201-globe Stewart Werner ￥1500 used BlkMoldBase GoldPaintEngravedLogo ShortPins[DISPLAY]@@ 2) UV-201A-globe Ureco ￥1500 used BlkMoldBase ShortPins[DISPLAY]@@ 0) UV-201A-globe Radiotron ￥- used BlkMoldBase ShortPins[DISPLAY] 1) D-01A DeForest ￥１２０００ used UX-IsolantiteBase TippedTop gm=500umhp(Ec=-13V) 1) A-201 Volutron ￥１２０００ used UV-BrassBase RoundTopStraightGlass ShortPins gm=700umhp(Ec=-13V) 1) A-201 Volutron ￥１２０００ used UV-BrassBase RoundTopStraightGlass ShortPins gm=670umhp(Ec=-13V) 1) A-201 Volutron ￥１１０００ used UV-BrassBase RoundTopStraightGlass ShortPins gm=560umhp(Ec=-13V) 1) X-201A-globe Vesta ￥5000 used VeryThickMoldBase LongPins 740μmho(Ec=-13V) 1) UV-201A-globe ? ￥6300 used ThickReddishBrownMoldBase ShortPins 900μmho(Ec=-14V) Perryman RH201A箱 0) CX-301A Cunnghm ￥- NIB ragged-boxes (quad) 0) CX-301A-globe Cunnghm ￥- NIB(T) 1) CX-301A-globe Cunnghm ￥3800 used 800μmho(Ec=-13V) 1) CX-301A-globe Cunnghm ￥3500 used 740μmho(Ec=-13V) 1) CX-301A-globe Cunnghm ￥3200 used 710μmho(Ec=-13V) 1) CX-301A-globe Cunnghm ￥3200 used 700μmho(Ec=-13V) 1) CX-301A-globe Cunnghm ￥3100 used 670μmho(Ec=-13V) glassが白澄んでいる 0) CX-301A Cunnghm ￥- used(hhz2v4gy) 1) CX-301A-globe Cunnghm ￥3100 used 32/18min glassがベースに対してやや斜めになっている。 1) CX-301A-globe Cunnghm ￥2900 used 28/18min glassが白澄んでいる。 1) CX-301A-globe Cunnghm ￥2100 used 22/18min 1) CX-301A-globe Cunnghm ￥2100 used 20/18min @@ 0) UX-201A-globe RCA ￥- NOS? STRONG Perryman RH201A箱(sT) 0) UX-201A-globe RCA ￥- used(hhz1v5gy) 0) UX-201A-globe RCA-Radiotron ￥3800 used gm=920μmho(Ec=-13V) TallBase 1) UX-201A-globe RCA-Radiotron ￥3100 used gm=730μmho(Ec=-13V) 1) UX-201A-globe RCA ￥2100 used gm=20(TV-7) 0) SX-201A-globe Syl ￥- used? 0) 501A DeForest ￥- used 32,33/18min(D) 1) 401A DeForest ￥53００ NIB 26/18min VeryRaggedBox 1) 401A DeForest ￥53００ NOS? 34/18min 1) 401A DeForest ￥４６００ NOS? 28/18min 1) 501A DeForest ￥４６００ used 28/18min 1) UX-201A-globe KenRad ￥2000 used gm=470μmho(Ec=-13V) 1) 201A-globe DIATRON ￥3500 used gm=32/18min 1) 201A-globe Powertone ￥3300 used gm=730μmho(Ec=-13V) 1) UX-201A-globe WORD? ￥3300 used gm=740μmho(Ec=-14V) 0) 01A-globe ByHeck ￥2800 used gm=630μmho(Ec=-13V) 0) 201A-21x-globe Silvertone ￥3500 used gm=30/18min 1) UX-201A-globe Neutron ￥2500 used gm=800μmho/475min(on KS-15750-L1) 1) UX-201A-globe BESTO ￥2500 used gm=775μmho/475min(on KS-15750-L1) 1) ER201A-globe EvereadyRaytheon ￥3800 used gm=740μmho(Ec=-13V) engraved 1) ER201A-globe EvereadyRaytheon ￥3800 used gm=690μmho(Ec=-13V) engraved 1) 01A Ray ￥7900 LikeNew 4-pillar ST gm=820μmho(Ec=-13V) 1) 01A-ST RCA ￥4700 NIB 1) 01A-ST Silvertone ￥4300 NIB 1) 01A-ST Silvertone ￥4,300 NIB 5) 01A-ST Meteor ￥4300 NIB RaggedBox 1) 01A-ST Wards ￥4300 NIB RaggedBox 1) 01A-ST GE ￥2700 used gm=775μmho(Ec=-13V) 1) 01A-ST Panama ￥2700 used engraved gm=730/μmho(Ec=-13V)
0A2/WA(=6073/VR150-MT) =150V regulator= (EIA/5BO - miniature) Eamin=185V Eop=150V±2V Ia=5mA-30mA see USA ruggdized version : 6073-MT see European 150V miniature types : 150C2, 150B2, 6354 see 75V miniature type : 0C2(=European 75C1-MT) see 85V miniature type : 0G3(=European 85A2-MT) see 108V miniature type : 0B2(=European 108C1-MT) also see an 85V miniature voltage reference : 5651/A also see an 85V 'subminiature' voltage reference : 5783 also see a 100V 'subminiature' type : 5787/WA also see a 100V noval voltage reference : WE-423A/B/C(9-pins) 2) 0A2 Amprx ￥700 NIB 1) 0A2 Philips ￥1500 NIB mesh 1) 0A2 Philips ￥700 NIB nonmesh 1) STV150/30 0A2 SEL Lorenz ￥700 NIB 29) 0A2 RCA ￥600 NIB/NOS (rhy1xfnt) 10) 0A2 RCA ￥600 NIB - mint in sleeves 1) 0A2 RCA ￥600 NIB 4) 0A2 GE ￥600 NIB(vSn) 2) 0A2 Syl ￥600 NIB 3) 0A2 Syl ￥600 NIB - mint 0) 0A2 Syl ￥- NIB MB RaggedBox(Q) 1) 0A2 Syl ￥600 NIB 1) 0A2WA Syl ￥550 NOS? WB 1) 0A2WA Syl ￥590 NIB MB 1) 0A2 Ray ￥550 NIB MIL-WB 2) 0A2 Ray ￥550 NIB 1) 0A2 CBS ￥550 NIB NIB MIL-WB(D) 2) 0A2 WH ￥490 NIB USSR 1) 0A2 National ￥550 NIB USA 1) 0A2 National ￥490 NIB USSR 1) 0A2 Tronal ￥490 NIB 1) 0A2 PacifucMercury ￥490 NOS RCA箱 2) 0A2WA Ray ￥400 LikeNew 1) JRP-0A2WA Ray ￥400 used 1) CRP-0A2 Ray ￥400 used 2) 0A2 USA ￥400 used 1) 0A2 TEN ￥400 used
0A3/VR75-ST =75V regulator= (EIA/4AJ - octal) ST-octal base Eamin=105V Eop=75V±5V Ia=5mA-40mA see 90V ST types : 0B3/VR90-ST, 874 see 105V ST type : 0C3/VR105-ST see 150V ST type : 0D3/VR150-ST 4) 0A3 RCA ￥900 NIB(Aht) 3) 0A3/VR75 RCA ￥900 NIB MB 4) 0A3 SylECG ￥900 NIB 1) 0A3/VR75 National ￥900 NIB 1) 0A3 RCA ￥550 used
0A4/G =cold-cathode gas-filled Triode= (EIA/4V- octal -ST12 or metal) Ikmax=25mA/100mApeak anode breakdown(starter-cathode tied) : Eanode-cathode=225Vpeak_min starter breakdoen : Estarter-cathode=70Vpeak_min/90Vpeak_max Istarter=100μAmax Estarter-cathode=60V(approx) Eanode-cathode=70V(approx) op : Esupply(anode-cathode)=105Vrms-130Vrms Estarter-cathode(AC)=70Vpeak Estarter-cathode(RF)=55Vpeak (for stable operation, external light must be completely shielded.) 2) 0A4G RCA ￥1200 NIB ++ 1) 0A4G WH ￥1000 NIB 1) 0A4G Rogers ￥1000 NIB 1) ASG-0A4 AEG ￥700 used 41) 0A4 RCA ￥700 BulkNOS metal WB 9) 0A4 RCA ￥600 BulkNOS 錆あり metal WB

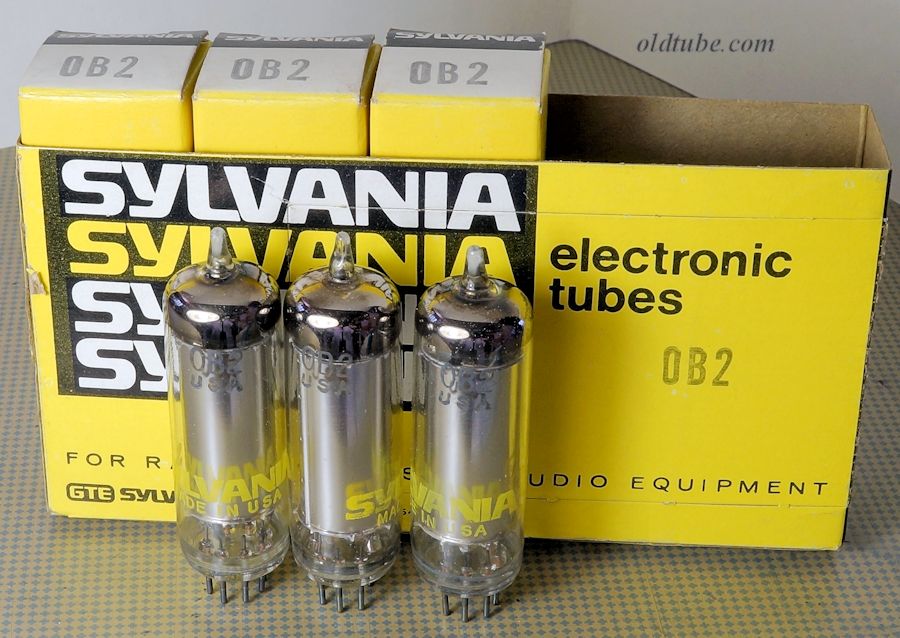

0B2/WA(=6074/VR105-MT) =105V regulator= (EIA/5BO - miniature) Eamin=133V Eop=108V±4V Ia=5mA-30mA see USA ruggdized version : 6074-MT see 108V European miniature type : 108C1-MT see 75V miniature types : 0C2(=European 75C1-MT) see 85V miniature types : 0G3(=European 85A2-MT) see 150V miniature types : 0A2(=European 150C2-MT) also see an 85V miniature voltage reference : 5651/A also see an 85V 'subminiature' voltage reference : 5783 also see a 100V 'subminiature' type : 5787/WA also see a 100V noval voltage reference : WE-423A/B/C(9-pins) *バルク品で pinによごれあり ラベル消えかかってます 12) JAN-JRC 0B2 RCA ￥600 Bulk-NOS date-code=1950s-1960s (￥5000 for 10-pcs) 44) JAN-JRC 0B2 RCA ￥600 Bulk-NOS date-code=1970s etc (￥5000 for 10-pcs) 2) 0B2 HP(RCA-made) ￥600 Bulk-NOS 24) JAN-JRP 0B2 Raytheon ￥500 Bulk-NOS date-code=1950s-1960s (￥4000 for 10-pcs) 9) JAN-JRP 0B2 Raytheon ￥500 Bulk-NOS date-code=1960s etc 63) JAN-JRC 0B2 Hytron ￥500 Bulk-NOS date-code=1950s (￥4000 for 10-pcs) 13) JAN-JRC 0B2 Hytron ￥500 Bulk-NOS 3) JAN 0B2-GB Sylvania ￥800 Bulk-NOS GoldBrand 2) JAN 0B2 Sylvania ￥500 Bulk-NOS date-code=1950s 30) JAN 0B2 Sylvania ￥500 Bulk-NOS date-code=1970s 2) JAN 0B2 Chatham(TungSol) ￥500 Bulk-NOS date-code=1950s 7) JAN 0B2 USA(Tsol. Amperex etc) ￥500 Bulk-NOS 3) JAN-JRC 0B2WA RCA ￥900 NIB 5) JRC 0B2WA RCA ￥900 NIB 1) 0B2WA RCA ￥900 NIB 1) 0B2WA RCA ￥900 NIB MB 0) JAN-JRC 0B2 RCA ￥900 NIB(Q) 22) 0B2 RCA ￥750 NIB MT (hy1v6m) 1) 0B2 RCA ￥750 NIB - mint 2) 0B2 Amprx ￥750 NOS 緑黄色OB MT 6) 0B2 GE ￥750 NIB(Aht) 1) 0B2 GE ￥750 NOS WB 3) 0B2 CGE(CanadaGE) ￥600 NIB USSR 5) GB-0B2 Syl ￥900 NIB GoldBrand 1) GB-0B2 Syl ￥1500 NIB GoldPin GoldBrand 16) JAN-JHS 0B2/WA Syl ￥900 NIB 3) 0B2 Syl ￥800 NIB Gt. Britain 3) 0B2 Syl ￥750 NIB w/sleeve 1) 0B2 Syl ￥750 NIB 2) 0B2 Tsol ￥750 NIB 2) 0B2 Tsol ￥750 NIB 1) 0B2 Tsol ￥750 NIB 4) 0B2 Ray ￥750 NIB 7) 0B2/0B2WA Ray ￥750 NIB 1) JHY-0B2 Hytron ￥750 LikeNew 3) 0B2 USA ￥750 NOS/NIB 3) 0B2 National ￥750 NIB Germany 1) 0B2 Syl ￥750 used? 1) 0B2 USA ￥400 used
0B3/VR90-ST =90V regulator= (EIA/4AJ - octal) Eamin=125V Eop=90V±8V Ia=10mA-30mA similar to RCA-874(ST, Iamax=50mA) see 75V ST type : 0A3/VR75-ST see 105V ST type : 0C3/VR105-ST see 150V ST type : 0D3/VR150-ST 1) 0B3/VR90 ? ￥900 NOS made in France, WB ST 0) JAN-CHS 0B3/VR90/VT-184 Syl ￥900 NOS MB ST 0) 0B3 Syl ￥- NOS MB ST(T) 0) 0B3/VR90 Syl ￥- NIB(D) 1) VT-184/0B3/VR90 Syl ￥900 NOS ST 7) 0B3/VR90 Sylvania-made ￥900 NOS ST
0C2/VR75MT =75V regulator= (EIA/5BO - miniature) Eamin=115V(w/ ambient light)/145V(in complete darkness) Eop=75V±4.5V Ia=5mA-30mA see 75V European miniature 75C1-MT see 85V miniature type : 0G3(=European 85A2-MT) see 108V miniature type : 0B2(=European 108C1-MT) see 150V miniature type : 0A2(=European 150C2-MT) also see an 85V miniature voltage reference : 5651/A also see an 85V 'subminiature' voltage reference : 5783 also see a 100V 'subminiature' type : 5787/WA also see a 100V noval voltage reference : WE-423A/B/C(9-pins) 1) VR75/0C2 RCA ￥500 used ST Base接着補修品 2) 0C2 RCA ￥900 NIB MT 15) 0C2 RCA ￥900 NIB MT
0C3/VR105-ST =105V regulator= (EIA/4AJ - octal) Eamin=133V Eop=105V±2V Ia=5mA-40mA see 75V ST type : 0A3/VR75-ST see 90V ST types : 0B3/VR90-ST, 874 see 150V ST type : 0D3/VR150-ST 1) 0C3A/VR105 GE ￥1000 NIB ST 3) 0C3 Amperex ￥800 NIB Straight-GT 0) 0C3 RCA ￥1000 NIB MIL-WB ST(Qn) 2) 0C3 RCA ￥1000 NIB ST 1) 0C3A RCA ￥1000 NIB 2) 0C3 CBS ￥1000 NIB MIL-WB ST(D) 1) 0C3 ElectronicEngineering ￥800 NIB ++ 1) JAN-CCSB 0C3W Tsol ￥800 NIB MB 1) 0C3/VR105 Hallirafter ￥800 NIB MB ST 1) JAN-CHY 0C3/VR105/VT-200 Hytron ￥800 NIB MB ST 1) 0C3 RCA ￥550 used ST 1) 0C3 RCA ￥500 used ST Base接着補修品 1) CRC-VR105-30 RCA ￥600 used ST 1) GL-0C3/VR105 GE ￥600 used ST 1) JAN-CAHG-0C3W Chatham(Tsol) ￥1000 used LightBrownLargeCoverBase
0D3/VR150-ST =150V regulator= (EIA/4AJ - octal) Eamin=185V Eop=150V±4V Ia=5mA-40mA (see 7pin-miniature ruggdized version : 6073) see 75V ST type : 0A3/VR75-ST see 90V ST types : 0B3/VR90-ST, 874 see 105V ST type : 0C3/VR105-ST 1) 0D3 Mullard ￥1200 NIB 1) 0D3/VR150 Hytron ￥900 NIB MB ST-type 1) 0D3/VR150 Hytron ￥900 NIB MB ST-type RaggedBox 2) 0D3/VR150/VT-139 Hytron ￥900 NIB MB ST 1) 0D3/VR150/VT-139 RCA ￥900 NOS RCA赤MB ST 1) 0D3/VR150/VT-139 RCA ￥900 NIB MB RaggedBox ST 2) 0D3 RCA ￥900 NIB ST(sQ) 1) 0D3A RCA ￥900 NIB 6) 0D3 GE ￥750 NIB 1) 0D3 Tsol ￥750 NIB 6) 0D3 CGE ￥750 NIB 1) 0D3 CGE ￥700 NIB USSR 1) JAN CHY-0D3 CBS ￥750 NOS 1) JAN CHY-0D3/VR150/VT-139 Hytron ￥750 used? 1) 0D3 Hytron ￥750 NIB RCA箱 1) 0D3 Int-C(Holland) ￥750 NIB 1) 0D3 USA ￥750 NIB 8) 0D3 AMC ￥750 NIB England 1) 0D3 RCA ￥550 used 1) 0D3/VR150 Hytron ￥500 used ST 1) 0D3/VR150 WH ￥500 used ST 2) 0D3 RCA ￥500 used ST-type EB=152V,155V 1) 0D3 RCA ￥500 used ST-type Base接着補修品
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube

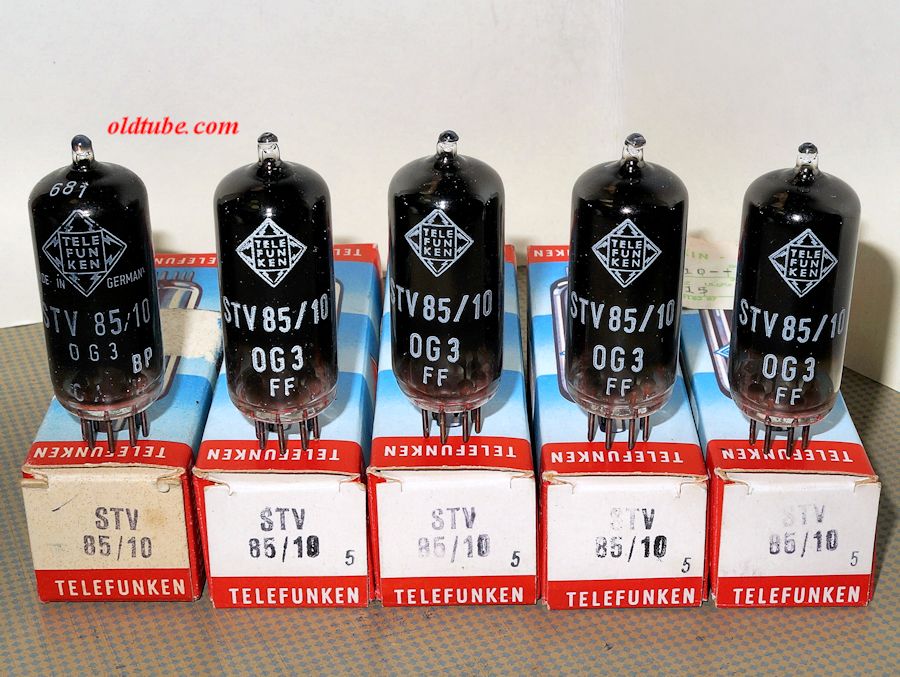

0G3/85A2-MT(=STV85-10) =85V regulator= (EIA/5BO - miniature) Eamin=125V Eop=85±2V Ia=1mA-10mA see 85V European miniature type : 85A2-MT see 75V miniature type : 0C2(=European 75C1-MT) see 108V miniature type : 0B2(=European 108C1-MT) see 150V miniature type : 0A2(=European 150C2-MT) also see an 85V miniature voltage reference : 5651/A also see an 85V 'subminiature' voltage reference : 5783 also see a 100V 'subminiature' type : 5787/WA also see a 100V noval voltage reference : WE-423A/B/C(9-pins) 1) 0G3/85A2 Mullard ￥1500 NIB 1) 85A2/0G3 Mullard ￥1500 NIB 1) 0G3/85A2 Amprx ￥1300 NIB made in Holland 6) 0G3/85A2 Amprx ￥1300 NIB 5) 0G3/85A2 Amprx ￥1300 NIB 2) 0G3/85A2 Amprx ￥1300 NIB 1) 0G3 Mullard ￥1300 NIB 2) 0G3 Tsol ￥1300 NIB
0Y4 =Halfwave Gas Rectifier= (EIA/4BU) PIV=300V Idcmax=75mA 1) 0Y4 NU ￥1600 NIB RaggedBox
0Z4/A =Fullwave Gas Rectifier= (EIA/4R - octal) PIV=880V Idcmax=90mA 4) 0Z4 RCA ￥1200 NIB SilverMetallic 4) 0Z4/A GE ￥1000 NIB SilverMetallic 3) 0Z4 Syl ￥1000 NIB SilverMetallic 1) 0Z4 Syl ￥1000 NIB SilverMetallic 1) 0Z4 Tsol ￥1000 NIB SilverMetallic 3) 0Z4 Dmnt ￥1000 NIB SilverMetallic 1) 0Z4G Ray ￥1000 used SmallGlass 1) 0Z4 Ray ￥600 used metal 1) 0Z4 Delco ￥600 used metal WH箱
1A4/P =RemoteCutoff RF Pentode= (EIA/4M(P),4K(T) - ST12) Ef/If=2VDC/0.06A Epmax=180V Ec2max=67.5V rp=0.6MΩ μ=425 gm=0.75mS 1) 1A4T SuperSilvertone ￥1500 NIB RaggedBox 3) 1A4-ST RCA ￥1000 used?LikeNew 3) 1A4-ST RCA ￥700 used 1) 1A4P-ST Ray ￥1000 NIB VeryRaggedBox +++ 50) 1A4P-ST Int-C ￥800 NIB (￥6000/10-pcs, ￥25000/50-pcs) 1) 1A4P-ST ￥1000 LikeNew 1) 1A4-ST Tsol ￥700 used engraved
1A5G/GT/DL31 =Power Pentode= (EIA/6X - T9) Ef/If=1.4V/0.05A Epmax=110V Ec2max=110V op : Ep=90V Ec2=90V Ec1=-4.5V Ip=4mA/4mA Ic2=0.8mA/1.1mA gm=0.85mS Zl=25kΩ Po=0.115W D=7% 1) 1A5 Tsol ￥600 NIB RaggedBox
1A6 =Pentagrid Converter= (EIA/6L - ST12) Ef/If=2V/0.06A Epmax=180V Ec2max=67.5V 1) 1A6 Marconi ￥1300 NIB 1) 1A6 RCA ￥1300 NIB VeryRaggedBox +++ 1) 1A6 GE ￥1300 NIB VeryRaggedBox +++ 0*) 1A6 KenRad ￥- NIB RaggedBox 1) 1A6G NU ￥1200 NOS gm=1870/470min, 218/160min WB
1A7G/GT/DK32 =Pentagrid Converter= (EIA/7Z - ST12) Ef/If=1.4VDC/0.05A Epmax=180V Ec2max=67.5V 1) 1A7GT Tsol ￥1000 NIB OilStainRaggedBox 3) 1A7GT USA ￥400 used(T)
1AB6(=DK96) =filamentary Pentagrid Converter= (EIA/7DH - miniature) Ef/If=1.4V/0.025A Rg3max=3MΩ Rg1max=100kΩ Ppmax=0.15W Epmax=90V Pc4max=0.03W Ec4max=90V Pc2max=0.1W Ec2max=60V Ikmax=2.6mA op: Ep=64V Ec4=64V Ec3=0V Ec2=35V Ic2=1.7mA gm21=0.6mS μg2g1=7.5 pins: 1(F-)-2(P)-3(G2)-4(G1)-5(G4)-6(G3)-7(F+,G5) 2) 1AB6/DK96 Matsushita ￥500 lightly-used WB
1AD2 =Half-wave HV Rectifier= (EIA/12GV - compactron) Ef/If=1.25V/0.2A PIV=26000V Ipmax=0.5mA/50mApeak 2) 1AD2 RCA ￥700 NIB 2) 1AD2A USA ￥600 NIB
1AD4/DF62/DF652/DF668 =sharp cutoff Pentode= (EIA/1AD4) *subminiature* Eh/Ih=1.25VDC/0.1A(直熱五極管) Ppmax=0.3W Epmax=100V Pc2max=0.1W Ec2max=100V Ikmax=5.5mA op : Ep=45V Ec2-45V Ec1=0V Ip=3mA Ic2=0.9mA rp=500kΩ gm=2mS Ec-cutoff=-3.5V(@gm=10μmho) pins : 1(P)-2(G2)-3(F-/shield)-4(G1)-5(F+,G3) * SHIELD : Bulb is entirely coated with a metallic shield connected to lead #3(F-). (参考 : Ep-Ip特性(@Ec2=45V)) (参考 : Ep-Ip特性(三結)(Triode Connection)) 2) 1AD4 TFK(Telefunken) ￥1700 NIB OldestBox 4) 1AD4/CV2237 Mullard ￥1700 NIB 0) 1AD4 Tsol ￥- NIB 8) 1AD4 Ray ￥1400 NIB MB(hyycnx) 1) JAN 1AD4 Admiral ￥1400 NIP sealed D/C=0/52, just-ragged pack
1AG4 =Power Pentode= (EIA/512AX) *subminiature* Ef/If=1.25V/0.04A Ppmax=-W Epmax=90V Ec2max=90V ex) Ep=41.4V Ec2=41.4V Ec1=-3.6V Ip=2.4mA Ic2=0.6mA rp=180kΩ gm=1mS Zl=12kΩ Po=35mW 1) 1AG4 Ray ￥1100 NIB SubMiniature(Q)
1AG5 =Diode Pentode= (EIA/1AG5) *subminiature* Ef/If=1.25V/0.03A Ppmax=-W Epmax=50V Ec2max=50V ex) Ep=45V Ec2=45V Ec1=-2V Ip=0.28mA Ic2=0.12mA rp=2.5MΩ gm=0.25mS 1) 1AG5 Ray ￥1100 NIB (Q)
1AH4 =filamentary RF Pentode= (EIA/1AD4) *subminiature* Ef/If=1.25V/0.04A(直熱五極管) Ppmax=-W Epmax=90V Ec2max=90V Ikmax=2mA op : Ep=45V Ec2=45V Rg1=5MΩ(for Grid bias) Ip=0.75mA Ic2=0.2mA rp=1.5MΩ gm=0.75mS op : Ep=67.5V Ec2supply=67.5V thru 100kΩ Rg1=5MΩ(Grid bias) Ip=0.75mA Ic2=0.2mA rp=2MΩ gm=0.75mS pins : 1(P)-2(G2)-3(F-,G3/shield)-4(G1)-5(F+) (- "red dot" designates #1 pin) * SHIELD : Bulb is entirely coated with a metallic shield connected to lead #3(F-). also see similar subminiature direct-heat pentode : 5678 50) 1AH4 Ray ￥1100 NIB
1AH5(=DAF96) =filamentary Diode, AF Pentode= (EIA/7DJ - miniature) Ef/If=1.4V/0.025A *pentode Ppmax=0.03W Epmax=90V Ec2max=0.01W Ec2max=90V Ikmax=0.25mA Rg1max=10MΩ op: Ep_supply=64V Rg2=3.3MΩ Rg1=10MΩ Rload=2MΩ Ip=32μA Ic2= 9μA μ=52 Dtot=2.5%(@Eo=5V) op: Ep_supply=85V Rg2=3.3MΩ Rg1=10MΩ Rload=2MΩ Ip=50μA Ic2=15μA μ=62 Dtot=1.2%(@Eo=5V) *diode PIV=100V Ipmax=0.2mA/1.2mApeak pins: 1(G3,F-)-2(NC)-3(Pd)-4(G2)-5(P)-6(G1)-7(F+) 2) 1AH5/DAF96 Matsushita ￥500 lightly-used WB
1AJ4(=DF96) =filamentary RF Pentode= (EIA/7DP - miniature) Ef/If=1.4V/0.025A Ppmax=0.25W Epmax=90V Pc2max=0.1W Ec2max=90V Ikmax=2.2mA Rg1max=3MΩ op: Ep=64V Rg2=0Ω Ec2=64V Ec1=0V Ip=1.65mA Ic2=0.55mA rp=1.0MΩ gm=0.75mS op: Ep=85V Rg2=39kΩ Ec2=64V Ec1=0V Ip=1.65mA Ic2=0.55mA rp=0.7MΩ gm=0.75mS pins: 1(G3,F-,IS)-2(P)-3(G2)-4(NC)-5(G3,F-,IS)-6(G1)-7(F+) 4) 1AJ4/DF96 Matsushita ￥500 lightly-used WB
1AX2 =Half wave HV Rectifier= (EIA/9Y - octal) Ef/If=1.4V/0.65A PIV=25000V Ipmax=0.5mA/45mApeak 1) 1AX2 Syl ￥600 NIB 1) 1AX2 CBS ￥600 NIB 1) 1AX2 STD ￥600 NIB
1B3/GT =Half wave HV Rectifier= (EIA/3C - octal) Ef/If=1.25V/0.2A PIV=30000V Ipmax=2mA/17mApeak Fmax=300kHz 15) 1B3GT USA ￥600 NIB 6) 1B3GT/1G3GT USA ￥400 used 1) 1B3GT RCA ￥1000 NIB ragged-box 1) 1B3GT Matsushita ￥1000 NIB
1B4/1B4P =filamentary RF Pentode= (EIA/4M - Top-G1, ST12) Ef/If=2V/0.06A Epmax=180V Ec2max=67.5V Ikmax=6mA op : Ep=90V Ec2=67.5V Ec1=-3V Ip=1.6mA Ic2=0.7mA μ=550 gm=600μmho pins: 1(F+)-2(P)-3(G2)-4(G3,F-)-Top(G1) electrically similar to 1E5/GP, 32/232 0) 1B4 RCA ￥offer NIB 1) 1B4 RCA ￥offer NIB VeryRaggedBox +++ 1) 1B4 Philco ￥offer NIB VeryRaggedBox +++

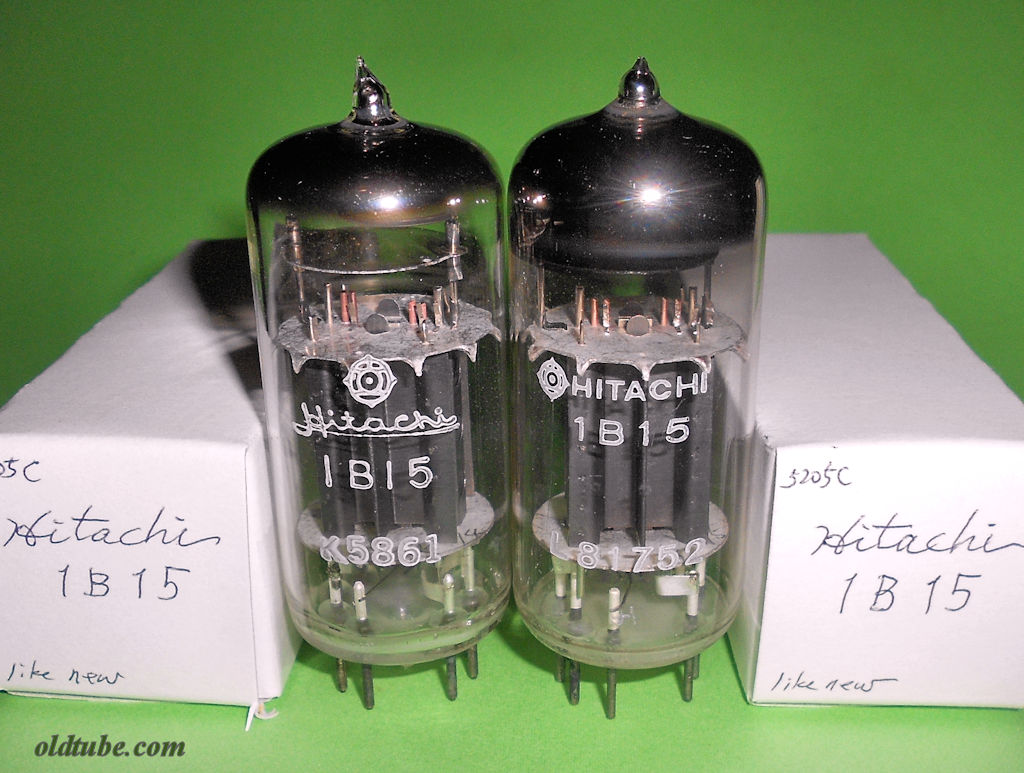

1B15=common-K common-G2 UHF Twin Beam power Pentode= (EIA/- MAGNOVAL)
Eh/Ih=12.6V/0.425A(6.3V/0.85A) Fmax=500MHz Ppmax=W Epmax=V Pc2max=W Ec2max=V Ipmax=mA Ehkmax=±V op: Ep=300V Ec2=200V Ec1=-14V Ip=2x25mA Ic2=1.5mA μg2g1=9.2-typ op: Ep=250V Ic1=4.5mAdc Rc1=16kΩ Ipmax=120mAdc f=460MHz Pout=11W size: 30mmΦ x 81mm, approx. pins: 1(1G1)-2(K,G3)-3(2G1)-4(H)-5(H)-6(1P)-7(G2)-8(2P)-9(HCT) lower-rating noval 500MHz twin power tetrode : 6939, QQE02/5, 7699 8) 1B15 NEC ￥offer NOS Dome-Top, plastic-bag sealed, WB 7) 1B15 NEC ￥offer NOS Dome-Top, WB 0) 1B15 NEC ￥- NIB Dome-Top type(Bottom-exhaustion), very-ragged boxes (hyyvix) 10) 1B15 Hitachi ￥offer NIB Tip-Top (hyyarss) 2) 1B15 Hitachi ￥offer NIB Tip-Top 0) 1B15 NEC ￥- used-lightly 2) 1B15 Hitachi ￥offer like-new Tip-Top, WB 0) 1B15 Hitachi ￥- used
1BC2/A =Half wave HV Rectifier= (EIA/9RG) Ef/If=1.25V/0.2A PIV=18000V Ipmax=0.5mA/45mApeak 1) 1BC2A GE ￥600 NIB 1) 1BC2A GE ￥400 used
1BC4/A 1) 1BC4A USA ￥600 NIB
1C5G/GT/DL35 =Power Pentode= (EIA/6X - T9) Ef/If=1.4V/0.10A Epmax=110V Ec2max=110V op : Ep=90V Ec2=90V Ec1=-7.5V Ip=7.5mA/7.8mA Ic2=1.6mA/3.5mA gm=1.55mS Zl=8kΩ Po=0.24W D=10% 0) 1C5 Znth ￥600 used
1C6 =Pentagrid Converter= (EIA/6L - ST12) Ef/If=2V/0.12A Epmax=180V Ec2max=67.5V 1) 1C6 RCA ￥1300 NIB VeryRaggedBox +++ 1) 1C6 Ray ￥1300 NIB VeryRaggedBox +++ 1) 1C6 Tsol ￥1300 NIB 0*) 1C6 NU ￥- NIB ragged box 1) 1C6 Krad ￥1200 NOS gm=1800/630min, 430/190min WB
1C7G =Pentagrid Converter= (EIA/7Z - ST12) Ef/If=2V/0.12A Ppmax=0.3W Epmax=180V Pc2max=0.2W Ec2max=67.5V Ikmax=9mA electrically identical to 1C6 1) 1C7G RCA ￥offer NIB VeryRaggedBox +++
1C21 =Gas Triode(cold cathode glow-discharge type)= (EIA/4V - octal T9bulb) Ep-break-down=180V Ec-break-down=66-80V Epdrop=73X Ecdrop=55V Ikmax=25mAdc 2) 1C21 RCA ￥offer used
1D5GP/GT =RemoteCutoff RF Pentode= (EIA/5Y - ST12) Ef/If=2VDC/0.06A Epmax=180V Ec2max=67.5V rp=0.6MΩ gm=0.65mS 1) 1D5GP RCA ￥1300 NIB VeryRaggedBox +++ 0) 1D5GP Syl ￥- NIB MB 1) 1D5GP Syl ￥1100 NIB
1D7G =Pentaagrid Converter= (EIA/7Z - ST12) Ef/If=2VDC/0.06A Epmax=180V Ec2max=67.5V Ikmax=9mA electrically identical to 1A6 1) 1D7G RCA ￥offer NIB VeryRaggedBox +++ 1) 1D7G Syl ￥offer NIB VeryRaggedBox +++ 1) 1D7G Ray ￥offer NIB VeryRaggedBox +++
1D8GT =Diode Triode Power-Pentode= (EIA/8AJ - T9) Ef/If=1.4VDC/0.1A Triode: Epmax=110V μ=25 rp=43.5kΩ gm=0.575mS Pentode: Epmax=110V Ec2max=110V Ikmax=6mA op (P) : Ep=Ec2=90V Ec1=-9V Ip=5mA Ic2=1mA Zl=12kΩ Po=0.20W D=10% 8) 1D8GT RCA ￥1200 NIB MB WB(Nn)
1D21/SN4 =cold-cathode gas-filled strobe tube=(EIA/ - T9 bulb) Eamax=300V PIV=50V Ikmax=50mAav/5Apeak Egrid_firing=80-125V Igmax=15mAav Fpulse-max=240pps 1) 1D21/SN4 Syl ￥3300 NIB Strobotron(Strobe Tube)
1E1 =Current Regulator/ Power Triode= (EIA/4A - ) Ef/If=0.7V/0.48A Epmax=425V op 1: Ep=250V Ec=-22V μ=8 rp=6kΩ gm=1.33mS Ip=10mA Zl=13kΩ Po=0.4W op 2: Ep=350V Ec=-31V μ=8 rp=5.15kΩ gm=1.55mS Ip=16mA Zl=11kΩ Po=0.9W 1) 1E1 SuperSilvertone ￥3300 NIB RaggedBox rare
1E2 =current Regulator= (EIA/4U) Ef/If=0.9V/0.66A 0) 1E2 Philco ￥- used
1E4G =filamentary med-mu Triode= (EIA/5S -octal-ST12 Top-G) Ef/If=1.4V/0.05A op : Ep=90V Eg1=0V Ip=4.5mA μ=14.5 rp=11kΩ gm=1.325mS pins: 1(S)-2(F)-3(P)-4(NC)-5(G)-6(NC)-7(F)-8(NC) 0) 1E4G Syl ￥- used
1E5/1E5GP =filamentary RF Pentode= (EIA/5Y -octal-ST12 ) Ef/If=2V/0.06A Epmax=180V Ec2max=67.5V Ikmax=6mA pins: 1(NC)-2(F+)-3(P)-4(G2)-5(NC)-6(NONE)-7(G3, F-)-8(NC)-Top(G1) electrically similar to 1B4/P, 32/232 1) 1E5G Philco ￥1700 NIB RaggedBox 1) 1E5G RCA ￥1700 NIB RaggedBox +++
1E7G/GT =filamentary Twin Power Pentode(common G2, G3, F)= (EIA/8C -octal-ST12 ) Ef/If=2V/0.24A Rg1max=500kΩ(fixed)/1MΩ(self) Ppmax=1.5Wx2 Epmax=135V Pc2inmax=0.5W Ec2max=135V op(A1 single for 1-unit): op : Ep= 90V Ec2= 90V Ec1=-3.0V Ip= 3.8mA Ic2=1.1mA Zl=20kΩ D=5.5% Po=0.110W op : Ep=135V Ec2=135V Ec1=-4.5V Ip= 7.5mA Ic2=2.2mA Zl=16kΩ D=4.5% Po=0.290W op : Ep=135V Ec2=135V Ec1=-7.5V Ip=10.5mA Ic2=3.5mA Zl=24kΩ D=5.5% Po=0.575W pins: 1(NC)-2(F)-3(2P)-4(2G1)-5(1G1)-6(1P)-7(F,G3)-8(G2) 1) 1E7G RCA ￥1700 NIB RaggedBox +++ 1) 1E7G Tsol ￥1700 NIB sealed VeryRaggedBox 0) 1E7G Syl ￥- NIB RaggedBox
1E8 =filamentary Pentagrid Converter= (EIA/8CN) *subminiature* Ef/If=1.25V/0.04A op : Ep=45V Ec2=45V Ec1=0V Ip=0.6mA Ic2=1.1mA rp=400kΩ gm=150μmho 0) 1E8 Syl ￥- NIB VeryRaggedBox
1F1 =current Regulator= (EIA/4A) Ef/If=0.7V/0.72A 0) 1F1 Syl ￥- used
1F4 =filamentary PowerPentode for Battery Receivers= (EIA/5K) Ef/If=2VDC/0.12A Ppmax=1.75W Epmax=180V Pc2max=0.75W Ec2max=180V gm=1.7mS rp=200kΩ μ=340 ex) Ep=Ec2=135V Ec1=-4.5V Ip=8mA Ic2=2.4mA Zl=16kΩ Po=0.31W 2) 1F4 RCA ￥1500 NIB LargeBox VeryRaggedBox +++ 1) 1F4 Ray ￥1300 NIB LargeBox VeryRaggedBox +++ 8) 1F4 InterC ￥1000 NIB mint ST 1) 1F4 Auburn ￥1000 NOS VeryRaggedBox +++
1F5/KL35 =filamentary PowerPentode for Battery Receivers= (EIA/6X) Ef/If=2VDC/0.12A Ppmax=1.75W Epmax=180V Pc2max=0.75W Ec2max=180V gm=1.7mS rp=200kΩ μ=340 ex) Ep=Ec2=135V Ec1=-4.5V Ip=8mA Ic2=2.4mA Zl=16kΩ Po=0.31W 0) 1F5G GE ￥- NIB mint ST
1F6 =filamentary duplex Diode sharp-cutoff Pentode for Battery Receivers= (EIA/6W - ST12C) Ppmax=-W Epmax=180V Pc2=0.95W Ec2max=67.5V Ef/If=2VDC/0.06A gm=0.65mS rp=1MΩ ex) Ep=180V Ec2=67.5V Ec1=-1.5V Ip=2.2mA Ic2=0.7mA gm=0.65mS 25) 1F6 InterC ￥800 NIB mint ST small-punch USA-made
1F7G =filamentary duplex Diode sharp-cutoff Pentode for Battery Receivers= (EIA/7AD - ST12C) Ef/If=2VDC/0.06A Ppmax=-W Epmax=180V Pc2=0.95W Ec2max=67.5V gm=0.65mS rp=1MΩ ex) Ep=180V Ec2=67.5V Ec1=-1.5V Ip=2.2mA Ic2=0.7mA gm=0.65mS 1) 1F7G RCA ￥2000 NIB RaggedBox 1) 1F7GV RCA ￥2000 NIB RaggedBox +++ 2) 1F7GV Silvertone ￥1500 NIB RaggedBox +++ 1) 1F7G Philco ￥1500 NIB RaggedBox
1G3GT/1B3GT =half-wave HV Rectifier= (EIA/3C-octal) PIV=26kV Ipmax=0.5mAav/50mApeak Eh/Ih=1.25V/0.2A 12) 1G3GT/1B3GT RCA ￥700 NIB 2) 1G3GT/1B3GT GE ￥400 used? Tsol箱 1) 1G3GTA/1B3GT GE ￥600 NIB 2) 1G3GTA/1B3GT Syl ￥600 NIB 1) 1G3GT/1B3GT Syl ￥600 NIB MIL-WB 1) 1G3GT/1B3GT Syl ￥600 NIB 2) JAN 1B3GT Syl ￥700 NIB MIL-WB 5) 1G3GT/1B3GT USA ￥600 NIB 1) 1G3GT/1B3GT RCA ￥400 used? Dmnt箱 2) 1G3GT/1B3GT Philco,Znth ￥400 used? 4) 1G3GT/GTA USA ￥400 used
1G5G =Power Pentode= (EIA/6X - ST14) Ef/If=2V/0.12A(direct heat) Ppmax=1.25W Epmax=135V Pc2max=0.6W Ec2max=135V op : Ep=135V Ec2=135V Ec1=-13.5V Ip=8.7mA Ic2=2.5mA rp=160kΩ gm=1.55mS op : Ep=135V Ec2=135V Ec1=-13.5V Ip=8.7mA/9.7mA Ic2=2.5mA/3.6mA Zl=9kΩ Po=0.55W D=11% 0) 1G5G RCA ￥- NIB 1) 1G5G RCA ￥1700 NIB VeryRaggedBox +++
1G6G/GT =Class B Twin mini-Power Triode= (EIA/7AB - T9)Ef/If=1.4V/0.10A(direct heat) Epmax=110V Ip-peak=20mA op : Ep=90V Ec1=0V Ipo=2mA Ipmax=14mA Ic-peak=5mA μ=30 gm=0.675mS Zl=12kΩ Po=0.675W D=3% 1) 1G6G Ray ￥600 NIB ragged box

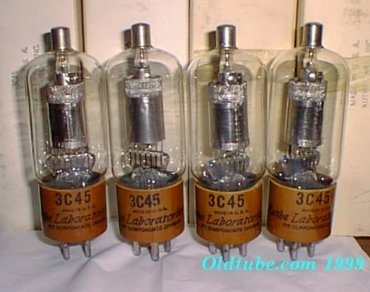

1G45P = 3C45
1H4G =Triode= (EIA/G5Z - octal, ST12) Ef/If=2V/0.06A(direct heat) Epmax=180V Rgmax=2MΩ op : Ep=90V Ec=-4.5V Ip=2.5mA μ=9.3 rp=11.0kΩ gm=0.85mS op : Ep=135V Ec=-9.0V Ip=3.0mA μ=9.3 rp=10.3kΩ gm=0.90mS op : Ep=180V Ec=-13.5V Ip=3.1mA μ=9.3 rp=10.3kΩ gm=0.90mS op(B2pp) : Ep=157.5V Ec=-15.0V Ipo=2x1.0mA Zlpp=8kΩ Pin=0.26W Pout=2.1W pins : 1(NC)-2(F)-3(P)-4(NC)-5(G)-6(NONE)-7(F)-8(NC) (参考 : Ep-Ip特性) 1H4G(octal-base) is electrically identical to 30-ST/330-globe/VT-27(UX4pin-base) also see VT-67(30-special)(UX4pin-base) 1) 1H4G Hytron ￥1600 NIB sealed VeryRaggedBox 1) 1H4G RCA ￥1200 LikeNew lot=S4 WB
1H5GT/DAC32/HD14 =Diode high-mu Triode= (EIA/5Z - T9, top-G) Ef/If=1.4V/0.05A(direct heat) Triode: Epmax=110V op : Ep=90V Ec=0V Ip=0.15mA rp=240kΩ gm=0.275mS μ=65 different base : 1LH4(loktal) 0) 1H5GT CBS ￥600 NIB GT(D) 1) 1H5GT Rogers ￥600 NIB GT 3) 1H5GT USA ￥400 used(Q)
1H6/G =Duplex-Diode med-mu Triode= (EIA/7AA - ST12) Ef/If= 2VDC/0.06A(direct heat) Triode: Epmax=135V op : Ep=135V Ec=-3V Ip=0.8mA μ=20 rp=35kΩ gm=0.575mS (参考 : Ep-Ip特性(Triode section)) 2) 1H6G Coronado ￥1200 NIB VeryRaggedBoxes 0*) 1H6 SuperSilvertone ￥400 used gm=440/360 Da.D2=weak
1HTF10 ~Current-regulating ballast tube= (参考資料 : Amperite Ballast Reference) 1) 1HTF10 Amperite ￥1200 NIB Ballast
1J3 =Half-wave HV Rectifier= (EIA/3C - octal) Ef/If=1.25VDC/0.2A PIV=PIV=26000V Ipmax=0.5mA/50mApeak 1) 1J3 RCA ￥900 NIB
1J5G =Power Pentode= (EIA/G-6X - octal) Ef/If=2V/0.12A-DC(直熱五極管) Ppmax=-W Epmax=135V Ec2max=135V op : Ep=135V Ec2=135V Ec1=-16.5V Ip=7mA Ic2=2mA rp=105kΩ gm=0.95mS Zl=135kΩ Po=0.45W 1) 1J5G Cnghm ￥1600 NIB VeryRaggedBox +++
1J6G/GT =Twin-Triode Power= (EIA/7AB - ST12(G),T9(GT)) 1G6G/GTのハイパワ版(同一ピン配列） Ef/If=2VDC/0.24A(direct heat) Epmax=135V Ip-peak=50mA op B2pp : Ep=135V Ec=-6V Ipo=0.2mA Ipmax=24mA Zlpp=10kΩ Pin=110mW Po=1.6W D=3% op AB2pp: Ep=135V Ec=0.0V Ipo=10mA Ipmax=30mA Zlpp=10kΩ Pin=170mW Po=2.2W D=10% 1) 1J6G RCA ￥1500 NIB VeryRaggedBox +++ 1) 1J6G Ray ￥1200 NIB VeryRaggedBox +++ 1) 1J6G Tsol ￥1200 NIB 2) 1J6G Syl ￥600 used 1) 1J6GT Syl ￥1100 NIB
1K3/A/1J3 =half-wave HV Rectifier= (EIA/3C - octal) Ef/If=1.25V/0.2A PIV=26000V Ipmax=0.5mA/50mApeak 3) 1K3/1K3A/1J3 RCA ￥700 NIB 1) 1K3/1J3 Ray ￥600 NIB 1) 1K3/1J3 Philco ￥600 NIB 1) 1K3/1J3 Dmnt ￥400 used
1L4/DF92 =sharp-cutoff RF Pentode= (EIA/6AR - miniature) Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V Ec2max=90V Ec1max=0V Ikmax=6.5mA op : Ep=90V Ec2=90V Ec1=0V rp=0.35MΩ gm=1.025mS Ip=4.5mA Ic2=2mA 0) 1L4/DF92 USA ￥- NIB(Q) 1) JAN-CHS 1L4 Syl ￥600 NIB

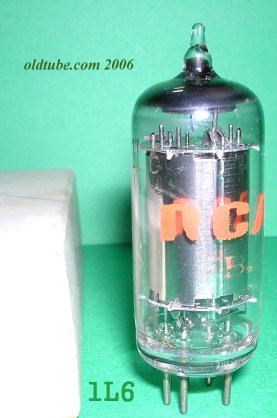

1L6 =Pentagrid Converter= (EIA/7DC - miniature) Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V Ec2max=90V Ec3,5max=65V Ikmax=6.5mA op : Ep=90V Ec2=90V Ec3,5=45V Ec4=0V gm=0.55mS 1) 1L6 Philco ￥6300 NIB 1) 1L6 RCA ￥6300 LikeNew WB
1LA4 =Pentode= (EIA/5AD - Loktal) Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V Ec2max=110V rp=300kΩ gm=0.85mS 0) 1LA4 Syl ￥- NIB
1LA6 =Pentagrid Converter= (EIA/7AK - Loktal) 1.4VDC/0.05A Ef/If=1.4VDC/0.05A(direct heat) Epmax=90V Ec2max=90V Ec3,5max=55V Ikmax=3mA Ep=90V Ec2=45V G3,5=45V Ec4=0V rp=0.75MΩ gm=0.25mS 1) 1LA6 Syl ￥1200 NIB RaggedBox 2) 1LA6 Syl ￥1200 NIB
1LB4 =Pentode= (EIA/5AD - Loktal) Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V Ec2max=110V rp=250kΩ gm=0.9mS 0) 1LB4 RCA ￥- used
1LB6 =Pentagrid Mixer= (EIA/8AX - Loktal) Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V Ec2max=65V rp=2MΩ gm=0.1mS -) 1LB6 - ￥-
1LC5 =sharp-cutoff RF Pentode= (EIA/7AO - Loktal) Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V Ec2max=45V rp=1MΩ gm=0.775mS 0) 1LC5 GE ￥- used
1LC6 =Pentagrid Converter= (EIA/7DC - Loktal) 1.4VDC/0.05A Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V Ec2max=50V Ec3,5max=45V Ikmax=3mA Ep=90V Ec2=45V Eg3,5=35V Ec4=0V rp=0.65MΩ gm=0.275mS 1) 1LC6 GE ￥1200 NIB RaggedBox 2) 1LC6 USA ￥700 used WB
1LC8/VT-178 == (EIA/) VDC/A 1) 1LC8/VT-178 Syl ￥600 NIB MB
1LD5 =Diode shrp-cutoff Pentode= (EIA/6AX - Loktal) Ef/If=1.4VDC/0.05A(direct heat) Pentode : Epmax=90V Ec2max=45V rp=750kΩ gm=0.575mS 0) 1LD5 GE ￥- used
1LE3 =med-mu Triode= (EIA/4AA - Loktal) Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V op : Ep=90V Ec=0V Ip=4.5mA μ=14.5 rp=11.2kΩ gm=1.3mS op : Ep=90V Ec=-3V Ip=1.4mA μ=14.5 rp=19.0kΩ gm=0.76mS (参考 : Ep-Ip特性) 1) VT-239(1LE3) Sylvania ￥1100 NIB/MB very-ragged box 2) 1LE3 Sylvania ￥1100 NIB very-ragged box 1) 1LE3 Sylvania ￥1000 NOS almost-smeared-away silk, WB 0) 1LE3 GE ￥- used 0) 1LE3/VT-239 ?(Sylvania) ￥- used
1LF3 =med-mu Triode= (EIA/4AA - Loktal) Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V μ=14.5 rp=11.2kΩ gm=1.3mS 1LF3 is electrically equivallent to 1LE3, bur especially intended for applications critical for grid current. * Maximum grid current at Ec=-3V is 0.1μA -) 1LF3 Sylvania ￥-
1LG5 =semi-remote-cutoff RF Pentode= (EIA/7AO - Loktal) Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V Ec2max=110V rp=1MΩ gm=0.8mS -) 1LG5 GE ￥-
1LH4 =Diode high-mu-Triode= (EIA/5AG - Loktal) Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V Idiode=0.5mAmax triode : op : Ep=90V Ec=0V Ip=0.15mA rp=240kΩ gm=0.275mS μ=65 different base : 1H5GT/G(octal, top-G) 1) 1LH4 GE ￥1000 NIB 0) 1LH4 NU ￥- NIB 1) 1LH4 RCA ￥600 used 2) 1LH4 USA ￥600 used WB
1LH6 == (EIA/) VDC/A 1) 1LH6 Syl ￥1200 NIB MB
1LN5 =sharp-cutoff RF Pentode= (EIA/7AO - Loktal) Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V Ec2max=110V op : Ep=90V Ec2=90V Ec1=0V rp=1.1MΩ gm=0.8mS Ip=1.6mA Ic2=0.35mA 1) 1LN5 Syl ￥1000 NIB MB ロクタル 1) 1LN5 Syl ￥700 used Hytron箱 2) 1LN5/VT-179 Syl ￥700 used WB 5) 1LN5 Syl ￥700 used WB
1N2 =Half-wave HV Rectifier= (EIA/3C - octal) Ef/If=1.25V/0.2A PIV=28000V Ipmax=0.5mA/50mApeak 1) 1N2 SYL ￥1200 NIB OverSizedOldLargeBox 1) 1N2 SYL ￥900 NIB OverSizedOldLargeBox NonTopFlap
1N5GT/G/DF33 =sharp-cutoff RF Pentode= (EIA/5Y - octal TopGrid) Ef/If=1.4VDC/0.05A(direct heat) Epmax=110V Ec2max=110V op : Ep=90V Ec2=90V Ec1=0V rp=1.5MΩ gm=0.75mS Ip=1.2mA Ic2=0.3mA see a European type : DF33 0) 1N5GT NU,USA ￥700 NIB MB(D) 0) 1N5GT USA ￥400 used(D)
1N1200 4) 1N1200 USA ￥1000 NOS (Power Diode) Military-PlasticCapsule
1P21 =Multiplier Phototube= (EIA/11K) Eanode-supply-max=1250V Ianode-av-max=0.1mA Sensitivity=11000μA/μW(@0.4μm wavelength) 1) 1P21 RCA ￥1000 used
1P22 =Multiplier Phototube= (EIA/11K) Eanode-supply-max=1250V Ianode-av-max=1mA Sensitivity=55μA/μW(@0.42μm wavelength) 0) 1P22 RCA ￥- used
1P28 =Multiplier Phototube= (EIA/11K) Eanode-supply-max=1250V Ianode-av-max=0.5mA Sensitivity=22600μA/μW(@0.34μm wavelength) 1) 1P28 RCA ￥1800 NIB
1P39 =High-vacuum Phototube= 1) 1P39 CGE ￥1200 NIB 1) 1P39 RCA ￥800 used
1P40 =Gas Phototube= 5) 1P40 RCA ￥1000 NIB w/sleeve 2) 1P40 RCA ￥1000 NIB 1) 1P40 GE ￥850 NIB 1) 1P40 Syl ￥850 NIB 1) 1P40 RCA ￥500 used
1P41 =Gas Phototube= (EIA/2F2) Eanode-supply-max=90V Ikmax-av=1.5uA Sensitivity=0.009μA/μW 1) 1P41 RCA ￥900 NIB VeryRaggedBox
1Q5/DL36 =Beam Power= (EIA/6AF - octal T9) Ef/If=1.4VDC/0.1A(direct heat) Epmax=110V Ec2max=110V Ik=12mA op : Ep=90V Ec2=90V Ec1=-4.5V Ipo=9.5mA Ic2o=1.3mA rp=75kΩ gm=2.2mS Zl=8kΩ D=6% Po=0.27W 1) 1Q5GT Hytron ￥700 NIB 1) 1Q5GT Emerson ￥700 used? 1) 1Q5GT/G Ray ￥700 NIB 濃紺OB
1R4 (see 1294/VT-183) =HF Diode= (EIA/4AH - loktal) Eh/Ih=1.4VDC/0.15A Esupply_max=117Vrms Iomax=1mAdc Edrop=8V(@Io=2mAdc) 1) JAN-CNU 1R4/1294/VT-183 NU ￥1000 NIB MB 4) JAN-CHS 1R4/1294/VT-183 Syl ￥1000 NIB MB 1) 1R4/1294 WH ￥900 NIB justRusty 2) 1R4/1294 Sylvania ￥600 used WB
1R5/DK91 =Pentagrid Converter= (EIA/7AT - miniature) Ef/If=1.4VDC/0.05A(direct heat) Epmax=90V Ec2max=67.5V Ec3max=+0V Ikmax=5.5mA op : Ep=90V Ec2=67.5V Ec3=0V Ec1=25V Rg1=100kΩ Ip=1.5mA Ic2=3.5mA Ic1=0.25mA Ik=5.3mA rp=400kΩ gm=0.28mS 4) 1R5 Siemens ￥900 NIB(Qn) 1) JAN-JRC 1R5 RCA ￥900 NIB(D) 1) JAN-CHS 1R5/VT-171 Syl ￥900 NIB date=1945(D) 0) JAN-JTL 1R5 Tsol ￥- NIB(D) 1) JTL 1R5 Tsol ￥900 LikeNew 1) 1R5 Sheldon ￥900 NIB 0) 1R5 USA ￥- NIB(hybyy) 1) 1R5 Matsuda(=Toshiba) ￥900 NIB very-ragged-box 1) 1R5-SF Matsuda(=Toshiba) ￥900 NIB very-ragged-box 1) 1R5-SF Matsuda(=Toshiba) ￥900 NIB very-ragged-box 2) 1R5 Hitachi ￥900 NIB very-ragged-boxes 1) 1R5 TEN ￥800 NIB very-ragged-box 0) 1R5 USA ￥- used 1) 1R5 USA ￥400 used 1) 1R5 TEN ￥500 lightly-used WB
1S2/A=DY86 =HV Rectifier= (EIA/9DT - noval) Eh/Ih=1.4V/0.55A PIV=22000V Ipmax=0.8mA/40mApeak 1) 1S2 Mazda ￥1000 NIB 2) 1S2 SuperRadiotron(AWV) ￥1000 NIB 1) 1S2A 松下 ￥1000 NIB 1) 1S2 Matsushita ￥500 UsedLikeNew
1S4/DL91 =Power Pentode= (EIA/7AV - miniature) Ef/If=1.4VDC/0.1A (direct heat) Epmax=90V Ec2max=67.5V Ikmax=9mA(0-sig)/11mA(max-sig) op : Ep=90V Ec2=67.5V Ec1=-7V Ip=7.4mA Ic2=1.4mA rp=100kΩ gm=1.575mS Zl=8kΩ D=12% Po=0.27W 1) 1S4 RCA ￥1000 NIB 1) 1S4 GE ￥1000 NIB 1) 1S4 Rogers(Canada) ￥800 NIB(T) 1) 1S4 NU ￥800 NIB RaggedBox
1S5/DAC21/DAF91/DF26 =Diode sharp-cutoff-Pentode= (EIA/6AU - miniature) Ef/If=1.4VDC/0.05A(direct heat) Idiode=0.25mAmax Epmax=90V Ec2max=90V Ikmax=3mA Ec1max=+0V/-50V op : Ep=67.5V Ec2=67.5V Ec1=0V Ip=1.6mA Ic2=0.4mA rp=600kΩ gm=0.625mS 5) 1S5 RCA ￥1000 NIB(Sx) 6) JAN-JRC 1S5/VT-172 RCA ￥1000 NIB date=12-1944 1) JAN-JG 1S5 GE ￥800 NIB date=12-1944 1) VT-172(1S5) - ￥800 NIB MB date=5/53 10) JAN-JHS 1S5 Syl ￥800 NIB date=9-59 0) 1S5/VT-172 KenRad,Tsol ￥- NIB(D) 2) 1S5T Tungsram ￥700 NIB(Qn) 0) 1S5 Emerson ￥- used
1SA6/1SA6GT =RF Pentode= (EIA/6BD - octal) Ef/If=1.4VDC/0.05A(direct heat) Epmax=90V Ec2max=67.5V op : Ep=90V Ec2=67.5V Ec1=0V Ec3=0V rp=0.8MΩ gm=0.97mS Ip=2.45mA Ic2=0.68mA O) 1SA6GT Tung-Sol ￥1000 NIB raggedBox metalBeltBase O) 1SA6GT Tung-Sol ￥1000 NIB raggedBox metalbeltBaseRepaired
1SB6/GT =diode Pentode= (EIA/6BE - octal) Ef/If=1.4VDC/0.05A(direct heat) Epmax=90V Ec2max=67.5V op : Ep=90V Ec2=67.5V Ec1=0V Ip=1.45mA Ic2=0.38mA p=0.7MΩ gm=0.665mS 1) 1SB6GT Tsol ￥900 NIB
1T4/DF91 =remote-cutoff-Pentode= (EIA/6AR - miniature) Ef/If=1.4V/0.05A(direct heat) Epmax=90V Ec2max=90V Ec1max=0V Ikmax=5.5mA op : Ep=90V Ec2=67.5V Ec1=0V Ip=3.5mA Ic2=1.4mA rp=500kΩ gm=0.9mS (参考 : Ep-Ip特性)(pentode @Ec2=67.5V, and triode-connection) also see a similar Japanese subminiature tube w/miniature-base : 15M 1) 1T4 PhilpsMiniwatt ￥700 NIB SmallOriginalBox 1) JAN-JRC 1T4 RCA ￥700 NIB RaggedBox 0) 1T4 Tsol ￥- NIB 1) JAN-CTL 1T4/VT-173 Tsol ￥600 NIB MB 4/53 25) 1T4 RadioTechnique(Philips) ￥600 NIB (hy2dnt) 0) 1T4 Marconi ￥600 NIB (D) 1) 1T4 USA ￥600 NIB 0) 1T4 Philco ￥- NIB 0) 1T4 RCA ￥- used 3) 1T4 USA ￥400 used
1U4/DF904 =sharp-cutoff RF Pentode= (EIA/6AR - miniature) Ef/If=1.4V/0.05A(direct heat) Epmax=110V Ec2max=110V Ec1max=0V Ikmax=6mA op : Ep=90V Ec2=67.5V Ec1=0V Ip=1.6mA Ic2=0.5mA rp=1MΩ gm=0.9mS 12) 1U4 Tsol ￥800 NIB MB(hy14bt) 1) JAN 1U4 Tsol ￥800 NIB MB 4) 1U4 USA ￥700 NIB 1) 1U4 Sheldon ￥700 NIB 1) 1U4 GE ￥600 NOS ? 1080/570min 1) CHS 1U4 Syl ￥500 used? 990/570min 1) JTL 1U4 Tsol ￥600 NOS ? 1075/570min 1) JTL 1U4 Ray ￥500 used? 1030/570min 1) 1U4 Tsol ￥400 used 2) 1U4 USA ￥400 used
1U5/DAF92 =Diode sharp-cutoff RF Pentode=(EIA/6BW - miniature) Ef/If=1.4V/0.05A(direct heat) Idiode=0.25mAmax Epmax=90V Ec2max=90V Ec1max=+0V/-50V Ikmax=3mA op : Ep=67.5V Ec2=67.5V Ec1=0V Ip=1.6mA Ic2=0.4mA rp=600kΩ gm=0.625mS 3) 1U5 RCA ￥1700 NIB 2) 1U5 Arcturus ￥1700 NIB(D) 1) 1U5 GE ￥1500 NIB(T) 3) 1U5 Ray ￥1500 NIB(T) 1) 1U5 Sheldon ￥1500 NIB 0) 1U5 Rogers ￥- NIB 1) 1U5 Matsuda ￥1000 NIB very-ragged-box 1) 1U5-SF Matsuda ￥1000 NIB very-ragged-box 2) 1U5-SF Hitachi ￥1000 NIB very-ragged-boxes 1) 1U5-SF Hitachi ￥1000 NIB very-ragged-box 0) 1U5 USA ￥- used(Qn)
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
1V =half-wave Rectifier= (EIA/4G - UX, ST12) Eh/Ih= 6.3V/0.3A PIV=1000V Ipmax=270mA-peak Ehkmax=500V op : Eac=325Vmax Ikmax=45mAdc 1) 1V Syl ￥1200 NIB VeryRaggedBox +++ 0) 1V Ray ￥1200 NIB 0) 1V NU ￥1200 NIB 1) 1V NU ￥600 used 4) 1V NU ￥900 LightUsed?LikeNew 4) 1V Krad ￥900 LightUsed?LikeNew
1V2 =Half-wave HV Rectifier= (EIA/9U - noval) Ef/If=0.625V/0.3A PIV=8250V Ipmax=0.5mA/10mApeak 1) 1V2 RCA ￥700 NIB MB RaggedBox 19) 1V2 RCA ￥700 NIB 20) 1V2 RCA他 ￥600 NIB/NOS 4) 1V2 USA ￥400 used
1X2/A/B/C/1BX2 =Half-wave HV Rectifier= (EIA/9Y - noval) Ef/If=1.25V/0.2A PIV=22000V Ipmax=0.5mA/45mApeak similar to DY80 1) 1X2A RCA ￥700 NIB 2) 1X2B/1X2A RCA ￥700 NIB 2) 1X2C/1BX2 GE ￥600 NIB 1) 1X2B Syl ￥600 NIB 1) 1X2B Mazda ￥700 NIB 10) 1X2B Hitachi ￥700 NIB sealed 27) 1X2A/B/C USA ￥600 NIB/NOS 7) 1X2/1X2A/1X2B USA ￥400 used
1Z2 =HV Rectifier= (EIA/7CB - miniature) Ef/If=1.5V/0.3A PIV=15000V Ipmax=1.5mA/8.5mApeak 1) 1Z2 USA ￥500 used

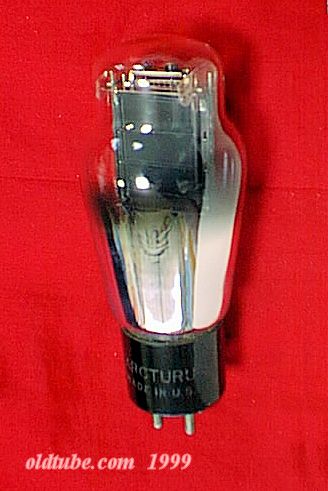

2A3=PowerTriode= (EIA/4D - UX, ST-16) Ef/If=2.5V/2.5A Ppmax=15W Epmax=300V Rgmax=50kΩ(fixed)/500kΩ(self) op(A1-single) : Ep=250V Ec=-45V Ipo=60mA rp=800Ω gm=5.25mS μ=4.2 Zl=2.5kΩ 2ndHD=5% Po=3.5W op(A1-pushpull-self) : Ep=300V Rk=780Ω(Ec=-62V) Ipo=40mAx2 Ipmax=50mAx2 Zl=5kΩ THD=5% Po=10W op(A1-pushpull-fixed) : Ep=300V Ec=-62V Ipo=40mAx2 Ipmax=74mAx2 Zl=3kΩ THD=2.5% Po=15W (参考 : 2A3のEpIp特性とバリアント(EpIp-curve and variants)) (see 6.3V variants : 6A3, 6A5G, 6B4G) also see 45/245/345, 50/250/350 an electrically-similar European type : AD1(side-contact, Ef/If=4V/0.95A) also see a European cathode type : R120(octal, Eh/Ih=6.3V/1.45A) 三極管の動作比較 オーディオパワ管の比較1 0) 2A3 single-plate Arcturus ￥- NOS WB(sD) 1) 2A3 single-plate Tung-Sol ￥３２０００ used? WB 0) 2A3 single-plate RCA-Cunningham￥- NIB gm=65.5, 65.5/38min(TV-7) MatchedPair(D) 0) CRC-2A3/VT95 double plate RCA ￥- NIB/NOS(hycnt) 0) 2A3 double plate RCA ￥- NIB RB BlkPlate(hx2v1nt) 0) 2A3 double plate RCA ￥- NIB 1:reserved) 2A3 double plate RCA ￥15000 NIB BlkPlates 1:reserved) CRC 2A3 double plate RCA ￥15000 NIB BlkPlates 1:reserved) CRC 2A3 double plate RCA ￥15000 NIB BlkPlates (a007) 1:reserved) CRC 2A3 double plate RCA ￥15000 NIB BlkPlates (a007) 1:reserved) 2A3 double plate RCA ￥13500 NOS BlkPlates RaggedBrownBox 1:reserved) 2A3 double plate RCA ￥13500 NIB GrayPlates (a007) 1:reserved) 2A3 double plate RCA ￥13500 NIB GrayPlates (a007) 1) JAN CRC 2A3/VT95 double plate RCA ￥10000 NOS?/used? 62/38min 1:reserved) 2A3 double plate RCA ￥12000 NOS WB GrayPlates 3140/1900min 1) 2A3 double plate RCA ￥1500 NOS WB GrayPlates 2100/1900min 1/2フィラメント断 0) 2A3 double plate GE ￥- NOS BlkGlass 68/38min 0) 2A3 double plate GE ￥- NIB BlkGlass VeryRaggedBox (aD) 0) 2A3 double plate Syl ￥- NIB BlkGlass VeryRaggedBox (aD) 1) 2A3 double plate Syl ￥12000 NIB JANOB JAN-CHS-2A3 1) 2A3 double plate Krad ￥12000 NIB 1) 2A3 double plate Krad ￥12000 NIB VeryRaggedBox 0) 2A3 double plate RCA ￥- used WB 0) 2A3 double plate RCA ￥- used WB GrayPlate 1) 2A3 double plate RCA ￥10000 used VeryStrong 1) 2A3 double plate RCA ￥10000 NOS WB GrayPlate, WB 0) 2A3 double plate RCA ￥- used 0) 2A3 double plate GE ￥- used BlkGlass 1) 2A3 double plate GE ￥12000 used VeryStrong WB 1) 2A3 double plate GE ￥12000 LikeNew SpringSupportFilaments RCA箱 gm=64/38min(TV-7) 0) 2A3 double plate Krad(GE-made) ￥8000 LikeNew WB ClearGlass BtmGtr(sD) 1) 2A3 double plate Hytron ￥10000 used VeryStrong WB 1) 2A3 double plate Tsol ￥12000 LikeNew gm=66/38min(TV-7) 1) 2A3 double plate Raytheon ￥9000 used?LikeNew BlkPlate PrintBase gm=3000/1900min(539B) 1) JAN 2A3W double plate Marconi ￥8000 used BlkPlate WB 1) 2A3 single-plate Don(Japan) ￥offer used like-new, Top-getter (1950s-product), Tested on Funke W20, WB 2) 2A3 double plate Toshiba ￥10000 NOS WB 0) 2A3 double plate マツダ/Matsuda ￥- used WB 0) 2A3 double plate マツダ/Matsuda ￥- used WB 0) 2A3 double plate Toshiba ￥16000/pair used, gm-matched pair, Top View WB gm=3900μmho, 4000μmho/1800μmho-min (tested on KS-15750-L1) 1) 2A3 double plate Futaba ￥10000 lightly-used WB gm=4190μmho/1800μmho-min (tested on KS-15750-L1) 2) 2A3 Sovtek ￥8000 lightly-new just-ragged boxes
2A4/G =Thyratron= (EIA/5S - octal, ST-12) Ef/If=2.5V/2.5A 1) 2A4G Ray ￥1000 NIB ragged box 1) 2A4G Philco ￥1000 NIB
2A5 =Power Pentode= (EIA/6B - UZ, ST-14) Eh/Ih=2.5V/1.75A Pentode-connection : Ppmax=11W Epmax=375V Pc2max=3.75W Ec2max=285V Triode-connection : Ppmax=10W Epmax=350V see 2A5/42のEp-Ip特性(Ec2=250V) (参考 : Ep-Ip特性(五結･三結比較など)) see heater variants : 42(6.3V/0.7A), 18(14V/0.3A) also see similar types : 6F6 / 1611(octal, 6.3V/0.7A), 6AR5(miniature, 6.3V/0.4A) 1) 2A5 RCA ￥3100 NIB VeryRaggedBox +++ 1) 2A5 Cnghm ￥2500 used 0) 2A5 RCA ￥- used? gm=2330/1640min RCA box 0) 2A5 GE ￥- NIB very-ragged box 0) 2A5 GE(Canada) ￥2500 NIB 0) 2A5 Syl ￥- NIB 0) 2A5-4pillar Ray ￥- NIB? ragged-box 1) 2A5 KenRad ￥2500 NIB 2) 2A5 NEC ￥2500 NIB same-lot, very-ragged boxes 1) 2A5 KenRad ￥2200 used 80/50min BlackGlass 1) 2A5 Cnghm ￥2500 used 98/50min ClearGlass WaistGtr 1) 2A5 Syl ￥2500 usedLikeNew 2750/1640min 1) 2A5 マツダ(Matsuda) ￥1000 used
2A6 =Duplex-Diode high-mu Triode= (EIA/6G - UZ, ST-12) Eh/Ih=2.5V/0.8A Ppmax=-W Epmax=250V Ekmax=100V op : op : Ep=250V Ec=-2V Ip=0.9mA rp=91kΩ gm=1.1mS μ=100 (参考 : EpIp特性) electrically identical to #75(Eh/Ih=6.3V/0.3A) except heater, and 6B6G(octal, Eh/Ih=6.3V/0.3A) except heater and base also similar to 6SQ7/6SQ7GT(octal. Eh/Ih=6.3V/0.3A) same basing low-μ triode type : 55 (μ=8.3, Eh/Ih=2.5V/1A) 1) 2A6 RCA ￥1200 NIB VeryRaggedBox +++ 0) 2A6 Raytheon ￥３９００ NIB ４ピラー(zDv) 1) 2A6 RCA ￥800 used
2A7 =Pentagrid Converter= (EIA/7C - Ut, ST-12C) Eh/Ih=2.5V/0.8A 2A7 is identical to 6A7(Eh/Ih=6.3V/0.3A) except heater rating. 2) 2A7 RCA ￥1500 NIB VeryRaggedBox +++ 1) 2A7 GE ￥1500 NIB VeryVeryRaggedBox 1) 2A7 Hytron ￥1500 NIB sealed RaggedBox 1) 2A7-ST RCA-Cnghm ￥900 used 1800/1000min, 356/280min 1) 2A7-ST Philco ￥900 used
2AF4/A/B =UHF Triode OSC= (EIA/7DK - miniature) Eh/Ih=2.35V/0.6A heater variants : 3AF4/A(3.15V/0.45A) 6AF4/A(6.3V/0.225A) 3) 2AF4A USA ￥600 NIB 1) 2AF4B RCA ￥700 NIB
2AH2 =Half-wave HV Rectifier= (EIA/12DG - compactron) Eh/Ih=2.5V/0.33A PIV=30kV Ipmax=1.5mAav/80mApeak 1) 2AH2 RCA ￥700 NIB
2AS2/A =Half-wave HV Rectifier= (EIA/12EW - compactron) Eh/Ih=2.5V/0.33A PIV=30kV Ipmax=1.5mAav/80mApeak 2) 2AS2A RCA ￥700 NIB 1) 2AS2 GE ￥700 NIB
2AV2 =Half-wave HV Rectifier= (EIA/9U - noval) Ef/If=1.8V/0.225A PIV=8.25kV Ipmax=0.6mAav/50mApeak 16) 2AV2 RCA他 ￥600 NIB /NOS 4) 2AV2 RCA ￥600 NIB 1) 2AV2 GE ￥600 NIB 1) 2AV2 Ray ￥600 NIB (NTB) 1) 2AV2 PackardBell ￥600 NOS WH箱 1) 2AV2 WH ￥400 used?
2B1 =RF/IF pentode= (EIA/) Ef/If=2V/0.2A 1) 2B1 RCA ￥1700 NOS VeryRaggedBox +++
2B7 =Duplex-Diode Semi-remote cutoff Pentode= (EIA/7D - Ut, ST12, top-G1) Eh/Ih=2.5V/0.8A Ppmax=2,25W Epmax=300V Pc2max=0.3W Ec2max=125V op : Ep=250V Ec2=125v Ec1=-3v Ip=9Ma Ic2=2.3mA rp=600kΩ gm=1.125mS 1) 2B7 RCA ￥1700 NIB 1) 2B7 Ray ￥1000 NOS(D)
2B23 =Outer-magnetic-field sensing/switching tube= (EIA/- octal) Eh/Ih=6.3V/0.3A Ppmax=5W Epmax=150V Ipmax=30mA Hmax=100-50gauss similar to magnetron op(switch) : Ep=100V Pp=1.6Wtyp Rl=100Ω sensitivity=2.5mA/gauss Ip=14mAtyp(@H=50gauss)/0.2mAtyp(@H=70gauss) pins : 1(IC)-2(H)-3(P)-4(NC)-5(IC)-6(NC)-7(H)-8(K) 2) 2B23 GE ￥1000 NOS WB
2B29 = 829B (see)
2B32 = 832 (see)
2B33 = 5933 (see)

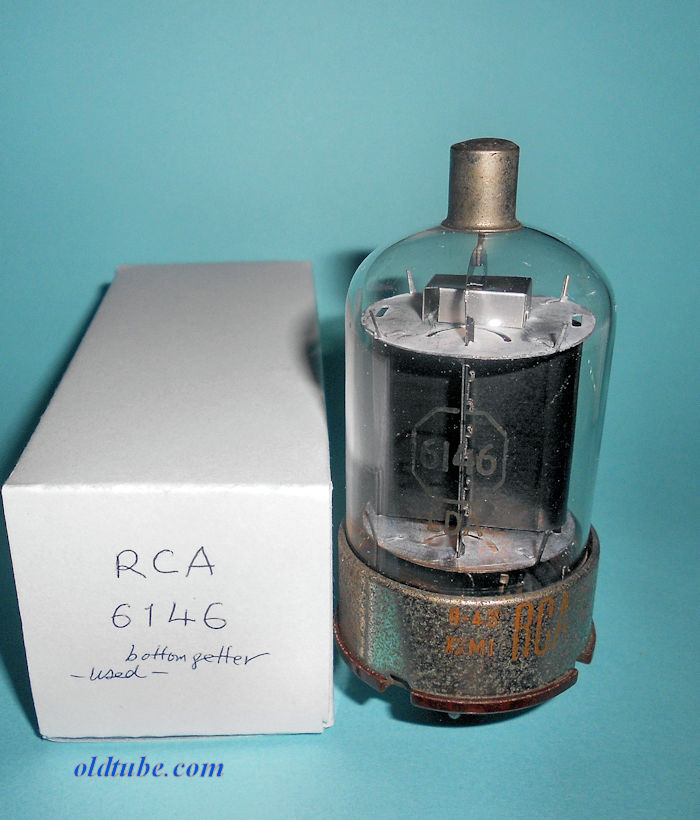

2B46 =Transmitting Beam Powere= (EIA/- ) 2B46 = 6146 1) 2B46 Hitachi ￥1000 used
2B52 = 6252 (see)
2B94 =Transmitting Twin Power Tetrode= (EIA/7BP - Septar 7pin ) 2B94 = 5894/QQE06-40/AX9903 CV2797 Eh/Ih=12.6V/0.9A(6.3V/1.8A) Ppmax=40W Epmax=600V Ec2max=5V Pc1max=2W Ec1-max=-175V Ipmax=220mA gm=5.0mS-typ μg2g1=8.2-typ @Ip=40mA also similar to 8643(Eh/Ih=13.5V/1A or 6.7V/2A) (size : 105mmH x 47mmφ) 0) 2B94 Toshiba ￥- used
2B-H5/2BH5 =High mu Triode= (EIA/12AQ) * Nuvistor * (2B-H5 = 6CW4 for transformer-less TV) Eh/Ih=1.8V/0.6A Ehk=±100V Ppmax=1W Epmax=125V/300V-cutoff Ecmax=+0V/-55V Ikmax=15mA Rgmax=500kΩ(fixed)/2.2MΩ(self) op : Ep=110V Ec=0V Rk=130Ω Ip=7.6mA μ=62typ rp=6.3kΩ gm=9.8mS 1) 2BH5 Hitachi ￥1700 NIB Nuvistor
2BJ2 =Half-wave HV Rectifier= (EIA/9RT) PIV=20kV Ipmax=1mAav/80mApeak Eh/Ih=2.3V/0.3A 1) 2BJ2 RCA ￥700 NIB
2BN4 =VHF med-mu Triode= (EIA/7EG - miniature) Eh/Ih=2.35V/0.6A Ehkmax=±100V Twarmup=11sec Ppmax=2.2W Epmax=275V Ikmax=22mA Rgmax=500kΩ op : Ep=150V Rk=220Ω Ip=9mA rp=5.4kΩ gm=7.7mS μ=43 (参考 : Ep-Ip特性) heater variant : 3BN4/A(3V/0.45A), 6BN4/A(6.3V/0.2A) 1) 2BN4 RCA ￥700 NIB 1) 2BN4 Syl ￥600 NIB 1) 2BN4A Syl ￥600 NIB 1) 2BN4 Tsol ￥600 NIB 1) 2BN4 CBS ￥600 NOS
2BU2/2AS2A/2AH2 =Half-wave HV Rectifier= (EIA/12JB) Eh/Ih=2.5V/0.33A PIV=30kV Ipmax=1.5mAav/80mApeak 2) 2BU2/2AS2A/2AH2 GE ￥700 NIB
2C21 =Med-mu TwinTriode= (EIA/7BH) Eh/Ih=6.3V/0.6A Ppmax=2.1W Epmax=250V op : Ep-250V Ec=-16.5V Ip=8.3mA rp=7.6kΩ gm=1.375mS μ=10.4 (2C21 = #1642 = JAN #38233) 0) 2C21 RCA ￥- used
2C22( = 7193) =VHF triode= (EIA/4AM - octal, top G, top P) Eh/Ih=6.3V/0.3A *design center maximum : Ppmax=3.3W Epmax=300V Rgmax=1MΩ op : Ep=300V Ec=-10.5V Ip=11mA rp=6.6kΩ gm=3mS μ=20 (参考 : Ep-Ip特性 (for Ec <= 0V area)) (参考 : Ep-Ip特性 (including Ec > 0V area)) 0) 2C22 RCA ￥- used TopPlate+TopGrid
2C23 =power triode= 2C23=10Y, VT-25 2) 2C23 Hytron ￥offer NOS WB
2C26/A =special triode oscillator=Top-plate and Top-grid fabrication octal base UHF pulse-oscillator triode Eh/Ih=6.3V/1.1A Fmax=300MHz Ppmax=10W Epmax=3500Vpeak Pgmax=2.5W Egmax=-700V op : Eb=400V Ec=-15V Ip=16mA gm=2.25mS μ=16.3 9) CHY-2C26A Hytron ￥1900 NIB sealed 4) 2C26A GE ￥1900 NIB 1) 2C26A NU ￥1900 NIB MB RaggedBox 0) 2C26 NU ￥- used? TopPlate&Grid 0) 2C26A Hytron ￥1000 used?(T)
2C36 =UHF triode oscillator=
2C39/A =High-mu-Triode planar=
2C40 =Lighthouse triode=
2C43 =High-mu-Triode planar=
2C50 =Medium μ TwinTriode / mini-power amplifier= (EIA/8BD - octal) Eh/Ih=12.6V/0.3A Ehkmax=±100V Ppmax=3.85W PIV=900Vmax/PFV=800Vmax Ec-max=-200V op : Ep=200V Eg=-11V Ip=18mA rp=3.45kΩ gm=2.9mS μ=10 (参考 : Ep-Ip特性) 12.6V/0.3A-heater same-base different-μ twin-triodes: 12SN7GT(μ=20), 12SX7GT(μ=20), 12SL7GT(μ=70), 2C52(μ=100) also see a similar European type : ECC34(Eh/Ih=6.3V/0.4A) 7) 2C50 United ￥3700 NIB same-lot(D/C=82-52), 茶Base BlackPlates 1) 2C50 Ray ￥3700 NOS WB 茶Base BlackPlates 18) 2C50 Ray ￥3000 used? 茶Base BlackPlates
2C51/396A =HF TwinTriode= (EIA/8CJ - noval)Eh/Ih=6.3V/0.3A Rg1max=1MΩ(fixed)/2MΩ(self) LME Ericsson : Ppmax=1,6W Epmax=330V Ecmax=+5V/-50V Ikmax=20mA Ehkmax=100V Western Elec. : Ppmax=1.5W Epmax=300V Pcmax0.1W Ikmax=18mA Ehkmax=90V op : Ep=140V Rk=240Ω Ip=8,2mA rp=6.4kΩ gm=5.5mS μ=35 op(AB1pp) : Ep=200V Rk(common)=400Ω Ip=2x5mA/2x5.6mA Zlpp=30kΩ D=5% Po=0.4W op(AB1pp) : Ep=300V Rk(common)=800Ω Ip=2x4.7mA/2x6mA Zlpp=40kΩ D=10% Po=0.95W pins : 1(H)-2(2K)-3(2G)-4(2P)-5(Shield)-6(1P)-7(1G)-8(1K)-9(H) see equivallent type : 396A see similar types : 5670/5670W, 6385 see heater variant w/ different base : 407A(Eh/Ih=20V/0.1A or 40V/0.05A) also see a different-base, electrically-similar type : NEC-12R-LL3 also see a different-base, electrically-similar heater variant : NEC-19R-LL1(Eh/Ih=19V/0.15A) also see a same base w/ lower μ ruggedized type : 6386(μ=17) (参考 : Ep-Ip特性) 0) 2C51 WE ￥- NIB MB 大型軍箱 ==rare== (whx10) 0) 2C51 WE ￥- NIB (hxzdv) 0) 2C51/396A WE ￥- NIB (whya) 0) 2C51 WE ￥- NIB date=5-59 ０) 2C51 WE ￥- NOS WB date=6052 ０) 2C51/396A WE ￥- NOS WB(hyycnz) ０) 2C51/396A WE ￥- LikeNew WB VeryStrong date=113,239 etc 2:reserved) 2C51/396A WE ￥- LikeNew WB VeryStrong date=339 0) 2C51/396A WE ￥- NIB(Sx) 0) 2C51 ElectronicEnterprise ￥1700 NIB(Q) 1) 2C51 Syl ￥1700 NIB Canada 0) 2C51 WE ￥1800 used (whxe) 0) 2C51/396A WE ￥1800 used (whxa) -) 2C51 Bendix ￥1500 used
2C52 =Highμ TwinTriode= (EIA/8BD - octal) Eh/Ih=12.6V/0.3A Ehkmax=90V Ppmax=1W Epmax=300V Ipmax=5mA Ecmax=-100V Icmax=2mA Rg1max=2MΩ op : Ep=250V Eg=-2V Ip=1.3mA rp=52.6kΩ gm=1.9mS μ=100 * designed for use as a voltage amplifier in critical electronic equipment requiring extreme stability and long life.. (参考 : Ep-Ip特性) (also see electrically-similar noval types : 12AX7/6681/7025/12BZ7 6AX7 12BZ7 5751) 12.6V/0.3A-heater same-base different-μ twin-triodes: 2C50(μ=10), 12SN7GT(μ=20), 12SX7GT(μ=20), 12SL7GT(μ=70) 48) 2C52 Ray ￥offer NOS D/C=1950s TopGetter BlkRoundPlate yellow-silk WB (hyy3gx2yx) 0) 2C52 Ray ￥3190 NOS D/C=136(1951) TopGetter BlkRoundPlate CopperGridPost YellowSilk WB 3) 2C52 Ray ￥3190 NIB MB TopGetter BlkRoundPlate CopperGridPost YellowSilk(hyxbnt) 1) 2C52 Ray ￥3190 NOS WB D/C=1-46(1951) TopGetter BlkRoundPlate CopperGridPost YellowSilk 1) 2C52 Ray ￥3190 NOS WB D/C=1-52(1951) TopGetter BlkRoundPlate CopperGridPost YellowSilk 1) JAN-CRP 2C52 Ray ￥3190 NOS WB D/C=3-22(1953) TopGetter BlkRoundPlate CopperGridPost YellowSilk 6) JAN-CRP 2C52 Ray ￥3190 NIB D/C=3-07(Feb.1953) TopGtr BlkRndPlate CurGridPost OrangeSilk, ragged boxes 1) JAN-CRP 2C52 Ray ￥3190 NIB D/C=6-06(Feb.1956) TopGtr BlkRndPlate CurGridPost OrangeSilk, ragged box 3) JAN-CRP 2C52 Ray ￥3190 NIB D/C=6-13(Mar.1956) TopGtr BlkRndPlate CurGridPost OrangeSilk, ragged boxes 12) 2C52 Ray ￥3190 NIB MB D/C=1960s TopGetter BlkRoundPlate OrangeSilk(rhxc) 0) 2C52 Ray ￥- NIB MB D/C=1960s TopGetter BlkRoundPlate OrangeSilk(rhxf) 1) JAN-CTY 2C52 Taylor ￥3190 NIB MB TopGetter BlkRoundPlate CopperGridPost lightGreenSilk
2C53 =HV high-mu Triode= for HV power shunt-regulators or HV amplifies Eh/Ih=6.3V/0.3A Ehkmax=±300V Ppmax=12W Epmax=8kV Ipmax=5mAav/100mApeak Ecmax=-200V gm=0.95mS rp=525kΩ μ=500typ pins : 1(Shield)-2(H)-3(NC)-4(NC)-5(G)-6(NC)-7(H)-8(K)-TopCap(P) (参考 : HighVoltage - Ep-Ip特性) 4) 2C53 RCA ￥3700 NOS 1) JAN-CCRW 2C53 NU ￥3500 NIB MB
2CW4 =HighMuTriode= (EIA/12AQ) * Nuvistor * Eh/Ih=2.1V/0.45A see Eh-variant 2BH5(Eh/Ih=1.8V/0.6A) 6CW4(Eh/Ih=6.3V/0.135A) 13CW4(Eh/Ih=13.5V/0.06A) also see nearly same type 2DS4 1) 2CW4 GE ￥1500 NIB 1) 2CW4 Syl ￥1500 NIB
2CY5 =Tetrode= (EIA/7EW - miniature) Eh/Ih=2.4V/0.6A Ppmax=2W Epmax=180V Pc2max=0.5W Ec2max=180V Ikmax=20mA Ehk=100V heater variants : 3CY5(2.9V/0.45A) 6CY5(6.3V/0.2A) 5) 2CY5 USA ￥600 NIB /NOS 2) 2CY5 USA ￥400 used
2D4A =twin Diode= (EIA/ - ) Eh/Ih=4V/0.65A Vmax=200V Imax=0.8mA 0) 2D4A Mullard ￥1900 used metallized glass WB 1) 2D4A Mullard ￥1900 used gold-spray/metallized glass WB
2D21(see 5727) =Thyratron= (EIA/7BN - miniature) Eh/Ih=6.3V/0.6A 1) JRC 2D21 RCA ￥900 NIB VeryRaggedBox 5) 2D21 RCA ￥900 NIB 2) 2D21 RCA ￥900 NIB 1) 2D21 GE ￥700 NIB 1) 2D21 GE ￥700 NIB 1) 2D21 Marconi ￥700 NIB 2) 2D21 CGE ￥700 NIB 1) JAN-CAHG 2D21W Chatham ￥700 NIB MB 1) 2D21 National ￥700 NIB 2) 2D21 WH ￥600 NIB USSR 10) 2D21 Syl ￥700 NIB (hxxbnt) 1) 2D21 Syl ￥700 NOS RCA箱 1) 2D21 USA ￥400 used
2DS4 =HighMuTriode= (EIA/12AQ) * Nuvistor * Eh/Ih=2.1V/0.45A 2DS4≒2CW4 2) 2DS4 Syl ￥1500 NIB
2DV4 =HighMuTriode(Nuvistor)= (EIA/12EA) * Nuvistor * Eh/Ih=2.1V/0.45A 2) 2DV4 RCA ￥1500 NIB Nuvistor original-slim-box
2E5 =Electron ray Indicator= (EIA/6R) Electricaly identical to 6E5 except heater spec., Eh/Ih=2.5V/0.8A 2) 2E5 Int-C ￥3300 NIB tested very-bright
2E22 =filamentary PowerPentode= (EIA/5J) Ef/If=6.3V/1.5A Fmax=125MHz (直熱五極管) Ppmax=30W Epmax=750V Pc2max=10W Ec2max=250V Ec1max=-200V Ipmax=110mA Icmax=9mA op(classC): Ep=750V Ec2=250V Ec3=0V Rg2series=30kΩ Ip=100mA Ic2=16mA Ic1=6mA Rg1=10kΩ Pin=0.55W Po=48W pins : 1(F)-2(G2)-3(G1)-4(G3)-5(F)-Top(P) also see a WE-made filamentary power pentode : 339A(Ef/If=5V/1.2A Ppmax=35W Ec2max=450V) 1) 2E22 KenRad ￥3000 used? gm=4000/2500min 1) 2E22 KenRad ￥3000 used? gm=4120/2500min

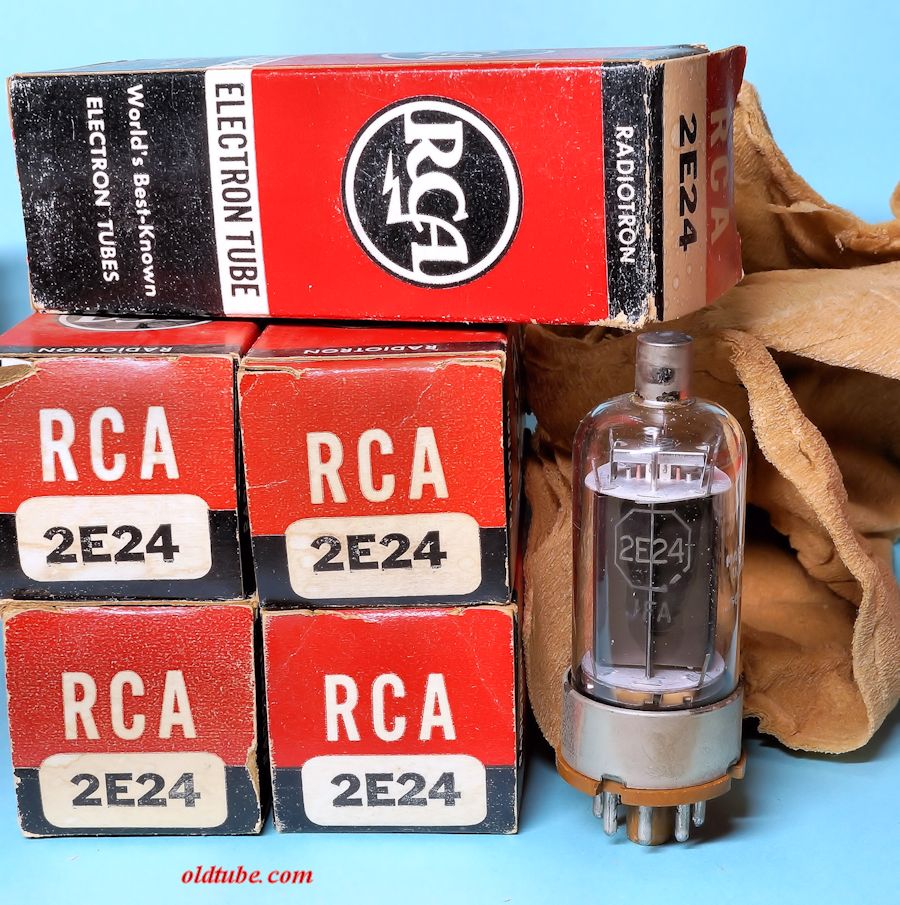

2E24 =filamentary BeamPower Pentode= (EIA/7CL, octal, Top-plate)Ef/If=6.3V/0.65A(QuickHeat) Fmax=125MHz (直熱ビーム管) ICAS : Ppmax=13.5W Epmax=500V Pc2max=2.5W Ec2max=200V Ipmax=75mA op(AB2pp) : Ep=500V Ec2=125V Ec1=-15V Ip=20/150mA Ic2=0.6/28mA Zlpp=9kΩ Pin=0.46W Po=54W pins : 1(FCT,G3,IS)-2(F)-3(G2)-4(FCT,G3,IS)-5(G1)-6(FCT,G3,IS)-7(F)-8(BaseSleeve)-Top(P) (参考 : Ep-Ip特性(@Ec2=200V)) 10) JAN-CRC 2E24 RCA ￥1400 NIB D/C=62-13, re-packaged-date=1983.3.24 MB 5) 2E24 RCA ￥1400 NIB D/C=1950s, just-ragged boxes 1) 2E24 RCA ￥1200 NOS D/C=58-39, WB 1) 2E24 GE ￥1200 NIB very-ragged boxes 1) 2E24 Mot ￥1200 NIB
2E25/2E25A =filamentary BeamPower Pentode= (EIA/ , octal, Top-plate) Ef/If=6V±5%/1A(QuickHeat) Fmax=100MHz (直熱ビーム管) class A1: Ppmax=10.5W Epmax=400V Pc2max=2.5W Ec2max=250V Ikmax=-mA op(A1s): Ep=250V Ec2=250V Ec1=-22.5V(Rk=500Ω) Ip=38.5mA/40mA Ic2=4mA/9.6mA Zl=5kΩ Po=4.75W D=7% op(A1s): Ep=300V Ec2=250V Ec1=-25.0V(Rk=600Ω) Ip=34.5mA/37mA Ic2=3mA/8.4mA Zl=7kΩ Po=6.00W D=11% class AB2: Ppmax=15W Epmax=450V Pc2max=5W Ec2max=250V Ipmax=75mA op(AB2pp): Ep=450V Ec2=250V Ec1=-30V Ip=44mA/150mA Ic2=10mA/40mA Ic1max=3mA Zlpp=6kΩ Pin=0.42W Po=40W pins : 1(NC)-2(F)-3(NC)-4(G2)-5(G1)-6(NC)-7(F)-8(G3/Beam)-Top(P) 2) JAN-CHY 2E25A Hytron ￥3000 NIB D/C=52-12, brown base, very-ragged boxes
2E26 =BeamPower Pentode= (EIA/7CK - octal-TopPlate)Eh/Ih=6.3V/0.8A Fmax=125MHz Ppmax=13.5W Pc2max=2.5W Epmax=600V Ec2max=200V (参考 : Ep-Ip特性(@Ec2=200V)) 5) 2E26 RCA ￥1200 NIB (nSn) 8) 2E26 RCA ￥1200 NOS? Motorola箱 一部ベースに錆あり 1) 2E26 RCA ￥1200 NOS D/C=65-43 GE箱 0) 2E26 RCA ￥1200 NIB(D) 1) 2E26 Syl ￥1000 NIB(Sx) 1) 2E26 Syl ￥1000 NIB just-ragged box 0) 2E26 Motorola(WH-made) ￥1000 NIB (mhyyf) 1) GL-2E26 GE ￥1200 NIB 青箱 2) GL-2E26 GE ￥1200 NIB(D) 0) 2E26 GE ￥1000 NIB(Q) 2) 2E26 GE ￥1000 LikeNew 1) 2E26 GE ￥800 used CenterPin折 元箱 0) 2E26 Syl ￥1000 NIB(Q) 1) 2E26 Ray ￥1000 NIB 1) 2E26 Ray ￥1000 NIB 1) 2E26 Rogers ￥1000 NIB very-ragged box 1) 2E26 Canada-GE ￥1000 NIB MB 1) 2E26 National ￥1000 NIB RCA箱 3) 2E26 RCA ￥800 used? 4560,4400,4460/2200min 3) 2E26 RCA/RCA-made ￥800 used 4620,4600,4140/2200min 1) 2E26 CBS ￥800 used? VeryStrong 2) 2E26 CBS ￥800 used? 3) 2E26 RCA,Sylvania ￥800 used?BulkNOS? VeryStrong(Sx)

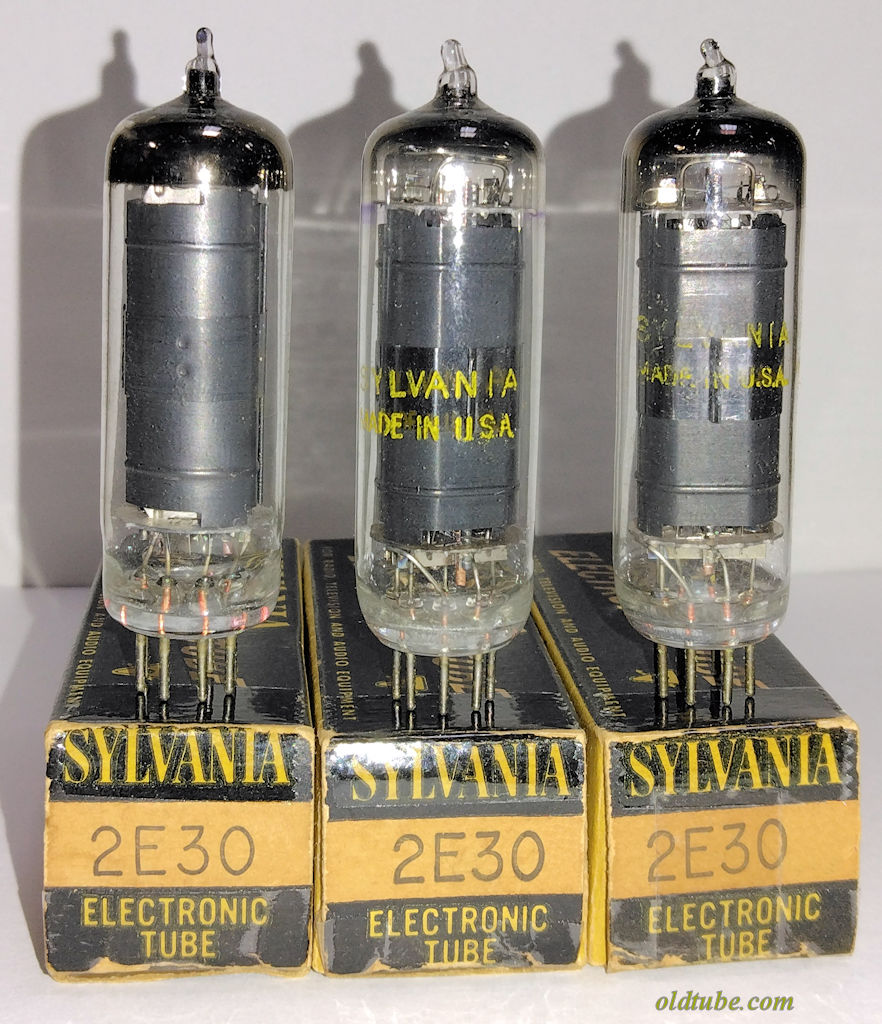

2E30 =filamentary BeamPower= (EIA/7CQ - miniature)Ef/If=6V/0.65A or 3V/1.3A Ppmax=10W Epmax=250V Pc2max=2.5W Ec2max=250V op(A1s) : Ep=250V Ec2=250V Ec1=-20V Rk=450Ω Ip=40/44mA Ic2=3.3/7.4mA Zl=4.5kΩ Po=4.5W D=8% op(A1pp): Ep=250V Ec2=250V Ec1=-20V Rk=225Ω Ip=80/88mA Ic2=6.6/14.8mA Zlpp=9kΩ Po=9W D=6% op(AB1pp): Ep=250V Ec2=250V Ec1=-25V Ip=48/82mA Ic2=3/10mA Zlpp=6kΩ Po=10W D=3.6% op(AB2pp): Ep=250V Ec2=250V Ec1=-30V Ip=40/120mA Ic2=4/20mA Zlpp=3.8kΩ Ic1=2.3mA Pin=0.2W Po=17W D=4% pins: 1(G1)-2(G3/beam)-3(F)-4(F)-5(P)-6(G2)-7(FCT) 参考: Ep-Ip特性(@Ec2=250V & Triode Connection) 3) 2E30 Syl ￥1700 NIB BlackRibbedCylindricalPlate very-ragged boxes 1) 2E30 Ray ￥1700 NIB BlackRibbedCylindricalPlate very-ragged box 1) 2E30 CBS ￥1700 NOS BlackRibbedCylindricalPlate WB 4) 2E30 USA ￥1700 like-new BlackRibbedCylindricalPlate WB 1) 2E30 Syl ￥1500 used 7-pin MT >4000/1900min
2E31 =sharp cutoff RF Pentode= (EIA/2E31) 1.25VDC/0.05A *subminiature* Ppmax=- Epmax=45V Ec2max=45V Ikmax=1mA Ef/If=1.25V/50mA op : Ep=22.5V Ec2=22.5V Ec1=0V Ip=0.4mA Ic2=0.3mA rp=350kΩ gm=0.5mS 0) 2E31 Ray ￥- NIB
2E32 =sharp cutoff RF Pentode= (EIA/2E31) 1.25VDC/0.03A *subminiature* electrically same as 2E31 1) 2E32 Ray ￥900 NIB
2E35 =sharp cutoff RF Pentode= (EIA/2E31) 1.25VDC/0.03A *subminiature* Ppmax=- Epmax=45V Ec2max=45V Ikmax=1mA Ef/If=1.25V/30mA op : Ep=22.5V Ec2=22.5V Ec1=0V Ip=0.27mA Ic2=0.07mA rp=220kΩ gm=0.385mS Rl=150kΩ D=10% Po=1.2mW op : Ep=45V Ec2=45V Ec1=-1.25V Ip=0.45mA Ic2=0.11mA rp=250kΩ gm=0.5mS Rl=100kΩ D=10% Po=6mW 0) 2E35 Ray ￥- NIB
2E36 =Power RF Pentode= (EIA/2E31) 1.25VDC/0.03A *subminiature* electrically same as 2E35 2) 2E36 Ray ￥900 NIB Sub-Miniature(Sx)
2EG4 =HighMu Triode= (EIA/12AQ) * Nuvistor * Eh/Ih=1.7V/0.6A Ehkmax=100V Ppmax=1,5W Epmax=135V Epo=300Vmax, Ec=-55V to +0V, Ikmax=15mA Rgmax=500kΩ op : Ep=110V Rk=130Ω Ip=6.5mA rp=7kΩ gm=9mS μ=63 1) 2EG4 RCA ￥1000 NOS WH箱 Nuvistor
2FH5 =VHF high-mu Triode= (EIA/7FP - miniature) Eh/Ih=2.35V/0.6A Twarmuo=11sec Ehkmax=±100V Ppmax=2.2W Epmax=150V Ikmax=22mA Ecmax=0V op : Ep=135V Ec=-1V Ip=11mA rp=5.6kΩ gm=9mS μ=50 (参考 : Ep-Ip特性) heater variant : 6FH5(6.3V/0.2A) 1) 2FH5 Syl ￥600 NIB 1) 2FH5 Syl ￥600 NOS 1) 2FH5 NEC ￥400 used
2GK5/2FQ5 =HF Triode= (EIA/7FP - miniature) Eh/Ih=2.3V/0.6A Twarmup=11sec Ehkmax=±100V Ppmax=2.5W Epmax=200V Ecmax(-)=50V Ikmax=22mA Rgmax=1MΩ op : Ep=135V Ec=-1V Ip=11.5mA μ=78 gm=15mS rp=5.4kΩ NF=4.7dB (参考 : Ep-Ip特性) heater variants : 3GK5(2.8V/0.45A), 4GK5(4V/0.3A), 6GK5/6FQ5A(6.3V/0.18A) 4) 2GK5/2FQ5 USA ￥1000 NIB 3) 2GK5 Toshiba ￥1000 NIB cellophane-sealed 2) 2GK5 Toshiba ￥1000 NIB cellophane-sealed 1) 2GK5 Toshiba ￥1000 NIB cellophane-sealed 1) 2GK5 Toshiba ￥900 NIB 2) 2GK5 NEC ￥1000 NIB cellophane-sealed 2) 2GK5 Hitachi ￥1000 NIB cellophane-sealed 2) 2GK5 TEN ￥1000 NIB cellophane-sealed 1) 2GK5 Mitsubishi(NEC-made) ￥1000 NIB 1) 2GK5 Mitsubishi ￥600 used Toshiba-boxed
2H20 1) 2H20 Amperite ￥2000 NIB MB VeryRaggedBox
2H66/A(=866/866A) =Halfwave Mercury-Rectifier= (EIA/4P) *2H66 : PIV/Idc=7500V(Hg-temp=10℃-60℃, 150Hz-max) Ipmax=0.25A(av.) Vdrop=15V Ef/If=2.5V/5A *2H66A : PIV/Idc=5000V(Hg-temp=25℃-70℃, 1kHz-max) Ipmax=0.25A(av.) Vdrop=10V Ef/If=2.5V/5A 1) 2H66 Hitachi ￥1200 used D/C=1959-5 WB 1) 2H66A Toshiba ￥1200 used WB
2HA5 =High Mu Triode= (EIA/7GM - miniature) Eh/Ih=2.2V/0.6A Ppmax=2.6W Epmax=220V Ikmax=22mA -Ecmax=50V Rgmax=1MΩ op : Ep=200V Rk=87Ω Ip=11.5mA gm=14.5mS μ=72 (参考 : Ep-Ip特性) heater variants : 3HA5/3HM5(2.7V/0.45A), 4HA5/4HM5(4V/0.3A), 6HA5(6.3V/0.18A), 6HM5(6.3V/0.18A) 8) 2HA5 Toshiba ￥700 like-new WB 1) 2HA5 Toshiba ￥700 lightly-used WB 1) 2HA5/2HM5 USA ￥600 used
2HQ5 =Triode= (EIA/7GM - miniature) Eh/Ih=2.4V/0.6A Ppmax=2.5W Epmax=200V Ikmax=22mA -Ecmax=50V Rgmax=1MΩ op : Ep=135V Ec=-1V Ip=11.5mA rp=5.4kΩ gm=15mS μ=78 (参考 : Ep-Ip特性) heater variants : 3HQ5(3V/0.45A), 4HQ5(4.2V/0.3A), 6HQ5(6.3V/0.2A) 1) 2HQ5 RCA ￥1000 NIB 2) 2HQ5 Syl ￥1000 NIB just ragged boxes 3) 2HQ5 CGE ￥1000 NIB made in Japan 7) 2HQ5 InterC ￥1000 NIB 1) 2HQ5 Lindal ￥1000 NIB
2K12 =long-life filamentary FullWave Rectifier= (EIA/ - UX) Ef/If=5V/4A PIV=2000V Eacmax=700Vrms/plate Idcmax=350mA/1A-peak Edrop=75V(@Idc=380mA) see an Eac-Idc limit curve(for condenser-input and choke-input) also see a required series plate resistor minimum value chart(only for condenser-input) size : 52mmΦ x 145mmH, in max. 0) 2K12 Hitachi ￥- NIB 0) 2K12 Hitachi ￥- used WB 1) 2K12 Hitachi ￥8100 lightly-used WB
2K13 =long-life cathode-type FullWave Rectifier= (EIA/ - UX) 2K13= cathode-type of 5Z3 Eh/Ih=5V/3A PIV=V Eacmax=Vrms/plate Idcmax=mA/A-peak Edrop=V(@Idc=mA) size : 52mmΦ x 145mmH, in max. 0) 2K13 Hitachi ￥- NOS metal-base WB 1) 2K13 Hitachi ￥7500 lightly-used NHK, D/C=1958-4, metal-base WB
2K25 =Klystron= 1) ASDF-TS 2K25 Toshiba ￥1600 used D/C=70.8 WB
2K29 =Klystron= 1) 2K29 WE ￥2200 used
2N-TRANSISTORS 0) 2N3055 Fairchild NOS ￥- TO3 AluminumCan (hpxjrgm) 35) 2N3055 Fairchild NOS ￥900 TO3 AluminumCanTop TaperedFrange/Base '70s 54) 2N3055 Motorola NOS ￥1200 TO3 AluminumCanTop TaperedFrange/Base '70s 0) 2N3055 Motorola NOS ￥- TO3 MetalCan Mexico 0) MJ2955 Motorola NOS ￥- TO3 AluminumCanTop TaperedFrange/Base 0) MJ2955 Motorola NOS ￥- TO3 MetalCan Mexico
39) 2N3741 BSC NOS ￥1000 GoldPlated-TO66 MetalCan (2SA566 代替品) (hpxc8gg)
45) 2N3766 Transitron NOS ￥1000 TO66 MetalCan (2SC1161 代替品) (hpx62gm)
2NO60 =Delay Relay= 1) 2NO60 Amperite ￥2700 NIB? 1) 2NO60 Amperite ￥1000 used?
2T11 =Transmitting power Triode=
2T12P =cathode-type Transmitting pulse power Triode=
2T23P =cathode-type Transmitting pulse power Triode=
2T72/2T72R = Coaxial-electrode Ceramic-metal seal UHF Power Triode =
2X2 =HV Rectifier= (EIA/4AB - UX, top-plate, ST12) Eh/Ih=2.5V/1.75A PIV=12500V Ipmax=7.5mA/60mApeak similar to KX-142(Japan) 2) JAN 2X2 USA ￥1000 NIB 1) 2X2 RCA ￥1000 NIB VeryRaggedBox +++ 6) 2X2A RCA ￥1000 NIB 1) 2X2A RCA ￥1000 NIB MB 1) 2X2A RCA ￥1000 NOS Ray箱 1) 2X2A STD(RCA) ￥1000 NIB 1) 2X2 Syl ￥1000 NIB 1) JAN-CHS 2X2/VT-119 Syl ￥1000 NIB MB VeryRaggedBox +++ 1) 2X2/879/VT-110 NU ￥500 used 4) 2X2/879 NU,Pjilco ￥500 used
3-4/B =load-series current-regulating ballast tube= VoltageRange=4V-V, CurrentRange=300mA-mA (参考資料 : Amperite Ballast Reference) 3) 3-4 Amperite ￥1600 NIB * 1) 3-4B Amperite ￥1000 used LargeGlass
3-400/3-400Z/8163
3-500/3-500Z/8802
3-1000/3-1000Z/8164
3A10B =Current-regulating Ballast tube= (参考資料 : Amperite Ballast Reference) 1) 3A10B Amperite ￥1000 used-lightly WB
3A/101B =cathode-type Triode= Eh/Ih=4.5V/1A Ppmax=5W Epmax=200V μ=5.8 rp=5.7kΩ gm=1mS -) 3A/101B STC ￥- used
3A/102B =cathode-type Triode= TopGrid Eh/Ih=2.1V/1A Ppmax=-W Epmax=190V Ipmax=1.5mA μ=30 rp=60kΩ gm=0.5mS 0) 3A/102B STC ￥- used
3A/105B =cathode-type low noise Triode= TopGrid Eh/Ih=13V/0.19A Ppmax=2.5W Epmax=250V Ipmax=15mA μ=40 rp=190kΩ gm=2.1mS -) 3A/105B STC ￥- used
3A/107A-CV249, 3A/107B =filamentary repeater Triode= 3A/107A : 4pin American base 3A/107B : 5pin British base Ef/If=4V/0.25A Ppmax= Epmax=190V Ipmax=mA μ=7 rp=5.5kΩ gm=1.3mS (参考 : Eg-Ip特性) similar to 4019A/S4019A WE-101D類似管(see WE-101D) 6) 3A/107A - CV249 ValveElectronic/STC ￥６９００ NIB BrownBase (3)date=1-1963 (1)12-1962(D)5-1969 12) 3A/107A - CV249 STC ￥４９００ used BrownBase
3A/108A, 3A/108B =filamentary repeater Triode= 3A/108A : 4pin American base 3A/108B : 5pin British base Ppmax= Epmax=190V Ef/If=2V/0.25A μ=30 rp=50kΩ gm=0.6mS 0) 3A/108B ValveElectronics/STC ￥- used
3A/109A(CV1671), 3A/109B(CV1663, CV1676=LS8A)=filamentary Triode= 3A/109A : 4pin American base 3A/109B : 5pin British base Ef/If=4V/0.25A Ep=130V Ec=-8V rp=2kΩ gm=3mS μ=6 (参考 : Eg-Ip特性(Ep=70V, 100V, 130V, 160V, 190V)) similar to STC-4021A/B/C, Philips-TS26, LS8A(Ef/If=4V/0.15A) also similar to 4630(Ef/If=4.2V/0.25A) 0) 3A/109A - CV1671 STC ￥６３００ NOS? BrownBase WB(D) 0) 3A/109A - CV1671 STC ￥５３００ NOS? BlacknBase WB 1) 3A/109B(CV1676) STC ￥6300 NIB BrownBase WB 1) 3A/109B(CV1676) STC ￥6300 NIB BrownBase WB
3A/110A, 3A/110B =filamentary repeater Triode= 3A/110A : 4pin American base 3A/110B : 5pin British base Ef/If=4V/0.25A Ppmax= Epmax=190V μ=12 rp=5.5kΩ gm=2.2mS 0) 3A/110B STC ￥- used
3A/141A =filamentary Triode= STC-4101D/WE-101D replacement use Ef/If=4.5V/1A Ppmax= Epmax=190V Ipmax=12mA μ=6 rp=6kΩ gm=1mS -) 3A/141A STC ￥- used
3A/142A =filamentary Triode= STC-4102D/WE-102D replacement use Ef/If=4.5V/1A Ppmax= Epmax=190V Ipmax=1.5mA μ=30 rp=60kΩ gm=0.5mS -) 3A/142A ValveElectronic/STC ￥- used
3A/144A =filamentary Triode= STC-4104D/WE-104D replacement use Ef/If=4.5V/1A Ppmax= Epmax=190V Ipmax=60mA μ=2.3 rp=20kΩ gm=0.115mS -) 3A/144A STC ￥-
3A/146 =cathode-type UHF ground-grid Triode= Eh/Ih=4V/0.65A Ppmax=2W Epmax=350V Ipmax=60mA μ=100 rp=20kΩ gm=5mS -) CV53 3A/146J ValveElectronic/STC
3A/147 =cathode-type 750MHz ground-grid oscillator Triode= Eh/Ih=4V/0.7A Ppmax=6W Epmax=350V Ipmax=28mA Pcmax=0.5W μ=35 rp=6kΩ gm=6mS -) CV82 3A/147J ValveElectronic/STC
3A/148 =cathode-type UHF ground-grid Triode= Eh/Ih=6.3V/0.4A Ppmax=2W Epmax=350V Ipmax=-mA μ=100 rp<20kΩ gm>5mS (Eh=6.3V version of 3A/145(Eh=4V).) -) CV88 3A/148J ValveElectronic/STC
3A/167M - CV5112=cathode-type Triode= * STC Manual : 'This is an indirectly-heated single-ended triode developed for use in wide band amplifier applications. It has a very high mutual conductance and is identical with the American type 437A.' * Eh/Ih=6.3V/A Ppmax=6.5W Epmax=350V Ipmax=45mA μ=45 rp=970Ω gm=47mS (参考 : Ep-Ip特性) WE-437A同等管。ただしロクタルpin (see WE-436A/WE-437A) 0) 3A/167M STC ￥- NIB GoldPin(sQn) 2:reserved) 3A/167M STC ￥２７０００ NIB GoldPin 0) 3A/167M - CV5112 STC ￥- NIB GoldPin(Q) 2) 3A/167M - CV5112 STC ￥20000 NOS? GoldPin OriginalWB (vT) 0) 3A/167M - CV5112 STC ￥- used GoldPin(Sn) 3) 3A/167M - CV5112 STC ￥2000 used GoldPin [DISPLAY] SHORT etc NotUseable
3A2 =HV Rectifier= (EIA/9RT) Eh/Ih=3.15V/0.22A PIV=20000V Ipmax=1.5mA/80mApeak 5) 3A2 USA ￥600 NIB 1) 3A2 USA ￥400 used
3A3/A/B/C =HV Rectifier= (EIA/8EZ) Eh/Ih=3.15V/0.22A PIV=38000V Ipmax=2mA/100mApeak 8) 3A3C RCA ￥700 NIB 1) 3A3A/3B2 RCA ￥700 NIB 4) 3A3C/3AW3/3B2 GE ￥700 NIB 1) 3A3A/3AW3/3B2 GE ￥700 NIB 1) 3A3C Syl ￥700 NIB 1) 3A3C Syl ￥700 NIB veryRaggedBox 1) 3A3A/3AW3/3B2 IntC ￥700 NIB 1) 3A3 STD ￥600 NOS 1) 3A3/3AW3 Ray ￥600 NOS ? Realistic箱 9) 3A3/B/C/3B2 USA ￥400 used
3A4 =Power Pentode= (EIA/7BB - miniature) Ef/If=2.8V/0.1A or 1.4VDC/0.2A (direct heat) Ppmax=2W Epmax=150V Pc2max=90V Ec2max=90V Ikmax=18mA op : Ep=150V Ec2=90V Ec1=-8.4V Ip=13,3/14,1mA Ic2=2.2/3.5mA rp=100kΩ gm=1.9mS Zl=8kΩ D=6% Po=0.7W 参考 : Ep-Ip特性(@Ec2=90V) 1) 3A4 RCA ￥800 NIB 50) 3A4 Tsol ￥600 NIB MB 1) 3A4 USA ￥600 NIB MB 5) 3A4 RT(France) ￥600 NIB MB 1) 3A4 GE ￥600 NOS Marconi箱
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
3A5 =filamentary HF TwinTriode= (EIA/7BC)Ef/If=2.8V/0.11A or 1.4VDC/0.22A (direct heat) Ppmax=0.5W Epmax=135V Ipmax=5mA op : Ep=90V Ec=-2.5V Ip=3.7mA rp=8.3kΩ gm=1.8mS μ=15 参考 : Ep-Ip特性 0) 3A5 RCA ￥- NIB MB (rhx22nt) 1) 3A5 Arcturus ￥1000 NIB 0) 3A5 National ￥- NIB JRC-MB 1) 3A5 RCA ￥700 LikeNew Toshiba-boxed
3AF4/A =UHF Triode= (EIA/7DK - miniature) Eh/Ih=3.15V/0.45A heater variants : 2AF4A/B(2.35V/0.6A) 6AF4/A(6.3V/0.225A) 2) 3AF4A Tsol ￥600 NIB
3AL5 =Twin Diode= (EIA/6BT - miniature) Eh/Ih=3.15V/0.6A heater variants : 6AL5(6.3V/0.3A) 12AL5(12.6V/0.15A) 6) 3AL5 USA ￥600 NIB
3AT2 =HV Rectifier= (EIA/12FV) Eh/Ih=3.15V/0.22A PIV=30000V Ipmax=1.7mA/88mApeak 11) 3AT2/A/B USA ￥600 NIB 1) 3AT2/A/B USA ￥400 used
3AU6 =sharp cutoff RF Pentode= (EIA/7BK - miniature) Eh/Ih=3.15V/0.6A heater variants : 4AU6(4.2V/0.45A) 6AU6(6.3V/0.3A) 12AU6(12.6V/0.15A) 5) 3AU6 USA ￥600 NIB 1) 3AU6 USA ￥600 NIB RaggedBox 2) 3AU6 Toshiba ￥600 NIB
3AV6 =duplex Diode HighMu Triode= (EIA/7BT - miniature) Ppmax=0.5W Epmax=300V Egmax=0V Ehk=200V Eh/Ih=3.15V/0.6A Idiode-max=1mA/each op(T) : Ep=250V Ec=-2V Ip=1.2mA gm=1.6mS rp=62.5kΩ μ=100 also see heater variants : 6AV6(6.3V/0.3A) 12AV6(12.6V/0.15A) 7) 3AV6 USA ￥600 NIB 1) 3AV6 Hitachi ￥600 NIB just-ragged box(hyyExx)
3AW2/A =HV Rectifier= Eh/Ih=3.15V/0.35A PIV=38000V Ipmax=2.2mA/110mApeak 1) 3AW2A RCA ￥600 NIB 6) 3AW2A GE ￥600 NIB 1) 3AW2A WH ￥600 NIB 1) 3AW2A Syl ￥600 NIB 2) 3AW2/A RCA,Syl ￥400 used
3B4 =filamentary Beam Power= (EIA/7CY) Ef/If= 1.25VDC/0.33A or 2.5VDC/0.165A Ppmax=3W Epmax=150V Pc2max=1.1W Ec2max=135V Ec1-max=-75V Ipmax=25mA Ic1max=1.5mA Rg1max=100kΩ *Class-C (@f=100MHz) op : Ep= 90V Ec2= 90V Ec1=-18V Ip=15mA Ic2=4.8mA Ic1=0.40mA Pc1=0.03W Pout=0.45W op : Ep=150V Ec2=135V Ec1=-38V Ip=25mA Ic2=6.2mA Ic1=0.55mA Pc1=0.07W Pout=1.25W pins : 1(G2)-2(G3, FCT, IS)-3(G1)-4(F)-5(F)-6(G3,FCT,IS)-7(P) 0) 3B4 Ray ￥- NIB(T) 1) 3B4 Ray ￥900 NIB just-ragged box 4) 3B4 Hytron ￥900 NIB/MB very-ragged boxes 1) 3B4 Mot ￥900 NIB just-ragged box
3B7 =filamentary HF Twin Triode= (EIA/7BE - loktal) 3B7=1291 Ef/If=1.4VDC/0.22A or 2.8VDC/0.11A Ppmax=2.7W/unit Epmax=180V Ikmax=15mA/unit Igmax=4mA(series-fil.)/3mA(para-fil.) op(AB2pp): Ep= 90V Ec=0V Ip=10.4/21mA Ig=3.6mA Pin=45mW gm=1.85mS μ=20 Zlpp= 8kΩ D=8% Po=1.0W op(AB2pp): Ep=135V Ec=0V Ip=18.2/22mA Ig=2.7mA Pin=28mW gm=1.90mS μ=20 Zlpp=16kΩ D=8% Po=1.5W (参考 : Ep-Ip特性) 1) JAN-CHS 3B7/1291/VT-182 Syl ￥1300 NIB 5) JAN-CHS 3B7/1291/VT-182 Syl ￥1300 NIB D/C=1943, very-ragged boxes 1) 3B7 Syl ￥1300 NIB very-ragged box 1) 3B7/1291 Tsol ￥1300 NIB very-ragged box 3) JAN-CHS 3B7/1291 Syl ￥900 used Nickel-plates, WB 1) 3B7/1291/VT-182 Syl ￥900 used black-plates, WB
3B24/W/WA/WB =Halfwave Rectifier= (EIA/ -TopPlate) PIV=20kV Ipeakmax=300mA Idcmax=60mA Ef/If=5V/3A(series) 1) 3B24 WE ￥3300 NIB MB ragged-box 2) 3B24W Amprx ￥2900 NIB * ragged-box 2) 3B24WB Raytheon ￥2900 NIB ragged-box *m* 4) 3B24WB Cetron ￥2900 NIB ragged-box *m*
3B25 =Halfwave Xenon GAS Rectifier= (EIA/4P-TopPlate) PIV=4.5kV Ipeakmax=2A Idcmax=500mA Ef/If=2.5V/5A 1) 3B25 RCA ￥2900 NIB MB ragged-box 1) 3B25 RCA ￥2500 used? 50,51/40min(TV-7B/U)
3B26 =High Vacuum Clipper Diode/Halfwave Rectifier= (EIA/-TopPlate) PIV=15kV Ipeakmax=8A Idcmax=20mA Pd=25W Eh/Ih=2.5V/4.75A 1) RK-3B26 Ray ￥2400 used? LightBrownBox
3B28/CV1835 =Halfwave Xenon GAS Rectifier= (EIA/4P -TopPlate) Ef=2.5V/If=5A Tambient=-55℃～+75℃ Tfilament-preheat=5sec-minimum(TungSol) ～ 10sec-minimum(RCA,STC,etc) PIVmax=5000V(AC1750Vrms) Idcmax=500mA/2Apeak/20Asurge(0.1sec) Fsource-max=500Hz Edrop=10V or PIVmax=10000V(AC3500Vrms) Idcmax=250mA/1Apeak/20Asurge(0.1sec) Fsource-max=150Hz Edrop=10V also see an electrically similar MERCURY-vapor Halfwave Rectifier : 866A(Ef/If=2.5V/5A, PIV=5kV, Edrop=10V) 1) 3B28 RCA ￥3100 NIB (NTB) 2) 3B28 RCA ￥2900 NIB? VeryRaggedBox 1) 3B28 RCA ￥2900 NOS 1) 3B28 RCA ￥1800 used? 2) 3B28 Tsol ￥1700 used 1) 3B28 United ￥1700 used 0) 3B28 RCA ￥- used 0) 3B28 Chatham ￥- used 2) JAN-CAHG 3B28 Chatham ￥1700 used 1) 3B28 EE(ElectronicEnterprises) ￥1800 used/LikeNew 80/40min 3) 3B28 USA ￥1800 used LooseBase
3B29 =High Vacuum Clipper Diode/Halfwave Rectifier= (EIA/4P-TopPlate) PIV=16kV Ipeakmax=0.25A Idcmax=64mA Pd=25W Eh/Ih=2.5V/4.9A 1) JAN-CDR 3B29 GeneralElectronics ￥3900 NIB MB
3B/100B =heater-type Power Triode= Ppmax=10W Epmax=200V Ipmax=50mA Eh/Ih=4V/1.1A μ=13 rp=2kΩ gm=6.5mS 0) 3B/100B-globe STC used
3B/101B =heater-type hi-mu Triode= Ppmax=-W Epmax=200V Ipmax=25mA Eh/Ih=4V/1A μ=50 rp=10kΩ gm=5mS 0) 3B/101B-globe STV used
3B/151A =filamentary Power Triode= Ppmax=15W Epmax=400V Ipmax=50mA Icmax=10mA Ef/If=4V/1.6A μ=7 rp=3.5kΩ gm=2mS 0) 3B/151A-ST STC used
3B/200B =filamentary Power Triode= Ppmax=20W Epmax=600V Ipmax=135mA Icmax=-mA Ef/If=6V/1.1A μ=25 rp=5kΩ gm=5mS 0) 3B/200B-globe STC used
3B/252B / 4033L
3BA6 =remote-cutoff RF Pentode= (EIA/7BK - miniature) Eh/Ih=3.15V/0.6A heater variants : 6BA6(6.3V/0.3A), 12BA6(12.6V/0.15A) 2) 3BA6 USA ￥600 NOS/NIB
3BC5 =sharp-cutoff RF Pentode= (EIA/7BD - miniature) Eh/Ih=3.15V/0.6A heater variant : 6BC5(6.3V/0.3A) 5) 3BC5/3CE5 USA ￥600 NOS/NIB
3BE6 =Pentagrid Converter= (EIA/7CH - miniature) Eh/Ih=3.15V/0.6A heater variants : 6BE6(6.3V/0.3A), 12BE6(12.6V/0.15A) 1) 3BE6 RCA ￥600 NOS
3BH2 =RF Rectifier Tube= (EIA/) Eh/Ih=3.15V/0.37A PIV=35000V Ipmax=1.7mA 3) 3BH2/GY501 Amperex ￥700 NIB
3BL2/A =Halfwave HV Rectifier= (EIA/12HK) Eh/Ih=3.3V/0.285A PIV=30000V Ipmax=1.7mA/88mApeak 1) 3BL2A SYl ￥600 NIB
3BN4/A =VHF med-mu Triode= (EIA/7EG - miniature) Eh/Ih=3V/0.45A Ehkmax=±100V Twarmup=11sec Ppmax=2.2W Epmax=275V Ikmax=22mA Rgmax=500kΩ op : Ep=150V Rk=220Ω Ip=9mA rp=5.4kΩ gm=7.7mS μ=43 (参考 : Ep-Ip特性) heater variants : 2BN4/A(2.35V/0.6A), 6BN4/A(6.3V/0.2A) 1) 3BN4A RCA ￥700 NIB 1) 3BN4 GE ￥600 NIB 2) 3BN4 Syl ￥600 NIB 1) 3BN4 WH ￥600 NOS Syl箱 1) 3BN4 Philco ￥600 NIB
3BN6 =Gated Beam Discriminator= (EIA/7DF) 3.15V/0.6A heater variants : 4BN6(4.2V/0.45A), 6BN6(6.3V/0.3A), 12BN6(12.6V/0.15A) 1) 3BN6 RCA ￥600 NIB 4) 3BN6 GE ￥600 NIB 6) 3BN6 USA ￥600 NOS/NIB 1) 3BN6 USA ￥600 NOS ?
3BT2 =HV Rectifier= Eh/Ih=3.15V/048A PIV=38000V Ipmax=2.2mA/110mA-peak 1) 3BT2 USA ￥600 NOS
3BU8 =common G1-G2-K Twin Pentode= (EIA/9FG) Eh/Ih=3.15V/0.6A equivallent : 3GS8(3.15V/0.6A) heater variant : heater variant : 4BU8/4GS8(4.2V/0.45A), 6BU8/6GS8(6.3V/0.4A) 4) 3BU8/3GS8 Ray ￥600 NIB 1) 3BU8 USA ￥600 NOS
3BW2 =HV Rectifier= (EIA/12HY - compactron) Eh/Ih=3.15V/048A PIV=38000V Ipmax=2.2mA/110mA-peak 3) 3BW2/3BS2A/3BT2 RCA ￥600 NOS 1) 3BW2 Syl ￥600 NIB 1) 3BW2 Philco ￥600 NIB 1) 3BW2 Hitachi ￥600 NIB GE箱
3BY6 =Dual Control Heptode= (EIA/7CH - miniature) Eh/Ih=3.15V/0.6A heater variant : 6BY6(6.3V/0.3A) 2) 3BY6 USA ￥600 NIB 1) 3BY6 Znth ￥500 used? STD箱
3BZ6 =Semi-remote cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=3.15V/0.6A heater variants : 4BZ6(4.2V/0.45A), 6BZ6(6.3V/0.3A), 12BZ6(12.6V/0.15A) 12) 3BZ6 RCA ￥700 NIB 5) 3BZ6 GE,CBS etc ￥600 NIB/NOS 2) 3BZ6 WH ￥600 NIB 1) 3BZ6 Motorola ￥400 used
3C4(=DL96) =Battery-drive power Pentode= (EIA/6BX - miniature) Ef/If=1.4V/50mA(2.8V/25mA) Ppmax=0.6W Epmax=90V Pc2max=0.2W Ec2max=90V Ikmax=3.1mAx2 Eg1max=-0.2V Rg1max=2MΩ op : Ep=85V Ec2=85V Ec1=-5.2VIp=5mA Ic2=1.1mA rp=125kΩ gm=1.35mS μg2g1=7.8 Zl=13kΩ Po=0.2W D=10% similar to 3V4(Ef/If=2.8V/50mA(1.4V/100mA)) 0) 3C4 Philips ￥- used 1) 3C4 Matsushita ￥400 used
3C23 =Thyratron= (EIA/3G) Vapmax=1500V -Vgmax=-500V(BeforeConduction),-10V(UnderConduction) Ikmax=1.6A Ef/If=2.5V/7A 0) PL-3C23 Philips ￥- NIB 2) 3C23 National ￥4500 NIB ++
3C24/24G/CV789=filamentary PowerTriode=(EIA/ - TopPlate, SideGrid) Ef/If=6.3V/3A Fmax=60MHz Ratings(Audio) : Ppmax=25W Epmax=1500V Ipmax=75mA, μ=25-typ gm=2.5mS-typ (@Ea=1000V Ip=25mA) op(B2pp) : Ep=500V Ec=0V Ip=70mA/150mA Esig=190Vpp Zlpp=6.4kΩ Pin=3.5W Po=45W op(B2pp) : Ep=1000V Ec=-29V Ip=30mA/150mA Esig=248Vpp Zlpp=15kΩ Pin=4.5W Po=105W op(B2pp) : Ep=1250V Ec=-42V Ip=24mA/256mA Esig=256Vpp Zlpp=21.2kΩ Pin=4.2W Po=120W (参考 : Ep-Ip特性) similar to HK-24 / Gammatron-24 (TopPlate, BottomGrid) 0) 3C24/24G Eimac ￥- NIB(Sx) 0) JAN-CYN3C24 Lewis ￥- NIB RaggedBox date=15-Mar-1944(vQ) 4) 3C24/24G/VT-204 Lewis ￥4300 NIB RaggedBox TESTED(nhyydnt) 0) 3C24 Lewis & Kaufman ￥- NIB(mQ) 0) 3C24/24G/VT-204 StrombergCarlson ￥- NIB(vgT) 0) 3C24/VT-204 Philips(Norelco-made) ￥- NIB(gQ) 0) 3C24/24G L&K ￥- NIB MB(D) 0) 3C24/24G FAA(GeneralElectroncs) ￥- NIB MB(mQ) 1) 3C24 Marshall Electronics ￥4300 NIB MB AluminumBase JAN-CBOP箱 tested(vT) 1) JAN/US-Army 3C24/VT-204 NorthAmericanPhilips ￥4300 NIB D/C=1944 etc, MB tested(vD) 0) US-Army 3C24/VT-204 NorthAmericanPhilips=Norelco ￥- NIB MB(hyyfnx) BlackBase D/C=1944-4 or 1944-7(on box) 0) 24G/VT-204 NorthAmericanPhilips ￥- NIB MB(wD) 0) 24G/VT-204 Heintz & Kaufman ￥- NIB MB 0) 3C24/24G Gammatron ￥- NIB (vT) 1) 3C24/24G Gammatron ￥2200 used 1) 3C24 EEV ￥3000 like-new WB
3C30
3C33
3C45 =Hydrogen Thyratron for pulse service= (EIA/A4-9 - T12) Eh/Ih=6.3V/2.3A Vapmax=3000V -Vgmax=-200V(BeforeConduction) Ia-av-max=45mA similar to HP-45B(for HP 212A pulse generator) 4) 3C45 Kuthe Lab (ITT) ￥7000 NOS MB 1) PL345/3C45 Valvo ￥7000 NIB 1) 1G45P(=3C45) JRC ￥700 used WB
3CA3/A =HV Rectifier= Eh/Ih=3.6V/0.225A PIV=38000V Ipmax=2mA/100mApeak 6) 3CA3A RCA ￥800 NIB 4) 3CA3A GE ￥700 NIB 1) 3CA3/A USA ￥400 used
3CB6 =sharp cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=3.15V/0.6A heater variants : 4CB6(4.2V/0.45A) 6CB6(6.3V/0.3A) 1) 3CB6 RCA ￥600 NIB 3) 3CB6 WH ￥600 NIB 5) 3CB6 USA ￥600 NIB/NOS 1) 3CB6 USA ￥600 NOS 1) 3CB6 USA ￥400 used
3CF6 =sharp cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=3.15V/0.6A heater variant : 6CF6(6.3V/0.3A) 1) 3CF6 RCA ￥600 NIB
3CN3/B =HV Rectifier= Eh/Ih=3.15V/0.48A PIV=38000V Ipmax=2.2mA/110mApeak 4) 3CN3B RCA ￥800 NIB
3CS6 =Dual control Heptode= (EIA/7CH - miniature) Eh/Ih=3.15V/0.6A heater variants : 4CS6(4.2V/0.45A) 6CS6(6.3V/0.3A) 5) 3CS6 USA ￥600 NIB
3CU3 =HV Rectifier= Eh/Ih=3.15V/0.28A PIV=33000V Ipmax=2mA/100mApeak 10) 3CU3/A USA ￥600 NIB 1) 3CU3/A USA ￥400 used
3CX3 =HV Rectifier= Eh/Ih=3.15V/0.48A PIV=38000V Ipmax=2mA/110mApeak 1) 3CX3 RCA ￥400 used
3CY3 =HV Rectifier= Eh/Ih=3.15V/0.245A PIV=38000V Ipmax=2mA/100mApeak 1) 3CY3 WH ￥400 used
3CY5 =sharp cutoff RF Tetrode= (EIA/7EW - miniature) Eh/Ih=2.9V/0.45A heater variants : 2CY5(2.4V/0.6A) 6CY5(6.3V/0.2A) 1) 3CY5 USA ￥600 NIB
3CZ3/A =HV Rectifier= (EIA/8EZ) Eh/Ih=3.15V/0.48A PIV=38000V Ipmax=2.2mA/110mApeak 5) 3CZ3A RCA ￥900 NIB
3D6(=1299) =filamentary Beam Power= (EIA/6BB - loktal) Ef/If=1.4VDC/0.22A(2.8V/0.11A) Ppmax=4.5W Epmax=180V Pc2max=0.9W Ec2max=135V Ikmax=30mA op: Ep=90V Ec2=90V Ec1=-4.5V Ip=9.5mA gm=2.4mS op: Ep= 90V Ec2=90V Ec1=-4.5V Ip=9.5/ 8.5mA Ic2=1.6/3.2mA Zl= 8kΩ Po=0.27W D=5% op: Ep=135V Ec2=90V Ec1=-4.5V Ip=9.8/ 9.8mA Ic2=1.2/2.0mA Zl=12kΩ Po=0.50W D=5% op: Ep=150V Ec2=90V Ec1=-4.5V Ip=9.9/10.2mA Ic2=1.0/1.8mA Zl=14kΩ Po=0.60W D=5% (参考: Ep-Ip特性(@Ec2=90V)) 1) 3D6/1299 Ray ￥1900 NIB Loktal 3) 3D6/1299 Sylvania ￥900 used WB 1) 3D6/1299 USA ￥900 used clear-glass WB
3D21/A/B/WA/WB =Pulse Beam Power Tetrode= (EIA/6BU - octal TopPlate) Eh/Ih=6.3V/1.7A(12.6V/0.85A) 3D21/3D21A(ST-14 glass), 3D21B(T-12 straight glass) : Ppmax=15W Epmax=3500V Pc2max=3.0W Ec2max=850V Pc1max=0.5W Ikmax=mA Ehkmax=150V op : Ep=600V Ec2=300V Ec1=-30V Ip=30mA Ic2=2.5mA gm=5.5mS (参考 : STC-3D21Aの三結時のEp-Ip特性( - triode connection)) 3D21WB(T-12 straight glass): Ppmax=40W Epmax=4000V Pc2max=3.5W Ec2max=850V Pc1max=0.5W Ikmax=175mA Ikpeak-max=10A Ehk=500V Tbulb=300℃max (参考 : TungSol-3D21WBの三結時のEp-Ip特性( - triode connection/* reasonably-corrected)) Pins:1(HCT)-2(H)-3(none)-4(G2)-5(none)-6(G1)-7(H)-8(K)-cap(P) The Bendix/MU/Tung-Sol 3D21WB is a highly-rugged, reliable, beam power tetrode designed for pulse service. Featuring the ability to operate under high voltage and high pulse current conditions. (3D21/A/B/WA can be replaced with/to 3D21WB, but 3D21WB cannot be done with/to others because of allowable plate dissipation difference.) 3D21WB is similar to 7403 except glass shape and heater spec. 0) 3D21 Hytron ￥- used ST-glass WB 4) 3D21A/CV2659 STC ￥offer NIB ST-glass 1) 3D21A Hytron ￥offer NOS?/used? ST BtmGetter 2) 3D21B CBS-Hytron ￥offer NIB date=6-58 GT-straight TopGetter 2) USN-CHY 3D21B Hytron ￥offer NIB GT-straight 1) USN-CHY 3D21B Hytron ￥offer LikeNew date=823 GT-straight 1) USN-CHY 3D21B Hytron ￥offer LikeNew date=823 GT-straight LooseTopCap 1) 3D21B Syl ￥offer NOS?/used? GT-straight TopGetter 0) 3D21B JRC(日本無線) ￥- lightly-used bottom-twin-Getter GT-straight WB 12) 3D21WB Siemens ￥offer NIB D/C=380(1980.3) 1) 3D21WB MU ￥offer NIB date=3-77 GT-straight SideGetter ThickCeramicSupporter(Bendix-like) 2) 3D21WB MU ￥offer NIB date=12-77 GT-straight SideGetter ThickCeramicSupporter(Bendix-like) 3) 3D21WB MU ￥offer NIB SideGtr date=4/82 ThickCeramicSupporter(Bendix-like) 1) 3D21WB MU ￥offer NIB date=9-82 GT-straight SideGetter ThickCeramicSupporter(Bendix-like) 4) 3D21WB MU ￥offer NIB date=8-85 GT-straight SideGetter ThickCeramicSupporter(Bendix-like) 2) 3D21WB Tung-Sol ￥offer NIB date=3-71 CopperGridPost GT-straight SideGetter ThickCeramicSupporter(Bendix-like) 1) 3D21WB Tung-Sol ￥offer NIB date=67-25 CopperGridPost GT-straight SideGetter ThickCeramicSupporter(Bendix-like) 1) 3D21WB Tung-Sol ￥offer NIB date=68-50 CopperGridPost GT-straight SideGetter ThickCeramicSupporter(Bendix-like) 13) 3D21WB Tung-Sol ￥offer NOS GT-straight SideGetter ThickCeramicSupporter(Bendix-like) 3) 3D21WB Tung-Sol ￥offer NOS?/used? GT-straight SideGetter ThickCeramicSupporter(Bendix-like) =PowerTriode= (EIA/4D) Ef/If=7.5V/1.25A Ppmax=20W Epmax=600V Ipmax=70mA μ=8typ Rgmax=100kΩ(fixed), 500kΩ(self) op(A1S) : Ep=425V Ec=-40V Ip=18mA gm=1.6mS rp=5kΩ Zl=10.2kΩ Po=1.6W op(A1S) : Ep=500V Ec=-45V Ip=24mA gm=1.725mS rp=4.6kΩ Zl=8kΩ Po=2.3W op(A1S) : Ep=600V Ec=-55V Ip=30mA gm=1.84mS rp=4.3kΩ Zl=7.8kΩ Po=3.8W op(B2pp): Ep=400V Ec=-50V Ipo=4mAx2 Ipmax=65mAx2 Zlpp=6kΩ Pin=3W Po=27W op(B2pp): Ep=500V Ec=-60V Ipo=4mAx2 Ipmax=65mAx2 Zlpp=8kΩ Pin=3W Po=36W op(B2pp): Ep=600V Ec=-75V Ipo=4mAx2 Ipmax=65mAx2 Zlpp=10kΩ Pin=3W Po=45W (see Ep-Ip特性) size : 50mmΦ x 129mmH (typ.) see equivallent types : 801A, VT-62/801A also similar to AT20/CV1361 0) 3T20 Mazda ￥9700 NIB ceramic base 4:reserved) 3T20 Mazda ￥11000 NIB ceramic base 0) 3T20 Mazda ￥- used ceramic base WB
3D23 =transmitting Beam Tetrode= (EIA/) 6.3V/3A 3D23 = TB-35 0) 3D23 Lewis ￥- used
3DA3/3DH3 =Halfwave HV Rectifier= (EIA/8MY) Eh/Ih=3.15V/0.48A PIV=38000V Ipmax=2.2mA/110mApeak 1) 3DA3/3DH3 RCA ￥700 NIB
3DB3/3CY3 =Halfwave HV Rectifier= (EIA/8MX) Eh/Ih=3.15V/0.245A PIV=38000V Ipmax=2mA/100mApeak 2) 3DB3/3CY3 Syl ￥700 NIB
3DC3 =Halfwave HV Rectifier= (EIA/8MZ) Eh/Ih=3.15V/0.28A PIV=33000V Ipmax=2.2mA/110mApeak 1) 3DC3 RCA ￥800 NIB 1) 3DC3 Syl ￥800 NIB RaggedBox 2) 3DC3 USA ￥800 NIB 17) 3DC3/3CU3A GE ￥800 NIB
3DF3 =Halfwave HV Rectifier= (EIA/8MT) Eh/Ih=3.15V/0.48A PIV=38000V Ipmax=2.2mA/110mApeak 1) 3DF3 RCA ￥700 NIB
3DG4 =filamentary Fullwave Rectifier= (EIA/5DE - octal T12-bulb) Eh/Ih=3.3V/3.8A PIV=1050V Idcmax=400mA(Eac=375V:Linput, Eac=325V:Cinput) Ipeakmax=1.2A Edrop=25V(@Idc=350mA) 3) 3DG4 RCA ￥1000 NIB 3) 3DG4 RCA ￥1000 NIB 0) 3DG4 RCA ￥- NIB just-ragged boxes / 5pcs 4) 3DG4 GE ￥1000 NIB 1) 3DG4 Syl ￥800 NOS? 3) 3DG4 USA ￥900 NIB 一部RaggedBox(Qn)
3D-HH13/3DHH13(=3FX7) =RF twin triode= *subminiature* (EIA/8LK - subminiature) Eh/Ih=3.15V/0.6A Ppmax=1.7W/unit) Epmax=100V(300V-cutoff) Rgmax=500kΩ op : Ep=90V Ec1=-1V Ip=9mA rp=3.8kΩ gm=9.5mS μ=36 pins : 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G,IS)-8(1K) 参考 : Ep-Ip特性 heater variant : 6D-HH13(6.3V/0.3A) 4) 3D-HH13 Toshiba ￥1000 NIB 3:cellophane-sealed 1) 3D-HH13 Toshiba ￥1000 NIB very-ragged box 1) 3D-HH13 Toshiba ￥1000 NOS plain-box
3DJ3 =Halfwave HV Rectifier= (EIA/8MX) Eh/Ih=3.15V/0.3A PIV=38000V Ipmax=2mA/100mApeak 1) 3DJ3 GE ￥600 NIB 1) 3DJ3 Syl ￥600 NIB
3DK6 =sharp cutoff Pentode= (EIA/7CM - miniature) Eh/Ih=3.15V/0.6A heater variants : 4DK6(4.2V/0.45A), 6DK6(6.3V/0.3A), 12DK6(12.6V/0.15A) 14) 3DK6 USA ￥600 NIB 1) 3DK6 USA ￥400 used
3DR3 =Halfwave HV Rectifier= (EIA/8NL) Eh/Ih=3.15V/0.3A PIV=38000V Ipmax=2mA/100mApeak 1) 3DR3 GE ￥1200 LikeNew
3DT6/A =sharp cutoff Pentode= (EIA/7EN - miniature) Eh/Ih=3.15V/0.6A heater variants : 4DT6/A(4.2V/0.45A), 6DT6/A(6.3V/0.3A) 4) 3DT6/A USA ￥600 NIB
3E29
3EH7/XF184 =remote cutoff Pentode= (EIA/9AQ - noval) Eh/Ih=3.4V/0.6A heater variants : 4EH7(4.4V/0.45A), 6EH7(6.3V/0.3A) 2) 3EH7/XF184 RCA ￥700 NIB Gt.Britain mesh
3ER5 =high-μ HF Triode= (EIA/7FP - miniature) Eh/Ih=2.8V/0.45A Ehkmax=±100V Ppmax=2.2W Epmax=250V Ecmax=-50V Ikmax=20mA Rgmax=1MΩ op : Ep=200V Ec=-1.2V Ip=10mA tp=8kΩ gm=10.5mS μ=80 (参考 : Ep-Ip特性) heater variant : 6ER5(6.3V/0.18A) 3ER5≒3ES5 similar to 3GK5 0) 3ER5 USA ￥1000 NIB
3FX7= 3D-HH13(Toshiba) =med-mu twin triode= *subminiature*
3GK5 =HF Triode= (EIA/7FP - miniature) Eh/Ih=2.8V/0.45A Twarmup=11sec Ehkmax=±100V Ppmax=2.5W Epmax=200V Ecmax(-)=50V Ikmax=22mA Rgmax=1MΩ op : Ep=135V Ec=-1V Ip=11.5mA μ=78 gm=15mS rp=5.4kΩ NF=4.7dB (参考 : Ep-Ip特性) heater variants : 2GK5/2FQ5A(2.3V/0.6A), 4GK5(4V/0.3A), 6GK5/6FQ5A(6.3V/0.18A) similar to 3ER5 1) 3GK5 RCA ￥1000 NOS D/C=63-26 Syl-boxed (hyy00sdx) 2) 3GK5 GE ￥1000 NIB made in Canada (hyy00sdx) 1) 3GK5 Syl ￥1000 NIB (hyy00sdx) 1) 3GK5 Syl ￥1000 NIB (hyy00sdx) 9) 3GK5 USA ￥1000 NIB 2) 3GK5 USA ￥1000 NOS 1) 3GK5 Toshiba ￥1000 NIB cellophane-sealed 2) 3GK5 NEC ￥1000 NIB cellophane-sealed 2) 3GK5 NEC ￥1000 NIB 1pc:cellophane-sealed 4) 3GK5 NEC ￥1000 NIB 1) 3GK5 Matsushita ￥1000 NIB just-ragged box 1) 3GK5 USA ￥600 used
3GS8/3BU8 =common G1-G2-K Twin Pentode= (EIA/9LW) Eh/Ih=3.15V/0.6A heater variant : 4BU8/4GS8(4.2V/0.45A), 6BU8/6GS8(6.3V/0.4A) 1) 3GS8/3BU8 Admiral ￥400 used GE箱
3H-1-7 =load-series current-stabilizer ballast tube= VoltageRange(I)=1.6V-4.0V, VoltageRange(II)=6.6V-12.0V, CurrentRange=330mA-390mA where I : pins 2-5, II : pins 5-7 pins : 1(NC)-2(F1)-3(NC)-4(NC)-5(F1,F2)-6(NC)-7(F2)-8(NC) (参考資料 : Amperite Ballast Reference) 2) 3H-1-7 Amperite ￥1500 NIB Ballast 0) 3H-1-7 Toshiba ￥- BulkNOS Ballast WB
3H-7 =load-series current-regulating ballast tube= VoltageRange=5V-10V, CurrentRange=320mA-380mA pins : 1(NC)-2(F1)-3(NC)-4(NC)-5(NC)-6(NC)-7(F2)-8(NC) (参考資料 : Amperite Ballast Reference) 0) 3H-7 Amperite ￥- NIB Ballast 0) 3H-7 Toshiba ￥- Bulk-NOS Ballast WB
3HA5/3HM5 =Hi-mu Triode= (EIA/7GM - miniature) Eh/Ih=2.7V/0.45A Ppmax=2.6W Epmax=220V Ikmax=22mA -Ecmax=50V Rgmax=1MΩ op : Ep=200V Rk=87Ω Ip=11.5mA gm=14.5mS μ=72 (参考 : Ep-Ip特性) heater variants : 2HA5/2HM5(2V/0.6A), 4HA5/4HM5(4V/0.3A), 6HA5(6.3V/0.18A), 6HM5(6.3V/0.18A) 1) 3HA5/3HM5 RCA ￥1000 NIB - mint 4) 3HA5/3HM5 Ray他 ￥1000 NIB 6) 3HM5/3HA5 USA ￥10000 NIB 1) 3HA5 Toshiba ￥1000 NIB cellophane-sealed 1) 3HM5/3HA5 USA,Japan ￥600 used
3HQ5 =Triode= (EIA/7GM - miniature) Eh/Ih=3V/0.45A Ppmax=2.5W Epmax=200V Ikmax=22mA -Ecmax=50V Rgmax=1MΩ op : Ep=135V Ec=-1V Ip=11.5mA rp=5.4kΩ gm=15mS μ=78 (参考 : Ep-Ip特性) heater variants : 2HQ5(2.4V/0.6A), 4HQ5(4.2V/0.3A), 6HQ5(6.3V/0.2A) 1) 3HQ5 USA ￥1000 NIB 1) 3HQ5 USA ￥600 used
3HTF4 =Current-regulating Ballast tube= (参考資料 : Amperite Ballast Reference) 1) 3HTF4 Amperite ￥1800 NIB 2) 3HTF4 Amperite ￥1800 NIB
3JC6/A =sharp cutoff Pentode= (EIA/9PM - noval) Eh/Ih=3.5V/0.6A heater variants : 4JC6/A(4.5V/0.45A), 6JC6/A(6.3V/0.3A) 1) 3JC6/A RCA ￥700 NIB 1) 3JC6/A GE ￥600 NIB 2) 3JC6/A Syl ￥600 NIB
3KT6 =semi-remotecutoff Pentode= (EIA/9PM - noval) Eh/Ih=3.5V/0.6A heater variants : 4KT6(4.5V/0.45A) 6KT6(6.3V/0.3A) 1) 3KT6 Syl ￥600 NIB
3M-P26/3MP26 =Power Pentode= (EIA/6CC - miniature) Eh/Ih=3.15V/0.6A Ehkmax=±200V(DCmax=+100V) Ppmax=4.2W Epmax=165V Pc2max=0.6W Ec2max=165V Ikmax=50mA Rg1max=500kΩ ex) Ep=110V Ec1=-10V Ec2=110V Ip=32mA Ic2=1.5mA rp=16kΩ gm=4.25mS Zl=2.8kΩ Po=1.4W (参考 : Ep-Ip特性(@Ec2=110V)) heater variants : 4MP26(4.5V/0.45A) 4) 3M-P26 Ray(made in Japan) ￥1000 NIB justDirtyBox
3P41
3P50
3Q4 =direct-heat Power Pentode= (EIA/7BA - miniature) Epmax=90V Ec2max=90V Ikmax=2x6=12mA Ef/If=2.8V/50mA(1.4V/100mA) op(A1s/Parallel filaments) : Ep=90V Ec2=90V Ec1=-4.5V Ipo=9.5mA Ico=2.1mA gm=2.15mS Zl=10kΩ Po=0.27W D=7% 3Q4 is identical to 3V4 except basing. 8) JAN/JRC 3Q4 RCA ￥600 NIB MB(MT) 1) 3Q4 RCA ￥600 NIB (MT) 1) 3Q4 GE ￥600 NIB 青箱(MT) 1) JTL 3Q4 Tsol ￥600 NIB MB(MT) 1) 3Q4 Krad ￥600 NOS Tsol軍箱(MT) 2) JAN-CRP 3Q4 Ray ￥600 NIB (MT) 3) 3Q4 GM ￥600 NIB (MT)
3Q5 =Beam Power= (EIA/7AP : 8pin/octal base) Ef/If=2.8V/50mA(1.4V/100mA) Epmax=110V Ec2max=110V Ikmax=12mA op(A1s) : Ep=110V Ec2=110V Ec1=-6.6V Ipo=10mA Ico=1.4mA rp=100kΩ gm=2.2mS Zl=8kΩ Po=0.4W D=6% 0) 3Q5GT/G RCA ￥- NIB MB 0) 3Q5GT/G RCA ￥- LikeNew 0) 3Q5GT RCA ￥- NIB 0) JAN-CRC 3Q5GT/G RCA ￥- NOS 0) 3Q5GT GE ￥- NIB 0) 3Q5GT/VT-221 Syl ￥- NIB MB 1) 3Q5GT/G Tsol ￥1500 NIB 2) 3Q5GT USA ￥800 used WB
3S4 =Power Pentode= (EIA/7BA - miniature) Ef/If=2.8V/50mA(1.4V/100mA) Epmax=90V Ec2max=67.5V Ikmax=6mAx2=12mA op(A1s) : Ep=90V Ec2=67.5V Ec1=-7V Ipo=7.4mA Ico=1.4mA rp=100kΩ gm=1.575mS Zl=8kΩ Po=0.27W D=12% Po=0.27W/Zl=8kΩ same-basing similar types : 3Q4 3Z4 1) 3S4 Mullard ￥1500 NIB England 0) 3S4 RCA ￥- NIB 1) JAN-RMA 3S4 signalCorp ￥900 NIB 2) JAN-JHS 3S4 Syl ￥900 NIB(Qn) 1) JAN-CHS 3S4 Syl ￥900 NIB MB(Qn) 1) 3S4 Ray ￥900 NIB 7) 3S4 USA ￥900 NIB 2) 3S4-SF TEN(=Fujitsu) ￥900 NIB very-ragged-boxes 1) 3S4 TEN ￥600 lightly-used WB
3T20
3TF4/3TFV4 =Current regulating Ballast tube= (参考資料 : Amperite Ballast Reference) 10) 3TF4 Amperite ￥1200 NIB Ballast 2) 3TFV4 Amperite ￥1200 NIB Ballast
3TK2 2) 3TK2 (=KS15586) Amperite ￥1200 NIB Ballast 2) 3TK2 Amperite ￥1200 NIB Ballast
3V4 =Power Pentode= (EIA/6BX - miniature) Epmax=100V Ec2max=100V Ikmax=6x2=12mA Ef/If=2.8V/50mA(1.4V/100mA) op(A1s/Parallel filaments) : Ep=90V Ec2=90V Ec1=-4.5V Ipo=9.5mA Ico=2.1mA gm=2.15mS Zl=10kΩ Po=0.27W D=7% Po=0.27W/Zl=10kΩ 3V4 is identical to 3Q4 except basing. similar to 3C4(Ef/If=2.8V/25mA(1.4V/50mA)) 1) 3V4 Mullard ￥1500 NIB ragged-box 7) 3V4 RCA ￥1500 NIB 1) 3V4 GE ￥1500 NIB 1) JG-3V4 GE ￥1500 NIB MB 2) 3V4 Arcturus ￥1500 NIB 1) 3V4 AWV-Radiotron ￥1500 NIB 0) 3V4 CGE,Truetone ￥- NIB(sD) 0) 3V4 CGE ￥500 used(D)
3W-C5/3WC5 =Penta-grid Converter= (EIA/T7F - Ut, 7pin, ST)Eh/Ih=2.5V/1A op : Ep=250V Ec2,4=100V Ec3=-2V Rg1=20kΩ Ip=3.5mA Ic2=8.5mA Ic1=0.5mA rp=1MΩ gm=0.45mS pins : 1(H)-2(P)-3(G2,G4)-4(G3)-5(G5,K)-6(G1)-7(H) heater variant : 6W-C5(6.3V/0.35A) 1) 3W-C5 JRC(SUWA MUSEN) ￥1200 NIB
3Y4(=DL97) =Battery-drive power Pentode= (EIA/7BA - miniature) Ef/If=1.4V/50mA(2.8V/25mA) Ppmax=W Epmax=V Pc2max=W Ec2max=V Ikmax=mAx2 Eg1max=-V Rg1max=MΩ op : Ep=62.5V Ec2=62.5V Ec1=-5.4V Ip=5mA Ic2=0.95mA rp=100kΩ gm=1.25mS Zl=9.5kΩ Po=0.15W 0) 3Y4 Toshiba ￥- used 2) 3Y4 Matsushita ￥400 used 2) 3Y4/DL97 Matsushita ￥400 lightly-used WB
3Y-P1/3YP1 = Power Pentode = (EIA/5B - 5pin, ST12)Eh/Ih=2.5V/0.9A op : Ep= 180V Ec1= -10V Ec2= 180V Ib= 15mA Ic2= 2.5mA rp=130KΩ gm=1.75mS Zl=12KΩ Po= 1W equivallent to 47BK similar to 6Z-P1(Eh/Ih=6.3V/0.35A), 12Z-P1(Eh/Ih=12V/0.15A) 1) 3Y-P1 Matsushita ￥2000 NIB, WB 1) 3Y-P1 TEN ￥2000 NIB just-ragged box 6) 3Y-P1 PRC(Pals Radio Tube Co.ltd, Japan) ￥2000 NIB, WB 1) 3Y-P1 PRC ￥2000 NOS 1) 3Y-P1 REX(東洋電波) ￥2000 NOS 1) 3Y-P1 Besto(安田真空工業) ￥2000 NIB, WB 1) 3Y-P1 マツダ(Matsuda) ￥2000 used-lightly
3Z4 =power pentode= (EIA/7BA - miniature) Ef/If=2.8V/50mA(1.4V/100mA) Epmax=90V Ec2max=67.5V Ikmax=11mA op(A1s) : Ep=67.5V Ec2=67.5V Ec1=-7V Ip=6.5mA Ic=1.3mA gm=1.45mS Zl=8kΩ Po=0.21W D=12% same-basing similar types : 3Q4 3S4 different-basing similar type : 3V4 2) 3Z4 Hitachi ￥1000 NIB very-ragged-boxes
3Z-DH3/3ZDH3 =single-diode high-mu-Triode= (EIA/6G - UZ 6pin, ST12) Eh/Ih=2.5V/1A Idiode=1mA-max(peak) op(triode) : Ep=250V Ec=-2V Ip=1.1mA gm=1.175mS μ=100 pins : 1(H)-2(Pt)-3(Pd)-4(NC)-5(K)-6(H)-Top(Gt) heater variant : 6Z-DH3(6.3V/0.3A) 9) 3Z-DH3 Matsushita ￥700 used green-rust on TopCap, WB
3Z-DH3A/3ZDH3A =single-diode high-mu-Triode= (EIA/T6C - UZ 6pin, ST12)Eh/Ih=2.5V/1A Idiode=1mA-max(peak) op(triode) : Ep=250V Ec=-2V Ip=1.1mA gm=1.175mS μ=100 pins : 1(H)-2(Pt)-3(Gt)-4(Pd)-5(K)-6(H) heater variant : 6Z-DH3A(6.3V/0.3A) 1) 3Z-DH3A JRC(SUWA-MUSEN) ￥1200 NIB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
4-65A/8165
4-125/4-125A(=4D21)=Beam Power Tetrode= (EIA/5BK - TopPlate) Ef/If=5V/6.5A μg2g1=5.9-typ, gm=2.45mS @ Ep=2500V Ec2=400V Ip=50mA RF-amp : Ppmax=125W Epmax=3000V Ipmax=225mA Pc2max=20W Ec2max=400V Pc1max=5W op: Ep=2000V Ec2=350V Ec1=-100V Ip=200mA Ic2=50mA Ic1=12mA Pin=2.8W Po=275W op: Ep=3000V Ec2=350V Ec1=-150V Ip=167mA Ic2=30mA Ic1= 9mA Pin=2.5W Po=375W AF-amp(AB1) : Ppmax=125W Epmax=3000V Ipmax=225mA Pc2max=20W Ec2max=600V Pc1max=-W op: Ep=1500V Ec2=600V Ec1=-90V Ip=60/222mA Ic2=-1.0/17mA Zlpp=10.2kΩ Po=158W D=5% op: Ep=2500V Ec2=600V Ec1=-96V Ip=50/232mA Ic2=-0.3/8.5mA Zlpp=20.3kΩ Po=330W D=2.6% AF-amp(AB2) : Ppmax=125W Epmax=3000V Ipmax=225mA Pc2max=20W Ec2max=400V Pc1max=-W op: Ep=1500V Ec2=350V Ec1=-41V Ip=87/400mA Ic2=0/34mA Zlpp=7.2kΩ Ein=141Vpk Pin=5.2Wpk Po=350W D=2.5% op: Ep=2000V Ec2=350V Ec1=-45V Ip=72/300mA Ic2=0/5mA Zlpp=13.6kΩ Ein=105Vpk Pin=3.1Wpk Po=350W D=1.0% op: Ep=2500V Ec2=350V Ec1=-43V Ip=93/260mA Ic2=0/6mA Zlpp=22.2kΩ Ein= 89Vpk Pin=2.4Wpk Po=400W D=2.2% also see improved types : 6155 = RS1007 1) 4-125 Amprx NOS? ￥6000 2本共6155に構造酷似 1) 4D21/4-125A Eimac NIB ￥12000 MB 1) 4D21/4-125A PentaLab NIB ￥10000 MB 1) 4D21 EIMAC ￥14800 NIB, mint 0) 4-125A RCA ￥12000 NIB ragged box 0) 4-125A EIMAC ￥9500 NOS?/used? Ep/Ec2/Ec1/Ik=350V/350V/0V/180mA,186mA(D) - Eimac-made 4-125A used tubes - 1) 4-125A EIMAC ￥9500 usedLightly (#LBS2) 3) 4-125A EIMAC ￥9500 LightlyUsed (#LBS2) 3) 4-125A EIMAC ￥5500 used (#LBS2) 4) 4-125A EIMAC ￥5500 used(Nn) (#LBS2)
4-250A=Transmitting Beam Power Tetrode= (EIA/ - TopPlate) Ef/If=5V/14.5A Fmax=110MHz AF-amp : Ppmax=250W Ipmax=350mA Epmax=4000V Pc2max=35W Ec2max=600V Pc1max=10W op : Ep=2500V Ec2=500V Ip=100mA gm=4mS, μg2g1=5.1-typ op(AB1pp) Ep=1500V Ec2=600V Ec1=-95V Ip=120/400mA Ic2=-0.4mA/23mA Zlpp=6.25kΩ D=4% Po=310W op(AB1pp) Ep=2000V Ec2=600V Ec1=-104V Ip=110/405mA Ic2=-0.3mA/22mA Zlpp=9.17kΩ D=2.5% Po=460W op(AB2pp) Ep=1500V Ec2=300V Ec1=-48V Ip=100/485mA Ic2=0mA/34mA Zlpp=5.4kΩ Pin=4.7Wpk D=3% Po=428W op(AB2pp) Ep=2000V Ec2=300V Ec1=-48V Ip=120/510mA Ic2=0mA/26mA Zlpp=8.0kΩ Pin=5.5Wpk D=4% Po=650W see equivallent one : 5D22 1) 4-250A ￥12000 1) 4-250A/5D22 RCA ￥18500 NIB 0) 4-250A EIMAC ￥5900 used none
4-400A
4-S 2) 4-S Majestic ￥4100 NIB old 赤黄黒元箱
4AU6 =sharp Cutoff RF Pentode= (EIA/7BK-miniature) 4.2V/0.45A heater variants : 3AU6(3.15V/0.6A) 6AU6(6.3V/0.3A) 12AU6(12.6V/0.15A) 200) 4AU6 USA(made in JAPAN) ￥400 Bulk-NOS (￥3000 for 10-pcs) 1) 4AU6 USA ￥600 NIB
4B13(=813)
4B20(=QE08/200)
4B38(CAP/BASE = A9S/E32S, Top-Plate) Eh/Ih=6.3V/4.8A Ehkmax=±500Vpeak Twarmup=60sec Fmax=10MHz Ppmax=150W Epmax=1250V Pc2max=15W Ec2max=400V Rg1max=50kΩ(fixed) Ipmax=600mA(@max signal) Pp-inmax=450W(@max signal), gm=20mS(@Ip=300mA) μg1g2=6 op(AB1pp) : Ep=800V Ec2=300V Ec1=-50V Ip=100mA/800mA Ic2=100mA/80mA Zlpp=1.9kΩ Po=380W op(AB1pp) : Ep=1000V Ec2=300V Ec1=-50V Ip=80mA/720mA Ic2=80mA/70mA Zlpp=2.8kΩ Po=450W 参考: Ep-Ip特性(@Ec2=300V) (size : 175mmH x 90mmφ) 1) 4B38 Toshiba ￥offer like-new, NHK-1968, with a just-ragged original box, Top-view & Bottom-view 1) 4B38 Toshiba ￥offer very-lightly used, with a very-ragged original box 2) 4B38 Toshiba ￥offer used ------- 1) 5-pin socket Toshiba ￥2100 used for 4B38, 4B85, and 4T85P
4B85
4BC8 =HF Twin Triode= (EIA/9AJ - noval) Eh/Ih=4.2V/0.6A heater variants : 6BC8(6.3V/0.4A) 1) 4BC8 USA ￥600 NIB
4BL8/XCF80 =Triode Pentode= (EIA/9AE - noval) Eh/Ih=4.6V/0.6A heater variant : 6BL8(6.3V/0.45A) ECF80(6.3V/0.45A) 8A8(8.4V/0.3A) 9A8(9V/0.3A) PCF80(9V/0.3A) 2) 4BL8/XCF80 USA ￥600 NIB 1) 4BL8/XCF80 Philco(Holland) ￥400 used GE箱
4BN6 =Gated Beam Discriminator= (EIA/7DF - miniature) 4.2V/0.45A heater variant : 3BN6(3.15V/0.6A), 6BN6(6.3V/0.3A), 12BN6(12.6V/0.15A) 2) 4BN6 USA ￥600 NIB
4BQ7A =HF Twin Triode= (EIA/9AJ - noval) Eh/Ih=4.2V/0.6A heater variants : 5BQ7A(5.6V/0.45A), 6BQ7A(6.3V/0.4A) 4) 4BQ7A USA ￥600 NIB
4BS8 =med-mu Twin Triode= (EIA/9AJ - noval) Eh/Ih=4.2V/0.6A heater variant : 6BS8(6.3V/0.4A) 1) 4BS8 RCA ￥600 NIB 1) 4BS8 GE ￥600 NOS/NIB 1) 4BS8 GE ￥400 used
4BU8/4GS8 =common G1-G2-K Twin Pentode= (EIA/9FG - noval) Eh/Ih=4.2V/0.45A heater variant : 3GS8/3BU8(3.15V/0.6A), 6BS8/6GS8(6.3V/0.4A) 2) 4BU8/4GS8 RCA ￥700 NIB
4BZ6 =semi remote cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=4.2V/0.45A heater variants : 3BZ6(3.15V/0.6A), 6BZ6(6.3V/0.3A), 12BZ6(12.6V/0.15A) 2) 4BZ6 RCA ￥600 NIB - mint 1) 4BZ6 National￥600 NIB
4BZ7 =HF Twin Triode= (EIA/9AJ - noval) Eh/Ih=4.2V/0.6A heater variant : 6BZ7(6.3V/0.4A) 1) 4BZ7 CBS ￥600 NIB 2) 4BZ7 Rogers ￥600 NOS
4CB6 =sharp cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=4.2V/0.45A heater variants : 3CB6(3.15V/0.6A) 6CB6(6.3V/0.3A) 9) 4CB6 USA ￥600 NIB/NOS
4CS6 =dual control Heptode= (EIA/7CH - miniature) Eh/Ih=4.2V/0.45A heater variants : 3CS6(3.15V/0.6A) 6CS6(6.3V/0.3A) 2) 4CS6 USA ￥600 NOS
4CX250/A/B/72032930, 2800(D) 0) 4CX250B Eimac ￥21300 NIB 2000年製(Aht) 0) 4CX250B Svetlana ￥13950 NIB(D) 1) 7203/4CX250B RCA ￥15000 NIB 大型赤箱 (NTB) 1) 4CX250B ITT ￥7800 used gm=2500,1900 1) 4CX250BC Amperex ￥8700 used LikeNew 0) 4CX250F/G Eimac ￥9300 LightlyUsed VeryStrong (4CX250BのEf=26.5Vタイプ) (wD)
4CX300/A
4CX1000/A
4CV35000A 0) 4CV35000A Eimac ￥510,000 unused-rebuilt 3000時間保証 2本
4D1 =cathode-type Triode= (EIA/ -, B7, Top-G ) Eh/Ih=13V/0.2A Ppmax=W Epmax=250V op : Ep=100V Ec=0V rp=10kΩ gm=4mS μ=40 op : Ep=100V Ec=-1.5V Ip=2.5mA op : Ep=150V Ec=-2.5V Ip=3mA op : Ep=200V Ec=-3V Ip=5mA pins : 1(NC)-2(NC)-3(NC)-4(H)-5(H)-5(K)-7(P)-Top(G) (参考 : Eg-Ip特性(Ep=100V, 150V, 200V, 250V)) electrically similar types with UF-5pin and Eh/Ih=4V/1A spec. : AC/HL, K1694, MH4, 354V electrically similar type w/ MAZDA octal base : HL41(Eh/Ih=4V/0.6A) lower-gm type with B7-base and Eh/Ih=4V/1A spec. : MHD4(triode part, gm=2.2mS, μ=40) 4) 4D1 Brimar ￥4100 NIB 4) 4D1 Brimar ￥4100 NIB very-ragged boxes (hyy2&4mcqx)
4D21 = 4-125A
4D32
4DT6/A =sharpcutoff Pentode= (EIA/7EN - miniature) Eh/Ih=4.2V/0.45A heater variants : 3DT6/A(3.15V/0.6A), 6DT6/A(6.3V/0.3A) 2) 4DT6/A GE,WH ￥600 NIB 1) 4DT6 Syl ￥600 NIB
4E27/8001Ef/If=5V/7.5A Ppmax=75W Epmax=2000V Pc2max=30W Ec2max=750V Ipmax=150mA Ic2max=40mA gm=2.8mS(@Ip=75mA) op 1 A1S: Ep=500V Ec3=60V Ec2=500V Ec1=-47V Edrive-peak=47V Ip=150mA Ic2=10mA Zl=2.6kΩ Po=30W op 2 A1S: Ep=1000V Ec3=0V Ec2=300V Ec1=-27V Edrive-peak=27V Ip=75mA Ic2=5mA Zl=12.0kΩ Po=34W 10) 4E27 Lewis and Kaufman ￥12000 NIB(軍箱) D/C=April_1965 etc, フィラメント点灯の様子 0) 4E27 Lewis,CYN,L&K,Peco etc ￥- NIB(sQn) 1) 4E27 ? ￥5300 used WB Glass変色殆んどなし 1) 4E27 Heinz&Kaufman ￥5300 used WB 0) 4E27 L&K ￥- used WB
4E27A/5-125B
4EH7/LF183 =remote cutoff Pentode= (EIA/9AQ - noval) Eh/Ih=4.4V.0.45A heater variants : 3EH7(3.4V/0.6A), 6EH7(6.3V/0.3A) 1) 4EH7/LF183 RCA ￥700 NIB 1) 4EH7 GE ￥600 NIB 1) 4EH7 Silvertone ￥600 NOS? Holland Syl箱 1) 4EH7 Sanyo ￥400 used WH箱 2) 4EH7 USA ￥400 used
4EJ7/LF184 =sharp cutoff Pentode= (EIA/9AQ - noval) Eh/Ih=4.4V.0.45A heater variant : 6EJ7(6.3V/0.3A) 2) 4EJ7/LF184 RCA ￥700 NIB (Matsushita球入) 1) 4EJ7 RCA(Mullard) ￥700 NIB 1) 4EJ7/LF184 RCA ￥700 NOS 3) 4EJ7 GE ￥600 NIB 1) 4EJ7 Toshiba ￥600 NIB cellophane-sealed 1) 4EJ7 - ￥400 used? Admiral箱 1) 4EJ7 Sanyo ￥400 used WH箱
4ES8 =Twin Triode= (EIA/9AJ - noval) Eh/Ih=4V/0.6A heater variants : 5ES8(5.6V/0.45A), 6ES8(6.3V/0.365A), PCC189/7ES8(7.6V/0.3A) 1) 4ES8 RCA ￥700 NIB
4F15R = forced air-cooled Beam Power =
4F16/4F16R = Coaxial-electrode Ceramic-metal seal UHF Power Tetrode =Self bias is not recommended. Tpre-heat=60sec(min) CCS-Audio op-AB1pp: Ep=650V Ec2=300V Ec1=-15V Ein=30Vpp Ip=80/200mA Ic2=0/20mA Zlpp=4.33kΩ Po=50W Ep=850V Ec2=300V Ec1=-15V Ein=30Vpp Ip=80/200mA Ic2=0/20mA Zlpp=7.00kΩ Po=80W op-AB2pp: Ep=650V Ec2=300V Ec1=-15V Ein=46Vpp Ip=80/355mA Ic2=0/25mA Ic1max=15mA Pin=0.3W Zlpp=2.45kΩ Po=85W Ep=850V Ec2=300V Ec1=-15V Ein=46Vpp Ip=80/355mA Ic2=0/25mA Ic1max=15mA Pin=0.3W Zlpp=3.96kΩ Po=140W size/weight: 4F16 - 28.5mmΦ x 49.7mmH, in max / 48.2g size/weight: 4F16R - 32.1mmΦ x 49.0mmH, in max / 56.7g 参考: Ep-Ip特性(@Ec2=300V) 4F16 - heater variant: 4F84 , #7843 (Eh/Ih=26.5V/0.52A) 4F16R - heater variant: 4F84R, #6884 (Eh/Ih=26.5V/0.52A) 0) 4F16 Hitachi ￥- NIB 6) 4F16 Hitachi ￥5100 NIB still-sealed inside plastic bag w/ silica-gel 3) 4F16 Hitachi ￥5100 NIB plain-boxed, still-sealed inside plastic bag w/ silica-gel 7) 4F16 Hitachi ￥5100 NIB still-sealed inside plastic bag w/ silica-gel 1) 4F16 Hitachi ￥4000 NOS w/opened-bag, electrode-edge discolored WB 1) 4F16R/6816 Toshiba ￥1700 used NHK D/C=1971-5, bottom-view, WB 3) 4F16R Hitachi ￥1700 used NHK D/C=1970-4, 1970-4, 1974-5 WB 2) 4F16R Hitachi ￥1700 used D/C=1965-11, 1964-8, bottom-view, WB
4G106 =Fullwave Rectifiere= (EIA/ - ) Ef/If=4V/1A PIV=V Ikmax=mADC similar to RGN1064, G1064 1) 4G106 TeKaDe ￥3000 used mesh-plates, deformed pins
4GJ7/XCF801 =cathode-common Triode Pentode= (EIA/9QA - noval) Eh/Ih=4.1V/0.6A heater variants : 5GJ7(5.6V/0.45A), 6GJ7/ECF801(6.3V/0.41A), PCF801/8GJ7(8V/0.3A) 2) 4GJ7/XCF801 USA ￥600 NIB
4GK5 =HF Triode= (EIA/7FP - miniature) Eh/Ih=4V/0.3A Twarmup=11sec Ehkmax=±100V Ppmax=2.5W Epmax=200V Ecmax(-)=50V Ikmax=22mA Rgmax=1MΩ op : Ep=135V Ec=-1V Ip=11.5mA μ=78 gm=15mS rp=5.4kΩ NF=4.7dB (参考 : Ep-Ip特性) heater variants : 2GK5/2FQ5A(2.3V/0.6A), 3GK5(2.8V/0.45A), 6GK5/6FQ5A(6.3V/0.18A) 3) 4GK5 USA ￥1000 NIB 2) 4GK5 Toshiba ￥1000 NIB cellophane-sealed 2) 4GK5 Matsushita ￥1000 NIB cellophane-sealed 2) 4GK5 Matsushita ￥800 NIB very-ragged boxes
4GM6 =semi remoteCutoff Pentode= (EIZ/7CM - miniature) 4.2V/0.6A heater variants : 5GM6(5.6V/0.45A), 6GM6(6.3V/0.4A) 1) 4GM6 RCA ￥600 NIB 5) 4GM6 Syl ￥600 NIB
4GS7 =common-cathode Triode Pentode= (EIA/9GF - noval) Eh/Ih=4V/0.6A heater variants : 5GS7(5.4V/0.45A), 6GS7(6.3V/0.375A), 7GS7(7.6V/0.3A) 1) 4GS7 Toshiba ￥600 NIB
4GX7 =Triode Pentode= (EIA/9QA - noval) Eh/Ih=4.2V/0.6A heater variants : 5GX7(5.6V/0.45A), 6GX7(6.3V/0.4A) 1) 4GX7 USA ￥600 NOS
4H-4C =Current regulating Ballast tube= (参考資料 : Amperite Ballast Reference) 0) 4H-4C Amperite ￥1000 ballast
4HA5/4HM5 =HighMu Triode= (EIA/7GM - miniature) Eh/Ih=4V/0.3A Ppmax=2.6W Epmax=220V Ikmax=22mA -Ecmax=50V Rgmax=1MΩ op : Ep=200V Rk=87Ω Ip=11.5mA gm=14.5mS μ=72 (参考 : Ep-Ip特性) heater variants : 2HA5/2HM5(2V/0.6A), 3HA5/3HM5(2.7V/0.45A), 6HA5(6.3V/0.18A), 6HM5(6.3V/0.18A) 1) 4HM5/4HA5 USA ￥1000 NIB
4HA7 =Dissimilar Double Triode= (EIA/12FQ , 12FR - compactron) (1/2 12AU7 and 1/2 12AX7 type double triodes compactron type with a 4.2V/0.6A heater) (note : #5.#6.#7.#8pins should be never used for 4HA7-4HC7 interchangeable use) Eh/Ih=4.2V/0.6A - 11sec Ehk=±200Vmax(+DCmax=+100V) 4HA7 Unit1: Ppmax=2.75W Epmax=330V Ikmax=20mA Rg1max=MΩ(self) op: Ep=250V Ec=-8.5V Ip=10.5mA μ=17 rp=7.7kΩ gm=2.2mS Unit2: Ppmax=0.3W Epmax=330V Ikmax = mA Rg1max=MΩ(self) op: Ep=250V Ec=-2.0V Ip=1.2mA μ=100 rp=62kΩ gm=1.6mS pins : 1(H)-2(2P)-3(2K)-4(1K)-5(IC)-6(NC)-7(NC)-8(IS)-9(1G)-10(1P)-11(2G)-12(H) 4HC7 Unit1: Ppmax=3.0W Epmax=330V Ikmax=mA Rg1max=5MΩ(self) op: Ep=150V Ec=-1.0V Ip=18.0mA μ= 23 rp=5.2kΩ gm=4.4mS Unit2: Ppmax=1.2W Epmax=330V Ikmax=mA Rg1max=5MΩ(self) op: Ep=150V Ec=-1.0V Ip=1.0mA μ=100 rp=53kΩ gm=1.9mS pins : 1(H)-2(2P)-3(2K)-4(1K)-5(NC)-6(NC)-7(1P)-8(NC)-9(1G)-10(1P)-11(2G)-12(H) see 'μ=100,17' noval double triode's : 12DW7 7247 (参考:ヒーター直列抵抗3.6Ω/2Wを接続し6.3V巻線からの給電でヒーターサージ電流抑制・長寿命化に適) 1) 4HA7 GE ￥1500 NIB compactron 5) 4HA7/4HC7 Sylvania-ECG ￥1500 NIB
4HM6 =Sharp Cutoff RF Pentode= (EIA/9PM - noval) Eh/Ih=4.2V/0.45A heater variant : 6HM6(6.3V/0.3A) 2) 4HM6 USA ￥600 NOS
4HQ5 =Triode= (EIA/7GM - miniature) Eh/Ih=4.2V/0.3A Ppmax=2.5W Epmax=200V Ikmax=22mA -Ecmax=50V Rgmax=1MΩ op : Ep=135V Ec=-1V Ip=11.5mA rp=5.4kΩ gm=15mS μ=78 (参考 : Ep-Ip特性) heater variants : 2HQ5(2.4V/0.6A), 3HQ5(3V/0.45A), 6HQ5(6.3V/0.2A) 3) 4HQ5 USA ￥1000 NOS/NIB
4HS8 =common G1-G2-K TwinPentode= (EIA/9FG - noval) Eh/Ih=4.2V/0.45A heater variant : 6HS8(6.3V/0.3A) 4) 4HS8 USA ￥600 NIB 1) 4HS8 USA ￥600 NOS
4JC6 =sharpCutoff Pentode= (EIZ/9PM - noval) Eh/Ih=4.5V/0.45A heater variants : 3JC6/A(3.5V/0.6A), 6JC6/A(6.3V/0.3A) 1) 4JC6 Syl ￥600 NIB 3) 4JC6A USA ￥600 NIB 1) 4JC6A USA ￥600 NOS 1) 4JC6A Syl ￥400 used gm=11950/7400min
4JD6 =sharpCutoff Pentode= (EIZ/9PM - noval) Eh/Ih=4.5V/0.45A heater variants : 3JD6(3.5V/0.6A), 6JD6(6.3V/0.3A) 2) 4JD6 Syl ￥600 NIB
4JH6 =semi RemoteCutoff Pentode= (EIA/7CM - miniature) Eh/Ih=4.2V/0.45A heater variant : 6JH6(6.3V/0.3A) 1) 4JH6 RCA ￥700 NIB
4KE8 =Triode Pentode= (EIA/9DC - noval) Eh/Ih=4.5V/0.6A heater variants : 5KE8(5.6V/0.45A), 6KE8(6.3V/0.4A) 2) 4KE8 RCA ￥700 NIB
4KN8=4R-HH8
4LJ8 =common-cathode Triode Pentode= (EIA/9GF - noval) Eh/Ih=4.3V/0.6A heater variants : 5LJ8(5.6V/0.45A), 6LJ8(6.3V/0.4A) 2) 4LJ8 RCA ￥700 NIB 1) 4LJ8 GE ￥600 NIB 1) 4LJ8 RCA ￥500 NIB weak 1) 4LJ8 USA ￥400 used
4M-P12/4MP12 =PowerPentode= (EIA/6CC - miniature) Eh/Ih=4.7V/0.6A Ehkmax=±200V(DC=+100Vmax) Ppmax=8.5W Epmax=250V Pc2max=2.5W Ec2max=250V ex) Ep=180V Ec1=-6V Ec2=180V Ip=25mA Ic2=5mA gm=5.5mS Zl=6kΩ Po=1.8W D=10% pin : 1-G1 2-KG3 3-H 4-H 5-P 6-G2 7-NC heater variant : 9M-P12(9.4V/0.3A) 0) 4MP12 Toshiba ￥- NIB 1) 4M-P12 Toshiba ￥700 NIB cellophane-sealed 1) 4M-P12 Toshiba ￥400 used WB
4M-P26/4MP26 =PowerPentode= (EIA/6CC - miniature) Eh/Ih=4.5V/0.45A Ehkmax=±200V(DC=+100Vmax) Ppmax=4.2W Epmax=165V Pc2max=0.6W Ec2max=165V ex) Ep=110V Ec1=-10V Ec2=110V Ip=32mA Ic2=1.5mA rp=16kΩ gm=4.25mS Zl=2.8kΩ Po=1.4W heater variants : 3MP26(3.15V/0.6A) 3) 4MP26 Ray(made in Japan) ￥1000 NIB justDirtyBox
4P55(CAP/BASE = A14S/E32S, Top-Plate Top-G3) Eh/Ih=6.3V/2.6A Fmax=25MHz Ppmax=120W Epmax=1500V Pc2max=15W Ec2max=400V Pp-inmax=300W, μg2g1=5.5 gm=6.5mS(@Ip=100mA) op AB1: Ep=1250V Ec2=300V Ec3=0V Ec1=-60V Ipo=20mA Ipmax=280mA Ic2=20mA Zl=8.8kΩ Po=220W (参考:Ep-Ip特性(@Ec2=200V)) (size : 160mmH x 75mmφ) 1) 4P55 Toshiba ￥offer UsedLikeNew with an original-box 1) 4P55 Toshiba ￥offer lightly-used NHK-marked with an original-box 1) 4P55 Toshiba ￥offer lightly-used NHK-marked 1) 4P55 Toshiba ￥offer used NHK-marked
4P56
4P60(CAP/BASE = A14S/E38K, Top-Plate Top-G3) Ef/If=10V/3.25A Fmax=40MHz Ppmax=125W Epmax=2000V Pc2max=25W Ec2max=500V(for C2)/900V(for AB1) Pp-inmax=350W gm=2.6mS(@Ip=60mA) μg2g1=6(@Ip=60mA) op AB1: Ep=2000V Ec2=500V Ec3=0V Ec1=-80V Ipo=40mA Ipmax=150mA Ic2=3mA Zl=17kΩ Po=115W (size : 160mmH x 65mmφmax - Toshiba, Hitachi) (size : 165mmH x 67mmφmax - JRC) 3) 4P60 Toshiba ￥offer NIB very ragged boxes 1) 4P60 Toshiba ￥offer NIB very ragged boxes 1) 4P60 Toshiba ￥offer VeryLightlyUsed, with its original box 1) 4P60 Toshiba ￥offer LightlyUsed lot=72105 WB 1) 4P60 Toshiba ￥offer used lot=42077 WB 1) 4P60 Toshiba ￥offer used lot=5450 WB 0) 4P60 Toshiba ￥- used 1) 4P60 NEC ￥offer used 0) 4P60 JRC(日本無線) ￥- used WB 1) 4P60 JRC(日本無線) ￥offer like new NTT D/C=1968.7 WB 1) 4P60 JRC(日本無線) ￥offer lightly-used Bottom/Top-view WB
4PR60A/B/C/8252W
4R-HH2/4RHH2 =RF TwinTriode= (EIA/9AJ - noval) Eh/Ih=4.2V/0.6A(twarmup=11sec) Ehkmax=±200V (design center) Ppmax=2W Epmax=150V Ikmax=20mA Rgmax=500kΩ op : Ep=90V Ec1=-1V Ip=8.5mA rp=4.5kΩ gm=8mS μ=36 heater variant : 6R-HH2(6.3V/0.4A) similar to 4R-HH15 0) 4R-HH2 Toshiba ￥- NIB 0) 4R-HH2 Raytheon(Toshiba-made) ￥- NIB 3) 4R-HH2 Toshiba ￥600 NIB 2:cellophane-sealed 2) 4R-HH2 Toshiba ￥600 NIB cellophane-sealed
4R-HH8/4RHH8(=4KN8) =High-gm TwinTriode= (EIA/9AJ - noval) Eh/Ih=4.2V/0.6A Twarmup=11sec Ehkmax=±220V(DC=+110Vmax) Ppmax=2.2W Epmax=220V Ikmax=22mA Rgmax=1MΩ op : Ep=110V Ec=-1V Ip=16mA rp=2.5kΩ gm=16mS μ=40 参考 1 : Ep-Ip特性 参考 2 : Ep-Ip特性(cascode-amp) heater variant : 6R-HH8/6RHH8(6.3V/0.4A), 6KN8 (also see other similar twin triodes for cascode amps with same base diagram : => 6AQ8 6BC8 6BS8 6DJ8 6DT8 6RHH2) (参考:ヒーター直列抵抗3.6Ω/2Wを接続し6.3V巻線からの給電でヒーターサージ電流抑制・長寿命化に適) 10) 4R-HH8 Hitachi ￥2300 NIB still-cellophane-sealed boxes 6) 4R-HH8 Hitachi ￥2300 NIB still-cellophane-sealed boxes 1) 4R-HH8 Hitachi ￥2300 NIB cellophane-sealed box 1) 4R-HH8 Hitachi ￥2300 NIB cellophane-sealed box 1) 4R-HH8 Sharp(Hitachi-made) ￥2100 NIB cellophane-sealed box 10) 4R-HH8 Sharp(Hitachi-made) ￥2100 NIB ring-getter 2) 4R-HH8 Sharp(Hitachi-made) ￥2100 NIB ring-getter 3) 4R-HH8 Hitachi ￥1700 NIB? very-ragged boxes 5) 4R-HH8/4KN8 NEC ￥2300 NIB 2) 4R-HH8/4KN8 NEC ￥2300 NIB 1) 4R-HH8 NEC ￥2300 NIB very-ragged box 2) 4R-HH8 Hitachi ￥1000 lightly-used WB 1) 4R-HH8 Hitachi ￥1000 lightly-used NEC-boxed 1) 4KN8/4R-HH8 NEC ￥1000 lightly-used WB 6) 4R-HH8 Hitachi ￥1000 used WB 4) 4R-HH8 Hitachi ￥1000 used D-gtr WB 0) 4R-HH8 Hitachi ￥1000 used WB

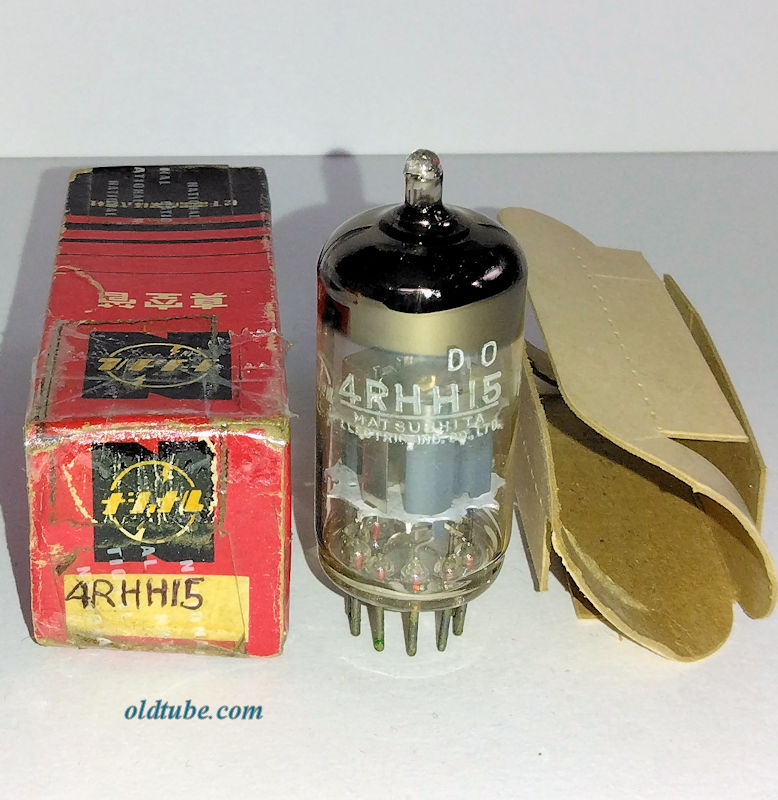

4R-HH15/4RHH15 =frame-grid VHF twin triode= (EIA/9AJ - noval) Eh/Ih=4V/0.6A(11sec) Ehkmax=±200V(DCmax=+100V) Ppmax=1.7W Epmax=165V Ikmax=22mA Rgmax=500kΩ op : Ep=90V Ec=-1V(Rk=143Ω) Ip=7mA rp=5.5kΩ gm=8mS μ=44 (4R-HH15 = 1/2-gm version of 4R-HH8) heater variant : 6R-HH15(6.3V/0.4A) similar to 4R-HH2 1) 4R-HH15 Matsushita ￥1000 NIB very-ragged box 1) 4R-HH15 Matsushita ￥800 used WB
4T85P
4X150A/4X-150A=Transmitting Beam Power Tetrode= Eh/Ih=6V/2.6A Ehkmax=±150V Fmax=400MHz Ppmax=150W Epmax=1250V Ipmax=250mA Pc2max=12W Ec2max=400V Rg1max=100kΩ op(AB1pp) : Ep=800V Ec2=300V Ec1=-40V Ip=2x105mA/2x218mA Ic2=0mA/2x38mA Zlpp=4.4kΩ Po=170W op(AB2pp) : Ep=800V Ec2=300V Ec1=-40V Ip=2x105mA/2x250mA Ic2=0mA/2x40mA Zlpp=3.14kΩ Pin=0.15W Po=215W (4X150A = 7034 = 4F15R) 0) 4X150A Eimac ￥- NIB/NOS(Aht) 0) JAN-CRC 4X150A RCA ￥- NIB sealed(D) 0) JAN-CRC 4X150A RCA ￥6100 NIB 上記を開封したもの 0) 7034/4X150A RCA ￥- NIB 0) 7034/4X150A RCA ￥- NOS WB 0) 7034/4X150A Amperex ￥- NIB Sealed (vQ) 0) 7034/4X150A Amperex ￥- NIB 上記を開封したもの
4X150D/4X-150D
4X-250A/B
5A6/CV2360Ef/If=5V/0.23A(2.5V/0.46A) Fmax=100MHz, Cg1p=0.15pF Cin=8.5pF Cout=5.8pF Ppmax=5W Epmax=150V Ipmax=40mA Pc2max=2W Ec2max=150V Ec3max=0V Ec1max=-75V Ic1max=3mA μg2g1=6.8-typ @Ip=30mA op : Ep=150V Ec2=150V Ec1=-10V Ip=28mA Ic2=2mA gm=4.3mS op(class B2 @70MHz): Ep=150V Ec2=150V Ec1=-15V Ec3=0V Rg2=1.5kΩ Rg1=15kΩ Ip=40mA Ic2=7mA Ic1=1mA Pdrive=60mW Po=2.8W op(class C @70MHz): Ep=150V Ec2=150V Ec1=-24V Ec3=0V Rg2=0Ω Rg1=20kΩ Ip=40mA Ic2=11mA Ic1=1.2mA Pdrive=0.1W Po=2.8W (参考 : Ep-Ip特性(@Ec2=150V)) (参考 : 三結時のEp-Ip特性(Triode connection : sample data plotted)) (Characteristics for triode-connection is similar to 71/71A) 0) 5A6 NEC ￥- NIB very-ragged box 0) 5A6 Ray ￥- NIB 0) 5A6 H&K ￥- NIB just-ragged boxes 6) 5A6 NEC ￥1200 lightly-used 通信用, lot=O0 WB 2) 5A6 NEC ￥1200 lightly-used 通信用, lot=O0 WB 1) 5A6 NEC ￥1200 lightly-used 通信用, lot=O1 WB 8) 5A6 NEC ￥1200 lightly-used 通信用, lot=O1 WB 11) 5A6 NEC ￥1200 lightly-used 通信用, lot=O2 WB 1) 5A6 NEC ￥1200 lightly-used 通信用, lot=O6 WB 3) 5A6 NEC ￥1200 lightly-used 通信用, lot=OD WB 2) 5A6 NEC ￥1200 lightly-used 通信用, lot=OD WB 1) 5A6 NEC ￥1200 lightly-used 通信用, lot=P3 WB 1) 5A6 NEC ￥1200 lightly-used 通信用, lot=P6 WB 6) 5A6 NEC ￥1000 used WB 0) JAN 5A6 TungSol ￥- used WB 0) 5A6 AWV-Radiotron(Tsol-made) ￥- used WB
5A/136A=4328A=WE-328A =Pentode= (EIA/-UZ6pin)
5A/136D=4328D (Eh7.5V版WE-348A) =Pentode= (EIA/ - octal)
5A/152M =Pentode= (EIA/-Loktal) gm=7.5mS rp=-kΩ Eh/Ih=6.3V/0.47A Ppmax=5W Ep=250V Req-noise=670Ω Ic2max=5mA pin1-8 = H-P-G2-G3-shield-G1-K-H ex) Ep=250V Ip=5mA Ec2=150V Ic2=2mA Zl=6kΩ Po=50mW D=5% 1) 5A/152M STC ￥2500 NOS WB
5A/157D =LF Pentode= (EIA/7R - octal, topG1) Eh/Ih=6.3V/0.2A op : Ep=250V Ec2=100V Ec1-2V Ip=3mA gm=1.8mS size : 100mmH x 32mmφ identical to CV358, and EF37/EF37A : close to EF36 same-pinout similar USA types : 6J7/G/GT(Ppmax=0.75W), 1620(Ppmax=0.75W), WE-348A(Ppmax=2W) similar to KTZ63 also similar to CV1343(Eh/Ih=4V/0.25A) 3) 5A/157D STC ￥2500 NOS WB SprayShield BrownBase
5A/180M =Hi-gm Beam Power= 5A/180M = loktal-base type of WE-436A Eh/Ih=6.3V/0.45A Rg1max=100kΩ(fixed)/250kΩ(self) Ppmax=6W Epmax=350V/400Vcutoff Pc2max=1.6W Ec2max=175V/400Vcutoff Ec1max=0V Ikmax=45mA op : Ep=180V Ec2=150V Ec1=-1V Ip=26mA Ic2=6mA gm=32mS pins : 1(H)-2(P)-3(G2)-4(K)-5(G3,Beam-shield)-6(G1)-7(K)-8(H) size : 30.2mmΦ x 54.8mmH, in max / 25.5gram 1) 5A/180M STC ￥10000 used GoldPin =rare=
5AM8 =Diode shrp-cutoff Pentode= (EIA/9CY - noval) Eh/Ih=4.7V/0.6A heater variant : 6AM8/A(6.3V/0.45A) 4) 5AM8 USA ￥600 NIB
5AN8 =Triode Pentode= (EIA/9DA - noval) Eh/Ih=4.7V/0.6A heater variant : 6AN8/A(6.3V/0.45A) (参考:ヒーター直列抵抗2.7Ω/2Wを接続し6.3V巻線からの給電でヒーターサージ電流抑制・長寿命化に適) 7) 5AN8 USA ￥1000 NOS/NIB 1) 5AN8 NEC ￥1000 NIB 2) 5AN8 USA ￥400 used
5AQ5 =Beam Power= (EIA/7BZ - miniature) Eh/Ih=4.7V/0.6A 11sec Ehkmax=±200V Tbulb=250℃max Ppmax=12W Epmax=275V Pc2max=2W Ec2max=275V Rg1max=100kΩ(fixed)/500kΩ(auto) op(triode connection) : Ep=250V Ec=-12.5V Ip=49.5mA rp=1.97kΩ gm=4.8mS μ=9.5 see heater variants : 6AQ5 / EL90(6.3V/0.45A), 12AQ5(12.6V/0.225A) also see 6.3V high-rel. variants 6005, 6669, 6095 (参考:ヒーター直列抵抗2.7Ω/2Wを接続し6.3V巻線からの給電でヒーターサージ電流抑制・長寿命化に適) 9) 5AQ5 USA ￥600 NIB /NOS 1) 5AQ5 Toshiba ￥600 NIB cellophane-sealed 1) 5AQ5 NEC ￥600 NIB VeryRaggedBox 2) 5AQ5 USA ￥400 used
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube

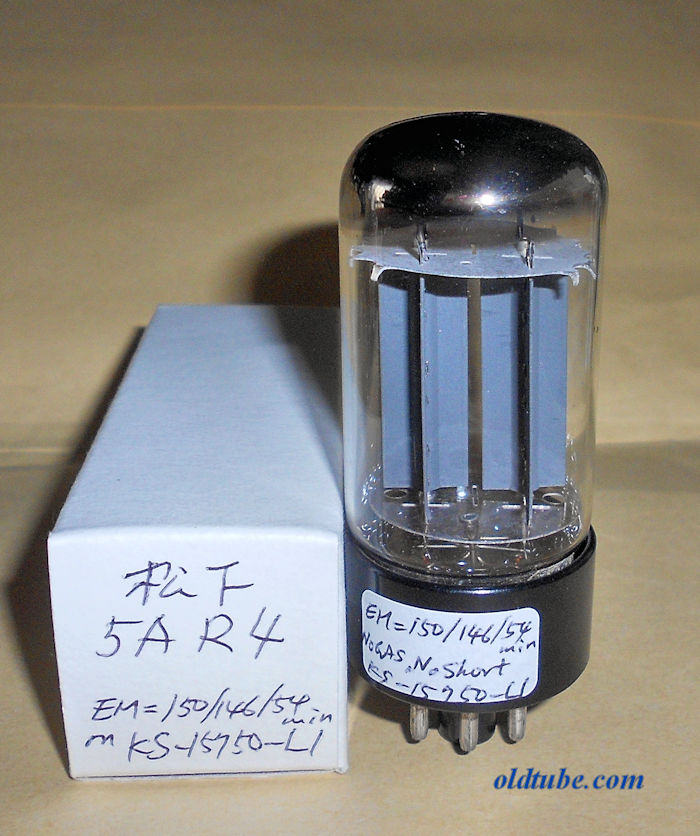

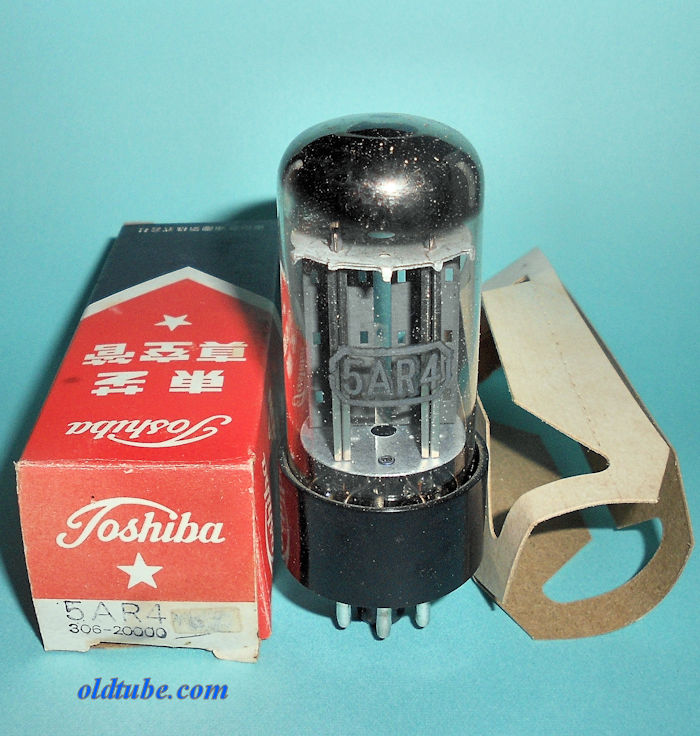

5AR4 =FullWave Rectifier= (EIA/5DA - octal) Eh/Ih=5V/1.9A PIV=1500V Idcmax=250mA(Eac=450V,Linput)/225mA(Eac=450V,Cinput) Edrop=17V(@Idc=225mA/section) (参考) GZ34/5AR4の整流特性(Idc-Edc-Eac) 0) GZ34 TFK(Mullard-made) ￥15000 NIB code=B2A4 168/166/54min 2) GZ34 PhilipsMiniwatt ￥offer NOS MetalBase WB GreenPrint date=rs1-55F,rs1-55G 0) 5AR4 Philips/Miniwatt ￥- NIB MetalBase Holland(qD) 0) 5AR4 Mullard ￥- NIB MetalBase Holland 1) 5AR4 Adzam(=Mazda)(Philips-made) ￥offer NIB metal-base Holland 3) GZ34 PhilipsMiniwatt ￥１３０００ NOS WB OriginalWrapper code=f33L2E,f33X9L,f33X9L BrownBase Double-Dgtr 1) GZ34/5AR4 Amperex ￥14000 NIB BugleBoy Holland VeryRaggedBox 152/157/54min 1) GZ34/5AR4 Amperex ￥14000 NIB BugleBoy, almost-smeared-out silk, WB 1) GZ34/5AR4 Amperex ￥10000 used BugleBoy Holland VeryRaggedBox 153/151/54min 0) 5AR4/GZ34 RCA(Mullard) ￥- NOS? 0) 5AR4/GZ34 Amprx(Mullard) ￥- NIB 0) 5AR4/GZ34 Hammond(Mullard-made) ￥- usedLikeNew 0) GZ34 Siemens(Mullard-made) ￥- NIB B-coded(mSx) 1:reserved) 5AR4 RCA(Mullard-made) ￥11000 NIB 0) 5AR4 RCA(Mullard-made) ￥- NIB(Qn) 2) 5AR4 GE(Mullard-made) ￥11000 NIB 0) GZ34/5AR4 Siemen(Mullard-made) ￥- NIB B-coded(sQ) 0) 5AR4 Philips(Mullard-made) ￥- NIB B-coded(Sn) 0) 5AR4 Mullard-made ￥- LightlyUsed 0) 5AR4 Mullard ￥- NOS 0) 5AR4 Syl(Mullard-made) ￥- NIB 0) 5AR4 ?(Mullard-made) ￥- NIB DoubleD-Gtr FatType fx-coded 0) 5AR4 Mullard-made ￥- LightlyUsed print=5% DoubleGtr 159/161/54min 2) GZ34 Valvo(Mullard-made) ￥7900 lightly-used code= B6J3, B6D5(Blackburn factory) EM=142/140, 143/140/54min tested on KS-15750-L1 tester, view-2 2) GZ34 Siemens(Mullard-made) ￥7900 lightly-used code= B2F3, B2F3(Blackburn factory) EM=144/144, 144/143/54min tested on KS-15750-L1 tester 1) GZ34 Siemens(Mullard-made) ￥7900 lightly-used B-coded EM=135/135/54min tested on KS-15750-L1 1) GZ34 Mullard ￥8000 used FatBase code=B8D(Blackburn April-1958) WB 0) 5AR4/GZ34 RCA ￥- NIB Gt.Britain(D) 0) 5AR4/GZ34 RCA(Syl-made) ￥- NIB FatBottle(zSx) 0) GZ34/5AR4 GE ￥- NIB CopperPlates(sQ) 1) 5AR4-HiFi-MetalBase Matsushita ￥7000 like-new WB 1) 5AR4-HiFi-MetalBase Matsushita ￥7000 used 124/128/54min(on KS-15750-L1) 1) 5AR4-HiFi-MetalBase Matsushita ￥7000 used WB 1) 5AR4-HiFi-MetalBase Matsushita ￥7000 used Center-guide broken, EM=140/134/54min(on KS-15750-L1) 1) 5AR4-HiFi-MetalBase Matsushita ￥7000 used D/C=PB WB 3) 5AR4 Matsushita(松下) ￥10000 NIB NHK-通信用 date=1959 1) 5AR4 Matsushita(松下) ￥9000 NIB TBS-通信用 1) 5AR4 Matsushita(松下) ￥7000 NIB sealed 1) 5AR4 Matsushita(松下) ￥7000 NIB cellophane-sealed 2) 5AR4 Matsushita(松下) ￥6000 NOS Flat-top, 1=tiny metal chip inside glass, 1=lot4D WB 2) 5AR4 Matsushita(松下) ￥5000 used VeryStrong TopTwinDgtr 1) 5AR4 Matsushita(松下) ￥5000 used EM=158/158/54min(on Hickok-539B) 3) 5AR4 Matsushita(松下) ￥5000 used Flat-top WB EM=147/148, 146/146, 150/146/54min (tested on KS-15750-L1) 1) 5AR4 Matsushita(松下) ￥5000 lightly-used Flat-top D/C=X WB 1) 5AR4 Matsushita(松下) ￥5000 used Flat-top D/C=X2N WB 1) 5AR4 Matsushita(松下) ￥5000 used EM=150/146/54min (tested on KS-15750-L1) 1) 5AR4 Matsushita(松下) ￥5000 lightly-used lot=7B 1) 5AR4 Matsushita(松下) ￥5000 used 1) 5AR4/GZ34 東芝 ￥7000 NIB 1) 5AR4 Toshiba(東芝) ￥7000 NIB 1) 5AR4 Toshiba ￥5000 used Flat-Top 150/147/54min(on KS-15750-L1) 2) 5AR4 Toshiba(東芝) ￥5000 used Flat-top 3-mica EM=142/141, 150/147/54min(KS-15750-L1) WB 1) 5AR4 Toshiba(東芝) ￥5000 used FlatTop 3-mica 1) 5AR4 Toshiba(東芝) ￥5000 lightly-used Flat-top 3-mica WB 1) 5AR4 Toshiba(東芝) ￥5000 lightly-used Flat-top 3-mica WB 1) 5AR4 Toshiba(東芝) ￥5000 lightly-used 1) 5AR4 Toshiba(東芝) ￥5000 lightly-used 2) 5AR4 Toshiba(東芝) ￥5000 used VeryStrong Top-o-getter 1) 5AR4 Toshiba(東芝) ￥4000 used slim-glass 1) 5AR4 Toshiba(東芝) ￥2500 used PowdweInside, WB 0) 5AR4/GZ34 Bogen(GE-made) ￥- NOS CopperPlates RCA箱 0) 5AR4/GZ34 Bogen(GE-made) ￥- used CopperPlates 146/150/54min 変色殆どなし Syl大箱 1) 5AR4/GZ34 CanadaGE ￥5900 NIB EM=152/152/54min made in Japan 0) 5AR4 GE ￥- used EM=161/165/54min 0) 5AR4 GE ￥- used EM=150/151/54min 0) 5AR4 GE ￥3700 used CopperPlates 135/132/54min date=59-30 0) 5AR4/GZ34 WH(GE-made) ￥- NIB 0) 5AR4/GZ34 Syl ￥- used STRONG!! Ray箱 0) 5AR4/GZ34 International-C ￥- NIB made in W.Germany 0) 5AR4 Triad ￥- NIB 0) 5AR4 Ray(made in Japan) ￥- used Strong 1) 5AR4 Electro-Harmonics ￥1000 used
5AS4/A (EIA/5T - octal) 5AS4A = 5U4GB 0) 5AS4A RCA ￥- NIB 0) 5AS4A RCA ￥- used
5AS8 =Diode sharpCutoffPentode= (EIA/9DS - noval) Eh/Ih=4.7V/0.6A heater variant : 6AS8(6.3V/0.45A) 2) 5AS8 USA ￥600 NIB
5AT8 =Triode Pentode= (EIA/9DW - noval) Eh/Ih=4.7V/0.6A heater variant : 6AT8(6.3V/0.45A) 5) 5AT8 GE ￥700 NIB 1) 5AT8 Syl ￥700 NIB
5AU6 1) 5AU6 USA ￥600 NOS
5AU8 see heater variant : 6AU8(6.3V/0.6A) 8AU8(8.4V/0.45A) 7060(13.5V/0.28A) 0) 5AU8 USA ￥600 NOS
5AV8 =Triode Pentode= (EIA/9DZ - noval) Eh/Ih=4.7V/0.6A Ehkmax=±200V pentode : Ppmax=2W Epmax=300V Pc2max=0.5W Ec2max=300V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=200V Ec2=150V Rk=180Ω Ip=9.5mA Ic2=2.8mA rp=300kΩ gm=6.2mS triode : Ppmax=2.5W Epmax=300V Rg1max=500kΩ(fixed)/1MΩ(self) op : Ep=200V Ec1=-6V Ip=13mA rp=5.75kΩ gm=3.3mS μ=19 1) 5AV8 Tsol ￥600 NIB 1) 5AV8 CBS ￥600 NIB
5AW4 =filamentary Fullwave Rectifier= (EIA/5T - octal) Ef/If=5V/3.7A PIV=1550V Ipmax=750mA-peak(4A-transient)/plate Edrop=46V(@Ip-250mA/plate) Idcmax=250mA(for Cinput Eac-in LTE 450Vrms, Linput Eac-in 550Vrms) Idcmax=300mA(for Linput Eac-in LTE 450Vrms) op(condenser input) : Eac=450Vrmsx2 Cinput=10μF Zplate=153Ω/plate Edc(@Cinput)=422V Idc-out=250mA op(choke-coil input): Eac=550Vrmsx2 Linput=10H Edc(@Linput)=440V Idc-out=250mA see an operating/rating chart : 動作可能領域 / Rating Chart 0) 5AW4 RCA ￥- NIB 0) 5AW4 RCA ￥- used WB
5AX4/GT =Fullwave Rectifier= (EIA/5T - octal) 5V/2.5A PIV=1400V Idcmax=175mA 0) 5AX4GT RCA ￥- NIB
5AZ3 =Fullwave Rectifier= (EIA/12BR - compactron) 5V/3A PIV=1700V Idcmax=275mA 0) 5AZ3 RCA ￥- NIB
5AZ4 =filamentary Fullwave Rectifier= (EIA/5T - loktal) PIV=1400V Idcmax=125mA Ef/If=5V/2A electrically same as 5Y3G/GT 1) 5AZ4 Tsol ￥2000 NIB 1) 5AZ4 NU ￥2000 NIB RaggedBox 1) 5AZ4 ? ￥700 used EM=107/132/54min
5B/110M =Coaxial Repeater Power Pentode= (EIA/ - loktal) Ppmax=11W Epmax=250V Ec2max=150V Ic2max=11mA gm=6.5mS Eh/Ih=6.3V/0.8A ex) Ep=250V Ec2=150V Ip=38mA Ic2=8mA Zl=5kΩ Po=2W Dtot<5% pins : 1(H)-2(P)-3(G2)-4(G3)-5(Shield)-6(G1)-7(K)-8(H) (size 80.2mmH x 30.15mmφ) 6) 5B/110M STC ￥2500 NOS WB
5B/250A =TopPlate ST Beam Power= similar to #807 Ppmax=25W Epmax=600V Pc2max=3.5W Ec2max=300V Ipmax=120mA gm=6mS Eh/Ih=6.3V/0.9A ex) Ep=600V Ec2=300V Ipo=30mA Ipmax=100mA Ic2max=10mA Zl=6.66kΩ Po=80W 0) 5B/250A STC ￥- NOS
5B/254M(CV428), 5B/255M(CV391) =B8G-Loktal-base StraightGT Beam Power= Eh/Ih=6.3V/0.9A Ehk=±135V Beam connection : Ppmax=25W Epmax=600V Pc2max=4.5W Ec2max=300V Ipmax=120mA μg2g1=9-typ gm=6mS-typ @Ep=300V Ec2=250V Ip=72mA op(AB2pp): Ep=500V Ec2=300V Ec1=-30V Ipo=30mAx2 Ipmax=120mAx2 Ic2max=16mA Zl=4.6kΩ Po=75W op(AB2pp): Ep=600V Ec2=300V Ec1=-32V Ipo=23mAx2 Ipmax=100mAx2 Ic2max=12mA Zl=6.9kΩ Po=80W Triode connection : Ppmax=25W Epmax=400V Ipmax=125mA μ=9typ op(AB1pp): Ep=400V Ec1=-45V Ipo=32mAx2 Ipmax=70mAx2 Zlpp=3kΩ Po=15W D=3% pins (5A/254M - CV428) : 1(H)-2(K,BP)-3(G2)-4(K,BP)-5(G1)-6(G1)-7(K,BP)-8(H)-Top(P) pins (5A/255M - CV391) : 1(H)-2(P)-3(G2)-4(K,BP)-5(G1)-6(G1)-7(K,BP)-8(H) size (5B/254M - CV428) : 30.15mmΦ x 105.6mmH, in max (loktal, top-plate type) size (5B/255M - CV391) : 30.15mmΦ x 92.9mmH, in max (loktal, single-end type) (参考 : 三結時のEp-Ip特性(triode connection)) different-base, electrically-similar types : #807, 5933, ATS 25, KT8/C, and 1625/VT-136(Eh/Ih=12.6V/0.45A) 0) 5B/254M STC ￥- NOS TopPlate 39) CV428 = 5B/254M Valve Electronic/ITT-made ￥2500/pc, ￥5500/matched-pair NIB D/C=8112 etc 6:reserved) CV391-5B/255M ValveElectronic/STC ￥4000/pc NIB/NOS D/C=7-1962, 2=RaggedOriginalBoxes, 4=WB

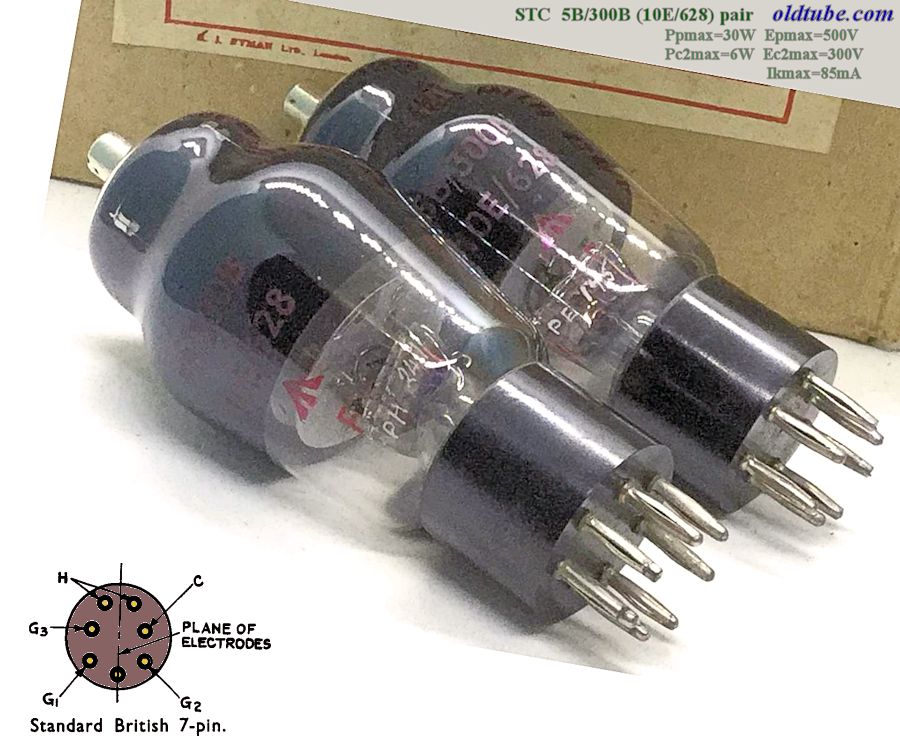

5B/300B(=CV834=10E628) =RF power Pentode= (EIA/ , British 7-pin, top-plate) Eh/Ih=10V/0.8A Ppmax=30W Epmax=500V Pc2max=6W Ec2max=300V Ipmax=60mA Ic2max=25mA Fmax=40MHz op : Ep=500V Ec2=250V Ec1=-8V Ec3=0V gm=6mS (参考 : Ep-Ip特性(@Ec2=250V, Ec3=0V)) size : 54mmΦ x 145mmH, in max. 2) 5B/300B(10E628) STC ￥3000 NIB
5B8 =Triode Pentode= (EIA/9EC - noval) Eh/Ih=4.7V/0.6A Ehkmax=±200V triode : Ppmax=2.5W Epmax=300V Rgmax=500kΩ/1MΩ, rp=5.75kΩ gm=3.3mS μ=19typ pentode : Ppmax=2W Epmax=300V Pc2max=0.5W Ec2max=300V R1max=250kΩ/1MΩ, rp=300kΩ gm=6.2mStyp 1) 5B8 Tsol ￥600 NIB 1) 5B8 WH ￥600 NIB 1) 5B8 Dmnt ￥600 NIB 1) 5B8 Olympic ￥600 NOS ? STD箱
5BC3/A =filamentary FullWave Rectifier= (EIA/9NT(5BC3), 9QJ(5BC3A) - NOVAR) PIV=1700V Idcmax=300mA/1000mApeak(Eac=600V:Lin,Eac=500V:Cin) Edrop=35V(@Idc=300mA) Ef/If=5V/3A (5BC3/A(NOVAR) ≒ 5U4(octal) = 5X4G(octal) = 5T4(octal-metal) = 5Z3(UX)) 1) 5BC3 RCA ￥1500 NIB 8) 5BC3/A GE ￥1300 NIB TipTop
5BE8 =Triode Pentode= (EIA/9EG - noval) 4.7V/0.6A Eh/Ih=4.7V/0.6A pentode : Ppmax=2.8W Epmax=300V Pc2max=0.5W Ec2max=300V op : Ep=250V Ec2=110V Rk=68Ω Ip=10mA Ic2=3.5mA rp=400kΩ gm=5.2mS triode : Ppmax=2.5W Epmax=300V op : Ep=150V Rk=56Ω Ip=18mA rp=5kΩ gm=8.5mS μ=40 heater variant : 6BE8(6.3V/0.45A) 1) 5BE8 Syl ￥600 NIB 1) 5BE8 CBS ￥600 NOS? STD箱
5BK7/A =HF TwinTriode= (EIA/9AJ - noval) Eh/Ih=4.7V/0.6A heater variant : 6BK7A/B(6.3V/0.45A) 1) 5BK7A RCA ￥800 NIB 1) 5BK7A RCA ￥800 NOS 1) 5BK7A Syl ￥700 NIB
5BQ7/A =HF TwinTriode= (EIA/9AJ - noval) 5.6V/0.45A heater variants : 4BQ7A(4.2V/0.6A), 6BQ7A(6.3V/0.4A) 2) 5BQ7A USA ￥600 NIB
5BR8 =Triode Pentode= (EIA/9FA - noval) Eh/Ih=4.7V/0.6A heater variant : 6BR8/A(6.3V/0.45A) 1) 5BR8 RCA ￥600 NOS ragged-box 1) 5BR8 USA ￥600 NIB
5BT8 =duplex Diode Pentode= (EIA/9FE - noval) Eh/Ih=4.7V/0.6A pentode : Ppmax=2W Epmax=300V Pc2max=0.5W Ec2max=300V op : Ep=200V Ec2=150V Rk=180Ω Ip=9.5mA Ic2=2.8mA rp=300kΩ gm=6.2mS diode : Idcmax=1mA heater variant : 6BT8(6.3V/0.45A) 4) 5BT8 USA ￥600 NOS
5BW8 =duplex Diode Pentode= (EIA/9HK - noval) Eh/Ih=4.7V/0.6A heater variant : 6BW8(6.3V/0.45A) 1) 5BW8 GE ￥600 NIB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
5C3S/5Ц3C(Russian) = 5U3C/5Ц3C/5C3S
5C22(=2G22P) =Hydrogen Thyratron for pulse service= (EIA/ - ) Eh/Ih=6.3V/9.6-11.6A, Twarmup=5minutes-minimum, Temp_ambient=-50℃ to 90℃ Ea_min=4.5kVDC Ea_max=16kVpeak Ea_PIV=16kVmax Ia_max=200mA/325Apeak dIk/dt_max=1500A/μs Eg_min=200Vpeak Eg_PIV=200Vmax Trise_max=0.5μs Timp_min=2μsec Rg_max=500Ω size : 65mmΦ x 222mm, in max / net-weight : 280gram 0) 5C22 Amperex ￥- NIB just-ragged box
5CG4(=5G-K4) =cathode-type full-wave rectifier= (EIA/5L - octal) Eh/Ih=5V/2A PIV=1400V Ipmax=400mA-peak/plate Idcmax=125mA@Eac=350Vrms, 84mA@Eac=500Vrms pins: 1(NC)-2(H)-3(NONE)-4(2P)-5(NONE)-6(1P)-7(NONE)-8(H,K) same-base, electrically similar cathode types : 6087 6106 also see an electrically-similar isolated-cathode type : 6AX5GT(Eh/Ih=6.3V/1.2A, PIV=1250V Idcmax=125mA Edrop=50V) different-base, electrically similar cathode type : 80K different-base, electrically similar filamentary types : 5Y3, 80, 5AZ4 1) 5CG4 Matsushita ￥800 lightly-used WB 1) 5CG4 Matsushita ￥800 lightly-used WB
5CG8 =common-cathode Triode Pentode= (EIA/9GF - noval) Eh/Ih=4.7V/0.6A heater variant : 6CG8(6.3V/0.45A) 5) 5CG8 RCA ￥700 NIB 7) 5CG8 RCA,GE,Amprx ￥600 NIB 1) 5CG8 Admrl ￥600 NOS RCA箱 1) 5CG8 USA ￥400 used RCA箱 1) 5CG8 USA ￥400 used GE箱
5CL8/A =Triode Pentode= (EIA/9FX - noval) Eh/Ih=4.7V/0.6A see heater variant : 6CL8A(6.3V/0.45A) 6) 5CL8A RCA,GE ￥600 NIB 1) 5CL8A USA ￥600 NOS
5CM8 =Triode Pentode= (EIA/9FZ - noval) Eh/Ih=4.7V/0.6A see heater variant : 6CM8(6.3V/0.45A) 1) 5CM8 Syl ￥600 NIB
5CQ8 =Triode Tetrode= (EIA/9GE - noval) 4.7V/0.6A see heater variant : 6CQ8(6.3V/0.45A) 2) 5CQ8 USA ￥600 NOS/NIB
5CZ5 =BeamPower= (EIA/9HN - noval) 4.7V/0.6A see heater variant : 6CZ5(6.3V/0.45A) 4) 5CZ5 USA ￥800 NOS/NIB
5D21
5D22
5DH8 =Triode Pentode=(EIA/9UG - noval) 5.2V/0.6A pentode : Ppmax=2.2W Epmax=300V Pc2max=0.55W Ec2max=300V op : Ep=125V Ec2=125V Rk=56Ω Ip=13.5mA Ic2=3.8mA rp=150kΩ gm=8.6mS triode : Ppmax=2W Epmax=300V op : Ep=250V Rk=390Ω Ip=7.3mA rp=12kΩ gm=4.4mS μ=53 1) 5DH8 Dmnt ￥900 NIB
5DJ4 =filamentary Fullwave Rectifier=(EIA/8KS - octal) Ef/If=5V/3A PIV=1700V Idcmax=300mA 1) 5DJ4 RCA ￥1900 NIB 1) 5DJ4 GE ￥1900 NIB 0) 5DJ4 GE ￥- NIB RaggedBoxes
5EA8 =Triode Pentode= (EIA/9EA - noval) Eh/Ih=4.7V/0.6A Twarmup=11sec heater variant : 6EA8(6.3V/0.45A) 5) 5EA8 Syl ￥600 NIB 5) 5EA8 Ray ￥600 NIB
5ES8 =Twin Triode= (EIA/9AJ - noval) Eh/Ih=5.6V/0.45A heater variants : 4ES8(4V/0.6A), 6ES8(6.3V/0.365A), PCC189/7ES8(7.6V/0.3A) 1) 5ES8 USA ￥600 NIB
5EU8 =Triode Pentode= (EIA/9JF - noval) Eh/Ih=4.7V/0.6A heater variant : 6EU8(6.3V/0.45A) 2) 5EU8 RCA ￥600 NOS/NIB 1) 5EU8 Syl ￥600 NIB 1) 5EU8 Dmnt ￥600 NIB
5EW6 =SharpCuttoff Pentode= (EIA/7CM - miniature) Eh.Ih=5.6V/0.45A heater variant : 6EW6(6.3V/0.4A) 1) 5EW6 Syl ￥600 NIB
5FG7 =common-cathode Triode Pentode= (EIA/9GF - noval) Eh/Ih=4.7V/0.6A heater variant : 6FG7(6.3V/0.45A) 4) 5FG7 Amprx ￥800 NIB 1) 5FG7 Syl ￥600 NIB
5GH8/A =Triode Pentode= (EIA/9AE - noval) Eh/Ih=4.7V/0.6A heater variants : 6GH8/A(6.3V/0.45A), 9GH8/A(9.45V/0.3A) 12) 5GH8A RCA ￥700 NIB 3) 5GH8A GE ￥600 NIB 4) 5GH8A USA ￥600 NIB 1) 5GH8A Hitachi ￥600 NIB cellophane-sealed 2) 5GH8A USA ￥400 used
5GJ7 =cathode-common Triode Pentode= (EIA/9QA - noval) Eh/Ih=5.6V/0.45A heater variants : 4GJ7(4.1V/0.6A), 6GJ7/ECF801(6.3V/0.45A), PCF801/8GJ7(8V/0.3A) 2) 5GJ7/LCF80 RCA ￥700 NIB GtBritain 1) 5GJ7 RCA ￥700 NIB 2) 5GJ7/LCF80 USA ￥600 NIB 1) 5GJ7 USA ￥400 used
5G-K3/5GK3 =cathode-type Halfwave Rectifier= (EIA/ - octal) Eh/Ih=5V/0.7A PIV=1000V Imax=70mAdc/420mApeak pins: 1(NC)-2(H)-3(NC)-4(NC)-5(P)-6(NC)-7(NC)-8(H,K) electrically similar to 80BK 1) 5G-K3 Matsushita ￥1300 NIB very-ragged box
5G-K4 = 5CG4 =cathode-type Fullwave Rectifier= (EIA/5L - octal)
5G-K18/5GK18 =filamentary Fullwave Rectifier= (EIA/5T - octal) Ef/If=5V/3A PIV=1550V Ip-peak=1Amax Edrop=50V(275mA) (condenser input) Eac=300V C=40μF Idc=300mA Eout=290V (condenser input) Eac=450V C=40μF Idc=275mA Eout=460V (choke input) Eac=550V L=10H Idc=275mA Eout=440V pins : 1(NC)-2(F)-3(NC)-4(2P)-5(NC)-6(1P)-7(NC)-8(F) 5GK18 = large octal-base type 5U4GB 1) 5G-K18 Toshiba ￥1500 used WB 1) 5G-K18 Toshiba ￥1500 used WB
5G-K20/5GK20 =cathode-type Fullwave Rectifier= (EIA/5DA - octal) 5G-K20 = low PIV version of 5AR4 Eh/Ih=5V/1.9A PIV=1000V Ip-peak=750mAmax Idcmax=250mA Edrop=27V(250mA) pins : 1(NC)-2(H)-3(NC)-4(2P)-5(NONE)-6(1P)-7(NONE)-8(H,K) 1) 5G-K20 NEC ￥2500 lightly-used WB 1) 5G-K20 NEC ￥2500 lightly-used D/C=824 D-gtr WB
5G-K22/5GK22 =cathode-type Fullwave Rectifier= (EIA/5L - octal) *The 5G-K22 is fabricated by two 6G-K17(6AX4) units with modifying the heater. Eh/Ih=5V/3A PIV=1550V Ip-peak=1Amax (condenser input) Eac=300V C=40μF Idc=300mA Eout=295V (condenser input) Eac=450V C=40μF Idc=275mA Eout=470V (condenser input) Eac=550V C=40μF Idc=162mA Eout=650V (choke input) Eac=450V L=10H Idc=348mA Eout=360V (choke input) Eac=550V L=10H Idc=275mA Eout=460V pins : 1(NC)-2(H)-3(NC)-4(2P)-5(NC)-6(1P)-7(NC)-8(K,H) 0) 5G-K22 Toshiba ￥- NIB 0) 5G-K22 Toshiba ￥- used WB 1) 5G-K22 Toshiba ￥2000 used WB
5GM6 =semi RemoteCutoff Pentode= (EIA/7CM - miniature) Eh/Ih=5.6V/0.45A heater variants : 4GM6(4.2V/0.6A), 6GM6(6.3V/0.4A) 1) 5GM6 Znth ￥600 NIB
5GS7 =common-cathode Triode Pentode= (EIA/9GF - noval) Eh/Ih=5.4V/0.45A heater variants : 4GS7(4V/0.6A), 6GS7(6.3V/0.375A), 7GS7(7.6V/0.3A) 3) 5GS7 USA ￥600 NIB 2) 5GS7 USA,Japan ￥400 used
5GX7 =Triode Pentode= (EIA/9QA - noval) Eh/Ih=5.6V/0.45A heater variants : 4GX7(4.2V/0.6A), 6GX7(6.3V/0.4A) 1) 5GX7 USA ￥600 NIB 1) 5GX7 USA ￥400 used
5HA7 =Dissimilar Double Triode= (EIA/12FQ-compactron) Eh/Ih=5.6V/0.45A Ehkmax=±V Unit1: Ppmax=2.75W Epmax=330V Ikmax=mA μ=17 rp=7.7kΩ gm=2.2mS Rg1max=MΩ(self) Unit2: Ppmax=0.5W Epmax=330V Ikmax=mA μ=100 rp=62kΩ gm=1.6mS Rg1max=MΩ(self) 2) 5HA7 GE ￥1500 NIB compactron
5HG8/LCF86 =common-cathode VHF Triode Pentode= (EIA/9MP - noval) Eh/Ih=5.3V/0.45A heater variants : 6HG8(6.3V/0.32A), ECF86(6.3V/0.39A), 7HG8(7.2V/0.3A), PCF86(8V/0.3A) 1) 5HG8/LCF86 ￥600 NIB Gt.Britain
5HZ6 =DualControlPentode= (EIA/7EN - miniature) Eh/Ih=4.75V/0.6A heater variant : 6HZ6(6.3V/0.45A) 1) 5HZ6 USA ￥600 NIB
5J6 =med Mu TwinTriode= Eh/Ih=4.7V/0.6A heater variant : 6J6/A(6.3V/0.45A) 3) 5J6 USA ￥600 NIB
5JK6 =sharp cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=4.9V/0.45A heater variants : 4JK6(3.7V/0.6A) 6JK6(6.3V/0.35A) 1) 5JK6 Dmnt ￥500 used 1) 5JK6 Mot ￥500 used
5JW8 =Triode Pentode= (EIA/9DC - noval) Eh/Ih=4.7V/0.6A heater variants : 6LX8/LCF802(6V/0.45A), 6JW8(6.3V/0.43A), ECF802(6.3V/0.43A), PCF802/9JW8(9V/0.3A) 4) 5JW8 Admrl ￥600 NIB
5KD8/5U8 =Triode Pentode= (EIA/9AE - noval) Eh/Ih=5.6V/0.45A heater variants : 5U8(4.7V/0.6A), 6KD8(6.3V/0.4A), 6U8/A(6.3V/0.45A), PCF82/9U8(9.5V/0.3A) 3) 5KD8/5U8 USA ￥600 NOS/NIB
5KE8 =Triode Pentode= (EIA/9DC - noval) Eh/Ih=5.6V/0.45A heater variants : 4KE8(4.5V/0.6A), 6KE8(6.3V/0.4A) 3) 5KE8 USA ￥600 NOS/NIB
5KZ8 =Triode Pentode= (EIA/9FZ - noval) Eh/Ih=4.7V/0.6A heater variant : 6KZ8(6.3V/0.45A) 5) 5KZ8 USA ￥600 NOS/NIB
5LJ7 1) 5LJ7/LCE801 USA ￥600 NIB
5LJ8 =common-cathode Triode Pentode= (EIA/9GF - noval) Eh/Ih=5.6V/0.45A heater variants : 4LJ8(4.3V/0.6A), 6LJ8(6.3V/0.4A) 5) 5LJ8 USA ￥600 NIB 1) 5LJ8 NEC ￥600 NOS? RCA箱 1) 5LJ8 USA ￥400 used
5MB6 1) 5MB6 Syl ￥600 NIB
5MB8 =Triode Pentode= (EIA/9FA - noval) Eh/Ih=5.6V/0.45A heater variant : 6MB8(6.3V/0.4A) 2) 5MB8 USA ￥600 NIB
5M-HH3/5MHH3 =common-cathode twin triode= (EIA/7BF - miniature) Eh/Ih=4.75V/0.6A(11sec) Ehkmax=±200V(+100Vdc-max) Ppmax=1.5W Epmax=200V Rg1max=500kΩ op : Ep=100V Ec=-1V Ip=11mA gm=7.5mS μ=38 (参考 : Ep-Ip特性) heater variants : 6M-HH3(6.3V/0.45A), 9M-HH3(9V/0.3A) 5) 5M-HH3 Toshiba ￥800 NIB 4:cellophane-sealed 1) 5M-HH3 Toshiba ￥800 NIB 1) 5M-HH3 Matsushita ￥800 NIB cellophane-sealed 1) 5M-HH3 NEC ￥800 NIB
5M-K9/5MK9 =HalfWave Rectifier= (EIA/T3A - miniature) PIV=1000V(Eacmax=350V) Idc=60mA Eh/Ih=5V/0.6A 4) 5MK9 Syl ￥1600 NIB ** 3) 5M-K9 Matsuda(=Toshiba) ￥1400 NIB RaggedBoxes 3) 5M-K9 Matsuda(=Toshiba) ￥1400 NIB VeryRaggedBoxes 3) 5MK9 Hitachi ￥1400 NIB VeryRaggedBoxes 2) 5M-K9 Matsushita ￥1400 NIB 2) 5M-K9 Matsushita ￥1400 NIB just-ragged boxes 1) 5MK9 NEC ￥1400 NIB 1) 5MK9 Futaba ￥1400 NIB 1) 5M-K9 Matsushita ￥1000 LikeNew 松下赤箱 1) 5M-K9 Matsushita ￥1000 used-lightly
5M-P29/5MP29 =PowerPentode= (EIA/7CV - miniature) Eh/Ih=5V/0.45A Ehkmax=±200V(DC=+100Vmax) Ppmax=6W Epmax=165V Pc2max=1.8W Ec2max=165V Rg1max=500kΩ(fixed) op: Ep=110V Ec2=110V Ec1=-7V Ip=45/46mA Ic2=2.5/8mA rp=22kΩ gm=7mS Zl=2.5kΩ D=8% Po=1.7W pins: 1(K,G3)-2(G1)-3(H)-4(H)-5(G1)-6(G2)-7(P) also see a "1/2(12AX7) + 5M-K29/30" type : 8R-HP4(Eh/Ih=8.4V/0.45A) 0) 5M-P29 NEC ￥1700 NIB 1) 5M-P29 NEC ￥1000 lightly-used WB
5M-P30/5MP30 =PowerPentode= (EIA/7BZ - miniature) (5M-P30 = different pin-assignment type of 5M-P29) Eh/Ih=5V/0.45A Ehkmax=±200V(DC=+100Vmax) Ppmax=6W Epmax=165V Pc2max=1.8W Ec2max=165V Rg1max=500kΩ(fixed) op: Ep=110V Ec2=110V Ec1=-7V Ip=45/46mA Ic2=2.5/8mA rp=22kΩ gm=7mS Zl=2.5kΩ D=8% Po=1.7W pins: 1(G1)-2(K,G3)-3(H)-4(H)-5(P)-6(G2)-7(G1) 0) 5M-P30 - ￥- used WB
5R4 =filamentary FullWave Rectifier= (EIA/5T - octal) G,GY,GYA : PIV=2800V Idcmax=250mA Edrop=67V(@Idc=250mA/section) Ef/If=5V/2A GYB : PIV=3100V Idcmax=250mA Edrop=63V(@Idc=250mA/section) Ef/If=5V/2A (参考) 5R4GYの整流特性(Idc-Edc-Eac) also see electrically similar types : 1641/GL1641 Raytheon RK-60 (PIV=2.1kV, top-plates) 2) 5R4GA GE ￥2400 usedLikeNew 98/102,103/105/54min 0) 5R4GB RCA ￥2400 NIB(Sn) 1) 5R4GB GE ￥2400 NIB 1) 5R4GB Mot ￥2400 NIB 0) 5R4GY RCA ￥3100 NOS/NIB(Sn) 1) 5R4GY RCA ￥3100 NOS WB 1) 5R4GY CBS ￥2800 NIB(sD) 0) 5R4GY Marconi ￥- NIB 1) CRC-5R4GY RCA ￥2500 used? WB EM=103/115/54min 0) 5R4GY Ray ￥- NIB 淡茶Base 1) 5R4GY RCA ￥2500 used LikeNew D/C=56-32 EM=102/104/54min (#LBS2) 1) 5R4GY RCA ￥1900 used LikeNew D/C=56-52 EM=112/111/54min CenterPost折 (#LBS2) 2) JAN-CRC 5R4GY RCA ￥2500 usedLightly 100/102, 104/106/54min 1) JAN-CRC 5R4GY RCA ￥2500 used LikeNew 109/114/54min RayMB 1) JAN-CRC 5R4GY RCA ￥1900 used LikeNew D/C=V2E EM=108/106/54min CenterPin折 (#LBS2) 1) 5R4GY RCA ￥2200 used LikeNew EM=100/98/54min (#LBS2) 2) 5R4GY RCA ￥2200 usedLightly EM=99/96,98/100/54min 1) 5R4GY Motorola(RCAmade) ￥2600 NIB GTストレート管 1) 5R4GY GE ￥2400 LightlyUsed EM=109/120/54min 1) 5R4GY GE ￥1500 used D/C=2-09(1952) EM=80/93/54min (#LBS2) 1) 5R4GY Syl ￥2400 used LikeNew EM=110/117/54min (#LBS2) 1) 5R4GY Ray ￥2000 used 88/103/54min 1) 5R4GY TEN ￥2000 lightly-used D/C=1957-10, WB 1) 5R4GYA GE ￥2400 usedLightly 103/108/54min date=64-22 1) 5R4GYA GE ￥800 used CenterIndexLossed 2) 5R4GYB RCA ￥2700 NIB GT-Straight 茶Base RaggedBox(Qn) 0) 5R4GYB RCA ￥- NIB GTストレート管 茶Base(D) 0) 5R4GYB GE ￥- NIB GTストレート管 BlkBase(Q) 0) 5R4GYB GE ￥- NIB GT-Straight 茶Base 1) 5R4GYB Ray ￥2500 NIB * 0) 5R4GYB Syl ￥2400 NIB 5pcs w/sleeve 2) 5R4GYB SylECG ￥2400 NIB(T)++ 0) 5R4GYB RCA ￥- used GT-Straight(D) 2) 5R4GYB RCA ￥1500 used 1) 5R4GYB RCA ￥1400 usedLikeNew EM=112/103/53 1) 5R4GYB RCA ￥1400 used EM=102/102/53 ラベル消え 1) 5R4GYB CMC ￥1700 usedLikeNew EM=105/106/53 BrownBase 0) 5R4WGB Chatham ￥2400 NIB 0) 5R4WGB Ray ￥2400 NIB 0) 5R4WGA Tsol/Chatham ￥- used(Q) 0) 5R4WGA Chatham ￥- used EM=86/104/54min 1) JAN-CAHG 5R4WGB CHATHAM ￥2000 used 1) JAN 5R4WGB Raytheon ￥2000 used D/C=7241 SideTwinGtr WB 1) JAN 5R4WGB Cetron ￥2000 used D/C=8921 TwinTopGtr WB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
5RDDH1/5R-DDH1 =duplex Diode High mu Triode= (EIA/9ER - noval) Eh/Ih=4.7V/0.6A Ehkmax=±200V(DC=+100Vmax) Twarmup=11sec triode : Ppmax=1.5W Epmax=300V Rg1max=1MΩ(fixed, self) op : Ep=250V Ec=-2V Ip=1.2mA rp=62.5kΩ gm=1.6mS μ=100 diode : Idmax=9mAdc/54mApeak Id=50mA@Ep=10V, Edrop=2.6V@Id=9mA similar to 6BN8(μ=75, Eh/Ih=6.3V/0.6A) med-mu type : 6BJ8(μ=20, Eh/Ih=6.3V/0.6A) 1) 5R-DDH1 Hitachi ￥800 NIB still-cellophane-sealed, just-ragged box 1) 5R-DDH1 Sharp(Toshiba-made) ￥600 lightly-used D=NickelPlate, T=GrayPlate 1) 5R-DDH1 Hitachi ￥600 lightly-used D=NickelPlate, T=GrayPlate 1) 5R-DDH1 Hitachi ￥600 lightly-used D=NickelPlate, T=GrayPlate, WB 1) 5R-DDH1 Hitachi ￥500 used
5R-HH5/5RHH5 =twin Triode for small-signal VLF/DC differential amplifier= (EIA/9A - noval) 5R-HH5 = 心電計，脳波計等医用機器，DC-Amp/differential-amp 用 Eh/Ih=4.6V/0.25A(9.2V/0.125A) op : Ep=80V Ec=-0.8V Ip=50μA rp=300kΩ gm=300μS μ=90 size: 22.2mmΦ x 55.56mmH, in max 0) 5R-HH5 NEC ￥offer NIB (hyyvsx) 10) 5R-HH5 NEC ￥700 used smeared silk print 10) 5R-HH5 NEC ￥700 used smeared silk print 6) 5R-HH5 NEC ￥700 used smeared silk print 5) 5R-HH5 NEC ￥700 used smeared silk print WB (hyyvsx2) 13) 5R-HH5 NEC ￥700 used smeared silk print 1) 5R-HH5 NEC ￥700 used D/C=1960-9 WB 1) 5R-HH5 NEC ￥700 used WB 1) 5R-HH5 NEC ￥- used smeared silk print, rusty pins (hyyvsx2) 3) 5R-HH5 Ten ￥1500 NIB 通測用 Ag-plated pins lot=4GT D/C=1974.3 2) 5R-HH5 Ten ￥1500 NIB 通測用 lot=4GT D/C=1974.3 5) 5R-HH5 Ten ￥1500 NIB Ag-plated pins lot=4GT D/C=1971.1 2) 5R-HH5 Ten ￥300 used (hyyvsx2) 2) 5R-HH5 Ten ￥300 used (hyyvsx)
5RK16/5R-K16 =common-cathode FullWave Rectifier= (EIA/ - noval) Eh/Ih=5V/1.2A PIV=1000V Ipmax=450mApeak/plate Eacmax=350Vrms Idc=150mA Edrop≒20V(@Idc=150mA) pin : 1-P2 2-NC 3-NC 4-HK 5-H 6-NC 7-NC 8-P1 9-NC H-K結合タイプ for capacitor-input: op: Eac=250V Cin=50uF Rs=150ohm/plate Idc=150mA Eout≒245Vdc op: Eac=290V Cin=50uF Rs=200ohm/plate Idc=150mA Eout=≒293Vdc op: Eac=350V Cin=50uF Rs=240ohm/plate Idc=150mA Eout=≒350Vdc (参考) 5R-K16の整流特性(Idc-Edc-Eac) also see H,K-separated types : EZ81 / 6CA4(Eh/Ih=6.3V/1A) 0) 5R-K16 Toshiba ￥- NIB 4) 5R-K16 Raytheon(Toshiba-made) ￥1700 NIB RaggedBox 0) 5R-K16 Raytheon(Toshiba-made) ￥1700 NIB 1) 5R-K16 NEC ￥1400 NIB VeryRaggedBox 1) 5R-K16 Toshiba ￥700 used original-boxed 2) 5R-K16 Toshiba ￥700 used WB 1) 5R-K16 Toshiba ￥700 like-new/lightly-used WB 1) 5R-K16 Toshiba ￥700 used WB 1) 5R-K16 Toshiba ￥500 used WB

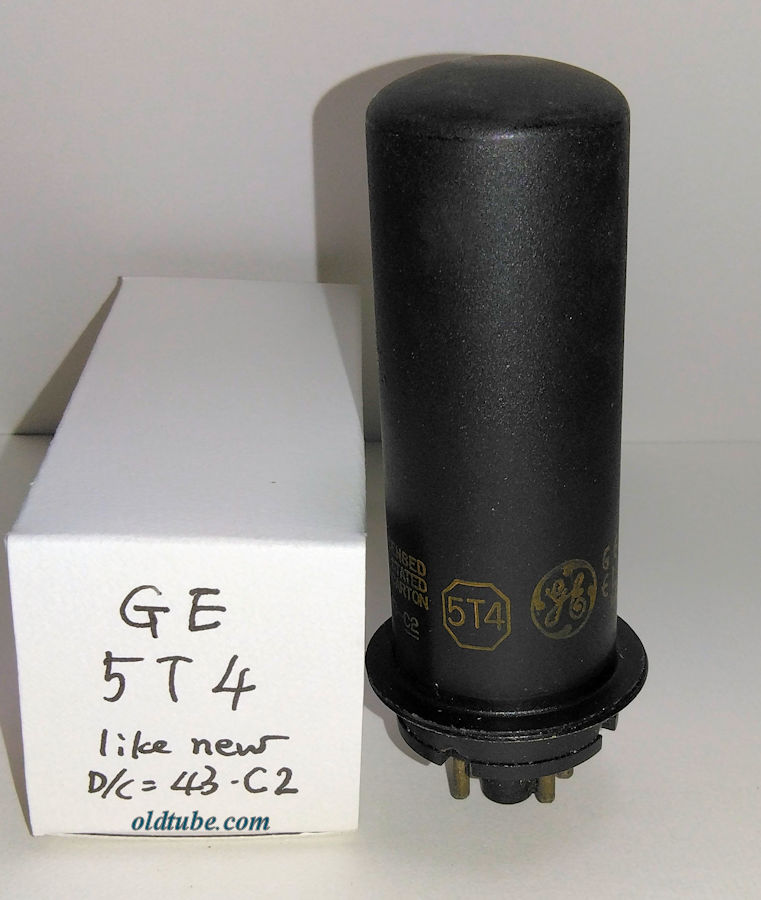

5T4 =filamentary FullWave Rectifier= (EIA/5T - octal) PIV=1550V(GYB=3100V) Idc=225mA Edrop=45V(@Idc=225mA/section) Ef/If=5V/2A (5T4(octal-metal) ≒ 5U4(octal) = 5X4G(octal) = 5Z3(UX) = 5BC3/A(NOVAR)) 0) 5T4 RCA ￥- NIB MB ragged box(D) 0) VT-114/5T4 RCA ￥- NIB MB RaggedBox(T) 1) JAN-CRC 5T4 RCA ￥1700 used 48/48/40min(TV-7) 2) 5T4 RCA ￥1700 used?(Q) 1) 5T4 RCA ￥1700 used CenterPinなし 1) 5T4 RCA ￥1700 used ペンキ剥あり strong 1) 5T4 GE ￥1700 lightly-used WB
5T8 =Triple Diode High-mu Triode= (EIA/9E) Eh/Ih=4.7V/0.6A heater variants : 6T8/A(6.3V/0.45A), 19T8(18.9V/0.15A) 9) 5T8 USA ￥600 NIB 2) 5T8 USA ￥600 NOS
5U3C/5Ц3C/5C3S(=5U4G) =FullWave Rectifier= (EIA/5T-octal) Ef/If=5V/3A PIV=1700V Idc=250mA/750mA-peak size : 52mmΦ x 140mmH, in max 1) 5Ц3C Russian ￥2300 NIB just-ragged box
5U4G/GA/GB =filamentary FullWave Rectifier= (EIA/5T-octal) Ef/If=5V/3A 5U4G : PIV=1550V Eac-rms-max=450V Idc=225mA Idc-peakmax= 800mA Edrop=44V(@Ip=225mA/section) 5U4GA : PIV=1550V Eac-rms-max=450V Idc=250mA Idc-peakmax= 900mA Edrop=44V(@Ip=225mA/section) 5U4GB : PIV=1550V Eac-rms-max=450V Idc=275mA Idc-peakmax= 1000mA Edrop=50V(@Ip=275mA/section) 5AS4A : PIV=1550V Eac-rms-max=450V Idc=275mA Idc-peakmax= 1000mA Edrop=50V(@Ip=275mA/section) Edrop=58V(@Idc=225mA:Linput) Reliable/Rugged version = 5931 (5U4G/GA/GB(octal) ≒ 5T4(octal-metal) = 5X4G = 5Z3(UX) = 5BC3/A(NOVAR)) (参考) 5U4GBの整流特性(Idc-Edc-Eac) 0) JAN 5U4G RCA ￥- NIB MB date=1-58(D) 0) JAN 5U4G RCA ￥- NIB MB date=6352 0) USAF 5U4G RCA ￥- NIB MB date=5948 1) 5U4G RCA ￥7300 NIB 1) 5U4G RCA ￥7100 NIB VeryVeryRaggedBox 1) 5U4G Syl ￥5700 NIB 1) JAN-CRP 5U4G Raytheon ￥6500 NIB RaggedBox 0) 5U4G Raytheon ￥- NIB(D) ０) 5U4G Ray ￥- NIB Baseにヘアライン傷あり 1) 5U4G Znth ￥5700 NIB RaggedBox sealed 1) 5U4G/VT-244 Philco ￥8300 NIB MB RaggedBox date=1943 1) 5U4G/Hi-PO 567 Sheldon ￥5700 NIB 1) 5U4G RCA ￥3500 lightly-used just-loose base, WB 1) JAN 5U4G RCA ￥2500 used D/C=63-52 0) 5U4G RCA ￥- used 0) 5U4G RCA ￥- used(D) 0) 5U4G RCA ￥- usedLikeNew 107/117/54min NU-MB 1) 5U4G RCA ￥3300 used 100/106/54min 管内にGlassChipあり 2) 5U4G RCA ￥1000 used 62/73/54min,60/66/54min(D) 1) 5U4G GE ￥2000 used D/C=604(1956) 1) 5U4G GE ￥1300 used 79/88 0) 5U4G Syl ￥- used 0) 5U4G Syl ￥- used(D) 2) 5U4G Syl ￥2800 used 90/108,90/96/54min RCA箱 0) 5U4G Syl ￥1100 used 92/100/54min FadedGetter 1) 5U4G Ray ￥3300 used VeryStrong 101/114/54min 0) 5U4G Ray ￥- used 0) 5U4G Ray ￥- used 0) 5U4G Ray ￥- used 100/111,96/107(D) 0) 5U4G Guaranteed(Ray-made) ￥- used 96/105,91/109(D) 1) 5U4G Ray ￥1000 used 84/78 NonGetter 2) 5U4G NU ￥2700 used 101/109,99/109(D) 0) 5U4G Tsol ￥- used 91/80 1) 5U4G Tsol ￥1800 used 98/111/54min カソード粉有り 0) 5U4G Krad ￥- used 83/84/54min(tw02) 1) 5U4G Admrl ￥1500 used 84/90/54min カソード粉有り 0) 5U4G Admrl,Magnavox ￥- used(D) 0) 5U4G Magnavox ￥- used 0) 5U4G USA ￥- used(Aht) 1) 5U4G/Hi-PO 567 Sheldon ￥4000 used VeryStrong 113/129/54min 2) 5U4G KA-lab ￥1200 LightlyUsed 1) 5U4G マツダ(Matsuda/Japan) ￥1500 used WB 1) 5U4G Hitachi ￥1500 used WB 1) 5U4GA GE ￥2400 NIB D/C=4-39(1954), 青箱 0) 5U4GA GE ￥2300 NIB RaggedBox 1) 5U4GA/GB GE ￥2300 NIB 2) 5U4GA GE ￥1300 used Tsol箱他(D) 4) 5U4GA GE ￥1300 used 104/105, 104/113,100/108,101/105/54min 1) 5U4GA GE ￥1100 used 87/104/54min 1) 5U4GA/GB GE ￥1300 used 102/116/54min 1) 5U4GA Ray ￥1300 used RCA箱 1) 5U4GA Sheldon(GE-made) ￥1300 used 103/111/54min 2) 5U4GA Mag ￥1500 used 112/122, 109/121 0) 5U4GB USA ￥- NIB 6) 5U4GB/5AS4A RCA ￥2500 NIB (hyy1gfnt) 1) 5U4GB RCA ￥2500 NIB(mT) 0) 5U4GB RCA ￥- NIB(T) 0) 5U4GB RCA ￥- NIB(T) 1) 5U4GB RCA ￥1700 used? Tsol箱 8) 5U4GB/5AS4A GE ￥2000 NIB (ghx1g2nt) 2) 5U4GB/5AS4A GE ￥2000 NIB @@ 1) 5U4GB GE ￥1800 NOS D/C=3-65, GrayPlates, SideGetter, EM=103/109/54min(on Hickok-539B) WB 14) 5U4GB Syl ￥2000 NIB (hyy1g8jx) 5) 5U4GB Syl ￥2000 NIB 1) 5U4GB Syl ￥1500 usedLikeNew(Qn) 1) 5U4GB Syl ￥2200 NIB MB 0) 5U4GB Syl ￥- NIB BlkPlates 1) 5U4GB Philips-ECG(Syl-made) ￥1900 NIB MIL-WB BluePrintOnBase(D) 1) 5U4GB Tsol ￥2400 NIB(T) 1) 5U4GB Ray ￥2000 NIB * 0) 5U4GB Philco ￥- NIB(sT) 0) 5U4GB CBS ￥- NIB(qD) 0) 5U4GB Silvertone ￥- NIB (nT) 1) 5U4GB Triad(GEmade) ￥2000 NIB 1) 5U4GB PackardBell(RCA-made?) ￥1800 NOS RCA箱 1) 5U4GB Toshiba ￥1800 NIB 1) 5U4GB Toshiba ￥1800 NIB 1) 5U4GB Hitachi ￥1800 NIB just-tagged box 3) 5U4GB RCA ￥1400 used 102/109,104/104 etc(Q) 1) 5U4GB Admrl(RCA-made) ￥1300 used 1) 5U4GB RCA ￥1200 used 97/106/54min JustPoorGetter 1) 5U4GB RCA ￥1200 used 108/108/54min GuidePin折 1) 5U4GB RCA ￥1200 used 102/113/54min GuidePin折 1) 5U4GB RCA ￥1400 used Ray箱 EM=90%/91% Glass変色僅か-- single top getter 100%-print 美品 1) 5U4GB RCA ￥1400 used Tsol箱 @@ 1) 5U4GB GE ￥1200 used 107/104,100/113 1) 5U4GB GE ￥1400 used 112/120 @@ 3) 5U4GB GE ￥1200 used 98/102 etc(Qn) 3) 5U4GB GE ￥1400 used like New 115/123. 108/118,112/126,105/114 1) 5U4GB GE ￥1400 LightlyUsed 2) 5U4GB GE ￥1200 used 1) 5U4GB King(GE-made) ￥1300 used 1) 5U4GB Syl ￥1700 NOS?/used? EM=113/114 0) 5U4GB Syl ￥1500 used 新同 EM=105/112, 105/107(mD) 0) 5U4GB Syl ￥- used 106/112/54min lightly used 0) 5U4GB Syl ￥- used 109/110,110/120(mD) 3) 5U4GB Syl ￥1300 used 99/106,103/108,100/105 1) 5U4GB Syl ￥1200 used 98/98/54min 1) 5U4GB Syl ￥1000 used 102/93/54min justSmallGtr 1) 5U4GB Syl ￥1000 used 102/97/54min justFadedGtr 1) JAN 5U4GB Philips-ECG ￥1700 like-new D/C=8652 WB 1) 5U4GB WH ￥1700 used? EM=110/110 1) 5U4GB Tsol ￥1000 used GE箱 1) 5U4GB Philco ￥1200 used EM=91/101 1) 5U4GB Ray ￥1000 used RCA箱 0) 5U4GB Ray ￥1200 used -- twin side getters Glass変色ほとんど無し 1) 5U4GB Ray ￥1200 used 99/107 1) 5U4GB Znth ￥1200 usedLikeNew 96/106 1) 5U4GB CBS ￥1200 LightlyUsed RadTel箱 1) 5U4GB RadTel ￥1200 used CBS箱 1) 5U4GA/GB Silvertone ￥1000 used 109/117 justFadedGtr 1) 5U4GA/GB Wards-SuperAirline ￥1200 usedLightly 100/109 1) 5U4GB Silvertone ￥1000 used 1) 5U4GB Baldwin ￥1200 usedLikeNew 105/119 1) 5U4GB Hoffman ￥1200 used 1) 5U4GB Toshiba ￥1200 lightly-used 1) 5U4GB NEC ￥2000 used D/C=1957.5 段付ベース 2) S-5U4 CCC ￥1200 used? SiliconDiodes(5U4-OctalBase)
5U8 =Triode Pentode= (EIA/9AE - noval) Eh/Ih=4.7V/0.6A heater variants : 5KD8(5.6V/0.45A), 6KD8(6.3V/0.4A), 6U8/A(6.3V/0.45A), PCF82/9U8(9.5V/0.3A) 4) 5U8 RCA ￥800 NIB 8) 5U8 USA ￥600 NOS/NIB 2) 5U8 Toshiba ￥600 NIB 1:cellophane-sealed 1) 5U8 Toshiba ￥600 NIB 1) 5U8 Toshiba ￥500 NOS Sharp箱 2) 5U8 Matsushita ￥600 NIB 1) 5U8 USA ￥400 used
5V3 =filamentary FullWave Rectifier= (EIA/5T - octal) 5V3 : PIV=1400V Idc=350mA Edrop=47V(@Idc=350mA/section) Ef/If=5V/3.8A 5V3A: PIV=1550V Idc=415mA Edrop=42V(@Idc=350mA/section) Ef/If=5V/3.8A 1) 5V3 GE ￥2900 NIB LongGlass 1) 5V3/5AU4 GE ￥2900 NIB "5V3A" on glass 1) 5V3 Syl ￥2900 NIB 4) 5V3 Syl ￥2900 NIB 2) 5V3 Ray ￥2900 NIB 1) 5V3A Tsol ￥2900 NIB 0) 5V3A/5AU4 RCA ￥- LikeNew
5V4G =cathode-type FullWave Rectifier= (EIA/5L - octal) PIV=1400V Idc=175mA Edrop=23V(@Idc=175mA/section:Linput) Eh/Ih=5V/2A (参考) 5V4Gの整流特性(Idc-Edc-Eac) 1) 5V4G RCA ￥3300 NIB 1) 5V4G RCA ￥3300 NIB MB date=1944 RaggedBox 1) 5V4G RCA ￥3300 NIB VeryVeryRaggedBox 8) 5V4G RCA ￥3200 NIB MB(hpy10nx) 1) 5V4G RCA ￥3100 NOS WB 128/126/54min 0) 5V4G GE ￥- NIB 青箱(D) 5) 5V4G CGE(Syl-made) ￥2900 NIB RaggedBox 0) 5V4G Syl ￥- NOS MB 0) 5V4G Raytheon ￥- NIB(Sn) 1) 5V4G WH(Canada) ￥2900 NIB 1) 5V4G Philco ￥2900 NIB 5V4GA箱 1) 5V4G DuMont ￥2900 NIB VeryRaggedBox 1) 5V4G CBS ￥2700 NIB D/C=5426, Glass-chip inside, ragged-box 0) 5V4/G Art ￥- NIB 0) 5V4G RCA,RCA-Victor ￥- used(sQ) 0) 5V4G RCA ￥2000 used GE箱 0) 5V4G RCA ￥2000 used 1) 5V4G RCA ￥2500 used 113/117/54min 0) 5V4G RCA ￥2000 used Ray箱 95/101/54min 0) 5V4G RCA ￥- used RCA-RB EM=106/102 0) 5V4G RCA ￥- used Center-pin折 STRONG 0) 5V4G Micro ￥- used EM=96/98 0) 5V4G GE ￥- used/LikeNew 0) 5V4G Ray ￥- used 2) 5V4G Syl ￥1500 used(Qn) 14) 5V4GA RCA ￥2200 NIB(hs1g3ns) 0) 5V4GA GE ￥1800 NIB(Qn) 5) 5V4GA Syl ￥1700 NIB(nSn) 1) 5V4GA Syl ￥1100 LightlyUsed 1) 5V4GA WH ￥1100 1) 5V4GA RCA ￥- used WB
5V6/GT =Beam Power= (EIA/7AC - octal) Eh/Ih=4.7V/0.6A heater variants : 6V6/G/GTA(6.3V/0.45A), 12V6GT(12.6V/0.225A) 1) 5V6GT RCA ￥700 NIB *sw 1) 5V6GT USA ￥600 NIB (D)
5W4 =filamentary FullWave Rectifier= (EIA/5T - octal) PIV=1400V Idc=100mA Edrop=45V(@Idc=100mA/section) Ef/If=5V/1.5A 1) 5W4G GE ￥1200 usedLikeNew 1) 5W4 RCA ￥1200 NIB metal 2) 5W4GT/G RCA ￥1000 NIB 1) 5W4 Syl ￥1500 NIB D/C=752 glass w/metal-base 4) 5W4 KenRad,RCA,GE ￥400 used metal 1) 5W4 Cororado ￥400 used metal 100/101/54min
5X4/G =filamentary Fullwave Rectifier= (EIA/5Q - octal, ST16bulb) PIV=1550V Idc=225mA Edrop=58V(@Idc=225mA/section) Ef/If=5V/3A (5X4/G(octal) ≒ 5U4(octal) = 5T4(octal-metal) = 5Z3(UX) = 5BC3/A(NOVAR)) 1) USAF 5X4G RCA ￥2400 NIB MB 1) 5X4G RCA ￥1300 NOS?/used? STRONG
5X8 =Triode Pentode Converter= (EIA/9AK - noval) Eh/Ih=4.7V/0.6A heater variants : 6X8/A(6.3V/0.45A), 19X8(18.4V/0.15A) 3) 5X8 USA ￥600 NIB (Qn) 1) 5X8 GE ￥600 NOS ?
5Y3/G/GT/WGT/WGTA =filamentary FullWave Rectifier= (see 6087) (EIA/5T - octal) Ef/If=5V/2A PIV=1400V Idcmax=125mA(Cinput)/150mA(Linput) Edrop=50V(@Idc=125mA/section:Linput) Cin=20uF@Rs=50ohm see high-rel. heater-connected cathode-types : 6087, 6106 similar to 80, 5CG4(heater-connected cathode-type) also see an electrically-identical loktal-base type : 5AZ4 also see an electrically-similar isolated-cathode type : 6AX5GT(Eh/Ih=6.3V/1.2A, PIV=1250V Idcmax=125mA Edrop=50V) - ST type 5Y3G new & used - 0) 5Y3G Syl ￥- NIB RaggedBox(D) 0) 5Y3G GE ￥1200 used 72/78/54min 0) 5Y3G Philco,NU,RCA-Victor,Wards,KenRad ￥- used(Q) 0) 5Y3G Wizard ￥1100 used 63/64/54min 1) 5Y3G RCA ￥1100 used D/C=Mar.1956 WaistGtr 1) 5Y3G Philco(Syl-made) ￥1100 used D/C=50-13, WaistGtr 1) 5Y3G Ray ￥1100 used D/C=339, WaistGtr, CenterPost折れ - new 5Y3GT - 0) 5Y3GT Amprx ￥- NIB GE-made(D) 0) CRC 5Y3GT RCA ￥- NIB MB 7) 5Y3GT RCA ￥2600 NIB (hys1vans) 1) 5Y3GT RCA ￥2600 NIB BlkPlates BtmGtr LightBrownBox(vQn) 3) 5Y3GT RCA ￥2600 NIB BlkPlates TopGtr 1) 5Y3GT RCA ￥2400 NOS Tsol箱 0) 5Y3GT RCA(GE-made) ￥- NIB BrownBase 1) USN 5Y3WGT GE ￥2600 NIB MB BrownBase 1) JAN 5Y3WGTB/6087 GE ￥2900 NOS MB BrownBase date=6722 1) USN 5Y3WGTB GE ￥2700 NIB MB BrownBase 1) USN 5Y3WGTB GE ￥2700 NIB BrownBase 1) USN 5Y3WGTB(6087) GE ￥2400 NOS? Syl-MB BrownBase 7) 5Y3GT GE ￥2300 NIB(hyybnv) 0) GB-5Y3WGTA Syl ￥- NIB BrownBase 1) JAN-CHS 5Y3WGTA Syl ￥2600 NIB BrownBase date=2-59 6) JAN 5Y3WGTA Syl ￥2600 NIB BrownBase date=039,6115,6149,6220,6220,6224 2) JAN 5Y3WGTA Syl ￥2400 NIB BrownBase date=705,705 1) JAN 5Y3WGTA Syl ￥2400 NIB BrownBase date=12-66 1) JAN 5Y3WGTA Syl ￥2400 NIB BrownBase date=7034 BrownBase 4) 5Y3GT Syl ￥1900 NIB justRaggedBox(Sx) 3) 5Y3GT Syl ￥1900 NIB 1) 5Y3GT Syl ￥1900 NIB StampedWB @@ 0) 5Y3GT Syl ￥- NIB MIL-WB(D) 1) 5Y3GT Syl ￥1900 NIB BlkPlates TopGtr 1) 5Y3GT Syl ￥1900 NIB BlkPlates TopGtr 1) CKR-5Y3GT Krad ￥2400 NIB MB 1) 5Y3GT Ray ￥2100 NIB 1) 5Y3GT Ray ￥1800 NOS? WB 1) JAN-CTL 5Y3GT/G Tsol ￥2600 NIB VeryRaggedBox(Qn) 1) JAN-CTL 5Y3GT/G Tsol ￥2600 NOS WB 0) 5Y3GT Tsol ￥- NIB(D) 1) 5Y3WGT Hytron ￥2400 NIB MB 1) 5Y3WGTA Hytron ￥2600 NIB MB BrownBase date=520(1955) 1) JAN-CHY 5Y3WGTA CBS ￥2600 NIB MB BlkPlate LightBrownBase date=59-49 2) 5Y3GT Mot ￥1900 NIB 1) 5Y3GT Lindal(Japan) ￥1600 NIB TwinSideGtr 1) 5Y3GT Lindal(England) ￥1600 NIB GrayPlates 1) 5Y3GT Lindal ￥1600 used? BlkPlates 1) 5Y3GT STD ￥1700 NIB date=9-04 BlkPlates 1) 5Y3GT Triad ￥1600 NIB 0) 5Y3GT Stewart ￥- NIB 1) 5Y3GT National ￥2200 NIB VeryLongGlass 1) 5Y3GT National ￥1900 NIB 1) 5Y3GT National ￥1500 NOS USSR ElectronicEnterprises箱 - used 5Y3GT - 1) 5Y3 RCA ￥1600 used? VeryStrong(D) 2) 5Y3 RCA ￥1500 used/LikeNew VeryStrong(D) 1) 5Y3 RCA ￥1000 used 82/92 1) 5Y3GT/G RCA ￥800 used 1) 5Y3GT/G ?(RCA) ￥800 used 1) 5Y3GT RCA ￥1000 used D/C=7-04 82/90 BottomGetter ガラス変色無 1) 5Y3GT RCA ￥1200 like-new BottomGetter WB 0) 5Y3GT RCA ￥- used 1) 5Y3GT RCA ￥1200 used 58/53/40min(TV7) 2) 5Y3GT RCA ￥1000 used 80/84, 78/81/54min(539B) 2) 5Y3GT RCA ￥700 used 68/76,62/72/54min 1) 5Y3GT RCA ￥1000 used 元箱 1) 5Y3WGT GE ￥1600 used? 茶ベース 2) 5Y3WGTA/B GE ￥1400 used 茶ベース 96/108,94/110/54min 1) 5Y3GT GE ￥1000 used 95/99 TopGetter 1) 5Y3GT GE ￥1000 used D/C=3-22 75/87 BottomGetter ガラス変色無 0) 5Y3 GE ￥- used? 2) 5Y3GT GE ￥1200 used 98/101,92/102/54min 1) 5Y3GT GE ￥800 used 79/87/54min 1) 5Y3GT VM(GE-made) ￥1000 used 87/92/54min 1) 5Y3GT GE ￥1000 used Base欠けあり 103/102/54min 1) 5Y3GT GE ￥1000 used 98/103/54min 1) 5Y3GT GE ￥1000 used-LikeNew 98/103/54min GrayPlates TopGtr 1) 5Y3GT GE,NU ￥600 used 2) GB-5Y3WGTA Syl ￥1600 used GoldBrand BrownBase TopGtr 82/90,86/90/54min 1) 5Y3GT Syl ￥900 used 96/106 TopGetter 2) 5Y3GT Syl ￥1000 used 90/95,88/91/54min(hyyQgg) 2) 5Y3GT Syl ￥600 used 1) 5Y3GT Syl ￥600 used HairLineCrack 0) 5Y3GT Ray ￥- used STRONG 1) 5Y3GT Ray ￥1000 used BlkPlates date=5704 90/98/54min 1) 5Y3GT Ray ￥1000 used Italy GrayPlates 87/91/54min 1) 5Y3GT Tsol ￥1000 LookLikeNew date=039 75/79/54min 1) 5Y3GT Tsol ￥700 used date=629 67/72/54min 1) 5Y3GT Tsol ￥700 used CenterPin折れ CannnelMaster箱 0) 5Y3GT WH ￥- used 92/95 TopGetter 0) 5Y3GT Magnavox ￥- used TopGetter 1) 5Y3 Krad ￥700 used date=9-17 77/87/54min 1) 5Y3 Krad ￥600 used 1) 5Y3 Philco ￥800 used date=5335 83/88/54min 1) 5Y3WGTA CBS ￥1500 usedLikeNew LightBrownBase 90/101/54min date=632 1) 5Y3 Mag ￥800 used 81/92/54min 1) 5Y3 Mag ￥800 used date=748 1) 5Y3 Mag ￥1300 used? 110/112 1) 5Y3 Mag ￥1100 used? 87/93 0) 5Y3GT Admrl ￥- used 1) 5Y3GT Silvertone ￥800 used 85/86 BottomSideGetter 1) 5Y3GT Znth ￥500 used 1) 5Y3GT Silvertone ￥600 used 1) 5Y3GT Capehant ￥600 used 1) 5Y3GT Olympic ￥1000 used 60/54/40min(TV-7) 1) 5Y3GT DevryTechInst(Syl-made) ￥1000 used 58/56/40(TV-7) 0) 5Y3GT/G ? ￥- used BlkPlates BtmGtr 84/93/54min 1) 5Y3GT Matsuda ￥1000 lightly-used WB 1) 5Y3GT Matsuda ￥500 used BlkPlates BtmGtr
5Y4 (EIA/5Q-octal) =filamentary FullWave Rectifier= (EIA/5Q - octal) PIV=1400V Idcmax=125mA Edrop=60V(@Idc=125ma:Linput) Ef/If=5V/2A Cin=10uF@Rs=50ohm electrically nearly identical to 5Y3 and 80 except base 0) 5Y4G RCA Victor ￥- NIB 0) 5Y4G GE ￥- NIB 0) 5Y4G SYL ￥2400 NIB(Sn) 1) 5Y4G Tung-Sol ￥2700 NIB VeryRaggedBox 0) 5Y4G Philco ￥- NIB 1) 5Y4GA RCA ￥2400 NIB RaggedBox(T) StraightFatGlass 0) 5Y4GT WH ￥- NIB StraightFatGlass
5Z3 =filamentary FullWave Rectifier= (EIA/4C, UX4pin, ST16bulb) Ef/If=5V/3A PIV=1550V Idc=225mA Edrop=58V(@Idc=225mA/section:Linput) (5Z3(UX) ≒ 5U4(octal) = 5X4G(octal) = 5T4(octal-metal) = 5BC3/A(NOVAR)) see a similartype : 1275(Ef/If=5V/2A) also see a cathode-type 5Z3, high-rel. tube : 2K13 2) 5Z3 RCA-Victor ￥2700 NIB VeryRaggedBox 0) 5Z3 RCA ￥- NIB (hh1z6nt) 3) 5Z3 Motorola(RCA-made) ￥2700 NIB TopGtr 1) 5Z3 Motorola(RCA-made) ￥2700 NIB TopGtr 1) 5Z3 Emerson(RCA-made) ￥2700 NIB (Emerson-orange元箱) date=030 0) JAN-CHS 5Z3 Syl ￥- NIB MB 0) 5Z3 Mullard ￥- NIB(D) 0) 5Z3 Radiotron(Canada-WH) ￥- NIB 1) 5Z3 GE ￥2400 usedLikeNew RCA箱 1) 5Z3 Tsol ￥2700 NIB MB ragged-box 1) 5Z3 Philco ￥2400 NIB ragged-box 0) 5Z3 Airline ￥- NIB 1) 5Z3 Matsuda ￥1800 NIB 5) 5Z3 RCA ￥1200 used 0) 5Z3 FAA(RCAmade) ￥- used? 0) 5Z3/VT-145 Syl ￥1800 used?/NOS?(sT) 1) 5Z3/VT-145 Syl ￥500 used 55/66/54 1) 5Z3 KenRad ￥1200 used EM=94/95/54min 1) JAN-CHS 5Z3/VT-145 Syl ￥500 used EM=64/57/54min 1) 5Z3 RCA ￥500 used EM=48/52/54min 1) 5Z3 Matsuda ￥800 used EM=90/82/54min(on KS-15750-L1 tester) 1) 5Z3 TVC ￥800 used WB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
5Z4 =filamentary FullWave Rectifier= (EIA/5L - octal) PIV=1400V Idc=125mA Edrop=20V(@Idc=125mA/section:Linput) Ef/If=5V/2A 0) 5Z4G Brimar NIB ￥-(mD) 1) CRC 5Z4 RCA NIB ￥1900 metal 3) 5Z4 RCA NIB ￥1900 metal (zQn) 1) 5Z4 RCA ￥1900 NIB metal D/C=Ja.1953 1) 5Z4 RCA ￥1900 NIB metal VeryRaggedBox 1) 5Z4 RCA ￥1000 used metal RCA-boxed 2) 5Z4 RCA ￥1000 used metal(1=JAN-CRC) National-boxed 0) 5Z4 GE used ￥- metal NonBox 0) 5Z4 RCA,TS,Cunningham used ￥- 0) 5Z4 WARDS used ￥- EM=86/84/54min
6A3 =PowerTriode= (EIA/4D, UX4pin, ST16bulb) Ef/If=6.3V/1A Ppmax=15W Epmax=325V Rgmax=50kΩ(fixed)/500kΩ(self) op(A1-single) : Ep=250V Ec=-45V Ip=60mA rp=800Ω gm=5.25mS μ=4.2 Zl=2.5kΩ 2ndHD=5% Po=3.2W op(AB1-pushpull): Ep=325V Ec=-68V Ipo=40mAx2 Zlpp=3kΩ THD=2.5% Po=15W (参考 : 2A3のEpIp特性とバリアント(EpIp-curve and variants)) (see 6A5G, 6B4G, also see 2A3) electrically similar European type : AD1(side-contact, Ef/If=4V/0.95A) also see a European cathode type : R120(octal, Eh/Ih=6.3V/1.45A) <三極管の A1S 動作比較> 1) 6A3 Tsol ￥8100 NIB 1) 6A3 Tsol ￥8100 NIB 1) 6A3 Cunnghm ￥8300 NIB BlkGlass 1) 6A3 RCA-Victor ￥8300 NIB RaggedBox 71/38min 1-pair) 6A3 RCA ￥17900 NIB gm-matched 1) 6A3 RCA ￥8300 NIB 2) 6A3 RCA ￥7900 NOS 110%, 112% 2) 6A3 GE ￥7900 NIB 1) 6A3 GE ￥7900 NIB 1) 6A3 Syl ￥7500 NOS RCA箱 1) 6A3 Syl ￥7500 NOS Bulk品 WB 78/36min(TV-7) 1) 6A3 Syl ￥8900 NIB シール品 2) 6A3 Syl ￥7500 NOS WB 74,76/38min(TV7) 1) 6A3 Syl ￥6900 LikeNew WB 2) 6A3 Syl ￥7900 NIB 2) 6A3 Philco ￥7900 NIB 1) 6A3 Znth ￥7500 NOS OB 1) 6A3 Philco ￥3900 used 1) 6A3 Znth ￥3900 used 1) 6A3 Marconi ￥3900 used gm=2400/1900min 1) 6A3 ￥2000 used
6A4/6A4-LA =6V蓄電池用PowerPentode= (EIA/5B - UY5pin, ST14) Filament type Epmax=200V Ec2max=200V Ef/If=6.3V/0.3A op : Ep=180V Ec2=180V Rk=465ohm/Ec1=-12V Ip=22mA Ic2=3.9mA rp=45.5kΩ μ=100 gm=2.2mS Zl=8kΩ Po=1.4W 1) 6A4-ST RCA-Cunningham ￥2200 NIB RaggedBox 1) 6A4/LA-ST RCA ￥2200 NIB VeryRaggedBox +++
6A5G =PowerTriode= (EIA/6T - octal, ST16bulb) heater/cathode type 6B4G(octal version of 6A3center of heater connected to cathode at #8-pin Eh/Ih=6.3V/1A(Sylvania, NU)1.25A(GE) Ppmax=15W Epmax=325V op(A1-single) : Ep=250V Ec=-45V Ip=60mA rp=800Ω gm=5.25mS μ=4.2 Zl=2.5kΩ 2ndHD=5% Po=3.75W op(AB1-pushpull): Ep=325V Ec=-68V Ipo=40mAx2 Zlpp=3kΩ THD=2.5% Po=15W (参考 : 2A3のEpIp特性とバリアント(EpIp-curve and variants)) (see 6A3, 6B4G, also see 2A3) also see European similar type(cathode type octal power triode) : R120(Eh/Ih=6.3V/1.45A) <三極管の A1S 動作比較> 4) 6A5G Syl ￥9000 NIB 1) 6A5G NU ￥9000 NIB 4) 6A5G Philco ￥8000 Bulk-NOS engraved WB gm = 3910μmho, 4050μmho, 4090μmho, 4130μmho / 1800μmho-min on KS-15750-L1 5) 6A5G Syl ￥offer lightly-used, one=center-index broken gm = 4000μmho, 4000μmho, 3000μmho, 4000μmho, 4200μmho, where minimum=2700μmho /ECC85(6.3V/0.435A) 9AQ8(9V/0.3A) PCC85(9V/0.3A) 17EW8/HCC85(17.5V/0.15A) (also see other similar twin triodes for cascode amps with same base diagram : => 6RHH2 6BC8 6BS8 6DJ8 6DT8 6KN8/6RHH8) 2) 6AQ8 Mullard ￥3900 NIB(mD) 1) 6AQ8/ECC85 Zenith/Mullard-made ￥3300 NIB 0) 6AQ8/ECC85 Admrl(made in Gt.Britain) ￥- NIB(sQ) 5) 6AQ8/ECC85 RCA ￥2900 NIB(Qn) 0) 6AQ8/ECC85 RCA ￥- NIB(Qn) 1) 6AQ8/ECC85 GE ￥2200 NIB(T) 1) 6AQ8/ECC85 GE ￥2200 NIB - mint 4) 6AQ8/ECC85 GE ￥2400 NIB GtBritain 1) 6AQ8/ECC85 CGE ￥2000 NIB 0) 6AQ8/ECC85 GE ￥- NIB 0) 6AQ8/ECC85 GE ￥- NOS WB made in Gt.Britain 0) 6AQ8/ECC85 GE ￥- NOS WB 0) 6AQ8/ECC85 Syl ￥- NIB Canada(D) 1) 6AQ8/ECC85 Syl ￥2000 NIB made in Holland 1) 6AQ8/ECC85 Syl ￥2000 NIB Japan 0) 6AQ8/ECC85 Syl ￥2000 NIB 1) 6AQ8/ECC85 Syl ￥2000 NIB 3) 6AQ8 Syl ￥1700 NIB Japan 1) 6AQ8/ECC85 Celebrity(made in Japan) ￥2000 NIB(T) 0) 6AQ8/ECC85 International(made in Japan) ￥- NIB(Q) 1) 6AQ8/ECC85 WH ￥2000 NIB(T) 1) 6AQ8 WH ￥2000 NIB 1) 6AQ8 RTT ￥2000 NIB 2) 6AQ8 Toshiba ￥900 used-lightly 1) 6AQ8 Toshiba ￥900 used-lightly 3) 6AQ8 Toshiba ￥900 used-lightly WB 1) 6AQ8 Toshiba ￥800 used 1) 6AQ8 Toshiba ￥800 used 1) 6AQ8 Matsushita ￥900 used-lightly 2) 6AQ8 Matsushita ￥900 used-lightly lot=7D, WB 5) 6AQ8 Matsushita ￥800 used WB 1) 6AQ8 Matsushita ￥800 used 1) 6AQ8 Matsushita ￥800 used 1) 6AQ8 Matsushita ￥800 used 2) 6AQ8/ECC85 Matsushita ￥900 lightly-used lot=7F,5H WB 1) 6AQ8 Hitachi 900 lightly-used DC=1973 WB

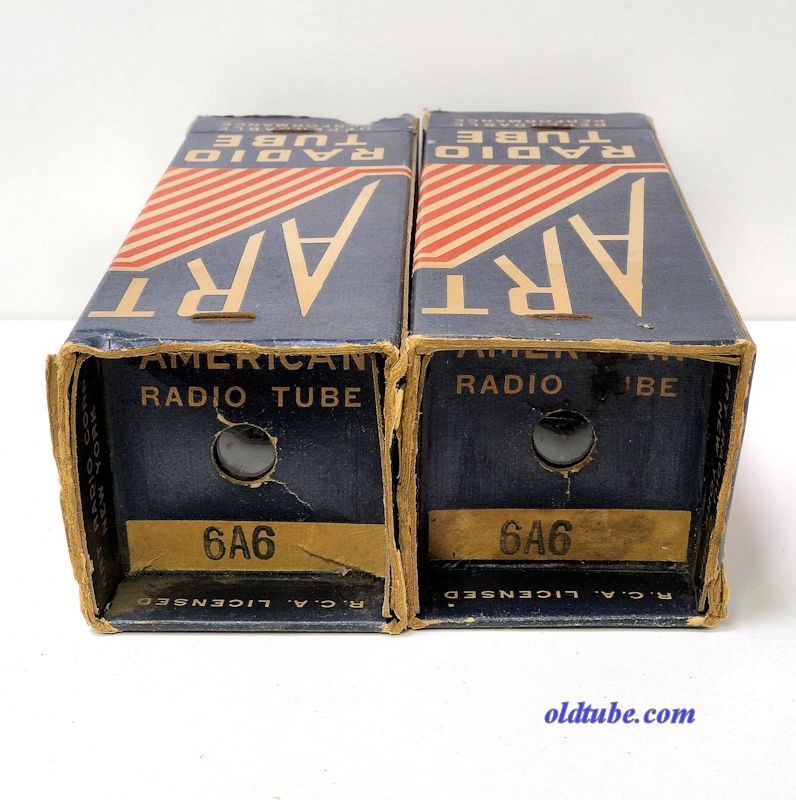

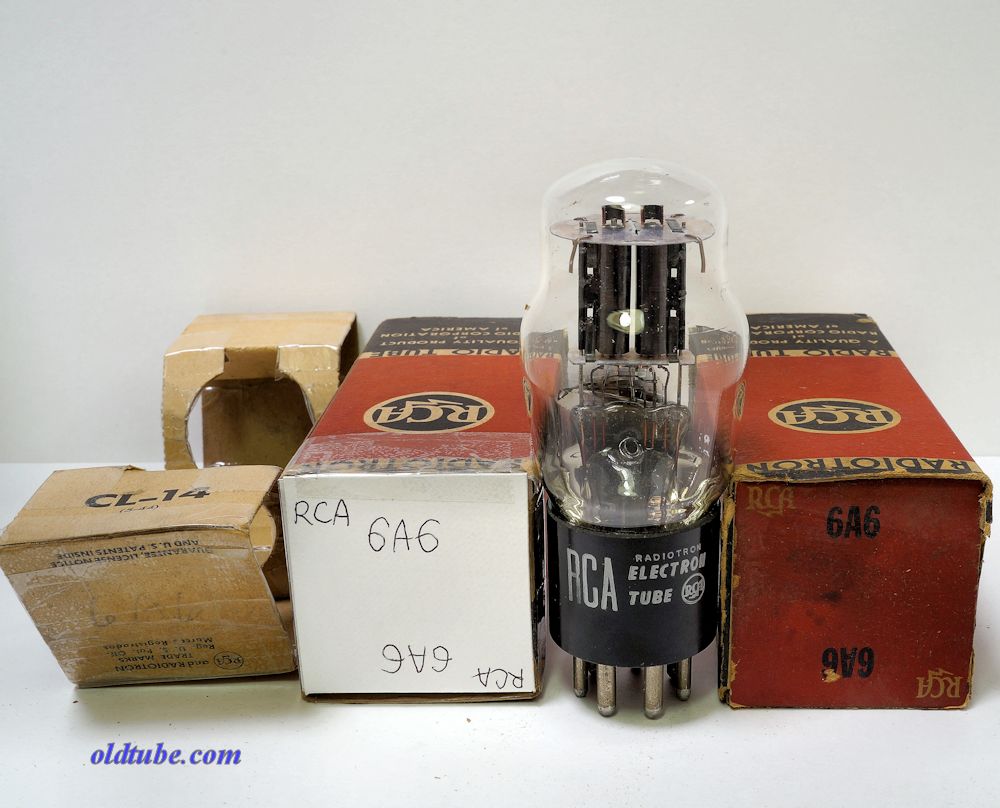

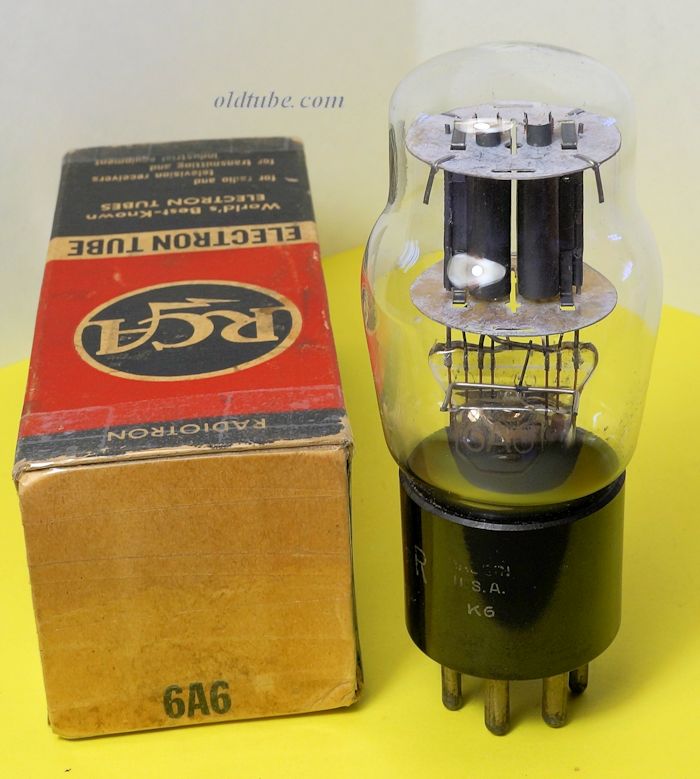

6A6 =class-B common-cathode TwinTriode-PowerAmp= (EIA/7B - 7pinUT-ST14bulb) Eh/Ih=6.3V/0.8A class A: Ppmax=1W/unit Epmax=300V Ipmax=125mA-peak/unit rp=11kΩ gm=3.2mS μ=35 op(unit-parallel) : Ep=250V Ec=-5V Ip=6mA rp=11.3kΩ gm=3.1mS μ=35 op(unit-parallel) : Ep=294V Ec=-6V Ip=7mA rp=11.0kΩ gm=3.2mS μ=35 class B: Ppmax=5.5W/unit Epmax=300V Ipmax=125mA/unit op(B2pp) :Ep=300V Ec=0V Ipo=17.5mAx2 Ipmax=35mAx2 Ec-peak=29V Ic-peakmax=20mA Zlpp=8kΩ Po=10W D=4% (参考 : class AB2 - EpIp特性) pins : 1(H)-2(2P)-3(2G)-4(K)-5(1G)-6(1P)-7(H) size : 46mmΦ x 119mm, in max You can yield approx. 20W for Zlp-p=5kΩ by using TWO tubes in parallel-unit connections efficiently. electrically identical to 6N7/GT/G(octal), 53(μ=35, Eh/Ih=2.5V/2A) and similar to 5608A(μ=32, Eh/Ih=2.5V/2A). also see European octal-base class-A amplifier type ECC31/CV1285/NR72(Eh/Ih=6.3V/0.95A) 2) 6A6-ST RCA ￥2700 NIB VeryRaggedBox +++ 7) 6A6-ST RCA ￥2700 NIB 1) 6A6-ST RCA ￥2700 NIB D/C=K6(1943.11) VeryRaggedBox 1) USN-CRC 6A6-ST RCA ￥2700 NIB D/C=Feb.1943 VeryRaggedBox MB 2) 6A6-ST RCA ￥2700 NIB VeryRaggedBoxes 0) 6A6-ST RCA ￥- NIB VeryRaggedBox 2) 6A6-ST Cunningham ￥2700 NIB VeryRaggedBoxes 1) 6A6-ST Sylvania ￥2400 NIB D/C=8-18-1942, VeryRaggedBox MB 3 : 2=reserved) 6A6-ST Sylvania ￥2400 NIB VeryRaggedBoxes 3) 6A6-ST Tsol ￥2400 NIB justRaggedBoxes 1) 6A6-ST Brimar ￥3100 NIB sealed VeryRaggedBox 2) 6A6-ST NationalUnion ￥2400 NIB justRaggedBoxes 1) 6A6-ST Hytron ￥2400 NIB sealed VeryRaggedBox 1) 6A6-ST Triad ￥2400 NIB sealed VeryRaggedBox 1) 6A6-ST Coronado ￥2400 NIB justRaggedBox 2) 6A6-ST ART(=American Radio Tube) ￥2400 NIB sealed justRaggedBox 1) 6A6-ST RCA ￥1200 used? gm=77/70/38min 1) 6A6-ST RCA ￥1200 used? gm=2480/2450/950min
6A7 =PentaGridConverter= (EIA/7C - 7pinUt, ST12 bulb) Ppmax=1W Epmax=250V Esmax=100V Epg2max=200V Ikmax=14mA Eh/Ih=6.3V/0.3A rp=k gm=mS 1) 6A7-ST CBS ￥1600 NIB RaggedBox 1) 6A7 Philco ￥800 used 0) 6A7 CnghmRCA ￥- used 1) 6A7 RCA ￥600 used JustWeak but useable 1) 6A7 RCA ￥600 used Top-Plateなし 1) 6A7 Philco ￥600 used 3) 6A7 USA ￥600 used 1) 6A7 ? ￥600 used 2) Ut-6A7 Matsuda ￥600 used WB
6A8/6A8G/6A8GT =PentaGridConverter= (EIA/8A - octal, TopGrid) Eh/Ih=6.3V/0.3A Ppmax=W Epmax=250V rp=360k gm=0.55mS 6A8:metal, 6A8G: ST-12 bulb similar to 6A8/G/GT 1612(different pin assignment) heater variant : 12A8(12.6V/0.15A) 1) 6A8G GM ￥1200 NOS WB 1) 6A8GT Cunningham ￥1200 NIB SmokedGlass metal-base VeryRaggedBox 1) 6A8 RCA ￥700 NIB ragged-box metal just-weak 0) 6A8 RCA ￥1200 NIB metal 2) 6A8 GE ￥1000 NIB metal 1) 6A8 WH ￥1000 NIB metal 5) 6A8GT - ￥800 NOS metal, made in Italy, WB 0) 6A8 Tsol ￥- used metal 0) 6A8G Tsol ￥- used
6A10 =Current regulating Ballast tube= (参考資料 : Amperite Ballast Reference) 1) 6A10 Amperite ￥3000 NIB automatic-regulator 大型元箱
6AB4 (see EC92) =HiMuTriode= (EIA/5CE) mobile version = 6664 Ppmax=2.5W Epmax=300V Eh/Ih=6.3V/0.15A rp=13.5k μ=54 gm=4mS (参考 : Ep-Ip特性) 0) 6AB4 TFK ￥- NIB 1) 6AB4 RCA ￥1000 NIB BlkPlate 1) 6AB4 RCA ￥1000 NIB BlkPlate 6) 6AB4 RCA ￥800 NIB(hyydht) 2) 6AB4 GE ￥700 NIB(hyydht) 0) 6AB4 GE ￥- NIB OrangeBox & MB (hyyfnv) 2) 6AB4 Syl ￥700 NIB 3) 6AB4 Lindal(GE-made) ￥700 NIB 6) 6AB4 USA ￥700 NOS /NIB(Q) 4) 6AB4 RCA,GE,Syl,Ray etc ￥400 used (Q)
6AB5 =ElectronRayTuber= (EIA/6R) Ep-supply=180Vmax Etarget=180max/100min Eh/Ih=6.3V/0.15A op : Ep=135V Rseries(triode-plate)=250kΩ Itarget=2mA Ip,triode=0.5mA Ec=-10V(shardow-angle=0°)/0V(90°) see 6N5 also see 6E5 1) 6AB5/6N5 ￥3500 NIB VeryRaggedBox +++ 0) 6AB5 SuperSilvertone ￥- NOS? RCA箱 0) 6AB5 Ray ￥- NIB
6AB7/1853 =semi remote-cutoff Pentode= (EIA/8N - octal) Eh/Ih=6.3V/0.45A Ppmax=3.75W Epmax=300V Pc2max=0.7W Ec2max=200V rp=700k gm=5mS same-base, higher gm sharp-cutoff type : 6AC7/1852 same-base, lower-gm sharp-cutoff type : 6SJ7 1) JAN-CRC 6AB7Y RCA ￥2000 NIB MB 1) JAN-CRC 6AB7/VT-176 RCA ￥2000 NIB MB 1) JAN-CRC 6AB7/VT-176 RCA ￥2000 NIB MB 1) 6AB7/1853 RCA ￥2000 NIB MB RaggedBox 1) 6AB7 MR RCA ￥2000 NIB MB 1) JAN-CRC 6AB7Y/VT-176 RCA ￥1500 NOS? RCA箱
6AB8( = ECL80) =CommonCathode Triode sharpcutoff Pentode= (EIA/9AT - noval) Eh/Ih=6.3V/0.3A Ehk=200V(dc+ac) P: Ppmax=3.5W Epmax=500V Pc2max=1.2W Ec2max=250V Ilmax=25mA Rgmax=1MΩ rp=150k gm=3.3mS T: Ppmax=1W Epmax=200V Ikmax=8mA rp=12.5k gm=1.4mS μ=17.5 5) 6AB8/ECL80 Ray ￥1200 NIB 1) 6AB8 Dmnt ￥1200 NIB 6) 6AB8 Matsushita ￥900 NIB cellophane-sealed 2) 6AB8 Matsushita ￥700 NOS 1) 6AB8 Matsushita ￥700 NOS 1) 6AB8 Philips Miniwatt ￥400 used WB 1) 6AB8 Matsushita ￥400 used 1) 6AB8 Matsushita ￥400 used
6AB9 =Twin Tetrode for FM front-end= (EIA/10N - dekal 10pins) Eh/Ih=6.3V/0.365A op : Ep=125V Ec2=80V Ec1=-1V Ip=8mA Ic2=2mA rp=110kΩ gm=10mS pins : 1(2P)-2(2G2)-3(2G1)-4(2K)-5(H)-6(H)-7(1P)-8(1G2)-9(1G1)-10(1K,IS) heater variant : 17AB9(16.8V/0.15A) similar type (different-base) : 6C9(6.3V/0.4A) similar type (different-base, different heater) : 17C9(16.8V/0.15A) 0) 6AB9 Toshiba ￥2000 NIB 4) 6AB9 Toshiba ￥2000 NIB 0) 6AB9 Matsushita ￥2000 NIB 0) 6AB9 Toshiba ￥900 used WB 0) 6AB9 Toshiba ￥900 used smeared-ff silk
6AC5G/GT =Power Triode (power-grid)= (EIA/6Q - octal) Eh/Ih=6.3V/0.4A Ppmax=10W Epmax=250V Ipmax=110mApeak, Ip=32mA Ic=5mA rp=36.7kΩ gm=3.4mS μ=125typ op 1 A1S (drived by dynamic-coupled #76-cathode follower): Ep=250V Ip=32mA Ip-#76=5.5mA Edrive16.5Vrms Rg-#76=1MΩ Rk=0Ω Rk-#76=25kΩ Zl=7kΩ D=10% Po=3.7W * Rk-#76 should be utilized to prevent surge current while power-on warming-up. (see a dynamic-coupled connection of #76 + 6AC5-G/GT) op 2 AB2pp : Ep=250V Ec=0V Ein=70Vp-p Ipo=5mA Pin=0.95W Zl=10kΩ Po=8W (参考 : Ep-Ip特性) see a heater variant : 25AC5G/GT(Eh/Ih=25V/0.3A) (6AE5GT/G, 6P5GT/G, 76 , 37 are suitable for driving 6AC5GT/G) also see a push-pull dynamic-coupled driver tube especially for 6AC5GT-pp : 6AE7-GT 0) 6AC5G GE ￥- NIB =rare=(D) 2) 6AC5G Wizard ￥3500 used? 940,1030/630min =rare=(D) 2) 6AC5G SuperSilvertone ￥offer used 16) JAN 6AC5GT RCA ￥2500 NIB D/C=3-04(1953.2) smoked-glass (hyy2z8gx) 1) 6AC5GT Syl ￥2000 NIB 1) 6AC5GT Syl ￥2000 NIB SideGtr 1) 6AC5GT Ray ￥2000 NIB 1) 6AC5GT Raytheon ￥2000 NIB BlackGlass D/C=813 1) 6AC5GT Continental(Raytheon-made) ￥2000 NIB BlackGlass D/C=483

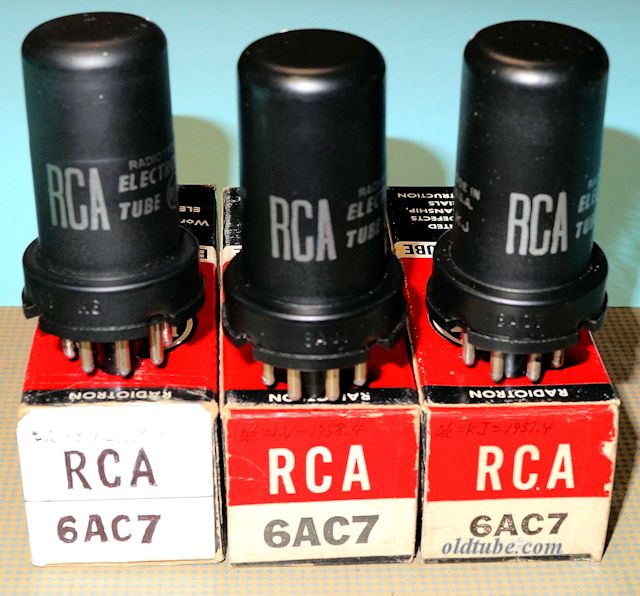

6AC7/1852 =RF SharpCutoffPentode= (EIA/8N - octal) *Intended mainly for RF-amp, video-amp. As for small-signal audio-amp, DC heater source will be needed. Eh/Ih=6.3V/0.45A Ehkmax=90V Ppmax=3W Epmax=300V Pc2max=0.38W Ec2max=150V/300Vsupply op : Ep=300V Ec2=300V Rg2-series=60kΩ Rk=160Ω Ip=10mA Ic2=2.5mA rp=1M gm=9mS (参考 : Ep-Ip特性(@Ec2=150V)) same-base, lower-gm, sharp-cutoff type : 6SJ7 same-base, just-lower gm, remote-cutoff type : 6AB7/1853 10) U.S.NAVY-CRC 6AC7/VT-112 RCA ￥1000 NIB D/C=H1E(1944.1 for government/military) metal MB 1) JAN-CRC 6AC7/VT-112 RCA ￥1000 NIB MB 1) 6AC7/1852 RCA ￥1000 NOS metal(D) 1) 6AC7/1852 RCA ￥1000 NIB metal 1) 6AC7/1852 RCA ￥1000 NIB metal WB 6) 6AC7 RCA ￥1000 NIB metal 3) 6AC7 RCA ￥1000 NIB D/C=KV(1958.6)-2pcs, KJ(1957.4)-1pc 1) 6AC7 RCA ￥900 NIB metal RaggedBox 1) 6AC7W RCA ￥1000 NIB metal 1) 6AC7 GE ￥800 NIB Metal 青箱 12) 6AC7 GE ￥800 NIB Metal 1) 6AC7 GE ￥800 NIB metal WB 1) 6AC7 GE ￥800 NIB ragged-box 2) 6AC7 Syl ￥1000 NIB metal old 1) 6AC7 Syl ￥600 NOS? metal 1) 6AC7 Syl ￥600 used? metal 元箱 3) 6AC7 Tsol ￥1000 NIB Metal 2) 6AC7-1852 Krad ￥1000 NIB Metal 3) 6AC7 WH ￥800 NIB metal 1) 6AC7 Philco ￥800 NIB metal 1) 6AC7 Dmnt ￥800 NIB metal 1) 6AC7 Rogers ￥800 NIB metal 1) 6AC7 STD(Delta) ￥800 NIB metal 4) 6AC7 USA ￥400 used metal 1) 6AC7 WH ￥400 used metal
6AC10 =HiMuTripleTriode= (EIA/12FE - compactron) Eh/Ih=6.3V/0.6A Ehkmax=±200V Ppmax=2W Epmax=330V Rgmax=500kΩ op : Ep=200V Rk=150Ω Ip=9mA rp=10.7k gm=5.8mS μ=62 (参考 : Ep-Ip特性) see heater variant : 8AC10(Eh/Ih=8.4V/0.45A) same base(12FE) separated-cathode triple Triode : 6AC10(μ=62, 62, 62), 6AK10(μ=53, 53, 53) 6U10(μ=17, 100, 17) different base(12BY) separated-cathode triple Triode : 6AV11(μ=17, 17, 17), 6D10(μ=57, 57, 57), 6K11/6Q11(μ=17, 100, 100) different base(12BQ) separated-cathode high-mu triple Triode : 6C10(μ=100, 100, 100) common-cathode compactron(12HG) triple triode : 6MJ8(Ppmax=3Wx3, μ=17, 17, 17) common-cathode compactron(12HU) triple triode : 6MN8(Ppmax=3Wx3, μ=40, 40, 40) 3) 6AC10 RCA ￥1900 NIB 1) 6AC10 GE ￥1900 NIB 3) 6AC10 GE ￥1900 NIB 2) 6AC10 GE-made ￥1500 NOS/NIB Lindal-boxed 1) 6AC10 Syl ￥1900 NIB 1) 6AC10 WH ￥1500 NOS?
6AD4 =high-mu Triode= (EIA/8DK) *subminiature* Eh/Ih=6.3V/0.15A Ehkmax=±90V Ppmax=0.3W Ep=150V Ikmax=2mA Rgmax=1MΩ op : Ep=100V Rk=820Ω Ip=1.4mA Rp=35kΩ gm=2mS μ=70 high μ subminiature triode w/ same base : 5719(μ=70, Ppmax=0.55W) high μ subminiature triode w/ different base : 5744(μ=70) 0) 6AD4 Syl ￥- NIB 2) 6AD4 Syl ￥1500 NIB MB D/C=1961 8) 6AD4 Syl ￥1500 NIB MB D/C=8-1964
6AD7/G =common-cathode Triode-PowerPentode= (EIA/8AY - octal) Eh/Ih=6.3V/0.85A triode : Ppmax=1W Epmax=285V, op: Ep=250V Ec=-25V rp=19kΩ gm=0.325mS μ=6 pentode : Ppmax=8.5W Epmax=375V Pc2max=2.7W Ec2max=285V, op: Ep=250V Ec2=250V Ec1=-16.5V Ip=34mA/36mA Ic2=6.5mA/10.5mA rp=90kΩ gm=2.5mS Zl=7kΩ D=8% Po=3.2W *pentode = 6F6 1) 6AD7G Ray ￥2900 NIB
6AD8 =Twin-Diode Pentode= (EIA/9HE - noval) Eh/Ih=6.3V/0.3A pentode : Ppmax=2W Epmax=250V/550V(cutoff) Pc2max=0.3W Ec2max=250V(Ip<2.5mA)/125V(Ip=5mA)/550V(cutoff) diode : PIV=350V Ipmax=0.8mA subst=6DC8, 6N8, EBF89 1) 6AD8 AWV-Radiotron ￥1500 NOS 1) 6AD8 Mullard ￥1500 NOS? Philips長箱
6AD10 =Dissimilar double Pentode (BeamPowerPentode+SharpCutoffPentode)= (EIA/12EZ - compactron) Eh/Ih=6.3V/1.05A Ehkmax=±200V(100Vaverage) [BeamPowerPentode]: Ppmax=10W Epmax=275V Pc2max=2W Ec2max=275V Rg1max=250kΩ(fixed)/500kΩ(auto) op : Ep=250V Ec2=250V Ec1=-8V Ip=35/39mA Ic2=2.5/7mA rp=100kΩ gm=6.5mS Zl=5kΩ D=10% Po=4.2W [SharpCutoffPentode]: Ppmax=1.7W Epmax=300V Pc2max=1W Ec2max=300V Rg1max=220kΩ(fixed)/470kΩ(auto) op : Ep=150V Ec2=100V Rg1=180Ω Ip=3.2mA Ic2=3.2mA gm=3.4mS rp=110kΩ see same basing dissimilar double-pentode types : 6T10, 6BF11 also see very similar type with slight basing diagram difference : 6AL11 2) 6AD10 RCA ￥1000 NIB 0) 6AD10 GE ￥- NIB(sD) 1) 6AD10 Admrl ￥1000 NIB 1) 6AD10 GE ￥1000 NIB 2) 6AD10 Syl ￥1000 NIB 1) 6AD10 Ray ￥1000 NIB 3) 6AD10 WH ￥1000 NIB
6AE5-GT/6AE5-G =Lo-mu Triode= (EIA/6Q - octal, T9 bulb) *General purpose low-mu triode. It is designed primarily for service as a "dynamic-coupled" driver to a 25AC5GT/G(later robust type = 6AC5GT/G) in AC-DC operated receivers. Eh/Ih=6.3V/0.3A Ppmax=2.5W Epmax=300V Rgmax=1MΩ op(A1S) : Ep=95V Ec=-15V Ip=7mA rp=3.5kΩ gm=1.2mS μ=4.2 Basing : 1(NC)-2(H)-3(P)-4(None)-5(G)-6(None)-7(H)-8(K) (参考 : Ep-Ip特性) similar to 6AF5GT/G(μ=7.4) same-basing(6Q) different-μ triodes : 6P5/G(μ=13.8), 6L5G(μ=18), 6J5/G/GT(μ=20), 6C5/G/GT(μ=20) also see a push-pull dynamic-coupled driver tube : 6AE7-GT(μ=14) 0) 6AE5G Tsol ￥- used 30) 6AE5GT/6AE5G Raytheon ￥1700 NIB lot#=CE2 管頂部の様子(glass-top) black-flat-plate, bottom-D-foil-getter, copper-grid-post, 2 x metal-ribbon top-supporter, orange-silk(base-print) 0) 6AE5GT RCA ￥- NIB 0) 6AE5GT Tsol ￥- NIB
6AE6G =Twin plate Triode= (EIA/7AH - octal) Remote Cutoff Section: Ep=250V Ip=0.01mA(Ec=-35V), 6.5mA(Ec=-1.5V,gm=1mS μ=25):for strong-signal sensitive amplification Sharp Cutoff Section: Ep=250V Ip=0.01mA(Ec=-9.5V), 4.5mA(Ec=-1.5V,gm=0.95mS μ=33):for weak-signal sensitive amplification 0) 6AE6G Tsol ￥- used
6AE7-GT =Twin-input Triode(one-plate,twin-grid, twin-cathode)= (EIA/7AX - octal)*especially for use as dynamic-coupled driver of 6AC5GT/G 'push-pull' amplifier (tentative data appeared on July 1,1941) Eh/Ih=6.3V/0.5A (Ehk should be kept as low value as possible.) Rating when 1K+2K connected & 1G+2G connected : Ppmax=5W Epmax=300V op(1K+2K connected, 1G+2G connected) : Ep=250V Ec=-13.5V Ip=10mA rp=4.65kΩ gm=3mS μ=14 op(dynamic-coupled 6AC5GT-pp): Ep=250V Ip(6AE7)=10mA/19mA Ip(6AC5GT)=64mA/76mA Ein(6AE7)=44Vrms Zlpp(6AC5GT)=10kΩ Dtot=10% Po=9.5W pins: 1(NC)-2(H)-3(P)-4(2G)-5(2K)-6(1G)-7(H)-8(1K) 2) 6AE7GT RCA-Victor ￥4100 NIB sealed, just-ragged boxes bottom-view 1) 6AE7GT National-Union ￥3900 NIB D/C=5452, very-ragged box 2) 6AE7GT Zenith ￥4100 NIB sealed-CAN 1) 6AE7GT Zenith ￥3900 NIB 0) 6AE7GT RCA ￥- used
6AE8 =common-cathode Triode Hexode= (EIA/8DU - noval) Eh/Ih=6.3V/0.3A Triode : Epmax=100V Hexode : Epmax=250V Ec2max=100V Ikmax=20mA op : Ep_hex=250V Ep_tri=100V Ec2=75V Ec1=0V Ec_osc=10Vpeak Rg_osc=50kΩ Ip_hex=4.3mA Ic2=3.4mA Ip_tri=4.5mA gm=0.78mS(@Ec1=0V)rp=700kΩ pins : 1(G2)-2(G1)-3(K)-4(H)-5(H)-6(Phex)-7(Gtri)-8(Ptri)-9(IC) 1) 6AE8/X79 SuperRadiotron(AWV) ￥2000 NIB
6AF3 =Half wave Rectifier= (EIA/9CB - noval-TopCathode) PIV=4500V Ppmax=6W Idcmax=185mA Ehk=+300Vto-4500Vpeak Eh/Ih=6.3V/1.2A similar to 6R-K19, 6BR3 * 9CB-base 'Top-Cathode' noval(9-pin MT) halfwave rectifiers with similar rating: 6AF3 6AL3 6BR3 6R3 6R-K19 EY81 EY88 16AQ3 30AE3 1) 6AF3 RCA ￥700 NIB (Qn) 1) 6AF3 GE ￥600 NIB 1) 6AF3 WH(GE-made) ￥600 NIB 0) 6AF3 Syl ￥600 NIB(T) 1) 6AF3G GE ￥1000 NIB
6AF4 =UHF Triode OSC= (EIA/7DK - miniature) Eh/Ih=6.3V/0.225A Ehkmax=±80V(6AF4), Ehkmax=±50V/+25Vdc-max(6AF4A) (6AF4 : Ehk≒0V is recommended to minimize H-K capacitance variation) Ppmax=2.5W Epmax=150V Igmax=8mA Ikmax=28mA Fmax=1GHz μ=16 rp=2.13kΩ gm=7.5mS Rgmax=500kΩ(self) (参考 : Ep-Ip特性) Socket should be mica-filled, rubber or ceramic types. heater variants : 2AF4A/B(2.35V/0.6A) 3AF4/A(3.15V/0.45A) also see 6DZ4(=6AF4A) same basing different-μ types : 6T4(μ=13), 6DZ4(μ=14), EC93(μ=15), 6DX4(μ=30), 8334(μ=55), 6AN4(μ=70) 1) 6AF4 RCA ￥1200 NIB BlkPlate 1) 6AF4 RCA ￥1200 NIB 40) 6AF4 Syl ￥1000 NIB old '50s 1) 6AF4A RCA ￥1200 NIB 10) 6AF4A RCA ￥1000 NIB 5) 6AF4A/6DZ4 GE ￥800 NIB MB(Nn) 1) 6AF4A/6DZ4 USA ￥800 NIB 1) 6AF4A Syl ￥800 NOS GE箱 4) 6AF4A TungSol ￥1000 NIB w/sleeve 3) 6AF4/A RCA Syl,Airline etc ￥500 used(T) 0) 6AF4A/6DZ4 Tsol ￥- used
6AF5GT/G =Lo-mu Triode= (EIA/6Q - octal, ST12) 6AF5GT/G was designed as a driver for 25AC5G direct-couple Triode amplifiers as same as 6AE5GT/G. Eh/Ih=6.3V/0.3A op : Ep=180V Ec=-18V Ip=7mA rp=4.9kΩ gm=1.5mS μ=7.4 6AF5-6AC5GT direct couple amp : Ep=165V Ip=46mA Idriver=6.6mA Zl=3.5kΩ Po=3.5W (also see similar to 6AE5GT(μ=4.2), and driving target : 6AC5GT/G, 25AC5GT/G) 0) 6AF5G Tsol ￥- used 0) 6AF5GT Tsol ￥- used
6AF6/G =Twin Electron ray Indicator= (EIA/7AG - octal) Eh/Ih=6.3V/0.15A Etarget=135Vmax/90Vmin Econtrol=135Vmax(supply) op : Etarget=100V Itarget=0.9mA Econtrol=60V(shadow angle=0°)/0V(shadow angle=100°) Rcontrol=500kΩ 1) JAN-CRC 6AF6G RCA ￥3300 NIB 2) JAN-CRC 6AF6G RCA ￥3300 NIB 3) JAN-CRC 6AF6G RCA ￥3300 NIB D/C=1952,1952,1955 1) 6AF6G RCA ￥3300 NIB D/C=135 1) 6AF6G RCA ￥3000 NIB 1) 6AF6G RCA ￥3000 NIB 4) 6AF6G RCA ￥3000 NIB 1) 6AF6G RCA ￥3000 NIB(sD) 1) 6AF6G RCA ￥3000 NIB 0) 6AF6G GE ￥- NIB 1) 6AF6G Syl ￥3000 NIB RaggedBox 1) 6AF6G Syl ￥3000 NIB
6AF9 =dual Pentode= (EIA/10L* - 10pin_dekal) Eh/Ih=6.3V/0.85A Ehkmax=±200V Rg1max=1MΩ pentode 1 : Ppmax=5.1W Epmax=250V/550V(cutoff) Pc2max=2.5W Ec2max=250V/550V(cutoff) Ikmax=60mA op : Ep=170V Ec2=170V Ec1=-2.6V rp=32kΩ gm=22mS pentode 2 : Ppmax=1.5W Epmax=250V/550V(cutoff) Pc2max=0.5W Ec2max=250V/550V(cutoff) Ikmax=15mA op : Ep=150V Ec2=150V Ec1=-2.1V rp=160kΩ gm=8.5mS pins : 1(2G1)-2(2K,2G3,1G3)-3(2G2)-4(2P)-5(H)-6(H)-7(1K)-8(1G1)-9(1G2)-10(1P) heater variant : 11AF9(11.5V/0.45A) similar basing(10L) similar types : 6Y9, PFL200/17Y9(17V/0.3A) 1) 6AF9 RCA ￥1000 NIB 6) 6AF9 GE他 ￥800 NOS/NIB
6AF10 =Dissimilar Double-Pentode= (EIA/12GX - compactron) Eh/Ih=6.3V/1.2A (Pentode 1) Ppmax=3W Epmax=300V Pc2max=0.8W Ec2max=300V rp=-kΩ gm=10mS (Pentode 2) Ppmax=5W Epmax=330V Pc2max=1W Ec2max=330V rp=75kΩ gm=23mS 0) 6AF10 GE ￥- NIB
6AF11 =Dissimilar Double-Triode Pentode= (EIA/12DP - compactron) Eh/Ih=6.3V/1.05A (Pentode) Ppmax=5W Epmax=330V Pc2max=1.25W Ec2max=330V rp=68kΩ gm=11mS (Triode 1) Ppmax=1.1W Epmax=330V μ=68 rp=12.4kΩ gm=5.5mS (Triode 2) Ppmax=2W Epmax=330V μ=41 rp=9.4kΩ gm=4.4mS same basing(12DP) similar types : 6AS11, 6BD11 7) 6AF11 RCA ￥900 NIB (sSn) 1) 6AF11 RCA ￥900 NIB 1) 6AF11 RCA ￥900 NOS Syl箱 7) 6AF11 GE ￥800 NIB 1) 6AF11 Syl(GE-made) ￥800 NIB TopGetter 2) 6AF11 Syl ￥800 NIB 1) 6AF11 WH ￥800 NIB 1) 6AF11 WH ￥800 NIB
6AG5 =Sharp cutoff RF Pentode= (EIA/7BD - miniature) Eh/Ih=6.3V/0.3A Pentode connection : Ppmax=2W Epmax=300V Pc2max=0.5W Ec2max=300V rp=800kΩ gm=5mS Triode-connection : Ppmax=2.5W Epmax=300V μ=42 rp=10kΩ gm=3.8mS (参考 : Ep-Ip特性(五結:Ec2パラメータ、三結)) (see 6186 , EF96) similar types with same base(7BD) : 6AK5 / 403A/B / 5654 / EF95, 6BC5 / 6CE5 11) 6AG5 RCA ￥600 NIB 2) 6AG5 RCA ￥600 NIB 12) 6AG5 RCA他 ￥600 NIB 1) 6AG5 RCA ￥600 NOS original-wrap WB 1) 6AG5 RCA ￥600 NOS Syl箱 3) 6AG5 GE ￥600 NIB 1) 6AG5 GE ￥600 NIB 4) 6AG5 Syl ￥600 NIB 2) 6AG5 Syl ￥600 NIB RaggedBoxes 1) 6AG5 Ray ￥600 NIB 1) 6AG5 Ray ￥600 NIB 1) 6AG5 Ray ￥600 NIB 1) JTL 6AG5 Tsol ￥900 NIB BlkGlass date=411 VeryOld MB 43) 6AG5 BelmontRadioCorp. (NU-made/branded) ￥900 NIB BlkGlass date=12-44 VeryOld MB 1) 6AG5 WH ￥600 NIB 1) 6AG5 WH ￥600 NIB 1) 6AG5 Philco ￥600 NIB 1) 6AG5 Hytron ￥600 NIB MB 1) 6AG5 Transvision(RCAmade) ￥600 NIB 1) 6AG5 Rogers ￥600 NIB 3) 6AG5 Sheldon ￥600 NIB 1) 6AG5 GlassCraft ￥1000 NIB 1) 6AG5 USA ￥600 NOS 9) 6AG5 USA ￥400 used
標記 この頁の各行は、基本的に下記のように記述されております｡ 在庫数) TYPE 製造メーカ 単価 new/used状態 その他状況 メーカ略号 Amprx(Amperex), Cunnghm(Cunningham), Dmnt(Dumont), GE(General Electric), Hyt(Hytron), Krad(KenRad), L&K(Lewis and Kaufman), Mag(Magnavox), NU(National Union), Ray(Raytheon), STD(Standard), Syl(Sylvania), TFK(Telefunken), Tsol(Tung-Sol), WE(Western Electric), WH(Westinghouse), Znth(Zenith)
6AG7 =PowerPentode= (EIA/8Y - octal) Eh/Ih=6.3V/0.65A Ehkmax=±90V Ppmax=9W Epmax=300V Pc2max=1.5W Ec2max=300V Ec1max=+0V Rg1max=250kΩ(fixed)/500kΩ(self) op : Ep=300V Ec2=150V Ec1=-3V Ip=30mA/30.5mA Ic2=7mA/9mA rp=130kΩ gm=11mS Zl=10kΩ D=7% Po=3W (参考 : Ep-Ip特性(Ec2パラメータ)) (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data)) electrically-similar noval types : 6CL6, 6197, 6677, and 6R-P22 2) JAN-CRC 6AG7/VT-247 RCA ￥1100 NIB D/C=H5E(1944.9) RaggedBoxes 1) 6AG7 RCA ￥1100 NIB(T) 1) 6AG7 RCA ￥1100 NIB MB-SC278A-marked metal RB 2) 6AG7Y RCA ￥1100 NIB MB metal RB 4) JAN-CRC 6AG7/VT-247 RCA ￥1100 NIB MB metal 10) 6AG7 RCA ￥1100 NIB metal (sQn) 3) 6AG7 RCA ￥1100 NIB metal 1) 6AG7 RCA ￥1100 NIB metal 1) 6AG7 RCA ￥1100 NIB metal 3) 6AG7 GE ￥900 NIB 青箱 5) 6AG7 GE ￥900 NIB (vSx) 2) 6AG7 GE ￥900 NIB 1) 6AG7 GE ￥900 NOS Ray箱 1) 6AG7 Syl ￥800 NOS metal RCA箱 1) 6AG7 Syl ￥900 NIB 1) 6AG7 Tsol ￥1000 NIB 1) 6AG7 WH ￥900 NIB 1) 6AG7 CBS-Hytron ￥900 NIB 1) 6AG7 Ray ￥900 NIB 1) 6AG7 Ray ￥800 NOS Syl箱 1) 6AG7 Rogers ￥900 NIB 1) 6AG7 RCA ￥600 used 1) 6AG7 RCA ￥600 used 錆 1) 6AG7GT Toshiba ￥1000 used like-new WB
6AG9 =med-mu Triode hi-gm Power-Pentode= (EIA/12HE - compactron) Eh/Ih=6.3V/0.82A Ehkmax=±200V(100Vaverage) *Pentode: Ppmax=10W Epmax=330V Pc2max=1.5W Ec2max=200V Rgmax=100kΩ(fixed)/250kΩ(self) op : Ep=55V Ec2=125V Ec1=0V Ip=56mA Ic2=21mA op : Ep=250V Ec2=150V Rk=56Ω Ip=28mA Ic2=5.6mA rp=40kΩ gm=30mS *Triode : Ppmax=1.1W Epmax=330V rp=8.5kΩ Rgmax=500kΩ(fixed)/1MΩ(self) op : Ep=150V Rk=350Ω Ip=6.2mA rp=8.5kΩ gm=4.6mS μ=39 also see a μ=59 triode version w/ same base : 6AL9 5) 6AG9 RCA ￥1000 NIB 2) 6AG9 GE ￥1000 NIB 1) 6AG9 Dmnt(GE-made) ￥1000 NIB
6AG11 =Duplex Diode Hi-mu Twin-Triode= (EIA/12DA - compactron) Eh/Ih=6.3V/0.75A Ehkmax=±200V Idiode=5mAdc-max triode : Ppmax=2W Epmax=330V op : Ep=125V Ec=-1V Ip=7.5mA rp=8.5kΩ gm=7.8mS μ=66 (参考 : 三極管部のEp-Ip特性(Triode section)) compactron(12DA) twin-triode types : 6AG11(μ=66, 66), 6AY11(μ=100, 100) compactron(12BF) twin-triode type : 6B10(μ=17, 17) 1) 6AG11 GE ￥1200 NIB 5) 6AG11 Dmnt(GE-made) ￥1200 NIB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6AH4GT =Low mu Power Triode= (EIA/8EL - octal) Eh/Ih=6.3V/0.75A Ehkmax=±200V design center : Ppmax=7.5W Epmax=500V/2kVpeak Ecmax=-200V Ikmax=60mA/180mApeak Rgmax=2.2MΩ(self) op : Ep=250V Ec=-23V Tp=30mA rp=1.78kΩ gm=4.5mS μ=8 6AH4GTの平均プレート(EpIp)特性 pins : 1(G)-2(H)-3(NC)-4(none)-5(P)-6(none)-7(H)-8(K) also see 6CK4(Ppmax=12W, gm=5.5mS rp=1.2kΩ μ=6.6)(差し替え可能:要バイアス再調整) 0) 6AH4GT GE ￥- NIB ShortGlass SideGtr '50s(Aht) 1) 6AH4GT GE ￥- NIB ShortGlass SideGtr 青箱 1) 6AH4GT GE ￥- NIB ShortGlass SideGetter WhitePrint 60-04 1) 6AH4GT GE ￥- NIB ShortGlass SideGtr date='60s 0) 6AH4GT GE ￥- NIB ShortGlass SideGetter WhitePrint RaggedBox(sD) 1) 6AH4GT GE ￥- NIB ShortGlass SideGetter RedPrint 60-26 1) 6AH4GT GE ￥- NIB ShortGlass SideGetter (ght2v7nt) 1) 6AH4GT GE ￥- NOS ShortGlass SideGetter WB 5) 6AH4GT RCA(GE-made) ￥offer NIB ShortGlass SideGtr date='50s SilverLogo w/sleeve 2) 6AH4GT RCA(GE-made) ￥offer NOS WB SideGtr date=452 16) 6AH4GT RCA(GE-made) ￥offer NIB ShortGlass SideGtr date='50s SilverLogo 5:reserved) 6AH4GT RCA(GE-made) ￥offer NIB ShortGlass SideGtr SilverLogo '50s 2) 6AH4GT RCA(GE-made) ￥offer NIB ShortGlass SideGtr(vSx) 1) 6AH4GT RCA(GE-made)) ￥offer NIB ShortGlass SideGtr 6) 6AH4GT RCA(GE-made) ￥offer NIB ShortGlass SideGtr date='50s SilverLogo 5) 6AH4GT RCA(GE-made) ￥offer NIB ShortGlass SideGtr date= SilverLogo w/sleeve 1) 6AH4GT Ray(GE-made) ￥offer NIB ShortGlass SideGtr 1) 6AH4GT CBS(GE-made) ￥offer NIB ShortGlass SideGtr date=59-22 0) 6AH4GT RCA,Tsol,Amprx,WH,Procomm,Lindal(GE-made) ￥- NIB ShortGlass SideGtr(rhyy4cnt) 0) 6AH4GT WH,Admrl(GE-made) ￥- NIB ShortGlass SideGtr '50s,'60s(rhxybnv) 1) 6AH4GT Amprx(GE-made) ￥- NIB ShortGlass SideGtr 2) 6AH4GT CBS(GE-made) ￥- NIB ShortGlass SideGtr 1) 6AH4GT Syl(GE-made) ￥- NIB ShortGlass SideGtr 1) 6AH4GT Znth(GE-made) ￥- NIB ShortGlass SideGtr 1) 6AH4GT CBS(GE-made) ￥- NIB ShortGlass SideGtr 1) 6AH4GT Std(Znth(GE-made)) ￥- NIB ShortGlass SideGtr date=68-09 Std箱 1) 6AH4GT Marconi(GE-made) ￥- NIB ShortGlass SideGtr 1) 6AH4GT SuperAirline(GE-made) ￥- NIB ShortGlass SideGtr 1) 6AH4GT Zalytron(GE-made) ￥- NIB ShortGlass SideGtr 1) 6AH4GT ITT(GE-made) ￥- NIB ShortGlass SideGtr 1) 6AH4GT LTT(GE-made) ￥- NIB ShortGlass SideGtr 2) 6AH4GT ElMenco(GE-made) ￥- NIB GoldenPins ShortGlass SideGtr 1) 6AH4GT GE ￥2200 used WB SideGtr date=56-35 4950/3460min Ip=21mA 1) 6AH4GT GE ￥1500 used WB SideGtr date=56-35 5150/3460min Ip=19mA PoorGetter 1) 6AH4GT Tsol(GE-made) ￥2200 used WB SideGtr code=DT3 4330/3460min Ip=18.5mA 1) 6AH4GT Syl ￥3900 NIB BlkFlatPlate LongGlass TopGtr 3mica OldestShape(zD) 1) 6AH4GT Znth(Syl-made) ￥3900 NIB BlkFlatPlate LongGlass TopGtr date=239 3mica 1) 6AH4GT Quality-Cornell(Syl-made) ￥3900 NIB BlkFlatPlate LongGlass TopGtr 3mica 1) 6AH4GT CBS-Columbia(Syl-made) ￥3300 NOS? BlkFlatPlate LongGlass TopGtr 3mica 0) 6AH4GT NU,Znth,Philco(Syl-made) ￥- NIB BlkFlatPlate LongGlass TopGtr 3-mica(T) 0) 6AH4GT BesTest(Syl-made) ￥- NIB BlkFlatPlate LongGlass TopGtr 3-mica date=0858(D) 0) 6AH4GT Znth(Syl-made) ￥- used BlkFlatPlate LongGlass TopGtr 3mica 4250/3460min Ip=16mA 1) 6AH4GT Philco ￥1000 used BlkFlatPlate LongGlass TopGtr 3mica justLeaky 1) 6AH4GT Znth(Syl-made) ￥3300 used LongGlass SideGtr date=331 4000μmho VeryOld 1) 6AH4GT Sheldon(Syl-made) ￥3000 NIB LongGlass SideDgtr 3750μmho-16mA 1) 6AH4GT ?(Syl-made> ￥3300 used? LongGlass SideGtr 5550μmho-30mA 1) 6AH4GT GMDelco ￥3300 used LongGlass SideGtr 4250μmho-22mA VeryOld 0) 6AH4GT Syl ￥- NIB LongGlass TopLargeGtr BlkOvalPlate old(D) 0) 6AH4GT Syl ￥- NIB LongGlass TopLargeGtr BlkOvalPlate 2) 6AH4GT Syl ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate old (nT) 1) 6AH4GT Syl ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate 1) 6AH4GT Arcturus(Syl-made) ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate old date=465 1) 6AH4GT GM-DELCO(Syl-made) ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate old 1) 6AH4GT RCA(Syl-made) ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate old(sT) 1) 6AH4GT RCA(Syl-made) ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate old(sT) 1) 6AH4GT Ray(Syl-made) ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate old 0) 6AH4GT Tsol,Ray(Syl-made) ￥- NIB LongGlass TopLargeGtr old(hyyfny) 1) 6AH4GT Tsol(Syl-made) ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate 1) 6AH4GT WH(Syl-made) ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate old 1) 6AH4GT WH(Syl-made) ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate 1) 6AH4GT Znth ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate old 1) 6AH4GT Silvertone(Syl-made) ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate old 1) 6AH4GT Industro(Tsol)(Syl-made) ￥2700 NIB LongGlass TopLargeGtr BlkOvalPlate old 4550μmho-18mA 1) 6AH4GT Syl ￥2400 used LongGlass TopLargeGtr BlkOvalPlate old 5000/3460min Ip=21mA 0) 6AH4GT Syl ￥- used/LikeNew LongGlass LargeTopGtr 1) 6AH4GT Znth(Syl-made) ￥3300 used? date=335 RCA箱 LongGlass BlkOvalPlate 3-mica TopD-Gtr gm=5000μmho/3460min Ip=20mA VeryOld 2) 6AH4GT Syl ￥2600 NIB LongGlass TopGtr BlkOvalPlate (hyy1v8nt) 0) 6AH4GT Syl ￥- NIB LongGlass TopGtr BlkOvalPlate 1) 6AH4GT WH(Syl-made) ￥2600 NIB BlkOvalPlate date=61-52 1) 6AH4GT RCA(Syl-made) ￥- NIB LongGlass TopGtr (mD) 0) 6AH4GT RCA(Syl-made) ￥- NIB LongGlass TopGtr RaggedBox w/o TopFlap 6) 6AH4GT RCA(Syl-made) ￥2600 NIB LongGlass TopGtr BlkOvalPlate RaggedBox 1) 6AH4GT RCA(Syl-made)) ￥- NIB LongGlass TopGtr BlkOvalPlate 0) 6AH4GT RCA,Bestest,WH,(Syl-made) ￥- NIB LongGlass TopGtr BlkOvalPlate RaggedBox(hyy2bnt) 1) 6AH4GT Ray(Syl-made) ￥2600 NIB LongGlass TopGtr BlkOvalPlate RaggedBox 1) 6AH4GT Ray(Syl-made) ￥2600 NIB LongGlass BlkOvalPlate TopGtr 1) 6AH4GT Marconi(Syl-made) ￥2600 NIB LongGlass BlkPlate TopGtr old 5000μmho-25mA 5) 6AH4GT Triplex(Syl-made) ￥2600 NIB LongGlass BlkOvalPlate TopGtr 1) 6AH4GT Syl ￥2500 NOS WB LongGlass BlkOvalPlate SideGtr 1) 6AH4GT Syl ￥2400 NOS? Syl箱 LongGlass BlkOvalPlate TopGtr 1) 6AH4GT Tsol(Syl-made) ￥2400 NOS? STD箱 LongGlass BlkOvalPlate TopDiscGtr 4120μmho-18mA 1) 6AH4GT RCA(Syl-made) ￥2400 NOS? RCA箱 LongGlass BlkOvalPlate TopGtr 1) 6AH4GT RCA(Syl-made)) ￥1800 lightly-used LongGlass TopGtr BlkOvalPlate 0) 6AH4GT Ray ￥- NIB LongGlass SideGtr old(D) 1) 6AH4GT CBS-Hytron ￥1500 used
6AH6/V/WA =Sharp cutoff RF Pentode= (EIA/7BK=7CC - miniature) Eh/Ih=6.3V/0.45A Ehkmax=±90V Ppmax=3.2W Epmax=300V Pc2max=0.4W Ec2max=150V(300V-supply) op : Ep=300V Ec2=150V Rk=160Ω Ip=10mA Ic2=2.5mA rp=500kΩ gm=9mS op(triode connection) : Ep=150V Rk=160Ω Ip=12.5mA rp=3.6kΩ gm=11mS μ=40 (参考 : Ep-Ip特性(@Ec2=150V)) same-basing electrically-similar to 6HS6 same-basing lower-gm types : 6AU6/A(5.2mS), 6BA6(4.2mS) 18) 6AH6 RCA ￥700 NIB(rh1v5nt) 13) 6AH6 GE ￥600 NIB 6) 6AH6WA Syl ￥600 NIB MB 1) 6AH6 Syl ￥600 NIB 1) 6AH6 Syl ￥600 NIB 3) 6AH6WA Tsol ￥600 NIB MB 19) 6AH6 USA ￥600 NIB/NOS (hxy14) 4) 6AH6 Ray ￥600 NIB MB 3) 6AH6 Ray ￥600 NIB 1) JAN-CRP 6AH6 Ray ￥600 NOS 1) 6AH6 Arcturus ￥600 NIB 2) 6AH6 Tsol ￥700 NIB 5) 6AH6 Ultron ￥600 NIB 1) 6AH6V Tsol ￥800 NIB 1) 6AH6V USA ￥600 NOS 7) 6AH6 GE ￥400 used strong WB (vAht) 1) 6AH6 Dmnt ￥400 used strong WB 1) 6AH6 ? ￥400 used 1) 6AH6 P-ECG ￥400 used 3370/2500min 1) 6AH6 Hallicrafter ￥400 used 1) 6AH6 USA ￥400 used
6AH7/GT =medium mu Twin Triode= (EIA/8BE - octal) Eh/Ih=6.3V/0.3A KenRad : Ppmax=2.5W Epmax=300V op : Ep=250V Ec=-9V Ip=12mA rp=6.8kΩ gm=2.4mS μ=16 参考 : Ep-Ip特性 heater variant : 12AH7/GT(12.6V/0.15A) 1) 6AH7GT GE ￥2500 NIB BlkPlates 青箱
6AH9 =med-mu Triode Power-Pentode= (EIA/12HJ - compactron) Eh/Ih=6.3V/0.9A Ehkmax=200V Pentode: Ppmax=10W Epmax=400V Pc2max=1W Ec2max=330V rp=55kΩ gm=21mS Rgmax=100kΩ(fixed)/250kΩ(self) Triode : Ppmax=2W Epmax=330V μ=20 rp=7.5kΩ gm=2.75mS Rgmax=1MΩ 4) 6AH9 GE ￥1500 NIB 5) 6AH9 Syl ￥1500 NIB 2) 6AH9 Znth ￥1500 NIB
6AJ4(=EC84) =UHF med-mu Triode= (EIA/9BX - noval) Eh/Ih=6.3V/0.225A Ehkmax=80V Ppmax=2W Epmax=150V Ikmax=20mA Ecmax=-0.3V Rgmax=500kΩ op : Ep=125V Rk=68Ω Ip=16mA rp=4.2kΩ gm=10mS μ=42 same basing, higher-μ type : 6AM4(μ=85) same basing, higher-μ higher-gm type : A2521/6CR4(μ=60, gm=15mS) 1) 6AJ4 GE ￥2500 NIB VeryRaggedBox
6AJ5 =Sharp cutoff RF Pentode= (EIA/7BD - miniature) Eh/Ih=6.3V/0.3A Ehkmax=90V Ppmax=1.7W Epmax=180V Pc2max=0.5W Ec2max=180V Ikmax=18mA gm=2.5mS rp=100kΩ long life version : WE-401A 1) JHS-6AJ5 Syl ￥1000 NIB MB D/C=7-57 just-ragged box 2) 6AJ5 Tsol ￥1000 NIB MB 1) JAN 6AJ5 Tsol ￥1000 NIB MB D/C=6132 ragged-box 3) JTL-6AJ5 Tsol ￥1000 NIB STDboxed 1) 6AJ5 Tsol ￥600 used wb

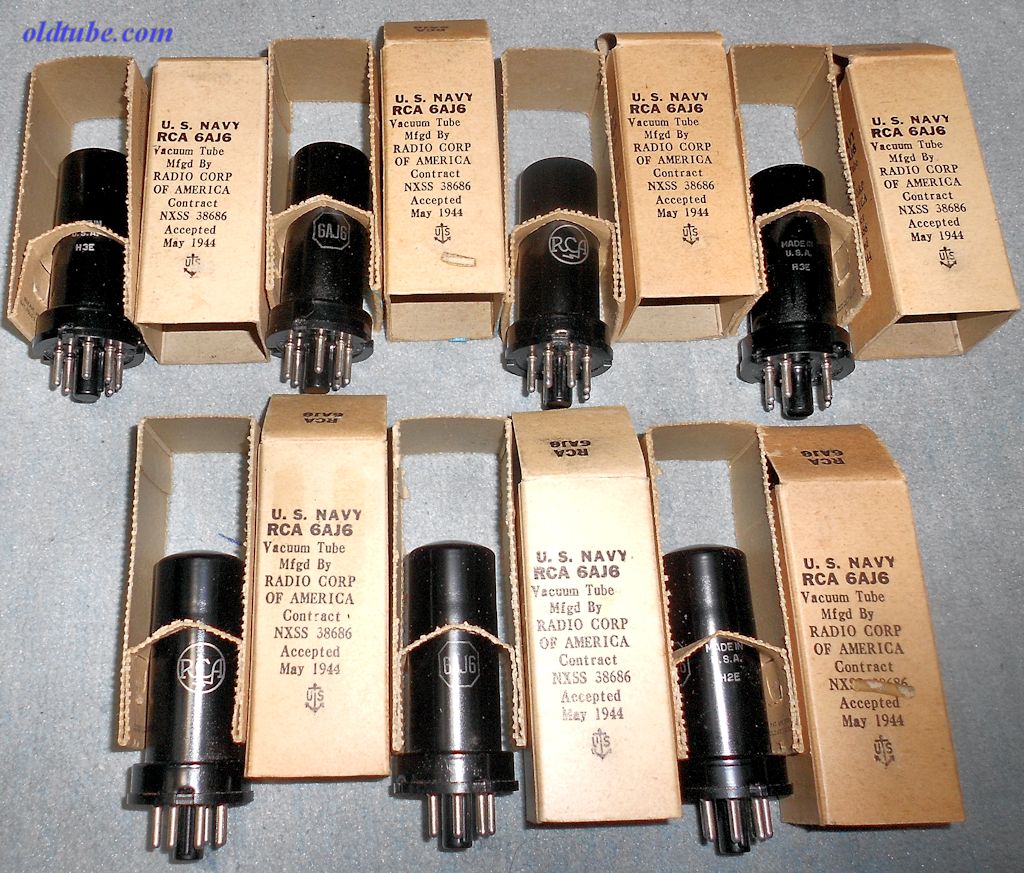

6AJ6 =beam power= (EIA/ - octal) Eh/Ih=6.3V/0.45A Ppmax=W Epmax=V Pc2max=W Ec2max=V 参考:Ep-Ip特性例(@Ec2=250V : SAMPLE data) 参考:三結時のEp-Ip特性例(triode connection : SAMPLE data) similar type : 6V6 7) 6AJ6 RCA ￥1700 NIB U.S.N.(United States Navy) D/C=S6(Nov.-Dec.1942), just-ragged military plain boxes 9) 6AJ6 RCA ￥1700 NIB U.S.N. D/C=Jan.1944 accepted(on box), H1E on tube, just-ragged red boxes 3) 6AJ6 RCA ￥1700 NIB U.S.N. D/C=Jan.1944 accepted(on box), H1E on tube, just-ragged red boxes 3) 6AJ6 RCA ￥1700 NIB U.S.N. D/C=Jan.1944 accepted(on box), H1E on tube, just-ragged red boxes 4) 6AJ6 RCA ￥1700 NIB U.S.N. D/C=Jan.1944 accepted(on box), H1E on tube, just-ragged red boxes 3) 6AJ6 RCA ￥1700 NIB U.S.N. D/C=March 1944 accepted(on box), H2E on tube, just-ragged red boxes 3) 6AJ6 RCA ￥1700 NIB U.S.N. D/C=March 1944 accepted(on box), H2E on tube, just-ragged red boxes 8) 6AJ6 RCA ￥1700 NIB U.S.N. D/C=March 1944 accepted(on box), H2E on tube, just-ragged red boxes 3) 6AJ6 RCA ￥1700 NIB U.S.N. D/C=March 1944 accepted(on box), H2E on tube, just-ragged red boxes 3) 6AJ6 RCA ￥1700 NIB U.S.N. D/C=April 1944 accepted(on box), H2E on tube, just-ragged red boxes 3) 6AJ6 RCA ￥1700 NIB U.S.N. D/C=April 1944 accepted(on box), H2E on tube, just-ragged red boxes 1) 6AJ6 RCA ￥1700 NIB U.S.N. D/C=April 1944 accepted(on box), H2E on tube etc, just-ragged red boxes 1) 6AJ6 RCA ￥1700 NIB U.S.N. D/C=April 1944 accepted(on box), H2E on tube etc, just-ragged red boxes 7) 6AJ6 RCA ￥1700 NIB US-Navy D/C=May 1944 accepted(on box), H3E on tube, just-ragged military plain boxes 0) 6AJ6 RCA ￥- NIB U.S.N. metal very-ragged boxes, just rusty MB/軍箱 0) 6AJ6 RCA ￥- used very rusty, WB (hyyvsx2) 0) 6AJ6 RCA ￥- used rusty
6AJ8/ECH81 =common-cathode FM Triode Heptode= (EIA/9CJ - noval) Eh/Ih=6.3V/0.3A Ehkmax=100V (H) Ppmax=1.7W Epmax=300V Pc2max=1W Ec2max=300V gm=2.4mS Rg1max=3MΩ (T) Ppmax=0.8W Epmax=250V μ=22 gm=3.7mS Rgmax=3MΩ (also see ECH81) 1) 6AJ8/ECH81 IEC-Mullard ￥1000 NIB 0) 6AJ8/ECH81 Amp ￥1000 NIB(D) 1) 6AJ8/ECH81 Amp ￥1000 NOS 1) 6AJ8/ECH81 Siemens/Inter-C ￥1000 NOS
6AK4 =MedMuTriode= (EIA/8DK) *subminiature*6AK4 is a commercial version of 6K4(MIL), up to Po=0.25W at 500MHz. Eh/Ih=6.3V/0.15A Ehkmax=±90V (design center) Ppmax=3W Epmax=250V Ipmax=20mA op : Ep=200V Rk=680Ω gm=3.8mS rp=5.3kΩ μ=20 pins: 1(G)-2(NC)-3(H)-4(NC)-5(K)-6(H)-7(NC)-8(P) (参考 : Ep-Ip特性 ) * other med-mu subminiature triodes : 5703(Epmax=200V, μ=25.5), 5718(Epmax=165V, μ=27), 5977(Epmax=180V, μ=16), 6814(Epmax=165V, μ=29) 0) 6AK4 Syl ￥- NIB 10) 6AK4 Syl ￥700 NIB MB D/C=3-1961
6AK5/403A =Sharp-Cutoff Pentode= (EIA/7BD - miniature) Eh/Ih=6.3V/0.175A Ehkmax=±90V Ppmax=1.7W Epmax=180V Pc2max=0.5W Ec2max=180V Ikmax=18mA op : Ep=120V Ec2=120V Rk=180Ω Ip=7.5mA Ic2=2.5mA rp=300kΩ gm=5.0mS op : Ep=180V Ec2=120V Rk=180Ω Ip=7.7mA Ic2=2.4mA rp=500kΩ gm=5.1mS 参考 : Ep-Ip特性(@Ec2=120V) 参考 : 三結時のEp-Ip特性(triode connection) 6AK5/W is electrically similar/equivallent to : 403A, 403B / 5591 / 5654 / EF95 / E95F / M8100 also see 408A(Eh=20V) also similar types with same base(7BD) : 6AG5 / 6186, 6BC5 / 6CE5 subminiature version = 5702/WA(almost electrically-identical) also see electrically-similar different-shape octal types : WE-387A(octal, top-plate), WE-717A(octal) 0) 6AK5 WE ￥- NOS Bulk(Qn) 0) JW 6AK5 WE ￥- NIB MB 6) 6AK5/403A/JW-6AK5 WE ￥1000 used Strong(hyyanx) 1) 6AK5W Siemens ￥1300 NIB 1) 6AK5/EF95 Mullard ￥1300 NOS AWV箱 14) 6AK5 RCA ￥700 NIB 1) 6AK5 RCA ￥1000 NIB MB BlkPlate old 1) 6AK5/EF95 RCA ￥1000 NIB BlkPlate 2) 6AK5/EF95 RCA ￥1000 NIB BlkPlate 0) 6AK5/EF95 RCA ￥800 NIB GrayPlate w/sleeve 1) 6AK5/EF95 RCA ￥800 NIB(Sn) 1) 6AK5 RCA ￥800 NOS STD箱 5) 6AK5/EF95 GE ￥800 NIB - mint w/ a sleeve 7) 6AK5/EF95 GE ￥600 NIB 24) 6AK5W GE ￥600 NIB MB(ghx18) 7) 6AK5/EF95 Syl ￥600 NIB 1) JHS 6AK5 Syl ￥600 NIB MB 1) JAN-CHS 6AK5 Syl ￥600 NIB MB 5) 6AK5/EF95 ECG ￥600 NIB 4) JAN-CTL 6AK5 Tsol ￥1500 NIB Large-MB date=1944 2) 6AK5 Tsol ￥800 NIB MIL-WB 8) 6AK5/EF95 Ray ￥600 NIB * 9) 6AK5W Ray ￥600 NIB MB (rhxe) 1) 6AK5 Ray ￥600 NIB 1) 6AK5 Philips ￥600 NIB 5) 6AK5 AWV-SuperRadiotron ￥600 NIB 1) 6AK5 Mot ￥600 NIB 7) JHY 6AK5 Hytron ￥1000 NIB MB date=1945 1) 6AK5 Toshiba ￥600 NIB 2) 6AK5 USA ￥600 NOS /NIB 1) 6AK5 GE ￥500 NOS? 1) 6AK5 Mullard ￥600 used wb 4510/3150min BlkPlate Gt.Britain 2) 6AK5 Philips ￥600 used wb 4500,4490/3150min BlkPlate Gt.Britain 1) 6AK5 Hitachi ￥400 used wb 4250/3150min BlkPlate 14) 6AK5 USA ￥400 used WB
6AK6 =PowerPentode= (EIA/7BK - miniature) Eh/Ih=6.3V/0.15A Ehkmax=100V Ppmax=2.75W Epmax=300V Ikmax=18mA pc2max=0.75W Ec2max=250V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=180V Ec2=180V Ec1=-9V Ip=15mA Ic2=2.5mA rp=200kΩ gm=2.3mS Zl=10kΩ D=10% Po=1.1W (参考 : Ep-Ip特性(@Ec2=180V)) (参考 : 三結時のEp-Ip特性(Triode connection)) 1) 6AK6 Cunningham ￥800 NIB 3) JRC 6AK6 RCA ￥800 NIB MB(Qn) 1) JRC 6AK6 RCA ￥800 NIB MB 6) 6AK6 RCA ￥800 NIB MB 6) 6AK6 RCA ￥700 NIB (hyy1v1gt) 2) 6AK6 RCA ￥600 NIB 5) 6AK6 Kentron(RCA-made) ￥600 NIB D/C=7/58(1958) 1) 6AK6 RCA ￥600 NOS 4) 6AK6 GE ￥600 NIB(hyxdnt) 2) 6AK6 GE ￥600 NOS/NIB 2) 6AK6 GE ￥600 NIB ragged-box * 2) 6AK6 Syl ￥600 NIB 0) 6AK6 Syl ￥600 NIB MB(sD) 60) 6AK6 GE ￥600 NOS bulk (ghx4z2nt) 1) 6AK6 Ray ￥600 NIB 2) 6AK6 NU ￥700 NIB D/C=52-13 VeryRaggedBoxes 1) 6AK6 Delco ￥700 NIB 12) 6AK6 USA ￥600 NIB 1) 6AK6 USA ￥600 NOS 1) 6AK6 USA ￥400 used
6AK8(=EABC80) =Triple DIode hi-mu Triode= (EIA/9E - noval) Eh/Ih=6.3V/0.45A Triode : Ppmax=1W Epmax=300V Ikmax=1.3mA Rgmax=3MΩ(fixed)/22MΩ(self) 1) 6AK8/EABC80 RCA ￥1500 NIB(D)
6AK10 =Triple Triode= (EIA/12FE - compactron) Eh/Ih=6.3V/0.9A Ehkmax=100V Ppmax=2W Epmax=330V Ikmax=-mA Rgmax=0.5MΩ ex) Ep=200V Rk=230Ω Ip=10mA rp=7.5kΩ gm=7mS μ=53 (参考 : Ep-Ip特性) heater variant : 9AK10(9.5V/0.6A) same base(12FE) separated-cathode triple Triode : 6AC10(μ=62, 62, 62), 6AK10(μ=53, 53, 53), 6U10(μ=18, 100, 18) different base(12BY) separated-cathode triple Triode : 6AV11(μ=17, 17, 17), 6D10(μ=57, 57, 57), 6K11/6Q11(μ=17, 100, 100) different base(12BQ) separated-cathode high-mu triple Triode : 6C10(μ=100, 100, 100) common-cathode compactron(12HG) triple triode : 6MJ8(Ppmax=3Wx3, μ=17, 17, 17) common-cathode compactron(12HU) triple triode : 6MN8(Ppmax=3Wx3, μ=40, 40, 40) 1) 6AK10 GE ￥1900 NIB 5) 6AK10 GE ￥1900 NIB 10) 6AK10 DuMont(GE-made) ￥1900 NIB with 5-pack sleeves 1) 6AK10 PhilipsECG ￥1900 NIB
6AL3/EY88 =Half wave Rectifier= (EIA/9CB - noval-TopCathode) Eh/Ih=6.3V/1.55A Ehkmax=6600V Ppmax=5W PIV=7500V Idcmax=220mA Idc-peakmax=550mA see EY88 also see a heater variant : PY88 * 9CB-base 'Top-Cathode' noval(9-pin MT) halfwave rectifiers with similar rating: 6AF3 6AL3 6BR3 6R3 6R-K19 EY81 EY88 16AQ3 30AE3 3) 6AL3/EY88 RCA ￥800 NIB 1) 6AL3 GE ￥800 NOS RCA箱 1) 6AL3/EY88 GE他 ￥800 NIB(Q) 1) 6AL3/EY88 Syl ￥800 NIB 2) 6AL3/EY88 Sylvania-ECG ￥800 NIB
6AL5 (= EAA91 EB91 5726 6663)) =Twin Diode= (EIA/6BT - miniature) Eh/Ih=6.3V/0.3A Ipmax=54mA heater variants : 3AL5(3.15V/0.6A) 12AL5(12.6V/0.15A) 1) 6AL5 TFK ￥2500 NIB old RaggedFatBox <> 1) 6AL5 Mullard ￥1500 NOS AWV箱 5) 6AL5 RCA ￥600 NIB 2) 6AL5 RCA ￥600 NIB 98) 6AL5/EAA91 USA(RCA,GE etc) ￥600 NIB /NOS (ky6v7ng) 5) 6AL5 RCA NIB - mint 3) 6AL5 GE ￥600 NIB/NOS 1=Philips-boxed Conrac-branded(GE-made) 5) 6AL5 CGE ￥600 NIB w/sleeve 3) 6AL5 Syl NIB - mint 1) 6AL5 WH ￥600 NIB 1) 6AL5 WH ￥600 NOS STD箱 2) JAN CKR 6AL5 Krad ￥700 NIB MB 1) 6AL5 Philips ￥600 NIB 1) JHY 6AL5W/6097 Hytron ￥700 NIB MB 1) JHY 5726/6AL5W/6097 Hytron ￥700 NIB MB 2) 6AL5 Tungsram ￥700 NIB 1) 6AL5 Perma-Test(日立) ￥600 NIB LightBlueBox 1) 6AL5 CBS ￥600 NOS GE-boxed 3) 6AL5 USA ￥350 used LikeNew 1) 6AL5 Cossor ￥330 used 1) 6AL5 Syl ￥400 used? 28) 6AL5 USA ￥200 used 1) 6AL5 Matsushita ￥200 used
6AL6G =Beam Power Amplifier= (EIA/6AM - octal, top-plate, ST-16) 6AL6G = Top-plate version of 6L6G/6L6 developed on just-before WW-II Eh/Ih=6.3V/0.9A Ppmax=18.5W Epmax=350V/5000Vpeak(duty<10%) Pc2max=2.7W Ec2max=300V Rg1max=500kΩ(self) op: Ep=250V Ec2=250V Ec1=-14V Ip=72mA Ic2=5mA rp=22.5kΩ gm=6mS op(A1s): Ep=250V Ec2=250V Ec1=-14V(Rk=170Ω) Ip=72mA/79mA Ic2=5mA/7.3mA Zl=2.5kΩ D=10% Po=6.5W pins: 1(NC)-2(H)-3(NC)-4(G2)-5(G1)-6(NONE)-7(H)-8(K,Beam)-Top(P) size : 52.4mmΦ x 144mm, in max also see a same base upper-rated European Beam Power tube : 12E1(Ppmax=35W, Epmax=800V, Ec2max=300V) 0) 6AL6G Ray ￥- NIB MB rare 4) 6AL6G Ray ￥6700 NOS 4-pillar WB rare 0) 6AL6G Ray ￥- used just-loose base WB
6AL7/GT =Electron ray Indicator= (EIA/8CH - octal) Etarget=365V-220V Eh/Ih=6.3V/0.15A 1) 6AL7GT GE ￥1500 NIB 青箱 18) 6AL7GT GE ￥1500 NIB 10) 6AL7GT Syl ￥1500 NIB 0) 6AL7GT RCA,GE,Krad,Crosley ￥- NIB(sQn) 0) 6AL7GT GE ￥- used
6AL9 =hi-mu Triode + hi-gm SharpCutoff Pentode= (EIA/12HE - compactron) Eh/Ih=6.3V/0.82A Ehkmax=±200V(DC+100V) Pentode: high-gm, frame-grid video amplifier Ppmax=10W Epmax=330V Pc2max=1.5W Ec2max=200V rp=40kΩ gm=30mS Rgmax=100kΩ(fixed)/250kΩ(self) Triode : Ppmax=10W Epmax=330V Rg1max=500kΩ(fixed)/1MΩ(self) rp=9.2kΩ gm=6.3mS μ=59typ see heater variant : 8AL9(8.6V/0.6A) also see a μ=39 triode version w/ same base : 6AG9 0) 6AL9 Syl NIB 0) 6AL9 Syl used

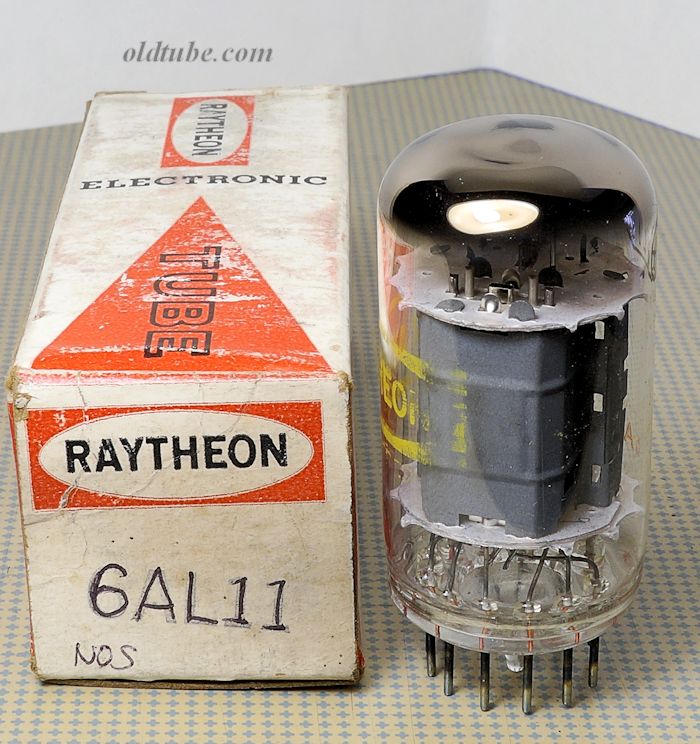

6AL11 =Dissimilar double Pentode (BeamPowerPentode+SharpCutoffPentode)= (EIA/12BU - compactron) Eh/Ih=6.3V/0.9A Ehkmax=±200V(100Vaverage) [BeamPowerPentode]: Ppmax=10W Epmax=275V Pc2max=2W Ec2max=275V Rg1max=250kΩ(fixed)/500kΩ(auto) op : Ep=250V Ec2=250V Ec1=-8V Ip=35/39mA Ic2=2.5/7mA rp=100kΩ gm=6.5mS Zl=5kΩ D=10% Po=4.2W [SharpCutoffPentode]: Ppmax=1.7W Epmax=330V Pc2inmax=1.1W Ec2max=330V op : Ep=150V Ec2=100V Rg1=560Ω Ec3=0V Ip=1.3mA Ic2=2.1mA gm=1.0mS rp=150kΩ see heater variants : 10AL11(9.8V/0.6A), 12AL11(12.6V/0.45A) also see very similar types with slight basing diagram difference : 6AD10 and 6T10 2) 6AL11 RCA ￥1200 NIB(vQ) 3) 6AL11 GE ￥1000 NIB 1) 6AL11 GE ￥800 NOS? Syl箱 2) 6AL11 Syl ￥1000 NIB 1) 6AL11 Ray ￥1000 NIB RaggedBox 1) 6AL11 WH ￥1000 NIB 3) 6AL11 GE,RCA,Syl ￥1000 NIB
6AM4 =UHF high mu Triode= (EIA/9BX - noval) Eh/Ih=6.3V/0.225A Ehkmax=±80V Ppmax=2W Epmax=200V Ecmax=0V op : Ep=200V Rk=100Ω Ip=10mA rp=8.5kΩ gm=9.8mS μ=85 参考 : Ep-Ip特性 same basing, lower μ type : 6AJ4/EC84(μ=42) same basing, higher-gm type : A2521/6CR4(gm=15mS) 2) 6AM4 Marconi ￥700 NIB 1) 6AM4 Ray ￥700 NIB 4) 6AM4 National ￥600 NIB USA 1) 6AM4 GE ￥350 used
6AM5(=EL91) =RF Pentode= (EIA/6CH - miniature) Eh/Ih=6.3V/0.2A Ehkmax=150V Ppmax=4W Epmax=250V Pc2max=0.6W Ec2max=250V op : Ep=250V Ec2=250V Ec1=-13.5V Ip=16mA Ic2=2.4mA rp=150kΩ gm=2.6mS μg1g2=12 op(A1s) : Ep=250V Ec2=250V Ec1=-13.5V Ip=16mA Ic2=2.4mA Rk=680Ω Zl=16kΩ Po=1.4W D=10% op(A1pp): Ep=250V Ec2=250V Ec1=-15.0V Ip=22/25.6mA Ic2=3.2/8.2mA Rk=600Ω Zl=24kΩ Po=4W D=3.2% pins : 1(G1)-2(KG3)-3(H)-4(H)-5(P)-6(NC)-7(G2) 0) 6AM5 Mullard ￥- NIB 3) 6AM5 Philips(England) ￥1000 NOS WB 1) 6AM5 Zaerix ￥1000 NIB just-ragged box 1) 6AM5 RSD ￥800 NIB just-ragged box
6AM6 (= EF91, CV4014, Z77) =RF Pentode= (EIA/7DB - miniature) Eh/Ih=6.3V/0.3A Ehk=150V Ppmax=2.5W Epmax=275V Pc2max=0.8W Ec2max=275V rp=1MΩ gm=7.5mS μg1g2=70 similar to M8083 also similar to CV2031, CV2195 1) 6AM6 Mullard ￥1500 NIB 2) 6AM6/CV138 GE ￥1200 NIB 1) CV138(=6AM6) Thorn-AEI ￥1200 NOS Mullard-boxed 1) 6AM6 SuperRadiotron ￥1200 NIB 1) 6AM6 Ediswan ￥1200 NIB just-ragged box 2) 6AM6/CV138-KB/D Mullard ￥1200 used WB
6AM8/A =Diode sharp cutoff RF Pentode= (EIA/9CY - noval) Eh/Ih=6.3V/0.45A Ehkmax=±200V Pentode : Ppmax=2.8W Epmax=300V Pc2max=0.5W Ec2max=300V gm=7mS rp=600kΩ Rg1max=250kΩ(fixed)/1MΩ(self) (6AM8A=11sec-HeaterWarmUpTime) heater variant : 5AM8(4.7V/0.6A) 1) 6AM8 RCA ￥900 NIB RaggedBox 5) 6AM8A RCA ￥900 NIB MB 1) 6AM8A RCA ￥900 NIB 14) 6AM8A GE ￥750 NIB 1) 6AM8A Syl ￥750 NIB 3) 6AM8A Syl ￥750 NIB 2) 6AM8A Tsol ￥750 NIB D/C=6503-1 5) 6AM8A Philips ￥750 NIB 1) 6AM8A WH ￥750 NIB 2) 6AM8A Znth ￥750 NIB 2) 6AM8A Dmnt ￥750 NIB 2) 6AM8A United ￥750 NIB 3) 6AM8A Motorola ￥750 NIB 4) 6AM8 USA ￥750 NIB 1) 6AM8A USA ￥500 used strong 2) 6AM8 USA ￥400 used 1) 6AM8 USA ￥400 used 5879箱 1) 6AM8A RCA ￥400 used AWV箱
6AN4 =UHF high mu Triode= (EIA/7DK - miniature) Eh/Ih=6.3V/0.225A Ppmax=4W Epmax=300V μ=70 rp=7kΩ gm=10mS (参考 : Ep-Ip特性) same basing different-μ types : 6T4(μ=13), 6DZ4(μ=14), EC93(μ=15), 6AF4/EC94(μ=16), 6DX4(μ=30), 8334(μ=55) 5) 6AN4 Syl ￥600 NIB 1) 6AN4 Ray ￥600 NIB 3) 6AN4 USA ￥600 NIB 2) 6AN4 USA ￥400 used
6AN5/WA =Beam Power= (EIA/7BD - miniature) Eh/Ih=6.3V/0.45A Ppmax=4.2W Epmax=120V Pc2max=1.4W Ec2max=120V rp=12.5kΩ gm=8.0mS 1) 6AN5 GE ￥600 NIB 1) 6AN5WA Syl ￥600 NIB MB 4) 6AN5WA Ray ￥600 NIB MB 1) 6AN5 Ray ￥600 NIB 2) JAN 6AN5WA GE ￥600 NIB just-ragged boxes
6AN7 =common-cathode Triode-Hexode frequency converter= (EIA/9Q - noval) Eh/Ih=6.3V/0.23A Ehkmax=50V Hexode : Ppmax=1.5W Epmax=250V Pc2,4max=0.3W Ec2,4max=125V Ikmax=7mA Rg1,3max=3MΩ Triode : Ppmax=0.8W Epmax=175V Ikmax=6mA Rgmax=3MΩ 0) 6AN7 Philips ￥- NIB 1) 6AN7 Philips ￥2000 NIB just-ragged box 1) 6AN7 Mullard ￥2000 NIB just-ragged box 1) 6AN7 SuperRadiotron ￥2000 NIB just-ragged box
6AN8/AEh/Ih=6.3V/0.45A Pentode : Ppmax=2.3W Epmax=330V Pc2max=0.55W Ec2max=330V rp=170kΩ gm=7.8mS Triode : Ppmax=2.8W Epmax=330V rp=4.7kΩ μ=21 (参考 : 両ユニットのEp-Ip特性) heater variant : 5AN8/A(4.7V/0.6A) 1) 6AN8A Mullard ￥2500 NIB 4) 6AN8 RCA ￥2400 NIB(Nn) 1) 6AN8 Syl ￥2200 NIB DC=6416 1) 6AN8 Ray ￥2000 NIB 1) 6AN8 Ray ￥2000 NOS RCA-boxed 1) 6AN8 ChannelMaster ￥2000 NIB 1) 6AN8 WH ￥1600 NIB 12) 6AN8A RCA ￥2200 NIB(hyr2g4ns) 1) 6AN8A RCA ￥2200 NOS MB 5) 6AN8A RCA ￥2200 NIB - mint w/ a sleeve 5) 6AN8A GE ￥2200 NIB - mint w/ a sleeve 0) 6AN8A RCA ￥- NIB 5) 6AN8A GE ￥2000 NIB(hxxfvt) 1) 6AN8A GE ￥2000 NIB (NTB) 1) 6AN8A GE ￥2000 NIB 2) 6AN8A GE ￥1600 NOS Lindal,RCA箱 1) 6AN8A GE ￥1600 NOS RCA箱 1) 6AN8A GE(WH-made) ￥1600 LikeNew GE箱 5) 6AN8 Syl ￥2200 NIB MB date=5-64 1) 6AN8A Syl ￥2000 NIB(sT) 5) 6AN8A Syl ￥2000 NIB date=67-46 6) 6AN8A Syl ￥2000 NIB made in USA 2) 6AN8A Syl ￥2000 NIB made in Canada 1) 6AN8A Rogers ￥2500 NIB 4) 6AN8A Lindal ￥2000 NIB Japan 0) 6AN8/8489 Motorola ￥- NIB MiniBox(D) 1) 6AN8 Motorola ￥1600 NOS Ray箱 40) 6AN8A Dixie(日立) ￥2000 NIB 1) 6AN8A Perma-Test(日立) ￥2000 NIB LightBlueBox 0) 6AN8 RCA ￥- used LikeNew(D) 2) 6AN8/6AN8A RCA ￥900 used 1) 6AN8A Syl ￥900 used LikeNew 2) 6AN8 Syl ￥800 lightly-used 1:BlackPlates, 1:GrayPlates WB 0) 6AN8 HP ￥- used(zD) 0) 6AN8A ITT ￥- used 0) 6AN8 Toshiba ￥- used WB gm=5090/3900min(P), 3020/2100min(T) 2) 6AN8 Toshiba ￥800 used WB 2) 6AN8 Toshiba ￥800 used 2) 6AN8A Toshiba ￥800 used WB
6AQ4( = CV4070 / EC91) =VHF Grounded-grid triode= (EIA/7DT - miniature) Eh/Ih=6.3V/0.3A Ehkmax=150V Ppmax=2.5W Epmax=250V Ikmax=15mA -Egmax=-100V Ep=250V Ip=10mA Ec1=-1.5V gm=8.5mS μ=100 rp=12kΩ 0) 6AQ4 RCA ￥- NIB 2) 6AQ4 LosGatos ￥1500 NIB just-ragged boxes
6AQ5
6AQ6 =Duplex Diode high mu Triode= (EIA/7BT - miniature) Eh/Ih=6.3V/0.15A Diode : Idcmax=0.9mA/diode Triode : Ppmax=-W Epmax=300V Ecmax=+0V op : Ep=100V Ec=-1V Ip=0.8mA rp=61k gm=1.15mS μ=70 op : Ep=250V Ec=-3V Ip=1.0mA rp=58k gm=1.20mS μ=70 (参考 : 三極部のEp-Ip特性 (Triode section)) almost identical to 6AT6(μ=70) see same basing and higher mu types : 6AV6(μ=100) 6BK6(μ=100) also see same basing and lower mu type : 6BF6(μ=16) 1) 6AQ6 Cunnghm ￥1200 NIB 7) JAN-JRC 6AQ6 RCA ￥1200 NIB 1) JAN-JRC 6AQ6 RCA ￥1200 NIB VeryRaggedBox 1) 6AQ6 RCA ￥1200 NIB 9) 6AQ6 RCA ￥1200 NIB RaggedBox 14) JAN-JHS 6AQ6 Syl ￥1000 NIB(hyyent) 1) JHS 6AQ6 Syl ￥1000 NIB D/C=9-41(1959) SideGtr 1) 6AQ6 Syl ￥1000 NIB 1) 6AQ6 WH ￥1000 NIB
6AQ7GT =High mu Triode TwinDiode=(EIA/8CK - octal) Eh/Ih=6.3V/0.3A Ehkmax=90V Diode : Idcmax=0.9mA/diode Triode : Ppmax=1W Epmax=250V op : Ep=100V Ec=-1V Ip=1.1mA rp=64kΩ gm=1.25mS μ=79 op : Ep=250V Ec=-2V Ip=2,3mA rp=44kΩ gm=1.60mS μ=70 (参考 : Triode : Ep-Ip特性 / 抵抗結合アンプ表(Resistance-coupled amplifier table)) pins : 1(Pd2)-2(Kd)-3(Pd1)-4(G)-5(P)-6(K)-7(H)-8(H) also see another twin-diode high-μ triode octal type (different-base) : 6SQ7/GT(μ=100) 1) 6AQ7GT RCA ￥1600 NIB 1) 6AQ7GT RCA ￥1600 NIB BlkPlates WaistGtr 1) 6AQ7GT RCA ￥1600 NOS? Airline箱 4) 6AQ7GT GE ￥1600 NIB BlkPlates 青箱 12) 6AQ7GT GE ￥1400 NIB(hxzdv) 2) 6AQ7GT GE ￥1400 NIB 1) 6AQ7GT RCA(GE-made) ￥1600 NIB D/C=LJ(1959.6) SilverPlates SideGtr 2) 6AQ7GT RCA(GE-made) ￥1600 NIB SilverPlates SideGtr 3) 6AQ7GT Ray(GE-made) ￥1600 NIB SilverPlates SideGtr just-ragged boxes (hyy24ftx) 2) 6AQ7GT CBS(GE-made) ￥1600 NIB D/C=5930,5935 SilverPlates SideGtr just-ragged boxes (hyy24fdx) 1) 6AQ7GT Delco(GE-made) ￥1600 NIB D/C=6030 SilverPlates SideGtr (hyy24fsx) 1) 6AQ7GT GM(GEmade) ￥1400 NIB 3) 6AQ7GT Syl ￥1400 NIB 1) 6AQ7GT Tsol ￥1600 NIB 2) 6AQ7GT Ray ￥1600 NIB 2) 6AQ7GT NU ￥1600 NIB 2) 6AQ7GT CBS ￥1600 NIB 1) 6AQ7GT Philco ￥1400 NIB 1) 6AQ7GT Znth ￥1400 NIB 1) 6AQ7GT Znth ￥1400 NIB 1) 6AQ7GT STD ￥1400 NIB 1) 6AQ7GT Znth ￥1100 used? WB 2) 6AQ7GT Delco(GE-made) ￥700 used

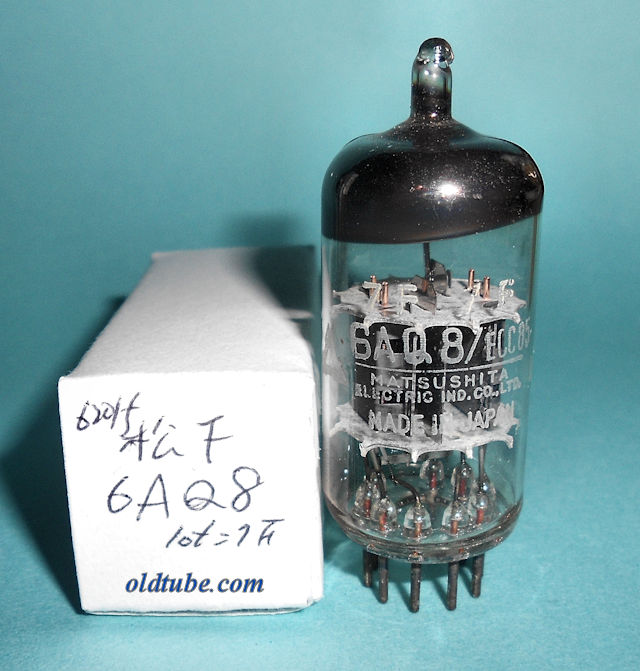

6AQ8/ECC85 (see ECC85)=High-mu TwinTriode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.435A Ehkmax=±90V Ppmax=2.5W(4.5W/both) Epmax=300V/550V(cutoff) -Ecmax=-100V Ikmax=15mA op : Ep=250V Ec=-2.3V Ip=10mA rp=9.7kΩ gm=5.9mS μ=57 (参考 : Ep-Ip特性) similar to 6DT8, 12DT8 also similar to 6EV7 heater variants : 6AQ8
6AR5
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6AR6 (see 6098/6384)=BeamPower Pentode= Octal (EIA/6BQ - octal) Eh/Ih=6.3V/1.2A Ehkmax=200V 6AR6 : Ppmax=19W Epmax=565V Pc2max=3.2W Ec2max=300V Ec1=0to-300V Ipmax=115mA TriodeConnection : Ep=200V Ec=-12.5V Ip=90mA Rgmax=100kΩ rp=1kΩ gm=6mS μ=6 PentodeConnection ; Ep=250V Ec2=250V Ec1=-22.5V Ip=77mA Ic2=5mA rp=21kΩgm=5.4mS 6AR6WA : Ppmax=21W Epmax=600V Pc2max=3.5W Ec2max=315V Ipmax=125mA 三結時の平均プレート特性(EpIp) 0) JAN-CTL 6AR6 Tsol ￥- NIB MB SideGetter(Nn) 2) JAN-CTL 6AR6 Tsol ￥offer NIB SideGtr date=239(1952年) MatchedPair 2) JAN-CTL 6AR6 Tsol ￥offer NIB SideGtr ** 1) 6AR6 Raytheon(Tsol-made) ￥offer NIB SideGtr date=5515(1955年) 1) JAN-CTL 6AR6 Tsol ￥0ffer NOS? SideGtr 6500/3400min Ip=77mA @@ 0) 6AR6 Ray ￥- NIB BoxPlate(hxzdv) 0) 6AR6 Ray ￥- NIB OvalPlate 1) 6AR6 Arcturus ￥offer NIB 2) JAN-CTL 6AR6 Tsol ￥offer used SideGtr 5400,5700/3400min Ip=73mA,72mA @@ 1) JAN-CTL 6AR6 Tsol ￥offer used SideGtr 5500/3400min Ip=65mA @@ 1) JAN-CTL 6AR6 Tsol ￥offer NOS SideGtr date=6938 gm=37/27min(TV-7B/U) 未使用機器からのはずし品 1) JAN-CTL 6AR6 Tsol ￥2000 used SideGtr 29/27min(TV-7B/U) 0) JAN-CTL 6AR6 Tsol ￥- used SideGtr(T)
6AR8 =twin-plate sheet beam tube= (EIA/9DP - noval) Tung-Sol developed sheet beam tube Eh/Ih=6.3V/0.3A Ppmax=2W/unit Epmax=300V Ed1max=±150Vpeak Ed2max=±150Vpeak Ikmax=30mA Rg1max=100kΩ(fixed)/250kΩ(self) op : Ep=250V Eaccell(Ec3)=250V Ed1=0V Ed2=0V Rk=300Ω Ip=10mA Iaccel(Ic3)=0.4mA gm=4.4mS (参考 : EpIp特性(for Ed1=Ed2=0V, Eaccell(Ec3)=250V)) same-basing electrically-similar type : 6JH8(Sylvania-developed) different-basing electrically-similar type : 6ME8(GE-developed) also see basic sheet-beam/beam-deflection tube : 7360(RCA-developed) 0) 6AR8 Tsol ￥- NIB 0) 6AR8 Tsol ￥- used
6AR11 =Twin remote-cutoff Pentode= (EIA/12DM - compactron) Eh/Ih=6.3V/0.8A Ehkmax=±200V Ppmax=3.1W Epmax=330V Pc2max=0.65W Ec2max=330V op : Ep=125V Ec2=125V Rk=56Ω Ip=11mA Ic2=3.5mA rp=200kΩ gm=10.5mS (参考 : Ep-Ip･Ic2特性(@Ec2=125V, Ec3=0V)) heater variant : 11AR11(11.2V/0.45A) also see Twin sharp-cutoff Pentode : 6BN11 6BV11 6J11 8BN11 12BV11 6) 6AR11 RCA ￥1200 NIB (vAht) 1) 6AR11 GE ￥1200 NIB(D) 2) 6AR11 RCA(GE-made) ￥1200 NIB SideGtr ShortGlass RaggedBox 1) 6AR11 RCA(GE-made) ￥1200 NIB TopGtr LongGlass 1) 6AR11 Syl(GE-made) ￥1200 NIB TopGtr LongGlass
6AS5 =Beam Power= (EIA/7CV - miniature) Eh/Ih=6.3V/0.8A Ehkmax=90V design center : Ppmax=5.5W Epmax=150V Pc2max=1W Ec2max=117V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=150V Ec2=110V Ec1=-8.5V Ip=35mA Ic2=2mA gm=5.6mS Zl=4.5kΩ D=10% Po=2.2W (参考 : Ep-Ip特性(@Ec2=110V)) 7) 6AS5 RCA ￥1000 NIB 2) 6AS5 RCA ￥1000 NIB 2) 6AS5 RCA ￥1000 NIB D/C=56-52(1956) SideGtr BlkPlate 13) 6AS5 GE ￥900 NIB 1) 6AS5 Syl ￥1000 NIB TopGtr BlkPlate 1) 6AS5 Syl ￥1000 NIB TopGtr BlkPlate very-ragged box 10) 6AS5 Syl ￥1000 NIB TopGtr BlkPlate just-ragged boxes 2) 6AS5 Syl ￥900 NIB 1) 6AS5 Ray ￥1000 NIB D/C=452(1954) TopGtr BlkPlate 2) 6AS5 Ray ￥1000 NIB made in Japan, D/C=Q24-3J, Q24-3J, BlackPlate & GrayPlate 1) 6AS5 Tsol ￥1000 NIB 1) 6AS5 RadTel ￥1000 NIB BlkPlate 3) 6AS5 USA ￥900 NOS/NIB (hx10) 1) 6AS5 RCA ￥400 used 1) 6AS5 USA ￥400 used
6AS6/409A =Sharp-Cutoff Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.175A Ehkmax=90V Ppmax=1.7W Epmax=180V Pc2max=0.75W Ec2max=140V Ikmax=18mA op : Ep=120V Ec2=120V Ec1=-2V Ip=5.2mA Ic2=3.5mA rp=110kΩ gm=3.2mS (see 409A also see 5725) 8) JRC 6AS6 RCA ￥800 NIB MB date=4-51 10) 6AS6 RCA ￥700 NIB 1) 6AS6 RCA ￥700 NIB - mint 1) 6AS6 RCA ￥700 NOS GE箱 1) 6AS6W GE ￥600 NOS 1) 6AS6 GE ￥600 NIB 3) 6AS6 Syl ￥600 NIB 2) 6AS6 Syl ￥600 NIB 1)BlkPlate, 1)SilverPlate 2) 6AS6 Ray ￥600 NIB D/C=68-26 2) WL-6AS6 WH ￥800 NIB ++ 2) 6AS6 WH ￥600 NIB 3) JHY 6AS6 Hytron ￥800 NIB MB date=12-52 1) JAN-CBRZ 6AS6 Lansdale ￥800 NIB 1) JAN 6AS6 WE ￥1000 NIB 2) 6AS6 National ￥600 NIB BlkPlate Top-D-Gtr 7) 6AS6/409A WE ￥700 used 1) 6AS6 USA ￥400 used
6AS7G/GA =Low μ Twin Power Triode= (EIA/8BD - octal) Eh/Ih=6.3V/2.5A Ehkmax=±300V (Theater-warmup=30sec : recommended) *design center : Ppmax=13W Epmax=250V Ikmax=125mA Rgmax=1MΩ(self)/100kΩ(fixed) op : Ep=135V Rk=250Ω Ip=125mA rp=280Ω gm=7mS μ=2 (参考 : Ep-Ip特性) see straight-glass shape electrical equivallent's : 6080, and 6082(Eh/Ih=26.5V/0.6A) also see high-rel. version : 6520 (also see 421A(μ=6) 5998(μ=5.4) 6080(μ=2) 7802(μ=9)) also see a 6AS7-G push-pull HiFi amplifier appeared on RCA Receiving Tube Manual RC-16, 1950. = ST-shape = 13) 6AS7G RCA ￥2700 NIB (Nn)++(Q) 1) JAN-CRC 6AS7G RCA ￥2700 NIB date=August 1956, RaggedBox 2) 6AS7G RCA ￥2700 NIB plain-boxes 1) 6AS7G RCA ￥2700 NIB date=126 (NTB) 1) 6AS7G RCA ￥2400 NIB date=109 justLooseBase small-BaseCrack (NTB) 1) 6AS7G RCA ￥2400 NOS date=022 SlightlyLooseBase EM=109/106/54min *$*** 1) 6AS7G Toshiba ￥2000 NIB HiS just-ragged box 1) 6AS7G RCA ￥2200 used? 1) 6AS7G RCA ￥1200 used 89/85/54min GlassChipあり(tw02) 20) 6AS7G NEC ￥1700 lightly-used 通信用 (hyyX14s) 2) 6AS7G NEC ￥1700 lightly-used 通信用 1) 6AS7G NEC ￥1200 used 通信用 = straight-GT shape = 9) 6AS7GA GE ￥1000 NIB(Nn) 1) 6AS7GA Syl ￥1000 NIB 1) 6AS7GA Syl ￥1000 NIB MB *$** 2) 6AS7GA WH ￥1000 NIB 1) 6AS7GA WH ￥1000 NIB 1) 6AS7GA RCA ￥800 used date=7339 95/91/54min
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6AS8 =Diode sharp cutoff RF Pentode= (EIA/9DS - noval) Eh/Ih=6.3V/0.45A Pentode : Ppmax=2.5W Epmax=300V Pc2max=0.5W Ec2max=300V rp=300kΩ gm=6.2mS Diode : PIV=330V Idcmax=5mA heater variant : 5AS8(4.7V/0.6A) 1) 6AS8 RCA ￥1000 NIB date=57-52 6) 6AS8 RCA ￥800 NIB 1) 6AS8 RCA ￥600 NOS CBS箱 1) 6AS8 GE ￥600 NIB DarkGrayGlass 6) 6AS8 USA ￥600 NIB 1) 6AS8 USA ￥400 used
6AS11 =Dissimilar double-Triode Pentode= (EIA/12DP - compactron) Eh/Ih=6.3V/1.05A Triode1 : Ppmax=1.5W Epmax=330V rp=12.4kΩ gm=5.5mS μ=68 Triode2 : Ppmax=2.0W Epmax=330V rp=9.4kΩ gm=4.4mS μ=41 Pentode : Ppmax=5W Epmax=330V Pc2max=1.1W Ec2max=330V rp=70kΩ gm=10.5mS same basing(12DP) similar types : 6AF11, 6BD11 3) 6AS11 RCA ￥1700 NIB 4) 6AS11 GE ￥1700 NIB 1) 6AS11 GE ￥1700 NIB TopGtr 3) 6AS11 Syl(GE-made) ￥1700 NIB TopGtr 1) 6AS11 Syl(GE-made) ￥1700 NIB ClearTop-SideGtr 1) 6AS11 Ray ￥1700 NIB
6AT6 =Duplex Diode high-mu-Triode= (EIA/7BT - miniature) Eh/Ih=6.3V/0.3A Triode : Ppmax=0.5W Epmax=300V rp=58kΩ gm=1.2mS μ=70 heater variant : 12AT6(12.6V/0.15A) almost identical to 6AQ6(μ=70) same basing and higher mu types : 6AV6(μ=100), 6BK6(μ=100) also see same basing and lower mu type : 6BF6(μ=16) 1) JRC-6AT6 RCA ￥700 NIB MB 4) 6AT6 RCA ￥700 NIB 3) 6AT6 GE ￥600 NIB MB 1) 6AT6 GE ￥600 NIB 青箱 0) 6AT6 GE ￥600 NIB(D) 1) 6AT6 Syl ￥700 NIB old 1) 6AT6 Syl ￥600 NIB 1) 6AT6 WH ￥600 NIB 1) JAN-CWL 6AT6 WH ￥600 NIB MB 6) 6AT6 USA ￥600 NIB(Nn) 1) 6AT6 DON ￥600 NIB very-ragged-box 青ドン 2) 6AT6 USA ￥400 used
6AT8 =Triode-Pentode converter= (EIA/9DW - noval) Eh/Ih=6.3V/0.45A Pentode : Ppmax=2.3W Epmax=275V Pc2max=0.45W Ec2max=275V rp=300kΩ gm=5.5mS Triode : Ppmax=1.7W Epmax=275V rp=6kΩ gm=6.5mS μ=40 heater variant : 5AT8(4.7V/0.6A) 1) 6AT8 WH ￥1000 NIB
6AU4GT/GTA =HalfWave Rectifier for TV dumper= (EIA/4CG - octal) Eh/Ih=6.3V/1.8A Ehkmax=+300Vpeak/-4500Vpeak(DC=+100V to -900V) Ppmax=6W(GTA=6.5W) PIV=4500V Idc=175mA(GTA=210mA) Ipeak=1050mA(GTA=1300mA) see heater variant : 19AU4(18.9V/0.6A) same base (4CG) halfwave rectifiers : 6AU4GT/A 6AX4GT/A/B 6CQ4 6DA4/A 6DE4 6DQ4 6G-K17 6W4GT/A also see a 4CG-rectifier comparison table : <4CGベース ピンコンパチ半波整流管の比較> 1) 6AU4GT Mazda ￥1200 NIB CoinBase 1) 6AU4GTA RCA ￥1200 NIB D/C=BP(1967.7) 0) 6AU4GTA RCA ￥1200 NIB MB ThickBase (mT) 5) 6AU4GTA RCA ￥1200 NIB ThickBase 0) 6AU4GTA RCA ￥1200 NIB CoinBase 0) 6AU4GTA RCA ￥- NIB CoinBase (hxzev) 3) 6AU4GTA GE 1000 NIB(hyyenx) 1) 6AU4GTA GE 1000 NIB(hyyenx) 4) 6AU4GTA Syl ￥1000 NIB 1) 6AU4GTA Syl ￥1000 NIB MB 5) 6AU4GTA Syl ￥1000 NIB CoinBase(Qn) 1) 6AU4GTA CBS-Hytron ￥1000 NIB 1) 6AU4GTA Znth ￥1000 NIB MB 1) 6AU4GTA Znth ￥1000 NIB 1) 6AU4GTA Philco ￥1000 NIB 1) 6AU4GTA Truetone ￥1000 NIB MB 1) 6AU4GTA/GT WH ￥1000 NIB 1) 6AU4GTA Ray ￥500 used EM=96/53 1) 6AU4GTA RCA ￥500 used 1) 6AU4GT Syl ￥500 used
6AU5GT =BeamPower Amplifier= (EIA/6CK - octal) Eh/Ih=6.3V/1.25A Ehkmax=±200V *design center : Ppmax=10W Epmax=550V Pc2max=2.5W Ec2max=200V Ikmax=110mA Rg1max=470kΩ op : Ep=115V Ec2=175V Ec1=-20V Ip=60mA Ic2=6.8mA rp=6kΩ gm=5.6mS 参考:三結時のEp-Ip特性例(triode connection : SAMPLE data) same basing types : 6FW5GT, 6AV5GT/GA, 6BD5, 6000 21) 6AU5GT RCA ￥1000 NIB (rhyy1z6nu) 1) 6AU5GT RCA ￥1000 NIB D/C=LM(1959.9) BlkPlate TwinSideGtr 26) 6AU5GT GE ￥900 NIB (ghx1vasr) 1) 6AU5GT Tsol ￥900 NIB 1) 6AU5GT Philips ￥900 NIB 3) 6AU5GT Syl ￥900 NIB 1) 6AU5GT Syl ￥900 NIB MB 1) 6AU5GT Syl ￥1000 NIB BlkPlate SideGtr VeryOld 1) 6AU5GT Syl ￥900 NIB 1) 6AU5GT Syl ￥900 LikeNew 6900/3500min 1) 6AU5GT Ray ￥900 NIB TwinSideGtr BlkPlate 1) 6AU5GT ADCO ￥900 NIB 2) 6AU5GT CBS ￥900 NIB 1) 6AU5GT CBS-Hytron ￥900 NIB 1) 6AU5GT Delco ￥900 NIB 2) 6AU5GT Silvertone ￥900 NIB WB-MB TwinSideGtr BlkPlate 1) 6AU5GT RCA ￥600 used 103/53 5) 6AU5GT USA ￥400 used

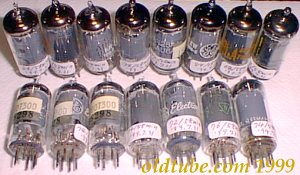

6AU6/A/WA/WB/WC
6AU7 =Twin-Triode= (EIA/9A - noval) Ppmax=2,75W Epmax=300V μ=17 rp=7.7kΩ gm=2.2mS Eh/Ih=6.3V/0.3A(3.15V/0.6A) see heater variant : 7AU7, 9AU7, 12AU7 3) 6AU7 Tsol ￥1900 NIB 4) 6AU7 Tsol ￥1900 NIB 1) 6AU7 Tsol ￥1700 NOS 7AU7箱
6AU8/A =med-mu(43)Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.6A Triode (6AU8A) : Ppmax=2.8W Epmax=330V rp=8.1kΩ gm=5.3mS μ=43 Pentode(6AU8A) : Ppmax=3.3W Epmax=330V Pc2max=1W Ec2max=330V rp=100kΩ gm=8mS see heater variant : 8AU8(8.4V/0.45A) 7060(13.5V/0.28A) similar to 6CX8 1) 6AU8A IEC-Mullard ￥1200 NIB 3) 6AU8A RCA ￥1200 NIB BlkPlates 6) 6AU8A RCA ￥900 NIB 3) 6AU8A GE ￥800 NIB 2) 6AU8A GE ￥800 NIB D/C=70-30 4) 6AU8A Syl ￥800 NIB 1) 6AU8A Syl ￥800 NIB 1) 6AU8A Rogers ￥800 NIB 29) 6AU8/A GE,RCA,Ray etc ￥800 NOS/NIB(rhy1dnm) 1) 6AU8A RCA ￥400 used 1) 6AU8/A USA ￥400 used
6AV3/EY89 =Rectifier= (EIA/) 10) 6AV3(EY89) InterC ￥1000 NIB mint
6AV5/6AV5GA =BeamPower= (EIA/6CK - octal) Eh/Ih=6.3V/1.2A Ehkmax=±200V(DCmax=+100V) Tbulb=210℃max *design-center : Ppmax=11W Epmax=550V Pc2max=2.5W Ec2max=175V Ikmax=110mA Rg1max=470kΩ op : Ep=250V Ec2=150V Ec1=-22.5V Ip=57mA Ic2=2.1mA rp=14.5kΩ gm=5.9mS op(triode connection) : Ep=150V Ec=-22.5V μg2g1=4.3typ 参考:6AV5GAの三結時Ep-Ip特性例(6AV5GA's triode connection : SAMPLE data) see heater variants : 12AV5(12.6V/0.6A), 17AV5(16.8V/0.45A), 25AV5(25V/0.3A) same basing types : 6AU5GT, 6FW5, 6BD5, 6000 1) 6AV5GA RCA ￥1000 NIB 3) 6AV5GA RCA ￥1000 NIB 7) 6AV5GA RCA ￥1000 NIB 2) 6AV5GA RCA ￥1000 NIB GrayPlate SideGtr 1) 6AV5GA GE ￥1200 NIB 青箱 2) 6AV5GA GE ￥1000 NIB 5) 6AV5GA GE ￥1000 NIB SideGtr GrayPlate 2) 6AV5GA CGE ￥1000 NIB 1) 6AV5GA Syl ￥1200 NIB old 5) 6AV5GA Syl ￥1000 NIB 2) 6AV5GA Syl ￥1000 NIB TwinSideGtr 2) 6AV5GA Syl ￥1000 NIB SideGtr BlkPlate date=9-34 1) 6AV5GA CBS ￥1000 NIB 1) 6AV5GA RCA ￥600 used gm=4900/3500min 2) 6AV5GT GE ￥1000 NIB 1) 6AV5GT Hytron(GE-made) ￥1000 NIB-WB 1) 6AV5 Philco ￥600 used gm=4600/3500min 1) 6AV5 RCA ￥600 used gm=5520/3500min 4) 6AV5 Bogen ￥600 used GE箱
6AV6 =Duplex Diode high-mu-Triode= (EIA/7BT - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±90V Idiode=1mAmax design center : Ppmax=0.5W Epmax=300VEhkmax=±200V design max : Ppmax=0.55W Epmax=330V op : Ep=250V Ec=-2V Ip=1.2mA rp=62.5kΩ gm=1.6mS μ=100 (参考 : Ep-Ip特性) see heater variants : 3AV6(3.15V/0.6A), 12AV6(12.6V/0.15A) see similar types with same basing: 6BK6(μ=100), 6AQ6(μ=70), 6AT6(μ=70) also see a same basing with lower mu type : 6BF6(μ=16) 2) 6AV6 Mullard ￥1500 NIB 濃紺OB 2) 6AV6 GE(GtBritain) ￥1200 NIB 1) 6AV6 Mullard(Australia) ￥1000 NIB 4) 6AV6 Philips ￥1000 NIB 1) 6AV6 SuperaRadiotron(AWV) ￥1000 NIB 12) 6AV6 RCA ￥1000 NIB 5) 6AV6 RCA ￥1000 NIB ClearTop 3) 6AV6 RCA ￥1000 NIB SideGtr w/sleeve 2) JAN-6AV6 RCA ￥1200 NIB MB(T) 1) 6AV6 RCA ￥900 NOS ITT箱 9) 6AV6 GE ￥1000 NIB - mint 1) 6AV6 GE ￥1000 NIB MB 3) 6AV6 GE ￥1000 NIB(Sn) 1) 6AV6 GE ￥1000 NOS 1) 6AV6 Canada-GE ￥1000 NIB made in Japan 1) 6AV6 Canada-GE ￥1000 NIB 1) 6AV6 Syl ￥1000 NIB MB 1) 6AV6 Syl ￥1000 NIB 2) 6AV6/EBC91 Syl ￥1000 NIB 2) JAN-CWL 6AV6 WH ￥1500 NIB MB '50s SideGtr 1) 6AV6/EBC91 Tsol ￥1100 NIB 1) 6AV6 Tsol ￥700 LikeNew Syl箱 1) 6AV6 ITT ￥1000 NIB 3) 6AV6 USA ￥1000 NIB 1) 6AV6 Lafyette ￥1000 BlkPlates 1) 6AV6 DuMont ￥1000 NIB RaggedBox 2) 6AV6 Toshiba ￥1000 NIB 3) 6AV6 Matsushita ￥1000 NIB 6) 6AV6 USA ￥400 used 1) 6AV6 Matsushita ￥500 lightly-used ナショナル箱 1) 6AV6 Matsushita ￥500 lightly-used ナショナル箱 2) 6AV6 NEC, Toshiba ￥400 used
6AV11 =Triple Triode= (EIA/12BY - compactron) Eh/Ih=6.3V/0.6A Ehkmax=±200V Ppmax=2.75W Epmax=330V Ikmax=20mA Rgmax=250kΩ(fixed)/1MΩ(self) op: Ep=250V Ec=-8.5V 1p=10.5mA rp=7.7kΩ gm=2.2mS μ=17 (Ppmax=6W for three sections in total) (参考 : Ep-Ip特性) see heater variant : 8AV11(Eh/Ih=8.4V/0.45A) same base(12BY) separated-cathode triple Triode : 6AV11(17, 17, 17), 6D10(μ=57, 57, 57), 6K11/6Q11(μ=17, 100, 100) different base(12FE) separated-cathode triple triode : 6AC10(μ=62, 62, 62), 6AK10(μ=53, 53, 53), 6U10(μ=17, 100, 17) different base(12BQ) separated-cathode high-mu triple Triode : 6C10(μ=100, 100, 100) common-cathode compactron(12HG) triple triode : 6MJ8(Ppmax=3Wx3, μ=17, 17, 17) common-cathode compactron(12HU) triple triode : 6MN8(Ppmax=3Wx3, μ=40, 40, 40) 2) 6AV11 RCA ￥1700 NIB ragged-box (sT) 2) 6AV11 RCA ￥1700 NIB 1) 6AV11 GE ￥1700 NIB SideGtr 2) 6AV11 GE ￥1700 NIB ragged-box(T) 5) 6AV11 Syl(GE-made) ￥1700 NIB SideGtr

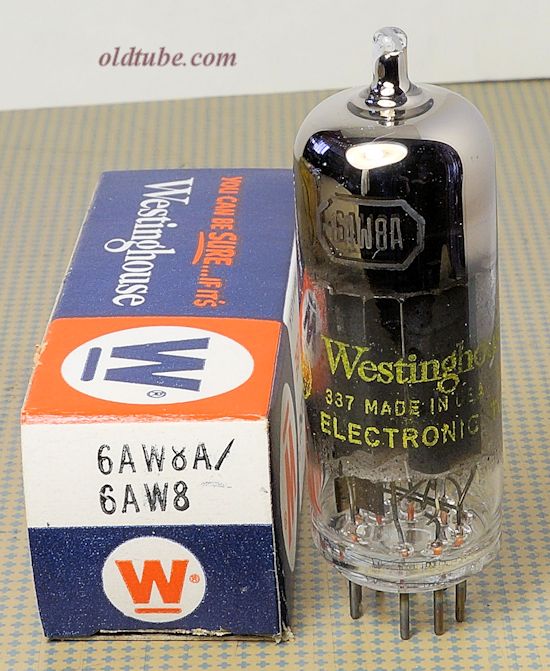

6AW8/A =HiMu(70)Triode SharpCutoffPentode(video amp)= (EIA/9DX - noval) Eh/Ih=6.3V/0.6A(11sec for 6AW8A) Ehk=±200V(DCmax=+100V) *Design-maximum ratings (for 6AW8A) Triode: Ppmax=1.1W Epmax=330V Ec1max=0V Rgmax=500kΩ(fixed)/1MΩ(self) op : Ep=200V Ec=-2V Ip=4mA rp=17.5kΩ gm=4mS μ=70 Pentode: Ppmax=3.75W Epmax=330V Pc2max=1.1W Ec2max=330V Ec1max=0V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=200V Ec2=150V Rk=180Ω Ip=13mA Ic2=3.5mA rp=400kΩ gm=9mS (参考 : Ep-Ip特性(Triode section & Pentode section(@Ec2=150V))) heater variant : 8AW8(8.4V/0.45A) similar to 6LF8, 6HF8, 6JE8, 6JV8 same-basing, electrically-similar, upper-rating 9T9 type : 6HZ8(pentode : Ppmax=8W) 1-pair) 6AW8 Tektronix(GE-made) ￥4500 NIB Parts#157-0039-00 Serial#=3046576) 6AW8A Amprx ￥600 NIB 管内が黒着色 1) 6AW8 RCA ￥700 NIB just-ragged box 16) 6AW8A RCA ￥700 NIB (hy1v2n) 5) 6AW8A RCA ￥600 NIB - mint 1) 6AW8A RCA ￥600 NIB inner-lightly-carbon-soot 1) 6AW8A RCA ￥600 NOS GE箱 1) 6AW8A RCA ￥600 NOS CBS箱 1) 6AW8 STD(RCA) ￥600 NIB 5) 6AW8A GE ￥600 NIB(hxxbng) 1) 6AW8A GE ￥600 NOS RCA箱 2) 6AW8A CGE ￥600 NIB 1) 6AW8A Syl ￥600 NIB old 2) 6AW8A Syl ￥600 NIB made in Canada 1) 6AW8A Syl ￥600 NOS RCA箱 1) 6AW8A Ray ￥600 NIB 1) 6AW8A WH ￥600 NIB inner-carbon-soot 1) 6AW8A Tsol ￥600 NIB 1) 6AW8A Philips ￥600 NIB 1) 6AW8A AWV-SuperRadiotron ￥600 NIB 10) 6AW8A USA ￥600 NIB (hyyc) 3) 6AW8A Teonex ￥600 NIB 4) 6AW8A Toshiba ￥600 NIB 3) 6AW8A Toshiba ￥600 NIB smoked-glass 1) 6AW8A Toshiba ￥600 NIB side-gtr 1) 6AW8A Matsushita ￥600 NIB 1) 6AW8A TEN ￥600 NIB 通信用 3) 6AW8A Hitachi ￥600 NIB just-ragged boxes 1) 6AW8A GE ￥400 used inner-carbon-soot GE箱 1) 6AW8A Admiral ￥400 used SideGtr WB 8) 6AW8A USA ￥400 used 1) 6AW8A HP(GEmade) ￥400 used (P)7800/4700min,(T)4300/2500min 3) 6AW8A NEC ￥500 lightly-used lot=LN silver-silk WB 1) 6AW8A NEC ￥500 lightly-used 通信用 yellow-silk WB 1) 6AW8A Toshiba ￥400 lightly-used NHK WB
6AX3 =halfwave Rectifier= (EIA/12BL - compactron) <ダンパ用-高圧半波整流管の比較> Ppmax=5.3W PIV=5000V Idcmax=165mA Edrop=32V(@Idc=250mA) Eh/Ih=6.3V/1.2A heater variants : 12AX3(12.6V/0.6A), 17AX3(16.8V/0.45A) (参考: コンパクトロン半波整流管のピン・コンパチビリティ (Compactron Halfwave-Rectifier pin-compatibility)) 4) 6AX3 RCA ￥1100 NIB 3) 6AX3 RCA ￥1100 NIB 2) 6AX3 GE ￥900 NIB 1) 6AX3 GE ￥900 NIB 2) 6AX3 Syl ￥900 NIB 1) 6AX3 Syl ￥900 NIB 1) 6AX3 Philco ￥900 NIB 1) 6AX3 RadTel ￥900 NIB
6AX4/GT/GTB =HalfWave Rectifier for TV dumper= (EIA/4CG - octal) Eh/Ih=6.3V/1.2A Ehkmax=+100Vdc/-900Vdc, +300Vpeak/-5000Vpeak Ppmax=5W(GTA/B=5.3W) PIV=4400V(GTB=5000V) Idc=137mA(GTA/B=165mA) Ipeak=825mA(GTA/B=1000mA) see heater variant : 12AX4(12.6V/0.6A), 17AX4(16.8V/0.45A), 25AX4(25V/0.3A) same base (4CG) halfwave rectifiers : 6AU4GT/A 6AX4GT/A/B 6CQ4 6DA4/A 6DE4 6DQ4 6G-K17 6W4GT/A also see a 4CG-rectifier comparison table : <4CGベース ピンコンパチ半波整流管の比較> <ダンパ用-高圧半波整流管の比較> 3) 6AX4/GT RCA ￥1000 NIB 6) 6AX4GTB RCA ￥1000 NIB CoinBase 7) 6AX4GTB RCA ￥1000 NIB 一部RaggedBox 1) 6AX4GTB GE ￥800 NIB MB date=3-64 1) 6AX4GTB GE ￥800 NIB MB 6) 6AX4GTB GE ￥800 NIB 1) 6AX4 STD(GE) ￥700 NIB 2) 6AX4GT Syl ￥700 NIB 1) 6AX4GT Syl ￥700 NOS Silvertone箱 2) 6AX4GTB Syl ￥700 NIB 4) 6AX4GTB Syl ￥800 NIB MB date=7-61 1) 6AX4 ITT ￥700 NIB 1) 6AX4 STD(NU) ￥700 NIB 2) 6AX4GTB WH ￥800 NIB 1) 6AX4GT CBS ￥700 NIB 2) 6AX4GT Ray ￥700 NIB 1) 6AX4GT Philco ￥700 NIB 1) 6AX4GTB Realistic ￥700 NIB 1) 6AX4GTB Rauland ￥700 NIB 1) 6AX4GTB Hitray ￥700 NIB 1) 6AX4GTB Quality ￥700 NIB 8) 6AX4GT Matsushita ￥700 NIB 4) 6AX4GT RCA ￥400 used 1) 6AX4GTB GE ￥400 used Japan 1) 6AX4GT Syl ￥400 used EM=101/54min 1) 6AX4GTB Tsol ￥400 used EM=116 1) 6AX4GT Tsol ￥400 used EM=82 1) 6AX4GT CBS ￥400 LightlyUsed 2) 6AX4GT USA ￥400 used
6AX5=cathode-isolated Full wave Rectifier= (EIA/6S - octal) Eh/Ih=6.3V/1.2A Ehkmax=±450Vpeak Ppmax=-W PIV=1250V Idcmax=125mA Edrop=50V(@Idc=125mA) pins : 1(NC)-2(H)-3(2P)-4(NONE)-5(1P)-5(NONE)-7(H)-8(K) see a same-base lower-rating fullwave-rectifier : 6X5(Eh/Ih=6.3V/0.6A, PIV=1250V Idcmax=80mA) see a same-base lower-rating hi-rel. fullwave-rectifier : 5852(Eh/Ih=6.3V/1.2A, PIV=1375V Idcmax=75mA) also see a same-base lower-rating fullwave-rectifier : 6ZY5G(Eh/Ih=6.3V/0.3A, PIV=1250V Idcmax=40mA) filamentary, electrically-similar type : 5Y3GT(Ef/If=5V/2A, PIV=1400V Idcmax=125mA Edrop=50V) 13) 6AX5GT RCA ￥1200 NIB(hysent) 1) 6AX5GT RCA ￥1200 NIB CoinBase OriginalWhiteBox 3) 6AX5GT RCA ￥1200 NIB 1) 6AX5GT Hewlett-Packard(RCA-made) ￥1200 NIB D/C=59-22 1) 6AX5GT RCA ￥1200 NOS Philco箱 3) 6AX5GT GE ￥1000 NIB(nQ) 1) 6AX5GT CGE ￥1000 NIB 4) 6AX5GT Syl ￥1000 NIB 1) 6AX5GT Syl ￥800 NOS? 2) 6AX5GT Ray ￥1000 NIB 1) 6AX5GT WH ￥1000 NIB 1) 6AX5GT CBS-Hytron ￥1000 NIB 2) 6AX5GT HP ￥1200 NIB WB 2) 6AX5GT GM ￥1000 NIB 3) 6AX5GT Lindal ￥1000 NIB 1) 6AX5GT Emerson ￥1000 NIB
6AX7 (see 12AX7/6681/7025 5751) =TwinTriode= (EIA/9A - noval) 12AX7/Aの6.3Vヒーター版 0) 6AX7 Tsol ￥2400 NIB (hy1z4ht) 0) 6AX7 Marconi ￥2400 NIB BlkPlates (Qn)
6AX8 =Triode Pentode= (EIA/9AE - noval) Eh/Ih=6.3V/0.45A Pentode : Ppmax=2.8W Epmax=300V Pc2max=0.5W Ec2max=300V rp=400kΩ gm=4.8mS Triode : Ppmax=2.7W Epmax=300V rp=5kΩ gm=8.5mS μ=40 see same basing similar types : 6EA8 6GH8/A 6LM8 6U8/6U8A / 6678 also see a longer-life improved version of 6U8: 6R-HR4/LD-611 6) 6AX8 RCA ￥800 NIB 2) 6AX8 Syl ￥800 NIB 1) 6AX8 Syl ￥800 NOS RCA箱 14) 6AX8 Tsol ￥900 NIB
6AY3 =Half wave Rectifier= (EIA/9HP - NOVAR) Eh/Ih=6.3V/1.2A PIV=5000V Idcmax=175mA Pdmax=6.5W heater variants : 12AY3(12.6V/0.6A) 17AY3(16.8V/0.45A) 9HP same-base NOVAR halfwave rectifiers : 6AY3 6BS3/A 6CH3 6CJ3 6CK3 6CL3 6CM3 6DN3 6DW4/B Half wave rectifier comparison table : <ダンパ用-高圧半波整流管の比較> 2) 6AY3 Syl ￥800 NIB 1) 6AY3 Syl ￥700 NOS Ray箱 1) 6AY3B RCA ￥800 NIB 1) 6AY3B/6BS3A GE ￥800 NIB 2) 6AY3B/6BS3A GE ￥800 NIB 1) 6AY3B GE ￥800 NIB 1) 6AY3B Znth ￥700 NOS GE箱
6AY11 =duplex-Diode Hi-mu Twin-Triode= (EIA/12DA - compactron) Eh/Ih=6.3V/0.69A Ehkmax=±200V Idiode=5mAdc-max triode : Ppmax=1W Epmax=330V op : Ep=250V Ec=-2V Ip=1.2mA rp=52.7kΩ gm=1.9mS μ=100 (参考 : 三極管部のEp-Ip特性(Triode section)) compactron(12DA) twin-triode types : 6AG11(μ=66, 66), 6AY11(μ=100, 100) compactron(12BF) twin-triode type : 6B10(μ=17, 17) 0) 6AY11 RCA ￥1300 NIB 1) 6AY11 RCA(GE-made) ￥1300 NIB RaggedBox 0) 6AY11 GE ￥1300 NIB 2) 6AY11 GE ￥1300 NIB RaggedBox 2) 6AY11 GE ￥1300 NIB RaggedBox 1) 6AY11 RCA(GE-made) ￥1300 NIB RaggedBox 1) 6AY11 ITT(GE-made) ￥1300 NIB RaggedBox
6AZ8 =Triode Pentode= (EIA/9ED - noval) Eh/Ih=6.3V/0.45A Pentode : Ppmax=2W Epmax=300V Pc2max=0.5W Ec2max=300V rp=300kΩ gm=6mS Triode : Ppmax=2.6W Epmax=300V μ=19 rp=5.75kΩ gm=3.3mS 1) 6AZ8 USA ￥1000 NIB/NOS(Sx)
6B4G =PowerTriode= (EIA/5S - octal, ST16bulb) = octal-socket type 6A3 Ef/If=6.3V/1A Epmax=325V Rgmax=50kΩ(fixed)/500kΩ(self) op(A1-single) : Ep=250V Ec=-45V Ip=60mA rp=800Ω gm=5.25mS μ=4.2 Zl=2.5kΩ 2ndHD=5% Po=3.2W op(AB1-pushpull): Ep=325V Ec=-68V Ipo=40mAx2 Zlpp=3kΩ THD=2.5% Po=15W (参考 : 2A3のEpIp特性とバリアント(EpIp-curve and variants)) (also see 6A3, 6A5G, 2A3) an electrically similar European type : AD1(side-contact, Ef/If=4V/0.95A) also see a European cathode type : R120(octal, Eh/Ih=6.3V/1.45A) <三極管の A1S 動作比較> 2) 6B4G RCA ￥8500 NIB TwinPlates ClearGlass date=352,352 (NTB) 1) 6B4G RCA ￥8500 NOS WB 77/38min BlackGlass 1) 6B4G RCA-Victor ￥8500 NIB 68/38min BlackGlass RaggedBox 2) 6B4G RCA ￥8500 NOS WB 3400,2810/1900min TwinBlackPlates ClearGlass 1) 6B4G Lafayette(RCA-made) ￥6000 used 72/38min BlkGlass,TopClear TwinPlates 2) 6B4G GE ￥8000 NIB TwinPlates ClearGlass date=2-22, 2-22 (NTB) 1) 6B4G Syl ￥7500 NOS WB 78/38min TwinBlkPlates 2) 6B4G Syl ￥7500 NOS WB(Sx) 0) 6B4G Syl ￥- NIB MB 0) 6B4G Syl ￥- NIB MB date=8-56, 5-52 etc(sT) 1) 6B4G Syl ￥7500 NIB YellowLogo 1) JAN-CHS 6B4G Syl ￥7500 NOS WB TwinBlkPlates 76/38min @@ 1) JAN-CHS 6B4G Syl ￥7500 LikeNew TwinBlkPlates 76/38min *** 1) 6B4G Syl ￥7000 UsedLikeNew TwinBlkPlates 72/38min *** 1) 6B4G Syl ￥7000 NOS WB TwinBlkPlates ClearGlass 3090/1900min 1) 6B4G Syl ￥7000 NOS WB DoubleBlkPlates ClearGlass 3270/1900min 0) 6B4G Syl ￥- NIB MB Twin-Plate Date=9/57(D) =>Glass表面下部に2cm位の傷あり、動作には支障無し。 1) 6B4G Syl ￥7000 used? RCA箱 TwinPlates ClearGlass (NTB) 2) 6B4G Syl ￥5500 Used TwinBlkPlates 55,56/38min *** 0) 6B4G Ray ￥- NIB MB Twin-Plate Date=June-1945(D) 0) 6B4G Ray ￥- NIB MB Twin-Plate ragged box(D) 1) 6B4G Ray ￥7500 NIB ragged-box 1) 6B4G Ray ￥7500 NIB ragged-box 1) 6B4G Tsol ￥7500 NIB ragged-box 0) 6B4G Tsol ￥- NIB Twin-Plate 0) 6B4G Tsol ￥- NOS WB Twin-Plate 1) 6B4G Tsol ￥7000 NOS Bulk品 Twin-Plate 1) 6B4G Tsol ￥7000 NOS Bulk品 Twin-Plate 1) 6B4G Tsol ￥6000 used date=621-3 TwinBlkPlates gm=4850/1900min(539B) *$*** 1) 6B4G NU ￥7500 NIB ragged-box 1) 6B4G NU ￥7500 NIB MB ragged-box 1) 6B4G Krad ￥7500 NIB ClearTop BlackGlass WaistGtr ragged-box 1) 6B4G Krad ￥7500 NIB BlackTop BlackGlass WaistGtr ragged-box 1) 6B4G Krad ￥7500 NOS BlackTop BlackGlass WaistGtr WB (NTB) 1) 6B4G Krad ￥7000 used 75/38min BlkGlass, TwinPlates 1) 6B4G Krad ￥4000 used 50/38min BlkGlass, TwinPlates
6B5 =Dynamic-Coupled Power Triode= (EIA/6AS(6D), UZ6pin, ST14bulb) electrically identical to 6N6G Eh/Ih=6.3V/0.8A Pp1max=W Epmax=325V Ip1max=9mA Pp2max=W Epmax=325V Ip2max=51mA Rg1max=500kΩ op(A1S) : Ep=300V Ip1=8mA Ip2=45mA Ec=0V rp=24kΩ gm=2.4mS μ=58 Zl=7kΩ Po=4.0W D=5% op(A1S) : Ep=325V Ip1=9mA Ip2max=51mA Ec=0V rp=24kΩ gm=2.4mS μ=58 Zl=7kΩ Po=5.2W D=5% op(A1pp) : Ep=300V Ip1=8mAx2 Ip2max=45mAx2 Ec=0V Zlpp=10kΩ Po=10W D=5% op(A1pp) : Ep=325V Ip1=9mAx2 Ip2max=51mAx2 Ec=0V Zlpp=10kΩ Po=13.5W D=5% (参考 : 6B5/6N6G/25B5のEpIp特性) 0) 6B5 RCA ￥- used gm=1370/950min 0) 6B5 NU ￥- NIB 1) 6B5 Rogers ￥3000 NIB 0) 6B5 Raytheon ￥- used 4-pillar 1200/950min
6B6/G =Twin Diode High mu Triode= (EIA/7V- octal, ST12bulb) Epmax=250V Eh/Ih=6.3V/0.3A op : op : Ep=250V Ec=-2V Ip=0.9mA rp=91kΩ gm=1.1mS μ=100 (参考 : EpIp特性) electrically identical to #75(Eh/Ih=6.3V/0.3A) except base, and 2A6(Eh/Ih=2.5V/0.8A) except base and heater also similar to 6SQ7 same basing different-μ types : 6V7G(μ=8.3), 6R7G(μ=16), 6T7G(μ=65), 6Q7/G(μ=70) 0) 6B6G GE ￥1400 NIB
6B7 =Twin Diode RemoteCutoff Pentode= (EIA/7D - 7pinUt, TopGrid, ST12bulb) Eh/Ih=6.3V/0.3A Ehk=±90V Pentode : Ppmax=2.25W Epmax=300V Pc2max=0.3W Ec2max=125V/300V-supply op : Ep=250V Ec2=125V Ec1=-3V Ip=9mA Ic2=2.3mA rp=600kΩ gm=1.125mS 15) 6B7 RCA ￥2000 NIB 1) 6B7 RCA-Cnghm ￥1200 used?? WB MarconiSprayMarked on glass 0) 6B7 Cnghm ￥- used 1070/700min 1) Ut-6B7 Matsuda ￥600 used WB
6B8 =Twin Diode Semi-remoteCutoff Pentode= (EIA/8E - octal, TopGrid) Eh/Ih=6.3V/0.3A Ppmax=2.25W Epmax=300V Pc2max=0.3W Ec2max=125V rp=600kΩ gm=1.35mS heater variant : 12C8(12.6V/0.15A) 1) 6B8 RCA ￥700 NIB metal (D) 1) 6B8 Syl ￥600 NIB metal 1) CKR-6B8/VT93 Krad ￥700 NIB metal MB 1) 6B8G Ray ￥600 NIB ST-12 1) 6B8G KenRad ￥600 NIB stll-sealed in a just ragged-box 1) 6B8G NU ￥500 used ST-12 1) 6B8 GE ￥500 metal used WB
6B10 =duplex-Diode med-mu Twin Triode= (EIA/12BF - compactron) Eh/Ih=6.3V/0.6A Ehkmax=±200V Idiode=5mAdc-max triodes : Ppmax=2.5W Epmax=330V Ikmax=20mA Rgmax=250kΩ(fixed)/1MΩ(self) op : Ep=250V Ec=-8.0V Ip=10mA rp=7.20kΩ gm=2.50mS μ=18 op : Ep=250V Ec=-9.5V Ip=7.0mA rp=9.75kΩ gm=1.85mS μ=18 (参考 : 三極管部のEp-Ip特性(Triode section)) see heater variant : 8B10(Eh/Ih=8.5V/0.45A) compactron(12DA) twin-triode types : 6AG11(μ=66, 66), 6AY11(μ=100, 100) compactron(12BF) twin-triode type : 6B10(μ=17, 17) 4) 6B10 RCA ￥1000 NIB 2) 6B10 GE ￥800 NIB 1) 6B10 GE ￥800 NOS RCA箱 2) 6B10 Syl ￥800 NIB 1) 6B10 Syl ￥800 NOS 1) 6B10 ECG ￥800 NIB
6BA5 =sharp cutoff Pentode= (EIA/8DY) *subminiature* Eh/Ih=6.3V/0.15A Ehkmax=90V Ppmax=0.7W Epmax=150V Pc2max=0.3W Ec2max=140V Rg1max=1MΩ(fixed) rp=175kΩ gm=2.15mS 3) 6BA5 Syl ￥1900 NIB ++
6BA6
6BA7 =Penta Grid Converter= (EIA/8CT - noval) Eh/Ih=6.3V/0.3A Ppmax=2W Epmax=100V/300Vcutoff Pc2max=1.5W Ec2max=100V Pc4max=1.5W Ec4max=100V Ikmax=22mA op:Ep=250V Ec2,4=100V Ec3=-1V Ec5=GND Rg1=20kΩ Ip=3.8mA Ic2,4=10mA Ic1=0.35mA rp=1MΩ gm=0.95mS heater variant : 12BA7(12.6V/0.15A) 6) 6BA7 RCA ￥1200 NIB BlkPlate old '50s (xxAht) 1) 6BA7 RCA ￥1200 NIB 1) 6BA7 RCA ￥1200 NIB TramElectronicsBox date=7017 1) JRC 6BA7 RCA ￥1000 NIB 1) JRC 6BA7 RCA ￥1000 NIB MB D/C=62-22 2) 6BA7 RCA ￥1000 NIB GrayPlate 1) 6BA7 RCA ￥1000 NIB made for Knight 1) 6BA7 GE ￥900 NIB old 0) 6BA7 GE ￥900 NIB (gD) 1) 6BA7 CGE ￥700 NIB 0) 6BA7 Syl ￥700 NIB 1) 6BA7 Ray ￥1000 NIB MB D/C=139(1961) NickelPlate 1) 6BA7 Marconi ￥700 NIB 1) 6BA7 Tsol ￥900 NIB old
6BA8A =Med-mu(18) Triode SharpCutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.6A (Triode) Ppmax=1.5W Epmax=300V Ipmax=20mA rp=6.7k gm=2.7mS μ=18 (Pentode) Ppmax=3.25W Epmax=300V Pc2max=1W Ec2max=150V rp=400kΩ gm=9mS similar to 6BH8 4) 6BA8A RCA ￥1000 NIB 1) 6BA8A RCA ￥1000 NIB RaggedBox 3) 6BA8A Philips ￥1000 NIB made in USA(2=RCA-made, 1=GE-made) 2) 6BA8A GE ￥800 NIB 3) 6BA8A Syl etc USA ￥800 NOS/NIB(Qn) 1) 6BA8 Syl ￥800 NIB 1) 6BA8A Syl ￥800 NIB 2) 6BA8A WH-PREMIUM ￥1000 NIB 3) 6BA8A RCA ￥400 used
6BA11 =Triode common-cathode/G1G2 Twin Pentode= (EIA/12ER - compactron) Eh/Ih=6.3V/0.6A (Triode) Ppmax=2W Epmax=300V gm=1.8mS μ=18 (Pentode) Ppmax=1.1W Epmax=300V Pc2max=0.75W Ec2max=300V heater variant : 8BA11(8.4V/0.45A) 4) 6BA11 RCA ￥1000 NIB 3) 6BA11 Syl ￥800 NIB 3) 6BA11 WH ￥800 NIB 8) 6BA11 USA ￥800 NIB 1) 6BA11 Syl ￥600 NOS? RCA箱 1) 6BA11 Zenith(Syl-made) ￥600 NOS Lindal-boxed
6B-B14/6BB14 =Beam Power= (EIA/9NH - Magnoval TopPlate) Ppmax=13W Epmax=700V Pc2max=5W Ec2max=250V Ipmax=-mA gm=14mS Eh/Ih=6.3V/1.2A pin : 1-G1 2-G1 3-KG3 4-H 5-H 6-G2 7-G2 8-KG3 9-IC Tcap-P heater variants : 12B-B14(12.6V/0.6A), 17B-B14(16.8V/0.45A), 25B-B14(25V/0.3A) electrically-compatible octal-base version : 6G-B3A 0) 6B-B14 Toshiba ￥- NIB 1) 6B-B14 Matsushita ￥800 NOS WB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6BC4 =UHF Triode= (EIA/9DR - noval) Eh/Ih=6.3V/0.225A Ehkmax=±75V Fmax=890MHz Ppmax2.5W Epmax=250V Ikmax=25mA Rgmax=500kΩ(self)/-(fixed) op : Ep=150V Ec2=100V Rk=100Ω Ip=14.5mA rp=4.8kΩ gm=10mS μ=48 (参考 : Ep-Ip特性) 1) 6BC4 RCA ￥1700 NIB 1) 6BC4 RCA ￥1700 NIB MB 1) 6BC4 RCA ￥1700 NIB MB 1) 6BC4 RCA ￥1700 NIB just-ragged box MB 1) 6BC4 GE ￥1700 NIB
6BC5 =Sharp-cutoff Pentope= (EIA/7BD - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±200V(+100Vdcmax) Fmax=400MHz Pentode Connection(design max) : Ppmax=2.3W Epmax=330V Pc2max=0.55W Ec2max=330V op : Ep=250V Ec2=150V Rk=180Ω Ip=7.5mA Ic2=2.1mA rp=800kΩ gm=5.7mS (参考 : 五結Ep-Ip特性(@Ec2=150V)) Triode Connection(design max) : Ppmax=2.9W Epmax=330V op : Ep=250V Rk=820Ω Ip=6mA rp=9kΩ gm=4.4mS μ=40 (参考 : 三結Ep-Ip特性(triode connection)) 6BC5≒6CE5 heater variant : 3BC5(3.15V/0.6A) similar types with same base(7BD) : 6AG5 / 6186, 6AK5 / 403A/B / 5654 / EF95 10) 6BC5/6CE5 RCA ￥700 NIB 3) 6BC5 RCA ￥700 NIB WB 2) 6BC5 GE ￥900 NIB 青箱 1) 6BC5 GE ￥600 NIB D/C=0-35(1960) 1) 6BC5/6CE5 Syl ￥600 NIB 1) 6BC5 Ray ￥600 NIB 1) 6BC5 Ray ￥600 NIB D/C=452(1964) photo=right 1) 6BC5/6CE5 Ray ￥600 NIB photo=left 1) 6BC5 Znth ￥600 NIB 16) 6BC5/6CE5 Tsol etc USA ￥600 NIB (hx11ny) 9) 6BC5 USA ￥400 used
6BC6 =sharp cutoff RF Pentode= (EIA/ - ) 1) 6BC6 GE ￥700 NIB
6BC7 =Triple Diode= (EIA/9AX - noval) Ipmax=12mA Eh/Ih=6.3V/0.45A 6) 6BC7 RCA ￥800 NIB 3) 6BC7 GE ￥600 NIB 38) 6BC7 Syl ￥600 NIB old '50s 7) 6BC7 Philco ￥800 NIB old RaggedBox 1) 6BC7 Philco ￥800 NIB old 4) 6BC7 Znth ￥600 NIB 2) 6BC7 Znth ￥600 NIB 7) 6BC7 USA ￥600 NIB 1) 6BC7 Tsol ￥600 NIB MB
6BC8 =Med-mu Twin Triode= (EIA/9AJ - noval) for VHF cascode amplifier Eh/Ih=6.3V/0.4A Ehkmax=±200V Ppmax=2.2W Epmax=150V Ipmax=22mA Rgmax=500kΩ op : Ep=150V Rk=220Ω Ip=10mA rp= 5.6kΩ gm=6.2mS μ=35 (参考 : EpIp特性) heater variants : 4BC8(4.2V/0.6A) (also see other similar twin triodes for cascode amps with same base diagram : => 6AQ8 6BS8 6DJ8 6DT8 6RHH2 6KN8) 0) 6BC8 IEC-Mullard ￥- NIB 4) 6BC8/6BZ8 RCA ￥1200 NIB 3) 6BC8/6BZ8 RCA ￥1200 NIB(Sn) 3) 6BC8/6BZ8 RCA ￥1200 NIB - mint 1) 6BC8/6BZ8 GE ￥1200 NIB 1) 6BC8 Rogers ￥1200 NIB 2) 6BC8 CMC ￥1200 NIB WB 1) 6BC8/6BZ8 USA ￥600 used
6BD5 =Beam Power= (EIA/6CK - octal) Eh/Ih=6.3V/0.9A Ehkmax=135V Ppmax=10W Epmax=325V/4kVpeak Pc2max=3W Ec2max=325V Ikmax=100mA Rg1max=1MΩ op ; Ep=200V Ec2=200V Ec1=-12V gm=5mS same basing types : 6AU5GT, 6AV5GT/GA, 6FW5 1) 6BD5GT Ray ￥2000 NIB VeryRaggedBox 1) 6BD5GT NU ￥2000 NIB
6BD6 =remote-cutoff Pentode= (EIA/7BK - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±90V Ppmax=3W Epmax=300V Pc2max=0.4W Ec2ma=125V Ikmax=14mA op : Ep=250V Ec2=100V Ec1=-3V Ip=3mA Ic2=0.8mA rp=800kΩ gm=2mS (参考 : Ep-Ip特性(@Ec2=100V)) heater variant : 12BD6(12.6V/0.15A) same-basing sharp-cuttoff type : 6BA6, 5749 4) 6BD6 RCA ￥1300 NIB 1) 6BD6 GE ￥1000 NOS RCA箱 2) 6BD6 Syl ￥1000 NIB old 1) 6BD6 Syl ￥1000 NIB 2) 6BD6 Ray ￥1000 NIB 1) 6BD6 Ray ￥1000 NIB RaggedBox 1) 6BD6 Ray ￥1200 NIB BlkPlate RaggedBox 1) 6BD6 Tsol ￥1000 NIB old 1) 6BD6 Philco ￥1000 NIB old 2) 6BD6 NEC ￥900 NIB 110) 6BD6 NEC ￥900 NIB 5) 6BD6 USA ￥500 used(Sx) 1) 6BD6 TEN ￥500 lightly-used
6BD11 =double-Triode sharp-cutoff-Pentode= (EIA/12DP - compactron) Eh/Ih=6.3V/1.05A Ehkmax=±200V Pentode : Ppmax=4W Epmax=330V Pc2max=1.1W Ec2max=330V(cutoff) Rgmax=1MΩ rp=45kΩ gm=10.4mS Triode 1 : Ppmax=1.5W Epmax=330V Rgmax=500kΩ rp=12.4kΩ gm=5.5mS μ=68 Triode 2 : Ppmax=2W Epmax=330V Rgmax=500kΩ rp=9.4kΩ gm=4.4mS μ=41 same basing(12DP) similar types : 6AF11, 6AS11 heater variant : 15BD11(14.7V/0.45A) 1) 6BD11 Syl ￥1200 NOS
6BE3 =HalfWaveRectifier= (EIA/12GA - compactron) Eh/Ih=6.3V/1.2A PIV/Ip=5000V/1200mA-peak Idc=200mAmax Pdmax=6.5W Edrop=25V at Ip=350mA heater variants : 12BE3(12.6V/0.6A), 17BE3(16.8V/0.45A) <ダンパ用-高圧半波整流管の比較> (参考: コンパクトロン半波整流管のピン・コンパチビリティ (Compactron Halfwave-Rectifier pin-compatibility)) 2) 6BE3 RCA ￥900 NIB 4) 6BE3/6BZ3 GE ￥800 NIB 3) 6BE3 Syl ￥800 NIB 2) 6BE3 Znth ￥800 NIB 1) 6BE3 GE ￥600 NOS? WH箱
6BE6 (see 5750) =PentaGridConverter= (EIA/7CH - miniature) Eh/Ih=6.3V/0.3A Ppmax=1.1W Epmax=330V Pc2max=1.1W Ec2ma=110V heater variants : 3BE6(3.15V/0.6A), 12BE6(12.6V/0.15A) 1) JRC 6BE6 RCA ￥900 NIB 9) 6BE6 RCA ￥700 NIB (rhxe) 1) 6BE6 RCA ￥700 NIB 0) 6BE6 RCA-Victor ￥- NOS Marconi箱 0) 6BE6 RCA ￥- NOS 0) 6BE6 RCA ￥- NOS(D) 5) 6BE6 GE ￥700 NIB - mint 1) 6BE6 GE(made in Gt Britain) ￥1000 NIB 1) 6BE6 Syl ￥600 NIB 1) 6BE6 Tsol ￥1000 NIB 4) 6BE6 USA(WH,GE etc) ￥600 NIB (hyycnx) 6) 6BE6 USA ￥600 NOS/NIB 1) 6BE6 RCA ￥600 used BlkPlate 3) 6BE6 RCA, Syl ￥400 used 6) 6BE6 USA ￥400 used 1) 6BE6 Mullard ￥600 used? 1) 6BE6 Toshiba ￥400 used 1) 6BE6 Toshiba ￥400 used original-boxed 1) 6BE6 Matsushita ￥400 used
6BF5 =Beam Power= (EIA/7BZ - miniature) Eh/Ih=6.3V/1.2A Ehkmax=100V Ppmax=5.5W Epmax=250V Pc2max=1.25W Ec2max=250V Rg1max=100kΩ(fixed)/500kΩ(self) rp=10kΩ gm=7.5mS see same basing and more powerful types : 6AQ5, 6HG5 (Ppmax=12W, Pcmax=2W) 0) 6BF5 RCA ￥700 NIB 13) 6BF5 GE ￥600 NIB MB 2) 6BF5 GE ￥600 NIB 2) 6BF5 Syl ￥600 NIB 2) 6BF5 Znth(GE-made) ￥600 NIB 1) 6BF5 GE ￥350 used
6BF6 =Duplex Diode medium mu Triode= (EIA/7BT - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±90V Idiode=1mAmax design center(triode) : Ppmax=2.5W Epmax=300V op : Ep=250V Ec=-9V Ip=9.5mA rp=8.5kΩ gm=1.9mS μ=16 (参考 : Ep-Ip特性) electrically identical to 6SR7(octal) 6R7 heater variant : 12BF6(12.6V/0.15A) also see same basing higher mu types : 6AQ6(μ=70), 6AT6(μ=70), 6AV6(μ=100), 6BK6(μ=100) 1) 6BF6 RCA ￥700 NIB 1) 6BF6 RCA ￥700 NIB NoPrint 1) 6BF6 RCA ￥700 NIB Syl箱 1) 6BF6 Syl ￥700 NIB 6) 6BF6 Znth ￥700 NIB old 5) 6BF6 USA ￥600 NOS /NIB
6BF7 =med-mu Twin Triode= (EIA/8DG) *subminiature* 6BF7=6BG7 Eh/Ih=6.3V/0.3A Ehkmax=90V Ppmax=1W Epmax=110V op : Ep=100V Rk=100Ω Ip=8mA rp=7kΩ gm=4.8mS μ=35 (similar to 6J6, but separated cathodes) pin配列は 6021(μ=35), 6111(μ=20), 6112(μ=70)に同じ (参考 : Ep-Ip特性) 1) 6BF7W Syl ￥2900 NOS GoldBrand RCA箱
6BF11 =Dissimilar double Pentode (BeamPowerPentode+SharpCutoffPentode)= (EIA/12EZ - compactron) Eh/Ih=6.3V/1.2A Ehkmax=±200V [BeamPowerPentode]: Ppmax=6.5W Epmax=165V Pc2max=1.5W Ec2max=150V Rg1max=250kΩ(fixed)/500kΩ(auto) op : Ep=145V Ec2=110V Ec1=-6V Ip=36/40mA Ic2=3/9mA rp=30kΩ gm=8.6mS Zl=3kΩ D=10% Po=2.4W [SharpCutoffPentode]: Ppmax=1.7W Epmax=330V Pc2inmax=1.1W Ec2max=330V op : Ep=150V Ec2=100V Rg1=560Ω Ip=1.3mA Ic2=2mA gm=1.0mS rp=150kΩ heater variants : 12BF11(12.6V/0.6A), 17BF11(16.8V/0.45A), 24BF11(24.2V/0.315A) Also see same basing/more-powerful dissimilar double-pentode types : 6AD10, 6T10 7) 6BF11 RCA ￥1000 NIB 1) 6BF11 GE ￥800 NIB 7) 6BF11 GE ￥800 NIB 1) 6BF11 WH ￥800 NIB 1) 6BF11 Admrl ￥800 NOS 1) 6BF11 Admrl ￥400 used
6BG6G/6BG6GA =BeamPower= (EIA/5BT - octal-TopPlate) Eh/Ih=6.3V/0.9A Ehkmax=±200V Ppmax=20W Epmax=700V(6600V-peak) Ikmax=110mA Pc2max=3.2W Ec2max=350V Rg1max=470kΩ op : Ep=250V Ec2=250V Ec1=-15V Ip=75mA Ic2=4mA rp=25kΩ gm=6mS (参考 : Ep-Ip特性(@Ec1=0V)) see heater variant 19BG6G/GA(Eh/Ih=18.9V/0.3A) also see different-base(UY), electrically-similar types : 807, and 1625(Eh/Ih=12.6V/0.45A) also see same base, similar rating types : 6CD6G/GA 6EX6 7867 also see a different base, similar rating type : 6CB5/A 7) 6BG6G RCA ￥1900 NIB(hyxcnt) 2) 6BG6G RCA ￥1900 NIB date=309,309 (NTB) 0) 6BG6G RCA ￥- NOS Syl箱 0) 6BG6G RCA ￥- used? WB 0) 6BG6G Ray ￥- NIB(D) 0) 6BG6G RCA ￥- used(Aht) 2) 6BG6G GE ￥900 used 4800,4950/3800min 0) 6BG6G GE,Admrl,CBS,Philco ￥- used(sQ) 0) 6BG6G Ken-Rad ￥- used 0) 6BG6G Tsol ￥- used 1) 6BG6G Tsol ￥900 used gm=4500/3800min 1) 6BG6G CBS-Hytron ￥1000 used 1) 6BG6G Hytron ￥1000 used 4900/3800min 1) 6BG6GA RCA ￥1200 NIB BlkPlate (NTB) 2) 6BG6GA GE(Syl-made) ￥900 NIB GrayPlate 3) 6BG6GA Ray ￥900 NIB 1) 6BG6GA IEC-Mullard ￥900 NIB 1) 6BG6GA Syl ￥900 NIB 2) 6BG6GA Syl ￥900 NIB 1) 6BG6GA Tsol ￥900 NIB 3) 6BG6GA RCA ￥900 used 2) 6BG6GA GE ￥900 used WB 2) 6BG6GA Tsol ￥900 used 1) 6BG6GA Syl ￥900 used
6BG7 =med-mu Twin Triode=(EIA/8DG) *subminiature* 6BG7=6BF7 Eh/Ih=6.3V/0.3A Ehkmax=90V Ppmax=1W Epmax=110V op : Ep=100V Rk=100Ω Ip=8mA rp=7kΩ gm=4.8mS μ=35 (similar to 6J6(7pin-miniature), but separated cathodes) pin配列は 6021(μ=35), 6111(μ=20), 6112(μ=70)に同じ (参考 : Ep-Ip特性) 7) JHS 6BG7 Syl ￥1800 NIB date=249 0) 6BG7 Syl ￥- NIB 8) 6BG7 Syl ￥1300 NIB 8) 6BG7 National ￥1300 NIB made in USA code=440
6BH5 =Remote-cutoff Pentode= (EIA/9AZ - noval) Eh/Ih=6.3V/0.2A Ep=250V Ec2=100V Ec1=-2.5V Ic2=1.7mA rp=1.1MΩ gm=2.2mS Ip=6mA 1) 6BH5 Brimar ￥2200 NOS AWV箱 1) 6BH5 Philips ￥2700 NIB 長箱
6BH6 (see 6661, E90F) =Sharp Cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.15A Ehkmax=±90V Ppmax=3W Epmax=300V Pc2max=0.5W Ec2max=300V op : Ep=100V Ec2=100V Ec1=-1V Ip=3.6mA Ic2=1.4mA rp=0.7MΩ gm=3.6mS op : Ep=250V Ec2=150V Ec1=-1V Ip=7.4mA Ic2=2.9mA rp=1.4MΩ gm=4.6mS (参考 : Ep-Ip特性(@Ec2=150V)) (参考 : 6BJ6とのEp-Ip特性比較(6BH6@Ec2=150V, 6BJ6@Ec2=100V)) remote-cutoff and same basing types : 6BJ6, and 6662 0) 6BH6 RCA ￥- NIB * (rhyyd) 0) 6BH6 RCA ￥- NIB BlkPlate(nNn) 0) 6BH6 RCA ￥- NIB GrayPlate(mD) 1) 6BH6 RCA NOS ￥1000 Std箱 93/50min(TV-7) BlkPlate WhiteSilk 1) 6BH6 Silvertone(RCA-made) NIB ￥1000 Motorola箱 96/50min(TV-7) BlkPlate WhiteSilk 1) 6BH6 RCA NOS ￥1000 Hytron箱 76/50min(TV-7) BlkPlate OrangeSilk 1) 6BH6 RCA NOS ￥1000 Motorola箱 75/50min(TV-7) BlkPlate OrangeSilk 1) 6BH6 RCA-made Used? ￥1000 FAA箱 93/50min(TV-7) BlkPlate Label拭消 1) 6BH6 GE ￥1200 NIB 1-52 BlkPlate 青箱 1) 6BH6 GE ￥1000 NIB GtBritain 2) 6BH6 GE ￥1000 NIB (hxz1v0v) 1) 6BH6 GE ￥1000 NIB 1) JAN 6BH6 GE ￥1000 NIB *$** 1) 6BH6 GE NOS ￥1000 BlkPlate Syl軍箱 2) 6BH6 GE NOS ￥1000 GrayPlate WB 1) 6BH6 CGE NIB ￥1000 77/50min(TV-7) GrayPlate 2) 6BH6 Syl ￥1000 NIB MB 5) 6BH6 Syl ￥1000 NIB 3) 6BH6 Syl ￥1000 NIB 1) 6BH6 Syl ￥1000 NIB 2) 6BH6 Ray ￥1000 NIB 1) 6BH6 Ray ￥1000 NIB 1) 6BH6 Tsol NOS ￥1000 Motorola箱 82/50min(TV-7) BlkPlate 2) 6BH6 Tsol NOS ￥800 GrayPlate Syl軍箱 1) 6BH6 WH ￥1000 NIB 1) 6BH6 Philco ￥1000 NIB BlkPlate 1) 6BH6 ITT ￥1000 NIB 1) 6BH6 Int-C ￥1000 NIB 1) 6BH6 Sheldon ￥1000 NIB 2) 6BH6 Ultron ￥1000 NIB 1) 6BH6 RCA used ￥600 D/C=0-39 BlkPlate Syl箱 1) 6BH6 GE used ￥600 BlkPlate RCA箱 1) 6BH6 Tsol used ￥600 WB 76/50min(TV-7) BlkPlate 2) 6BH6 HP ￥600 used 2) 6BH6 Hitachi ￥600 used 4420,4510/2150min wb 1) 6BH6 Brimar ￥600 used 4700/2150min wb 1) 6BH6 ? used ￥600 Std箱 69/50min(TV-7) GrayPlate
6BH8 =med-mu(17) Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.6A Ehkmax=±200V Triode : Ppmax=2.5W Epmax=300V Rgmax=0.5MΩ/1MΩ rp=5.15kΩ gm=3.35mS μ=17 Pentode: Ppmax=3W Epmax=300V Pc2max=1W Ec2max=300V Rgmax=250kΩ(fixed)/1MΩ(self) rp=150kΩ gm=7mS heater variant : 8BH8(8.4V/0.45A) similar to 6BA8/A 3) 6BH8 RCA ￥700 NIB 1) 6BH8 RCA ￥600 NOS? Syl箱 3) 6BH8 Syl ￥600 NIB 1) 6BH8 Ray ￥600 NIB 1) 6BH8 WH ￥600 NIB 1) 6BH8 Chief ￥600 NIB 1) 6BH8 Int-C ￥600 NIB 1) 6BH8 GE ￥400 used Adriral箱
6BH11 =Twin Triode Pentode= (EIA/12FP - compactron) Eh/Ih=6.3V/0.8A Ehkmax=±200V Pentode : Ppmax=2.5W Epmax=350V Pc2max=0.55W Ec2max=330V(cutoff) Ikmax=20mA Rg1max=2.2MΩ rp=200kΩ gm=7.5mS-typ Triode1,Triode2 : Ppmax=2.5W Epmax=330V μ=46 rp=5.4kΩ gm=8.5mS Rgmax=2.2MΩ different-heater, same-basing, and electrically-similar type : 8BU11(7.8V/0.6A) 6) 6BH11 RCA ￥1200 NIB 6) 6BH11 GE ￥1200 NIB 1) 6BH11 Syl ￥1200 NIB 1) 6BH11 Syl ￥1200 NOS RCA箱 2) 6BH11 WH ￥1200 NIB
6BJ6 (see 6662) =remote-cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.15A Ehkmax=±90V Ppmax=3W Epmax=300V Pc2max=0.6W Ec2max=300V rp=250kΩ gm=3.65mS (参考 : 6BH6とのEp-Ip特性比較(6BH6@Ec2=150V, 6BJ6@Ec2=100V)) sharp-cutoff type : 6BH6, 6661 (same basing) 1) 6BJ6 RCA ￥800 NIB MB 2) 6BJ6 RCA ￥700 NIB 1) 6BJ6 RCA-made ￥600 NIB 2) 6BJ6 RCA ￥700 NIB 2) 6BJ6 GE ￥600 NIB ++ 1) 6BJ6 GE ￥600 NOS 2) 6BJ6 CGE ￥600 NIB 7) JCL-6BJ6 CGE(Canada GE) ￥600 NIB 1='JAN-CL 6BJ6', RaggedMilitaryBoxes 3) JAN-CL 6BJ6 CGE(Canada GE) ￥600 NIB RaggedMilitaryBoxes 1) 6BJ6 Syl ￥600 NIB 1) 6BJ6 Syl ￥600 NIB RaggedBox 5) 6BJ6A Syl ￥600 NIB MB 1) JAN-JHS 6BJ6A Syl ￥600 NIB MB 1) 6BJ6 Ray ￥600 NIB 2) 6BJ6 Ray ￥600 NIB 1) 6BJ6 Tsol ￥600 NIB 1) 6BJ6 Philco ￥600 NIB 1) 6BJ6 Sheldon ￥600 NIB 1) 6BJ6 USA ￥400 used
6BJ7 =Triple Diode= (EIA/9AX - noval) Eh/Ih=6.3V/0.45A PIV=330V Idc=1mA Ehk=100V 1) 6BJ7 GE ￥800 NIB D/C=56-17 VeryRaggedBox 1) 6BJ7 Syl ￥800 NIB 4) 6BJ7 Amprx ￥800 NIB(Q) 0) 6BJ7 Admiral(GE-made) ￥- NIB date=59-48(Qn) 3) 6BJ7 USA ￥800 NIB(Sn) 1) 6BJ7 USA ￥400 used
6BJ8 =duplex-Diode med-μ Triode= (EIA/9ER - noval) Eh/Ih=6.3V/0.6A Ehkmax=±200V(DC=+100Vmax) Twarmup=11sec (Design center) Triode : Ppmax=3.5W Epmax=300V/1200Vpulse Ecmax=+0V/-250V Ikmax=20mA/70mApeak Rgmax=1MΩ op : Ep=90V Ec=0V Ip=13.5mA rp=4.7kΩ gm=4.7mS μ=22 op : Ep=250V Ec=-9V Ip=8mA rp=4.7kΩ gm=4.7mS μ=20 Diode : Idmax=9mA-dc/54mA-peak op : Idc=50mA(@Ep=10V), Edrop=2.6V(@Id=9mA) (参考 : 三極部Ep-Ip特性(triode section)) also see higher μ types : 5R-DDH1(μ=100, Eh/Ih=4.7V/0.6A), 6BN8(μ=70, Eh/Ih=6.3V/0.6A) 3) 6BJ8 IEC-Mullard ￥800 NIB 2) 6BJ8 RCA ￥800 NIB 1) 6BJ8 RCA ￥800 NIB 3) 6BJ8 Syl ￥800 NIB 1) 6BJ8 CGE ￥800 NIB 2) 6BJ8 WH ￥800 NIB 5) 6BJ8 WH ￥800 NIB Japan
6BK4/6BK4B/6BK4C/6EL4A =Sharp Cutoff Beam Triode= octal(EIA/8GC - octal) Eh/Ih=6.3V/0.2A Ehk-max=-450V Rgmax=3MΩ 6BK4B/C : Ppmax=40W Epmax=27000V Ec-max=-135V/-440Vpeak Ipmax=1.6mADC, μ=2000-typ "Xray radiation rating"=1.5mR/h different-basing electrically-similar type : 6EN4 ◇ 40W beam triodes (octal): 6BK4B/C/6EL4A 6EN4 6LJ6/A/6LH6A ◇ 30W-40W beam triodes (compactron): 6EJ4/A 6HS5 6HV5/A 6HZ5 6JD5 6JH5 6JK5 2) 6BK4 Syl ￥2000 NIB very-ragged-box /old 1) 6BK4 Motorola ￥1000 used 101/54min VeryLittleGlass Discoloration 1) 6EL4 RCA ￥2000 NIB 6) 6BK4B RCA ￥- NIB (rhx1v9gg) 1) 6BK4B NEC ￥1500 NIB cellophane-sealed 3) 6BK4B Matsushita ￥1500 NIB 1) 6BK4B Matsushita ￥1500 NIB cellophane-sealed 2) 6BK4B Victor(=Matsushita) ￥1500 NIB Ragged-box 1) 6BK4B RCA ￥1000 usedLightly 1) 6BK4B RCA ￥1000 used 1) 6BK4B RCA ￥1000 used 4) 6BK4C/6EL4A National ￥3000 NIB 0) 6BK4C/6EL4A RCA ￥3000 NIB (hyy2v9m) 0) 6BK4C GE ￥- NIB (ghx1v7nt) 1) 6BK4C Syl ￥- NIB (hxx1z6nt) 1) 6BK4C SylECG ￥3000 NIB 0) 6BK4C/6EL4A WH ￥- NIB(vSn) 0) 6BK4C/6EL4A Lindal ￥- NIB(nD) 2) 6BK4C/6EL4A Realistic ￥3000 NIB 20) 6BK4C Inter-C ￥3000 NIB Japan(hyy14nn) 0) 6BK4C/6EL4A InterC ￥- NIB(vD) 2) 6BK4C Znth ￥3000 NIB 1) 6BK4C Amprx ￥3000 NIB 1) 6BK4C Mullard ￥3000 NIB 1) 6BK4C Philco ￥3000 NIB 1) 6BK4C Ray ￥3000 NIB 0) 6BK4C/6EL4A RCA,Amprx,GE,WH,Int,Syl,Zenith,Ray,Mag,ECG,WH,National etc ￥- NIB US-branded(hxx18fnk) 0) 6BK4C/6EL4A RCA ￥2000 NIB? 1) 6BK4C Magnavox ￥2000 NIB? 1) 6BK4C ElMenco ￥2000 NIB? CenterPin折れ 0) 6BK4C RCA ￥2000 NOS?/used? 120/54min WB 2) 6BK4C RCA ￥1500 VeryLightly-used/LikeNew 108,109/54min ガラス変色僅少 WB 3) 6BK4C RCA ￥1500 Lightly-used 100,101,102/54min ガラス変色僅か WB 0) 6BK4C USA ￥- Lightly-used(T) 2) 6BK4C RCA ￥1500 Lightly-used 94,97/54min ガラス変色僅か WB 2) 6BK4C RCA ￥1500 used 104/54min JustDiscolored WB 0) 6BK4C Sylvania ￥- Lightly-used WB(sQn) 4) 6BK4C Lindal ￥1500 used ガラス変色僅か VeryStrong 1) 6EL4A Silvertone ￥1000 used 102/54min 1) 6BK4C RCA ￥1000 used 110/54min CenterPin折 3) 6BK4C RCA ￥700 used 1) 6BK4C RCA ￥700 used 1) 6BK4C GE ￥1000 used 88/54min 1) 6BK4C GE ￥1000 used 1) 6BK4C Syl ￥1500 LightlyUsed 1) 6BK4C WH ￥1000 used 83/54min 1) 6BK4C Ray ￥1500 used 102/54min 1) 6BK4C Znth ￥1000 used 1) 6BK4C Magnavox ￥1000 used 1) 6BK4C - ￥700 used 0) 6BK4C/6EL4A USA(Syl,Zenith) ￥- used
6BK5 =Beam Power= (EIA/9BQ - noval) Eh/Ih=6.3V/1.2A Ehkmax=±100V Ppmax=9W Epmax=250V Pc2max=2.5W Ec2max=250V Rgmax=0.1MΩ(fixed)/0.5MΩ(self) op : Ep=Ec2=200V Ec1=-4V Ip=25mA Ic2=2.5mA rp=140kΩ gm=7.6mS Zl=7.0kΩ Po=2.0W D=6% op : Ep=Ec2=250V Ec1=-5V Ip=35/37mA Ic2=3.5/10mA rp=100kΩ gm=8.5mS Zl=6.5kΩ Po=3.5W D=7% size : 22.2mmΦ x 66.7mmH, in max (参考 : Ep-Ip特性(@Ec2=250V)) (参考 : 三結時のEp-Ip特性例(sample data plotted for triode connection)) heater variants : 12BK5(12.6V/0.6A), 25BK5(25V/0.3A) 1) 6BK5 RCA ￥700 NIB 1) 6BK5 RCA ￥700 NIB 1) 6BK5 GE ￥700 NIB 青箱 1) 6BK5 GE ￥600 NIB 1) 6BK5 GE ￥600 NIB 3) 6BK5 Syl ￥600 NIB 1) 6BK5 Znth ￥600 NIB 1) 6BK5 GE ￥400 NOS? 4) 6BK5 Toshiba ￥600 NIB 薄茶silk, 3pcs = still cellophane-sealed 4) 6BK5 Toshiba ￥600 NIB 薄茶silk, just-ragged bpxes 2) 6BK5 USA ￥400 used BlkPlate 1) 6BK5 USA ￥400 used
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6BK6 =duplex Diode High mu Triode= (EIA/7BT - miniature) Eh/Ih=6.3V/0.3A Ehkmax=90V Epmax=300V op : Ep=250V Ec=-2V Ip=1.2mA rp=62.5kΩ gm=1.6mS μ=100 see same basing similar types 6AV6(μ=100) also see same basing and lower mu type : 6AQ6(μ=70), 6AT6(μ=70), and 6BF6(μ=16) 1) 6BK6 RCA ￥700 NIB +++ 1) 6BK6 USA ￥600 NOS
6BK7/A/B =med-mu VHF Twin Triode= (EIA/9AJ - noval) 6BK7A/B : Ppmax=2.7W Epmax=300V Ecmax(-)=-50V Ehkmax=±200V(DC+100V) Eh/Ih=6.3V/0.45A 6BK7 : Ehkmax=±90V op : Ep=150V Rk=56Ω Ip=18mA rp=4.6kΩ gm=9.3mS μ=43 (参考 : Ep-Ip特性) heater variant : 5BK7A/B(4.7V/0.6A) similar types with same base : 6BQ7A / 6BZ7, 6DJ8 1) 6BK7 RCA ￥1000 NIB 1) 6BK7A USA ￥800 NIB D/C=513 6) 6BK7A USA ￥800 NIB 3) 6BK7B RCA ￥1000 NIB (vQ) 0) 6BK7B RCA ￥1000 NIB MB(vD) 1) 6BK7B RCA ￥800 NOS Syl箱 27) 6BK7B GE ￥800 NIB 1) 6BK7B TRAM(GE-made) ￥800 NOS D/C=7726 7) 6BK7B Syl ￥800 NIB MB 7) 6BK7B Syl ￥800 NIB 2) 6BK7B Tsol ￥1000 NIB 6) 6BK7B Tsol ￥1000 NIB MB date=10/64 1) 6BK7B CBS ￥800 NIB MB 3) 6BK7A USA ￥400 used
6BL7/6BL7GT/6BL7GTA =Twin Power Triode= (EIA/8BD - octal) Eh/Ih=6.3V/1.5A Ehkmax=±200V(+100VDC) Ppmax=10W(パラ接続時は2ユニットで12W) Epmax=500V Ikmax=60mA Rgmax=4.7MΩ op : Ep=250V Ec=-9V Ip=40mA gm=6.2mS rp=2.15kΩ μ=15 (参考1 : RCA-6BL7GTのEpIp特性) (参考2 : GE-6BL7GTAのEpIp特性) also see 6BX7GT(rp=1.3kΩ, μ=10) 4) 6BL7GT RCA ￥2700 NIB ThickBase BlkPlates 1) 6BL7GTA RCA ￥2400 NIB ThickBase BlkPlates(T) 1) 6BL7GTA RCA ￥2400 NIB ThickBase BlkPlates 2) 6BL7GTA RCA ￥2400 NIB ThickBase BlkPlates SideGtr (Qn) 4) 6BL7GTA RCA ￥2400 NIB ThickBase BlkPlates SideGtr 3) 6BL7GTA RCA ￥2400 NIB ThickBase BlkPlates SideGtr 5) 6BL7GTA RCA ￥2400 NIB ThickBase BlkPlates SideGtr 1) 6BL7GTA RCA ￥2400 NIB CoinBase BlkPlates SideGtr 1) 6BL7GTA RCA ￥2400 NIB CoinBase BlkPlates SideGtr 1) 6BL7GTA RCA ￥2400 NIB CoinBase BlkPlates SideGtr CoinBase 2) 6BL7GT GE ￥2700 NIB D/C=2-30(1952) ThickBase BlkPlates TopGtr 青箱 2) 6BL7GT GE ￥2700 NIB ThickBase BlkPlates 1) 6BL7GT Motorola(GE-made) ￥2700 NIB ThickBase BlkPlates 7) 6BL7GTA GE ￥2400 NIB ThickBase BlkPlates TopGtr(hyy1v0ns) 1) 6BL7GTA GE ￥2400 NIB ThickBase BlkPlates TopGtr 1) 6BL7GTA WH(GE-made) ￥2400 NIB ThickBase BlkPlates TopGtr 1) 6BL7GTA CBS(GE-made) ￥2400 NIB ThickBase BlkPlates TopGtr 7) 6BL7GTA Znth(GE-made) ￥2400 NIB ThickBase BlkPlates TopGtr ** 3) 6BL7GTA GE ￥2000 NIB ThickBase GrayPlates 11) 6BL7GTA GE ￥2000 NIB ThickBase GrayPlates TopGtr 13) 6BL7GT Syl ￥2700 NIB ThickBase BlkPlates Top D-gtr date=413 VeryOld(hxx1v8nt) 1) 6BL7GT Syl ￥2700 NIB TopGtr ThickBase BlkPlates old 1) 6BL7GT Syl ￥2700 NIB ThickBase BlkPlates MB date=8-59 1) 6BL7GT Syl ￥2700 NIB ThickBase BlkPlates 3) 6BL7GTA Syl ￥2500 NIB ThickBase BlkPlates 1) 6BL7GTA Syl ￥2500 NIB ThickBase BlkPlates ガラスがBaseに対して曲がっている 1) 6BL7GTA Syl ￥2500 NIB ThickBase TopGtr BlkPlates 1) 6BL7GTA Syl ￥2500 NIB ThickBase TopGtr BlkPlates ** 2) 6BL7GTA Znth(Syl-made) ￥2500 NIB ThickBase TopGtr BlkPlates old-type ** 2) 6BL7GTA Tsol ￥2500 NOS ThickBase TopGtr BlkPlates RCA箱 1) 6BL7GTA Tsol ￥2500 NIB ThickBase BlkPlates 1) 6BL7GTA Tsol ￥2500 NIB ThickBase BlkPlates ** 1) 6BL7GTA WH ￥2500 NIB ThickBase BlkPlates 1) 6BL7GTA Ray ￥2500 NIB ThickBase BlkPlates SideGtr 1) 6BL7GTA Silvertone ￥2500 NIB ThickBase BlkPlates 1) 6BL7GTA IEC-Mullard ￥2500 NIB ThickBase BlkPlates 5) 6BL7GTA NEC ￥2500 NIB same lot, ThickBase TopGtr GrayPlates 1) 6BL7GT RCA ￥1700 used BlkPlate gm=7350/7500/4400 1) 6BL7GT RCA ￥1700 NOS? BlkPlate RCA箱 1) 6BL7GT GE ￥1700 used BlkPlate RCA箱 1) 6BL7GT GE ￥1600 usedLikeNew BlkPlate date=5726 -) 6BL7GT Syl ￥- used RibbedFlatBlkPlates 50/22/25min =rare= 1) 6BL7GT WH ￥1000 used BlkPlate 1) 6BL7GT Syl ￥1000 used BlkPlate gm=5200/5100/4400 1) 6BL7GT Syl ￥1000 used BlkPlate RCA箱 1) 6BL7GT Ray ￥1700 used BlkPlate gm=7450/7300/4400 1) 6BL7GT ? ￥1200 used BlkPlates 6700/7200 1) 6BL7GTA RCA ￥1000 used BlkPlate
6BL8
6BM6/A =broadband reflex Klystron= (EIA/- ) Eh/Ih=6.3V/0.65A Resonator volt.=350Vdc-max, Resonator current=29mAdc-max, Reflector volt.=-700-1ts-dc-max to -15Vdc-min Pinput=10Wmax, Tseal=175℃max pins : 1(cont.electrode)-2(H)-3(K)-4(H)-LowRing(1st Resonator)-UpperRing(2nd Resonator)-Top(Reflector) 1) 6BM6 Sylvania used ￥3000 WB
6BM8/ECL82
6BN4/A =VHF med-mu Triode= (EIA/7EG - miniature) Eh/Ih=6.3V/0.2A Ehkmax=±100V Twarmup=- Ppmax=2.2W Epmax=275V Ikmax=22mA Rgmax=500kΩ op : Ep=150V Rk=220Ω Ip=9mA rp=5.4kΩ gm=7.7mS μ=43 (参考 : Ep-Ip特性) heater variant : 2BN4/A(2.35V/0.6A), 3BN4/A(3V/0.45A) 1) 6BN4 RCA ￥900 NIB 1) 6BN4A RCA ￥900 NIB 5) 6BN4A GE ￥800 NIB date=7/1964 VeryRaggedBox 1) 6BN4A Lindal(GE-made) ￥800 NIB 1) 6BN4A Syl ￥800 NIB 1) 6BN4A Tsol ￥800 NIB RaggedBox 3) 6BN4A USA ￥800 NIB (hyydv) 1) 6BN4A USA ￥800 NOS? WH箱
6BN5 =Power Pentode=(EIA/9CR - noval) Eh/Ih=6.3V/0.2A Ehkmax=100V Ppmax=6W Epmax=300V/550V-cutoff Pc2max=1W Ec2max=300V/550V-cutoff Ikmax=35mA Rg1max=2MΩ op : Ep=200V Ec2=200V Rk=360Ω Ip=22.5mA Ic2=3.5mA gm=3.5mS μg2g1=11 op(A1s) : Ep=225V Ec2=225V Rk= 360Ω Ip=26mA Ic2=4.1mA Zl=9kΩ Po=2.8W D=12% op(AB1pp): Ep=250V Ec2=250V Rk= 310Ω Ip=40/44mA Ic2=6.4/13.4mA Zlpp=15kΩ Po=7.0W D=5.5% op(B1pp) : Ep=250V Ec2=250V Ec=-22.5V Ip=10/40mA Ic2=1.6/13.0mA Zlpp=16kΩ Po=6.5W D=5.5% pins(on August 1954): 1(NC)-2(G1)-3(KG3)-4(H)-5(H)-6(NC)-7(P)-8(KG3)-9(G2) pins(on April 1956～) : 1(G1)-2(G1)-3( K ) - 4(H)-5(H)-6(G3)-7(P)- 8( G3 )-9(G2) size : 22.2mmΦ x 67mmH, in max see same base & electrically identical type : EL85 0) 6BN5 Mullard ￥- NIB 2) 6BN5 Mullard,PhilipsMiniwatt(Mullard-made) ￥1700 NIB made in Gt.Britain, GlassBottomFrange, just-ragged boxes 2) 6BN5 PhilipsMiniwatt,Mullard(Mullard-made) ￥1700 NIB made in England, D/C=B3I5, B5K2, just-ragged boxes 2) 6BN5 Mullard ￥2200 NIB Mold Base, slim-glass, just-ragged boxes
6BN6 =gated-beam Discriminator= (EIA/7DF - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±200V(DC=+100Vmax) Epmax=330V Ec1max(Limiter-grid)=+60V Ec2max(Accelerator-grid)=110V Ec3max(Quadrature-grid)=-V Ikmax=13mA (参考: EpIp特性例(@Ec1=+3V, Ec2=+60V)) heater variant : 3BN6(3.15V/0.6A), 4BN6(4.2V/0.45A), 12BN6(12.6V/0.15A) identical to 6KS6 4) 6BN6 RCA ￥1000 NIB 1) 6BN6 GE ￥1000 NIB 青箱 5) 6BN6 GE ￥800 NIB MB 1) 6BN6/6KS6 CGE ￥800 NIB made in Japan 1) 6BN6 Syl ￥800 NIB 2) 6BN6 Syl ￥800 NIB 1) 6BN6 Syl ￥800 NIB 1) 6BN6 Tsol ￥800 NIB 1) 6BN6 Znth ￥800 NIB 1) 6BN6 Philco ￥800 NOS Syl箱 1) 6BN6 Electrohome ￥800 NOS made in Japan, Syl箱 1) 6BN6 WH ￥700 NOS? RCA箱 17) 6BN6/6KS6 USA ￥800 NIB 6) 6BN6 USA ￥800 NOS/NIB 1) 6BN6 Toshiba ￥800 NOS NHK-marked WB 1) 6BN6 USA ￥400 used
6BN7 =Double Triode= (EIA/9BT - noval) Eh/Ih=6.3V/0.75A Ehkmax=200V (unit1) Ppmax=7.5W Epmax=400V/1500V-peak Ec-max=-50V/-200Vpulse Rgmax=2.2MΩ op : Ep=250V Ec=-15V Ip=24mA gm=5.5mS μ=12 (unit2) Ppmax=1.5W Epmax=400V Ec-max=-50V/-200Vpulse Rgmax=2.2MΩ op : Ep=120V Ec=-1V Ip=5mA gm=2mS μ=28 pin = 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1K)-7(1G)-8(NC)-9(1P) size : 22.2mmΦ x 66.7mm, in max 1) 6BN7 InterC ￥1200 NIB
6BN8 =duplex Diode High mu Triode= (EIA/9ER - noval) Eh/Ih=6.3V/0.6A Ehk=±200V(DC=+100Vmax) (Design-max) Triode : Ppmax=1.7W Epmax=330V Ec1max=+0V Rgmax=1MΩ op : Ep=100V Ec=-1V Ip=1.5mA rp=21kΩ gm=3.5mS μ=75 op : Ep=250V Ec=-3V Ip=1.6mA rp=28kΩ gm=2.5mS μ=70 Diode : Idcmax=9mA Idc-peakmax=54mA (参考 : 三極部Ep-Ip特性(triode section)) similar to 5R-DDH1(μ=100, Eh/Ih=4.7V/0.6A) = small-power version of 6BN8 also see a same-base med-mu type : 6BJ8(μ=20, Eh/Ih=6.3V/0.6A) also see a European common cathode twin-diode + lower-gm triode type : EBC81(gm=1.2mS, μ=70) also see a European common cathode twin-diode + lower-gm triode rimlock type : EBC41(gm=1.2mS, μ=70) also see a TripleDiode + lower-gm triode type : 6T8/A(6.3V/0.45A, gm=1.2mS, μ=70) 3) 6BN8 RCA ￥1200 NIB 2) 6BN8 RCA ￥1000 NOS Syl軍箱 1) 6BN8 RCA ￥1000 NIB 1) 6BN8 GE ￥1000 NIB 2) 6BN8 GE ￥1000 NIB(T) 2) 6BN8 Syl ￥1000 NIB(vQ) 3) 6BN8 Syl ￥1000 NIB 1) 6BN8 Syl ￥1000 NIB D/C=7139 軍箱 3) 6BN8 Znth ￥1000 NIB 1) 6BN8 Toshiba ￥1000 NOS D=NickelPlates T=GreyPlate plain-box 1) 6BN8 Matsushita ￥1000 NIB D=GreyPlates T=GreyPlate ragged-box 1) 6BN8 RCA ￥600 LikeNew GE箱 2) 6BN8 Toshiba ￥600 lightly-used D=NickelPlates T=GrayPlate 1) 6BN8 Toshiba ￥600 lightly-used D=NickelPlates T=GrayPlate 1) 6BN8 Toshiba ￥600 like new, NHK D/C=1972.11, D=NickelPlates T=GrayPlate 1) 6BN8 Toshiba ￥500 used D=NickelPlates T=GrayPlate 8) 6BN8 Toshiba ￥500 used D=NickelPlates T=GrayPlate 8) 6BN8 Toshiba ￥500 used D=NickelPlates T=GrayPlate 1) 6BN8 Toshiba ￥500 used D=NickelPlates T=GrayPlate 1) 6BN8 Olympic(Toshiba-made) ￥500 used made in Japan 2) 6BN8 NEC ￥500 used D=NickelPlates T=GrayPlate 1) 6BN8 Matsushita ￥500 used D=NickelPlates T=GrayPlate 2) 6BN8 Hitachi-made ￥500 used D=NickelPlates T=GrayPlate 2) 6BN8 Hitachi-made ￥500 used D=NickelPlates T=GrayPlate 4) 6BN8 General(Japan) ￥500 used D=GrayPlates T=GrayPlate
6BN11 =Twin sharp-cutoff Pentode= (EIA/12GF - compactron) Eh/Ih=6.3V/0.8A Ehkmax=±200V Ppmax=3.1W Epmax=330V Pc2max=0.65w Ec2max=330V Rg1max=250kΩ op : Ep=125V Ec2=125V Rk=56Ω Ip=11mA Ic2=3.8mA rp=200kΩ gm=13mS (参考 : Ep-Ip特性) pins: 1(H)-2(2K)-3(2G1)-4(2G2)-5(2P)-6(2G3,2IS)-7(1G1)-8(1K)-9(1G2)-10(1G3,1IS)-11((1P)-12(H) see a heater variant : 8BN11(8.4V/0.6A) see electrically almost-same Twin sharp-cutoff Pentode : 6J11 also see similar Twin sharp-cutoff Pentode : 6BV11 12BV11 also see Twin remote-cutoff Pentode : 6AR11 11AR11 4) 6BN11 RCA ￥1400 NIB 4) 6BN11 GE ￥1200 NIB 1) 6BN11 Syl ￥1200 NIB 1) 6BN11 Znth ￥1200 NIB 2) 6BN11 Admrl ￥1200 NIB
6B-P16/6BP16 =VHF high-gm communication-SQ power tetrode= (EIA/- Magnoval)Eh/Ih=6.3V/0.55A Fmax=236MHz op : Ep=150V Ec2=150V Rk=27Ω Ip=46.5mA Ic2=20mA rp=14kΩ gm=26mS pins : 1(H)-2(P)-3(NC)-4(K,IS)-5(G2)-6(H)-7(NC)-8(G1)-9(K,IS) size: 29.2mmΦ x 50mmH, in max (6B-P16 = WE 418A) also see different-base similar types : 6B-R22, WE-436A, WE-448A also see different-pinout higher-gm Magnoval pentodes : 8233 / E55L(Ppmax=10W, gm=50mS), 8608(top plate) (参考 * NTT-ECL related high-rel, long-life, high-performance communication system receiving tubes * 6B-P16 (ECL-1179), 6B-R22 (ECL-1144), 6B-R23 (ECL---), 6R-H2 (ECL-1175) 6R-P10 (ECL-1071), 6R-R8 (ECL-1083), 6R-R21 (ECL-1084), 19M-R9 (ECL-1069), 12RLL3 (ECL-1134B) 19M-R10 (ECL-1135), 19R-LL1 (ECL-1134), 19R-P11 (ECL-1070), CZ-501D/V, CZ-504D/V) 1) 6B-P16 NEC ￥offer NIB red-silk 0) 6B-P16 NEC ￥- 通測 電電公社向け used 0) 6B-P16 NEC ￥- 通測 used 1) 6B-P16 NEC ￥offer used red-silk, D/C=1965-1, gm=19mS/13mS-min Ik=53.3mA (on KS-15750-L1) (hyyQQX) 1) 6B-P16 NEC ￥offer used yellow-silk, D/C=1970-7, gm=19.5mS/13mS-min Ik=55.9mA (on KS-15750-L1) (hyyQQX) 6B-P16 testing view(self-biased by Rk=27Ω) 3) 6B-P16 NEC ￥offer like-NOS red-silk, D/C=1065-6, 1965-6, 1961-6 WB 4) 6B-P16 NEC ￥offer used red-silk, D/C=1961-12, 1965-7, 1965-7, 1961-12 WB gm/Ik=18.5mS/49mA, 18.5mS/46mA, 19mS/47mA, 20mS/55mA (where gm-min=13mS on KS-15750-L1) 4) 6B-P16 NEC ￥offer used yellow-silk, D/C=1970-3, 1972, 1972-8, 1973-1 WB gm/Ik=19mS/52mA, 19mS/47mA, 19.5mS/52mA, gm=19.5mS/54mA (where gm-min=13mS on KS-15750-L1) 4) 6B-P16 NEC ￥offer used yellow-silk, D/C=1973-9, 1968-1, 1976-12, xxxx WB gm/Ik=19.7mS/56mA, 20mS/54mA, 20.5mS/62mA, 20.5mS/56mA (where gm-min=13mS on KS-15750-L1) 5) 6B-P16 NEC ￥offer used yellow-silk, D/C=1968-3, 1968-9, 1968-9, 1969-5, 1969-12 WB 4) 6B-P16 NEC ￥offer used yellow-silk, D/C=1970-3, 1970-3, 1970-11, 1970-3 WB 3) 6B-P16 NEC ￥offer used yellow-silk, D/C=1971-5, 1973-7, 1973-9 WB 1) 6B-P16 NEC ￥offer used yellow-silk, D/C=1973-10 WB 5) 6B-P16 NEC ￥offer used yellow-silk, D/C=1974-1, 1974-7, 1974-12, 1975-9 WB 1) 6B-P16 NEC ￥offer used yellow-silk, D/C=1974-3 1) 6B-P16 NEC ￥offer used smeared-out silk WB 1) 6B-P16 NEC ￥- used red-silk, D/C=1961-6, weak(gm=7500/13000min Ik=29.5mA), WB 2) 6B-P16 NEC ￥- used yellow-silk poor getter-flash etc. WB 3-sets) sockets+radiators *** ￥- used w/o socket-fixtures (hyyQQX)
6BQ5/EL84/E84L9750,9850,10000/5650min Ip=47mA,47mA,50mA(539B) 8) 6BQ5/EL84 Philips(Mullard-made) ￥６９００ Bcoded NIB 0) 6BQ5/EL84 GE(Mullard-made) ￥- NIB(Q) 0) EL84 Mullard ￥- used(Q) 0) EL84 3M(Mullard-made) ￥- used 1) 6BQ5 Syl(Mullard-made) ￥5300 NOS? WB 1) 6BQ5 Lafayette(Mullard-made? same construction as above) ￥4000 used? WB 0) EL84/6BQ5 Brimar ￥- NIB(D) 0) EL84 Brimar ￥- used 0) EL84 TFK ￥- NIB CellophaneSealed NeverOpened/NotTested(T) 0) EL84 TFK ￥4300 NIB no<>(D) 4) EL84 TFK ￥3500 used <> 1) EL84 TFK ￥2500 used 7900/5650min 1) EL84 TFK ￥2000 TFK元箱 5) EL84 Siemens ￥4700 NIB(Nn) 6) EL84 Valvo ￥4700 NIB(Aht) 2) EL84 Valvo ￥4600 used CleanGlass GoodPrint 56mA,52mA/28mAmin(W19) 2) EL84 Valvo ￥4800 used CleanGlass GoodPrint 52mA,50mA/28mAmin(W19) 2) EL84 Valvo ￥4600 used CleanGlass GoodPrint 48mA,48mA/28mAmin(W19) 2) EL84 Valvo ￥4100 used CleanGlass GoodPrint 42mA,42mA/28mAmin(W19) 1) EL84 Valvo ￥3000 used Print50% 42mA/28mAmin(W19) 1) EL84 Valvo ￥1500 used Print50% 34mA/28mAmin(W19) 0) 6BQ5/EL84 Amperex BugleBoy @￥-/pc used "Like New" ￥11,400/2-pcs made in Holland RingHaloGetter 近接/同一ロット GrayPlate near-non-GlassDiscoloration, print=90,90,90,90%, WB gm=79.5,80(新品同等)/50min on TV-7B/U (gm-matched)(D) 0) 6BQ5/EL84 Amperex BugleBoy @￥- used "Like New" made in Holland RingHaloGetter 近接/同一ロット GrayPlate near-non-GlassDiscoloration, print=90,90,90,90%, WB gm=83,83(新品同等)/50min on TV-7B/U (gm-matched)(D) 0) 6BQ5/EL84 Amperex BugleBoy @￥5700/pc used "Like New" ￥22800/4-pcs made in Holland RingHaloGetter 近接/同一ロット GrayPlate near-non-GlassDiscoloration, print=75,90,90,90%, WB gm=83,84,84,84(新品同等)/50min on TV-7B/U (gm-matched) 1) EL84/6BQ5 Amperex BugleBoy ￥5400 used "Like New" made in Holland RingHaloGetter GrayPlate near-non-GlassDiscoloration print=90% WB gm=82(新品同等)/50min(TV-7B/U) 1) EL84/6BQ5 Amperex BugleBoy ￥2500 used made in Holland RingHaloGetter GrayPlate near-non-GlassDiscoloration print=10% WB gm=62/50min(TV-7B/U) 1) EL84/6BQ5 PackardBell(Amperex-made) ￥3300 used made in Holland print=10% WB gm=10130/5650min Ip=47mA(539B) 1) EL84/6BQ5 PackardBell(Amperex-made) ￥2700 used made in Holland print=10% WB gm=8800/5650min Ip=45mA(539B) 1) EL84/6BQ5 StrombergCarlson ￥1800 used glass変色少 made in Holland RingHaloGetter GrayPlate print=15%, WB gm=70/50min 2) EL84/6BQ5 StrombergCarlson ￥1600 used glass変色少 made in Germany RingHaloGetter GrayPlate WB gm=64,67/50min 1) EL84/6BQ5 StrombergCarlson ￥1800 used made in Germany RingHaloGetter GrayPlate WB gm=72/50min 2) 6BQ5/EL84 RCA ￥3900 NIB * (rhy2x2nt) 5) 6BQ5 CMI(RCA-made) ￥3700 NOS DiskGtr gm=11000,10800,10850,10640,11200/5650min Ip= 44,43,47,49,46mA(539B) 0) 6BQ5 RCA ￥- NIB/NOS (hyyanx) 0) 6BQ5/EL84 RCA ￥- NIB(D) 1) 6BQ5/EL84 RCA ￥3700 NIB gm=11750/5650min 1) 6BQ5 RCA ￥3700 NIB VeryRaggedBox 2) 6BQ5 RCA ￥1700 used 7700,8250/5650min DiskGetter Top薄 NonGas NonShort Emission安定 0) 6BQ5 RCA ￥1700 used(D) DiskGetter Top薄 NonGas NonShort Emission安定 (note) RCA 6BQ5 旧管種/DiskGetter品は新品状態でガラス管壁にスス/黒ずんだ帯(CarbonSoot)があります。 0) 6BQ5/EL84 GE ￥3100 NIB (vQ) 2) 6BQ5 PackardBell(GE-made) ￥3100 NOS ElMenco箱 gm=11200,11550,11000,10250/5650min(vQ) 1) 6BQ5 CGE ￥2700 NIB Japan 1) 6BQ5 GE ￥2200 used WB gm=10750/5650min 1) 6BQ5 GE ￥1500 used WB gm=7850/5650min 1) 6BQ5 Philco(GEmade) ￥1500 used Syl箱 gm=6000/5650min 1) 6BQ5 GE ￥2200 NOS?used? Mullard箱 0) 6BQ5/EL84 Syl ￥3100 NIB MB (mD) 0) 6BQ5/EL84 Syl ￥3100 NIB BlkPlate (mD) 1) 6BQ5/EL84 Syl ￥3100 NIB 1) 6BQ5/EL84 Syl ￥3100 NIB BlkPlate 1) 6BQ5/EL84 Syl ￥3100 NIB BlkPlate gm=11500/5650min RaggedBox 1) 6BQ5 Syl ￥3100 NOS GE-boxed, BlkPlate 1) 6BQ5 STD-King(Syl) ￥3100 NIB 11200/5650min 1-quad) 6BQ5 Baldwin(Syl-made) ￥9000/quad used-lightly D/C=152(1961) BlkPlate gm/Iplate=8550μmho/38.5mA, 8100μmho/40mA, 8250μmho/39.5mA, 8400μmho/39.6mA 1-quad) 6BQ5 Baldwin(Syl-made) ￥9000/quad used-lightly D/C=152(1961) BlkPlate gm/Iplate=9300μmho/42mA, 9300μmho/43mA, 8500μmho/41.3mA, 9900μmho/43mA 1-quad) 6BQ5/EL84 Syl ￥9000/quad LightlyUsed date=7045(1970) Glass変色殆んどなし gm=10040,10000/5650min Ip=45.2mA,44mA, gm=9750,9700/5650min Ip=43mA,42.8mA 1) 6BQ5 Syl ￥2700 NOS 9500/5650min Ip=43.5mA GE箱 BlkPlate 1) 6BQ5 Syl ￥2700 NOS 9700/5650min Ip=46mA GE箱 GrayPlate 1) 6BQ5 Syl ￥2400 LightlyUsed 10050/5650min date=7045(1970) 1) 6BQ5 Syl ￥2200 used 9200/5650min Ip=45mA(539B) 1) 6BQ5 ?(Syl?) ￥2200 used 10300/5650min 1) 6BQ5/EL84 Tsol ￥3300 NIB 0) 6BQ5 WH ￥6300 NIB old (vD) 1) 6BQ5 Philco ￥2700 NOS GE-boxed, GrayPlate, D/C=5948 0) 6BQ5/EL84 Znth ￥- used made in Holland (strong) 1) EL84/6BQ5 Znth ￥1900 used made in Holland 9600/5650min 1) 6BQ5 Znth ￥2000 used made in Germany 13000/5650min Glass変色少 1) 6BQ5 Truetone ￥2700 NIB オリジナルGT-box 2) 6BQ5/EL84 Admrl ￥2700 NIB 5) 6BQ5 Lindal ￥2700 NIB 1) 6BQ5 Lafyette ￥2700 NOS WestGermany (Philips-made?) 1) 6BQ5 ? ￥2500 NOS Italy 1) 6BQ5 Magnavox ￥1900 used 11250/5650min made in Japan Glass変色少 0) EL84 ITT(Philips-made) ￥3000 NIB same-lot(T) 1) EL84 ITT ￥2700 NIB made in Japan 1) EL84 Triad ￥2700 NIB 1) EL84 Ray(Japan) ￥2700 NIB 2) 6BQ5 Toshiba ￥3000 NIB 1) 6BQ5 Toshiba ￥1500 used 2x1hole 1) 6BQ5 Toshiba ￥1500 used no-hole 1) 6BQ5 Toshiba ￥1500 used no-hole WB 4) 6BQ5 Matsushita ￥3000 NIB SilverBoxes 3) 6BQ5 Matsushita ￥3000 NIB RedBoxes 2) EL84 Matsushita ￥2700 used? Syl箱 gm=10010,10950/5650min 1) 6BQ5 Matsushita ￥2200 used 9750/5650min Ip=45.4mA(539B) 1) 6BQ5 Matsushita ￥2200 used-lightly 1) 6BQ5 Matsushita ￥2200 used-lightly gm=10500/5650min, Ip=45mA(Hickok-539B) 1) 6BQ5 Matsushita ￥2200 used-lightly gm=12500/6600min, Ip=40mA(tested on KS-15750-L1) 1) 6BQ5 Matsushita ￥2200 lightly-used lot=0G WB 4) 6BQ5-industrial(工業用) Matsushita ￥2200 lightly-used lot=6K,6K,7C,7C WB 1) 6BQ5 Matsushita ￥2200 lightly-used lot=0B WB 2) 6BQ5 Matsushita ￥2200 lightly-used lot=0G,0H WB 1) 6BQ5 Matsushita ￥2200 lightly-used lot=1E WB 1) 6BQ5 Matsushita ￥2200 lightly-used lot=8D WB 2) 6BQ5/EL84 Matsushita ￥2200 lightly-used lot=7K,7K WB 1) 6BQ5 ?(Matsushita-made) ￥2200 used 9750/5650min 1) 6BQ5 Matsushita ￥2000 used NHK D/C=1961-10, WB 2) 6BQ5 Matsushita ￥2000 lightly-used WB 2) 6BQ5 Matsushita ￥1500 used WB 0) 6BQ5 NEC ￥3000 NIB 2) 6BQ5 NEC ￥2500 used WB gm=9300,8800/5650min Ip=37.2,38mA print=80% 1) 6BQ5 NEC ￥1800 used WB 1) 6BQ5 Hitachi ￥3000 NIB 2) 6BQ5 Hitachi ￥1500 lightly-used (1pc=1966-5,1pc=silk is wiped-out)) 0) 6BQ5 Hitachi ￥1500 used WB 1) EL84 ? ￥1800 used gm=10250/5650min made in England 1) 6BQ5 ? ￥2200 used gm=10300/5650min made in Holland 1) 6BQ5 Silvertone(Japan) ￥1900 used 9300/5650min Ip=38mA(539B) 1) 6BQ5 Silvertone(Japan) ￥1300 used 7700/5650min Ip=32.3mA(539B) 1) 6BQ5 Silvertone(Japan) ￥1300 used 7500/5650min Ip=31.5mA(539B) 1) 6BQ5 Silvertone(Japan) ￥1000 used 6500/5650min Ip=31mA(539B) 1) EL84/6BQ5 Motorola ￥2200 used gm=10500/5650min made in Holland Glass変色少 1) 6BQ5 Ward SuperAirline ￥1900 used 10250/5650min Glass変色少 1) 6BQ5 Ward SuperAirline ￥1700 used 8930/5650min Glass変色少 1) 6BQ5 STD-King(Syl) ￥1500 used 8250/5650min 1) 6BQ5 ? ￥1300 used 7700/5650min 1) EL84 ? ￥1700 used 10800/5650min 1) 6BQ5/EL84 Webcor ￥800 used 8000/5650min PoorGetterFlash 1) 6BQ5/EL84 Ray ￥1500 used made in Japan 8700/5650min 1) 6BQ5 GM ￥1900 used 10300/5650min made in Japan 1) 6BQ5 GM ￥1500 used 8990/5650min made in Japan 1) 6BQ5 Baldwin ￥1700 used Japan
6BQ6GT/GA/GTB =Beam Power Pentode= Sweep Tubes(<30W) (EIA/6AM-octal-TopPlate) Eh/Ih=6.3V/1.2A Ehk=200V(dc+ac) Ppmax=11W Epmax=600V/6kVpeak Pc2max=2.5W Ec2max=200V Ikmax=110mA/400mApeak Rgmax=470kΩ Op: Ep=250V Ec2=150V Ec1=-22.5V gm=5.9mS rp=14.5kΩ Ip=57mA Ic2=2.1mA / μ=4.3(Triode-connection) also see 6CU6(=6BQ6GTA/GTB) heater variants : 12BQ6GTA/GTB(12.6V/0.6A), 17BQ6GTA/GTB(16.8V/0.45A), 25BQ6GTA/GTB(25V/0.3A) heater variants : 12CU6(12.6V/0.6A), 25CU6(25V/0.3A) 2) 6BQ6GT RCA ￥1200 NIB 21) 6BQ6GTB/6CU6 RCA ￥1000 NIB 1) 6BQ6GTA/6CU6 GE ￥1000 NIB 青箱 1) 6BQ6GTA/6CU6 GE ￥1000 NIB 青箱 RaggedBox 4) 6BQ6GTA/6CU6 GE ￥800 NIB 1) 6BQ6GTA/6CU6 Tsol ￥1000 NIB 9) 6BQ6GTA/6CU6 GE(2),Syl(5*),Ray(1),Philco(1),ChannelMaster(RCA)(1) ￥800 NIB 1) 6BQ6GTB/6CU6 GE ￥800 NIB 1) 6BQ6GTB GE ￥800 NIB 1) 6BQ6GTB/6CU6 Syl ￥800 NIB 2) 6BQ6GTB/6CU6 WH ￥800 NIB 1) 6BQ6GTB/6CU6 Ray ￥800 NIB 4) 6BQ6GTB/6CU6 Znth ￥800 NIB 2) 6BQ6GT RadTel ￥800 NIB 1) 6BQ6GTB ChannelMaster ￥800 NOS Perma-Test箱 1) 6BQ6GTB RCA ￥500 used GrayPlate WH箱 1) 6BQ6GTB/6CU6 Airline ￥400 used? Airline箱 4) 6BQ6GTA/GTB USA ￥400 used
6BQ7/6BQ7A =HF TwinTriode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.4A Ehkmax=±200Vpeak/±100Vaverage Ppmax=2W Epmax=250V Ikmax=20mA Rgmax=500kΩ op : Ep=150V Rk=220Ω Ip=9mA rp=5.9kΩ gm=6.4mS μ=38 (参考 : Ep-Ip特性) heater variants : 4BQ7A(4.2V/0.6A), 5BQ7A(5.6V/0.45A) pins : 2P-2G-2K-H-H-1P-1G-1K-IS(ユニット間シールド) almost-identical to 6BZ7 similar types with same base : 6BK7A/B, 6DJ8 similar to 6BS8 27) 6BQ7A RCA ￥1000 NIB 2) 6BQ7A RCA ￥1000 NIB 1) 6BQ7A RCA ￥1000 NIB made for Knight 1) 6BQ7A RCA ￥1000 NOS GE箱 8) 6BQ7A/6BZ7/6BS8 RCA ￥800 NIB 1) 6BQ7A/6BZ7 RCA ￥800 NIB - mint 1) 6BQ7A GM(GE-made) ￥800 NIB 1) 6BQ7A Syl ￥800 NIB 2) 6BQ7A Ray ￥800 NIB 16) 6BQ7A/6BZ7 GE,Syl(Q),ITT(1),etc ￥700 NIB 3) 6BQ7/A RCA ￥700 NOS Bulk 1) 6BQ7/A GE ￥800 NIB MB 3) 6BQ7A Syl ￥800 NIB MB 1) 6BQ7A Syl ￥700 NOS 1) 6BQ7A Znth ￥800 NIB 2) 6BQ7A Ultron ￥800 NIB 3) 6BQ7A NEC ￥800 like-new/lightly-used NHK, 通測用 WB 1) 6BQ7A Philco ￥600 NOS? 1) 6BQ7 Ray ￥350 used? Std箱 1) 6BQ7 Mullard ￥500 used 2) 6BQ7A WH ￥400 used BlkPlates 1) 6BQ7A RCA ￥400 used 10) 6BQ7A USA ￥400 used gm=8600/8250, 7000/7100, 6000/6250, 5550/7400 where the allowable is 4000min 6) 6BQ7/A GE,Sylvania ￥350 used
6BR3/6RK19 =Rectifier= (EIA/9CB - noval-TopCathode) Eh/Ih=6.3V/1.2A Ppmax=6.5W PIV=5000V Idcmax=200mA Edrop=19V(@Idc=250mA) equivallent type : 6R-K19 similar to : 6AF3 heater variants : 12R-K19(12.6V/0.6A) 17BR3(16.8V/0.45A) * 9CB-base 'Top-Cathode' noval(9-pin MT) halfwave rectifiers with similar rating: 6AF3 6AL3 6BR3 6R3 6R-K19 EY81 EY88 16AQ3 30AE3 1) 6BR3/6RK19 RCA ￥1500 NIB
6BR5(=EM80) =AM Tuning Indicator= (EIA/9DB - noval) Eh/Ih=6.3V/0.3A Ppmax=0.5W Epmax=300V Vlmax=300V Vlmin=165V Ikmax=3mA Rgmax=3MΩ Ehkmax=100V 2) 6BR5 Westinghouse ￥2700 NIB made in Holland green-boxes 4) 6BR5/EM80 Standard ￥2700 NIB made in Holland green-boxes
6BR7 / CV4006 =low-noise, low-microphonic AF Pentode= (EIA/9BC - noval) Eh/Ih=6.3V/0.15A Ppmax=0.75W Epmax=300V Pc2max=0.3W Ec2max=125V Triode connection : Ppmax=1.75W Epmax=250V op(pentode con.) : Ep=250V Ec2=100V Ec1=-3V Ip=2.1mA Ic2=0.6mA rp=2.3MΩ gm=1.25mS μg1g2=20 op(triode con.) : Ep=250V Ec1=-8V Ip=6.5mA rp=11.6kΩ gm=1.72mS μ=20 for triode-connection : similar to 6C5/6C5G 参考 : 三極管接続時のEp-Ip特性 pins : 1(NC)-2(G1)-3(K)-4(H)-5(H)-6(shield)-7(P)-8(G2)-9(G3) high-rel. / military version : 6059 similar to 6BS7(Top-G1 type) see different base, low-noise European pentodes : E80F / 6084 EF806S 6267/EF86 also see different base, low-noise European pentodes : CV2901 CV4085 also see a different base, low-noise American pentode : 5879 2) 6BR7 Brimar ￥3700 NIB made in England ('Brimar' = one of STC brand's) 9) CV4006 / 6BR7 Brimar ￥3700 NIB made in England 6) 6BR7 Brimar ￥3700 NIB made in England 0) 6BR7 Brimar ￥- used WB
6BR8/A =med-mu Triode + sharp-cutoff Pentode= (EIA/9FA - noval) Eh/Ih=6.3V/0.45A Ehkmax=±200V Pentode: Ppmax=2.8W Epmax=300V Pc2max=0.5W Ec2max=300V op : Ep=250V Ec2=110V Rk=68Ω Ip=10mA Ic2=3.5mA rp=400kΩ gm=5.2mS Triode : Ppmax=2.7W Epmax=300V Rgmax=-MΩ op : Ep=150V Rk=56Ω Ip=18mA rp=5kΩ gm=8.5mS μ=40 heater variant : 5BR8(4.7V/0.6A) similar to : 6FV8/A, 6JN8 1) 6BR8A RCA ￥800 NIB 1) 6BR8A/6FV8A RCA ￥800 NIB 1) 6BR8A GE ￥800 NIB 1) 6BR8A GE ￥800 NIB 5) 6BR8/A/6FV8A RCA,GM,Syl,Tsol ￥700 NOS/NIB (Qn) 1) 6BR8A Philco ￥400 used

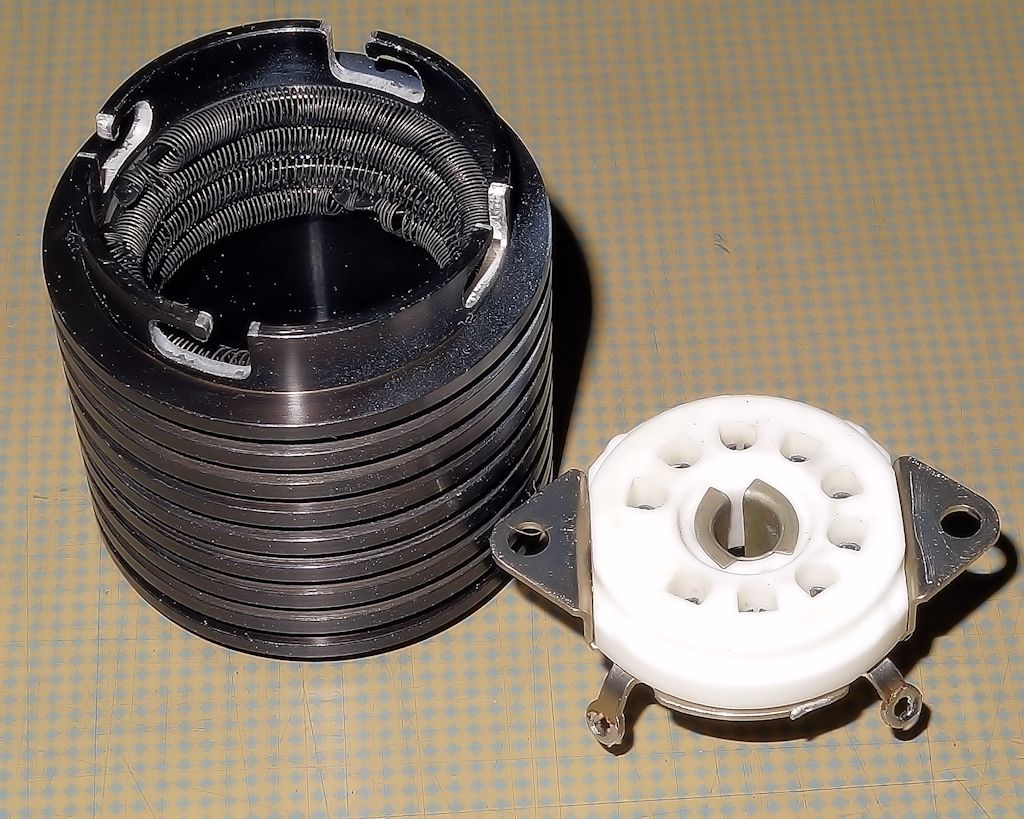

6B-R22/6BR22=high-gm VHF communication-SQ power tetrode= (EIA/- Magnoval)Eh/Ih=6.3V/0.45A Fmax=275MHz op : Ep=135V Ec2=135V Rk=323Ω(Ec1≒-10V) Ip=25mA Ic2=8.7mA rp=45kΩ gm=31.5mS pins: 1(P)-2(NC)-3(K)-4(G1)-5(H)-6(K)-7(K)-8(H,IS)-9(G2) size=29.2mmΦ x 50mmH, in max (参考: 三結時のEp-Ip特性サンプル(triode-connection EpIp-curve - typical sample)) (6B-R22 = Western Electric 448A) =ECL-1144 (ECL=Electrical Communication Laboratories=電電公社-電気通信研究所/通研) which was developed on 1959 by Musashino ECL and NEC. also see different-base similar types : 6B-P16, WE-418A, WE-436A also see different-pinout higher-gm Magnoval pentodes : 8233 / E55L(Ppmax=10W, gm=50mS), 8608(top plate) (参考 * NTT-ECL related high-rel, long-life, high-performance communication system receiving tubes * 6B-P16 (ECL-1179), 6B-R22 (ECL-1144), 6B-R23 (ECL---), 6R-H2 (ECL-1175) 6R-P10 (ECL-1071), 6R-R8 (ECL-1083), 6R-R21 (ECL-1084), 19M-R9 (ECL-1069), 12RLL3 (ECL-1134B) 19M-R10 (ECL-1135), 19R-LL1 (ECL-1134), 19R-P11 (ECL-1070), CZ-501D/V, CZ-504D/V) 5) 6B-R22 NEC ￥offer 通測 NIB red-silk 3) 6B-R22 NEC ￥offer used red-silk D/C=1966-8, 1965-3, 1965-3 (hyyQQX) gm/Ik=27.0mS/38.1mA, 25.0mS/31.5mA, 28.6mS/36.3mA (on KS-15750-L1 w/Rk=47Ω) 6B-R22 testing view (tested under self-bias with Rk=47Ω, function-swithes = JV-41970, and Lo-30 range) 1) 6B-R22 NEC ￥offer lightly-used red-silk D/C=1961-6 WB 2) 6B-R22 NEC ￥offer used red-silk D/C=1961-4, 1961-5 gm/Ik=26.7mS/32mA, 27.5mS/42mA (on KS-15750-L1 w/Rk=47Ω) (hyyg2x) 2) 6B-R22 NEC ￥offer used red-silk D/C=1961-10, 1961-10 WB 2) 6B-R22 NEC ￥offer used red-silk D/C=1961-11, 1961-11 WB 3) 6B-R22 NEC ￥offer used red-silk D/C=1962-4, 1963-10, 1964-7 gm/Ik=20mS/31mA, 25.7mS/31mA, 24mS/32mA (on KS-15750-L1 w/Rk=47Ω) (hyya3t) 1) 6B-R22 NEC ￥offer used red-silk D/C=1963-4 gm/Ik=26.5mS/30.5mA (on KS-15750-L1 under Rk=47Ω) (hyya3ti) 3) 6B-R22 NEC ￥offer used red-silk D/C=1965-4, 1965-4, 1965-7 (hyyo173gi) 1) 6B-R22 NEC ￥offer used red-silk D/C=196x WB 3) 6B-R22 NEC ￥offer used red-silk D/C=1966-1,1966-1, 1966-3 WB 1) 6B-R22 NEC ￥offer used red-silk D/C=1966-1, back view 3) 6B-R22 NEC ￥offer used red-silk D/C=1965-3, 1965-4, 1965-4 WB 2) 6B-R22 NEC ￥offer used red-silk D/C=1964-10, 1964-12 WB 2) 6B-R22 NEC ￥offer used red-silk D/C=1963-12, 1963-12 WB 3) 6B-R22 NEC ￥offer used yellow-silk D/C=1970-5, 1970-2, 1970-2 (hyyQQX) gm/Ik=25.7mS/39.4mA, 25.7mS/36.5mA, 26.0mS/40.2mA (on KS-15750-L1 w/Rk=47Ω) 5) 6B-R22 NEC ￥offer used yellow-silk D/C=1969-1, 1969-4, 1976-5, 19xx, 19xx gm/Ik=24mS/34mA, 25mS/41mA, 25.5mS/43mA, 26mS/37mA, 25.5mS/39mA (on KS-15750-L1 w/Rk=47Ω) 1) 6B-R22 NEC ￥offer used yellow-silk D/C=1973-3 WB 2) 6B-R22 NEC ￥offer used yellow-silk D/C=1972-8, 1973-xx WB 3) 6B-R22 NEC ￥offer used yellow-silk D/C=xxxx WB -) 6B-R22 NEC ￥- 通測 電電公社向け LikeNew (hyyaLD) 1-set) socket+radiator *** ￥- used without base-fixture (hyyQQX)
6B-R23/6BR23 =VHF LN SQ Amp Pentode= (EIA/ - Magnoval)Eh/Ih=6.3V/0.465A Fmax=270MHz op : Ep=135V Ec2=135V Rk=323Ω(Ec1≒-10V) Ip=26mA Ic2=8mA rp=50kΩ gm=34mS pins: 1(P)-2(H)-3(K)-4(G1)-5(K)-6(K)-7(G2)-8(H)-9(G3,SD) size=29.2mmΦ x 50mmH, in max Internally-DarkBlue-Coated-Glass to prevent secondary electron emission also see different-pinout higher-gm Magnoval pentodes : 8233 / E55L(Ppmax=10W, gm=50mS), 8608(top plate) also see different pinout Magnoval high-gm Tetrodes : 6B-P16(26.5mS) 6B-R22(31.5mS) 418A(26.5mS) 436A(30mS) 448A(31.5mS) (参考 * NTT-ECL related high-rel, long-life, high-performance communication system receiving tubes * 6B-P16 (ECL-1179), 6B-R22 (ECL-1144), 6B-R23 (ECL---), 6R-H2 (ECL-1175) 6R-P10 (ECL-1071), 6R-R8 (ECL-1083), 6R-R21 (ECL-1084), 19M-R9 (ECL-1069), 12RLL3 (ECL-1134B) 19M-R10 (ECL-1135), 19R-LL1 (ECL-1134), 19R-P11 (ECL-1070), CZ-501D/V, CZ-504D/V) 1) 6B-R23 NEC ￥offer NIB red silk 0) 6B-R23 NEC ￥- 通測 電電公社向け used 2) 6B-R23 NEC ￥offer used D/C=1961-11, 1961-12 red-silk, 電電公社マーク 0) 6B-R23 NEC ￥- used D/C=1961s' smeared silk, tested (hyyvsx) 3) 6B-R23 NEC ￥offer used date-code=1964-11(3), red-silk 電電公社 2) 6B-R23 NEC ￥offer used D/C=1964-3, 1965-2 red-silk 3) 6B-R23 NEC ￥offer used D/C=1965-7, 1966-4, 1966-10 red-silk, WB 3) 6B-R23 NEC ￥offer used D/C=1965-5, 1965-5, 1965-5 red-silk, WB 3) 6B-R23 NEC ￥offer used D/C=1968-8 yellow-silk, WB 5) 6B-R23 NEC ￥offer used D/C=1967-4, 1967-5, 1967-5, 1967-10, 1967-10 yellow-silk, WB 3) 6B-R23 NEC ￥offer used D/C=1967-8, 1968-7, 1968-8 yellow-silk, WB gm=18.5mS/Ik=30mA, 17.5mS/35mA, 19mS/32mA (tested on KS-15750-L1 w/Rk=47Ω) 1) 6B-R23 NEC ￥offer used D/C=1967-2 yellow-silk, WB 3) 6B-R23 TEN(Fujitsu) ￥offer used D/C=1961-3, 1963-12, 1964-12 red-silk WB 1) 6B-R23 TEN(Fujitsu) ￥offer used D/C=1963-4 red-silk WB 3) 6B-R23 TEN(Fujitsu) ￥offer used D/C=1965-3 red-silk WB 1) 6B-R23 TEN(Fujitsu) ￥offer used D/C=1966-7 red-silk WB gm=21mS/Ik=29.5mA (tested on KS-15750-L1 w/Rk=47Ω) 2) 6B-R23 TEN(Fujitsu) ￥offer used D/C=1966-7, 1969-2 red-silk WB 1) 6B-R23 TEN(Fujitsu) ￥offer lightly-used D/C=1966-11, red-silk, WB 3) 6B-R23 TEN(Fujitsu) ￥offer used D/C=1970-4,1972-1,1972-10 red-silk WB gm=21mS/Ik=30mA, 23mS/25mA, 23mS/24mA (tested on KS-15750-L1 w/Rk=47Ω) 4) 6B-R23 TEN(Fujitsu) ￥offer used D/C=1971-6 red-silk WB 4) 6B-R23 TEN(Fujitsu) ￥offer used D/C=1972-1 red-silk WB 1) 6B-R23 TEN(Fujitsu) ￥offer lightly-used D/C=1972-10, red-silk, WB 3) 6B-R23 TEN(Fujitsu) ￥offer used D/C=1964-12, 1965-3, 1967-5, red-silk WB gm=15.5mS/Ik=23mA, 12mS/20mA, 10.7mS/20mA (tested on KS-15750-L1 w/Rk=47Ω) -) 6B-R23 NEC ￥- used D/C=1960s smeared-out silk, just-rusty (hyyvsx)
6BS3A =Half wave HV Rectifier= (EIA/9HP - NOVAR) Eh/Ih=6.3V/1.2A PIV5000V/Idc200mA heater variants : 12BS3A(12.6V/0.6A) 17BS3(16.8V/0.45A) 9HP same-base NOVAR halfwave rectifiers : 6AY3 6BS3/A 6CH3 6CJ3 6CK3 6CL3 6CM3 6DN3 6DW4/B Half wave rectifier comparison table : <ダンパ用-高圧半波整流管の比較> 2) 6BS3A RCA ￥900 NIB(vQ) 1) 6BS3A Syl ￥900 NIB
6BS7 =Top-G1 low-noise, low-microphonic AF Pentode= (EIA/9BB - noval, top-G1) Eh/Ih=6.3V/0.15A Ppmax=0.75W Epmax=300V/500V-cutoff Pc2max=0.3W Ec2max=125V/300V-cutoff Triode connection : Ppmax=1.75W Epmax=250V op(pentode con.) : Ep=250V Ec2=100V Ec1=-3V Ip=2.1mA Ic2=0.6mA rp=2.4MΩ gm=1.25mS μg1g2=20 op(triode con.) : Ep=250V Ec1=-8V Ip=6.5mA rp=11.6kΩ gm=1.72mS μ=20 for triode-connection : similar to 6C5/6C5G 参考 : 三極管接続時のEp-Ip特性(Ep-Ip for triode connection) 参考 : 抵抗結合アンプテーブル(五結、三結)(resistance-coupled amplifier table) pins : 1(IC)-2(IC)-3(K)-4(H)-5(H)-6(shield)-7(P)-8(G2)-9(G3)-Top(G1) base-G1-pin similar types : 6BR7, 6059/CV4006 see different base, low-noise European pentodes : E80F / 6084 EF806S 6267/EF86 also see different base, low-noise European pentodes : CV2901 CV4085 also see a different base, low-noise American pentode : 5879 10) 6BS7 Brimar ￥2000 NIB made in England ('Brimar' = one of STC brand)
6BS8 =VHF med-mu Twin Triode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.4A Ehkmax=200V Ppmax=2W Epmax=150V Ikmax=20mA Rgmax=500kΩ op : Ep=150V Rk=220Ω Ip=10mA μ=36 rp=5kΩ gm=7.2mS (参考 : Ep-Ip特性) *cascade amplifier : 1-2-3 pin triode should be used for input section. heater variant : 4BS8(4.2V/0.6A) similar to 6BQ7A, 6BZ7 (also see other similar twin triodes for cascode amps with same base diagram : => 6AQ8 6BC8 6DJ8 6DT8 6RHH2 6KN8) 5) 6BS8 GE ￥700 NIB 8) 6BS8 USA ￥700 NIB 1) 6BS8 USA ￥400 used
6BT4/EZ40 =FullwaveRectifier= (EIA/8HT - rimlock) Epmax=350Vac Idcmax=90mA Rin=300Ω Cload=50μF Eh/Ih=6.3V/0.6A see European type : EZ40 also see noval(9pin) types : 6V4 / EZ80 2) 6BT4/EZ40 Rogers ￥1500 NIB
6BU8 =common G1-G2-K Twin sharp-cutoff Pentode= (EIA/9FG - noval) Eh/Ih=6.3V/0.3A Ppmax=1.1W Epmax=300V Pc2max=0.75W Ec2max=150V gm=1.5mS heater variant : 3BU8(3.15V/0.6A) 3GS8(3.15V/0.6A), 4BU8/4GS8(4.2V/0.45A) 4) 6BU8 RCA ￥900 NIB ++ 2) 6BU8 GE ￥700 NIB D/C=56-22, 56-48 1) 6BU8 GE ￥700 NIB 11) 6BU8 USA ￥700 NIB 1) 6BU8 Ray ￥700 NIB 1) 6BU8 Int-C ￥700 NIB 1) 6BU8 USA ￥600 NOS Syl箱 1) 6BU8 USA ￥400 used
6BV8 =duplex-Diode Triode= (EIA/9FJ - noval) Eh/Ih=6.3V/0.6A Ehkmax=±200V Triode : Ppmax=2.7W Epmax=330V μ=33 rp=5.9kΩ gm=5.6mS 2) 6BV8 RCA ￥1200 NIB 2) 6BV8 GE ￥1200 NIB ragged-box 1) 6BV8 GE ￥1200 NIB D/C=58-13
6BV11 =dual-control Twin sharp-cutoff Pentode= (EIA/12HB - compactron) Eh/Ih=6.3V/0.9A Ehkmax=±200V Rg1max=220kΩ(fixed)/470kΩ(self) Ppmax=1.7W Epmax=300V Pc2max=1W Ec2max=150V/300V-cutoff Ec1max=+0V/-50V Ec3max=+25V/-100V op : Ep=150V Ec2=100V Ec3=0V Rk=180Ω Ip=3.6mA Ic2=2mA rp=200kΩ gm=3.7mS pins: 1(H)-2(2G3)-3(2P)-4(2G2)-5(2K)-6(2G1)-7(1G1)-8(1K)-9(1G2)-10(1P)-11(1G3)-12(H) (参考 : Ep-Ip特性(@Ec2=100V, Ec3=0V)) see a heater variant : 12BV11(12.6V/0.45A) also see similar Twin sharp-cutoff Pentode : 6BN11 6J11 8BN11 also see Twin remote-cutoff Pentode : 6AR11 11AR11 4) 6BV11 RCA ￥1200 NIB sw 1) 6BV11 GE ￥1000 NIB 1) 6BV11 Syl ￥1000 NIB 1) 6BV11 Znth(Syl-made) ￥1000 NIB D/C=9-39(1969) RaggedBox 10) 6BV11 Znth ￥1000 NIB 3) 6BV11 Magnavox ￥1000 NIB TopGtr BlackPlates
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6BW3 =Rectifier= (EIA/12FX - compactron) PIV=5000V Idc=175mA Ehkmax=900V(-)/100V(+) Eh/Ih=6.3V/1.6A heater variant : 22BW3(22.4V/0.45A) <ダンパ用-高圧半波整流管の比較> (参考: コンパクトロン半波整流管のピン・コンパチビリティ (Compactron Halfwave-Rectifier pin-compatibility)) 2) 6BW3 GE ￥900 NIB 2) 6BW3 WH ￥900 NIB
6BW4 =common-cathode FullWave Rectifier= (EIA/9DJ - noval) Eh/Ih=6.3V/0.9A Ehk=-450Vmax PIV=1275V Ip-peakmax=350mA Idcmax=100mA Edrop=40V(@Idc=100mA/section) op(capacitor-input) : Eac=325V Cin=40uF Rs=82ohm/plate Iout=100mAdc Eout=330Vdc op(choke-input) : Eac=450V Lin=10H Iout=100mAdc Eout=360Vdc heater variant : 12BW4(12.6V/0.45A) see just-upper rating types : 6CA4 / EZ81(PIV=1250V/Idcmax=150mA, Eh/Ih=6.3V/1A) also see just-lower ones : 6V4 / EZ80(Idcmax=90mA, Eh/Ih=6.3V/0.6A) also see a similar rating loktal type : 7Z4(Idcmax=100mA) 5) 6BW4 RCA(Sylvania-made) ￥1500 NIB BlkPlates *(hyydnt) 4) 6BW4 RCA(Sylvania-made) ￥1500 NIB BlkPlates RaggedBox 1) 6BW4 RCA(Sylvania-made) ￥1500 NIB BlkPlates 1) 6BW4 RCA(Sylvania-made) ￥1500 NIB GrayPlates 5) 6BW4 RCA(Sylvania-made) ￥1500 NIB GrayPlates RaggedBox 2) 6BW4 GE ￥1500 NIB 5) 6BW4 GE(Syl-made) ￥1500 NIB BlkPlates 1) 6BW4 GE(Sylvania-made) ￥1500 NIB BlkPlates 5) 6BW4 GE(Sylvania-made) ￥1500 NIB GrayPlates red-silk(2), white-silk(3) 1) 6BW4 Syl ￥1000 NIB BlkPlates Dgtr, justSmallFlash 1) 6BW4 Syl ￥1500 NIB GrayPlates D/C=67-15 MB 8) 6BW4 Syl ￥1500 NIB GrayPlates 1) 6BW4 Syl ￥1500 NIB BlkPlates old 1) 6BW4 Syl ￥1500 NIB 1) 6BW4 Syl ￥1500 NIB 1) 6BW4 Syl ￥800 used BlkPlates 1) 6BW4 Syl ￥800 used GrayPlates GE箱
6BW6 =BeamPower= (EIA/9AM - noval) * 6BW6 is electrically identical to 6V6/G/GT(octal) Eh/Ih=6.3V/0.45A Ehkmax=250Vdc Rg1max=100kΩ(fixed)/500kΩ(self, class A1) Tetrode Connection(absolute max) : Ppmax=13.2W Epmax=350V Pc2max=2.2W Ec2max=310V, Ipmax=70mA op(A1s) : Ep=250V Ec2=250V Ec1=-12.5V Ip=45mA Ic2=4.5mA rp=52kΩ gm=4.10mS Zl=5.0kΩ D=7.5% Po=4.5W op(A1s) : Ep=315V Ec2=225V Ec1=-13.0V Ip=34mA Ic2=2.2mA rp=77kΩ gm=3.75mS Zl=8.5kΩ D=10% Po=5.2W op(A1pp) : Ep=250V Ec2=250V Rk=120Ω Ip=94/98mA Ic2=9.5/13.5mA Zlpp=10kΩ D=2.0% Po=9.0W op(A1pp) : Ep=315V Ec2=250V Rk=125Ω Ip=98/102mA Ic2=8.5/11.5mA Zlpp=10kΩ D=2.5% Po=12.5W op(AB1pp) : Ep=250V Ec2=250V Rk=200Ω Ip=70/74mA Ic2=5/11.5mA Zlpp=10kΩ D=3.5% Po=10W op(AB1pp) : Ep=285V Ec2=285V Rk=260Ω Ip=70/78.5mA Ic2=4/10mA Zlpp=8kΩ Dtot=1% Po=12W op(AB2pp) : Ep=315V Ec2=285V Ec1=-19V Ip=70/155mA Ic2=4/16mA Zlpp=5kΩ Pin=0.4W D=7% Po=30W Triode Connection(absolute max) : Ppmax=12.5W Epmax=310V, Ipmax=75mA op(A1s) : Ep=250V Ec=-13.5V(Rk=300Ω) Ip=45mA rp=2.09kΩ gm=4.4mS μ=9.2 Zl=4.0kΩ D=3.5% Po=0.75W op(A1s) : Ep=285V Ec=-19.0V(Rk=470Ω) Ip=40mA rp=2.25kΩ gm=4.0mS μ=9.0 Zl=4.5kΩ D=6.0% Po=1.35W op(Triode:AB1pp) : Ep=250V Ec=-13.5V(Rk=150Ω) Ipo=90mA Zlpp=4.0kΩ D=0.4% Po=1.7W op(Triode:AB1pp) : Ep=285V Ec=-19.0V(Rk=240Ω) Ipo=78mA Zlpp=4.5kΩ Dtot=0.5% Po=3.1W 三極管接続時の平均プレート特性(EpIp) size : 22mmΦ x 67mm, in max similar to 6094(different basing SQ type) similar to 6AQ5/W, 6005/W(miniature types) also other similar noval types: 6CM6, 12AB5(Ek/Ih=12.6V/0.2A) 0) 6BW6/CV2136 Valve Electrnics ￥- NIB(sSn) 0) 6BW6/CV2136 Brimar ￥- NIB 7) 6BW6 Brimar ￥2400 NIB 6-pcs=BlackPlate, 1pc=GrayPlate 1) 6BW6 Brimar ￥2400 NOS Haltron-boxed BlackPlate(England) 4) 6BW6 Brimar ￥2400 NOS made in England WB 5) 6BW6 Syl ￥2400 NIB (4)BlackPlate (1)GrayPlate(England) 1) 6BW6 Marconi ￥2400 NIB BlackPlate made in England
6BW7 =RF Pentode= (EIA/9AQ - noval) Eh/Ih=6.3V/0.3A Ehkmax=-V Ppmax=2.75W Epmax=275V Pc2max=1.2W Ec2max=275V op : Ep=180V Ec2=180V Rk=100Ω Ip=9.5mA Ic2=3.5mA μg2g1=70 rp=600kΩ gm=9.3mS op : Ep=250V Ec2=250V Rk=180Ω Ip=9.5mA Ic2=3.5mA μg2g1=70 rp=750kΩ gm=8.5mS 1) 6BW7 Marconi ￥1700 NIB
6BW8 =Twin-Diode sharp-cutoff Pentode= (EIA/9HK - noval) Eh/Ih=6.3V/0.45A Ehkmax=±200V Pentode : Ppmax=3W Epmax=330V Pc2max=0.55W Ec2max=330V rp=250kΩ gm=5.2mS heater variant : 5BW8(4.7V/0.6A) 2) 6BW8 Brimar ￥700 used 1) 6BW8 RCA ￥700 NIB 1) 6BW8 GE ￥700 NIB 1) 6BW8 Syl ￥600 NIB 1) 6BW8 Ray ￥600 NIB 1) 6BW8 Tsol ￥600 NIB
6BW11 =dissimilar double-Pentode= (EIA/12HD - compactron) Eh/Ih=6.3V/0.8A Ehkmax=±200V Pentode 1 : Ppmax=4W Epmax=330V Pc2max=0.8W Ec2max=330V rp=120kΩ gm=8.5mS Rg1max=250kΩ Pentode 2 : Ppmax=3.1W Epmax=330V Pc2max=0.65W Ec2max=330V rp=200kΩ gm=13mS Rg1max=250kΩ 4) 6BW11 RCA ￥1000 NIB 1) 6BW11 GE ￥800 NIB 5) 6BW11 GE ￥800 NIB 2) 6BW11 Syl ￥800 NIB
6BX6/EF80 =RF/IF, VideoAmp Pentode= (EIA/9AQ - noval) Eh/Ih=6.3V/0.3A Ehkmax=150V Ppmax=2.5W, Epmax=300V Pc2max=0.65W Ec2max=300V Ikmax=15mA op : Ep=170V Ec2=170V Ec1=-2V Ec3=0V Ip=10mA Ic2=2.5mA rp=400kΩ gm=7.2mS μg2g1=50 pins : 1(K)-2(G1)-3(K)-4(H)-5(H)-6(IS)-7(P)-8(G2)-9(G3) also see Europen type : EF80, Z152 same-base and electrically-similar type : EF800 same-base remote cutoff / variable-gm types : 6BY7 EF85 same-base higher-gm pentodes: 6EH7 / EF183(remote-cutoff), 6EJ7 / EF184(sharp-cutoff) 1) 6BX6/EF80 Znth ￥1000 NIB 5) 6BX6 Matsushita/松下 ￥1000 NIB still-cellophane-sealed 4) 6BX6 Matsushita/松下 ￥1000 NIB just-ragged boxes 1) 6BX6 Matsushita/松下 ￥1000 NIB just-ragged box 1) 6BX6 Matsushita/松下 ￥600 NOS? OB 8) 6BX6 Matsushita/松下 ￥500 used WB 4) 6BX6 Matsushita/松下 ￥500 used WB
6BX7/6BX7GT =Twin Power Triode= (EIA/8BD - octal) Eh/Ih=6.3V/1.5A Ehkmax=±200V(+100VDC) Ppmax=10W(パラ接続時は2ユニットで12W) Epmax=500V Ikmax=60mA Rgmax=2.2MΩ op : Ep=250V Rk=390Ω Ip=42mA gm=7.5mS rp=1.3kΩ μ=10 (参考1 : GE-6BX7GTのEpIp特性) also see 6BL7GT/6BL7GTA(rp=2.15kΩ, μ=15) 0) 6BX7GT RCA ￥- NIB BlkPlate ThickBase 0) 6BX7GT RCA ￥- NIB BlkPlate (23) 2) 6BX7GT RCA ￥2700 NIB BlkPlate ThickBase MiddleGlass SideGtr(D) 2) 6BX7GT RCA ￥2700 NIB BlkPlate ThickBase ShortGlass SideGtr(hyyant) 2) 6BX7GT RCA ￥2700 NIB BlkPlate ThickBase BlkPlates SideGtr 4) 6BX7GT RCA ￥2700 NIB ThinBase ShortGlass BlkPlate SideGtr ragged box 4) 6BX7GT RCA ￥2700 NIB ThinBase ShortGlass BlkPlate SideGtr 1) 6BX7GT RCA ￥2700 NIB D/C=AW(1965.12) ThinBase ShortGlass BlkPlate SideGtr 1) 6BX7GT RCA ￥- NIB ThinBase LongGlass BlkPlate SideGtr ragged box 1) 6BX7GT RCA ￥2700 NIB BlkPlate CoinBase LongGlass TopGetter 2) 6BX7GT RCA ￥2700 NIB BlkPlate CoinBase MiddleGlass SideGtr RaggedBox 2) 6BX7GT RCA ￥2700 NIB BlkPlate CoinBase BlkPlates SideGtr(vAht) 1) 6BX7GT RCA ￥2700 NIB BlkPlate CoinBase BlkPlates TopGtr 1) 6BX7GT RCA ￥2700 NIB BlkPlate CoinBase BlkPlates SideGtr @@ 0) 6BX7GT GE ￥- NIB BlkPlate ThickBase ragged box 0) 6BX7GT GE ￥- NIB GrayPlate ThickBase 0) 6BX7GT GE ￥- NIB BlkPlate ThickBase 0) 6BX7GT GE ￥- NIB GrayPlate ThickBase 1) 6BX7GT WH(GEmade) NIB ￥2400 BlkPlate ThickBase 1) 6BX7GT GE NIB ￥- BlkPlate ThickBase TopGtr 56th 青箱 1) 6BX7GT GE NIB ￥- BlkPlate ThickBase TopGtr 61st 1) 6BX7GT GE NIB ￥- BlkPlate ThickBase TopGtr 60th 1) 6BX7GT GE ￥2500 NIB BlkPlate ThickBase date=5952(Nn) 1) 6BX7GT GE ￥2500 NIB BlkPlate ThickBase RaggedBox 1) 6BX7GT GE ￥2500 NOS BlkPlate ThickBase RCA箱 3) 6BX7GT GE ￥2400 NIB GrayPlate ThickBase(hxyanx) justRaggedBox +++ 2) 6BX7GT GE ￥2400 NIB GrayPlate ThickBase Quality,STD箱(ghyya) 2) 6BX7GT GE ￥2400 NIB GrayPlate ThickBase RCA箱 RaggedBox(D) 1) 6BX7GT GE ￥2400 NIB GrayPlate VeryThickBase TopGtr 2) 6BX7GT CBS(GE-made) ￥2500 NIB BlkPlate ThickBase TopGtr 0) 6BX7GT RCA(GE-made) ￥- NIB BlkPlate ThickBase TopGtr ragged-box(D) 1) 6BX7GT RCA(GE-made) NIB ￥- BlkPlate ThickBase TopGtr 1) 6BX7GT Sylvania(GE-made) ￥2400 NIB BlkPlate ThickBase TopGtr 0) 6BX7GT Tsol(GE-made) ￥- NIB BlkPlate ThickBase TopGtr 0) 6BX7GT Raytheon(GE-made) ￥- NIB BlkPlate ThickBase TopGtr 0) 6BX7GT STD(GE-made) ￥- NIB BlkPlate ThickBase TopGtr 0) 6BX7GT Znth(GE-made) ￥- NIB BlkPlate ThickBase TopGtr 1) 6BX7GT Admiral(GE-made) ￥2500 NOS GrayPlate ThickBase TopGtr 2) 6BX7GT Hytron(GE-made) ￥2500 NIB BlkPlate ThickBase TopGtr 1) 6BX7GT RCA(GE-made) ￥2700 NIB BlkPlate ThickBase SideGtr 1) 6BX7GT Raytheon(GE-made) ￥2500 NIB BlkPlate ThickBase SideGtr 2) 6BX7GT Philco(GE-made) ￥2400 NIB-JAN GrayPlate ThickBase(T) 0) 6BX7GT Syl ￥5400/pair NIB 1950s, BlkPlate ThickBase TopGtr, matched-pair 0) 6BX7GT Syl ￥- NIB-JAN BlkPlate ThickBase TopGtr(T) 2) 6BX7GT Syl ￥- NIB-JAN BlkPlate ThinBase TopGtr 1) 6BX7GT Syl ￥- NIB-JAN BlkPlate ThinBase TopGtr 1) 6BX7GT Syl ￥2500 NIB BlkPlate ThickBase TopGtr ragged-box 2) 6BX7GT Syl ￥2500 NIB BlkPlate ThickBase TopGtr 0) 6BX7GT Syl ￥- NIB-JAN BlkPlate Coin/WaferBase TopGtr 1) 6BX7GT Tsol ￥- NIB BlkPlate TopGtr ThinBase RaggedBox 1) 6BX7GT Tsol ￥2500 NIB GrayPlate ThickBase 1) 6BX7GT TungSol￥2500 NOS BlkPlate ThickBase 1) 6BX7GT WH ￥2500 NIB BlkPlates ThickBase TopGtr date=6704 1) 6BX7GT WH ￥2500 NOS BlkPlates ThickBase TopGtr 1) 6BX7GT WH ￥2500 NIB BlkPlates ThickBase TopGtr Japan +++ 0) 6BX7GT RCA ￥1500 used BlkPlate ThickBase SideGtr 0) 6BX7GT Ray ￥1200 used BlkPlate ThickBase gm=6000/7000/4800min just-faded getter 1) 6BX7GT Toshiba ￥1200 used BlkPlate TopGtr WB 5) 6BX7GT Toshiba ￥1200 used BlkPlate TopGtr WB 1) 6BX7GT Toshiba ￥1100 used BlkPlate TopGtr, center-index guide lost, WB
6BY5G/GA =separated-cathode FullWave Rectifier= (EIA/6CN - octal, bulb=ST14(G) or T12(GA)) PIV=1400V(as a rectifier)/2500V(for 6BY5G as a damper), 3000V(for 6BY5GA as a damper) Idc=175mA(2 cathodes) Edrop=32V(@175mA/plate) Ehkmax=-450V, +100V Eh/Ih=6.3V/1.6A op(Cinput) : Eac=375Vrms Cin=8uF Rs=100ohm/plate Iout=175mA(2 cathodes) Eout=380Vdc 2) 6BY5G Syl ￥2000 NIB 1) 6BY5G Philco(Syl-made) ￥2000 NIB D/C=5425(1954), ragged-box 1) 6BY5G Tsol ￥2000 NIB *$** 2) 6BY5GA RCA ￥1500 NIB 1) 6BY5GA RCA ￥1500 NIB *$** 1) 6BY5GA RCA ￥1200 NOS GE箱 2) 6BY5GA GE ￥1000 NIB 1) 6BY5GA Syl ￥1000 NIB 1) 6BY5G Ray ￥1200 NIB
6BY6 =dual-control Heptode= (EIA/7CH - miniature) Eh/Ih=6.3V/0.3A Ppmax=2W Epmax=300V Pc2max=1W Ec2max=300V Pc3max=0.1W Ec3max=50V Rg1,g3max=500kΩ gm1=1.9mS gm3=0.5mS heater variant : 3BY6(3.15V/0.6A) 15) 6BY6 RCA ￥700 NIB 4) 6BY6 RCA ￥700 NIB - mint 1) 6BY6 RCA ￥700 NickelPlate NIB 2) 6BY6 RCA ￥700 NIB LightGrayPlate 6) 6BY6 GE ￥600 NIB 1) 6BY6 GE ￥600 NIB - mint 1) 6BY6 GE ￥600 NOS 1) 6BY6 CGE ￥600 NIB 3) 6BY6 Syl ￥600 NIB 4) 6BY6 Syl ￥600 NIB GrayPlate e/sleeve 2) 6BY6 Syl ￥600 NIB GrayPlate made in Japan 5) 6BY6 Philips ￥600 NIB GrayPlate w/sleeve 5) 6BY6 Ray etc USA ￥600 NIB
6BY7(=EF85) =vari-gm Pentode / RemoteCutoff RF Pentode= (EIA/9AQ - noval) Eh/Ih=6.3V/0.3A Ehkmax=150V Ppmax=2.5W Epmax=250V/550V-cutoff Pc2max=0.65W Ec2max=250V/550V-cutoff Ikmax=15mA Rg1max=3MΩ op : Ep=250V Rg2_series=60kΩ Ec1=-2V Ip=10mA Ic2=2.5mA rp=500kΩ gm=6mS heater variant : UF85(Eh/Ih=19V/0.1A) also see same-base sharp-cutoff types : 6BX6, EF80, EF800 same-base higher-gm pentodes: 6EH7 / EF183(remote-cutoff), 6EJ7 / EF184(sharp-cutoff) 4) 6BY7 Philips ￥2000 NIB just-ragged boxes 0) 6BY7 Philips ￥- NIB 1) 6BY7/EF85 National ￥1200 NIB just-ragged box
6BY8 =Diode Pentode= (EIA/9FN - noval) Eh/Ih=6.3V/0.6A Ehkmax=±200V Pentode : Ppmax=3W Epmax=300V Pc2max=0.65W Ec2max=300V gm=5.2mS rp=1MΩ Diode : PIV=430V Idcmax=45mA 6) 6BY8 RCA ￥800 NIB 2) 6BY8 RCA ￥800 NIB 1) 6BY8 Syl ￥800 NIB GrayPlate 1) 6BY8 Syl ￥800 NIB 1) 6BY8 Syl ￥800 NIB GrayPlate 1) 6BY8 Syl ￥800 NIB GrayPlate
6BZ3 =HalfWave Rectifier= (EIA/12FX - compactron) Eh/Ih=6.3V/1.2A Ehkmax=900V(-)/100V(+) PIV=4500V Ppmax=6.5W Ip-peakmax=1.2A Idc=200mA Edrop=21V(@Idc=350mA) <ダンパ用-高圧半波整流管の比較> (参考: コンパクトロン半波整流管のピン・コンパチビリティ (Compactron Halfwave-Rectifier pin-compatibility)) 1) 6BZ3 Dmnt ￥1100 NIB *sw
6BZ6 =semi-remote cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±200V Ppmax=2.3W Epmax=330V Pc2max=0.55W Ec2max=330V gm=8mS rp=260kΩ (参考 : Ep-Ip特性(@Ec2=125V)) heater variants : 3BZ6(3.15V/0.6A), 4BZ6(4.2V/0.45A), 12BZ6(12.6V/0.15A) similar to 6JH6(same basing) also similar to 6DC6(same basing) sharp cutoff types : 6CB6A 6CF6 6DK6 6DE6 6EW6(same basing) 2) 6BZ6 RCA ￥800 NIB 5) 6BZ6 RCA ￥800 NIB - mint 1) 6BZ6/6JH6 RCA ￥800 NIB 1) 6BZ6 RCA ￥800 NIB 2) 6BZ6 RCA ￥800 NIB made in Canada 2) 6BZ6 RCA ￥600 NOS? GE箱 1) 6BZ6 RCA ￥600 NOS? RCA箱 2) 6BZ6 GE ￥600 NIB - mint 5) 6BZ6 CGE ￥600 NIB made in Japan, w/sleeve 3) 6BZ6 Syl ￥600 NIB-MB D/C=68-35, 68-35, 69-26 2) 6BZ6 Rogers ￥600 NIB lot=PU 4) 6BZ6 Rogers ￥600 NIB lot=PT w/sleeve 1) 6BZ6 WH ￥600 NOS Rogers箱 38) 6BZ6 USA ￥600 NIB (hyy1dgt) 1) 6BZ6 IEC-Mullard ￥400 used 1) 6BZ6 RCA ￥400 used 1) 6BZ6 Toshiba ￥400 used-lightly original-boxed 6) 6BZ6 USA ￥400 used
6BZ7 6BQ7A類似 =HF TwinTriode/cascode amp.= (EIA/9AJ - noval) Eh/Ih=6.3V/0.4A Ehkmax=±200V Ppmax=2W Epmax=250V Ikmax=20mA/section rp=5.3kΩ gm=6.8mS μ=36 Rg1max=500kΩ (参考 : Ep-Ip特性) heater variant : 4BZ7(4.2V/0.6A) similar to 6BS8 6BK7A/B, 6BQ7A/B, 6DJ8と同一ピン配列、ユニット間シールド板あり (ピン1～9の配列: P-G-K-H-H-P-G-K-Shield) 6) 6BZ7 RCA ￥800 NIB 3) 6BZ7/6BQ7A RCA ￥800 NIB 3) 6BZ7 RCA ￥800 NIB made in Canada 1) 6BZ7 RCA ￥700 NOS GE箱 1) 6BZ7 GM(GE-made) ￥700 NIB 3) 6BZ7/6BQ7A CGE ￥700 NIB made in Japan 1) 6BZ7/6BQ7A Syl ￥700 NIB made in Japan 17) 6BZ7/6BQ7A GE etc USA ￥700 NOS/NIB 1) 6BZ7 RCA ￥500 LightlyUsed 1) 6BZ7 Syl ￥400 used 5) 6BZ7 Amprx, Syl ￥400 used =>gm=5600/4900, 4600/5500, 6600/5750, 6000/6750, 6500/5500 where the allowable is 4300min 1) 6BZ7 RCA ￥800 lightly-used 1) 6BZ7 Rogers ￥400 used Philco箱 2) 6BZ7 USA ￥400 used GE,CBS箱
6BZ8/X155 =HF twin-Triode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.4A Ehkmax=±200V Ppmax=2.2W Epmax=250V Ikmax=20mA/section μ=45 rp=5.6kΩ gm=8mS Rg1max=100kΩ 1) X155/6BZ8 Ray ￥1100 NIB
6C2T 115V-3A Time Delay Relay 2) 6C2T Amperite ￥3300 NIB DelayRelay w/ 6V-heater 2-sec Delay-on-Break noval
6C4/W/WA(=EC90) =MediumMuTriode= (EIA/6BG - miniature) Eh/Ih=6.3V/0.15A Ehkmax=±200V(+100Vdc) Ppmax=3.5W(A1)/5W(C) Epmax=300V Ipmax=25mA Igmax=8mA-DC Rgmax=250kΩ(fixed)/1MΩ(self) op(class-A1) : Ep=250V Ec=-8.5V Ip=10.5mA rp=7.7kΩ gm=2.2mS μ=17 op(class-C) : Ep=300V Ec=-27V Ip=25mA Ic=7mA Pin=0.35W Po=5.5W (@f=50MHz) (industrial/military versions : 6100, 6135) (参考1 : Ep-Ip特性) (参考2 : 抵抗結合増幅表(Resistance-Coupled Amp.)) 3) 6C4 SIGNAL ￥1000 JAN-NIB 4) 6C4 RCA ￥1000 NIB(rhx2z1mx) 1) 6C4 RCA ￥1200 NIB BlkPlate 10) 6C4 RCA ￥1000 NIB - mint 1) 6C4 RCA ￥900 NOS GE箱 1) 6C4 RCA ￥1000 NOS GrayPlate 40) JAN-JRC 6C4W RCA ￥1500 NIB MB mint date= Jan 1945 1) JG-6C4 GE ￥1000 NIB MB RaggedBox 1) 6C4 GE ￥1000 NIB 青箱 11) 6C4 GE ￥800 NIB(hxy1v3g) 4) 6C4 GE ￥800 NIB - mint 3) 6C4 CGE ￥800 NIB w/sleeve 2) 6C4 CGE ￥800 NIB 2) 6C4 GE ￥700 NOS RCA箱 6) 6C4 Syl ￥1000 NIB 2) 6C4 Syl ￥1000 NIB 2) 6C4 Syl ￥800 NIB 1) 6C4WA Syl ￥1000 NIB 0) 6C4 WH ￥800 NIB(D) 1) 6C4 WH ￥800 NIB lot=PZ 2) 6C4 WH ￥800 NIB lot=PZ 4) 6C4WA WH ￥800 NIB 1) 6C4 Znth ￥800 NIB 1) 6C4 NU ￥1000 NIB MB 1) JNU 6C4 NU ￥1000 NIB MB 3) 6C4 NU ￥700 NOS? WB 1) 6C4 Ray ￥800 NIB 1) 6C4 Ray ￥800 NIB 1) 6C4 Ray ￥800 NIB 0) 6C4WA Ray ￥- NIB MB 5) 6C4 Philips ￥800 NIB w/sleeve 1) 6C4 Philco ￥800 NIB 1) 6C4 Sheldon ￥800 NIB 9) 6C4 USA ￥800 NIB 1) 6C4 Toshiba ￥800 NIB cellophane-sealed 1) 6C4 Matsuda(=Toshiba) ￥600 NIB VeryRaggedBox 1) 6C4 IEC ￥500 NOS? Japan 2) 6C4 RCA,GE ￥500 used? 1) 6C4 RCA ￥500 used GE箱 1) JAN-6C4WA GE ￥700 lightly-used WB 2) 6C4 Brimar ￥700 used 1) 6C4 Tsol ￥500 used 2) 6C4 Syl ￥400 used 1) 6C4 Syl ￥500 used Syl箱 1) 6C4 Mag ￥500 used? 1) 6C4 Mot ￥400 used 1) 6C4 Bogen ￥400 used 1) 6C4 ? ￥400 used BlkPlate 1) 6C4 ? ￥400 used BlkPlate 1) 6C4 Toshiba ￥500 lightly-used WB 2) 6C4 TEN ￥600 like-new NHK D/C=1963-7, 1964-7, WB
6C5 =MediumMuTriode= (EIA/6Q - octal) Eh/Ih=6.3V/0.3A Ppmax=2.5W Epmax=300V Rgmax=1MΩ op : Ep=250V Ec=-8V Ip=8mA rp=10kΩ gm=2mS μ=20 (参考 : Ep-Ip特性) also see 6J5/6J5G/6J5GT (w/ same base, same mu, lower rp, and higher gm for higher freq. Apps.) same-basing(6Q) different-μ triodes : 6AE5/GT(μ=4), 6P5/G(μ=13.8), 6L5G(μ=18) also see an electrically similar English UF5(Eh/Ih=4V/1A) type : MHL4 1) 6C5G International ￥2000 NIB Small-punch 1) 6C5G International ￥1500 NIB punch-less 1) 6C5G Raytheon ￥2000 used EngravedBase Small-punch gm=88/50min(TV-7) 1) 6C5G NU ￥2000 used gm=1770/1260min 1) 6C5G Zenith ￥2000 used gm=1620/1260min(tw02) 1) 6C5G Zenith ￥2000 used engraved LooseBase 2) 6C5G Zenith ￥2000 usedLikeNew 1) 6C5 RCA ￥1500 NIB D/C=3-05(1953) VeryRaggedBox 1) 6C5 RCA ￥1500 NOS metal GE箱 4) 6C5 RCA ￥1500 NIB metal(Nn) 1) 6C5 RCA ￥1500 NIB metal VeryRaggedBox 4) 6C5 RCA ￥1500 NIB metal 1) 6C5 GE ￥1200 NIB metal 1) 6C5 GE ￥1200 NOS metal GE6j7箱 2) 6C5 GE ￥700 used? metal 1930,2110/1260min 2) 6C5 Syl ￥1200 NIB metal 1) 6C5 Syl ￥1200 NIB metal 僅かに錆あり 2) 6C5 Tsol ￥1200 NIB metal(Sn) 1) 6C5 Tsol ￥1200 NIB metal VeryRaggedBox ++ 2) 6C5 Hytron ￥1200 NIB metal date=5530 1) 6C5GT Hytron ￥1500 NIB Glass metal-base 1) 6C5 RCA ￥700 used metal 2060/1260min 1) 6C5 Syl ￥700 used metal 1) 6C5 WH ￥700 used metal 2100/1260min 1) 6C5 Tsol ￥700 used? metal 1) US-6C5 マツダ(Matsuda) ￥1000 used D/C=昭和19年8月(1944.8) WB
6C6 =Sharp cutoff Pentode= (EIA/6F - UZ, ST12 G1-top) Eh/Ih=6.3V/0.3A Pentode connection : Ppmax=0.75W Epmax=300V Pc2max=0.1W Ec2max=125V rp>1MΩ gm=1.225mS Triode connection : Ppmax=1.75W Epmax=250V rp=10.5kΩ gm=1.9mS μ=20 low-noise high-reliability type : 1603 heater variant / electrically identical type : 57(UZ, Eh/Ih=2.5V/1A) heater variant / different-base type : 12Y-R1(UY, Eh/Ih=12V/0.15A) octal-base electrically-identical types : 6J7/G/GT(octal), 1620(octal, 6.3V/0.3A) same-base electrically-similar type: 77(UZ, 6.3V/0.3A) same-base different-heater electrically-similar types: WE-310A(10V/0.32A), WE-328A(7.5V/0.425A) also see a same-basing, higher-gm, different-heater similar type: CZ-501-D(gm=3.5mS, Eh/Ih=3.5V/1A) 1) 6C6 RCA ￥1700 NIB VeryRaggedBox +++ 4) 6C6 RCA ￥1700 NIB 1) 6C6 Syl ￥1400 NIB 1) 6C6 Ray ￥1400 NIB 1) 6C6 Ray ￥1400 NIB VeryRaggedBox 1) 6C6 Radiocoin ￥1100 used 1500/770 1) 6C6 Cunningham ￥1000 used-lightly engraved 1) 6C6 Tsol ￥1000 used? gm=50/31min(TV-7) 1) 6C6 Tsol ￥1000 used 1090/770 1) 6C6 Znth ￥1000 used 1270/770 2) 6C6 Tsol,Arcturus ￥800 used 1) 6C6 Cnghm ￥800 used 1) UZ-6C6 Matsuda ￥700 used WB 1) 6C6 Matsushita ￥1000 LikeNew gm=1390/800min(on a KS-15750-L1 tester) 4) UZ-6C6 NEC, Matsuda, Besto ￥700 used (2)NEC, (1)Matsuda, (1)Besto 1) UZ-6C6 COMET ￥700 used WB
6C8G =MediumMuTwinTriode= (EIA/8G - octal, Top-2G) Eh/Ih=6.3V/0.3A Ppmax=1W Epmax=250V Ecmax=0V op : Ep=250V Ec=-4.5V Ip=3.2mA rp=22.5kΩ gm=1.6mS μ=36 pins : 1(NC)-2(H)-3(2P)-4(2K)-5(1G)-6(1P)-7(H)-8(1K)-TopCap(2G) (参考 : Ep-Ip特性) also see a same-base, lower μ type : 6F8G(μ=20) 3) JAN CRC 6C8G RCA ￥2400 NIB base-D/C=2-17(box D/C=April 1952) MB 1) VT-163(6C8G) RCA ￥2200 NIB just-ragged MB 1) 6C8G RCA ￥2200 NOS old plain-boxed 1) 6C8G GE ￥2000 NOS D/C=3-13 WB 2) 6C8G Syl ￥2000 NIB RaggedBox 1) 6C8G RCA ￥1200 used 2) 6C8G CGE(made for Marconi) ￥1500 lightly-used WB
6C9 =Twin Tetrode= (EIA/10F - center-pin added to E9-1 noval-base) Eh/Ih=6.3V/0.4A Ppmax=1.5W Epmax=250V Pc2max=0.5W Ec2max=180V op : Ep=125V Ec1=-1V Ec2=80V Ip=10mA Ic2=1.5mA rp=100kΩ gm=8mS heater variant : 17C9(16.8V/0.15A) see a differen-base electrically-similar type : 6AB9(Eh/Ih=6.3V/0.365A) also see a different-heater, similar type : 17AB9(Eh/Ih=16.8V/0.15A) 1) 6C9 RCA ￥1200 NIB 1) 6C9 Mazda ￥600 used
6C10 =high-mu triple Triode= (EIA/12BQ - compactron) (6C10 = 3 x one-section of 12AX7(μ=100, 100) into compactron) Eh/Ih=6.3V/0.6A Time_warmup=11sec Ehkmax=±200V Ppmax=1W/unit(3W/for all) Epmax=330V Ecmax=+0V/-50V op : Ep=100V Ec=-1V Ip=0.5mA rp=80kΩ gm=1.25mS μ=100 op : Ep=250V Ec=-2V Ip=1.2mA rp=62.5kΩ gm=1.6mS μ=100 pins : 1(H)-2(3P)-3(3K)-4(1K)-5(2P)-6(2K)-7(2G)-8(IC)-9(1G)-10(1P)-11(3G)-12(H) (size : 60mmH x 22mmφ, in max) different base(12BY) separated-cathode triple Triode : 6AV11(μ=17, 17, 17), 6D10(μ=57, 57, 57), 6K11/6Q11(μ=17, 100, 100) different base(12FE) separated-cathode triple triode : 6AC10(μ=62, 62, 62), 6AK10(μ=53, 53, 53), 6U10(μ=17, 100, 17) common-cathode compactron(12HG) triple triode : 6MJ8(Ppmax=3Wx3, μ=17, 17, 17) common-cathode compactron(12HU) triple triode : 6MN8(Ppmax=3Wx3, μ=40, 40, 40) 0) 6C10 RCA ￥- NIB(Sn) 1) 6C10 RCA ￥5900 NOS TopGtr GE箱 0) 6C10 GE ￥- NIB 一部RaggedBox(hyxent) 1) 6C10 GE ￥5900 NIB SideGtr RaggedBox 1) 6C10 GE ￥5900 NIB SideGtr RaggedBox 5) 6C10 GE ￥6000 NIB military-boxed date=3/74 SideGtr 0) 6C10 WH(GE-made) ￥- NIB SideGtr 0) 6C10 Raytheon(GE-made) ￥- NIB SideGtr 拡大写真* 0) 6C10 Raytheon(GE-made) ￥- NIB SideGtr (hyyagx)* 0) 6C10 Dmnt(GE-made) ￥- NIB SideGtr 0) 6C10 Syl ￥- NIB(hyycvt) 5) 6C10 Raytheon(made in Japan) ￥5900 NIB SideGtr * 0) 6C10 Philco ￥- NIB
6C19Π / 6S19P, 6C19Π-B / 6S19P-V =Power Triode= (EIA/ - noval) B9A Eh/Ih=6.3V/1A Ehkmax=250V expected-life : 2000H(6C19Π/6S19P) / 5000H(6C19Π-B/6S19P-V) Ppmax=11W Epmax=350V Ikmax=140mA Rgmax=500kΩ/1.5MΩ(as power regulators) Tbulb=250℃max op : Ep=110V Ec=-7V Rk=130Ω(Egk=-19.5V, Epk=90.5V) Ip=95mA(±15mA) rp=400Ω gm=7.5mS(±1.5mS) μ=3 pins: 1(P)-2(G)-3(P)-4(H)-5(H)-6(P)-7(G)-8(P)-9(K) (参考 : Ep-Ip特性) noval low-μ power triodes: 6877(μ=3.75), 6RA2(μ=3.3), 6RA3(μ=3), 7233(μ=4). A2293/CV4079(μ=4.5) 1) 6C19Π-B(6S19P-V) Svetlana ￥1000 NOS lot=68 WB 1) 6C19Π-B(6S19P-V) Svetlana ￥1000 NOS lot=XII-69 WB 6) 6C19Π-B(6S19P-V) Svetlana ￥1000 NOS lot=VI-72 WB 5) 6C19Π-B(6S19P-V) Svetlana ￥1000 NOS lot=IX-72 WB 8) 6C19Π-B(6S19P-V) Svetlana ￥1000 NOS lot=I-73 WB 3) 6C19Π-B(6S19P-V) Svetlana ￥1000 NOS lot=(2pcs)IV-73,(1pc)V-73 WB 5) 6C19Π-B(6S19P-V) Svetlana ￥1000 NOS lot=(3pcs)X-73,(2pc2)VIII-73 WB 10) 6C19Π-B(6S19P-V) Svetlana ￥1000 NOS lot=X-73 WB 1) 6C19Π-B(6S19P-V) Ulyanov ￥800 NOS lot=75 WB 2) 6C19Π-B(6S19P-V) Ulyanov ￥800 NOS lot=78 WB 2) 6C19Π-B(6S19P-V) Ulyanov ￥800 NOS lot=VI-79(June-1979) WB 1) 6C19Π-B(6S19P-V) Ulyanov ￥800 NOS lot=VIII-82(August-1982) WB 2) 6C19Π-B(6S19P-V) Ulyanov ￥800 NOS lot=IV-83(April-1983) WB 1) 6C19Π-B(6S19P-V) Ulyanov ￥800 NOS lot=XII-84(December-1984) WB 25) 6C19Π-B(6S19P-V) Ulyanov ￥800 NOS lot=88-03 WB 1) 6C19Π-B(6S19P-V) Ulyanov ￥800 NOS lot=89-04 WB
6C30 =delay tube = 6V/2W driver 1) 6C30 Amperite ￥3000 NIB ragged box : normally-close, 30sec delay
6C33C-B / 6S33S-V =Power Triode= (EIA/ ) Septer Eh/Ih=12.6V(6.3V)/3.3A(6.6A) Ppmax=60W Epmax=450V Ikmax=600mA rp=80ohm gm=40mS μ=3.2-typ Rgmax=200kΩ Ehk=300V Ec1max=-0.5V(!) Ec1min=-150V LifeTime=750H (参考 : Ep-Ip特性) 8) 6C33C-B(6S33S-V) Russia ￥3900 NOS Bulk Filament-aged, WB (hyyv8nt) 16) 6C33C-B(6S33S-V) Russia ￥3900 NOS Bulk Filament 4H-aged(hyy1v0nt)
6C41C(Russian) / 6S41S(English) =Power Triode= (EIA/ ) Septer Base(1 to 7) : H-NC-K-P-G-NC-H Ppmax=25W Epmax=450V Ikmax=310mA Eh/Ih=6.3V/2.8A rp=150ohm gm=19mS μ=3-typ Rgmax=200kΩ Ehk=300V Ec1max=-0.5V(!) Ec1min=-250V LifeTime=1250H 0) 6C41C(6S41S) USSR ￥- NIB
6C45T 1) 6C45T Amperite ￥3300 NIB DelayRelay w/ 6V-heater 45-sec Delay-on-Break noval
6CA4/EZ81 =FullWave Rectifier= (EIA/9M - noval) GE : PIV=1200V Idc=150mA Edrop=20V(@Idc=150mA) Ehkmax=-500V Eh/Ih=6.3V/1A for capacitor-input: op: Eac=250V Cin=50uF Rs=150ohm/plate Idc=150mA Eout=245Vdc op: Eac=290V Cin=50uF Rs=200ohm/plate Idc=150mA Eout=293Vdc op: Eac=350V Cin=50uF Rs=240ohm/plate Idc=150mA Eout=347Vdc see European type : EZ81 see Eh=5V similar type : 5RK16(Eh/Ih=5V/1.2A, H-K結合) see just lower rating types : 6BW4(PIV=1250V,Iout=100mAmax), and 6V4 / EZ80(Iout=90mAmax) also see separeted-cathode types : WE-412A(PIV=1250V, Iout=100mA), Bendix-6754(PIV=1450V, Iout=100mA, High-Rel.) (参考) 6CA4/EZ81の整流特性(Idc-Edc-Eac) 0) EZ81/6CA4 Mullard ￥3900 NIB(D) 4) EZ81/6CA4 GE(Mullard-made) ￥3100 NIB made in England 大型GE元箱 1) EZ81/6CA4 Heath(Mullard) ￥2000 used STRONG 1) 6CA4/EZ81 Amprx ￥3900 NIB BugleBoy 1) 6CA4/EZ81 Amprx ￥2600 NIB * 1) EZ81 Amprx ￥2000 used 112/116/54min 17) 6CA4 RCA ￥2600 NIB(hy1v4t) 0) 6CA4 RCA ￥- NIB 5) 6CA4 RCA ￥2600 NIB 9) 6CA4 RCA ￥2600 NIB 8) 6CA4 GE ￥2400 NIB 2) 6CA4 GE ￥2400 NIB *$** 0) 6CA4 GE ￥- NOS IEC箱 3) 6CA4 Syl ￥2400 NIB 一部RaggedBox(Q) 0) 6CA4/EZ81 Ray ￥- NIB *(Q) 0) 6CA4/EZ81 WH(WestingHouse) ￥- NIB 1) 6CA4/EZ81 Lindal ￥2200 NIB(T) 0) 6CA4 RAD-TEL ￥- NIB 1) 6CA4 NEC ￥2200 used 117/119/54min print=90% 2) 6CA4 Mitsubishi(NEC-made) ￥2200 used-lightly 1) 6CA4/EZ81 Matsushita ￥1500 like-new/lightly-used マイカ粉/カソード粉僅かにあり WB 1) 6CA4 Matsushita ￥1500 used WB 1) 6CA4 RCA-made ￥2200 NOS? NoPrint GE箱 2) 6CA4 ? ￥1500 used 109/119,116/114/54min print=0% 1) 6CA4 Magnavox ￥2200 used 1) 6CA4 GE ￥1200 used RCA-boxed
6CA5 =Beam Power= (EIA/7CV - miniature) Eh/Ih=6.3V/1.2A Ehkmax=±200V(DC=+100Vmax) Tbulb=180℃max Ppmax=5W Epmax=130V Pc2max=1.4W Ec2max=130V Rg1max=500kΩ(fixed)/500kΩ(self) op(A1S): Ep=Ec2=110V Ec1=-4.0V Ip=32/31mA Ic2=3.5/ 7.5mA rp=16kΩ gm=8.1mS Zl=3.5kΩ D=5% Po=1.1W op(A1S): Ep=Ec2=125V Ec1=-4.5V Ip=37/36mA Ic2=4.0/11.0mA rp=15kΩ gm=9.2mS Zl=4.5kΩ D=6% Po=1.5W (参考: EpIp特性(@Ec2=125V)) heater variant : 12CA5(12.6V/0.6A) 17CA5(16.8V/0.45A) 25CA5(25V/0.3A) 2) 6CA5 RCA ￥1200 NIB 2) 6CA5 GE ￥1200 NIB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6CA7/EL34/EL60
6C-A10/6CA10Eh/Ih=6.3V/1.5A Ehkmax=±200V Tbulb=225℃max Ppmax=30W Epmax=450V/900Vcutoff Ikmax=200mA Rgmax=250kΩ(fixed)/500kΩ(self) op : Ep=250V Ec=-22V Ip=80mA rp=620Ω gm=14mS μ=8 op1(A1S) : Ep=250V Ec=-22V Ip=80mA/95mA Zl=1.5kΩ Po=6W D=7.5% op2(AB1pp) : Rp=300V Ec=-30V Ip=50mAx2/74mAx2 Zl=3.2kΩ Po=24W D=2.5% op3(AB1pp) : Rp=350V Ec=-37V Ip=50mAx2/75mAx2 Zl=4.0kΩ Po=28W D=2.5% op4(AB1pp) : Rp=400V Ec=-43V Ip=50mAx2/75mAx2 Zl=5.0kΩ Po=34W D=2.5% 平均プレート(Ep-Ip)特性 see a heater variant : 50C-A10(50V/0.175A) size : 39.6mmΦ x 92.07mm, in max 2) 6C-A10 NEC ￥- NIB ClearTop型 2-pairs) 6CA10 NEC ￥16000/pair NIB TopGtr Factory-matched pairs 0) 6C-A10 NEC ￥- NIB TopGetter 0) 6C-A10 NEC ￥- NIB TopGetter(Q) 1-pair) 6C-A10 NEC ￥16000/pair NIB side-getter, non inner-box gm/Ip=11000μmho/72mA, 11250μmho/71mA (@Ep～130V, Ec=-10V on KS-15750-L1) 4) 6CA10 NEC ￥7000 used/like-new TwinSideGtr WB gm/Ip=10500μmho/68mA, 10000μmho/68mA, 10750μmho/68mA, 10750μmho/70mA on KS-15750-L1 4) 6CA10 NEC ￥6000 used TwinSideGtr 1) 6CA10 NEC ￥7000 lightly-used BlackPlate, TwinTopGtr WB
6CB5/A =Beam Power= Sweep Tubes(<30W) (EIA/8GD - octal, TopPlate) Eh/Ih=6.3V/2.5A Ehkmax=±200V Rg1max=470kΩ [RCA-ratings] 6CB5(Design-center) : Ppmax=23W Epmax=700V Pc2max=3.6W Ec2max=200V Ipmax=200mA Tbulb=210℃max 6CB5A(Design-max) : Ppmax=26W Epmax=880V Pc2max=4.0W Ec2max=220V Ikmax=240mA Tbulb=220℃max op : Ep=175V Ec2=175V Ec1=-30V Ip=90mA Ic2=6mA rp=5kΩ gm=8.8mS μg2g1=3.8 (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data)) also see different base, electrically similar types : 6CD6G/GA 6EX6 7867 see a different base, similar rating type : 6BG6/G also see a different base, just-lower-μ/just-lower-rp type : 6DQ5 1) 6CB5A RCA ￥1200 NIB 1) 6CB5A RCA ￥1200 NIB 1) 6CB5A RCA ￥1200 NIB VeryRaggedBox 1) 6CB5 RCA ￥1000 NOS? ExtremelyRaggedBox 1) 6CB5A RCA ￥1000 NOS? 4) 6CB5A GE ￥1000 NIB(vQn)
6CB6 (see 6676) =sharp-cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±200V Ppmax=2.5W Epmax=330V Pc2inmax=0.55W Ec2max=330V op : Ep=125V Ec2=125V Rk=56Ω Ip=13mA Ic2=3.7mA rp=280kΩ gm=8mS (参考 : Ep-Ip特性(@Ec2=150V)) (参考:三結時のEp-Ip特性例(triode connection : SAMPLE data)) see identical one : 6CF6 heater variants : 3CB6(3.15V/0.6A) 4CB6(4.2V/0.45A) similar to 6DE6 6DK6 6EW6(same basing) also see an electrically similar type 19M-R10(19V/0.1A / high-rel. for tele-com.) semi-remote-cutoff types : 6BZ6, 6JH6, 6DC6(same basing) 9) 6CB6 RCA他 ￥600 NOS/NIB 47) 6CB6/A/6CF6 RCA ￥600 NIB (hy2vavg) 0) 6CB6A/6CF6 RCA ￥- NIB w/sleeve 1) 6CB6/6CF6 RCA ￥600 NOS VeryRaggedBox 1) 6CB6A Perma-Test(日立) ￥1000 NIB LightBlueBox 32) 6CB6/A/6CF6 WH,Ray,GE,Syl etc USA ￥600 NIB (hyy2v4zt) 14) 6CB6A/6CF6 GE ￥600 NIB - mint 3) 6CB6A GE ￥600 NIB 1) 6CB6 GE ￥600 NOS RCA箱 1) JHS 6CB6 Syl ￥600 NIB MB 1) 6CB6 Syl ￥600 NIB old 2) 6CB6A Syl ￥600 NIB photo:center and right ones 2) 6CB6A Syl ￥600 NIB made in Canada 1) 6CB6A WH ￥600 NOS Syl箱 photo:left one 1) 6CB6A Syl ￥600 NIB 1) 6CB6A ECG ￥600 NIB 11) 6CB6 Znth ￥600 NIB old 1) 6CB6A/6CF6 Philips ￥600 NIB 1) 6CB6A WH ￥600 NIB 1) 6CB6 AWV-SuperRadiotron ￥600 NIB 1) 6CB6A Miniwatt ￥600 NIB 1) 6CB6 Motorola ￥600 NOS OldZnth箱 15) 6CB6/A USA ￥400 used 1) 6CB6A RCA ￥400 used 1) 6CB6 Japan ￥400 used
6CD6G/GA =BeamPower= Sweep Tubes(<30W) (EIA/5BT - octal-TopPlate) Eh/Ih=6.3V/2.5A Ehkmax=±200V(DC=+100Vmax) Rg1max=470kΩ *6CD6G : Ppmax=15W Epmax=700V Pc2max=3W Ec2max=175V Ikmax=200mA Tbulb=210℃max *6CD6GA : Ppmax=20W Epmax=700V Pc2max=3W Ec2max=175V Ikmax=200mA Tbulb=225℃max op : Ep=175V Ec2=175V Ec1=-30V Ip=75mA Ic2=5.5mA rp=7.2kΩ gm=7.7mS μg2g1=3.9 (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data)) heater variant : 25CD6/GB(25V/0.6A) see same base, electrically similar type : 6EX6 7867 see same base, similar rating type : 6BG6/G see a different base, electrically similar type : 6CB5/A also see a different base, just-lower-μ/just-lower-rp type : 6DQ5 1) 6CD6G RCA ￥2400 NIB 1) 6CD6G Tsol ￥2400 NIB 5) 6CD6G Raytheon ￥2400 NOS D/C=5-52(1955 52nd-week), Bottom & Top view WB 9) 6CD6GA RCA ￥1200 NIB D/C=NL(Dec.1963) 1) 6CD6GA RCA ￥1000 NOS Syl箱 5) 6CD6GA GE ￥900 NIB 5) 6CD6GA GE ￥900 NIB GrayPlate(nSn) 1) 6CD6GA GE ￥800 NOS? 1) 6CD6GA Lindal(GE-made) ￥900 NIB GrayPlate 1) 6CD6GA Syl ￥900 NIB MB 1) 6CD6GA Syl ￥900 NIB 1) 6CD6GA Syl ￥900 NIB VeryRaggedBox 1) 6CD6GA Syl-ECG ￥900 NIB 2) 6CD6GA Tsol ￥1100 NIB 1) 6CD6GA Znth ￥900 NIB 4) 6CD6GA Ray ￥900 NIB 1) 6CD6GA/G WH ￥900 NIB 1) 6CD6GA Truetone ￥900 NIB 4) 6CD6GA RCA,Syl,Philco(GE) ￥600 used
6CE3 =Half wave HV Rectifier= (EIA/12GK - compactron) Ppmax=-W PIV=6000V Idcmax=350mA Edrop=20V(@Idc=680mA) Eh/Ih=6.3V/2.5A (参考: コンパクトロン半波整流管のピン・コンパチビリティ (Compactron Halfwave-Rectifier pin-compatibility)) 6) 6CE3/6CD3/6DT3 RCA ￥1200 NIB 2) 6CE3/6CD3 Syl ￥1000 NIB 2) 6CE3/6CD3 WH ￥1000 NIB 1) 6CE3 Triad ￥1000 NIB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6CE5 =sharp-cutoff RF Pentode= (EIA/7BD - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±200V Ppmax=2W Epmax=300V Pc2max=0.5W Ec2max=300V rp=300kΩ gm=7.6mS Rg1max=500kΩ 6CE5≒6BC5 similar types with same base(7BD) : 6AG5 / 6186, 6AK5 / 403A/B / 5654 / EF95 10) 6CE5/6BC5 GE ￥700 NIB 1) 6CE5/6BC5 GE ￥700 NIB MB 1) 6CE5/6BC5 Znth ￥700 NIB 1) 6CE5/6BC5 USA ￥400 used
6CF6 =sharp-cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±200V Ppmax=2.3W Epmax=330V Pc2max=0.55W Ec2max=330V Rg1max=500kΩ op : Ep=125V Ec2=125V Rk=56Ω Ip=13mA Ic2=3.7mA rp=280kΩ gm=8mS 6CF6≒6CB6A heater variant : 3CF6(3.15V/0.6A) similar to 6DK6 6DE6 6EW6(same basing) semi-remote-cutoff types : 6BZ6, 6JH6, 6DC6(same basing) 3) 6CF6 RCA ￥700 NIB 5) 6CF6 Syl ￥700 NIB 5) 6CF6 Tsol ￥700 NIB 4) 6CF6 Znth ￥700 NIB old
6CG3 =HalfWaveHighVacuumRectifier= (EIA/12HF - compactron) Eh/Ih=6.3V/1.8A Ehkmax=+300V(+100Vdc-max)/-5000V(-900Vdc-max) Ppmax=9W PIV=5000V Idcmax=350mA/1050mA-peak(steady-state) Edrop=25V(@Idc=700mA) pins : 1(H)-2(IC)-3(NC)-4(P)-5(IC)-6(IC)-7(K)-8(IC)-9(IC)-10(P)-11(NC)-12(H) heater variants : 19CG3(19V/0.6A), 25CG3(25V/0.45A) <ダンパ用-高圧半波整流管の比較> (参考: コンパクトロン半波整流管のピン・コンパチビリティ (Compactron Halfwave-Rectifier pin-compatibility)) 3) 6CG3/6BW3/6DQ3 RCA ￥900 NIB 3) 6CG3/6BW3 RCA ￥900 NIB 3) 6CG3/6CE3/6CD3 GE ￥900 NIB(yAht) 3) 6CG3/6CE3/6CD3 GE ￥900 NIB(yAht) 1) 6CG3/6BW3/6CD3 GE ￥900 NIB 2) 6CG3/6CD3 GE ￥900 NIB 5) 6CG3/6BW3 Syl ￥900 NIB 1) 6CG3 Syl ￥900 NIB 1) 6CG3/6CE3/6CD3 Ray ￥900 NIB 3) 6CG3 WH ￥900 NIB sw 2) 6CG3 Magnavox ￥900 NIB ClearTop(SideGetter), made in Japan 1) 6CG3 Philco ￥900 NIB ClearTop(SideGetter), made in Japan 1) 6CG3 Toshiba ￥900 NIB sealed 2) 6CG3 Toshiba ￥900 NIB one is still cellophane-sealed 1) 6CG3 unknown(RCA?) ￥600 lightly-used dome-top WB
6CG7 (see 6FQ7, also see 6GU7) =Medium mu TwinTriode= (EIA/9AJ-noval) Eh/Ih=6.3V/0.6A(11sec) Ehkmax=±200V (design max) : Ppmax=4W(5.7W for both) Epmax=330V Ecmax=+0V Ikmax=22mA Rg1max=1MΩ(fixed) op : Ep=250V Ec=-8V Ip=9mA rp=7.7kΩ gm=2.6mS μ=20 (参考 : Ep-Ip特性) (ピン配列: 6CG7 = 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(IS) (ピン配列: 6FQ7 = 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(NC) heater variants : 8CG7(8.4V/0.45A) 8FQ7(8.4V/0.45A) 12FQ7(12.6V/0.3A) 1) 6CG7 Mullard ￥3500 NIB 長箱 2) 6CG7 RCA ￥2400 NOS Bulk品 TopGetter (rhy1e) 1) 6CG7 RCA ￥2500 NIB 4) 6CG7 RCA ￥2500 NIB GrayPlates TopGtr(Aht) 0) 6CG7 RCA ￥- NIB GrayPlates ClearTop(Q) 0) 6CG7 RCA ￥- NIB ClearTop(SideGetter) 1) 6CG7 RCA ￥2200 NOS Selectron箱 ハーフClearTop(SideGetter) 1) 6CG7 STD(RCA) ￥1900 NOS ラベル消え TopGetter BlackPlates 20) 6CG7 STD(RCA) ￥2500 NIB TopGetter BlackPlates YellowPrint 2) 6CG7 GE ￥2100 NIB TopGetter MB 1) 6CG7 GE ￥1900 NIB TopGetter 1) 6CG7 GE ￥1900 NIB 1) 6CG7 GE ￥1700 NOS ITT-BOX TopGetter 1) 6CG7 GE ￥1700 NOS WB TopGtr 1) 6CG7 Syl ￥1900 NIB TopGetter 1) 6CG7 Syl ￥1500 NOS RCA箱 0) 6CG7 Znth(Syl-made) ￥1900 NIB (vsQ) 1) 6CG7/6FQ7 Syl ￥1700 NIB 9) 6CG7/6FQ7 Syl ￥1700 NIB 13) 6CG7/6FQ7 Znth(Syl-made) ￥1700 NIB 1) 6CG7/6FQ7 Syl ￥1700 NIB 1) 6CG7 WH ￥2700 NOS RCA-BOX BlkPlate TopGetter 1) 6CG7 Tsol ￥2700 NIB BlkPlate TopGetter 1) 6CG7 Tsol ￥2400 NIB GrayPlate TopGetter 1) 6CG7 Philco ￥2000 NOS RTT-box TopGetter GrayPlates 1) 6CG7 Silvertone ￥1700 used? RCA箱 1) 6CG7 Sonotone ￥2600 NOS GE箱 BlkPlate、TopGetter 1) 6CG7/6FQ7 Lindal ￥1700 NIB made in Japan 1) 6CG7/6FQ7 IntC ￥1700 NIB 1) 6CG7/6FQ7 IntC ￥1700 NIB Korea 1) 6CG7 Toshiba ￥2000 NIB 2) 6CG7 Hitachi ￥2000 NIB 2) 6CG7 Ray ￥1600 used BlkPlates Strong 1) 6CG7 RCA ￥1200 used GrayPlate TopGetter 1) 6CG7 RCA ￥1500 used TopGetter GrayPlates 2550/2550/1640min Ray箱 1) 6CG7 Magnavox(RCA-made) ￥1500 used TopGetter GrayPlates 2580/2530/1640min date=60-04 1) 6CG7 Hoffman(RCA) ￥1500 used BlkPlates 1) 6CG7/6FQ7 RCA ￥800 used 8) 6CG7 USA(GE,RCA etc) ￥1000 used GrayPlate 1) 6CG7 Rogers ￥1000 used BlkPlate,TopGetter 1) 6CG7 Philco ￥400 used 2570/1520/1640min weak 2) 6CG7 マツダ(Matsuda/Japan) ￥800 used GrayPlates 1) 6CG7 マツダ(Matsuda/Japan) ￥800 used GrayPlates 3) 6CG7 Toshiba ￥800 lightly-used GrayPlates 1) 6CG7/6FQ7 Mitsubishi ￥800 used 1) 6CG7 Viking ￥800 used 1) 6CG7 - ￥1000 used ChannelMaster箱 新同品 BlkPlate,TopGetter 1) 6CG7 - ￥1000 used BlkPlate
6CG8/A =common-cathode Triode Pentode= (EIA/9GF - noval) Eh/Ih=6.3V/0.45A Ehkmax=200V Pentode: Ppmax=2.3W Epmax=275V Pc2max=0.45W Ec2max=275V rp=300kΩ gm=5.5mS Rgmax=-kΩ Triode : Ppmax=1.7W Epmax=275V μ=40 rp=6kΩ gm=6.5mS Rgmax=-MΩ heater variant : 5CG8(4.7V/0.6A) 6) 6CG8A RCA ￥900 NIB 2) 6CG8A Amperex ￥900 NIB - mint 9) 6CG8A GE ￥700 NIB - mint 4) 6CG8A Syl ￥700 NIB 2) 6CG8A Syl ￥700 NIB MB 5) FAA 6CG8A Syl ￥700 NIB MB 2) 6CG8 USA ￥700 NIB 1) 6CG8 Tsol ￥900 NIB 1) 6CG8 Rayl ￥900 NIB 1) 6CG8 Omega(日立) ￥1000 NIB 1) 6CG8 GE ￥500 used LikeNew 1) 6CG8 Tsol ￥500 used strong 1) 6CG8 Philco ￥500 used? GE箱 1) 6CG8 RCA ￥500 used? RCA箱 1) 6CG8A Sharp ￥500 used? Syl箱
6CH3 =HV Halfwave Rectifier= (EIA/9HP, 9SD - NOVAR) GE/Sylvania : Eh/Ih=6.3V/2.5A Ehkmax=+300Vpeak(+100Vdc)/-5000Vpeak(-900Vdc) Ppmax=11W PIV=5000V Idcmax=350mA/1500mA-peak Edrop=20V(@Idc=680mA) see a later-version : 6CJ3/6CH3(Eh/Ih=6.3V/1.8A, Ppmax=6.5W) 9HP same-base NOVAR halfwave rectifiers : 6AY3 6BS3/A 6CH3 6CJ3 6CK3 6CL3 6CM3 6DN3 6DW4/B Half wave rectifier comparison table : <ダンパ用-高圧半波整流管の比較> 1) 6CH3 RCA ￥1000 NIB 16) 6CH3 Syl ￥1000 NIB TipTop
6CH6/EL821/7D10/CV4055 =video amp Power Pentode= (EIA/9BA - noval) Eh/Ih=6.3V/0.75A Ehkmax=90Vdc Tbulb=250℃ Rg1max=100kΩ(fixed)/220kΩ(self) Pentode con.: Ppmax=12W Epmax=275V Pc2max=2.5W Ec2max=275V Ikmax=65mA * Cg1p=0.25pF Cinput(g1 to h+k+g2+g3+IS)=14pF Coutput(p to h+k+g2+g3+IS)=5pF op : Ep=250V Ec2=250V Ec1=-4.5V Ip=40mA Ic2=6mA rp=50kΩ gm=11mS μg1g2=26 op(A1S) : Ep=250V Ec2=250V Rk=100Ω Ip=40mA Ic2max=8.5mA Zl=6kΩ Po=3W D=8.5% op(AB1pp) : Ep=250V Ec2=250V Rk=50Ω Ip=80mA Ic2max=17.5mA Zlpp=9kΩ Po=8W D=7.5% Triode con.: Ppmax=12.5W Epmax=275V Ikmax=65mA * Cg1p=6.0pF Cinput(g1 to h+k+g3+IS)=8.0pF Coutput(p to h+k+g3+IS)=6.0pF op : Ep=250V Ec=-4.5V Ip=46mA rp=1.87kΩ gm=13mS μ=25.8 op(A1S) : Ep=250V Rk=100Ω Ip=46mA Zl=4kΩ Po=0.8W D=4% op4(AB1pp) : Ep=250V Rk=50Ω Ip=92mA Zlpp=5kΩ Po=1.8W D=1% pins : 1(NC)-2(G1)-3(K)-4(H)-5(H)-6(NC)-7(P)-8(G2)-9(G3) (参考 : 三結時のEp-Ip特性 : triode-connection) similar to 6BQ5 0) 6CH6 Philips ￥- NIB 4) 6CH6 Brimar ￥2000 NOS made in England WB 1) 6CH6 NEC ￥1000 used-lightly 通信用 D/C=1959-5 WB
6CH8 =med-mu Triode, sharp-cutoff Pentode= (EIA/9FT - noval) Eh/Ih=6.3V/0.45A Ehkmax=200V Pentode: Ppmax=2W Epmax=300V Pc2max=0.5W Ec2max=330V rp=300kΩ gm=6.2mS Rgmax=250kΩ(fixed)/1M(self) Triode : Ppmax=2.6W Epmax=300V μ=19 rp=5.75kΩ gm=3.3mS Rgmax=500kΩ(fixed)/1MΩ(self) 1) 6CH8 Haltron ￥1200 NIB 1) 6CH8 RCA ￥1000 NIB 1) 6CH8 RCA ￥1000 NIB 2) 6CH8 GE ￥900 NIB 1) 6CH8 GE ￥900 NOS RCA箱 2) 6CH8 Syl ￥900 NIB
6CJ3 =HalfWaveHighVacuumRectifier= (EIA/9HP, 9SD - NOVAR) Eh/Ih=6.3V/1.8A Ehkmax=+300V(+100Vdc-max)/-5500V(-900Vdc-max) Ppmax=6.5W PIV=5500V Idc=350mA/2100mA-peak Edrop=25V(@Idc=700mA) 6CJ3 ≒ 6CL3 ≒ 6DW4B 9HP same-base NOVAR halfwave rectifiers : 6AY3 6BS3/A 6CH3 6CJ3 6CK3 6CL3 6CM3 6DN3 6DW4/B Half wave rectifier comparison table : <ダンパ用-高圧半波整流管の比較> 2) 6CJ3/6CH3 RCA ￥1000 NIB 3) 6CJ3/6DW4B/6CH3 RCA ￥1000 NIB 0) 6CJ3 GE ￥900 NOS Syl箱 0) 6CJ3/6DW4B GE ￥900 NIB 0) 6CJ3/6DW4B Syl ￥900 NIB(nSn) 0) 6CJ3/6DW4B SylECG ￥900 NIB(vQ) 1) 6CJ3/6DW4B Syl ￥400 used GE箱 1) 6CJ3/6DW4B WH ￥400 used GE箱 1) 6CJ3/6DW4B Znth ￥400 used GE箱
6CJ5(=EF41) =Pentode= (8-pin Rimlock) Eh/Ih=6.3V/0.2A Ehkmax=100V Rg1max=3MΩ(self) Ppmax=2W Epmax=300V Pc2max=0.3W Ec2max=300V Ikmax=10mA, rp=1.1MΩ gm=2.2mS μg2g1=18-typ pins : 1(H)-2(P)-3(IC)-4(IC)-5(G2)-6(G1)-7(KG3S)-8(H) 0) 6CJ5 Mullard ￥- NIB 4) 6CJ5(EF41) Mullard ￥offer NIB
6CJ6(=EL81) =Power Pentode= (EIA/9AS - noval, top-plate) Ppmax=8W, Epmax=300V Pc2max=4.5W Ec2max=300V Ikmax=180mA, gm=4.6mS, Eh/Ih=6.3V/1.05A pins : 1(IC)-2(G1)-3(K)-4(H)-5(H)-6(IC)-7(IC)-8(G2)-9(G3)-Top(P) (参考 : 三結時のEp-Ip特性(Triode connection for 6CJ6/EL81, 21A6/PL81)) also see heatervariants : 21A6, and PL81 (Eh/Ih=12.6V/0.15A) 1) 6CJ6(=EL81) Phlps ￥1300 NIB justRaggedBox Mullard-made 0) 6CJ6(=EL81) GE ￥- NIB(D)
6CK3 =Halfwave Rectifier= (EIA/9HP - NOVAR) Ppmax=6.5W PIV=5200V Idc=250mA Edrop=16V(@Idc=350mA) Eh/Ih=6.3V/1.2A heater variant : 25CK3(25.2V/0.3A) 9HP same-base NOVAR halfwave rectifiers : 6AY3 6BS3/A 6CH3 6CJ3 6CK3 6CL3 6CM3 6DN3 6DW4/B Half wave rectifier comparison table : <ダンパ用-高圧半波整流管の比較> 1) 6CK3 Syl ￥1200 NIB 5) 6CK3 Sylvanias ￥1200 NOS wb
6CK4 =PowerTriode(垂直偏向)= (EIA/8JB - octal) 6GA4に類似 Eh/Ih=6.3V/1.25A Ehk=±200V Ppmax=12W Epmax=550V/2kV-peak Ipmax=100mA/350mA-peak Rgmax=2.2MΩ(self) op : Ep=250V Ec=-28V Ip=40mA rp=1.2kΩ gm=5.5mS μ=6.6 6CK4Tの平均プレート(EpIp)特性 pins : 1(G)-2(H)-3(G)-4(none)-5(P)-6(none)-7(H)-8(K) also see 6AH4(Ppmax=7.5W, gm=4.5mS rp=1.8kΩ μ=8)(差替可能:要バイアス再調整) 0) 6CK4 RCA(GE-made) ￥- NIB BlkBoxPlate TopGtr(Nn) 0) 6CK4 GE ￥- NIB BlkBoxPlate TopGtr date=5922(hyycvt) 1) 6CK4 GE ￥3200 NIB BlkBoxPlate TopGtr 1) 6CK4 GE ￥3200 NIB BlkBoxPlate TopGtr 0) 6CK4 GE ￥- NIB GrayBoxPlate TopGtr ThickBase RaggedBox 1) 6CK4 RCA(GE-made) ￥3200 NIB BlkBoxPlate TopGtr RaggedBox 1) 6CK4 GE ￥3200 NIB BlkBoxPlate TopGtr RaggedBox RaggedBox 1) 6CK4 Syl(GE-made) ￥3200 NIB GrayBoxPlate TopGtr ThickBase 1) 6CK4 Znth(GE-made) ￥3200 NIB BlkBoxPlate TopGtr RaggedBox 1) 6CK4 WH(GE-made) ￥3200 NIB BlkBoxPlate TopGtr RaggedBox 1) 6CK4 Philco(GE-made) ￥3200 NIB BlkBoxPlate TopGtr RaggedBox 0) 6CK4 Znth(GE-made) ￥- NIB BlkBoxPlate TopGtr 2) 6CK4 GE ￥2900 NIB GrayBoxPlate TopGtr(hyyenx) 2) 6CK4 RCA(GE-made) ￥2900 NIB GrayBoxPlate TopGtr RaggedBox 1) 6CK4 WH(GE-made) ￥2900 NIB GrayBoxPlate TopGtr 1) 6CK4 Znth(GE-made) ￥2900 NIB GrayBoxPlate TopGtr RaggedBox 0) 6CK4 RCA,Syl(GE-made) ￥- NIB GrayBoxPlate TopGtr(Sn) 0) 6CK4 Amperex(GE-made) ￥- NIB GrayBoxPlate TopGtr 1) 6CK4 Syl ￥3200 NIB BlkOvalPlate TopGtr(hyydvn) 3) 6CK4 Syl ￥3200 NIB BlkOvalPlate TopGtr OldBox 2) 6CK4 Syl ￥3200 NIB BlkOvalPlate TopGtr ThinBase 2) 6CK4 RCA(Syl-made) ￥3200 NIB BlkOvalPlate TopGtr(hxavt) 1) 6CK4 GE(Syl-made) ￥3200 NIB BlkOvalPlate TopGtr 1) 6CK4 Znth(Syl-made) ￥3200 NIB BlkOvalPlate TopGtr 2) 6CK4 Ray(Syl-made) ￥3200 NIB BlkOvalPlate Top DiskHaloGtr 2) 6CK4 Ray(Syl-made) ￥3200 NIB BlkOvalPlate TopGtr 1) 6CK4 Ray(Syl-made) ￥3200 NIB BlkOvalPlate TopGtr 1) 6CK4 WH(Syl-made) ￥3200 NIB BlkOvalPlate TopGtr 3) 6CK4 Philco(Syl-made) ￥3200 NIB BlkOvalPlate TopGtr 2) 6CK4 Marconi(Syl-made) ￥3200 NIB BlkOvalPlate TopGtr 4) 6CK4 Mytron(Syl-made) ￥3200 NIB BlkOvalPlate TopGtr 2) 6CK4 Amperex ￥3200 NIB BlkOvalPlate 1) 6CK4 Tsol ￥3200 NIB 1) 6CK4 WH ￥3200 NIB 1) 6CK4 CBS ￥3200 NIB 4) 6CK4 Znth ￥3200 NIB ragged-box 2) 6CK4 Znth ￥3200 NOS 0) 6CK4 Arcturus ￥3700 NIB(sQ) 1) 6CK4 Hytron ￥3200 NIB 1) 6CK4 Dmnt ￥3200 NIB BlkOvalPlate RaggedBox
6CK5(=EL41) =power Pentode= (EIA/8GW - 8pin rimlock) Ppmax=9W Epmax=300V Pc2max=3.3W Ec2max=300V Ikmax=55mA, gm=10mS, Eh/Ih=6.3V/0.71A 0) 6CK5 WH ￥- NIB(D) 0) 6CK5 WH ￥700 NOS GE箱
6CK6/EL83 =video output Pentode= (EIA/9AR - noval) Eh/Ih=6.3V/0.71A Ehkmax=100V Rg1max=500kΩ(fixed)/1MΩ(self) Ppmax=9W Epmax=300V/550V-cutoff Pc2max=2W Ec2max=300V/550V-cutoff Ikmax=70mA op : Ep=250V Ec3=0V Ec2=250V Ec1=-5.5V Ip=36mA Ic2=5mA rp=130kΩ gm=10mS μg2g1=24 pins : 1(G2)-2(G1)-3(K)-4(H)-5(H)-6(G3)-7(P)-8(IS)-9(IC) 参考:三結時のEp-Ip特性例(triode connection : SAMPLE data) see an equivallent type : EL83 heater variants : PL83(15V/0.3A) 2) 6CK6 Haltron ￥2200 NIB 1-pc=England-made, 1pc=W.Germany-made, just-ragged boxes
6CL3(=6DW4B) =Halfwave Rectifier= (EIA/9HP - NOVAR) Ppmax=8.5W PIV=5500V Idc=240mA Edrop=16V(@Idc=350mA) Eh/Ih=6.3V/1.2A 6CL3 ≒ 6CJ3 ≒ 6DW4B heater variant : 12CL3(12.6V/0.6A) 9HP same-base NOVAR halfwave rectifiers : 6AY3 6BS3/A 6CH3 6CJ3 6CK3 6CL3 6CM3 6DN3 6DW4/B Half wave rectifier comparison table : <ダンパ用-高圧半波整流管の比較> 2) 6CL3 RCA ￥1000 NOS 8) 6CL3/6CK3 RCA ￥1000 NIB 1) 6CL3/6CK3 GE ￥800 NIB 1) 6CL3/6CK3 GE ￥800 NIB 2) 6CL3 Syl ￥800 NIB 1) 6CL3 WH ￥800 NIB 1) 6CL3 STD ￥800 NIB 1) 6CL3 Mot ￥500 LightlyUsed GE箱
6CL6 =video/wideband power Pentode= (EIA/9BV - noval) Eh/Ih=6.3V/0.65A Ehkmax=±90V Rg1max=100kΩ(fixed)/500kΩ(self) * Cg1p=0.12pF Cinput(g1 to h+k+g2+g3+IS)=11pF Coutput(p to h+k+g2+g3+IS)=5.5pF (design center) : Ppmax=7.5W Epmax=300V Pc2max=1.7W Ec2max=150V/300V-supply op(A1S) : Ep=250V Ec2=150V Ec1=-3V Ip=30mA/31mA Ic2=7mA/7.2mA rp=150kΩ gm=11mS Zl=7.5kΩ D=8% Po=2.8W (参考 : 三結時のEpIp特性(Triode-connection)) see equivallents : 6197, 6677 also see a similar type : 6R-P22 also see an electrically-similar octal-base type : 6AG7/GT 1-pair) 157-0021-00(6CL6-MP) Tektronix(GE-made) ￥3900 NIB BlkPlate cloth-seal white-silk 1-pair) 157-0021-00(6CL6-MP) Tektronix(GE-made) ￥3900 NIB BlkPlate cloth-seal white-silk 1-pair) 157-0021-00(6CL6-MP) Tektronix(GE-made) ￥3900 NIB BlkPlate metal-seal white-silk 1-pair) 157-0021-00(6CL6-MP) Tektronix(GE-made) ￥3900 NIB BlkPlate metal-seal red-silk 1) 6CL6 Tektronix(GE-made) ￥1000 NIB １本のみ metal-silk BlkPlate red-silk 1-pair) 157-0021-00(6CL6-MP) Tektronix(Toshiba-made) ￥3900 NIB metal-seal GrayPlate golden-silk 背面の写真 2) 6CL6 RCA ￥1500 NIB BlkPlate 13) 6CL6 Znth(RCA-made) ￥1500 NIB BlkPlate oldRed+BlkBox 1) 6CL6 STD Edison(RCA-made) ￥1400 NIB BlkPlate STD-Box 4) 6CL6 RCA ￥1200 NIB(vNn) 2) 6CL6 RCA ￥1200 NOS GrayPlate 1972,1973 JANMB(Aht) 1) 6CL6 RCA ￥1200 NOS GrayPlate JANMB DATE=7/69 0) 6CL6 RCA ￥- NIB GrayPlate MB(sD) 0) 6CL6 RCA ￥- NIB GrayPlate(sD) 4) 6CL6 RCA ￥1200 NOS GrayPlate Bulk 0) 6CL6 RCA ￥- NIB RB(sD) 1) 6CL6 RCA ￥1200 NIB(nQn) 2) JAN 6CL6 RCA ￥1200 NOS D/C=63-03 GrayPlate STD箱 2) 6CL6 RCA ￥1200 NOS GE-boxed D/C=313, 322, BlkPlate WhiteSilk 1) 6CL6 RCA ￥1200 NIB BlkPlate 1) 6CL6 RCA ￥1200 NIB GrayPlate 1) 6CL6 RCA ￥1200 NIB GrayPlate 1) 6CL6 RCA(GE-made) ￥1200 NIB BlkPlate 9) 6CL6 NEC ￥1800 NOS GrayPlate WB 1) 6CL6 松下 ￥1800 NOS GrayPlate 赤黒OB 6) 6CL6 GE ￥1200 NIB BlkPlate 1) 6CL6 GE ￥1200 NOS BlkPlate 9) 6CL6 GE ￥1200 NIB D/C=60-35 BlkPlate 1) 6CL6 GE ￥1000 NOS BlkPlate Syl軍箱 1) 6CL6 GE ￥1200 NIB BlkPlate 1) 6CL6 GE ￥1200 NIB MB BlkPlate 4) 6CL6 GE ￥1800 NOS JAN sealed cardboard-box 2) 6CL6 GE ￥1000 NIB 1) 6CL6 CBS(GE-made) ￥1200 NIB BlkPlate 4) 6CL6 HiS Toshiba ￥1200 NIB 通測用 lot=1G02(3pcs), 2J03(1pc) just-ragged boxes 4) 6CL6 HiS Toshiba ￥1200 NIB 通測用 lot=NHK1972.9-9G03(2pcs), 8K03(2pcs) just-ragged boxes 1) 6CL6 Toshiba ￥1200 NIB just-ragged box 1) 6CL6 Syl ￥1200 NOS BlkPlate 黒黄箱 1) 6CL6 Syl ￥1200 NOS BlkPlate 1) 6CL6 Ray ￥1000 NIB 0) 6CL6 WH ￥- NOS BlkPlate 橙紺OB(Q) 1) 6CL6 Marconi ￥1200 NOS BlackPlate 赤黒OB 1) 6CL6 Marconi(GE-made) ￥1000 NIB 1) 6CL6 Rogers ￥1000 NIB 6) 6CL6 Amprx ￥1200 NIB * 1) 6CL6 Tsol ￥1200 NIB BlkPlate 12) 6CL6 GE ￥900 used? BlkPlate 1) 6CL6 Ray ￥900 used? BlkPlate 2) 6CL6 RCA ￥900 used? 8700,9000/5000min 1) 6CL6 GE ￥900 used? D/C=68-48 1) 6CL6 GE ￥600 used D/C=1953(smeared off) BlkPlate Syl箱 1) 6CL6 RCA ￥600 used 1) 6CL6 RCA ￥600 used BlkPlate 7100/5000min 3) 6CL6 GE ￥600 used BlkPlate 6700,7000,7300/5000min 1) 6CL6 GE ￥600 used BlkPlate 7000/5000min 1) 6CL6 Teltronix(GE-made) ￥1000 used BlkPlate 8200/5000min 4) 6CL6 GE ￥1000 used LUX-MQ36の換装品 1) 6CL6 NEC ￥600 lightly-used 通信用 lot=M4 GrayPlate, silver^silk WB 2) 6CL6 Hitachi ￥600 lightly-used GrayPlate, 1=通測用DC1963-12,1=通信用DCxxxx WB 1) 6CL6 USA ￥500 used BlkPlate
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6CL8A =medium-mu-Triode sharp-cutoff-Tetrode= (EIA/9FX - noval) Eh/Ih=6.3V/0.45A Tetrode : Ppmax=3W Epmax=330V Pc2max=0.55W Ec2max=330V rp=200kΩ gm=6.5mS Triode : Ppmax=2.5W Epmax=330V μ=40 rp=5kΩ gm=8mS heater variant : 5CL8A(4.7V 0.6A) 3) 6CL8A RCA ￥900 NIB 1) 6CL8A RCA ￥800 NOS 1) 6CL8A RCA ￥800 NOS Syl箱 2) 6CL8A GE ￥800 NIB 1) 6CL8A Syl ￥800 NIB 5) 6CL8A Ray ￥800 NIB w/sleeve 1) 6CL8A IntC ￥800 NIB 1) 6CL8A RCA ￥400 used Syl箱
6CM3 =HalfWave Rectifier= (EIA/9HP - NOVAR) Eh/Ih=6.3V/2.4A Ehkmax=+100Vav/-900Vav, +300Vpeak/-5500Vpeak Ppmax=12W PIV=5500V Idc=400mA/1.7Apeak Edrop=10V(@Idc=350mA) 9HP same-base NOVAR halfwave rectifiers : 6AY3 6BS3/A 6CH3 6CJ3 6CK3 6CL3 6CM3 6DN3 6DW4/B Half wave rectifier comparison table : <ダンパ用-高圧半波整流管の比較> 4) 6CM3 RCA ￥1900 NIB 4) 6CM3 Philco ￥1500 NIB TipTop just-ragged boxes 1) 6CM3 International C ￥1500 NIB TipTop just-ragged box 2) 6CM3 International C ￥1500 NIB DomeTop just-ragged boxes
6CM4(=EC86) =grounded-grid UHF Triode= (EIA/9KG - noval) Eh/Ih=6.3V/0.17A Ppmax=2.2W Epmax=220V Ikmax=20mA Ehkmax=±100V Fmax=800MHz op(ground-grid amplifier) : Ep=175V Ec=-1.5V Ip=12mA gm=14mS μ=68 (参考 : Ep-Ip特性) see heater variant : PC86(3.8V/0.3A) 1) 6CM4/EC86 Amperex ￥1600 NIB
6CM5/EL36 =Power Pentode= (EIA/8GT - octal) Eh/Ih=6.3V/1.25A Ppmax=12W Epmax=250V Pc2max=4W Ec2max=250V Ikmax=200mA, gm=14mS (参考 : Ep-Ip特性) see heater variants : 25E5(25V/0.3A), 50JY6(50V/0.15A), PL36(25V/0.3A) similar to 6G-B3A(Eh/Ih=6.3V/1.2A) : pin #1(IC), #3(IC)を用いなければ同一pin配列 also see a just-upper-rating and same-basing type : EL360(Ppmax=15W, Ec2max=400V, Eh/Ih=6.3V/1.27A) 2) 6CM5 Mazda ￥2000 NIB 4) 6CM5 Matsushita ￥800 LightlyUsed
6CM6 =AF/vert.def. Beam Power= (EIA/9CK - noval) *The 6CM6 is electrically identical to 6V6/GT. Eh/Ih=6.3V/0.45A Ehkmax=±200V Ppmax=12W Epmax=315V Pc2max=2W Ec2max=285V Rgmax=100kΩ(fixed)/500kΩ(self) op(A1S): Ep=180V Ec2=180V Ec1=-8.5V Ip=29mA/30mA Ic2=3mA/4mA rp=50kΩ gm=3.7mS Zl=5.5kΩ Po=2.0W D=8% op(A1S): Ep=250V Ec2=250V Ec1=-12.5V Ip=45mA/45mA Ic2=4.5mA/7mA rp=50kΩ gm=4.1mS Zl=5kΩ Po=4.5W D=8% op(A1S): Ep=315V Ec2=225V Ec1=-13V Ip=34/35mA Ic2=2.2mA/6mA rp=80kΩ gm=3.75mS Zl=8.5kΩ Po=5.5W D=12% op(AB1pp): Ep=250V Ec2=250V Ec1=-15V Ip=70mA/90mA Ic2=5mA/13mA Zl=10kΩ Po=10W D=5% op(AB1pp): Ep=285V Ec2=285V Ec1=-19V Ip=70mA/92mA Ic2=4mA/13.5mA Zl=8kΩ Po=14W D=3.5% op(A1S - triode connection) : Ep=250V Ec1=-12.5V Ip=49.5mA rp=1.96kΩ gm=5mS μ=9.8 (参考:三結時のEp-Ip特性例(triode connection : SAMPLE data plotted)) same-basing similar types : 6R-B11, 6DW5 similar to 6BW6, 6CZ5, 6973 (pin assignments of 6CM6, 6CZ5, #6973 are almost same except pin8 : NC for 6CM6, IC for 6CZ5 and 2nd-G2 for #6973.) also see a similar pin assignment larger-power tube : 6GM5(9T9) 5) 6CM6 RCA ￥1800 NIB 2) 6CM6 Philco ￥1500 NIB 3) 6CM6 USA ￥1500 NIB
6CM7 =MediumMuDoubleTriode= (EIA/9ES - noval) Eh/Ih=6.3V/0.6A triode #1 : Pp1max=1.45W Ep1max=550V Ikmax=17mA/77mApeak Rgmax=2.2MΩ op : Ep=200V Ec=-7V Ip=5mA rp=10.5kΩ gm=2mS μ=21 triode #2 : Pp2max=6W Ep2max=550V Ikmax=22mA/77mApeak Rgmax=1MΩ(fixed) op : Ep=250V Ec=-8V Ip=20mA rp=4.1kΩ gm=4.4mS μ=18 pins : 1(2P)-2(NC)-3(1K)-4(H)-5(H)-6(1P)-7(1G)-8(2G)-9(2K) (参考 : Ep-Ip特性) heater variant : 8CM7(8.4V 0.45A) different-base, electrically-similar type : 6CS7(μ1=17, μ2=15.5)-(pin #3, #8 must be exchanged) 3) 6CM7 RCA ￥1200 NIB 1) 6CM7 Syl ￥1000 NIB 1) 6CM7 Syl ￥1000 NIB 1) 6CM7 Znth ￥1000 NIB 3) 6CM7 USA ￥1000 NIB(Q) 2) 6CM7 Zenith ￥800 used? WH箱 1) 6CM7 USA ￥500 used
6CM8 =Triode Pentode= (EIA/9FZ - noval) Eh/Ih=6.3V/0.45A Ehkmax=±200V Pentode: Ppmax=2W Epmax=300V Pc2max=0.5W Ec2max=300V rp=600kΩ gm=6.2mS Rgmax=1MΩ(fixed)/250kΩ(self) Triode : Ppmax=1W Epmax=300V μ=100 rp=50kΩ gm=2mS Rgmax=1MΩ see heater variant : 5CM8(4.7V/0.6A) also see a same base(9FZ) lower-μ triode type : 6KZ8(P:gm=8.5mS, T:gm=8.5mS, μ=46) 4) 6CM8 RCA ￥1300 NIB 6) 6CM8 GE ￥1200 NIB 1) 6CM8 Syl ￥1200 NIB
6CN7 =duplex-Diode hi-mu Triode= (EIA/9EN - noval) Eh/Ih=6.3V/0.3A(3.15V/0.6A) Triode : Ppmax=1.1W Epmax=330V μ=70 rp=58kΩ gm=1.2mS Diode : Idcmax=5.5mA 1) 6CN7 Amprx ￥1000 NIB 1) 6CN7 GE ￥1000 NIB 1) 6CN7 Syl ￥1000 NIB 1) 6CN7 Znth ￥600 NIB 12) 6CN7 USA ￥600 NIB 1) 6CN7 USA ￥400 used 1) 6CN7 RCA ￥400 used AWV箱
6CQ4/6DE4 =HalfWave Rectifier= (EIA/4CG - octal) Ppmax=6.5W PIV=5500V Idcmax=190mA Edrop=25V(@Idc=250mA) Eh/Ih=6.3V/1.6A same base (4CG) halfwave rectifiers : 6AU4GT/A 6AX4GT/A/B 6CQ4 6DA4/A 6DE4 6DQ4 6G-K17 6W4GT/A also see a 4CG-rectifier comparison table : <4CGベース ピンコンパチ半波整流管の比較> <ダンパ用-高圧半波整流管の比較> 3) 6CQ4 RCA ￥1000 NIB 5) 6CQ4 GE ￥1000 NIB 3) 6CQ4 Syl ￥900 NIB 3) 6CQ4 Dmnt ￥900 NIB
6CQ6=EF92=M8161=CV4015=6065 =Pentode= (EIA/7DR - miniature)
6CQ8 =Triode Tetrode= (EIA/9GE-noval) Eh/Ih=6.3V/0.45A Tetrode : Ppmax=3.2W Epmax=330V Pc2max=0.7W Ec2max=330V rp=140kΩ gm=5.8mS Triode : Ppmax=3.1W Epmax=330V μ=40 rp=5kΩ gm=8mS see heater variant : 5CQ8(4.7V/0.6A) 5) 6CQ8 RCA ￥1000 NIB MB 6) 6CQ8 Ray ￥900 NIB 1) 6CQ8 AWV-SuperRadiotron ￥900 NIB 1) 6CQ8 AWV-SuperRadiotron ￥900 NOS 1) 6CQ8 Syl ￥700 NOS GE箱 1) 6CQ8 CBS ￥700 used?
6CR4(=A2521/CV2543) =grounded-grid UHF triode= (EIA/9BX - noval) Eh/Ih=6.3V/0.3A (6.3V/0.37A for CV2453) Ehkmax=100V Fmax=1.25GHz Tbulb=200℃ Ckh-g=3.5pF Cpg=1.6pF Ckh-g=0.06pF Ppmax=2.5W Epmax=250V/1000Vpeak -Ecmax=20V Ikmax=25mAdc/700mApeak(tw<2μs) Igmax=6mAdc op : Ep=130V Ec=-1V Ip=16mA gm=15mS μ=60 (参考 : Ep-Ip特性) same-basing, lower-gm/just-higher-μ type : 6AM4 same-basing, lower-gm/lower-μ type : 6AJ4 different-basing, electrically similar types : 6CM4/ EC86/ E86C/ EC806S, 6DL4/ EC88/ E88C 0) 6CR4/A2521 Osram ￥- used
6CR6 =Diode remote cutoff Pentode= (EIA/7EA - miniature) Eh/Ih=6.3V/0.3 Ppmax=2.5W Epmax=300V Pc2max=0.3W Ec2max=150V rp=800kΩ gm=2.2mSA heater variant : 12CR6(12.6V/0.15A) 2) 6CR6 USA ￥600 NIB
6CS6 =dual-control Heptode= (EIA/7CH - miniature) Eh/Ih=6.3V/0.3A Ppmax=1W Epmax=300V Pc2max=1W Ec2max=100V rp=1MΩ gm=1.1mS see equivallent type : EH90 heater variants : 3CS6(3.15V/0.6A) 4CS6(4.2V/0.45A) 9) 6CS6 RCA ￥700 NIB 1) 6CS6 GE ￥600 NIB 1) 6CS6 Syl ￥600 NIB 1) 6CS6 Syl ￥600 NOS GE箱 1) 6CS6 Philco ￥600 NIB 1) 6CS6 Philco ￥600 NOS 1) 6CS6 Dmnt ￥600 NOS Tsol箱 4) 6CS6/EH90 USA ￥600 NIB 1) 6CS6 USA ￥400 used
6CS7 =MediumMuDoubleTriode= (EIA/9EF - noval) Eh/Ih=6.3V/0.6A Ehkmax=±200V(DC=+100Vmax) triode #1 : Ppmax=1.35W Epmax=500V Ikmax=20mA/70mApeak Ecmax=-400Vpulse Rg1max=2.2MΩ op : Ep=250V Ec=-8.5V Ip=10.5mA rp=7.7k gm=2.2mS μ=17 triode #2 : Ppmax=6.5W Epmax=500V/2200Vpulse Ikmax=30mA/105mApeak Ecmax=-250Vpulse Rg1max=2.2MΩ op : Ep=250V Ec=-10.5V Ip=19mA rp=3.45k gm=4.5mS μ=15.5 pins : 1(2P)-2(NC)-3(2G)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(2K) (参考 : triode#2のEp-Ip特性) heater variant : 8CS7(8.4V/0.45A) * 6CS7 = 1/2(12AU7) + 6S4 see different-μ similar types : 6DE7(μ1=17.5, μ2=6), 6DR7(μ1=68, μ2=6) also see upper-rating(Pp1max=10W) 9T9 types : 6EW7(μ1=17.5, μ2=6), 6FD7(μ1=64, μ2=6) * BASING : '9EF'(6CS7) is same as '9HF'(6DE7, 6DR7, 6EW7, 6FD7) as far as pins #2 and #3 are connected at socket pins, or pin #3 is not used. different-base, electrically-similar type : 6CM7(μ1=21, μ2=18)-(pin #3, #8 must be exchanged) 4) 6CS7 RCA ￥900 NIB 7) 6CS7 GE ￥700 NIB - mint 1) 6CS7 GE ￥700 NIB 5) 6CS7 USA ￥600 NIB 1) 6CS7 Syl ￥1000 NIB old BlkPlate 1) 6CS7 Syl ￥600 NOS Ray箱 2) 6CS7 Ray ￥600 NIB 1) 6CS7 Selectron ￥1000 NIB BlkPlate 1) 6CS7 WH ￥600 NOS 2) 6CS7 NEC ￥1000 NIB cellophane-sealed 1) 6CS7 RCA ￥600 NOS ?/used? WB 1) 6CS7 WH ￥800 used Syl箱 BlkPlates 1) 6CS7 Syl ￥600 used WH箱 1) 6CS7 ??? ￥600 used
6CU3 = = 1) 6CU3 Triad ￥600 NIB
6CU5 =Beam Power= (EIA/7CV - miniature) Eh/Ih=6.3V/1.2A Ehkmax=±200V(+100Vdc) (design-max) :Ppmax=7W Epmax=150V Pc2max=1.4W Ec2max=130V Rg1max=100kΩ(fixed)/500kΩ(self) op: Ep=120V Ec2=110V Ec1=-8V Ip=49mA Ic2=4mA rp=10kΩ gm=7.5mS op(A1S) : Ep=120V Ec2=110V Ec1=-8V Ip=49mA/50mAmax Ic2=4mA/8.5mAmax Zl=2.5kΩ D=10% Po=2.3W (参考 : Ep-Ip特性(@Ec2-parameter)) heater variants: 12CU5(12.6V/0.6A), 17CU5(16.8V/0.45A) heater variants: 12C5(12.6V/0.6A), 25C5(25V/0.3A), 35C5(Ppmax=5.2W, 35V/0.15A), 50C5(Ppmax=5.5W, 50V/0.15A) 2) 6CU5 RCA ￥800 NIB 47) 6CU5 RCA ￥800 NIB 1) 6CU5 Nutone(RCA-made) ￥600 NOS RCA箱 2) 6CU5 GE ￥600 NIB 39) 6CU5 GE ￥600 NIB 2) 6CU5 Syl ￥600 NIB 9) 6CU5 Ray ￥600 NIB 1) 6CU5 Ray ￥600 NOS BrownBox 1) 6CU5 Tsol ￥1000 NOS BlkPlate BrownBox 2) 6CU5 InterC ￥600 NIB 1) 6CU5 WH ￥600 NIB 2) 6CU5 USA ￥600 NIB
6CU6 =Beam Power= Sweep Tubes(<30W) (EIA/6AM - octal, TopPlate) Eh/Ih=6.3V/1.2A Ehkmax=±200V(+100Vdc) Ppmax=11W Epmax=600V Pc2max=2.5W Ec2max=200V Ikmax=110mA op : Ep=250V Ec2=150V Ec1=-22.5V Ip=57mA Ic2=2.1mA rp=14.5kΩ gm=5.9mS μg2g1=4.3 6CU6=6BQ6GTA/GTB heater variants : 12CU6(12.6V/0.6A), 25CU6(25V/0.3A) heater variants : 12BQ6GTA/GTB(12.6V/0.6A), 17BQ6GTA/GTB(16.8V/0.45A), 25BQ6GTA/GTB(25V/0.3A) 4) 6CU6 Syl ￥1000 NIB 1) 6CU6 CBS ￥1000 NIB 1) 6CU6 Syl ￥700 used? 6400/3500min
6CU8 =Triode Pentode= (EIA/9GM - noval) Eh/Ih=6.3V/0.45A Ehkmax=±200V Pentode: Ppmax=2.3W Epmax=330V Pc2max=0.55W Ec2max=330V rp=170kΩ gm=7.8mS Triode : Ppmax=2.8W Epmax=330V μ=24 rp=4.1kΩ gm=5.8mS (参考 : Ep-Ip特性) 2) 6CU8 Amprx ￥900 NIB 3) 6CU8 RCA ￥900 NIB 2) 6CU8 RCA ￥900 NIB 2) 6CU8 GE ￥700 NIB 2) 6CU8 CBS ￥700 NIB 7) 6CU8 USA ￥700 NIB 2) 6CU8 USA ￥400 used
6CW4 =High mu Triode= (EIA/12AQ) * Nuvistor * Eh/Ih=6.3V/0.135A Ehk=±100V Ppmax=1.5W Epmax=300V Ikmax=15mA μ=65typ rp=6.6kΩ gm=9.8mS Rgmax=500kΩ(fixed)/2.2MΩ(self) 平均プレート特性(EpIp) see Eh-variant 2BH5(Eh/Ih=1.8V/0.6A) 2CW4(Eh/Ih=2.1V/0.45A) 13CW4(Eh/Ih=13.5V/0.06A) see different-name/nearly-same type 6DS4 see lower-μ Nuvistor 7586(μ=35) also see higher-μ Nuvistor 6N-H10(μ=100) 3) 6CW4 RCA ￥1700 NIB Nuvistor 1) 6CW4 GE ￥1700 NIB 4) 6CW4 Syl ￥1700 NIB 1) 6CW4/6DS4 Ray ￥1700 NIB (NTB) 1) 6CW4 USA ￥1700 NIB 2) 6CW4 Hitachi ￥1700 NIB
6CW5(=EL86) =PowerPentode= (EIA/9CV - noval) Eh/Ih=6.3V/0.76A Ehk=±220V Philips(1969.1-final) - 'Design centre' values for class A1, AB1 amplifiers : Ppmax=12W Epmax=250/550Vcutoff Pc2inmax=1.75W/6Wpeak Ec2max=250V/550Vcutoff Ikmax=100mA Rg1max=1MΩ RCA(RC30) - 'Design maximum' values for class A1, AB1 amplifiers : Ppmax=14W Epmax=275V/600Vcutoff Pc2inmax=2.1W/7Wpeak Ec2max=220V/600Vcutoff Ikmax=110mA Rg1max=1MΩ GE - 'Design center' values : Ppmax=12W Epmax=250V Pc2max=1.75W/6Wpeak Ec2max=200V Ikmax=100mA Rg1max=1MΩ Ehkmax=+100V/-150Vdc-300Vpeak ex) A1S: Ep=170V Ec2=170V Ec1=-12.5V Ip=70mA/70mA Ic2=5mA/22mA rp=25kΩ gm=11mS Zl=2.4kΩ Po=5.6W ex) AB1pp: Ep=250V Ec2=200V Ec1=-18.5V Ip=91mA/180mA Ic2=4mA/23mA Zlpp=3kΩ Dtot=1.0% Po=25W 三極管接続時の平均プレート特性(EpIp) also see heater variants : 8CW5(8V/0.6A) 10CW5(10.6V/0.45A) 15CW5(15V/0.3A) 30CW5(30V/0.15A) also see a European heater variant : PL84(15V/0.3A) also see different-base lower-rating electrically-similar types : 6216, 6761(μg2g1=8, gm=13mS) 2) 6CW5/EL86 Amprx(Mullard-made) ￥2700 NIB MB date=73-28 B-coded 1) 6CW5/EL86 Amprx ￥2400 NIB BugleBoy Holland 1) 6CW5/EL86 RCA ￥1800 NIB GrayPlate, made in Holland 1) 6CW5/EL86 RCA ￥2000 NIB BlkPlates 3) 6CW5/EL86 RCA ￥2000 NIB 2) 6CW5 GE ￥1800 NIB 2) 6CW5 GE ￥1800 NIB 2) 6CW5 GE ￥1800 NIB (hyyDsx) 1) 6CW5 GE ￥1800 NIB 1) 6CW5/EL86 GE ￥1800 NIB 1) 6CW5 Syl ￥1800 NIB 5) 6CW5 Command(Syl-made) ￥1800 NIB just-ragged boxes 1) 6CW5 Ray ￥1800 NIB 1) 6CW5 Rogers ￥1800 NIB 1) 6CW5/EL86 USA ￥1800 NIB 1) 6CW5 WH ￥1000 NIB Yugoslavia 10) 6CW5 Yugoslavia ￥1000 Bulk-NOS? WB 1) 6CW5 WH ￥1600 NIB Japan 2) 6CW5 CEI(made in Japan) ￥1600 NIB *$** (CEI = Calvert Electronics Inc.) 1) 6CW5 NEC ￥1800 NIB very-ragged box 11) 6CW5 松下(Matsushita) ￥2200 NIB w/ original cellophane-sealed red boxes 2) 6CW5 松下(Matsushita) ￥2200 NIB w/ original cellophane-sealed red boxes (hyyDsx) 1) 6CW5 松下(Matsushita) ￥2200 NIB cellophane-sealed red box 1) 6CW5 松下(Matsushita) ￥1800 NOS w/ original red box 1) 6CW5 松下(Matsushita) ￥1800 NIB ragged-box 2) 6CW5 松下(Matsushita) ￥900 used w/ original red boxes 1) 6CW5 松下(Matsushita) ￥900 used w/ original red boxes 3) 6CW5 松下(Matsushita) ￥900 used WB 1) 6CW5/EL86 Amprx ￥1200 NIB 1) 6CW5/EL86 Amprx ￥1000 used like NEW 1) 6CW5/EL86 Amprx ￥1000 used 10500/4500min 1) 6CW5/EL86 USA ￥400 used 1) 6CW5 RCA ￥800 used 8800/4500min 1) 6CW5 Motorola ￥800 used 8250/4500min 1) 6CW5 ??? ￥800 lightly-used WB 0) 6CW5 ? ￥500 used 6700/4500min
6CW7 (=ECC84) = TwinTriode = (EIA/9DD - noval) (especially for RF cascode amplifier up to 220MHz) Eh/Ih=6.3V/0.33A Ehkmax=+100V/-200V fmax=220MHz Ppmax=2W Epmax=180V/550Vcutoff Ikmax=22mA Ecmax-=-50V Rgmax=0.5MΩ op : Ep=90V Ec=-1.5V Ip=12mA rp=4kΩ gm=6mS μ=24typ (参考 : Ep-Ip特性) pins : 1(2K)-2(2G,IS)-3(2P)-4(H)-5(H)-6(1G)-7(1Kinput)-8(1Koutput)-9(1P) cascode amplifier : section 1 is for grounded cathode amp, section 2 is for grounded grid amp similar type = 6FC7 (pinは非互換) 1) 6CW7 Mullard ￥2500 NIB
6CX8 =med-mu(40) Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.75A Ehk=200V Triode: Ppmax=2W Epmax=330V Rgmax=0.5MΩ(fixed) gm=4.6mS rp=8.7kΩ μ=40 Pentode: Ppmax=5W Epmax=330V Pc2max=1.1W Ec2max=330V Rgmax=0.25MΩ(fixed) rp=70kΩ gm=10mS heater variants : 8CX8(8V/0.6A) similar to 6AU8/A 5) 6CX8 USA ￥900 NIB 1) 6CX8 Syl(GE-made) ￥700 NOS GE箱 1) 6CX8 Syl ￥700 NIB 1) 6CX8 WH ￥700 NOS RCA箱 1) 6CX8 RCA ￥400 used BlkPlates 7650/4100min(P), 3420/2900min(T)
6CY5 =sharp-cutoff RF Tetrode= (EIA/7EW - miniature) Eh/Ih=6.3V/0.2A Ehkmax=±100V Rg1max=500kΩ Ppmax=2W Epmax=180V Pc2-inmax=0.5W(Ec2<=90V) Ec2max=180V Ikmax=20mA op : Ep=125V Ec2=80V Ec1=-1V Ip=10mA Ic2=1.5mA rp=100kΩ gm=8mS 参考:三結時のEp-Ip特性例(triode connection : SAMPLE data) high-rel. version = 7717 heater variants : 2CY5(2.4V/0.6A) 3CY5(2.9V/0.45A) see electrically similar type : 7167(Eh/Ih=13.5V/0.09A) also see another similar RF tetrode w/ same pinout & Epmax=275V : 6EV5 5) 6CY5 Amprx ￥900 NIB 3) 6CY5 RCA ￥800 NIB 1) 6CY5 RCA ￥800 NOS RadTel箱 2) 6CY5 GE ￥600 NIB 5) 6CY5 GE ￥600 NIB - mint 1) 6CY5 GE ￥600 NIB D/C=61-04 just-ragged box 5) 6CY5 Ray ￥600 NIB 1) 6CY5 Tsol ￥600 NIB 1) 6CY5 WH ￥600 NIB 2) 6CY5 Marconi ￥600 NIB WB 1) 6CY5 USA ￥400 used
6CY7 =vertical-deflection Double Triode= (EIA/9LG - noval) Eh/Ih=6.3V/0.75A Ehkmax=200V Triode 1 : Ppmax=1W Epmax=350V Ikmax=mA/mApeak Rgmax=2.2MΩ(self) op : Ep=250V Ec=-3V Ip=1.2mA rp=52kΩ gm=1.3mS μ=68 Triode 2 : Ppmax=5.5W Epmax=350V Ikmax=35mA/120mApeak Rgmax=2.2MΩ(self) op : Ep=150V Rk=620Ω Ip=30mA rp=0.920kΩ gm=5.4mS μ=5 pins : 1(2P)-2(IC)-3(2G)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(2K) heater variant : 11CY7(11V/0.45A) similar to 6DR7(interchangeable if pin#2 is not used.) 4) 6CY7 USA ￥600 NIB
6CZ5 = Beam Power = (EIA/9HN - noval) Eh/Ih=6.3V/0.45A Twarmup=11sec Ehkmax=±200V(DCmax=+100V) GE,RCA V-amp: Ppmax=10W Epmax=350V Pc2max=2.2W Ec2max=315V Ikmax=45mA Rg1max=500kΩ(fixed)/1MΩ(self) Sylvania V-amp: Ppmax=10W Epmax=315V Pc2max=2W Ec2max=285V Rg1max=500kΩ Sylvania A1-amp: Ppmax=12W Epmax=350V Pc2max=2W Ec2max=285V Rg1max=100kΩ op(A1s ) : Ep=250V Ec2=250V Ec1=-14.0V Ip=46/ 48mA Ic2=4.6/8mA gm=4.8mS Zl=5kΩ Po=5.4W D=10% op(AB1pp) : Ep=350V Ec2=280V Ec1=-23.5V Ip=46/103mA Ic2=3.0/13mA Zlpp=7.5kΩ Po=21.5W D=1.0% Tung-Sol V-amp: Ppmax=10W Epmax=315V Pc2max=2.2W Ec2max=315V (There are strange differences for the specifications among manufacturers..) op : Ep=250V Ec2=250V Ec1=-15V Ip=46mA Ic2=4.6mA rp=73kΩ gm=4.8mS (参考 : Ep-Ip特性(@Ec2パラメータ)) similar types with same basing : 6DT5 6EM5 heater variant : 5CZ5(Eh/Ih=4.7V/0.6A) (similar types (#8pin must be unused) : 6CM6 6DW5 6R-B11) (just-higher-rating similar type(also #8pin must be unused) : 6973) (also see the robustest noval-base tube(#2, #3 & #8 pins must be unused for compatibility) : 6GM5(9T9)) 6BQ5 E84L 7189 6RP15 6CZ5 規格/動作例の比較 1) 6CZ5 RCA ￥2400 NIB BlkPlate date=69-09 MB 5) 6CZ5 RCA ￥2400 NIB 16) 6CZ5 RCA ￥2400 NIB BlkPlate (rhyy10nz) 1) 6CZ5 RCA ￥2400 NIB BlkPlate RaggedBox 1) 6CZ5 RCA ￥2400 NIB BlkPlate RaggedBox 1) 6CZ5 GE(RCA-made) ￥2400 NIB BlkPlate RaggedBox 1) 6CZ5 GE ￥2200 NIB BlkPlate 1) 6CZ5 GE ￥2200 NIB Canada BlkPlate 4) 6CZ5 Syl ￥2200 NIB Canada BlkPlate 2) 6CZ5 Syl ￥2200 NIB *$** 2) 6CZ5 Ray ￥2200 NIB 0) 6CZ5 USA ￥- NIB(Qn) 1) 6CZ5 RCA ￥1200 used BlkPlate 4780/3000min 2) 6CZ5 Philco(RCA-made) ￥1400 used BlkPlate 1) 6CZ5 Hitachi ￥1400 lightly-used 通信機用 D/C=1963-5, BlkPlate
6D4 =Thyratron= (EIA/5AY - miniature) Emax=450V Ikmax=25mAdc Edrop=16V(@Idc=25mA) Eh/Ih=6.3V/0.25A 2) 6D4 RCA ￥900 NIB 1) JHS-6D4 Syl ￥800 NIB
6D6 =remote cutoff RF Pentode= (EIA/6F - UZ, ST12 grid-top) Eh/Ih=6.3V/0.3A Ppmax=2.25W Epmax=300V Pc2max=0.25W Ec2max=100V rp=800kΩ gm=1.6mS heater variant / different-base type : 12Y-V1(UY, Eh/Ih=12V/0.15A) similar to 6U7G and 58 also similar to 78-ST 0) CRC 6D6/VT69 RCA ￥1500 NIB 0) 6D6 RCA,Syl,Ray,Krad ￥- NIB/NOS(Q) 1) 6D6 RCA ￥1300 NIB VeryRaggedBox 1) 6D6 RCA ￥1700 NIB VeryRaggedBox +++ 0) 6D6/VT69 KenRad ￥- used 4) 6D6 2)RCA,1)Ray,1)Crosley ￥1000 used gm=1500-1580/1000min(Q) 1) 6D6 RCA ￥1000 used?? WB 1) 6D6 NU ￥1000 used-lightly WB 3) 6D6 NU,Ray,Triad ￥700 used 1) 6D6/10E-338 AnM ￥1100 used 1480/770min 1) 6D6 Arcturus ￥900 used 1) UZ-6D6 NEC ￥500 used 1) UZ-6D6 NEC ￥500 used WB 1) UZ-6D6 マツダ(Matsuda) ￥500 lightly-used WB 3) UZ-6D6 マツダ(Matsuda) ￥500 used 1) UZ-6D6 マツダ(Matsuda) ￥500 used WB 1) UZ-6D6 芝研(Sibaken) ￥500 used WB 1) UZ-6D6 Matsushita ￥500 used 1) 6D6 Matsushita ￥500 used gm=1370/1000min Ip=4.2mA(on Hickok-539B) 2) UZ-6D6 Matsushita ￥500 used 1) 6D6 Hitachi ￥500 used 1) 6D6 Don ￥1000 used gm=1690/1000min(on a KS-15750-L1 tester) 1) UZ-6D6 Horizon ￥500 used gm=1330/1000min(on a KS-15750-L1 tester) 1) UZ-6D6 Besto ￥500 used gm=1230/1000min(on a KS-15750-L1 tester) 4) UZ-6D6 TEN ￥500 used 1) UZ-6D6 TIGER(Japan) ￥500 lightly-used WB 1) UZ-6D6 Matsuda(Toshiba) ￥300 used gm=920/1000min(on a KS-15750-L1 tester)
6D7 =Sharp cutoff Pentode= (EIA/7H -Ut, top-G1, ST12) Eh/Ih=6.3V/0.3A Ppmax=- Epmax=300V Pc2max=- Ec2max=125V op : Ep=250V Ec2=100V Ec1=-3V Ip=2mA Ic2=0.5mA rp=1MΩ gm=1.225mS 1) 6D7 RCA ￥4100 NIB with ST-radiator-shield RaggedBox 2) 6D7 Majestic ￥4100 NIB old 赤黄黒元箱
6D8G =Penta-grid converter= (EIA/G8A - octal, top-grid) Eh/Ih=6.3V/0.15A Ppmax=1W Epmax=300V Psmax=0.3W Esmax=100V/300Vsupply Posc_anode_max=0.75W Eosc_anode_max=200V/300Vsupply Ikmax=13mA 1) 6D8G RCA ￥2000 NIB VeryRaggedBox +++
6D10 =Triple Triode= (EIA/12BY - compactron) Eh/Ih=6.3V/0.45A Ppmax=2W Epmax=330V rp=13.6kΩ gm=4.2mS μ=57 same base(12BY) separated-cathode triple Triode : 6AV11(μ=17, 17, 17), 6D10(μ=57, 57, 57), 6K11/6Q11(μ=17, 100, 100) different base(12FE) separated-cathode triple triode : 6AC10(μ=62, 62, 62), 6AK10(μ=53, 53, 53), 6U10(μ=17, 100, 17) different base(12BQ) separated-cathode high-mu triple Triode : 6C10(μ=100, 100, 100) common-cathode compactron(12HG) triple triode : 6MJ8(Ppmax=3Wx3, μ=17, 17, 17) common-cathode compactron(12HU) triple triode : 6MN8(Ppmax=3Wx3, μ=40, 40, 40) 1) 6D10 RCA ￥2100 NIB 1) 6D10 GE ￥1900 NIB ++ 1) 6D10 Syl ￥1900 NIB
6DA4/A =Half wave HV Rectifier= (EIA/4CG - octal) 6DA4 : Ppmax=5.5W PIV=4400V Idc=155mA Edrop=-V(@Idc=-mA) Eh/Ih=6.3V/1.2A 6DA4A: Ppmax=8.5W PIV=5000V Idc=185mA Edrop=30V(@Idc=340mA) Eh/Ih=6.3V/1.2A same base (4CG) halfwave rectifiers : 6AU4GT/A 6AX4GT/A/B 6CQ4 6DA4/A 6DE4 6DQ4 6G-K17 6W4GT/A also see a 4CG-rectifier comparison table : <4CGベース ピンコンパチ半波整流管の比較> <ダンパ用-高圧半波整流管の比較> 1) 6DA4/6DM4 RCA ￥900 NIB 1) 6DA4 GE ￥800 NIB 1) 6DA4/6DM4 Syl ￥800 NIB 1) 6DA4A/6DM4A Syl ￥800 NIB 1) 6DA4A Tsol ￥800 NIB 1) 6DA4/6DM4 Philco ￥800 NIB 1) 6DA4/6DM4 ITT ￥800 NIB 1) 6DA4 Westinghouse ￥700 NOS ? 141/54min WB 1) 6DA4 GE ￥400 used
6DA5(=EM81) =Electron Ray Indicator= (EIA/9DB - noval) Ppmax=0.2W Epmax=300V Eh/Ih=6.3V/0.3A 1) 6DA5/EM81 GE ￥2500 NIB made in Holland just-ragged box 2) 6DA5/EM81 IntC ￥2500 NIB made in GtBritain just-ragged box 2) 6DA5/EM81 Motorola ￥2500 NIB RaggedBox 1) 6DA5 Matsushita ￥2000 used? WB 1) 6DA5 Matsushita ￥600 used WB 1) 6DA5 Matsushita ￥600 used
6DA6/EF89 =vari-mu RF Pentode= (EIA/9BA - noval) Eh/Ih=6.3V/0.2A Ppmax=2.25W Epmax=300V Pc2max=0.45W Ec2max=300V Ipmax=16.5mA op : Ep=170V Ec2=100V Ec1=-1V Ip=12mA Ic2=4.4mA rp=300kΩ gm=4.4mS μg2g1=19 see European type : EF89 1) 6DA6/EF89 Amprx ￥2900 NIB mesh
6DB5 see 12DB5 =vertical-deflection Beam Power= (EIA/9GR - noval) Eh/Ih=6.3V/1.2A Tbulb=250℃ Rg1max=100kΩ(fixed)/2.2MΩ(self) Ppmax=10W Epmax=300V/2kVpeak Pc2max=1.25W Ec2max=150V Ikmax=55mA/200mApeak op(A1S) : Ep=200V Ec2=125V Rk=180Ω Ipmax=47mA Ic2max=8.5mA Zl=4kΩ D=10% Po=3.8W 3) 6DB5 USA ￥1300 NIB 1) 6DB5 USA ￥700 used
6DC6 =semi-remote-cutoff Pentode= (EIA/7CM - miniature) Ppmax=2W Epmax=300V Pc2max=0.5W Ec2max=300V rp=500kΩ gm=5.5mS Eh/Ih=6.3V/0.3A 4) 6DC6 RCA ￥1000 NIB (vSx) 1) 6DC6 RCA ￥1000 NIB(D) 0) 6DC6 Syl ￥- NIB 2) 6DC6 CBS ￥1000 NIB
6DC8/EBF89 =duplex-Diode Pentode= (EIA/9HE - noval) Eh/Ih=6.3V/0.3A Pentode : Ppmax=2.25W Epmax=300V Pc2max=0.45W Ec2max=120V rp=1MΩ gm=3.6mS Diode : Idcmax=0.8mA subst=6AD8, 6N8, EBF89 1) EBF89/6DC8 Amprx ￥1000 NIB 1) 6DC8/EBF89 InterC ￥800 NIB
6DE4 =Half wave HV Rectifier= (EIA/4CG - octal) Eh/Ih=6.3V/1.6A Ehkmax=+300Vpeak(DC+max=+100V)/-5kVpeak(DC-max=-900V) Ppmax=6.5W PIV=5500V Idc=180mA Edrop=32V(@Idc=350mA) heater variants : 17DE4(17V/0.6A) 22DE4(12.6V/0.45A) same base (4CG) halfwave rectifiers : 6AU4GT/A 6AX4GT/A/B 6CQ4 6DA4/A 6DE4 6DQ4 6G-K17 6W4GT/A also see a 4CG-rectifier comparison table : <4CGベース ピンコンパチ半波整流管の比較> <ダンパ用-高圧半波整流管の比較> 2) 6DE4 RCA ￥1000 NIB 2) 6DE4/6CQ4 RCA ￥1000 NIB 8) 6DE4/6CQ4 GE ￥1000 NIB 1) 6DE4/6CQ4 Syl ￥1000 NIB 1) 6DE4 Ray ￥1000 NIB 1) 6DE4 Philco ￥1000 NIB 1) 6DE4 ITT ￥1000 NIB 1) 6DE4 El-Menco ￥1000 NIB 1) 6DE4 RCA ￥500 used Arcturus箱 1) 6DE4 GE ￥500 used 1) 6DE4 DumontEmerson ￥500 used 106/54min
6DE6 =sharp-cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±200V(DCmax=+100V) *design maximum : Ppmax=2.3W Epmax=330V Pc2max=0.55W Ec2max=330V op : Ep=125V Ec2=125V Rk=56Ω Ip=15.5mA Ic2=4.2mA rp=250kΩ gm=8.0mS similar to 6CB6A 6CF6 6DK6 6EW6(same basing) semi-remote-cutoff types : 6BZ6, 6JH6, 6DC6(same basing) 1) 6DE6 RCA ￥800 NIB 2) 6DE6 GE ￥600 NIB 16) 6DE6 USA ￥600 NIB/NOS
6DE7=MediumMuDoubleTriode= (EIA/9HF - noval) Eh/Ih=6.3V/0.9A Ehkmax=±200V(DC=+100Vmax) triode #1 : Ppmax=1.5W Epmax=330V Ikmax=22mA/77mApeak Ecmax=-400Vpulse Rg1max=2.2MΩ op : Ep=250V Ec=-11V Ip=5.5mA rp=8.75kΩ gm=2mS μ=17.5 triode #2 : Ppmax=7W Epmax=275V/1500Vpulse Ikmax=50mA/175mApeak Ecmax=-250Vpulse Rg1max=2.2MΩ op : Ep=150V Ec=-17.5V Ip=35mA rp=0.925kΩ gm=6.5mS μ=6 pins : 1(2P)-2(2G)-3(2G)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(2K) (参考 : Ep-Ip特性) heater variants : 10DE7(9.7V/0.6A), 13DE7(13V/0.45A) see different-μ similar types : 6CS7(μ1=17, μ2=15.5), 6DR7(μ1=68, μ2=6) also see same-basing upper-rating 9T9 types : 6EW7, 6FD7 3) 6DE7 RCA ￥1000 NIB - mint 6) 6DE7 GE ￥1000 NIB(Sx) 1) 6DE7 Syl ￥1000 NIB 3) 6DE7 USA ￥1000 NIB(Sn) 1) 6DE7 USA ￥1000 NOS 1) 6DE7 USA ￥600 used
6DG6GT =Beam Power= (EIA/7S - octal) electrically identical to 50L6GT(Eh/Ih=50V/0.15A) Eh/Ih=6.3V/1.2A Ehkmax=±90V Ppmax=10W Epmax=200V Pc2max=1.25W Ec2max=125V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=200V Ec2=125V Ec1=0V Rk=180Ω Ip=46mA/47mA Ic2=2.2mA/8.5mA rp=28kΩ gm=8mS Zl=4kΩ D=10% Po=3.8W (参考 : 三結時のEp-Ip特性(Triode connection)) similar to 6W6GT(Epmax=300V, Ec2max=150V) also similar to 6Y6 electrically similar types w/o heater : 25C6, 50C6 3) 6DG6GT RCA ￥1200 NIB lot=LZ very-ragged-boxes 4) 6DG6GT RCA ￥1200 NIB 2) 6DG6GT RCA ￥1000 used?/NOS? 赤OB 1) 6DG6GT GE ￥1000 NIB 2) 6DG6GT Syl ￥1000 NIB 1) 6DG6GT Tsol ￥1000 NIB
6D-HH12/6DHH12(=6FW7) =RF dissimilar double triode= *subminiature* (EIA/8LM - subminiature ) * unit 1 is for an oscillator (TV/FM tuner) / unit 2 is for a mixer (TV/FM tuner) Eh/Ih=6.3V/0.3A Ehkmax=±200V(DCmax=+100V) Ppmax=-W Epmax=150V(300V-cutoff) Ikmax=20mA Rgmax=500kΩ op(unit 1) : Ep=90V Ec1=-1V Ip=7mA rp=6.0kΩ gm=6.0mS μ=36 op(unit 2) : Ep=90V Ec1=-1V Ip=9mA rp=3.8kΩ gm=9.5mS μ=36 pins : 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K) heater variant : 3D-HH12(3.15V/0.6A - 11sec) 0) 6D-HH12 Toshiba ￥1000 NIB 5) 6D-HH12 Ray(Toshiba-made) ￥1000 NOS WB
6D-HH13/6DHH13(=6FX7) =RF twin triode= *subminiature* (EIA/8LK - subminiature ) Eh/Ih=6.3V/0.3A Ehkmax=+100V/-200V Ppmax=1.7W/unit(3.2W for both) Epmax=100V(300V-cutoff) Rgmax=500kΩ op : Ep=90V Ec1=-1V Ip=9mA rp=3.8kΩ gm=9.5mS μ=36 pins : 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G,IS)-8(1K) 参考 : Ep-Ip特性 heater variant : 3D-HH13(3.15V/0.6A) 1) 6D-HH13 Toshiba ￥1200 NIB cellophane-sealed (hyyExx) 3) 6D-HH13 Toshiba ￥1200 NIB cellophane-sealed 2) 6D-HH13 Toshiba ￥1200 NIB 2) 6D-HH13 Toshiba ￥1200 NIB 共聴用
6DJ8/ECC88/M3624
標記 この頁の各行は、基本的に下記のように記述されております｡ 在庫数) TYPE 製造メーカ 単価 new/used状態 その他状況 メーカ略号 Amprx(Amperex), Cunnghm(Cunningham), Dmnt(Dumont), GE(General Electric), Hyt(Hytron), Krad(KenRad), L&K(Lewis and Kaufman), Mag(Magnavox), NU(National Union), Ray(Raytheon), STD(Standard), Syl(Sylvania), TFK(Telefunken), Tsol(Tung-Sol), WE(Western Electric), WH(Westinghouse), Znth(Zenith)
6DK6/H-1266 =sharp-cutoff Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±200V Rg1max=250kΩ(fixed)/1MΩ(self) *design maximum : Ppmax=2.3W Epmax=330V Pc2max=0.55W Ec2max=330V op : Ep=125V Ec2=125V Rk=56Ω Ip=12mA Ic2=3.8mA rp=350kΩ gm=9.8mS (参考 : Ep-Ip特性(@Ec2=125V)) heater variants : 3DK6(3.15V/0.6A), 4DK6(4.2V/0.45A), 12DK6(12.6V/0.15A) high-rel. version = 8136 similar to 6CB6A 6CF6 6DE6 6EW6(same basing) semi-remote-cutoff types : 6BZ6, 6JH6, 6DC6(same basing) 7) 6DK6 RCA ￥800 NIB ragged-box 1) 6DK6 RCA ￥800 NIB 22) 6DK6 GE ￥700 NIB (hxx16nt) 1) 6DK6 CBS ￥700 NIB 3) 6DK6 Emerson ￥700 NIB 3) 6DK6 USA ￥700 NOS /NIB 12) 6DK6 Toshiba ￥700 NIB GrayPlate 1) 6DK6 NEC ￥700 NIB GrayPlate 2) 6DK6 Hitachi ￥700 lightly-used 通信機用 DC=1964-2 BlackPlate WB 2) H-1266/6DK6 Hitachi ￥700 lightly-used 通信機用 DC=1967-3, 7-4 BlackPlate WB 4) H-1266/6DK6 Hitachi ￥700 lightly-used 通信機用 DC=8-10(1968-10) BlackPlate WB 9) H-1266/6DK6 Hitachi ￥700 lightly-used 通信機用 DC=1968-2, 8-2 BlackPlate WB 10) H-1266/6DK6 Hitachi ￥700 lightly-used DC=9-7(1969-7) BlackPlate WB 4) H-1266/6DK6 Hitachi ￥700 lightly-used DC=9-8(1969-8) BlackPlate WB 1) H-1266/6DK6 Hitachi ￥700 lightly-used 通信機用 DC=9-11(1969-11) BlackPlate WB 1) 6DK6 USA ￥400 used
6DL3 =Half-wave rectifier= (EIA/9GD - NOVAR) TopCathode Ppmax=11W PIV=6500V Idc=400mA Edrop=25V(@Idc=800mA) Eh/Ih=6.3V/2.3A <ダンパ用-高圧半波整流管の比較> 1) 6DL3 RCA ￥1200 NIB
6DL4(=EC88) =Triode= (EIA/9NY - noval) Eh/Ih=6.3V/0.165A Ehkmax=100V Ppmax=2W Epmax=175V(550V-cutoff) Ikmax=13mA Vgmax=-50V Rgmax=1MΩ op : Ep=160V Rk=100Ω Ip=12.5mA rp=4.8kΩ gm=13.5mS μ=65 (参考 : Ep-Ip特性) also see high-rel type : E88C 2) 6DL4/EC88 RCA(Amperex-made) ￥1200 NIB GoldPins, VeryRaggedBoxes, smeared silk 1) 6DL4 CMC ￥1200 NIB WB made in Italy 1) 6DL4/EC88 Sylvania-GTE ￥900 lightly-used? WB
6DL5(EL95) =Power Pentode= (EIA/7DQ - miniature) Eh/Ih=6.3V/0.2A Ehkmax=100V Rg1max=2.2MΩ Ppmax=6W Epmax=300V/550Vcutoff Pc2max=1.25W Ec2max=300V/550Vcutoff Ikmax=35mA op : Ep=250V Ec2=250V Ec1=-9.0V Ip=24mA Ic2=4.5mA gm=5.4mS rp=70kΩ μg2g1=17 op : Ep=200V Ec2=200V Rk=230Ω Ip=23mA Ic2=4.2mA Zl= 8.0kΩ Vinput=4.5Vrms D=12% Po=2.3W op : Ep=250V Ec2=250V Rk=320Ω Ip=24mA Ic2=4.5mA Zl=10.0kΩ Vinput=5.0Vrms D=12% Po=3.0W 参考 : 三結時のEp-Ip特性(Triode connection) heater variant : PL95 (4.5V/0.3A) 1) 6DL5/EL95 RCA ￥1200 NIB
6DN3 =Half wave HV Rectifier= (EIA/9HP - NOVAR) Ppmax=9W PIV=5500V Idc=350mA Edrop=14V(@Idc=350mA) Eh/Ih=6.3V/2.4A 9HP same-base NOVAR halfwave rectifiers : 6AY3 6BS3/A 6CH3 6CJ3 6CK3 6CL3 6CM3 6DN3 6DW4/B Half wave rectifier comparison table : <ダンパ用-高圧半波整流管の比較> 5) 6DN3 RCA ￥1800 NIB 1) 6DN3 GE ￥1700 NIB
6DN6 =Beam Power= (EIA/5BT - octal) Ppmax=15W Epmax=700V Pc2max=3.5W Ec2max=175V Ikmax=200mA Eh/Ih=6.3V/2.5A also see heater variant 25DN6(Eh/Ih=25V/0.6A) 1) 6DN6 GE ￥1200 NIB RaggedBox
6DN7 =double Triode= (EIA/8BD - octal) Eh/Ih=6.3V/0.9A T1: Ppmax=1W Epmax=350V Ikmax=mA rp=9kΩ gm=2.5mS μ=22.5 T2: Ppmax=10W Epmax=550V Ikmax=mA rp=2kΩ gm=7.7mS μ=15.4 (参考 : Ep-Ip特性) This tube is same electrical-specifications/characteristics as compactron-6FJ7. 3) 6DN7 RCA ￥1200 NIB 1) 6DN7 Ray ￥1200 NIB
6DQ3 =Half-wave Rectifier= (EIA/12HF - compactron) 6DQ3 : Ppmax=9W PIV=6500V Idc=400mA Edrop=25V(@Idc=800mA) Eh/Ih=6.3V/1.8A 6DQ3A: Ppmax=10W PIV=6500V Idc=450mA Edrop=27V(@Idc=900mA) Eh/Ih=6.3V/1.8A (参考: コンパクトロン半波整流管のピン・コンパチビリティ (Compactron Halfwave-Rectifier pin-compatibility)) 1) 6DQ3 Syl ￥1000 NIB 0) 6DQ3 Syl ￥- NIB w/5-pack-sleeve
6DQ4 =Half wave HV Rectifier= (EIA/4CG - octal) Ppmax=6W PIV=5500V Idc=175mA Edrop=32V(@Idc=250mA) Eh/Ih=6.3V/1.2A same base (4CG) halfwave rectifiers : 6AU4GT/A 6AX4GT/A/B 6CQ4 6DA4/A 6DE4 6DQ4 6G-K17 6W4GT/A also see a 4CG-rectifier comparison table : <4CGベース ピンコンパチ半波整流管の比較> <ダンパ用-高圧半波整流管の比較> 1) 6DQ4 RCA ￥900 NIB *sw 3) 6DQ4 Dmnt(GE-made) ￥900 NIB
6DQ5=BeamPower=Sweep Tubes(<30W) (EIA/8JC - octal) Eh/Ih=6.3V/2.5A Ehkmax=±200V Rg1max=470kΩ (Design-max) Ppmax=24W Epmax=990V Pc2max=3.2W Ec2max=190V Ikmax=315mA Tbulb=220℃max op : Ep=175V Ec2=125V Ec1=-25V Ip=110mA Ic2=5mA rp=5.5kΩ gm=10.5mS op(Triode connection) : Ep=125V Ec=-25V μ=3.3 (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data)) also see different base, just-higher-μ/just-higher-rp types : 6CB5/A 6CD6GA 6EX6 1) 6DQ5 Amprx ￥2200 NIB *$* 4) 6DQ5 RCA ￥2200 NIB(Qn) 3) 6DQ5 RCA ￥2200 NIB SingleSideGtr 13) 6DQ5 RCA ￥2200 NIB 0) 6DQ5 RCA ￥- NIB(Qn) 5) 6DQ5 GE ￥1800 NIB 3) 6DQ5 Syl ￥1800 NIB SideGtr 1) 6DQ5 Syl ￥1800 NIB 15) 6DQ5 PhilipsECG ￥1800 NIB MB 3) 6DQ5 Admrl ￥1800 NIB 1) 6DQ5 Philco ￥1800 NIB 1) 6DQ5 Silvertone ￥1800 NIB 1) 6DQ5 Triad(made in Japan) ￥1800 NIB 1) 6DQ5 GE ￥500 used gm=3800/3000min 1) 6DQ5 Syl ￥500 used gm=3960/3000min
6DQ6/6DQ6B/6GW6 =BeamPower=Sweep Tubes(<30W) (EIA/6AM - octal-TopPlate) Eh/Ih=6.3V/1.2A 6DQ6B: Ppmax=17.5W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=175mA Fmax=175MHz op : Ep=250V Ec2=150V Ec1=-22.5V Ip=65mA Ic2=1.8mA rp=18kΩ gm=7.3mS equivallent : 6GW6(=6DQ6B) heater variants : 12DQ6/A/B(12.6V/0.6A), 17DQ6A/B(16.8V/0.45A), 25DQ6(25V/0.3A) heater variants : 12GW6(12.6V/0.6A), 17GW6(25V/0.3A) 1) 6DQ6 Triad ￥800 NIB 1) 6DQ6 GE ￥800 NIB 1) 6DQ6A Silvertone ￥700 NOS CBS箱 1) 6DQ6A Ray ￥600 used 1) 6DQ6A Znth ￥800 NIB 0) 6DQ6A RCA ￥800 NIB gray-plate 18-pcs 1) 6DQ6A RCA ￥800 NIB 1) 6DQ6A RCA ￥700 used gm新同 0) 6DQ6A CBS ￥- used gm=9750/5000min 0) 6DQ6B RCA ￥- NIB(D) 1) 6DQ6B RCA ￥600 LightlyUsed 10000/5000min 0) 6DQ6B GE ￥- NIB(D) 1) 6DQ6B Philco ￥800 NIB 1) 6DQ6B Syl ￥800 NIB(D) 1) 6DQ6B Syl ￥800 NIB TopGtr(D) 3) 6DQ6B/6GW6 Syl ￥800 NIB 6) 6DQ6B/6GW6 GE ￥800 NIB 1) 6DQ6B/6GW6 GE ￥800 NIB ++ 1) 6DQ6B/6GW6 GE ￥800 NOS Syl箱 1) 6DQ6B/6GW6 Magnavox ￥700 NOS Syl箱 1) 6DQ6B/6GW6 Realistic ￥800 NIB RaggedBox ++ 1) 6DQ6B/6GW6 Realistic ￥700 NOS 6) 6DQ6B Ray ￥800 NOS BlkPlate ***<注意> 本品はBase表示が"12DQ6B"の製造/プリントミス品 - rare - *** gm=12100,12400,11000,11000,10100,13400 where 5,000min(Hickok-539C) at 6.3V/1.2A 1) 6DQ6 Ray ￥400 used RadTel箱 1) 6DQ6B GE ￥400 used Syl箱 Getter折 strong 4) 6DQ6B Tsol,Admrl,Marconi,Motorola etc ￥400 used
6DR7 =double-Triode= (EIA/9HF - noval) Eh/Ih=6.3V/0.9A Ehkmax=±200V(DC=+100Vmax) triode #1 : Ppmax=1W Epmax=330V Ikmax=20mA/70mApeak Ecmax=-400Vpulse Rg1max=2.2MΩ op : Ep=250V Ec=-3V Ip=1.4mA rp=40kΩ gm=1.6mS μ=68 triode #2 : Ppmax=7W Epmax=275V/1500Vpulse Ikmax=50mA/175mApeak Ecmax=-250Vpulse Rg1max=2.2MΩ op : Ep=150V Ec=-17.5V Ip=35mA rp=0.925kΩ gm=6.5mS μ=6 pins : 1(2P)-2(2G)-3(2G)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(2K) (参考 : Ep-Ip特性) heater variant : 13DR7(13V/0.45A) similar to 6CY7(interchangeable if pin#2 is not used and under Pp2<5W region.) different-μ similar types : 6CS7(μ1=17, μ2=15.5), 6DE7(μ1=17.5, μ2=6) also see same-basing upper-rating 9T9 types : 6EW7, 6FD7 1) 6DR7 RCA ￥1000 NIB 2) 6DR7 GE ￥800 LikeNew BlkPlates 1) 6DR7 Syl ￥1000 NIB 1) 6DR7 GE(Syl-made) ￥800 LikeNew BlkPlates 3) 6DR7 Ray,Philco,Selectron(Syl-made) ￥1000 NIB BlkPlates2) 6DR7 WH ￥1000 NIB 1) 6DR7 WH ￥900 NOS 3) 6DR7 RCA ￥600 used (1)BlkPlates (2)GrayPlates 1) 6DR7 GE(Syl-made) ￥600 used BlkPlates 2) 6DR7 RCA,GE ￥600 used 1) 6DR7 RCA ￥500 used 2) 6DR7 Syl,Philco ￥500 used
6DS4/6CW4 =High mu Triode= (EIA/12AQ) * Nuvistor * Eh/Ih=6.3V/0.135A Ppmax=1.5W Epmax=135V/300V(cutoff) Ikmax=15mA Rgmax=500kΩ(fixed)/2.2MΩ(self) op : Ep=110V Rk=130Ω Ip=6.5mA μ=63 rp=7kΩ gm=9mS see nearly same type 6CW4 also see Eh-variant 2DS4(Eh/Ih=2.1V/0.45A) 1) 6DS4 RCA ￥1700 NIB VeryRaggedBox 1) 6DS4 RCA ￥1700 NIB 1) 6DS4 GE ￥500 NIB very-RUSTY 1) 6DS4 WH ￥1700 NIB RaggedBox 1) 6DS4 Znth ￥1700 NIB 2) 6DS4/6CW4 ElMenco ￥1700 NIB 0) 6DS4 USA ￥- NIB
6DS5 =Beam Power= (EIA/7BZ - miniature) Eh/Ih=6.3V/0.8A Ppmax=9W Epmax=275V Pc2max=2.2W Ec2max=275V op : Ep=250V Ec2=200V Ec1=-8.5V Ip=29mA/32mA Ic2=3mA/10mA rp=28kΩ gm=5.8mS Zl=8kΩ D=10% Po=3.8W same base diagram : 6AQ5, 6HG5(Ppmax=12W, Eh/Ih=6.3V/0.45A), 6BF5 2) 6DS5 USA ￥700 NIB
6DS8(=ECH83) =common-cathode Triode Heptde=(EIA/9CA - noval) Eh/Ih=6.3V/0.3A 1) 6DS8 Mullard ￥700 NIB WEAK Holland
6DT5 =Beam Power= (EIA/9HN - noval) Eh/Ih=6.3V/1.2A Ppmax=9W Epmax=315V Pc2max=2W Ec2max=285V Ikmax=55mA heater variant : 12DT5(12.6V/0.6A) similar types with same basing : 6CZ5 6EM5 similar types (#8pin must be unused) : 6CM6 6DW5 6R-B11 2) 6DT5 USA ￥700 NIB
6DT6/A =sharp-cutoff Pentode= (EIA/7EN - miniature) Eh/Ih=6.3V/0.3A Ppmax=1.7W Epmax=330V Pc2max=1.1W Ec2max=330V Ikmax=mA rp=150kΩ gm=1.35mS heater variants : 3DT6/A(3.15V/0.6A), 4DT6/A(4.2V/0.45A) 1) 6DT6 RCA ￥600 NOS RadTel箱 14) 6DT6A RCA ￥600 NOS 5) 6DT6A GE ￥600 NIB/NOS 1) 6DT6A HitRay ￥600 NOS 5) 6DT6/6DT6A USA ￥600 NIB /NOS (hyyanx) 2) 6DT6 RCA ￥400 used
6DT8 =HiMu-Twin Triode= (EIA/9AJ,9DE - noval) Eh/Ih=6.3V/0.3A Ehkmax=±200V(DCmax=+100V) //ユニット間シールド有り Ppmax=2.5W Epmax=300V Ikmax=mA Rgmax=250kΩ(fixed)/1MΩ(self) op : Ep=250V Rk=200Ω Ip=10mA rp=10.9kΩ gm=5.5mS μ=60 (参考 : Ep-Ip特性) heater variant : 12DT8(12.6V/0.15A) similar to 6AQ8 also similar to 6EV7 also similar to 12AT7 except heater voltage also see other similar twin triodes for cascode amps with same base diagram : => 6AQ8 6BC8 6BS8 6DJ8 6RHH2 6KN8/6RHH8) 5) 6DT8 RCA ￥1500 NIB - mint 3) 6DT8 GE ￥1500 NIB - mint 12) 6DT8 GE ￥1500 BulkNOS (hyy6q4v) 1) 6DT8 Znth ￥1500 NIB 1) 6DT8 RCA ￥1500 NOS GE箱 2) 6DT8 Hitachi ￥700 used 1) 6DT8 TEN ￥700 used
6DW4/B/6CL3 =HalfWaveHighVacuumRectifier= (EIA/9HP - NOVAR) 6DW4 : Eh/Ih=6.3V/1.2A Ehkmax=+300Vpeak(+100Vdc)/-5000V(-900Vdc) Ppmax=8.5W PIV=5000V Idc=250mA/1300mA-peak Edrop=25V @Ik=350mA 6DW4B : Eh/Ih=6.3V/1.2A Ehkmax=+300Vpeak(+100Vdc)/-5500Vpeak(-900Vdc) Ppmax=8.5W PIV=5500V Idc=250mA/1300mA-peak Edrop=25V @Ik=350mA 6DW4B ≒ 6CJ3 ≒ 6CL3 heater variants : 12DW4/A(12.6V/0.6A) 17DW4/A(16.8V/0.45A) 9HP same-base NOVAR halfwave rectifiers : 6AY3 6BS3/A 6CH3 6CJ3 6CK3 6CL3 6CM3 6DN3 6DW4/B Half wave rectifier comparison table : <ダンパ用-高圧半波整流管の比較> 28) 6DW4B RCA ￥1000 NIB (rhyy20) 7) 6DW4B RCA ￥1000 NIB 1) 6DW4B RCA ￥1000 NOS WB 2) 6DW4 Syl ￥700 NIB 1) 6DW4 WH ￥700 NIB 1) 6DW4 Philco ￥700 NIB 1) 6DW4B/6CL3 WH ￥700 NIB *sw 1) 6DW4B/6CL3 WH ￥700 NIB 1) 6DW4 Silvertone ￥700 NOS Syl箱 Tipタイプ 1) 6DW4 Dmnt ￥700 NIB *sw 1) 6DW4 Syl ￥400 used 1) 6DW4 NEC ￥500 lightly-used Tip-top WB 1) 6DW4B Hitachi ￥800 lightly-used NHK 1973.6, Dome-top WB
6DW5 =Vertical Deflection/Power Pentode= (EIA/9CK - noval) Eh/Ih=6.3V/1.2A Ppmax=11W Epmax=330V Pc2max=2.5W Ec2max=220V Ikmax=65mA Rg1max=2.2MΩ(self) rp=15kΩ gm=5.5mS same-basing similar types : 6R-B11, 6CM6 also see similar type : 6CZ5(pin #8 must be unused) 1) 6DW5 Philco ￥2200 NIB Sylvnia-made BlackPlate GT箱
6DX4 =MedMu-Triode= (EIA/7DK -miniature) Eh/Ih=6.3V/0.2A Ppmax=2.2W Epmax=150V Ikmax=mA rp=2.7kΩ gm=11mS μ=30 same basing different-μ types : 6T4(μ=13), 6DZ4(μ=14), EC93(μ=15), 6AF4/EC94(μ=16), 8334(μ=55), 6AN4(μ=70) 6) 6DX4 Ray ￥1000 NIB
6DX8/ECL84 =Triode Pentode= (EIA/9HX - noval) Eh/Ih=6.3V/0.72A 5極部:Ppmax=4W Epmax=250V Pc2max=1.7W Ec2max=250V Ikmax=40mA 3極部:Ppmax=1W Epmax=250V Ikmax=12mA μ=65 also see European type : ECL84 heater variants : 10DX8(10.2V/0.45A) PCL84(15V/0.3A) 15DQ8(15V/0.3A) 1) 6DX8/ECL84 RCA ￥1000 NIB 4) 6DX8/ECL84 GE ￥1000 NIB 2) 6DX8/ECL84 USA ￥800 NIB
6DY7 =common-cathode, common-G2 Twin Beam Power= (EIA/8JP - octal) Eh/Ih=6.3V/1.2A Ehkmax=±200V(+100Vdc-max) Ppmax=15W/section Epmax=400V Pc2max=2W/section Ec2max=300V Rg1max=100kΩ(fixed)/470kΩ(self) op : Ep=250V Ec2=250V Ec1=-12.5V Ip=50mA Ic2=3mA rp=28kΩ gm=6mS op(A1s) : Ep=250V Ec2=250V Ec1=-12.5V Ip=50mA/45mA Ic2=3mA/9mA Zl=5kΩ D=9% Po=5W op(AB1pp): Ep=250V Ec2=250V Ec1=-16V Ip=32mA/77mA Ic2=3.5mA/15.5mA Zlpp=9kΩ D=2.5% Po=11W op(AB1pp): Ep=400V Ec2=250V Ec1=-20V Ip=58mA/74mA Ic2=1.7mA/14.0mA Zlpp=14kΩ D=2% Po=20W pins : 1(2G1)-2(H)-3(2P)-4(G2-5(1G1)-6(1P)-7(H)-8(K,G3) similar to 6DZ7 1) 6DY7 National ￥3000 NIB
6DZ4(=6AF4A) =UHF Triode OSC= (EIA/7DK - miniature) Eh/Ih=6.3V/0.225A Ehkmax=50V Fmax=1GHz Ppmax=2.3W Epmax=135V Ikmax=20mA Icmax=2mA rp=2kΩ gm=6.7mS μ=14 same basing different-μ types : 6T4(μ=13), EC93(μ=15), 6AF4/EC94(μ=16), 6DX4(μ=30), 8334(μ=55), 6AN4(μ=70) 1) 6DZ4/6AF4A Ray ￥800 NIB 0) 6DZ4 RCA ￥800 NOS 1) 6DZ4/6AF4A GE ￥800 NOS 2) 6DZ4/6AF4A Znth ￥800 NIB 1) 6DZ4 Mot ￥700 NOS 0) 6DZ4 USA ￥700 NOS 1) 6DZ4 Syl ￥400 used
6DZ7 =G2-common, Cathode-common Twin Power Pentode= (EIA/8JP - octal) Eh/Ih=6.3V/1.52A Ehkmax=±200V Ppmax=13.2W/section Epmax=440V Pc2max=4W/section Ec2max=300V Rg1max=270kΩ op(each section) : Ep=250V Ec2=250V Ec1=-7.3V Ip=48mA Ic2=5.5mA rp=38kΩ gm=11.3mS op(AB1pp) : Ep=300V Ec2=250V Rk=120Ω Ip=66/80mA Ic2=7/15mA Zlpp=9kΩ D=3.5% Po=12W op(AB1pp) : Ep=400V Ec2=250V Ec1=-11V Ip=40/100mA Ic2=4/13mA Zlpp=9kΩ D=2.5% Po=18W pins : 1(2G1)-2(H)-3(2P)-4(G2-5(1G1)-6(1P)-7(H)-8(K,G3) (参考 : Ep-Ip特性(@Ec2=250V)) (参考 : プッシュプル入出力特性(@Ep/Ec2/Ec1/Zlpp=400V/250V/-11V/9kΩ) - AB1pp operation characteristics) similar to 6DY7 1) 6DZ7 RCA ￥1500 NIB 1) 6DZ7 RCA ￥1500 NOS 1) 6DZ7 Motorola(GE-made) ￥1500 NIB 1) 6DZ7 WH(GE-made) ￥900 used
6E1P / 6E1Π(Russian) = EM80 (see)
6E5 =Electron ray Indicator= (EIA/6R - UZ) Eh/Ih=6.3V/0.3A Ehk=90V Epmax=250Vsupply Etarget=125Vmin/250Vmax op : Ep,target=250Vsupply Rp-series=1MΩ Ip=0.24mA Itarget=4mA Ec=-8V(shadow_angle=0°)/0V(shadow_angle=90°) see heater variant : 2E5(Eh/Ih=2.5V/0.8A) other single-shadow types : 6G5/G, 6U5, 1629 twin-shadow type : 6Z-E1 single-shadow type for transformer-less radio : 12Z-E8 twin-shadow type for transformer-less radio : 12Z-E9 0) 6E5 RCA ￥3700 NIB date=2/76(nSx) 0) USN 6E5 RCA ￥3700 NIB 0) JAN 6E5 RCA ￥- NIB MB 1) 6E5 GE ￥3700 NIB 0) 6E5 GE ￥2900 NIB 0) 6E5 Tsol ￥- NIB 0) 6E5 Syl ￥- NIB (shyy10vn) 0) 6E5 Philco ￥- NIB 0) 6E5 CBS ￥- NIB 1) 6E5 STAR(Japan) ￥3300 NIB very-ragged box (hyy17s) 1) 6E5 PRC(Japan) ￥3300 NOS WB 1) 6E5 TEN(Japan) ￥3000 LikeNew WB 1) 6E5 Toyo(Japan) ￥3000 LikeNew WB 0) 6E5 - ￥- used 0) 6E5 GE ￥- used 0) 6E5 Matsushita, Besto, etc ￥- used 1) 6E5 Elevam ￥2000 used 1) 6E5 Matsushita ￥1200 used just-dark WB 1) 6E5 Toyo(Japan) ￥1200 used just-dark WB 1) 6E5 NikkenDenshi(Japan) ￥1200 used just-dark WB 1) 6E5D Toyo(Japan) ￥1500 used just-dark WB
6E5-M = 6M-E5 (see)
6E8G/6E8MG =common-cathode Triode Hexode converter= (EIA/ - octal) Eh/Ih=6.3V/0.3A *hexode Epmax=250V Ec2max,Ec4max=100V *triode Epmax=200V Ikmax=15mA pins: 1(NC)-2(H)-3(Ph)-4(G2h,G4h)-5(G3h,Gt)-6(Pt)-7(H)-8(K)-Top(G1h) 1) 6E8MG RT ￥2100 used WB
6EA7 =double Triode= (EIA/8BD - octal) 6EW7類似管の比較表 Eh/Ih=6.3V/1.05A Ehk=±200V Triode 1 : Ppmax=1W Epmax=350V Rgmax=1MΩ(fixed)/2.2MΩ(self) rp=34kΩ gm=1.9mS μ=65 Triode 2 : Ppmax=10W Epmax=550V IKmax=50mA Rgmax=1MΩ(fixed)/2.2MΩ(self) rp=770Ω gm=6.5mS μ=5 heater variants : 6EM7(6.3V/0.925A) 10EM7(9.7V/0.6A) 13EM7(13V/0.45A) electrically equivallent different base types : 6EA7 = 6EM7= 6GL7(octal), 6FD7(noval-9T9), 6FM7(compactron), 6GF7(NOVAR) 3) 6EA7=6EM7 RCA ￥1900 NIB BlkPlates SideGtr 1) 6EA7=6EM7 RCA ￥1900 NIB BlkPlates SideGtr 1) 6EA7=6EM7 GE ￥1900 NIB BlkPlates SideGtr 3) 6EA7=6EM7 WH ￥1900 NIB SideGtr
6EA8 =VHF Triode Pentode= (EIA/9AE = 9DC - noval) * 6EA8 = improved version of 6U8 Eh/Ih=6.3V/0.45A Twarmup=11sec Ehk=200V(dc+ac) P: Ppmax=3.1W Epmax=330V Pc2max=0.55W Ec2max=330V rp=80kΩ gm=6.4mS T: Ppmax=3W Epmax=330V rp=5kΩ gm=8.5mS μ=40 pins : 1(Pt)-2(G1p)-3(G2p)-4(H)-5(H)-6(Pp)-7(KG3p)-8(Kt)-9(Gt) heater variant : 5EA8(4.7V/0.6A) see same basing similar types : 6AX8 6GH8/A 6LM8 6U8/6U8A / 6678 also see a longer-life improved version of 6U8: 6R-HR4/LD-611 see a different-basing electrically-equivallent type : 6EU8 29) 6EA8 RCA ￥900 NIB (rhyy1d) 3) 6EA8 GE ￥700 NIB 11) 6EA8 Syl ￥700 NIB MB 7) 6EA8 Znth ￥700 NIB 1) 6EA8 Ray ￥700 NIB 1) 6EA8 Miniwatt ￥800 NIB 1) 6EA8 AWV-Radiotron ￥700 NIB 1) 6EA8 USA ￥700 NIB(Q) 1) 6EA8 Silvertone ￥400 used? 3) 6EA8 USA ￥400 used
6EB5 =Duo Diode= (EIA/6BT - miniature) PIV=550V Ehk=330V Ipeak-out=40mA Eh/Ih=6.3V/0.3A ex) Ep=200VAC Cout=8uF Eout=255V Idc=12mA 4) 6EB5 Philco ￥1200 NIB old
6EB8 =HiMu(100)-Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.75A Ehk=200V(dc+ac) Triode : Ppmax=1W Epmax=330V Rgmax=500kΩ rp=37kΩ gm=2.7mS μ=100 Pentode : Ppmax=5W Epmax=330V Pc2max=1.1W Ec2max=330V Rgmax=250kΩ rp=75kΩ gm=12.5mS see almost plug-compatible 6GN8 heater variant : 8GN8/8EB8(8V/0.6A) 8) 6EB8 RCA ￥1200 NIB 1) 6EB8 Syl ￥1000 NIB 2) 6EB8 USA ￥1000 NIB(D) 1) 6EB8 AWV-SuperRadiotron ￥1000 NIB 1) 6EB8 USA ￥500 used (D)
6EC4/A/EY500 =Halfwave HV Rectifier= (EIA/6EC4 - Magnoval) Eh/Ih=6.3V/2.1A Ehkmax=-6.3kVpeak PIV=5.6kV Idcmax=440mA Pd=11W pins(EY500A) : 1(IC)-2(P)-3(IC)-4(H)-5(H)-6(IC)-7(P)-8(P)-9(IC)-Top(K) see equivallent type : EY500/A also see heater variants : 42EC4/A, PY500/A(Eh/Ih=42V/0.3A) 3) 6EC4A/EY500 RCA ￥1700 NIB(vQn) 1) 6EC4A/EY500 Syl ￥1500 NIB
6EH7 (see EF183) =Remote Cutoff Pentode= (EIA/9AQ - noval) Eh/Ih=6.3V/0.3A Ehkmax=±150V Ppmax=2.5W Epmax=250V Pc2max=0.65W Ec2max=250V op : Ep=200V Ec2=90V Ec1=-2V Ip=12mA Ic2=4.5mA rp=500kΩ gm=12.5mS heater variants : 3EH7(3.4V/0.6A), 4EH7(4.4V/0.45A) Also see 6EJ7(sharp-cutoff pentode) The 6EH7 has same base diagram as lower gm pentodes : 6BX6 / EF80, EF800 8) 6EH7/EF183 Znth(Mullard-made) ￥1500 NIB Mesh GtBritain 7) 6EH7/EF183 Znth(Philips-made) ￥1200 NIB Mesh Holland 1) 6EH7 Mullard(Australia) ￥1000 NIB 5) 6EH7/EF183 RCA ￥1000 NIB - mint 1) 6EH7/EF183 RCA ￥1200 NIB GtBritain 1) 6EH7/EF183 RCA ￥1200 NIB GtBritain mesh 2) 6EH7/EF183 GE ￥1000 NIB 2) 6EH7/EF183 Syl ￥1000 NIB 2) 6EH7/EF183 Syl ￥1000 NIB - mint 1) 6EH7/EF183 Syl ￥1000 NIB NonMesh 1) 6EH7 Syl ￥1000 NOS Syl箱 Japan 1) 6EH7/EF183 Znth ￥1200 NIB Holland 7) 6EH7/EF183 USA ￥1000 NIB (hyxbnt) 5) 6EH7 National ￥1000 NIB USA 1) 6EH7 RCA ￥800 LikeNew GE箱 1) 6EH7 NEC ￥1000 cellophane-sealed 3) 6EH7 Matsushita ￥1000 NIB 2:cellophane-sealed 1) 6EH7 Mitsubishi(Hitachi-made) ￥1000 NIB just-ragged-box 2) 6EH7 Mullard ￥600 used mesh made in Australia 5200,6000/3200min 1) 6EH7 USA ￥400 used 1) 6EH7 Matsushita ￥500 LightlyUsed
6EH8 =CommonCathode Triode sharpcutoff Pentode= (EIA/9JG - noval) Eh/Ih=6.3V/0.45A Triode : Ppmax=2.5W Epmax=300V Rgmax=500kΩ rp=-kΩ gm=7.5mS μ=40 Pentode : Ppmax=2.8W Epmax=300V Pc2max=0.5W Ec2max=300V Ehk=200V(dc+ac) Rgmax=250kΩ rp=170kΩ gm=6mS 2) 6EH8 RCA ￥1000 NIB 4) 6EH8 USA ￥800 NIB
6EJ4/A =Beam Triode= (EIA/12HC - compactron) Eh/Ih=6.3V/0.2A Ehk-max=-450V Rgmax=3MΩ Ppmax=40W Epmax=27000V Ec-max=-135V/-440Vpeak Ipmax=1.5mADC ◇ 40W beam triodes (octal): 6BK4B/C/6EL4A 6EN4 6LJ6/A/6LH6A ◇ 30W-40W beam triodes (compactron): 6EJ4/A 6HS5 6HV5/A 6HZ5 6JD5 6JH5 6JK5 1) 6EJ4A RCA ￥1000 NIB
6EJ7 (see EF184) =High-gm Sharp Cutoff Pentode for wide band stable amp= (EIA/9AQ - noval) Eh/Ih=6.3V/0.3A Ehkmax=±150V Ppmax=2.5W Epmax=250V Pc2max=0.9W Ec2max=250V op : Ep=200V Ec2=200V Ec1=-2.5V Ip=10mA Ic2=4.1mA rp=380kΩ gm=15mS μg2g1=60 heater variant : 4EJ7(4.4V/0.45A) (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data plotted)) Also see 6EH7(remote-cutoff pentode) The 6EJ7 has same base diagram as lower gm pentodes : 6BX6 / EF80, EF800 0) EF184/6EJ7 Mullard ￥- NIB Mesh(Qn) 1) EF184/6EJ7 Znth(Mullard-made) ￥1500 NIB Mesh GtBritain 4) EF184/6EJ7 Znth(Philips-made) ￥1200 NIB Mesh Holland 0) 6EJ7/EF184 RCA ￥- NIB MeshPlate(T) 2) 6EJ7/EF184 RCA ￥1300 NIB mesh Gt.Britain(nAht) 1) 6EJ7/EF184 RCA ￥1200 NIB NonMesh Gt.Britain 0) 6EJ7 RCA ￥1200 NIB mesh Germany(Sx) 1) 6EJ7 RCA ￥1000 NIB mesh Italy *** 5) 6EJ7/EF184 RCA ￥1000 NIB - mint 1) 6EJ7 RCA ￥1000 NOS mesh 1) 6EJ7 RCA ￥1000 NIB nonMesh made in Canada 2) 6EJ7 RCA ￥1000 NIB MultiHoles Mexico *** 1) 6EJ7 Miniwatt ￥1200 NIB 1) 6EJ7/EF184 GE ￥1000 NIB mesh 3) 6EJ7/EF184 GE ￥1200 NIB mesh Holland 1) 6EJ7/EF184 GE(Mullard) ￥1500 NIB mesh GtBritain 0) 6EJ7/EF184 GE ￥- NIB MeshPlate(D) 2) 6EJ7/EF184 GE ￥1000 NIB NonMesh 3) 6EJ7/EF184 Znth(GE-made) ￥1000 NIB non-mesh 2) 6EJ7/EF184 GE ￥1000 NIB - mint 1) 6EJ7/EF184 Amprx ￥1000 NIB 2) 6EJ7/EF184 Syl ￥1000 NIB - mint 1) 6EJ7/EF184 ECG ￥1000 NIB 1) 6EJ7 Syl ￥1000 NIB CarbobSoot 1) 6EJ7 Syl ￥800 NOS Syl箱 NonMesh 0) 6EJ7 National ￥1000 NIB Japan(mD) 1) 6EJ7/EF184 Ray(Japan) ￥1000 NIB non-mesh 1) 6EJ7/EF184 Realistic ￥1000 NIB mesh 1) 6EJ7 WH ￥1000 NIB mesh W.Germany 1) 6EJ7/EF184 USA ￥1000 NIB 1) 6EJ7/EF184 Realistic-LIFETIME ￥1200 NIB GoldPin 2) 6EJ7 Toshiba ￥1000 NIB non-mesh 1:sealed 1) 6EJ7 Matsushita ￥1000 NIB mesh 6) 6EJ7 Hitachi ￥800 NIB 1) 6EJ7 Hitachi ￥800 NIB 1) 6EJ7 - ￥500 used メッシュPlate 1) 6EJ7/EF184 RCA ￥1000 used HolePlate 1) 6EJ7 Motorola ￥600 used Znth箱 Japan mesh 2) 6EJ7 Mullard ￥600 used WB mesh made in Australia 8600,9900/4900min 1) 6EJ7 PhilipsMiniwatt ￥600 used WB mesh 9000/4900min 1) 6EJ7 Brimar ￥600 used WB mesh made in England 7750/4900min 1) 6EJ7 AWV ￥600 used Miniwatt箱 1) 6EJ7 GE ￥600 usedLikeNew RCA箱 1) 6EJ7 Znth ￥600 usedLikeNew RCA箱
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6EM5 =BeamPower= ( 9-pin MT) (EIA/9HN - noval) Eh/Ih=6.3V/0.8A Ppmax=10W Epmax=315V Pc2max=1.5W Ec2max=285VIkmax=60mA rp=50kΩ gm=5.1mS (参考 : Ep-Ip特性(@Ec2=250V)) heater variant : 8EM5(8.4V/0.6A) similar types with same basing : 6CZ5 6DT5 similar types (#8pin must be unused) : 6CM6 6DW5 6R-B11 17) 6EM5 RCA ￥1300 NIB 12) 6EM5 USA ￥1000 NIB 1) 6EM5 AWV-SuperRadiotron ￥1000 NIB 1) 6EM5 AWV-SuperRadiotron ￥1000 NOS 1) 6EM5 Beckman(RCA-made) ￥1000 NOS? CGE箱 1) 6EM5 NEC ￥1000 NIB very-ragged box 1) 6EM5 GE ￥800 used 37/25min
6EM7 =Double Triode= (EIA/8BD - octal)/GT (see 6FM7 6GF7A) Eh/Ih=6.3V/0.925A Ehk=±200Vpeak/100Vaverage T1: Ppmax=1.5W Epmax=330V Ikmax=22mA Rgmax=2.2MΩ(fixed) op : Ep=250V Ec=-3V Ip=1.4mA rp=40kΩ gm=1.6mS μ=64 T2: Ppmax=10W Epmax=330V/1.5kVpeak Ikmax=50mA/175mApeak Rgmax=2.2MΩ(fixed) op : Ep=150V Ec=-20V Ip=50mA rp=750Ω gm=7.2mS μ=5.4 (参考 : 三極管No.2のEp-Ip特性(EpIP for the 2nd-triode)) heater variants : 6EA7(6.3V/1.05A) 10EM7(9.7V/0.6A) 13EM7(13V/0.45A) 6EW7類似管の比較表 electrically equivallent different base types : 6EA7 = 6EM7= 6GL7(octal), 6FD7(noval-9T9), 6FM7(compactron), 6GF7(NOVAR) 2) 6EM7 RCA ￥2000 NIB(nQ) 3) 6EM7/6EA7 RCA ￥2000 NIB CoinBase(nQn) 1) 6EM7/6EA7 RCA ￥2000 NIB CoinBase 0) 6EM7/6EA7 GE ￥- NIB (hxzfv) 0) 6EM7/6EA7 GE ￥- NOS 0) 6EM7 GE ￥- NIB CoinBase(hyfn) 1) 6EM7/6EA7 Syl ￥1500 NIB CoinBase 1) 6EM7/6EA7 Syl ￥1500 NIB CoinBase 1) 6EM7/6EA7 Syl ￥1500 NIB ThinBase BlkPlate 1) 6EM7 Syl ￥1800 NIB ThickBase BlkPlate 1) 6EM7 Syl ￥1800 NIB 0) 6EM7/6EA7 Admrl ￥- NIB 1) 6EM7 Triad(GEmade) ￥1300 NIB ThickBase GrayPlate 1) 6EM7 Triad(WH made) ￥1300 NIB ThickBase BlkPlate 1) 6EM7 Triad(made in Japan) ￥1300 NIB ThickBase GrayPlate 1) 6EM7 RTT ￥1300 NIB ThinBase BlkPlate 1) 6EM7/6EA7 RCA ￥800 used(D) 1) 6EM7 RCA ￥800 used DC=62-26, BlkPlates, SideGtr WB 4) 6EM7/6EA7 RCA(GE-made) ￥1000 lightly-used GrayPlates, SideGtr, WB 1) 6EM7/6EA7 Silvertone ￥800 used GE箱
6EN4 =SharpCutoffBeamTriode= (EIA/8NJ - octal) Eh/Ih=6.3V/0.2A Ehk-max=-450V Rgmax=3MΩ Ppmax=40W Epmax=30000V Ec-max=-135V/-440Vpeak Ipmax=1.6mADC different-basing electrically-similar type : 6BK4/6BK4A/6BK4B/6BK4C/6EL4A ◇ 40W beam triodes (octal): 6BK4B/C/6EL4A 6EN4 6LJ6/A/6LH6A ◇ 30W-40W beam triodes (compactron): 6EJ4/A 6HS5 6HV5/A 6HZ5 6JD5 6JH5 6JK5 6) 6EN4 RCA ￥3000 NOS none (rhxa) 19) 6EN4 RCA ￥3000 NIB 1) 6EN4 RCA ￥3000 NOS GE箱 1) 6EN4 GE ￥3000 NIB 1) 6EN4 Syl ￥3000 NIB 1) 6EN4 Znth ￥3000 NIB
6EQ7=Diode-remote-cutoff Pentode= (EIA/9LQ - noval) P: Ppmax=3W Epmax=300V Pc2max=0.6W Ec2max=Ec3max=300V Eh/Ih=6.3V/0.3A D: Ipmax=1mA 1) 6EQ7 RCA ￥1200 used Tested
6ER5 =high-μ HF Triode= (EIA/7FP - miniature) Eh/Ih=6.3V/0.18A Ehkmax=±100V Ppmax=2.2W Epmax=250V Ecmax=-50V Ikmax=20mA Rgmax=1MΩ op : Ep=200V Ec=-1.2V Ip=10mA tp=8kΩ gm=10.5mS μ=80 (参考 : Ep-Ip特性) heater variant : 3ER5(2.8V/0.45A) 6ER5≒6ES5 similar to 6GK5 0) 6ER5 USA ￥1200 NIB(sD)
6ES5 =high-μ HF Triode= (EIA/7FP - miniature) Eh/Ih=6.3V/0.2A Ehkmax=±100V Ppmax=2.2W Epmax=250V Ecmax=+0V Ikmax=22mA Rgmax=1MΩ op : Ep=200V Ec=-1V Ip=10mA rp=8kΩ gm=9mS μ=75 6ES5≒6ER5 similar to 6GK5 2) 6ES5 USA ￥1200 NIB (sQ)
6ES8 =Twin Triode= (EIA/9DE - noval) Eh/Ih=6.3V/0.365A Ppma=1.8W Epmax=130V/550V(cutoff) Ecmax=-50V Ikmax=22mA Ehk=50Vrms(unit 1,2)/130Vdc(unit 2) op : Ep=90V Ec=-1.2V Ip=15mA rp=2.5kΩ gm=12.5mS μ=31 (参考 : Ep-Ip特性) heater variants : 4ES8(4V/0.6A), 5ES8(5.6V/0.45A), PCC189/7ES8(7.6V/0.3A) see similar types :6DJ8 / 6922 / 7308 / 8416 / CCa / E88CC / E188CC / E288CC / PCC88 7) 6ES8/ECC189 Amprx ￥2200 NIB Holland 1) 6ES8 RCA(Holland) ￥2200 NOS Syl箱 1) 6ES8/ECC189 RCA(Holland) ￥2200 NOS Syl箱 1) 6ES8 RCA(Mullard-made) ￥2400 NOS Syl箱 1) 6ES8 GE(Gt.Britain) ￥2200 NOS GE-6DJ8箱 2) 6ES8 Philips￥2000 NIB 2) 6ES8/ECC189 Syl ￥1500 used 11000/11400/7500min, 13700/14600/7500min 1) 6ES8 Philco ￥1500 used 11500/11750/7500min 1) 6ES8/ECC189 Mot ￥1500 used 15000/14600/7500min 1) 6ES8 PhilipsMiniwatt ￥1200 used 15000/13600/7500min 1) 6ES8 PhilipsMiniwatt ￥800 used 8750/8750/7500min 1) 6ES8 USA ￥600 used
6ET7 =Duplex-Diode Pentode= (EIA/9LT - noval) Eh/Ih=6.3V/0.75A Ehkmax=±200V Idiode=1.5mA(@Epk=10Vdc) pentode : Ppmax=5W Epmax=330V Pc2max=1.1W Ec2max=330V Rg1max=100kΩ(fixed)/250kΩ(self) op : Ep=200V Ec2=150V Rk=100Ω Ip=25mA Ic2=5.5mA rp=60kΩ gm=11.5mS same-basing(9LT) similar type : 6KU8(pentode gm=20mS) 2) 6ET7 USA ￥1100 NIB
6EU7Eh/Ih=6.3V/0.3A Ehkmax=±200V(DCmax=+100V) Ppmax=1.2W Epmax=330V Egmax=+0V/-55V op : Ep=100V Ec=-1V Ip=0.5mA rp=80.0kΩ gm=1250μmhos μ=100 op : Ep=250V Ec=-2V Ip=1.2mA rp=62.5kΩ gm=1600μmhos μ=100 (参考 : Ep-Ip特性) see similar types : 6AX7, 12AX7/7025, 12BZ7, 5751, 20EZ7 also see 12AD7, 12R-HH14 1) 6EU7 Mullard ￥4900 NIB 1) 6EU7 Bogen(Mullard-made) ￥3400 used RCA箱 1) 6EU7 Daystrom(Mullard-made) ￥3400 used GE箱 11) 6EU7 RCA ￥3700 NIB(hyyfvx) 3) 6EU7 RCA(Syl-made) ￥3300 NIB GrayLongBoxPlates 1) 6EU7 RCA ￥3300 NOS Syl箱 2) 6EU7 WH ￥3000 NIB 10) 6EU7 GE ￥3000 NIB 一部RaggedBox(ghx1v2nt) 1) 6EU7 Ray(GE-made) ￥3000 NIB 2) 6EU7 Syl ￥3000 NIB(sQ) 2) 6EU7 Syl ￥3000 NIB ragged-boxes 3) 6EU7 Syl ￥2400 lightly-used smeared-silk WB 1) 6EU7 Tsol ￥3500 NIB 1) 6EU7 Ray ￥3000 NIB 1) 6EU7 WH ￥3000 NIB 1) 6EU7 Lindal ￥2500 NIB 1) 6EU7 RCA ￥2100 used gray-ribbed flat-plates, WB 1) 6EU7 GE ￥2100 used 1180/1260/875min Syl箱 1) 6EU7 GE ￥2100 used 1100/1200/875min WB -mb 1) 6EU7 ?(RCA-made) ￥2100 used 1160/1080/875min 1) 6EU7 Raytheon ￥2600 LightlyUsed 1470/1410/875min 1) 6EU7 Toshiba ￥2000 used WB
6EU8 =Triode Pentode= (EIA/9JF - noval) Eh/Ih=6.3V/0.45A Ehk=200V(dc+ac) P: Ppmax=3.1W Epmax=330V Pc2max=0.55W Ec2max=330V Rgmax=100kΩ rp=80kΩ gm=6.4mS T: Ppmax=3W Epmax=330V Rgmax=100kΩ rp=5kΩ gm=8.5mS μ=40 pins : 1(Pp)-2(Gt)-3(Pt)-4(H)-5(H)-6(Kt)-7(G1p)-8(KG3p)-9(G2p) heater variant : 5EU8(4.7V/0.6A) see a different-basing electrically-equivallent type : 6EA8 1) 6EU8 Syl ￥2200 NIB RaggedBox
6EV5 =Sharp-cutoff RF Tetrode= (EIA/7EW - miniature) Eh/Ih=6.3V/0.2A Ehkmax=±100V(DCmax=+50V) Ppmax=3.25W Epmax=275V Pc2max=0.2W Ec2max=180V Ikmax=20mA op : Ep=250V Ec2=80V Ec1=-1V Ip=11.5mA Ic2=0.9mA rp=150kΩ gm=8.8mS (参考 : Ep-Ip特性(@Ec2=80V)) also see another similar RF tetrode w/ same pinout & Epmax=180V : 6CY5 7717 (参考:類似球 6CY5 三結時のEp-Ip特性例(electrically-similar type - 6CY5's triode connection curve: SAMPLE data)) 3) 6EV5 RCA ￥1100 NIB 1) 6EV5 RCA ￥1100 NIB 9) 6EV5 Syl ￥900 NIB WB 9) 6EV5 CMC(Syl-made) ￥900 NIB WB
6EV7 =high-μ Twin Triode for computer= (EIA/9LP - noval) Eh/Ih=6.3V/0.6A Ehkmax=±200V(DCcomponent=+100Vmax) Ppmax=2.5W Epmax=300V Ikmax=20mA Rgmax=3.9MΩ op : Ep=250V Ec=-2V Ip=9.2mA rp=11.5kΩ gm=5.2mS μ=60 (参考 : Ep-Ip特性) same pinout lower μ types : 6FQ7(μ=20), 6GU7(μ=17) (for LF application : similar to 6DT8, 6AQ8) 0) 6EV7 RCA ￥- NIB 9) 6EV7 RCA ￥1900 NIB gray-long-plates, w/sleeve
6EW6 =Sharp cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.4A Ehkmax=±200V(DCcomponent=+100Vmax) Ppmax=3.1W Epmax=330V Pc2max=0.65W Ec2max=330V op : Ep=125V Ec2=125V Rk=56Ω Ip=11mA Ic2=3.2mA rp=200kΩ gm=12mS (参考 : Ep-Ip特性(@Ec2=125V)) heater variant : 5EW6(5.6V/0.45A) similar but higher-gm type : 6JK6 (same basing) also similar but lower-gm types : 6CB6 6CF6 6DE6 6DK6 (same basing) semi-remote-cutoff types : 6BZ6, 6GM6, 6JH6, 6DC6 (same basing) 6-matched-pairs) 157-0069-00(6EW6-MP) Tektronix NIB ￥3300/pair - rare - * bias-difference specification of 157-0069-00 (.pdf file) = the cathode-bias voltage of both tubes of a pair is within 0.07 volt of each other (@Ep=80V Ec2=150V Ik=8mA) 29) 6EW6 RCA ￥700 NIB (hyy1vfnt) 1) 6EW6 RCA ￥600 NOS 1) 6EW6 RCA ￥500 used? Syl箱 11) 6EW6 USA ￥600 NIB 1) 6EW6 SuperRadiotron(AWV) ￥600 NIB 5) 6EW6 Sharp(Toshiba-made) ￥600 NOS lot=0-4C WB 8) 6EW6 Sharp(Toshiba-made) ￥600 NOS lot=0-5C WB 3) 6EW6 USA ￥250 used
6EW7 =Double Triode= (EIA/9HF - noval/9T9) Eh/Ih=6.3V/0.9A Ehk=200V(dc+ac) T1: Ppmax=1.5W Epmax=330V Ikmax=22mA Rgmax=2.2MΩ(self) op : Ep=250V Ec=-11V Ip=5.5mA rp=8.75kΩ gm=2mS μ=17.5 T2: Ppmax=10W Epmax=330V/1.5kVpeak Ikmax=50mA/175mApeak Rgmax=2.2MΩ op : Ep=150V Ec=-17.5V Ip=45mA rp=800Ω gm=7.5mS μ=6 ガラスは、9-pinMT=noval と 9T9 の２タイプ heater variants : 10EW7(9.7V/0.6A) 15EW7(14.8V/0.45A) Similar to 6FD7-9T9 except that 6FD7-unit1 has a Higher mu(64) than 6EW7's mu(17.5) 6EW7類似管の比較 及びEp-Ip特性 same-basing lower-rating types : 6DE7(Pp2max=7W, μ1=17.5, μ2=6) , 6DR7(Pp2max=7W, μ1=68, μ2=6) similar-basing lower-rating type : 6CS7(Pp2max=6.5W, μ1=17, μ2=15.5) 1) 6EW7-9T9 Amprx ￥1200 NIB SideGtr 3) 6EW7-9T9 RCA ￥1500 NIB TopGtr RaggedBox(vQ) 5) 6EW7-MT RCA ￥1500 NIB TopGtr(nSn) 6) 6EW7-9T9 GE ￥1200 NIB TopGtr Gt.Britain 40) 6EW7-9T9 GE ￥1200 NIB SideGtr Gt.Britain 0) 6EW7-9T9 GE ￥- NIB TopGtr Gt.Britain(D) 4) 6EW7-9T9 GE ￥1200 NIB SideGtr(vSx) 1) 6EW7-9T9 Syl ￥1200 NIB SideGtr(vSx) 3) 6EW7-9T9 Westinghouse ￥- NIB made in Japan ClearTop-SideGtr 0) 6EW7-9T9 WH ￥- NIB 1) 6EW7-9T9 Ray ￥1200 NOS TopGtr Gt.Britain GE箱 15) 6EW7-9T9 Raytheon ￥- NIB made in Japan ClearTop-SideGtr 2) 6EW7-9T9 Ray(Japan) ￥1200 NIB SideGtr(Qn) 11) 6EW7-9T9 Raytheon ￥- NIB made in Japan TopGtr 5) 6EW7-9T9 Lindal ￥- NIB made in USA ClearTop-SideGtr 6) 6EW7-9T9 Lindal ￥- NIB made in Japan ClearTop-SideGtr 3) 6EW7-9T9 Lindal ￥1200 NIB SideGtr(Qn) 9) 6EW7-9T9 ITT ￥- NIB made in Japan ClearTop-SideGtr 1) 6EW7-9T9 ITT ￥- NIB made in USA TopGtr 1) 6EW7-9T9 ElMenco ￥- NIB made in Japan ClearTop 15) 6EW7-9T9 Richardson(National) ￥1200 NIB Japan Clear-top/SideGtr 0) 6EW7-9T9 Daltronix(Japan) ￥- NIB SideGtr(D) 0) 6EW7-9T9 USA ￥- NIB(Qn) 7) 6EW7-9T9 NEC ￥1000 NOS smeared-out silk, Side-Gtr ClearTop, WB 10) 6EW7-9T9 NEC ￥700 lightly-used, smeared-out silk, Side-Gtr ClearTop, WB 1) 6EW7-9T9 Toshiba ￥1000 NOS, smeared-out silk, Top-Gtr WB 1) 6EW7-9T9 Hitachi ￥800 NOS?, smeared-out silk, Top-Gtr WB 2) 6EW7-9T9 unknown ￥700 lightly-used, smeared-out silk, Top-Gtr WB
6EX6 =Beam Power= Sweep Tubes(<30W) (EIA/5BT - octal-TopPlate) Eh/Ih=6.3V/2.25A Ppmax=22W Epmax=770V Pc2max=3.5W Ec2max=190V Ikmax=220mA op : Ep=175V Ec2=175V Ec1=-30V Ip=67mA Ic2=3.3mA rp=8.5kΩ gm=7.7mS (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data)) heater variant : 21EX6(21.5V/0.6A) similar to 7867(6.3V/2.5A) also see same base, similar type : 6CD6G/GA also see same base, similar rating type : 6BG6G see a different base, electrically similar type : 6CB5/A also see a different base, just-lower-μ/just-lower-rp type : 6DQ5 3) 6EX6 GE ￥1400 NIB 1) 6EX6 GE ￥700 NIB GetterRing折
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6EY6 =Beam Pentode= (EIA/7AC - octal) Eh/Ih=6.3V/0.68A Ehkmax=±200Vpeak Ppmax=11W Epmax=350V Pc2max=2.75W Ec2max=300V Ikmax=60mA Rg1max=1MΩ(fixed)/2MΩ(self) op : Ep=250V Ec2=250V Ec1=-17.5V Ip=44mA Ic2=3mA rp=60kΩ gm=4.4mS heater variant : 7EY6(7.2V/0.6A) same basing similar types : 6EZ5, 6V6/GT 1) 6EY6 RCA ￥600 used WB BlackPlates gm=3500/2800
6EZ5 =BeamPower= octal (EIA/7AC - octal) Eh/Ih=6.3V/0.8A Ehkmax=±200V Rg1max=1MΩ(fixed)/2.2MΩ(self) Ppmax=12W Epmax=350V/2500Vpeak Pc2max=2.75W Ec2max=300V Ikmax=75mA/260mApeak op : Ep=250V Ec2=250V Ec1=-20V Ip=43mA Ic2=3.5mA rp=50kΩ gm=4.1mS (参考 : Ep-Ip特性(Ec2パラメータ、三結@Ec1=0V)) (参考 : Ep-Ip特性(三結/triode connection : sample data plotted)) similar to 6EY6, 7EY6(7.2V/0.6A), 6V6/GT 6) 6EZ5 GE ￥2000 NIB just-ragged boxes (hyysxx) 1) 6EZ5 Syl(GE-made) ￥2000 NIB GrayPlate TopGtr 10) 6EZ5 Syl(GE-made) ￥2000 NIB GrayPlate TopGtr RaggedBoxes 1) 6EZ5 Syl ￥2000 NIB 2) 6EZ5 RCA ￥2000 NIB 1) 6EZ5 Ray ￥2000 NIB GT 1) 6EZ5 GE ￥1500 lightly-used GrayPlate TopGtr
6EZ8 =hi-mu Triple Triode= (EIA/9KA - noval) Eh/Ih=6.3V/0.45A Ehkmax=100V Ppmax=2W/section(5W/3-sections) Epmax=330V μ=57 rp=13.6k gm=4.2mS pins : 1(3rdK)-2(3rdG)-3(3rdP)-4(1stK,2ndK,H)-5(H)-6(2ndP)-7(2ndG)-8(1stP)-9(1stG) (参考 : Ep-Ip特性) heater variant : 19EZ8(18.9V/0.15A) 4) 6EZ8 RCA ￥1000 NIB 1) 6EZ8 Con?(RCA-made) ￥800 NOS RCA箱 14) 6EZ8 GE ￥800 NIB 1) 6EZ8 ?(Syl?) ￥800 NOS WB 1) 6EZ8 USA ￥800 NIB
6F1 =RF Pentode= (EIA/) B8A Eh/Ih=6.3V/0.35A Ppmax=3.5W Epmax=250V Pc2max=1W Ec2max=250V gm=9mS Ehk=150V 1) 6F1 Mazda ￥1300 used
6F5/G =High-mu Triode= (EIA/5M - TopGrid - octal) Eh/Ih=6.3V/0.3A Epmax=300V op : Ep=100V Ec=-1V Ip=0.4mA rp=85kΩ gm=1.15mS μ=100 op : Ep=250V Ec=-2V Ip=0.9mA rp=66kΩ gm=1.50mS μ=100 pins(6F5-metal) : 1(Shell)-2(H)-3(None)-4(P)-5(None)-6(None)-7(H)-8(K)-Top(G) pins(6F5G / GT) : 1(NC)-2(H)-3(None)-4(P)-5(None)-6(None)-7(H)-8(K)-Top(G) (参考 : Ep-Ip特性) also see a European type : H63 also see different-base / electrically-same types : as 6SF5 7B4(loktal) 0) 6F5G Hytron ￥1200 used(like NEW) gm=1920/950min 0) 6F5G GE ￥1200 used gm=2000/950min 0) 6F5G Syl ￥600 used gm=1100/950min 0) 6F5G Silvertone ￥1700 NOS? Syl箱 1) 6F5 RCA ￥1200 NIB 1) 6F5 RCA ￥1200 NIB ragged-box 5) 6F5 GE ￥1000 NIB Metal 1) 6F5 Syl ￥1000 NIB 1) 6F5 CBS ￥1000 NIB 1) 6F5 GE ￥1000 used gm=1800/950min metal 1) 6F5GT Tsol ￥1000 used gm=1850/950min BlkPlates
6F6for 6F6 and #1611(see) : Rg1max=50kΩ(oldest, fixed)～100kΩ(newer,fixed) and 500kΩ(self) Pentode connection: op : Ep=250V Ec2=250V Ec1=-16.5V Ip=34mA Ic2=6.5mA=10.5mA rp=80kΩ gm=2.5mS op1(A1S) : Ep=250V Ec2=250V Ec1=-16.5V Ip=34mA/47mA Ic2=6.5mA/Ic2max=10.5mA Zl=7kΩ Po=3.2W D=8% op2(A1pp) : Ep=315V Ec2=285V Ec1=-24V Ip=62mA/80mA Ic2=12mA/19.5mA Zlpp=10kΩ Po=11W D=4% op3(AB2pp): Ep=375V Ec2=250V Ec1=-26V Ip=34mA/82mA Ic2=5mA/19.5mA Zlpp=10kΩ Po=18.5W D=3.5% Triode connection: Ppmax=10W Epmax=350V op4(A1S): Ep,c2=250V Ec1=-20V Ip=31mA/34mA rp=2.6kΩ gm=2.6mS Zl=4kΩ Po=0.85W D=6.5% op5(AB2pp): Ep,c2=350V Ec1=-38V Ip=48mA/92mA Zlpp=6kΩ Po=13W D=2% (参考 : Ep-Ip特性(五結･三結比較など)) 参考 : Olson amplifier(オルソンアンプ-6F6三結パラpp・無帰還) see ship-SOS version : 1611 see RF power version : 1613 see different base(UZ) similar types : 2A5(2.5V/1.75A), 18(14V/0.3A) 42(6.3V/0.7A) see a miniature similar type : 6AR5(miniature, 6.3V/0.4A) see a WE electrically-similar type : WE-349A(octal. Eh/Ih=6.3V/1A) also see a WE electrically-similar & different base type : WE-336A(UZ, Eh/Ih=10V/0.64A) オーディオパワ管の比較1(3結) metal new 20) VT-66 / JAN 6F6 RCA ￥2700 NOS D/C=H3E(May-Jun.1944) WB 1) JAN-CRC 6F6 RCA ￥2700 NIB MB SilverLogo Metal date=7-59 1) JAN 6F6 RCA ￥2700 NIB MB OrangeLogo Metal date=61-39 5) JAN 6F6 RCA ￥2600 NIB MB OrangeLogo Metal date=73-05(Qn) 1) JAN 6F6 RCA ￥2600 NIB MB OrangeLogo Metal date=12-75 2-pairs) JAN 6F6 RCA ￥5900/pair NIB (2xMatchedPairs) GrayPlates BtmGtr VeryRagedBox 50年代 20) 6F6 RCA ￥2600 NIB Metal 0) 6F6 RCA ￥- NOS WB Metal(Q) 0) 6F6 RCA ￥- NIB glass TopGetter BlkPlates(D) 0) 6F6 GE ￥- NIB 1) 6F6 GE ￥2300 NIB 青箱 1) 6F6 GE ￥2300 NIB OldOrange箱 40) 6F6 GE ￥2300 NIB D/C=79-06 mint 1) 6F6 Syl ￥2300 NIB OldBox 1) 6F6 Krad ￥2300 NIB MB RaggedBox ST 0) 6F6G Ray ￥- NIB(Q) 1) 6F6G Truetone ￥2700 NIB very-ragged-box 0) 6F6G/VT66A Syl ￥- NOS SmokedGlass 0) 6F6G Syl ￥- used (D) 0) 6F6G Brimar ￥- NOS BlackGlass engraved 0) 6F6G RadioTechnique(Philips) ￥- BulkNOS(Sx) 0) 6F6G Mazda ￥- NOS(Q) 0) 6F6G Neotron ￥- NOS SmokedGlass 1) 6F6G Neotron ￥2400 NOS ClearGlass (m) 1) 6F6G Grammont ￥2400 NOS ClearGlass (m) 0) 6F6G Tungsram ￥- NOS SmokedGlass(D) 0) 6F6G PhilipsMiniwatt ￥- NOS SmokedGlass 1) 6F6G Delco ￥2400 NOS ClearGlass WB 1) 6F6G RCA ￥2700 used D/C=H1E(Jan.1944) SmokedGlass gm=2950/1640min Ip=31.3mA 1) 6F6G Syl ￥2200 used D/C=15R SmokedGlass gm=2700/1640min Ip=26.9mA CenterPost-broken 1) 6F6G Syl ￥2200 used D/C=1-13 gm=2620/1640min Ip=25.8mA 1) 6F6G Syl ￥2200 used D/C=1-13 gm=2480/1640min Ip=25.1mA 1) 6F6G Syl ￥2200 usedLikeNew gm=2730/1640min Ip=28.5mA 1) 6F6G Znth(Syl-made) ￥1600 used D/C=713 gm=2100/1640min Ip=24.8mA 0) 6F6G WH ￥2200 usedLikeNew gm=2960/1640min Ip=30.4mA 1) 6F6G WH ￥1600 used gm=2060/1640min Ip=26.2mA 1) 6F6G GM ￥2200 used gm=2730/1640min 1) 6F6G Philco ￥1600 used 74/50min ClearGlass 1) 6F6G Wizard ￥2200 used gm=2700/1640min 1) 6F6G Rogers ￥1800 used SmokedGlass gm=2480/1640min Ip=28.7mA GT new 4) 6F6GT RCA ￥2900 NIB D/C=448 BtmGtr GrayPlate ThickBase, w/ sleeve 1) 6F6GT RCA(Syl-made?) ￥2300 NIB TopGtr BlkPlate 1) 6F6GT Syl ￥2300 NIB MB ClearGlass Date=1-52 1) 6F6GT Syl ￥2300 NIB ClearGlass BlkPlate TopGetter 1) FAA 6F6GT Syl ￥2300 NIB ClearGlass BlkPlate TopGetter date=63-06 metal,GT used 1) 6F6 RCA ￥1900 used metal 86/50min 1) 6F6 RCA ￥1200 used metal 65/50min 1) JAN-CRC 6F6 RCA ￥1500 used D/C=1-48 just-rusty 1) 6F6/VT66 RCA ￥1500 used? metal 3710/1640min 1) 6F6/VT66 GE ￥1500 used? metal 3420/1640min 1) 6F6/VT66 GE ￥1500 used metal 2250/1640min Ip=27.3mA 1) 6F6 Syl ￥1500 used glass 3470/1640min 1) 6F6 RCA ￥400 used Metal 錆多し 1) VT-66 GE ￥400 used very-rusty WB 1) 6F6GT Ray ￥800 used glass 2090/1640min 1) 6F6GT Matsuda ￥400 used 2) 6F6GT Matsuda ￥400 used WB 3) 6F6GT Matsuda ￥400 used BlackPlate BottomGettr WB 2) 6F6GT Matsuda ￥400 used GrayPlate BottomGetter WB Syl ￥1000 NIB MB *$* 11) 6X4WA Syl ￥1000 NIB MB(shxb) 1) JAN 6X4WA Syl ￥1000 NIB MB D/C=5-79 BlkPlates (sD) 1) JHS 6X4WA Syl ￥1000 NIB MB BlkPlates 1) 6X4W Syl ￥1000 NOS RCA箱 1) 6X4 Syl ￥1200 NIB old BlackPlates D-gtr 1) 6X4 Shield(Syl-made) ￥1000 NIB BlkPlates 0) 6X4 Syl ￥- NIB(Nn) 0) 6X4 ECG ￥- NIB(D) 1) JTL-6X4W Tsol ￥1300 NIB 1) JRP-6X4W Ray ￥1300 NIB D-gtr MB 1) 6X4W Ray ￥1000 NIB 1) 6X4 Ray ￥1000 NIB old BlkPlates D-gtr 1) 6X4 Ray ￥1000 NIB Japan (vD) 1) 6X4 Ray ￥1000 NOS Japan RCA箱 1) 6X4/EZ90 Amprx ￥1000 NIB DarkGrayPlates made in Japan * 1) 6X4 King(WH-made) ￥1000 NIB BlkPlates STD-boxed 4) 6X4 Philps ￥1000 NIB Japan Orange/Yellow/White箱 2) 6X4 Philco ￥1000 NIB old 1) 6X4 National ￥1000 NIB BlkPlates D-gtr 1) 6X4 Philco ￥800 NOS? Syl箱 2) 6X4 Toshiba ￥1000 NIB 通信用 2) 6X4 Toshiba ￥1000 NIB 通信用 1) 6X4 NEC ￥1000 NIB silver-silk, ragged-box 1) 6X4 NEC ￥1000 NOS silver-silk 通信用 WB 3) 6X4 Matsushita ￥1000 NIB 1) 6X4 Matsushita ￥1000 NIB 2) 6X4 TEN ￥1000 NIB just-ragged-boxes 2) 6X4 Hitachi ￥1000 NIB very-ragged-boxes 2) 6X4 DON ￥1000 NIB very-ragged-boxes 青ドン 4) 6X4 RCA ￥600 used BlkPlates, gm=97/95, 80/86, 81/90 etc 1) 6X4 GE ￥500 used 1) 6X4 CGE ￥500 used 4) 6X4 USA ￥500 used 1) 6X4 Toshiba ￥500 lightly-used WB 1) 6X4 NEC ￥1000 NIB just-ragged box 1) 6X4 NEC ￥800 lightly-used very-ragged OB 2) 6X4 NEC ￥1000 usedLikeNew 93/94,94/95/54min print=100% 1) 6X4 NEC ￥1000 used 94/94 print=100% 1) 6X4 NEC ￥700 lightly-used silver-silk WB
6F7 =Triode remote-cutoff Pentode (common cathode)= (EIA/7E) Eh/Ih=6.3V/0.3A Triode : Epmax=100V Ec=-3V Ip=3.5mA μ=8 rp=16kΩ gm=0.5mS Pentode : Ppmax=1.7W Epmax=250V Pc2max=0.2W Ec2=100V Ec1=-3V Ip=6.5mA μ=900 rp=850kΩ gm=1.1mS 0) 6F7 RCA ￥- NIB 1) 6F7 RCA ￥1500 NIB VeryRaggedBox +++ 0) 6F7 GE ￥- NIB 1) 6F7 GE ￥1200 NIB VeryVeryRaggedBox 1) 6F7 Philco ￥1200 NIB 1) 6F7 Cnghm ￥900 used 1) Ut-6F7 Matsuda ￥600 used WB 1) Ut-6F7 ?(Japan) ￥600 used
6F8/G =med-mu Twin Triode= (EIA/8G - octal) Eh/Ih=6.3V/0.6A Ppmax=2.5W Epmax=300V Ecmax=0V op : Ep=250V Ec=-8V Ip=9mA rp=7.7kΩ gm=2.6mS μ=20 (参考 : Ep-Ip特性) also see amp-unit identical 6SN7GT, 6J5/G/GT, 12J5/GT/WGT, 12SN7GT/GTA, 12SX7GT also see a same-base, higher μ type = 6C8G(μ=36-typ) 0) 6F8G RCA ￥- NOS 0) 6F8G RCA ￥- NIB(D) 2) 6F8G Brimar(Syl-made) ￥2400 NIB very-ragged MIL boxes 1) 6F8 IntC ￥2000 NIB GrayFlatPlates (left picture) 1) 6F8 IntC ￥2000 NIB BlkRoundPlates (right picture) 1) 6F8G Sylvania ￥1700 lightly-used WB 1) 6F8G/VT99 Tsol ￥1700 used 103/100/50min
6F22 = 6H2 = CV303 = EF22
6F32 = RF Pentode= (EIA/-, Mazda-octal, top-G1) Eh/Ih=6.3V/0.63A Ehkmax=150V Ppmax=4.5W Epmax=250V Pc2max=1.5W Ec2max=200V op : Ep=200V Ec2=200V Ec1=-4.0V Ec3=0V gm=3.35mS μg2g1=38 op : Ep=200V Ec2=200V Ec1=-4.5V Ec3=0V Ip=5.1mA Ic2=3.45mA gm=3.0mS pins : 1(H)-2(K)-3(P)-4(G2)-5(G3)-6(Metallising)-7(NONE)-8(H)-tOP(G1) size : 32mmΦ x 96mmH, in max similar type = CV1116 0) 6F32 Mazda ￥- bulk-NOS WB
6F60T =Delay Relay= 2) 6F60T Amperite ￥2800 NIB
6F62R
6FA7 =Diode Twin-Plate Tetrode= (EIA/9MR - noval) Pp-a-max=Pp-b-max=1.5W Tetrode : Ep-a-max=Ep-b-max=330V Ec2max=330V 6.3V/0.3A 2) 6FA7 RCA ￥2100 NIB
6FC7 = FrameGrid TwinTriode for Cascode Amp= (EIA/9DD - noval) Eh/Ih=6.3V/0.34A Ppmax=1.8W Ikmax=22mA Rgmax=1MΩ Ehk=50Vrms/-180V Rg1max=500kΩ(fixed)/1MΩ(self) op : Ep=90V Ec=-1.2V Ip=15mA gm=12mS NF=5.5dB(Cascode Amp) similar type = 6CW7 ECC84 1) 6FC7 AWV-SuperRadiotron ￥2200 NIB
6FD6 =RF Pentode= (EIA/7BK - miniature) Ppmax=-W Epmax=30V Pc2max=-W Ec2max=30V rp=500kΩ gm=1.45mS Eh/Ih=6.3V/0.33A 0) 6FD6 GE ￥- NIB
6FD7 =Double Triode= (EIA/9HF - 9T9) Eh/Ih=6.3V/0.925A Ehkmax=±200V Unit1: Ppmax=1.5W Epmax=330V Ikmax=20mA Rg1max=2.2MΩ(self) op : Ep=250V Ec=-3V Ip=1.5mA rp=40kΩ gm=1.6mS μ=64 Unit2: Ppmax=10W Epmax=330V Ikmax=50mA Rg1max=2.2MΩ(self) op : Ep=150V Ec=-17.5V Ip=40mA rp=800Ω gm=7.5mS μ=6 heater variant : 13FD7(13V/0.45A) Similar to 6EW7 except that 6FD7-unit1 has a Higher mu(64) than 6EW7's mu(17.5), maybe, 6EW7 is suitable for non-NFB amplifiers and 6FD7 is for low-distortion="deep NFB" ones 6EW7類似管の比較表 electrically equivallent different base types : 6EA7 = 6EM7= 6GL7(octal), 6FD7(noval-9T9), 6FM7(compactron), 6GF7(NOVAR) same-basing lower-rating noval types : 6DE7(Pp2max=7W, μ1=17.5, μ2=6) , 6DR7(Pp2max=7W, μ1=68, μ2=6) similar-basing lower-rating noval type : 6CS7(Pp2max=6.5W, μ1=17, μ2=15.5) 2) 6FD7 RCA ￥1700 NIB 1) 6FD7-9T9 RCA ￥1700 NIB TopGtr Unit1=BlkPlate 2) 6FD7-9T9 GE ￥1700 NIB TopGtr TaperedBase "COMPACTRON"-silk 1) 6FD7-9T9 GE ￥1700 NIB TopGtr 1) 6FD7-9T9 GE(Syl-made?) ￥1700 NIB TopGtr TaperedBase 1) 6FD7-9T9 GE(Syl-made) ￥1700 NIB ClearTop-SideGtr 2) 6FD7-9T9 Syl ￥1700 NIB ClearTop-SideGtr 1) 6FD7 Syl ￥1500 NIB 1) 6FD7 Chief ￥1500 NIB 1) 6FD7 El-Menco ￥1500 NIB
6FG5 =shadow-grid Beam Pentode= (EIA/7GA - miniature) Eh/Ih=6.3V/0.2A Ppmax=2.75W Epmax=275V Pc3max=0.15W Ec3max=275V Ikmax=20mA Rg1max=3.3MΩ op : Ep=250V Ec3=250V Ec1=-0.2VIp=9mA Ic3=0.42mA rp=250kΩ gm=9.5mS similar to 6FS5(gm=10mS-typ), 6GU5(gm=15mS-typ) 1) 6FG5 USA ￥600 NIB
6FG6(=EM84) =Electron ray Indicator= (EIA/9GA - noval) Etarget-max=300V Etarget-min=150V Eh/Ih=6.3V/0.27A 1) 6FG6/EM84 GE ￥1000 NIB W.Germany 4) 6FG6/EM84 GE ￥1000 NIB ++
6FG7 =common-cathode Triode Pentode= (EIA/9GF - noval) Eh/Ih=6.3V/0.45A Ehkmax=±200V Pentode: Ppmax=3W Epmax=330V Pc2max=0.55W Ec2max=330V rp=180kΩ gm=6mS Rgmax=-kΩ Triode : Ppmax=2.5W Epmax=330V rp=7.5kΩ gm=2.75mS μ=20 Rgmax=-MΩ heater variant : 5FG7(4.7V/0.6A) 1) 6FG7 RCA ￥700 NIB +++ 5) 6FG7 USA ￥600 NIB 1) 6FG7 USA ￥400 used
6FH5 =VHF high-mu Triode= (EIA/7FP - miniature) Eh/Ih=6.3V/0.2A Ehkmax=±100V Ppmax=2.2W Epmax=150V Ikmax=22mA Ecmax=0V op : Ep=135V Ec=-1V Ip=11mA rp=5.6kΩ gm=9mS μ=50 (参考 : Ep-Ip特性) heater variant : 2FH5(2.35V/0.6A) 2) 6FH5 RCA ￥1200 NIB 1) 6FH5 GE ￥1000 NIB 7) 6FH5 USA ￥1000 NIB
6FH6 =Beam Power= (EIA/6AM - octal, TopPlate) Ppmax=17W Epmax=770V Pc2max=3.6W Ec2max=220V rp=12kΩ gm=6mS Eh/Ih=6.3V/1.2A 0) 6FH6 GE ￥- NIB
6FJ7 =Double Triode= (EIA/12BM - compactron) Eh/Ih=6.3V/0.9A Ehkmax=±200V T1:Ppmax=1W Epmax=350V Rg1max=2.2MΩ(fixed) op : Ep=250V Ec=-8V Ip=8mA rp=9kΩ gm=2.5mS μ=22.5 T2:Ppmax=10W Epmax=550VIkmax=50mA/150mApeak Rg1max=2.2MΩ(fixed) op : Ep=250V Ec=-9.5V Ip=41mA rp=2kΩ gm=7.7mS μ=15.4 This tube is same electrical-specifications/characteristics as octal-6DN7. 6EW7類似管の比較表 1) 6FJ7 RCA ￥1700 NIB 1) 6FJ7 Dmnt ￥1500 NIB
6FM7 =Double Triode= (EIA/12EJ - compactron) Eh/Ih=6.3V/1.05A Ehk=±200V(DC=+100Vmax) T1:Ppmax=1W Epmax=350V Rg1max=1MΩ(fixed) op : Ep=250V Ec=-3V Ip=2mA rp=30kΩ gm=2.2mS μ=66 T2:Ppmax=10W Epmax=500V/1.5kVpeak Ikmax=50mA/175mApeak Rg1max=1MΩ(fixed) op : Ep=175V Ec=-25V Ip=40mA rp=0.92kΩ gm=6mS μ=5.5 (see 6EM7 6EW7) 6EW7類似管の比較表 electrically equivallent different base types : 6EA7 = 6EM7= 6GL7(octal), 6FD7(noval-9T9), 6FM7(compactron), 6GF7(NOVAR) 2) 6FM7 RCA ￥1700 NIB 2) 6FM7 GE ￥1500 NIB 1) 6FM7 GE ￥1500 NIB 2) 6FM7 Syl ￥1500 NIB 1) 6FM7 Syl ￥1500 NIB 1) 6FM7 SylECG ￥1500 NIB 1) 6FM7 RAD-TEL ￥1500 NIB 7) 6FM7 GE他 ￥800 used
6FM8 =twin Diode + Hi-mu Triode= (EIA/9KR - noval) Eh/Ih=6.3V/0.45A Triode : Ppmax=1.1W Epmax=330V μ=70 op : Ep=250V Ec=-3V Ip=1mA rp=58kΩ gm=1.2mS 3) 6FM8 RCA ￥800 NIB 1) 6FM8 GE ￥700 NIB 1) 6FM8 Syl ￥700 NIB 1) 6FM8 Philco ￥700 NIB 6) 6FM8 WH ￥700 NIB WB
6FQ5 =HF Triode= (EIA/7FP - miniature) Ppmax=2.5W Epmax=200V μ=60 rp=5.5kΩ gm=11mS Eh/Ih=6.3V/0.18A 0) 6FQ5 GE ￥- NIB
6FQ7/6CG7 (see 6CG7) =Medium mu TwinTriode= (EIA/9LP - noval) Eh/Ih=6.3V/0.6A Ehk=±200V(DC=+100Vmax) Ppmax=4W Epmax=330V Ikmax=22mA Rgmax=1MΩ op : Ep=250V Ec=-8V Ip=9mA rp=7.7kΩ gm=2.6mS μ=20 (ピン配列: 6FQ7 = P-G-K-H-H-P-G-K-NC) (ピン配列: 6CG7 = P-G-K-H-H-P-G-K-IS) (参考 : Ep-Ip特性) heater variants : 8FQ7(8.4V/0.45A) 12FQ7(12.6V/0.3A) also see similar type 6GU7(μ=17): pin-compatible see a same pinout(9LP) & long-flat-plates higher-μ type : 6EV7(μ=60) 0) 6FQ7 RCA ￥- NOS(D) 0) 6FQ7 RCA ￥- Bulk-NOS ClearTop (hp18n) 3) 6FQ7/6CG7 RCA ￥3700 NIB ClearTop date=68-39 22) 6FQ7/6CG7 RCA ￥3500 NIB ClearTop (hyy3v0gr) 1) 6FQ7/6CG7 RCA ￥3500 NIB ClearTop justStrongGtrFlash *$** 1) 6FQ7/6CG7 RCA(GE-made) ￥2200 NIB TopGtr 1) 6FQ7 RCA ￥2000 NOS? 0) 6FQ7/6CG7 RCA ￥- NIB 写真右2本 Clear-Top(D) 0) 6FQ7/6CG7 RCA ￥- NIB 写真左 90) 6FQ7/6CG7 GE ￥2000 Bulk-NOS green-silk, same-lot, stored in 100pc_carton 集合写真 1) 6FQ7/6CG7 GE ￥2200 NIB 0) 6FQ7/6CG7 GE ￥2200 NIB(Qn) 1) 6FQ7/6CG7 GE ￥2200 NOS Ray箱 (NTB) 1) 6FQ7/6CG7 GE ￥2200 NOS WB 0) 6FQ7/6CG7 GE ￥- NOS (sQ) 1) 6FQ7/6CG7 RCA(Syl-made) ￥2200 NIB TopGtr 1) 6FQ7/6CG7 RCA(Syl-made) ￥2200 NIB TopGtr 2) 6FQ7/6CG7 Ray ￥2200 NIB Japan 1) 6FQ7/6CG7 HitRay ￥2200 NIB 1) 6FQ7/6CG7 ElMenco ￥2200 NIB 1) 6FQ7 Magnavox ￥1900 NOS RCA箱 3) 6FQ7 Toshiba ￥1900 NIB 2:cellophane-sealed 1) 6FQ7 Toshiba ￥1900 NIB cellophane-sealed 1) 6FQ7 Toshiba ￥1500 NIB 1) 6FQ7 Matsushita ￥1200 NOS Matsushita-boxed 1) 6FQ7 Mitsubishi ￥1200 NIB very-ragged box 1) 6FQ7 Toshiba ￥1000 lightly-used WB 2) 6FQ7 Sharp ￥1900 used 新同品 GrayPlate、TopGetter 1) 6FQ7 Sharp ￥1000 used GrayPlate、TopGetter 2) 6FQ7 Mitsubishi ￥1000 used GrayPlate、TopGetter 5) 6FQ7/6CG7 USA ￥1000 used strong gm>2500(1640min) 1) 6FQ7/6CG7 RCA ￥1000 used? WH箱 2) 6FQ7/6CG7 RCA ￥1000 used SideGtr 1) 6FQ7/6CG7 RCA ￥1000 used 2680/2770/1640min ClearTop 1) 6FQ7/6CG7 RCA ￥1000 used Ray箱 1) 6FQ7 RCA(JAPAN) ￥1000 NOS? 1) 6FQ7 RCA ￥1000 used 1) 6FQ7 RCA ￥1000 used gm=2680/2900/1640min 1) 6FQ7 RCA ￥1000 used ClearTop gm=2600/2880/1640min 1) 6FQ7 GE ￥1000 used 2950/3000/1640min 2) 6FQ7/6CG7 GE ￥1000 used 2800/2830,2700/2700/1640min 1) 6FQ7 Syl ￥1000 used 2500/2780/1640min 1) 6FQ7 Magnavox ￥1000 used 1) 6FQ7 WardsAirline ￥1000 used Syl箱
6FS5 =shadow-grid Beam Pentode= (EIA/7GA - miniature) Eh/Ih=6.3V/0.2A Ehk=±200V(DC=+100Vmax) Ppmax=3.25W Epmax=300V Pc3(screen)max=0.15W Ec3max=150V Ikmax=20mA Rg1max=500kΩ(fixed) op : Ep=275V Ec3(screen)=135V Ec1=-0.2V Ip=9mA Ic3=0.17mA rp=240kΩ gm=10mS pins: 1(G1)-2(K,G2(shadow-grid),Beam)-3(H)-4(H)-5(P)-6(G3(screen))-7(K,G2(shadow-grid),Beam) similar to 6FG5(gm=9.5mS-typ), 6GU5(gm=15mS-typ) 1) 6FS5 USA ￥600 NIB
6FV5/EL136 =Beam Power= (EIA/ - octal) Eh/Ih=6.3V/1.65A Ppmax=16W Epmax=250V/7.5kVpeak Pc2max=4.5W Ec2max=250V Ec1(-)max=-300V Ikmax=300mA Rg1max=1MΩ op : Ep=100V Ec2=100V Ec1=-8V Ip=150mA Ic2=6mA rp=4kΩ gm=20mS 参考 : EL136/PL136/6FV5/35FV5のEp-Ip特性例(@Ec2=100V)) heater variant : 35FV5(35V/0.3A) 0) 6FV5 Matsushita ￥- used
6FV6 =Sharp-cutoff RF Tetrode= (EIA/7FQ - miniature) Eh/Ih=6.3V/0.2A Ppmax=2W Epmax=275V Pc2max=0.5W Ec2max=180V rp=100kΩ gm=8mS 2) 6FV6 RCA ￥800 NIB 2) 6FV6 Syl ￥700 NIB 1) 6FV6 Rogers ￥700 NIB
6FV8/A =med-mu Triode + sharp-cutoff Pentode= (EIA/9FA - noval) Eh/Ih=6.3V/0.45A Ehkmax=±200V Pentode: Ppmax=2.3W Epmax=330V Pc2max=0.55W Ec2max=330V Rgmax=250kΩ(fixed)/1MΩ(self) op; Ep=125V Ec2=125V Ec1=-1V Ip=12mA Ic2=4mA rp=200kΩ gm=6.5mS Triode : Ppmax=2W Epmax=330V μ=40 rp=5kΩ gm=8mS Rgmax=3MΩ op : Ep=125V Ec=-1V Ip=14mA rp=5kΩ gm=6mS μ=40 similar to : 6BR8/A, 6JN8 1) 6FV8A Syl ￥1200 NIB
6FW5 =sweep BeamPower= (EIA/6CK - octal) Eh/Ih=6.3V/1.2A Ehkmax=±200V Ppmax=17.5W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=175mA Rg1max=1MΩ op : Ep=250V Ec2=150V Ec1=-22,5V Ip=75mA Ic2=2.4mA rp=20kΩ gm=6.6mS same basing types : 6AU5GT, 6AV5GT/GA, 6BD5, 6000 1) 6FW5 RCA ￥700 NIB
6FX7= 6D-HH13(Toshiba) =med-mu twin triode= *subminiature*
6FY5/EC97 =High-mu Triode= (EIA/7FP - miniature) Eh/Ih=6.3V/0.2A Ehkmax=100V Rgmax=1MΩ Ppmax=2.2W Epmax=200V/550Vcutoff Ikmax=20mA Ec1-max=-50V op : Ep=135V Ec1=-1.0V Ip=11.0mA gm=13mS rp=-5.4kΩ μ=70 op : Ep=135V Ec1=-4.5V Ip=0.10mA 1) 6FY5/EC97 RCA ￥1100 NIB +++ 1) 6FY5 GE ￥1000 NIB
6FY7 =DissimilarDoubleTriode= (EIA/12EO - compactron) Eh/Ih=6.3V/1.05A Triode 1: Ppmax=1W Epmax=330V μ=65 rp=40.5kΩ gm=1.6mS Triode 2: Ppmax=7W Epmax=275V μ=6 rp=0.92kΩ gm=6.5mS (参考 : Ep-Ip特性) heater variant : 11FY7(11V/0.6A) 2) 6FY7 RCA(GE-made) ￥1700 NIB 1) 6FY7 RCA ￥1700 NIB *Compactron
6G5 =electron-ray tube= (EIA/6R - UZ, ST12) Eh/Ih=6.3V/0.3A Epmax=250Vsupply Etarget-max=250V op : Ep=250V Rp-series=1MΩ Itarget=4.5mA Ip=0.24mA Eg=-22V(shadow-angle=0°)/0V(shadow-angle=90°) also see similar types(magic-eye) : 6E5, 6U5, 1629 0) 6G5G/6H5 Ray ￥- used Eye-tube 4) 6G5-ST Neotron ￥3900 NOS WB Eye-tube
6G6G =PowerPentode= (EIA/7S - octal) Eh/Ih=6.3V/0.15A Ehkmax=90V Rg1max=100kΩ(fixed)/500kΩ(self) [RCA, GE] pentode connection : Ppmax=2.75W Epmax=300V Pc2max=0.75W Ec2max=300V op : Ep=180V Ec2=180V Ec1=-9V Ip=15mA Ic2=2.5mA rp=175kΩ gm=2.3mS Zl=10kΩ Po=1.1W D=10% (参考 : 五結Ep-Ip特性(@Ec2=180V)) [RCA, GE] triode connection : Ppmax=3.5W Epmax=300V op : Ep=180V Ec=-12V Ip=11mA rp=4.75kΩ gm=2mS μ=9.5 Zl=12kΩ Po=0.25W D=5% (参考 : 三結Ep-Ip特性(triode-connection)) 1) 6G6G RCA ￥1200 NIB D/C=60-22 1) 6G6G RCA ￥1200 NIB VeryRaggedBox +++ 0) 6G6G RCA ￥- NIB 透明Glass 3) 6G6G RCA ￥1200 NIB 透明Glass RB(Qn) 1) 6G6G RCA ￥1100 NIB smoked-glass 3) 6G6G GE ￥1100 NIB smoked-glass sealed 1) 6G6G Tsol ￥1200 NIB 青白元箱AnchorMark 1) 6G6G Tsol ￥1100 NOS WB 12) VT-198A/6G6G KenRad(for Bendix) ￥1100 NIB black-glass, still-sealed, another photo 3) 6G6G/VT-198 Tsol ￥1100 NOS WB 1) 6G6G/VT-198 RCA ￥800 used gm=2100/1325min 1) 6G6G/VT-198 RCA ￥800 used 1960/1325min 1) 6G6G/VT-198 RCA ￥800 used 1950/1325min 1) 6G6G/VT-198 RCA ￥800 usedLikeNew 1) 6G6G Firestone?Air-Chief(KenRad-made) ￥1000 usedLikeNew 2130/1375min
6G11 =Dissimilar double Pentode= (EIA/12BU - compactron) Eh/Ih=6.3V/1.2A Pentode 1: Ppmax=6.5W Epmax=150V Pc2max=1.8W Ec2max=135V rp=10kΩ gm=7.5mS Pentode 2: Ppmax=1.7W Epmax=330V Pc2max=1.1W Ec2max=330V rp=150kΩ gm=1mS 1) 6G11 RCA ￥1300 NIB 1) 6G11 WH(GE-made) ￥1300 NIB 1) 6G11 Tsol ￥1300 NIB 1) 6G11 RCA ￥500 used GE箱
6G-A4/6GA4Eh/Ih=6.3V/0.75A Ehk=100V Ppmax=13W Epmax=350V Ec-max=-100V Rgmax=250kΩ(fixed)/500kΩ(self) op 1 A1S : Ep=250V Ec1=-18.5V Ip=40mA/ 49mA Zl= 5kΩ D=5.0% Po= 2.2W rp=1.4kΩ gm=7mS μ=10 op 2 A1S : Ep=280V Ec1=-21.5V Ip=47mA/ 57mA Zl= 5kΩ D=5.5% Po= 3.2W op 3 A1pp : Ep=250V Ec1=-18.5V Ip=80mA/101mA Zlpp= 8kΩ D=0.8% Po= 5.0W op 4 A1pp : Ep=280V Ec1=-21.5V Ip=94mA/118mA Zlpp= 8kΩ D=0.9% Po= 6.8W op 5 AB1pp : Ep=300V Ec1=-26.2V Ip=55mA/ 95mA Zlpp= 5kΩ D=3.7% Po= 9.2W op 6 AB1pp : Ep=300V Ec1=-26.2V Ip=55mA/ 84mA Zlpp=10kΩ D=1.9% Po= 7.0W op 7 AB1pp : Ep=350V Ec1=-30.0V Ip=70mA/120mA Zlpp= 5kΩ D=3.9% Po=13.5W op 8 AB1pp : Ep=350V Ec1=-30.0V Ip=70mA/105mA Zlpp=10kΩ D=2.1% Po=10.0W pin1-8 = 1(G)-2(H)-3(P)-4(NC)-5(G)-6(NC)-7(H)-8(K) (ピン1とピン5はグリッド放熱のため必ず結線する / pin-1 & 5 should be connected to radiate grid-heat.) 参考1 : 6GA4のEp-Ip特性 参考2 : 東芝データシートPage-1, Page-2, Page-3, Page-4(A1pp scheme) 2-matched pairs) 6GA4-MP Toshiba ￥- NIB 1960's with original-MP boxes 2) 6GA4 Toshiba ￥9000 NIB sealed 4) 6G-A4 Toshiba ￥5700 used-lightly WB 4) 6G-A4 Toshiba ￥5700 used-lightly WB 2) 6G-A4 Toshiba ￥5000 lightly-used base-print WB 4) 6G-A4 Toshiba ￥4900 used WB gm=8000/6300min/Ip=60mA, gm=7850/6300min/Ip=60mA (on Hickok-539B), gm=9000/6300min/Ip=62mA, gm=9000/6300min/Ip=63mA (on Hickok-539B) 1) 6G-A4 Toshiba ￥4900 used WB gm=8600/6300min/Ip=56mA (on Hickok-539B) 4) 6G-A4 Toshiba ￥4900 used WB gm=8500/5000min/Ip=49mA, gm=8500/5000min/Ip=50mA (on KS-15750-L1) gm=9000/5000min/Ip=54mA, gm=9250/5000min/Ip=54mA (on KS-15750-L1) 4) 6G-A4 Toshiba ￥4900 used WB gm=9050/5000min/Ip=53mA, gm=9050/5000min/Ip=49mA (on KS-15750-L1) gm=8850/5000min/Ip=60mA, gm=9100/5000min/Ip=62mA (on KS-15750-L1) 2) 6G-A4 Toshiba ￥4900 used-lightly WB 2) 6G-A4 Toshiba ￥4700 used base-print WB center index guide lost/折損 gm=8100/5000min/Ip=52mA, gm=8900/5000min/Ip=5605mA (on KS-15750-L1) 4) 6G-A4 Toshiba ￥4900 used-lightly WB(hyt22s04wil) 0) 6G-A4 Toshiba ￥- used weak : 3000/6300min, Ip=16mA(on 539B), lost-CenterPost, WB
6G-B3A/6GB3A =BeamPower= (EIA/6AM - octal TopPlate) Eh/Ih=6.3V/1.2A Ehkmax=±200V(DCmax=+100V) *Pentode-connection Ppmax=13W Epmax=550V Pc2max=5W Ec2max=200V Ikmax=150mA op : Ep=100V Ec2=100V Ec1=-7.7V Ip=100mA Ic2=7mA rp=5.3kΩ gm=14mS op(AB1pp): Ep=300V Ec2=100V Ec1=-17V Ip=70mA/180mA Ic2=5mA/17mA Zlpp=4.5kΩ D=4% Po=32W op(AB1pp): Ep=400V Ec2=100V Ec1≒-20V(Ppo=14W) Ip=70mA/180mA Ic2=5mA/17mA Zlpp=6kΩ D=5% Po=44W (参考 : data-sheet/Ep-Ip特性(6G-B3A @Ec2=170V)) *Triode-connection Ppmax=15W Epmax=300V Ikmax=150mA op(SEPP-I) : Ebb=250V Rk=200Ω Ip= 75mA/ 85mA Zl=200Ω D=2% Po=2.3W op(SEPP-II): Ebb=300V Rk=140Ω Ip=110mA/125mA Zl=200Ω D=3% Po=4.0W (参考 : 三結時のEp-Ip特性(triode connection)) heater variant : 12G-B3(12.6V/0.6A, Ppmax=10W/older-design) electrically-compatible MAGNOVAL-base version : 6B-B14 similar to 6CM5, and EL36(Eh/Ih=6.3V/1.25A) : pin #1(IC), #3(IC)を用いなければ同一pin配列 also see 25E5(25V/0.3A), PL36(25V/0.3A), 50JY6(50V/0.15A) also see a Schematic - 6GB3A-SEPP monaural-amplifier, Pout=12.8W/Zl=300Ω - by Kazuma Takesue / 武末数馬 and its 'Pout - Zload' characteristics (Pout=10W～13W for Zload=150Ω～700Ω) (designed/build on around 1957) (appeared on "Design & Building-Up of (Tube) Power Amplifier" published on 1967 by Radio Technique, Japan A 300Ω:8Ω matching transformer/gap-less should be prepared, which is merely a simple 6.1:1 transformer & will surely/easily realize high performance than "any ordinary DEPP/push-pull OPT's") 0) 6G-B3A HiFi matched-pair NEC ￥- NIB very-ragged boxes 2) 6G-B3A NEC ￥1200 NIB 2) 6G-B3A NEC ￥1200 NIB 1) 6G-B3A NEC ￥1200 NIB lot=7I 2) 6G-B3A NEC ￥1200 NIB lot=7Y 7) 6G-B3A NEC ￥1200 NIB lot=7Z 6) 6G-B3A NEC ￥1200 NIB just-ragged boxes 0) 6G-B3A Toshiba ￥- NIB 2) 6G-B3A TEN ￥1200 NIB just-rugged boxes 4) 6G-B3A NEC ￥800 VeryLightlyUsed 2) 6G-B3A NEC ￥500 used 1) 6G-B3A Toshiba ￥500 used WB 1) 6G-B3A Hitachi ￥500 used WB 1) 6G-B3A Hitachi ￥500 used WB 1) 6G-B3A TEN ￥800 lightly-used WB
6GB5/6GB5A/EL500 =BeamPower= (EIA/9NH - Magnoval TopPlate) Eh/Ih=6.3V/1.38A Ehkmax=±250V Rg1max=500kΩ(fixed)/2.2MΩ(self) Ppmax=17W Epmax=275V/7700Vpeak Pc2max=5W Ec2max=275V Ikmax=275mA op : Ep=75V Ec2=200V Ec1=-10V Ip=440mA Ic2=30mA heater variants : 13GB5/XL500(13.3V/0.6A), 18GB5/LL500(18V/0.45A), 27GB5/PL500(27V/0.3A) 1) 6GB5A/EL500 RCA ￥1200 NIB 2) 6GB5/EL500 RCA ￥1200 NIB 1) 6GB5/EL500 Amprx ￥2500 NIB BugleBoy 1) 6GB5/EL500 Syl ￥500 used 1) 6GB5/EL500 ? ￥500 used made in Holland RCA箱 1) 6GB5/EL500 Selectron ￥500 used RCA箱
6G-B6/6GB6 =BeamPower= (EIA/6AM - octal-TopPlate) Eh/Ih=6.3V/1.2A Ehkmax=±200V(DC=+100Vmax) Ppmax=11W Epmax=600V/6000Vpeak Pc2max=2.5W Ec2max=200V Ikmax=112.5mA op : Ep=250V Ec2=150V Ec1=-22.5V Ip=65mA Ic2=2.1mA gm=6mS (参考 : 三結時のEp-Ip特性(triode connection)) similar to 6BQ6GTB, and 6CU6 heater variants : 12G-B6(12.6V/0.6A) 25G-B6(25V/0.3A) 0) 6G-B6 Toshiba ￥- NIB 5) 6G-B6 NEC ￥1200 NIB
6G-B7/6GB7 =BeamPower= (EIA/6AM - octal-TopPlate) Eh/Ih=6.3V/1.2A Ppmax=15W Epmax=700V/7000Vpeak Pc2max=5W Ec2max=250V Ikmax=200mA op : Ep=100V Ec2=100V Ec1=-7.7V Ip=100mA Ic2=7mA rp=5.4kΩ gm=14mS similar to 6DQ6/A/B, and 6GW6 heater variant : 12GB7(12.6V/0.6A) 0) 6G-B7 Toshiba ￥- NIB 0) 6G-B7 Ray(Toshiba-made) ￥- NIB 5-pcs 2) 6G-B7 Hitachi ￥500 used
6G-B8/6GB8
6GC5 =BeamPower= (EIA/9EU - noval/9T9) Eh/Ih=6.3V/1.2A Ehkmax=±200V Ppmax=12W Epmax=220V Pc2max=1.4W Ec2max=140V Rg1max=100kΩ(fixed)/500kΩ(self) op(A1S) : Ep=110V Ec2=110V Ec1=-7.5V Ip=49/50mA Ic2=4/10mA rp=13kΩ gm=8mS Zl=2kΩ D=10% Po=2.1W op(A1S) : Ep=200V Ec2=125V Rk=180Ω Ip=46/47mA Ic2=2.2/8.5mA rp=28kΩ gm=8mS Zl=4kΩ D=10% Po=3.8W (参考 : Ep-Ip特性(@Ec2=110V)) pins : 1(G2)-2(NC)-3(G1)-4(H)-5(H)-6(G1)-7(K,G3)-8(G2)-9(P) same basing(9EU) noval power pentodes : 12AB5 6973 7061 2) 6GC5 RCA ￥1500 NIB 9T9(sT) 2) 6GC5 GE ￥1500 NIB 0) 6GC5 Syl ￥- NOS 2) 6GC5 Raytheon ￥1500 NIB 9T9 made in Japan, just-ragged boxes
6GE5 =BeamPowerPentode= Sweep Tubes(<30W) (EIA/12BJ - compactron) (single-ended pins / プレートが底面ピンに出ているため配線容易) Eh/Ih=6.3V/1.2A Ehkmax=±200Vpeak Ppmax=17.5W Epmax=770V/6.5kVpeak Pc2max=3.5W Ec2max=220V Ikmax=175mA/530mApeak Rg1max=1MΩ op : Ep=250V Ec2=150V Ec1=-22.5V Ip=65mA Ic2=1.8mA rp=18kΩ gm=7.3mS op(triode-connection) : Ep=150V Ec=-22.5V μ=4.4 size : 39.7mmΦ x 63.5mmH, in max see heater variant : 12GE5(12.6V/0.6A) see same-base, electrically-similar type : 6HB5 also see minimize-Snivets G3 installed type : 6JN6 also see same-base, smallerΦ-sized, half-ratings type : 6GF5 (used in Tektronix Oscilloscopes) 3) 6GE5 RCA ￥1000 NIB 1) 6GE5 RCA ￥1000 NIB 1) 6GE5 GE ￥900 NIB 1) 6GE5 GE ￥900 NOS RCA箱 2) 6GE5 Syl ￥900 NIB 0) 6GE5 Ray ￥- NIB 5-pcs 1) 6GE5 Ray ￥800 used?
6GE8/7734 =Pentode + power-Triode for series regulator= (EIA/9LC - noval) Eh/Ih=6.3V/0.9A Ehkmax=+100V/-200V Pentode: Ppmax=1W Epmax=330V Pc2max=0.5W Ec2max=275V Rgmax=2.2MΩ(self) op: Ep=150V Ec2=150VEc1=-2V Ip=5.5mA Ic2=1.7mA rp=340kΩ gm=3.2mS Triode : Ppmax=7W Epmax=275V Rgmax=2.2MΩ op: Ep=150V Ec=-21V Ip=35mA rp=1.08kΩ gm=5mS μ=5.4 pins : 1(G2p)-2(Kt)-3(Gt)-4(H)-5(H)-6(Pt)-7(Kp,G3p)-8(G1p)-9(Pp) also see special hirel. version : 7734 2) 6GE8/7734 Tsol ￥2100 NIB
6GF5 =BeamPowerPentode= (EIA/12BJ - compactron) Eh/Ih=6.3V/1.2A Ehkmax=±200Vpeak Ppmax=9W Epmax=770V/5kVpeak Pc2max=2.5W Ec2max=220V Ikmax=160mA/500mApeak Rg1max=1MΩ op : Ep=250V Ec2=150V Ec1=-26.5V Ip=34mA Ic2=1.6mA rp=260kΩ gm=4.7mS op(triode-connection) : Ep=150V Ec=-26.5V μ=4.2 size : 30.1mmΦ x 63.5mmH, in max see same-base, largerΦ-sized 2xratings type : 6GE5 6) 6GF5 Tektronix ￥3000 NIB Tektronix Parts No.=154-0494-00 4) 6GF5 RCA ￥1200 NIB * 1) 6GF5 RCA ￥1200 NIB *sw
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6GF7/A =Double Triode= (EIA/9QD - NOVAR) (see 6EM7 6FM7) 6EW7類似管の比較表 Eh/Ih=6.3V/0.985A T1:Ppmax=1.5W Epmax=330V Ikmax=22mA Rg1max=2.2MΩ op : Ep=250V Ec=-3V Ip=1.4mA rp=40kΩ gm=1.6mS μ=64 T2:Ppmax=11W Epmax=330V/1.5kVpeak Ikmax=50mA/175mApeak Rg1max=2.2MΩ op : Ep=150V Ec=-20V Ip=50mA rp=750Ω gm=7.2mS μ=5.4 heater variants : 10GF7(9.7V/0.6A) 13GF7(13V/0.45A) electrically equivallent different base types : 6EA7 = 6EM7= 6GL7(octal), 6FD7(noval-9T9), 6FM7(compactron), 6GF7(NOVAR) 1) 6GF7A RCA ￥1500 NIB (rhy2v7hj) 1) 6GF7A RCA ￥1500 NIB BlkPlates 7) 6GF7A RCA ￥1500 NIB ラベル消あり 1) 6GF7A RCA ￥1200 NOS? Syl箱 3) 6GF7A GE ￥1200 NIB 4) 6GF7A Dmnt(GE-made) ￥1200 NIB Dome 1) 6GF7A Dmnt(Syl-made) ￥1200 NIB TipTop 6) 6GF7 Syl ￥1200 NIB BlkPlates 1) 6GF7A Syl ￥1200 NIB 3) 6GF7A WH ￥1200 NIB 1) 6GF7A Ray ￥1200 NIB 1) 6GF7A Philco ￥1200 NIB 2) 6GF7A IntC ￥1200 NIB 1) 6GF7A ITT ￥1200 NIB 1) 6GF7A Realistic ￥1200 NIB 日本製 1) 6GF7A GE ￥600 used?/NOS? gm(T1)=1190/600min;(T2)=9200/5000min 1) 6GF7A RCA ￥1100 used gm(T1)=1050/600min;(T2)=10250/5000min 1) 6GF7A RCA ￥800 used OriginalBox 1) 6GF7A USA ￥600 used
6GH8A =Med-mu(46) Triode Sharp Cutoff Pentode= (EIA/9AE = 9DC - noval) Eh/Ih=6.3V/0.45A Ehkmax=±200V(DC+100V) Pentode : Ppmax=2.5W Epmax=350V Pc2max=0.55W Ec2max=330V Ikmax=20mA rp=200kΩ gm=7.5mS Triode : Ppmax=2.5W Epmax=330V rp=5.4kΩ gm=8.5mS μ=46-typ (参考 : 両ユニットのEp-Ip特性) heater variants : 5GH8/A(4.7V/0.6A), 9GH8/A(9.45V/0.3A) see same basing similar types : 6AX8 6EA8 6LM8 6U8/6U8A / 6678 also see a longer-life improved version of 6U8: 6R-HR4/LD-611 2) 6GH8A RCA ￥600 NIB - mint 2) 6GH8A RCA ￥600 NIB w/sleeve 8) 6GH8A RCA ￥600 NIB Ray箱 (NTB) 0) 6GH8A RCA ￥- NIB w/sleeve 2) 6GH8A Syl ￥600 NIB 1) 6GH8A Ray(Syl-made) ￥600 NIB (NTB) 47) 6GH8A USA ￥600 NIB (hy2zbn) 2) 6GH8A NEC ￥600 NIB 2) 6GH8A Matsushita ￥600 NIB cellophane-sealed 1) 6GH8A Matsushita ￥600 NIB cellophane-sealed 7) 6GH8A RCA/RCA-made ￥400 used 1) 6GH8A RCA ￥400 used? Amprx箱 2) 6GH8A GE-made ￥400 used 2) 6GH8A Syl-made ￥400 used 1) 6GH8A RCA(Syl-made) ￥400 used-lightly D/C=339 RCA-boxed 10) 6GH8A USA ￥400 used 1) 6GH8A Magnavox(made in Japan) ￥400 used 1) 6GH8A Hitachi ￥400 used WB 1) 6GH8A ? ￥400 used
6GJ5/A =Beam Power= Sweep Tubes(<30W) (EIA/9QK - NOVAR) Eh/Ih=6.3V/1.2A Ppmax=17.5W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax175mA Ehkmax=±200Vmax heater variants : 12GJ5/A(12V/0.6A), 17GJ5/A(16.8V/0.45A) 1) 6GJ5A RCA ￥1300 NIB/NOS(mT) 2) 6GJ5A GE ￥1200 NIB 1) 6GJ5 Syl ￥1200 NIB(T) 1) 6GJ5 Tsol ￥1200 NIB 1) 6GJ5 Syl ￥900 used
6GJ7(=ECF801) =cathode-common TriodePentode= (EIA/9QA - noval) Eh/Ih=6.3V/0.41A Ehkmax=110V Triode : Ppmax=1.8W Epmax=140V Ep-supply=600Vmax Ikmax=22mA Rgmax=0.5MΩ(fixed, self), gm=9mS μ=20typ Pentode : Ppmax=2.4W Epmax=275V Pc2max=0.55W Ec2max=275V Ikmax=20mA Ec1max=-50V Rg1max=1MΩ(fixed)/2MΩ(self), gm=11mS rp=350kΩ-typ heater variants : 4GJ7(4.1V/0.6A), 5GJ7(5.6V/0.45A), PCF801/8GJ7(8V/0.3A) same-basing similar types : 6GX7, 6HB7 6) 6GJ7/ECF801 RCA ￥800 NIB - mint 1) 6GJ7/ECF801 RCA ￥800 NIB 4) 6GJ7/ECF801 GE ￥800 NIB - mint 2) 6GJ7/ECF801 Syl ￥800 NIB - mint 2) 6GJ7 DELTA ￥600 NOS STD箱 6) 6GJ7/ECF801 USA ￥600 NIB 1) 6GJ7/ECF801 Znth ￥400 used
6GK5 =grounded-cathode High μ triode / HF Triode= (EIA/7FP - miniature) Eh/Ih=6.3V/0.18A Ehkmax=100V Ppmax=2.5W Epmax=200V Ecmax(-)=50V Ikmax=22mA Rgmax=1MΩ op : Ep=135V Ec=-1V Ip=11.5mA μ=78 gm=15mS rp=5.4kΩ NF=4.7dB (参考 : Ep-Ip特性) heater variants : 2GK5/2FQ5A(2.3V/0.6A), 3GK5(2.8V/0.45A), 4GK5(4V/0.3A) pins : 1(K)-2(G)-3(H)-4(H)-4(P)-6(IS)-7(K) similar to 6ER5, 6ES5 also see similar types with different pin assignment(7GM) : 6HA5, 6HM5, 6HQ5 Especially, 6HQ5(7GM) is electrically-identical to 6GK5/6FQ5(7FP). (特に 6HQ5はベース接続のみが異なる6GK5/6FQ5そのもの) 2) 6GK5 RCA ￥1200 NIB 2) 6GK5/6FQ5A RCA ￥1200 NIB 3) 6GK5/6FQ5A GE ￥1200 NIB - mint 1) 6GK5/6FQ5A GE ￥1200 NIB 2) 6GK5/6FQ5A Syl ￥1200 NIB just-ragged boxes (hyy00sdx) 3) 6GK5 USA ￥1200 NIB (T) 1) 6GK5 Toshiba ￥700 lightly-used WB 1) 6GK5 NEC ￥700 lightly-used WB
6GK6 =audio/video power Pentode= (EIA/9GK - noval) Eh/Ih=6.3V/0.76A Ehkmax=±100V * Cg1p=0.14pF Cinput(g1 to h+k+g2+g3+IS)=10pF Coutput(p to h+k+g2+g3+IS)=7pF Ppmax=13.2W Epmax=330V Pc2max=2W Ec2max=330V Rg1max=300kΩ(fixed)1MΩ(self) op(A1S) : Ep/Ec2=250V Ip/Ic2=48mA/5.5mA rp=38kΩ gm=11.3mS Zl=5.2kΩ Po=5.7W D=10% op(AB1pp) : Ep/Ec2=250V Rk=130Ω Ipo/Ic2o=62mA/7mA Ipmax/Ic2max=75mA/15mA Zl=8kΩpp Po=11W D=4% op(AB1pp) : Ep/Ec2=300V Rk=130Ω Ipo/Ic2o=72mA/8mA Ipmax/Ic2max=92mA/22mA Zl=8kΩpp Po=17W D=4% op(B1pp) : Ep/Ec2=250V Ec1=-11.6V Ipo/Ic2o=20mA/2.2mA Ipmax/Ic2max=75mA/15mA Zl=8kΩpp Po=11W D=3% op(B1pp) : Ep/Ec2=300V Ec1=-14.7V Ipo/Ic2o=15mA/1.6mA Ipmax/Ic2max=92mA/22mA Zl=8kΩpp Po=17W D=4% pins : 1(K)-2(G1)-3(G3,IS)-4(H)-5(H)-6(NC)-7(P)-8(G2)-9(G3,IS) (参考 : 三結時のEp-Ip特性(Triode connection)) heater variants : 10GK6(10.6V/0.45A) 16GK6(15V/0.3A) 29GK6(28.6V/0.15A) also see different-pinout electrically similar types : 6BQ5, 6R-P15, 7189/A, 7320, E84L, 6Π14Π/6P14P 6BQ5 E84L 7189 6RP15 6CZ5 規格/動作例の比較 2) 6GK6 RCA ￥2700 NIB(T) 2) 6GK6 RCA ￥2700 NIB Red&White-RaggedBox 2) 6GK6 RCA(GE-made) ￥2500 NIB 0) 6GK6 RCA(GEmade) ￥- NOS 5) 6GK6 GE ￥2500 NIB (hyyenx) 12) 6GK6 WH(GE-made) ￥2500 NIB date=86-03 TopGtr GrayPlate 1) 6GK6 CGE ￥2500 NIB 1) 6GK6 CGE ￥2500 NIB lot=QX 2) 6GK6 Syl他 ￥2500 NIB 1) 6GK6 Syl ￥2500 NIB 1) 6GK6 Syl ￥2500 NIB BlkPlate 1) 6GK6 Syl ￥2300 NIB BlkPlate 1) 6GK6 Shield(Syl-made) ￥2300 NIB GrayPlate RCA-boxed 1) 6GK6 Amprx ￥2500 NIB ragged-box 25) 6GK6 Ray(made in Japan) ￥2300 NIB ragged-box 2) 6GK6 Znth ￥2500 NIB D/C=63-37 large original boxes 2) 6GK6 Znth ￥2500 NIB 2) 6GK6 Znth ￥2500 NIB 1) 6GK6 Znth ￥2200 NOS GE箱 1) 6GK6 Setchell Carlson ￥2200 NOS GE箱 1) 6GK6 GE ￥1200 usedLikeNew RCA箱 0) 6GK6 Syl ￥1200 usedLikeNew Znth箱 0) 6GK6 Znth ￥1200 used OB gm=10550/6300min 0) 6GK6 Znth ￥- used
6G-K17/6GK17 =HalfWave Rectifier for TV dumper= (EIA/4CG - octal) Eh/Ih=6.3V/1.3A Ehkmax=+300V/-4500V(DCmax=900V) Ppmax=6.5W PIV=4500V Idcmax=190mA/1150mApeak (日立:Idcmax=175mA/1050mApeak) Edrop≒18V @Ip=200mA pins : 1(NC)-2(NC)-3(K)-4(NONE)-5(P)-6(NONE)-7(H)-8(H) (pin #1 & #2 should be NEVER used) (参考 : Ep-Ip特性) see similar type : 6AX4 see a heater variant 12G-K17(12.6V/0.6A) same base (4CG) halfwave rectifiers : 6AU4GT/A 6AX4GT/A/B 6CQ4 6DA4/A 6DE4 6DQ4 6G-K17 6W4GT/A also see a 4CG-rectifier comparison table : <4CGベース ピンコンパチ半波整流管の比較> <ダンパ用-高圧半波整流管の比較> also see the full-wave rectifier type (two 6G-K17 units installed) : 5G-K22(5V/3A) 16) 6G-K17 Matsushita ￥800 NIB 1) 6G-K17 Toshiba ￥700 NOS WB 1) 6G-K17 Toshiba ￥700 like-new WB 1) 6G-K17 NEC ￥500 lightly-used WB 1) 6G-K17 Toshiba ￥400 used WB
6GL7 =Dissimilar Double Triode= (EIA/8BD - octal) 6GL7 ≒ 6EA7 ≒ 6EM7 Eh/Ih=6.3V/1.05A Ehkmax=±200V(DCmax=+100V) triode #1 : Ppmax=1W Epmax=350V Rgmax=1MΩ(fixed)/2.2MΩ(self) op : Ep=250V Ec=-3V Ip=2mA rp=30kΩ gm=2.2mS μ=66 triode #2 : Ppmax=10W Epmax=550V/1.5kVpeak Ikmax=50mA/175mApeak Rgmax=1MΩ(fixed)/2.2MΩ(self) op : Ep=175V Ec=-25V Ip=46mA rp=780Ω gm=6.4mS μ=5 6EW7類似管の比較表 electrically equivallent different base types : 6EA7 = 6EM7= 6GL7(octal), 6FD7(noval-9T9), 6FM7(compactron), 6GF7(NOVAR) 0) 6GL7 RCA ￥- NIB 5) 6GL7 RCA ￥2000 NIB w/sleeve 1) 6GL7 GE ￥2000 NIB 0) 6GL7 Syl ￥- NIB(D)
6GM5Eh/Ih=6.3V/0.8A Ehkmax=+100Vdc/±200Vpeak Ppmax=19W Epmax=550V Ec2max=440V Pc2max=3.3W Ikmax=85mA Rgmax=0.3MΩ(fixed)/1MΩ(self) op1(A1S): Ep=300V Ec2=300V Ec1=-10V Ip=60mA/75mA Ic2=8mA/15mA gm=10.2mS rp=29kΩ Zl=3kΩ Po=11W D=13% op2(AB1pp): Ep=300V Ec2=300V Ec1=-12.5V Ip=86mA/116mA Ic2=12.6mA/26mA Zl=6.6kΩ Po=23W D=2.5% op3(AB1pp): Ep=400V Ec2=350V Ec1=-16V Ip=77mA/143mA Ic2=9.6mA/27mA Zl=6.6kΩ Po=37W D=1.5% op4(AB1pp): Ep=450V Ec2=400V Ec1=-21V Ipo=66mA/144mA Ic2=9.4mA/30mA Zl=6.6kΩ Po=45W D=1.5% op5(UL-AB1pp): Ep=400V Ec2=40% tapped Ec1=-20.5V Ip=80mA/138mA Ic2=11.5mA/26.4mA Zl=6.6kΩ Po=32W D=1.0% op6(UL-AB1pp): Ep=425V Ec2=40% tapped Rk=185Ω Ip=88mA/104mA Ic2=13mA/17.5mA Zl=6.6kΩ Po=26W D=2% (6GM5(9T9 base) is the most powerful tube among noval-socket-based power tubes like 6BQ5/7189, 6GK6, 6RP15 etc, and also shows excellently low distortion charac- teristics. High maximum G2 voltage spec. also allows higher B+ for ultra-linear or triode connections than noval ones, resulting in better sound performance. 6GM5 should have been recommended more highly in the past...) (also see 7591(octal) 7868(NOVAR)) オーディオパワ管の比較2(Beam,5極管) (参考 : オクタル同等球7591の三結時のEp-Ip特性( - triode connection)) (参考 : Norvar同等球7868の三結時のEpIp特性(- triode connection)) 6GM5 7591 7868 詳細規格の比較 (規格が異なるビーム管7695(Eh/Ih=50V/0.15A),及び7754(Eh/Ih=6.3V/1.2A)はICを除き同一ピン配列の9T9) (強力なMT管6973及び、その近似管6CZ5と類似ピン配列) 4) 6GM5 RCA(Syl-made) ￥4900 NIB TipTop w/sleeve 4) 6GM5 RCA ￥4900 NIB 5) 6GM5 RCA(Syl-made) ￥4900 NIB (hyyQQX) 8) 6GM5 GE ￥4900 NIB RaggedBox 2) 6GM5 GE ￥4900 NIB 5) 6GM5 GE ￥4900 NIB 1) 6GM5 GE(Syl-made) ￥4900 NIB TipTop 9600/5500min Ip=51mA 8-pairs) 6GM5 Syl ￥9000/pair NIB TipTop lot=BR-EBP matched-pairs just-ragged-boxes 1) 6GM5 Syl ￥4900 NIB TipTop just-ragged-boxes 5) 6GM5 WH(Syl-made) ￥4900 NIB D/C=74-09 TipTop 3) 6GM5 Tsol(Syl-made) ￥4900 NIB TipTop 5) 6GM5 Dmnt(Syl-made) ￥4900 NIB 1) 6GM5 Dmnt(Syl-made) ￥4900 NIB 1) 6GM5 Philco(Syl-made) ￥4900 NIB
6GM6 =Semi Remote cutoff Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.4A Ehkmax=±200V Ppmax=3.1W Epmax=330V Pc2inmax=0.65W Ec2max=330V rp=200kΩ gm=13mS heater variants : 4GM6(4.2V/0.6A), 5GM6(5.6V/0.45A) sharp-cutoff type : 6EW6(same basing) 3) 6GM6 RCA ￥700 NIB(hyyanx) 6) 6GM6 USA ￥600 NIB 1) 6GM6 Magnavox(Hitachi-made) ￥500 NOS? RCA-boxed 1) 6GM6 RCA ￥500 used Ray箱 4) 6GM6 USA ￥400 used
6GM8 (= ECC86) =TwinTriode for Low-Ep Direct Couple Instrumentation Amp= (EIA/9DE - noval) Eh/Ih=6.3V/0.33A Ehkmax=30V Ppmax=0.6W Epmax=30V Ikmax=20mA Rgmax=1MΩ op : Ep=25V Ec=0V Rg=100kΩ Ip=7.5mA gm=7.8mS rp=2.1kΩ μ=16 1) 6GM8/ECC86 Mullard ￥2900 NIB justRaggedBox 0) 6GM8/ECC86 Amperex ￥- NIB BugleBoy 0) 6GM8/ECC86 GE ￥- NIB 1) 6GM8/ECC86 CEI(Calvert Electron. Inc) ￥1900 NIB made in Holland *$**
6GN8 =high-mu(100) Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.75A Ehkmax=±200V Triode : Ppmax=1W Epmax=330V Rgmax=500kΩ(fixed)/1MΩ(self) rp=37kΩ gm=2.7mS μ=100 Pentode: Ppmax=5W Epmax=330V Pc2max=1.1W Ec2max=330V Rgmax=250kΩ(fixed)/1MΩ(self) rp=60kΩ gm=11.5mS see almost plug-compatible 6EB8 heater variants : 8GN8/8EB8(8V/0.6A), 10GN8(10.5V/0.45A) 8) 6GN8/6EB8 USA ￥600 NIB 2) 6GN8 RCA ￥800 NIB 1) 6GN8 RCA ￥500 used 1) 6GN8 Znth ￥400 used
6G-R7/6GR7 =sharp-cutoff(semi-remote-cutoff) Pentode= (EIA/8BK - octal) Eh/Ih=6.3V/0.35A Ppmax=-W Epmax=-V p(A1S): Ep=250V Ec2=100V Rk=250Ω Ip=6.0mA Ic2=1.9mA rp=1MΩ gm=3.6mS pins : 1(IS)-2(H)-3(K,G3)-4(G1)-5(K,G3)-6(G2)-7(H)-8(P) similar to 6SH7/GT 2) 6G-R7 神戸工業(TEN) ￥2700 like-new D/C=1952.9, crack on metal-base, WB 1) 6G-R7 神戸工業(TEN) ￥2700 used WB
6GS7 =common-ccathode med-mu Triode sharp-cutoff Pentode= (EIA/9GF - noval) Eh/Ih=6.3V/0.375A Pentode : Ppmx=2W Epmax=250V Pc2max=0.5W Ec2max=150V Ipmax=18mA, rp=600kΩ gm=4.5mS-typ Triode : Ppmax=1.5W Epmax=125V Ipmax=15mA, gm=3.5mS-typ heater variants : 4GS7(4V/0.6A), 5GS7(5.4V/0.45A), 7GS7(7.6V/0.3A) 1) 6GS7 WH ￥1200 NIB 1) 6GS7 Admrl ￥1200 NIB 1) 6GS7 Toshibal ￥1000 NIB just-ragged box (hssExx)
6GT5/A =Beam Power= Sweep Tubes(<30W) (EIA/9NZ - NOVAR) Eh/Ih=6.3V/1.2A Pp=17.5W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=175mA heater variants : 17GT5/A(16.8V/0.45A) 3) 6GT5A RCA ￥1200 NIB 1) 6GT5A RCA ￥1200 NIB 1) 6GT5 Tsol ￥1200 NIB 1) 6GT5 RCA ￥900 LightlyUsed
6GU5 =Shadow Grid Beam Pentode(Beam Hexode)= (EIA/7GA - miniature) Eh/Ih=6.3V/0.22A Ehk=±200V(DC=+100Vmax) Ppmax=3W Epmax=300V Pc3(screen)max=0.15W Ec3max=150V Ikmax=20mA Rg1max=500kΩ(fixed) op : Ep=275V Ec3=135V Ec1=-0.4V Ip=10mA Ic3=0.17mA rp=165kΩ gm=15.5mS similar to 6FG5(gm=9.5mS-typ), 6FS5(gm=10mS-typ) 1) 6GU5 RCA ￥1300 NIB MT
6GU7 =Medium mu TwinTriode= (EIA/9LP - noval) Eh/Ih=6.3V/0.6A Ehk=±200V(DC=+100Vmax) Ppmax=3W Epmax=330V Rgmax=1MΩ op : Ep=250V Ec=-10.5V Ip=11.5mA rp=5.5kΩ gm=3.1mS μ=17 (ピン配列: 6FQ7(μ=20)と同一 = P-G-K-H-H-P-G-K-NC) (参考 : Ep-Ip特性) heater variant : 8GU7(8.4V/0.45A) (similar to 6FQ7, also see 6CG7(w/ shield between units)) see a same pinout(9LP) & long-flat-plates higher-μ type : 6EV7(μ=60) 65) 6GU7 RCA ￥1200 NIB 1) 6GU7 RCA ￥1000 NOS/Raytheon箱 1) 6GU7 RCA ￥900 NOS? GE箱 2) 6GU7 RCA ￥900 NOS? Like New 1) 6GU7 GE ￥1000 NIB 1) 6GU7 GE ￥1000 NIB 6) 6GU7 GE ￥1000 NIB (ghyya) 2) 6GU7 Ray ￥1000 NIB 1) 6GU7 Syl ￥1000 NOS/Raytheon箱 2) 6GU7 WH ￥1000 NIB 2) 6GU7 Mitsubishi ￥600 used 7) 6GU7 USA(made in Japan) ￥800 used Like New 10) 6GU7 USA(Sylvania made) ￥800 used Like New 5) 6GU7 USA(GEmade) ￥800 used Like New 2) 6GU7 RCA-made ￥600 used gm=2400/2440, 2400/2380/1720min WB 9) 6GU7 USA(RCAmade) ￥600 used 1) 6GU7 RCA ￥600 used 3) 6GU7 USA ￥500 used 1) 6GU7 Japan ￥1000 used GE箱 2) 6GU7 Japan ￥700 used VeryStrong 3520/3450,3400/3120/1730min
6GV5 =Beam Power= Sweep Tubes(<30W) (EIA/12DR - compactron) Eh/Ih=6.3V/1.2A Ppmax=17.5W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=175mA op : Ep=250V Ec2=150V Ec1=-22.5V Ip=65mA Ic2=1.8mA rp=18kΩ gm=7.3mS μg2g1=4.4 1) 6GV5 RCA ￥1700 NIB 1) 6GV5 RCA ￥1700 NIB 1) 6GV5 GE ￥1700 NIB 1) 6GV5 Syl ￥1500 NIB 1) 6GV5 Tsol ￥1500 NIB 1) 6GV5 WH ￥1300 NIB
6GV8(=ECL85) =Triode Pentode= (EIA/9LY - noval) Eh/Ih=6.3V/0.9A Pentode: Ppmax=7W Epmax=250V Pc2max=1.5W Ec2max=250V Ikmax=75mA Rg1max=1MΩ(fixed)/2.2MΩ(self) op : Ep=170V Ec2=170V Ec1=-15V Ip=41mA Ic2=2.7mA rp=25kΩ gm=7.5mS Triode : Ppmax=0.5W Epmax=250V Ikmax=15mA μ=60 rp=11kΩ gm=5.5mS Rgmax=1MΩ(fixed)/3.3MΩ(self) op : Ep=100V Ec=-0.8V Ip=5mA rp=7.6kΩ gm=6.5mS μ=50 (参考 : 五極部三結のEp-Ip特性(Pentode section Triode-connection, sample data)) heater variants : ECL85(6.3V/0.9A), 9GV8(9.5V/0.6A), 10GV8/LCL85(11.6V/0.45A), 18GV8(18V/0.3A), PCL85(18V/0.3A) 6GV8/ELL85 is almost same as ECL805 pins =1(Pt)-2(Gt)-3(Kt)-4(H)-5(H)-6(Pp)-7(G2p)-8(Kp,G3p,IS)-8(G1p) 1) 6GV8 Mazda ￥1800 NIB SilverPlated-pins (left picture) 1) 6GV8 Mazda ￥1800 NIB SilverPlated-pins (right picture) 5) 6GV8 RCA ￥1800 NIB - mint 4:reserved) 6GV8 Sylvania(Toshiba-made) ￥1800 NIB made in Japan, just-ragged boxes 1) 6GV8 Toshiba ￥1800 NIB lot=NHK-1975.7 just-ragged box 6) 6GV8 Toshiba ￥1800 NIB lot=NHK-1976.4 just-ragged boxes
6GW6 =Beam Power= (EIA/6AM - octal-TopPlate) Sweep Tubes(<30W) Eh/Ih=6.3V/1.2A Ppmax=17.5W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=175mA/550mA-peak op : Ep=250V Ec2=150V Ec1=-22.5V Ip=70mA Ic2=2.1mA rp=15kΩ gm=7.1mS μg2g1=4.4 equivallent : 6DQ6B heater variants : 12GW6(12.6V/0.6A), 17GW6(25V/0.3A) heater variants : 12DQ6B(12.6V/0.6A), 17DQ6B(16.8V/0.45A), 25DQ6(25V/0.3A) 12) 6GW6/6DQ6B RCA ￥900 NIB SideGtr 1) 6GW6/6DQ6B RCA ￥900 NIB SideGtr 1) 6GW6/6DQ6B RCA ￥900 NIB SideGtr RaggedBox 8) 6GW6/6DQ6B RCA ￥900 NIB(Nn) 1) 6GW6/6DQ6B RCA ￥900 NIB 4) 6GW6/6DQ6B RCA(Syl-made) ￥900 NIB TopGtr
6GW8/ECL86(=ECL86)
6GX6 =dual control Pentode= (EIA/7EN - miniature) Eh/Ih=6.3V/0.45A Ehkmax=±200V Rg1max=220kΩ(fixed)/470kΩ(self) Ppmax=1.7W Epmax=300V Pc2max=1.1W Ec2max=300V(cutoff) Pc3max=0.1W Ec3=+25～-100V op : Ep=150V Ec3=0V Ec2=100V Ec1=0V Rk=180Ω Ip=3.7mA Ic2=3mA gm-g1p=3.7mS gm-g3p=0.75mS rp=140kΩ Eg1=-4.5V(@Ip=20μA) Eg3=-7V(@Ip=20μA) equivallent type : 6GY6 similar type : 6HZ6 17) 6GX6,6GY6/6GX6,6GY6 USA ￥800 NIB 3) 6GX6/6GY6 USA ￥400 used
6GX7 =common-cathode Triode Pentode= (EIA/9QA - noval) Eh/Ih=6.3V/0.4A Ehkmax=±200V(DC=+100Vmax) Triode: Ppmax=1.5W Epmax=275V Ikmax=20mA Rgmax=500kΩ, gm=8.7mS μ=40typ Pentode: Ppmax=2.2W Epmax=275V Pc2max=0.45W Ec2max=275V Ikmax=20mA Rg1max=250kΩ, gm=11mS rp=200kΩtyp heater variants : 4GX7(4.2V/0.6A), 5GX7(5.6V/0.45A) same-basing similar types : 6GJ7, 6HB7 1) 6GX7 IEC-Mullard ￥700 NIB 3) 6GX7 RCA ￥800 NIB 1) 6GX7 GE ￥700 NIB 5) 6GX7 GE ￥700 NIB 13) 6GX7 GE ￥700 NIB - mint 10) 6GX7 Syl ￥700 NIB - mint 3) 6GX7 Syl ￥700 NIB 1) 6GX7 Admrl ￥700 NIB 9) 6GX7 Lindal ￥700 NIB Japan
6GY6 =Dual control Pentode= (EIA/7EN - miniature) Eh/Ih=6.3V/0.45A Ehkmax=±200V Ppmax=1.7W Epmax=300V Pc2max=1.1W Ec3=0～-100V Rg1max=220kΩ(fixed)/470kΩ(self) op : Ep=150V Ec3=0V Ec2=100V Ec1=0V Rk=180Ω Ip=3.7mA Ic2=3mA gm-g1p=3.7mS gm-g3p=0.75mS rp=140kΩ Eg1=-4.5V(@Ip=20μA) Eg3=-7V(@Ip=20μA) equivallent type : 6GX6 similar type : 6HZ6 10) 6GY6/6GX6 RCA ￥800 NIB 1) 6GY6 RCA ￥800 NIB 2) 6GY6 RCA ￥400 used WH箱
6GY8 =Triple Triode= (EIA/9MB - noval) #3 section cathode is tied to #1 grid internally. Eh/ih=6.3V/0.45A Ehkmax=100V Ppmax=2W(5W for all) Epmax=330V op(T1) : Ep=125V Rk=220Ω Ip=4.5mA rp=14kΩ gm=14mS μ=63 op(T2 & T3) : Ep=125V Ec=-1V Ip=4.5mA rp=14kΩ gm=14mS μ=63 3) 6GY8 Amprx ￥1000 NIB 1) 6GY8 GE ￥800 NIB 3) 6GY8 Syl ￥800 NIB
6H1Π(Russian) / 6N1P(English) =twin triode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.6A Ehkmax=+120V -250V Tbulb=145℃max Service-life=5000H(for 6H1Π-EB/6N1P-EV) Ppmax=2.2W Epmax=250V Ikmax=-mA Rgmax=500kΩ op : Ep=250V Rk=600Ω Ip=7.5mA rp=7kΩ gm=4.7mS μ=33-typ pins : 1(1P)-2(1G)-3(1K)-4(H)-5(H)-6(2P)-7(2G)-8(2K)-9(S) size : 22.5mmΦ x 57mmH, in max (参考 : Ep-Ip特性) electrically similar type : 6DJ8, E88CC 0) 6H1Π-EB(6N1P-EV) Novosibirsk ￥700 NOS(bulk) WB 0) 6H1Π-EB(6N1P-EV) Voskhod ￥300 used WB 0) 6H1Π-EB(6N1P-EV) Voskhod ￥300 used
6H2(Sweden) = 6F22 = CV303 = EF22
6H2Π(Russian) / 6N2P(English) =twin triode= (EIA/9AJ - noval) Eh/Ih=6.3V(5V to 7V)/0.34A Ehkmax=100V Tbulb=110℃max Service-life=4000H Ppmax=1W Epmax=300V Ikmax=10mA Rgmax=500kΩ op : Ep=250V Rk=600Ω Ip=2.3mA gm=2.25mS μ=100 pins : 1(1P)-2(1G)-3(1K)-4(H)-5(H)-6(2P)-7(2G)-8(2K)-9(S) different-base, electrically similar type : 6AX7, 12AX7 1) 6H2Π(6N2P) CCCP ￥800 lightly-used WB
6H3Π / 6N3P, 6H3ΠE / 6N3PE =twin triode= (EIA/8CJ - noval) Eh/Ih=6.3V/0.35A Ehkmax=100V Tbulb=120℃max Service-life=1500H(6H3Π) / 5000H(6H3ΠE) Ppmax=1.5W Epmax=300V Ikmax=18mA Rgmax=1MΩ op : Ep=150V Rk=240Ω Ip=8.75mA gm=6mS μ=36 pins : 1(H)-2(1K)-3(1G)-4(1P)-5(S)-6(2P)-7(2G)-8(2K)-9(H) see similar types :2C51, 396A, 5670/5670W, 6385, 6386 1) 6H3Π(6N3P) Soviet ￥500 used (OTK-passed)
6H5Π / 6N5P =Twin Triode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.6A Ehkmax=+100V/-250V ServiceLife=1500H Ppmax=2.2W Epmax=300V Ikmax=25mA Rgmax=1MΩ op: Ep=200V Rk=600Ω Ip=8mA-11.5mA gm=4.2mS-typ(3.7mS-5.1mS), μ=27-typ(18-30) size: 22.5mmΦ x 56mmH, in max pins: 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(S) (参考: EpIp特性) 0) 6H5Π(6N5P) Novosibirsk ￥- NIB
6H-6 1) 6H-6 Amperite ￥1500 NIB
6H6/G/GT =TwinDiode= (EIA/7Q - octal) Eh/Ih=6.3V/0.3A see heater variant : 12H6(Eh/Ih=12.6V/0.15A) Russian equivallent type : 6X6C(6X6S) 3*) 6H6G RCA ￥- NOS 1) 6H6G Syl ￥1500 NIB glass 2) 6H6G Arcturus ￥1200 usedLikeNew glass 109/110,102/105/54min 3) 6H6 RCA ￥1000 NIB metal @@ 1) 6H6 RCA ￥1000 NIB metal StampedWB @@ 4) 6H6 RCA ￥1000 NIB(vSx) 3) 6H6 GE ￥700 NIB(Qn) 2) 6H6 GE ￥700 NIB 1箱に2個入 5) 6H6 GE ￥700 NIB MB 1) CG-6H6 GE ￥700 NIB MB 2) 6H6 Dmnt ￥700 NIB 1) 6H6 ? ￥1000 NIB MB sealed 1) 6H6GT Syl ￥1000 NIB 5) JAN-CNU 6H6GT/G - VT90A NU ￥1000 NIB 2) 6H6GT Brimar ￥1200 NIB glass 1) 6H6GT/G Tsol ￥1000 NIB glass 1) 6H6GT Hitachi ￥1000 NIB glass 1) 6H6GT/G Tsol ￥600 used glass 1) 6H6GT Hitachi ￥600 used glass w/original box 1) 6H6/VT90 RCA ￥600 used metal @@ 1) 6H6 RCA ￥1000 used? MB glass 1) 6H6 RCA ￥1000 used? glass Ray箱 1) 6H6 RCA ￥600 used? metal 1) 6H6 ? ￥700 used? MB metal 1) 6H6 RCA ￥500 used metal(T) 1) 6H6 GE ￥500 used metal(T) 1) 6H6 Krad ￥600 used? metal 1) 6H6 WH ￥500 used metal 1) 6H6 WH ￥500 used metal Tsol箱 1) 6H6 Magnavox ￥600 used metal WB 1) 6H6 NU ￥600 used glass WB
6H6Π / 6N6P =med-mu twin triode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.75A±70mA Ehkmax=100V Tbulb=200℃max Service-life=2000H Ppmax=4.8W/unit(8W/tube) Epmax=300V/450V-cutoff Ikmax=45mA Rgmax=1MΩ op : Ep=120V Ec=-2V(or Ec=0V/Rk=68Ω) Ip=28mA rp=1.8kΩ gm=11.2mS μ=22±4 pins : 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(IS) size : 22.5mmΦ x 72mmH, in max (参考 : Ep-Ip特性) electrically similar to ECC99, E182CC, 7119, 7044 30) 6H6Π(6N6P) Novosibirsk(Soviet) ￥900 NOS(bulk) DC=87-02, WB 0) 6H6Π(6N6P) Novosibirsk(Soviet) ￥900 NOS(bulk) WB 0) 6H6Π(6N6P) Novosibirsk(Soviet) ￥600 used WB
6H9C / 6N9S =high-mu twin triode= (EIA/8BD - octal) Eh/Ih=6.3V/0.3A±25mA Ehkmax=100V Tbulb=90℃max Service-life=1500H Ppmax=1.1W Epmax=275V Ikmax=-mA Rgmax=0.5MΩ op : Ep=250V Ec=-2V Ip=2.3mA±1.3mA gm=1.7mS±0.5mS μ=70±15 pins : 1(2G)-2(2P)-3(2K)-4(1G)-5(1P)-6(1K)-7(H)-8(H) size : 33mmΦ x 85mmH, in max (参考 : Ep-Ip特性) electrically similar to 6SL7GT, 5691, CV1985, ECC35 1) 6H9C(6N9S) Melz ￥2000 lightly-ysed DC=-, WB
6H30Π-EB / 6N30P-EV, 6H30Π-ДP / 6N30P-DR =med-mu twin triode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.825A Ehkmax=+100V/-300V Tbulb=250℃max ServiceLife=5000H(for EB), 10000H(for ДP) Ppmax=4W/unit Epmax=300V Pcmax=0.4W Ikmax=100mA Rgmax=0.6MΩ(self) op : Ep=80V Rk=56Ω Ip=50mA rp=0.83kΩ-typ gm=18mS±3mS μ=15±3 pins : 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(IS) size : 22.5mmΦ x 72mmH, in max (参考 : Ep-Ip特性) electrically similar to ECC99, E182CC, 7119, 7044 18) 6H30Π-ДP(6N30P-DR) Reflector ￥offer NOS(bulk) D/C=98-04, 3-mica & RoundDiscGtr, WB 39) 6H30Π-ДP(6N30P-DR) Reflector ￥offer NOS(bulk) D/C=98-04 WB 13) 6H30Π-ДP(6N30P-DR) Reflector ￥offer NOS(bulk), D/C=98-09 etc WB (hyyvdsy) 33) 6H30Π-ДP(6N30P-DR) Reflector ￥offer NOS(bulk) D/C=99-09, photo-2, WB 11) 6H30Π-EB(6N30P-EV) Sovtek ￥offer NOS(bulk) lot=00-11 WB (hyybsy) 5) 6H30Π-EB(6N30P-EV) Sovtek ￥offer NOS(bulk) WB (hyyvsz) 3) 6H30Π-EB(6N30P-EV) Sovtek ￥offer NOS(bulk) 01-01WB 7) 6H30Π-EB(6N30P-EV) Sovtek ￥offer NOS(bulk) 01-01 WB 7) 6H30Π-EB(6N30P-EV) Sovtek ￥offer NOS(bulk) 01-02 WB 0) 6H30Π-ДP(6N30P-DR) Reflector ￥- used WB 0) 6H30Π-EB(6N30P-EV) Sovtek ￥- used WB 0) 6H30Π-EB(6N30P-EV) Sovtek ￥- used WB 0) 6H30Pi-EH Electro-Harmonics(Sovtek-made) ￥- used made-in Russia, Gpins, WB 0) 6H30Pi-EH Electro-Harmonics(Sovtek-made) ￥- used made-in Russia, gold-plated pins WB
6HA5/6HM5 =EC900 =grounded-cathode High-μ RF Triode= (EIA/7GM - miniature) Eh/Ih=6.3V/0.18A Ehkmax=±110V Ppmax=2.6W Epmax=220V Ikmax=22mA -Ecmax=50V Rgmax=1MΩ op : Ep=200V Rk=87Ω Ip=11.5mA gm=14.5mS μ=72 (参考 : Ep-Ip特性) pins : 1(G)-2(K)-3(H)-4(H)-4(P)-6(IS)-7(K) heater variants : 2HA5/2HM5(2V/0.6A), 3HA5/3HM5(2.7V/0.45A), 4HA5/4HM5(4V/0.3A) same-base(7GM) & electrically similar types : 6HM5, 6HQ5 also see a similar type with different pin assignment(7FP) : 6GK5/6FQ5A 1) 6HA5 Japan ￥1000 NIB WB 1) 6HA5/6HM5 Syl/Zenith箱 ￥1000 NOS (D) 0) 6HA5/6HM5 Silvertone/Sylvania箱 ￥1000 NOS 1) 6HA5 Toshiba ￥1000 NIB still cellophane-sealed (hyyExx) 1) 6HA5 Toshiba ￥1000 NIB 2) 6HA5 Toshiba ￥1000 NIB cellophane-sealed 1) 6HA5 Toshiba ￥600 used
6HB5 =BeamPowerPentode= Sweep Tubes(<30W) (EIA/12BJ - compactron) Eh/Ih=6.3V/1.5A Ppmax=18W Epmax=770V Pc2max=3.5W Ec2max=220V (see 6GE5) op : Ep=130V Ec2=130V Ec1=-20V Ip=50mA Ic2=1.75mA rp=11kΩ gm=9.1mS μg2g1=4.7 heater variant : 21HB5/A(21V/0.45A) 1) 6HB5 GE ￥1200 NIB 1) 6HB5 GE ￥500 NIB Rattle 1) 6HB5 Tsol ￥1200 NIB
6HB6 =BeamPentode for vertical-deflection / video-amp= (EIA/9NW - noval) Eh/Ih=6.3V/0.76A Ppmax=10W Epmax=350V Pc2max=2W Ec2max=300V op : Ep=250V Ec2=250V Rk=100Ω Ip=40mA Ic2=6.2mA rp=24kΩ gm=20mS (参考 : Ep-Ip特性(@Ec2=250V)) 6BQ5 E84L 7189 6RP15 6CZ5 6HB6 規格/動作例の比較 3) 6HB6/6HA6 RCA ￥1500 NIB 1) 6HB6 RCA ￥1400 NOS 16100/9500min WB 15) 6HB6/6HA6 GE ￥1400 NIB - mint 2) 6HB6/6HA6 GE ￥1400 NIB 1) 6HB6 PGE ￥1400 NIB - mint 1) 6HB6 Philco ￥1200 NIB
6HB7 =common-cathode Triode Pentode= (EIA/9QA - noval) Eh/Ih=6.3V/0.45A Triode : Ppmax=2.5W Epmax=330V rp=5kΩ gm=8.5mS μ=40 Pentode : Ppmax=3.1W Epmax=330V Pc2max=0.55W Ec2max=330V rp=200kΩ gm=6.4mS same-basing similar types : 6GJ7, 6GX7 7) 6HB7 USA ￥600 NOS/NIB 1) 6HB7 USA ￥400 used
6H-B25/6HB25 =BeamPower= (EIA/T9J - NOVAR) Eh/Ih=6.3V/1.2A Ppmax=13W Epmax=6700Vpeak Pc2max=5W Ec2max=250V op : Ep=100V Ec1=-7.7V Ec2=100V Ip=100mA Ic2=7mA rp=5.3kΩ gm=14mS μg2g1=6 pins : 1(G1)-2(G1)-3(G3)-4(H)-5(H)-6(G2)-7(G2)-8(G3)-9(K)-TOP(P) heater variants : 12H-B25(12.6V/0.6A), 17H-B25(16.8V/0.45A) different-base similar types : 6G-B3/A(octal) 6B-B14(MAGNOVAL) 0) 6H-B25 Toshiba ￥1500 NIB
6H-B26/6HB26
6HD5=BeamPower= (EIA/12ES - compactron) Eh/Ih=6.3V/2.25A Ppmax=24W Epmax= V Ep-peakmax= 770V Pc2max=6W Ec2max=220V Ikmax= 280mA Rg1max= MΩ(fixed) 1) 6HD5 Motorola ￥2500 NIB
6HE5=vert.def. Beam Power Pentode= (EIA/12EY - compactron) (identical to 6JB5, 6JC5) Eh/Ih=6.3V/0.8A Ppmax=12W Epmax=350V/2500Vpeak Pc2max=2.75W Ec2max=300V Ikmax=75mA/260mApeak Rg1max=1MΩ(fixed) (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data)) (Ppmax=19Wの6JA5と同一ピン配列) 1) 6HE5 RCA ￥1500 NIB 1) 6HE5 GE ￥1500 NIB 1) 6HE5/6JB5/6JC5 ElMenco ￥1500 NIB 1) 6HE5/6JB5 Int-C ￥1500 NIB 1) 6HE5 Syl ￥700 used TopGtr
6HF5 =BeamPowerPentode= Sweep Tubes(<30W) (EIA/12FB - compactron) Eh/Ih=6.3V/2.25A Ehkmax=±200Vpeak Ppmax=28W Epmax=900V/7.5kVpeak Pc2max=5.5W Ec2max=190V Ikmax=315mA/1.1Apeak Rg1max=1MΩ op : Ep=175V Ec2=125V Ec1=-25V Ip=125mA Ic2=4.5mA rp=5.6kΩ gm=11.3mS op(triode-connection) ; Ep=125V Ec=-25V μ=3 4) 6HF5 RCA ￥2900 NIB SideGtr 1) 6HF5 RCA ￥2900 NIB(T) 0) 6HF5 GE ￥- NIB(D) 1) 6HF5 GE ￥2900 NIB TwinSideGtr 1) 6HF5 Znth ￥2900 NIB 1) 6HF5 Syl ￥1400 used Ray箱
6HF8 =high-mu(70) Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.75A Ehkmax=±200V Triode : Ppmax=1W Epmax=330V Rgmax=500kΩ(fixed)/1MΩ(self) rp=17.5kΩ gm=4mS μ=70 Pentode: Ppmax=5W Epmax=330V Pc2max=1.1W Ec2max=330V Rgmax=500kΩ(fixed)/1MkΩ(self) rp=75kΩ gm=12.5mS heater variant : 10HF8(10.5V/0.45A) similar to 6AW8/A, 6JE8, 6JV8, 6LF8 same-basing, electrically-similar, upper-rating 9T9 type : 6HZ8(pentode : Ppmax=8W) 1) 6HF8 WH ￥900 NIB 1) 6HF8 RCA ￥500 used Syl箱
6HG5 =Beam Power= (EIA/7BZ - miniature) Eh/Ih=6.3V/0.45A Ehkmax=±200V(DCmax=+100V) Ppmax=12W Epmax=275V Pc2max=2.5W Ec2max=275V op : Ep=180V Ec2=180V Ec1=-8.50V Ip=29mA/30mA Ic2=3.0mA/4mA rp=58kΩ gm=3.7mS Zl=5.5kΩ D=8% Po=2.0W op : Ep=250V Ec2=250V Ec1=-12.5V Ip=45mA/47mA Ic2=4.5mA/7mA rp=52kΩ gm=4.1mS Zl=5.0kΩ D=8% Po=4.5W see equivallents : 6AQ5, EL90, 6005/6005W, 6095, 6669 2) 6HG5 USA ￥1200 NIB 1) 6HG5 RCA ￥1200 NOS 1) 6HG5/6AQ5 AWV-superRadiotron ￥600 used WB 4610/2600min 1) 6HG5 USA ￥500 used RCA箱
6HG8(=ECF86) =common-cathode VHF Triode Pentode= (EIA/9MP - noval) Eh/Ih=6.3V/0.34A Ehkmax=±100V (Triode) Ppmax=1.5W Epmax=125V Ikmax=15mA Rgmax=0.5MΩ op : Ep=100V Ec=-3V Ip=14mA gm=5.5mS μ=17 (Pentode) Ppmax=2W Epmax=250V Pc2max=0.5W Ec2max=150V Ikmax=18mA Rgmax=0.25MΩ(fixed)/0.5MΩ(self) op : Ep=170V Ec2=150V Ec1=-1.2V Ip=10mA Ic2=3.3mA rp=350kΩ gm=12mS mu-g2g1=70 heater variants : PCF86(8V/0.3A), 5HG8/LCF86(5.3V/0.45A), 7HG8(7.2V/0.3A) 1) 6HG8 RCA ￥900 NIB
6HJ8 =Diode Pentode= (EIA/9CY - noval) Eh/Ih=6.3V/0.45A Idiode=5mAmax Ppmax=3.2W Epmax=330V Pc2max=0.55W(Ec2<165V) Rg1max=250kΩ(fixed)/1MΩ(self) Ep=125V Ec2=125V Rk=56Ω Ip=11.5mA Ic2=3.6mA rp=200kΩ gm=9.3mS 2) 6HJ8 USA ￥900 NIB 1) 6HJ8 USA ￥500 used
6HL8 =Triode Pentode= (EIA/9AE - noval) Eh/Ih=6.3V/0.6A Triode : Ppmax=2.5W Epmax=330V rp=5kΩ gm=7mS μ=40 Pentode : Ppmax=2.5W Epmax=330V Pc2max=0.55W Ec2max=330V rp=150kΩ gm=10mS 1) 6HL8 RCA ￥1000 NIB 1) 6HL8 USA ￥500 used
6HM5/6HA5 =grounded-cathode RF high-mu Triode= (EIA/7GM - miniature) Eh/Ih=6.3V/0.185A Ppmax=2.6W Epmax=220V(600V-cutoff) Ikmax=22mA -Ecmax=50V op: Ep=135V Rk=87Ω Ip=11.5mA gm=14.5mS μ=72 (参考 : Ep-Ip特性) pins : 1(G)-2(K)-3(H)-4(H)-4(P)-6(IS)-7(K) heater variants : 2HA5/2HM5(2V/0.6A), 3HA5/3HM5(2.7V/0.45A), 4HA5/4HM5(4V/0.3A) same-base(7GM) & electrically similar types : 6HA5, 6HQ5 also see a similar type with different pin assignment: 6GK5/6FQ5A 3) 6HM5/6HA5 RCA ￥1000 NIB 1) 6HM5/6HA5 RCA ￥1000 NIB Mullard 1) 6HM5/6HA5 RCA ￥1000 NIB made in Gt.Britain, just ragged box 1) 6HM5/6HA5 GE ￥1000 NIB Mullard 11) 6HM5/6HA5 USA ￥1000 NIB 1) 6HM5/6HA5 Syl ￥600 used RCA箱 1) 6HM5/6HA5 Znth ￥600 used
6HM6 =SharpCutoff Pentode= (EIA/9PM - noval) Eh/Ih=6.3V/0.3A Ppmax=2.5W Epmax=250V Pc2max=0.6W Ec2max=250V rp=156kΩ gm=15mS heater variant : 4HM6(4.2V/0.45A) similar types with same base diagram : 6JC6/A 6JD6 6KT6 4) 6HM6 GE ￥1000 NIB - mint 2) 6HM6 Tsol ￥1000 NIB - mint
6HQ5 =high-mu Triode= (EIA/7GM - miniature) Eh/Ih=6.3V/0.2A Ehkmax=±100V Ppmax=2.5W Epmax=200V Ikmax=22mA -Ecmax=50V Rgmax=1MΩ op : Ep=135V Ec=-1V Ip=11.5mA rp=5.4kΩ gm=15mS μ=78 (参考 : Ep-Ip特性) pins : 1(G)-2(K)-3(H)-4(H)-4(P)-6(IS)-7(K) heater variants : 2HQ5(2.4V/0.6A), 3HQ5(3V/0.45A), 4HQ5(4.2V/0.3A) same-base(7GM) & electrically similar types : 6HA5, 6HM5 also see an electrically-identical type with different pin assignment(7FP) : 6GK5/6FQ5A 2) 6HQ5 RCA ￥1000 NIB 4) 6HQ5 RCA ￥1000 NIB - mint 1) 6HQ5 GE ￥1000 NIB - mint 23) 6HQ5 Syl ￥1000 NIB - mint 1) 6HQ5 Syl ￥1000 NIB 1) 6HQ5 Syl ￥1000 NIB 5) 6HQ5 USA ￥1000 NIB 2) 6HQ5 USA ￥600 used
6HS5 =Beam Triode= (EIA/12GY - compactron) Eh/Ih=6.3V/1.5A Ehkmax=+200V(DC=+100Vmax)/-450V Tbulb=220℃max Ppmax=30W Ep-peakmax=5500V Ipmax=300mApeak Rg1max=100kΩ op (G2/BP=connected to K) : Ep_pulse=3.5kV Ec=-4.4V μ=300 rp=4.6kΩ gm=65mS, Ec_cutoff=-13V(Ip=1mA) ◇ 40W beam triodes (octal): 6BK4/B/C/6EL4A 6EN4 6LJ6/A/6LH6A ◇ 30W-40W beam triodes (compactron): 6EJ4/A 6HS5 6HV5/A 6HZ5 6JD5 6JH5 6JK5 1) 6HS5 RCA ￥1200 NIB BlkPlate 1) 6HS5 RCA ￥1200 NIB GrayPlate 4) 6HS5 RCA ￥1200 NIB 6) 6HS5 GE ￥1000 NIB 1) 6HS5 WH ￥1000 NIB 3) 6HS5 Syl ￥1000 NIB 1) 6HS5 Znth ￥1000 NIB 5) 6HS5 InterC(GE-made) ￥1000 NIB 1) 6HS5 Lindal(GE-made) ￥1000 NIB 1) 6HS5 Lindal ￥1000 NIB LongGlass
6HS6 =sharp-cutoff Pentode= (EIA/7BK - miniature) Eh/Ih=6.3V/0.45A Ehk=±200V(DC=+100Vmax) Ppmax=3W Epmax=300V Pc2max=1W Ec2max=300V Rg1max=500kΩ(fixed)/1MΩ(self) op : Ep=150V Ec2=75V Rk=68Ω Ip=8.8mA Ic2=2.2mA rp=500kΩ gm=9.5mS same-basing electrically-similar to 6AH6 same-basing lower-gm types : 6AU6/A(5.2mS), 6BA6(4.2mS) 1) 6HS6 RCA ￥1900 Bulk-NOS BlkPlate WB 1) 6HS6 Syl(RCA-made) ￥1900 NIB BlkPlate 3) 6HS6 Syl ￥1900 NIB
6HS8 =common G1-G2-K Twin Pentode= (EIA/9FG - noval) Eh/Ih=6.3V/0.45A Ppmax=1.1W/unit Epmax=300V Pc2max=0.75W/unit Ec2max=150V heater variants : 4HS8(4.2V/0.45A) 1) 6HS8 RCA ￥800 NIB 6) 6HS8 GE ￥700 NIB - mint 8) 6HS8 Syl ￥700 NIB - mint 3) 6HS8 USA ￥700 NIB 1) 6HS8 Ray ￥600 NOS RCA箱 2) 6HS8 USA ￥600 NIB 1) 6HS8/6BU8 AWV ￥600 used? RCA箱
6HU6 (=EM87) =Electron Ray Indicator= (EIA/9GA - noval) Eh/Ih=6.3V/0.3A Ehkmax=250V Ppmax=0.6W Epmax=300V Rgmax=3MΩ Ikmax=5mA Vl=300Vmax/170Vmin 3) 6HU6/EM87 International ￥2700 NIB 緑バー(レベル)表示管(Q) 6) 6HU6/EM87 ProComm ￥2700 NIB made in Austria Rear View 1) 6HU6/EM87 Philco ￥2000 used 緑バー(レベル)表示管
6HU8/ELL80 =common K-G3 AF-Twin Power Pentode= (EIA/9NJ - noval) Eh/Ih=6.3V/0.55A Ehk=100V Ppmax=6W Eomax=300V Pc2max=1.25W Ec2max=300V Ikmax=40mA Rgmax=2MΩ ex) B1-pp: Ep=Ec2=250V Ec1=-12V Ipmax=28.5mA X 2 Ic2max=8.8mS X 2 Zl=10kΩ Po=9.2W D=5% also see European type : ELL80 1) 6HU8/ELL80 Amprx ￥5900 NIB 1) 6HU8 Syl ￥5900 NIB very-ragged-box
6HV5/A =Beam Triode= (EIA/12GY - compactron) 6HV5 : Ppmax=30W Ep-peakmax=5500V rp=4.6kΩ gm=65mS Eh/Ih=6.3V/1.8A 6HV5A: Ppmax=35W Ep-peakmax=5500V rp=4.6kΩ gm=65mS Eh/Ih=6.3V/1.8A ◇ 40W beam triodes (octal): 6BK4/B/C/6EL4A 6EN4 6LJ6/A/6LH6A ◇ 30W-40W beam triodes (compactron): 6EJ4/A 6HS5 6HV5/A 6HZ5 6JD5 6JH5 6JK5 6) 6HV5A RCA ￥1200 NIB 2) 6HV5A GE ￥1000 NIB 4) 6HV5A Syl ￥1000 NIB 1) 6HV5A Philco ￥1000 NIB 1) 6HV5A RCA ￥900 used
6HZ5/6JD5 =Beam Triode= (EIA/12GY - compactron) Ppmax=30W Ep-peakmax=6000V μ=235 gm=11.5mS Eh/Ih=6.3V/2.4A 6HZ5= 6JD5 ◇ 40W beam triodes (octal): 6BK4/B/C/6EL4A 6EN4 6LJ6/A/6LH6A ◇ 30W-40W beam triodes (compactron): 6EJ4/A 6HS5 6HV5/A 6HZ5 6JD5 6JH5 6JK5 1) 6HZ5/6JD5 RCA ￥1500 NIB Beam-triode
6HZ6 =Dual control sharp-cutoff Pentode= (EIA/7EN - miniature) Eh/Ih=6.3V/0.45A Ehkmax=±200V : for FM sound detector service Ppmax=1.7W Epmax=300V Pc2max=1W Ec2max=300V Pc3max=0.1W Rg1max=220kΩ(fiX)/470kΩ(self), Rg3max=680kΩ op : Ep=150V Ec2=100V Ec3=0V Rk=180Ω Ip=3.2mA Ic2=3.2mA rp=110kΩ gm1-p=3.4mS gm3-p=0.6mS rp=110kΩ G1-cutoff=-4.5V, G3-cutoff=-7V (@Ip=20μA) heater variant : 5HZ6(4.75V/0.6A) similar types : 6GX6, 6GY6 18) 6HZ6 RCA ￥700 NIB 21) 6HZ6 USA ￥600 NOS/NIB 1) 6HZ6 USA ￥400 used
6HZ8 =high-mu(70) Triode sharp-cutoff Pentode= (EIA/9DX - noval/9T9) Eh/Ih=6.3V/1.125A Triode : Ppmax=1W Epmax=300V rp=17.5kΩ gm=4mS μ=70 Pentode : Ppmax=8W Epmax=330V Pc2max=2W Ec2max=330V rp=140kΩ gm=12.6mS lower pentode-rating, same-basing electriacally-similar ones : 6AW8/A, 6HF8/A, 6JE8, 6JV8, 6LF8 1) 6HZ8 GE ￥1000 NIB 9T9 1) 6HZ8 GE ￥1000 NIB 9T9 1) 6HZ8 Syl ￥1000 NIB 1) 6HZ8 RAD-TEL ￥1000 NIB
6J4 =HF Triode= (EIA/7BQ - miniature) Eh/Ih=6.3V/0.4A Ehkmax=90V (design center) Ppmax=2.25W Epmax=150V Ipmax=20mA Rgmax=250kΩ op : Ep=150V Rk=100Ω Ip=15mA rp=4.5kΩ gm=12mS μ=55 (参考 : Ep-Ip特性) pins : 1(G)-2(K)-3(H)-4(H)-5(G)-6(G)-7(P) similar to 6M-H1, 8532/W also see a different pinout high-mu UHF miniature triode : 8334/W(Ppmax=4.4W Epmax=330V rp=5kΩ gm=10.75mS μ=55) 1) 6J4 RCA ￥1100 NIB 3) 6J4 RCA ￥1100 NIB 2) 6J4WA RCA ￥1100 NIB 1) USN-COZ-6J4WA - ￥800 NIB 2) USN-6J4WA Syl ￥800 NIB 1) 6J4 Hitachi ￥1000 NIB 通測-NHK
6J5/6J5G/6J5GT/6J5WGT/VT-94 =Medium mu Triode= (EIA/6Q - octal) Eh/Ih=6.3V/0.3A Ppmax=2.5W Epmax=300V Ipmax=mA op : Ep= 90V Ec= 0V Ip=10mA rp=6.7kΩ gm=3.0mS μ=20 op : Ep=250V Ec=-8V Ip= 9mA rp=7.7kΩ gm=2.6mS μ=20 (参考 : Ep-Ip特性(Ec<=0V area)) (参考 : Ep-Ip特性(Ec>=0V area)) see loktal-base equivallent type : 7A4; also see another loktal 7E6 see heater variant 12J5/12J5GT/12J5WGT/VT-135(12.6V/0.15A) see 6C5/6C5G/6C5GT (older type : w/ same base, same μ, higher rp, and lower gm) also see 6P5G/6P5GT (same base, rp=9.5kΩ, gm=1.45mS, μ=13.8 : octal base version of #76) other same-base types : 6AE5G/GT(μ=4.2), 6L5G(μ=18) see European(British) equivallent types : L63/CV1067/CV1932 see an electrically-similar English UF5(Eh/Ih=4V/1A) type : MHL4 see a top-plate & top-grid, electrically-similar type : 7193 / 2C22(rp=6.6kΩ gm=3mS μ=20) also see twin-6J5 triode type : 6SN7GT/A/B(octal), 7N7(loktal) - metal new - 14) JAN-CRC 6J5/VT-94 RCA ￥1500 NIB D/C=V2E(1945.3) metal MB (hyyfnt) 1) 6J5 RCA ￥1500 NIB metal RaggedBox 2) 6J5 RCA ￥1500 NIB (1)SilverLogo (1)OrangeLogo 1) 6J5 RCA ￥1500 NOS date=57-22 GE青箱入 1) 6J5 GE ￥1200 NIB metal青箱 15) 6J5 GE ￥1200 NIB metal 一部RaggedBox 1) 6J5 GE ￥1200 NIB VeryRaggedBox 1) JAN 6J5/VT94 GE ￥1200 NIB MB やや錆 2800/1640min 2) 6J5 Syl ￥1200 NIB metal 2) JAN-CKR 6J5/VT-94 KenRad ￥1700 NIB metal MB 1) 6J5 Hytron ￥1200 NOS metal Dheldon箱 1) 6J5 Marconi ￥1200 NIB metal - metal used - 1) 6J5 GE ￥900 used? metal 3020/1640min 0) 6J5 GE ￥- used metal(D) 1) 6J5 GE ￥400 used metal 1880/1640min 1) 6J5 Syl ￥500 used gm=2350/1640 metal 0) 6J5 KenRad ￥- used gm=2700,2300/1640 metal(D) 2) 6J5 KenRad ￥500 used gm=2540/1640 metal 1) 6J5 Dmnt ￥500 used gm=2200/1640 metal 1) 6J5 Motorola ￥400 used gm=1890/1640 Glass - ST glass new - 8) 6J5G England ￥３３００ NOS same-lot 2) 6J5G Marconi ￥3800 NIB - ST glass used - 1) 6J5G Syl ￥2600 LikeNew 1) 6J5G Raytheon ￥2900 used engraved 112/50min(TV-7) 1) 6J5G WH ￥2200 used 2340/1640min 1) 6J5G Philco ￥2900 used 112/50min(TV-7) 2) 6J5G Zenith ￥2600 used 2690,2750/1640min 1) 6J5G Zenith ￥2600 used engraved 98/50min(TV-7) 1) 6J5G Super Silvertone ￥３５００ used? engraved 1) 6J5G Addison ￥2600 used 2710/1640min - GT glass new - 5) 6J5GT RCA ￥2400 NIB glass metalBASE(Sn) 1) 6J5WGT Syl ￥2400 NIB glass SilverBase 3) 6J5GT Syl ￥2400 NOS(Bulk) glass WB(Qn) 4) 6J5WGT Ray ￥2900 NIB TopGetter ClearGlass BlackRibbedFlatPlate MatalBase LightBrownBase Bottom date=1-24 1) JAN-CRP 6J5WGT Ray ￥2900 NIB date=10/57 MB MetalBase 1) JAN-CRP 6J5WGT Ray ￥2900 NIB date=2/59 MB MetalBase 1) JAN-CRP 6J5WGT Ray ￥2900 NIB date=11/59 MB MetalBase(一部サビあり) 1) 6J5GT WH ￥2400 NIB glass 1) 6J5GT NU ￥2400 NIB glass 1) 6J5WGT PhilECG ￥2000 NIB glass metalBASE 1) 6J5GT Brimar ￥2400 NIB glass 2) 6J5GT Brimar ￥2000 NIB glass BaseのMetalが破断している、電気特性には影響なし 1) 6J5GT Silvertone ￥1300 NIB Glass ragged-box - GT glass used - 1) 6J5GT RCA ￥700 used Glass 1) 6J5GT GE ￥700 used Glass STRONG 2) 6J5GT/G Znth ￥1000 used Glass 2470,2630/1640min BlkMoldBase 1) 6J5GT/G Znth ￥700 used Glass 2750/1640min MetalBase 1) 6J5GT Zaerix ￥600 used? U.S.S.R. 1) 6J5GT Major ￥1000 used? Glass RadTel箱
6J6(=ECC91) =Medium mu TwinTriode(cathode common)=(EIA/7BF - miniature) Eh/Ih=6.3V/0.45A Ehkmax=±100V Fmax=600MHz Ppmax=1.5W Epmax=300V Ipmax=+15mA Igmax=+8mAdc op : Ep=100V Rk=50Ω Ip=8.5mA rp=7.1kΩ gm=5.3mS μ=38 (参考 : Ep-Ip特性) heater variant : 5J6(4.7V/0.6A) also see same-base common-cathode triodes : E90CC / 5920 E92CC 6MHH3 5844 5964 6045 6101 2) 6J6WB RCA ￥1000 NIB 3) 6J6 RCA ￥900 NIB(Aht) 1) 6J6 RCA ￥900 NIB 0) 6J6A RCA ￥- NIB(Sn) 1) 6J6 GE ￥800 NIB 青箱 3) 6J6 GE ￥800 NIB 6) 6J6A GE ￥700 NIB 2) 6J6 GE ￥700 NIB just-ragged boxes 1) 6J6 Syl￥700 just-ragged boxes 1) 6J6 Syl ￥700 NIB 2) 6J6A Syl ￥700 NIB 1) 6J6A Syl ￥700 NIB 2) JHS 6J6WA Syl ￥700 NIB MB 1) 6J6A Tsol ￥700 NIB 1) 6J6A Tsol ￥700 NIB 1) 6J6W Ray ￥800 NIB MB 1) 6J6W Ray ￥800 NIB MB 1) 6J6WA Ray ￥800 NIB JAN-WB 1) 6J6A Ray ￥700 NIB 5) JAN-CKR 6J6A Krad ￥800 NIB MB 1) 6J6 WH ￥600 NOS 青OB 1) 6J6 WH ￥600 NOS Airline箱 1) 6J6 Delta ￥600 NOS STD箱 1) 6J6A AWV-SuperRadiotron ￥700 NIB 2) 6J6 RadTel ￥700 NIB 1) 6J6 Std(Simplex) ￥700 NIB 5) 6J6/A USA ￥600 NIB 4) 6J6 RCA ￥400 used strong 3) 6J6 RCA ￥400 used 2) 6J6 GE ￥400 used strong 1) 6J6 Syl ￥400 used 1) 6J6 Syl ￥400 used 2) 6J6 Philco ￥400 used strong 1) 6J6 Hytron ￥400 used 1) 6J6 Silvertone ￥400 used 2) 6J6 - ￥400 used 1) 6J6 Toshiba ￥500 used-lightly original-boxed
6J7 (see 1620/6J7-special 6C6 KTZ63) =SharpCutoffPentode= (EIA/7R - octal-TopGrid) Eh/Ih=6.3V/0.3A Pentode connection : Ppmax=0.75W Epmax=300V(250V for #1620) Pc2max=0.1W Ec2max=125V op : Ep=250V Ec2=100V Ec1=-3V Ip=2mA Ic2=0.5mA rp>1MΩ gm=1.225mS Triode connection : Ppmax=1.75W Epmax=250V op : Ep=250V Ec=-8V Ip=6.5mA rp=10.5kΩ gm=1.9mS μ=20 (参考 : Ep-Ip特性(@Ec2=100V)) electrically identical to 6C6(UZ, Eh/Ih=6.3V/0.3A), 57(UZ, Eh/Ih=2.5V/1A) low-noise UZ-type : 1603(UZ, Eh/Ih=6.3V/0.3A) *6J7 has same pin assignment and heater voltage as WE-348A and is electrically similar to it, however, allowable plate dissipation of 6J7/1620 is one third of it, be aware. Also see 抵抗結合回路表 similar English types : EF37/A, 5A/157D, CV358(Ppmax=1W, Eh/Ih=6.3V/0.2A) also similar to KTZ63 also similar to CV1343(Eh/Ih=4V/0.25A) 0) 6J7G RCA ￥- NIB ST RaggedBox 0) 6J7G Ray ￥- NIB ST RaggedBox 0) 6J7G Ray ￥- NIB ST 1) 6J7G Ray ￥2500 NIB ST WB 2:reserved) 6J7G Neotron ￥2200 NIB straight-glass, red spray-shield 2) 6J7GT RCA ￥2000 NIB GlassType MetalBase 5) 6J7 RCA ￥1500 NIB metal (hyybnt) 4) 6J7 RCA ￥1500 NIB SilverLogo 1) 6J7 RCA ￥1500 NIB SilverLogo D/C=59-13 2) 6J7 RCA ￥1500 NIB metal上部に傷あり 1) 6J7 RCA ￥1500 NIB 1) 6J7 RCA ￥1500 NIB metal VeryRaggedBox 1) 6J7 RCA ￥1200 NIB metal Syl箱 1) 6J7 GE ￥1500 NIB metal OldReddishBox 1) 6J7 GE ￥1500 NIB metal 青箱 4) 6J7 GE ￥1200 NIB metal(xSn) 1) 6J7 Syl ￥1200 NIB metal 1) 6J7 Marconi ￥1000 NIB metal 1) 6J7 Rogers ￥1000 NIB metal 2) 6J7 United ￥1000 NIB 1) 6J7 RCA ￥600 used 1370/770min NonBox 1) 6J7 RCA ￥- used metal(D) 1) 6J7 GE ￥650 used metal 1500/770min 0) 6J7 GE ￥- used metal(T) 1) 6J7 Syl ￥600 used metal RCA箱 1) 6J7 Hyt ￥600 used metal
6J8/G =Triode Heptode Converter= (EIA/8H) 6.3V/0.3A 0) 6J8G Sparton ￥2900 NIB VeryRaggedBox
6J9 =Triple Triode= (EIA/10G - 10pin noval) Eh/Ih=6.3V/0.45A Ppmax=2W Epmax=330V rp=11kΩ gm=5.2mS μ=57 (one independent two common-catode triodes) 1) 6J9 USA ￥1000 NIB
6J10/6Z10 =gated-beam Discriminator Pentode + beam-power Pentode= (EIA/12BT - compactron) Eh/Ih=6.3V/0.95A Ehk=±200Vmax(DC100V) (Pentode/Discriminator sect.) Epmax=330V Ec2max=110V Ec1+max=60Vpeak Ikmax=13mA (Beam power pentode sect.) Ppmax=10W Epmax=275V Pc2max=2W Ec2max=275V Rg1max=250kΩ(fixed)/500kΩ(self) op(A1S) : Ep=Ec2=250V Ec1=-8V Ip=35mA/39mA Ic2=2.5mA/7mA rp=100kΩ gm=6.5mS Zl=5kΩ D=10% Po=4.2W also see pin-compatible 6Z10 heater variants : 10Z10(10V/0.6A) 13Z10/13J10(13.2V/0.45A) 1) 6J10 RCA ￥900 NIB 7) 6J10/6Z10 Syl ￥900 NIB
6J11 =Twin sharp-cutoff Pentode= (EIA/12BW - compactron) Eh/Ih=6.3V/0.8A Ehk=±100V, 200Vpeak Ppmax=3.1W Epmax=330V Pc2max=0.65W Ec2max=330V Rg1max=250kΩ(self) op : Ep=125V Ec2=125V Rk=56Ω Ip=11mA Ic2=3.8mA rp=200kΩ gm=13mS pins: 1(H)-2(2G2)-3(2P)-4(2G3,2IS)-5(2G1)-6(2K)-7(1G2)-8(1K)-9(1P)-10(1G3,1IS)-11((1G1)-12(H) see electrically almost-same Twin sharp-cutoff Pentode : 6BN11 8BN11 also see similar Twin sharp-cutoff Pentode : 6BV11 12BV11 also see Twin remote-cutoff Pentode : 6AR11 11AR11 2) 6J11 GE ￥1300 NIB ++ 10) 6J11 GE ￥1300 NIB lot=LC gray-plates, top-getter 5) 6J11 GE ￥1300 NIB green-silk, gray-plates, top-getter 2) 6J11 GE ￥1300 NIB white-silk, gray-plates, top-getter, very-ragged boxes
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6JA5 =Beam Power= (EIA/12EY - compactron) Eh/Ih=6.3V/1A Ehkmax=±200V(+100Vdc-max) Rg1max=1MΩ(fixed)/2.2MΩ(self) *Vertical Deflection amplifier (Design maximum) : Ppmax=19W Epmax=400V/2500V-pulse Ikmax=110mA/260mA-peak Pc2max=2.75W Ec2max=300V Ec1-max=-250V op : Ep=135V Ec2=125V Ec1=-10V Ip=95mA Ic2=4.2mA rp=12kΩ gm=10.3mS, Ec_cutoff=-33V(Ip=100μA) pins : 1(H)-2(G1)-3(G2)-4(K,BP)-5(NC)-6(P)-7(NC)-8(NC)-9(G1)-10(G2)-11(K,BP)-12(H) size : 39.7mmΦ x 79.4mmH, in max (参考 : Ep-Ip,Ic2特性(Ec2=125V)) (参考 : Ep-Ip,Ic2特性(Ec2-parameter, Ec1=0V)) heater variant : 10JA5(10.5V/0.6A) 6JB5 / 6HE5/ 6JC5 と同一ピン配列 10) 6JA5 GE ￥1700 NIB Top+ SideGtr 5) 6JA5 GE ￥1700 NIB Top+ Side Getter, lot=NC, w/ a sleeve, Bottom View 5) 6JA5 GE ￥1700 NIB Top+ Side Getter, lot=SC, w/ a sleeve 1) 6JA5 GE ￥1700 NIB 4) 6JA5 RCA(Syl-made) ￥1700 NIB TwinSideGtr 1) 6JA5 Syl ￥1700 NIB 1) 6JA5 WH(Syl-made) ￥1700 NIB TwinSideGtr 1) 6JA5 Znth(Syl-made) ￥1700 NIB TwinSideGtr 2) 6JA5 PhilipslECG(Syl-made) ￥1700 NIB TwinSideGtr 5) 6JA5 Int-C ￥1700 NIB TopGtr made in USA Sylvania-OEM品とのプレート外観比較 10) 6JA5 Int-C ￥1700 NIB TopGtr made in USA 1) 6JA5 RCA ￥800 used
6JB5 =Beam Power= (EIA/12EY - compactron) (identical to 6HE5, 6JC5) T-12 bulb(compactron) is used to get longer life than T-6_1/2 one(noval-6CZ5, 6HB6 etc) from lower temperature operation standpoint as a TV-set vertical deflection beam power tube. Greater Ppmax is too. Eh/Ih=6.3V/0.8A Ehk=100V(DC)/200V(DC+AC) Ppmax=15W Epmax=350V Ikmax=75mA Pc2max=2.75W Ec2max=300V Rg1max=1MΩ(fixed)-2.2MΩ(self) op : Ep=250V Ec2=250V Ec=-20V rp=50kΩ gm=4.1mS Ip=43mA Ic2=3.5mA (参考 : Ep-Ip,Ic2特性(Ec2=250V)) (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data)) * 上記6JA5(Ppmax=19W)と同一ピン配列 1) 6JB5/6HE5 RCA ￥1500 NIB 2) 6JB5/6HE5 RCA(Syl-made?) ￥1500 NIB 4) 6JB5/6HE5 RCA ￥1500 NIB 5) 6JB5/6HE5/6JC5 GE ￥1500 NIB w/ Sleeve 2) 6JB5/6HE5/6JC5 GE ￥1500 NIB 1) 6JB5/6HE5/6JC5 GE ￥1500 NIB 1) 6JB5/6HE5 GE ￥1500 NIB 7) 6JB5/6HE5/6JC5 GE ￥1500 NIB 5) 6JB5/6HE5/6JC5 GE ￥1500 NIB *$** 1) 6JB5 Znth(GE-made) ￥1500 NIB OrangeSilk 1) 6JB5/6HE5/6JC5 Znth(GE-made) ￥1500 NIB 2) 6JB5/6HE5/6HD5 RCA(Syl-made) ￥1500 NIB WidePlate 1) 6JB5/6HE5/6JC5 Znth(Syl-made) ￥1500 NIB WhiteSilk 9) 6JB5/6HE5/6JC5 Znth(Syl-made) ￥1500 NIB TopGtr OrangeSilk 1) 6JB5/6HE5/6JC5 Znth(GE-made) ￥800 used OrangeSilk RCA箱 1) 6JB5/6HE5 USA ￥800 used
6JB6 =BeamPowerPentode= Sweep Tubes(<30W) (EIA/9QL - NOVAR TopPlate) Eh/Ih=6.3V/1.2A Ppmax=17.5W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=175mA heater variants : 12JB6/A(12.6V/0.6A) 17JB6/A(16.8V/0.45A) (see 6KM6 6JF6 6JU6 : same pin assignment) 1) 6JB6 RAD-TEL ￥2900 NIB 1) 6JB6 Triad(GEmade) ￥2900 NIB 1) 6JB6 Syl ￥2900 NIB 1) 6JB6 Syl ￥2900 NIB 1) 6JB6 Tsol ￥2900 NIB 2) 6JB6A RCA ￥3100 NIB(Qn) 1) 6JB6A GE ￥2900 NIB TwinSideGtr 3) 6JB6A GE ￥3300 NIB TwinSideGtr MB 1) 6JB6A GE ￥2900 NIB(T) 1) 6JB6A Syl ￥2900 NIB 0) 6JB6A RCA(Syl-made) ￥- NIB TwinSideGtr(Q) 1) 6JB6A RCA ￥1200 used
6JC5(=6JB5=6HE5) =Beam Power= (EIA/12EY - compactron) (identical to 6HE5, 6JB5) Eh/Ih=6.3V/0.8A Ppmax=15W Epmax=350V Ikmax=75mA Pc2max=2.75W Ec2max=300V 参考:三結時のEp-Ip特性例(triode connection : SAMPLE data) (Ppmax=19Wの6JA5と同一ピン配列) 4) 6JC5/6JB5/6HE5 Syl ￥1500 NIB 2) 6JC5/6JB5/6HE5 Syl ￥1500 NIB 2) 6JC5/6JB5/6HE5 SylECG ￥1500 NIB 2) 6JC5/6JB5/6HE5 SylECG ￥1500 NIB 1) 6JC5/6JB5/6HE5 Znth ￥1500 NIB
6JC6/A =Sharp cutoff Pentode= (EIA/9PM - noval) Eh/Ih=6.3V/0.3A Ehkmax=±200V(100VDC) 6JC6 : Ppmax=2.5W Pc2max=0.6W 6JC6A : Ppmax=3.1W Epmax=330V Pc2max=0.7W Ec2max=330V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=125V Ec2=125V Rk=56Ω rp=180kΩ Ip=14mA Ic2=3.4mA gm=16mS heater variants : 3JC6/A(3.5V/0.6A), 4JC6/A(4.5V/0.45A) similar types with same base diagram : 6JD6 6KT6 6HM6 46) 6JC6A RCA ￥700 NIB/NOS 2) 6JC6A RCA ￥700 NOS Ray箱 (NTB) 23) 6JC6A GE ￥600 NIB - mint 5) 6JC6A USA ￥600 NIB/NOS(Sn) 2) 6JC6/A USA ￥600 NIB 1) 6JC6 Shield(RCA-made) ￥700 NOS BlkPlate 1) 6JC6 Znth ￥700 NOS RCA箱 1) 6JC6A USA ￥600 used
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6JC8 =common-cathode med-mu Triode sharp-cutoff Pentode= (EIA/9PA - noval) Eh/Ih=6.3V/0.45A Ehkmax=200V pentode: Ppmax=2.3W Epmax=275V Pc2max=0.45W Ec2max=330V Rgmax=100kΩ(fixed)/500kΩ(self) rp=300kΩ gm=5.5mS-typ triode : Ppmax=1.7W Epmax=275V μ=40 rp=6kΩ gm=6.5mS Rgmax=-MΩ 5) 6JC8 GE ￥900 NIB
6JD5 =Beam Triode= (EIA/12GY - compactron) Ppmax=30W Ep-peakmax=6000V μ=235 gm=11.5mS Eh/Ih=6.3V/2.4A 6JD5= 6HZ5 ◇ 40W beam triodes (octal): 6BK4/B/C/6EL4A 6EN4 6LJ6/A/6LH6A ◇ 30W-40W beam triodes (compactron): 6EJ4/A 6HS5 6HV5/A 6HZ5 6JD5 6JH5 6JK5 1) 6JD5 GE ￥900 NOS?
6JD6 =Sharp-cutoff Pentode= (EIA/9PM - noval) Eh/Ih=6.3V/0.3A Ehk=±200V(DC100V) Ppmax=2.5W Epmax=330V Pc2max=0.6W Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=125V Ec2=125V Rk=56Ω Ip=15mA Ic2=4mA gm=14mS rp=160kΩ heater variants : 3JD6(3.5V/0.6A), 4JD6(4.5V/0.45A) similar types with same base diagram : 6JC6/A 6KT6 6HM6 3) 6JD6 RCA ￥900 NIB 1) 6JD6 Syl ￥800 NIB 2) 6JD6 InterC ￥750 NIB 2) 6JD6 USA ￥750 NIB(Sx)
6JE6/A/B/CSweep Tubes (EIA/9QL - NOVAR TopPlate) Eh/Ih=6.3V/2.5A Ehkmax=±200V Rg1max=0.47MΩ Ppmax=30W Epmax=990V/7500Vpeak Ec3max=75V Pc2max=5W Ec2max=220V Ikmax=350mA/1.2Apeak op : Ep=175V Ec2=125V Ec1=-25V Ip=130mA Ic2=2.8mA rp=5.5kΩ gm=10.5mS μg2g1=3 (参考 : Ep-Ip特性(@Ec2=+125V, Ec3=+30V)) see equivallent 6LQ6(6.3V/2.5A) heater variants : 24LQ6(24V/0.6A) 31LQ6(31V/0.45A) also see 6JE6C/6LQ6s' improved version : 6MJ6 similar type with same basing : 6ME6(6.3V/2.3A) 2) 6JE6C/6LQ6 Znth(GEmade) ￥5000 NIB TwinSideGetter gm=11800/5800min,11260/5800min 1) 6JE6C/6LQ6 Znth(GEmade) ￥5000 NIB TwinSideGtr 0) 6JE6C GE ￥- NIB TwinSideGtr 1) 6JE6C/6LQ6 Syl ￥5000 NIB TwinSideGtr 1) 6JE6C Syl ￥5000 NIB TwinSideGtr 6) 6JE6C Syl ￥5000 NIB TwinSideGtr 1) 6JE6C Syl ￥5000 NIB TwinSideGtr 10200/5800min 5) 6JE6C/6LQ6 Syl ￥5000 NIB TwinSideGtr 2) 6JE6C/6LQ6 Syl(Japan) ￥5000 NIB TwinSideGtr 1) 6JE6C/6LQ6 SylECG ￥5000 NIB TwinSideGtr 1) 6JE6C WH ￥5000 NIB TwinSideGtr 1) 6JE6C WH ￥5000 NOS TwinSideGtr WB 1) 6JE6C GE ￥2500 used TwinSideGtr 12700/5800min 0) 6JE6C GE ￥- used TwinSideGtr 1) 6JE6C/6LQ6 GE ￥1800 used OB TwinSideGtrr gm=6300/5800min 1) 6JE6C GE ￥1800 used GE箱 gm=7500/5800min チップラトルあり(動作問題なし) 0) 6JE6C RCA(GEmade) ￥- used TwinSideGtr 0) 6JE6C/6LQ6 Syl ￥- used (写真左) TopGtr 0) 6JE6C/6LQ6 Syl ￥- used (写真右) TwinSideGtr 1) 6JE6C Syl ￥1500 used TwinSideGtr gm=10000/5800min Getter小さい 1) 6JE6A Syl ￥2200 used TwinSideGtr gm=7500/5800min 1) 6JE6C/6LQ6 Znth ￥2500 used TwinSideGtr gm=11700/5800min
6JE8 =high-mu(70) Triode sharp-cutoff-Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.78A Triode : Ppmax=1W Epmax=300V rp=16.5kΩ gm=4.2mS μ=70 Pentode : Ppmax=5W Epmax=330V Pc2max=2W Ec2max=330V rp=120kΩ gm=12mS heater variant : 11JE8(10.9V/0.45A) same-basing, electrically-similar types : 6AW8/A, 6HF8, 6JV8, 6LF8 same-basing, electrically-similar, upper-rating 9T9 type : 6HZ8(pentode : Ppmax=8W) 9) 6JE8 RCA ￥800 NIB *
6JF6=BeamPowerPentode= Sweep Tubes(<30W) (EIA/9QL - NOVAR TopPlate) Eh/Ih=6.3V/1.6A Ppmax=17W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=275mA heater variants : 17JF6(16.8V/0.6A) 22JF6(22V/0.45A) (see 6KM6 6JU6) 1) 6JF6 RCA ￥1700 NIB 1) 6JF6 RCA ￥1700 NIB 1) 6JF6 RCA ￥1700 NIB 6KM6入り 2) 6JF6 GE ￥1700 NIB 5) 6JF6 Syl ￥1700 NIB 1) 6JF6 Ray ￥1700 NIB 1) 6JF6 WH ￥1700 NIB 2) 6JF6 RTT ￥1700 NIB Japan 1) 6JF6 RTT ￥1700 NIB GEmade
6JG5 =Sharp cutoff Pentode= (EIA/9SF - noval) Eh/Ih=6.3V/0.525A Ppmax=5W Epmax=330V Pc2max=1.1W Ec2max=330V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=200V Ec2=150V Rk=100Ω Ip=25mA Ic2=5.5mA rp=60kΩ gm=11.5mS 1) 6JG5 Syl ￥600 NIB
6JG6/A =Beam Power= Sweep Tubes(<30W) (EIA/9QU - NOVAR) Eh/Ih=6.3V/1.6A Epmax=770V Ppmax=17W Ec2max=220V Pc2max=3.5W Ikmax=275mA heater variants : 17JG6/A(16.8V/0.6A) 22JG6/A(22V/0.45A) 1) 6JG6A GE ￥1200 NIB
6JH5 =Beam Triode= (EIA/12JE - compactron) Eh/Ih=6.3V/2.4A Ppmax=35W Epmax=5500V Ipmax=325mA-peak op : Ep=3500V(pulse) Ec=-4.4V Ip=300mA-peak rp=4.6kΩ gm=65mS μ=300 (参考 : Ep-Ip(pulse)特性(@tw=1μs, f=1kpps)) similar to 6JK5 ◇ 40W beam triodes (octal): 6BK4/B/C/6EL4A 6EN4 6LJ6/A/6LH6A ◇ 30W-40W beam triodes (compactron): 6EJ4/A 6HS5 6HV5/A 6HZ5 6JD5 6JH5 6JK5 1) 6JH5 RCA ￥1700 NIB 3) 6JH5 RCA ￥1700 NIB 1) 6JH5 Syl ￥1700 NIB
6JH6 =semi remote cutoff Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±200V(+100Vdcmax) Epmax=300V Ppmax=0.55W(Ep<150V) Ec2max=300V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep-125V Ec2=125V Rk=56Ω rp=260kΩ gm=8mS heater variant : 4JH6(4.2V/0.45A) similar to 6BZ6 7) 6JH6 RCA ￥700 NIB *** 3) 6JH6 RCA ￥700 NIB 7) 6JH6 USA ￥650 NIB 1) 6JH6 Syl ￥650 NIB 1) 6JH6 Hitachi ￥650 NIB 1) 6JH6 USA ￥400 used
6JH8 =twin-plate sheet beam tube= (EIA/9DP - noval) Sylvania developed sheet beam tube Eh/Ih=6.3V/0.3A Ppmax=3W/unit Epmax=330V Paccell(Pc3)=1Wmax Eaccell(Ec3)=330Vmax Ed1max=±165Vpeak Ed2max=±165Vpeak Ikmax=33mA Rg1max=100kΩ(fixed)/250kΩ(self) op : Ep=250V Eaccell(Ec3)=250V Ed1=0V Ed2=0V Rk=220Ω Ip=14mA Iaccel(Ic3)=1.5mA gm=4.4mS same-basing electrically-similar type : 6AR8(Tsol-developed) different-basing electrically-similar type : 6ME8(GE-developed) also see basic sheet-beam/beam-deflection tube : 7360(RCA-developed) 0) 6JH8 RCA ￥- NIB(D) 1) 6JH8 GE ￥750 NIB 1) 6JH8 GE ￥700 NOS Bulk WB 0) 6JH8 Ray ￥- NIB 2) 6JH8 Znth ￥700 NIB RaggedBox
6JK5 =beam Triode= (EIA/12JE - compactron) Eh/Ih=6.3V/1.8A Ppmax=35W Epmax=5500V Ipmax=325mA-peak Ehkmax=+200V/-450V op : Ep=3500V(pulse) Ec=-4.4V Ip=300mA-peak rp=4.6kΩ gm=65mS μ=300 similar to 6JH5 ◇ 40W beam triodes (octal): 6BK4/B/C/6EL4A 6EN4 6LJ6/A/6LH6A ◇ 30W-40W beam triodes (compactron): 6EJ4/A 6HS5 6HV5/A 6HZ5 6JD5 6JH5 6JK5 2) 6JK5 GE ￥1700 NIB 1) 6JK5 Syl ￥1700 NIB 1) 6JK5 Syl ￥1700 NIB TopGtr 7) 6JK5 Znth(Syl-made) ￥1700 NIB
6JK6 =Sharp cutoff Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.35A Ehkmax=±200V Ppmax=2.5W Epmax=275V Pc2max=0.6W Ec2max=275V Rg1max=500kΩ op : Ep=125V Rk=68Ω Ip=11.5mA Ic2=3.9mA rp=150kΩ gm=18mS heater variant : 4JK6(3.7V/0.6A) 5JK6(4.9V/0.45A) similar to 6EW6, 6JL6 0) 6JK6 GE ￥3800 NIB 2) 6JK6 GE(Syl-made) ￥3800 NIB Label拭消
6JM6 =BeamPower= Sweep Tubes(<30W) (EIA/12FJ - compactron TopPlate) Eh/Ih=6.3V/1.2A Ppmax=17.5W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=175mA variant : 17JM6/A(16.8V/0.45A) 2) 6JM6A RCA ￥1700 NIB 2) 6JM6A RCA ￥1700 NIB 2) 6JM6 GE ￥1700 NIB 6) 6JM6 Syl ￥1700 NIB 1) 6JM6 RTT ￥1700 NIB 1) 6JM6A Sterling(SE) ￥1700 NIB 1) 6JM6 Syl ￥1100 used 7750/4100min 1) 6JM6 Znth ￥900 LightlyUsed 1) 6JM6 GE ￥700 used 1) 6JM6 Syl ￥700 used
6JN6 =Beam Power= Sweep Tubes(<30W) (EIA/12FK - compactron) *G3 installed type of 6GE5 to minimize 'Snivets' Eh/Ih=6.3V/1.2A Ppmax=17.5W Epmax=770V Pc2max=2.5W Ec2max=220V Ikmax=175mA heater variants : 12JN6/A(12.6V/0.6A) 17JN6/A(16.8V/0.45A) (33JV6と同一ピン配列、プレートが底面ピンに出ているため配線容易) 12AX7との形状比較 5) 6JN6 RCA ￥1500 NIB 1) 6JN6 RCA ￥1500 NOS 5) 6JN6 GE ￥1500 NIB 1) 6JN6 GE ￥1500 NOS 1) 6JN6 GE ￥1500 NOS 2) 6JN6 Syl ￥1500 NIB 1) 6JN6 Syl ￥1500 NOS GE箱 1) 6JN6 WH ￥1500 NIB 1) 6JN6 Triad ￥1500 NIB 1) 6JN6 Quality(GE-made) ￥800 used GE箱
6JN8 =med-mu Triode + sharp-cutoff Pentode= (EIA/9FA - noval) Eh/Ih=6.3V/0.45A Ehkmax=200V Triode : Ppmax=2.5W Epmax=300V Rgmax=2.2MΩ op : Ep=125V Ec=-1V Ip=13.5mA rp=5.4kΩ gm=8.5mS μ=46 Pentode: Ppmax=2.5W Epmax=300V Pc2max=0.55W Ec2max=300V Rgmax=2.2MΩ(fixed)/2.2MΩ(self) op : Ep=125V Ec2=125V Ec1=-1V Ip=12mA Ic2=4mA rp=200kΩ gm=7.5mS heater variant : 9JN8(9.4V/0.3A) 19JN8(18.9V/0.15A) similar to : 6BR8/A, 6FV8/A 2) 6JN8 RCA ￥1000 NIB 8) 6JN8 USA ￥800 NIB
6JQ6 =Beam Pentode w/ Integral Diode= (EIA/9RA - noval) Eh/Ih=6.3V/1.2A Ehkmax=±200V Ppmax=10W Epmax=425V/2kVpeak Pc2max=2W Ec2max=330V Ikmax=70mA Rg1max=2.2MΩ, Idiode=1mA(average) heater variants : 12JQ6(12.6V/0.6A) 17JQ6(16.8V/0.45A) 2) 6JQ6 RCA ￥900 NIB 1) 6JQ6 GE ￥800 NIB 1) 6JQ6 Syl ￥800 NIB
6JS6A/6JS6B/6JS6C
6JT6/A =Beam Pentode= Sweep Tubes(<30W) (EIA/9QU - NOVAR) Eh/Ih=6.3V/1.2A Ehkmax=±200V(DCmax=+100V) Ppmax=17.5W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=175mA heater variants : 12JT6/A(12.6V/0.6A) 17JT6/A(16.8V/0.45A) 2) 6JT6A RCA ￥1200 NIB Beam-Power Novar Pp=17.5W 1) 6JT6A Syl ￥1100 NIB 1) 6JT6A Syl ￥1100 NIB RaggedBox
6JT8 =high-mu(100) Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.725A Ehkmax=±200V(DCmax=+100V) Triode : Ppmax=1W Epmax=330V Rgmax=500kΩ(fixed)/1MΩ(self) op ] Ep=250V Ec=-2V Ip=1.5mA rp=37kΩ gm=2.7mS μ=100 Pentode : Ppmax=4W Epmax=330V Pc2max=1.1W Ec2max=330V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=200V Ec2=100V Rk=82Ω Ip=17mA Ic2=3.5mA rp=50kΩ gm=20mS heater variant : 10JT8(10.2V/0.45A) similar to : 6LY8(triode μ=100, pentode gm=20mS) similar to : 6KR8(triode μ=46, pentode gm=20mS), 6KV8(triode μ=70, pentode gm=23mS) 11) 6JT8 Syl ￥700 NIB 3) 6JT8 USA ￥700 NOS
6JU6 =BeamPowerPentode= Sweep Tubes(<30W) (EIA/9QL - NOVAR TopPlate) Eh/Ih=6.3V/1.6A Ehkmax=±200V(DCmax=+100V) Ppmax=17W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=275mA (also see 22JU6 6KM6 6JF6) 2) 6JU6 RCA ￥1700 NIB 2) 6JU6 Sonar(RCA-made) ￥1400 NOS? Syl箱
6JU8/A =Quad Diode= (EIA/9PQ - noval)Eh/Ih=6.3V/0.6A PIV=300V Iout=9mA(av)/54mA(peak) Vdrop=10V(@60mA) Ehk=±300V heater variant : 8JU8(8.4V/0.45A) 5) 6JU8A RCA ￥800 NIB 1) 6JU8A RCA ￥800 NIB 20) 6JU8/A USA ￥600 NIB 3) 6JU8A Toshiba ￥600 NIB 2:sealed 1) 6JU8A Matsushita ￥600 NIB sealed 1) 6JU8A Mitsubishi ￥600 NIB
6JV6 =Beam Power= Sweep Tubes(<30W) (EIA/12FK - compactron) Eh/Ih=6.3/1.5A Ehkmax=±200V(+100Vdc) Tbulb=220℃max Ppmax=18W Epmax=770V/+6000Vpeak-1500Vpeak(pulse) Pc2max=3.5W Ec2max=220V Ec3max=+70V Ec1max(-)=-55V Ikmax=230mA/800mApeak Rg1max=1MΩ op : Ep=130V Ec2=130V Ec1=-20V Ip=50mA Ic2=1.75mA rp=11kΩ gm=9.1mS μg2g1=4.7 heater variants : 21JV6(21V/0.45A), 33JV6(33V/0.3A) 1) 6JV6 Ray ￥2500 NIB - mint
6JV8 =high-mu(70) Triode sharp-cutoff Pentode= (EIA/9DX - noval)Eh/Ih=6.3V/0.6A Ehkmax=200V Triode : Ppmax=1.1W Epmax=330V Rgmax=500kΩ(fixed)/1MΩ(self) rp=17.5kΩ gm=4mS μ=70 Pentode: Ppmax=4W Epmax=330V Pc2max=1.7W Ec2max=330V Rgmax=250kΩ(fixed)/1MΩ(self) rp=150kΩ gm=10.7mS heater variant : 8JV8(8.5V/0.45A) similar to 6AW8/A, 6HF8, 6JE8, 6LF8 same-basing, electrically-similar, upper-rating 9T9 type : 6HZ8(pentode : Ppmax=8W) 2) 6JV8 USA ￥800 NOS 1) 6JV8 Toshiba ￥400 used
6JW8/ECF802 =Triode Pentode= (EIA/9DC - noval) Eh/Ih=6.3V/0.43A Ehkmax=±200V Triode : Ppmax=2W Epmax=330V Ikmax=10mA Rgmax=3MΩ rp=20kΩ gm=3.5mS μ=70 Pentode: Ppmax=1.2W Epmax=250V Pc2max=0.2W Ec2max=250V Ikmax=15mA Rgmax=560kΩ(fixed)/1MΩ(self) rp=400kΩ gm=5.5mS-typ heater variants : 5JW8(4.7V/0.6A), 6LX8/LCF802(6V/0.45A), ECF802(6.3V/0.43A), PCF802/9JW8(9V/0.3A) 7) 6JW8/ECF802 USA ￥800 NOS
6JY8 =med-mu(46) Triode Power Pentode for Vertical Deflection= (EIA/9DX - noval)Eh/Ih=6.3V/0.8A Ehkmax=±200V triode: Ppmax=2W Epmax=330V Ecmax=+0V Rg1max=500kΩ(fixed)/1MΩ(self) op : Ep=125V Rk=68Ω Ip=15mA rp=4.4kΩ gm=10.4mS μ=46 pentode: Ppmax=5W Epmax=330V Pc2max=1.1W Ec2max=330V Ec1max=+0V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=200V Ec2=150V Rk=100Ω Ip=24mA Ic2=4.8mA rp=55kΩ gm=11mS heater variant : 10JY8(10.5V/0.45A) 5) 6JY8 Ray(made in Japan) ￥1500 NIB justDirtyBox
6JZ6 =BeamPowerPentode= (EIA/12GD - compactron TopPlate) *6JZ6=6GY5のG3(BP)電極の分離取出しタイプ Eh/Ih=6.3V/1.5A Ppmax=18W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=230mA Ehkmax=±200V(+100VDC) heater variants : 16CB-28(15.8V/0.6A), 21JZ6(21V/0.45A), 30JZ6(30V/0.3A) 2) 6JZ6 RCA ￥1300 NIB 5) 6JZ6 Syl ￥1100 NIB 5) 6JZ6 WH ￥1100 NIB
6JZ8 =Triode Pentode= (EIA/12DZ - compactron) Eh/Ih=6.3V/1.2A Ehkmax=200V Rgmax=1MΩ(fixed)/2.2MΩ(self) Pentode: Ppmax=7W Epmax=250V Pc2max=1.8W Ec2max=200V Ikmax=70mA rp=11.7kΩ gm=7.1mS Triode : Ppmax=1W Epmax=250V Ikmax=20mA gm=2.35mS rp=8.5kΩ μ=20 heater variants : 13JZ8(12.7V/0.6A) 17JZ8(16.8V/0.45A) 24JZ8(24.2V/0.315A) 25JZ8(25.2V/0.3A) 2) 6JZ8 Syl ￥900 NIB 1) 6JZ8 Syl ￥900 NIB 2) 6JZ8 Int-C ￥900 NIB 2) 6JZ8 Triad ￥900 NIB
6K5G/GT =High mu Triode= (EIA/5U - octal, top-grid) Eh/Ih=6.3V/0.3A (Ehk should be kept as low as possible.) Ppmax=-W Epmax=250V, Cgp=2.0pF Cgk=2.4pF Cpk=3.6pF op : Ep=100V Ec=-1.5V Ip=0.35mA rp=78kΩ gm=0.9mS μ=70 op : Ep=250V Ec=-3.0V Ip=1.10mA rp=50kΩ gm=1.4mS μ=70 (参考 : Ep-Ip特性) 6K5G/GT is electrically similar to triode section of 6Q7/G/GT(triode = same pinout). 0) 6K5G RCA ￥- NOS 1) 6K5G RCA ￥1300 used 1) 6K5GT Syl ￥1000 NIB just-ragged box 1) 6K5GT Ray ￥1000 NIB 1) 6K5GT Hytron ￥1000 NIB 1) 6K5GT Fordom ￥1000 NIB 1) 6K5GT STD ￥1000 NIB
6K6 =PowerPentode= (EIA/7S - octal) Eh/Ih=6.3V/0.4A Ppmax=8.5W Epmax=315V Pc2max=2.8W Ec2max=285V op1(A1S) : Ep=310V Ec2=250V Ec1=-21V Ipo=25.5mA Ic2o=4mA Zl=9kΩ Po=4.5W op2(A1pp) : Ep=Ec2=285V Ec1=-25.5V Ipo=55mA Ic2o=9mA Zl=12kΩ Po=10.5W (参考 : Ep-Ip特性(五結@Ec2=250V、三結)) 6K6 is electrically identical with #41(different base). new 1) 6K6GT RCA ￥1500 NOS date=5-04 BlkPlate 4) 6K6GT RCA ￥1500 NIB(Aht) 4) 6K6GT RCA ￥1500 NIB VeryRaggedBox 10) 6K6GT RCA ￥1500 NIB CoinBase BlkPlate 1) 6K6GT RCA ￥1500 NIB SilverLogo 1) 6K6GT RCA ￥1500 NIB OrangeLogo 1) 6K6GT GE ￥1200 NIB BlkGlass 青箱 2) 6K6GT GE ￥1200 NIB 青箱 8) 6K6GT GE ￥1000 NIB(Nn) 1) 6K6GT Admrl(GE-made) ￥1000 NIB 1) 6K6GT Syl ￥1200 NIB MB(sT) 1) 6K6GT Syl ￥1200 NOS TopGetter 1) 6K6GT Syl ￥1200 NIB 0) 6K6GT Syl ￥- NIB metal(sT) 1) 6K6GT Tsol ￥1200 NIB 1) 6K6GT Tsol ￥1500 NIB 1) 6K6GT WH ￥1200 NIB 1) 6K6GT Standard(AKRAD) ￥1200 NIB glass 1) 6K6GT Greylock ￥1200 NIB sealed used 3) 6K6GT RCA-Victor ￥1000 used 1700,1645,1460/1000min SmokedGlass 3) JAN-CRC-6K6GT RCA ￥1200 used? gm=1820,1820,1890/1000min 1) 6K6GT RCA ￥1000 used ClearGlass gm=1640/1000min 1) JAN-CRC 6K6GT RCA ￥1000 like-new Clear-glass, BottmGtr, WB 1) 6K6GT Delco(RCA-made) ￥1000 lightly-used smoked-glass, WB 1) 6K6GT RCA ￥1000 lightly-used smoked-glass WB 11) 6K6GT RCA ￥800 used 1) 6K6GT RCA ￥800 used RCA箱 0) 6K6GT RCA ￥- used glass Syl緑箱 1) 6K6GT Syl ￥1000 like-new BlackRibbedOvalPlate WB 1) 6K6GT Syl ￥800 used 1640/1000min ClearGlass 1) 6K6GT Syl ￥700 used 1) 6K6GT/G /VT-231 Tsol ￥1000 used 1680/1000min BlkGlass 1) 6K6GT/G Tsol ￥1000 used 1740/1000min BlkGlass 1) 6K6GT/G Tsol ￥1000 used 1510/1000min BlkGlass 1) 6K6GT Philco ￥700 used glass WH箱 1) 6K6GT Cornell ￥1000 like-new WB 0) 6K6GT Hallicrafter ￥- NOS? RCA箱 1) 6K6GT WH ￥800 used gm=1830/1000min 1) 6K6GT Krad ￥700 used 1) 6K6GT Hoffman ￥800 used gm=1670/1000min
6K7 =Vari-mu Pentode= (EIA/7R - octal-TopGrid) Eh/Ih=6.3V/0.3A Ppmax=2.75W Epmax=300V Pc2max=0.35W Ec2max=125V op : Ep=250V Ec2=100V Ec1=-3V Ip=7mA Ic2=1.7mA rp=800kΩ gm=1.45mS (参考 : Ep-Ip特性(@Ec2=100V)) heater variant : 12K7(12.6V/0.15A) similar type : 6U7/G also similar to EF39/CV1053 ST 0) 6K7G Philco ￥1500 NOS? Znth箱 1) 6K7G RCA ￥1000 used 1200/910min 1) 6K7G Syl ￥1000 used 1200/910min 1) 6K7G Philco ￥- used 1) 6K7G Tsol ￥1000 used(tw02) 3) 6K7G Zenith ￥1000 used(tw02) GT 0) 6K7GT Brimar ￥1300 NIB glass(sD) 1) 6K7GT Tsol ￥1200 NOS WB 0) 6K7GT Znth ￥- NIB 1) 6K7GT NU ￥700 used 0) 6K7GT Firestone(Krad) ￥- used metal 2) 6K7 RCA ￥1000 NIB(Q) 1) JAN-CRC 6K7/VT-86 RCA ￥1200 NIB D/C=H2E 3) JAN-CRC 6K7 RCA ￥1100 NIB 1st-D/C=5607 1) JAN-CRC 6K7/VT-86 RCA ￥1200 NIB very-ragged box 1) 6K7 GE ￥1000 NIB 1) 6K7 Syl ￥1000 NIB metal 1) 6K7 CBS-Hytron ￥1000 NIB 1) 6K7 Standard(Tung-Sol) ￥1000 NIB glass 1) 6K7 Tsol ￥1000 NIB metal 1) 6K7 Ray ￥1000 NIB metal 1) 6K7 WH ￥1000 NIB metal 1) 6K7 NJRT(GM) ￥1000 NIB metal 1) 6K7 RCA ￥700 used 1190/910min 1) 6K7 Syl ￥700 used 1380/910min 1) 6K7 Marconi ￥400 used 錆
6K8 =common-cathode Triode-Hexode Converter= (EIA/8K - octal) Eh/Ih=6.3V/0.3A Ikmax(total)=16mA Hexode: Ppmax=0.75W Epmax=300V Pc2max=0.7W Ec2max=150V/300V(cutoff) Triode: Ppmax=0.75W Epmax=125V heater variant : 12K8(12.6V/0.15A) 1) 6K8G NU ￥- used 1) JAN-CRC 6K8 RCA ￥1000 NIB MB 1) 6K8 RCA ￥1000 NIB(D) 1) 6K8 GE ￥1000 NIB metal 1) 6K8 WH ￥1000 NIB metal 1) 6K8G WH ￥1000 NOS gm=1450/630min, 3680/19000min WB 1) 6K8 CBS ￥1000 NIB metal 1) 6K8 Arcturus ￥900 used glass 1) 6K8GT Haltron ￥900 used engraved 1) 6K8 USA ￥700 used
6K11/6Q11 =MedMuTriode+TwinHighMuTriode= (EIA/12BY - compactron) Eh/Ih=6.3V/0.6A Triode1: Ppmax=2.75W Epmax=330V rp=7.7kΩ gm=2.2mS μ=17 Triode2,3: Ppmax=1W Epmax=330V rp=62.5kΩ gm=1.5mS μ=100 same base(12BY) separated-cathode triple Triode : 6AV11(μ=17, 17, 17), 6D10(μ=57, 57, 57), 6K11/6Q11(μ=17, 100, 100) different base(12FE) separated-cathode triple triode : 6AC10(μ=62, 62, 62), 6AK10(μ=53, 53, 53), 6U10(μ=17, 100, 17) different base(12BQ) separated-cathode high-mu triple Triode : 6C10(μ=100, 100, 100) 3) 6K11/6Q11 RCA ￥2700 NIB justRaggedBox(Q) 6) 6K11/6Q11 GE ￥2300 NIB justRaggedBox(Aht) 2) 6K11 Arcturus(GE-made) ￥2700 NIB SkyBlue箱 9) 6K11/6Q11 Syl ￥2300 NIB 2) 6K11/6Q11 Ray ￥2300 NIB 1) 6K11/6Q11 GE ￥1000 used? 1) 6K11/6Q11 GE ￥1000 used
6KA8 =common-cathode HighMuTriode+SharpCutOffPentode= (EIA/9PV - noval)Eh/Ih=6.3V/0.6A Triode: Ppmax=1.1W Epmax=300V rp=17.5kΩ gm=4mS μ=70 Pentode: Ppmax=2W Epmax=300V Pp2max=1.1WEc2max=300V rp=100kΩ gm=4.4mS 29) 6KA8 RCA ￥800 NIB (rhy1vdnt) *** 7) 6KA8 RCA ￥800 NIB 3) 6KA8 GE ￥700 NIB 3) 6KA8 Syl ￥700 NIB 1) 6KA8 Syl ￥600 NOS RCA箱 1) 6KA8 Tsol ￥700 NIB 1) 6KA8 Znth ￥700 NIB 1) 6KA8 Ray ￥700 NIB 3) 6KA8 Ray etc USA ￥700 NIB(Aht) 1) 6KA8 Silvertone ￥600 NOS Syl箱 1) 6KA8 Mitsubishi ￥700 NIB 1) 6KA8 RCA ￥500 used
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6KD6Eh/Ih=6.3V/2.85A Ehkmax=±200V Ppmax=33W Epmax=990V/7000Npeak Pc2max=5W Ec2max=200V Ikmax=400mA/1.4Apeak Rg1max=2.2MΩ op : Ep=150V Ec2=110V Ec1=-22.5V Ip=100mA Ic2=2mA rp=6kΩ gm=14mS μg2g1=4 (参考 : 6/30/36/40KD6のEp-Ip特性(Ec2パラメータ・三結@Ec1=0V)) heater variants : 30KD6(30V/0.6A), 36/40KD6(36V/0.45A) 各社6/30/36/40KD6の外観比較例 ソケットワイヤリング(wiring)方法 (同一pin配列 ＝ 6LF6, 6MH6, 20LF6, 27LF6) 0) 6KD6 RCA ￥- NIB TwinTopGtr(D) 2) 6KD6 RCA ￥5000 NIB(D) 0) 6KD6 RCA ￥- NIB 1) 6KD6 RCA ￥5000 NIB TwinSideGtr 2) 6KD6 RCA(GE-made) ￥5000 NIB TwinSideGtr 1) 6KD6 RCA(GE-made) ￥5000 NIB 1) 6KD6 GE ￥5000 NIB AdjacentTwinSideGtr 6) 6KD6 GE ￥5000 NIB LongGlass TwinTopGtr 2) 6KD6 GE ￥5000 NIB TwinSideGtr(Q) 1) 6KD6 GE ￥5000 NIB TwinSideGtr RaggedBox 1) 6KD6 GE ￥4200 NIB LongGlass TwinTopGtr LooseTopCap 1) 6KD6 WH(GE-made) ￥5000 NIB 1) 6KD6 Syl ￥5000 NIB 2) 6KD6 Syl ￥5000 NIB Top+TwinSideGtr 2) 6KD6 Syl ￥5000 NIB Top+SingleSideGtr RaggedBox 1) 6KD6 Syl ￥5000 NIB 5) 6KD6 Syl ￥5000 NIB TwinSideGtr RaggedBox 1) 6KD6 Admrl ￥2500 used 2) 6KD6 RCA ￥3000 used gm>15000,15000/7500min 1) 6KD6 RCA ￥2500 used 1) 6KD6 RCA ￥1500 used TopCap無 1) 6KD6 GE ￥2500 used? 1) 6KD6 - ￥2500 used CGE箱 3) 6KD6 Matsuda ￥1500 used TwinSideGtr WB
6KD8(6U8) =MedMuTriode+SharpCutOffPentode= (EIA/9AE - noval) Eh/Ih=6.3V/0.4A Triode: Ppmax=2.5W Epmax=330V rp=5.3kΩ gm=7.5mS μ=40 Pentode: Ppmax=3W Epmax=330V Pc2max=0.55W Ec2max=330V rp=200kΩ gm=5mS see heater variants : 5U8(4.7V/0.6A), 5KD8(5.6V/0.45A), PCF82/9U8(9.5V/0.3A) similar type : 6U8/A(6.3V/0.45A) also see same basing similar types : 6AX8 6EA8 6GH8/6GH8A 6LM8 also similar to improved-6U8 types : 6R-HR4 6678 1) 6KD8 USA ￥600 NOS
6KE8 =MedMuTriode+SharpCutoffPentode= (EIA/9DC - noval) Eh/Ih=6.3V/0.4A Triode: Ppmax=2W Epmax=280V rp=5kΩ gm=8mS μ=40 Pentode: Ppmax=2W Epmax=280V Pc2max=0.5W Ec2max=280V rp=125k gm=12mS heater variants : 4KE8(4.5V/0.6A), 5KE8(5.6V/0.45A) 28) 6KE8 RCA ￥800 NIB 1) 6KE8 GE ￥600 NIB 1) 6KE8 Syl ￥600 NIB RaggedBox 10) 6KE8 USA ￥600 NOS/NIB
6KG6/A/EL509
6KM6 =BeamPowerPentode= Sweep Tubes(<30W) (EIA/9QL - NOVAR TopPlate) Ppmax=17W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=275mA Eh/Ih=6.3V/1.6A (see 6JF6 6JU6) 1) 6KM6 RCA ￥1700 NIB GrayPlate(hz1qk) 0) 6KM6 RCA ￥- NIB BlkPlate (qsxv) 0) 6KM6 GE ￥- NIB (vQ) 1) 6KM6 Syl ￥1700 NIB TwinSideGtr 0) 6KM6 Syl ￥- NIB 1) 6KM6 RCA ￥300 used Syl箱 weak 2900/3000min 1) 6KM6 Syl ￥1400 used WB 5800/3000min 1) 6KM6 Dmnt ￥1400 used WB 5650/3000min
6KN6
6KN8/6R-HH8/6RHH8 =High-gm TwinTriode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.4A Ehkmax=±220V(+110Vdc-max) Ppmax=2.2W Epmax=220V Ikmax=22mA Rgmax=1MΩ(fixed) op : Ep=110V Ec=-1V Ip=16mA rp=2.8kΩ gm=16mS μ=45 参考 1 : Ep-Ip特性 参考 2 : Ep-Ip特性(cascode-amp) see equivallent type : 6R-HH8/6RHH8 heater variant : 4R-HH8/4RHH8/4KN8 (also see other similar twin triodes for cascode amps with same base diagram : => 6AQ8 6BC8 6BS8 6DJ8 6DT8 6RHH2) 2) 6KN8/6R-HH8 IEC-Mullard ￥3900 NIB 5) 6KN8/6R-HH8 RCA ￥3700 NIB(Nn) 12) 6KN8/6R-HH8 GE ￥3500 NIB made in Japan
6KR8/A =med-mu(46) Triode + video-amp sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.75A Ehkmax=±200V(DC=+100Vmax) *6KR8: RCA(RC30),GE(1963) design max Triode : Ppmax=2W Epmax=330V Rgmax=500kΩ(fixed)/1MΩ(self) op: Ep=125V Rk=68Ω Ip=15mA rp=4.4kΩ gm=10.4mS μ=46 Pentode: Ppmax=5W Epmax=330V Pc2max=1.1W Ec2max=330V Rg1max=500kΩ(fixed)/1MΩ(self) op: Ep= 35V Ec2=100V Ec1= 0V Ip=54.0mA Ic2=13.5mA op: Ep=200V Ec2=100V Rk=82Ω Ip=19.5mA Ic2= 3.0mA rp=60kΩ gm=20mS *6KR8: Sylvania(1968) design max Pentode: Pc2max=1.1W Rg1max=10kΩ(fixed)/10kΩ(self) *6KR8A: Sylvania(1968) design max Pentode: Pc2max=1.5W Rg1max=10kΩ(fixed)/10kΩ(self) *6KR8A: GE(1966) design max Pentode: Pc2max=1.5W Rg1max=10kΩ(fixed)/10kΩ(self) *6KR8A: Toshiba(1966) design max Pentode: Pc2max=1.1W Rg1max=500kΩ(fixed)/1MΩ(self) *6KR8A: Toshiba(1969) design max Pentode: Pc2max=1.5W Rg1max=10kΩ(fixed)/10kΩ(self) (参考 : 3極部のEp-Ip特性) (参考 : 5極部のEp-Ip特性(@Ec2=100V)) size: 22.2mmΦ x 66.67mmH, in max heater variant: 10KR8(10.5V/0.45A) same-basing(9DX) similar types : 6JT8(triode μ=100, pentode gm=20mS), 6KV8(triode μ=70, pentode gm=23mS), and 6LY8(triode μ=100, pentode gm=20mS) 0) 6KR8A GE ￥- NIB 0) 6KR8A Toshiba ￥- NIB 30+) 6KR8A Sanyo(Toshiba-made) ￥700 BulkNOS same-lot, WB
6KS6/6BN6 =GatedBeamDescriminator/Pentode= (EIA/7DF - miniature) Eh/Ih=6.3V/0.3A Epmax=330V Ec1max=+60V Ec2max=110V Ec3max=1V identical to 6BN6 1) 6KS6/6BN6 Amprx ￥700 NIB 3) 6KS6/6BN6 GE ￥600 NIB 1) 6KS6/6BN6 USA ￥600 NIB
6KT6 =semi-remote-cutoff Pentode= (EIA/9PM - noval) Eh/Ih=6.3V/0.3A Ppmax=3.1W Epmax=330V Pc3max=0.6W Ec2max=330V rp=160k gm=16mS heater variants : 3KT6(3.5V/0.6A) 4KT6(4.5V/0.45A) similar types with same base diagram : 6JC6/A 6JD6 6HM6 3) 6KT6 RCA ￥1200 NIB
6KT8 =HighMuTriode+SharpCutOffPentode= (EIA/9QP - noval) Eh/Ih=6.3V/0.6A Triode: Ppmax=1W Epmax=330V rp=31.5kΩ gm=3.2mS μ=100 Pentode: Ppmax=2.5W Epmax=330V Pc2max=0.55W Ec2max=330V gm=10mS rp=150k 4) 6KT8 RCA ￥900 NIB 2) 6KT8 GE ￥800 NIB 3) 6KT8 Syl ￥800 NIB 12) 6KT8 USA ￥800 NIB 1) 6KT8 Znth ￥600 LikeNew
6KU8 =TwinDiode+SharpCutOffPentode= (EIA/9LT - NOVAR) Eh/Ih=6.3V/0.725A Ehkmax=±200V Idiode=2mA(@10V) Pentode: Ppmax=4W Epmax=330V Ppmax=1.1W Ec2max=330V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=200V Ec2=100V Rk=82Ω Ip=17mA Ic2=3.5mA rp=50kΩ gm=20mS same-basing(9LT) similar type : 6ET7(pentode gm=11.5mS) 1) 6KU8 RCA ￥700 NIB 2) 6KU8 Syl ￥700 NIB
6KV6A
6KV8 =high-mu(70) Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.775A Ehkmax=200V Triode : Ppmax=1W Epmax=300V Rgmax=500kΩ(fixed)/1MΩ(self) rp=17.5kΩ gm=4mS μ=70 Pentode: Ppmax=5W Epmax=300V Pc2inmax=1W Ec2max=300V Rgmax=100kΩ(fixed)/250kΩ(self) rp=75kΩ gm=23mS heater variant : 11KV8(10.9V/0.45A) same-basing(9DX) similar types : 6JT8(triode μ=100, pentode gm=20mS), 6KR8(triode μ=46, pentode gm=20mS), and 6LY8(triode μ=100, pentode gm=20mS) 1) 6KV8 Mullard ￥2400 NOS Miniwatt箱
6KY6 =sharp cutoff Pentode= (EIA/9GK - noval) Eh/Ih=6.3V/0.52A Ehkmax=±200V Ppmax=9W Epmax=330V Pc2max=1W(Ec2<165V) Ec2max=330V Rg1max=100kΩ(fixed)/250kΩ(self) op : Ep=200V Ec2=135V Rk=47Ω Ip=30mA Ic2=5.2mA rp=40kΩ gm=30mS heater variant : 7KY6(7.3V/0.45A), also see 9KX6/7KY6(double-named, 8.7V/0.45A) 1) 6KY6 USA ￥1000 NIB
6KY8/A =Triode Pentode= (EIA/9QT - NOVAR) Eh/Ih=6.3V/1.1A Ehkmax=±200V Triode : Ppmax=1.5W Epmax=330V Rgmax=2.2MΩ rp=40kΩ gm=1.6mS μ=64 Pentode: Ppmax=12W Epmax=300V Pc2inmax=1.9W Ec2max=150V rp=18kΩ gm=8.4mS Rgmax=2.2MΩ(self) heater variant : 15KY8/A(15V/0.45A) same basing(9QT) similar type : 6LR8(triode: gm=3.6mS, pentode : Ppmax=14W, gm=9.3mS) 2) 6KY8A USA ￥1000 NIB
6KZ8 =Triode Pentode= (EIA/9FZ - noval) Eh/Ih=6.3V/0.45A (P) Ppmax=2.5W Epmax=330V Pc2max=0.6W Ec2max=330V gm=7.5mS rp=200kΩ (T) Ppmax=2.5W Epmax=330V μ=46 gm=8.5mS rp=5.4kΩ heater variant : 5KZ8(4.7V/0.6A) also see a same base(9FZ) higher-μ triode type : 6CM8(P:gm=6.2mS, T:gm=2.0mS, μ=100) 7) 6KZ8 RCA ￥700 NIB 1) 6KZ8 RCA ￥700 NIB - mint 1) 6KZ8 RCA ￥700 NOS 9) 6KZ8 USA ￥600 NIB 1) 6KZ8 RCA ￥400 used 1) 6KZ8 RCA ￥400 used
標記 この頁の各行は、基本的に下記のように記述されております｡ 在庫数) TYPE 製造メーカ 単価 new/used状態 その他状況 メーカ略号 Amprx(Amperex), Cunnghm(Cunningham), Dmnt(Dumont), GE(General Electric), Hyt(Hytron), Krad(KenRad), L&K(Lewis and Kaufman), Mag(Magnavox), NU(National Union), Ray(Raytheon), STD(Standard), Syl(Sylvania), TFK(Telefunken), Tsol(Tung-Sol), WE(Western Electric), WH(Westinghouse), Znth(Zenith)
6L5G =medium mu Triode= (EIA/6Q - octal) Eh/Ih=6.3V/0.15A Epmax=250V op : Ep=250V Ec=-9V Ip=8mA rp=9kΩ gm=1.9mS μ=17 (参考 : Ep-Ip特性) same-basing(6Q) different-μ types : 6AE5/GT(μ=4), 6P5/G(μ=13.8), 6J5/G/GT(μ=20), 6C5/G/GT(μ=20) 20) 6L5G RCA and RCA-Victor ￥2000 NIB 1) 6L5G RCA-Victor ￥2000 NIB 1) 6L5G NU ￥1500 NIB 2) 6L5G NationalUnion ￥1500 NIB(MB) D/C=8-13, just-ragged boxes 1) 6L5G NationalUnion ￥1500 NOS lot=LN WB 1) 6L5G Philco ￥1500 NIB 1) 6L5G ?(sealedBox) ￥1500 NIB
6L6/G/GA/GB/GCEh/Ih=6.3V/0.9A ◆RCA-6L6 (metal - MT10 bulb) Ppmax=24W Epmax=375V(A1), 400V(AB1,AB2) Pc2max=3.5W Ec2max=250V(A1), 300V(AB1,AB2) Ehkmax=±180V op(A1s): Ep=250V Ec2=250V Rk=170Ω Ein=14Vpeak Ip=75mA/78mA Ic2=5.4mA/7.2mA Zl=2.5kΩ D=10% Po=6.5W op(A1s): Ep=375V Ec2=250V Ec1=-17.5V Ein=17.5Vpeak Ip=57mA/67mA Ic2=2.5m/6mA Zl=4kΩ D=11.5% Po=11.5W op(A1pp): Ep=250V Ec2=250V Ec1=-16V Ein=32Vp-p Ip=120mA/140mA Ic2=10mA/16mA Zlpp=5kΩ D=2.5% Po=14.5W op(AB1pp): Ep=400V Ec2=300V Ec1=-25V Ein=50Vp-p Ip=102/152mA Ic2=6/17mA Zlpp=6.6kΩ D=2% Po=34W op(AB2pp): Ep=400V Ec2=300V Ec1=-25V Ein=80Vpp Ip=102/230mA Ic2=6/20mA Zlpp=3.8kΩ Pin=0.35W D=-% Po=60W ◆Sylvania 6L6, 6L6G(ST16 bulb), RCA later-6L6/G, RCA-6L6GB(straight-GT - T12 bulb) Ppmax=19W Epmax=360V Pc2max=2.5W Ec2max=270V Ehk=±180V Rg1max=100kΩ(fixed),500kΩ(self) op(A1s): Ep=250V Ec2=250V Ec1=-14V Ein=14Vpeak Ip=72mA/79mA Ic2=5mA/7.3mA Zl=2.5kΩ D=10% Po=6.5W op(AB1pp): Ep=360V Ec2=270V Ec1=-22.5V Ein=45Vp-p Ip=88mA/132mA Ic2=5mA/15mA Zlpp=6.6kΩ D=2% Po=26.5W op(AB2pp): Ep=360V Ec2=270V Ec1=-22.5V Ein=72Vp-p Ip=88mA/205mA Ic2=5mA/16mA Zlpp=3.8kΩ D=2% Po=47W Triode con : Pp+Pc2max=19W Ep,Ec2max=275V Ehk=180V op(A1s-triode): Ep=250V Ec=-20V Ein=20Vpeak Ip=40mA/44mA rp=1.7kΩ gm=4.7mS μ=8 Zl=5kΩ D=5% Po=1.4W (参考 : 6L6/6L6GのEp-Ip特性(Ec2パラメータ@Ec1=0V、三結)) ◆TungSol-6L6GB(straight-GT - T11 bulb) Ppmax=22W Epmax=400V Pc2max=2.8W Ec2max=300V Ehk=200V(DC=+100Vmax) Rg1max=100kΩ(fixed),500kΩ(self) ◆Sylvania-6L6WGA(straight-GT w/ThickBase - T12 bulb) Ppmax=21W Epmax=400V Pc2max=2.75W Ec2max=300V Ehk=200V(DC=+100Vmax) ◆TungSol-6L6WGB/5932(straight-GT - T11 bulb) Ppmax=26W Epmax=400V Pc2max=3.5W Ec2max=300V Ehk=200V(DC=+100Vmax) ◆GE-6L6GC(straight-GT - T12 bulb) Ppmax=30W Epmax=500V Pc2max=5W Ec2max=450V Ehk=200V(DC=+100Vmax) Rg1max=100kΩ(fixed),500kΩ(self) op(AB1pp): Ep=450V Ec2=400V Ec1=-37V Ein=70Vp-p Ip=116mA/210mA Ic2=5.6mA/22mA Zlpp=5.6kΩ D=1.8% Po=55W Triode con : Pp+Pc2max=30W Ep,Ec2max=450V Ehk=200V(DC=+100Vmax) see a top-plate version of 6L6G : 6AL6G see KT66 1614 1622 7027/A 7581/A see 5881 5932 6098 6384, and LOKTAL 5B/255M CV391 see CV1947(European military version of 6L6G) 6L6G is also similar to EL37/CV586(Eh/Ih=6.3V/1.4A) see a similar WE type : WE-350B(Eh/Ih=6.3V/1.6A) European similar types : EL5(side-contact base), EL35(octal base) see Russian similar types: 6Π3C(6P3S), 6Π3C-E(6P3S-E) also see electrically similar and top plate types : 807 / 5933/807W, 6889, and WE-350A(Eh/Ih=6.3V/1.6A) オーディオパワ管の比較1(3結) オーディオパワ管の比較2(Beam,5極管) other high-power HiFi Beam-power tubes/ Pentodes : 6CA7, 6G-B8, 6550/A, 8417 European high-power HiFi Beam-power tubes/ Pentodes : EL34, EL60/61, EL156, F2a, F2a11, KT77, KT88 Schematic - A 6L6GC AB1pp 50W+50W Stereo Amplifier(from Sansui '60s SW-50-5(OPT)/PV-270(PT) catalogue) Schematic - A 6L6GC UL-pp KNFB 20W+20W Stereo Amplifier(using LUX OY15-5KHP OPT pair, 9A56B PT, #4605 choke) by Sadahiro Sato, "Thoroughly-investigated mania-like/enthusiastic Tube Power Amplifiers," Radio Technique Japan, pp.88-111, extra-issue on April 1987. Schematic - 6L6GC-pp Quad-II type stereo amplifier by Y. Uesugi / 上杉佳郎 metal 84) 6L6 RCA ￥3700 NIB Metal MB(hyy6G4z) 1) 6L6 RCA ￥3700 NIB Metal RB(Sn) 3) 6L6 RCA ￥3700 NIB Metal old-RB 1) 6L6 RCA ￥3700 NOS Metal WB 2) 6L6 RCA ￥3700 NIB Metal MB 1) 6L6 GE ￥3700 NIB Metal (hyt16btm) 2) 6L6/VT-115 Krad ￥3700 NIB Metal MB 0) 6L6 Ray ￥- NIB Metal 2) 6L6 CBS ￥3700 NIB Metal 4) 6L6 - ￥3700 NIB Metal 1) 6L6 RCA ￥3700 NIB Metal 5) 6L6 RCA ￥2800 used Metal gm=42,43,43,44,44/25min 錆あり 2) 6L6 RCA ￥2800 used Metal gm=43,44/25min やや錆あり 2) 6L6 RCA ￥2800 used Metal gm=40,44/25min 2) 6L6 RCA ￥2400 used Metal gm=34,37/25min 1) 6L6 CBS ￥2800 used Metal gm=5750 on Hickok 539B, 錆あり 1) 6L6 RCA ￥2800 used Metal gm=5600/3300min Ip=50mA on Hickok 539B, 1) 6L6 RCA ￥2800 used Metal gm=6000/3300min Ip=54mA on Hickok 539B, date=113 ベースIndexGuide折れ SilverLogo 1) 6L6 RCA ￥2800 used Metal gm=5900/3300min Ip=49.5mA on Hickok 539B, date=913 ベースIndexGuide折れ SilverLogo 1) 6L6 RCA ￥3000 used Metal gm=5800/3300min Ip=52mA on Hickok 539B, date=3-48 SilverLogo 1) 6L6 RCA ￥3000 used Metal gm=5750/3300min Ip=49.9mA on Hickok 539B, lot=S5E SilverLogo justRusty 1) 6L6 RCA ￥3000 used Metal gm=5700/3300min Ip=51.0mA on Hickok 539B, lot=S5E SilverLogo justRusty 1) 6L6 RCA ￥3000 used Metal gm=5500/3300min Ip=51.0mA on Hickok 539B, lot=S5E SilverLogo justRusty 1) 6L6 RCA ￥3000 used? Metal gm=5450/3300min Ip=48.0mA on Hickok 539B, date=59-43 SilverLogo VeryClean 1) 6L6 RCA ￥3000 used Metal gm=5300/3300min Ip=50mA on Hickok 539B, date=1-22 SilverLogo 1) 6L6 RCA ￥2800 used Metal gm=5340/3300min Ip=48mA on Hickok 539B, date=8-48 SilverLogo 1) 6L6 RCA ￥2800 used Metal gm=5200/3300min Ip=47mA on Hickok 539B, date=352 SilverLogo 1) 6L6 RCA ￥2600 used Metal gm=5000/3300min on Hickok 539B, 1) 6L6 RCA ￥2600 used Metal gm=4750/3300min Ip=45.0mA on Hickok 539B, lot=BX VeryClean OrangeLogo 1) 6L6 RCA ￥2600 used Metal gm=4450/3300min Ip=47.5mA on Hickok 539B, date=3-04 SilverLogo 1) 6L6 RCA ￥2600 used Metal gm=4630/3300min Ip=46.5mA on Hickok 539B, lot=S5E SilverLogo justRusty 1) VT-115/6L6 RCA ￥2800 used Metal gm=5060/3300min Ip=48.3mA on Hickok 539B, SilverLogo justRusty 1) VT-115/6L6 RCA ￥2800 used Metal gm=5250/3300min Ip=52.5mA on Hickok 539B, lot=S3E SilverLogo justRusty 0) 6L6 RCA ￥- used Metal 1) USN-CRC 6L6 RCA ￥2400 used-like-new Metal gm=6000/3600min Ik=59mA(KS-15750-L1),C-IndexBroken,justRusty,WB 1) 6L6 RCA ￥2400 used Metal gm=5200/3300min Ip=53mA on Hickok 539B, just-Rusty, WB 2) 6L6 CBS ￥2400 used Metal 1) JAN-CKR 6L6/VT-115 Krad ￥2800 used Metal 43/25min ST (as for Brimar-made 6L6G, see CV1947) 4) 6L6G Mullard ￥6900 used-lightly SmokedGlass gm/Ip = 5mS/50mA, 5.8mS/62mA, 5.3mS/51mA, 5.3mS/53mA 0) 6L6G RCA ￥- NIB gm=5600/3300min Up=49mA, 5860/3300min Ip=49mA on Hickok 539B, date=613(sD) 0) 6L6G RCA ￥- used?(mQ) 1) 6L6G RCA ￥5900 used? gm= 6200/3300min 1) 6L6G RCA ￥5900 used gm= 6480/3300min Ip=55mA(539B)Base底に部分割れ有(電気的･機械的問題無) 0) 6L6G RCA ￥- used gm= 6200/3300min Ip=50mA, 6100/3300min Ip=55mA(539B) 1) 6L6G RCA ￥6900 used? gm=6100/3300min Ip=54mA(Hickok-539B) 1) 6L6G RCA ￥6900 used? gm=5900/3300min Ip=56mA(Hickok-539B) 1) 6L6G RCA ￥5900 used gm= 5650/3300min Ip=54mA(539B) 1) 6L6G RCA ￥5900 usedLikeNew gm= 5630/3300min Ip=48.3mA (539B) SmokedGlass 1) 6L6G RCA ￥5900 used-lightly gm=5300/3300min Ip=52mA (Hickok-539B) SmokedGlass 1) 6L6G RCA ￥5800 used gm= 5250/3300min Ip=48.5mA (539B) SmokedGlass 1) 6L6G RCA ￥5000 used gm= 5950/3300min Ip=54.5mA(539B) poorGtrFlash(no-gas & stable) 1) 6L6G RCA ￥4900 used gm= 5630/3300min Ip=48mA (539B) poorGtrFlash(no-gas & stable) 1) 6L6G RCA ￥3700 used D/C=3-43(1953) gm=4750/3300min Ip=44mA (Hickok-539B) SmokedGlass 1) 6L6G RCA ￥3700 used gm=4800 1) 6L6G RCA ￥2000 used gm=3750/3125min PoorGetterFlash 1) JAN 6L6G GE ￥7500 used? gm=6100/3300min Ip=58mA(Hickok-539B) 1) 6L6G GE ￥4900 used? gm=5750/3300min 1) 6L6G Syl ￥8000 NIB gm=5250/3300min Ip=52mA(Hickok-539B) 1) 6L6G Syl ￥5900 usedLikeNew gm= 5750/3300min Ip=50mA (539B) SmokedGlass ClearTop LargeWaistGtr 1) 6L6G Syl ￥5900 usedLikeNew gm= 5740/3300min Ip=56mA (539B) SmokedGlass ClearTop LargeWaistGtr 2) 6L6G Syl ￥5900 used D/C=2-13(1952) gm=5500/3300min Ip=52mA, gm=5500/3300min Ip=50mA(539B) SmokedGlass 2) 6L6G Syl ￥5900 used D/C=N9R gm=5650/3300min Ip=51mA, gm=5125/3300min Ip=48mA(539B) SmokedGlass 1) 6L6G Syl ￥4300 used gm= 5630(GuidePin折れ/マーキング付) 2) 6L6G Krad ￥6700 NIB smoked-glass, still-sealed in original boxws 1) 6L6G Krad ￥5700 usedLikeNew gm= 5130/3300min Ip=56mA (539B) BlkGlass ClearTop LargeWaistGtr 2) VT-115A/6L6G Tsol ￥6500 NIB MB raged box gm= 5200,5700/3300min 1) 6L6G Ray ￥5900 used gm= 5700/3300min Ip=51mA(539B) 0) 6L6G NU ￥- NIB(D) 1) 6L6G NU ￥5700 used STRONG 2) 6L6G WH ￥5700 used 6500/3300min, 6400/3300min 1) 6L6G Ceco ￥5700 NOS?/used? 1) 6L6G Philco ￥5700 used 5300/3300min SmokedGlass 1) 6L6G Matsuda(=Toshiba) ￥5700 NOS WB small ST 1) 6L6GA Syl ￥4300 NIB 6400/3300min 3) 6L6GA Syl ￥4300 NOS/NIB SmokedGlass 同一ロット152 (2)Raytheon箱 (1)Sylvania箱 1) 6L6GA Syl ￥4300 NIB SmokedGlass MB 6400/3300min 2) 6L6GA Syl ￥3700 used gm=5010,5300/3300min 3) 6L6GA Syl ￥3700 used gm=5200,5000,4700/3300min Ip=48.3mA,45.7mA,45mA date=452,452,452 1) 6L6GA Syl ￥2500 used gm=37/25min(TV-7) SmokedGlass 1) 6L6GA Silvertone ￥3500 used GE箱 5600/3300min 2) 6L6GA Magnavox ￥2700 used gm=5700/3300min, 5800/3300min =>同一ロット/C9M Getterフラッシュは消えているがエミッションは強力でPlate電流も安定 1) 6L6GA Pinnacle ￥2000 used 3) 6L6GAY NU ￥4300 NIB SmokedGlass MB 1) 6L6GAY NU ￥3300 used SmokedGlass GuidePin折れ gm=7800/3300min 2) 6L6WGA/5932 Syl ￥5900 used 茶Base Twin-BlackPlates 5800/3300min, 6125/3300min DATE #246, 219 GT(6L6GB) 1) 6L6GB RCA ￥5900 used GrayPlate ClearTop BtmGtr gm=4800/3300min Ip=43mA 1) 6L6GB RCA ￥6300 used BlkPlate BtmGtr RegularClearGlassTop gm=5625/3300min Ip=48mA(539B) date=59-22 WB SilverPrintBase 1) 6L6GB RCA ￥5900 used BlkPlate BtmGtr RegularClearGlassTop gm=4800/3300min Ip=50mA(539B) WB Orange glass-print 2) 6L6GB RCA ￥5900 used BlkPlate BtmGtr RegularClearGlassTop gm=5130,5380/3300min Ip=50mA,53mA(539B) Rubbed-off-Base-print WB 1) 6L6GB GE ￥5700 NOS Tsol箱 2) 6L6GB GE ￥5000 used WB justSmallGetterFlash 5100,5500/3300min BlackPlates SideTwinGetter 2) 6L6GB Syl ￥5700 NIB BlkPlate/TopGetter 7250,7600/3300min 1) 6L6GB Philco(Sylvania-made) ￥5000 used BlkPlate TopGtr gm=5480/3300min Ip=52mA(539B) WB date=5829 YelloPrintBase 1) 6L6GB Philco(Sylvania-made) ￥5000 used BlkPlate TopGtr gm=5900/3300min Ip=58mA(539B) WB date=5843 OrangePrintBase 2) 6L6GB Syl ￥5700 NIB BlkPlate 6500/6400/3300min 1) 6L6GB WH ￥5700 NIB BlkPlate 1) 6L6GB Ray ￥5500 NIB BlkPlate Getterやや小 5450/3300min 1) 6L6GB Ray ￥5700 NIB BlkPlate BtmGtr 4700/3300min 1) 6L6GB Ray ￥5700 NIB BlkPlate Top-D-Gtr 4750/3300min Ip=51mA(539B)date=57-13 1) 6L6GB Syl ￥5000 used? BlkPlate/TopGetter 5750/3300min 1) 6L6GB Syl ￥5700 NIB GrayPlate 1) 6L6GB/GC RSD ￥3900 NIB GrayPlate 5) 6L6GB NEC ￥4300 NIB BlkPlate TopGtr w/sleeve GT(6L6WGB) 4) 6L6WGB Sylvania ￥offer NIB MB 1975 SideGtr 4) 6L6WGB Penta Lab ￥2200 NOS WHITE 1) 6L6WGB Syl ￥3700 NOS MB 黒Base Date=7426 1) 6L6WGB Syl ￥4100 NOS WB 茶Base gm=40/25min 0) 6L6WGB Phlps ECG ￥- NOS MB 黒Base 1) 6L6WGB Phlps ECG ￥3000 NOS WB 黒Base 1) 6L6WGB(5881) Tsol ￥4300 NOS MB 茶Base Date=7-62 GuidePin折 1) JAN-CTL 6L6WGB(5881) Tsol ￥3300 used 茶Base Date=5916 25/25min(TV-7B/U) GT(6L6GC) (6L6GC = nearly same as 7027/A: see 7027/A) 0) 6L6GC RCA ￥- NIB BlkPlt BtmGtr RegularClearGlassTop matched quad(Q) 0) 6L6GC RCA ￥- NIB BlkPlt SideGtr RegularClearGlassTop(Q) 1) 6L6GC RCA ￥12500 NIB BlkPlate 1) 6L6GC RCA ￥12500 NIB BlkPlate TwinSideGtr 1) 6L6GC RCA ￥12500 NIB BlkPlate BtmGtr RegularClearGlassTop +++ 1) 6L6GC RCA ￥12500 NIB BlkPlate BtmGtr RegularClearGlassTop 5750/3300min(539B) 1) 6L6GC RCA ￥12500 NIB BlkPlate BtmGtr RegularClearGlassTop 5300/3300min Ip=49mA(539B) 2) 6L6GC RCA ￥9000 used? BlkPlate BtmGtr RegularClearGlassTop 5000,5130/3300min(539B) WB 2) 6L6GC RCA ￥9000 NOS? BlkPlate BtmGtr RegularClearGlassTop 4950,5350/3300min Ip=50mA,49mA(539B) WB 1) 6L6GC RCA ￥9000 usedLikeNew BlkPlate BtmGtr RegularClearGlassTop 5800/3300min Ip=50mA(539B) WB 1) 6L6GC RCA ￥9000 usedLikeNew BlkPlate BtmGtr RegularClearGlassTop 5300/3300min Ip=50mA(539B) WB 1) 6L6GC RCA ￥9000 usedLikeNew BlkPlate BtmGtr RegularClearGlassTop 4700/3300min Ip=61mA(539B) WB 1) 6L6GC RCA ￥9000 used BlkPlate BtmGtr RegularClearGlassTop 4800/3300min Ip=48mA(539B) WB 1) 6L6GC RCA ￥9000 used BlkPlate BtmGtr RegularClearGlassTop 5300/3300min Ip=50mA(539B) WB Orange base-print 1) 6L6GC RCA ￥9000 used BlkPlate BtmGtr RegularClearGlassTop 5480/3300min Ip=51mA(539B) WB Silver base-print 1) 6L6GC RCA ￥12000 NOS BlkPlate SideGtr RegularClearGlassTop 5500/3300min(539B) 80mA/40mAmin(W19) WB 1) 6L6GC RCA ￥12000 NOS BlkPlate SideGtr RegularClearGlassTop 5870/3300min(539B) 87mA/40mAmin(W19) WB 0) 6L6GC RCA ￥- used?LikeNew BlkPlate SideGtr RegularClearGlassTop 5570/3300min(539B) 77mA/40mAmin(W19) 1-pair) 6L6GC RCA ￥16000/pair used BlkPlate SideGtr RegularClearGlassTop gm=5630,5390/3300min Ip=53mA,51mA(539B) 1本のCenterPin折 print=5% 1) 6L6GC (前:写真中央、後:写真中央) RCA ￥9000 used BlkPlate SideGtr RegularClearGlassTop gm=5480/3300min Ip=50mA(539B) RCA箱 1) 6L6GC RCA ￥9000 used BlkPlate SideGtr RoundClearGlassTop 80mA/40mAmin(Funke W19) 1) 6L6GC RCA ￥9000 used BlkPlate SideGtr RoundClearGlassTop 5500/3300min Ip=52mA(Hickok-539B) 1) 6L6GC RCA ￥9000 used BlkPlate SideGtr RoundClearGlassTop 5370/3300min Ip=52mA(Hickok-539B) 1) 6L6GC RCA ￥8500 used BlkPlate SideGtr RoundClearGlassTop 5500/3300min Ip=50mA(Hickok-539B) 1) 6L6GC RCA ￥8500 used BlkPlate SideGtr RoundClearGlassTop 5250/3300min Ip=50mA(Hickok-539B) 1) 6L6GC (前:写真左、後:写真左) RCA ￥8500 used BlkPlate SideGtr RoundClearGlassTop gm=5000/3300min Ip=52mA(Hickok-539B) GE箱 1) 6L6GC (前:写真右、後:写真右) RCA ￥8500 used BlkPlate SideGtr RoundClearGlassTop gm=4980/3300min Ip=52mA(Hickok-539B) GE箱 1) 6L6GC RCA ￥8500 used BlkPlate SideGtr RoundClearGlassTop 4800/3300min Ip=49.5mA(Hickok-539B) 1) 6L6GC RCA ￥8500 used BlkPlate SideGtr RoundClearGlassTop 4900/3300min Ip=46.1mA(Hickok-539B) 0) 6L6GC RCA ￥- NIB BlkPlt SideGtr RoundClearGlassTop(sD) 0) 6L6GC RCA ￥- NIB BlkPlate SideGtr RoundClearGlassTop 5800/3300min 0) 6L6GC RCA ￥- NIB BlkPlate SideGtr RoundClearGlassTop 5750/3300min Ip=51mA(Hickok-539B) 0) 6L6GC RCA ￥- NIB BlkPlate SideGtr RoundClearGlassTop 5300/3300min Ip=51mA(Hickok-539B) 0) 6L6GC RCA ￥- NIB BlkPlate SideGtr RoundClearGlassTop 5250/3300min Ip=53mA(Hickok-539B) 1) 6L6GC RCA ￥12000 NOS BlkPlate SideGtr RoundClearGlassTop 6250/3300min Ip=56mA(Hickok-539B)WB 1) 6L6GC Znth(RCA-made) ￥10000 NIB BlkPlate SideGtr RoundTopGlass 5000/3300min(539B) 73mA/40mAmin(W19) 0) 6L6GC RCA ￥- usedLikeNew BlkPlate SideGtr RoundClearGlassTop 5400,5500/3300min Ip=55mA,54mA(539B)(D) 1) 6L6GC RCA ￥9000 usedLikeNew BlkPlate SideGtr RoundClearGlassTop 5450/3300min 2) 6L6GC RCA ￥7900 LightlyUsed BlkPlate SideGtr RoundClearGlassTop 5250,5200/3300min Ip=51mA,59mA(539B) CenterPin折 0) 6L6GC GE ￥- NIB GrayPlate SideGtr(Sn) 2) 6L6GC GE ￥8000 NIB GrayPlate SideGtr 1) 6L6GC GE ￥8000 NIB (hyt16btm) 1) 6L6GC GE ￥5700 used新同品 6500/3300min GrayPlate SideGtr(写真右) 1) 6L6GC GE ￥5700 used 5860/3300min GrayPlate SideGtr 1) 6L6GC GE ￥5700 used 4500/3300min Ip=50mA(539B) GrayPlate TwinSideD-Gtr date=61-52 NonDiscoloration 1) 6L6GC GE ￥5700 usedLikeNew 5130/3300min Ip=56mA(539B) GrayPlate TwinSideD-Gtr date=59-52 NonDiscoloration 1) 6L6GC RCA(GE-made) ￥5700 used 5140/3300min Ip=46mA(539B) GrayPlate SideGtr 1) 6L6GC Lindal(GE-made) ￥4600 usedStrong gm=4900/3300min Ip=44.3mA GrayPlate SideGtr(539B)@@ 0) 6L6GC Syl ￥- NIB 5700/3300min TopGetter(写真左) 1) 6L6GC Syl ￥5600 NIB GrayPlate TopGtr(T) 1) 6L6GC Syl ￥5600 NIB GrayPlate Top+SideGtr 0) 6L6GC Syl ￥- NOS WB GrayPlate TopGtr(sT) 1) 6L6GC Syl ￥4300 used LongGlass GrayPlate TopGtr 5300/3300min Ip=49mA(539B) 0) 6L6GC Ray(Syl-made) ￥- NIB(T)* 0) 6L6GC Executone(Syl-made) ￥- NOS TopGetter 0) 6L6GC Philips ￥- NIB(Q) 0) 6L6GC El-Menco ￥- NIB made in Korea(sD) 1) 6L6GC Toshiba ￥4600 used-lightly HiFi, rich TwinSideGetter WB 1) 6L6GT Brimar ￥2500 NIB Foreign-made glass GrayPlate 1) 6L6GT TEN(Fujitsu) ￥2500 lightly-used BlackPlate BottomGetter WB 1) 6L6GC-STR Ruby ￥1000 used TopGtr
6L7/G =Pentagrid Mixer= (EIA/7T - octal) Eh/Ih=6.3V/0.3A Epmax=250V Ec2,4max=150V op(as amplifier) : Ep=250V Ec2,4=100V Ec1,3=-3V Ip=5.3mA Ic2,4=6.5mA rp=800kΩ gm=1.1mS see equivallent type : 1612 similar to 6A8/G/GT(different pin assignment) 1) 6L7G Cunnghm ￥1000 NIB 1) 6L7G Philco ￥1000 NIB ragged box 1) 6L7G Znth ￥1000 NIB RaggedBox 1) 6L7G Znth ￥1000 NOS Arcturus箱 1) 6L7G GM ￥500 used 1) 6L7 Syl ￥1000 NIB metal 1) 6L7 Ray ￥1000 NIB 1) 6L7 CBS-Hytron ￥800 used 790/770/410min
6L18(=CV1899) =Triode= (EIA/ - metal base) Eh/Ih=6.3V/0.3A op : Ep=250V Ip=12mA Ec=-13.3V rp=3kΩ gm=5.5mS 1) 6L18 Mazda ￥1200 used
6LB6
6LB8 =med-mu(30) Triode sharp-cutoff Pentode= (EIA/9DX - noval/9T9) Eh/Ih=6.3V/0.725A Triode : Ppmax=2W Epmax=330V rp=6kΩ gm=5mS μ=30 Pentode : Ppmax=4W Epmax=330V Pc2max=1.1W Ec2max=330V rp=50kΩ gm=20mS heater variant : 10LB8(10.2V/0.45A) see a same-basing(9DX) similar type 6LQ8(triode μ=46, pentode gm=21mS) 5) 6LB8 GE ￥1200 NIB 9T9
6LC8 =Triode Pentode= (EIA/9QY - noval) Eh/Ih=6.3V/0.6A Ehkmax=±200V Triode : Ppmax=1.1W Epmax=300V Rgmax=250kΩ(fixed)/1MΩ(self) op: Ep=200V Ec1=-2V Ip=4mA rp=17.5kΩ gm=4mS μ=70 Pentode: Ppmax=2W Epmax=300V Pc2inmax=1.1W Ec2max=300V(cutoff) Rgmax=500kΩ(fixed)/1MΩ(self) op: Ep=150V Ec2=100V Rk=180Ω Ip=4mA Ic2=2.8mA rp=100kΩ gm=4.4mS heater variant : 8LC8(8.4V/0.45A) 6) 6LC8 USA ￥800 NIB
6LE8 =common G1-G2-K Twin Pentode= (EIA/9QZ - noval) Eh/Ih=6.3V/0.76A Ppmax=2Wx2 Epmax=300V Pc2max=2W Ec2max=150V, rp=50kΩ gm=5.8mS-typ heater variant : 10LE8(10V/0.45A) 9) 6LE8 USA ￥1200 NIB
6LF6/6LV6/6MH6
6LF8 =high-mu(70) Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.6A Ehk=±200V(DCmax=+100V) Triode : Ppmax=1.1W Epmax=330V Rgmax=0.5MΩ(fixed) op: Ep=200V Ec=-2V Ip=4mA rp=17.5kΩ gm=4mS μ=70 Pentode: Ppmax=3.75W Epmax=330V Pc2max=1.1W Ec2max=330V Rg1max=0.25MΩ(fixed) op: Ep=100V Ec2=150V Ec1=-2,5V Ip=20mA Ic2=5mA rp=200kΩ gm=11mS similar to 6AW8/A, 6HF8, 6JE8, 6JV8 same-basing, electrically-similar, upper-rating 9T9 type : 6HZ8(pentode : Ppmax=8W) 25) 6LF8 RCA ￥800 NIB *** Triode + Pentode 1) 6LF8 RCA ￥800 NOS 1) 6LF8 GE ￥800 NIB 4) 6LF8 WH ￥800 NIB 1) 6LF8 Syl ￥800 NIB 5) 6LF8 Hitachi ￥800 NIB 1) 6LF8 Mitsubishi ￥800 NIB
6LH8/A 1) 6LH8A ? ￥1000 used
6LJ6/A/6LH6A =Beam Triode= (EIA/8MQ - octal) Eh/Ih=6.3V/0.2A Ppmax=40W Epmax=27kV Iomax=1.5mA(average) Ehkmax=+0V/-450V ◇ 40W beam triodes (octal): 6BK4B/C/6EL4A 6EN4 6LJ6/A/6LH6A ◇ 30W-40W beam triodes (compactron): 6EJ4/A 6HS5 6HV5/A 6HZ5 6JD5 6JH5 6JK5 1) 6LJ6 GE ￥2000 NIB Beam-Triode Octal-base 5) 6LJ6A/6LH6A RCA ￥2000 NIB 2) 6LJ6A/6LH6A RCA ￥2000 NIB 1) 6LJ6A/6LH6A RCA ￥2000 NIB RaggedBox
6LJ8 =common-cathode Triode Pentode= (EIA/9GF - noval) Eh/Ih=6.3V/0.4A Ehk=200V Triode : Ppmax=2W Epmax=280V Ikmax=20mA Rgmax=0.5MΩ(fixed) op: Ep=125V Rk=68Ω Ip=13mA rp=5kΩ gm=8mS μ=40 Pentode: Ppmax=2W Epmax=280V Pc2max=0.5W Ec2max=280V Ikmax=20mA Rg1max=0.25MΩ(fixed) op: Ep=125V Ec2=125V Rk=33Ω Ip=12mA Ic2=3.5mA rp=125kΩ gm=13mS heater variants : 4LJ8(4.3V/0.6A), 5LJ8(5.6V/0.45A) 2) 6LJ8 GE ￥600 NIB 3) 6LJ8 GE ￥600 NIB 6) 6LJ8 USA ￥600 NIB 1) 6LJ8 Silvertone ￥600 NOS Syl箱 1) 6LJ8 Admiral ￥500 used Syl箱
6LM8 =MedMuTriode + SemiRmtCutoffPentode= (EIA/9AE - noval) Eh/Ih=6.3V/0.45A Triode : Ppmax=2.5W Epmax=330V Ehk=200V Rgmax=0.5MΩ(fixed) op: Ep=125V Ec=-1V Ip=13.5mA rp=5.4kΩ gm=8.5mS μ=46 Pentode: Ppmax=2.5W Epmax=330V Pc2max=0.55W Ec2max=330V Ehk=200V Rg1max=0.25MΩ(fixed) op: Ep=125V Ec2=125V Ec1=-2V Ip=12mA Ic2=4mA rp=150kΩ gm=6mS see same basing similar types : 6AX8 6EA8 6GH8/A 6U8/6U8A / 6678 also see a longer-life improved version of 6U8: 6R-HR4/LD-611 1) 6LM8 GE ￥700 NIB 1) 6LM8 GE ￥700 NIB 1) 6LM8 Ray ￥700 NIB 1) 6LM8A Syl ￥700 NIB 1) 6LM8/A USA ￥600 NIB
6LN8/LCF80 =MedMuTriode + SharpCutoffPentode= (EIA/9AE - noval) Eh/Ih=6V/0.45A Ehk=200V Triode : Ppmax=1.5W Epmax=250V Rgmax=0.5MΩ(fixed) op: Ep=100V Ec2=-2V Ip=14mA rp=4kΩ gm=5mS μ=20 Pentode: Ppmax=1.7W Epmax=250V Pc2max=0.5W Ec2max=250V Rg1max=0.25MΩ(fixed) op: Ep=170V Ec2=170V Ec1=-2V Ip=10mA Ic2=2.8mA rp=400kΩ gm=6.2mS μg2g1=47 see equivallent types with same base diagram : 6BL8 / 7643 / E80CF 1) 6LN8/LCF80 RCA ￥800 NOS 5) 6LN8/LCF80 RCA ￥800 NIB - mint 4) 6LN8 GE ￥700 NOS WB Bulk 1) 6LN8 Triad ￥700 NOS 1) 6LN8 Syl ￥600 NOS GE箱 2) 6LN8 USA ￥600 NOS 2) 6LN8/LCF80 USA ￥400 used
6LQ6/6JE6C/6MJ6
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6LQ8 =med-mu(46) Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.775A Triode : Ppmax=2W Epmax=300V Ehk=200V Rgmax=0.5MΩ(fixed) rp=4.4kΩ gm=10.4mS μ=46 Pentode: Ppmax=5W Epmax=300V Pc2max=1W Ec2max=300V Ehk=200V Rg1max=0.1MΩ(fixed) gm=21mS rp=55kΩ (参考 : 三極管部のEpIp特性(EpIp for triode section)) heater variant : 11LQ8(10.9V/0.45A) same-basing(9DX) similar type 6LB8(triode μ=30, pentode gm=20mS) 2) 6LQ8 RCA ￥800 NIB 5) 6LQ8 RCA ￥800 NIB 1) 6LQ8 RCA ￥600 used?
6LR6
6LR8 =Triode PowerPentode= (EIA/9QT - NOVAR -T12) Eh/Ih=6.3V/1.5A Ehk=200V Triode : Ppmax=2.5W Epmax=400V Ikmax=30mA/105mApeak Rgmax=2.2MΩ(self) op : Ep=250V Ec=-4V Ip=2.3mA rp=16kΩ gm=3.6mS μ=58 Pentode: Ppmax=14W Epmax=400V Pc2max=2.75W Ec2max=300V Ikmax=75mA/260mApeak Rg1max=1MΩ(fixed) op : Ep=135V Ec2=120V Ec1=-10V rp=12kΩ gm=9.3mS op(triode-connection) : Ep=120V Ec=-10V μ=6.5 heater variants : 21LR8(21V/0.45A), 31LR8(31.5V/0.3A) (同一電気的規格のcompactronベースタイプが,6LU8, 21LU8(Eh/Ih=21V/0.45A)) same basing(9QT) similar type : 6KY8A(triode: gm=1.6mS, pentode : Ppmax=12W, gm=8.4mS) 3) 6LR8 RCA ￥1400 NIB 3) 6LR8 RCA ￥1500 NIB Triode-Pentode Novar 1) 6LR8 GE ￥1500 NIB 1) 6LR8 Syl ￥1500 NIB 1) 6LR8 WH(GE-made) ￥1500 NIB 1) 6LR8 Znth ￥1500 NIB
6LT8 =Duplex Diode + sharp-cutoff Pentode= (EIA/9RL - noval) Eh/Ih=6.3V/0.6A(11sec) Ehkmax=±200V(DC=+100Vmax) Rg1max=1MΩ(self) pentode(design max.) : Ppmax=3.1W Epmax=330V Pc2max=0.65W(Ec2<165V) op : Ep=125V Ec2=125V Rk=56Ω Ip=10mA Ic2=3.4mA rp=200kΩ gm=13mS heater variant : 8LT8(8.1V/0.45A) 1) 6LT8 RCA ￥800 NIB 8) 6LT8 USA ￥600 NIB 1) 6LT8 USA ￥400 used
6LU8 =Triode PowerPentode= (EIA/12DZ - compactron -T12) Eh/Ih=6.3V/1.5A Ehk=200V Triode : Ppmax=2.5W Epmax=400V Ikmax=30mA/105mApeak Rgmax=2.2MΩ(self) op : Ep=250V Ec=-4V Ip=2.3mA rp=16kΩ gm=3.6mS μ=58 Pentode: Ppmax=14W Epmax=400V Pc2max=2.75W Ec2max=300V Ikmax=75mA/260mApeak Rg1max=1MΩ(fixed) op : Ep=135V Ec2=120V Ec1=-10V rp=12kΩ gm=9.3mS op(triode-connection) : Ep=120V Ec=-10V μ=6.5 参考:五極部を三結時のEp-Ip特性例(Triode Connection of BeamPower section : SAMPLE data) heater variants : 16LU8(16V/0.6A), 21LU8(21V/0.45A) (同一電気的規格のNOVARベースタイプが,6LR8, 21LR8(Eh/Ih=21V/0.45A)) same basing(12DZ) similar type : 6MF8(pentode : Ppmax=12W, gm=4.1mS) 3) 6LU8 RCA ￥1500 NIB(nQn) 12) 6LU8 GE ￥1500 NIB SideGtr 3) 6LU8 GE ￥1500 NIB SideGtr (1)GlassChipInsideEnvelope (1)TallGlass 1) 6LU8 RCA(GE-made) ￥1500 NIB SideGtr 1) 6LU8 RCA(Syl-made) ￥1500 NIB TopGtr 1) 6LU8 GE ￥- NIB(Qn) 20) 6LU8 Syl ￥1500 NIB SideGtr w/5-pack sleeves 0) 6LU8 Syl ￥- NIB 2) 6LU8 Syl ￥1500 NIB SideGtr 1) 6LU8 Syl ￥1500 NIB SideGtr GE箱 0) 6LU8 ElMenco(Syl-made) ￥- NIB TopGtr(sD) 2) 6LU8 SylECG ￥1500 NIB 1) 6LU8 ECG ￥1500 NIB 1) 6LU8 WH ￥1500 NIB 4) 6LU8 Znth ￥1500 NIB 2) 6LU8 Ray ￥1500 NIB 1) 6LU8 Admrl ￥800 NOS? 1) 6LU8 Admrl ￥600 used GE箱 1) 6LU8 PackardBell ￥600 used STRONG RCA箱
6LW6
6LX6
6LX8(=LCF802) =Triode Pentode= (EIA/9DC - noval) Eh/Ih=6V/0.45A Ehk=200V Triode : Ppmax=1.4W Epmax=250V Rgmax=3MΩ(fixed) gm=3.5mS μ=70 rp=20kΩ Pentode: Ppmax=1.2W Epmax=250V Pc2max=0.2W Ec2max=250VV Rg1max=0.56MΩ(fixed) gm=5.5mS rp=400kΩ heater variants : 5JW8(4.7V/0.6A), 6JW8(6.3V/0.43A), ECF802(6.3V/0.43A), PCF802/9JW8(9V/0.3A) 1) 6LX8/LCF802 RCA ￥1000 NIB 1) 6LX8/LCF802 Syl ￥1000 NIB 1) 6LX8 Panasonic ￥1000 NIB
6LY8 =high-mu(100) Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.75A Triode : Ppmax=1W Epmax=330V Ehk=200V Rgmax=0.5MΩ(fixed) gm=1.7mS μ=100 rp=59kΩ Pentode: Ppmax=3W Epmax=330V Pc2max=1.1W Ec2max=330V Ehk=200V Rg1max=0.5MΩ(fixed) gm=20mS rp=60kΩ similar to : 6JT8(triode μ=100, pentode gm=20mS) similar to : 6KV8(triode μ=70, pentode gm=23mS), 6KR8(triode μ=46, pentode gm=20mS) 2) 6LY8 RCA ￥700 NIB 1) 6LY8 Syl ￥600 NIB 4) 6LY8 WH etc USA ￥600 NIB 2) 6LY8 USA ￥400 used
6M5 Power Pentode= (EIA/9N - noval) Eh/Ih=6.3V/0.71A Ehkmax=100V Ppmax=9W Epmax=300V/550V-cutoff Pc2max=3.3W Ec2max=300V/550V-cutoff Ikmax=55mA Rg1max=1MΩ op(A1s) : Ep=250V Ec2=250V Rk=170Ω Ip=36mA Ic2=5.2mA rp=40kΩ gm=10mS Zl=7kΩ D=10% Po=4.8W op(AB1pp) : Ep=250V Ec2=250V Rk=85Ω Ip=72/79mA Ic2=10.4/16mA Zpp=7kΩ D=4.6% Po=9.4W op(Triode Con. A1s) : Ep=250V Rk=250Ω Ip=33mA Zl=3.5kΩ D=8% Po=1.55W pins : 1(G2)-2(G1)-3(K,G3)-4(H)-5(H)-6(IC)-7(P)-8(IC)-9(IC) 0) 6M5 Philips ￥2000 NIB 2) 6M5 Philips ￥2000 NIB 1) 6M5 Mullard ￥2000 NIB very-ragged box
6M6G Power Pentode= (EIA/7S - octal, ST-14) Eh/Ih=6.3V/1.2A op : Ep=250V Ec2=250V Ec1=-6V Ip=36mA Ic2=4mA rp=50kΩ gm=9.5mS Zl=7kΩ D=10% Po=4.4W 6M6G≒EL33(Eh/Ih=6.3V/0.9A) electrically similar types (different base/heater) : AL4, APP4B/C, EL3N 4) 6M6G Visseaux ￥2900 NIB smoked-glass RaggedBoxes
6M11 =TwinTriode(μ=58,58) + sharp-cutoff Pentode= (EIA/12CA - compactron) Eh/Ih=6.3V/0.77A Ehkmax=±200V(DCmax=+100V) Triode: Ppmax= 2.25W Epmax=330V Rgmax=680kΩ(self) op : Ep=125V Rk=120Ω Ip=8mA μ=58 gm=8mS rp=10kΩ, Ec_cutoff=-4.5V(for Ip=50μA) Pentode: Ppmax= 3.1W Epmax=330V Pc2max=0.65W Ec2max=330V Rgmax=1MΩ(self) op : Ep=125V Ec2=125V Rk=56Ω gm=13mS rp=200kΩ, Ec1_cutoff=-3.5V(for Ip=20μA) pins : 1(H)-2(G1p)-3(G2p)-4(2Kt)-5(2Gt)-6(2Pt)-7(1Pt)-8(1Gt)-9(1Kt)-10(Kp,G3p,IS)-11(Pp)-12(H) size : 30.2mmΦ x 47.6mmH, in max 4) 6M11 RCA ￥1500 NIB 1) 6M11 RCA ￥1500 NIB RaggedBox 1) 6M11 GE ￥1200 NIB 2) 6M11 Syl ￥1200 NIB 2) 6M11 Dmnt ￥1100 NOS 2) 6M11 ECG ￥1100 NIB 3) 6M11 IEC Mullard ￥1500 NOS
6MA6 =MedMuBeamTriode= (EIA/8NP - octal) Ppmax=W Epmax=V μ= gm=mS rp=k Eh/Ih=6.3V/0.2A 1) 6MA6 Dumont ￥2500 NIB
6MB8 =Triode Pentode= (EIA/9FA-noval) Eh/Ih=6.3V/0.4A pentode : Ppmax=2W Epmax=280V Pc2max=0.5W Ec2max=280V op : Ep=125V Ec2=125V Rk=33Ω Ip=10mA Ic2=2.8mA rp=125kΩ gm=12mS triode : Ppmax=2W Epmax=280V op : Ep=125V Rk=68Ω Ip=13mA rp=5kΩ gm=8mS μ=40 heater variant : 5MB8(5.6V/0.45A) 1) 6MB8 Syl ￥1200 NOS GE箱
6MD8 =common-cathode med-mu triple Triode= (EIA/9RQ - NOVAR) Eh/Ih=6.3V/0.9A Ehkmax=±200V(+100Vdcmax) (design max) Ppmax=3W Epmax=330V Ecmax=+0V Rgmax=1MΩ(fixed) op : Ep=250V Ec=-10.5V Ip= 11.5mA rp=5.5kΩ gm=3.1mS μ=17 EpIp特性 heater variant : 12MD8(12.6V/0.45A) common-cathode triple triode 9RQ-NOVAR type : 6MD8(3Wx3, μ=17, 17, 17) common-cathode triple triode 12HG-compactron type : 6MJ8(3Wx3, μ=17, 17, 17) common-cathode triple triode 12HU-compactron type : 6MN8(3Wx3, μ=40, 40, 40) common-cathode triple triode 9RQ-noval type : 6ML8(2Wx3, μ=43, 43, 43) separated-cathode compactron(12FE) triple Triode : 6AC10(μ=62, 62, 62), 6AK10(μ=53, 53, 53) separated-cathode compactron(12BY) triple Triode : 6AV11(μ=17, 17, 17), 6D10(μ=57, 57, 57) separated-cathode compactron(12BQ) triple Triode : 6C10(μ=100, 100, 100) 1) 6MD8 Syl ￥1700 NIB 1) 6MD8 WH(GE-made) ￥1700 NIB 1) 6MD8 Lindal(GE-made) ￥1700 NIB 1) 6MD8 PackardBell ￥1000 used
6M-E5 / 6E5-M =Electron ray Indicator= (EIA/T6D - )6M-E5(6E5-M) = 7-pin miniature version of 6E5 Eh/Ih=6.3V/0.15A Ehk=-V Epmax=-Vsupply Etarget=-Vmin/-Vmax op : Ep,target=180Vsupply Rp-series=1MΩ Ip=mA Itarget=mA Ec=-8V(shadow_angle=0°)/0V(shadow_angle=90°) see similar types(magic-eye) : 6E5, 6G5/G, 6U5, 1629 also see a transformer-less radio version: 6M-E10 0) 6M-E5 Toshiba ￥- NIB 1) 6E5-M Matsushita ￥3000 NIB 1) 6M-E5 Matsushita ￥2800 like-new WB 2) 6M-E5 Matsushita/National ￥2800 NOS WB 5) 6M-E5 Toyo ￥2800 like-new Top & Bottom view WB 1) 6E5-M(= 6M-E5) Toyo ￥2800 like-new WB
6ME6
6ME8 =Double Plate sheet Beam Tube= (EIA/9RU - noval) GE developed sheet beam tube Eh/Ih=6.3V/0.3A Ppmax=2W/unit Epmax=400V Paccell(Pc3)=2Wmax Eaccell(Ec3)=400Vmax Ed1max=±200Vpeak Ed2max=±200Vpeak Ikmax=30mA Rg1max=100kΩ(fixed)/250kΩ(self) op : Ep=250V Ereflector=75V Ec3=350V Ec2=Ek=0V Ec1=-16V Ip=7.25mAx2 Ic3=0.7mA Rk=390Ω gm=4.4mS (External magnetic shield should be prepared for good current-balance of two plate electrodes.) different-basing electrically-similar type : 6JH8(Sylvania-developed), 6AR8(TungSol-developed) also see basic sheet-beam/beam-deflection tube : 7360(RCA-developed) 3) 6ME8 USA ￥1500 NIB =TwoPlatesBeamDeflectionTube= (EIA/9RU)
6M-E10 =Electron ray Indicator= (EIA/T6D - )6M-E10 = transformer-less radio version Magic-Eye of 6M-E5 Eh/Ih=6.3V/0.15A(11sec) Ehk=-V Epmax=-Vsupply Etarget=-Vmin/-Vmax op : Ep,target=100Vsupply Rp-series=1MΩ Ip=mA Itarget=mA Ec=-6.5V(shadow_angle=0°)/0V(shadow_angle=90°) also see other magic-eye types : 6E5, 6G5/G, 6U5, 1629 0) 6M-E10 Toshiba ￥- NIB 2) 6M-E10 Toyo ￥2800 NOS WB 1) 6M-E10 Toyo ￥2800 like new WB
6MF8 =HighMuTriode+BeamPowerPentode= (EIA/12DZ - compactron) Eh/Ih=6.3V/1.4A Ehkmax=±200V triode : Ppmax=2.5W Epmax=400V Ikmax=30mA/105mApeak Rgmax=2.2MΩ(self) op : Ep=250V Ec=-4V Ip=2.6mA rp=14kΩ gm=4.1mS μ=58 pentode : Ppmax=12W Epmax=400V/2500Vpeak Pc2max=2.75W Ikmax=75mA/260mApeak Rg1max=2.2MΩ(self) op : Ep=250V Ec2=250V Ec1=-20V Ip=50mA Ic2=3.5mA rp=5kΩ gm=4.1mS heater variant : 15MF8(14.7V/0.6A) same basing(12DZ) similar type : 6LU8(pentode : Ppmax=14W, gm=9.3mS) 1) 6MF8 RCA ￥1000 NIB 2) 6MF8 Syl ￥1000 NIB
6MG8 =MedMuTriode+SharpCutoffPentode= (EIA/9DC - noval) Ehkmax=±200V(DC100V) Eh/Ih=6.3V/0.45A Triode : Ppmax=2.5W Epmax=330V Ikmax=14mA Rgmax=500kΩ rp=5kΩ gm=5mS μ=40typ Pentode : Ppmax=2W Epmax=330V Pc2max=0.5W Ec2max=300V Ikmax=14mA Rg1max=500kΩ(fixed)/1MΩ(self) rp=400kΩ gm=6.2mS-typ 1) 6MG8 GE ￥600 NIB
6M-H1/6MH1 =HF Triode= (EIA/7BQ - miniature) *6MH1 = long-life / stabler version of 6J4 Eh/Ih=6.3V/0.4A Ehkmax=±100V (absolute-max) Ppmax=2.5W Epmax=165V Ikmax=20mA op : Ep=150V Rk=100Ω Ip=14.5mA rp=3.5kΩ gm=13mS μ=46 (参考 : Ep-Ip特性) similar to 6J4, 8532/W also see a different pinout high-mu UHF miniature triode : 8334/W(Ppmax=4.4W Epmax=330V rp=5kΩ gm=10.75mS μ=55) 2) 6M-H1 NEC ￥1600 NIB 1968s 背面写真 2) 6M-H1 TEN ￥1600 NIB 2) 6M-H1 NEC ￥1000 lightly-used D/C=1958-9, 1959-10, WB 1) 6M-H1 Hitachi ￥1000 lightly-used WB
6MH6 = 6LF6
6MH8 1) 6MH8 Mag ￥900 NOS RCA箱
6M-HH3/6MHH3 =common-cathode VHF Twin Triode= (EIA/7BF - miniature)Eh/Ih=6.3V/0.45A Ehkmax=±90V Ppmax=1.5W Epmax=200V Rg1max=500kΩ op : Ep=100V Ec=-1V Ip=11mA gm=7.5mS μ=38 (参考 : Ep-Ip特性) heater variants : 5M-HH3(4.75V/0.45A), 9M-HH3(9V/0.3A) also see same-base common-cathode triodes : E90CC / 5920, E92CC 6J6/ECC91 5844 5964 6045 6101 0) 6M-HH3 Toshiba ￥- NIB 1) 6M-HH3 Ray(Toshiba-made) ￥1200 NIB 9) 6M-HH3 Toshiba ￥1000 NIB cellophane-sealed 7) 6M-HH3 Toshiba ￥1000 NIB
6MJ6
6MJ8 =common-cathode triple Triode= (EIA/12HG - compactron) Eh/Ih=6.3V/0.9A Ehkmax=±200V(+100Vdcmax) (design max) Ppmax=3W Epmax=330V Ecmax=+0V Rgmax=1MΩ(fixed) op : Ep=250V Ec=-10.5V Ip=10mA rp=5.6kΩ gm=3.0mS μ=17 (参考 : Ep-Ip特性) common-cathode triple triode 9RQ-NOVAR type : 6MD8(3Wx3, μ=17, 17, 17) common-cathode triple triode 12HG-compactron type : 6MJ8(3Wx3, μ=17, 17, 17) common-cathode triple triode 12HU-compactron type : 6MN8(3Wx3, μ=40, 40, 40) common-cathode triple triode 9RQ-noval type : 6ML8(2Wx3, μ=43, 43, 43) separated-cathode compactron(12FE) triple Triode : 6AC10(μ=62, 62, 62), 6AK10(μ=53, 53, 53) separated-cathode compactron(12BY) triple Triode : 6AV11(μ=17, 17, 17), 6D10(μ=57, 57, 57) separated-cathode compactron(12BQ) triple Triode : 6C10(μ=100, 100, 100) 1) 6MJ8 RCA ￥2000 NIB 1) 6MJ8 GE ￥2000 NIB 1) 6MJ8 Syl ￥2000 NIB
6MK8/A =cathode-G1G2-common Twin Pentode= (EIA/9FG - noval) Ppmax=1.1Wx2 Epmax=300V Pc2max=0.75W Ec2max=150V Ikmax=12mA Eh/Ih=6.3V/0.3A, gm=1.1mS-typ 1) 6MK8 RCA ￥1000 NIB 2) 6MK8A RCA ￥1000 NIB 1) 6MK8A Syl ￥1000 NIB 2) 6MK8 Ray ￥1000 NIB 6) 6MK8A Ray ￥1000 NIB 1) 6MK8A SylECG ￥1000 NIB 1) 6MK8 Lindal ￥1000 NIB 1) 6MK8 LTT ￥1000 NIB
6M-L4/6ML4 =UHF Triode= (EIA/7DK - miniature)Eh/Ih=6.3V/0.175A op : Ep=80V Rk=150Ω Ip=17.5mA rp=2.1kΩ gm=6.5mS μ=13.5 6ML4(Japan) = 6AF4/A(Eh/Ih=6.3V/0.225A) also see same basing similar types : 6T4(μ=13), 6DZ4(μ=14), EC93(μ=15) 0) 6M-L4 NEC ￥1000 NIB 0) 6M-L4 NEC ￥400 used
6ML8 =common-cathode triple Triode= (EIA/9RQ - noval) Eh/Ih=6.3V/0.675A Triode: Ppmax=2Wx3(5W in parallel) Epmax=330V op : Ep=125V Ec=-1V Ip=10mA rp=6.4kΩ gm=6.7mS μ=43 common-cathode triple triode 9RQ-NOVAR type : 6MD8(3Wx3, μ=17, 17, 17) common-cathode triple triode 12HG-compactron type : 6MJ8(3Wx3, μ=17, 17, 17) common-cathode triple triode 12HU-compactron type : 6MN8(3Wx3, μ=40, 40, 40) common-cathode triple triode 9RQ-noval type : 6ML8(2Wx3 μ=43, 43, 43) 2) 6ML8 Syl ￥1200 NIB 1) 6ML8 Philco ￥700 used
6MN8 =common-cathode triple Triode= (EIA/12HU - compactron)Eh/Ih=6.3V/0.9A Ehkmax=±200V(+100Vdcmax) (design max) Ppmax=3W Epmax=330V Ecmax=+0V Rgmax=1MΩ(fixed) op : Ep=125V Ec=-1V Ip=11mA rp=6.25kΩ gm=7.5mS μ=47 op : Ep=200V Ec=-4V Ip=4.8mA rp=10kΩ gm=4mS μ=40 (参考 : Ep-Ip特性) heater variant : 9MN8(9.5V/0.6A) common-cathode triple triode 9RQ-NOVAR type : 6MD8(3Wx3, μ=17, 17, 17) common-cathode triple triode 12HG-compactron type : 6MJ8(3Wx3, μ=17, 17, 17) common-cathode triple triode 12HU-compactron type : 6MN8(3Wx3, μ=40, 40, 40) common-cathode triple triode 9RQ-noval type : 6ML8(2Wx3, μ=43, 43, 43) separated-cathode compactron(12FE) triple Triode : 6AC10(μ=62, 62, 62), 6AK10(μ=53, 53, 53) separated-cathode compactron(12BY) triple Triode : 6AV11(μ=17, 17, 17), 6D10(μ=57, 57, 57) separated-cathode compactron(12BQ) triple Triode : 6C10(μ=100, 100, 100) 4) 6MN8 RCA ￥1200 NIB 9) 6MN8 RCA ￥1200 NIB smeared-silk, very-ragged boxes 1) 6MN8 Znth(RCA-made) ￥1200 NIB smeared-silk, very-ragged box 2) 6MN8 GE ￥1200 NIB 3) 6MN8 GE ￥1200 NIB 1) 6MN8 Syl ￥1200 NIB 2) 6MN8 Ray(Syl-made) ￥1000 NIB lot=L08, smeared silk 6) 6MN8 Ray(Syl-made) ￥1200 NIB 2) 6MN8 Ray(Syl-made) ￥1000 NIB smeared silk 2) 6MN8 Ray(Syl-made) ￥1000 NIB smeared silk 1) 6MN8 Admrl ￥1200 NIB
6MP17/6M-P17 =Power Pentode= (EIA/6CC - miniature)Eh/Ih=6.3V/0.5A Ehkmax=±200V(DC=+100Vmax) Ppmax=8.5W Epmax=250V Pc2max=2.5W Ec2=250V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=250V Ec1=-8V Ec2=250V Ip=32mA Ic2=5.5mA rp=90kΩ gm=5.2mS Zl=7.6kΩ Po=3.4W D=8% see same basing types : 6AR5, 6M-P18 3) 6M-P17 Ray(made in Japan) ￥1500 NIB justDirtyBox 5) 6M-P17 Ray(made in Japan) ￥1500 NIB justDirtyBox
6MP18/6M-P18 =Power Pentode= (EIA/7BZ, 6CC - miniature)Eh/Ih=6.3V/0.73A Ehkmax=+100V/-150V Ppmax=7.5W Epmax=250V Pc2max=2W Ec2max=200V Rg1max=500kΩ(fixed)/1MΩ(self) Ep=250V Ec1=-5V Ec2=180V Ip=35mA Ic2=5.5mA rp=24kΩ gm=11mS Zl=5kΩ Po=3.2W heater variant : 7M-P18(7.5V/0.6A) see same basing types : 6AR5, 6M-P17 10) 6M-P18 Ray(made in Japan) ￥1500 NIB justDirtyBox 5) 6M-P18 Ray(made in Japan) ￥1500 NIB justDirtyBox 1) 6M-P18 Toshibai ￥1500 NIB
6M-P20/6MP20 =Power Pentode= (EIA/6CC - miniature)
6MQ8 =Triode Pentode= (EIA/9AE - noval) Eh/Ih=6.3V/0.535A Ehkmax=±200V Pentode: Ppmax=2.5W Epmax=330V Pc2max=0.55W Ec2max=330V Rg1max=250kΩ(fixed)/500kΩ(self) op: Ep=125V Ec2=125V Rk=62Ω Ip=12mA Ic2=4.5mA rp=150kΩ gm=10mS Triode : Ppmax=2.7W Epmax=330V Rgmax=500kΩ op: Ep=150V Rk=56Ω Ip=18mA rp=5kΩ gm=8.5mS μ=40 1) 6MQ8 GE ￥800 NOS RCA箱
6MV8 =high-mu(100) Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=6.3V/0.6A Triode : Ppmax=1W Epmax=330V Rgmax=500kΩ(fixed)/1MΩ(self) op: Ep=250V Ec=-2V Ip=2.5mA rp=25kΩ gm=4mS μ=100 Pentode: Ppmax=2.5W Epmax=330V Pc2inmax=0.55W Ec2max=330V Rg1max=250kΩ(fixed)/1MΩ(self) op: Ep=125V Ec2=125V Ec=-1V Ip=13mA Ic2=4mA rp=150kΩ gm=9mS 1) 6MV8 Syl ￥1200 NIB
6N1P/6N1Pi : see 6H1Π(Soviet/Russian)
6N2P/6N2Pi : see 6H2Π(Soviet/Russian)
6N4 =Medium mu Triode= (EIA/7CA - miniature) 2) 6N4 BeiJing/北京 ￥1500 NOS WB
6N5 =Indicator= (EIA/ - ) Ep-supply=180Vmax Etarget=180max/100min Eh/Ih=6.3V/0.15A op : Ep=135V Rseries(triode-plate)=250kΩ Itarget=2mA Ip,triode=0.5mA Ec=-10V(shardow-angle=0°)/0V(90°) see 6AB5 1) 6N5 RCA ￥3500 NIB VeryRaggedBox +++
6N6G =Direct-Coupled Power Triode= (EIA/7AU,7W=7Wa=7Wb - octal, ST-14) electrically identical to 6B5 Eh/Ih=6.3V/0.8A Ppmax=13.5W//2.5W Epmax=325V Ip2max=51mA Rg1max=500kΩ op(A1S) : Ep=300V Ip1=8mA Ip2=45mA Ec=0V rp=24kΩ gm=2.4mS μ=58 Zl=7kΩ Po=4.0W D=5% op(A1S) : Ep=325V Ip1=9mA Ip2max=51mA Ec=0V rp=24kΩ gm=2.4mS μ=58 Zl=7kΩ Po=5.2W D=5% op(A1pp) : Ep=300V Ip1=8mAx2 Ip2max=45mAx2 Ec=0V Zlpp=10kΩ Po=10W D=5% op(A1pp) : Ep=325V Ip1=9mAx2 Ip2max=51mAx2 Ec=0V Zlpp=10kΩ Po=13.5W D=5% (参考 : 6B5/6N6G/25B5のEpIp特性) 1) 6N6G RCA ￥5000 NIB clear-glass, very-ragged box 1) 6N6G RCA-Victor ￥5000 NIB black-glass, very-ragged box 2) 6N6G Marconi(RCA-made) ￥6000 NIB (Marconi-boxed Crosley-branded RCA-made tube) 0) 6N6G Syl ￥- NIB(D) 2) 6N6G Syl ￥5000 NIB ExtremelyRaggedBox 5) 6N6G Syl ￥5000 NIB RaggedBox $$$** 1) 6N6G Syl ￥5000 NIB 1) 6N6G KenRad ￥5000 NIB clear-glass, very-ragged box 0) 6N6G KenRad ￥- NIB clear-glass(透明ガラス) (sD) 1) 6N6G NU ￥5000 NIB smoked-glass, very-ragged box 1) 6N6G Hytron ￥5000 NIB 1) 6N6G Silvertone ￥5000 NIB black-Glass 1) 6N6-MG Triad ￥4500 used MG(metal-glass) type, gm=1480/900min, Ik=17mA at Eg=0V on KS-15750-L1, WB rare 1) 6N6G RCA ￥3700 usedLikeNew 1440/950min BlkGlass 0) 6N6G GE ￥- used(D) 1) 6N6G Crosley(KenRad-made) ￥3500 used 1380/950min BlkGlass 0) 6N6G Syl ￥- used(sD)
6N6P/6N6Pi : see 6H6Π(Soviet/Russian)
6N7 =common-cathode med-mu TwinPowerTriode= (EIA/8B - octal) Eh/Ih=6.3V/0.8A Ppmax=5.5W Epmax=300V Ipmax=125mApeak op(parallel-triode) : Ep=250V Ec=-3V Ip=6mA rp=11.3kΩ gm=3.1mS μ=35 op(B2pp) : Ep=300V Ec=0V Ip=2x17.5/2x35mA Icmax=22mA/grid ecmax=41Vpeak Zlpp=8kΩ D=8% Po=10W for Zb-supply=1kΩ, and Zg=516Ω op(B2pp) : Ep=300V Ec=0V Ip=2x17.5/2x35mA Icmax=20mA/grid ecmax=29Vpeak Zlpp=8kΩ D=4% Po=10W for Zb-supply=0Ω, and Zg=0Ω (ideal B+supply and driving condition) (参考 : class AB2 - EpIp特性) (参考 : class A - EpIp特性) electrically identical or similar to 6A6, 5608A(μ=32, Eh/Ih=2.5V/2A), also 53(μ=35, Eh/Ih=2.5V/2A). also similar to ECC31(voltage amplifier, Eh/Ih=6.3V/0.95A) see other common-cathode twin power triode for class-Bpp with same-base(8B) : 1635 also see lower-μ Top-plates & UT-base Tx-types : 33A/138A, RK34 (Ppmax=5Wx2, μ=14) 2) 6N7G Tsol ￥3900 NIB Glass RaggedBox(D) 1) 6N7G RCA ￥1700 NIB Glass RaggedBox getter片が管内に散っている(動作支障無) 2) 6N7 RCA ￥1700 NIB MB metal(zSn) 1) 6N7 RCA ￥1700 NIB MB metal date=2-1952 1) 6N7 RCA ￥1700 NIB MB metal date=4-43 1) 6N7 RCA ￥1700 NIB RB metal SvLg 1-pair) JAN-CRC 6N7/VT-96 RCA ￥3300/pair NIB D/C=H2E(1944.3), H5E(1944.9) gm=1400/1420, 1390/1350, 950min VeryRaggedBox 1-pair) JAN-CRC 6N7/VT-96 RCA ￥3300/pair NIB D/C=1-48 gm=1450/1450, 1390/1400, 950min VeryRaggedBox 0) 6N7/VT96 RCA ￥- NOS(Q) 1) 6N7 RCA ￥1500 NIB metal(T) 2) 6N7 RCA/Cunningham ￥1500 NIB VeryRaggedBox 1) 6N7 GE ￥1100 NIB metal 1) 6N7 StronbergCarlson(GE-made) ￥1100 NOS metal RCA箱 @@ 4) 6N7 Znth ￥1400 NIB metal 1) 6N7 Ray ￥1400 NIB metal 1) 6N7 Marconi ￥1400 NIB metal 6) 6N7GT RCA ￥1800 NIB RB SmokedGlass 8) JAN-CRC 6N7GT RCA ￥1800 NIB MB ClearGlass GrayPlate BtmGtr date=5-57 1) 6N7GT RCA-Victor ￥1200 LikeNew KenRad-boxed 1) 6N7GT/G GE ￥1500 NIB BlakPlates BtmGtr VeryRaggedBox 2) 6N7GT National ￥1200 NIB Glass 1) 6N7GT Philco ￥1500 like-new SmokedGlass D/C=52-26 WB 1) JAN-CRC-6N7GT RCA ￥1500 used 1600/1500/950min SmokedGlass 1) JAN-CRC-6N7GT/G /VT-96 RCA ￥1000 used 1100/1050/950min SmokedGlass 1) 6N7 Cunningham ￥1000 used metal 1) 6N7 RCA-Victor ￥900 used 1) 6N7GT/G RCA ￥1000 used? 1) JAN-CKR 6N7 Krad ￥1000 used gm=1490/1410/950min metal *$$$* 1) 6N7 Krad ￥1000 used metal CBS-boxed 1) 6N7 WARD/Super-Airline ￥1000 used gm=1360/1400/950min EM=110%/100% metal
6N9S : see 6H9C(Soviet/Russian)
6N30P/6N30Pi : see 6H30Π(Soviet/Russian)(6H30Π-EB, 60H30Π-ДP)
6N-H10/6NH10 =High mu Triode= (EIA/-) * Nuvistor * Eh/Ih=6.3V/0.135A op : Ep=100V Ec=-2.3V Ip=0.8mA rp=44kΩ gm=2.7mS μ=100typ for low-noise audio pre-amplifiers see similar type 6CW4(μ=65typ) 1) 6N-H10 Hitachi ￥1900 NIB Nuvistor 2) 6N-H10 Hitachi ￥1400 NOS/NIB Nuvistor 3) 6N-H10 Hitachi ￥400 used Nuvistor
Delay-Relay Tubes (Amperite) Features : ･Hermetically sealed | ･3A rating (RESISTIVE) | ･1-115VAC/DC control | ･Fixed delay times | ･Long Life (50,000cycles @25-deg centigrade) ･Two delay types (type "NO"= Delay on Make / type "C" = Delay on Break) | ･Contact material = Silver-Cadmium Oxide | ･Two outer/base shape (8pin-Octal & 9-pin-noval) | ･Timing Torelance = +-20% | ･Repeatability = 5% | ･Isolation between contacts = 250Vrms(for 1sec-10sec delay type) / 800Vrms(for 15-300sec delay type) ･Isolation between contact and coil =500Vrms ･Five-heater types : 6V-AC/DC (4V-8V allowable) 12V-AC/DC (10V-14V allowable) 26V-AC/DC (22V-30V allowable) 50V-AC/DC (42V-58V allowable) 115V-AC/DC (90V-130V allowable) ･Common Base connections (8pin-octal): 1(NC)-2(H)-3(H)-4(NC)-5(contact I)-6(NC)-7(contact II)-8(NC) ･Common Base connections (9pin-noval): 1(H)-2(NC)-3(contact I)-4(contact I)-5(NC)-6(H)-7(NC)-8(contact II)-9(contact II) ･Easy Identification (definition) ex) "115NO60T" = 115(heater) NO(Delay on Make) 60(60-sec delay) T(noval="T", octal=no-code)
6NO15 =DelayRelay= octal 6V/2W driver 1) 6NO15 Amperite ￥3,000 NIB ragged box : normally-open, 15sec delay
6NO30 =DelayRelay= octal 6V-heater / 3A-Delay on Make similar to RGA-30(NEC) 1) 6NO30 Amperite ￥3000 NIB オクタルBase 遅延リレー管 1) 6NO30 Amperite ￥3000 NIB オクタルBase 遅延リレー管
6NO30T =DelayRelay= noval(MT-9pin) 1) 6NO30T Amperite ￥3000 NIB noval 遅延リレー管 *
6NO45T =DelayRelay= noval(MT-9pin) 3) 6NO45T Amperite ￥3000 NIB noval 遅延リレー管 *
6NO60 =DelayRelay= octal similar to RGA-60(NEC) 1) 6NO60 Amperite ￥3000 NIB octal 遅延リレー管 内部サポータにサビあり
6NO90T =DelayRelay= noval(MT-9pin) 1) 6NO90T Amperite ￥3000 NIB noval 遅延リレー管
6NO120 =DelayRelay= octal 6V/2W driver similar to RGA-120(NEC) 1) 6NO120 Amperite ￥3000 NIB ragged box : normally-open, 120sec delay
6P3P =power pentode= (EIA/ - octal) Eh/Ih=6.3V/0.9A Ehkmax=±200V Ppmax=20.5W Epmax=400V Pc2max=2.75W Ec2max=330V Ikmax=-mA op : Ep=250V Ec2=250V Ec1=-14V Ip=72mA Ic2=8mA gm=6mS pins: 1(NONE)-2(H)-3(P)-4(G2)-5(G1)-6(NONE)-7(H)-8(K) 2) 6P3P/J 桂光(China) ￥1000 NOS WB
6Π3C / 6P3S =power pentode= (EIA/ - octal) Eh/Ih=6.3V(5V-7.3V)/0.9±0.09A Ehkmax=±100V Life≧1000H Ppmax=20W Epmax=375V Pc2max=2.75W Ec2max=300V Ikmax=-mA Rg1max=500kΩ op : Ep=250V Ec2=250V Ec1=-14V Ip=72mA Ic2=9mA gm=6mS 参考:Ep-Ip特性(@Ec2-parameter and @Ec2=250V) pins: 1(NONE)-2(H)-3(P)-4(G2)-5(G1)-6(NONE)-7(H)-8(K) similar to 6L6, 6L6G, 6L6GT 0) 6Π3C(6P3S) Sovtec ￥- NOS WB
6Π3C-E / 6P3S-E / 6Pi3S-E =power pentode= (EIA/ - octal) Eh/Ih=6.3V±0.3V/0.88±0.04A Ehkmax=+90V/-200V Life≧5000H Ppmax=20.5W Epmax(for long-life)=250V Pc2max=2W Ec2max(for long-life)=250V Ikmax=90mA Rg1max=150kΩ op : Ep=250V Ec2=250V Ec1=-14V Ip=73mA Ic2=6mA gm=6mS 参考:Ep-Ip特性(@Ec2-parameter and @Ec2=250V) pins: 1(NONE)-2(H)-3(P)-4(G2)-5(G1)-6(NONE)-7(H)-8(K) (note : "6n3C-E", "6N3C-E", "6N3CE" = clerical error) similar to 6L6, 6L6G, 6L6GT 0) 6Π3C-E(6P3S-E) Reflector ￥2700 NOS WB 4) 6Π3C-E(6P3S-E) Reflector ￥1500 used D/C=8711,8711,8712,8712 WB 0) 6Π3C-E(6P3S-E) Reflector ￥- used 0) 6Π3C-E(6P3S-E) Reflector ￥- used
6P5G/6P5GT =Triode= (EIA/6Q - octal, ST12 & T9) Ppmax=1.25W Ep=250V Eh/Ih=6.3V/0.3A op(A1) : Ep=100V Ec=-5V Ip=2.5mA rp=12kΩ gm=1.15mS μ=13.8 op(A1) : Ep=250V Ec=-13.5V Ip=5.0mA rp=9.5kΩ gm=1.45mS μ=13.8 6P5G is electrically identical to 56 and 76 except heater spec and/or base/pin assignment, which is also similar to 6J5G/GT with same pin-assignment, higer Ppmax and mu/gm. 6P5G/GTの平均プレート特性 same-basing(6Q) different-μ triodes : 6AE5/GT(μ=4), 6L5G(μ=18), 6J5/G/GT(μ=20), 6C5/G/GT(μ=20) 3) 6P5G KenRad ￥offer BulkNOS sameLot 1) 6P5G KenRad ￥offer used WB 3) 6P5G Ward- ￥offer used veryStrong 3) 6P5G SuperSilvertone ￥offer used veryStrong
6P7G =Triode Pentode= (EIA/7U - ST12) Triode : Epmax=100V μ=8 rp=16kΩ gm=500μmho Eh/Ih=6.3V/0.3A Pentode : Epmax=250V Ec2max=100V μ=900 rp=850kΩ gm=1100μmho electrically identical to 6F7 0) 6P7G RCA ￥- used
6Π14Π(6π14π)/6P14P(6Pi14Pi) =power pentode= (EIA/9CV' - noval) Eh/Ih=6.3V/0.76A Rg1max=300kΩ(fixed)/1MΩ(self) Ppmax=14W Epmax=400V(Pp<=8W)/300V(Pp>=8W) Pc2max=2.2W Ec2max=300V Ikmax=65mA op : Ep=250V Ec2=250V Rk=120Ω Ip=48mA Ic2=5mA rp=30kΩ gm=11.3mS guaranteed life : 3000-hours pins : 1(NC)-2(G1)-3(K,G3)-4(H)-5(H)-6(NC)-7(P)-8(NC)-9(G2) (参考 : Ep-Ip特性(@Ec2=250V)) similar to 6BQ5, 7189/7189A (be aware that #1-pin is "Internally-Connected" to G1 for 6BQ5(9CV), but "No-Connection" for 6P14P. also #6 and #8 socket-pins shouldn't used for any wiring in order to keep 6BQ5(9CV)/7189(9BL,9CV,9LE) compatibility.) also see electrically similar types : E84L, 7320 just different pinout electrically similar type : 6R-P15 different pinout electrically similar type : 6GK6 25) 6Π14Π/6P14P Reflector(Russia) ￥1000 NOS WB 0) 6Π14Π/6P14P Reflector ￥300 used WB
6Π31C/6P31S =BeamPower= (EIA/6AM - octal-TopPlate) Eh/Ih=6.3V/1.3A Ehkmax=±200V Tbulb=220℃ ServiceLife=1600H-guaranteed Ppmax=10W Epmax=300V/550Vcutoff/7kVpulse Pc2max=4W Ec2max=250V/550Vcutoff Ikmax=200mA/600mApulse Pg1max=0.2W Ec1max=-200V (triode connection) Ppmax=13W op : Ep=100V Ec2=100V Ec1=-9V Ip=80mA Ic2=9mA rp=4kΩ gm=12.5mS pins: 1(None)-2(H)-3(None)-4(G2)-5(G1)-6(None)-7(H)-8(K)-Top(P) 2) 6Π31C(6P31S) Svetlana ￥700 lightly-used D/C=IX-75, WB
6Π41C/6P41S =BeamPower= (EIA/9RW - MAGNOVAL) Eh/Ih=6.3V/1.1A Ehkmax=±200V(+100Vdcmax) Tbulb=220℃ Ppmax=14W Epmax=400V Pc2max=3W Ec2max=350V Ikmax=100mA op : Ep=190V Ec2=190V Rk=300Ω Ip=66mA Ic2=2.7mA rp=12kΩ gm=8.4mS pins: 1(G2)-2(G1)-3(K,G3)-4(H)-5(H)-6(G1)-7(G2)-8(None)-9(P) similar to 7868(NORVAR-pins) 1) 6Π41C(6P41S) Novosibirsk ￥700 lightly-used D/C=9005, WB
6Q4/EC80 =radiation-cooled UHF Triode= (EIA/9S - noval) Ppmax=4W Ep=550V Ip=15mA μ=30 gm=12mS Fmax=500MHz Eh/Ih=6.3V/0.45A see identical type : EC80 0) 6Q4/EC80 Amperex ￥3300 NIB
6Q5/G =Gas Triode= SweepCircuit OSC: Epmax=300V Ipmax=1mA(peak300mA) 1Hz-50kHz 6.3V/0.6A 1) 6Q5G Corvair ￥２４００ NIB
6Q7/GT =Double Diode High mu Triode= (EIA/7V - octal, top-grid) Eh/Ih=6.3V/0.3A Ppmax=2.5W Epmax=300V op: Ep=250V Ec=-3V Ip=1.0mA rp=58kΩ gm=1.2mS μ=70 same basing different-μ types : 6V7G(μ=8.3), 6R7G(μ=16), 6T7G(μ=65), 6B6G(μ=100) also see a European type : CV587 Triode section of 6Q7/G/GT is similar to 6K5G/GT(triode = same pinout). 1) 6Q7 RCA ￥1000 NOS NU箱 1) 6Q7 CBS ￥1000 NIB 1) 6Q7 GE ￥1000 NIB 3) 6Q7GT Tsol ￥1000 NIB 0) 6Q7 Brimar ￥- NIB glass 1) 6Q7 GE(RCA) ￥500 used glass 0) 6Q7G Philco ￥900 used 970/500min diode=125/124/54min 0) 6Q7G Tsol ￥500 used
6Q11 = see 6K11
6R3(=EY81) =Halfwave Rectifier= (EIA/9CB - noval, top-cathode) Eh/Ih=6.3V/0.81A Ehkmax=-600V-average PIV=5000V Idc=150mA/450mA-peak heater variant : 17Z3/PY81(17V/0.3A) * 9CB-base 'Top-Cathode' noval(9-pin MT) halfwave rectifiers with similar rating: 6AF3 6AL3 6BR3 6R3 6R-K19 EY81 EY88 16AQ3 30AE3 1) 6R3 (EY81) Syl ￥1800 NIB
6R4/EC81 =radiation-cooled UHF Triode= (EIA/9R - noval) Eh/Ih=6.3V/0.24A Ppmax=5W Ep=300V Ip=27.7mA μ=16 gm=5.5mS Fmax=1.2GHz see European type : EC81 0) 6R4/EC81 Amperex ￥2600 NIB
6R7/G =Double Diode Medium mu Triode= (EIA/7V - octal top-G) Eh/Ih=6.3V/0.3A Ppmax=2.5W Epmax=250V triode : Ep=250V Ec=-9V Ip=9.5mA rp=8.5kΩ gm=1900μmho μ=16 (参考 : Ep-Ip特性(triode)) also see electrically similar types except basing, heater-spec, shape : 6SR7 6BF6(miniature) same basing different-μ types : 6V7G(μ=8.3), 6T7G(μ=65), 6Q7/G(μ=70), 6B6G(μ=100) 0) 6R7 RCA used metal WB 1) 6R7G RCA ￥1100 NIB ST-12 25) 6R7G RCA ￥1100 NIB MB ST-12
6R8 =Triple Diode Medium mu Triode= (EIA/9E - noval) Eh/Ih=6.3V/0.45A Ehkmax=90V Ppmax=2.5W Ep=250V μ=16 gm=1900μmho rp=8.5kΩ Rgmax=1MΩ Idiode-max=5mA 0) 6R8 Tsol ￥- NIB
6R-A2/6RA2 =PowerTriode=(EIA/ - noval) Eh/Ih=6.3V/0.76A Ekhmax=300V Ppmax=15W Epmax=200V Ikmax=120mA Ecmin=-100V gm=8.5mS rp=440Ω μ=3.3 op 1 AB1pp (fixed-bias) : Ep=200V Ec=-55V Zlpp=0.87kΩ Ipo=120mA Ipmax=260mA Po=15W op 2 AB1pp (self-bias) : Ep=200V Rk=200Ω Zlpp=0.8kΩ Ipo=180mA Ipmax=206mA Po=8W op 3 SEPP OTL : Ep=400V Ec=-55V Zl=216Ω Ipo=60mA Ipmax=130mA Po=15W op 4 SEPP OTL : Ep=300V Ec=-35V Zl=100Ω Ipo=76mA Ipmax=142mA Po=5.8W op 5 parallel-SEPP OTL : Ep=300V Ec=-45V Zl=16Ω Ipo=60mA Ipmax=294mA Po=6.2W (4-tubes) pin: 1(IC)-2(K)-3(G)-4(H)-5(H)-6(G)-7-(IC)-8(IC)-9(P) (参考 : Ep-Ip特性) similar to 6C19Π-B(6S19P-V), 6R-A3, 7233. A2293/CV4079 also see another noval-shape low-μ power triode : 6877(μ=3.75) (参考 : circuit diagram of Mactone XMA-50(6R-A2-parallel-SEPP stereo amplifier w/ matching transformers)) 1-pair) 6R-A2 HiFi-pair NEC ￥5700 NIB 0) 6R-A2 NEC ￥- NIB 2) 6R-A2 NEC ￥2800 LikeNew lot=25,46 4) 6R-A2 NEC ￥2800 LikeNew lot=33,33,33,33 (hyy24fTr) 16) 6R-A2 NEC ￥2500 lightly-used (hyyAAxss) 4) 6R-A2 Mitsubishi(NEC-made) ￥2500 used-lightly lot=2Y 4) 6R-A2 NEC ￥2500 used-lightly, WB 1) 6R-A2 NEC ￥2000 used
6R-A3/6RA3Eh/Ih=6.3V/1A Ehk=±300V Rgmax=100kΩ(fixed)/500kΩ(self) Tbulb=200℃max absolute max: Ppmax=15W Epmax=250V Ecmax=0V Ikmax=125mA op : Ep=100V Ec=-20V Ip=100mA gm=12.5mS rp=0.24k μ=3 op A1S : Ep=100V Ec=-20V Ipo=100mA Ipmax=148mA Zl=250Ω D=11% Po=2.64W op A1S : Ep=130V Ec=-30V Ipo=88mA Ipmax=128mA Zl=600Ω D=11% Po=3.9W op AB1pp : Ep=130V Ec=-31V Ipo=2x80mA Ipmax=2x130mA Zlpp=1kΩ D=2% Po=8.7W op SEPP : Eb=200V Ec=-20V Ipo=100mA Ipmax=129mA Zl=200Ω D=3.1% Po=5W op SEPP : Eb=260V Ec=-31V Ipo=80mA Ipmax=130mA Zl=200Ω D=4.4% Po=10W op SEPP : Eb=300V Ec=-41V Ipo=55mA Ipmax=131mA Zl=200Ω D=6.4% Po=14.4W op SEPP : Eb=400V Ec=-57V Ipo=65mA Ipmax=128mA Zl=400Ω D=5% Po=21W op SEPP : Eb=450V Ec=-66V Ipo=52mA Ipmax=124mA Zl=400Ω D=6.6% Po=27W pin: 1(P)-2(NC)-3(P)-4(NC)-5(H)-6(H)-7(NC)-8(G)-9(K) -注意:ヒーターが#5,#6ピンで一般的なnoval球とは異なる- size : 22.2mmΦ x 78mmH, in max (参考 : Ep-Ip特性) similar to 6C19Π-B(6S19P-V), 6RA2, 7233. A2293/CV4079 also see another noval-shape low-μ power triode : 6877(μ=3.75) 2-pairs) 6R-A3-HiFi Toshiba ￥offer NIB original HiFi-pairs 5) 6R-A3-HiS Toshiba ￥offer NIB 3) 6R-A3-HiS Toshiba ￥3900 NIB 4) 6R-A3-HiS Toshiba ￥3900 NIB 16) 6R-A3-HiS Toshiba ￥3900 NIB (hyy1g2pg) 1) 6R-A3-HiS Toshiba ￥3900 NIB 5) 6R-A3 NEC ￥3900 NIB date=1963.9 yellow-boxed 1) 6R-A3 NEC ￥3900 NOS Toshiba-boxed 3) 6R-A3 NEC ￥2300 lightly-used 2x2holes 3) 6R-A3 NEC ￥2300 lightly-used 2x2holes, silver-silk, D/C=1961-5, 1961-5, 1961-7 WB 1) 6R-A3 NEC ￥2300 lightly-used 2x2holes, silver-silk, WB 1) 6R-A3 NEC ￥2300 lightly-used 2x2holes 3-mica 1) 6R-A3 NEC ￥2300 lightly-used 通信用 lot=M7 2x2holes, silver silk WB 1) 6R-A3 NEC ￥2300 lightly-used D/C=1961.2, 3-mica 2x5holes 1) 6R-A3 NEC ￥2300 lightly-used 2x5holes, silver-silk, WB 1) 6R-A3 NEC ￥1800 used 2x5holes 5) 6R-A3 NEC ￥2300 lightly-used, 2x5holes, LargeSilverSilk, WB 1) 6R-A3 NEC ￥2300 lightly-used 2x5holes, LargeSilverSilk, WB 3) 6R-A3 NEC ￥2300 lightly-used, 2x5holes, yellow-silk, WB 1) 6R-A3 NEC ￥2300 lightly-used 2x5holes 2) 6R-A3 NEC ￥2300 lightly-used 通測用 lot=R2,R2 2x5holes. silver-silk 1) 6R-A3 Toshiba ￥2000 lightly-used 2x5holes, WB 9) 6R-A3 Toshiba ￥1800 lightly-used 2x5holes, WB 1) 6R-A3 Toshiba ￥1800 lightly-used 2x5holes, WB 10) 6R-A3 Toshiba ￥1800 used 2x5holes, WB 5) 6R-A3 Toshiba ￥1500 used 2x2holes 3) 6R-A3 Toshiba ￥1500 used 2x5holes 1) 6R-A3 Toshiba ￥1500 lightly-used 2x5holes, WB 5) 6R-A3 Toshiba ￥1500 used 2x5holes, WB 1) 6R-A3 Toshiba ￥1500 used 2x5holes, WB 3) 6R-A3 Toshiba ￥1200 used 2x5holes, WB 1) 6R-A3 Toshiba ￥1200 used 通測用 lot=9I02 2x5holes, light-brown silk, WB 1) 6R-A3 Toshiba ￥1500 lightly-used WB (6rgstwst) 1) 6R-A3 NEC ￥900 used just-weak 2x5holes, WB
6R-A5/6RA5 =PowerTriode= (EIA/T6B - noval) Eh/Ih=6.3V/1A Ehk=±300V Rgmax=100kΩ(fixed)/500kΩ(self) Tbulb=200℃max absolute max : Ppmax=15W Epmax=250V Ecmax=0V Ikmax=125mA op : Ep=100V Ec=-20V Ip=80mA gm=11.5mS rp=290Ω μ=3.3 pin: 1(P)-2(NC)-3(P)-4(NC)-5(H)-6(H)-7(NC)-8(G)-9(K) -注意:ヒーターが#5,#6ピンで一般的なnoval球とは異なる- size : 22.2mmΦ x 78mmH, in max just higher mu / higher rp type of 6RA3 1) 6R-A5 NEC ￥2300 lightly-used 2x2holes, D/C=1960.6, 3-mica 1) 6R-A5 NEC ￥2300 lightly-used 2x2holes, D/C=1962.1, 3-mica WB 1) 6R-A5 NEC ￥2300 lightly-used 2x5holes, lot=O7 通信用 WB 2) 6R-A5 NEC ￥2300 lightly-used 2x2holes, D/C=1960-7, 1960-12 WB 背面側/BACK6R-A5
6R-A6/6RA6 =PowerTriode= (EIA/T7C - noval)Eh/Ih=6.3V/0.9A Ehkmax=±200V(DCmax=+100V) *design max : Ppmax=10W Epmax=550V/1500Vpeak(abs.max) Ikmax=40mA/140mApeak Rgmax=2.2MΩ(self) op : Ep=250V Ec=-12V Ip=26mA rp=1.75kΩ gm=8.5mS μ=15 pin: 1(K)-2(G)-3(NC)-4(H)-5(H)-6(IC)-7(G)-8(NC)-9(P) (参考 : Ep-Ip特性) heater variant : 9R-A6(9.5V/0.6A) similar to 6R-A9 see electrically-similar differen-basing type : 6S4/6S4A(Ppmax=8.5W, Epmax=550V, μ=16.5) just-higher-mu different-basing type : 12A4(Ppmax=6.5W, Epmax=450V, μ=20) higher-mu, different-basing type : 7719(Ppmax=6W, Epmax=330V, μ=25, for computer) low-mu different-basing type : 12B4A(Ppmax=5.5W, Epmax=550V, μ=6.5) 0) 6R-A6 Ray(made in Japan) ￥- NIB justDirtyBox(rhxa) 3) 6R-A6 Ray(made in Japan) ￥2400 NIB RaggedBox(rhxa) 10) 6R-A6 Ray(made in Japan) ￥2400 NIB justDirtyBox 3) 6R-A6 Toshiba ￥2200 NIB cellophane-sealed 3) 6R-A6 Toshiba ￥2200 NIB very-ragged boxes 2) 6R-A6 Toshiba ￥1000 used gm/Ip=9.5mS/27mA, 9mS/25mA(@Ec=-5V on KS-15750L1)
6R-A8/6RA8Eh/Ih=6.3V/1A Ehk=100V Ppmax=15W Epmax=350V Ikmax=120mA Ehk=100V(ac+dc) Rgmax=100kΩ op 1 A1S: Ep=250V Ec=-19V Zl=2.5kΩ Ipo=55mA Ipmax=61mA rp=900Ω gm=10.5 μ=9.7 Po=3.5W D=5% op 2 A1S: Ep=270V Rk=350Ω Zl=2.5kΩ Ipo=54mA Ipmax=62mA Po=3.5W D=6% op 3 AB1pp: Ep=250V Rk=170Ω Zl=5kΩ Ipo=105mA Ipmax=120mA Po=10.5W D=3% op 4 AB1pp: Ep=300V Ec=-25,5V Zl=5kΩ Ipo=80mA Ipmax=144mA Po=17.5W D=2.5% pin: 1(IC)-2(K)-3(G)-4(H)-5(H)-6(G)-7(IC)-8(IC)-9(P) (参考 : Ep-Ip特性) Schematic - 6R-A8 AB1pp 回路例(LUX Japan - model KMQ8, Jan.1967) Schematic - 6R-A8 AB1pp 回路例(from Sansui '60s SW15-4 OPT catalogue) Schematic - 6R-A8 AB2pp 差動初段+カソードフォロワ+KNF回路例 写真/image Teflon端子板配線の様子 0) 6R-A8 Luxman(NEC) ￥- LightlyUsed ribbed GrayPlate (vQ) 0) 6R-A8 NEC ￥- LightlyUsed ribbed GrayPlate 1) 6R-A8 NEC ￥offer like-new/lightly-used ribbed GrayPlate, WB (6rgstwst) 1) 6R-A8 NEC ￥offer lightly-used very-ragged OriginalBox 4) 6R-A8 NEC ￥offer used ribbed GrayPlate gm/Ip=6.5mS/23mA, 7.0mS/24mA, 7.25mS/27mA and 7.0mS/28mA, respectively, @Ec=-11V on a Hickok-539B tester. (Silk has been rubbed off completely, but "6R-A8" mark etched on lower side on each glass.) 4) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB, one of 4 has just faded getter 4) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB 4) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB 4) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB 4) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB 4) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB 3) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB gm/Ip=7.75mS/30mA, 7.75mS/37mA, 8.05mS/35mA @Ec=-10V on a Hickok-539B tester. 4) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB gm/Ip=7.95mS/33.5mA, 8.1mS/33mA, 8.05mS/31.8mA, 7.6mS/29mA @Ec=-10V on a Hickok-539B tester. 2) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB gm/Ip=7.45mS/28.5mA, 7.5mS/30mA @Ec=-10V on a Hickok-539B tester. 2) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB 2) 6R-A8 NEC ￥offer used lot=389 ribbed GrayPlate, WB 4) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB 4) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB 4) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB 2wdn4 3) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB 148_231 4) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB 22A04s 1) 6R-A8 NEC ￥offer used ribbed GrayPlate, WB 22N04t
6R-A9/6RA9 =PowerTriode= (EIA/T8A - noval)Eh/Ih=6.3V/0.6A Ehk=±200V Ppmax=10W Epmax=600V Ikmax=50mAdc/150mApeak Rgmax=2.2MΩ op : Ep=250V Ec=-10.5V Ip=22mA rp=2.5kΩ gm=6.7mS μ=16.5 pins : 1(K)-2(G)-3(NC)-4(H)-5(H)-6(IC)-7(G)-8(NC)-9(P) (参考 : Ep-Ip特性) similar to 6R-A6 see electrically-similar differen-basing type : 6S4/6S4A(Ppmax=8.5W, Epmax=550V, μ=16.5) just-higher-mu different-basing type : 12A4(Ppmax=6.5W, Epmax=450V, μ=20) higher-mu, different-basing type : 7719(μ=25, for computer) low-mu different-basing type : 12B4A(Ppmax=5.5W, Epmax=550V, μ=6.5) 1) 6R-A9 Toshiba ￥offer NIB LargeOriginalBox 4) 6R-A9 Toshiba ￥offer NIB 1) 6R-A9 Toshiba ￥offer NIB 0) 6R-A9 Ray(made in Japan) ￥- NIB justDirtyBox(Qn) 6) 6R-A9 Toshiba ￥offer used tested WB gm= 6.0mS, 6.1mS, 6.125mS, 6.4mS, 6.5mS, 7.05mS, respectively (@Ec=-5V on Hickok-539B) 4) 6R-A9 Toshiba ￥offer used 2) 6R-A9 Toshiba ￥offer used
6R-B10/6RB10 =BeamPower= (EIA/9CK* - noval) Eh/Ih=6.3V/1A Ehkmax=100V Pentode-connection : Ppmax=14W Epmax=350V Pc2max=5W Ec2max=350V op 1(A1S) : Ep=250V Ec2=250V Ec1=-9V Ip=56/70mA Ic2=3.8/13mA gm=10.2mS μg2g1=14 Zl=2.4kΩ D=10% Po=7W op 2(AB1pp) : Ep=300V Ec2=300V Rk=130Ω Ip=93/118mA Ic2=6.5/20mA Zlp-p=4.1kΩ D=3% Po=22W op 3(AB1pp) : Ep=350V Ec2=330V Ec1=-17V Ip=79/170mA Ic2=5.5/28mA Zlp-p=4.3kΩ D=2% Po=37.5W Triode connection : Ppmax=15W Epmax=350V op 1 AB1pp : Ep=300V Ec=-16.0V Ip=64/102mA Zl=3.45kΩ D=2% Po=8.3W op 2 AB1pp : Ep=350V Ec=-18.5V Ip=76/124mA Zl=3.3kΩ D=2% Po=12W pin: 1(G2)-2(NC)-3(G1)-4(H)-5(H)-6(G1)-7(K,G3)-8(IC)-9(P) (* pin #8 must be not used.) (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data)) also see a lower-rating type : 6RB11 (pin#8 must be unused) *comparison / high power noval(9pin-MT) pentodes w/ AB1pp : 6CW5 (Po=25.0W D=1.0% Zlpp=3.0kΩ w/ Ep=250V Ec2=200V Ec1=-18.5V Ip=91/180mA Ic2=4.0/23mA) 6CZ5 (Po=21.5W D=1.0% Zlpp=7.5kΩ w/ Ep=350V Ec2=280V Ec1=-23.5V Ip=46/103mA Ic2=3.0/13mA) 6R-B10 (Po=37.5W D=2.0% Zlpp=4.3kΩ w/ Ep=350V Ec2=330V Ec1=-17.0V Ip=79/170mA Ic2=5.5/28mA) 6973 (Po=24.0W D=2.0% Zlpp=8.0kΩ w/ Ep=400V Ec2=290V Ec1=-25.0V Ip=50/107mA Ic2=2.5/13.7mA) 7189A (Po=24.0W D=4.0% Zlpp=8.0kΩ w/ Ep=400V Ec2=300V Ec1=-15.0V Ip=15/105mA Ic2=1.6/25mA) high power 9T9-shape(9pin-MT base) pentode w/ AB1pp : 6GM5 (Po=45.0W D=1.5% Zlpp=6.6kΩ w/ Ep=450V Ec2=400V Ec1=-21.0V Ip=66/144mA Ic2=9.4/30mA) high power noval(9-pin-MT) triode w/ SEPP(single-ended push-pull) : 6R-A3 (Po=27.0W D=6.6% Zl=0.4kΩ w/ Eb=450V Ec=-66.0V Ip=52/124mA) 0) 6R-B10 NEC ￥- NIB 0) 6R-B10 NEC ￥- NIB ribbed GrayPlate, very-ragged green boxes 8) 6R-B10 NEC ￥3900 NIB ribbed GrayPlate, 赤箱 (hyyAsx) 1) 6R-B10 NEC ￥3900 NIB ribbed GrayPlate, just-raggeb box 0) 6R-B10 NEC ￥- NOS WB 0) 6R-B10 NEC ￥- used
6R-B11/6RB11 =BeamPower= (EIA/9CK - noval)(reference : Toshiba 1969 Electron tube Handbook : 東芝電子管ハンドブック'69総合版 受信管･TV用ブラウン管) Eh/Ih=6.3V/0.8A Ehkmax=±200V(DC=+100Vmax) Tbulb=250℃max *vert.deflection (design center) : Ppmax=10W Epmax=315V/2.2kVpeak(abs-max) Pc2max=2W Ec2max=285V Ikmax=60mA/210mApeak Ec1-max=-250Vpeak Ehkmax=±200Vpeak Rg1max=2.2MΩ(fixed) *class A1 audio (design center) : Ppmax=12W Epmax=315V Pc2max=2W Ec2max=285V Ec1-max=-250Vpeak Ehkmax=±200Vpeak(DC=+100Vmax) Rg1max=0.5MΩ(fixed)/1MΩ(self) op : Ep=200V Ec2=200V Ec1=-12.5V Ip=45mA Ic2=2.5mA rp=40kΩ gm=7.5mS, Ec1cutoff=-30V(Ip=0.1mA) op(A1s) : Ep=200V Ec2=200V Ec1=-12.5V Ip=45/49mA Ic2=3/9.5mA Zl=4kΩ Po=4.5W D=10% pins: 1(G2)-2(NC)-3(G1)-4(H)-5(H)-6(G1)-7(K,G3)-8(NC)-9(P) (参考 : Ep-Ip特性(@Ec2=200 and Ec2-parameter@Ec1=0V)) same-basing similar types (lower-gm) : 6CM6, 6DW5 also see similar types : 6CZ5 6DT5 6EM5, 6973 (pin#8 must be unused) also see an upper-rating type : 6RB10 (pin#8 must be unused) 6) 6R-B11 Toshiba ￥2500 NIB 通測用 ribbed-GrayPlate w/ 2x2 rect. holes 1) 6R-B11 Toshiba ￥2200 NIB ribbed-BlackPlate w/ 2x2 rectangular holes, LargeOriginalBox 2) 6R-B11 Toshiba ￥2200 NIB 2) 6R-B11 Toshiba ￥2200 NIB NHK-1966.4, lot=4I,6B ribbed-GrayPlate w/ 2x2 rect. holes, 薄茶silk 2) 6R-B11 Toshiba ￥2200 NIB NHK-1972.3, lot=3G,3G ribbed-GrayPlate w/ 2x2 rect. holes 4) 6R-B11 Toshiba ￥2200 NIB NHK-1974.6 ribbed-GrayPlate w/ 2x2 rect. holes, just-ragged boxes 4) 6R-B11 Toshiba ￥2200 NIB lot=3G,3G,3G,3G ribbed-GrayPlate w/ 2x2 rect. holes 1) 6R-B11 Toshiba ￥2200 NIB lot=9E ribbed-GrayPlate w/ 2x2 rect. holes, just-ragged box 6) 6R-B11 Toshiba ￥2200 NIB NHK-1974s ribbed-GrayPlate w/ 2x2 rect. holes, just-ragged boxes 1) 6R-B11 Toshiba ￥2200 NIB ribbed-GrayPlate w/ 2x2 rect. holes 薄茶silk, just-ragged box 1) 6R-B11 Toshiba ￥2200 NIB ribbed-GrayPlate w/ 2x2 rect. holes 薄茶silk, just-ragged box 23) 6R-B11 Toshiba ￥2200 NIB ribbed-GrayPlate w/ 2x2 rect. holes 4) 6R-B11 Toshiba ￥2200 NIB ribbed-GrayPlate w/ 2x2 rect. holes, just-ragged boxes 1) 6R-B11 Toshiba ￥2200 NIB ribbed-GrayPlate w/ 2x2 rect. holes 英字箱 2) 6R-B11 Toshiba ￥2200 NIB lot=7I,7I ribbed-GrayPlate w/ 2x2 rect. holes 5) 6R-B11 Toshiba ￥2200 NIB ribbed-GrayPlate w/ 2x2 rect. holes, just-ragged boxes 4) 6R-B11 Toshiba ￥2200 NIB RaggedBox 1) 6R-B11 Toshiba ￥1500 lightly-used ribbed-BlackPlate w/ 2x2 rect. holes, WB 1) 6R-B11 Toshiba ￥1200 used ribbed-BlkPlate w/ 2x2 rect. holes, WB 1) 6R-B11 Toshiba ￥1200 lightly-used ribbed-GrayPlate w/ 2x2 rect. holes, WB
6R-DHV1/6RDHV1 =diode, triode, pentode for radio= (EIA/T9K - noval)Eh/Ih=6.3V/0.48A Ehkmax=±90V Diode : Epx=150Vmax Io=250μA Ipeak=150mA Triode(op) : Ep=250V Ec=-2V Ip=1.2mA rp=63kΩ gm=1.6mS μ=100 Pentode : Ppmax=3W Epmax=300V Pc2max=0.4W Ec2max=125V/300V-cutoff op : Ep=250V Ec2=100V Ec=-1V Ip=9mA Ic2=3mA rp=250kΩ gm=3.5mS pins : 1(Ktd)-2(G1p)-3(G2p)-4(H,Kp,G3p)-5(H)-6(Pp)-7(Pd)-8(Pt)-9(Gt) heater variant : 20R-DHV1(20V/0.15A) removed-diode type : 6R-HV1(Eh/Ih=6.3V/0.5A) 0) 6R-DHV1 Toshiba ￥- NIB cellophane-sealed 0) 6R-DHV1 Toshiba ￥- NIB VeryRaggedBoxes (hyytss) 0) 6R-DHV1 Toshiba ￥- NIB VeryRaggedBoxes 0) 6R-DHV1 Toshiba ￥- NIB 0) 6R-DHV1 Toshiba ￥- NIB VeryRaggedBoxes 27) 6R-DHV1 Hitachi ￥2200 NIB 1) 6R-DHV1 Matsuda(=Toshiba) ￥1100 used tested WB 0) 6R-DHV1 Toshiba ￥500 used smeared-off silk (hyydss)
6R-DHV2/6RDHV2 =diode, triode, pentode for radio= (EIA/ - noval, top-plate) Eh/Ih=6.3V/0.5A Ehkmax=±90V Diode : Epx=Vmax Io=μA Ipeak=0mA Triode(op) : Ep=250V Ec=-2V Ip=1.2mA rp=630kΩ gm=1.6mS μ=100 Pentode : Ppmax=3W Epmax=300V Pc2max=0.65W Ec2max=125V op : Ep=250V Ec2=100V Ec=-3V Ip=10mA Ic2=3mA rp=kΩ gm=1.8mS pins : 1(Kt)-2(G1p)-3(G2p)-4(H)-5(H)-6(Pp)-7(G3p,Kp,Kd)-8(Gt)-9(Pt)-Top(Pd) (6R-DHV2 ≒ 6BD6 + 6AV6(single diode)) 0) 6R-DHV2 NEC ￥1200 NIB 1) 6R-DHV2 NEC ￥700 used WB
6R-E13/6RE13 =Electron ray Indicator= (EIA/ - noval) Eh/Ih=6.3V/0.2A Ehk=V Epmax=Vsupply Etarget=Vmin/Vmax pins : 1(G)-2(K)-3(TA)-4(H)-5(H)-6(NC)-7(P)-8(NC)-9(NC) different-basing similar types : 6FG6(Eh/Ih=6.3V/0.27A), EM84(Eh/Ih=6.3V/0.21A) 1) 6R-E13 Toyo ￥2400 NOS Sanyo-boxed
6R-H2/6RH2 =High-gm Med-mu Triode for Grounded Grid amp= (EIA/9V - noval) Eh/Ih=6.3V/0.35A Ehkmax=100V Tbulb=130℃max Absolute maximum : Ppmax=4W Epmax=180V Ikmax=35mA Rgmax=100kΩ op : Ep=150V Ec=+20V Rk=757Ω Ip=28mA rp=1.4kΩ gm=27.5mS μ=40 pins : 1-P 2-NC 3-H 4-G 5-G 6-K 7-G 8-G 9-H (参考) 6R-H2のEpIp特性 (参考) WE-#417A/5842のEpIp特性 see similar type : 417A, 5842 (参考 * NTT-ECL related high-rel, long-life, high-performance communication system receiving tubes * 6B-P16 (ECL-1179), 6B-R22 (ECL-1144), 6B-R23 (ECL---), 6R-H2 (ECL-1175) 6R-P10 (ECL-1071), 6R-R8 (ECL-1083), 6R-R21 (ECL-1084), 19M-R9 (ECL-1069), 12RLL3 (ECL-1134B) 19M-R10 (ECL-1135), 19R-LL1 (ECL-1134), 19R-P11 (ECL-1070), CZ-501D/V, CZ-504D/V) 0) 6R-H2 NEC ￥3700 NIB very-ragged boxes (hssv5nx) 3) 6R-H2 NEC ￥3700 NIB red-silk 16) 6R-H2 NEC ￥2200 used red-silk WB 5) 6R-H2 NEC ￥2200 used red-silk WB D/C = 1960-3, 1960-3, 1960-11, 1960-12, 1960-12 2) 6R-H2 NEC ￥2200 used red-silk WB D/C = 1960-3, 1961-1, 1961-2 2) 6R-H2 NEC ￥2200 used red-silk WB D/C = 1963-10, 1964-8 6) 6R-H2 NEC ￥2200 used red-silk WB D/C = 1964-9, 1964-9, 1964-10, 1964-11, 1964-12, 1966-1 4) 6R-H2 NEC ￥2200 used red-silk WB D/C = 1968-2, 1968-12, 1970-3, 1971-xx 5) 6R-H2 NEC ￥2200 used red-silk WB D/C = 1973-10, 1973-10, 1974-3, 1974-10, 1974-11 0) 6R-H2 NEC ￥- used smeared silk (hssvnx)
6R-HH1/6RHH1 =Medium-mu Twin Triode for cascode amp= (EIA/9AJ - noval) *prototype = European ECC88 / 6DJ8 Eh/Ih=6.3V/0.4A Ehkmax=±200V Ppmax=2W Epmax=200V Ikmax=18mA op : Ep=120V Ec=-0.7V Ip=15mA rp=3kΩ gm=13mS μ=40 see a later improved/advanced-version : 6R-HH8 / 6KN8, also their heater variant = 4R-HH8/4KN8 -) 6R-HH1 Hitachi ￥2300 lightly-used rare WB 1) 6R-HH1 Hitachi ￥2300 lightly-used BackView WB
6R-HH2/6RHH2 =Medium-mu Twin Triode for cascode amp= (EIA/9AJ - noval)* 6RHH2 = NF-improved 6BQ7A Eh/Ih=6.3V/0.4A Ehkmax=±200V(+100Vdc) Ppmax=2W Epmax=150V(300V-cutoff) Ikmax=20mA op : Ep=90V Ec=-1V Ip=8.5mA rp=4.5kΩ gm=8mS μ=36 op : Ep=180V Ec=-1V Ip=12mA gm=9.5mS (参考 : Ep-Ip特性) *unit-2(pins: 1-2-3) should be cathode-gnd, unit-1(pins: 6-7-8) be grid-gnd for cascode amp. heater variant : 4R-HH2(4.2V/0.6A) (also see other similar twin triodes for cascode amps with same base diagram : => 6AQ8 6BC8 6BS8 6DJ8 6DT8 6KN8/6RHH8) 3) 6R-HH2 Toshiba ￥1500 NIB justRaggedBoxes 1) 6R-HH2 Toshiba ￥1500 NIB cellophane-sealed 2) 6R-HH2 Toshiba ￥1500 NIB 1) 6R-HH2 Toshiba ￥1500 NIB 2) 6R-HH2 Mitsubishi ￥1500 NIB RaggedBoxes 5) 6R-HH2 Ray(made in Japan) ￥1500 NIB justDirtyBox 7) 6R-HH2 Ray(made in Japan) ￥1500 NIB justDirtyBox 1) 6R-HH2 Toshiba ￥400 used WB
6R-HH8/6RHH8/M3671(=6KN8) =High-gm TwinTriode= (EIA/9AJ - noval) *prototype = Hitachi 6R-HH1 (also whose prototype = European ECC88/6DJ8) Eh/Ih=6.3V/0.4A Ehkmax=±220V(DC=+110Vmax) Ppmax=2.2W Epmax=220V Ikmax=22mA Rgmax=1MΩ op : Ep=110V Ec=-1V Ip=16mA rp=2.5kΩ gm=16mS μ=40 参考 1 : Ep-Ip特性 参考 2 : Ep-Ip特性(cascode-amp) see equivallent type : 6KN8 heater variant : 4R-HH8(4.2V/0.6A - 11sec) (also see other similar twin triodes for cascode amps with same base diagram : => 6AQ8 6BC8 6BS8 6DJ8 6DT8 6RHH2) 0) 6R-HH8 NEC ￥2800 NIB ragged-boxes 10) 6R-HH8 Hitachi ￥2700 NIB still-cellophane-sealed 2) 6R-HH8 Hitachi ￥2700 NIB still-cellophane-sealed 8) 6R-HH8 Hitachi ￥2500 NIB very-ragged boxes 0) 6R-HH8 NEC ￥- used 1) 6R-HH8 NEC ￥1600 used yellow-silk, Ten-boxed 4) 6R-HH8 NEC ￥1600 used lightly-yellow-silk, 通信用 lot=S5,QN,R9,QN BackView WB 4) 6R-HH8/6KN8 NEC ￥1600 lightly-used silver-silk, 通信用 lot=MO,MO,MO,MO BackView WB 1) 6R-HH8 Hitachi ￥1600 lightly-used D/C=1971-11, BackView WB 2) M3671/6R-HH8 Toshiba ￥1600 lightly-used BackView WB 0) M3671 (= 6R-HH8) Toshiba ￥- used WB
6R-HH15/6RHH15 =TwinTriode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.365A Ehkmax=±200V(DC=+110Vmax) Ppmax=1.7W Epmax=165V Ikmax=22mA Rgmax=0.5MΩ op : Ep=90V Rk=143Ω Ip=7mA rp=-kΩ gm=8mS μ=44 1) 6R-HH15 Matsushita ￥1000 used WB
6R-HP2/6RHP2 =high-mu triode + power-pentode= (EIA/9EX - noval) 6R-HP2 = improved 6BM8 Eh/Ih=6.3V/0.78A Ehkmax=100V pentode: Pcmax=8W Ppmax=300V Pc2max=2W Ec2max=300V Rg1max=500kΩ(fixed)/1MΩ(self) op(A1S): Ep=250V Ec2=250V Ec1=-6.7V Ip=30/31mA Ic2=7/14mA gm=8.8mS Zl=6.0kΩ Po=3.6W op(AB1pp): Ep=250V Ec2=250V Ec1=-7.5V Ip=50/76mA Ic2=12/22mA Zlpp=8.0kΩ Po=10W op(AB1pp): Ep=300V Ec2=250V Ec1=-8.2V Ip=40/72mA Ic2= 9/20mA Zlpp=10kΩ Po=12.5W triode: Ppmax=1W Epmax=300V Ikmax=15mA op: Ep=100V Ec=0V Ip=3.5mA gm=2.5mS μ=70 1) 6R-HP2 NEC ￥1600 lightly-used WB
6R-HR4/6RHR4/LD-611 =triode pentode= (EIA/9AE = 9DC - noval) Ppmax= Epmax=V Ikmax=mA μ= gm= mS Eh/Ih=V/A improved 6U8 for communication systems see a communication-grade similar type : 6678 also see same basing similar types : 6AX8 6EA8 6GH8/6GH8A 6KD8 6LM8 4) 6R-HR4/LD-611 NEC ￥1700 NIB 2) 6R-HR4/LD-611 NEC ￥1700 NIB just-ragged boxes 4) LD-611(6U8)=6R-HR4 NEC ￥1200 like-new WB
6R-HV1/6RHV1 =triode, pentode for radio= (EIA/T9A - noval)Eh/Ih=6.3V/0.5A Ehkmax=±90V Triode(op) : Ep=250V Ec=-2V Ip=1.2mA rp=62.5kΩ gm=1.6mS μ=100 Pentode : Ppmax=3W Epmax=300V Pc2max=0.4W Ec2max=125V/300V-cutoff op: Ep=250V Ec2=100V Ec=-1V Ip=9mA Ic2=3mA rp=250kΩ gm=3.5mS pins : 1(Kt)-2(G1p)-3(G2p)-4(H)-5(H)-6(Pp)-7(G3p,Kp)-8(Pt)-9(Gt) diode-added type : 6R-DHV1 2) 6R-HV1 Matsuda(Toshiba) ￥1600 NIB very-ragged boxes
6R-K19/6RK19 =Halfwave HV rectifier= (EIA/9CB - noval, top-cathode)Eh/Ih=6.3V/1.2A Ehkmax=+300Vpeak/-5500Vpeak(average : +100V/-900V) PIV=5500V Idcmax=200mA/1.2Apeak Ppmax=6.5W Edrop=19V(@Ip=250mA) equivallent type : 6BR3 heater variants : 12R-K19(12.6V/0.6A) 17BR3(16.8V/0.45A) similar to : 6AF3 * 9CB-base 'Top-Cathode' noval(9-pin MT) halfwave rectifiers with similar rating: 6AF3 6AL3 6BR3 6R3 6R-K19 EY81 EY88 16AQ3 30AE3 3) 6R-K19 Toshiba ￥1200 NIB NHK, DC=1966-9, 1966-9, 1967-9 just-ragged boxes 4) 6R-K19 Toshiba ￥1200 NIB just-ragged boxes 3) 6R-K19 Toshiba ￥1200 NIB 8) 6R-K19 Toshiba ￥1200 NIB 1) 6R-K19 Toshiba ￥1200 NIB 2) 6R-K19 NEC ￥1200 NIB just-ragged boxes 2) 6R-K19 TEN ￥1200 NIB NHK, DC=1967-10, 1967-10 just-ragged boxes 0) 6R-K19 ITT ￥- NOS 0) 6R-K19 USA ￥- NOS (hyya)
6R-P10/6RP10 =long-life Power Pentode=(EIA/T7D - noval)* NTT had developed ECL-1071(=6R-P10) with NEC on med. 1950s for tele-communication needs. Eh/Ih=6.3V/0.5A Ehkmax=±100V Ppmax=6.5W Epmax=200V Pc2max=1.7W Ec2max=170V Ikmax=55mA op(A1S) : Ep=150V Ec2=150V Rk=60Ω Ip=36mA Ic2=8mA gm=13.5mS rp=60kΩ Zl=1.8kΩ Po=1.0W (参考 : Ep-Ip特性(@Ec2=150V)) pin: 1(H)-2(P)-3(NC)-4(K,G3,IS)-5(G2)-6(H)-7(NC)-8(G1)-9(K,G3,IS) electrically similar types (different heater, different base) : 12BY7A 7733 12BV7 (参考 * NTT-ECL related high-rel, long-life, high-performance communication system receiving tubes * 6B-P16 (ECL-1179), 6B-R22 (ECL-1144), 6B-R23 (ECL---), 6R-H2 (ECL-1175) 6R-P10 (ECL-1071), 6R-R8 (ECL-1083), 6R-R21 (ECL-1084), 19M-R9 (ECL-1069), 12RLL3 (ECL-1134B) 19M-R10 (ECL-1135), 19R-LL1 (ECL-1134), 19R-P11 (ECL-1070), CZ-501D/V, CZ-504D/V) 1) 6R-P10 NEC ￥2000 NIB 3) 6R-P10 Hitachi ￥2000 NIB 通信用(for communication system) 6) 6R-P10 NEC ￥1600 lightly-used red-silk D/C=1958-11 back view WB 1) 6R-P10 NEC ￥1600 lightly-used red-silk D/C=1959-1 WB 1) 6R-P10 NEC ￥1600 lightly-used red-silk D/C=1959-9 WB 2) 6R-P10 NEC ￥1600 like-new 通信用 red-silk D/C=1962-3,1964-6 WB BackView 1) 6R-P10 NEC ￥1600 lightly-used red-silk D/C=1965-7 WB 2) 6R-P10 NEC ￥1600 lightly-used red-silk D/C=1965-7,1965-7 WB, BackView 1) 6R-P10 NEC ￥1600 lightly-used red-silk D/C=1966-5 WB, BackView 8) 6R-P10 NEC-made NTT-marked ￥1600 like-new D/C=1971.2-1973.11, WB gm/Ik=12.25mS/39mA, 12.05mS/35.5mA, 9.9mS/32mA, 11.6mS/33.5mA, 13.25mS/39mA, 12.1mS/35.5mA, 11.25mS/33mA, 12.1mS/34.5mA (@Ep～133V, Ec2～122V, Rk=60Ω on KS-15750-L1 w/ 'BW-82540') 1) 6R-P10 NTT-marked ￥1600 like-new D/C=1969.5, WB gm/Ik=12.25mS/38mA (@Ep～133V, Ec2～122V, Rk=60Ω) 4) 6R-P10 NEC ￥1600 lightly-used D/C=1969-1971, WB 3) 6R-P10 NEC ￥1600 lightly-used yellow-silk, WB 8) 6R-P10 NEC ￥1600 lightly-used yellow-silk, #1 WB 8) 6R-P10 NEC ￥1600 lightly-used yellow-silk, #2 WB 8) 6R-P10 NEC ￥1600 lightly-used yellow-silk, #3 WB, BackView 1) 6R-P10 NEC ￥800 used Hitachi-boxed 1) 6R-P10 TEN ￥800 used WB 1) 6R-P10 Hitachi ￥1600 lightly-used WB 1) 6R-P10 Toshiba ￥1600 lightly-used WB
6R-P15/6RP15Eh/Ih=6.3V/0.75A Ehk=100V Ppmax=13.5W Epmax=300V Pc2max=2.5W Ec2max=300V Rg1max=300kΩ(fixed)/1MΩ(self) op : Ep=250V Ec2=250V Ec1=-8V rp=32kΩ gm=11mS μg2g1=17 op(A1S): Ep=250V Ec2=250V Ec1=-8V Ip=54mA/59mA Ic2=6.8mA/16mA Zl=4kΩ D=10% Po=6.8W op(AB1pp): Ep=250V Ec2=250V Rk=120Ω Ip=2x36.5mA/2x42.5mA Ic2=2x4.6mA/2x8.5mA Zlpp=6kΩ D=2.5% Po=12W op(AB1pp): Ep=300V Ec2=300V Rk=120Ω Ip=2x44.5mA/2x53.0mA Ic2=2x5.5mA/2x11.8mA Zlpp=6kΩ D=2.5% Po=18W op(A1S-triode): Ep=250V Rk=270Ω Zl=2.5kΩ Ipo=38mA Ipmax=40mA D=9% Po=1.8W op(AB1pp-triode): Ep=250V Rk=200Ω Zlpp=7kΩ Ipo=56mA Ipmax=60mA D=2% Po=3.5W op(AB1pp-triode): Ep=300V Rk=200Ω Zlpp=7kΩ Ipo=68mA Ipmax=73mA D=2% Po=5.5W pin: 1(G1)-2(G1)-3(K,G3)-4(H)-5(H)-6(IC)-7(P)-8(IC)-9(G2) * pin #1 and pin #2 should be connected for heat radiation (参考 : 三極管接続時のEp-Ip特性(Triode connection)) also see different-pinout electrically similar types : 6BQ5, 6GK6, 7189/A, 7320, E84L, 6Π14Π/6P14P 6BQ5 E84L 7189 6R-P15 6CZ5 規格/動作例の比較 2) 6R-P15 Ray(made in Japan) ￥2900 NIB justDirtyBox 5) 6R-P15 Ray(made in Japan) ￥2900 NIB 5) 6R-P15 Ray(made in Japan) ￥2900 NIB 4) 6R-P15 Toshiba(Matsuda) ￥2700 NIB? 3pcs=Toshiba, 1pc=Matsuda(Toshiba-made) 3) 6R-P15 Matsuda/Toshiba ￥1700 lightly-used no-holes on plate, WB 2) 6R-P15 Toshiba ￥1400 used no-hole on plate, WB 1) 6R-P15 Toshiba ￥1400 used 2x1hole on plate, WB
6R-P22/6RP22 =DetectorPentode=(EIA/9BV - noval)Eh/Ih=6.3V/0.65A Ehkmax=±200V(DC=+100Vmax) Ppmax=7.5W Epmax=300V Pc2max=1.7W Ec2max=300V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=250V Ec2=150V Ec1=-3V Ip=22mA Ic2=7.5mA gm=8.5mS rp=55kΩ similar to 6CL6, 6197, and 6677 : same base / pin assignment also see an electrically-similar octal-base type : 6AG7/GT 1) 6R-P22 Ray(made in Japan) ￥2000 NIB justDirtyBox 4) 6R-P22 Syl,GE,Emerson(made in Japan) ￥2000 NIB 2) 6R-P22 Toshiba ￥2000 NIB
6R-R8/6RR8/6R-R8A/6R-R8C =RF Pentode= (EIA/9X - noval)Eh/Ih=6.3V/0.3A Ehkmax=±100V 6R-R8 : Ppmax=3W Epmax=180V Pc2max=0.7W Ec2max=180V Ikmax=35mA Ehkmax=50V 6R-R8C : Ppmax=3.3W Epmax=200V Pc2max=0.85W Ec2max=180V Ikmax=25mA Rg1max=50kΩ(fixed)/100kΩ(self) Ep=150V Ec2=150V Rk=110Ω Ip=13mA Ic2=4.5mA gm=12.5mS (参考 : 5847/404Aの三結時のEp-Ip特性例(sample data plotted - triode connection)) (6R-R8/ECL-1083 = WE-404A, WE-5847) (参考 * NTT-ECL related high-rel, long-life, high-performance communication system receiving tubes * 6B-P16 (ECL-1179), 6B-R22 (ECL-1144), 6B-R23 (ECL---), 6R-H2 (ECL-1175) 6R-P10 (ECL-1071), 6R-R8 (ECL-1083), 6R-R21 (ECL-1084), 19M-R9 (ECL-1069), 12RLL3 (ECL-1134B) 19M-R10 (ECL-1135), 19R-LL1 (ECL-1134), 19R-P11 (ECL-1070), CZ-501D/V, CZ-504D/V) 6R-R8 1) 6R-R8 NEC ￥1700 NIB red-silk, D/C=1959-9, 背面写真 4) 6R-R8 NEC ￥1500 LikeNew D/C=1969.9 very-ragged boxes 0) 6R-R8 NEC ￥- 通測 used 5) 6R-R8 NEC ￥700 used red-silk D/C=1957-1, 1957-1, 1957-3, 1957-9, 1957-9 WB 5) 6R-R8 NEC ￥700 used red-silk D/C=1959-3, 1959-5, 1960-3, 1960-3, 1960-11 WB 2) 6R-R8 NEC ￥700 used red-silk, NHK D/C=1962-2 WB 3) 6R-R8 NEC ￥700 used red-silk D/C=1963-11, 1964-5, 1964-8 WB 6) 6R-R8 NEC ￥700 used red-silk D/C=1965-5, 1965-5, 1965-7, 1965-9, 1965-9, 1965-10 1) 6R-R8 NEC ￥700 used red-silk D/C=1966-2 1) 6R-R8 NEC ￥700 used red-silk D/C=1966-2 WB 1) 6R-R8 NEC ￥700 used red-silk(smeared away) D/C=xxxx 1) 6R-R8 NEC ￥700 used yellow-silk D/C=1968-5 3) 6R-R8 NEC ￥700 used yellow-silk D/C=1969-3, xxxx,xxxx WB 1) 6R-R8 NEC ￥700 used yellow-silk(smeared away) D/C=xxxx 8) 6R-R8 NEC ￥1000 lightly-used yellow-silk D/C=xxxx, WB 7) 6R-R8 NEC ￥1000 lightly-used yellow-silk D/C=xxxx, WB 1) 6R-R8 TEN ￥700 used NHK D/C=1958-5 WB 5) 6R-R8 TEN ￥700 used D/C=1961-10, 1961-12, 1964-10, 1964-10, 1964-10 WB 6) 6R-R8 TEN ￥700 used D-gtr WB 2) 6R-R8 Hitachi ￥700 used NHK D/C=1963-4, 1966-4 WB 2) 6R-R8 Hitachi ￥700 used D/C=1963-6, 1963-7 WB 1) 6R-R8 東芝(Toshiba) ￥1600 NIB 1) 6R-R8 Toshiba ￥700 used 写真左(left-one) WB 1) 6R-R8 JRC(日本無線) ￥700 used 写真右(right one) WB 6R-R8A 4) 6R-R8A NEC ￥1500 LikeNew D/C=1970.4(1pc), 1970.9(3pcs) 1) 6R-R8A NEC ￥1500 LikeNew D/C=1967.5 5) 6R-R8A NEC ￥700 used D/C=1964-2, 1965-5. 1965-5, 1965-5, 1965-5 WB 5) 6R-R8A NEC ￥700 used D/C=1966-12, 1970-9, 1970-11, 1971-9, 1974-6 WB 1) 6R-R8A TEN(Fujitsu) ￥1500 NIB 5) 6R-R8A TEN ￥700 used D/C=1970-12, 1971-9, 1971-4, 1971-9, 1974-2 4) 6R-R8A TEN ￥700 used D/C=xxxx WB 3) 6R-R8A Toshiba ￥700 used D/C=1968-4, 1971-2, 1972-1 WB 2) 6R-R8A Toshiba ￥700 used D/C=1971-11, xxxx WB 4) 6R-R8A Toshiba ￥700 used D/C=1972-7, 1972-7, 1972-7, 1973-11 WB 3) 6R-R8A Toshiba ￥700 used D/C=xxxx, xxxx, xxxx WB 6R-R8C 3) 6R-R8C NEC ￥2500 NIB 赤ロゴ+白date 4) 6R-R8C NEC ￥2500 NIB YellowSilk D/C=1974-11 RearView 0) 6R-R8C NEC ￥- 通測 used 1) 6R-R8C NEC ￥700 used 6) 6R-R8C NEC ￥700 used red-silk DC=1960-9, 1963-12, 1964-5, 1964-6, 1964-6, 1964-6 WB 2) 6R-R8C NEC ￥700 used yellow-silk D/C=1970-8, 1972-7 WB 5) 6R-R8C NEC ￥1000 lightly-used yellow-silk D/C=xxxx, BackView WB 5) 6R-R8C TEN ￥700 used D-gtr WB 4) 6R-R8C Hitachi ￥700 used D/C=1963-7, 1963-7, 1964-1, 1965-8 WB 4) 6R-R8C Hitachi ￥700 used D/C=1968-3, 1968-9, 1968-12, 1968-12 WB
6R-R21/6RR21/C =ultra-wideband tetrode= (EIA/ - noval) Eh/Ih=6.3V/0.3A Ehk=100V Fmax=207MHz Ppmax=3W Epmax=190V Pc2max=0.75W Ec2max=160V Ikmax=36mA Rg1max=100kΩ(self) op : Ep=150V Ec2=150V Rk=100Ω Ip=13.5mA Ic2=3.6mA rp=60kΩ gm=15mS pins : 1(G1)-2(NC)-3(H,IS)-4(K)-5(NC)-6(P)-7(NC)-8(G2)-9(H) size: 22.2mmΦ x 44.4mmH, in max equivallent to WE 435A (参考 * NTT-ECL related high-rel, long-life, high-performance communication system receiving tubes * 6B-P16 (ECL-1179), 6B-R22 (ECL-1144), 6B-R23 (ECL---), 6R-H2 (ECL-1175) 6R-P10 (ECL-1071), 6R-R8 (ECL-1083), 6R-R21 (ECL-1084), 19M-R9 (ECL-1069), 12RLL3 (ECL-1134B) 19M-R10 (ECL-1135), 19R-LL1 (ECL-1134), 19R-P11 (ECL-1070), CZ-501D/V, CZ-504D/V) 5) 6R-R21 NEC ￥2100 NIB red-silk, D/C=1959-4, 背面写真 7) 6R-R21 NEC ￥2100 NIB red-silk, D/C=1959-5 3) 6R-R21 NEC ￥2100 NIB red-silk, D/C=1960-2, 背面写真 1) 6R-R21 NEC ￥2100 NIB red-silk, D/C=1962-7, 背面写真 5) 6R-R21 NEC ￥2100 NIB red-silk, D/C=1962-10 2) 6R-R21 NEC ￥2100 NIB yellow-silk, 背面写真 2) 6R-R21 NEC ￥2100 NIB yellow-silk just-ragged boxes 3) 6R-R21 NEC ￥1000 used 3) 6R-R21 NEC ￥1000 lightly-used red-silk D/C=1959-9, 1960-6, 1961-5 WB 1) 6R-R21 NEC ￥1000 used D/C=1962-10 tested 3) 6R-R21 NEC ￥1000 used D/C=1963-11, 1964-9, 1965-12 4) 6R-R21 NEC ￥1000 used red-silk D/C=1966-1, 1966-10, 1966-10. 1966-10, 背面写真 3) 6R-R21 NEC ￥1000 used yellow-silk D/C=1969-4, 1970-6, 1974-6. 背面写真
6R-R27/6RR27/C =wideband tetrode= (EIA/9X - noval) Eh/Ih=6.3V/0.3A op : Ep= Ec=V Ip=mA gm=mS equivallent to 6R-R8 also similar to WE-404A, 5847 1) 6R-R27 Matsushita ￥1500 used Gpin, D/C=昭45-5(1970-5) NHK , "(6R-R8)" is also printed on glass, 背面写真
6S4/6S4A =Medium mu Triode= (EIA/9AC - noval) Eh/Ih=6.3V/0.6A Ehkmax=±200V Rgmax=2.2MΩ(self) design-max ratings : Ppmax=8.5W Epmax=550V/2200Vpulse Ikmax=30mA/105mApeak op : Ep=250V Ec=-8V Ip=24mA rp=3.7kΩ gm=4.5mS μ=16.5 (参考 : Ep-Ip特性) different-basing type : 12A4(Ppmax=6.5W, μ=20) different-basing low-mu type : 12B4A(Ppmax=5.5W, μ=6.5) different-basing higher-mu type : 7719(μ=25, for computer) upper-rating differen-basing triodes : 6RA6(Ppmax=10W, μ=16), 6RA9(Ppmax=10W, μ=16.5) 0) 6S4A RCA ￥- NIB BlkPlate(Q) 2) 6S4A RCA ￥1200 NIB BlkPlate 4) 6S4A RCA ￥1200 NOS Bulk品 BlkPlate OrangeLogo(hva2s7qt) 2) 6S4A RCA ￥1000 NIB(Q) 1) 6S4A RCA ￥1200 NIB BlkPlate 1) 6S4A RCA ￥1000 NIB 3) 6S4A GE ￥1000 NIB 2) 6S4A GE ￥1000 NIB 1) 6S4A Syl ￥1000 NIB MB D/C=61-26 3) 6S4A Syl ￥1000 NIB 1) 6S4A Tsol ￥1200 NIB BlkPlate 1) 6S4A Ray ￥1200 NIB BlkPlate 0) 6S4A ITT ￥- NIB GP(sQ) 1) 6S4A WH ￥1200 NIB BlkPlate Tsol箱 2) 6S4A USA,Canada ￥900 NIB 3) 6S4A Rogers ￥900 NIB 2) 6S4A RAD-TEL ￥900 NOS/ITT-BOX 1) 6S4A Admrl ￥1000 NOS Standard箱 1) 6S4 GE ￥500 used (like NEW) gm=5700/2840min 1) 6S4 Syl ￥500 used gm=4900/2840min 5) 6S4A USA ￥400 used 1) 6S4/A USA ￥200 used PoorGtr
10) 6S6 Hudson NIB 120V/6watt Tungsten-lamp brass-screw-base
6S7/G =Remote cutoff RF Pentode= (EIA/7R - octal, top-grid) Eh/Ih=6.3V/0.15A Ppmax=2.25W Epmax=300V Pc2max=0.25W Ec2max=100V/300Vsupply op : Ep=250V Ec2=100V Ec1=-3V Ip=8.5mA Ic2=2mA rp=1MΩ gm=1.75mS 1) 6S7G KenRad ￥900 NIB 1) 6S7G Zenith ￥900 NOS? Cnghm箱
6S8/GT =triple Diode High mu Triode= (EIA/8CB - octal, top-grid) Eh/Ih=6.3V/0.3A Ehkmax=90V Idiode=1mAmax triode : Ppmax=0.5W Epmax=300V op : Ep=250V Ec=-2V Ip=0.9mA rp=91kΩ gm=1.1mS μ=100 1) 6S8GT RCA ￥800 NOS 2) 6S8GT RCA ￥800 NIB 1) 6S8GT Ray ￥700 NIB 4) 6S8GT Tsol ￥700 NIB 1) 6S8GT Philco ￥700 NIB RaggedBox 1) 6S8GT Emerson ￥400 used hairline-crack base
6S19P/P-V : see 6C19Π/Π-B(Soviet/Russian) 6S33S/S-V : see 6C33C/C-B(Soviet/Russian) 6S41S : see 6C41C(Soviet/Russian)
6SA7 =Penta-grid converter= (EIA/8R, 8AD(GT))Eh/Ih=6.3V/0.3A Ppmax=1W Epmax=300V Pc2max=1W Ec2max=100V see heater variant 12SA7(Eh/Ih=12.6V/0.15A) metal type 11) 6SA7 RCA ￥1000 NIB Metal (hyxdnt) 1) 6SA7 RCA ￥1000 NOS Metal Emerson箱 1) 6SA7 RCA ￥1000 NOS Metal RCA箱 1) 6SA7 RCA ￥1000 NOS Metal GE箱 4) 6SA7 GE ￥900 NIB(nSn) 1) 6SA7/Y GE ￥450 used? WB Metal 1) 6SA7 Syl ￥900 NIB 0) 6SA7GT Syl ￥- NIB 3) 6SA7 Ray ￥600 NIB Metal 錆あり(Sx) 1) 6SA7 Philco ￥900 NIB metal 1) 6SA7 WH ￥400 used WB Metal 1) 6SA7 RCA ￥450 used 1) 6SA7 Krad ￥450 used glass type 1) 6SA7GT Ray ￥900 NIB Glass 1) 6SA7GT/G Philco ￥900 NIB Glass 1) 6SA7GT FoMoCo ￥800 NOS Glass WB 4) 6SA7GT NEC ￥900 NIB same lot, SmokedGlass, just-ragged boxes 1) 6SA7GT Hitachi ￥900 NIB SmokedGlass 1) 6SA7GT RCA ￥600 used? Glass 1) 6SA7GT GM ￥600 NOS? Glass 1) 6SA7 Ray ￥400 used Glass 1) 6SA7 Ray ￥400 used BlkGlass
6SB7/6SB7Y =Penta-grid converter= (EIA/8R - octal) Eh/Ih=6.3V/0.3A Ppmax=2W Epmax=300V Pc2max=1.5W Ec2max=100V 0) 6SB7Y RCA ￥1000 NIB metal 0) 6SB7Y GE ￥1000 NIB metal 0) 6SB7Y GE ￥800 used? metal 0) 6SB7 Hytron ￥1000 NOS WB 5) 6SB7Y International ￥1000 NIB ragged-boxes 0) 6SB7Y International ￥1000 NIB Metalタイプ (sQn)
6SC7 =common-cathode Highμ TwinTriode= (EIA/8S - octal) Eh/Ih=6.3V/0.3A Ppmax=W Epmax=250V op : Ep=250V Ec=-2V Ip=2mA rp=53kΩ gm=1.325mS μ=70 (参考 : Ep-Ip特性と抵抗結合アンプ表) The 6SC7 is well suited for low-level Audio amplifier service owing to special inner shielding arrangemnt to reduce hum. see heater variant 12SC7(Eh/Ih=12.6V/0.15A)=#1634 metal type 2) 6SC7 RCA ￥2700 NIB metal(aht) 1) 6SC7 RCA ￥2500 NOS metal WB 1) 6SC7 RCA ￥2500 used? metal WB gm=1460/1500/830min date=59-48 1) 6SC7 GE ￥2400 NIB metal(hscx) 1) 6SC7 Motorola(GE-made) ￥2400 NIB metal 3) 6SC7 Syl ￥2400 NIB metal(vNn) 1) 6SC7 Syl ￥2400 NIB metal old 0) 6SC7 Syl ￥- NIB BIG-METAL(D) 0) 6SC7 Syl-ECG ￥- NIB metal 1) 6SC7 Ray ￥2400 NIB metal, very-ragged box 0) 6SC7 Philco ￥- NIB 1) 6SC7 Philco ￥2200 NOS?? RCA箱 1) JAN-CKR 6SC7/VT-105 Krad ￥2200 NOS?? RCA箱 0) 6SC7 KenRad ￥- NIB MB 0) 6SC7 Dmnt ￥- NIB(D) 1) 6SC7 STD ￥2400 NIB GE metal date=1-30 glass type 8) JAN-CTL 6SC7GTY Tsol ￥３７００ NOS BlkGlass ClearTop LightBrownBase 2) 6SC7GT Chanceller(Tsol-made) ￥2500 LikeNew BlkGlass ClearTop BlkRoundPlates gm=1460/1470, 1280/1420/830min *$$$*
6SD7/GT =SemiRemote-cutoff Pentode= (EIA/8N - octal)Eh/Ih=6.3V/0.3A Ppmax=4W Ep=300V Pc2max=0.4W Ec2max=125V op1: Ep=250V Ec2=100V Ec1=-2V Ec3=0V Ip=6mA Ic2=1.9mA rp=1MΩ gm=3.6mS (Ec1-cutoff=-11V) op2: Ep=250V Ec2supply=250V Ec2=125V(thru Rg2) Ec1=-2V Ec3=0V Ip=9.5mA Ic2=3mA rp=0.7MΩ gm=4.25mS-typ (Ec1cutoff=-27V) 1) 6SD7GT Ray ￥1000 NIB Glass 7) 6SD7GT Hitachi ￥1000 NIB
6SE7/GT =Sharp-cutoff Pentode= (EIA/8N - octal) Eh/Ih=6.3V/0.3A Ppmax=4W Ep=300V Pc2max=0.4W Ec2max=125V gm=3.4mS rp=1MΩ 0) 6SE7GT Ray ￥- NIB
6SF5 =High-mu triode= (EIA/6AB - octal) Eh/Ih=6.3V/0.3A Ppmax=- Epmax=300V op : Ep=100V Ec=-1V Ip=0.4mA rp=85kΩ gm=1.15mS μ=100 op : Ep=250V Ec=-2V Ip=0.9mA rp=66kΩ gm=1.50mS μ=100 pins(6SF5-metal) : 1(Shell)-2(K)-3(G)-4(None)-5(P)-6(None)-7(H)-8(H) pins(6SF5GT) : 1(NC)-2(K)-3(G)-4(None)-5(P)-6(None)-7(H)-8(H) see heater variant 12SF5(Eh/Ih=12.6V/0.15A) (参考 : Ep-Ip特性) different base / electrically-same as 6F5(top grid) 7B4(loktal) also see a different base / electrically-same European type: H63(top grid) 7) 6SF5 RCA ￥1200 NIB RB 1) 6SF5 RCA ￥1200 NIB 1) 6SF5 RCA ￥800 NOS? 1) 6SF5 GE ￥1000 NIB Metal 1) 6SF5 Arcturus ￥1000 NIB 1) 6SF5 CBS ￥1000 NIB Metal 1) 6SF5 Znth ￥1000 NIB Metal VeryRaggedBox
6SF7 =Diode remote-cutoff Pentode= (EIA/7AZ - octal) Eh/Ih=6.3V/0.3A Ppmax=3.5W Ep=300V Pc2max=0.5W Ec2max=300V gm=2.05mS rp=700kΩ see heater variant 12SF7(Eh/Ih=12.6V/0.15A) 1) CRC-6SF7 RCA ￥1200 NIB metal MB 1) CRC-6SF7 RCA ￥1200 NIB metal MB 2) 6SF7 RCA ￥1200 NIB metal MB 1) 6SF7 RCA ￥1200 NIB metal MB 3) 6SF7 RCA ￥1200 NIB metal 2) 6SF7 GE ￥1200 NIB metal 青箱 3) 6SF7 GE ￥1200 NIB metal 1) JAN-CG 6SF7 GE ￥1200 NIB metal MB 1) 6SF7 Syl ￥1200 NIB RaggedBox 1) 6SF7 Syl ￥1200 NOS Ray箱 2) 6SF7 NU ￥1200 NIB 1) 6SF7 Philco ￥1200 NIB VeryRaggedBox 1) CRC-6SF7 RCA ￥1000 used? metal
6SG7GT =SemiRemote Cutoff Pentode= (EIA/8BK - octal)Eh/Ih=6.3V/0.3A Ppmax=3W Ep=300V Pc2max=0.6W Ec2max=300V gm=4mS rp=1MΩ see heater variant 12SG7(Eh/Ih=12.6V/0.15A) similar to 6SH7, 6AB7, 6AC7 metal type 4) 6SG7 RCA ￥1300 NIB Metal 30) JAN-CRC 6SG7Y RCA ￥1300 NIB MB Metal, D/C=1950s 0) JAN-CRC 6SG7 RCA ￥1300 NIB MB Metal(Qn) 1) 6SG7 RCA ￥1300 NIB metal 1) 6SG7 RCA ￥1300 NIB metal 3) 6SG7 GE ￥1000 NIB Metal(sQ) 1) JAN-CG 6SG7 GE ￥1000 used? Metal 1) 6SG7 GE ￥1200 NIB metal old 6) 6SG7 Syl ￥1000 NIB Metal 1) 6SG7 WH ￥1000 NIB Metal 1) 6SG7 RCA ￥600 used Metal 1) 6SG7 WardsAirline ￥600 used Metal 1) 6SG7 Krad ￥300 used weak RCA-WB glass type 0) 6SG7GT NU ￥- NIB Glass 0) 6SG7GT International ￥- NIB Glass(Qn) 0) 6SG7GT CBS ￥- NIB Metal 1) 6SG7GT RCA ￥1200 NIB Metal 1) 6SG7GT GE ￥600 used Metal
6SH7 =Sharp Cutoff Pentode= (EIA/8BK - octal)Eh/Ih=6.3V/0.3A Ehkmax=90V Ppmax=3W Epmax=300V Pc2max=0.7W Ec2max=150V/300Vsupply op: Ep=100V Ec2=100V Ec1=-1V Ip= 5.3mA Ic2=2.1mA rp=350kΩ gm=4.0mS CutOff(10μA)=-4.0V op: Ep=250V Ec2=150V Ec1=-1V Ip=10.8mA Ic2=4.1mA rp=900kΩ gm=4.9mS CutOff(10μA)=-5.5V 三結時のEpIp特性 see heater variant 12SH7(Eh/Ih=12.6V/0.15A) similar to 6G-R7(Japanese type) electrically-similar loktal-base type: 7L7 metal type 0) 6SH7 RCA ￥- NIB metal(T) 0) JAN-CRC 6SH7 RCA ￥- NIB metal 5) 6SH7 RCA ￥1300 NIB metal (2)SilverLogo (3)OrangeLogo 1) 6SH7 RCA ￥1300 NIB metal SilverLogo 10) 6SH7 RCA ￥1300 NIB metal 2) 6SH7 RCA ￥1200 NOS metal WB(Q) 1) 6SH7 GE ￥1000 NIB 3) 6SH7 CGE ￥1000 NIB metal 1) 6SH7 GE ￥1300 NIB metal 14) JAN-CKR 6SH7 KenRad ￥1300 NIB metal 軍箱 1) 6SH7 Philco ￥1000 NIB Glass MB 1) 6SH7 ITT ￥1000 NIB 1) 6SH7 RogersMajestic ￥1000 NIB 0) 6SH7 Standard ￥- NIB glass type 1) 6SH7 NU ￥1000 NIB Glass MB 3) 6SH7L Syl ￥1000 NIB MB glass
6SJ7/VT-116 =Sharp Cutoff Pentode= (EIA/8N - octal)Eh/Ih=6.3V/0.3A Ehkmax=±90V Rg1max=1MΩ pentode connection : Ppmax=2.5W Epmax=300V Pc2max=0.7W Ec2max=125V/300V(cutoff) Ec1max=+0V op : Ep=250V Ec2=100V Ec1=-3V Ip=3mA Ic2=0.8mA rp>1MΩ gm=1.65mS triode connection : Ppmax=2.5W Epmax=250V Ec1max=+0V op : Ep=250V Ec1=-8.5V Ip=9.2mA rp=7.6kΩ gm=2.5mS μ=19 (参考 : 三結時のEp-Ip特性) see highly-reliable 10000H industrial/military version 5693 heater variant 12SJ7(Eh/Ih=12.6V/0.15A) same-base, remote-cutoff type : 6AB7 same-base, higher-gm type : 6AC7 metal type new 0) 6SJ7/VT-116 RCA ￥- NOS 1) 6SJ7 RCA-Victor ￥1200 NIB metal 1) 6SJ7 RCA ￥1200 NIB 1) 6SJ7 RCA ￥1200 NIB 1) 6SJ7 RCA ￥1200 NIB 10) 6SJ7 RCA ￥1100 NIB metal(hxzev) 3) 6SJ7 RCA ￥2500 NIB BIG-METAL 2) 6SJ7 RCA ￥1000 NIB metal MB やや錆 1) 6SJ7 RCA ￥1100 NIB 1) 6SJ7 RCA ￥1100 NIB Metal 1) 6SJ7 RCA ￥1100 NIB Metal 2) 6SJ7 RCA ￥1100 NIB Metal 6) 6SJ7 RCA ￥1100 NIB Metal WB 1) 6SJ7 RCA ￥1000 NOS Metal RCA箱 1) 6SJ7 Altec(RCA-made/branded) ￥1300 NIB metal 1) CRC 6SJ7Y RCA ￥1300 NIB 0) 6SJ7 GE ￥- NIB MB metal(T) 11) 6SJ7 GE ￥1000 NIB metal(hxxdvv) 1) 6SJ7 GE ￥900 NOS metal NonBox 2) JAN 6SJ7 GE ￥1000 NOS D/C=7907 with slightly-rusty WB 0) 6SJ7 GE ￥- NIB 1) 6SJ7 GE ￥1000 NOS Metal RCA箱 5) 6SJ7 GE,StrombergCarlson ￥1100 NIB (2)GE-branded (3)StrombergCarlson-branded(date=58-09) @@ 1) 6SJ7 GE ￥1000 VeryRaggedBox 1) 6SJ7 CGE ￥1000 NIB metal 1) CG 6SJ7Y GE ￥1200 NIB metal 1) 6SJ7Y GE ￥1000 NIB metal 1) 6SJ7 Syl ￥1200 metal YellowBox 1) 6SJ7 Syl ￥1000 metal VeryRaggedBox 1) 6SJ7 Syl ￥1000 NIB metal 2) 6SJ7 Syl ￥2500 NIB Large-METAL 1) 6SJ7 Syl ￥2500 NIB Large-METAL 7) 6SJ7 Ray ￥1000 NOS metal 0) 6SJ7 Amprx ￥- NIB metal(mD) 2) 6SJ7 WH ￥1000 metal RaggedBoxes 1) 6SJ7 Rogers ￥1000 NIB metal 1) 6SJ7 Rogers ￥1000 NOS metal RCA箱 1) 6SJ7 Dmnt ￥1000 NIB metal date=64-20 1) 6SJ7 Dmnt ￥1000 NOS metal Lindal箱 1) 6SJ7 AMC ￥1000 NIB metal RaggedBox England metal used 1) CRC-6SJ7 RCA ￥1000 used? metal 1) CRC-6SJ7/VT-116 RCA ￥800 used 2240/1240min metal 1) 6SJ7 RCA ￥400 used metal 1) 6SJ7 GE ￥400 used metal 錆 1) 6SJ7 Krad ￥400 used metal 1) 6SJ7 Executone ￥600 used? やや錆 1) 6SJ7 Executone ￥600 used 1780/1040min glass type new 1) 6SJ7GT Mullard ￥2500 NOS NEC箱 3) 6SJ7GT RCA ￥2000 NIB Glass RaggedBox 1) 6SJ7GT RCA ￥2000 NIB Glass (vT) 1) GB 6SJ7WGT Syl ￥2900 GoldBrand 1) 6SJ7WGT Syl ￥2700 NIB MB GlassType 1) 6SJ7GT Syl ￥2100 DC=7-26(1947) RaggedBox 0) 6SJ7 Syl ￥- NIB MB glass MetalBase glass type used 1) 6SJ7WGT Syl ￥1500 lightly-used WB 0) 6SJ7/GT Ray ￥- used Glass
6SK7 =Remote Cutoff Pentode= (EIA/8N - octal) Eh/Ih=6.3V/0.3A Ppmax=4W Epmax=300V Pc2max=0.4W Ec2max=125V/300V(cutoff) Ec1max=+0V op : Ep=250V Ec2=100V Ec1=-3V Ip=9.2mA Ic2=2.6mA rp=800kΩ gm=2mS (see hi-rel/special 6SK7 = 6137) heater variant 12SK7(Eh/Ih=12.6V/0.15A) similar types : 6AB7, 6AC7, 6AJ7 metal type 7) 6SK7 Ray ￥1000 NOS (hyfn) 1) 6SK7 RCA ￥1200 NIB 1) 6SK7 RCA ￥1200 NIB 0) 6SK7 RCA ￥- NIB metal(Q) 3) 6SK7 RCA ￥1200 NIB 7) 6SK7 GE ￥1000 NIB Metal(nAht) 1) 6SK7WA GE ￥1200 NIB Metal 0) 6SK7 GE ￥- NIB metal 0) 6SK7WA GE ￥- NIB MB metal 1) 6SK7 Syl ￥- NIB metal(nT) 1) 6SK7 Tsol ￥1100 NIB 2) 6SK7 Ray ￥1000 NIB metal 3) 6SK7 NU ￥1000 NIB 0) 6SK7 CBS ￥- NIB metal 0) 6SK7 Rogers ￥900 NOS glass Tsol箱 2) 6SK7 GM ￥1000 NOS glass matched 81,81/48min 0) 6SK7 FoMoCo ￥- NOS glass matched 85,84/48min(sD) 0) 6SK7 KenRad ￥- NIB metal STD箱 2350/1260min 0) 6SK7WA Cossor/RCA ￥- NOS? metal gm=2360/1260min 1) 6SK7 RCA ￥700 used 1) 6SK7 RCA ￥700 used GE箱 1) 6SK7 RCA ￥300 used weak RCA-WB 1) 6SK7 Ray ￥700 used? Glass RCA箱 1) 6SK7 FKrad ￥500 used Metal 錆多 glass type 1) 6SK7GT RCA ￥800 NIB glass Baseに錆あり 0) 6SK7GT RCA ￥- NOS Glass(mD) 0) JAN-CNU 6SK7GTY NU ￥- NIB MB Glass 0) 6SK7GT Allied Radio ￥- NIB glass(sQ) 1) 6SK7GT GE ￥900 used metal 2240/1260min 1) JAN-CG 6SK7GTWA GE ￥900 used metal 2760/1260min 1) 6SK7GT/G Tsol ￥900 used Glass MetalBase 2250/1260min 1) 6SK7GT WH ￥900 used metal 2280/1260min 1) 6SK7GT Hytron ￥500 used Glass 1520/1260min 1) 6SK7GT FoMoCo ￥500 used Glass Base錆
6SL7GT/VT-229 =High-Mu TwinTriode= (EIA/8BD - octal) Eh/Ih=6.3V/0.3A Ehkmax=±90V GE(design center) : Ppmax=1W Epmax=300V op : Ep=250V Ec=-2V Ip=2.3mA rp=44kΩ gm=1.6mS μ=70 (参考 : Ep-Ip特性) see heater variant 12SL7(Eh/Ih=12.6V/0.15A) see a high-rel. version : 5691 also see a low-microphonic high-rel. version : 6113 British MIL type : STC(Brimar) - CV1985(6SL7GT) Russian type : 6H9C(6N9S) see loktal version : 7F7 see similar noval type : 5751 new 0) JAN 6SL7GT/VT-229 NU ￥- NIB Navy-mark MB date=1945(mD) 0) 6SL7GT/VT-229 RCA ￥- NOS WB WaistGtr/ClearGlass Bulk(vAht) 0) JAN-CRC 6SL7GT RCA ￥- NIB MB BlkPlates WaistGtr '50年代 (sT) 0) 6SL7GT RCA ￥- NIB SmokedGlass 1) 6SL7GT RCA ￥3300 NIB D/C=209(1952) ClearGlass, BlkCylindricalPlates BtmGtr VeryRraggedBox 10) 6SL7GT RCA ￥4900 NIB D/C=509(March 1959), SmokedGlass, Thick-base, just-ragged boxes 0) 6SL7GT RCA ￥- NIB BlkPlates BtmDGtr(Qn) 0) 6SL7GT RCA ￥2900 NIB BlkCylindricalPlates BtmGtr justThinBase(vD) 1) 6SL7GT RCA ￥2900 NIB BlkPlates BtmDGtr 1) 6SL7GT RCA ￥2400 NIB BlkPlates BtmDGtr justThinBase (hxT) 1) 6SL7GT RCA ￥2400 NIB BlkPlates BtmGtr @@ 1) 6SL7GT RCA ￥2400 NIB BlkPlates TopGtr 1) 6SL7GT RCA ￥2400 NIB BlkPlates BtmGtr 0) 6SL7GT RCA ￥- NIB SilverPlates SideGtr CoinBase(Qn) 1) 6SL7GT RCA ￥- NIB SilverPlates SideGtr CoinBase @@ 0) 6SL7GT RCA ￥- NIB 0) 6SL7GT RCA ￥- NIB(Sn) 0) 6SL7GT RCA ￥- NIB ThinBase 1) 6SL7GT Amprx ￥2500 NIB BlkPlates WaistGtr 1) 6SL7GT Phlps ￥2400 NIB BlkCylindricalPlates WaistGtr 1) 6SL7GT Phlps ￥2400 NIB BlkCylindricalPlates WaistGtr 1) 6SL7GT Phlps ￥2400 NIB BlkCylindricalPlates WaistGtr GlassChipsInside 1) 6SL7GT GE ￥2900 NIB D/C=2-48 SilverPlates BtmGtr 0) 6SL7GT FAA(GE) ￥- NIB SilverPlates SideGtr date=64-49,65-09,65-09(sT) 1) 6SL7GT GE ￥- NIB SilverPlates SideGtr(hyyegg) 1) 6SL7GT GE ￥2400 NIB SilverPlates SideGtr @@ 1) 6SL7GT GE ￥- NIB SilverPlates SideDgtr date=60-09 1) 6SL7GT GE ￥2900 NIB SilverPlates SideDgtr date=61-39 6) 6SL7GT GE ￥2700 NIB SilverPlates SideGtr justLongGlass 1) 6SL7GT GE ￥2700 NIB SideGtr 1) 6SL7GT GE ￥2700 NOS SideGtr 6SQ7箱 0) 6SL7GT GE ￥- NIB SideGtr CoinBase(Sn) 1) 6SL7GT CGE ￥2500 NIB BlkPlates SideGtr 1) 6SL7GT CGE ￥2500 NIB BlkGlass 3) 6SL7GT Lindal(GE-made) ￥2000 NIB SilverPlates SideGtr date=1-79 etc 0) 6SL7GT Syl ￥- NIB ShortTiltPlates(mD) 0) 6SL7GT Syl ￥- NIB LongTiltPlates 1) JAN-CHS 6SL7GT/VT-229 Syl ￥3900 NOS BlkCylindricalPlates WaistGtr 5) 6SL7GT GE(Syl-made) ￥2000 NIB BlkCylindricalPlates TopRoundHaloGtr 1) 6SL7GT Syl ￥2400 NIB (vQn) 1) 6SL7GT Syl ￥2900 NIB BlkCylindricalPlates TopGtr 3) 6SL7GT Syl ￥2900 NIB BlkCylindricalPlates TopGtr StampedWB date=026(1960) @@ 1) 6SL7GT Syl ￥2900 NIB BlkCylindricalPlates TopGtr @@ 1) 6SL7GT Syl ￥2900 NIB ShortBlkPlates ragged-box 0) 6SL7GT Syl ￥2200 NIB BlkPlates TopGtr LongGlass(mD) 1) 6SL7GT Syl ￥2400 NIB BlkPlates 1) 6SL7GT Syl ￥2400 NIB BlkPlates LargeTopGtr 1) 6SL7GT Syl ￥2400 NOS D/C=513(1955) BlkPlates TopLrgGtr WB 1660/1630/1000min $$ 1) 6SL7GT Syl ￥2000 NIB GrayPlates USSR 1) 6SL7GT Syl ￥1700 NOS GrayPlates USSR WH箱 2) 6SL7GT GE(Syl-made) ￥2900 NIB TopGtr BlkCylindricalPlates 4) JAN-CHS 6SL7WGT Syl ￥offer NIB MB BlkRibbedCylindricalTiltShortPlates TopDGtr BrownBase date(Base)=217,217,217,217 lot(glass)=A2B,A2B,A2B,A2B 3) JAN-CHS 6SL7WGT Syl ￥offer NIB MB BlkRibbedCylindricalTiltShortPlates TopDGtr Brown(LightBrown)Base date(Base)=211,217,219 lot(glass)=J1B,B2B,A2B ０) JAN-CHS 6SL7WGT Syl ￥- NIB MB BlkRibbedCylindricalTiltShortPlates TopDGtr BrownBase date=2-13 0) JAN-CHS 6SL7WGT Syl￥- NIB MB BlkRibbedCylindricalTiltShortPlates TopDGtr BrownBase D/C=9-59,9-59,9-59,9-60(Q) 1) JAN-CHS 6SL7WGT Syl ￥offer NIB MB BlkRibbedCylindricalTiltShortPlates TopDGtr BrownBase D/C=933 ０) JAN-CHS 6SL7WGT Syl ￥- NIB MB BlkRibbedCylindricalTiltShortPlates TopRingGtr BrownBase date=1-66 ０) JAN-CHS 6SL7GT/VT-229 Syl ￥- NIB MB BlkSmoothCylindricallTiltLongPlates WaistGtr BlkBase date=2-55,2/53(D) 2) JAN-CHS 6SL7WGT Syl ￥offer NIB MB BlkRibbedCylindricalTiltShortPlates TopDGtr BrownBase D/C=6811 1) JAN-CHS 6SL7WGT Syl ￥offer NIB MB BlkRibbedCylindricalShortPlates, BrownBase 1) JAN-CHS 6SL7WGT Syl ￥offer NOS? BlkCylindricalPlates TopDgtr BrownBase 2350/2300/1000min ０) 6SL7WGT Syl ￥- NIB MB BrownBase BlkPlate(Sn) 4) 6SL7WGT Syl ￥2500 NOS? BrownBase BlkPlate 1) 6SL7WGT Syl ￥2500 NOS BrownBase BlkPlate RCA箱 0) 6SL7WGT Syl/GTE/Philips-ECG ￥￥- NIB MB BlkPlates BlkBase (xgAht) 1) JAN-CTL 6SL7GT Krad NOS ￥2800 date=6206 BlkPlates TopGtr BrownBase 1) JAN-CTL 6SL7GT Tsol ￥3900 NIB MB BlkGlass BlkCylindricalPlates BtmDGtr BrownBase 1) JAN-CTL 6SL7WGT Tsol ￥3900 NIB MB BlkFlatRibbedPlates TopGtr BrownBase date=5/61 5) 6SL7GT Tsol ￥3900 NIB MB BlkFlatRibbedPlates TopGtr BrownBase date=10/62 1) 6SL7GT Tsol ￥3300 LikeNew MB DarkGrayPlates LongGlass TopGtr date=6508 gm=1810/1850/1000min $$ 4) JAN-CKR 6SL7GT Krad ￥2900 NIB MB SilverPlates WaistGtr date=0-39,7-35,8-30,9-09,9-09,9-39 1) JAN-CKR 6SL7GT Krad NOS ￥2800 SilverPlates WaistGtr date=8-30 gm=1780/1800/1000min 1) 6SL7GT Krad ￥1500 NIB ragged box 3) 6SL7GT WH ￥2400 NIB BlkGlass BlkBase USA-made(Nn) 1) 6SL7GT WH ￥2400 NIB GrayFlatPlates TopGtr LongGlass 1) 6SL7GT WH-old ￥2500 NIB 1) 6SL7GT Ray ￥2400 NIB ragged box 1) 6SL7GT Ray ￥2500 NIB TallGlass TopGtr LongPlates 2) 6SL7GT Ray ￥2500 NIB SilverPlates SideGtr 1) 6SL7GT CBS ￥2500 NIB 1) 6SL7GT NU ￥2000 NIB 1) JAN-CNU 6SL7GT NU NOS ￥2000 BlkGlass date=2-22 gm=1700/1740/1000min 1) 6SL7 NU ￥2500 NOS RCA箱 ragged box 2) 6SL7GT Dmnt ￥2500 NIB LongGlass TopGtr GrayFlatPlates date=6624 1) 6SL7GT Dmnt ￥2500 NOS LongGlass TopGtr GrayFlatPlates date=6620 RCA箱 3) 6SL7GT NEC ￥3000 NIB BtmGtr SilverCylindricalPlates 通測用 1) 6SL7GT NEC ￥3000 NIB BtmGtr SilverCylindricalPlates 通測用 RaggedBox 2) 6SL7GT NEC ￥3000 NIB D/C=1959-8 & 1959-12, BottomGtr, SilverCylindricalPlates, justRaggedBoxes 1) 6SL7GT Brimar ￥2500 NIB Foreign-made used 1) 6SL7GT RCA ￥2700 used SmokedGlass 1720/1760/1000min 1) 6SL7GT RCA ￥2000 used D/C=KV(1958.4) SmokedGlass 50/42/32min(TV-7B) 0) 6SL7GT RCA ￥- used? LikeNew 0) 6SL7GT RCA ￥- used SmokedGlass date=6-13 1600/1620/1000min $$ 0) 6SL7GT RCA ￥- used GrayGlass RB(Qn) 0) 6SL7GT RCA ￥- used RB 1) 6SL7GT GE ￥1800 used-lightly D/C=63-35(1963) SilveryPlates SideGtr 1720/1810/1000min $$ 0) 6SL7GT GE ￥- used SilveryPlates SideGtr 1530/1580/1000min $$ 1) 6SL7GT GE ￥1300 used D/C=9-52 38/40/32min SilverPlates BtmGtr 1) 6SL7GT GE ￥1200 used RCA箱 1) USN 6SL7WGT Sylvania ￥3200 D/C=927 Fully-flashedGtr, light-brown base, light-green print, WB 1) JAN CHS-6SL7GT/VT-229 Syl ￥2200 used 54/54/32min 1) 6SL7GT Syl ￥1700 used?LikeNew 2060/1960/1000min BlkCylindricalPlates RCA箱 1) 6SL7GT Syl ￥1500 used? 1920/1760/1000min 2) JAN-CNU 6SL7GT/VT-229 NationalUnion ￥2200 like-new WB 1) USN 6SL7WGT Sylvania ￥2200 WB 1) 6SL7GT NEC-made ￥2200 like-new WB 1) 6SL7GT NEC-made ￥2200 lightly-used NHK Nickel-plates, BottomGettr WB 1) 6SL7GT WH ￥1200 used 1700/1550/1000min
6SN7GT/GTA/GTB/VT-231, 6SN7W =medμ TwinTriode= (EIA/8BD - octal) *6SN7GT has two 6J5/GT units inside glass. Eh/Ih=6.3V/0.6A Ehkmax=±200V(+100Vdc) GT(Sylvania) : Ppmax=3.5W Epmax=300V Ikmax=20mA Ik-peakmax=70mA Rgmax=1MΩ GT(Tung-Sol) : Ppmax=2.5W Epmax=300V WGT(Raytheon) : Ppmax=3.5W Epmax=300V Ipmax=20mA Rgmax=1MΩ WGTA(Tung-Sol) : Ppmax=3.44W Epmax=330V Ipmax=20mA Rgmax=1.1MΩ GTA : Ppmax=5.0W Epmax=450V Ikmax=20mA/70mApeak Rgmax=1MΩ GTB : Ppmax=5.0W Epmax=450V Ikmax=20mA/70mApeak Rgmax=1MΩ Theater=11sec 5692: Ppmax=1.75W Epmax=275V Ikmax=15mA Igmax=2mA Ehkmax=±100V(fragile) op.1(A1) : Ep= 90V Eg= 0.0V Ip=10mA rp=6.7kΩ gm=3mS μ=20 op.2(A1) : Ep=250V Eg=-8.0V Ip=9mA rp=7.7kΩ gm=2.6mS μ=20 6SN7GTの平均プレート特性 see CV1988(European military version of 6SN7GT/GTY) Also see equivallent ones : 6F8/G, 7N7(loktal), 12SN7GT(Eh=12.6V), 12SX7GT, 5692, 1633(Eh=25V). also see more-powerful locktal type : 33A/158M CV1884(Ppmax=6W/unit, μ=14-typ: same-base as 7N7) note 1: GTA-based designed amplifiers cannot be replaced by W, GT. Proper re-setting of plate voltage/dissipation is MUST. GTB-based designed amplifiers cannot be replaced by W, GT, GTA. Proper re-setting of plate voltage/dissipation is MUST. note 2: Heater-Cathode isolation limit is Ehkmax=+200V(dc+ac_peak) and Ehkmin=-100Vdc-100Vac_peak. These should be strictly kept for cascade/SRPP and/or direct-couple amplifier design or when tube-change. new 0) VT-231/6SN7GT RCA ￥13500/pair NIB BlkPlates SmokedGlass gm-CloselyMatchedPair(Sx) 0) 6SN7GT/VT-231 RCA ￥- NOS? SmokedGlass BlackPlates(mQ) * 2) 6SN7GT/VT-231 RCA ￥offr NIB MB $#$#$ SmokedGlass date=K6E(1943) H1E(1944) SilverPrintedThickBase BtmGtr StaggeredBlkRibbedPlates CopperGridPost gm=2990/2990/1640min, 3100/3100/1640min 0) 6SN7GT RCA ￥- NIB BlkPlates BtmGetter(sD) 1) 6SN7GT RCA ￥3300 NIB D/C=826(1948) SmokedGlass BlkPlates BtmGtr WhitePrint 8) 6SN7GTA RCA ￥3300 NIB D/C=5-09(1955) BlkPlates SideGtr ShortGlass SilverPrint just-ragged-boxes w/sleeves 1) 6SN7GTA RCA ￥3000 NOS D/C=4-48(1954) BlkPlates SideTwinGtr ShortGlass SilverPrint gm=2880/3500/1640min 1) 6SN7GTA RCA ￥3100 NOS GTB箱 1) 6SN7GTA RCA ￥3300 NOS GTB-軍箱 BlkPlates SideGtr 1) 6SN7GTB RCA ￥3300 NIB BlkPlates SideGtr RaggedBox 0) 6SN7GTB RCA ￥3100 NIB BlkPlates BtmGtr(rhx18nt) 2) 6SN7GTB RCA ￥3400 NIB BlkPlates BtmGtr date=60-04 SilverPrint 1) 6SN7GTB RCA ￥3400 NIB BlkPlates BtmGtr SilverPrint 1) 6SN7GTB RCA ￥3400 NIB BlkPlates BtmGtr SilverPrint 1) 6SN7GTB RCA ￥3100 NIB BlkPlates BtmGtr date=62-26 OrangePrint 3) 6SN7GTB RCA ￥3100 NIB BlkPlates BtmGtr OrangePrint ThickBase 2) 6SN7GTB RCA ￥3100 NIB BlkPlates BtmGtr OrangePrint justThinBase(hyyfgg) 1) 6SN7GTB RCA ￥3100 NOS BlkPlates BtmGtr OrangePrint justThinBase RCA-RaggedBox 0) 6SN7GTB Zenith(RCA-made) ￥3100 NOS BlkPlates BtmGtr WB SameLot date=6613(vSx) 1) 6SN7GTB RCA ￥2900 NOS BlkPlates BtmGtr WB 1) 6SN7GTB RCA ￥3100 NIB D/C=5-39 BlkPlates SideGtr ShortGlass SilverPrint just-ragged-box 0) 6SN7GTB RCA ￥- NIB BlkPlates SideGtr ShortGlass(sD) 1) 6SN7GTB STD(RCA) ￥2600 NOS? BlkPlates SideGtr ShortGlass 1) 6SN7GTB RCA ￥2900 NOS BlkPlates SideGtr ShortGlass 3130/2960/1640min WB 1) 6SN7GTB RCA ￥3200 NIB BlkPlate WaistGtr(Qn) 1) 6SN7GTB RCA ￥3200 NIB BlkPlate BtmWaistGtr JustThiBase 1) 6SN7GTB Std(Meck/RCA-made) ￥2900 NIB BlkPlates BtmGtr 4) 6SN7GTB RCA ￥3200 NIB BlkPlates BtmWaistGtr ThinBase gm=3110/2870, 2660/2700, 3090/3160, 2720/2860/1640min, Ip=7.7mA/7.1mA, 6.9mA/6.8mA,7.1mA/7.0mA, 7.1mA/7.2mA on Hickok-539B 0) 6SN7GTB RCA ￥- NIB BlkPlates TopGtr(D) 2) 6SN7GTB RCA ￥3300 NIB D/C=61EXI(1961), made for Germany military use, BlkPlates BtmGtr Just-RaggedBoxes 1) 6SN7GTB Seeburg(RCA-made) ￥3300 NIB D/C=62-17 BlkPlates BtmGtr 0) 6SN7GTB RCA(Sylvania-made) ￥2700 NIB BlkPlates TopGtr CoinBase (vsD) 1) 6SN7GTB RCA ￥2700 NIB BlkPlates SideGtr CoinBase(rhx1z6ns) 1) 6SN7GTB RCA ￥2700 NIB BlkPlates SideGtr CoinBase 3) 6SN7GTB RCA ￥2700 NIB BlkPlates SideGtr CoinBase WipedAwaySilk, just-ragged boxes 3) 6SN7GTB RCA(USSR) ￥1500 NIB GrayPlates BtmGtr 5) 6SN7GTA GE ￥3000 NIB D/C=2-43,2-43,2-43,3-13,3-17(1952 & 1953) GrayPlates Side-Dgtr CuGridPost 青箱Ragged 0) 6SN7GTA GE ￥- NIB SideGtr GrayPlate(Nn) 0) 6SN7GTB GE ￥- NIB BlkPlates BtmGtr 0) 6SN7GTB GE ￥- NIB SideGtr(ghx53nr) 2) 6SN7GTB GE(Canada) ￥2200 NIB SideGtr 1) 6SN7GTB GE ￥2700 NIB Side-Gtr WhitePrintOnGlass 4) 6SN7GTB GE ￥2700 NIB Side-Gtr WhitePrintOnGlass Bar 4) 6SN7GTB GE ￥2700 NIB Side-Gtr WhitePrintOnGlass Bar MB @@ 2) 6SN7GTB GE ￥2700 NIB Side-Gtr 2) 6SN7GTB GE ￥2700 NIB Side-Gtr RedPrint 1) 6SN7GTB GE ￥2700 NIB SideD-Gtr RedPrint 1) 6SN7GTB GE ￥2900 NIB SideD-Gtr RedPrint date=58-52 2) 6SN7GTB GE ￥2700 NIB SideD-Gtr RedPrint date=60-30 3) 6SN7GTB GE ￥2500 NIB SideGtr RedPrint 2) 6SN7GTB GE ￥2500 NIB TopGtr BlkTiltPlates 1) 6SN7GTB GE ￥2500 NOS SideGtr RCA箱 0) 6SN7GTB GE,FAA(GE-made) ￥- NIB SideGtr CoinBase(hyyanx) 1) 6SN7GTB GE ￥2300 NIB SideGtr CoinBase 1) 6SN7GTB GE ￥2300 NIB SideGtr CoinBase 0) 6SN7GTB GE ￥- NOS SideGtr WB RedPrint date=6130,6226,6509,6509,6509 0) 6SN7GTB GE ￥- NOS SideGtr WB RedPrint date=60-35 1) 6SN7GTB GE ￥2200 used? SideGtr WB RedPrint date=60-30 2) 6SN7GTB GE ￥2600 NOS SideGtr WB WhitePrint date=64-43 1) 6SN7GTB GE ￥2500 NOS SideGtr WB 1) 6SN7GTB GE ￥2700 NIB SideD-Gtr date=61-43 1) 6SN7GTB GE ￥2700 NOS SideD-Gtr Tsol箱 date=58-04 1) 6SN7GTB GE ￥2700 NOS SideD-Gtr ChannelMaster箱 date=62-26 1) 6SN7GTB GE ￥2900 NIB TwinSideGtr 2) 6SN7A Syl ￥１５０００ NOS LOKTAL Bulk-NOS 98/106/50min 94/108/50min ==rare== 0) USN 6SN7WGT Syl ￥８７００ NIB MB BlkTiltPlates TopGtr MetalBase date=11/52 1) JAN 6SN7WGT Syl ￥３９００ NIB MB BlkBoxPlates TopGtr MetalBase date=7030 1) 6SN7GT Syl ￥3900 NIB BlkPlates WaistGtr old 0) USN 6SN7WGTA Syl ￥５１００ NIB MB BlkTiltPlates TopGtr LightBrownBase date=3/54 0) JAN-CHS 6SN7WGTA Syl ￥- NIB MB BlkTiltPlates TopGtr BrownBase date=2-66(D) 1) 6SN7WGTA Syl ￥3500 NIB MB TopGtr BlkPlates 0) 6SN7WGTA Syl ￥- NIB TopGtr LightBrownBase BlkPlates(D) 0) 6SN7WGTA Syl ￥- used? TopGtr LightBrownBase BlkPlates(T) 37) 6SN7GTA Syl ￥3000 NOS BlkTiltPlate TopLargeGtr GreenPrint date=513 WB gm=2830-3310/2760-3160/1640min $$ 10) 6SN7GTA Syl ￥2900 NOS BlkTiltPlate TopLargeGtr GreenPrint date=326 WB ** 0) 6SN7GTB Syl ￥- NIB MIL-WB(T) 1) 6SN7GTB Syl ￥2700 NOS BlkPlate TopGtr ShortGlass WB 2790/2880/1640min 1) 6SN7GTB Syl ￥2700 NOS BlkPlate ThinBase 1) 6SN7GTB Syl ￥2700 NOS BlkPlates TopGtr 1) 6SN7GTB Syl ￥2700 NIB BlkPlates TopGtr 1) 6SN7GTB Syl ￥2700 NIB BlkPlates TopGtr 1) 6SN7GTB Syl ￥2700 NIB BlkPlates TopGtr 1) 6SN7GTB Syl ￥2700 NIB BlkPlates TopGtr 2) 6SN7GTB Syl ￥3300 NOS BlkPlates TopGtr BrownBase YellowPrintOnGlass Lindal箱 1) 6SN7GTB RCA(Syl-made) ￥2700 NOS BlkPlates TopGtr Syl箱 1) 6SN7GTB Syl ￥2700 NOS BlkPlates TopGtrSTD箱 1) 6SN7GTB Syl ￥2700 NOS GrayPlates TopGtr 0) 6SN7GTB Syl ￥- NIB W.Germany(Sx) 1) 6SN7GTB Syl ￥2200 NOS W.Germany BtmGtr GrayPlates 2) 6SN7GTB Syl ￥2600 NIB TopGtr BlkTiltPlates CoinBase 1) 6SN7GTA Silvertone(Syl-made) ￥2700 NIB BlkTiltPlate TopGtr 0) 6SN7GT Ray ￥3700 NIB MB Date=1-55(T) 0) 6SN7GT Ray ￥- NOS MB Date=1-55(1) 1) JAN-CRP 6SN7WGT Ray ￥3500 NIB MB BlkPlates TopDGtr date=2-11 4) 6SN7WGT Ray ￥3500 NIB D/C=339 TopGtr BlkPlate BrownBase just-ragged-boxes w/sleeve 1) VT231/6SN7GT Ray ￥3700 NOS WB 3020/2930/1640min BlkPlates BtmGtr 1) 6SN7GT/VT-231 Ray ￥2900 used 98/93/50min BlkPlates BtmGtr 6) 6SN7GTB Ray ￥3000 NIB D/C=539 TopGtr BlkPlate just-ragged-boxes w/sleeve 1) 6SN7GTB Ray ￥1900 NOS RCA箱 BlkPlate 1) 6SN7GTB Ray ￥1900 NOS TopGtr/BlkPlates 3160/3300/1640min 1) 6SN7GTB Ray ￥3000 NOS WaistGtr BlkPlates 3000/3010/1640min 1) 6SN7GTB Ray ￥2500 NIB ShortGlass SideGtr BlkPlates 1) 6SN7GTB Ray ￥2400 NOS LongGlass TopGtr BlkPlates RCA箱 2) 6SN7GTB Ray ￥2500 NOS? SideGtr BlkPlates date=6-09 Syl箱 1) 6SN7GTB Ray ￥1900 NIB SideGtr BlkPlates justPoorGtr 1) JAN-CKR 6SN7GT/VT-231 Krad ￥3300 NIB STD箱 BlkGlass HairlineCrackOnBase 1) 6SN7GT WH ￥2500 NIB SmokedGlass 1) 6SN7GTB WH ￥2500 NIB BlkPlate TopGtr 4) 6SN7GTB WH ￥2500 NOS D/C=62-09(1962) GrayRibbedFlatPlates TopGtr TallGlass CuGridPost gm=2910/2990, 3090/3340, 3200/2800, 3100/3180/1640min(tested on Hickok-539B) with old ragged white-boxes 1) 6SN7GTB Tsol ￥3000 NIB BlkTiltPlate TopGtr 0) 6SN7GTB Tsol ￥- NIB BlkPlate TopGtr(mT) 0) 6SN7GTB Tsol ￥- NIB BlkPlate SideGtr(sD) 1) 6SN7GTB Tsol ￥2900 LikeNew GE青箱 GrayBoxPlates BtmGtr 2860/2860/1640min 1) 6SN7GTB Tsol ￥2700 NOS GE箱 BlkPlate 0) 6SN7GT Motorola ￥- NIB BlkGlass GrayPlates BtmGtr date=5152(sD) 0) 6SN7GTB United ￥- NIB(D) 1) 6SN7GT CBS ￥2400 NIB BlkPlates BtmGtr RaggedBox 1) 6SN7GTB Dmnt ￥2400 NIB BlkPlates TopGtr RaggedBox 1) 6SN7GTB Chief ￥2400 NIB BlkTiltPlates SideGtr RaggedBox(NonTopFlap) 1) 6SN7GTB ITT ￥2400 NIB BlkPlate 0) 6SN7GTB Znth ￥- NIB BlkPlate 3) 6SN7GTB RadTel ￥2400 NIB BlkTiltBoxPlates SideGtr (箱表記=6SN7B) 1) 6SN7GTB CBS(GE-made) ￥2400 NIB BlkTiltBoxPlates SideGtr RadTel-6SN7B箱 1) 6SN7GTB International ￥2200 NIB BlkPlate 2) 6SN7 Perma-Test(日立) ￥2900 NIB BlkPlates TopGtr LightBlueBox 1) 6SN7 Triad ￥2200 NIB GrayPlates TopGtr RedWhiteBox(sD) 0) 6SN7GTB Triad ￥- NIB 0) 6SN7GTA Triad(GEmade)￥- NIB 0) 6SN7GT Triad ￥- NIB 2) 6SN7GTB Int-C ￥2400 NIB BlkBoxPlates WaistGtr 1) 6SN7GTB ITT(Japan) ￥1500 NIB TopGtr BlkFlatPlates 1) 6SN7GTB made in Japan ￥1500 NIB GrayPlates BaseCrack VeryRaggedBox 1) 6SN7GT Matsuda NIB BlackPlates, BottomGtr, just-ragged box 1) 6SN7GT Toshiba/Matsuda NIB GrayPlates, BtmGtr, ragged box, 製造時ガラス変色あり/manufacturing-discoloration 1) 6SN7GT NEC NIB D/C=1959-12, GrayPlates, BottomGtr, just-ragged box 3) 6SN7GT NEC NIB D/C=1959-12, GrayPlates, BottomGtr, just-ragged boxes 1) 6SN7GT NEC NIB D/C=1959-10, GrayPlates, BottomGtr, just-ragged box 0) 6SN7GT National ￥- NIB(D) 1) 6SN7GTB National ￥1300 NIB GrayPlates WaistGtr USSR 10) 6SN7GTB National ￥1300 NIB GrayPlates WaistGtr USSR 7) 6SN7GTB National(made in USSR) ￥1300 NIB GrayBoxPlates, BottomGetter used(RCA) 1) 6SN7GT/VT-231 RCA ￥5100 used SmokedGlass gm=2800/2950 1) 6SN7GT/VT-231 RCA ￥5100 used/LikeNew WaistGtr LongGlass gm=//1640min 0) 6SN7GT/VT-231 RCA ￥- used SmokedGlass BlackPlates * gm=2400/2750, 2600/2550(sD) 1) 6SN7GT/VT-231 RCA ￥5100 used (picture=left) ***** SmokedGlass date=H1E(1944) SilverPrintedThickBase BtmGtr StaggeredBlkRibbedPlates gm=2610/2670/1640min 1) 6SN7GT/VT-231 RCA ￥6000 used (picture=right) ***** SmokedGlass date=V3E(1945) SilverPrintedThickBase BtmGtr StaggeredRibbedBlkPlates gm=3020/2980/1640min 1) 6SN7GT/VT-231 RCA ￥6000 used *$$$* SmokedGlass date=H6E(1944) SilverPrintedThickBase BtmGtr StaggeredRibbedBlkPlates gm=2950/2950/1640min 2) 6SN7GT RCA ￥3000 used SmokedGlass 2400/2480, 2720/2520(sD) 1) 6SN7GT RCA-Victor ￥3000 used SmokedGlass 2640/2510 1) 6SN7GT RCA ￥3000 used date=226 SmokedGlass CopperGridPost 2730/2800/1640min *$$$* 1) 6SN7GT RCA ￥2400 used date=226 SmokedGlass CopperGridPost 2300/2600 *$$$* 1) 6SN7GT RCA ￥3000 used date=352 ClearGlass BtmGtr CopperGridPost 3090/3320 *$$$* 1) 6SN7GT RCA ￥2400 used date=326 ClearGlass BtmGtr CopperGridPost 2510/2870 *$$$* 1) 6SN7GT RCA ￥2400 used SmokedGlass 2450/2780 1) 6SN7GT RCA ￥2400 used SmokedGlass 2600/2260/1640min 1) 6SN7GT RCA ￥2000 used SmokedGlass 1) 6SN7GT RCA ￥2000 used SmokedGlass 1) 6SN7GT RCA ￥2000 used SmokedGlass 2300/2030 1) 6SN7GT RCA ￥2000 used SmokedGlass 2200/2300, 2040/2180,2280/2020,2350/1980/1640min date=2-09,2-13,039,235 1) 6SN7GT Emerson(RCA-made) ￥2000 used SmokedGlass 2020/2050/1640min date=035 1) 6SN7GT RCA ￥1700 used SmokedGlass 1880/1960/1640min 1) 6SN7GT RCA ￥1600 used SmokedGlass 2260/1870/1640min 1) 6SN7GT RCA-Victor ￥1500 used SmokedGlass BtmGetter 76/66/50min 1) 6SN7GT RCA-Victor ￥1500 used SmokedGlass BtmGetter RCA箱 1) 6SN7GT Tele-tone(RCA-made) ￥1000 used SmokedGlass 1760/1800/1640min 1) 6SN7GT Syl(RCA-made) ￥3300 used ***** SmokedGlass date=8-26(1948) GreenPrintThickBase BtmGtr StaggeredRibbedBlkPlates gm=2930/2800/1640min 1) 6SN7GT RCA ￥2400 used *$$$* SmokedGlass date=8-39(1948) SIlverPrintThickBase BtmGtr StaggeredRibbedBlkPlates gm=2510/2590/1640min 2) 6SN7GTA RCA ￥2600 LikeNew ShortGlass BlkPlates TwinSideGtr 2790/2950,2640/2600/1640min date=509,509 1) 6SN7GTA RCA ￥3000 used BlkRibbedFlatPlates TwinSideGtr date=4-39 ShortGlass ThinBase 3050/3060/1640min @@ 1) 6SN7GTA RCA ￥2600 used (picture=left) ***** date=435(1954) ShortGlass TwinSideD-Gtr SilverPrintThinBase StaggeredRibbedBlkPlates gm=2990/2680/1640min 1) 6SN7GTA RCA ￥2600 used (picture=right) ***** date=435(1954) ShortGlass TwinSideD-Gtr SilverPrintThinBase StaggeredRibbedBlkPlates gm=2710/2870/1640min 1) 6SN7GTA Admiral(RCA-made) ￥2400 used date=435(1954) ShortGlass TwinSideD-Gtr SilverPrintThinBase StaggeredRibbedBlkPlates gm=2450/2330/1640min 1) 6SN7GTA RCA ￥2600 used BlkPlates SideGtr date=517 2550/2600/1640min $$ 1) 6SN7GTA RCA ￥2600 used (picture=left) ***** date=4-04(1954) ShortGlass SingleSideD-Gtr SilverPrintThinBase StaggeredRibbedBlkPlates gm=2800/2740/1640min 1) 6SN7GTA Silvertone(RCA-made) ￥2200 used (picture=center) ***** date=4-26(OEM1954) ShortGlass SingleSideDGtr SilverPrintThinBase StaggeredRibbedBlkPlates gm=2600/2440/1640min 1) 6SN7GTA Motorola(RCA-made) ￥2000 used (picture=right) ***** date=5-09(OEM1955) ShortGlass SingleSideDGtr SilverPrintThinBase StaggeredRibbedBlkPlates gm=2200/2180/1640min 1) 6SN7GTA RCA ￥2800 used (picture=left) *$*** date=5-13(1955) ShortGlass SingleSideD-Gtr SilverPrintThinBase StaggeredRibbedBlkPlates gm=2960/2840/1640min 1) 6SN7GTA RCA ￥2600 used (picture=center) *$*** date=5-22(1955) ShortGlass SingleSideD-Gtr SilverPrintThinBase StaggeredRibbedBlkPlates gm=2640/2900/1640min 1) 6SN7GTA RCA ￥2600 used (picture=right) *$*** date=5-22(1955) ShortGlass SingleSideD-Gtr SilverPrintThinBase StaggeredRibbedBlkPlates gm=2480/2700/1640min 1) 6SN7GTA RCA ￥2600 used BlkPlates BtmGetter 2760/2800/1640min 1) 6SN7GTB RCA ￥2000 used (picture=upper 1st from left) ***** date=3-26(1953) ClearGlass BtmD-Gtr SilverPrintedThickBase StaggeredRibbedBlkPlates gm=2320/1910/1640min 1) 6SN7GTB RCA ￥2600 used (picture=upper 2nd from left) ***** date=3-26(1953) ClearGlass BtmD-Gtr SilverPrintedThickBase StaggeredRibbedBlkPlates gm=2750/2560/1640min 1) 6SN7GTB RCA ￥2000 used (picture=upper 3ed from left) ***** date=3-43(1953) ClearGlass BtmD-Gtr SilverPrintedThickBase StaggeredRibbedBlkPlates gm=2260/2600/1640min 1) 6SN7GTB RCA ￥2000 used (picture=upper 4th from left) ***** date=YJL ClearGlass BtmD-Gtr SilverPrintedThickBase StaggeredRibbedBlkPlates gm=2830/2700/1640min 1) 6SN7GTB RCA ￥2600 used (picture=lower 1st from left) ***** date=KC ClearGlass BtmD-Gtr SilverPrintedThickBase StaggeredRibbedBlkPlates gm=2620/2690/1640min 1) 6SN7GTB RCA ￥2600 used (picture=lower 2nd from left) ***** date=KY ClearGlass BtmD-Gtr SilverPrintedThickBase StaggeredRibbedBlkPlates gm=2280/2520/1640min 1) 6SN7GTB RCA ￥2600 used (picture=lower 3ed from left) ***** date=LM ClearGlass BtmD-Gtr SilverPrintedThickBase StaggeredRibbedBlkPlates gm=2580/2660/1640min 1) 6SN7GTB RCA ￥2000 used (picture=lower 4th from left) ***** date=LQ ClearGlass BtmD-Gtr SilverPrintedThickBase StaggeredRibbedBlkPlates gm=2780/2160/1640min 1) 6SN7GTB RCA ￥2000 used date=6-09(1956) ClearGlass BtmD-Gtr SilverPrintedThickBase StaggeredRibbedBlkPlates gm=2530/2220/1640min 1) 6SN7GTB RCA ￥2800 used BlkRibbedFlatPlates SideGtr lot=LM ThinBase 2600/2680/1640min @@ 2) 6SN7GTB RCA ￥2800 used BlkPlates SideGtr ShortGlass 3200/3020, 2970/2910 1) 6SN7GTB RCA ￥2800 used ShortGlass SideGtr2800/3090,3020/2900(D) 1) 6SN7GTB Hoffman(RCA-made) ￥2600 used ***** D/C=5717(1957) ClearGlass SingleSideGtrDGtr SilverPrintThinBase StaggeredRibbedBlkPlates gm=2430/2540/1640min 1) 6SN7GTB RCA ￥1400 used BlkRibbedFlatPlates SideGtr lot=DB 1) 6SN7GTB RCA ￥1400 used GrayPlate SideGtr 1) 6SN7GTB Magnavox(RCA-made) ￥2900 used BlkRibbedFlatPlates Btm-D-Gtr date=5-43 3000/3300/1640min @@ 1) 6SN7GTB RCA ￥2800 used BlkRibbedFlatPlates BtmGtr lot=KE ThickBase 2860/2010/1640min *$$$* 1) 6SN7GTB RCA ￥2800 used BlkRibbedFlatPlates BtmGtr lot=KM ThickBase 2740/2860/1640min @@ 1) 6SN7GTB RCA ￥2400 used BlkRibbedFlatPlates BtmGtr lot=KW ThickBase 2300/2280/1640min @@ 4) 6SN7GTB RCA ￥2900 used BlkPlates BtmGtr 101/101, 106/102, 96/106, 112/102/50min(TV7) 一部glass-chipあり 3) 6SN7GTB RCA ￥2800 used BlkPlates BtmGtr 2740/2700, 2530/2570, 2600/2770/1640min(T) 2) 6SN7GTB RCA ￥2800 used BlkPlates BtmGtr 2840/3050, 2680/2660/1640min $$ 1) 6SN7GTB RCA ￥2800 used BlkPlates BtmGtr 2700/2740/1640min OrangeLogoThinBase $$ 1) 6SN7GTB RCA ￥2800 used BlkPlates BtmGtr 2650/2700/1640min OrangeLogoThinBase *$$$* 1) 6SN7GTB RCA ￥2600 used BlkPlates BtmGtr 2330/2480/1640min $$ 0) 6SN7GTB RCA ￥- used? BlkPlates BtmGtr(D) 3) 6SN7GTB RCA ￥2000 used BlkPlates BtmGtr(T) 1) 6SN7GTB RCA ￥2000 used BlkPlates BtmGtr GE箱 @@ 1) 6SN7GTB GM-Delco(RCA-made) ￥2900 used (picture=left) ***** date=SE ClearGlass BtmD-Gtr OrangePrintedThickBase StaggeredRibbedBlkPlates gm=2810/2810/1640min 1) 6SN7GTB RCA ￥2600 used (picture=2nd from left) ***** date=AD ClearGlass BtmD-Gtr OrangePrintedThinBase StaggeredRibbedBlkPlates gm=2420/2390/1640min 1) 6SN7GTB RCA ￥2600 used (picture=3rd from left) ***** date=AD ClearGlass BtmD-Gtr OrangePrintedThinBase StaggeredRibbedBlkPlates gm=2700/2840/1640min 1) 6SN7GTB Delta ￥2600 used (picture=right) ***** date=? ClearGlass BtmD-Gtr GreenPrintedThinBase StaggeredRibbedBlkPlates gm=2820/2710/1640min 1) 6SN7GTB RCA ￥2600 lightly-used BlkPlates BtmGtr lot=LM WB 1) 6SN7GTB RCA ￥2000 used BlkPlates BtmGtr lot=LH WB 2) 6SN7GT RCA ￥2900 used BlkPlates BtmGtr gm=2970/2900. 2950/3160, 2800/2920(sT) 3) 6SN7GT RCA ￥2600 used BlkPlates BtmGtr 2640/2870,2720/2810,2530/2560 5) 6SN7GT RCA ￥2600 used BlkPlates BtmGtr 2780/2870,2730/2680,2650/2680,2570/2600,2440/2420/1640min 1) 6SN7GT RCA ￥2600 used BlkPlates BtmGtr 2690/2600/1640min 1) 6SN7GT RCA ￥2600 used BlkPlates BtmGtr 2520/2830 LikeNew date=409 1) 6SN7GT RCA ￥2600 used BlkPlates BtmGtr 2460/2460 0) 6SN7GT RCA ￥- used BlkPlates BtmGtr 60/73/50min 0) 6SN7GT RCA ￥- used BlkPlates BtmGetter 53/57/50min 1) 6SN7GT RCA ￥400 used BlkPlates BtmGtr 1350/980/1640min $$ used(GE) 1) 6SN7GT GE ￥3300 usedLikeNew BtmGtr BlkPlates justThinBase 2900/2950 $$ 1) 6SN7GT GE ￥2500 used BlkSlidedPlates WaistGtr date=817 1) 6SN7GT GE ￥3300 LikeNew ##### date= - OrangePrintThickase BtmDgtr RibbedBlkBoxPlates gm=2980/2990/1640min 1) 6SN7GTA GE ￥2400 usedLikeNew GrayPlates SideGetter 2320/2480 1) 6SN7GTA Zenith(GE-made) ￥2000 used GrayRibbedFlatPlates Side-D-Gtr 2300/2700/1640min @@ 1) 6SN7GTA GE ￥2600 used (picture=left) ***** date=3-04(1953) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=2580/2580/1640min 1) 6SN7GTA GE ￥2600 used (picture=right) ***** date=3-17(1953) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=2900/2780/1640min 1) 6SN7GTA Raytheon(GE-made) ￥2000 used (picture=left) ***** date=352(1953) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=2070/2180/1640min 1) 6SN7GTA GE ￥2400 LikeNew OriginalRaggedBox (picture=left) ##### date=3-22(1953) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=2930/2550/1640min 1) 6SN7GTA GE ￥2600 LikeNew OriginalRaggedBox (picture=center) ##### date=3-26(1953) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=2730/2690/1640min 1) 6SN7GTA GE ￥2400 LikeNew OriginalRaggedBox (picture=right) ##### date=3-30(1953) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=2510/2550/1640min 1) 6SN7GTA GE ￥2400 used (picture=left) ##### date=4-26(1954) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=2510/2550/1640min 1) 6SN7GTA GE ￥2400 used (picture=right) ##### date=4-39(1954) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=2380/2460/1640min 1) 6SN7GTA Raytheon(GE-made) ￥2400 used (picture=right) ***** date=452(1954) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2630/2470/1640min 1) 6SN7GTA GE ￥2600 used (picture=left) ##### date=4-48(1954) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=2970/3060/1640min 1) 6SN7GTA GE ￥2600 used (picture=2nd from left) ##### date=4-48(1954) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=2710/2710/1640min 1) 6SN7GTA GE ￥2600 used (picture=3rd from left) ##### date=4-48(1954) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=2550/2670/1640min 1) 6SN7GTA GE ￥2600 used (picture=right) ##### date=5-13(1955) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=2630/2610/1640min 1) 6SN7GTA GE ￥2200 used date=3-28(1953) ShortGlass SideD-Gtr WhitePrintedThinBase RibbedGreyPlates gm=96/120/50min(TV-7B) 1) 6SN7GTA Ray(GE-made) ￥1500 used SideGetter 2100/1940/1640min 1) 6SN7GTA GE ￥1500 used 79/62/50min(D) 1) 6SN7GTA GE-made ￥1500 used GrayPlates SideGetter 2) 6SN7GTA GE, Bendix(GE-made) ￥1000 used D/C=2-30(1952), 3-13(1953) SideD-Gtr RibbedGreyPlates gm=2040/2140,1850/2330/1640min 1) 6SN7GTA GE ￥500 used GrayPlates SideDgtr 1550/1540 $$ 4) 6SN7GT GE(Canada) ￥offer used Sylvania-3hole style $$$$* Bottom D-Getter RedPrintThickBase BlkBoxT-Plates-3holes CuGridPost gm= / , / , / , / /1640min TopView(mica supporter) : Very similar to Sylvania-6SN7GT-3holes(dated late1951-early1953) 3) 6SN7GTB GE(Canada) \offer used BlkBoxT-plates-3holes/plate CuGridPost PolishedRectangularMica BtmDgtr WhitePrintThinBase gm=2430/2470, 2700/2560, 2560/2680/1640min : Very similar to Sylvania-6SN7GT-3holes(dated late1951-early1953) 2) 6SN7GTB GE(Canada) \offer used BlkBoxT-plates-3holes/plate CuGridPost PolishedRectangularMica BtmDgtr RedPrintThinBase gm=2500/2380, 2620/2460/1640min : Very similar to Sylvania-6SN7GT-3holes(dated late1951-early1953) 3) 6SN7GTB Marconi(Canada) \offer used BlkBoxT-plates-3holes/plate CuGridPost PolishedRectangularMica BtmDgtr WhitePrintThinBase gm=2450/2780, 2800/2760, 2850/2660/1640min : Very similar to Sylvania-6SN7GT-3holes(dated late1951-early1953) 2) 6SN7GTB Marconi(Canada) \offer used BlkBoxT-plates-3holes/plate CuGridPost PolishedRectangularMica BtmDgtr RedPrintThinBase gm=3070/3050, 2790/2450/1640min : Very similar to Sylvania-6SN7GT-3holes(dated late1951-early1953) 2) 6SN7GTB Philco(Canada) \offer used BlkBoxT-plates-3holes/plate CuGridPost PolishedRectangularMica BtmDgtr RedPrintThinBase gm=2320/2590, 2760/2690/1640min : Very similar to Sylvania-6SN7GT-3holes(dated late1951-early1953) 1) 6SN7GTB GE ￥2000 used (picture=1st from left) ***** date=5-17(1955) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2190/2400/1640min 1) 6SN7GTB Motorola(GE-made) ￥2000 used (picture=2nd from left) ***** date=5-22(1955) ShortGlass SideD-Gtr RedPrintedThickBase RibbedGreyPlates gm=2520/2150/1640min 1) 6SN7GTB Coronado(GE-made) ￥2600 used (picture=2nd from left) ***** date=5-30(1955) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2880/2650/1640min 1) 6SN7GTB GE ￥2200 used (picture=3rd from left) ***** date=5-43(1955) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2360/2200/1640min 1) 6SN7GTB GE ￥2600 used (picture=3rd from left) ***** date=5-52(1955) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2780/2700/1640min 1) 6SN7GTB GE ￥2000 used GrayPlates SideDgtr date=526 2510/2180 $$ 1) 6SN7GTB WardsAirline(GE-made) ￥1500 used GrayPlates SideD-Gtr date=5-26 gm=2250/2150/1640min 1) 6SN7GTB GE ￥- used GrayPlates Sidegtr date=5-52 1) 6SN7GTB GE ￥2600 used (picture=upper 1st from left) ***** date=56-09(1956) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2940/2850/1640min 1) 6SN7GTB GE ￥2400 used (picture=upper 2nd from left) ***** date=56-43(1956) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2400/2460/1640min 1) 6SN7GTA GE ￥2200 used GrayRibbedFlatPlates Side-D-Gtr 2280/2240/1640min date=57-04 ThickBase WhiteLogo@@ 1) 6SN7GTB GE ￥2600 used (picture=upper 3rd from left) ***** date=57-52(1957) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2880/2920/1640min 1) 6SN7GTB GE ￥2400 used (picture=lower 1st from left) ***** date=58-17(1958) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2550/2430/1640min 1) 6SN7GTB GE ￥2400 used (picture=lower 2nd from left) ***** date=58-30(1958) ShortGlass SideD-Gtr RedPrintedThickBase RibbedGreyPlates gm=2360/2430/1640min 1) 6SN7GTB GE ￥2600 used (picture=lower 3rd from left) ***** date=58-39(1958) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2720/2690/1640min 1) 6SN7GTB GE ￥- used GrayPlates Sidegtr date=57-04 1) 6SN7GTB GE ￥2400 used (picture=upper left) ***** date=60-35(1960) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2860/2660/1640min 1) 6SN7GTB GE ￥2400 used (picture=upper center) ***** date=60-35(1960) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2580/2650/1640min 1) 6SN7GTB GE ￥2400 used (picture=upper right) ***** date=61-22(1961) ShortGlass SideD-Gtr WhitePrintedThickBase RibbedGreyPlates gm=2670/2560/1640min 1) 6SN7GTB GE ￥2800 likeNew (picture=lower left) ***** date=63-48(1963) ShortGlass SideRoundGtr RedPrintedThickBase RibbedGreyPlates gm=3150/3110/1640min 1) 6SN7GTB GE ￥2800 likeNew (picture=lower center) ***** date=HV ShortGlass SideRoundGtr WhitePrintedThickBase RibbedGreyPlates gm=2890/2810/1640min 1) 6SN7GTB GE ￥2800 likeNew (picture=lower right) ***** date=JY ShortGlass SideRoundGtr WhitePrintedThickBase RibbedGreyPlates gm=3010/3000/1640min 1) 6SN7GTB GE ￥- used GrayPlates Sidegtr date=61-22 1) 6SN7GTB GE ￥2000 used GrayPlates Sidegtr date=62-26 2320/2340 $$ 1) 6SN7GTB GE ￥2400 used GrayPlates SideD-Gtr date=68-43 gm=2620/2690/1640min 1) 6SN7GTB GE ￥2200 used GrayPlates SideRoundGtr gm=2670/2650/1640min 1) 6SN7GTB GE ￥2800 used? SideGetter 3270/3120/1640min 1) 6SN7GTB GE ￥2600 used GrayPlates SideGtr 3050/2890/1640min 1) 6SN7GTB GE ￥2600 used? GrayPlates SideGtr 2820/2980 1) 6SN7GTB GE ￥2400 used GrayPlates SideGtr 2700/2500 1) 6SN7GTB GE ￥2600 LikeNew GrayRibbedFlatPlates Side-D-Gtr 2870/2730/1640min ThickBase WhiteLogo@@ 1) 6SN7GTB GE ￥- used GrayPlate SideGtr 2850/2800(Canada),2940/2670(USA)(D) 1) 6SN7GTB GE ￥2400 usedLikeNew GrayPlates SideGtr 2560/2400 1) 6SN7GTB GE ￥2600 LikeNew GrayRibbedFlatPlates Side-D-Gtr 2750/2760/1640min ThickBase RedLogo@@ 1) 6SN7GTB HP(GE-made) ￥2600 used GrayPlate SideGtr 2990/2800 1) 6SN7GTB Silvertone(GE-made) ￥2600 used? GrayPlate SideGtr 3400/3170 1) 6SN7GTB Airline(GE-made) ￥2600 used GrayPlate SideGtr 2940/2670 1) 6SN7GTB EICO(GE-made) ￥2600 LikeNew GrayRibbedFlatPlates Side-D-Gtr 2800/2870/1640min @@ used(Sylvania) 1) JAN-CHS 6SN7W Syl ￥offer used 2540/2380/1640min GreenPrintThickBase ShortGlass LargeTopGtr 1) JAN-CHS 6SN7W Syl ￥offer used ***** date= - TopLargeGetterFlash MetalBase BlkBoxT-Plates CopperGridPost gm=2540/2350/1640min 1) JAN-CHS 6SN7W Syl ￥offer used ****# date= - TopLargeGetterFlash MetalBase BlkBoxT-Plates CopperGridPost gm=//1640min 1) JAN-CHS 6SN7W Syl ￥offer used ****# date= - TopLargeGetterFlash MetalBase BlkBoxT-Plates CopperGridPost gm=//1640min 1) JAN-CHS 6SN7W Syl ￥offer used ****# date= - TopLargeGetterFlash MetalBase BlkBoxT-Plates CopperGridPost gm=//1640min 2) (JAN-CHS) 6SN7W Syl ￥offer used-lightly TopLargeGetterFlash BlkBoxT-Plates CopperGridPost, lost MetalBase-sleeve's(exposed button stem, there) WB Top-View 1) JAN-CHS 6SN7GT/VT-231 Syl ￥5500 used BlkPlates WaistGtr 2760/2700 4) JAN-CHS 6SN7GT/ VT-231 Syl ￥5500 used BlkPlates *$$$* WaistGetterFlash WhitePrintThickBase BlkBoxT-plates-2holes RegularGridPost (picture= four tubes from left) *$$$* 1) JAN-CHS 6SN7GT/ VT-231 Syl ￥5500 used BlkPlates WaistGetterFlash WhitePrintThickBase BlkBoxT-plates-2holes CopperGridPost (picture= the most right one) 1) JAN-CHS 6SN7GT/ VT-231 Syl ￥4000 used (picture=left) *$*** WaistGetterFlash SilverPrintedThickBase BlkBoxT-Plates-2holes RegularGridPost gm=2200/2220/1640min 1) JAN-CHS 6SN7GT/ VT-231 Syl ￥5500 used (picture=2nd from left) *$*** WaistGetterFlash smeared-SilverPrinted ThickBase BlkBoxT-Plates-2holes RegularGridPost gm=3100/3310/1640min 1) JAN-CHS 6SN7GT/ VT-231 Syl ￥4000 used (picture=3rd from left) *$*** WaistGetterFlash SilverPrintedThickBase(hairline) BlkBoxT-Plates-2holes RegularGridPost gm=2560/2230/1640min 1) JAN-CHS 6SN7GT/ VT-231 Syl ￥5000 used (picture=right) *$*** WaistGetterFlash SilverPrintedThickBase BlkBoxT-Plates-2holes CopperGridPost gm=2700/2500/1640min 1) JAN-CHS 6SN7GT/ VT-231 Syl ￥5500 used (picture=left) *$*** WaistGetterFlash SilverPrintedThickBase BlkBoxT-Plates-2holes CopperGridPost gm=3100/2900/1640min 1) JAN-CHS 6SN7GT/ VT-231 Syl ￥5500 used (picture=right) *$*** WaistGetterFlash SilverPrintedThickBase BlkBoxT-Plates-2holes CopperGridPost gm=2940/2790/1640min 2) 6SN7GT/VT-231 Syl ￥5500 used code=D4,D4 *$$$* WaistGetterFlash GreenPrintedThickBase BlkBoxT-Plates-2holes RegularGridPost gm=3050/2900,2900/2960/1640min 1) JAN-CHS 6SN7GT/ VT-231 Syl ￥5500 used (picture=left) *$$** WaistGetterFlash GreenPrintedThickBase BlkBoxT-Plates-2holes RegularGridPost gm= / /1640min 1) JAN-CHS 6SN7GT/ VT-231 Syl ￥5500 used (picture=right) *$$** WaistGetterFlash WhitePrintedThickBase BlkBoxT-Plates-2holes RegularGridPost gm= / /1640min 1) JAN-CHS 6SN7GT/ VT-231 Syl ￥5500 used *$$$* WaistGetterFlash WhitePrintedThickBase BlkBoxT-Plates-2holes RegularGridPost gm=2800/2860/1640min(539B), gm=104/104/50min(TV-7B/U) 1) 6SN7GT Syl ￥4500 used? ****# date=4N(1940s) WaistGetterFlash GreenPrintedThickBase BlkBoxT-Plates-2holes CopperGridPost gm=3450/3110/1640min 2) 6SN7GT Syl ￥4500 used? ***+* date=3T,639(1940s) BottomFoilGetter-WaistFlash GreenPrintedThickBase BlkBoxT-Plates-2holes RegularGridPost gm= / , / /1640min 1) 6SN7GT Syl ￥4500 used (picture=left) *$$$* date=952(1949) BottomFoilGetter-WaistFlash GreenPrintThickBase BlkBoxT-Plates-2holes RegularGridPost 1) 6SN7GT Philco(Syl-made) ￥3600 used date=5049(1950) BottomFoilGetter-WaistFlash GreenPrintedThickBase BlkBoxT-Plates-2holes CopperGridPost gm = 2500/2450/1640min 1) 6SN7GT Syl ￥4500 used? *$*$* date=052(1950) BottomFoilGetter-WaistFlash GreenPrintedThickBase BlkBoxT-Plates-2holes CopperGridPost gm = 3150/3240/1640min 1) 6SN7GT Syl ￥4500 used? *$*** date=052(1950) BottomFoilGetter-WaistFlash GreenPrintedThickBase BlkBoxT-Plates-2holes CopperGridPost gm = 2870/3040/1640min 1) 6SN7GT Syl ￥4500 used? (picture=right)*$$** date=0-26(1950) BottomFoilGetter-WaistFlash GreenPrintThickBase BlkBoxT-Plates-2holes CopperGridPost 1) 6SN7GT Syl ￥4500 used? *$$$* date=0-52(1950) BottomFoilGetter-WaistFlash GreenPrintThickBase BlkBoxT-Plates-2holes CopperGridPost gm=3400/3730/1640min 1) 6SN7GT Syl ￥4500 used? (picture=left)*$$** date= BottomFoilGetter-WaistFlash SmearedPrint ThickBase BlkBoxT-Plates-2holes CopperGridPost 2) 6SN7GT Syl ￥4500 used? ***** date=113, 113 (1951) BottomFoilGetter-WaistFlash GreenPrintedThickBase BlkBoxT-Plates-2holes CopperGridPost gm=3230/3380/1640min, 2940/2980/1640min 1) 6SN7GT Syl ￥4000 used *$$$* date=113 (1951) BottomFoilGetter-WaistFlash GreenPrintedThickBase BlkBoxT-Plates-2holes CopperGridPost gm=2530/2410/1640min 1) 6SN7GT Syl ￥4000 used *$$$* date=113 (1951) BottomFoilGetter-WaistFlash GreenPrintedThickBase BlkBoxT-Plates-2holes CopperGridPost gm=2600/2380/1640min 1) 6SN7GT Syl ￥3300 used, CenterPost'Lost' date=1-52 (1952) BottomFoilGetter-WaistFlash GreenPrintedThickBase BlkBoxT-Plates-2holes CopperGridPost gm=3140/3120/1640min 1) 6SN7GT Syl ￥4500 used? (picture=right)*$$** date= BottomFoilGetter-WaistFlash GreenPrintThickBase BlkBoxT-Plates-2holes RegularGridPost 1) 6SN7GT Westinghouse(Canada) ￥offer used Sylvania-2hole style (picture=left) $$$$* date=c-2R BottomFoilGetter WhitePrintThickBase BlkBoxT-Plates-2holes CopperGridPost gm= / /1640min 1) 6SN7GT Syl ￥4500 used BlkBoxPlates BottomFoilGetter-WaistFlash date=052 2900/2980 $$ 1) 6SN7GT Syl ￥3800 used BlkBoxPlates BottomFoilGetter-WaistFlash 2600/2850 1) 6SN7GT Syl ￥3300 used BlkBoxPlates BottomFoilGetter-WaistFlash date=313 2210/2190 $$ 4) JAN-CHS 6SN7GT Syl ￥offer used? *$$$* 'BAD BOY' date=203,142,142,142(1952, 1951) WaistGetterFlash GreenPrintThickBase BlkBoxT-Plates-3holes CuGridPost gm=108/102, 102/101, 90/96, 106/99/50min(TV-7B/U) 1) 6SN7GT Tsol(Syl-made) ￥offer used 'BAD BOY' date=143(1951) BottomFoilGetter-WaistFlash WhitePrintThickBase BlkBoxT-Plates-3holes CuGridPost gm=2880/3070/1640min 2) 6SN7GT Tsol(Syl-made) ￥offer used 'BAD BOY' date=152,152(1951) BottomFoilGetter-WaistFlash WhitePrintThickBase BlkBoxT-Plates-3holes CuGridPost gm=2600/2700, 1900/2820/1640min 1) 6SN7GT Syl ￥offer used? ***** 'BAD BOY' date=213(1952) BottomFoilGetter-WaistFlash GreenPrintThickBase BlkBoxT-Plates-3holes CuGridPost gm=2990/3040/1640min 2) 6SN7GT Syl ￥offer used ****# 'BAD BOY' date=2-26, 218(1952) BottomFoilGetter-WaistFlash GreenPrintThickBase BlkBoxT-Plates-3holes CuGridPost gm=2720/2780, 2550/2720/1640min 7) 6SN7GT Syl ￥offer used *$$$$ 'BAD BOY' date = 226, 226, 226, 226, 226, 226, 226(1952) lot = L1M, L1M, L1M, L1M, L1M, L1M, L1M BtmFoilGetter-WaistFlash GreenPrintThickBase BlkBoxT-Plates-3holes CuGridPost gm=3030/3000, 2950/3080, 2940/2880, 2850/2710, 3300/3040, 2760/2600, 2600/2720/1640min(Hickok-539B) 3) 6SN7GT Syl ￥offer used *$$$* 'BAD BOY' date=235,235,235(1952) BottomFoilGtr-WaistFlash GreenPrintThickBase BlkBoxT-Plates-3holes CuGridPost gm= / , / , / /1640min 2) 6SN7GT Syl ￥offer used ***+* 'BAD BOY' date=2-52(1952),305(1953) BottomFoilGtr-WaistFlash GreenPrintThickBase BlkBoxT-Plates-3holes CuGridPost gm= / , / /1640min 1) 6SN7GT Syl ￥offer used 'BAD BOY' date= ( ) BottomFoilGetter-WaistFlash GreenPrintThickBase BlkBoxT-Plates-3holes CuGridPost gm=3000/2890/1640min 1) 6SN7GT Motrola(Syl-made) ￥offer used 'BAD BOY' date=252(1952) BottomFoilGetter-WaistFlash YellowPrintThickBase BlkBoxT-Plates-3holes CuGridPost gm=2740/3000/1640min 1) 6SN7GT Syl ￥offer used *$$$* 'BAD BOY' date=3-13(1953) BottomFoilGetter-WaistFlash ThickBase BlkBoxT-Plates-3holes CuGridPost gm=2900/2700/1640min 1) 6SN7GT Westinghouse(Canada) ￥offer used Sylvania-3hole style (picture=right) $$$$* date=c-2I BottomFoilGetter WhitePrintThickBase BlkBoxT-Plates-3holes Cu(=Copper)GridPost gm= / /1640min 1) 6SN7GT Westinghouse(Canada) ￥offer used AlmostAll-Sylvania-3hole style *$*$* date=348(1953) Bottom D-Getter ThickBase BlkBoxT-Plates-3holes Cu(=Copper)GridPost gm=2900/3240/1640min 1) 6SN7GT Syl ￥2200 used BlkFlatPlates WaistGtr gm=2350/1940/1640min 2) 6SN7GT Syl ￥offer used (picture=left) *$*** date=126(1951),2-39(1952) WaistGetterFlash GreenPrintThickBase RibbedBlkFlatPlates CopperGridPost gm=2740/2760, 2860/2800/1640min 1) 6SN7GT Syl ￥offer used (picture=left) *$*** date=1-52(1952) WaistGetterFlash GreenPrintThickBase w/ hairline, RibbedBlkFlatPlates CopperGridPost gm=2650/2830/1640min 1) 6SN7GT Syl ￥offer used (picture=right) *$*** date=213(1952) WaistGetterFlash GreenPrintThickBase RibbedBlkFlatPlates CopperGridPost gm=2630/2500/1640min 7) 6SN7GT Syl ￥offer used *$$$$ date = 226, 226, 226, 226, 226, 226, 226(1952) lot = E1H, E1H, E1H, E1H, E1H, D1H, D1H BtmFoilGetter-WaistFlash GreenPrintThickBase RibbedBlackFlatPlates CopperGridPost gm=3040/2900, 2760/2800, 2710/2700, 2710/2830, 2890/2690, 2600/2620, 2660/2510/1640min(Hickok-539B) 1) 6SN7GT Syl ￥offer used ***** date=2-39(1952) WaistGetterFlash GreenPrintThickBase RibbedBlkFlatPlates CopperGridPost gm=2660/2760/1640min 2) 6SN7GT Syl ￥offer used ***** date=139(1951), 2-52(1952) WaistGetterFlash GreenPrintThickBase RibbedBlkFlatPlates CopperGridPost gm=2410/2370, 2370/2370/1640min 1) 6SN7GT Zenith(Syl-made) ￥2800 used ParallelBlkBoxPlates ChromeTop-LargeTopGtr ThinBase date=248 gm=2280/2520/1640min @@ 2) 6SN7GT Syl ￥3500 used ****# date=252(1952) ShortGlass ChromeTop(TopLargeGetterFlash) GreenPrintThinBase ParallelBlkBoxPlates CuGridPost gm=2650/2830/1640min, 2630/2500/1640min 1) 6SN7GT Syl ￥3100 used CenterIndexGuide is broken ***** date=244(1952) ShortGlass ChromeTop(TopLargeGetterFlash) GreenPrintThinBase ParallelBlkBoxPlates CuGridPost gm=2430/2490/1640min 1) 6SN7GT Syl ￥offer used ***+* date=3-13(1953) ShortGlass ChromeTop(TopLargeGetterFlash) GreenPrintThinBase ParallelBlkBoxPlates CuGridPost gm= / /1640min 1) 6SN7GT Syl ￥2000 used RCA箱 BlkPlates 2) 6SN7GT RCA(Syl-made) ￥2200 used GE箱 BlkTiltPlates TopGtr 8) 6SN7GTA Syl ￥offer used? ****# date=313, 326, 331, 331, 413, 422, 422, 422(1953,1954) GreenPrintThickBase ShortGlass ChromeTop(TopLargeGetterFlash) ParallelBlkBoxPlates-3holes Cu(=Copper)GridPost gm=2590/2630, 2700/2700, 2700/2840, 2780/2750, 2760/2780, 2680/2580, 2840/2810, 2730/2640/1640min 1) 6SN7GTA Syl ￥2600 used (picture=left) ***** date=344(1953) ShortGlass ChromeTop GreenPrintThickBase TiltBlkBoxPlates CuGridPost gm=2500/2490/1640min 1) 6SN7GTA Syl ￥2600 used *$$$* date=3-26(1953) ShortGlass ChromeTop GreenPrintThickBase ParallelBlkBoxPlates CuGridPost gm=2100/2500/1640min 1) 6SN7GTA Motorola(Syl-made) ￥2600 used date=326 ShortGlass ChromeTop GreenPrintThickBase TiltBlkBoxPlates CuGridPost gm=74/74/50min(TV-7B) 1) 6SN7GTA Syl ￥3200 LikeNew (picture=center) ***** date=AF ShortGlass ChromeTop GreenPrintThickBase TiltBlkBoxPlates CuGridPost gm=3460/3460/1640min 1) 6SN7GTA Motorola(Syl-made) ￥2400 used (picture=right) ***** date=413(1954) ShortGlass ChromeTop YellowPrintThickBase TiltBlkBoxPlates CuGridPost gm=2250/2350/1640min 1) 6SN7GTA Syl ￥offer used *$$$* date=413(1954) ShortGlass ChromeTop GreenPrintThickBase ParallelBlkBoxPlates CuGridPost gm=2700/2550/1640min 1) 6SN7GT Motorola(Syl-made) ￥2200 used TiltBlkBoxPlates ChromeTop ThickBase date=439 gm=2500/2540/1640min @@ 1) 6SN7GT Philco(Syl-made) ￥2400 used TallGlass TiltBlkBoxPlates ChromeTop-LargeGtr date=55-24 gm=2920/2530/1640min @@ 1) 6SN7GTA Syl ￥2800 used? BlkPlate TopGetter VeryStrong 3400/3200 1) 6SN7GTA Philco(Syl-made) ￥2400 used ShortGlass TiltBlkBoxPlates ChromeTop date=54-39 gm=2730/2900/1640min 1) 6SN7GTA WH(Syl-made) ￥2400 used ShortGlass TiltBlkBoxPlates ChromeTop date=339R gm=2400/2530/1640min 1) 6SN7GTA Philco(Syl-made) ￥2200 used BlkPlate TopGetter ShortGlass gm=2540/2310/1640min 1) 6SN7GTA Syl ￥2400 used ShortGlass TopGtr date=339 gm=2500/2700/1640min $$ 1) 6SN7GTA Syl ￥2400 used 90/87/50min 4) 6SN7GTB Syl ￥2000 used TiltBlkBoxPlates TopGtr ThinBase date=426(1954) @@ gm=2490/2720, 2670/2810, 2460/2350, 2560/2600/1640min, respectively 1) 6SN7GTB Magnavox(Syl-made) ￥2600 used TiltBlkBoxPlates ChromeTop ThinBase date=544(1955) 82/90/50min(TV-7B) 1) 6SN7GTB Syl ￥3000 used TiltBlkBoxPlates ChromeTop ThinBase date=635(1956) 3040/2940/1640min @@ 1) 6SN7GTB Syl ￥2200 used (picture=upper left) ***** date=BG ChromeTop YellowPrintThinBase TiltBlkBoxPlates CopperGridPost gm=2420/2380/1640min 1) 6SN7GTB Syl ￥2600 used (picture=upper 2nd from left) ***** date=BJ ChromeTop YellowPrintThinBase TiltBlkBoxPlates CopperGridPost gm=2730/2650/1640min 1) 6SN7GTB Syl ￥2200 used (picture=upper 3rd from left) ***** date=BM ChromeTop YellowPrintThinBase TiltBlkBoxPlates CopperGridPost gm=2280/2550/1640min 1) 6SN7GTB Syl ￥2600 used (picture=upper right) ***** date=CK ChromeTop YellowPrintThinBase TiltBlkBoxPlates CopperGridPost gm=2860/2800/1640min 1) 6SN7GTB Syl ￥2600 used (picture=lower left) ***** date=DB ChromeTop YellowPrintThinBase TiltBlkBoxPlates CopperGridPost gm=2800/2770/1640min 1) 6SN7GTB Syl ￥2600 used (picture=lower center) ***** date=EJ ChromeTop YellowPrintThinBase TiltBlkBoxPlates CopperGridPost gm=2730/2860/1640min 1) 6SN7GTB Syl ￥2000 used (picture=lower right) ***** date=EJ ChromeTop YellowPrintThinBase TiltBlkBoxPlates CopperGridPost gm=2440/2150/1640min 1) 6SN7GTB Silvertone(Syl-made) ￥1000 used (picture=left) ***** date=BNC ChromeTop OrangePrintThinBase TiltBlkBoxPlates CopperGridPost gm=2250/1580/1640min 1) 6SN7GTB Silvertone(Syl-made) ￥1500 used (picture=center) ***** date= - ChromeTop OrangePrintThinBase TiltBlkBoxPlates CopperGridPost gm=2400/1850/1640min 1) 6SN7GTB Zenith(Syl-made) ￥2600 used (picture=right) ***** date=7-52(1957) ChromeTop OrangePrintThinBase TiltBlkBoxPlates CopperGridPost gm=2950/2710/1640min 24) 6SN7GTB Baldwin(Syl-made) ￥2400 used TiltGrayPlate ChromeTop-TopGtr VeryStrong gm=2500-3000/2500-3000/1640min date=852(hp1z8n) 8) 6SN7GTB Baldwin(Syl-made) ￥2400 used TiltBlkPlate ChromeTop-TopGtr VeryStrong gm >2400-2950/>2400-2950/1640min date=852(hxzdv) 1) 6SN7GTB Syl ￥2200 used ShortGlass BlkTiltBoxPlate LargeTopGtr 2500/2720/1640min 1) 6SN7GTB Syl ￥2600 used (picture=left) ***** date=bg TopGtr YellowPrintThinBase TiltBlkBoxPlates CopperGridPost gm=2840/2840/1640min 1) 6SN7GTB Syl ￥1500 used (picture=2nd from left) ***** date=kb TopGtr YellowPrintThinBase TiltBlkBoxPlates CopperGridPost gm=2520/1900/1640min 1) 6SN7GTB Syl ￥2200 used (picture=3rd from left) ***** date=lb TopGtr YellowPrintThinBase TiltBlkBoxPlates CopperGridPost gm=2350/2360/1640min 1) 6SN7GTB Syl ￥2200 used (picture=right) ***** date=kc TopGtr OrangePrintThinBase TiltBlkBoxPlates CopperGridPost gm=2200/2160/1640min 1) 6SN7GTB Syl ￥2800 used/LikeNew BlkPlate TopGtr 3300/3130/1640min 1) 6SN7GTB Syl ￥2800 used? BlkPlate TopGtr 3200/3120/1640min 1) 6SN7GTB Syl ￥2800 used? BlkPlate TopGtr 3120/3100 2) 6SN7GTB Syl ￥2600 used? BlkPlate TopGtr 2860/2810,2860/2820 1) 6SN7GTB Syl ￥2600 used BlkTiltPlate TopGtr 2790/3050 $$ 1) 6SN7GTB Syl ￥2400 used? BlkPlate TopGtr 90/106/50min 1) 6SN7GTB Syl ￥2400 used TopGtr BlkTiltPlates 2830/2600/1640min 1) 6SN7GTB Syl ￥2400 used BlkBoxTiltPlate TopGtr 2720/2610 1) 6SN7GTB Syl ￥1000 used BlkPlate TopGtr 2400/1830/1640min CenterPin折 1) 6SN7GTB Syl ￥1800 used TiltBlkPlate TopGtr 2510/2220/1640min RedPrintThinBase code=BMT *$$$* 1) 6SN7GTB Syl ￥1800 used TiltBlkPlate TopGtr 2300/2800/1640min YellowPrintThinBase code=CH *$$$* 1) 6SN7GTB Syl ￥1800 used TiltBlkPlate TopGtr 2340/2400/1650min ThickBase date=712 1) 6SN7GTB Motorola(Syl-made) ￥1800 used TiltBlkPlate TopGtr 2460/2300/1650min ThickBase date=552 1) 6SN7GTB Zenith(Syl-made) ￥1800 used TiltBlkPlate TopGtr 2300/2200/1650min ThickBase date=626 2) 6SN7GTB Syl ￥1800 used TiltBlkPlate TopGtr 2270/2500, 2200/2300/1650min YellowPrint ThickBase used(KenRad) 2) JAN-CKR 6SN7GT/VT-231 KenRad ￥offer LikeNew ****# date=M4, S4 BlkGlass WaistD-Gtr SilverPrintThickBase StaggeredRibbedBlkFlatPlates CuGridPost gm=2900/2980, 2880/2740/1640min 1) JAN-CKR 6SN7GT/VT-231 KenRad ￥offer LikeNew ****# date=M4 BlkGlass WaistD-Gtr SilverPrintThickBase StaggeredRibbedBlkFlatPlates CuGridPost gm=2900/3000/1640min 1) JAN-CKR 6SN7GT/VT-231 KenRad ￥3000 used *$*$** date=T4 BlkGlass WaistD-Gtr SilverPrintThickBase StaggeredRibbedBlkFlatPlates CuGridPost gm=2700/2580/1640min 1) JAN-CKR 6SN7GT/VT-231 KenRad ￥3000 used *$*** date=S4 BlkGlass WaistD-Gtr SilverPrintThickBase StaggeredRibbedBlkFlatPlates CuGridPost gm=2600/2750/1640min 1) JAN-CKR 6SN7GT/VT-231 KenRad ￥offer used *$$$* date=X4 ClearGlass WaistD-Gtr SilverPrintThickBase StaggeredRibbedBlkFlatPlates CuGridPost gm=2860/2680/1640min 2) JAN-CKR 6SN7GT/VT-231 KenRad ￥offer used *$*$** date=Y4,Y4 ClearGlass WaistD-Gtr SilverPrintThickBase StaggeredRibbedBlkFlatPlates CuGridPost gm=2700/2580/1640min, 2750/2780/1640min 1) JAN-CKR 6SN7GT KenRad ￥offer used (picture=left) ##### date= - ClearGlass WaistD-Gtr SilverPrintThickBase StaggeredRibbedBlkFlatPlates gm=2520/2580/1640min 1) JAN-CKR 6SN7GT KenRad ￥offer LikeNew (picture=right) ##### date= - ClearGlass WaistD-Gtr SilverPrintThickBase StaggeredRibbedBlkFlatPlates gm=2900/2860/1640min 1) 6SN7GT KenRad-made ￥2600 *$$** date= - ClearGlass WaistD-Gtr SilverPrintThickBase StaggeredRibbedBlkFlatPlates gm=2460/2750/1640min 1) 6SN7GT/VT-231 Krad ￥offer used SmokedGlass gm=2660/2600/1640min RCA箱 1) 6SN7GT Krad ￥2000 used BlkPlate 3) 6SN7GT Krad ￥2000 used ClearGlass date=8-39,8-39,8-39 BlkRibbedFlatPlates WaistGetter CopperGridPost gm=2350/2370, 2350/2440, 2180/2240/1640min *$$$* 2) 6SN7GT Krad ￥1200 used WaistGetter 2020/1870, 1890/2080 1) 6SN7GT KenRad ￥1200 LikeNew (picture=right) *$$** date= - ClearGlass WaistD-Gtr SilverPrintThickBase RibbedBlkFlatPlates CopperGridPost gm=2020/1850/1640min 1) 6SN7GT KenRad ￥500 LikeNew (picture=left) *$$** date= - ClearGlass WaistD-Gtr SilverPrintThickBase RibbedBlkFlatPlates CopperGridPost gm=1500/1100/1640min 2) 6SN7GTA Krad ￥1500 used 2370/1960, 2090/2000 used(Tung-Sol) 1) 6SN7GT Tsol ￥3000 LikeNew *$$$*# date= 0-13 ClearGlass Btm-Gtr ThickBase BlkBoxT-plates EarMicaSupporter gm=2660/2850/1640min 1) 6SN7GT -(Tsol-made) ￥3000 used (picture=left) ##### date= - ClearGlass Btm-Gtr ThickBase RibbedGreyPlates MouseEarLikePad gm=2830/2660/1640min 1) 6SN7GT NJRT(Tsol-made) ￥3900 LikeNew (picture=right) ##### date= - ClearGlass Btm-Gtr ThickBase RibbedGreyPlates MouseEarLikePad gm=3110/3040/1640min 1) 6SN7GT Motorola(Tsol-made) ￥2200 used (picture=left) ##### date=410-3 ClearGlass Btm-Gtr ThickBase RibbedGreyPlates gm=3110/3040/1640min 1) 6SN7GT Motrola(Tsol-made) ￥3900 used GrayBoxPlates BtmGtr gm=3200/2920/1640min 1) 6SN7GT Tsol ￥3300 used (picture=right) ##### date=418-3 ClearGlass Btm-Gtr ThickBase RibbedGreyPlates gm=2690/2680/1640min 3) 6SN7GT Tsol ￥3000 used GrayPlates BtmGtr 2550/2820, 2590/2620, 2660/2720(qT) 1) 6SN7GT Tsol ￥1500 used GrayPlates BtmGtr 2240/1840 1) 6SN7GT Tsol ￥2400 used BlkBoxPlates BtmGtr date=952 1) 6SN7GT Tsol-made ￥2800 used BlkBoxPlates WaistGtr OLSON箱 3) 6SN7GTB Tsol ￥2600 used BlkBoxTiltPlates TopGtr 2540/2530, 2650/2690,2640/2680(qT) 1) 6SN7GTB Tsol ￥2600 used TiltBlkBoxPlates TopGtr lot=PR3 2700/2590/1640min @@ 1) 6SN7GTB Tsol ￥1700 used TiltBlkBoxPlates TopGtr date=6601-3 2200/2100/1640min @@ 1) 6SN7GTB Tsol ￥2600 used TiltBlkBoxPlates TopGtr lot=NR3 LightBrownBase 2750/2680/1640min *$$$* 1) 6SN7GT Motorola(Tsol-made) ￥2800 used GrayBoxPlates BtmGtr date=537-3 2620/2730/1640min @@ used(Raytheon) 1) JAN-CRP 6SN7GT/VT-231 Raytheon ￥3900 used? *$*$** date=1E4 ClearGlass OrangePrintThickBase BtmD-Gtr RibbedBlkBoxPlates CuGridPost gm=3050/3140/1640min 1) JAN-CRP 6SN7GT/VT-231 Raytheon ￥3900 used? *$$$* date=C4 ClearGlass BlkBoxT-plates BtmD-Gtr CuGridPost gm=3040/3240/1640min 1) 6SN7GT Raytheon ￥3000 used? *$*$** date=352 ClearGlass BtmD-Gtr YellowPrintThickBase RibbedBlkFlatPlates CuGridPost gm=2680/2870/1640min 1) 6SN7GT Raytheon ￥2500 used date=552 ClearGlass BtmD-Gtr YellowPrintThickBase RibbedBlkFlatPlates CuGridPost gm=-/-/1640min 2) 6SN7GTA Raytheon ￥2600 used date=6-04 ClearGlass SingleSideD-Gtr YellowPrintThinBase RibbedBlkFlatPlates gm=3360/3170, 2460/3110/1640min 1) 6SN7GTB Raytheon ￥2000 used (picture=left)*$$** date=652 ClearGlass SingleSideD-Gtr YellowPrintThinBase RibbedBlkFlatPlates gm=2200/2500/1640min 2) 6SN7GTB WG&Co(Raytheon-made) ￥3000 used (picture=center,right) gm=3320/3520, 3230/3210/1640min *$$** date=58-220,58-220 ClearGlass SingleSideD-Gtr YellowPrintThinBase RibbedBlkFlatPlates 1) 6SN7GTB Raytheon ￥2600 used *$$** code=G06 Top-Gtr YellowPrintThinBase RibbedBlkFlatPlates gm=2940/2650/1640min 1) 6SN7GTB Raytheon-Uniline ￥2800 used *$$** code=- Top-Gtr YellowPrintThinBase RibbedBlkFlatPlates gm=3060/2910/1640min 1) 6SN7GTB Raytheon-Uniline ￥2600 used(picture=left) *$$** code=- Top-Gtr YellowPrintThinBase RibbedGrayFlatPlates gm=2600/2840/1640min 1) 6SN7GTB Raytheon-Uniline ￥2600 used date=124 Top-Gtr YellowPrintThinBase RibbedBlkFlatPlates gm=2500/2690/1640min 2) 6SN7GTB Raytheon(made in Japan) ￥2600 used(picture=center,right) *$$** code=- Top-Gtr YellowPrintThinBase RibbedGrayFlatPlates gm=2770/2810,2440/2470/1640min 1) 6SN7GTB Ray ￥3000 used SideGetter ShortGlass 3200/3400 1) 6SN7GTB Ray ￥2800 used BlkPlates SideGtr 3030/2700 1) 6SN7GTB Ray ￥2600 used BlkPlates TopGtr 2650/2630 1) 6SN7GTB Ray ￥1200 used BlkPlates SideGtr ShortGlass 2480/1760/1640min used(CBS/Hytron) 1) 6SN7GT Hytron ￥2800 used BlkBoxPlates BtmGtr gm=2810/2430/1640min 1) 6SN7GT CBS(Hytron) ￥2800 used BlkBoxPlates BtmGtr gm=2620/2660/1640min @@ 1) 6SN7GT RCA(Hytron) ￥2800 used BlkBoxPlates BtmGtr gm=2730/2650/1640min @@ 1) 6SN7GT CBS-Hytron ￥2800 used BlkBoxPlates BtmGtr gm=2700/2590/1640min @@ 1) 6SN7GT CBS ￥4000 used? date=55-30 BlkBoxPlates BtmGtr gm=3460/3350/1640min *$*** 1) 6SN7GT CBS ￥2600 used date=- BlkBoxPlates BtmGtr gm=2660/2430/1640min *$$** 1) 6SN7GT CBS ￥2400 used date=- BlkBoxPlates BtmGtr gm=2700/2240/1640min *$$** 1) 6SN7GT Crosley(CBS-made) ￥2800 used BlkBoxPlates WaistGtr date=5013 1) 6SN7GTB CBS ￥2000 used BlkTiltPlates SideGtr ShortGlass gm=2470/2700/1640min 1) 6SN7GTB CBS ￥2600 used BlkBoxPlates BtmGtr date=5617 gm=2650/2680/1640min $$ 1) 6SN7GTB CBS ￥2400 NOS date=58-52 ShortGlass TiltBlkPlates SideGtr gm=2730/2700/1640min (picture=left) *$$** 1) 6SN7GTB CBS ￥2400 used date=GV ShortGlass TiltBlkPlates SideGtr gm=2470/2600/1640min (picture=right) *$$** 2) 6SN7GTB CBS ￥2400 LikeNew date=58-48, 59-22 MediumGlass TiltBlkPlates SideGtr gm=2380/2680,2590/2510/1640min *$$** 1) 6SN7GT Phico(CBS-Hytron made) ￥- used date=52-48 FULLY-flashed(double-sided-SmallRingGetter) 1450/1450/1640min used(NU) 1) 6SN7W NU ￥3000 used metal-base 56/57/50min TopGtr 1) 6SN7GT NU ￥3000 used? BlkGlass BtmGtr FlatPlates CopperGridPost gm = 2570/2660/1640min, 2440/2380/1640min @@ 1) 6SN7GT NU ￥1000 used BlkGlass used(Westinghouse) 1) 6SN7GTA WH ￥2400 used TopGtr BlkPlates 2850/2440/1640min RCA箱 1) 6SN7GTB WH ￥2600 used date=7R43 Top-D-Gtr BlkFlatPlates gm=2500/2400/1640min 1) 6SN7GTB WH ￥800 used TopGtr 79/52/50min 1) 6SN7GTB Hallicrafters(WH-made) ￥2600 used D/C=509 SideGtr BlkFlatPlates gm=2300/2370/1640min (pict.=left)*$$** 1) 6SN7GTB TRU-VAC(WH-made) ￥1000 used D/C=11-59 SideGtr BlkFlatPlates gm=1700/2220/1640min (pict.=right)*$$** 1) 6SN7GTB WH ￥2400 used date=60-R22 TopGtr BlkFlatPlates gm=2410/2350/1640min (picture=left) *$$** 1) 6SN7GTB WH ￥1000 used date=63-26 TopGtr GrayFlatPlates gm=2260/1780/1640min (picture=right) *$$** 1) 6SN7GTB WH ￥2000 lightly-used date=61-39 TopGtr BlackFlatPlates used(others) 1) 6SN7GTA Philco ￥2600 used BlkBoxTiltPlates TopLargeGtr 2550/2500/1640min 1) 6SN7GTB Philco ￥2800 used? BlkPlates TopGtr 3200/3160 1) 6SN7GTB Znth ￥2400 NOS? BlkTiltPlates SideGtr 3320/3480/1640min VeryShortGlass 1) 6SN7GT Motrola ￥800 used GE箱 BlkPlate 1) 6SN7GT Motrola ￥800 used BlkPlate BtmGtr 1720/2100 1) 6SN7GT Admrl ￥1200 used BlkPlates BtmGtr 1) 6SN7GT Admrl ￥1400 used BlkFlatPlates 2100/2030/1640min CenterPin折 1) 6SN7GTA Admrl ￥2200 used BlkPlates TwinSideGtr ShortGlass 2680/2600 1) 6SN7GTA WardsAirline ￥2400 used GrayPlates SideGtr ShortGlass 2850/2640 1) 6SN7GTB WardsSuperAirline ￥2700 used TopGtr BlkTiltPlates 3090/3070 RCA箱 1) 6SN7GT Sheldon ￥1000 used BlkPlate BtmGtr 2200/2240 1) 6SN7GT Brimar ￥3000 used?/NOS? BlkGlass 1) 6SN7GTB Dmnt ￥2000 used TopGtr 87/84/50min 1) 6SN7GTB VM ￥2000 used TopGtr LongGlass 83/89/50min 1) 6SN7GTB Rogers ￥2000 used TopGtr BlkBoxPlates 1) 6SN7GT Sheldon ￥1800 used Olson箱 BlkGlass copperGridPost CircularMica HairlineOnBase date=527 1) 6SN7GTB ChannelMaster ￥2000 used? TopGtr 2900/2970 1) 6SN7GTB ChannelMaster ￥1800 used TopGtr GrayPlates 2830/2750 made in Japan RCA箱 1) 6SN7GTB ChannelMaster(Japan-m) ￥1800 used GrayFlatPlates LargeTopGtr 2640/2630/1640min IndexPinLost@@ 1) 6SN7GTB ChannelMaster(Japan-m) ￥1800 used GrayFlatPlates LargeTopGtr -/-/1640min RCA箱 1) 6SN7GTB Barber Colman ￥1600 used LongGlass TopGtr 2400/2370 1) 6SN7GTB ? ￥2200 NOS? TopGtr BlkPlates LongGlass 3000/3050/1640min 1) 6SN7GTB -(made in Japan) ￥2600 used date=- TopGtr BlkFlatPlates gm=2760/2700/1640min *$$** 1) 6SN7GT Matsuda/Toshiba ￥1500 lightly-used GrayFlatPlates BottomGetter WB 1) 6SN7GT Matsuda/Toshiba ￥1000 used GrayFlatPlates BottomGetter ShortGlass WB 2) 6SN7GT Toshiba ￥1000 used GrayFlatPlates BottomGetter ShortGlass WB 1) 6SN7GT Toshiba ￥1500 lightly-used GrayFlatPlates BottomGetter WB 1) 6SN7GT Toshiba ￥1200 lightly-used GrayFlatPlates TopGetter, CenterGuideLost WB 1) 6SN7GTB Toshiba ￥1000 lightly-used GrayFlatPlates TopGtr LongGlass WB 2) 6SN7GTB Toshiba ￥1000 lightly-used GrayFlatPlates TopGtr LongGlass WB 3) 6SN7GT Matsuda ￥500 used GrayFlatPlates BottomGetter WB 1) 6SN7GT Matsuda ￥500 used 2) 6SN7GT NEC ￥1700 lightly-used GrayPlates BtmGtr D/C=335,335 WB 1) 6SN7GT NEC ￥1000 used GrayPlates BtmGtr D/C=1961-5 WB 1) 6SN7GT Hitachi ￥1500 lightly-used BlackPlates BtmGtr WB 1) 6SN7GT TEN ￥1500 LikeNew WB 1) 6SN7GT Matsushita ￥1000 used GrayFlatPlates BottomGetter WB 1) 6SN7GT Matsushita ￥1000 lightly-used GrayFlatPlates BottomGetter WB 1) 6SN7GT xxx ￥800 used GrayFlatPlates BottomGetter WB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6SQ7 =TwinDiode High-mu Triode= (EIA/8Q - octal) Eh/Ih=6.3V/0.3A Ehkmax=±90V Idiode=1mAmax triode(design center) : Ppmax=0.5W Epmax=300V Ecmax=+0V op : Ep=250V Ec=-2V Ip=1.1mA rp=85kΩ gm=1.175mS μ=100 (参考 : 12SQ7/6SQ7のEp-Ip特性) heater variant : 12SQ7/GT(Eh/Ih=12.6V/0.15A) also see electrically similar types except basing, heater-spec, shape : 2A6 6B6 #75 same basing lower-μ types : 6ST7(μ=16), 6SR7(μ=16) also see another twin-diode high-μ triode octal type (different-base) : 6AQ7GT(μ=70) metal type 1) 6SQ7 Mullard ￥2000 NIB glass 1) 6SQ7 RCA ￥1200 NIB metal(Aht) 1) 6SQ7 RCA ￥1200 NIB metal OriginalWB 4) 6SQ7 RCA ￥1200 NIB metal @@ 1) JAN-CG 6SQ7 GE ￥1000 NIB metal 11) 6SQ7 GE ￥1000 NIB metal(hyydnt) 4) 6SQ7 CGE ￥1000 NIB 1) 6SQ7 Syl ￥1000 NIB metal 1) 6SQ7 Syl ￥1200 NIB metal @@ 1) 6SQ7 Ray ￥1000 NIB metal 1) 6SQ7 CBS-Hytron ￥1000 NIB metal 0) 6SQ7 International ￥- NIB glass(sQ) 1) 6SQ7 KenRad ￥1000 NIB very ragged box 1) 6SQ7 RCA ￥700 used 1500/700min, 108/102/54min 1) 6SQ7 GE ￥400 used 1130/700min, 76/83/54min 1) 6SQ7 Ray ￥400 used OB glass type 1) 6SQ7GT GM(RCA-made) ￥1500 NOS Side-Gtr RCA-boxed 1) 6SQ7GT NEC ￥1500 NIB 0) JAN-CHS 6SQ7GT Syl ￥- NIB glass 1) 6SQ7GT Ray ￥800 NOS? glass MetalBase 1) 6SQ7GT FoMoCo ￥400 used Glass Base錆
6SR7 =TwinDiode Medium-mu Triode= (EIA/8Q - octal) Eh/Ih=6.3V/0.3A Idiode=0.8mAmax triode(design center) : Ppmax=2.5W Epmax=250V op : Ep=250V Ec=-9V Ip=9.5mA rp=8.5kΩ gm=1.9mS μ=16 (参考 : 12SR7/6SR7のEp-Ip特性) nearly-equivallent to 6R7(top-grid), 6BF6(miniature) see heater variant 12SR7(Eh/Ih=12.6V/0.15A) same basing different-μ types : 6ST7(μ=16), 6SQ7(μ=100) 1) 6SR7 RCA ￥1100 NIB metal 1) 6SR7 RCA ￥1100 NIB MB metal 2) CRC 6SR7 RCA ￥1100 NIB RedMB metal 3) JAN-CRC6SR7 RCA ￥1100 NIB MB metal 1) 6SR7 RCA ￥1100 NIB RB metal date=3-43 2) 6SR7 Syl ￥1000 NIB metal(D) 8) CAA 6SR7 GE-made ￥1000 NIB MB date=57-04 metal 0) 6SR7 Standard ￥- NIB metal 1) 6SR7 Delco ￥900 NOS GE箱 metal 2) 6SR7 Soviet("Сделано в СССР" (Sdelano v SSSR / ソヴィエト連邦製)) ￥700 NIB 4) 6SR7 Soviet("Сделано в СССР" (Sdelano v SSSR / ソヴィエト連邦製)) ￥700 NOS
6SS7 =Remote-Cutoff Pentode= (EIA/8N - octal) Eh/Ih=6.3V/0.15A Ehkmax=90V Ppmax=2.25W Epmax=300V Pc2max=0.35W Ec2max=100V/300Vsupply Ec1max=+0V op : Ep=250V Ec2=100V Ec=-3V Ip=9mA Ic2=2mA rp=1MΩ gm=1.85mS 1) 6SS7/VT-199 Bendix ￥1000 NIB MB 1) 6SS7/VT-199 RCA ￥1000 NIB MB 1) 6SS7 GE ￥1000 NOS WB Metal 1) 6SS7 GE ￥1000 NIB 1) 6SS7 Syl ￥1000 NOS WB Metal 1) 6SS7 Syl ￥1000 NIB
6ST7 =TwinDiode med-mu Triode= (EIA/8Q - octal) Eh/Ih=6.3V/0.15A Ppmax=2.5W Epmax=250V μ=16 gm=1.9mS rp=8.5kΩ same basing different-μ types : 6SR7(μ=16), 6SQ7(μ=100) 0) 6ST7 GE ￥- NIB
6SU7 (see 6188) =High Mu Twin Triode= (EIA/8BD - octal) Eh/Ih=6.3V/0.3A Ppmax=1W Epmax=250V Ecmax=+0V op : Ep=250V Ec=-2V Ip=2.3mA rp=44kΩ gm=1,6mS μ=70 (参考 : Ep-Ip特性) 3) 6SU7GTY Tsol ￥3700 NIB glass 9) 6SU7GTY Tsol ￥2400 used LightBrownBase BlackGlass ClearTop 1400-1600/1400-1620/1000min STRONG 1) 6SU7GTY Tsol ￥2400 used LightBrownBase ClearGlass TopGetter 1560/1590/1000min STRONG 1) 6SU7GTY Tsol ￥2000 used LightBrownBase ClearGlass TopGetter 1530/1490/1000min CenterPin折 STRONG
6SV7 =Diode Pentode= (EIA/7AZ - octal, metal) Pentode : Ppmax=2.3W Epmax=300V Pc2max=0.6W Ec2max=150V rp=1.5MΩ gm=3.6mS Eh/Ih=6.3V/0.3A 0) 6SV7 Tsol ￥- used
6SZ7 =duplex-Diode Triode= (EIA/ - ) Triode : Ppmax=-W Epmax=300V μ=70 rp=58kΩ gm=1.2mS Ehkmax=90V Eh/Ih=6.3V/0.15A 0) 6SZ7 RCA ￥- used
6T4 -Low-Mu Triode for UHF oscillator- (EIA/7DK - miniature) Eh/Ih=6.3V/0.225A Ehkmax=25Vdc 50Vpeak Ppmax=3.5W Epmax=200V Icmax=8mA Ikmax=30mA rp=1.86kΩ gm=7mS μ=13 same basing different-μ types : 6DZ4(μ=14), EC93(μ=15), 6AF4/EC94(μ=16), 6DX4(μ=30), 8334(μ=55), 6AN4(μ=70) 1) 6T4 NJRT/Sylvania ￥1000 NOS 4) 6T4 Raytheon-UNILINE ￥1000 NIB 1) 6T4 Syl ￥1000 NOS Raytheon箱
標記 この頁の各行は、基本的に下記のように記述されております｡ 在庫数) TYPE 製造メーカ 単価 new/used状態 その他状況 メーカ略号 Amprx(Amperex), Cunnghm(Cunningham), Dmnt(Dumont), GE(General Electric), Hyt(Hytron), Krad(KenRad), L&K(Lewis and Kaufman), Mag(Magnavox), NU(National Union), Ray(Raytheon), STD(Standard), Syl(Sylvania), TFK(Telefunken), Tsol(Tung-Sol), WE(Western Electric), WH(Westinghouse), Znth(Zenith)
6T5 =Eye tube= (EIA/ - octal) O) 6T5 Tsol ￥- used VeryRare
6T7/6T7G =TwinDiode High-mu Triode= (EIA/7V - octal) Triode : Epmax=250V Eh/Ih=6.3V/0.15A Diode : similar to diodes of #85 and 6B7 op(A1) : Triode Ep=250V Ec=-3V Ip=1.2mA μ=65 rp=62kΩ gm=1.05mS same basing different-μ types : 6V7G(μ=8.3), 6R7G(μ=16), 6Q7/G(μ=70), 6B6G(μ=100) O) 6T7 RCA ￥- NIB VeryRaggedRedBox
6T8/A =Triple Diode high-mu Triode= (EIA/9E - noval) Eh/Ih=6.3V/0.45A Ehkmax=±90V Triode: Ppmax=1W Epmax=300V Ecmax=0V Ehkmax=±90V op : Ep=250V Ec=-3V Ip=1mA rp=58kΩ gm=1.2mS μ=70 (参考 : 三極部のEp-Ip特性と抵抗結合アンプ表(triode)) heater variants : 5T8(4.7V/0.6A), 19T8(18.9V/0.15A) also see a DuplexDiode + higher-gm triode type : 6BN8(6.3V/0.6A, gm=2.5mS, μ=70) 1) 6T8 RCA ￥700 NIB MB 8) 6T8A RCA ￥700 NIB MB 13) 6T8A RCA ￥700 NIB RB 4) 6T8A Lindal(GE-made) ￥600 NIB 1) 6T8 Syl ￥700 NIB date=10-59 MB 16) 6T8A USA(GE,Ray,Tsol etc) ￥600 NIB 13) 6T8 USA ￥600 NOS /NIB 1) 6T8 Arwin ￥600 NOS ? 2) 6T8 USA ￥600 NIB 15) 6T8A USA ￥600 NIB 4) 6T8/A USA ￥400 used (xQn)
6T10 =Dissimilar double Pentode (BeamPowerPentode+SharpCutoffPentode)= (EIA/12EZ - compactron) Eh/Ih=6.3V/0.95A Ehkmax=±200V(DC+100V) pentode I(BeamPower): Ppmax=10W Epmax=275V Pc2max=2.5W Ec2max=275V Rg1max=250kΩ(fixed)/500kΩ(self) op : Ep=250V Ec2=250V Ec1=-8V rp=10kΩ gm=6.5mS Ip=35mA/39mA Ic2=2.5mA/7mA Zl=5kΩ D=10% Po=4.2W pendode II(SharpCutoff): Ppmax=1.7W Epmax=330V Pc2max=1.1W Ec2max=330V op : Ep=150V Ec2=100V Rk=560Ω rp=150kΩ gm=1mS Ip=1.3mA Ic2=2.1mA see heater variants : 10T10(Eh/Ih=9.8V/0.6A) 12T10(Eh/Ih=12.6V/0.45A) see same basing dissimilar double-pentode types : 6AD10, 6BF11 also see an almost equivallent type but slightly-different basing : 6AL11 2) 6T10 RCA ￥1100 NIB 5) 6T10 Syl ￥1000 NIB 1) 6T10 WH ￥1000 NIB 1) 6T10 RAD-TEL ￥1000 NOS
6TF4 =Current-regulating ballast tube= (参考資料 : Amperite Ballast Reference) 2) 6TF4 Amperite ￥1300 NIB Ballast 1) 6TF4 Amperite ￥1300 NIB Ballast
6U5/6G5 =Electron ray Indicator= (EIA/6R - UZ) Eh/Ih=5.3V/0.3A Epmax=285Vsupply Etarget=100Vmin/285Vmax op : Ep=250V Ec=-22V(angle=0°)/0V(angle=90°) Rp(series)=1MΩ Ip=0.24mA Itarget=4mA(@Ec=0V) also see similar types(magic-eye) : 6E5, 6G5/G, 1629 0) 6U5 RCA ￥- NOS Eye-tube 1) 6U5/6G5 GE ￥4300 NOS Eye-tube RaggedBox 0) 6U5/6G5 RCA ￥- used 1) 6U5 Znth ￥1200 used やや暗い Eye-tube 1) 6U5/VT98 Krad ￥1900 used BrownBox 1) 6U5 Znth ￥1200 used
6U6/GT =BeamPowerPentode= (EIA/7AC - octal) Eh/Ih=6.3V/0.75A Ppmax=11W Epmax=200V Pc2max=2W Ec2max=135V rp=20kΩ gm=6.2mS op(A1S) : Ep=200V Ec2=135V Ec2=-14VIpo=55mA Ic2o=3mA Zl=3kΩ Po=5.5W same basing similar type : 6Y6G/GT/GA 1) 6U6GT Znth ￥900 NIB 1) 6U6GT Znth ￥900 NIB ragged-box 1) 6U6GT Senco(Steam Engineering and Co) ￥1200 used? WB
6U7/G =RemoteCutoffPentode= (EIA/7R - octal-TopGrid) Eh/Ih=6.3V/0.3A Ppmax=2.25W Epmax=300V Pc2max=0.25W Ec2max=100V rp=800kΩ gm=1.6mS similar to 6K7(octal), 6D6(UZ) 2) 6U7G RCA ￥1500 NIB D/C=017(1950), VeryRaggedBoxes 1) 6U7 Syl ￥1200 NIB ragged-box 1) 6U7G RCA ￥1500 NIB 1) 6U7G RCA ￥1500 NIB VeryRaggedBox +++ 1) 6U7G GE ￥1200 NIB 1) 6U7G Krad ￥1200 NIB 1430/1000min 1) 6U7G SuperSilvertone ￥- used
6U8/6U8A (see 6678 ECF82) =med-mu(40) Triode sharp-cutoff Pentode= (EIA/9AE = 9DC - noval) Eh/Ih=6.3V/0.45A pentode : Ppmax=3W Epmax=330V Pc2max=0.55W Ec2max=330V rp=200kΩ gm=5mS triode : Ppmax=2.5W Epmax=330V rp=5.4kΩ gm=7.5mS μ=40 see heater variants : 5U8(4.7V/0.6A), 5KD8(5.6V/0.45A), PCF82/9U8(9.5V/0.3A) similar type : 6KD8(6.3V/0.4A) also see same basing similar types : 6AX8 6EA8 6GH8/6GH8A 6LM8 also see a longer-life improved version: 6R-HR4/LD-611 16) 6U8A RCA ￥1100 NIB (*) (rhx11) 11) 6U8A/6KD8 RCA ￥1100 NIB 2) 6U8/6KD8 RCA ￥1900 NIB BlkPlates 1) 6U8/6KD8 RCA ￥1100 NIB 2) 6U8A RCA ￥1900 NIB MB BlkPlates 1) 6U8 RCA ￥700 NOS Syl箱 1) 6U8 GE ￥900 NIB date=59-09 4) 6U8 GE ￥700 NOS WB 15) 6U8/6AX8/5KD8/6KD8 GE ￥700 NIB 5) 6U8/6KD8/5KD8 GE ￥700 NIB - mint 5) 6U8/6KD8/5KD8 GE ￥700 NIB 2) USN-6U8 GE ￥900 NIB MB 1) 6U8 RCA(Syl-made) NOS D/C=626 5) 6U8A/6KD8/6AX8 Lindal(Japan) ￥700 NIB 30) 6U8A/6KD8/6AX8 USA ￥700 NOS/NIB (hyy20ny) 22) 6U8/A USA ￥700 NOS/NIB (hyy16) 1) 6U8 AWV-SuperRadiotron ￥700 NIB 2) 6U8A Toshiba NIB plain-boxes 1) 6U8 Mullard ￥800 used 1) 6U8A USA ￥400 used?(Nn) 3) 6U8 GE ￥400 used 1) 6U8 Syl ￥400 used 1) 6U8 Toshiba ￥400 lightly-used WB
6U9 =med-mu Triode Pentode= (EIA/10K - dekal) Eh/Ih=6.3V/0.41A Pentode : Ppmax=2.1W Epmax=250V gm=12mS Triode : Ppmax=0.7W Epmax=250V gm=5mS μ=17 1) 6U9 PhilipsMiniwatt ￥1200 NIB OriginalSmallBox 5) 6U9 WH ￥1200 NOS
6U10 =three-section(2xmed-μ + high-μ) Triode= (EIA/12FE - compactron) Eh/Ih=6.3V/0/6A section 1 & 3 : Ppmax=2W Epmax=330V Ikmax=20mA μ=17.5 rp=7.7kΩ gm=2.3ms Rgmax=1MΩ(fixed)/2MΩ(self) section 2 : Ppmax=1W Epmax=330V μ=98 rp=61kΩ gm=1.6ms Rgmax=0.5MΩ(fixed)/1MΩ(self) (参考 : Ep-Ip特性) same base(12FE) separated-cathode triple Triode : 6AC10(μ=62, 62, 62), 6AK10(μ=53, 53, 53), 6U10(μ=17, 100, 17) different base(12BY) separated-cathode triple Triode : 6AV11(μ=17, 17, 17), 6D10(μ=57, 57, 57), 6K11/6Q11(μ=17, 100, 100) different base(12BQ) separated-cathode high-mu triple Triode : 6C10(μ=100, 100, 100) 2) 6U10 RCA ￥2100 NIB 1) 6U10 GE ￥1700 NIB 1) 6U10 Int-C(GE-made) ￥1700 NIB 1) 6U10 Znth ￥1700 NOS GE箱 3) 6U10 Syl ￥1700 NIB 1) 6U10 Znth ￥1700 NIB 1) 6U10 Znth ￥1700 NIB 1) 6U10 Znth ￥1700 NIB RaggedBox 1) 6U10 WH ￥1700 NIB 1) 6U10 Realistic ￥1700 NIB 1) 6U10 ITT ￥1700 NIB 1) 6U10 RTT ￥1700 NIB 1) 6U10 Znth(GE-made) ￥800 used-lightly GE箱 1) 6U10 USA ￥800 used
6V3/A/GT =Half-wave Rectifier= (EIA/9BD - noval-TopCathode) Eh/Ih=6.3V/1.75A Ehkmax=+300V/-6750V PIV=6000V Ppmax=2.7W Idcmax=135mA/800mA-peak Edrop=19V(@Idc=250mA) pins : 1(NC)-2(P)-3(NC)-4(H)-5(H)-5(NC)-7(P)-8(NC)-9(P)-Top(K) 6) 6V3A RCA ￥950 NIB 2) 6V3A GE ￥1100 NIB 青箱 RaggedBox 4) 6V3A GE ￥900 NIB 1) 6V3A GE ￥900 NIB RaggedBox 20) 6V3A Syl ￥900 NIB old '50s 1) 6V3A WH ￥900 NIB 2) 6V3A Philco ￥900 NIB MB 1) 6V3A Philco ￥900 NIB 1) 6V3GT Philco ￥900 used
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6V4/EZ80 =FullWave Rectifier= (EIA/9M - noval) Eh/Ih=6.3V/0.6A Ehk=-500Vmax Eacmax=350V Idc=90mA Edrop=25V(@Idc=90mA/section) Cmax=50μF Rprotect=125ohmx2@250VAC 300ohmx2@350VAC PIV=980V Ip-peakmax=270mA Idcmax=90mA Edrop=V(@Idc=90mA/section) op(capacitor-input) : Eac=250V Cin=50uF Rs=125ohm/plate Iout=90mAdc Eout≒243Vdc op(capacitor-input) : Eac=300V Cin=50uF Rs=215ohm/plate Iout=90mAdc Eout≒310Vdc op(capacitor-input) : Eac=350V Cin=50uF Rs=300ohm/plate Iout=90mAdc Eout≒360Vdc see European type :EZ80 see similar types with Rimlock-base : 6BT4, EZ40 also see just upper types : 6BW4(PIV=1250V,Iout=100mAmax), and 6CA4/EZ81(PIV=1250V,Iout=150mAmax) 0) 6V4 Mullard ￥- used新同 80/82/40min 0) 6V4 Standard ￥- NIB(D) 4) 6V4/EZ80 GE ￥1300 NIB made in France 2) 6V4/EZ80 GE ￥1300 NIB made in Gt.Britain 0) 6V4/EZ80 GE ￥- NIB(D) 0) 6V4 Philco ￥- NIB 9) 6V4/EZ80 ProComm ￥1300 NIB made in west Germany, w/ sleeves
6V6/6V6G/6V6GT/6V6Y
6V7/G =duplex-Diode med-mu-Triode= (EIA/7V - octal, ST12, top-grid) Eh/Ih=6.3V/0.3A Triode : Ppmax=2W Epmax=250V op : Ep=180V Ec=-13.5V Ip=6mA rp=8.5kΩ gm=0.975mS μ=8.3 (参考 : EpIp特性) different-base type : 85-ST(UZ-6pin) different-base different-heater-spec type : 55-ST(UZ-6pin, Eh/Ih=2.5V/1A) same basing different-μ types : 6R7G(μ=16), 6T7G(μ=65), 6Q7/G(μ=70), 6B6G(μ=100) 1) 6V7G Tsol ￥1200 used 880/610min,154/133/54min
6V8 =Three Diode high-mu-Triode= (EIA/9AH - noval) Eh/Ih=6.3V/0.45A Triode : Ppmax=1W Epmax=300V Ecmax=0V Ehkmax=200V op : Ep=250V Ec=-3V Ip=1mA rp=58kΩ gm=1.2mS μ=70 1) 6V8 RCA ￥1500 NIB 3) 6V8 Ray ￥1500 NIB 5) 6V8 Syl ￥1500 NIB 1) 6V8 Philco ￥1500 NIB 2) 6V8 Philco ￥1500 NIB 5) 6V8 Dmnt ￥1500 NIB date=59-39
6W4/GT =Half wave Rectifier= (EIA/4CG - octal) 6W4GT : PIV=3850V Ppmax=3.5W Idcmax=125mA Edrop=21V(@Idc=250mA) Eh/Ih=6.3V/1.2A 6W4GTA : PIV=3950V Ppmax=4W Idcmax=140mA Edrop=21V(@Idc=250mA) Eh/Ih=6.3V/1.2A heater variant : 25W4GT(25V/0.3A) same base (4CG) halfwave rectifiers : 6AU4GT/A 6AX4GT/A/B 6CQ4 6DA4/A 6DE4 6DQ4 6G-K17 6W4GT/A also see a 4CG-rectifier comparison table : <4CGベース ピンコンパチ半波整流管の比較> 10) 6W4GT RCA ￥700 NIB MB 10) 6W4GT RCA ￥700 NIB 1) 6W4GT RCA ￥700 NIB D/C=AV(1965.11) NlkPlate ClearGlass 7) 6W4GTA GE ￥800 NIB 1) 6W4GT GE ￥600 NIB 1) 6W4GT GE ￥600 NIB WB 5) 6W4GT Syl ￥600 NIB 1) 6W4GT Syl ￥400 used? 1) 6W4GT Tsol ￥700 NIB 1) 6W4GT WH ￥700 NIB 2) 6W4GT Silvertone ￥600 NIB 1) 6W4GT Marconi ￥600 NIB 3) 6W4GT CBS ￥600 NIB 3) 6W4GT Ray ￥600 NIB 1) 6W4GT Sheldon ￥600 NIB 1) 6W4GT Dmnt ￥600 NIB 1) 6W4GT Westronics ￥600 NIB 1) 6W4GT Admrl ￥600 NOS Syl箱 1) 6W4GT GE ￥400 used EM=101/54min 2) 6W4GT GE ￥400 used 1) 6W4GT Ray ￥400 used D/C=426 CBS-boxed 1) 6W4GT Dmnt ￥400 used EM=107/54min 1) 6W4GT KenRad ￥400 used EM=104/54min 1) 6W4GT KenRad ￥400 used EM=101/54min 1) 6W4GT Majestic ￥400 used EM=102/54min 1) 6W4GT WH ￥500 used? 1) 6W4GT CBS ￥400 used 1) 6W4GT Marconi ￥400 used 97/54min 4) 6W4GT RCA,KenRad,Hytron ￥400 used
6W6/GT =BeamPower= (EIA/7AC - octal) Eh/Ih=6.3V/1.2A Ehkmax=±200V(DC=+100Vmax) Rg1max=2.2MΩ(self) [design-center ratings] (GE 1956): *A1-amplifier-pentode: Ppmax=10W Epmax=300V Ikmax=65mA Pc2max=1.25W Ec2max=150V op(A1S) : Ep=200V Ec2=125V Rk=180Ω Ip=46/47mA Ic2=2.2/8.5mA rp=28kΩ gm=8mS Zl=4kΩ D=10% Po=3.8W *VerticalDeflection pentode-con.: Ppmax=7W Epmax=300V/1500Vpeak Ikmax=60mA/180mApeak Pc2max=1W Ec2max=150V/-250V triode-con. : Ppmax=7.5W Epmax=300V/1200V-peak Ikmax=60mA/180mA-peak Ec1max=-250V op(triode) : Ep=225V Ec=-30V Ip=22mA rp=1.6kΩ gm=3.8mS μ=6.2 [design max ratings] (RCA RC30 1975): *A1-amplifier-pentode: Ppmax=12W Epmax=330V Pc2max=1.35W Ec2max=165V (参考 : 6W6GTの三結時のEp-Ip特性-triode connection) see heater variant : 12W6GT(12.6V/0.6A) similar to 6DG6GT, 6Y6/G electrically similar types except heater : 25C6, 50C6 50) 6W6GT RCA ￥1200 NIB BlkPlates just ragged red-boxes 3) 6W6GT RCA ￥1200 NIB BlkPlates(Nn) 1) 6W6GT RCA ￥1200 NIB BlackPlate, just-ragged box 1) 6W6GT RCA ￥1200 NOS ClearGlass 0) 6W6GT CBS(GE-made) ￥1000 NIB(sD) 3) 6W6GT GE ￥1200 NIB 1950's BlkGlass 青箱 0) 6W6GT GE ￥- NIB(hyyanx) 0) 6W6GT Syl ￥- NIB(sD) 3) 6W6GT Syl ￥1000 NIB 0) 6W6GT Syl ￥- NOS? RCA箱 0) 6W6GT WH ￥- NIB 1) 6W6GT Philips ￥1000 NIB TopGtr, made in Canada 1) 6W6GT Rogers ￥1000 NIB 1) 6W6GT NJRT ￥1000 NIB 6) 6W6GT TEN ￥1000 NIB SmokedGlass, just-ragged boxes 1) 6W6GT Hitachi ￥1000 NIB 1) 6W6GT RCA ￥600 used gm=5950/5650 1) 6W6GT GE ￥700 used ClearGlass TopGetter gm=11250/5650 1) 6W6GT GE ￥600 used 1) 6W6GT GE ￥600 used TopGtr BlkPlate 1) 6W6GT Magnavox(Syl-made) ￥600 used SmokedGlass 1) 6W6GT WH ￥600 used glass gm=7000/5650 1) 6W6GT CBS ￥700 used glass/BottomGetter gm=9900/5650 1) 6W6GT Philco ￥700 used SmokedGlass 1) 6W6GT Mot ￥700 used SmokedGlass gm=10750/5650 1) 6W6GT Majestic ￥700 used gm=8900/5650
6W-C5/6WC5 =Penta-grid Converter= (EIA/T7F - Ut, 7pin, ST)
6X4/EZ90 (see 6202)=FullWave Rectifier= (EIA/5BS - miniature) Eh/Ih=6.3V/0.6A Ehkmax=-450V PIV=1250V Idc=70mAmax Ipeak=245mA/plate Edrop=22V(@Idc=70mA/plate) op(capacitor-input): Eac=325V Cin=10uF Rs=525ohm/plate Idc=70mA Eout=310Vdc op(choke input): Eac=450V Lin=10H Idc=70mA Eout=340Vdc see heater variant : 12X4(12.6V/0.3A) see a similar rating loktal type : 7Y4(Idcmax=70mA) see a similar rating oktal type : 6X5/GT(Idcmax=80mA) 0) EZ90/6X4 Mullard ￥1700 NIB 1) 6X4 Rogers(made in Gt. Britain) ￥1200 NOS GE箱 1) JRC-6X4 RCA ￥1500 NIB MB 7) 6X4 RCA ￥1200 NIB BlkPlates date=64-52(rhxc) 3) 6X4 RCA ￥1200 NIB BlkPlates 4) 6X4 RCA ￥1200 NIB (rhx1v2m) 11) JAN 6X4WA GE ￥1200 NIB D/C=1970s MB DarkGrayPlates *$* 2) 6X4 GE ￥1000 NIB DarkGrayPlates 3) 6X4 GE ￥1000 NIB (hyy1v0xt) 1) 6X4 GE ￥1000 NIB - mint 5) 6X4 CGE ￥1000 NIB 1) 6X4 GE ￥1200 NIB date=58-30 1) 6X4 HP(GE-made) ￥1200 NOS 1) 6X4 HS-Scott(GE-made) ￥1000 NOS? date=61-04 Syl箱 0) 6X4 CGE ￥- NIB 1) JHS 6X4WA
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6X5 =FullWave Rectifier= (EIA/6S - octal) Eh/Ih=6.3V/0.6A Ehkmax=450V PIV=1250V Idc=80mA Edrop=22V(@Idc=70mA/section) see a same-base similar-rating hi-rel. fullwave-rectifier : 5852(Eh/Ih=6.3V/1.2A, PIV=1375V Idcmax=75mA) see a same-base upper-rating fullwave-rectifier : 6AX5(Eh/Ih=6.3V/1.2A, PIV=1250V Idcmax=125mA) see a same-base lower-rating fullwave-rectifier : 6ZY5G(Eh/Ih=6.3V/0.3A, PIV=1250V Idcmax=40mA) see a similar rating loktal type : 7Y4(Idcmax=70mA) see a similar rating miniature type : 6X4(Idcmax=70mA) 0) 6X5 RCA ￥- NIB METAL 1) 6X5G RCA ￥3300 NIB VeryRaggedBox +++ 0) 6X5G Znth ￥- used?/NOS? Like New 0) 6X5G KenRad ￥- used 100/92/54min 3) 6X5GT/VT-126B SIGNAL ￥1000 NOS 18) 6X5GT RCA ￥1200 NIB(rhx1fnn) 4) 6X5GT RCA ￥1200 NIB @@ 1) 6X5GT RCA ￥1200 NIB BlkPlates TopGetter CoinBase 1) 6X5GT RCA ￥1200 NIB CoinBase 1) 6X5GT GE ￥1200 NIB 青箱 10) 6X5GT GE ￥1000 NIB 1) 6X5GT GE ￥1000 NIB MB 1) 6X5GT GE ￥1000 NIB WB 1) 6X5GT GE ￥1000 NOS WB 10) 6X5GT Ray(GE-made) ￥1000 NIB SideGetter CoinBase w/sleeve 8) 6X5GT Ray(GE-made) ￥1000 NIB SideGetter CoinBase RaggedBoxes 1) 6X5GT Ray(GE-made) ￥1000 NIB SideGetter CoinBase VeryRaggedBox 2) 6X5GT Ray(GE-made) ￥1000 NOS SideGetter CoinBase 2) 6X5/GT Syl ￥1000 NIB 1) 6X5/GT Syl ￥1000 NIB BlkBase 3) 6X5/GT Syl ￥1000 NIB LightBrownBase 4) 6X5GT Syl ￥1000 NOS LargeTopGetter Glass WB 5) 6X5GT Syl ￥600 NIB USSR 1) 6X5GT Syl ￥600 used?LikeNew 4) 6X5GT WH ￥1000 NIB 1) 6X5 Brimar ￥1200 NIB 3) 6X5GT Philips ￥1000 NIB 1) 6X5GT Philco ￥1000 NIB 1) 6X5GT National ￥800 NIB 1) 6X5GT PermaTest ￥1000 NIB 1) 6X5WGT Ray ￥1200 NIB 茶base 1) 6X5GT Regency ￥1000 NIB Canada 1) 6X5GT Hitachi ￥1000 NIB just-ragged box 2) 6X5 RCA ￥600 used >100/>100/54min 1) JAN-CRC 6X5GT RCA ￥500 used Matsuda-boxed 12) 6X5,GT,GT/G USA(RCA,Syl,Philco,WH) ￥500 used 1) 6X5WGT Syl ￥500 used BrownBase 88/93/54min 1) 6X5GT Japan ￥500 used 昭和19年
6X6C / 6X6S =Russian TwinDiode= (EIA/7Q - octal) Eh/Ih=6.3V/0.3A equivallent type: 6H6/G 3) 6X6C(6X6S) Reflector ￥1000 lightly-used WB
6X8 =common-cathode Triode Pentode Converter= (EIA/9AK - noval) Eh/Ih=6.3V/0.45A Ehkmax=±100V Pentode: Ppmax=2W Epmax=250V Pc2max=0.4W Ec2max=250V rp=750kΩ gm=4.6mS Rgmax=100kΩ(fixed)/500kΩ(self) Triode : Ppmax=1.5W Epmax=250V Pcinmax=0.5W μ=40 rp=6.9kΩ gm=5.8mS Rgmax=100kΩ(fixed)500kΩ(self) heater variants : 5X8(4.7V/0.6A), 19X8(18.4V/0.15A) 5) 6X8 RCA ￥700 NIB 5) 6X8A RCA ￥700 NIB - mint 3) 6X8A RCA ￥700 NIB 1) 6X8A Rowley ￥700 NOS RCA箱 1) 6X8 GE ￥700 NOS GE箱 3) 6X8A GE ￥700 NIB - mint 22) 6X8/A USA ￥550 NIB (hx15nt) 1) 6X8 Syl ￥400 used 3) 6X8 USA ￥400 used
6X9/ECF200 =Triode Pentode= (EIA/10K - decal) Eh/Ih=6.3V/0.41A Ehkmax=±150V Pentode: Ppmax=2.1W Epmax=250V Pc2max=0.75W Ec2max=250V Ikmax=20mA μg2g1=53 gm=14mS Rgmax=1MΩ Triode : Ppmax=1.5W Epmax=250V Ikmax=18mA μ=57 rp=10.8kΩ gm=5.2mS Rgmax=1MΩ heater variants : ECF200(6.3V/0.41A), 8X9(8.5V/0.3A), PCF200(8.5V/0.3A) 6) 6X9/ECF200 USA ￥1000 NOS/NIB
6Y6/G/GT/GA =BeamPower= (EIA/7AC - octal) Eh/Ih=6.3V/1.25A Ehkmax=±180V Rg1max=100kΩ(fixed)/500kΩ(self) [design center ratings] *class A1 AF amplifier : Ppmax=12.5W Epmax=200V Pc2max=1.75W Ec2max(supply)=200V op : Ep=200V Ec2=135V Ec1=-14.0V Ip=61mA/66mA Ic2=2.2mA/9mA rp=18.3kΩ gm=7.1mS Zl=2.6kΩ Po=6.0W *class C RF amplifier/OSC : Ppmax=8W Ppinmax=23W Epmax=350Vdc Pc2inmax=0.6W Ec2max=135Vdc Ipmax=80mA Ec1-max=-90V Ic1max=1.5mAdc op : Ep=350V Ec2=115V Ec1=-40V Ip=60mA Ic2=5.1mA Ic1=1.4mA Ein=48Vpeak Pin=100mW Po=14W (参考 : 6Y6/GAの三結時のEp-Ip特性-triode connection) heater variants : 25C6G(25V/0.3A), 50C6G(50V/0.15A) same basing similar type : 6U6/GT electrically similar types : 6W6GT, 6DG6GT also see a similar European type : KT33C(Eh/Ih=25V/0.3A, gm=10mS-typ) 15) 6Y6G RCA ￥1900 NIB(hsxfnt) 1) 6Y6G RCA ￥1900 NIB 1) 6Y6G RCA ￥700 NOS? faded Getter gm=3750/3150min 0) 6Y6G KenRad(RCA) ￥- NIB MB 2) 6Y6G Ray ￥1400 NIB 1) 6Y6G Rogers ￥1200 NIB 0) 6Y6G LosGatos ￥- NIB 1) JAN-CG 6Y6G GE ￥1400 NOS D/C=5-13 gm=5500/3150min WB 3) 6Y6G RCA ￥1000 used ClearGlass gm=6750,7200,6750/3150min 5) 6Y6G RCA ￥1000 used SmokedGlass gm=6500,6250,5250,6000,5750/3150min 5) 6Y6G RCA ￥800 used SmokedGlass gm=4100～5600/3150min 1) 6Y6G GE ￥1000 used SmokedGlass gm=5550/3150min 1) 6Y6G Syl ￥1000 used SmokedGlass VeryStrong 1) 6Y6G Tsol ￥900 used SmokedGlass gm=5750/3150min 1) 6Y6G WH ￥900 used Rattle Tsol箱 1) 6Y6G NU ￥900 used BlackGlass gm=5700/3150min 1) 6Y6G Admiral(RCA) ￥900 used SmokedGlass gm=6000/3150min 1) JAN-CRC 6Y6GT RCA ￥1200 NIB MB 1) 6Y6GA RCA ￥1200 NIB 1) 6Y6GA GE ￥1200 NIB 5) 6Y6GT Hytron ￥1000 NIB 2) 6Y6GA GE ￥1000 NIB 1) 6Y6GT GE ￥1000 NIB 1) 6Y6GT GE ￥1000 NIB 1) 6Y6GA Tsol ￥900 used? gm=6700/3150min
6Y7/G =common-cathode TwinTriodePower= (EIA/8B - octal) Eh/Ih=6.3V/0.6A Ppmax=11.5W Epmax=250V Ipmax=90mA-peak/unit op(B2pp) : Ep=250V Ec=0V Ipo=5.3mA Pin=0.38W Zl=14kΩ Po=8W electrically identical to 79(UZ, top-grid, ST12) 1) 6Y7G GE ￥2000 NIB
6Y9 =Dissimilar double Pentode= (EIA/10L - decal) Eh/Ih=6.3V/0.8A Ehkmax=±200V (unit 1)Ppmax=5W Epmax=250V/550V(cutoff) Pc2max=2.5W Ec2max=250V/550V(cutoff) Ikmax=60mA op : Ep=170V Ec2=170V Ec1=-2.6V Ip=30mA Ic2=6.5mA rp=40kΩ gm=21mS μg2g1=38 Rg1max=1MΩ (unit 2)Ppmax=1.5W Epmax=250V/550V(cutoff) Pc2max=0.5W Ec2max=250V/550V(cutoff) Ikmax=15mA op : Ep=150V Ec2=150V Ec1=-2.3V Ip=10mA Ic2=3mA rp=160kΩ gm=8.5mS μg2g1=35 Rg1max=1MΩ pins : 1(2G1)-2(2K,2G3)-3(2G2)-4(2P)-5(H)-6(H)-7(1K,1G3,S)-8(1G1)-9(1G2)-10(1P) heater variant : 17Y9(16.5V/0.3A) similar basing(10L*) similar type : 6AF9 2) 6Y9 RCA(Mullard) ￥1500 NIB 1) 6Y9 RCA ￥1000 NOS bulk 3) 6Y9 USA ￥700 NIB 2) 6Y9/EFL200 GE ￥700 NOS bulk 1) 6Y9 GE ￥700 NOS bulk 1) 6Y9/EFL200 Admiral ￥700 NOS bulk 1) 6Y9 Admiral ￥700 NOS bulk
6Z5 =Full wave Rectifier= (EIA/6K - UZ, ST12) Eh/Ih=12.6V/0.4A or 6.3V/0.8A Eac-max=230Vrms Idc-max=60mA 2) 6Z5 Cunnghm ￥1200 NOS 1) 6Z5 Syl ￥1000 NOS 2) 6Z5 Majestic ￥3300 NIB old 赤黄黒元箱
6Z10/6J10 =gated-beam Discriminator Pentode + beam-power Pentode= (EIA/12BT - compactron) Eh/Ih=6.3V/0.95A Ehk=±200Vmax(DC+100V) (Gated-Beam Discriminator Pentode section) Epmax=330V Ec2max=110V Ec1+max=60Vpeak Ikmax=13mA (Beam Pentode section) Ppmax=10W Epmax=275V Pc2max=2W Ec2max=275V Rg1max=250kΩ(fixed), 500kΩ(self) op(A1S) : Ep=Ec2=250V Ec1=-8V Ip=35mA/39mA Ic2=3mA/13mA rp=100kΩ gm=6.5mS Zl=5kΩ D=805% Po=4.2W also see pin-compatible 6J10 heater variants : 10Z10(10V/0.6A) 13Z10/13J10(13.2V/0.45A) 1) 6Z10 RCA ￥1000 NIB 3) 6Z10/6J10 RCA ￥1000 NIB 1) 6Z10/6J10 RCA ￥1000 NIB 1) 6Z10/6J10 WH ￥900 NIB 1) 6Z10/6J10 Ray ￥900 NIB 1) 6Z10/6J10 ElMenco ￥900 NIB 1) 6Z10/6J10 Realistic(GE-made) ￥900 NIB
6Z-DH3 =twin-diode high-mu-Triode= (EIA/6G - UZ 6pin TopGrid, ST12) Eh/Ih=6.3V/0.3A Idiode=1mA-max(peak) op(triode) : Ep=250V Ec=-2V Ip=1.1mA gm=1.175mS μ=100 pins : 1(H)-2(Pt)-3(Pd2)-4(Pd1)-5(K)-6(H)-Top(G) heater variant : 3Z-DH3(2.5V/1A) 6Z-DH3 is similar to 75 1) 6Z-DH3 マツダ(Matsuda) ￥1200 used WB 1) 6Z-DH3 Matsushita ￥1200 used 1) 6Z-DH3 TVC ￥1200 used WB
6Z-DH3A =single-diode high-mu-Triode= (EIA/T6C - UZ 6pin, ST12)
6Z-E1/6ZE1 =Electron ray Indicator= (EIA/6R - UZ) twin-shadow Magic-Eye type Eh/Ih=6.3V/0.3A Epmax=250Vsupply Etarget=125Vmin/250Vmax op : Ep,target=250Vsupply Rp-series=1MΩ Ip=-mA Itarget=-mA Ec=-7.5V(shadow_angle=0°)/0V(shadow_angle=90°) twin-shadow type for transformer-less radio : 12Z-E9 single-shadow types : 6E5, 6G5/G, 6U5, 1629 single-shadow type for transformer-less radio : 12Z-E8 1) 6Z-E1 Toyo(Japan) ￥3700 NOS D/C=5809 WB 1) 6Z-E1 OkayaMusen(Japan) ￥2400 lightly-used WB
6Z-P1/6ZP1 =power Pentode= (EIA/6B - UZ 6pin, ST12)Eh/Ih=6.3V/0.35A Ehkmax=±90V Ppmax=4W Epmax=250V Pc2max=0.6W Ec2max=180V Rg1max=250kΩ(fixed)/500kΩ(self) op : Ep=180V Ec2=180V Ec1=-10V Ip=14mA/16mA Ic2=2.5mA/4.5mA rp=130kΩ gm=1.75mS Zl=12kΩ Po=1.0W D=8% op : Ep=250V Ec2=180V Ec1=-10V Ip=15mA/17mA Ic2=2.5mA/4.0mA rp=150kΩ gm=1.80mS Zl=12kΩ Po=1.5W D=11% pins : 1(H)-2(P)-3(G2)-4(G1)-5(K,G3)-6(H) heater variant : 12Z-P1(12V/0.15A) electrically similar to : 3Y-P1(UY-base, Eh/Ih=2.5V/0.9A) 1) 6Z-P1 Matsushita ￥1500 NOS lot=x0E WB 1) 6Z-P1 マツダ(Matsuda) ￥1500 lightly-used WB (hyy17s) 2) 6Z-P1 マツダ(Matsuda), Besto ￥1500 used-lightly 1) 6Z-P1 TEN ￥1500 used-lightly 1) 6Z-P1 TEN ￥1000 used WB 1) 6Z-P1 TEN ￥1000 used WB 1) 6Z-P1 Token￥1000 used 1) 6Z-P1 Japan￥1000 used
6ZY5/G =Full wave Rectifier= (EIA/6S - octal, ST12) Eh/Ih=6.3V/0.3A PIV=1250V Idcmax=120mApeak/unit Ehkmax=450V condenser-input : Eac=325Vrms Idc=40mA(max) see a same-base upper-rating fullwave-rectifier : 6X5(Eh/Ih=6.3V/0.6A, PIV=1250V Idcmax=80mA) see a same-base upper-rating hi-rel. fullwave-rectifier : 5852(Eh/Ih=6.3V/1.2A, PIV=1375V Idcmax=75mA) also see a same-base upper-rating fullwave-rectifier : 6AX5(Eh/Ih=6.3V/1.2A, PIV=1250V Idcmax=120mA) 1) 6ZY5G Tsol ￥1000 NIB 1) 6ZY5G RCA ￥1000 NOS WB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
7A4 =Medium mu Triode= (EIA/5AC - Loktal) Eh/Ih= 6.3V/0.3A Ehkmax=90V Ppmax=2.5W Epmax=300V Ikmax=20mA op : Ep=90V Ec=0 Ip=10mA rp=6.7kΩ gm=3mS μ=20 op : Ep=250V Ec=-8V(Rk=900Ω) Ip=9mA rp=7.7kΩ gm=2.6mS μ=20 (参考 : EpIp特性) similar to XXL electrically equivallent to 6J5(octal) also see an electrically equivallent European type: L63(octal) also see a twin-diode + med-mu triode loktal type : 7E6(μ=16) also see a high-mu triode loktal type : 7B4(μ=100) 4) 7A4 GE ￥1300 NIB D/C=43-F3(1943), 49-D2(1949), 49-D2, 49-E2 OrangeSilk 6) 7A4 GE ￥1300 NIB D/C=8-26(1948) WhiteSilk 4) 7A4 GE ￥1300 NIB 1) 7A4/XXL Philco ￥1200 NIB
7A5 =Beam Power Pentode= (EIA/6AA - Loktal) Eh/Ih=6.3V/0.75A Ppmax=5.5W Epmax=125V Pc2max=1.2W Ec2max=125V op A1S : Ep=110V Ec2=110V Ec1=-7.5V Ip=40mA/41mA Ic2=3mA/7mA Zl=2.5kΩ D=10% Po=1.5W also see other loktal 6AA-base small power tubes : 7C5(Ppmax=12W, 6.3V/0.45A) 14A5(Ppmax=7.5W, 12.6V/0.15A) 35A5(Ppmax=8.5W, 35V/0.15A) 50A5(Ppmax=10W, 50V/0.15A) 1) 7A5 GE ￥900 NIB 1) 7A5 Syl ￥900 NIB VeryRaggedBox 1) 7A5 NU ￥900 NIB 1) 7A5 Znth ￥900 NIB 1) 7A5E Philco ￥900 NIB 2) 7A5 Syl ￥500 used
7A6 =Twin Diode= (EIA/7AJ - Loktal) 6.3V/0.15A 2) 7A6 Syl ￥700 NIB ragged-box 1) 7A6 Syl ￥700 NOS Motorola-boxed 1) 7A6 NU ￥700 NIB
7A7 =RemoteCutoff Pentode= (EIA/8V - loktal) 6.3V/0.3A 3) 7A7 RCA ￥1100 NIB(vQ) 1) 7A7E Philco ￥1000 NIB 1) 7A7 Tsol ￥1000 NIB(D) 1) 7A7 Delco ￥1000 NIB RaggedBox 1) 7A7 USA ￥700 NOS 2) 7A7 Syl ￥600 NIB 錆ややあり 1) 7A7 Syl ￥400 used 1) 7A7 PHILCO ￥400 used 3) 7A7 PHILCO ￥400 used
1) 7A7E PHILCO ￥1000 used? 2130/1260min
7A8 =Octode Converter= (EIA/8U - Loktal) Eh/Ih=6.3V/0.15A Ppmax=1W Epmax=250V Psmax=0.3W Psmax=250Vsupply Panode-grid-max=0.75W Eanode-grid-max=200V Ikmax=13mA 1) 7A8 Cnghm ￥1000 NIB 1) 7A8 RCA ￥1000 NIB VeryRaggedBox 1) 7A8 Ray ￥700 NIB(D) 1) 7A8 Tsol ￥700 NOS Syl箱 2) 7A8 GE ￥700 NIB 0) 7A8 Syl ￥- NIB MB 1) 7A8 Mot(Syl-made) ￥700 NIB just-ragged-box 3) 7A8 NU ￥700 NIB(Q) 1) 7A8 Philco ￥700 NIB RaggedBox(sD) 0) 7A8 Philco ￥- used 4) 7A8 Philco ￥400 used 1) 7A8 ? ￥400 used
7AF7 =med-Mu Twin Triode= (EIA/8AC - loktal) Eh/Ih=6.3V/0.3A (7V/0.32A) Ppmax=2.5W Epmax=300V Ecmax=+0V Ehkmax=90V op : Ep=250V Ec=-10V/Rk=1.1kΩ Ip=9mA rp=7.6kΩ gm=2.1mS μ=16 heater variant : 14AF7(12.6V/0.3A) almost identical to 7N7 1) 7AF7 Sylvania ￥1200 NOS
7AG7 =SharpCutoff Pentode= (EIA/8V - loktal) Eh/Ih=6.3V/0.15A Ppmax=2W Epmax=300V Pc2max=0.75W Ec2max=300V Ec1max=-1V Ehkmax=±90V op : Ep=250V Ec2=250V Rk=250Ω Ip=6mA Ic2=2mA rp=750kΩ gm=4.2mS 1) 7AG7 Syl ￥700 NIB *sw 1) 7AG7 Syl ￥700 NIB ragged-box
7AH7 =RemoteCutoff Pentode= (EIA/8V - loktal) Eh/Ih=6.3V/0.15A Ehkmax=±90V Ppmax=2W Epmax=300V Pc2max=0.7W Ec2max=300V Ec1max=-1V op : Ep=250V Ec2=250V Rk=250Ω Ip=6.8mA Ic2=1.9mA rp=1MkΩ gm=3.3mS 1) 7AH7 Philco ￥700 NIB
7AK7=Sharp-Cutoff Dual-Control Pentode= (EIA/8V - loktal) Eh/Ih=6.3V/0.8A Ehkmax=±200V Ppmax=8.5W Epmax=200V Pc2max=2.5W Ec2max=100V Ec1max=+50V/-100V Ec3max=+100V/-100V Rg1max=100kΩ op : Ep=150V Ec2=90V Ec1=0V Ec3=0V Ip=40mA Ic2=21mA rp=11.5kΩ gm=5.5mS op : Ep=150V Ec2=90V Ec1=-11V Ec3=0V Ip=2.5mA Ic2=0.45mA op : Ep=150V Ec2=90V Ec1=0V Ec3=-9.5V Ip=2mA Ic2=60mA 12) 7AK7 Ray ￥1000 NOS
7AN7(=PCC84) =RF cascade Twin Triode= (EIA/9DD - noval) Eh/Ih=7V/0.3A Ehk=100V Ppmax=2W Epmax=180V/550V-cutoff Ikmax=22mA Rgmax=0.5MΩ op : Ep=90V Ec=-1.5V Ip=12mA gm=6mS μ=24 (参考 : Ep-Ip特性) pins : 1(2K)-2(2G,IS)-3(2P)-4(H)-5(H)-6(1G)-7(1Kinput)-8(1Koutput)-9(1P) cascode amplifier : section 1 is for grounded cathode amp, section 2 is for grounded grid amp heater variants : ECC84 / 6CW7(6.3V/0.33A) 1) 7AN7 Matsushita ￥730 lightly-used very-ragged box Ef=6.3Vで使用可能 0) 7AN7 Matsushita ￥400 used WB 0) 7AN7 Matsushita ￥400 used
7AU7 = med-mu twin triode= (EIA/9A - noval) Eh/Ih=7V/0.3A(3.5V/0.6A) see heater variant : 6AU7, 9AU7, 12AU7 0) 7AU7 RCA ￥950 NIB ClearTop、Ef=6.3Vで使用可能(Qn) 1) 7AU7 RCA ￥1200 NIB TopGtr 1) 7AU7 Tsol ￥1200 NIB 1) 7AU7 Tsol ￥1200 NIB RaggedBox 0) 7AU7 Ray ￥- NIB TopGtr 1) 7AU7 GE ￥800 used?
7B4 =High-mu-Triode= (EIA/5AC - loktal) Eh/Ih=6.3V/0.3A Ppmax=W Epmax=300V Ehkmax=90V op : Ep=100V Ec=-1V Ip=0.4mA rp=85kΩ gm=1.15mS μ=100 op : Ep=250V Ec=-2V Ip=0.9mA rp=66kΩ gm=1.50mS μ=100 pins : 1(H)-2(P)-3(NC)-4(NC)-5(NC)-6(G)-7(K)-8(H) (参考 : Ep-Ip特性) also see electrically-identical octal types : 6F5/G/FT(top-grid), 6SF5 also see a different base / electrically-same European type: H63(top grid) see twin-diode + high-mu triode loktal types : 7B6(μ=100) 7C6(μ=100) also see a twin-diode + high-mu triode loktal type : 7X7(μ=100) also see a twin-diode + high-mu triode loktal type : 7K7(μ=70) also see a twin-diode + med-mu triode loktal type : 7E6(μ=16) also see a med-mu triode loktal type : 7A4(μ=16) 3) 7B4 RCA ￥900 NIB 1) 7B4 RCA ￥900 NIB RaggedBox 1) 7B4 GE ￥900 NIB 1) 7B4 Syl ￥900 NIB ++ 1) 7B4 Krad ￥900 NIB *sw 4) 7B4 Philco ￥900 NIB 1) 7B4 Philco ￥900 NOS Philco箱 1) 7B4 - ￥600 used? Syl箱
7B5 =Power Pentode= (EIA/6AE - Loktal) Eh.Ih=6.3V/0.4A Ppmax=8.5W Epmax=315V Pc2max=2.8W Ec2max=285V op A1S Ep=250V Ec2=250V Ec1=-18V Ip=32mA/33mA Ic2=5.5mA/10mA Zl=7.6kΩ D=11% Po=3.4W #7B5 is electrically identical with 6K6GT(octal), 41(UZ). 0) 7B5 RCA ￥1100 NIB(D) 0) 7B5 GE ￥- NIB(D) 0) 7B5 Philco ￥- NOS(Qn) 0) 7B5 Znth ￥- used 1400/1000
7B6 =TwinDiode High mu Triode= (EIA/8W - Loktal) Eh/Ih=6.3V/0.3A Triode : Epmax=250V rp=91kΩ gm=1.1mS μ=100 heater variant : 14B6(12.6V/0.15A) see twin-diode + high-mu triode loktal type : 7C6(μ=100) also see a twin-diode + high-mu triode loktal type : 7X7(μ=100) also see a twin-diode + high-mu triode loktal type : 7K7(μ=70) also see a twin-diode + med-mu triode loktal type : 7E6(μ=16) also see a high-mu triode loktal type : 7B4(μ=100) 0) 7B6 GE ￥900 NIB 0) 7B6 Marconi ￥600 used
7B7 =remote-cutoff RF Pentode= (EIA/8V - loktal) Eh/Ih=6.3V/0.15A Ppmax=2.25W Epmax=300V Pc2max=0.25W Ec2max=100V op : Ep=250V Ec2=100V Ec1=-3V(Rk=300Ω) Ip=8.5mA Ic2=1.7mA rp=750kΩ gm=1.75mS, Ec_cutoff=-40V(for gm=10μS) see a same-base , sharp-cutoff type : 7C7 0) 7B7 RCA ￥- NIB(sT) 0) 7B7 GE ￥- NIB(mD) 9) 7B7 Syl ￥1000 NIB 4) 7B7 Mot(Syl-OEM) ￥1000 NIB 1) 7B7 GE ￥600 used 1550/1070min 1) 7B7 Syl ￥600 used 1440/1040min 2) 7B7 Philco ￥600 used 3) 7B7 Philco ￥600 used(sT) 1) 7B7 ? ￥600 used 0) 7B7 - ￥- used(sD)
7B8 =PentaGrid Converter= (EIA/8X - Loktal) Eh/Ih=6.3V/0.3A Ppmax=1W Epmax=300V Pscreen-max=0.3W Escreen-max=100V Pc2max=0.75W Ec2max=200V Ikmax=14mA heatere variant : 14B8(12.6V/0.15A) 0) 7B8 GE ￥900 NIB
7C4/1203A =HF Diode= (EIA/4AH) Eh/Ih=6.3V/0.15A Eac=117Vmax Ipmax=5mA 1) 7C4/1203A NU ￥1700 NIB RaggedBox
7C5 =BeamPower=(EIA/6AA - loktal) (electrically similar to 6AQ5 / 6BW6 / 6CM6 / 6V6 / 5992 / 6287) Eh/Ih=6.3V/0.45A Ppmax=12W Epmax=315V Pc2max=2W Ec2max=285V Ikmax=60mA gm=4.1mS op A1S Ep=250V Ec2=250V Ec1=-12.5V Ip=45mA/47mA Ic2=4.5mA/7mA Zl=5kΩ D=8% Po=4.5W (参考 : Ep-Ip特性(@Ec2=+250V)) also see other loktal 6AA-base small power tubes : 7A5(Ppmax=5.5W, 6.3V/0.75A) 14A5(Ppmax=7.5W, 12.6V/0.15A) 35A5(Ppmax=8.5W, 35V/0.15A) 50A5(Ppmax=10W, 50V/0.15A) 20) 7C5 Emitron ￥offer NIB made in Gt.Britain(hyy2g2vx) 5) 7C5 RCA ￥1700 NIB 1) 7C5 RCA ￥1700 NIB 0) 7C5 RCA ￥- NIB 2) 7C5 RCA ￥1700 NIB(vT) 1) 7C5 GE ￥1500 NIB 0) 7C5 Ray ￥- NIB 0) 7C5 Syl ￥- NIB(sD) 4) 7C5 Syl ￥1500 NIB 3) 7C5 Motorola(Syl-made) ￥1500 NIB D/C=641 1) 7C5 Syl ￥1200 LikeNew 1) 7C5 Tsol ￥1200 NIB very-ragged box 1) 7C5 Tsol ￥1200 NOS Philco箱 2) 7C5 Philco ￥1000 NOS? WB 5) 7C5 InterC ￥1500 NIB ServiceMaster 1) 7C5 Syl ￥1000 used? 4030/2600min 2) 7C5 Syl ￥700 used 2) 7C5 PHILCO ￥700 used(Q)
7C6 =TwinDiode High mu Triode= (EIA/8W - Loktal) Eh/Ih=6.3V/0.15A Triode : Epmax=300V μ=100 rp=100kΩ gm=1mS 7C6 is nearly equal to 7B6 and 6SQ7. also see a twin-diode + high-mu triode loktal type : 7K7(μ=70) also see a twin-diode + med-mu triode loktal type : 7E6(μ=16) See 7K7(Loktal), 7X7(Loktal), 75(ST), 6AV6(miniature), 6SZ7(octal-metal). (And also see lower-mu with same pin assignment Loktal type, 7E6) 0) 7C6 RCA ￥- NIB 0) 7C6 GE ￥- NIB(T) 5) 7C6 Syl ￥1000 NIB(Qn) 2) 7C6 Ray ￥1000 NIB 1) 7C6 NU ￥1000 NIB RaggedBox 1) 7C6 Philco ￥1000 NOS WB 1) 7C6 USA ￥700 used 980/570min,180/148/54min 1) 7C6 Philco ￥600 used 1) 7C6 Philco ￥600 used 1) 7C6 Silvertone ￥600 used 1) 7C6 USA ￥600 used +lbb
7C7 =SharpCutoff Pentode= (EIA/8V - loktal) Eh/Ih=6.3V/0.15A Ehkmax=90V Ppmax=1W Epmax=300V Pc2max=0.1W Ec2max=100V Ec1max=0V op : Ep=250V Ec2=100V Ec1=-3V Ip=2mA Ic2=0.5mA rp=2MΩ gm=1.3mS see a same-base, remote-cutoff type : 7B7 4) 7C7 RCA ￥1300 NIB 0) 7C7 GE ￥- NIB 1) 7C7 GE ￥1200 NOS WB 1) 7C7 Syl ￥1200 NIB(D) 1) 7C7 Tsol ￥1200 NIB(D) 0) 7C7 Mot ￥- NIB 5) 7C7 Cornell ￥1200 NIB Quality箱 8) 7C7 USA ￥900 BulkNOS WB +lbb 1) 7C7 RCA-Radiotron ￥600 used 1) 7C7 Syl ￥600 used
7DJ8 =TwinTriode for Cascade Amplifier= (EIA/9DE(9AJ) - noval) 7DJ8 = PCC88 Eh/Ih=7V/0.3A Ppmax=1.8W Epmax=130V/550V(cutoff) Ikmax=25mA Ecmax=-50V Rgmax=1MΩ Ehk1=50V Ehk2=-130V op : Ep=90V Ec=-1.3V Ip=15mA gm=12.25mS μ=33 pins : 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(IS) (注)H-K耐圧が大きいユニット2をCascodeアンプの上側として用いる。 (see 6DJ8 / 6922 / 7308 / 8416 / CCa / E88CC / E188CC / E288CC / 6ES8) 6) 7DJ8 Matsushita ￥1200 NIB 5:cellophane-sealed 2) 7DJ8 Matsushita ￥1000 NIB very-ragged boxes 1) 7DJ8 Toshiba ￥1000 NIB just-ragged box 4) 7DJ8 Matsushita ￥600 used tested WB
7E6/VT-188 =TwinDiode Medium mu Triode= (EIA/8W - Loktal) Eh/Ih=6.3V/0.3A Ehk=±90V Ppmax=2.5W Epmax=300V op : Ep=250V Rk=950Ω rp=8.5kΩ gm=1.9mS μ=16 (参考 : 三極部のEp-Ip特性(triode section)) similar to 6SR7(octal) & 6BF6(miniature) also see another med-mu triode loktal type : 7A4(μ=16) also see high-mu triode loktal type : 7B4(μ=100) see twin-diode + high-mu triode loktal types : 7B6(μ=100) 7C6(μ=100) see a twin-diode + high-mu triode loktal type : 7X7(μ=100) see a twin-diode + high-mu triode loktal type : 7K7(μ=70) 1) 7E6 Ray ￥1000 NIB 11) 7E6/VT-188 Ray ￥1000 NIB MB RaggedBoxes 1) 7E6/VT-188 Syl ￥1000 NIB MB 2) 7E6 Delco(Syl-made) ￥1000 NIB D/C=7-26 1) 7E6 NU ￥1000 NIB very-ragged box 1) 7E6 PHILCO ￥500 used
7E8 1) 7E8 ? ￥- used
7EY6 =BeamPower Pentode= (EIA/7AC - octal) Eh/Ih=7.2V/0.6A Ehkmax=±200Vpeak Ppmax=11W Epmax=350V Pc2max=2.75W Ec2max=300V Ikmax=60mA Rg1max=1MΩ(fixed)/2MΩ(self) op : Ep=250V Ec2=250V Ec1=-17.5V Ip=44mA Ic2=3mA rp=60kΩ gm=4.4mS heater variant : 6EY6(6.3V/0.68A) same basing similar types : 6EZ5, 6V6/GT 4) 7EY6 RCA ￥1100 NIB 1) 7EY6 GE ￥900 NIB 1) 7EY6 Mot ￥900 NIB
7F7 =Twin High-mu-Triode= (EIA/8AC - Loktal) Eh/Ih=6.3V/0.3A Ehkmax=90V Ppmax=1W Epmax=300V Ecmax=+0V op : Ep=250V Ec=-2V Ip=2.3mA rp=44kΩ gm=1.6mS μ=70 (参考 : Ep-Ip特性) heater variant : 14F7(12.6V/0.15A) electrically similar types : 6SL7, 5691(octal), and 5751(noval) 0) 7F7 RCA ￥1300 NIB RB (vQn) 4) 7F7 RCA ￥1300 NIB 1) 7F7 RCA ￥1200 NOS WB 1) 7F7 GE ￥1100 NIB 2) 7F7 Syl ￥1000 NIB 錆ややあり 1) 7F7 Syl ￥1100 NIB(T) 1) 7F7 Syl ￥1100 NIB RaggedBox 2) 7F7 Syl ￥1100 NIB WB ++ 4) 7F7 Syl ￥1100 NOS Bulk (hyxcnt) 1) 7F7/VT-189 Ray ￥1200 NOS 3) 7F7/VT-189 GE ￥1200 NOS 4) 7F7 InterC ￥2100 NIB Loktal+BlackMoldedSleeve+LongGlass ServiceMaster(Nn) =rare= 1) 7F7 Nat ￥1100 NIB 1) 7F7 Ray ￥700 used 1450/1550/820min
7F8 =Medium mu Twin Triode= (EIA/8BW - Loktal) Eh/Ih=6.3V/0.3A Ehkmax=90V Ppmax=3.5W(5W/2-units) Epmax=300V Rg1max=0.5MΩ op : Ep=250V Rk=200Ω Ip=10.5mA gm=5.2mS μ=50 (参考 : Ep-Ip特性) 1) 7F8 RCA ￥1000 NIB 1) 7F8 RCA ￥1000 NIB 2) 7F8 Syl ￥900 NIB 1) 7F8 Syl ￥900 NIB RaggedBox 0) 7F8 Tsol ￥- NIB(D)
7G7(=1232) =sharp-cutoff Pentode= (EIA/8V - Loktal) Eh/Ih=6.3V/0.45A Ppmax=1.5W Epmax=250V Pc2max=0.2W Ec2max=100V rp=800kΩ gm=4.5mS 1) 7G7/1232 ? ￥700 used
7G8 =Triple Grid Amplifier= (EIA/8BV - Loktal) Eh/Ih=6.3V/0.3A 1) 7G8 Syl ￥700 NIB MB (vT)
7GS7 =common-cathode Triode Pentode= (EIA/9GF - noval) Eh/Ih=7.6V/0.3A heater variants : 4GS7(4V/0.6A), 5GS7(5.4V/0.45A), 6GS7(6.3V/0.375A) 1) 7GS7 Syl ￥700 NIB 2) 7GS7 Matsushita ￥600 NIB 1:cellophane-sealed 1) 7GS7 Toshiba ￥500 NOS 1) 7GS7 Toshiba ￥400 lightly-used
7H4B =load-series current-regulating ballast tube= (7H means 0.7Ampare regulating-class and 4 means 4V-threshold voltage) Regulated Current Range = 760mA to 840mA, where Voltage Range = 4V to 9V, pins : 1(NC)-2(F1)-3(NC)-4(NC)-5(NC)-6(NC)-7(F2)-8(NC) (参考資料 : Amperite Ballast Reference) 0) 7H4B Amperite ￥- NIB Ballast 0) 7H4B Toshiba ￥- bulk-NOS Ballast WB 6) 7H4B Toshiba ￥1100 like new WB 3) 7H4B NEC ￥1100 like new WB
7H7 =Pentode= (EIA/8V - loktal) Eh/Ih=6.3V/0.3A Ppmax=2.5W Epmax=300V Pc2max=0.5W Ec2max=300V rp=800kΩ gm=4.2mS 0) 7H7 RCA ￥- NIB 0) 7H7 Hytron ￥- NIB 1) 7H7 GE ￥1200 NIB(sD) 0) 7H7 Syl ￥- NIB 2) 7H7 GE ￥600 used
7HG8/PCF86 =common-cathode VHF TriodePentode= (EIA/9MP - noval) Eh/Ih=7.2V/0.3A heater variants : 6HG8(6.3V/0.32A), ECF86(6.3V/0.39A), 5HG8(5.3V/0.45A), PCF86(8V/0.3A) 1) 7HG8/PCF86 Amprx ￥1000 NIB BugleBoy
7J7 =common-cathode Triode-Heptode Converter= (EIA/8BL - Loktal) Eh/Ih=6.3V/0.3A Ehkmax=±90V Ikmax=14mA(total) heptode : Ppmax=0.5W Epmax=300V Pc2,4max=0.3W Ec2,4max=100V triode : Ppmax=1.25W Epmax=150V/300V(cutoff) heater variant : 14J7(12.6V/0.15A) 1) 7J7 GE ￥800 NIB
7K7 =TwinDiode High mu Triode= (EIA/8BF - Loktal) Eh/Ih=6.3V/0.3A Ehkmax=90V Triode: Ppmax=1W Epmax=300V rp=44kΩ gm=1.6mS μ=70 also see a twin-diode + high-mu triode loktal type : 7X7(μ=100) see twin-diode + high-mu triode loktal types : 7B6(μ=100) 7C6(μ=100) also see a twin-diode + med-mu triode loktal type : 7E6(μ=16) 1) 7K7 RCA ￥1100 NIB ++ 1) 7K7 Syl ￥1000 NIB
7KY6 =Frame-grid Sharp-Cutoff Pentode= (EIA/9GK - noval) Eh/Ih=7.3V/0.45A Ppmax=9W Epmax=330V Pc2max=1W Rg1max=100kΩ(fixed)/250kΩ(self) Ehkmax=±200V(DC+100V) op : Ep=200V Ec2=135V Rk=47Ω Ip=30mA Ic2=5.2mA rp=40kΩ gm=30mS heater variant : 6KY6(6.3V/0.52A) later version : double-named as '7KY6/9KX6' (see 9KX6 (8.7V/0.45A)) 0) 7KY6 RCA ￥- NIB 0) 7KY6/9KX6 Syl ￥- NIB
7L7 =SharpCutoff Pentode= (EIA/8V - loktal) Eh/Ih=6.3V/0.3A Ehkmax=90V Ppmax=4W Epmax=300V Pc2max=0.4W Ec2max=125V(300V-cutoff) op: Ep=100V Ec2=100V Ec1=-1.0V Ec3=0V Ip=5.5mA Ic2=2.4mA rp=100kΩ gm=3mS op: Ep=250V Ec2=100V Ec1=-1.5V Ec3=0V Ip=4.5mA Ic2=1.5mA rp=1MΩ gm=3.1mS electrically-similar octal-base type: 6SH7 10) JAN 7L7 USA ￥900 NIB MB
7M-P18/7MP18 =Power Pentode= (EIA/6CC - miniature) Eh/Ih=7.5V/0.6A op : Ep=200V Ec1=-5V Ec2=180V Ip=35mA Ic2=5.5mA rp=24kΩ gm=11mS Zl=5kΩ Po=3.2W heater variant : 6M-P18(6.3V/0.73A) 0) 7M-P18 Toshiba ￥- NIB 0) 7M-P18 Ray(Toshiba-made) ￥- NIB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
7N7 =Medium mu Twin Triode= (EIA/8AC - Loktal) Eh/Ih=6.3V/0.6A Ehkmax=±90V Ppmax=2.5W Epmax=300V Ecma=+0V op : Ep=250V Ec=-8V Ip=9mA rp=7.7kΩ gm=2.6mS μ=20 (参考 : Ep-Ip特性) heater variant : 14N7(12.6V/0.3A) 7N7 is equivallent to 6SN7/GT(octal). also see same-base, more-powerful loktal type : 33A/158M CV1884(Ppmax=6W/unit, μ=14-typ) 2) 7N7 RCA ￥2400 NIB 1) 7N7 RCA ￥2400 NIB (sD) 0) 7N7 GE ￥- NIB (nSn) 6) 7N7 Syl ￥offer NIB ChromeTop ParallelBlkBoxT-Plates-3holes date=143(1951) 1) 7N7 Syl ￥2400 NIB (Sn) 1) 7N7 Syl ￥2400 NIB ChromeTop just-ragged box 0) 7N7 Tsol ￥- NIB 4) JAN-CBRZ-7N7 Lansdale(Tsol-m) ￥3000 NIB ChromeTop ParallelGreyBoxT-Plates-2holes D/C=1.50(1950) 箱Dec1951 1) JAN-CBRZ-7N7 Lansdale(Tsol-m) ￥2400 LikeNew ChromeTop ParallelGreyBoxT-Plates-2holes WB 1) JAN-CBRZ-7N7 Landsdale ￥2400 NIB MB 4) 7N7 Philco ￥2400 NIB 1) 7N7 Krad ￥2200 NOS Syl箱 1) 7N7 NU ￥2200 NOS Syl箱 0) 7N7 Znth ￥- NIB Can入り 0) 7N7 Rogers ￥- NOS 0) 7N7 Marconi ￥- NIB(sD) 0) 7N7 InterC ￥- NIB 0) 7N7 InterC ￥1900 NIB Loktal+BlackMoldedSleeve+LongGlass ServiceMaster =rare= 1) 7N7 Delco(Syl-made) ￥1500 LikeNew ChromeTop BlkPlates w/2holes, ShortGlass WB 0) 7N7 Syl ￥- used 1) 7N7 Syl ￥1200 used 2490/2480/1640min 0) 7N7 ? ￥- used
7Q7 =Penta Grid Converter= (EIA/8AL - Loktal) Eh/Ih=6.3V/0.3A Ehkmax=90V Ppmax1W Epmax=300V Pc2,4max=1W Ec2max=100V(300V-cutoff) rp=500kΩ gm=525μmho heater variant : 14Q7(12.6V/0.15A) 7Q7 is equivallent to 6SA7. 1) 7Q7 GE ￥800 NIB(D) 2) 7Q7 Tsol ￥800 NIB 1) 7Q7 PHILCO ￥400 used 1) 7Q7 GE ￥800 NIB 1) 7Q7 Znth ￥600 used
7R7 =Twin Diode sharp-cutoff-Pentode= (EIA/8AE - Loktal) Eh/Ih=6.3V/0.3A Ehkmax=90V Ppmax=2W Epmax=300V Pc2max=0.25W Ec2max=100V Ec2max(cutoff)=300V rp=1MΩ gm=3.4mS heater variant : 14R7(12.6V/0.15A) 7) 7R7 Philco ￥1000 NIB(Sn) 1) 7R7 Ray ￥1000 NIB VeryRaggedBox
7S7 =Triode Heptode Converter= (EIA/8BL - Loktal) Eh/Ih=6.3V/0.3A Ehkmax=90V Heptode : Ppmax=0.6W Epmax=300V Pc2,4max=0.8W Ec2,4max=100V rp=500kΩ gm=500μmho Triode: Ppmax=1W Epmax=175V μ=18 rp=11kΩ gm=1.65mS 1) 7S7 Znth ￥700 used
7V7 =sharp-cutoff Pentode= (EIA/8V - loktal) Eh/Ih=6.3V/0.45A Ppmax=4W Epmax=300V Pc2max=0.8W Ec2max=150V/300Vsupply op: Ep=300V Ec2=150V Rk=160Ω Ec3=0V Ip=10mA Ic2=3.9mA rp=300kΩ gm=5.8mS op: Ep=300V Ec2=300V Rg2=40kΩ Rk=160Ω Ec3=0V Ip=10mA Ic2=3.9mA rp=300kΩ gm=5.8mS equivallent to 7W7 except pin assignment. same-basing higher-gm type : 95397(E83F w/loktal-adapter, gm=8.2mStyp, 6.3V/0.3A) 3) 7V7 GE ￥1000 NIB 3) 7V7 Philco ￥1000 NIB 1) 7V7 Syl ￥600 used 1) 7V7 ? ￥600 used
7W7 =SharpCutoff Pentode= (EIA/8BJ - Loktal) Eh/Ih=6.3V/0.45A Ehkmax=90V Ppmax=4W Epmax=300V Pc2max=0.8W Ec2max=150V op: Ep=300V Ec2=150V Rk=160Ω Ec3=0V Ip=10mA Ic2=3.9mA rp=300kΩ gm=5.8mS op: Ep=300V Ec2=300V Rg2=40kΩ Rk=160Ω Ec3=0V Ip=10mA Ic2=3.9mA rp=300kΩ gm=5.8mS equivallent to 7V7 except pin assignment. 0) 7W7 Syl ￥- NIB ragged-box 1) 7W7 Tsol ￥900 NIB 1) 7W7 Ray ￥900 NIB 6) 7W7 Philco ￥900 NIB(Sx)
7X6 =separated-cathode Doubler/Rectifier= (EIA/7AJ - Loktal) Eh/Ih=6.3V/1.2A Ehkmax=350V PIV=700V Idcmax=75mA Ip-peakmax=450mA/section 2) 7X6 Syl ￥1000 NIB 3) 7X6 Syl ￥1000 NIB 0) 7X6 Ray ￥- NIB 0) 7X6 Philco ￥- NIB
7X7 =TwinDiode High mu Triode= (EIA/8BZ - Loktal) Eh/Ih=6.3V/0.3A Ehkmax=90V Epmax=300V op : Ep=250V Ec=-1V Ip=1.9mA rp=67kΩ gm=1.5mS μ=100 see twin-diode + high-mu triode loktal types : 7B6(μ=100) 7C6(μ=100) also see a twin-diode + high-mu triode loktal type : 7K7(μ=70) also see a twin-diode + med-mu triode loktal type : 7E6(μ=16) also see a high-mu triode loktal type : 7B4(μ=100) 3) 7X7 RCA ￥1100 NIB 0) 7X7 GE ￥- NIB 3) 7X7 Tsol ￥900 NIB 4) 7X7 Philco ￥900 NIB 1) 7X7 Philco ￥800 NOS? GE箱
7Y4 =FullWaveRectifier= (EIA/5AB - Loktal) Eh/Ih=6.3V/0.5A Ehkmax=450V PIV=1250V Epmax=325Vac(cond.input)/450Vac(choke.input) Idcmax=70mA Edrop=22v(@Ip=70mA) see a similar rating octal type : 6X5(Idcmax=80mA) see a similar rating miniature type : 6X4 1) 7Y4 GE ￥900 NIB(D) 0) 7Y4 Ray ￥- NIB 0) 7Y4 WH ￥- NIB 1) 7Y4 Syl ￥900 NIB 1) 7Y4 Syl ￥500 used 2) 7Y4 PHILCO ￥500 used 1) 7Y4 Kenrad ￥500 used 1) 7Y4 Syl ￥500 used
7Z4 =FullWave Rectifier= (EIA/5AB - Loktal) Eh/Ih=6.3V/0.9A Ehkmax=450V PIV=1250V Epmax=325Vac(cond.input)/450Vac(choke.input) Idcmax=100mA Edrop=40V(@Idc=100mA) see 6BW4(noval) 0) 7Z4 GE ￥- NIB 2) JAN-CHS 7Z4/VT-181 Syl ￥1200 NIB MB 2) 7Z4 Syl ￥1000 NIB 2) 7Z4 Syl ￥1000 NOS original-wrapper 0) 7Z4 Syl ￥- NOS(D) 0) 7Z4 NU ￥- NIB 1) 7Z4 Znth ￥1000 NIB RaggedBox
8A8 (EIA/9DC=9AE - noval) Eh/Ih=8.4V/0.3A 5極部:Ppmax=1.7W Epmax=250V Pc2max=0.75W Ec2max=200V op :Ep=170V Ec2=170V Ec1=-2C Ip=10mA Ic2=2.8mA rp=400kΩ gm=6.2mS 3極部:Ppmax=1.5W Epmax=250V op : Ep=100V Ec=-2V Ip=14mA rp=4.0kΩ gm=5mS μ=20 heater variants : 4BL8/XCF80(4.6V/0.6A) 6BL8(6.3V/0.45A) ECF80(6.3V/0.45A) 9A8(9V/0.3A) PCF80(9V/0.3A) 0) 8A8 Matsushita ￥600 NIB sealed 6) 8A8 Matsushita ￥600 NIB 5:cellophane-sealed 1) 8A8 Matsushita ￥600 NIB cellophane-sealed
8AC10 =Triple Triode= (EIA/12FE - compactron) Eh/Ih=8.4V/0.45A see heater variant : 6AC10(Eh/Ih=6.3V/0.6A) 1) 8AC10 GE ￥650 NIB 2) 8AC10 Admrl ￥650 NIB
8AL9 =Triode Pentode= (EIA/12HE - compactron) Eh/Ih=8.6V/0.6A see heater variant : 6AL9(6.3V/0.82A) 1) 8AL9 RCA ￥650 NIB 2) 8AL9 Syl ￥650 NIB
8AU8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=8.4V/0.45A see heater variant : 6AU8(6.3V/0.6A) 7060(13.5V/0.28A) 1) 8AU8 RCA ￥500 used 1) 8AU8 Syl ￥700 NIB
8AV11 =Triple Triode= (EIA/12BY - compactron) Eh/Ih=8.4V/0.45A heater variant : 6AV11(6.3V/0.6A) 7) 8AV11 Ray ￥1000 NIB
8AW8/A =Triode Pentode= (EIA/9DX - noval) Eh/Ih=8.4V/0.45A heater variant : 6AW8(6.3V/0.6A) 5) 8AW8A RCA,Syl,Tsol,Philco ￥650 NIB
8B8(= 8R-HP1) =triode pentode= (EIA/9EX - noval) Eh/Ih=8V/0.6A heater variants : 6BM8(Eh/Ih=6.3V/0.78A), 11BM8(10.7V/0.45A), 16A8(16V/0.3A), PCL82(16V/0.3A), 32A8(32V/0.15A), 50BM8(50V/0.1A), UCL82(50V/0.1A) also see Hitachi 8R-LP1(= 12AU7(1/2)+6BM8(pentode) : 三極部低μ化(μ=17)球) 1) 8B8 Toshiba ￥800 NIB (hssExx) 1) 8B8 Toshiba ￥800 NIB 1) 8B8 Toshiba ￥400 used WB 1) 8B8 Toshiba ￥400 used WB
8B10 =duplex-Diode medium-mu Twin Triode= (EIA/12BF - compactron) Eh/Ih=8.5V/0.45A see 6B10(Eh/Ih=6.3V/0.6A) 3) 8B10 RCA ￥800 NIB (xQn) 1) 8B10 GE ￥800 NIB 1) 8B10 GE ￥800 NOS 2) 8B10 Syl ￥800 NIB 1) 8B10 Int-C ￥800 NIB
8BA11 =Triode common-cathode/G1G2 Twin Pentode= (EIA/12ER - compactron) Eh/Ih=8.4V/0.45A heater variant : 6BA11(6.3V/0.6A) 3) 8BA11 RCA ￥1000 NIB 1) 8BA11 Znth ￥1000 NOS? Syl箱
8BH8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=8.4V/0.45A heater variant : 6BH8(6.3V/0.6A) 1) 8BH8 Syl ￥1000 NIB 1) 8BH8 Syl ￥1000 NIB
8BM11 =semi-remote-cutoff & sharp-cutoff Pentode= (EIA/12FU - compactron) Eh/Ih=8.4V/0.45A unit 1(semi-remote-cutoff) : Ppmax=2.2W Epmax=160V Pc2max=0.55W Ec2max=160V Rg1max=1MΩ(self) op : Ep=125V Ec2=125V Rk=56Ω Ip=14mA Ic2=3.6mA rp=220kΩ gm=8.8mS unit 2(sharp-cutoff) : Ppmax=2.2W Epmax=160V Pc2max=0.55W Ec2max=160V Rg1max=250kΩ(self) op : Ep=125V Ec2=125V Rk=120Ω Ip=9mA Ic2=2.5mA rp=300kΩ gm=8.5mS 1) 8BM11 RCA ￥700 NIB 2) 8BM11 Syl ￥700 NIB 1) 8BM11 Admrl ￥700 NIB
8BN11 =twin Pentode= (EIA/12GF - compactron) Eh/Ih=8.4V/0.6A Ehkmax=±200V Ppmax=3.1W Epmax=330V Pc2max=0.65w Ec2max=330V grp=200kΩ gm=13mS see a heater variant : 6BN11(6.3V/0.8A) see electrically almost same Twin sharp-cutoff Pentode : 6J11 also see similar Twin sharp-cutoff Pentode : 6BV11 12BV11 also see Twin remote-cutoff Pentode : 6AR11 11AR11 4) 8BN11 RCA ￥800 NIB 1) 8BN11 GE ￥700 NOS sw
8BQ5/XL84 =BeamPower= 9-pin MT (EIA/9CV - noval) Eh/Ih=8V/0.6A Tstartup=11sec Ehkmax=±100V Ppmax=12W Epmax=300V Pc2max=2W Ec2max=300V Ikmax=65mA Rg1max=300kΩ(fixed)/1MΩ(auto) op(A1s) : Ep=250V Ec2=250V Ec1=-7.3V Ip=48/50.6mA Ic2=5.5/10mA Zl=4.5kΩ Po=5.7W D=10% see heater variant : 6BQ5(Eh/Ih=6.3V/0.76A) 1) 8BQ5 RCA ￥1600 NIB RaggedBox 25) 8BQ5 GE ￥1600 NIB 2) 8BQ5 USA ￥1500 NIB 20) 8BQ5 ITT ￥1500 NIB mint 1) 8BQ5 Sharp(Toshiba-made) ￥1500 NIB 1) 8BQ5 Toshiba ￥600 used WB 2) 8BQ5 Hitachi ￥600 used WB
8BQ11 =Dissimilar double Pentode= (EIA/12DM - compactron) Eh/Ih=8.4V/0.6A unit 1 : Ppmax=3.1W Epmax=330V Pc2max=0.65W Ec2max=330V Rg1max=1MΩ(self) op : Ep=125V Ec2=125V Rk=56Ω Ip=11mA Ic2=3.5mA rp=200kΩ gm=10.5mS unit 2 : Ppmax=3.1W Epmax=330V Pc2max=0.65W Ec2max=330V Rg1max=250kΩ(self) op : Ep=125V Ec2=125V Rk=56Ω Ip=11mA Ic2=3.8mA rp=200kΩ gm=13mS see heater variant : 11BQ11(Eh/Ih=11.2V/0.45A) 16BQ11(Eh/Ih=16V/0.315A) 1) 8BQ11 GE ￥800 NIB 1) 8BQ11 Syl ￥800 NIB 1) 8BQ11 GE ￥600 used
8BU11 =Twin Triode Pentode= (EIA/12FP - compactron) Eh/Ih=7.8V/0.6A Ehkmax=±200V pentode : Ppmax=2.5W Epmax=330V Pc2max=0.55W Ec2max=330V Rg1max=500kΩ(fixed)/1MΩ(self) op : Ep=125V Ec2=125V Ec1=-1V Ip=12mA Ic2=4mA rp=200kΩ gm=7.5mS triode : Ppmax=1.8W Epmax=330V Rg1max=500kΩ(fixed)/1MΩ(self) op : Ep=125V Rk=68Ω Ip=13.5mA rp=50kΩ gm=8.6mS μ=43 different-heater, same-basing, and electrically-similar type : 6BH11(6.3V/0.8A) 2) 8BU11 RCA ￥800 NIB 2) 8BU11 Syl ￥800 NIB
8CG7/8FQ7 =Medium-mu Twin Triode= (EIA/9AJ - noval) Eh/Ih=8.4V/0.45A heater variant : 6CG7(6.3V/0.6A) 6FQ7(6.3V/0.6A) 8FQ7(8.4V/0.45A) 12FQ7(12.6V/0.3A) 4) 8CG7/8FQ7 USA ￥600 NOS/NIB
8CM7 =Medium mu double Triode= (EIA/9ES - noval) Eh/Ih=8.4V 0.45A heater variant : 6CM7(6.3V/0.6A) 1) 8CM7 RCA ￥700 NIB 1) 8CM7 GE ￥600 NIB 1) 8CM7 USA ￥600 NOS
8CS7 =Double Triode= (EIA/9EF - noval) Eh/Ih=8.4V/0.45A heater variant : 6CS7(6.3V/0.6A) 1) 8CS7 Syl ￥600 NIB
8CW5/XL86 (also see 6CW5/EL86(Eh/Ih=6.3V/0.76A)) =PowerPentode= (EIA/9CV - noval) Eh/Ih=8V/0.6A Ppmax=12W Epmax=250V Pc2max=1.75W Ec2max=200V ex) A1S: Ep=170V Ec2=170V Ec1=-12.5V Ipo=70mA Ic2o=5mA rp=25kΩ gm=11mS Zl=2.4kΩ Po=5.6W ex) AB1pp: Ep=250V Ec2=200V Ec1=-18.5V Ipo=91mA Ic2o=4mA Zl=3kΩ Po=25W also see heater variants : 6CW5(6.3V/0.76A) 10CW5(10.6V/0.45A) 15CW5(15V/0.3A) 30CW5(30V/0.15A) also see a European heater variant : PL84(15V/0.3A) 1) 8CW5/XL86 RCA ￥1100 NIB 1) 8CW5 RCA ￥900 NOS bulk 2) 8CW5 RCA ￥900 NOS bulk ShortPlate 1) 8CW5 GE ￥900 NIB 2) 8CW5/XL86 GE ￥900 NOS bulk GtBritain 1) 8CW5 Syl ￥900 NIB 3) 8CW5 Syl ￥900 NOS bulk MultiSlit BlkPlate ShortGlass 4) 8CW5 Syl ￥900 NOS bulk MultiSlit BlkPlate 1) 8CW5 Dmnt ￥900 NIB 1) 8CW5 Toshiba ￥900 NIB very-ragged box
8CX8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=8V/0.6A heater variants : 6CX8(6.3V/0.75A) 8CX8(8V/0.6A) 1) 8CX8 Syl ￥600 NIB
8EB8/8GN8 = 8GN8/8EB8
8EM5 =Beam Power= (EIA/9HN - noval) Eh/Ih=8.4V/0.6A heater variant : 6EM5(6.3V/0.8A) 1) 8EM5 Syl ￥1000 NIB RaggedBox 1) 8EM5 NEC ￥800 NIB 1) 8EM5 Hitachi ￥800 NIB very-ragged box 1) 8EM5 Mitsubishi(NEC-made) ￥400 used WB
8FQ7/8CG7 =Medium-mu Twin Triode= (EIA/9LP - noval) Eh/Ih=8.4V/0.45A equivallent one : 8CG7(8.4V/0.45A) heater variants : 6FQ7(6.3V/0.6A) 12FQ7(12.6V/0.3A) 3) 8FQ7/8CG7 RCA ￥1500 NIB ClearTop 1) 8FQ7/8CG7 RCA ￥1500 NIB 2) 8FQ7/8CG7 GE ￥800 NIB 1) 8FQ7/8CG7 USA ￥700 NIB 2) 8FQ7 NEC ￥800 NIB stll cellophane-sealed 1) 8FQ7 Hitachi/STD ￥800 NIB STD箱 4) 8FQ7/8CG7 USA ￥400 used 1) 8FQ7 RCA(GE-made) ￥500 used 1) 8FQ7 Int-C ￥500 used? 1) 8FQ7 WH ￥500 used 1) 8FQ7 Toshiba ￥500 used
8GN8/8EB8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=8V/0.6A heater variants : 6GN8/6EB8(6.3V/0.75A), 10GN8(10.5V/0.45A) 1) 8GN8/8EB8 RCA ￥1200 NIB 2) 8GN8 Toshiba NIB ￥1200 stll cellophane-sealed 5) 8EB8/8GN8 NEC NIB ￥1200 stll cellophane-sealed
8GU7 =Medium-mu Twin Triode= (EIA/9LP - noval) Eh/Ih=8.4V/0.45A heater variant : 6GU7(6.3V/0.6A) 1) 8GU7 Syl ￥600 NIB
8JU8 =Quadraple Diode= (EIA/9PQ - noval) Eh/Ih=8.4V/0.45A heater variant : 6JU8/A(6.3V/0.6A) 1) 8JU8 RCA ￥600 NIB 2) 8JU8 Syl ￥600 NIB 2) 8JU8 USA ￥600 NIB 1) 8JU8A USA ￥400 used
8JV8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=8.5V/0.45A heater variant : 6JV8(6.3V/0.6A) 1) 8JV8 Ray ￥600 NIB 1) 8JV8 Sanyo ￥400 used? WH箱
8LC8 =Triode Pentode= (EIA/9QY - noval) Eh/Ih=8.4V/0.45A heater variant : 6LC8(6.3V/0.6A) 1) 8LC8 USA ￥600 NIB
8LS6 =video-amp pentode= (EIA/9GK - noval) Eh/Ih=7.7V/0.45A Ppmax=5W Epmax=180V Pc2max=1.2W Ec2max=180V Ikmax=-mA ex) Ep=110V Ec2=110V Rk=65Ω Ip=14mA Ic2=3.2mA gm=11mS rp=54kΩ 1) 8LS6 Matsushita ￥600 NIB cellophane-sealed
8LT8 =Double Diode Triode= (EIA/9RL - noval) Eh/Ih=8.1V/0.45A(11sec) heater variant : 6LT8(6.3V/0.5A) 2) 8LT8 RCA ￥700 NIB 3) 8LT8 USA ￥600 NIB 1) 8LT8 GE ￥600 NOS?
8R-HP4/8RHP4 =HighMuTriode + PowerPentode= (EIA/9DX - noval) construction : 12AX7(1/2) + 5M-P29/30(pentode) Eh/Ih=8.4V/0.45A Ehkmax=±200V(DCmax=+100V) *pentode: Ppmax=6W Epmax=165V Pc2max=1W Ec2max=165V op : Ep=110V Ec2=110V Ec1=-8V Ip=45mA Ic2=2.5mA rp=22kΩ gm=7mS Zl=2.5kΩ Po=1.7W *triode: Ppmax=1.1W Epmax=330V op : Ep=100V Ec=-1V Ip=0.5mA rp=74kΩ gm=1.35mS μ=100 op : Ep=250V Ec=-2V Ip=-mA rp=40kΩ gm=2.5mS μ=100 pins : 1(Kt)-2(Gt)-3(Pt)-4(H)-5(H)-6(Kp,G3p,IS)-7(G1p)-8(G2p)-9(Pp) 2) 8R-HP4 Mitsubishi(Hitachi-made) ￥900 NIB just-ragged boxes
8R-LP1/8RLP1 =MedMuTriode + PowerPentode= (EIA/9EX - noval) construction : 12AU7(1/2) + 6BM8(pentode) : 8B8の三極部低μ(μ=17)球 Eh/Ih=8V/0.6A Ehkmax=±200V *pentode: Ppmax=8W Epmax=250V Pc2max=2W Ec2max=250V Ikmax=75mA Rg1max=1MΩ(fixed)/2MΩ(self) op : Ep=150V Ec2=150V Ec1=-10V Ip=50mA Ic2=10.5mA gm=7.9mS Zl=3kΩ Po=3.5W D=12% *triode: Ppmax=1W Epmax=250V Ikmax=20mA Rg1max=1MΩ(fixed)/2MΩ(self) op : Ep=200V Rk=1kΩ Ip=6mA rp=6.8kΩ gm=2.5mS μ=17 (注: この球は5極部はPpmax=8Wで6BM8より強力であるが、"低μ三極部"はPpmax=1Wのため無理が効かない) 1) 8R-LP1 Hitachi ￥800 NIB cellophane-sealed 2) 8R-LP1 Hitachi ￥800 NIB cellophane-sealed 15) 8R-LP1 Hitachi ￥800 NIB cellophane-sealed 3) 8R-LP1 Hitachi ￥700 NOS WB 1) 8R-LP1 Hitachi ￥400 lightly-used WB 1) 8R-LP1 Hitachi ￥400 used WB
9-7 =Current-regulating ballast tube= (参考資料 : Amperite Ballast Reference) 1) 9-7 Amperite ￥1200 NIB Ballast
9A8/PCF80 =Triode Pentode= (EIA/9DC=9AE - noval) Eh/Ih=9.0V/0.3A equivallent type : PCF80(9V/0.3A) heater variants : 4BL8/XCF80(4.6V/0.6A) 6BL8(6.3V/0.45A) ECF80(6.3V/0.45A) 8A8(8.4V/0.3A) 1) 9A8/PCF80 USA ￥600 NIB 1) 9A8/8A8/PCF80 GE ￥600 NIB 2) 9A8 Syl ￥600 NIB 1) 9A8 Toshiba ￥600 NIB sealed
9AK10 =High mu Triple Triode= (EIA/12FE - compactron) Eh/Ih=9.5V/0.6A Ppmax=2W Epmax=330V Ikmax=-mA Rgmax=0.5MΩ Ehk=100V ex) Ep=200V Rk=230Ω μ=53 gm=7mS rp=7.5kΩ Ip=10mA heater variant : 6AK10(6.3V/0.9A) 7) 9AK10 RCA ￥1700 NIB
9AM11 = = (EIA/ - compactron) 2) 9AM11 GE ￥600 NIB
9AQ8 =Twin Triode = (EIA/9DE - noval) Eh/Ih=9V/0.3A heater variants : 6AQ8/ECC85(6.3V/0.435A) 9AQ8(9V/0.3A) PCC85(9V/0.3A) 17EW8/HCC85(17.5V/0.15A) 1) 9AQ8 GE ￥1300 NIB Germany <> 2) 9AQ8 Matsushita ￥1300 NIB cellophane-sealed 2) 9AQ8 Matsushita ￥600 used
9AU7 =Medium-mu Twin-Triode= (EIA/9A - noval) Eh/Ih=9.4V/0.225A or 4.7V/0.45A see heater variants : 6AU7, 7AU7, 12AU7 2) 9AU7 RCA ￥1000 NIB 1) 9AU7 Syl ￥800 NIB 1) 9AU7 Syl ￥800 NIB 2) 9AU7 USA ￥800 NIB
9BJ11 =dissimilar double Pentode= (EIA/12FU - compactron) Eh/Ih=9.6V/0.45A pentode : Ppmax=2.8W Epmax=160V Pc2max=1.25W Ec2max=160V Rg1max=100kΩ Rg3max=1.5MΩ op : Ep=110V Ec2=110V Rg1=100kΩ Ip=5.8mA Ic2=6.8mA rp=40kΩ gm=7.5mS beam power : Ppmax=2.2W Epmax=160V Pc2max=0.55W Ec2max=160V op : Ep=125V Ec2=125V Rk=120Ω Ip=8.5mA Ic2=2.5mA rp=40kΩ gm=9.6mS 2) 9BJ11 RCA ￥1200 NIB
9BR7 =duplex Diode Triode= (EIA/9CF - noval) Eh/Ih=9.4V/0.3A 4.7V/0.6A heater variant : 12BR7A(12.6V/0.225A 6.3V/0.45A) (note : 9BR7/12BR7A have no any relation with 6BR7(low-noise pentode)) 1) 9BR7 RCA ￥800 NIB 1) 9BR7 Tsol ￥800 NIB
9GH8A =Triode Pentode= (EIA/9AE - noval) Eh/Ih=9.45V/0.3A heater variants : 5GH8/A(4.7V/0.6A), 6GH8/A(6.3V/0.45A) similar to PCF82(9.5V/0.3A) 1) 9GH8A Matsushita ￥1000 NIB cellophane-sealed 3) 9GH8A Matsushita ￥1000 NIB cellophane-sealed 1) 9GH8A Matsushita ￥1000 NIB 白箱
9GV8 =Trioe Pentode= (EIA/9LY - noval) Eh/Ih=9.5V/0.6A heater variants : 6GV8(6.3V/0.9A), ECL85(6.3V/0.9A), 10GV8/LCL85(11.6V/0.45A), 18GV8(18V/0.3A), PCL85(18V/0.3A) 1) 9GV8 Admrl ￥600 NIB
9JN8 =Triode Pentode= (EIA/9FA - noval) Eh/Ih=9.4V/0.3A heater variant : 6JN8(6.3V/0.45A) 19JN8(18.9V/0.15A) 2) 9JN8 USA ￥600 NIB
9KX6 =frame-grid sharp cutoff Pentode= (EIA/9GK - noval) Eh/Ih=8.7V/0.45A Ppmax=11.5W Epmax=400V Pc2max=1.5W Ec2max=330V Rg1max=100kΩ(fixed)/250kΩ(self) op : Ep=250V Ec2=150V Rk=56Ω Ip=28mA Ic2=6.5mA rp=50kΩ gm=36mS * 9KX6='7KY6/9KX6'(later version : double-named) 1) 9KX6 Magnavox ￥800 NOS? Syl箱
9M-HH3/9MHH3 =common-cathode VHF Twin Triode= (EIA/7BF - miniature) Eh/Ih=9V/0.3A heater variants : 5M-HH3(4.75V/0.45A), 6M-HH3(6.3V/0.45A) 0) 9M-HH3 Ray(Toshiba) ￥- NIB 0) 9M-HH3 Ray(Toshiba-made) ￥- NIB
9MN8 =Triple Triode= (EIA/12HU - compactron) Eh/Ih=9.5V/0.6A heater variant : 6MN8(6.3V/0.9A) 1) 9MN8 RCA ￥700 NIB 1) 9MN8 Syl ￥700 NIB
9M-P12/9MP12 =power Pentode= (EIA/6CC - miniature) Eh/Ih=9.4V/0.3A op : Ep=180V Ec2=180V Ec1=-6V Ip=25mA Ic2=5mA gm=5.5mS Zl=6kΩ Po=1.8W heater variant : 4M-P12(4.7V/0.6A) 0) 9M-P12 Ray(Toshiba-made) ￥- NIB
9R-A6/9RA6 =Power Triode= (EIA/T7C - noval) Eh/Ih=9.5V/0.6A(11sec) Ehkmax=±200V(DCmax=+100V) Ppmax=10W Epmax=550V Ikmax=40mA Ikpeak=140mA Rgmax=2.2MΩ op: Ep=250V Ec=-12V Ip=26mA rp=1.75kΩ gm=8.5mS μ=15 pin: 1(K)-2(G)-3(NC)-4(H)-5(H)-6(IC)-7(G)-8(NC)-9(P) (参考 : Ep-Ip特性) see a heater variant: 6R-A6(Eh/Ih=6.3V/0.9A) see a 9R-A6 direct-coupled class-A2 parallel single-ended 6W+6W stereo amp. by Mr. Susumu Soya, Sept.1999, M.J. also see an actually-built sample using PMF-10WS OPT's 1) 9R-A6 Syl ￥1700 NIB 7) 9R-A6 Ray ￥1700 NIB 4) 9RA6(9R-A6) RCA(Toshiba-made) ￥1700 NIB plain-WB 1) 9R-A6 Toshiba ￥1700 NIB stll cellophane-sealed(hyyExx) 1) 9RA6Toshiba ￥1700 NIB just-ragged box 1) 9R-A6 Amperex(Toshiba-made) ￥1200 lightly-used WB 1) 9R-A6 Toshiba ￥900 used
9R-AL1/9RAL1 =vertical deflection Double Triode= (EIA/9HF - noval) Eh/Ih=9V/0.6A(11sec) Ehkmax=±200V(DCmax=+100V) unit 2 ≒ 6RA9 Triode #1 : Ppmax=1.5W Epmax=330V Ikmax=22mA Rgmax=2.2MΩ Ep=250V Ec=-11.0V Ip=5.0mA gm=2.0mS μ=17.5 Triode #2 : Ppmax=8.0W Epmax=500V Ikmax=40mA Rgmax=2.2MΩ Ep=250V Ec=-10.5V Ip=22mA gm=6.7mS μ=16.5 pins : 1(2P)-2(2G)-3(2G)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(2K) heater variant : 6R-AL1(6.3V/0.86A) 18R-AL1(18V/0.3A) also see similar type : 8CS7(8.4V/0.45A, μ1=17.5, μ2=15.5), 6CS7(6.3V/0.6A, μ1=17.5, μ2=15.5) * note : '9HF'(9R-AL1) basing is same as '9CE'(8CS7) if pin #2 is not used, or pins #2 and "3 are connected. '9HF'-base different-μ double triodes : 6DE7, 6DR7, 6EW7(Pp1max=10W, 9T9), 6FD7(Pp1max=10W, 9T9) 0) 9R-AL1 Toshiba ￥- NIB 4) 9R-AL1 Toshiba ￥1200 NIB cellophane-sealed 1) 9R-AL1 Toshiba ￥900 used 1) 9R-AL1 Hitachi￥900 used NEC-boxed
10/10Y/210/410/VT-25/VT-25A=PowerTriode= (EIA/4D - UX) Ef/If=7.5V/1.25A Ppmax=12W Epmax=425V Ipmax=60mA Pp-input=25Wmax op(A1S) : Ep=250V Ec=-23.5V Ip=10mA rp=6kΩ gm=1.33mS μ=8 Zl=13kΩ Po=0.4W op(A1S) : Ep=350V Ec=-32V Ip=16mA rp=5.15kΩ gm=1.55mS μ=8 Zl=11kΩ Po=0.9W op(A1S) : Ep=425V Ec=-40V Ip=18mA rp=5kΩ gm=1.6mS μ=8 Zl=10.2kΩ Po=1.6W op(B2pp) : Ep=250V Ec=-28V Ip=2x4mA/2x55mA Zlpp=4kΩ Pin=2.1W Po=13W op(B2pp) : Ep=350V Ec=-40V Ip=2x4mA/2x55mA Zlpp=6kΩ Pin=2.3W Po=20W op(B2pp) : Ep=425V Ec=-50V Ip=2x4mA/2x55mA Zlpp=8kΩ Pin=2.5W Po=25W (参考 : CX310のEp-Ip特性) also see VT-25/VT-25A <三極管の A1S 動作比較> 1) 10A Pliotron ￥5000 BrassBase [DISPLAY] 0) 410-globe DeForest ￥- NOS/used OB 0) 10-globe Cunnghm ￥18000 NOS OB(ragged) gm=48.5/32min(TV-7B/U) Ef=10%減にて45.5(TV-7) 0) 10-globe RCA ￥- NIB 78/32min 0) 10-globe RCA ￥17000 used? 67/32min 0) NX-210 NU ￥15000 used gm=1360/790min Baseラトルあり 0) UX-210 RCA ￥- used gm=1350/790min(Qn) 0) 210-globe Monroe ￥15000 LikeNew 1170/790min 1) 210T-ST Syl ￥17000 used 58/32min CeramicBase 14) 10/VT-25 GE(RCA-made) ￥7900 NIB MB(GE軍箱) 0) 10/VT-25 RCA ￥- NOS(mT) 1) 10Y-ST GE ￥7500 NIB ragged box 0) 10Y/VT-25 SYL ￥- NOS(xQ)
10AL11 =Dissimilar double Pentode= (EIA/12BU - compactron) Eh/Ih=9.8V/0.6A see heater variants : 6AL11(6.3V/0.9A), 12AL11(12.6V/0.45A) 3) 10AL11 RCA(GE-made) ￥1000 NIB 2) 10AL11 Syl ￥1000 NIB
10C8 =Triode Pentode= (EIA/9DA - noval) Eh/Ih=10.5V/0.3A pentode : Ppmax=2.2W Epmax=300V Pc2max=0.55W Ec2max=300V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=135V Ec2=135V Rk=100Ω Ip=11.5mA Ic2=3.2mA rp=190kΩ gm=8mS μg2g1=33 triode : Ppmax=2W Epmax=300V Rg1max=500kΩ(fixed)/1MΩ(self) op : Ep=135V Ec2=135V Rk=390Ω Ip=7.3mA rp=12kΩ gm=4.4mS μ=53 1) 10C8 RCA ￥1200 NIB
10CW5 =PowerPentode= (EIA/9CV - noval) Eh/Ih=10.6V/0.45A Ehkmax=±220Ｖaverage/±330Vpeak Tstartup=11sec *Audio amp.(RCA/design max): Ppmax=14W Epmax=275V/600V-cutoff Pc2inmax=2.1W/7W-peak Ec2max=220V/600V-cutoff Ikmax=110mA Rg1max=1MΩ op(A1s) : Ep=170V Ec2=170V Ec1=-12.5V Ipo=70mA Ic2o=5mA rp=25kΩ gm=11mS Zl=2.4kΩ Po=5.6W op(AB1pp): Ep=250V Ec2=200V Ec1=-18.5V Ipo=91mA Ic2o=4mA Zl=3kΩ Po=25W *Vert.amp.(RCA/design max): Ppmax=12W Epmax=275V/2200V-peak Pc2inmax=2.1W Ec2max=275V Ikmax=110mA/240mA-peak Rg1max=2.2MΩ also see heater variants : 6CW5(6.3V/0.76A) 8CW5(8V/0.6A) 15CW5(15V/0.3A) 30CW5(30V/0.15A) 1) 10CW5/LL86 RCA(Mullard-made) ￥1200 NIB 4) 10CW5/LL86 RCA ￥1200 NIB 1) 10CW5/LL86 ? ￥600 used 1) 10CW5/LL86 ?(Philips-made) ￥800 used 8250/4500min 1) 10CW5/LL86 SEARS ￥800 used GE箱
10DE7 =Double Triode= (EIA/9HF - NOVAR) Eh/Ih=9.7V/0.6A heater variants : 6DE7(6.3V/0.9A) 13DE7(13V/0.45A) 5) 10DE7 USA ￥700 NIB 1) 10DE7 Syl ￥700 NIB 2) 10DE7 USA ￥500 used
10DX8/LCL84 =Triode Pentode= (EIA/9HX - noval) Eh/Ih=10.2V/0.45A heater variants : 6DX8(6.3V/0.72A) ECL84(6.3V/0.72A) PCL84(15V/0.3A) 15DQ8(15V/0.3A) 1) 10DX8 RCA ￥800 NIB 1) 10DX8 RCA ￥800 NIB - mint 2) 10DX8/LCL84 Syl ￥800 NIB
10EG7 =Double Triode= (EIA/8BD - octal) Eh/Ih=9.7V/0.6A Ehkmax=±200V unit 1 : Ppmax=1.5W Epmax=330V Ikmax=22mA Rg1max=2.2MΩ op : Ep=250V Ec=-11V Ip=5.5mA rp=8.75kΩ gm=2mS μ=17.5 unit 2 : Ppmax=10W Epmax=330V/1500Vpeak Ikmax=50mA/175mApeak Rg1max=2.2MΩ op : Ep=150V Ec=-17.5V Ip=45mA rp=800Ω gm=7.5mS μ=6 1) 10EG7 RCA ￥1200 NIB
10EM7 =double Triode= (EIA/8BD - octal) Eh/Ih=9.7V/0.6A heater variants : 6EM7(6.3V/0.925A) 6EA7(6.3V/1.05A) 13EM7(13V/0.45A) 1) 10EM7 RCA ￥1000 NIB 1) 10EM7 GE ￥900 NIB 1) 10EM7 Syl ￥900 NIB
10EW7 =Double Triode= (EIA/9HF - noval/9T9) Eh/Ih=9.7V/0.6A heater variants : 6EW7(6.3V/0.9A) 15EW7(14.8V/0.45A) 1) 10EW7 Syl ￥800 NIB 2) 10EW7 Toshiba ￥700 lightly-used WB
10F1 = Pentode =(EIA/ - B8A) Eh/Ih=22V/0.1A op : Ep=200V Ec2=200V Ec1=-1.8V Ip=10mA Ic2=2.6mA rp=900kΩ gm=9mS similar to UF42 4) 10F1 Mazda ￥1300 used
10GF7/A =Dissimilar double Triode= (EIA/9QD - NOVAR) Eh/Ih=9.7V/0.6A heater variants : 6GF7(6.3V/0.985A) 13GF7(13V/0.45A) 1) 10GF7A GE ￥1000 NIB 1) 10GF7A RCA ￥700 NIB 3) 10GF7 Syl ￥700 NIB 3) 10GF7A InterC ￥700 NIB ServiceMaster 1) 10GF7A Sharp ￥400 used RCA箱
10GK6 =Beam Power= (EIA/9GK - noval) Eh/Ih=10.6V/0.45A heater variants : 6GK6(6.3V/0.76A) 16GK6(15V/0.3A) 29GK6(28.6V/0.15A) 2) 10GK6 RCA ￥600 used matched pair gm=9300/6300min, 9100/6300min 1) 10GK6 Syl ￥600 NOS? RCA箱
10GN8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=10.5V/0.45A heater variants : 6GN8/6EB8(6.3V/0.75A), 8GN8(8V/0.6A) 2) 10GN8 USA ￥600 NIB 1) 10GN8 GE ￥500 used 1) 10GN8 Znth ￥500 used
10GV8/LCL85 =Triode Pentode= (EIA/9LY - noval) Eh/Ih=11.6V/0.45A (= almost '12GV8') Pentode: Ppmax=7W Epmax=250V Pc2max=1.5W Ec2max=250V Ikmax=75mA Rg1max=1MΩ(fixed)/2.2MΩ(self) op : Ep=170V Ec2=170V Ec1=-15V Ip=41mA Ic2=2.7mA rp=25kΩ gm=7.5mS Triode : Ppmax=0.5W Epmax=250V Ikmax=15mA μ=60 rp=11kΩ gm=5.5mS Rgmax=1MΩ(fixed)/3.3MΩ(self) op : Ep=100V Ec=-0.8V Ip=5mA rp=7.6kΩ gm=6.5mS μ=50 (参考 : 五極部三結のEp-Ip特性(Pentode section Triode-connection, sample data)) heater variants : 6GV8 / ECL85(6.3V/0.9A), 9GV8(9.5V/0.6A), 18GV8(18V/0.3A), PCL85(18V/0.3A) 6GV8/ELL85 is almost same as ECL805 pins =1(Pt)-2(Gt)-3(Kt)-4(H)-5(H)-6(Pp)-7(G2p)-8(Kp,G3p,IS)-8(G1p) 0) 10GV8/LCL85 RCA ￥1200 NIB 4) 10GV8/LCL85 RCA ￥1200 NIB made in Gt.Britain, just-ragged boxes 4) 10GV8/LCL85 RCA ￥1200 NIB made in Japan, just-ragged boxes 2) 10GV8/LCL85 RCA ￥1200 NIB made in Japan, just-ragged boxes 0) 10GV8 Syl ￥1200 NOS WB 0) 10GV8/LCL85 Lindal(Matsushita-made) ￥- lightly-used? WB 0) 10GV8/LCL85 Matsushita ￥- used WB
10HF8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=10.5V/0.45A heater variant : 6HF8(6.3V/0.75A) 1) 10HF8 RCA ￥800 NIB 1) 10HF8 Tsol ￥800 NIB
10JA5 =Beam Power= (EIA/12EY - compactron) Eh/Ih=10.5V/0.6A(11sec) Ehkmax=±200V(+100Vdc-max) Rg1max=1MΩ(fixed)/2.2MΩ(self) *Vertical Deflection amplifier (Design maximum) : Ppmax=19W Epmax=400V/2500V-pulse Ikmax=110mA/260mA-peak Pc2max=2.75W Ec2max=300V Ec1-max=-250V op : Ep=135V Ec2=125V Ec1=-10V Ip=95mA Ic2=4.2mA rp=12kΩ gm=10.3mS, Ec_cutoff=-33V(Ip=100μA) pins : 1(H)-2(G1)-3(G2)-4(K,BP)-5(NC)-6(P)-7(NC)-8(NC)-9(G1)-10(G2)-11(K,BP)-12(H) size : 39.7mmΦ x 79.4mmH, in max (参考 : Ep-Ip,Ic2特性(Ec2=125V)) (参考 : Ep-Ip,Ic2特性(Ec2-parameter, Ec1=0V)) heater variant : 6JA5(6.3V/1A) same base, different heater, lower rating types : 6JB5 / 6HE5/ 6JC5 1) 10JA5 RCA ￥1300 NIB 1) 10JA5 Sylvania ￥1300 NIB 1) 10JA5 Sylvania ￥1300 NIB
10JA8 =high-mu Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=10.5V/0.45A Ehkmax=±200V triode: Ppmax=1W Epmax=300V Ec1max=+0V Rg1max=1MΩ(self)/500kΩ(fixed) op : Ep=200V Ec=-2V Ip=3.5mA rp=19kΩ gm=3.7mS μ=70 pent.: Ppmax=1W Epmax=330V Pc2max=1,5W(Ec2<165V) Ec2max=330V Ec1max=+0V Rg1max=1MΩ(self)/250kΩ(fixed) op : Ep=200V Ec2=135V Ec=-1.5V Ip=18mA Ic2=4mA rp=70kΩ gm=14mS 1) 10JA8 RCA ￥900 NIB 2) 10JA8 Syl ￥700 NIB
10JT8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=10.2V/0.45A heater variant : 6JT8(6.3V/0.725A) 1) 10JT8 Syl ￥700 NIB
10JY8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=10.5V/0.45A heater variant : 6JY8(6.3V/0.8A) 2) 10JY8 GE ￥600 NIB 2) 10JY8 Syl ￥600 NIB 1) 10JY8 WH ￥600 NIB
10KR8 =med-mu Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih=10.5V/0.45A(11sec) Ehkmax=±200V triode : Ppmax=2W Epmax=330V Rg1max=500kΩ(fixed)/1MΩ(self) op : Ep=125V Rk=69Ω Ip=15mA rp=4.4kΩ gm=10.4mS μ=46 pentode : Ppmax=5W Epmax=330V Pc2max=1.1W Ec2max=330V Rg1max=500kΩ(fixed)/1MΩ(self) op : Ep=200V Ec2=100V Rk=82Ω Ip=19.5mA Ic2=3mA rp=60kΩ gm=20mS heater variant : 6KR8(6.3V/0.75A) 1) 10KR8 GE ￥700 NIB 1) 10KR8 RCA ￥500 used
10LB8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=10.2V/0.45A heater variant : 6LB8(6.3V/0.725A) 1) 10LB8 Lindal(Syl-made) ￥700 NIB RaggedBox
10LE8 =common G1,G2,K Twin Pentode= (EIA/9QZX - noval) Eh/Ih=10.0V/0.45A Ppmax=2Wx2 Epmax=300V Pc2max=2W Ec2max=150V heater variant : 6LE8(6.3V/0.76A) 2) 10LE8 Hitachi ￥700 NIB 1:open, 1:cellophane-sealed
10P13 =Audio Beam Tetrode= Ppma=6W Eh/Ih=40V/0.1A ex) Ep=180V Ec2=150V Ec1=-6.3V Ip=29mA Ic2=5.8mA rp=5.4kΩ gm=7.4mS Po=2.6W 1) 10P13 Mazda ￥1300 used 1) 10P13 England ￥1300 used
10T1 1) 10T1 Amperex ￥2000 NIB Ballast
10T10 =Dissimilar double-Triode Pentode= (EIA/12EZ - compactron) Eh/Ih=9.8V/0.6A heater variants : 6T10(6.3V/0.95A) 12T10(12.6V/0.45A) 1) 10T10 RCA ￥800 NIB 1) 10T10 GE ￥600 NIB
10Z10 =Pentode-gated Beam Discriminator= (EIA/12BT - compactron) Eh/Ih=10.0V/0.6A heater variants : 6J10(6.3V/0.95A) 6Z10(6.3V/0.95A) 13Z10/13J10(13.2V/0.45A) 2) 10Z10 RCA ￥800 NIB 1) 10Z10 Syl ￥600 NIB
11, WD11/WD-11 =Triode= (EIA/ , straight T8 bulb) Epmax=135V Ef/If=1.1V/0.25A op : Ep=90V Ec=-4.5V Ip=2.5mA rp=15.5kΩ μ=6.6 gm=425μmho pins(note) : 1(F)-2(P)-3(F)-4(G) (#11 is same as #12 except pin assignment, pins of #12 are 1(F)-2(P)-3(G)-4(F) 2) 11 Robun ￥4900 used VeryOld StraightGlass 1) WD11 Empire used ￥3000 WB
11AF9 =Dual Pentode= (EIA/10L* - 10pin-decal) Eh/Ih=11V/0.45A Ehkmax=±200V Rg1max=1MΩ pentode 1 : Ppmax=5.1W Epmax=250V/550V(cutoff) Pc2max=2.5W Ec2max=250V/550V(cutoff) Ikmax=60mA op : Ep=170V Ec2=170V Ec1=-2.6V rp=32kΩ gm=22mS pentode 2 : Ppmax=1.5W Epmax=250V/550V(cutoff) Pc2max=0.5W Ec2max=250V/550V(cutoff) Ikmax=15mA op : Ep=150V Ec2=150V Ec1=-2.1V rp=160kΩ gm=8.5mS heater variant : 6AF9(6.3V/0.85A) 3) 11AF9 USA ￥800 NIB
11AR11 =Twin Pentode= (EIA/12DM - compactron) Eh/Ih=11.2V/0.45A heater variant : 6AR11(6.3V/0.8A) also see Twin sharp-cutoff Pentode : 6BN11 6BV11 6J11 8BN11 12BV11 0) 11AR11 RCA ￥800 NIB 1) 11AR11 GE ￥800 NIB
11BM8 =Trioe Pentode= (EIA/9EX - noval) Eh/Ih=10.7V/0.45A heater variants : 6BM8(6.3V/0.78A), 8B8(8V/0.6A), 16A8(16V/0.3A), PCL82(16V/0.3A), 32A8(32V/0.15A), 50BM8(50V/0.1A), UCL82(50V/0.1A) 3) 11BM8 Ray他 ￥800 NIB 1) 11BM8 Hitachi ￥800 NIB cellophane-sealed
11BQ11 =dissimilar double Pentode= (EIA/12DM - compactron) Eh/Ih=11.2V/0.45A see heater variant : 8BQ11(Eh/Ih=8.4V/0.6A) 0) 11BQ11 GE ￥- NIB 1) 11BQ11 GE ￥800 NIB 1) 11BQ11 Syl ￥800 NIB (xD) 1) 11BQ11 GE ￥500 used GE箱
11BT11 =Dissimilar-double Triode Pentode= (EIA/12GS - compactron) Eh/Ih=10.7V/0.6A pentode : Ppmax=3.5W Epmax=165V Pc2max=1.5W Ec2max=165V, rp=51kΩ, gm=19mS-typ triode 1 : Ppmax=1.5W Epmax=330V, rp=12.5kΩ, gm=5.5mS, μ=69-typ triode 2 : Ppmax=2W Epmax=330V, rp=7.6kΩ, gm=5.3mS, μ=40-typ 2) 11BT11 GE ￥800 NIB 1) 11BT11 Syl ￥800 NIB 1) 11BT11 Znth ￥800 NIB
11CF11 =Dissimilar-double Triode Pentode= (EIA/12HW - compactron) Eh/Ih=10.7V/0.6A pentode : Ppmax=5W Epmax=330V Pc2max=1W Ec2max=330V, rp=490kΩ, gm=21.2mS-typ triode 1 : Ppmax=2W Epmax=330V, rp=12.4kΩ, gm=5.5mS, μ=69-typ triode 2 : Ppmax=1.5W Epmax=330V, rp=9.2kΩ, gm=6.3mS, μ=40-typ 1) 11CF11 Lindal(GE-made) ￥800 NIB
11CH11 =Dissimilar-double Triode Pentode= (EIA/12GS - compactron) Eh/Ih=10.7V/0.6A pentode : Ppmax=6W Epmax=330V Pc2max=1W Ec2max=330V, rp=49kΩ, gm=20mS-typ triode 1 : Ppmax=2W Epmax=330V, rp=12.4kΩ, gm=5.5mS, μ=69-typ triode 2 : Ppmax=1.5W Epmax=330V, rp=7.6kΩ, gm=5.3mS, μ=59-typ 1) 11CH11 GE ￥800 NIB
11CY7 =Double Triode= (EIA/9LG - noval) Eh/Ih=11V/0.45A heater variant : 6CY7(6.3V/0.75A) 1) 11CY7 RCA ￥1000 NIB 1) 11CY7 USA ￥800 NIB
11FY7 =double Triode= (EIA/12EO - compactron) Eh/Ih=11V/0.6A heater variant : 6FY7(6.3V/1.05A) 1) 11FY7 Syl ￥800 NIB 1) 11FY7 Syl ￥800 NIB 0) 11FY7 USA ￥- NOS (sQ) 1) 11FY7 GE ￥800 NOS? Syl箱
11HM7 =High-gm sharp-cutoff Pentode= (EIA/9BF - noval) Eh/Ih=11V/0.3A(5.5V/0.6A-11sec) Ehkmax=±200V * Cg1p=0.15pF Cinput(g1 to h+k+g2+g3+IS)=14pF Coutput(p to h+k+g2+g3+IS)=5pF Ppmax=7W Epmax=330V Pc2max=1W(Ec2<165V) Ec2max=330V Rg1max=100kΩ(fixed)/250kΩ(self) op : Ep=200V Ec2=135V Rk=47Ω Ip=30mA Ic2=5.2mA rp=40kΩ gm=30mS same-base similar type : 12GN7(Eh/Ih=12.6V/0.3A or 6.3V/0.6A) 3) 11HM7 RCA ￥1000 NIB 3) 11HM7 USA ￥900 NIB
11JE8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=10.9V/0.45A heater variant : 6JE8(6.3V/0.78A) 1) 11JE8 RCA ￥900 NIB 1) 11JE8 Philco ￥600 NIB
11KV8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=10.9V/0.45A heater variant : 6KV8(6.3V/0.775A) 1) 11KV8 GE ￥600 NIB 2) 11KV8 Znth ￥600 NIB 1) 11KV8 Ray ￥600 NIB 2) 11KV8 USA ￥600 NIB 1) 11KV8 GE ￥400 used?
11LQ8 =Triode Pentode= (EIA/9DX - noval) Eh/Ih=10.9V/0.45A heater variant : 6LQ8(6.3V/0.775A) 7) 11LQ8 USA ￥600 NIB
11MS8 =Triode Pentode= (EIA/9LY - noval) Eh/Ih=11.6V/0.45A(11sec) Ehkmax=±200V triode : Ppmax=0.5W Epmax=250V Ikmax=15mA op : Ep=100V Ec=-0.85V Ip=5mA rp=11kΩ gm=5.5mS μ=60 pentode : Ppmax=6W Epmax=250V/2kVpeak Pc2max=1.5W Ec2max=200V Ikmax=70mA op : Ep=120V Ec2=110V Ec1=-10V Ip=50mA Ic2=3mA rp=13kΩ gm=8.5mS μg2g1=5.8 2) 11MS8 USA ￥600 NIB 1) 11MS8 Natsushita ￥500 NOS? Syl箱 1) 11MS8 Mitsubishi ￥600 NIB very-ragged box 2) 11MS8 USA ￥400 used
12, WD12/WD-12 =Triode= (EIA/ , straight T10 bulb) Epmax=135V Ef/If=1.1V/0.25A op : Ep=90V Ec=-4.5V Ip=2.5mA rp=15.5kΩ μ=6.6 gm=425μmho pins(note) : 1(F)-2(P)-3(G)-4(F) (#12 is the same as #11 except pin assignment, pins of #11 are 1(F)-2(P)-3(F)-4(G)) ０) WD12 AJAX ￥- NIB(ragged) 0) 12 RCA ￥- used StraightGlass
12A/112A =Detector Amp Triode= (EIA/4D - UX, ST14) Ef/If=5V/0.25A Epmax=180V op1(A1S) : Ep=135V Ec=-9V Ip=6.2mA rp=5.1kΩ gm=1.65mS μ=8.5 Zl=9kΩ Po=0.13W op1(A1S) : Ep=180V Ec=-13.5V Ip=7.7mA rp=4.7kΩ gm=1.80mS μ=8.5 Zl=10.65kΩ Po=0.285W note : 12A is never similar to #12 which is a battery radio small detector triode. (参考 : 12A/112AのEp-Ip特性) <三極管の A1S 動作比較> also see similar type : SK-180(自の魂:雄工社) 1) 112A-globe RCA ￥offer NIB sealed 1) 112A-globe RCA ￥offer NIB 0) 12A DeForest-Audion ￥6300 used gm=1520/1040min 0) CX-112-globe Cnghm ￥- 1350,1400/1040min 0) CX-112A-globe Cnghm ￥5900 1500/1040min 0) CX-112A-globe Cnghm ￥- used (sD) 1) UX-112A-globe RCA used ￥5900 gm=1490/1040min(539B) 76/42min(TV-7) 1:reserved) UX-112-globe RCA ￥5900 used 82/42min(TV-7) 0) UX-112A-globe RCA-Radiotron ￥- used 88/42min(TV-7) 0) UX-112A-globe RCA-Radiotron ￥- used 72/42min(TV-7) 0) UX-112-globe RCA ￥- used 1480/1040min 0) UX-112A-globe RCA used ￥- 1350/1040min 0) UX-112A-globe RCA used ￥4300 1220,1240/1040min(nD) 0) UX112A-globe RCA used ￥5900(T) 1) UX-112A-globe Radiotron used ￥5700 gm=1260/1040min(539B) 76/42min(TV-7) 1) 112A-globe Duovac used ￥5700 gm=1240/1040min(539B) 76/42min(TV-7) 0) 112A-globe RVC used ￥- 1520/1040min 0) 112A-globe Marathon used ￥- 1500/1040min 0) 112A-globe Wizard used?? ￥- LikeNew/VeryStrong(D) 0) 12A-globe Philco used ￥- 0) ER-112A-globe EvereadyRaytheon used ￥7900 4-pillar 1430/1040min 1:reserved) UX-112-globe RCA Radiotron used ￥2400 970/1040min 1) 12A-ST-4pillar Ray used ￥6900 77/42min(TV-7) 0) 12A-ST RCA NIB ￥4100 2) 12A-ST RCA-Cnghm-Radiotron used?LikeNew ￥4100 gm=1510,1540/1040min engraved WB 0) 12A-ST Syl NIB ￥- 1) 12A-ST Philco used ￥3100 engraved gm=1360/1040min 0) 112A-ST RCA-Cnghm used ￥- engraved gm=1530/1040min 1) 112A-ST RCA-Cnghm used ￥2900 engraved gm=1290/1040min 1) 112A-ST RCA-Cnghm used ￥3100 gm=1390/1040min(539B) 72/42min(TV-7) 3) UX-12A-ST Matsuda ￥2000 like-new WB 1) UX-12A-ST Matsuda ￥2000 like-new Don-boxed 1) UX-12A-ST Matsushita ￥1500 used 1) 12A-ST DON(Japan) ￥2000 LikeNew gm=2100/1075min, just-loose base, WB 1) UX-12A-ST Futaba(Japan) ￥2000 LikeNew WB 1) 12A-ST H.E.Radio(Japan) ￥2000 LikeNew WB
12A4 =med-mu Triode= (EIA/9AG - noval) Eh/Ih=6.3V/0.6A (12.6V/0.3A) Ehkmax=180V design-center ratings A1 amp : Ppmax=6.5W Epmax=450V Ecmax=-50V Ikmax=40mA Rgmax=1.2MΩ(fixed)/2.5MΩ(self) op : Ep=250V Ec=-9V Ip=21mA rp=2.6kΩ gm=7.8mS μ=20 vertical deflection amp : Ppmax=6.5W Epmax=450V/1000Vpulse Ecmax=-50V/-100V-peak Ikmax=30mA pins : 1(K)-2(G)-3(HCT)-4(H)-5(H)-6(NC)-7(G)-8(NC)-9(P) same-basing and lower-μ type : 12B4A(μ=6.5) different-basing electrically-similar type : 6S4/6S4A(μ=16.5) different-basing just higher-μ type : 7719(μ=25, for computer) different-basing upper-rating triodes : 6RA6(Ppmax=10W, μ=16), 6RA9(Ppmax=10W, μ=16.5) 0) 12A4 Hytron ￥1500 NIB 10) 12A4 CBS-Hytron ￥1500 NIB D/C=5417(1954) ClearGlass-type 13) 12A4 Westinghouse ￥1500 NIB w/sleeves
12A5 =Power Pentode= (EIA/7F - Ut, ST12) Eh/Ih=12.6V/0.3A(6.3V/0.6A) Ppmax=8.25W Epmax=180V Pc2max=2.5W Ec2max=180V Ep=180V Ec2=180V Ec1=-25V Ip=45/48mA Ic2=8/14mA rp=35kΩ gm=2.4mS Zl=3.3kΩ D=9% Po=3.4W 1) 12A5-4-pillar Ray ￥1500 used ST 65/45min
12A6 =Beam Power= (EIA/7AC - octal) Eh/Ih=12.6V/0.15A Ppmax=7.5W Epmax=250V Pc2max=1.5W Ec2max=250V op : Ep=250V Ec2=250V Ec1=-12.5V Ip=30/32mA Ic2=3.5/5.5mA rp=70kΩ gm=3mS Zl=7.5kΩ D=7% Po=3.4W (参考 : 三結時のEp-Ip特性(triode connection)) same basing similar types : 12L6GT(Ppmax=10W Epmax=200V), 12V6GT(Ppmax=12W), 12W6GT(Ppmax=10W) 2) JAN-CRC 12A6/VT-134 RCA ￥800 NIB MB 錆有 2) 12A6/VT-134 KEN-RAD ￥700 NOS 1) 12A6 RCA ￥800 NIB RB old 4) 12A6 RCA ￥800 NIB RB 1) 12A6 RCA ￥800 NIB 1) 12A6 Syl ￥600 NIB RB 1) 12A6 KenRad ￥600 NOS metal
12A7 =HalfwaveRectifier PowerPentode= (EIA/7K - Ut, ST-12) Eh/Ih=12.6V/0.3A diode : Eac-in-max=125Vrms Idcmax=30mA op(pentode) : Ep=135V Ec2=135V Ec1=-13.5V Ip=9mA Ic2=2.5mA rp=102kΩ gm=0.975mA Zl=13.5kΩ Po=0.55W 1) 12A7 WH ￥1400 NIB RaggedBox
12A8 =Pentagrid Converter= (EIA/8A - octal) Eh/Ih=12.6V/0.15A heater variant : 6A8 1) 12A8 Cnghm ￥1200 NIB RaggedBox
12AB5 =battery-direct BeamPower= (EIA/9EU - noval) Eh/Ih=12.6V(10V-15.9V)/0.2A Ehkmax=±90V Ppmax=12W Epmax=315V Pc2max=2W Ec2max=285V Rg1max=100kΩ(fixed)/500kΩ(self) op(A1S) : Ep=250V Ec2=250V Ec1=-12.5V Ip=45/47mA Ic2=4.5/7mA rp=50kΩ gm=4.1mS Zl=5kΩ D=8% Po=4.5W op(AB1pp) : Ep=250V Ec2=250V Ec1=-15V Ip=2x35/2x39.5mA Ic2=2x2.5/2x6.5mA Zlpp=10kΩ D=5% Po=10W (参考 : 12AB5の三結時のEp-Ip特性-triode connection) electrically similar to : 12V6/GT 6V6/G/GT also similar to noval(9pin-MT) types : 6BW6 6CM6 also similar to miniature(7pin-MT) types : 6AQ5 6005 also see same basing(9EU) noval power pentodes : 6GC5 6973 7061 1) 12AB5 RCA ￥1500 NIB 5) 12AB5 RCA ￥1500 NIB - mint 5) 12AB5 GE,Ray ￥1400 NIB (hxanv) 1) 12AB5 Tsol ￥1000 used? 1) 12AB5 USA ￥600 used
12AC6 =battery-direct remote cutoff RF Pentode= (EIA/7BK - miniature) Eh/Ih=12.6V/0.15A Epmax=30V Ec2max=30V Ikmax=20mA Rg1max=20MΩ op : Ep=12.6V Ec2=12.6V Ec1=- Rc1=2.2MΩ Ip=0.55mA Ic2=0.2mA rp=500kΩ gm=0.73mS 3) 12AC6 RCA ￥1500 NIB 1) 12AC6 GE ￥1200 NIB
12AD6 =battery-direct Pentagrid Converter= (EIA/7CH - miniature) Eh/Ih=12.6V/0.15A Epmax=30V Esmax=30V Ikmax=20mA Ehkmax=±30V 0) 12AD6 USA ￥- NIB(mD) 4) 12AD6 RCA ￥1200 NIB(mQ) 1) 12AD6 RCA ￥1200 NIB 1) 12AD6 WH ￥1200 NIB(mD) 4) 12AD6 Phlps ￥1200 NIB 1) 12AD6 USA ￥700 used 1) 12AD6 AWV-Radiotron ￥1200 NOS Miniwatt箱 1) 12AD6? Radiotron ￥700 used
12AD7 =low-hum low-microphonic TwinTriode= (EIA/9A - noval) Eh/Ih=12.6V/0.225A(6.3V/0.45A) Ehk=±200V(DCmax=+100V) Ppmax=1W Epmax=300V Ecmax=+0V/-50V op : Ep=250V Ec=-2V Ip=1.25mA rp=62.5kΩ gm=1.6mS μ=100 (参考 : Ep-Ip特性) similar to 12AX7/12AX7A/ECC83, 12BZ7, E283CC also see 6EU7, 12R-HH14 0) 12AD7 Syl ￥- NIB MB(D) 0) 12AD7 Syl ￥- NIB(D) 0) 12AD7 NEC ￥- NIB GrayPlates RaggedWB(nQn) 4) 12AD7 NEC ￥4300 NIB 2pcs:lot=31A/D-gtr, 2pcs:lot=38/ring-halo-gtr 1) 12AD7 NEC ￥3300 NOS WB 2) 12AD7 NEC ￥3000 LikeNew GrayPlates WB 1) 12AD7 NEC ￥3000 used 1500/1400/875min 1) 12AD7 NEC ￥2000 lightly-used WB 1) 12AD7 NEC ￥1800 used 1080/1160/875min print=100% 1) 12AD7 NEC ￥1200 used 900/980/875min print=100%
12AE6/A =battery-direct Duplex-Diode Triode= (EIA/7BT - miniature) Eh/Ih=12.6V/0.15A triode : Epmax=30V Ikmax=20mA Ehkmax=±30V op : Ep=12.6V Ec=0V Ip=1mA rp=13kΩ gm=1.3mS diode : Idc=1mAmax 1) 12AE6A RCA ￥1200 NIB 0) 12AE6/A USA ￥- NIB(sD) 1) 12AE6A Syl ￥1200 NIB 1) 12AE6A WH ￥1200 NIB 2) 12AE6/A USA ￥700 used
12AE7 =battery-direct Dissimilar Double Triode= (EIA/9A - noval) Eh/Ih=12.6V/0.45A for automotive amplifiers/radios, which can be operated in the Ep/Eh-range of "10.0V to 15.9V" (car battery range). Ppmax=1W Epmax="16V" Rgmax=1.5MΩ Typical data section 1 : Ep=12.6V Rg=1.5MΩ Ip=1.9mA gm=4.0mS μ=13 rp=3.25kΩ section 2 : Ep=12.6V Rg=1.0MΩ Ip=7.5mA gm=6.5mS μ=6.4 rp=0.985kΩ 1) 12AE7 RCA ￥1300 NIB 1) 12AE7 USA ￥1000 NIB
12AE10 =Dissimilar double Pentode= (EIA/12EZ - compactron) Eh/Ih=12.6V/0.45A Ehkmax=±200V beam power : Ppmax=6W Epmax=165V Pc2max=1.25W Ec2max=150V Ikmax=-mA op : Ep=145V Ec2=125V Ec1=-7 Ip=34mA Ic2=6.5mA rp=33kΩ gm=5.6mS Zl=2.5kΩ D=-% Po=1.45W pentode : Ppmax=1.7W Epmax=330V Pc2max=1.1W Ec2max=330V op : Ep=150V Ec2=100V Rk=560Ω Ip=1.3mA Ic2=2mA rp=150kΩ gm=1mS same baseing(12EZ) similar type : 13V10(Eh/Ih=13.2V/0.45A) 1) 12AE10 RCA ￥1000 NIB 1) 12AE10 GE ￥1000 NIB justRaggedBox
12AF3 =Half wave HV Rectifier= (EIA/9CB - noval-TopCathode) Eh/Ih=12.6V/0.6A PIV=4500V Idc=185mA 2) 12AF3 USA ￥600 NIB 1) 12AF3 Syl ￥600 NOS? 1) 12AF3 GE ￥400 used? ITT箱
12AF6 =battery-direct RF Pentode= (EIA/7BK - miniature) Eh/Ih=12.6V/0.15A Epmax=16V Ec2max=16V Ec1max=+0V Rg1max=2.2MΩ Ehkmax=±16V op : Ep=12.6V Ec2=12.6V Ec1=0V Ip=0.75mA Ic2=0.35mA rp=300kΩ gm=1.15mS 1) 12AF6 GE ￥800 NIB(sD) 2) 12AF6 WH ￥800 NIB 2) 12AF6 USA ￥500 used?
12AH7 =Med-mu Twin Triode= (EIA/8BE - octal) Eh/Ih=12.6V/0.15A Ppmax=1.5W Epmax=180V/300V(cutoff) Ehkmax=±200V op : Ep=180V Ec=-6.5V Ip=7.6mA rp=8.4k gm=1.9mS μ=16 参考 : Ep-Ip特性 heater variant : 6AH7/GT(6.3V/0.3A) 2) 12AH7GT WH ￥2200 NIB old 1) JAN-CKR 12AH7GT/VT-207 Krad ￥2200 NIB MB-WB 2) JAN-CKR 12AH7GT/VT-207 Krad ￥2200 NIB MB date=1943 1) 12AH7GT Hytron ￥2000 NIB veryRaggedBox
12AJ6 =battery-direct Duplex-Diode Triode= (EIA/7BT - miniature) Eh/Ih=12.6V/0.15A Ehkmax=±30V Epmax=30V Ikmax=20mA Rgmax=10MΩ Idiode-max=1mA op : Ep=12V Ec=0V Ip=0.75mA rp=45kΩ gm=1.2mS μ=55 1) 12AJ6 GE ￥1500 NIB(zD)
12AL5/HAA91 =Twin Diode= (EIA/6BT - miniature) Eh/Ih=12.6V/0.15A heater variants : 3AL5(3.15V/0.6A) 6AL5(6.3V/0.3A) 63) 12AL5 USA ￥500 NIB
12AL8 =Triode space-charge-grid Tetrode= (EIA/9GS - noval) Eh/Ih=12.6V/0.55A 0) 12AL8 RCA ￥- NIB 1) 12AL8 RCA ￥1200 NIB BlkPlates
12AL11 =DissimilarDoublePentode= (EIA/12BU - compactron) Eh/Ih=12.6V/0.45A see heater variants : 6AL11(6.3V/0.9A), 10AL11(9.8V/0.6A) 1) 12AL11 GE ￥1200 NIB 1) 12AL11 GE ￥1200 NIB
12AN7 =common-cathode Triode Hexode= (EIA/9Q - noval) Eh/Ih=12.6V/0.12A heater variant : 6AN7/ECH80 electrically similar to 12K8(octal, 12.6V/0.15A), 6K8(octal, 6.3V/0.3A) 1) 12AN7 Philips ￥2900 NIB 長箱
12AQ5 =Beam Power= (EIA/7BZ - miniature) Eh/Ih=12.6V/0.225A Tbulb=250℃max Po=4.5W Ppmax=12W Epmax=275V Pc2max=2W Ec2max=275V Rg1max=100kΩ(fixed)/500kΩ(auto) op(triode connection) : Ep=250V Ec=-12.5V Ip=49.5mA rp=1.97kΩ gm=4.8mS μ=9.5 see heater variants : 6AQ5 / EL90(6.3V/0.45A), 5AQ5(4.7V/0.6A) also see high-rel. variants 6005, 6669, 6095 10) 12AQ5 USA ￥800 NOS/NIB 1) 12AQ5 Syl ￥800 NIB 1) 12AQ5 Philips ￥1200 NIB 長箱 1) 12AQ5 USA ￥400 used
12AT6/HBC90 =Duplex-Diode high-mu-Triode= (EIA/7BT - miniature) mu=70 Eh/Ih=12.6V/0.15A see heater variant : 6AT6(6.3V/0.3A) also see higher mu w/ same basing : 12AV6(μ=100) 7) 12AT6 RCA ￥1000 NIB 1) 12AT6 RCA ￥800 NOS? 1) 12AT6 Tsol ￥1000 NIB 9) 12AT6 USA ￥700 NIB/NOS (hx1v1gt) 3) 12AT6 USA ￥400 used
12AT7/ECC81/E81CC/ECC801S
12AU5 1) 12AU5GA GE ￥800 NIB 2) 12AU5GA Syl ￥800 NIB
12AU6(=HF94) =Pentode= (EIA/7BK - miniature) Eh/Ih=12.6V/0.15A see high-rel.version : 8426 heater variants : 3AU6(3.15V/0.6A) 4AU6(4.2V/0.45A) 6AU6(6.3V/0.3A) 8-MatchedPairs) 12AU6A/8426A Tektronix(GE-made) ￥5100 NIB #157-0078-00, D/C=69-12 0-MatchedPairs) 12AU6 Tektronix ￥- NIB PartsNo=157-0038-00 etc (ddahtvx) 1-MatchedPair) 12AU6 Tektronix ￥4900 NIB PartsNo=157-0038-00 #157003800-132830/#157003800-132830 GE-8426A/12AU6 1-MatchedPair) 12AU6 Tektronix ￥4900 NIB PartsNo=157-0038-00 #157003800-213743/#157003800-213743 GE-8426A/12AU6 1-MatchedPair) 12AU6 Tektronix ￥4900 NIB PartsNo=157-0038-00 #157038-320/#157038-320 GE-8426A/12AU6 1-pair) 12AU6 Tektronix ￥3000 NIB PartsNo=157-0038-00 #157003800-132843/#157003800-42307 GE-8426A/12AU6 1-pair) 12AU6 Tektronix ￥3000 NIB PartsNo=157-0038-00 #157038-530/#157050-91 GE-8426A/12AU6, RCA-12AU6 9) 12AU6 RCA ￥900 NIB *(hxf) 3) 12AU6 RCA ￥900 NIB 2) 12AU6 RCA ￥900 NIB BlkPlate 1) 12AU6 RCA ￥900 NIB BlkPlate 1) 12AU6 RCA ￥900 NOS Teonex箱 3) 12AU6 GE ￥800 NIB(sQ) 0) 12AU6 Gammatron ￥- NIB MB 2) 12AU6 Syl ￥800 NIB 13) 12AU6 Syl ￥800 NIB 1) 12AU6 WH ￥800 NIB MB 1) 12AU6 Ray ￥800 NIB 1) 12AU6 Philco ￥800 NIB 1) 12AU6 WH,GE,CBS,Tektronix etc ￥800 NOS (hyye) 4) 12AU6 Teonex ￥800 NIB 3) 12AU6 NEC ￥800 NIB 0) 12AU6 GE/Tektronics ￥400 used (Qn) 3) 12AU6/A USA used ￥400 1) 12AU6/A Japan used ￥400
12AU7/12AU7A/ECC82/E82CC/66802750/2980,2780/2870/1950min(xT) 1) 12AU7 RCA ￥1600 used BlkPlates D-Gtr 2600/2860/1950min 1) 12AU7 RCA ￥1600 used BlkPlates D-Gtr 2480/2780/1950min 0) 12AU7 RCA ￥- used BlkPlates D-Gtr(mD) 3) 12AU7 RCA ￥1000 used BlkPlates D-Gtr 2080/2500,2130/2180,2390/2600/1950min 1) JAN-JRC 12AU7 RCA ￥1600 used BlkPlates D-Gtr 2630/2530/1950min 1) 12AU7 RCA ￥1600 used BlkPlates D-Gtr 1) 12AU7 RCA ￥1600 used BlkPlates 90/94/56min(TV-7) D-Gtr 1) 12AU7 RCA ￥1000 used RCA箱 BlkPlates D-Gtr 1710/1490/1400min(TV-10) 1) 12AU7 RCA ￥1600 used lightly BlkPlates D-Gtr WB 1) 12AU7 RCA ￥1200 used GrayPlates 2400/2700/1950min 1) 12AU7 RCA ￥1200 used BlkPlates D-Gtr 2160/2390 1) 12AU7 RCA ￥1200 used GrayPlates 2530/2430/1950min 1) 12AU7 RCA ￥1400 used GrayPlates 2680/2780/1950min print=0% 1) 12AU7A Conrac(RCA-made) ￥1500 used? ClearTop 0) 12AU7A Conn(RCA-made) ￥1200 used lightly, gray plate, clear-top 0) 12AU7A RCA ￥1200 used ClearTop 1) 12AU7A RCA ￥900 used ClearTop 1) 12AU7A RCA ￥1400 used ClearTop D-Gtr 1) 12AU7A RCA ￥1900 used ClearTop 3240/3390 2) 12AU7A RCA ￥1600 used ClearTop 2720/2890,2550/2530 1) 12AU7A Setchell(RCA-made) ￥1200 used ClearTop 2310/2270/1950min 1) 12AU7A/ECC82 RCA ￥1700 used ClearTop 2850/2890 1) 12AU7A/ECC82 RCA ￥1000 used ClearTop 2100/2550 1) 12AU7A - RCA-made ￥1200 used Like New gm=4130/4130/2200min(Hickok-800) 1) 12AU7A RCA ￥700 used TungSol箱 1) 12AU7A RCA ￥1400 used GrayPlates 2850/3170 1) 12AU7A RCA ￥900 used GrayPlates 1) 12AU7 Cnghm ￥1800 used BlkPlates date=039 RCA箱 1) 12AU7 RCA ￥1000 used BlkPlates Tung-Sol箱 1) 12AU7 RCA? ￥1200 used GrayPlates D-gtr 2420/2600/1950min 0) 12AU7 GE ￥3000 NIB MetallicGrayPlates date=1-13 青箱 1) 12AU7 Bendix(GE-made) ￥3000 NIB *$** 0) 12AU7A/ECC82 GE(Mullard-made) ￥- NIB gray plate made in GtBritain(D) 0) 12AU7A GE ￥- NIB GrayPlate 1956 (ghxf) 4) 12AU7A GE ￥2700 NIB date=5726,5830,5830,5830(Qn) 0) 12AU7A GE ￥- NIB(Qn) 1) 12AU7A GE ￥1500 NOS RCA箱 0) 12AU7A/ECC82 GE ￥- NIB 4) 12AU7A GE(France) ￥2000 NIB GrayBoxSlitPlates TopGtr 25) 12AU7A/ECC82 GE ￥2000 NIB gray-plates, made in USA, sealed, w/sleeves 14) 12AU7A/ECC82 GE ￥2000 NIB gray-plates, made in USA, RaggedBoxes w/sleeves 1) 12AU7A/ECC82 GE ￥1700 NIB 1) 12AU7A/ECC82 GE ￥1700 NIB 0) 12AU7A GE ￥- NOS GrayPlates (2) 1) 12AU7A PackardBell(GE-made) ￥1500 NOS? GrayPlates date=59-48 2) 12AU7A CGE ￥1400 NIB made in Japan 1) 6680 GE ￥2300 NIB GE-Communication-Service-Parts 3140/3100/1950min 1) 6680 GE ￥2200 NIB RaggedBox 3) 12AU7A GE ￥900 used VeryStrong 94/.95,93/91,104/98/56min 1) 12AU7 GE ￥1600 used date=4-52 2400/2860/1950min 2) 12AU7 GE ￥1600 used date=56-22 2620/2420,2530/2460/1950min 1) 12AU7 GE ￥700 used RCA箱 1) 12AU7 GE ￥1700 used? silvery-plates 1) 12AU7 Fisher(GE-made) ￥600 used 1) 12AU7 GE ￥700 used gray-plates WB 1) 12AU7A GE ￥700 used 4) 12AU7A GE ￥700 used(Sx) 1) 12AU7A/ECC82 GE ￥700 used 1) 12AU7A/ECC82 RCA(GE-made) ￥800 used 2400/2300 1) 12AU7A GE 1000 used GrayPlates 2780/2670/1950min 1) 12AU7A GE 1200 used GrayPlates GrayBoxPlates Dgtr Amprx箱 1) 12AU7A GE 1200 used GrayPlates date=60-22 Syl箱 1) 6680/12AU7A GE-communication ￥1800 Lightly-used D/C=58-35 0) 12AU7 Syl ￥- NIB BlkPlates(D) 0) 12AU7 Syl ￥- used BlkPlates 1) 12AU7 Syl ￥1700 NIB MB 1) 12AU7 Syl ￥1500 NIB WB-OB 0) 12AU7 Syl ￥- NOS ElMenco箱 BlkPlates D-gtr 1) 12AU7WA/6189 Syl ￥2000 NIB MB date=2-66 1) 12AU7A/ECC82 Syl ￥1600 NIB MB/WB 7) 12AU7A Syl ￥2000 NIB D/C=008(1960) GrayPlates 2) 12AU7A Syl ￥1500 NIB D/C=6612, 6637 GrayPlates 3) 12AU7A Syl ￥1500 NIB GrayPlates(Q) 1) 12AU7A Syl ￥1500 NIB 5) 12AU7A Syl ￥1500 NIB W.Germany 9) 12AU7A Syl ￥1500 NIB Japan (shxa) 2) 12AU7A/ECC82 Syl ￥1500 NIB GrayPlates(xT) 2) 12AU7A Syl ￥1500 NIB USA 1) 12AU7A Syl ￥1500 NIB Canada(xT) 1) 12AU7A Syl ￥1300 NOS WARDS箱 13) 12AU7A/ECC82 SylECG ￥1300 NIB 2) 12AU7A/ECC82 SylECG ￥1300 NIB 1) 12AU7A Syl ￥1300 NOS RCA箱 1) 12AU7A Syl ￥1300 NOS RCA箱 1) 12AU7A Syl ￥1300 NOS GrayPlates RCA-RaggedBox 1) 12AU7A ?(Syl-made) ￥700 used GE青箱 0) 12AU7 Syl-made ￥- used BlkPlates 1) 12AU7 Syl ￥2000 used BlkPlates 2810/2870 1) 12AU7 Syl ￥2000 used BlkPlates 2700/2750 0) 12AU7 Syl ￥- used GrayPlates 2700/2900/1950min D-Gtr 2) 12AU7 Syl ￥600 used GrayPlates 1) 12AU7A/ECC82 Syl ￥1000 UsedLightly GrayPlates GE箱 1) 12AU7A Syl ￥800 used RCA箱 GrayPlates 1950/2050/1400min(TV-10) 1) 12AU7A Syl ￥800 used LongGrayPlates 1) 12AU7A Syl ￥700 used Mullard箱 1) JAN-CHS 12AU7A Syl ￥1000 used 2760/2500/1950min 1) 12AU7A Philco(Syl-made) ￥1000 used 2760/2880/1950min 1) 12AU7A Setchell(Syl-made) ￥1200 used 3200/3100/1950min 1) 12AU7A Syl ￥1000 used GrayBoxPlates D-Gtr GE箱 2:reserved) JAN CTL 12AU7 Tsol ￥offer NIB BlkPlatesdate='51 3000/3000,2860/2960/1950min MB VeryRaggedBox 1) 12AU7 Tsol ￥1900 NIB MB 1) 12AU7A Tsol ￥1900 NIB 6) 12AU7A Tsol ￥1900 NIB GrayPlate(Aht) 1) 12AU7A Tsol ￥2400 NIB BlkPlates 2) 12AU7A Tsol ￥1200 used 2660/2700,2770/2620/1950min 1) 3223/5746 Tsol ￥1200 used 2500/2600/1950min 9) 12AU7 Philco ￥1600 NOS JAN OB GrayPlates 1956 12) 12AU7 Philco ￥2400 NIB BlkPlate 1) 12AU7A Philco ￥2400 NIB BlkPlate 2) 12AU7A Philco ￥1700 used BlkPlate 2800/2700, 2970/2890/1950min 1) 12AU7A Philco ￥1700 NOS? BlkPlate 2620/2820/1950min WB 1) 12AU7 Ray ￥2400 NIB WB BlkPlate ragged-box 1) 12AU7A/ECC82 Ray ￥2400 NIB BlkRibbedFlatPlates Dgtr ragged-box 1) 12AU7A Ray ￥2200 NOS BlkPlate ragged-box 1) 12AU7A Ray ￥2100 used BlkPlate 2840/2790/1950min 1) 12AU7 Ray ￥1300 used BlkPlates 13) 12AU7 Baldwin(Raytheon-made) ￥１８００ used BlkPlates date=59-49C STRONG print=80%(hxfnz) 1) 12AU7A/ECC82 Ray ￥2000 NIB GrayLongRibbedFlatPlates Dgtr ragged-box 1) 12AU7A/ECC82 Ray ￥1700 NIB GrayRibbedFlatPlates USA 1) 12AU7A Ray ￥1500 NIB GrayPlates 1) 12AU7A Ray(Japan) ￥1500 NIB 3) 12AU7A/ECC82 Ray ￥1500 NIB GrayRibbedFlatPlates Japan 1) 12AU7A/ECC82 Ray(Syl-made) ￥1500 NIB GrayRibbedBoxPlates CopperGridPost 2) 12AU7A/ECC82 Ray ￥1300 NIB GraySmallPlates ragged-box 1) 12AU7A Ray ￥1000 used GrayPlates 2480/2410/1950min 0) 12AU7 CBS-Hytron ￥- NIB BlkPlates 1) 12AU7 ConcertMaster ￥2400 NIB BlkPlates 2) 12AU7 Triad ￥1200 NIB GrayPlates 1) 12AU7 United-National ￥1200 NIB made in W. Germany 4) 12AU7 Honeywell ￥1700 NIB #30353308-501 補修パーツ 3)Holland, 1) Germany 1) 12AU7 United ￥1000 used GrayPlates 2) 12AU7A United ￥1000 used GrayPlates 1) 12AU7 United ￥1200 used BlkPlates 1) 12AU7A WH ￥2400 NIB D/C=6348 LongBlackRibbedPlates 1) 12AU7 WH ￥2400 NIB BlkPlates RaggedBox +++ 1) 12AU7A WH ￥1700 NOS Tsol箱 1) 12AU7A WH ￥1300 used MB BlkPlates 1) 12AU7A Rogers ￥2200 NIB Holland date=45-62 1) 12AU7A National ￥1200 NIB GrayPlate 2) 12AU7 Sheldon ￥2400 NIB GrayPlates Dgtr 1) 12AU7 Sheldon ￥2400 NIB BlkPlates Dgtr 2) 12AU7A SuperRadiotron ￥1300 NIB 1) 12AU7A Eico ￥1700 NOS 1) 12AU7 Krad ￥1300 used/LikeNew GrayPlates 98/106/56min 1) 12AU7 Emerson ￥1100 used BlkPlates 2) 12AU7A NEC ￥2700 NIB long GrayPlates 1) 12AU7 NEC ￥2200 NOS 通信用 long GrayPlates, very-ragged OriginalBox 1) 12AU7 NEC ￥1700 lightly-used red-silk, long lusty GrayPlates, D-gtr, WB 3) 12AU7 NEC ￥2200 used? 2820/2830,2780/2840,2730/2710/1950min LongGrayPlates print=80% 通信用 2) 12AU7 NEC ￥2000 used 2620/2730,2740/2770/1950min LongGrayPlates print=80% 通信用 2) 12AU7 NEC ￥1700 lightly-used 通信用 long GrayPlates, D-gtr, DC=1957-9 1959-7 WB 3) 12AU7 NEC ￥1700 lightly-used CBC long GrayPlates, D-gtr, silver-silk WB 2) 12AU7 NEC ￥1700 lightly-used long GrayPlates, D-gtr, silver-silk WB 6) 12AU7 NEC ￥1700 lightly-used 通測用 long GrayPlates, 〇-gtr, yellow-silk WB 2) 12AT7 NEC ￥1700 lightly-used SilverSilk long-GrayPlates 3) 12AU7-HiS 通測用 Toshiba/東芝 ￥2700 NIB GrayPlates 1) 12AU7 Matsuda(Toshiba) ￥2200 NOS long GrayPlates, WB 2) 12AU7 Toshiba ￥2200 like-new 通測用 NHK, lot=2F03, 3J02 long GrayPlates, WB 1) 12AU7 東芝 ￥1000 used 2450/2300/1950min GrayPlates 1) 12AU7 Matsuda ￥1000 used long GrayPlates, Toshiba-boxed 6) 12AU7 Matsuda ￥1200 lightly-used long GrayPlates, D-gtr WB 3) 12AU7 Matsuda/Toshiba ￥1200 lightly-used long GrayPlates, D-gtr WB 1) 12AU7 Toshiba ￥1200 lightly-used long GrayPlates, D-gtr WB 2) 12AU7 Toshiba ￥1200 lightly-used 通信用 long GrayPlates, 〇-gtr, light-brown silk, WB 2) 12AU7 Toshiba ￥1200 lightly-used long GrayPlates, O-gtr, light-brown silk, WB 1) 12AU7 Toshiba ￥1200 lightly-used 通測用 short GrayPlates, 〇-gtr, light-brown silk, WB 1) 12AU7 Toshiba ￥1200 used long GrayPlates, 2800/2950/1950min (photo=right) 1) 12AU7 Toshiba ￥1200 lightly-used short GrayPlates WB 1) 12AU7 Toshiba ￥1200 lightly-used short GrayPlates WB 1) 12AU7A Toshiba ￥1200 used short GrayPlates, gm=2540/2410/1950min (photo=left) 2) 12AU7A Toshiba ￥1200 used-lightly short GrayPlates 2) 12AU7 Matsushita ￥2500 NIB 通測用-TBS short GrayPlates 1) 12AU7 Matsushita ￥1200 used long GrayPlates, VV用 WB 1) 12AU7/ECC82 Matsushita ￥1200 used-lightly short GrayPlates 2) 12AU7 Matsushita ￥1200 lightly-used short GrayPlates, 〇-gtr, lot=9F,1H WB 1) 12AU7 Matsushita ￥1200 lightly-used 工業用 lot=4k short GrayPlates WB 1) 12AU7 Matsushita ￥500 used short GrayPlates 1) 12AU7 Hitachi ￥1200 lightly-used WB 1) 12AU7 Hitachi ￥1200 used 通信用 short GrayPlates, D-gtr WB 3) 12AU7 Hitachi ￥1200 used short GrayPlates WB 2) 12AU7 Hitachi ￥1200 used-lightly CBC long GrayPlates, D-gtr, DC=1960-10, WB 2) 12AU7 TEN ￥1200 used 通信用 long luster GrayPlates, D-gtr, lot=FB3,FB3 WB 1) 12AU7 TEN ￥1700 lightly-used long BlackPlates, D-gtr WB 1) 12AU7 TEN ￥1800 like-new long GrayPlates WB 4) 12AU7 TEN ￥1700 lightly-used 通信用 long GrayPlates, D^gtr, lot=IF2, DC1959-12 WB 1) 12AU7 TEN ￥1200 used long GrayPlates, D-gtr, lot=IB4, 1959-6 WB 2) 12AU7 TEN ￥1700 lightly-used 測定器用 long GrayPlates, D-gtr, lot=IH2, 1959-9 WB 1) 12AU7 TEN ￥1200 used long luster GrayPlates, D-gtr, lot=EL-4MX WB 1) 12AU7 Tungsram ￥700 used 2490/2480 1) CV491/12AU7/ECC82 Zaerix ￥1200 used 2650/2760,2600/2500 made in U.K. 1) ECC82 Ei ￥1200 lightly-used nickel-plates, made in Yugoslavia, WB 5) 12AU7 USA ￥700 used 4) 12AU7 USA ￥1100 used BlkPlates(Aht) 5) 12AU7A USA ￥700 used 1) 12AU7 - ￥700 used gm=3150/3000/1950min 1) 12AU7 - ￥600 used gm=2390/2600 1) ECC82 - ￥600 used gm=2730/2500 1) 12AU7 - ￥700 used BlkSprayShielded 1) E82CC GoldenDragon ￥2000 NIB? Gpin
12AV5/GA =Beam Power= 12.6V/0.6A see heater variant : 6AV5(6.3V/1.2A), 17AV5(16.8V/0.45A), 25AV5(25V/0.3A) 2) 12AV5GA RCA ￥700 NOS? 3) 12AV5GA GE ￥700 NIB 4) 12AV5GA Syl ￥700 NIB 1) 12AV5GA Tsol ￥700 NIB 1) 12AV5GA Tsol ￥600 used gm=6900/3500min
12AV6/HBC91 =duplex-Diode high-mu-Triode= (EIA/7BT - miniature) Eh/Ih=12.6V/0.15A Ppmax=0.5W Epmax=300V Egmax=0V Ehk=90V Idiode-max=1mA/each op(T) : Ep=250V Ec=-2V Ip=1.2mA gm=1.6mS rp=62.5kΩ μ=100 see heater variants : 3AV6(3.15V/0.6A), 6AV6(6.3V/0.3A) also see lower mu w/ same basing : 12AT6(μ=70) 3) 12AV6/HBC91 Mullard ￥1100 NIB 11) 12AV6 RCA ￥700 NIB 1) 12AV6 RCA ￥700 NIB 18) 12AV6 GE ￥600 NIB(hyy1s4gg) 1) 12AV6 GE ￥600 NIB - mint 3) 12AV6 CGE ￥600 NIB 1) 12AV6 Syl ￥600 NOS RCA箱 1) 12AV6 日立 ￥600 NIB 2) 12AV6 Airline ￥600 NIB 1) 12AV6 Shield ￥600 NOS 0) 12AV6 AWV-Radiotron ￥600 NIB 0) 12AV6 Miniwatt ￥600 NOS AWV箱 0) 12AV6 USA ￥600 NIB(D) 5) 12AV6 USA ￥400 used 1) 12AV6 Matsushita ￥500 used? 1) 12AV6 Matsushita ￥400 NIB
12AV7 =Medium-Mu TwinTriode= (EIA/9A - noval) Eh/Ih=6.3V/0.45A(12.6V/0.225A) Ppmax=2.7W Epmax=300V Ehkmax=±90V op : Ep=150V Rk=56Ω Ip=18mA rp=4.8kΩ gm=8.5mS μ=41 (参考 : 12AV7のEp-Ip特性) similar to 5965, 6829, 7062, E180CC 2) 12AV7 RCA ￥1400 NIB BlkPlates 1) 12AV7 RCA ￥1400 NIB BlkPlates 2) 12AV7 RCA ￥1300 NIB ++(Q) 22) 12AV7 RCA ￥1400 NIB BlkPlates 11) 12AV7 GE ￥1100 NIB (hxxbnz) 1) 12AV7 GE ￥1100 NIB 2) 12AV7 CGE ￥1100 NIB 23) 12AV7 Syl ￥1500 NIB old '50s 1) 12AV7 Syl ￥1300 NIB 8) 12AV7 Syl ￥1200 NIB MB (8)date=6-64 (5)12-64 22) 12AV7 Syl ￥1100 NIB MB (5)date=6-68 (17)date=7-72,8-73,2-74,10-75 1) 12AV7 Syl ￥1100 NIB 1) 12AV7 Syl ￥1000 NOS? RCA-boxed 1) 12AV7 Tsol ￥1100 NIB 1) 12AV7 Tsol ￥1100 NIB ragged-box 7) 12AV7 Ray ￥1100 NIB 2) 12AV7 Syl,WH ￥1100 NIB 1) 12AV7 ADCo ￥1300 NOS BlkPlates 1) 12AV7? Syl ￥500 used BlkPlates 1) 12AV7 USA ￥500 used 1) 12AV7? USA ￥500 used BlkPlates
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
12AW6 =sharp-cutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=12.6V/0.15A Ppmax=2W Epmax=300V Pc2max=0.5W Ec2max=150V/300V(cutoff) Ehkmax=±90V op : Ep=250V Ec2=150V Rk=200Ω Ip=7mA Ic2=2mA rp=800kΩ gm=5mS 2) 12AW6 RCA ￥700 NIB 5) 12AW6(Q)GE (1)Syl ￥600 NIB 5) 12AW6 IEC-Mullard ￥600 NIB made in Japan
12AX3 =Half wave Rectifier= (EIA/9HP - NOVAR) Eh/Ih=12.6V/0.6A heater variants : 6AX3(6.3V/1.2A), 17AX3(16.8V/0.45A) <ダンパ用-高圧半波整流管の比較> 9) 12AX3 (1)RCA (2)GE (2)WH(Q)Syl ￥700 NIB
12AX4 =Half wave HV Rectifier= (EIA/4CG - octal) 12.6V/0.6A <ダンパ用-高圧半波整流管の比較> PIV4400/Idc125mA see heater variant : 6AX4(6.3V/1.2A), 17AX4(16.8V/0.45A), 25AX4(25V/0.3A) 5) 12AX4GTA RCA ￥700 NIB 23) 12AX4GTB GE ￥600 NIB 1) 12AX4GTB GE ￥600 NIB 2) 12AX4GTA(1)CBS (1)Tsol ￥600 NIB 5) 12AX4GTB RCA ￥700 NIB 1) 12AX4GTB GE ￥700 NIB 1) 12AX4GT Syl ￥700 NIB 1) 12AX4GTB Syl ￥700 NIB 2) 12AX4GTB (1)Syl (1)Dmnt(*sw) ￥600 NIB 1) 12AX4GTB WH ￥700 NIB 1) 12AX4GTA Tsol ￥700 NIB 1) 12AX4GT CBS-Hytron ￥700 NIB 1) 12AX4GTA GE ￥400 used EM=82/54min 1) 12AX4GTA WH ￥400 used EM=87/54min 1) 12AX4GTA Silvertone(GEmade) ￥400 used EM=80/54min 1) 12AX4GTA Hitachi ￥400 used w/original-box
12AX7/ECC83/6681/7025Eh/Ih=6.3V/0.3A(12.6V/0.15A) Ppmax=1.2W Epmax=330V Ehkmax=±200V op : Ep=250V Ec=-2V Ip=1.2mA rp=62.5kΩ gm=1.6mS μ=100 (参考 : Ep-Ip特性) European high-rel. and/or military version : E83CC ECC803S M8137/CV4004 see 6AX7, 12AD7(12.6V/0.225A or 6.3V/0.45A), 12BZ7(6.3V/0.6A or 12.6V/0.3A) different basing : 6EU7(6.3V/0.3A) different heater & basing types : 20EZ7(20V/0.1A), 7058(13.5V/0.155A) different basing European SQ types: E283CC(6.3V/0.33A), ECC808(6.3V/0.34A) just smaller μ: 5751(μ=70, 6.3V/0.35A or 12.6V/0.175A) also see an NEC-made similar special type : 12R-HH14(μ=70, Eh/Ih=6.3V/0.36A or 12.6V/0.18A) octal type: 2C52(12.6V/0.3A) 0) ECC83 Fisher/Telefunken-made ￥- NOS? Smooth Plates <> 0) 12AX7 TFK-made ￥- NOS? GEMB Smooth Plates <> 0) ECC83 Fisher/Telefunken-made ￥- used Smooth Plates <>(D) 0) 12AX7 TFK-made ￥- used Ribbed Plates Diamond<> 0) ECC83/12AX7 TFK ￥- used smooth-plates <>(Sn) 0) ECC83/12AX7 TFK ￥- NOS ribbed-plates <>(D) 0) ECC83 TFK ￥6700 NOS? SmoothPlates 1510/1530,1520/1460/875min<> WB(D) 0) ECC83 Dynaco(TFK-made) ￥6700 NOS? SmoothPlates <> RCA箱 0) ECC83 TFK ￥- used SmoothPlates <> 49/47,48/48,44/44/32min(TV-7B/U)print=80-90%(T) 0) ECC83 TFK ￥5600 usedLikeNew SmoothPlates <> 1220/1320/875min(539B) print=80% 0) ECC83 TFK ￥5600 usedLikeNew SmoothPlates <> 1300/1400/875min(539B) print=30% 0) ECC83 TFK ￥5600 used RibbedPlates <> 1220/1310/875min(539B) print=40% 0) ECC83 TheFisher(TFK-made) ￥5300 used SmoothPlates <> 1500/1220,1200/1220/875min(539B) print=90% 0) ECC83 TFK ￥4200 used RibbedPlates <> 1100/1350/875min(539B) print=65% 0) ECC83 TFK ￥3900 used SmoothPlates <> 1320/1040/875min(539B) print=30% 0) ECC83 TFK ￥3900 used SmoothPlates <> 1290/1020/875min(539B) print=100% 0) ECC83 TFK ￥3700 used SmoothPlates <> 1130/950/875min(539B) print=90% 0) ECC83 TFK ￥3700 used SmoothPlates <> 960/1000/875min(539B) print=90% 0) ECC83 TFK ￥3100 used SmoothPlates <> 900/1200/875min(539B) print=80% 0) ECC83 Mullard-10M ￥- NOS? 0) 12AX7A/ECC83 IEC/Mullard ￥- NOS 1:reserved) 12AX7 Mullard ￥- NOS brown-box (NTB) 0) 12AX7A Mullard ￥- NOS 0) 12AX7A/ECC83 Tsol(Mullard-made) ￥- NIB(D) 0) ECC83/12AX7 Mullard ￥- used 0) ECC83/12AX7 Heath-kit/Mullard-made ￥- used?/NOS?(D) 0) ECC83/12AX7 Heath-kit/Mullard-made ￥- LightlyUsedLikeNew VeryStrong print=80%(D) 0) ECC83/12AX7 Mullard-made ￥- used? 0) 12AX7/ECC83 GE(Mullard-made) ￥- NIB(D) 2) ECC83/12AX7 DayStromGE(Mullard-made) ￥4100 LightlyUsed 980/1030,1010/1060 print=95% 1) 12AX7 GE(Mullard-made) ￥3500 used RibbedGreyPlates B-coded gm=49/46/32min(TV-7B/U) *** 1) 12AX7 GE(Mullard-made) ￥3500 used RibbedGreyPlates B-coded gm=48/55/32min(TV-7B/U) *** 0) 7025 Mullard ￥- used 0) 7025 Webcore(Mullard-made) ￥- NOS WB gm=1700/1790/875min Lot=Ib3-B5I1 0) 6681 GE(Mullard-made) ￥- NIB B-coded GrayPlates GtBritain 0) ECC83 Siemens ￥- NIB(Aht) 1) ECC83 Siemens ￥2000 NIB? Gpin 0) ECC803S Siemens ￥- LightlyUsed WB(D) 0) E83CC Siemens ￥- NIB(Aht) 0) CV492(E83CC/7025/12AX7WA) Siemens ￥- NIB LongSmoothPlates(hyyanx) 0) ECC83 Valvo ￥- NIB(Sn) 0) ECC83 Valvo ￥- used WB(D) 1) ECC83/12AX7 PhilipsMiniwatt ￥3300 NIB GraySmoothPlates 1) 12AX7 PhilipsMiniwatt ￥2700 NIB RibbedGrayPlates Australia 2) ECC83 Adzam(=Mazda)(Philips-made) ￥3100 used RingGtr GrayPlates VeryStrongLikeNew gm=1480/1500,1470/1580/875min print=80% 2) ECC83 Adzam(=Mazda)(Philips-made)￥2900 used RingGtr GrayPlates VeryStrongLikeNew gm=1625/1750,1420/1330/875min print=30%,5% 1) ECC83 PhilipsMiniwatt ￥2300 used RingGtr GrayPlates 1120/1200/875min 1) ECC83 PhilipsMiniwatt ￥1900 used D-Gtr GrayPlates 1030/1470/875min 1) ECC83/12AX7 Int-C(Philips-G-made) ￥2000 used RibbedGreyPlates gm=46/48/32min(TV-7B/U) *** 1) 12AX7 Philips ￥2500 LikeNew RibbedGreyPlates GE青箱 0) ECC83 Brimar ￥2000 used England GrayPlates 1100/1210 0) ECC83 Mazda ￥- NIB made in Hungary(Q) 0) 7025 Amperex ￥- NIB(Q) 0) 12AX7A Amperex ￥- NIB BugleBoy print=10% 1220/1210 1) 12AX7A/ECC83 Amperex ￥４１００ BulkNOS? OrangeGlobe print=100% VeryStrong(Sn) mean-gm(7-tubes)=1516/1499/875min (gm-min=1400,gm-max=1700) date=68-37,68-39,68-49,68-49,68-49,68-49,68-49 0) ECC83/12AX7 Amperex ￥- used BugleBoy(xD) 0) ECC83/12AX7 Hoffman(Amperex) ￥- LightlyUsed? print=90%(xD) 0) ECC83/12AX7 Amperex ￥- LightlyUsed BugleBoy print=90% 1260/1460 1) 12AX7/ECC83 Amperex ￥4100 NOS WB print=60% 1510/1340 1) 12AX7A/ECC83 Amprx ￥2200 NOS? LikeNew SmallGrayPlates WestGermany OrangeLogo 1) ECC83/12AX7 Ediswan ￥2400 NIB made in England 2) ECC83 Tungsram ￥2400 NIB(vQ) 1) ECC83 Ultron ￥1700 NOS made in Hungary Siemens箱 1) ECC83 RSD ￥1500 used? LongSmoothGrayPlates Siemens箱 2:reserved) JRC 12AX7 RCA ￥offer NIB BlkPlates
date=50-26 1440/1580,1600/1590/875min MB VeryRaggedBox 1) JRC 12AX7 RCA ￥offer NIB D/C=Jan.1951 BlkPlates 0) 12AX7 RCA ￥- NIB/NOS BlkPlates '50年代(rhyy14) 0) 12AX7 RCA ￥- NIB BlkPlates Dgtr 0) 12AX7 RCA ￥- NIB GrayPlate(xQ) 1) 12AX7 RCA ￥offer NIB D/C=0-17 BlkPlates 1) 12AX7 RCA ￥offer NIB D/C=1-01 BlkPlates 1) 12AX7 RCA ￥offer NOS D/C=1-04 BlkPlates GE青箱 0) 12AX7 RCA ￥- NIB made in W.Germany,made in Gt.Britain(xD) 3) 12AX7A RCA ￥3800 NIB GrayPlates date=70-26 RCA-printed-OriginalWB (Nn) 1) 12AX7A CNI(RCA-made) ￥3800 NOS GrayPlates date=69-52 WB Small-CNI-logo 0) 12AX7A/ECC83 RCA ￥3800 NIB GrayPlates (rhx2cgh) 0) 12AX7A/ECC83 RCA ￥- NIB GrayPlates GtBritain(xD) 1) 12AX7A/ECC83 RCA ￥3800 NOS GrayPlates date=70-04 Syl箱 1) 12AX7A/ECC83 RCA ￥offer NIB GrayPlates, made in Britain 0) 6681/12AX7A RCA ￥- NIB RB GrayPlates (rhx1v8nt) 0) 12AX7A/7025A RCA(Canada) ￥3900 NOS? GrayBoxPlates CGE箱 0) 7025 RCA ￥4900 NIB GrayPlates(mSx) 0) 7025 PackardBell(RCA-made) ￥- NOS? BlkPlates date=59-43(sD) 0) 12AX7 RCA ￥- used BlkPlates 1) 12AX7 RCA ￥3800 used BlkPlates 1580/1560 print 0% 0) 12AX7 RCA ￥- used BlkPlates 1410/1300,1320/1290,1230/1280/875min print 0-20%(qT) 0) 12AX7 RCA ￥- used BlkPlates print 0-20%(D) 2) 12AX7 RCA ￥2700 used BlkPlates 1170/1140,1100/1160,1110/1100/875min print 0-20% 2) 12AX7 RCA ￥2200 used BlkPlates 1350/1090,1330/1130,1240/1100/875min print=0% 2) 12AX7 RCA ￥1200 used BlkPlates 920/1000,1250/950/875min print 0% 3) 12AX7 RCA ￥3300 used BlkPlates 1350/1310,1280/1300,1280/1300/875min print 0% 1) 12AX7 RCA ￥3100 used BlkPlates 1210/1210,1240/1200,1280/1210/875min print 0% 0) 12AX7 RCA ￥2900 used BlkPlates1160/1160,1380/1290,1150/1180,1200/1300/875min print 0% 1) 12AX7 RCA ￥2700 used BlkPlates1160/1250,1280/1160,1200/1340,1390/1180,1280/1100/875min print 0%(Qn) 2) 12AX7 RCA ￥2000 used BlkPlates1200/1050,1160/1070,1000/1100,1300/1000,1090/1000/875min print 0% 3) 12AX7 RCA ￥1300 used BlkPlates 1080/970,970/1080,1000/920/875min print 0% 1) 12AX7 RCA ￥1300 used BlkPlates 1040/900 print 0% 0) 12AX7 RCA ￥- used BlkPlates - date=5639 0) 12AX7 RCA ￥2900 used BlkPlates 1240/1180,1160/1300 print 80% date=5639(sD) 2) 12AX7 RCA ￥2400 used BlkPlates 1080/1120,1050/1100 print 80% date=5639 0) 12AX7 RCA ￥- used BlkPlates - date=5639 0) 12AX7 Dynamics(RCA-made) ￥2400 used LongGrayPlates 1320/1330 1) 12AX7 RCA ￥2200 used LongGrayPlates D-gtr 1120/1280 1) 12AX7 RCA ￥1500 used LongGrayPlates D-gtr 920/1400 1) 12AX7 RCA ￥1000 used LongGrayPlates D-gtr 990/930 print=0% 1) 12AX7 RCA ￥2200 used Long-RibbedBlackPlates gm=42/46/32min(TV-7B/U) *** 0) 12AX7A RCA ￥- used GrayPlates 1280/1200 0) 12AX7 Lowrey(RCA made) ￥- used LongGrayPlates(sQ) 1) 12AX7A RCA ￥2600 used made in Gt.Britain VeryStrong 0) 12AX7A RCA ￥- used GrayPlates VeryStrong 0) 12AX7A RCA ￥- used GrayPlates (hxzdv) 1) 12AX7A RCA ￥2000 used GrayPlates 1130/1150/875min GE箱 1) 12AX7 Silvertone(RCA-made) ￥2200 used BlkPlates Dgtr 1) 7025 PackardBell(RCA-made) ￥2400 used GrayPlates 1100/1000/875min 1) 12AX7 GE ￥3300 NIB gray/LONG plates Date=3-39(1953) 青箱 0) 12AX7 GE ￥- NIB BlkPlates 0) 12AX7 GE ￥2700 used BlkPlates WB(ghyy10) VeryStrong(mean gm=1460/1540/875min(平均値) date=0-22 0-25 etc(early'50) print=10-60% 1) 12AX7 GE ￥1700 used BlkPlates WB gm=1300/1200 etc(early'50) print=10% JustFadedGtr 1) 12AX7 GE ￥1800 used BlkPlates WB gm=1040/1140 etc(early'50) print=10% 0) 12AX7 GE ￥- NOS? LongGrayPlates date=6517 0) 12AX7 CBS(GE-made) ￥2200 NOS LongGrayPlates oldWH箱 0) 12AX7 GE ￥- NIB LongGrayPlates early'50,'52,'52,'59,'62 etc(Sn) 0) JG-12AX7 GE ￥2200 BulkNOS LongGrayPlates print=10%-60% WB(Sn) 0) 12AX7 GE ￥- NOS MB gray/LONG plates Date=5/67 0) 12AX7WA GE ￥- NOS WB(Aht) 0) 12AX7A/ECC83 GE ￥- NIB GrayPlates (rhx14) 1) 12AX7 GE ￥2000 used GrayBoxPlates 1280/1300 1) 12AX7 GE ￥2000 used LongGrayPlates 1300/1200 1) 12AX7 GE ￥1800 used LongGrayPlates 1180/1220 1) 12AX7 GE ￥1800 used LongGrayPlates 1100/1080 1) 12AX7 GE ￥1100 used LongGrayPlates 1) 12AX7 GE ￥1100 used LongGrayPlates date=5-35 Znth-old箱 1) 12AX7 GE ￥1100 used LongGrayPlates 960/1000 1) 12AX7 GE ￥1600 used LongGrayPlates 1000/1000/875min D-gtr 1) 12AX7 GE ￥1800 used LongGreyPlates gm=42/39/32min(TV-7B/U) *** 1) 12AX7 GE ￥1800 used LongGreyPlates gm=40/40/32min(TV-7B/U) *** 1) 12AX7 Lowrey ￥1800 NOS? LongGrayPlates 24) 12AX7A Baldwin(GE-made) ￥2000 usedLikeNew LongGrayPlates VeryStrong print=60%-95% 16) 12AX7A Kinsman(GE-made) ￥2000 used LongGrayPlates Strong 平均gm=1205/1234/875min date=59-48(rhx10) 20) 12AX7A Kinsman(GE-made) ￥1800 used LongGrayPlates Strong print =80-90% (2本のみ10,40%) gm-range=1000-1370 平均gm=1154/1065/875min date=63-04 1) 12AX7 CBS(GE-made) ￥1100 used LongGreyPlates 0) 12AX7WA GE ￥1100 used 1110/1100 (rhx14) 1) 12AX7A GE ￥1200 used? WB print消 7) 12AX7/ECC83 GE ￥2800 NIB GrayBoxPlates 0) 12AX7/ECC83 GE ￥- NIB GrayBoxPlates w/sleeve 1) 12AX7A/ECC83 GE ￥1200 used? 1170/1190 GrayBoxPlates 1) 12AX7A/ECC83 GE ￥1500 used 1020/1100 0) 12AX7A Ray(GE-made) ￥- NIB LongGrayPlates(Q) 0) 12AX7A Ray/GE-made ￥- NOS LongGrayPlates date=6205(xT) 0) 12AX7A Champion/GE-made ￥- NOS GrayLongPlates 0) 12AX7WA Heinz&Kaufman(GE-made) ￥2700 NIB GrayBoxPlates WhiteLogo(nSn) 1) 6681 GE ￥3100 NIB LongGrayPlates Dgtr CommunicationSuplementaryPartsBox 0) 6681/12AX7/12AX7A GE ￥- NIB GrayPlate(Nn) 1) 6681/12AX7 GE-communications ￥2900 Lightly-used LongGreyPlates 0) 12AX7A/7025 GE ￥- NIB gray plates, Mullard-made (xT) 2:reserved) 12AX7A/7025 GE ￥2900 NIB gray plates * (ghx1zbnt) 0) 12AX7A/7025 GE ￥- NIB gray plates GtBritain(sD) 0) 7025/12AX7A CGE ￥- NIB gray plates made in Japan 2) 7025/12AX7A CGE ￥2900 NIB gray plates made in Japan 0) 7025 CBS/GE-made ￥- NOS GrayPlate(D) 2) 7025/12AX7A Fender(GE-made) ￥1500 used GrayPlates 1) 7025 GE ￥3400 used 1520/1450 SideGetter ClearTop BlakPlates =rare= 0) 7025 GE ￥- used 1520/1480 1) 7025 GE ￥1700 used 940/1090 0) 12AX7 Syl ￥- NIB MB LongGrayPlates date='60th RagedBox(vQn) 0) 12AX7WA Syl ￥- NOS WB GrayPlates date=910 2) 12AX7WA Syl ￥- NIB MB date=67-46 GrayPlates 22) 12AX7WA Syl ￥2200 NIB MB '70's GrayPlates (shx22mj) 0) 12AX7WA Heinz&Kaufman(Syl-made) ￥- NIB GrayLongBoxPlates(Q) 0) 12AX7 Syl ￥- NIB MB '65's GrayPlates 0) 12AX7 Syl ￥- NIB MB date=12-59 GrayPlates(D) 0) 12AX7A/ECC83 Syl ￥- NIB LongGrayPlates(D) 1) 12AX7A/ECC83 Syl ￥2300 NIB 1) 12AX7A/ECC83 Syl ￥2000 NOS 1) 12AX7A Syl ￥2000 NOS RCA箱 0) 12AX7A/ECC83/7025 Syl ￥- NIB GrayPlates(Aht) 0) 12AX7A/ECC83/7025 Syl ￥2700 NIB (hyyant) 0) 12AX7A/ECC83/7025 ECG ￥2200 NIB 0) 7025 Syl ￥- NIB MB(Qn) 0) 7025 RCA(Syl-made) ￥- LikeNew GrayPlates(sD) 3) 12AX7WA Heinz&Kaufman(Syl-made) ￥2900 NIB GrayBoxPlates YellowLogo(Qn) 4) 12AX7A/7025 Syl ￥1700 NIB made in Korea(Q) 1) 12AX7 Syl ￥2100 used BlkPlates 1540/1300/875min 1) 12AX7 Syl ￥2100 used BlkBoxPlates 1290/1300/875min 1) 12AX7 Syl ￥1900 used BlkBoxPlates 1180/1140,1100/1100 1) 12AX7 Syl ￥1000 used BlkPlates 1110/920 1) 12AX7 Syl ￥1900 used BlkFlatPlates 1300/1280 1) 12AX7 Syl ￥2400 LightlyUsed LongGrayBoxPlates 1720/1640 1) 12AX7 Syl ￥2100 used LongGrayBoxPlates 1380/1430 1) 12AX7 Syl ￥2400 used/LikeNew Long-GreyPlates gm=77/72/32min(TV-7B/U) *** 1) 12AX7 Syl ￥2200 used Long-GreyPlates gm=70/60/32min(TV-7B/U) *** 1) 12AX7 Baldwin(Syl-made) ￥2000 used-lightly, D/C=139(1961), Long-GrayBoxPlates gm = 1860/2020/875min : used on a Baldwin organ amplifier with 6BQ5's 4) 12AX7 Baldwin(Syl-made) ￥2400 used GrayPlates 72/72,71/69,68/70,68/67/32min 4) 12AX7 Baldwin(Syl-made) ￥2000 used GrayPlates 62/68,66/58,61/78,60/70/32min 3) 12AX7 Baldwin(Syl-made) ￥1600 used GrayPlates 47/44,42/50,41/44/32min 1) 12AX7 Baldwin(Syl-made) ￥1000 used GrayPlates 38/34/32min 1) 12AX7 Znth(Syl-made) ￥1500 used LongGrayBoxPlates 1280/1200 1) 12AX7 Znth(Syl-made) ￥900 used LongGrayBoxPlates 910/910 1) 12AX7 Syl ￥1000 used GrayPlates 1760/1090 2) 12AX7A Syl ￥1000 used 2) 12AX7A/7025 Syl ￥1200 used print=10% GrayLongPlates 1) 7025 Sy ￥1200 used GreenLogo GrayPlates 1180/1550/875min WB 1) 7025 SylECG ￥1200 used print=20% GrayLongPlates 1800/1540/875min WB 1) 7025 Honeywell(Syl-made) ￥1800 used GrayPlates 1370/1360 1) 6681/12AX7 Ray(Syl-made) ￥1900 NOS LongGrayPlates 1480/1400 0) 12AX7A/7025 Znth ￥2100 NIB(D) 1) 12AX7 Znth ￥1000 used 0) 12AX7 WH ￥2600 NIB BlkLongPlates(Sx) 0) 12AX7 WH ￥- NOS? BlkLongPlates mean-gm=1590/1560(平均値)/875min(Qn) 1) 12AX7A/ECC83 WH ￥2200 NIB LongGrayPlates made in Japan 1) 12AX7W WH ￥2400 NIB GrayPlate 1) 12AX7A WH ￥2400 NIB GrayPlate 8) 12AX7A WH ￥2000 NIB GrayPlate(hyyanx) 4) 12AX7 WH ￥1200 used Date=6052 GrayBoxedPlates 0) 12AX7 Tsol ￥- NIB(T) 2) 12AX7 Tsol ￥3700 usedLikeNew LongGrayPlates print=70% D-Gtr(13+) 1) 12AX7 Tsol ￥3300 usedLikeNew LongGrayPlates print=50% RoundHaloGtr 1) 12AX7 Tsol ￥2900 usedLikeNew GrayPlates print=50% RoundHaloGtr 0) 12AX7 Ray ￥- NOS 赤紺OB 黒プレート 1) 12AX7 Ray ￥3900 NIB BlkPlates 1640/1640/875min date=57-30 5) 12AX7 Ray ￥3900 NIB BlkPlates date='60 1) 12AX7 Ray ￥3100 NIB BlkPlates 1000/1000/875min date=62-05 1) 12AX7 Ray ￥3100 NOS BlkPlates 1640/1140/875min date=62-05 RCA箱 0) 12AX7 Ray ￥- NOS BlkPlates '60th (vNn) 3) 12AX7 Ray ￥- NOS MB GrayPlates Date=5/62 WB 4) 12AX7 Ray ￥2400 NOS GrayPlates Date=62-41 WB 1) 12AX7A/ECC83 Ray ￥1800 NOS MB GrayPlates made in Japan 4) 12AX7 Schober(Raytheon-made) ￥2900 NOS BlkPlates Date=6309 3) 12AX7 Ray ￥1800 NOS WB GrayPlates 2/18/65 JAPAN エンジニアリングサンプル 5本共 1) 12AX7 Ray ￥1800 NOS WB GrayPlates date=64-41 made in JAPAN 2) 12AX7 Baldwin(Ray-made) ￥2000 used-lightly black-plates gm = 1420/1380, 1380/1340/875min : used on a Baldwin organ amplifier with 6BQ5's 1) ECC83/12AX7 Miniwatt ￥1900 NIB GraySmoothPlates 1) 12AX7 Miniwatt ￥1900 NIB GrayRibbedPlates Australia 6) 7025A InternationalC ￥2000 NIB GraySmoothPlates Yugoslavia(Sx) 3) 12AX7-HiFi Toshiba ￥3000 NIB one is still cellophane-sealed 1) 12AX7-HiS Toshiba ￥1700 used-lightly 6) 12AX7A Toshiba ￥1300 used-lightly 1) 12AX7A Toshiba ￥1300 used-lightly 1) 12AX7A Toshiba ￥1300 used-lightly 4) 12AX7 Toshiba ￥1700 used-lightly 通信用 light-brown silk, long-GrayPlates WB 2) 12AX7 Toshiba ￥1300 used-lightly light-brown-silk, long-GrayPlates WB 1) 12AX7 Toshiba ￥1300 used-lightly 通信用 light-brown-silk, long-GrayPlates WB 1) 12AX7A Toshiba ￥1000 used-lightly light-brown silk, WB 1) 12AX7A Toshiba ￥1000 used 4) 12AX7T Matsushita ￥3300 NIB 1) 12AX7 Matsushita ￥2500 NIB cellophane-sealed 2) 12AX7T Matsushita ￥1700 used strong 1) 12AX7T/ECC83 Matsushita ￥1500 used 1050/1030/875min 1) 12AX7 Matsushita ￥1300 used-lightly 1) 12AX7 Matsushita ￥1000 used silk=Wiped-away lot=3F_3F WB 3) 12AX7 Matsushita ￥1300 lightly-used WB 1) 12AX7T Matsushita ￥1000 used WB 1) 12AX7T Matsushita ￥1700 lightly-used 工業用 BackView WB 5) 12AX7T Matsushita ￥1100 used 2) 12AX7 NEC ￥1700 used 通信用 1) 12AX7 NEC ￥1700 lightly-used silk=wiped-away, long-BlackPlates WB 3) 12AX7 NEC ￥1700 lightly-used 通信用/for-CBC, silver-silk DC=1957.10, 1957.11, 1961.10 long-GrayPlates WB 1) 12AX7 NEC ￥1700 lightly-used 通信用 gold-silk DC=1962.9 long-GrayPlates WB 1) 12AX7A NEC ￥1700 lightly-used short GrayBoxPlates WB 4) 7025 日立/Hitachi ￥3900 NIB 通信機用 GrayPlates 1) 12AX7 Perma-Test(日立/Hitachi) ￥2200 NIB LightBlueBox 1) 12AX7 Hitachi ￥1700 used D/C=8-4(1958-4) long-BlackPlates WB 1) 12AX7 TEN ￥1700 lightly-used 通信用 lot=MT long-GrayPlates WB 3) 12AX7 TEN ￥1700 used 通信用 lot=NT long-GrayPlates WB 3) 12AX7 TEN ￥1700 lightly-used 通信用 DC=1966.3, 1966.4, 1966.5 long-GrayPlates WB 4) 12AX7 TEN ￥1700 lightly-used long-GrayPlates WB 1) 12AX7A National ￥1900 NIB 1) 12AX7A National ￥1500 NIB made in England(sQ) 2) 12AX7A National ￥1500 NIB SilverPins made in China 1) 12AX7A National ￥1000 NIB made in China 0) 12AX7 CBS ￥- NOS MB gray/LONG plates Date= 2/60 0) ECC83/12AX7 Hammond ￥- NOS made in Holland date=6013 0) 12AX7A Honeywell ￥- NIB #30353308-501 補修パーツ 1)RCA, 1)Hungary, 3)GE(Qn) 0) 12AX7/ECC83 Realistic(USA) ￥- NOS GrayPlates/SmoothLongPlates(sQ) 2) 12AX7/ECC83 International-C(USA) ￥2000 NIB GrayPlates 2) 12AX7/ECC83 International-C(Japan) ￥2200 NIB GrayPlates 1) 12AX7A Realistic ￥2000 NIB FatBottle 2) 7025 Realistic ￥2500 NOS made in Japan 0) ECC83/12AX7 ProComm ￥- NIB made in Western Germany 5) 12AX7A ProComm ￥1700 NIB 1) ECC83/12AX7A Lindal ￥1700 NIB 0) ECC83/12AX7A Lindal(Japan) ￥- NIB 52/50/32min 1) ECC83/12AX7A Alleid(Japan) ￥2200 NIB 0) 12AX7A Lowrey Organ ￥- NOS GrayPlates '60th WB(D) 1) 12AX7 HARRON ￥700 NOS? RCA箱 GrayPlates 1) 12AX7 Magnavox ￥1300 NOS?/used?WB gray plates 50/42/32min 1) 12AX7 Mag ￥900 used OB 1) 12AX7 Marconi ￥1500 used blkplates 1000/1150/875min 1) 12AX7 Rogers ￥2100 used blkplates 1300/1320/875min 0) 12AX7 Motorola ￥- NOS ミニOB ペア GrayPlates 5) 12AX7 Motorola ￥2900 NOS? BlkPlates WB print=75%(Sx) 1) 12AX7 - ￥1300 used Black/Long Plates gm=1300/1200/875min 1) 12AX7 - ￥1300 used Long Plates gm=1600/1400/875min 2) 7025A Realistic-LIFETIME NOS ￥2500 made in Japan golden-pins 1) 12AX7A/ECC83 Realistic-LIFETIME used ￥1000 made in Japan 1) 12AX7 Toshiba ￥1500 used WB 1) 12AX7 Japan ￥1000 used 1) 12AX7 Webcor ￥1000 used 1) 12AX7A Magnavox ￥1000 used RCA箱 1) 12AX7A Quality ￥1000 used WH箱 1) 12AX7A BellHowell ￥1000 used 1070/980/875min 0) 12AX7 - used ￥- BlkPlates 1) 12AX7 - used ￥1500 BlkPlates 1210/1200/875min 1) 12AX7A - used ￥800 D-gtr GrayPlates 880/1080/875min 1) 12AX7WXT Sovtek ￥1300 lightly-used short Plates, WB 0) 7025 ? ￥- used GrayPlates 2) E83CC GoldenDragon ￥2000 NIB? Gpin ** The 12AX7 is a 9-pin noval audio-frequency-dedicated twin triode vacuum tube with the most-highest amplification factor. High applicability, ease of design/use, detailed/high-resolution/deep sounds, high long-term reliability based on very low power consumption/low bulb temperature, and wide variants etc. result in the outstanding popu- larity among wide varieties of twin triodes. The tube was believed to be originally developed in 1946 by RCA (Radio Corporation of America) engineers in Harri- son, New Jersey under developmental number "A-4522". (The oldest RCA-branded one's we have are dated "1950"with white print on glass and also with very-tattered military boxes.) Release date for public sale under the "12AX7" identifier was September 15, 1947. 12AX7 was originally intended as a low-cost amplifier for consumer audio ampli- fier applications. Its wide application use in guitar amplifiers has caused it to be one of the very few small- signal vacuum tubes to continue in production since it was introduced. 12AX7 (1947) has a center tapped filament so it can be used as in 6.3V 300ma, or 12.6V 150mA heater applications. Other tubes with the same base include the 12AU7, 12AT7, and the fairly unknown 12AZ7. Of these the 12AX7 has the highest amplification factor (mu), typically 100. Hundreds of the equivallent's/variations of the 12AX7 have been manufactured all over the world. Variations include the low-noise versions 12AX7A, 12AD7, 6057, 6681, 7025/A, and 7729 (also 12BZ7 (12DF7, 12DM7, 12DT7) is a similar type); European versions B339, B759, ECC83, ECC803, ECC803S, E2164, M8137, CV492, CV4004, CV8156, CV8222, and 6L13;and the lower-mu low-noise versions: 5751 and 6851, intend- ed for avionics equipment. Its popularity has made a complete cataloging of all manufactured variations impossible. In past decades, versions were known to be made in the USA, Canada, virtually every European country, Australia, Japan, India, Argentina, Chile, Brazil, China, USSR, and possibly in other places. Presently the 12AX7 is made in various versions by two factories in Russia, one in China, one in Slovakia, and one in Serbia, for a total annual production figure of 2 million units (estimated). The vast majority are used in new- production guitar amplifiers or for replacement purposes in guitar or audio equipment. .................... One of the obsolete variant 12AD7 were made especially by Sylvania and licenced to NEC Japan, which was used in some old high-end tape-deck's made in Japan. Tung-Sol made 6AX7, and Raytheon produced 2C52 (octal 12AX7) .... which are very minor...Some famous tube-audio enthusiasts say the best-sound 12AX7 is "ECC 803 S" made by Telefunken old plants until early '60s.
12AY3 =half wave HV Rectifier= Eh/Ih=12.6V/0.6A PIV5000V/Idc175mA heater variants : 6AY3(6.3V/1.2A) 17AY3(16.8V/0.45A) 4) 12AY3 Syl ￥700 NIB 1) 12AY3 RCA ￥700 NIB 3) 12AY3A RCA ￥700 NIB
12AY7 (see 6072/6072A)=TwinTriode= (EIA/9A - noval) Eh/Ih=6.3V/0.3A (12.6V/0.15A) Ppmax=1.5W Epmax=300V Ecmax=+0V/-50V Ikmax=10mA Ehkmax=±90V op : Ep=250V Ec=-4V Ip=3mA rp=22.8kΩ gm=1.75mS μ=40 (参考 : 12AY7のEp-Ip特性) 2) 12AY7 RCA ￥3300 NIB 5) 12AY7 RCA ￥2700 NIB Syl-made (hxanz) 0) 12AY7 GE ￥- NIB *(Sx) 9) JG 12AY7 GE ￥3300 NIB date=10/56 *$* 4) 12AY7 GE ￥3300 NIB 1) 12AY7 GE ￥3300 NIB date=5/13 1) 12AY7 GE ￥3300 NIB MB date=5/43 4) 12AY7 GE ￥3000 NIB date=60-09 3) 12AY7 GE ￥2700 NIB date=72-35 1) 12AY7 GE ￥3300 NOS? BlkPlates D-gtr date='50s 2050/1800/1100min MB 1) 12AY7 GE ￥3300 NOS? BlkPlates D-gtr date='50s 1660/1550/1100min MB 1) 12AY7 GE ￥3300 NOS date='56 & '57(vT) 1) 12AY7 GE ￥3300 NOS date=56-30 5) 12AY7 GE ￥2700 NIB 5) 12AY7 Dmnt(GE-made) ￥2700 NIB date=68-16 Dgtr 3) 12AY7 GE ￥2700 NIB 10) 12AY7 GE ￥2500 NIB date=10/85 0) 12AY7 GE ￥- NOS Tsol箱 3) 12AY7 Syl ￥2700 NIB 1) 12AY7 NU ￥2700 NIB 1) 12AY7 USA ￥2700 NIB 1) 12AY7 Tsol ￥1700 used GrayPlates 1) 12AY7 - ￥1500 used GrayPlates 1700/1640/1100min
12AZ7/A =TwinTriode= (EIA/9A - noval) Eh/Ih=6.3V/0.45A (12.6V/0.225A) Ppmax=2.5W Epmax=330V Ecmax=-55V Rgmax=250kΩ(fixed)/1MΩ(self) Ehkmax=±200V op : Ep=250V Rk=200Ω Ip=10mA rp=10.9kΩ gm=5.5mS μ=60 (参考 : 12AZ7のEp-Ip特性) 1) 12AZ7A RCA ￥2900 NIB BlkPlates 0) 12AZ7A RCA ￥2900 NIB BlkPlates (vD) 0) 12AZ7/A RCA ￥- NOS BlkPlates GE箱 (wD) 1) 12AZ7A RCA ￥2200 NIB GrayPlates 0) 12AZ7A GE ￥- NIB GrayPlate(sQ) 4) 12AZ7A GE ￥1800 NIB - mint 1) 12AZ7 GE ￥1800 used? BlkPlate Rogers箱 1) 12AZ7A Syl ￥2000 NIB 2) 12AZ7A Syl ￥2000 NIB GrayPlate 1) 12AZ7A Syl ￥2000 NIB RaggedBox 0) 12AZ7A Tsol ￥- NIB(mD) 1) 12AZ7A Ray ￥2000 NIB GrayPlate print消 1) 12AZ7A Ray ￥2000 NIB GrayPlate 10) 12AZ7A Ray ￥2000 NIB GrayPlate 1) 12AZ7A Dmnt ￥2000 NIB ++ 1) 12AZ7A Dmnt ￥2000 NOS GE-boxed 1) 12AZ7A Syl ￥1400 used BlkPlate gm=4090/4050/2500min 1) 12AZ7A Syl ￥1400 used BlkPlate gm=3680/3880/2500min 1) 12AZ7A ? ￥1200 used BlkPlate gm=3600/3630/2500min 1) 12AZ7A Lowrey ￥1600 used? Ray箱
12B =Half-wave Rectifier= (EIA/4B - UX, ST12) Ef/If=5V/0.5A Eacmax=180V Idcmax=30mA 1) KX-12B-ST マツダ(Matsuda) ￥1000 used WB 1) 12B-ST Elevam ￥1000 used WB 1) 12B-ST San-Tube(Japan) ￥1000 used WB
12B4A =Low mu Triode= (EIA/9AG - noval) Eh/Ih=6.3V/0.6A (12.6V/0.3A) Ehkmax=±200V design-center ratings A1 amp : Ppmax=5.5W Epmax=550V Ecmax=-50V Rgmax=470kΩ(fixed)/2.2MΩ(self) op : Ep=150V Ec=-17.5V Ip=34mA rp=1.03kΩ gm=6.3mS μ=6.5 vertical deflection amp : Ppmax=5.5W Epmax=550V/1000Vpulse Ikmax=30mA/105mApeak (参考 : 12B4AのEp-Ip特性) same-basing and higher-mu type : 12A4(μ=20) different-basing higher-mu types : 6S4/6S4A(μ=16.5), 7719(μ=25, for computer) upper-rating,higher-mu, and differen-basing triodes : 6RA6(Ppmax=10W, μ=16), 6RA9(Ppmax=10W, μ=16.5) 7) 12B4A Amprx ￥2800 NIB(Sn) 7) 12B4A RCA ￥2600 NIB 1) 12B4A RCA ￥2600 NIB RaggedBox 1) 12B4A RCA ￥2600 NOS MB *$** 30)12B4A GE ￥2400 NIB (ghx22) 2) JAN 12B4A GE ￥2400 NIB *$** 1) 12B4A Triad'GEmade) ￥2400 NIB 0) 12B4A Standard(Westinghouse) ￥- NIB(Q) 0) 12B4A RAD-TEL ￥- NIB(D) 4) 12B4A Syl ￥2400 NIB 1) 12B4A Syl ￥2600 NIB date=7-59 MB *$** 2) 12B4A Tsol ￥2400 NIB 1) 12B4A CBS ￥2400 NIB MB 2) 12B4A KR ￥2400 NIB 1) 12B4A Ultron ￥1500 NIB 2) 12B4A GE ￥1200 lightly-used 4) 12B4A CBS(GE-made) ￥1200 lightly-used 4) 12B4A GE ￥1000 used 9) 12B4A HP(GEmade) ￥1000 used 1) 12B4A GE ￥1000 used 1) 12B4A RCA ￥1000 used 6500/4000min 1) 12B4A RCA ￥1000 used 6125/4000min 2) 12B4A GE ￥1000 used 5050,5200/4000min 1) 12B4A GE/HP ￥1000 used 2) 12B4A Toshiba ￥1000 lightly-used WB 1) 12B4A NEC ￥1000 lightly-used D/C=1963-7 WB
12BA6/HF93 =remote-cutoff RF Pentode= (EIA/7BK - miniature) Eh/Ih=12.6V/0.15A heater variants : 3BA6(3.15V/0.6A), 6BA6(6.3V/0.3A) similar to 12BD6 1) 12BA6 RCA-Victor ￥800 NIB 3) 12BA6 RCA ￥800 NIB 5) 12BA6 RCA ￥800 NIB 5) 12BA6 GE ￥800 NIB 1) 12BA6 Arcturus ￥800 NIB 21) 12BA6 USA ￥600 NIB/NOS(hy1z4nz) 0) 12BA6 AWV-Radiotron ￥- NIB 2) 12BA6 Matsushita ￥600 NOS lot=8D(1968.4) WB 15) 12BA6 Matsushita ￥600 NOS lot=0H(1970.8) WB 3) 12BA6 Matsushita ￥600 NOS lot=0L(1970.12) WB 1) 12BA6 RCA￥400 used BlkPlate 1) 12BA6 Mot ￥400 used?(2) 0) 12BA6 WH ￥- used 2) 12BA6 USA ￥500 NOS? 10) 12BA6 USA ￥400 used (hyybxn) 2) 12BA6 Matsushita ￥300 used
12BA7 =Pentagrid Converter= (EIA/8CT - noval) Eh/Ih=12.6V/0.15A heater variant : 6BA7(6.3V/0.3A) 1) 12BA7 USA ￥700 used 1) 12BA7 Emerson ￥700 used weak?
12B-B14/12BB14 =Beam Power= (EIA/9NH - Magnoval TopPlate) Ppmax=13W Epmax=700V Pc2max=5W Ec2max=250V Ipmax=-mA gm=14mS Eh/Ih=12.6V/0.6A pin : 1-G1 2-G1 3-KG3 4-H 5-H 6-G2 7-G2 8-KG3 9-IC Tcap-P heater variants : 6B-B14(6.3V/1.2A), 17B-B14(16.8V/0.45A), 25B-B14(25V/0.3A) different-base similar types : 12H-B25(NOVAR) 12G-B3(octal) 0) 12B-B14 Raytheon(Toshiba) ￥- NIB
12BD6 =remote-cutoff RF Pentode= (EIA/7BK - miniature) Eh/Ih=12.6V/0.15A heater variant : 6BD6(6.3V/0.3A) similar to 12BA6 2) 12BD6 RCA ￥1500 NIB 0) 12BD6 WH ￥- NIB 0) 12BD6 Ray ￥- NIB 5) 12BD6 Mot ￥1000 NIB 2) 12BD6 USA,Canada ￥1000 NIB 1) 12BD6 Airline ￥1000 NIB 1) 12BD6 NEC￥700 lightly-used 1) 12BD6 Mot ￥500 used
12BE3 =Half wave HV Rectifier= (EIA/12GA - compactron) Eh/Ih=12.6V/0.6A PIV5000V Idc=200mAmax Pdmax=6.5W Edrop=25V(@Ib=350mA-dc) heater variants : 6BE3(6.3V/1.2A), 17BE3(16.8V/0.45A) 1) 12BE3 RCA ￥700 NIB 2) 12BE3 USA ￥600 NIB
12BE6/HK90 =Pentagrid Converter= Eh/Ih=12.6V/0.15A heater variants : 3BE6(3.15V/0.6A), 6BE6(6.3V/0.3A) 0) 12BE6 RCA ￥- NIB (D) 0) 12BE6 GE ￥- NIB(D) 1) 12BE6 GE ￥800 NOS Tungsram箱 1) 12BE6 Syl ￥800 NIB(D) 1) 12BE6 Airline ￥800 NIB 0) 12BE6 Shield ￥- NOS 2) 12BE6 松下 ￥1000 NIB 1) 12BE6 日立 ￥1000 NIB 5) 12BE6 USA ￥800 NIB/NOS (hxzev) 2) 12BE6 Tungsram ￥800 NIB(Q) 3) 12BE6 USA ￥500 NOS? 9) 12BE6 USA ￥400 used (hyyanx) 1) 12BE6 Matsushita ￥300 used
12BF6 =duplex-Diode medium-mu-Triode= (EIA/7BT - miniature) Eh/Ih=12.6V/0.15A triode : Ppmax=2.5W Epmax=300V Ehkmax=±90V op : Ep=250V Ec=-9V Ip=9.5mA rp=8.5kΩ gm=1.9mS μ=16 Zl=10kΩ D=6.5% Po=300mW electrically identical to 12SR7 heater variant 6BF6(6.3V/0.3A) 3) 12BF6 RCA ￥700 NIB ++ 4) 12BF6 USA ￥450 NIB 7) 12BF6 USA ￥350 used
12BF11 =Dissimilar double Pentode= (EIA/12EZ - compactron) Eh/Ih=12.6V/0.6A heater variants : 6BF11(6.3V/1.2A), 17BF11(16.8V/0.45A), 24BF11(24.2V/0.315A) 3) 12BF11 USA ￥900 NIB
12BH7A =TwinTriode= (EIA/9A - noval) Eh/Ih=6.3V/0.6A(12.6A/0.3A) Ehkmax=±200V Ppmax=3.5W Epmax=300V Ecmax=+0V/-50V Ikmax=20mA Rgmax=250kΩ(fixed) (as vertical deflection amplifier : Epmax=450V/1500Vpeak Ecmax=-250Vpeak Ikmax=70mApeak) op : Ep=250V Ec=-10.5V Ip=11.5mA rp=5.3kΩ gm=3.1mS μ=16.5 (参考 : Ep-Ip特性) see some upper-rating different-base types : 5687, 6463, 7044, 7119 - new - 2) 12BH7A RCA ￥3800 NIB BlkPlates date=1961頃 1) 12BH7A RCA ￥3800 NIB BlkPlates(Nn) 0) 12BH7A RCA ￥- NOS Bulk品 WB (rhx28nk) 1) 12BH7A RCA ￥3100 NIB GrayPlates, lot=LQ 0) 12BH7A RCA ￥- NIB GrayPlates(rhxa) 5) 12BH7A RCA ￥3200 NIB MB GrayPlates date=70-22 一部RaggedBox (vNn) 2) 12BH7A RCA ￥3100 NIB GrayPlates 一部RaggedBox (rhx4gfnt) 1) 12BH7A RCA ￥3100 NIB GrayPlates VeryRaggedBox 1) 12BH7A RCA ￥3100 NOS GrayPlates WB 0) 12BH7A RCA ￥- NOS GrayPlate(T) 3) 12BH7A RCA(GE-made) ￥2700 NIB GrayPlates 1) 12BH7A RCA(GE-made) ￥2700 NIB GrayPlates 3) 12BH7A RCA(Syl-made) ￥2700 NIB GrayPlates 1) 12BH7A RCA(Syl-made) ￥2700 NIB GrayPlates 0) 12BH7A RCA ￥- NOS? Bulk品 プリント10%(T) 1) 12BH7 GE ￥3300 NIB date=2-17 青箱 (NTB) 1) 12BH7A GE ￥2400 NOS GrayPlates RCA箱 16) 12BH7A GE ￥2400 NIB GrayPlates (ghyy1s9vv) 1) 12BH7A GE ￥3100 NIB GrayPlates 青箱 date=56-31 1) 12BH7A GE ￥3100 NIB GrayPlates 青箱 GrayPlates 1) 12BH7A GE ￥3100 NIB MB GrayPlates date=63-3 1) 12BH7A GE ￥2400 NIB GrayPlates '61 2) 12BH7A RCA(GE-made) ￥2400 NIB GrayPlates 7) 12BH7A CGE ￥2200 NIB made in Japan 1) 12BH7A Syl ￥3100 NOS BlkPlates 1) 12BH7A Syl ￥2700 NIB GrayOvalPlates 0) 12BH7A Syl ￥- NIB (shyya) 1) 12BH7A Syl ￥2000 NOS RCA白箱 4) 12BH7A Tsol ￥3700 NIB BlkOvalPlates(hyyant) 2) 12BH7A Tsol ￥3700 NIB 1) 12BH7A Ray ￥2900 NIB BlkPlates 1) 12BH7A Ray ￥2500 NOS BlkPlates Ray箱 1) 12BH7A Ray ￥2500 NIB 3) 12BH7A WH ￥3500 NIB BlkPlates 1) 12BH7A WH ￥2500 NIB Japan 1) 12BH7 STD(Philco) ￥3300 NIB BlkPlate 1) 12BH7A Philco ￥3300 NIB BlkPlate 1) 12BH7A Dmnt ￥2500 NIB GrayPlate 2) 12BH7A Znth ￥2500 NIB(Q) 4) 12BH7A Toshiba ￥2500 NIB WB (hyyanx) 1) 12BH7A Toshiba ￥2500 NIB ribbedGrayBoxPlates 2) 12BH7A Toshiba ￥2500 NIB ribbedGrayBoxPlates 1) 12BH7A Toshiba ￥2500 NOS 松下箱 文字やや消え 3540/3550/1950min 2) 12BH7A Hitachi ￥2500 NIB 4) 12BH7A Hitachi ￥2900 NIB 通信機用 GrayPlates 1) 12BH7A TEN ￥2500 NIB GrayPlates, very-ragged box 4) 12BH7A ChannelMaster(NEC-made) ￥2500 NIB Japan 7) 12BH7A Channnel Master ￥2500 NIB made in Japan 1) 12BH7A Triad ￥2500 NIB GrayPlate made in Japan 1) 12BH7A Realistic ￥2500 NIB made in Japan GoldPins - used - 2) 12BH7A Brimar ￥2300 used BlkPlates 3200/3100,2980/2700/1950min(D) 0) 12BH7A RCA ￥- used BlkPlate(D) 2) 12BH7A RCA ￥1900 used BlkPlate 1) 12BH7 RCA ￥1700 used BlkPlates, GE-BlueBoxed 3) 12BH7A RCA ￥1000 used GrayPlate 1) 12BH7A RCA? ￥1000 used GrayPlate 1) 12BH7A RCA-made ￥1000 used GrayPlate 1) 12BH7A GE ￥1900 used BlkPlate 2) 12BH7A GE ￥1000 used GrayPlate 1) 12BH7A GE ￥1000 used GrayPlate gm=2800/2960/1950min 1) 12BH7A GE ￥1000 used 1) 12BH7 Crosley(GE-made) ￥1000 used Ray箱 1) 12BH7A Syl ￥1900 used BlkPlates 3730/3620/1950min 5) 12BH7A Syl ￥1000 used 1) 12BH7A Channel Master ￥1900 used BlkPlates 3300/3100/1950min 1) 12BH7A Silvertone ￥1900 used BlkPlate strong 1) 12BH7A Motorola ￥1200 used 3720/3600/1900min 1) 12BH7A Dmnt ￥1900 used BlkPlate 3150/2800/1950min 1) 12BH7A Silvertone ￥1900 used BlkPlate RCA箱 1) 12BH7A BellHowell ￥1200 used 3260/3300/1950min GrayPlates 2) 12BH7A USA ￥1000 used 4) 12BH7A USA ￥1500 used BlkPlate 1) 12BH7 USA ￥1500 used BlkPlate 1) 12BH7 ? ￥1000 used GrayPlate 3100/3340/1950min 1) 12BH7 Matsuda(=Toshiba) ￥1000 used one-side-stapledFlatBlackPlates WB 1) 12BH7 Matsuda(=Toshiba) ￥1000 used one-side-stapledFlatGrayPlates WB 4) 12BH7A Matsuda(=Toshiba) ￥1000 used ribbedGrayOvalPlates WB 5) 12BH7A Matsuda(=Toshiba) ￥1000 lightly-used ribbedGrayOvalPlates WB 1) 12BH7A Toshiba ￥1000 lightly-used ribbedGrayOvalPlates WB 4) 12BH7A Toshiba ￥1000 lightly-used ribbedGrayBoxPlates WB 4) 12BH7A Toshiba/Matsuda ￥1000 used 3=ribbedGrayBoxPlates, 1=ribbedGrayObalPlates WB 3) 12BH7A Toshiba ￥1400 lightly-used w/original-boxes GrayBoxPlates 4) 12BH7A Toshiba ￥1000 lightly-used GrayBoxPlates, lot=6L.6L,6L,xx WB 5) 12BH7A Toshiba ￥1000 lightly-used GrayBoxPlates WB 2) 12BH7 NEC ￥700 used BlackPlates DC=1955-2 & xxxx-xx, poor-GetterFlash WB 1) 12BH7A NEC ￥1000 used GrayPlates 1) 12BH7 NEC ￥1000 used GrayPlates 2150/2280/1950min 1) 12BH7A NEC ￥1700 like-new GrayPlates, yellow-silk lot=6X WB 1) 12BH7A NEC? ￥1000 used GrayPlates 4) 12BH7A Hitachi ￥1000 lightly-used ribbedGrayBoxPlates, D-getter WB 1) 12BH7A Hitachi ￥1000 lightly-used ribbedGrayBoxPlates, O-getter WB 2) 12BH7A Hitachi ￥1000 used ribbedGrayBoxPlates 1) 12BH7A Hitachi ￥1000 used ribbedGrayBoxPlates 通測用 D/C=1967-1 WB 1) 12BH7A Matsushita ￥1000 used GrayPlates WB 1) 12BH7A Matsushita ￥1000 used ribbedGrayPlates WB 1) 12BH7A Matsushita ￥1000 used GrayPlates WB 1) 12BH7A Mitsubishi ￥1000 used GrayPlates
12BJ6 1) 12BJ6 USA ￥1000 NIB
12BK5 =AF BeamPower= (EIA/9BQ - noval) Eh/Ih=12.6V/0.6A(11sec) Ehkmax=±200V(DCmax=+100V) Ppmax=9W Epmax=250V Pc2max=2.5W Ec2max=250V Rgmax=0.1MΩ(fixed)/0.5MΩ(self) op : Ep=Ec2=250V Ec1=-5V Ip=35/37mA Ic2=3.5/10mA rp=10kΩ gm=8.5mS Zl=6.5kΩ Po=3.5W D=7% see heater variants : 6BK5(6.3V/1.2A), 25BK5(25V/0.3A) 3) 12BK5 RCA,Syl ￥600 NIB
12BL6 =battery-direct sharp-cutoff Pentode= (7BK - miniature) Eh/Ih=12.6V/0.15A Epmax=30V Ec2max=30V Ikmax=20mA Ehkmax=±30V Rg1max=10MΩ op : Ep=12.6V Ec2=12.6V Ec1=-0.65V Ip=1.35mA Ic2=0.5mA rp=500kΩ gm=1.35mS (参考 : Ep-Ip特性(@Ec2=+12.6V)) 1) 12BL6 RCA ￥1000 NIB 2) 12BL6 RCA ￥1000 NIB 1) 12BL6 RCA ￥800 NOS 1) 12BL6 GE ￥800 NIB 1) 12BL6 GE ￥800 NIB 3) 12BL6 Syl ￥800 NIB 1) 12BL6 USA ￥500 used
12BN6 =Gated Beam Discriminator= (EIA/7DF - miniature) Eh/Ih=12.6V/0.15A heater variant : 3BN6(3.15V/0.6A), 4BN6(4.2V/0.45A), 6BN6(6.3V/0.3A) 1) 12BN6 Marconi(GE-made) ￥900 NIB MB
12BQ6/GTA/GTB =BeamPower= (EIA/6AM-octal-TopPlate) Eh/Ih=12.6V/0.6A equivallent : 12CU6(12.6V/0.6A) heater variants : 6BQ6GTA/GTB(6.3V/1.2A), 17BQ6GTA/GTB(16.8V/0.45A), 25BQ6GTA/GTB(25V/0.3A) heater variants : 6CU6(6.3V/1.2A), 25CU6(25V/0.3A) 1) 12BQ6GTA Philco ￥700 NIB 2) 12BQ6GTA/12CU6 Motorola(GE-made) ￥700 NIB 5) 12BQ6GTB/12CU6 RCA ￥700 NIB 2) 12BQ6GTB/12CU6 RCA ￥700 NIB 1) 12BQ6GTB RCA ￥700 NIB 1) 12BQ6GTB GE ￥600 NOS WH箱 4) 12BQ6GTB/12CU6 GE ￥700 NIB 1) 12BQ6GTB/12CU6 Syl ￥700 NIB 1) 12BQ6GTA/GTB/12CU6 GE ￥400 used Motorola箱
12BR7A =Duplex-Diode Triode= (EIA/9CF - noval) Eh/Ih=12.6V/0.225A(6.3V/0.45A) Triode : Ppmax=2.5W Epmax=300V μ=60 rp=10.9kΩ gm=5.5mS Diodes : PIV=300V Ikmaxpeak=60mA heater variant : 9BR7(9.4V/0.3A 4.7V/0.6A) (note : 9BR7/12BR7A have no any relation with 6BR7(low-noise pentode)) 6) 12BR7/A USA ￥700 NIB
12BS3/A =Half wave HV Rectifier= (EIA/9HP - NOVAR) Eh/Ih=12.6V/0.6A PIV=5000V Idc=200mA heater variants : 6BS3A(6.3V/1.2A) 17BS3(16.8V/0.45A) 1) 12BS3A/12DW4A USA ￥600 NIB
12BT3 =Half wave HV Rectifier= (EIA/12BL - compactron) Eh/Ih=12.6V/0.45A PIV=3300V Idc=165mA Pdmax=5.3W 1) 12BT3 GE ￥700 NIB
12BV7 (see 12BY7A) =Pentode= (EIA/9BF - noval) Eh/Ih=12.6V/0.3A(6.3V/0.6A) Ehkmax=±200V design center : Ppmax=6.25W Epmax=300V Pc2max=1W Ec2max=175V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=250V Ec2=150V Rk=68Ω Ip=27mA Ic2=6mA rp=85kΩ gm=12mS, μg2g1=28 (参考 : Ep-Ip特性(@Ec2-parameter)) electrically identical high-rel. type : 7733 also see electrically-similar NTT high-rel type : 6R-P10 if pin#6 is not used, can be replaced by 7054, or 8077 (base = '9GK') for less Pp=5W applications. 1) 12BV7 Syl ￥1500 NIB CarbonGlass 1) 12BV7 Syl ￥1600 NIB 1) 12BV7 Philco ￥1600 NIB 1) 12BV7 Triad ￥1800 NIB BlkPlate
12BV11 =color-demodulator Twin Pentode= (EIA/12HB - compactron) Eh/Ih=12.6V/0.45A Ppmax=1.7W Pc2inmax=1W Pc3inmax=0.1W gm=3.2mS see a heater variant : 6BV11(6.3V/0.9A) also see similar Twin sharp-cutoff Pentode : 6BN11 6J11 8BN11 also see Twin remote-cutoff Pentode : 6AR11 11AR11 2) 12BV11 Syl ￥600 NIB 2) 12BV11 Magnavox ￥1000 NIB TopGtr BlackGlass 2) 12BV11 USA ￥600 NIB
12BW4 =Full wave Rectifier= (EIA/9DJ) PIV=1275V(Eacmax=325V) Idcmax=100mA Cmax=40uF Ehkmax=450V Eh/Ih=12.6V/0.45A heater variant : 6BW4(6.3V/0.9A) 1) 12BW4 USA ￥600 NIB
12BY7/12BY7A/12BV7 =Sharp-Cutoff Pentode= (EIA/9BF - noval) Eh/Ih=6.3V/0.6A(12.6A/0.3A) Ehk=±200Vpeak(100Vaverage) Rg1max=250kΩ(fixed)/1MΩ(self) design.max: Ppmax=6.5W Epmax=330V Pc2max=1.2W Ec2max=190V Ec1max=+0V/-55V op : Rp=250V Ec2=180V Ec1=-11.6V Ip=26mA Ic2=5.75mA rp=93kΩ gm=11mS, μg2g1=28.5 (参考 : Ep-Ip特性(@Ec2-parameter)) (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data)) high-reliability version = 7733(longer-life, lower-hum, lower-leakage, also high contact-stability w/gold-plated pins.) also see identical type : 12BV7 if pin#6 is not used, can be replaced by 7054, or 8077 (base = '9GK') for less Pp=5W applications. also see an electrically similar type (different heater, different base) : 6R-P10/6RP10 - new - 8-pairs) 12BY7/A Tektronix NIB ￥5300/pair #157-0053-00 selected-matched-pair == rare == 1-pair) 12BY7A Tektronix(RCA-made) ￥5300 NIB cloth-seal orange-silk smoked-glass 1-pair) 12BY7A Tektronix(RCA-made) ￥5300 NIB metal-seal orange-silk #6784x2 1-pair) 12BY7A Tektronix(RCA-made) ￥5300 NIB metal-seal orange-silk #7164x2 1-pair) 12BY7A Tektronix(RCA-made) ￥5300 NIB metal-seal orange-silk 背面の写真 1-pair) 12BY7A Tektronix(Westinghouse-made) ￥5300 NIB cloth-seal yellow-silk 1-pair) 12BY7A Tektronix(#1=RCA,#2=WH) ￥3000 NIB? cloth-seal silk(orange-RCA, yellow-WH) SmokedGlass-RCA 1) 12BY7A/12BV7/12DQ7 Amprx ￥1500 NIB * 10) 12BY7A RCA ￥1500 NIB(hyycvt) 1) 12BY7A RCA ￥1500 NIB +++ 2) 12BY7A RCA ￥1500 NOS CarbonGlass 1) 12BY7A RCA ￥1500 NIB CarbonGlass 15) 12BY7A/12BV7/12DQ7 RCA ￥1500 NIB 1) 12BY7A RCA ￥1500 NIB STD箱 5) 12BY7A/12BV7/12DQ7 GE ￥1500 NIB w/sleeve 5) 12BY7A/12BV7/12DQ7 GE ￥1500 NIB 5) 12BY7A/12BV7/12DQ7 GE ￥1500 NIB 16) 12BY7A/12BV7/12DQ7 GE ￥1500 NIB - mint 3) 12BY7A GE ￥1500 NIB 1) 12BY7A GE ￥1500 NIB 1) 12BY7A GE ￥1500 NOS RCA箱 1) 12BY7A/12BV7/12DQ7 Znth(GE-made) ￥1500 NIB 0) 12BY7A GE ￥1500 NIB 2本 4) 12BY7A/12BV7/12DQ7 Syl ￥1500 NIB 1) 12BY7A/12BV7/12DQ7 Syl ￥1500 NOS Syl箱 2) JHS 12BY7A Syl ￥1800 NIB MB BlackPlates 2) 12BY7A Syl ￥1500 NIB 1) 12BY7A Syl ￥1500 NIB BlkPlates 1) 12BY7A Syl ￥1500 NIB GrayGlass old 1) 12BY7A Syl ￥1500 NOS WB 12500/5700min 1) 12BY7A RCA(Syl-made) ￥1400 NOS 1) 12BY7A Ray ￥1500 NIB 1) 12BY7A ITT ￥1500 NIB 5) 12BY7A Motorola ￥1500 NOS WB 1) 12BY7A Mot ￥1500 NIB 1) 12BY7A CBS ￥1500 NIB 1) 12BY7A Znth ￥1500 NIB 1) 12BY7A/12BV7/12DQ7 Znth ￥1500 NIB 1) 12BY7 RadTel ￥1500 NIB 1) 12BY7A RsdTel ￥1500 NIB 1) 12BY7A Triad ￥1500 NIB 1) 12BY7A Marconi ￥1500 NOS GE箱 SmokedGlass 1) 12BY7A Rogers ￥1500 NIB 1) 12BY7A/12BV7/12DQ7 Admrl ￥1500 NIB 4) 12BY7A Ultron ￥1500 NIB 1) 12BV7/12BY7A Ralistic-LIFETIME ￥2200 NIB GoldPin 2) 12BY7A NEC ￥1200 NIB still-cellophane-sealed 1) 12BY7A NEC ￥1200 NIB just-ragged box 1) 12BY7A Matsushita ￥1200 NIB just-ragged box 6) 12BY7A Hitachi ￥1200 NIB BlackPlate 1) 12BY7A TEN ￥1200 NIB just-ragged box - used - 1) 12BY7A RCA/Tektronix ￥800 used 1) 12BY7A RCA ￥800 used 9400/5700min 1) 12BY7A RCA ￥800 used 10200/5700min 1) 12BY7A RCA ￥800 used WH箱 1) 12BY7A RCA ￥1100 used 3-getters 11250/5700min BlkPlate 0) 12BY7A RCA ￥- used 10140,10250/5700min(D) 1) 12BY7A Tektronix ￥1000 used 11200/5700min 2) 12BY7A Syl ￥600 used JustSmokedGlass 1) 12BY7A Syl ￥600 used 1) 12BY7A/12BV7/12DQ7 Sears(Syl-made) ￥1000 used 10000/5700min BlkPlates 1) 12BY7A CBS ￥600 used SmokedGlass 1) 12BY7A Dumont ￥600 used 1) 12BY7A - ￥600 used 7) 12BY7/A USA ￥600 used 2) M3644/12BY7A Toshiba ￥1200 lightly-used BackView WB 1) 12BY7A Matsuda(=Toshiba) ￥600 used 1) 12BY7A Toshiba ￥600 lightly-used lot=9J WB 2) 12BY7A Toshiba ￥600 used WB 1) 12BY7A NEC ￥600 lightly-used 通信用 lot=KN silver-silk WB 4) 12BY7A NEC ￥600 lightly-used 通信用 lot=L2 silver-silk WB 1) 12BY7A Mitsubishi(NEC-made) ￥600 lightly-used WB 1) 12BY7A Futaba(NEC-made) ￥600 lightly-used lot=7J WB 1) 12BY7A Matsushita ￥600 lightly-used w/OB 1) 12BY7A Matsushita ￥600 lightly-used WB 1) 12BY7A Matsushita ￥600 used WB 2) 12BY7A Hitachi ￥600 lightly-used 通信機用 BlackPlates DC=1963-7(1), xxx(1) WB 1) 12BY7A Hitachi ￥600 used BlackPlate
12BZ6 =semi-remote-cutoff RF Pentode=(EIA/7CM-miniature) 12.6V/0.15A Eh/Ih=12.6V/0.15A heater variants : 3BZ6(3.15V/0.6A), 4BZ6(4.2V/0.45A), 6BZ6(6.3V/0.3A) 1) 12BZ6 USA ￥600 NIB
12BZ7 =High-Mu TwinTriode= (EIA/9A - noval) Eh/Ih=6.3V/0.6A(12.6V/0.3A) Ehkmax=±180V Ppmax=1.5W Epmax=300V Ecmax=+0V/-50V Rg1max=5MΩ op : Ep=250V Ec=-2V Ip=2.5mA rp=31.8kΩ gm=3.2mS μ=100 (特徴 ： 12AX7に比べて、プレート抵抗が1/2、gmが2倍、ゼロバイアスでのプレート電流値が3倍程度。 2ユニットをパラレル接続すれば、MH41やUY-6301クラスの高gm、高μ球の水準となる。) (参考 : Ep-Ip特性) see 12AX7 12AD7 E283CC also see 6AX7 6EU7 5751 20EZ7 6) 12BZ7 RCA ￥3300 NIB 6) 12BZ7 RCA ￥3300 NIB GrayPlate 1) 12BZ7 RCA ￥3300 NIB GrayPlate 77) 12BZ7 RCA ￥3300 NIB GrayPlate RCAマスターカートン入 1960s同一ロット (hyy6g3jx) 4) 12BZ7 GE ￥2900 NIB 1) 12BZ7 Tsol(GE-made) ￥2900 NIB 1) 12BZ7 Syl ￥2900 NIB 1) 12BZ7 Syl ￥3300 NIB BlkOvalPlates old 1) 12BZ7 Tsol ￥3300 NIB 9) 12BZ7 Tsol ￥3300 NIB BlkPlates 2) 12BZ7 United(Tsol-made) ￥2900 NIB BlkOvalPlates re-dated(82-30) 6) 12BZ7 Philco ￥3300 NIB BlkOvalPlates old 2) 12BZ7 CBS-Hytron ￥2900 NIB 2) 12BZ7 Hytron ￥2900 NIB justRaggedBrownLargeBox 1) 12BZ7 GE ￥1300 used 22/22/18min(TV-7) 1) 12BZ7 Syl ￥1300 used 26/23/18min(TV-7) 1) 12BZ7 Silvertone ￥600 used 1770/1790/2000min weak
12C5/12CU5 =Beam Power= (EIA/7CV - miniature) Eh/Ih=12.6V/0.6A Ehkmax=±200V Ppmax=6W Epmax=135V Pc2max=1.25W Ec2max=117V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=120V Ec2=110V Ec1=-8V Ip=49/50mA Ic2=4/8.5mA rp=10kΩ gm=7.5mS Zl=2.5kΩ D=10% Po=2.3W see equivallent one : 12CU5 heater variants : 25C5(25V/0.3A), 35C5(Ppmax=5.2W, 35V/0.15A), 50C5(Ppmax=5.5W, 50V/0.15A) heater variants : 6CU5(6.3V/1.2A), 17CU5(16.8V/0.45A) 1) 12C5/12CU5 Syl ￥600 NOS
12C8 =Duplex-Diode semi-remote-cutoff Pentode= (EIA/8E - octal, TopGrid) Eh/Ih=12.6V/0.15A heater variant : 6B8(6.3V/0.3A) 1) JAN-CRC 12C8 RCA ￥1500 NIB MB date=1952 *$* 1) JAN 12C8/VT-169 RCA ￥1500 NIB MB date=1945 *$* 1) JAN-CKR 12C8/VT-169 Krad ￥1300 NIB 2) JAN-CKR 12C8/VT-169 Krad ￥1300 NIB 1) VT-153/12C8 Krad ￥1000 used? NU箱 (VT-153 = 12C8-special)
12CA5 =Beam Power= (EIA/7CV - miniature) Eh/Ih=12.6V/0.6A Po=1.5W heater variant : 6CA5(6.3V/1.2A) 17CA5(16.8V/0.45A) 25CA5(25V/0.3A) 1) 12CA5 RCA ￥1000 NIB 2) 12CA5 USA ￥800 NIB
12CL3 =Half wave Rectifire= (EIA/9HP - NOVAR) Eh/Ih=12.6V/0.6A PIV5500V/Idc250mA heater variant : 6CL3(6.3V/1.2A) 1) 12CL3 RCA ￥700 NIB *sw
12CN5 =battery-direct RF Pentode= (EIA/7CV - miniature) Eh/Ih=12.6V/0.45A Ehkmax=±16V Epmax=16V Ec2max=16V Ec1max=+0V Rg1max=2.2MΩ Ep=12.6V Ec2=12.6V Rg1=2.2MΩ Ip=4.5mA Ic2=0.35mA rp=40kΩ gm=3.8mS 2) 12CN5 Syl ￥600 NIB 1) 12CN5 Tsol ￥600 NIB 2) 12CN5 WH ￥600 NIB 3) 12CN5 USA ￥600 NIB
12CR6 =Diode remote-cutoff Pentode= (EIA/7EA - miniature) Eh/Ih=12.6V/0.15A Ehkmax=100V pentode : Ppmax=2.5W Epmax=300V Pc2max=0.3W Ec2max=150V Rg1max=1MΩ op : Ep=250V Ec2=100V Ec1=-2V Ip=9.6mA Ic2=2.6mA rp=800kΩ gm=2.2mS heater variant : 6CR6(6.3V/0.3A) 1) 12CR6 RCA ￥1000 NIB 2) 12CR6 CBS ￥1000 NIB 4) 12CR6 USA ￥700 NIB
12CT3 =Half wave HV Rectifier= (EIA/9RX - noval) Eh/Ih=12.6V/0.6A PIV5000V/Idc250mA heater variant : 17CT3(16.8V/0.45A) 4) 12CT3 RCA ￥700 NIB 1) 12CT3 RCA ￥600 NOS RaggedBox 1) 12CT3 USA ￥600 NIB
12CT8 =Triode Pentode= (EIA/9DA - noval) Eh/Ih=12.6V/0.3A Ehkmax=±200V pentode : Ppmax=2.75W Epmax=300V Pc2max=0.9W Ec2max=300V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=200V Ec2=125V Rk=82Ω Ip=15mA Ic2=3.4mA rp=150kΩ gm=7mS triode : Ppmax=2.5W Epmax=300V Rg1max=500kΩ(fixed)/1MΩ(self) op : Ep=150V Rk=150Ω Ip=9mA rp=8.2kΩ gm=4.9mS 1) 12CT8 GE ￥1000 NIB RaggedBox
12CU5 =BeamPower= (EIA/7CV - miniature) Eh/Ih=12.6V/0.6A Ehkmax=±200V Ppmax=7W Epmax=150V Pc2max=1.4W Ec2max=130V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=120V Ec2=110V Ec1=-8V Ip=49/50mA Ic2=4/8.5mA rp=10kΩ gm=7.5mS Zl=2.5kΩ D=10% Po=2.3W equivallent one : 12C5(12.6V/0.6A) heater variants : 6CU5(6.3V/1.2A), 17CU5(16.8V/0.45A) also see heater variants : 25C5(25V/0.3A), 35C5(Ppmax=5.2W, 35V/0.15A), 50C5(Ppmax=5.5W, 50V/0.15A) 1) 12CU5/12C5 GE ￥1000 NIB
12CU6 =BeamPower= Sweep Tubes(<30W) (EIA/6AM - octal-TopPlate) Eh/Ih=12.6V/0.6A Ppmax11W/Epmax600V/Pc2max2.5W/Ec2max200V/Ikmax110mA equivallent : 12BQ6GTA/GTB(12.6V/0.6A) heater variants : 6CU6(6.3V/1.2A), 25CU6(25V/0.3A) heater variants : 6BQ6GTA/GTB(6.3V/1.2A), 17BQ6GTA/GTB(16.8V/0.45A), 25BQ6GTA/GTB(25V/0.3A) 1) 12CU6 Syl ￥800 NIB 1) 12CU6 Ray ￥500 used
12CV6 == (EIA/) V/A 1) 12CV6 GE ￥1700 used?
12CX6 =battery-direct sharp cutoff RF Pentode= (EIA/7BK - miniature) Eh/Ih=12.6V/0.15A Ehkmax=30V Epmax=33V Ec2max=33V Ec1max=+0V op : Ep=12.6V Ec2=12.6V Ec1=0V Rg1=2.2MΩ Ip=3mA Ic2=1.4mA rp=40kΩ gm=3.1mS 1) 12CX6 RCA ￥700 NIB
12D4 =Half wave HV Rectifier= (EIA/4CG - octal) Eh/Ih=12.6V/0.6A PIV4400V/Idc155mA heater variant : 17D4(16.8V/0.45A) 1) 12D4 Syl ￥700 NIB 1) 12D4 WH ￥700 NIB
12DB5 see 6DB5 =vertical-deflection BeamPower= (EIA/9GR - noval) Eh/Ih=12.6V/0.6A Tbulb=250℃max Rgmax(fixed)=100kΩ 2.2MΩ(self) Ppmax=10W Epmax=300V/2kVpeak Pc2max=1.25W Ec2max=150V Ikmax=55mA/200mApeak A1S : Ep=200V Ec2=125V Rk=180Ω Ipmax=47mA Ic2max=8.5mA Zl=4kΩ D=10% Po=3.8W 6) 12DB5 USA ￥800 NIB 一部 ragged box 2) 12DB5 USA ￥350 used
12DE8 =battery-direct Diode Pentode= (EIA/9HG - noval) Eh/Ih=12.6V/0.2A Epmax=30V Ec2max=30V Rg1max=10MΩ Ikmax=20mA Idiode-max=5mA 3) 12DE8 USA ￥600 NIB 1) 12DE8 Mot ￥350 used?
12DF5 =Full wave Rectifier= (EIA/9BS - noval) PIV=1275V Idc=100mA Eh/Ih=12.6V/0.45A(6.3V/0.9A) 1) 12DF5 Syl ￥550 NI
12DK6 =Sharp cutoff Pentode= (EIA/7CM - miniature) Eh/Ih=12.6V/0.15A heater variants : 3DK6(3.15V/0.6A), 4DK6(4.2V/0.45A), 6DK6(6.3V/0.3A) 1) 12DK6 RCA ￥1000 NIB
12DK7 =battery-direct Duplex Diode Tetrode= (EIA/9HZ - noval) Eh/Ih=12.6V/0.5A Ppmax=0.5W Epmax=30V Ec2max=30V Rg1max=15MΩ Ipmax=10mA Ep=12.6V Ec2=12.6V Rg1=2.2MΩ Ip=6mA Ic2=1mA rp=4kΩ gm=5mS 1) 12DK7 USA ￥800 NIB
12DL8 =Duplex-Diode space-charge-grid Tetrode= (EIA/9HR - noval) Eh/Ih=12.6V/0.55A Ehkmax=±30V Epmax=30V Ec1max=16V Ec2max=20V Rg2max=10MΩ 0) 12DL8 USA ￥600 NIB (Q) 2) 12DL8 USA ￥600 NIB 1) 12DL8 USA ￥350 used
12DQ6B =Beam Power= Sweep Tubes(<30W) (EIA/6AM - octal-TopPlate) Eh/Ih=12.6V/0.6A equivallent : 12GW6(=12DQ6B) heater variants : 6DQ6/A/B(6.3V/1.2A), 17DQ6A/B(16.8V/0.45A), 25DQ6(25V/0.3A) heater variants : 6GW6(6.3V/1.2A), 17GW6(25V/0.3A) 1) 12DQ6 Triad(GEmade) ￥900 NIB 1) 12DQ6A RCA ￥1000 NIB 1) 12DQ6A GE ￥900 NIB 2) 12DQ6B/12GW6 GE ￥900 NIB 1) 12DQ6B/12GW6 Syl ￥900 NOS 1) 12DQ6 Syl ￥900 NOS WB 13400/5000min, 13200/5000min 1) 12DQ6A Silvertone ￥900 NOS Syl箱 1) 12DQ6B/12GW6 Znth ￥900 NIB 1) 12DQ6B CBS ￥900 NIB BlkPlate 1) 12DQ6B Packard Bell ￥450 used
12DQ7=12BV7=12BY7A (see 12BV7 12BY7A) =Pentode= (EIA/9BF - noval) Eh/Ih=12.6V/0.3A(6.3V/0.6A)
12DS7 =battery-direct Duplex-Diode space-charge-grid Tetrode= (EIA/9JU - noval) Eh/Ih=12.6V/0.4A Ehkmax=±16V Epmax=16V Ec2max=16V Ec1max=16V op : Ep=12.6V Ec2=-0.5V Ec1(space-charge-grid)=12.6V Ip=35mA Ig1=75mA rp=500Ω gm=16mS μg2p=8 1) 12DS7 Ray ￥700 NIB 1) 12DS7 USA ￥700 NIB 1) 12DS7 Delco ￥400 used
12DT5 =Beam Power= (EIA/9HN - noval) Eh/Ih=12.6V/0.6A heater variant : 6DT5(6.3V/1.2A) 1) 12DT5 RCA ￥800 NIB 1) 12DT5 Tsol ￥600 NIB 1) 12DT5 WH ￥400 used
12DT8 =High mu Twin-Triode= (EIA/9DE - noval) Eh/Ih=12.6V/0.15A Ppmax=2.5W Epmax=300V μ=60 //ユニット間シールド有り (参考 : Ep-Ip特性) heater variant : 6DT8(6.3V/0.3A) (similar to 6AQ8 except heater voltage) (similar to 12AT7) 1) 12DT8 RCA ￥2400 NIB BlkPlates 1) 12DT8 RCA ￥2000 NIB GrayPlates 0) 12DT8 GE ￥- NIB (qD) ０) 12DT8 Syl ￥- NIB BlkPlate(vvQn) 1) 12DT8 Ray ￥2000 NIB BlkPlate 0) 12DT8 WH ￥- NIB GrayPlate 0) 12DT8 WH ￥- NIB BlkPlates(gD) 0) 12DT8 Philco ￥- NIB 0) 12DT8 USA ￥- NIB (qD) 9) 12DT8 Hitachi ￥1400 NIB 1) 12DT8 Syl ￥1000 used BlkPlates
12DU7 =battery-direct Duplex-Diode Tetrode= (EIA/9JX - noval) Eh/Ih=12.6V/0.25A Ehkmax=±16V Epmax=16V Ec2max=16V Rg1max=10MΩ op : Ep=12.6V Ec2=12.6V Rg1=2.2MΩ Ip=12mA Ic2=1.5mA rp=6kΩ gm=6.2mS Zl=2.7kΩ D=10% Po=25mW 1) 12DU7 Syl ￥1200 NIB
12DV7 =battery-direct Duplex-Diode Triode= (EIA/9JY - noval) Eh/Ih=12.6V/0.15A Ehkmax=±16V Epmax=16V Ikmax=20mA Rg1max=10MΩ op : Ep=12.6V Ec2=12.6V Rg1=2.2MΩ Ip=0.4mA rp=19kΩ gm=0.75mS 2) 12DV7 USA ￥600 NIB
12DV8 =battery-direct Duplex-Diode space-charge-grid Tetrode= (EIA/9HR - noval) Eh/Ih=12.6V/0.375A Ehkmax=±16V Epmax=16V Egmax(space-charge)=16V Rgmax=10MΩ op : Ep=12.6V Eg(space-charge)=12.6V Rk=18Ω Rg=4.7MΩ Ip=9mA Ig(space-charge)=53mA rp=900Ω gm=8.5mS μ=7.6 1) 12DV8 Delco(GE-made) ￥1000 NIB RCA箱 4) 12DV8 WH ￥1000 NIB
12DW4 =Half wave HV Rectifier= (EIA/9HP - NOVAR) Eh/Ih=12.6V/0.6A PIV5500V/Idc250mA heater variants : 6DW4/A/B(6.3V/1.2A) 17DW4/A(16.8V/0.45A) 1) 12DW4 Triad ￥600 NIB 1) 12DW4A WH ￥600 NIB 1) 12DW4A GE ￥600 NIB
12DW7
12DW8 =battery-direct Diode Double-Triode= (EIA/9JC - noval) Ep=12.6V/Ih=0.45A Ehkmax=±16V triode #1 : Ppmax=0.5W Epmax=16V Rgmax=1.5MΩ op : Ep=12.6V Rg=1.5MΩ Ip=1.9mA gm=2.7mS μ=9.5 triode #2 : Ppmax=0.5W Epmax=16V Rgmax=1.5MΩ op : Ep=12.6V Rg=1MΩ Ip=7.5mA gm=6.5mS μ=6.4 1) 12DW8 USA ￥600 NIB
12DZ6/12EA6 =battery-direct remote cutoff RF Pentode= (EIA/7BK - miniature) Eh/Ih=12.6V/0.19A Epmax=16V Ec2max=16V Rg1max=10MΩ Rg3max=10MΩ op : Ep=12.6V Ec2=12.6V Rg1=10MΩ Ip=4.5mA Ic2=2.2mA rp=25kΩ gm=3.8mS similar to 12EA6 1) 12DZ6/12EA6 GE ￥1200 NIB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
2) 12E WE ￥3000 NIB Transistor Original青白箱
12E1/CV345 =Beam power Tetrode= (EIA/6AM, octal, ST top-plate) Eh/Ih=6.3V/1.6A Ehk=-300V(positive cathode) Ppmax=35W Epmax=800V Pc2max=5W Ec2max=300V Ikmax=300mA Ec1-max=-100V op : Ep=150V Ec2=150V Ip=200mA(Ec1-changed) gm=14mS μg2g1=5.3 pins : 1(NC)-2(H)-3(NC)-4(G2)-5(G1)-6(NC)-7(H)-8(K,Beam)-Top(P) size : 54mmΦ x 146mmH, in max. (参考 : 三結時のEp-Ip特性(triode-connection)) see an equivallent type : 12E14 also see a just-small-sized type : S11E12 also see a same base American Beam Power tube : 6AL6G(Ppmax=18.5W, Epmax=350V, Ec2max=300V) 4) 12E1/CV345 ValveElectronic ￥4300 NIB RaggedBox 2) CV345/12E1 STC ￥4300 NIB D/C=8414, 8414 管頂の様子/Top-View 2) CV345/12E1 STC ￥4300 NIB D/C=8440, 8440 管頂の様子/Top-View 2) CV345/12E1 STC ￥4300 NIB D/C=8440, 8440 管頂の様子/Top-View 2) CV345/12E1 STC ￥4300 NIB D/C=8418, 他 管頂の様子/Top-View 0) 12E1 AEI ￥- used WB
12E12 =Pulse Modulator Tetrode= (EIA/) Eh/Ih=26V/1.6A Ppmax=60W Epmax=11kV Pc2max=8W Ec2max=1.35kV 0) 12E12 Mazda ￥- NIB
12E13 =Beam Tetrode= (EIA/) Eh/Ih=6.3V/1.6A Ehkmax=150V Tetrode connection : Ppmax=35W Epmax=600V Pc2max=6W Ec2max=600V Ikmax=175mA Rg1max=100kΩ(fixed-bias) Triode connection : Pp+g2max=40W Ep,g2max=600V gm=12mS rp=670Ω μ=8 op 1 (Ultra Linear) : Eb=500V Ep,g2=425V Ip+g2max=2x100mA Rk=525ohm/each Rlp-p=6kΩ (Zout=4.5kΩ) Po=50W D=1% op 2 (Ultra Linear) : Eb=560V Ep,g2=550V Ip+g2max=2x150mA Eg1=-80V Rlp-p=4.5kΩ (Zout=6.5kΩ) Po=100W D=3-6% op 3 (Triodeconnection) : Eb=485V Ep,g2=425V Ip+g2max=2x90mA Eg1=-48V Rlp-p=4kΩ (Zout=2.5kΩ) Po=27W D=1-3% pins : 1(S)-2(H)-3(P)-4(G2)-5(G1)-6(NC)-7(H)-8(K,G3) size : 52mmΦ x 125mmH in max. 0) 12E13 AEI ￥- NIB
12E14 =Beam Tetrode(especially for stabilized Power Supply)= (EIA/) Eh/Ih=6.3V/1.6A Ehkmax=-300VDC(positive cathode) Ppmax=35W Epmax=800V Pc2max=5W Ec2max=300V Ikmax=300mA pins : 1(IC)-2(H)-3(P)-4(G2)-5(G1)-6(G3-BP)-7(H)-8(K) (参考 : 三結時のEp-Ip特性(triode-connection)) see equivallent type : 12E1(top plate) also see a pin-compatible just-small-sized type : S11E12 他の球(6336A,807)との外観比較(巨大なプレートとコンパクトなガラスエンベロープ) size : 44mmΦ x 106mmH in max 4) 12E14 STC ￥offer NOS? 1) 12E14 STC ￥offer very-lightly used TopGtr 1) 12E14 / CV8727 ITT ￥offer very-lightly used SideGtr 2) 12E14 STC ￥offer used 2) 12E14 STC? ￥offer used right-one:broken-CenterIndexPost
12EA6 =battery-direct remote cutoff Pentode= (EIA/7BK - miniature) Eh/Ih=12.6V/0.19A Epmax=16V Ec2max=16V Rg1max=10MΩ Rg3max=10MΩ op : Ep=12.6V Ec2=12.6V Rg1=10MΩ Ip=3.2mA Ic2=1.4mA rp=32kΩ gm=3.8mS similar to 12DZ6 1) 12EA6 Admrl ￥800 NIB 0) 12EA6 USA ￥- NIB
12ED5 =Beam Power= (EIA/7CV - miniature) Eh/Ih=12.6V/0.45A design-max : Ppmax=6.25W Epmax=150V Pc2max=1.5W Ec2max=150V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=125V Ec2=125V Ec1=-4.5V Ip=37/36mA Ic2=7/11mA rp=14kΩ gm=8.5mS D=5% Po=1.5W similar to 12FX5(design-max Ppmax=5.5W) (lower-rating similar type :12R5(design-cent Ppmax=4.5W)) 5) 12ED5 USA ￥700 NIB 1) 12ED5 USA ￥450 used
12EG6 =battery-direct Dual-control Heptode= (EIA/7CH - miniature) Eh/Ih=12.6V/0.15A Ehkmax=±30V Epmax=30V Ec2,4max=30V Ec3max=+0V/-30V Ikmax=20mA Rg3max=10MΩ op : Ep=12.6V Ec2,4=12.6V Ec3=-0.8V Ec1=-0.8V Ip=0.4mA Ic2=2.4mA rp=150kΩ gm=2.4mS 1) 12EG6 RCA ￥1000 NIB 1) 12EG6 USA ￥800 NIB 4) 12EG6 USA ￥450 used
12EK6 =battery-direct sharp cutoff RF Pentode= (EIA/7BK - miniature) Eh/Ih=12.6V/0.19A Epmax=16V Ec2max=16V Rg1max=10MΩ Rg3max=10MΩ op : Ep=12.6V Ec2=12.6V Rg1=2.2MΩ Ip=4mA Ic2=1.7mA rp=50kΩ gm=4.2mS similar To 12DZ6, 12EA6 0) 12EK6 USA ￥- NIB 1) 12EK6 RCA ￥1000 NIB 3) 12EK6 RCA ￥1000 NIB 1) 12EK6 Delco(RCA-made) ￥1000 NIB RCA箱 2) 12EK6 Syl ￥800 NIB 2) 12EK6 Phlps ￥800 NIB 10) 12EK6 GE ￥800 NOS bulk
12EM6 =Diode Tetrode= (EIA/9HV - noval) Eh/Ih=12.6V/0.5A Ehkmax=±30V Epmax=30V Ec2max=30V Rg1max=15MΩ Ipmax=10mA op : Ep=12.6V Ec2=12.6V Rg1=2.2MΩ Ip=6mA Ic2=1mA rp=4kΩ gm=5mS 1) 12EM6 GE ￥800 NIB 1) 12EM6 WH ￥800 NIB
12EN6 =Beam Power= (EIA/7AC - octal) Eh/Ih=12.6V/0.6A pentode connection : Ppmax=7W Epmax=300V Pc2max=1.25W Ec2max=150V Ikmax=50mA Rg1max=2.2MΩ op : Ep=200V Ec2=110V Ec1=-9.5V Ip=50mA Ic2=2.2mA rp=28kΩ gm=8mS triode connection : Ppmax=7.5W Epmax=300V Ikmax=50mA Rg1max=2.2MΩ can be replaced by 12L6, or 12W6 1) 12EN6 CBS ￥1200 NIB
12F =filamentary Halfwave Rectifier= (EIA/4B - '3pin' - ST12) Ef/If=5V/0.5A PIV=850V Eacmax=300V Idcmax=40mA/240mApeak pins: 1(F)-2(P)-3(NONE)-4(F) 1) KX-12F H.F.(Japan) ￥2100 NIB ragged-box 1) KX-12F マツダ(Matsuda) ￥1500 lightly-used WB (hyy17s) 1) 12F NEC ￥1500 used-lightly WB 1) KX-12F マツダ(Matsuda) ￥1500 used WB 1) KX-12F マツダ(Matsuda) ￥- used 3) KX-12F マツダ(Matsuda) ￥1000 used (1)BlkPlate, (2)NickelPlate WB 2) 12F Matsushita, TEN ￥- used cp 1) 12F Rising ￥1000 used WB 1) 12F xxx ￥1000 used-lightly WB
12FK =cathode-type Halfwave Rectifier= (EIA/ - '3pin' - ST12) Eh/Ih=5V/0.5A PIV=850V Eacmax=300V Idcmax=40mA/240mApeak pins: 1(F)-2(P)-3(NONE)-4(F,K) 1) 12FK Matsushita ￥1000 used WB
12F8 =battery-direct Duplex-Diode Pentode= (EIA/9FH - noval) Eh/Ih=12.6V/0.15A pentode : Epmax=30V Ec2max=30V Rg1max=10MΩ op : Ep-12.6V Ec2=12.6V Ec1=0V Ip=1mA Ic2=0.38mA rp=330kΩ gm=1mS diode : Idcmax=1mA 3) 12F8 RCA ￥1700 NIB 1) 12F8 RCA ￥1000 used Amperex箱 1) 12F8 USA ￥1000 used Syl箱
12FM6 =battery-direct Duplex-Diode Triode= (EIA/7BT - miniature) Eh/Ih=12.6V/0.15A pentode : Epmax=30V Ikmax=20mA Rg1max=10MΩ op : Ep-12.6V Ec=0V Rg=0Ω Ip=1.8mA rp=5.6kΩ gm=2.4mS diode : Idcmax=1mA 0) 12FM6 USA ￥600 NOS
12FQ7 =Twin Triode= (EIA/9LP - noval) Eh/Ih=12.6V/0.3A heater variants : 6FQ7(6.3V/0.6A) 8FQ7(8.4V/0.45A) also see 6CG7(6.3V/0.6A) 8CG7(8.4V/0.45A) 1) 12FQ7 RCA ￥1300 NIB 2) 12FQ7 GE ￥1200 NIB 2) 12FQ7 GE ￥1200 NIB 1) 12FQ7 Matsushita ￥1200 NIB cellophane-sealed 5) 12FQ7 Matsushita ￥1200 NIB cellophane-sealed 1) 12FQ7 Matsushita ￥1100 NIB 白箱
12FR8 =battery-direct Diode Triode Pentode= (EIA/9KU - noval) Eh/Ih=12.6V/0.32A pentode : Epmax=16V Ec2max=15V Rg1max=10MΩ op : Ep=12.6V Ec2=12.6V Ec1=-0.8V Ip=1.9mA Ic2=0.7mA rp=400kΩ gm=2.7mS triode : Epmax=16V Rg1max=10MΩ op : Ep=12.6V Ec=-0.6V Ip=1mA gm=2.7mS μ=10 2) 12FR8 Tsol ￥1200 NIB
12FV7 =med-mu TwinTriode for relay-control= (EIA/9A - noval) Eh/Ih=12.6V/0.45A(6.3V/0.9A) Ehkmax=±200V(DCmax=+100V) Ppmax=2.5W Epmax=330V(abs.max)/300V(des.max) Egmax=+0V Ikmax=30mA Rgmax=3.3MΩ op : Ep=100V Ec=-2V Ip=16mA rp=2.25kΩ gm=9.6mS μ=21.5 (参考 : Ep-Ip特性) different-base, electrically-similar types for computer : 5687(gm=5.4mS, μ=16), 7044(gm=12mS, μ=21) 0) 12FV7 RCA ￥- NIB GrayPlates 5) 12FV7 RCA ￥1200 NIB GrayPlates RaggedBoxes 4) 12FV7 Delco(RCA-made) ￥1200 NIB GrayPlates 0) 12FV7 GE ￥- NIB very-ragged boxes 10) 12FV7 RCA ￥1000 BulkNOS? GrayPlates, no-print on glass except 12FV7, WB gm=7500μmho/7400μmho, 7250/7500, 7300/7400, 7150/7100, 6850/6900, 6750μmho/7000μmho, 6800/6700, 6650/6550, 6650/6500, 6150/5900 where, minimum-gm = 4250μmho on our WE(Hickok-made) KS-15750-L1 tester 0) 12FV7 RCA ￥400 used smeared-silk WB 0) 12FV7 RCA etc ￥400 used WB
12FX5 =Power Pentode= (EIA/7CV - miniature) Eh/Ih=12.6V/0.45A(11sec) Ehkmax=±200V design-max :Ppmax=5.5W Epmax=150V Pc2max=2W Ec2max=130V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=110V Ec2=115V Rk=62Ω(Ec1=-3V) Ip=35mA Ic2=12mA Zl=3kΩ D=8% Po=1.3W heater variant : 60FX5(60V/0.1A) can be replaced by 12ED5(design-max Ppmax=6.25W) (lower-rating similar type :12R5(design-center Ppmax=4.5W)) 3) 12FX5 USA ￥600 NIB
12FX8 =battery-direct Triode Heptode= (EIA/9KV - noval) Eh/Ih=10-15.9V Epmax=16V Ec2max=16V op : Ep=12.6V Ec2=12.6V Ec1=-0.8V Ip=1.3mA rp=7.15kΩ gm=1.4mS μ=10 1) 12FX8A USA ￥600 NIB
12G-B3/12GB3 =horizontal deflection BeamPower= (EIA/6AM - octal TopPlate) Eh/Ih=12.6V/0.6A Ppmax=10W Epmax=500V Pc2max=5W Ec2max=200V Ikmax=150mA gm=14mS Rgmax=2.2MΩ Ehkmax=200V (Triode connection : Ppmax=13W) pins : 1(IC)-2(H)-3(IC)-4(G2)-5(G1)-6(NC)-7(H)-8(KG3)-Top(P) heater variant : 6G-B3A(6.3V/1.2A, Ppmax=13W/later-design) (参考 : 6G-B3Aのdata-sheet/Ep-Ip特性) (参考 : 三結時のEp-Ip特性(triode connection)) different heater-spec. similar types : 6CM5, and EL36(Eh/Ih=6.3V/1.25A) : pin #1(IC), #3(IC)を用いなければ同一pin配列 also see 25E5(25V/0.3A), PL36(25V/0.3A), 50JY6(50V/0.15A) different-base similar types : 12H-B25(NOVAR) 12B-B14(MAGNOVAL) 5) 12G-B3 Toshiba ￥1800 NIB still have cellophane wrapping (partially a little peeled-off) 7) 12G-B3 Hitachi ￥1500 used-lightly VeryStrong & clean 1) 12G-B3 Hitachi ￥500 used justGassyVeryStrong
12G-B7/12GB7 =horizontal deflection BeamPower= (EIA/6AM - octal TopPlate) Eh/Ih=12.6V/0.6A Ppmax=15W Epmax=700V Pc2max=5W Ec2max=250V Ikmax=200mA gm=14mS Rgmax=1MΩ Ehkmax=225V 12GB7 = Ruggdized 12GB3 pin ; 1-IC 2-H 3-IC 4-G2 5-G1 6-NC 7-H 8-KG3 heater variant : 6GB7(6.3V/1.2A) 0) 12G-B7 Toshiba ￥- NIB 0) 12G-B7 Hitachi ￥- NIB 0) 12G-B7 NEC ￥- NIB 0) 12G-B7 TEN ￥- NIB 1) 12G-B7 Matsushita ￥700 lightly-used very-ragged box
12GC6 =BeamPower= (EIA/8JX - octal) Eh/Ih=12.6V/0.6A(11sec) Ppmax=17.5W Epmax=770V Pc2max=4.5W Ec2max=220V Ikmax=175mA Rg1max=1MΩ Ehkmax=±200V op : Ep=250V Ec2=150V Ec1=-22.5V Ip=75mA Ic2=2.4mA rp=20kΩ gm=6.6mS 1) 12GC6 RCA ￥1000 NIB 1) 12GC6 GE ￥900 NIB 1) 12GC6 Motorola(GE-made) ￥900 NIB 1) 12GC6 RCA ￥700 used STRONG
12GE5 =BeamPower= Sweep Tubes(<30W) (EIA/12BJ - compactron) Eh/Ih=12.6V/0.6A(11sec) Ppmax=17.5W Epmax=770V/6.5kVpeak Pc2max=3.5W Ec2max=220V Ikmax=175mA/530mApeak Rg1max=1MΩ op : Ep=250V Ec2=150V Ec1=-22.5V Ip=65mA Ic2=1.8mA rp=18kΩ gm=7.3mS op(triode-connection) : Ep=150V Ec=-22.5V μ=4.4 see heater variant : 6GE5(6.3V/1.2A) also see same-base, electrically-similar type : 6HB5 3) 12GE5 RCA ￥1200 NIB 1) 12GE5 Motorola(GE-made) ￥1200 NIB 1) 12GE5 Realistic ￥1200 NIB VeryRaggedBox
12G-K17/12GK17 =HalfWave Rectifier for TV dumper= (EIA/4CG - octal) Ppmax=6.5W PIV=4500V Idc=190mA/1150mApeak Eh/Ih=12.6V/0.6A see similar type : 12AX4 <ダンパ用-高圧半波整流管の比較> <その他の4CGベース ピンコンパチ半波整流管> see a heater variant 6G-K17(6.3V/1.3A) 5) 12G-K17 TEN ￥800 NIB cellophane-sealed boxes 3) 12G-K17 TEN ￥800 NIB
12GN7/A/12HG7 (see 12HG7) =High-gm Sharp Cutoff Pentode= (EIA/9BF - noval) *Note : "Electrode Short Test" by ordinary tube testers shouldn't be done because of the low Egk-isolation of this tube. (over-50Vpeak voltage should never be applied onto very-narrow G1-K space of these very-high gm tubes.) Cg1p=0.12pF Cinput(g1 to h+k+g2+g3+IS)=17.5pF Coutput(p to h+k+g2+g3+IS)=4.0pF Eh/Ih=12.6V/0.3A(6.3V/0.6A) Rg1max=100kΩ(fixed)/250kΩ(self) *design maximum ratings (GE): 12GN7 : Ppmax= 7.5W Epmax=400V Pc2max=1.5W Ec2max=330V 12GN7A: Ppmax=11.5W Epmax=400V Pc2max=1.5W Ec2max=330V *design maximum ratings (RCA): 12HG7/12GN7A: Ppmax=10.0W Epmax=400V Pc2max=1.0W Ec2max=330V op : Ep=250V Ec2=150V Rk=56Ω Ip=28mA Ic2=6.5mA rp=50kΩ gm=36mS same-base similar type : 11HM7(Ppmax=7W, Eh/Ih=11V/0.3A or 5.5V/0.6A) also see a European high-gm video pentode w/ similar pinout : EL802(Ppmax=6W, gm=40mS, μg2g1=70) 10) 12GN7 Toshiba ￥1200 NIB TopGetter GrayPlate, NHK-1974.5, lot=4F for all, very-ragged boxes 4) 12GN7A RCA ￥1200 NIB TopGetter GrayPlate 1) 12GN7A RCA ￥1200 NIB TopGetter BlackPlate 25) 12GN7A WH(GE-made) ￥1000 NIB TopGetter date=85-06 0) 12GN7A/12HG7 WH(GE-made) ￥- NIB TopGetter date=67-04 w/sleeve 1) 12GN7A/12HG7 Ray ￥1000 NIB 7) 12GN7/12GN7A/12HG7 USA ￥1000 NOS/NIB 1) 12GN7/12HG7 RCA ￥900 used BlkPlate 16400/10000min 1) 12GN7A Syl ￥700 used SheldonRB入 1) 12GN7 USA ￥500 used
12G-P7/12GP7/N-052 =Power Pentode= (EIA/ - octal) Eh/Ih=12.6V/0.36A Pp=W Epmax=V Pc2max=W Ec2max=V op : Ep=250V Ec2=250v Ec1=-15V(Rk=350Ω) Ip=35mA Ic2=8mA rp=60kΩ gm=3mS μ=180 Zl=6kΩ Po=3W pins : 1(G2)-2(H)-3(NONE)-4(K)-5(G1)-6(G3)-7(H)-8(P) 1) 12G-P7 Japan ￥offer used WB
12GT5 =Beam Power= (EIA/9NZ - NOVAR) Pp=17.5W Epmax=770V Pc2max=2.2W Ec2max=220V Eh/Ih=12.6V/0.6A heater variant : 6GT5(6.3V/1.2A) : sweep tube 1) 12GT5 RCA ￥1900 NIB
12GW6 =Beam Power= Sweep Tubes(<30W) (EIA/6AM - octal-TopPlate) Eh/Ih=12.6V/0.6A equivallent : 12DQ6B heater variants : 6GW6(6.3V/1.2A), 17GW6(25V/0.3A) heater variants : 6DQ6B(6.3V/1.2A), 17DQ6B(16.8V/0.45A), 25DQ6(25V/0.3A) 4) 12GW6/12DQ6B RCA ￥1000 NIB 1) 12GW6/12DQ6B Admrl ￥500 used? RCA箱
12H6 =TwinDiode= (EIA/7Q - octal) Eh/Ih=12.6V/0.15A heater variant : 6H6(6.3V/0.3A) 4) 12H6 RCA ￥1200 NIB MB 1) 12H6 CKR ￥1000 NOS
12H-B25/12HB25 =BeamPower= (EIA/T9J - NOVAR) Eh/Ih=12.6V/0.6A Ppmax=13W Epmax=6700Vpeak Pc2max=5W Ec2max=250V op : Ep=100V Ec1=-7.7V Ec2=100V Ip=100mA Ic2=7mA rp=5.3kΩ gm=14mS μg2g1=6 pins : 1(G1)-2(G1)-3(G3)-4(H)-5(H)-6(G2)-7(G2)-8(G3)-9(K)-TOP(P) heater variants : 6H-B25(6.3V/1.2A), 17H-B25(16.8V/0.45A) different-base similar types : 12G-B3(octal) 12B-B14(MAGNOVAL) 3) 12H-B25 Toshiba ￥1000 NIB 10) 12H-B25 Toshiba ￥1000 NIB original cellophane-sealed boxes
12HG7/12GN7A (see 12GN7/12GN7A) =High-gm Sharp Cutoff Pentode= (EIA/9BF - noval, 9T9) Eh/Ih=12.6V/0.26A(6.3V/0.52A) Ehkmax=±200V * Cg1p=0.15pF Cinput(g1 to h+k+g2+g3+IS)=14pF Coutput(p to h+k+g2+g3+IS)=4.4pF Ppmax=10W Epmax=400V Pc2max=1W Ec2max=330V Ec1max=0V Rg1max=100kΩ(fixed)/250kΩ(self) op : Ep=300V Ec2=135V Rk=47Ω Ip=31mA Ic2=4.8mA rp=60kΩ gm=32mS 5) 12HG7/12GN7A RCA ￥1200 NIB ClearTop SingleSideGetter GrayPlate(hyxbnt) 4) 12HG7/12GN7A RCA(GE-made) ￥1200 NIB TopGetter GrayPlate 1) 12HG7/12GN7A RCA(Syl-made) ￥1200 NIB TopGetter BlackBeam,GrayPlate 12) 12HG7/12GN7A RCA ￥1200 NIB(rhx10) 11) 12HG7/12GN7/A GE ￥1000 NIB 1) 12HG7 GE ￥1200 NIB 9T9 1) 12HG7 RCA ￥900 used 18900/10000min 1) 12HG7 RCA ￥1000 used 9T9 TipTop 2) 12HG7 USA ￥700 used 1) 12HG7 RCA ￥2100 used? 9T9 =rare=
12HL7 =High-gm sharp-cutoff Pentode= (EIA/9BF - noval) Eh/Ih=12.6V/0.3A(6.3V/0.6A) Ehkmax=±200V * Cg1p=0.15pF Cinput(g1 to h+k+g2+g3+IS)=15pF Coutput(p to h+k+g2+g3+IS)=6.0pF Ppmax=10W Epmax=400V Pc2max=1W Ec2max=330V Ec1max=0V Rg1max=100kΩ(fixed)/250kΩ(self) op : Ep=250V Ec2=150V Rk=122Ω Ip=25mA Ic2=6mA rp=55kΩ gm=21mS 1) 12HL7 RCA ￥900 NIB 2) 12HL7 Znth ￥900 NIB 1) 12HL7 USA ￥900 NOS
12J5GT/12J5WGT/VT-135 =general purpose Triode= (EIA/6Q - octal) Ppmax=2.5W Epmax=300V Ikmax=20mA Ehkmax=90V Eh/Ih=12.6V/0.15A op : Ep=250V Ec=-8V Ip=9.0mA μ=20 rp=7.7kΩ gm=2.6mS Also see 6J5/6J5G/6J5GT/6J5WGT, 6F8/G, 6SN7GT/GTA/GTB/WGT unit identical to 12SN7GT/GTA and 12SX7GT - GT new - 1) JAN-CRC 12J5GT/VT135 RCA BulkNOS ￥2600 RibbedBlackPlate BtmDGtr CopperGridPost date=H5E(Oct.1944) SilverLogo WB 3) 12J5GT/VT135 RCA NOS-bulk ￥2600 RibbedBlackPlate BtmDGtr SilverLogo WB 4) 12J5GT RCA NOS-bulk ￥2400 RibbedGrayPlate BtmDGtr date=59-22 SilverLogo WB 1) 12J5GT RCA ￥2200 NIB RibbedGrayPlate VeryRaggedBox 1) 12J5GT CBS(RCA-made) NOS-bulk ￥2200 RibbedGrayPlate BtmDGtr 1950's RedLogo WB 1) JAN-CHS-12J5GT/VT-135 Syl NIB ￥3000 RoundBlkPlate BtmGtr date=9-43(1949) MB 10) JAN-CHS-12J5GT/VT-135 Syl NOS-bulk ￥2400 RibbedBlackPlate TopGridFin WaistFoilGtr WB 2) 12J5GT/G Syl NIB ￥2700 RoundBlkPlate BtmGtr code=5N MB 1) 12J5GT Philco(Syl-made) NOS-bulk ￥2400 RibbedBlackPlate TopGridFin WaistFoilGtr WB 2) USN-12J5WGT Ray NIB ￥2700 RibbedBlackPlate date=0-22(1950) Navy BlkLogo MB 4) JAN-CRP-12J5WGT Ray NIB ￥2700 RibbedBlackPlate date=2-10(1952) YelloLogo MB 6) JAN-CRP-12J5WGT Ray NIB ￥2700 RibbedBlackPlate date=2-13(1952) BlkLogo MB 1) JAN-CRP-12J5WGT Ray NIB ￥2400 RibbedBlackPlate date=6-47(1956) OrangeLogo MB 3) JAN-CRP-12J5WGT Ray NOS-bulk ￥2400 RibbedBlackPlate TopDGtr TopGridFin date=2-10 OrangeLogo WB 2) JAN-CKR-12J5GT/VT-135 Krad NOS-bulk ￥2400 RibbedBlackPlate CopperGridFin WaistFoilGtr WB 1) 12J5GT/VT-135 Krad NOS-bulk ￥2400 RibbedBlackPlate WaistFoilGtr WB 3) 12J5GT-U.S.ARMY/VT-135 Krad NOS-bulk ￥2400 RibbedBlackPlate CopperGridPost WaistFoilGtr WB 1) 12J5GT Krad NOS-bulk ￥2200 RibbedBlackPlate WaistFoiGtr D/C=11E WB 4) JAN-CTL-12J5GT/VT-135 Tsol NOS-bulk ￥2400 RibbedBlackPlate CopperGridPost TopTwinMetalSupporter BtmFoil-D-Gtr WB 1) JAN-CTL-12J5GT/VT-135 Tsol NOS-bulk ￥2400 RibbedBlackPlate CopperGridPost TopTwinMetalSupporter BtmFoil-D-Gtr WB gm=92/50min(on TV-7B/U) 1) 12J5GT/VT-135 Tsol NOS-bulk ￥2400 RibbedBlackPlate CopperGridPost TopTwinMetalSupporter BtmFoil-D-Gtr WB 9) JAN-CNU 12J5GT NU ￥2700 NIB MB ClearGlass BlkPlate WaistGtr date=7-1952 3) JAN-CNU-12J5GT Ray NOS-bulk ￥2400 RibbedBlackPlate CopperGridPost WaistFoilGtr WB - GT used - 1) 12J5GT RCA ￥2000 used? 3180/1640min glass 1) JAN-CRC-12J5GT/VT-135 RCA ￥2000 RibbedBlackPlate LikeNew gm=2850/1640min Ip=6.8mA(539B) WB 1) VT-135/12J5GT Tsol ￥2000 RibbedBlackPlate LikeNew gm=2900/1640min Ip=7.3mA(539B) WB
12JB6=Beam Power= Sweep Tubes(<30W) (EIA/9QL - NOVAR TopPlate) Eh/Ih=12.6V/0.6A heater variants : 6JB6/A(6.3V/1.2A) 17JB6/A(16.8V/0.45A) 2) 12JB6 Syl ￥2400 NIB
12JF5=Beam Power= Sweep Tubes(<30W) (EIA/12JH - compactron TopPlate) Eh/Ih=12.6V/0.6A Ehkmax=±200V Ppmax=17.5W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=175mA op : Ep=250V Ec2=150V Ec=-22.5V Ip=65mA Ic2=1.8mA rp=18kΩ gm=7.3mS μg2g1=4.4 1) 12JF5 GE ￥1100 NIB 1) 12JF5 GE ￥600 used 1) 12JF5 Syl ￥600 used
12JQ6 =Beam Pentode w/ Integral Diode= (EIA/9RA - noval) Eh/Ih=12.6V/0.6A heater variants : 6JQ6(6.3V/1.2A) 17JQ6(16.8V/0.45A) 5) 12JQ6 RCA ￥1200 NIB 1) 12JQ6 GE ￥1200 NOS WB
12JT6/A=Beam Power= Sweep Tubes(<30W) (EIA/9QU - NOVAR) Eh/Ih=12.6V/0.6A heater variants : 6JT6/A(6.3V/1.2A) 17JT6/A(16.8V/0.45A) 1) 12JT6A RCA ￥1000 NOS 1) 12JT6A GE ￥1000 NIB
12K5 =battery-direct space-charge-grid Tetrode= (EIA/7FD - miniature) Eh/Ih=12.6V/0.4A Ehkmax=±30V Epmax=30V Ec1max=+16V Ec2max=20V Rg2max=10MΩ op : Ep=12.6V Ec2=-0.5V Ec1(space-charge)=12.6V Ip=40mA Ic1=75mA rp=480Ω gm=15mS μ=7.2 4) 12K5 RCA ￥1500 NIB 0) 12K5 USA ￥- NIB(D) 1) 12K5 RCA ￥700 NOS Radiotron箱
12K7 =remote cutoff RF Pentode= (EIA/7R - octal-TopGrid) Eh/Ih=12.6V/0.15A also see heater variant 6K7(6.3V/0.3A) 1) 12K7GT RCA ￥1200 NIB glass metalBASE
12K8 =common-cathode Triode Hexode Converter= (EIA/8K) Eh/Ih=12.6V/0.15A heater variant : 6K8(6.3V/0.3A) 1) 12K8 GE ￥1500 NIB RaggedBox old 1) JAN-CRC 12K8Y/VT-132 RCA ￥1200 NIB 3) JAN-CRC 12K8Y/VT-132 RCA ￥1000 NIB 錆有 1) JAN 12K8Y/VT-132 Krad ￥1500 NIB sealedBack in Box
12L6/GT =Beam Power= (EIA/7AC - octal) Eh/Ih=12.6V/0.6A Ppmax10W/Epmax200V/Pc2max1.25W/Ec2max125V/Po=3.8W similar to 12W6GT see heater variants : 50L6GT(50V/0.15A), 25L6GT(25V/0.3A) see 6.3V heater variant : 6DG6GT(EIA/7S, 6.3V/1.2A), 6W6GT(Epmax=300V, 6.3V/1.2A) also see smaller-spec. type : 35L6GT(Ppmax=8.5W, Pc2max=1W, 35V/0.15A) 1) 12L6GT RCA ￥1100 NIB 1) 12L6GT Syl ￥1000 NIB GrayGlass 1) 12L6GT WH ￥1000 NIB 1) 12L6 Rauland ￥800 used gm=8250/5650min SmokedGlass
12L8 =Cathode-common Twin Power Pentode (=1644)= (EIA/8BU - octal) #12L8=1644 Ppmax=2.5W Epmax=180V Pc2max=1W Ec2max=180V Ehkmax=100V Eh/Ih=12.6V/0.15A op : Ep=180V Ec2=180V Ip=13mA/13.5mA Ic2=2.8mA/4.6mA rp=160kΩ Zlpp=10kΩ Po=1W 0) 12L8 RCA ￥- NIB 0) 12L8 GE ￥- used
12MD8 =Common-cathode Triple Triode= (EIA/9RQ - NOVAR) Eh/Ih=12.6V/0.45A Ehkmax=±200V Ppmax=3W Epmax=330V Rgmax=1MΩ rp=5.5kΩ μ=17 gm=3.1mS heater variant : 6MD8(6.3V/0.9A) 2) 12MD8 RCA ￥1500 NIB 1) 12MD8 GE ￥1500 NIB 1) 12MD8 Silvertone ￥1500 NOS? Syl箱
12NO30 =delay tube = 12V/2W driver 1) 12NO30/KS14404 Amperite for WE ￥3,000 NIB ragged box : normally-open, 30sec delay
12Q7/GT =duplex-Diode high-mu-Triode= (EIA/7V) 12.6V/0.15A 1) 12Q7GT/G RCA ￥800 NIB ragged box 1) 12Q7GT GE ￥800 NIB ragged box 1) 12Q7 RCA(STD) ￥800 NIB glass 1) 12Q7GT Arcturus ￥800 used 720/500min(T) 150/156/54min(D)
12R5 =Beam Power= (EIA/7CV - miniature) Eh/Ih=12.6V/0.6A(11sec) Ehkmax=+200V/-300Vpeak (for Vert.deflection amp) Rgmax=2.2MΩ(self) design-center: Ppmax=4.5W Epmax=150V/1500Vpulse Pc2max=1W Ec2max=150V Idcmax=45mA/155mApeak op : Ep=110V Ec2=110V Ec1=-8.5V Ip=40mA Ic2=3.3mA rp=13kΩ gm=7mS *for Audio-app, same-basing(7CV) similar-types : 12ED5(des-max Ppmax=6.25W), 12FX5(des-max Ppmax=5.5W) 10) 12R5 Admiral ￥800 NOS MT bulk
12RHH14/12R-HH14 =long-life high-mu twin triode= (EIA/9A - noval) longer-life, lower-microphonic, and lower-grid_current version of #12AX7(μ=100) longer-life, higher-HK_isolation type of #5751 Eh/Ih=6.3V/0.36A(12.6V/0.18A) Ehk=200Vmax Ppmax=1.1W Epmax=330V Ikmax=10mA op : Ep=250V Ec=-2V(Rk=2kΩ) Ip=1mA gm=1mS rp=70kΩ μ=70 pins : 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(HCT) (参考 : Ep-Ip特性) also see other high-μ low-noise twin-triodes : 6EU7, 12AD7 10) 12R-HH14 NEC ￥3000 NIB silver silk 2) 12R-HH14 NEC ￥3000 NIB Top-Gtr 7) 12R-HH14 NEC ￥3000 NIB silver silk 1) 12R-HH14 NEC ￥3000 NIB yellow silk 4) 12R-HH14 NEC ￥2700 NOS? Top-Gtr 電電公社マーク入(NTT-marked) D/C=1970s 0) 12R-HH14 NEC ￥2700 NOS? Top-Gtr w/ original-boxes 4) 12R-HH14 NEC ￥2700 LikeNew Top-Gtr 3) 12R-HH14 NEC ￥2300 lightly-used silver silk, D/C=1964-4, 1965-4, 1965-5 WB 1) 12R-HH14 NEC ￥2300 lightly-used silver silk 通信用-NTT, D/C=1965-6 WB 3) 12R-HH14 NEC ￥2300 lightly-used silver silk, D/C=1965-9, 1965-11, 1966-11 WB 4) 12R-HH14 NEC ￥2300 lightly-used yellow silk, D/C=1970-3, 1970-5, 1970-5, 1970-5 WB 4) 12R-HH14 NEC ￥2300 lightly-used yellow silk, D/C=1971-12, 1973-3, 1973-10, 1975- WB 2) 12R-HH14 NEC ￥2300 lightly-used yellow silk 通信用-NTT WB 1) 12R-HH14 NEC ￥2300 used Top-Gtr tested good -) 12R-HH14 NEC ￥- used Top-Gtr, smeared silk -) 12R-HH14 NEC ￥- used Top-Gtr, not-tested, just-dirty/rusty ones
12R-K19/12RK19 =Halfwave HV rectifier= (EIA/9CB - noval)
12RLL3/12R-LL3 =med-mu twin triode= (EIA/407A - noval)Eh/Ih=6.3V/0.45A (12.6V/0.225A) Ppmax=2.8W Epmax=275V Ikmax=22mA Ehkmax=±100V op : Ep=150V Ec=-2.3V(Rk=230ohm) Ip=10mA rp=5.4kΩ gm=5.5mS μ=30 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(HCT,Shield) (1950年代の電電公社との共同開発品 : code = ECL-1134B) 参考 : 12R-LL3のEp-Ip特性 see a heater-variant and different-basing type : 19R-LL1(Eh/Ih=19V/0.15A) similar to 2C51, 396A, #5670/5670W(μ=35, Eh/Ih=6.3V/0.35A), and #407A/B(μ=35, Eh/Ih=20V/0.1A or 40V/0.05A) also see higher 'rp' SQ types : 6085(gm=2.7mS, μ=30), and E80CC(gm=2.7mS, μ=27) (参考 * NTT-ECL related high-rel, long-life, high-performance communication system receiving tubes * 6B-P16 (ECL-1179), 6B-R22 (ECL-1144), 6B-R23 (ECL---), 6R-H2 (ECL-1175) 6R-P10 (ECL-1071), 6R-R8 (ECL-1083), 6R-R21 (ECL-1084), 19M-R9 (ECL-1069), 12RLL3 (ECL-1134B) 19M-R10 (ECL-1135), 19R-LL1 (ECL-1134), 19R-P11 (ECL-1070), CZ-501D/V, CZ-504D/V) 2) 12R-LL3 NEC ￥2500 NIB 3) 12R-LL3 NEC ￥2300 NOS WB 4) 12R-LL3 NEC ￥2300 NOS WB 2) 12R-LL3 NEC ￥2300 NIB YellowSilk DC=1971-3 RearView 15) 12R-LL3 Hitachi ￥2200 NIB 9) 12R-LL3 Hitachi ￥2200 NIB 17) 12R-LL3 TEN ￥2200 NIB 1) 12R-LL3 TEN ￥2200 NIB 2) 12R-LL3 NEC ￥2200 LikeNew 4) 12R-LL3 NEC ￥1800 lightly-used D/C=1957-8, 1959-3, 1959-3, 1959-8 RedSilk WB 3) 12R-LL3 NEC ￥1800 lightly-used D/C=1961-1,1961-a, 1961-1 RedSilk WB 1) 12R-LL3 NEC ￥1800 lightly-used D/C=1961-10, RedSilk WB 3) 12R-LL3 NEC ￥1800 lightly-used D/C=1962-1 for all, RedSilk 10) 12R-LL3 NEC ￥1800 lightly-used D/C=1962.3, RedSilk, 背面写真(back) 8) 12R-LL3 NEC ￥1800 lightly-used D/C=1962-3 for all, RedSilk WB 1) 12R-LL3 NEC ￥1800 lightly-used D/C=1962-4, RedSilk WB 3) 12R-LL3 NEC ￥1800 lightly-used D/C=1963-8, RedSilk WB 1) 12R-LL3 NEC ￥1800 lightly-used D/C=1964-2, RedSilk WB 1) 12R-LL3 NEC ￥1800 lightly-used D/C=1964-11, RedSilk w/OB 3) 12R-LL3 NEC ￥1800 lightly-used D/C=1965-2 for all, RedSilk WB 1) 12R-LL3 NEC ￥1800 lightly-used D/C=1965-6, RedSilk WB 1) 12R-LL3 NEC ￥1800 lightly-used D/C=1966-2, RedSilk w/OB 3) 12R-LL3 NEC ￥1800 lightly-used D/C=1967-10, 1969-7, 1970-1 YellowSilk WB 1) 12R-LL3 NEC ￥1800 lightly-used D/C=1969-2, YellowSilk w/OB 4) 12R-LL3 NEC ￥1800 lightly-used D/C=1970-4, YellowSilk w/OB 1) 12R-LL3 NEC ￥1800 lightly-used D/C=1970-7, YellowSilk 2) 12R-LL3 NEC ￥1500 used 1) 12R-LL3 Hitachi ￥1800 lightly-used D/C~1957-5 WB 2) 12R-LL3 Hitachi ￥1800 lightly-used D/C=1960-12, 1961-10 WB 3) 12R-LL3 Hitachi ￥1800 lightly-used D/C=1962-2 WB 1) 12R-LL3 Hitachi ￥1800 lightly-used D/C=1962-3 WB 2) 12R-LL3 Hitachi ￥1800 lightly-used D/C=1962-9 WB 2) 12R-LL3 Hitachi ￥1800 lightly-used D/C=1963-4, 1964-4 WB 2) 12R-LL3 Hitachi ￥1800 lightly-used D/C=1970-12, 1971-4 WB 5) 12R-LL3 Hitachi ￥1800 lightly-used 通信用 WB 5) 12R-LL3 Hitachi ￥1800 lightly-used 通信用 WB 1) 12R-LL3 Hitachi ￥1800 lightly-used 通信用 WB 1) 12R-LL3 TEN ￥1800 lightly-used D/C=1961-9 WB 1) 12R-LL3 TEN ￥1800 lightly-used D/C=1971-4 NTT WB 1) 12R-LL3 TEN ￥1800 lightly-used WB 1) 12R-LL3 TEN ￥1800 lightly-used NTT WB 2) 12R-LL3 TEN ￥1500 used
12SA7 =Pentagrid Converter= (EIA/8R,8AD - octal) Eh/Ih=12.6V/0.15A see heater variant 6SA7(Eh/Ih=6.3V/0.3A) 3) 12SA7 RCA ￥1000 NIB metal 1) 12SA7 Syl ￥2000 NIB BigMetal 1) 12SA7 RadTel ￥800 NIB BigMetal 0) 12SA7 WH ￥- NIB Metal 0) 12SA7/Y GE ￥- NIB Metal(sT) 0) 12SA7 GE ￥- NOS Metal 0) 12SA7/VT-161 Krad ￥- NIB MB Metal 3) 12SA7 National ￥1000 NIB metal 0) 12SA7 RCA ￥700 used Metal 0) 12SA7GT USA(NU,Xyl,Silvertone) ￥400 used Glass(T)
12SC7(=#1634) =common-cathode High-mu Twin Triode= (EIA/8S - octal) Eh/Ih=12.6V/0.15A Ppmax=W Epmax=250V op : Ep=250V Ec=-2V Ip=2mA rp=53kΩ gm=1.325mS μ=70 (参考 : Ep-Ip特性と抵抗結合アンプ表) see heater variant 6SC7(Eh/Ih=6.3V/0.3A) 2) 12SC7 RCA ￥1500 NIB metal
12SF5 =High-mu Triode= (EIA/6AB - octal) Eh/Ih=12.6V/0.15A see heater variant 6SF5(Eh/Ih=6.3V/0.3A) 1) 12SF5GT NU ￥1000 NIB
12SF7 =Diode remote-cutoff RF Pentode= (EIA/7AZ - octal) Eh/Ih=12.6V/0.15A see heater variant 6SF7(Eh/Ih=6.3V/0.3A) 1) JAN-CRC 12SF7 RCA ￥1200 NIB Metal MB 3) JAN-CRC 12SF7 RCA ￥1000 NIB Metal MB 錆有 1) 12SF7 RCA ￥1000 NIB Metal 1) 12SF7 GE ￥1000 NIB 青箱 1) 12SF7 GE ￥1000 NIB 橙箱 1) 12SF7 Syl ￥1000 NIB 1) 12SF7 National ￥1000 NIB metal @@
12SG7 =semi-remote-cutoff Pentode= (EIA/8BK - octal) Eh/Ih=12.6V/0.15A see heater variant 6SG7(Eh/Ih=6.3V/0.3A) 2) 12SG7/VT-209 RCA ￥1100 NOS metal 4) 12SG7 RCA ￥1000 NIB metal D/C=7409 3) 12SG7/VT-209 KEN-RAD ￥1000 NOS 1) 12SG7 KEN-RAD ￥1000 NOS WB 1) 12SG7 Tsol ￥1200 NIB 0) 12SG7 GE ￥500 used 錆あり
12SH7 =sharp-cutoff pentode= (EIA/8BK - octal) Eh/Ih=12.6V/0.15A see heater variant 6SH7(Eh/Ih=6.3V/0.3A) 4) 12SH7 RCA ￥1000 NIB metal
12SJ7 =Sharp-cutoff Pentode= (EIA/8N - octal) Eh/Ih=12.6V/0.15A see heater variant 6SJ7(Eh/Ih=6.3V/0.3A) similar to RH2/SOLA/SORA(Eh/Ih=12V/0.175A) 1) JAN-CRC 12SJ7 RCA ￥900 NIB metal D/C=5643 1) JAN-CRC 12SJ7 RCA ￥900 NIB metal(sD) 1) 12SJ7/VT-162 RCA ￥900 NOS metal 10) 12SJ7 RCA ￥700 NIB (hyybnt) 1) 12SJ7 RCA ￥600 NOS GE橙箱 2) 12SJ7 GE ￥600 NIB metal(sT) 2) 12SJ7 GE ￥600 NOS metal RCA箱 2) 12SJ7 C-GE ￥600 NIB metal 2) 12SJ7 CKR ￥600 NOS 1) 12SJ7 RCA ￥700 NIB Metal 1) 12SJ7 RCA ￥500 used Metal
12SK7 =remote-cutoff RF Pentode= (EIA/8N - octal) Eh/Ih=12.6V/0.15A see heater variant 6SK7(Eh/Ih=6.3V/0.3A) 2) JAN-CRC 12SK7/VT-131 RCA ￥1000 NIB metal(sD) 2) JAN-CRC 12SK7/VT-131 RCA ￥700 NIB metal 錆有(sD) 1) CRC-12SK7Y RCA ￥1000 NIB 1) 12SK7 RCA ￥900 NIB metal 1) 12SK7 RCA ￥900 NIB 1) 12SK7 GE ￥900 NIB metal 2) 12SK7 Syl ￥2000 NIB BigMetal 1) VT-131/12SK7 Krad ￥700 NOS? metal MB 0) 12SK7/VT-131 GE ￥- NOS metal(mQ) 0) 12SK7 TruVac ￥- NOS 0) 12SK7 USA(CBS,Tsol,Silvertone,Edison etc) ￥- NIB/NOS metal(mQ) 1) 12SK7GT Matsushita ￥1000 NIB 1) 12SK7GT NU ￥700 used Glass RCA箱 0) 12SK7GT USA ￥500 used metal(xT)
12SL7/VT-289 =high-mu-twin Triode= (EIA/8BD-octal) Eh/Ih=12.6V/0.15A see heater variants(Eh/Ih=6.3V/0.3A) : 6SL7, 5691, CV1985(6SL7GT) 12.6V/0.3A-heater same-base different-μ twin-triodes: 2C50(μ=10), 12SN7GT(μ=20), 12SX7GT(μ=20), 2C52(μ=100) 1) 12SL7GT 日立 ￥1000 NIB 3) 12SL7GT RCA ￥1100 NIB 1) 12SL7GT RCA ￥1100 NIB 1) 12SL7GT RCA ￥1100 NIB SmokedGlass @@ 1) 12SL7GT RCA ￥1100 NIB BlkRoundPlates TopGtr @@ 1) 12SL7GT GE ￥1000 NIB 1) 12SL7GT Syl ￥1100 NIB BlkCylidricalPlates WaistGtr VeryRaggedBox 1) 12SL7GT Syl ￥1100 NOS D/C=244(1952) BlkCylidricalPlates WaistGtr CBSbox 1) 12SL7GT Syl ￥1100 NIB BlkCylidricalPlates TopGtr RaggedBox 1) 12SL7GT Syl ￥1000 NIB 1) 12SL7GT Syl ￥1000 NIB MB BlackPlates Date=12-66 1) 12SL7GT Syl ￥900 NOS RCA箱 1) JAN-CNU 12SL7GT/VT-289 NU ￥1100 NIB D/C=Jul.1944 BlkCylindricalPlates BtmGtr RaggedBox 1) JAN-CNU 12SL7GT/VT-289 NU ￥1500 NIB MB date=7-1944 RaggedBox 1) 12SL7GT NU ￥900 NOS Std箱 BlkGlass 2) 12SL7GT WH ￥1100 NIB D/C=63-39(1963) BlkCylidricalPlates TopGtr 1) 12SL7GT RadTel ￥1000 NIB 1) 12SL7GT Syl ￥900 used 56/58/32min
12SN7 =medium-mu-twin Triode= (EIA/8BD - octal) Eh/Ih=12.6V/0.3A identical to 12SX7GT, unit identical to 12J5/GT/WGT see heater variant 6SN7(Eh/Ih=6.3V/0.6A), 1633(Eh/Ih=25V/0.15A) 12.6V/0.3A-heater same-base different-μ twin-triodes: 2C50(μ=10), 12SL7GT(μ=70), 2C52(μ=100) 2) 12SN7GT RCA ￥2000 NIB 2) 12SN7GT RCA ￥2000 NIB 1) 12SN7GT RCA ￥2000 NIB BlkPlates BtmGtr 1) 12SN7GT RCA ￥2000 NIB BlkPlates BtmGtr @@ 1) 12SN7GT RCA ￥2200 NIB BlkPlates BtmGtr CuGridPost date=304(Feb.1953) VeryRaggedBox(top-flap lost) 1) 12SN7GTA RCA ￥2000 NIB 19) 12SN7GTA WesternUnion(RCA-m) ￥2200 NIB BlkPlates BtmGtr date=(17)67-22, (1)64-22, (1)67-30 ThinBase @@ 1) 12SN7GTA RCA ￥2200 NIB BlkPlates BtmGtr OrangeLogo ThinBase @@ 1) 12SN7GTA RCA ￥1800 NIB BlkPlates TopGtr CoinBase 2) 12SN7GTA RCA ￥1800 NIB BlkPlates CoinBase 4) 12SN7GTA RCA ￥1800 NIB BlkPlates SideGtr CoinBase @@ 1) 12SN7GT GE ￥2200 NIB GrayPlates SideGtr CuGridPost date=1-52(1951) 2) 12SN7GT GE ￥2200 NIB GrayPlates SideGtr CuGridPost date=3-04(1953) 2) 12SN7GT GE ￥2200 NIB SideGtr 青箱 1) 12SN7GT GE ￥1800 NIB BlkPlates/BottomGetter 1) 12SN7GT GE ￥1800 NIB 2) 12SN7GT GE ￥1800 NIB WB SideGtr 5) 12SN7GT GE ￥2700 NIB GrayPlates SideGetter date=548('55) 3) 12SN7GTA GE ￥1800 NIB 1) 12SN7GTA GE ￥1800 NIB 6) 12SN7GTA WesternUnion(GE-made) ￥2000 NIB GrayPlates SideGtr date=60-30 @@ 6) JAN-CHS 12SN7GT Syl ￥offer NIB WaistGtr BlkBoxPlates3holes GreenPrintThickBase date=238('52) MB mint *$* described as : "3300 235 025 000, Tube Electron, 1 Each, AF 33 (038) 15073, Cincinnati Electronics Co., Cincinnati, Ohio, Date Marking 10/52, Method of Preservation 0" 4) 12SN7GT Syl ￥2900 NIB LongGlass WaistGtr BlkBoxPlates OldBox 2) 12SN7GT Syl ￥1800 NIB BlkTiltPlates TopGtr just-ragged-boxes 1) 12SN7GT Syl ￥1800 NIB BlkTiltPlates 14) 12SN7GTA Syl ￥1800 NIB BlkTiltPlates 3) 12SN7GT Tsol ￥2000 NIB GrayPlates BtmGtr 1) 12SN7GTA Tsol ￥2000 NIB BlkTiltBoxPlates TopGtr LongGlass RaggedBox 1) 12SN7GT Ray ￥2000 NIB BlkPlates/BlkGlass 1) 12SN7GT Ray ￥2000 NIB 1) 12SN7GT Hytron ￥2000 NIB 1) 12SN7GT CBS-Hytron ￥2000 NOS BlkBoxPlates BtmGtr date=5448 1) 12SN7GT WH ￥1800 NIB 1) 12SN7GTA WH ￥1800 NIB 1) 12SN7GTA InterC ￥1800 NIB made in Italy BlkBoxPlates TopGtr 1) 12SN7GT RCA ￥1000 used 107/98/50min SmokedGlass 1) 12SN7GTA RCA ￥1000 LikeNew BlkFlatPlates Bottom-D-getter OrangePrint D/C=MX(1962.10) 1) 12SN7GTA GE ￥1000 used SideGetter 1) 12SN7GT GE ￥1000 used 92/87/50min 1) 12SN7GTA GE ￥1000 used STD箱 GrayPlates/SideGetter 1) 12SN7GT WH ￥1200 used 2920/3100/1640min BlkPlates/SideGetter 1) 12SN7GT Tsol ￥1200 used 91/93/50min TopGetr LongGlass 1) 12SN7GT Tsol ￥1000 used 2820/2800/1640min GrayPlates/BtmGetter 1) 12SN7GTA RCA ￥1000 used STD箱 1) 12SN7GT Syl ￥1200 used? GE青箱 ShorgGlass BlkPlates TopGtr 1) 12SN7 Syl ￥1000 used GE青箱 BlkPlates TopGtr 1) 12SN7GT Syl ￥1000 used WaistGtr BlkBoxPlates-2holes GreenPrint ThickBase date=1-39 gm=94/90/50min 1) 12SN7 Mot ￥1000 used STD箱 BlkPlates/BtmGetter 1) 12SN7GT Philco ￥1000 used 104/84/50min TopGtr 1) 12SN7 Philco ￥1000 used BlkPlates
12SQ7 =duplex Diode high-mu-Triode= (EIA/8Q - octal) Eh/Ih=12.5V/0.15A Ehkmax=±90V Idiode=1mAmax triode(design center) : Ppmax=0.5W Epmax=300V Ecmax=+0V op : Ep=250V Ec=-2V Ip=1.1mA rp=85kΩ gm=1.175mS μ=100 (参考 : 12SQ7/6SQ7のEp-Ip特性) see heater variant 6SQ7(Eh/Ih=6.3V/0.3A) 1) 12SQ7 Amprx ￥1200 NIB metal 2) 12SQ7 RCA ￥1100 NIB metal(Qn) 1) 12SQ7GT RCA ￥1500 NIB glass 1) 12SQ7GT RCA ￥1500 NIB glass 0) 12SQ7 GE ￥- NIB 1) 12SQ7 Krad ￥1000 NOS metal 1) 12SQ7GT Ray ￥1500 NIB Glass 1) 12SQ7 Tsol ￥1200 NIB 1) 12SQ7 Tsol ￥1000 NOS metal Marconi箱 0) 12SQ7GT Triad ￥- NIB 1) 12SQ7GT Philco ￥1500 NIB 0) 12SQ7 USA(Syl,Krad,RCA) ￥600 used metal(Q) 0) 12SQ7 Sheldon ￥600 used RadTel箱 0) 12SQ7GT USA(Admrl,Silvertone.Ray) ￥- used Glass strong(T)
12SR7 =duplex-Diode medium-mu Triode= (EIA/8Q - octal) Eh/Ih=12.6V/0.15A Ehkmax=100Vdc Triode(absolute max.) : Ppmax=2.75W Epmax=275V op : Ep=250V Ec=-9V Ip=9.5mA rp=8.5kΩ gm=1.9mS μ=16 Zl=10kΩ Po=300mW (参考 : Ep-Ip特性) see heater variant 6SR7(Eh/Ih=6.3V/0.3A) 9) 12SR7 Ray ￥700 NIB MB 1) 12SR7 Tsol ￥700 NIB MB 1) 12SR7/VT-133 Krad ￥700 NIB MB
12SX7 =Twin Triode=(EIA/8BD - octal) (suitable for audio amplifiers/oscillators/converters with battery power source @lower Eplate like 26.5V) Eh/Ih=12.6V/0.3A Ehkmax=±90V Rgmax=1MΩ Ppmax=2.5W(2.75W absolute max) Epmax=300V(330V-absolute max) Ec1=0to-50V Ikmax=20mA op : Ep=26.5V Rg=50kΩ Ip=1.8mA gm=1.8mS rp=11.5k μ=21 op : Ep=90.0V Ec=0V Ip=10.0mA gm=3.0mS rp=6.7k μ=20 op : Ep=250V Ec=-8V Ip= 9.0mA gm=2.6mS rp=7.7k μ=20 平均プレート特性(EpIp) 平均プレート特性(EpIp)(@低Ep領域/low-Ep) identical to 12SN7GT/GTA, unit identical to 12J5/GT/WGT also see 6SN7GT/GTA/GTB/WGT, 1633(Eh/Ih=25V/0.15A) 12.6V/0.3A-heater same-base different-μ twin-triodes: 2C50(μ=10), 12SL7GT(μ=70), 2C52(μ=100) 10) JAN-CRC 12SX7GT RCA ￥6200 NIB date=Aug.1954 BlackFlatPlates CuGridPost BtmD-Gtr MB 管頂部(Glass Top) 4) JAN-CRC 12SX7GT RCA ￥６２００ NIB date='50s 8) JAN-CRC 12SX7GT RCA ￥６２００ NIB date=5-56 *$* 4) JAN 12SX7GT RCA ￥５９００ LikeNew
12SY7 =PentaGrid Converter= (EIA/8R - octal) Ppmax=1W Epmax=300V Pc2max=1W Ec2max=100V Pc4max=1W Ehkmax=±90V Eh/Ih=12.6V/0.15A electrically near-identical to 12SA7 14) JAN-CRC 12SY7 RCA ￥1500 NIB date=10-55
12T10 =Dissimilar Double Pentode= (EIA/12EZ - compactron) Eh/Ih=12.6V/0.45A see heater variants : 6T10(6.3V/0.95A) 10T10(9.8V/0.6A) 2) 12T10 Syl ￥1100 NIB
12U7 =battery-direct Twin Triode= (EIA/9A - noval) Eh/Ih=12.6V/0.15A Epmax=30V Ikmax=15mA Rg1max=250kΩ(fixed)1MΩ(self) Ehkmax=±30V op : Ep=12.6V Ec=0V Ip=1mA rp=12.5kΩ gm=1.6mS μ=20 1) 12U7GT/G GE ￥1200 NIB very-ragged box 1) 12U7 Tsol ￥1200 NIB +++
12V6 =Beam Power= (EIA/7AC - octal) Eh/Ih=12.6V/0.225A Ppmax12W/Epmax315V/Pc2max2W/Epmax285V/Po5.5W heater variants : 5V6GT4.7V/0.6A), 6V6/G/GTA(6.3V/0.45A) also similar to a noval(9pin-MT) type : 12AB5(Ek/Ih=12.6V/0.2A) also similar to noval(9pin-MT) types : 6BW6, 6CM6(6.3V/0.45A) 1) 12V6GT GE ￥1200 NIB 1) 12V6GT GE ￥1200 NIB 1) 12V6 Syl ￥1200 NIB RaggedBox 1) 12V6GT TungSol ￥1200 NIB 1) 12V6GT Delco ￥1000 NOS? Ray箱 1) 12V6 Delco ￥1000 NOS SmokedGlass TopGtr 78/46min 1) 12V6 Delco ￥1000 NOS ClearGlass TopGtr 84/46min 2) 12V6 Delco ￥700 used BlackenGlass gm=4550,4780/2600min 1) 12V6 Delco ￥500 used BlackenGlass gm=3840/2600min 1) 12V6GT Delco ￥500 used RCA箱 2) 12V6GT Delco(RCA-made) ￥1000 used 4860,4670/2600min 4) 12V6GT Delco ￥1000 used/LikeNew 4400,4230,4750/2600min
12W6 =Beam Power= (EIA/7AC - octal) Eh/Ih=12.6V/0.6A Ppmax10W/Epmax300V/Pc2max1.25W/Ec2max150V/Po3.8W see heater variant : 6W6GT(6.3V/1.2A) similar to 12L6/GT(12.6V/0.6A) 2) 12W6GT RCA ￥1200 NIB 2) 12W6GT GE ￥1000 NIB 1) 12W6 GE ￥1000 NIB 3) 12W6GT Syl ￥1000 NIB 1) 12W6GT CBS ￥1000 NIB 1) 12W6 Tsol ￥500 used BlackPlates gm=9800/5650min 1) 12W6 Emerson ￥500 used 1) 12W6 Shield ￥500 used
12X4/HZ90 =Full-wave Rectifier= (EIA/5BS - miniature) Eh/Ih=12.6V/0.3A PIV=1250V Idcmax=70mA see 6.3V heater types : 6X4, 6202(6.3V/0.6A) 3) 12X4 Ray ￥700 NIB BlkPlates 10) 12X4 USA(RCA,GE,Syl etc) ￥700 NIB (hyybnx) 2) 12X4 AWV-SuperRadiotron ￥700 NIB 2) 12X4 USA(Boldwin etc) ￥500 used
12Y-R1/12YR1 =sharp-cutoff Pentode= (EIA/T5G - UY TopGrid, ST12) 12V-type 6C6 with UY(5-pin base) Eh/Ih=12.0V/0.15A op : Ep=250V Ec2=100V Ec1=-3V Ip=2mA Ic2=0.5mA rp=3MΩ gm=1.225mS pins : 1(H)-2(P)-3(G2)-4(K,G3)-5(H)-Top(G1) 1) 12Y-R1 マツダ(Matsuda) ￥1000 used 1) 12Y-R1 マツダ(Matsuda) ￥1000 used WB
12Y-V1/12YV1 =remote-cutoff Pentode= (EIA/T5G - UY TopGrid, ST12) 12V-type 6D6 with UY(5-pin base) Eh/Ih=12.0V/0.15A op : Ep=250V Ec2=100V Ec1=-3V Ip=8.2mA Ic2=2.0mA rp=800kΩ gm=1.60mS pins : 1(H)-2(P)-3(G2)-4(K,G3)-5(H)-Top(G1) 1) 12Y-V1 マツダ(Matsuda) ￥1000 used WB 1) 12Y-V1 マツダ(Matsuda) ￥1000 used WB
12Z3 =Half-wave Rectifier= (EIA/4G - UX, ST12) Eh/Ih=12.6V/0.3A PIV=700V Idcmax=55mA 1) 12Z3 RCA ￥1500 NIB 4) 12Z3 RCA ￥1500 NIB 1) 12Z3-ST Tsol ￥1500 LikeNew
12Z-E8/12ZE8 =Electron ray Indicator= (EIA/ - UZ) single-shadow Magic-Eye for transformerless radio w/Ep～110V Eh/Ih=12.6V/0.15A Ehk=V Epmax=Vsupply Etarget=Vmin/Vmax also see 6Z-E1, 6E5, 6G5/G, 6U5, 1629 1) 12Z-E8 Japan-Victor ￥2200 used-lightly WB
12Z-E9/12ZE9 =Electron ray Indicator= (EIA/ - UZ) twin-shadow Magic-Eye for transformerless radio w/Ep～110V Eh/Ih=12.6V/0.15A Ehk=V Epmax=Vsupply Etarget=Vmin/Vmax similar type : 6Z-E1 also see 6E5, 6G5/G, 6U5, 1629 1) 12Z-E9 Toyo ￥2400 used-lightly WB
12Z-P1/12ZP1 =power pentode= (EIA/6B - UY TopGrid, ST12) Eh/Ih=12V/0.15A Ehkmax=±90V Ppmax=4W Epmax=250V Pc2max=0.6W Ec2max=180V Rg1max=250kΩ(fixed)/500kΩ(self) op : Ep=180V Ec2=180V Ec1=-10V Ip=14mA/16mA Ic2=2.5mA/4.5mA rp=130kΩ gm=1.75mS Zl=12kΩ Po=1.0W D=8% op : Ep=250V Ec2=180V Ec1=-10V Ip=15mA/17mA Ic2=2.5mA/4.0mA rp=150kΩ gm=1.80mS Zl=12kΩ Po=1.5W D=11% pins : 1(H)-2(P)-3(G2)-4(G1)-5(K,G3)-6(H) heater variant : 6Z-P1(6.3V/0.35A) electrically similar to 3Y-P1(UY-base, Eh/Ih=2.5V/0.9A) 6) 12Z-P1 マツダ(Matsuda) ￥1700 NIB 1) 12Z-P1 JRC(SUWA MUSEN) ￥1700 NIB
13C =Ballast= (EIA/ -) 1) 13C WE NIB glass-top labelling, D/C=1-51(1951)
13CW4 =High-mu-Triode= (EIA/12AQ) * Nuvistor * Eh/Ih=13.5V/0.06A see Eh-variant 6CW4(Eh/Ih=6.3V/0.135A) 2CW4(Eh/Ih=2.1V/0.4A) 2BH5(Eh/Ih=1.8V/0.6A) 9) 13CW4 RCA ￥1700 NIB 1) 13CW4 GE ￥1700 NIB
13D3 =low-microphonic med-mu Twin Triode= (EIA/9A - noval) Eh/Ih=6.3V/0.6A(12.6V/0.3A) Ppmax=5W Epmax=300V/500V(cutoff) Ikmax=35mA ECmax=-75V Icmax=7mA Rgmax=250kΩ(fixed)/1.5MΩ(self) low-microphonic, stable characteristics : suitable for a DC amplifier op : Ep=100V Ec=-1.0V Ip=3.5mA gm=2.05mS rp=16.5kΩ μ=32.5 op : Ep=250V Ec=-4.6V Ip=6.0mA gm=2.30mS rp=14.0kΩ μ=32.0 op(B2pp) : Ep=250V Ec=0V Ipo=2x19,5mA Ipmax=2x21,6mA Ic=2x6.4mA Zlp-p=20kΩ D=11.5% Po=6.7W pins : 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(HCT) 13D3のEp-Ip特性 equivallent types : 6158, CV4068, CV2212 * octal-base version of 13D3 = ECC32/CV181 0) 13D3 Brimar(=STC) ￥- NIB extremely-ragged boxes
13DE7 =Double Triode= (EIA/9HF - noval) Eh/Ih=13V/0.45A heater variants : 6DE7(6.3V/0.9A) 10DE7(9.7V/0.6A) 2) 13DE7 USA ￥800 NIB 1) 13DE7 GE ￥800 NIB BlkPlates 1) 13DE7 Syl ￥800 NIB 1) 13DE7 Syl ￥400 used
13DR7 =Double Triode= (EIA/9HF - noval) Eh/Ih=13V/0.45A heater variant : 6DR7(6.3V/0.9A) 1) 13DR7 GE ￥800 NOS? Syl箱
13E1 =Power Beam Tetrode especially for stabilized power source= (EIA/) Eh/Ih=26V/1.3A (13.0V/2.6A) Ehkmax=-300V Pc1max=1W Ec-max=-100V Tetrode connection : Ppmax=90W Epmax=800V/1.5kV-pulse Pc2max=10W Ec2max=300V Ikmax=800mA/5A-pulse Triode connection : Pp+g2max=95W, gm=35mS rp=130Ω μ=4.5 (@Ep=150V Ip=500mA) (参考 : 三結時のEp-Ip特性(triode-connection)) pins : 1(H)-2(HCT)-3(G1)-4(K)-5(G2)-6(P)-7(H) size : 65mmΦ x 166mmH, in max 0) 13E1 ValveElectronics ￥- NIB 0) 13E1 STC ￥- used-lightly
13EM7/13EA7 =double Triode= (EIA/8BD - octal) Eh/Ih=13V/0.45A heater variants : 6EM7(6.3V/0.925A) 6EA7(6.3V/1.05A) 10EM7(9.7V/0.6A) 1) 13EM7/13EA7 RCA ￥800 NIB 1) 13EM7/15EA7 GE ￥800 NIB 1) 13EM7 Silvertone ￥800 NOS Syl箱
13FD7 =double Triode= (EIA/9H F- NOVAR) Eh/Ih=13V/0.45A heater variant : 6FD7(6.3V/0.925A) 1) 13FD7 STD ￥600 NIB
13GB5/XL500 =Beam Power= (EIA/9NH - Magnoval) Eh/Ih=13.3V/0.6A heater variants : 6GB5/EL500(6.3V/1.38A), 18GB5/LL500(18V/0.45A), 27GB5/PL500(27V/0.3A) 1) 13GB5/XL500 RCA ￥1300 NIB
13GF7/A =Dissimilar double Triode= (EIA/9QD - NOVAR) Eh/Ih=13V/0.45A heater variants : 6GF7(6.3V/0.985A) 10GF7(9.7V/0.6A) 4) 13GF7A RCA ￥700 NIB 1) 13GF7A GE ￥600 NIB 2) 13GF7 Syl ￥600 NIB 1) 13GF7A WH ￥600 NIB
13N =Ballast= (EIA/ -) 1) 13N WE NIB D/C=12-65(1965) with base-screws
13V10 =Dissimilar Double Pentode= (EIA/12EZ - compactron) Eh/Ih=13.2V/0.45A Ehkmax=±200V beam power : Ppmax=6.5W Epmax=165V Pc2max=1.8W Ec2max=150V Ikmax=65mA op : Ep=145V Ec2=125V Ec1=-6V Ip=34/36mA Ic2=2.2/5.5mA rp=58kΩ gm=6.4mS Zl=3kΩ D=7% Po=1.5W pentode : Ppmax=1.7W Epmax=330V Pc2max=1.1W Ec2max=330V op : Ep=150V Ec2=100V Rk=560Ω Ip=1.3mA Ic2=2mA rp=150kΩ gm=1mS same baseing(12EZ) similar type : 12AE10(Eh/Ih=12.6V/0.45A) 1) 13V10 RCA ￥1000 NOS?
13Z10/13J10 =Pentode-gated Beam Descriminator= (EIA/12BT - compactron) Eh/Ih=13.2V/0.45A heater variants : 6J10(6.3V/0.95A) 6Z10(6.3V/0.95A) 10Z10(10V/0.6A) 1) 13Z10/13J10 RCA ￥800 NIB 1) 13Z10/13J10 GE ￥800 NIB 3) 13Z10/13J10 GE ￥800 NIB 1) 13J10/13Z10 Syl ￥800 NIB
14A5 =BeamPower= (EIA/6AA - Loktal) Eh/Ih=12.6V/0.15A Ehkmax=±90V Ppmax=7.5W Epmax=300V Pc2max=1.5W Ec2max=300V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=250V Ec2=250V Ec1=-12.5V Ip=30/32mA Ic2=3.5/5.5mA rp=70kΩ gm=3mS Zl=7.5kΩ D=7% Po=2.8W also see other loktal 6AA-base small power tubes : 7A5(Ppmax=5.5W, 6.3V/0.75A) 7C5(Ppmax=12W, 6.3V/0.45A) 35A5(Ppmax=8.5W, 35V/0.15A) 50A5(Ppmax=10W, 50V/0.15A) 5) 14A5 Sylvania ￥1200 NIB just-ragged boxes (hyy24fQnc) 1) 14A5 NU ￥1200 NIB RaggedBox
14A7 =Remote-cutoff Pentode= (EIA/8V - loktal) Eh/Ih=12.6V/0.15A Ehkmax=±90V Ppmax=4W Epmax=300V Pc2max=0.4W Ec2max=125V/300V(cutoff) op : Ep=250V Ec2=100V Ec1=-3V Ip=9.2mA Ic2=2.6mA rp=800kΩ gm=2mS 1) 14A7 GE ￥900 NIB 1) 14A7 GE ￥800 NIB ragged-box 1) 14A7 GE ￥800 NOS 3) 14A7 USA ￥800 NOS 1) 14A7/12B7 GE ￥600 used 1) 14A7 Syl ￥600 used 1) 14A7 Philco ￥600 used
14AF7 =med-mu Twin Triode= (EIA/8AC) Eh/Ih=12.6V/0.15A Ppmax=2.5W Epmax=300V Ehkmax=±90V op : Ep=250V Rk=1.1kΩ Ip=9mA rp=7.6kΩ gm=2.1mS μ=16 heater variant : 7AF7(6.3V/0.3A, 7V/0.32A) similar to XXD 1) 14AF7 RCA ￥2200 NIB very-ragged box 0) 14AF7 USA ￥2000 NOS(D)
14B6 =duplex-Diode high-mu-Triode= (EIA/8W - Loktal) Eh/Ih=12.6V/0.15A heatere variant : 7B6(6.3V/0.3A) 0) 14B6 Syl,GE ￥- NIB(D) 1) 14B6 Philco ￥700 used? 1) 14B6 Crosley ￥700 NOS RCA箱 1) 14B6 RCA ￥600 used? BrownBox 1) 14B6 Syl ￥600 used
14B8 =Pentagrid Converter= (EIA/8X - Loktal) Eh/Ih=12.6V/0.15A heatere variant : 7B8(6.3V/0.3A) 1) 14B8 RCA ￥1200 NIB
14BL11 =Dissimilar-Double-Triode Pentode= (EIA/12GC - Compactron) Eh/Ih=14.2V/0.45A pentode : Ppmax=2.5W Epmax=250V Pc2max=1.25W Ec2max=125V, rp=70kΩ, gm=19mS-typ triode 1 : Ppmax=1.5W Epmax=330V, rp=12.5kΩ, gm=5.5mS, μ=69-typ triode 2 : Ppmax=2W Epmax=300V, rp=7.6kΩ, gm=5.3mS, μ=40-typ 1) 14BL11 GE ￥1000 NIB
14BR11 =Dissimilar-double-Triode Pentode= (EIA/12GL - compactron) Eh/Ih=14.2V/0.45A pentode : Ppmax=4W Epmax=330V Pc2max=1.1W Ec2max=330V, rp=45kΩ, gm=10.4mS-typ triode 1 : Ppmax=1.5W Epmax=330V, rp=12.4kΩ, gm=5.5mS, μ=68-typ triode 2 : Ppmax=2W Epmax=330V, rp=9.4kΩ, gm=4.4mS, μ=41-typ 1) 14BR11 Admrl ￥800 NIB 1) 14BR11 GE ￥600 usedLikeNew 1) 14BR11 GE ￥600 used GE箱
14GT8 =duplex-Diode Triode= (EIA/9KR - noval) Eh/Ih=14V/0.15A Idiode=5mAmax Ppmax=1.1W Epmax=330V op : Ep=250V Ec=-3V Ip=0.7mA rp=72kΩ gm=1mS μ=72 1) 14GT8 RCA ￥800 NIB 2) 14GT8 GE ￥800 NIB 1) 14GT8 Syl ￥800 NIB 2) 14GT8 CMC(RCA-made) ￥800 NIB WB 1) 14GT8 Arvin(GE-made) ￥400 used Syl箱
14GW8(=PCL86) Eh/Ih=13.3V/0.3A heater variants : 6GW8(6.3V/0.66A) ECL86(6.3V/0.7A) (参考 : PCLタイプ球(Ih=0.3A トランスレス三極・五極複合管)の比較表) 1) 14GW8(=PCL86) Syl ￥1200 NIB
14J7 =Triode-Heptode Converter (EIA/8BL - Loktal) Eh/Ih=12.6V/0.15A heater variant : 7J7(6.3V/0.3A) 1) 14J7 Philco ￥1000 NOS
14JG8 =duplex-Diode high-mu Triode= (EIA/9KR) Eh/Ih=14V/0.15A Ehkmax=±200V Idiode=5mA-max triode : Ppmax=1.1W Epmax=330V Ecmax=+0V/-50V op : Ep=250V Ec=-2V Ip=2mA rp=41kΩ gm=2.2mS μ=90 1) 14JG8 Delco ￥1000 NIB
14N7 =medium-mu-twin Triode= (EIA/8AC - Loktal) Eh/Ih=12.6V/0.3A heater variant : 7N7(6.3V/0.6A) 14N7 is equivallent to 12SN7/GT(octal), and similar to 12SX7GT(octal). 1) 14N7 Ray ￥1000 NIB
14Q7 =Pentagrid Converter= (EIA/8AL - Loktal) Eh/Ih=12.6V/0.15A heater variant : 7Q7(6.3V/0.3A) 1) 14Q7 GE ￥1000 NIB 1) 14Q7 GE ￥700 used
14R7 =duplex-Diode remote-cutoff Pentode= (EIA/8AE - Loktal) Eh/Ih=12.6V/0.15A heater variant : 7R7(6.3V/0.3A) 1) 14R7 Syl ￥1000 NIB 1) 14R7 NU ￥1000 NIB
14S7 =Triode Heptode Converter= (EIA/8BL - Loktal) H: Ppmax=0.6W Epmax=300V Pc2max=0.4W Ec2max=100V 12.6V/0.15A T: Ppmax=1W Epmax=175V 1) 14S7 ? ￥1000 used
15BD11/A =Dissimilar-double-Triode Pentode= (EIA/12DP - compactron) Eh/Ih=14.7V/0.45A heater variant : 6BD11(6.3V/1.05A) 3) 15BD11A RCA ￥1200 NIB 1) 15BD11A RCA ￥1200 NIB 2) 15BD11 GE ￥1000 NIB 1) 15BD11A Syl ￥1000 NIB
15CW5/PL84 =Power Pentode= (EIA/9CV - noval) RCA(RC30)-for class A1, AB1 amplifiers : Eh/Ih=15V/0.3A Ehk=±220V Rg1max=1MΩ Ppmax=14W Epmax=275V/600V-supply Pc2inmax=2.1W/7Wpeak Ec2max=220V/600V-supply Ikmax=110mA see European type : PL84 also see heater variants : 6CW5(6.3V/0.76A) 8CW5(8V/0.6A) 10CW5(10.6V/0.45A) 30CW5(30V/0.15A) 1) 15CW5/PL84 USA ￥700 NIB 2) 15CW5 Matsushita ￥1500 NIB cellopane-sealed
15DQ8 =Triode Power-Pentode= (EIA/9HX - noval) Eh/Ih=15V/0.3A Ehkmax=±200V (Triode) Ppmax=1W Epmax=300V/550V-cutoff Ikmax=12mA Rgmax=1MΩ op : Ep=200V Ec=-1.7V Ip=3mA gm=4mS μ=65 (Pentode) Ppmax=4W Epmax=300V/550V-cutoff Pc2max=1.7W Ec2max=250V Ikmax=40mA Rgmax=1MΩ op : Ep200V Ec2=200V Ec=-2.9V Ip=18mA Ic2=3mA gm=10.4mS rp=130kΩ μg2g1=36 European type : PCL84 heater variants : 6DX8(6.3V/0.72A) ECL84(6.3V/0.72A) 10DX8(10.2V/0.45A) (参考 : PCLタイプ球(Ih=0.3A トランスレス三極・五極複合管)の比較表) 0) 15DQ8 RCA ￥1500 NIB 5) 15DQ8 Matsushita ￥1500 NIB still sealed w/ cellophane 2) 15DQ8 Matsushita ￥1500 NIB just-ragged boxes
15EPpmax=20W 動作例: Ep=2000V Ec=-80V Ip0=18mA Ipsig=80mA Ef/If=5V/4A Pin=0.7W Zl=55.5kΩ Po=110W Fmax=600MHz 2) 15E Eimac ￥４３００ used? NonBoxed Tested NonGas NonShort 2) 15E Eimac ￥１０００ used? Gassy GoodFilaments[DISPLAY] GE ￥1900 NOS Bulk 10) 8426 WH ￥1900 NIB WB 1) 8426/12AU6 Tektronix ￥1100 used 4200/2500min
15EW7 =Dissimilar double Triode= (EIA/9HF - noval/9T9) Eh/Ih=14.8V/0.45A heater variants : 6EW7(6.3V/0.9A) 10EW7(9.7V/0.6A) 1) 15EW7 RCA ￥600 NOS Syl箱
15KY8/A =Triode Pentode= (EIA/9QT - NOVAR) Eh/Ih=15V/0.45A heater variant : 6KY8/A(6.3V/1.1A) 5) 15KY8A GE ￥800 NIB w/sleeve for 5-pcs 1) 15KY8A Syl ￥800 NIB 1) 15KY8 RCA ￥500 used
15M =remote-cutoff Pentode= (EIA/ - subminiature w/miniature base) Eh/Ih=V/A similar to 1T4 1) 15M Apollo-tube(Taiyo Denshi) ￥1500 used WB
15MF8 =Triode Pentode= (EIA/12DZ - compactron) Eh/Ih=14.7V/0.6A heater variant : 6MF8(6.3V/1.4A) 1) 15MF8 GE ￥1000 NIB
16A8(=PCL82) =Triode Pentode= (EIA/9EX - noval) Eh/Ih=16V/0.3A Pentode: Ppmax=5W(Ep>250V)/7W(Ep<250V) Epmax=300V/600Vcutoff Pc2max=1.8W Ec2max=300V/550Vcutoff Ikmax=50mA op: Ep=200V Ec2=200V Ec1=-16V Ip=35mA Ic2=7mA rp=20kΩ gm=6.4mS μg2g1=9.5 op(A1s): Ep=200V Ec2=200V Ec1=-16V Ip=35mA Ic2=7mA Zl=5.6kΩ D=10% Po=3.5W Triode: Ppmax=1W Epmax=300V Ikmax=15mA op: Ep=100V Ec=0V Ip=3.5mA gm=2.5mS μ=70 (参考 : 五極部三結のEp-Ip特性(Pentode section Triode-connection, sample data)) heater variants : 6BM8(6.3V/0.78A), 8B8(8V/0.6A), 11BM8(10.7V/0.45A), 32A8(32V/0.15A), 50BM8(50V/0.1A), UCL82(50V/0.1A) (参考 : PCLタイプ球(Ih=0.3A トランスレス三極・五極複合管)の比較表) 1) 16A8/PCL82 RCA ￥800 NIB 0) 16A8 WH ￥800 NIB 1) 16A8 Magnavox ￥800 NIB 3) 16A8 NEC ￥800 NIB still-cellophane-sealed 1) 16A8 Toshiba ￥800 NIB still-cellophane-sealed 1) 16A8 Matsushita ￥800 NIB still-cellophane-sealed 1) 16A8 Mitsubishi ￥800 NIB smeared-silk 1) 16A8 Matsushita ￥600 like-new lot=AR WB 2) 16A8 Matsushita ￥400 used 5) 16A8 Matsushita ￥400 used 1) 16A8 Matsushita ￥400 used WB 1) 16A8 Matsushita ￥400 usedl-ightly WB 1) 16A8 Matsushita ￥400 used WB
16AK9 =Dissimilar-double-Triode Pentode= (EIA/12GZ - compactron) Eh/Ih=16.4V/0.6A triode 1 : Ppmax=1.25W Epmax=330V op : Ep=150V Ec=-2V Ip=5.4mA rp=11kΩ gm=3.9mS μ=43 triode 2 : Ppmax=1W Epmax=330V Ipmax=20mA op : Ep=150V Ec=-5V Ip=5.5mA rp=8.5kΩ gm=2.35mS μ=20 pentode : Ppmax=10W Epmax=350V Pc2max=2W Ec2max=250V Ipmax=80mA op : Ep=150V Ec2=150V Ec=-14V Ip=49mA Ic2=3.5mA rp=16.4kΩ gm=6.2mS 1) 16AK9 RCA ￥800 NIB 1) 16AK9 GE ￥800 NIB
16AQ3/XY88 =Halfwave Rectifier= (EIA/9CB - noval-TopCathode) Eh/Ih=16.4V/0/6A PIV=6500V(pulse) Pdmax=5W Esupply=250Vmax Ipmax=220mA heater variant : 20AQ3/LY88(20.2V/0.45A) * 9CB-base 'Top-Cathode' noval(9-pin MT) halfwave rectifiers with similar rating: 6AF3 6AL3 6BR3 6R3 6R-K19 EY81 EY88 16AQ3 30AE3 1) 16AQ3/XY88 GE ￥800 NIB
16C-B28/16CB28 =Beam Power= (EIA/12GD - compactron TopPlate) Eh/Ih=15.8V/0/6A Twarmup=11sec *16CB28=16GY5のG3(BP)電極の分離取出しタイプ / '16JZ6'相当 Ppmax=18W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=230mA heater variant : 6JZ6(6.3V/1.5A) 21JZ6(21V/0.45A) 30JZ6(30V/0.3A) 0) 16C-B28 Toshiba ￥- NIB
16G-B16 / 16GB16 =Beam Power= (EIA/ - octal TopPlate) Eh/Ih=16V/0.6A Ppmax=24W Epmax=900V Pc2max=5W Ec2max=175V op : Ep=175V Ec2=125V Ec1=-14V Ip=110mA Ic2=5mA gm=15mS 1) 16G-B16 Hitachi ￥800 used WB
16GK6 =Beam Power= (EIA/9GK - noval) Eh/Ih=16V/0.3A see 6BQ5/EL84:規格同等,異ピン配列 also see 7189/A 7320 E84L) heater variants : 6GK6(6.3V/0.76A) 10GK6(10.6V/0.45A) 29GK6(28.6V/0.15A) 1) 16GK6 RCA ￥1200 NIB 1) 16GK6 GE ￥1000 NIB
16GY5 Sweep Tubes(<30W) =Beam Power= (EIA/12DR - compactron TopPlate) Eh/Ih=16.8V/0.6A Ppmax18W/Epmax770V/Pc2max3.5W/Ec2max220V/Ikmax230mA heater variant : 21GY5(21V/0.45A) *16GY5=16C-B28(16JZ6相当)のG3(BP)をKと接続すれば同等 1) 16GY5 RCA ￥1200 NIB 1) 16GY5 Sylvania ￥1300 NIB RaggedBox
16KA6 =Beam Power= (EIA/12GH - compactron TopPlate) Eh/Ih=15.8V/0.6A heater variant : 21KA6(21V/0.45A) 1) 16KA6 ITT(GE-made) ￥1000 NIB RaggedBox
16LU8/A =Triode Pentode= (EIA/12DZ - compactron) Eh/Ih=15.8V/0.6A heater variants : 6LU8(6.3V/1.5A), 21LU8(21V/0.45A) 2) 16LU8A RCA ￥800 NIB 1) 16LU8A GE ￥600 NOS? ECG箱
17AB9 =Twin Tetrode for FM front-end= (EIA/10N - dekal 10pins) Eh/Ih=16.8V/0.15A op : Ep=125V Ec2=80V Ec1=-1V Ip=8mA Ic2=2mA rp=110kΩ gm=10mS pins : 1(2P)-2(2G2)-3(2G1)-4(2K)-5(H)-6(H)-7(1P)-8(1G2)-9(1G1)-10(1K,IS) heater variant : 6AB9(6.3V/0.365A) similar type (different-base) : 17C9(16.8V/0.15A) similar type (different-base different-heater) : 6C9(6.3V/0.4A) 6) 17AB9 Toshiba ￥2000 NIB 0) 17AB9 Matsushita ￥- NIB 4) 17AB9 IEC-Mullard(made in Japan)￥2000 NIB 0) 17AB9 Toshiba ￥700 used 1) 17AB9 Matsushita ￥700 used 1) 17AB9 Matsushita ￥700 used 1) 17AB9 Matsushita ￥700 used WB 1) 17AB9 Matsushita ￥700 used lot=7E WB
17AV5 =Beam Power= (EIA/6CK - octal) Eh/Ih=16.8V/0.45A see heater variant : 6AV5(6.3V/1.2A), 12AV5(12.6V/0.6A), 25AV5(25V/0.3A) 1) 17AV5 Syl ￥800 NIB ragged box
17AX3 =Half-wave HV Rectifier= (EIA/12BL - compactron) Eh/Ih=16.8V/0.45A heater variants : 6AX3(6.3V/1.2A), 12AX3(12.6V/0.6A) 1) 17AX3 GE ￥1000 NIB Compactron
17AX4/GTA =Half-wave HV Rectifier= (EIA/4CG - octal) Eh/Ih=16.8V/0.45A heater variant : 6AX4(6.3V/1.2A), 12AX4(12.6V/0.6A), 25AX4(25V/0.3A) 1) 17AX4GTA RCA ￥1000 NIB
17AY3/A =Half-wave HV Rectifier= (EIA/9HP - NOVAR) Eh/Ih=16.8V/0.45A heater variants : 6AY3(6.3V/1.2A) 12AY3(12.6V/0.6A) 1) 17AY3A RCA ￥700 NIB 1) 17AY3A/17BS3A Syl ￥700 NIB 1) 17AY3A USA ￥700 NIB 1) 17AY3A WH ￥600 used RCA箱
17B-B14/17BB14 =Beam Power= (EIA/9NH - Magnoval TopPlate) Eh/Ih=16.8V/0.45A Ppmax=13W Epmax=700V Pc2max=5W Ec2max=250V Ipmax=-mA gm=14mS Eh/Ih=16.8V/0.45A pin : 1-G1 2-G1 3-KG3 4-H 5-H 6-G2 7-G2 8-KG3 9-IC Tcap-P heater variants : 6B-B14(6.3V/1.2A), 12B-B14(12.6V/0.6A), 25B-B14(25V/0.3A) 0) 17B-B14 Toshiba ￥- NIB 0) 17B-B14 Matsushita ￥- NIB
17BE3 =Half-wave HV Rectifier= (EIA/12GA - compactron) Eh/Ih=16.8V/0.45A PIV5000V Idc=200mAmax Pdmax=6.5W Edrop=25V(@Ib=350mA-dc) heater variants : 6BE3(6.3V/1.2A), 12BE3(12.6V/0.6A) 1) 17BE3/17BZ3 Syl ￥600 NIB 4) 17BE3 USA ￥600 NIB
17BF11 =Dissimilar-double Pentode= (EIA/12EZ - compactron) Eh/Ih=16.8V/0.45A heater variants : 6BF11(6.3V/1.2A), 12BF11(12.6V/0.6A), 24BF11(24.2V/0.315A) 2) 17BF11 GE ￥600 NIB 3) 17BF11 Syl ￥600 NIB 1) 17BF11 Magnavox ￥600 NIB
17BQ6 =Beam Power= Sweep Tubes(<30W) (EIA/6AM - octal-TopPlate) Eh/Ih=16.8V/0.45A heater variants : 6BQ6GTA/GTB(6.3V/1.2A), 12BQ6GTA/GTB(12.6V/0.6A), 25BQ6GTA/GTB(25V/0.3A) heater variants : 6CU6(6.3V/1.2A), 12CU6(12.6V/0.6A), 25CU6(25V/0.3A) 1) 17BQ6GTB RCA ￥700 NIB rgged-box
17BR3/17RK19 =Halfwave Rectifier= (EIA/9CB - noval-TopCathode) Eh/Ih=16.8V/0.45A heater variant : 6BR3(6.3V/1.2A) 6R-K19(6.3V/1.2A) 12R-K19(12.6V/0.6A) 2) 17BR3/17RK19 RCA ￥900 NIB
17BS3 =Halfwave Rectifier= (EIA/9HP - NOVAR) Eh/Ih=16.8V/0.45A heater variants : 6BS3A(6.3V/1.2A) 12BS3A(12.6V/0.6A) 1) 17BS3 RCA ￥400 used
17C9 =Twin Tetrode= (EIA/10F - center-pin added to E9-1 noval-base) Eh/Ih=16.8V/0.15A Ppmax=1.5W Epmax=250V Pc2max=0.5W Ec2max=180V op : Ep=125V Ec1=-1V Ec2=80V Ip=10mA Ic2=1.5mA rp=100kΩ gm=8mS heater variant : 6C9(6.3V/0.4A) see a different-base electrically-similar type : 17AB9(Eh/Ih=16.8V/0.15A) also see a different-heater, similar type : 6AB9(Eh/Ih=6.3V/0.365A) 1) 17C9 Sylvania ￥1200 NIB just-ragged box Bottom View (hyy24fsdx) 5) 17C9 DuMont(Syl-made) ￥1200 NIB just-ragged boxes Bottom View (hyy24ffdx) 0) 17C9 RCA ￥500 used WB 0) 17C9 Syl ￥500 used WB
17CT3 =Half-wave HV Rectifier= (EIA/9RX) Eh/Ih=16.8V/0.45A heater variant : 12CT3(12.6V/0.6A) 1) 17CT3 RCA ￥900 NIB 1) 17CT3 RCA ￥600 used
17CU5 =Beam Power= Sweep Tubes(<30W) (EIA/7CV - miniature) Eh/Ih=16.8V/0.45A heater variants : 6CU5(6.3V/1.2A), 12CU5(12.6V/0.6A) heater variants : 12C5(12.6V/0.6A), 25C5(25V/0.3A), 35C5(Ppmax=5.2W, 35V/0.15A), 50C5(Ppmax=5.5W, 50V/0.15A) 1) 17CU5/17C5 RCA ￥1000 NIB 1) 17CU5 Syl ￥500 used
17D4 =Half-wave HV Rectifier= (EIA/4CG - octal) Eh/Ih=16.8V/0.45A heater variant : 12D4(12.6V/0.6A) 3) 17D4 USA ￥1000 NIB
17DE4 =Half-wave HV Rectifier= (EIA/4CG - octal) Eh/Ih=17V/0.6A heater variants : 6DE4(6.3V/1.6A) 22DE4(22.4V/0.45A) 1) 17DE4 RCA ￥700 NIB 1) 17DE4 RCA ￥700 NIB
17DQ6 =Beam Power= Sweep Tubes(<30W) (EIA/6AM - octal-TopPlate) Eh/Ih=16.8V/0.45A equivallent : 17GW6(=17DQ6B) heater variants : 6DQ6/A/B(6.3V/1.2A), 12DQ6/A/B(12.6V/0.6A), 25DQ6(25V/0.3A) heater variants : 6GW6(6.3V/1.2A), 12GW6(12.6V/0.6A) 1) 17DQ6A RCA ￥700 NIB 2) 17DQ6B/17GW6 GE ￥600 NIB 1) 17DQ6B Syl ￥600 NIB 1) 17DQ6B/17GW6 Syl ￥600 NIB 1) 17DQ6B Znth ￥600 NOS Syl箱 ragged box
17DW4/A =Half-wave HV Rectifier= (EIA/9HP - NOVAR) Eh/Ih=16.8V/0.45A heater variants : 6DW4/A/B(6.3V/1.2A) 12DW4/A(12.6V/0.6A) 1) 17DW4A WH ￥600 NIB
17EW8/HCC85 =high-μ Twin Triode for FM/AM receivers= (EIA/9AJ - noval) Eh/Ih=17.5V/0.15A Ehkmax=±90V Ppmax=2.5W Epmax=250V Rgmax=1MΩ op : Ep=200V Ec=-2.1V Ip=10mA gm=5.8mS μ=48 heater variants : 6AQ8/ECC85(6.3V/0.435A) 9AQ8(9V/0.3A) PCC85(9V/0.3A) 17EW8/HCC85(17.5V/0.15A) 1) 17EW8/HCC85 RCA ￥700 NIB 1) 17EW8/HCC85 Syl ￥600 NIB 1) 17EW8/HCC85 WH ￥600 NIB 1) 17EW8 NEC ￥800 NIB cellophane-sealed
17GJ5 =Beam Power= Sweep Tubes(<30W) (EIA/9QK - NOVAR) Eh/Ih=16.8V/0.45A heater variants : 6GJ5/A(6.3V/1.2A), 12GJ5/A(12V/0.6A) 2) 17GJ5 Syl ￥1000 NIB
17GT5=Beam Power= Sweep Tubes(<30W) (EIA/9NZ - NOVAR) Eh/Ih=16.8V/0.45A heater variants : 6GT5/A(6.3V/1.2A) 1) 17GT5 Silvertone ￥1000 NIB 1) 17GT5A RCA ￥1000 NIB
17GW6 =Beam Power= Sweep Tubes(<30W) (EIA/6AM - octal-TopPlate) Eh/Ih=16.8V/0.45A equivallent : 17DQ6B heater variants : 6GW6(6.3V/1.2A), 12GW6(12.6V/0.6A) heater variants : 6DQ6B(6.3V/1.2A), 12DQ6B(12.6V/0.6A), 25DQ6(25V/0.3A) 2) 17GW6/17DQ6B RCA ￥800 NIB 1) 17GW6 Silvertone ￥600 NIB 1) 17GW6/17DQ6B Silvertone ￥400 - TopCap無
17JB6/A =Beam Power= Sweep Tubes(<30W) (EIA/9QL - NOVAR TopPlate) Eh/Ih=16.8V/0.45A Ppmax=17.5W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=175mA heater variants : 6JB6/A(6.3V/1.2A) 12JB6/A(12.6V/0.6A) 3) 17JB6A RCA ￥1300 NIB 1) 17JB6A RCA ￥1300 NIB 1) 17JB6A RCA ￥1300 NIB RaggedBox 1) 17JB6 Tsol ￥1300 NIB
17JF6 =Beam Power= Sweep Tubes(<30W) (EIA/9QL - NOVAR TopPlate) Eh/Ih=16.8V/0.6A Ppmax=17W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=275mA heater variants : 6JF6(6.3V/1.6A) 22JF6(22V/0.45A) 1) 17JF6 RCA ￥1000 NIB 1) 17JF6 RCA ￥1000 NIB RaggedBox
17JK8 =double-Triode= (EIA/9AJ - noval) Eh/Ih=16.8V/0.15A triode 1 : Ppmax=1W Epmax=165V Ikmax=22mA Rg1max=1MΩ op : Ep=100V Ec=-1V Ip=5.3mA rp=8kΩ gm=6.8mS μ=55 triode 2 : Ppmax=2W Epmax=200V Ikmax=22mA Rg1max=1MΩ op : Ep=135V Ec=-1.3V Ip=10mA rp=5.4kΩ gm=13mS μ=70 heater variants : 6JK8(6.3V/0.4A) 8JK8(8.4V/0.3A) 8) 17JK8 GE ￥700 NOS bulk
17JM6/A =Beam Power= Sweep Tubes(<30W) (EIA/12FJ - compactron TopPlate) Eh/Ih=16.8V/0.45A heater variant : 6JM6/A(6.3V/1.2A) 3) 17JM6A RCA ￥1000 NIB 3) 17JM6A RCA ￥1000 NIB 2) 17JM6 GE ￥1000 NIB 1) 17JM6 Tsol ￥1000 NIB
17JN6 =Beam Power= Sweep Tubes(<30W) (EIA/12FK - compactron) Eh/Ih=16.8V/0.45A heater variants : 6JN6(6.3V/1.2A) 12JN6/A(12.6V/0.6A) 4) 17JN6 GE ￥1000 NIB 4) 17JN6 RCA ￥1000 NIB 1) 17JN6 Zenith ￥600 used?
17JQ6 =Beam Pentode w/ Integral Diode= (EIA/9RA - noval) Eh/Ih=17V/0.45A heater variants : 6JQ6(6.3V/1.2A) 12JQ6(12.6V/0.6A) 17JQ6(16.8V/0.45A) 1) 17JQ6 Magnavox ￥600 NIB 1) 17JQ6 USA ￥600 NIB
17JT6/A =Beam Power= Sweep Tubes(<30W) (EIA/9QU - NOVAR) Eh/Ih=16.8V/0.45A heater variants : 6JT6/A(6.3V/1.2A) 12JT6/A(12.6V/0.6A) 1) 17JT6A Syl ￥700 NIB
17JZ8/A =Triode Pentode= (EIA/12DZ - compactron) Eh/Ih=16.8V/0.45A heater variants : 6JZ8(6.3V/1.2A) 13JZ8(12.7V/0.6A) 24JZ8(24.2V/0.315A) 25JZ8(25.2V/0.3A) 1) 17JZ8 RCA ￥700 NIB 1) 17JZ8 RCA ￥700 NIB 1) 17JZ8 GE ￥700 NIB 5) 17JZ8 Syl ￥700 NIB 1) 17JZ8 RAD-TEL ￥700 NIB 1) 17JZ8 Truetone ￥700 NIB 1) 17JZ8A Ray ￥700 NIB 1) 17JZ8 Sanyo ￥400 used StrongLikeNew Korea
17KV6A
17KW6 = PL508 =Frame Output Pentode= (EIA/ - single-ended Magnoval)
17Y9 =Dissimilar double Pentode= (EIA/10L - noval) Eh/Ih=16.5V/0.3A European type : PFL200 heater variant : 6Y9(6.3V/0.8A) 1) 17Y9 Syl-ECG ￥1000 NIB made in England(Mullard) Bottom View (hyy00sdx) 1) 17Y9 Zenith ￥1000 NIB made in Holland Bottom View (hyy00sdx) 1) 17Y9 USA ￥600 NIB
17Z3/A/PY81 =Booster Diode= (EIA/9CB - noval TopCathode) PIV=5000V Idcmax=150mA Idc-peakmax=450mA Pd=3W Eh/Ih=17V/0.3A heater variant : 6R3/EY81(6.3V/0.81A) 1) 17Z3 松下 ￥800 NOS?
18 =Power Pentode= (EIA/6B - ST14) Eh/Ih=14V/0.3A see heater variants : 2A5(2.5V/1.75A), 42(6.3V/0.7A) also see similar types : 6F6 / 1611(octal, 6.3V/0.7A), 6AR5(miniature, 6.3V/0.4A) 1) 18 Syl ￥2800 NIB VeryRaggedBox 1) 18 Syl ￥2800 NIB VeryRaggedBox
18FW6/A =remote-cutoff RF Pentode= (EIA/7CC - miniature) Eh/Ih=18V/0.1A Ehkmax=±100V Ppmax=2.5W Epmax=150V Pc2max=0.6W Ec2max=150V op : Ep=100V Ec2=100V Rk=68Ω Ip=11mA Ic2=4.4mA rp=250kΩ gm=4.4mS 1) 18FW6A RCA ￥1000 NOS WB 1) 18FW6A Ray ￥1000 NIB 1) 18FW6A WH(RCA made) ￥1000 NOS WB
18FY6/A =Duplex-Diode Hi-mu Triode= (EIA/7BT - miniature) Eh/Ih=18V/0.1A Ehkmax=±100V Ppmax=0.5W Epmax=150V op : Ep=100V Ec=-1V Ip=0.6mA rp=77kΩ gm=1.3mS μ=100 2) 18FY6A RCA ￥1300 NIB 1) 18FY6A Ray ￥1000 NIB 1) 18FY6 ITT ￥900 NIB 1) 18FY6 USA ￥900 NIB
18GB5/LL500 =Beam Power= (EIA/9NH - Magnoval) Eh/Ih=18V/0.45A heater variants : 6GB5/EL500(6.3V/1.38A), 13GB5/XL500(13.3V/0.6A), 27GB5/PL500(27V/0.3A) 1) 18GB5/LL500 Magnavox ￥400 used RCA箱
18GD6/A =sharp-cutoff RF Pentode= (EIA/7BK - miniature) Eh/Ih=18V/0.1A Ehkmax=±100V Ppmax=2.5W Epmax=150V Pc2max=0.6W Ec2max=150V op : Ep=100V Ec2=100V Rk=150Ω Ip=5mA Ic2=2mA rp=500kΩ gm=4.3mS 0) 18GD6A RCA ￥1000 NIB8(qT)
18GV8/PCL85 =Triode Pentode= (EIA/9LY - noval) Eh/Ih=18V/0.3A Pentode: Ppmax=7W Epmax=250V Pc2max=1.5W Ec2max=250V Ikmax=75mA Rg1max=1MΩ(fixed)/2.2MΩ(self) op : Ep=170V Ec2=170V Ec1=-15V Ip=41mA Ic2=2.7mA rp=25kΩ gm=7.5mS Triode : Ppmax=0.5W Epmax=250V Ikmax=15mA μ=60 rp=11kΩ gm=5.5mS Rgmax=1MΩ(fixed)/3.3MΩ(self) op : Ep=100V Ec=-0.8V Ip=5mA rp=7.6kΩ gm=6.5mS μ=50 pins =1(Pt)-2(Gt)-3(Kt)-4(H)-5(H)-6(Pp)-7(G2p)-8(Kp,G3p,IS)-8(G1p) (参考 : 五極部三結のEp-Ip特性(Pentode section Triode-connection, sample data)) heater variants : 6GV8(6.3V/0.9A), ECL85(6.3V/0.9A), 9GV8(9.5V/0.6A), 10GV8/LCL85(11.6V/0.45A), PCL85(18V/0.3A) similar to PCL805 (参考 : PCLタイプ球(Ih=0.3A トランスレス三極・五極複合管)の比較表) 1) 18GV8/PCL85 USA ￥1000 NIB 4) 18GV8 NEC ￥1000 NIB still cellophane-sealed 2) 18GV8 Matsushita ￥1000 NIB 1=still-cellophane-sealed, just-ragged boxes 4) 18GV8 Matsushita ￥1000 NIB/NOS just-ragged original boxes, 1=WB 1) 18GV8 Matsushita ￥1000 NIB very-ragged box
18R-AL1/18RAL1 =vertical deflection Double Triode= (EIA/9HF - noval) Eh/Ih=18V/0.3A(11sec) Ehkmax=±200V(DCmax=+100V) unit 2 ≒ 6RA9 Triode #1 : Ppmax=1.5W Epmax=330V Ikmax=22mA Rgmax=2.2MΩ Ep=250V Ec=-11.0V Ip=5.0mA gm=2.0mS μ=17.5 Triode #2 : Ppmax=8.0W Epmax=500V Ikmax=40mA Rgmax=2.2MΩ Ep=250V Ec=-10.5V Ip=22mA gm=6.7mS μ=16.5 pins : 1(2P)-2(2G)-3(2G)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(2K) heater variant : 6R-AL1(6.3V/0.86A) 9R-AL1(9V/0.6A) '9HF'-base different-μ double triode : 15EW7(Eh/Ih=14.8V/0.45A, Pp1max=10W, μ1=17, μ2=6, 9T9-bulb) 0) 18R-AL1 Toshiba ￥- NIB 7) 18R-AL1 Ray(made in Japan) ￥1400 NIB justDirtyBox 0) 18R-AL1 Ray(Toshiba-made) ￥- NIB
19 =Class-B TwinPowerTriode= (EIA/6C ST-12)Ef/If=2V/0.26A Ppmax=-W Epmax=135V Ipmax=50mA/plate op(B-pp) : Ep=135V Ec=-6V Ipo=2x0.5mA Zlpp=10kΩ Pin=0.095W Pout=1.5W op(B-pp) : Ep=135V Ec=-3V Ipo=2x2.0mA Zlpp=10kΩ Pin=0.135W Pout=1.9W op(B-pp) : Ep=135V Ec=-0V Ipo=2x5.0mA Zlpp=10kΩ Pin=0.170W Pout=2.1W pins : 1(F+)-2(2P)-3(2G)-4(1G)-5(1P)-6(F-) size : 39.7mmΦ x 106.4mmH, in max #19のEpIp特性 0) 19-ST-4-pillar Ray ￥4300 used 1280/1210/630min @@ 3) 19-ST Marconi ￥2900 NIB 4) 19-ST Syl ￥2900 NIB MB 1) 19-ST Znth ￥2900 NIB 1) 19-ST Syl ￥2000 used 980/890/630min 1) 19-ST SuperSilvertone ￥2500 LikeNew 1040/1030/630min
19A3 =Half-wave Rectifier= (EIA/ - miniature) Eh/Ih=19V/0.15A(w/o panel-lamp), 17.3V/0.15A(w/ 3.2V/0.16A panel-lamp) Ehkmax=±350V PIV=350V Idc=60mA(no shunt resistor)/70mA(w/ shunt resistor) pins : 1(NC)-2(NC)-3(H)-4(H)-5(P)-6(Hlamp)-7(K) 1) 19A3 NEC ￥600 lightly-used Matsuda箱 2) 19A3 Toshiba ￥600 lightly-used
19AQ5/HL90 =Beam Pentode= (EIA/4CG - octal) Eh/Ih=19V/0.15A 0) 19AQ5 Philips ￥- NIB
19AU4/GT =Half-wave HV Rectifier= (EIA/4CG - octal) Eh/Ih=18.9V/0.6A see heater variant type : 6AU4(Eh/Ih=6.3V/1.8A) 1) 19AU4GT CBS ￥600 NIB 1) 19AU4GT RCA ￥700 NIB 1) 19AU4GT Philco ￥600 NOS RCA箱 1) 19AU4GTA RCA ￥700 NIB 1) 19AU4GTA Syl ￥400 lightly-used WB
19BG6G/GA =Beam Power= (EIA/5BT - octal-TopPlate) Eh/Ih=18.9V/0.3A also see heater variant type : 6BG6G/GA(Eh/Ih=6.3V/0.9A) 1) 19BG6G Philco ￥1100 NIB 1) 19BG6G - ￥900 used Like New 1) 19BG6G Ray ￥900 used 5750/3800min 1) 19BG6GA GE ￥800 NIB RaggedBox 1) 19BG6GA GE ￥700 used
19CG3 =Half-wave HV Rectifier= (EIA/12HF - compactron) Eh/Ih=19V/0.6A heater variants : 6CG3(6.3V/1.8A), 25CG3(25V/0.45A) 2) 19CG3 RCA ￥700 NIB 1) 19CG3 Syl ￥700 NIB 1) 19CG3 Toshiba ￥700 NIB 3) 19CG3 Toshiba ￥700 NIB flap-sealed 3) 19CG3 Toshiba ￥700 NIB sealed
19DE3 =Half-wave HV Rectifier= (EIA/12HX - compactron) Eh/Ih=19V/0.6A PIV=5000V Pdmax=9W Idcmax=350mA 1) 19DE3 RCA ￥700 NIB
19EZ8 =Triple Triode= (EIA/9KA - noval) Eh/Ih=18.9V/0.15A heater variant : 6EZ8(6.3V/0.45A) 1) 19EZ8 GE ￥900 NIB
19GQ7 =Triple Diode= (EIA/9QM - noval) Eh/Ih=18.9V/0.15A Eac=330Vmax Idc=9mA-max/plate 1) 19GQ7 USA ￥450 NIB
19HV8 =Triode Pentode= (EIA/9FA - noval) Eh/Ih=18.9V/0.15A pentode : Ppmax=3W Epmax=330V Pc2max=0.55W Ec2max=330V op : Ep=125V Ec2=125V Ec1=-1V Ip=12mA Ic2=4mA rp=200kΩ gm=6.5mS triode : Ppmax=0.55W Epmax=330V op : Ep=100V Ec1=-1V Ip=0.8mA rp=54kΩ gm=1.3mS μ=70 2) 19HV8 GE ￥700 NIB GrayPlate 1) 19HV8 RCA ￥700 NIB 1) 19HV8 GE ￥400 used
19JN8 =Triode Pentode= (EIA/9FA - noval) Eh/Ih=18.9V/0.15A heater variant : 6JN8(6.3V/0.45A) 9JN8(9.4V/0.3A) 1) 19JN8 Tsol ￥800 NIB 2) 19JN8 GE ￥700 NOS 橙OB GrayPlate 1) 19JN8 GE ￥400 used
19KG8 =Triode Pentode= (EIA/9LY - noval) Eh/Ih=18.9V/0.15A pentode : Ppmax=2.5W Epmax=300V Pc2max=0.55W Ec2max=300V op : Ep=125V Ec2=125V Ec1=-1V Ip=12mA Ic2=4mA rp=200kΩ gm=7.5mS triode : Ppmax=2.5W Epmax=300V op : Ep=125V Ec1=-1V Ip=13.5mA rp=5.4kΩ gm=8.5mS μ=46 8) 19KG8 GE ￥700 NOS bulk MT-type (hyyavx)
19M-R9/19MR9(/ECL-1069) =long-life sharp-cutoff Pentode= (EIA/ - miniature) Eh/Ih=19V/0.1A Ehkmax=±V Ppmax=W Epmax=V Pc2max=W Ec2max=V Ikmax=mA op : Ep=120V Ec2=120V Ec1=-2.5V Ip=7mA Ic2=-mA rp=-kΩ gm=3.5mS pins : 1(G1)-2(G3,K,IS)-3(H)-4(H)-5(P)-6(G2)-7(G1) (1950年代のNTT/電電公社との共同開発品 : code = ECL-1069, CZ-501-Dの後継miniature球) (参考 * NTT-ECL related high-rel, long-life, high-performance communication system receiving tubes * 6B-P16 (ECL-1179), 6B-R22 (ECL-1144), 6B-R23 (ECL---), 6R-H2 (ECL-1175) 6R-P10 (ECL-1071), 6R-R8 (ECL-1083), 6R-R21 (ECL-1084), 19M-R9 (ECL-1069), 12RLL3 (ECL-1134B) 19M-R10 (ECL-1135), 19R-LL1 (ECL-1134), 19R-P11 (ECL-1070), CZ-501D/V, CZ-504D/V) 4) 19M-R9 NEC ￥2100 NIB YellowSilk D/C=1967-1,1968-4,1971-1,1971-5 RearView 1) 19M-R9 NEC ￥1600 lightly-used RedSilk D/C=1961-7, Hitachi-boxed 0) 19M-R9 NEC ￥- used-lightly WB
19M-R10/19MR10(/ECL-1135) ='long-life' sharp-cutoff Pentode= (EIA/7CM - miniature)Eh/Ih=19V/0.1A Ehkmax=±100V Ppmax=2.2W Epmax=275V Pc2max=0.44W Ec2max=165V Ikmax=22mA op : Ep=120V Ec2=120V Ec3=0V Rk=180Ω Ip=9.5mA Ic2=2.8mA rp=260kΩ gm=6.2mS pins: 1(G1)-2(K)-3(H)-4(H)-5(P)-6(G2)-7(G3,IS) (1950年代の電電公社との共同開発品 : code = ECL-1135, CZ-501-Dの後継miniature球の一つ) (参考:類似球6CB6の三結時のEp-Ip特性例(triode connection : SAMPLE data)) same base, different-heater, electrically-very-similar type 6CB6/A also see same base, different-heater, similar types 6BZ6 6DE6 6DK6 6EW6 4) 19M-R10 NEC ￥1100 NIB 3) 19M-R10 NEC ￥800 LikeNew 3) 19M-R10 TEN(Fujitsu) ￥1100 NIB just-ragged boxes 4) 19M-R10 NEC ￥600 lightly-used red-silk, D/C=1955-11 NTT WB 2) 19M-R10 NEC ￥600 lightly-used red-silk, D/C=1956-11 NTT WB 1) 19M-R10 NEC ￥600 like-new red-silk, D/C=1958-7 Sample WB 10) 19M-R10 NEC ￥600 used date=1960s 4) 19M-R10 NEC ￥600 used yellow-silk, D/C=1960s WB 4) 19M-R10 Hitachi ￥600 lightly-used D/C=1955-11, 1957-4, 1958-3, 1958-5 NTT WB 4) 19M-R10 Hitachi ￥600 lightly-used D/C=1958-6(3-pcs), 1963-2, NTT WB 2) 19M-R10 Hitachi ￥600 lightly-used D/C=1962-12 NTT WB 6) 19M-R10 Hitachi ￥600 used D/C='60s 3) 19M-R10 TEN ￥600 lightly-used D/C=1956-4 NTT WB 3) 19M-R10 TEN ￥600 lightly-used D/C=1956-5 NTT WB 2) 19M-R10 TEN ￥600 lightly-used D/C=1957-4 NTT WB 9) 19M-R10 TEN ￥600 used date='60s 5) 19M-R10 TEN ￥600 used D/C=1960s NTT WB
19MV8 =high-mu(100) Triode sharp-cutoff Pentode= (EIA/9DX - noval) Eh/Ih= heater variant : 6MV8(6.3V/0.6A) 1) 19MV8 GE ￥800 used Syl箱
19RLL1/19R-LL1 ='long-life' twin triode= (EIA/8CJ - noval)
19RP11/19R-P11 ='long-life' power Pentode for communication system= (EIA/)Eh/Ih=19V/0.2A Ehkmax=±100V Tbulb=200℃max Ppmax=8.2W Epmax=275V Pc2max=1.9W Ec2max=165V Ikmax=55mA Rgmax=500kΩ op : Ep=120V Ec2=120V Ec1=-7V Ip=35mA Ic2=7.5mA rp=25kΩ gm=5.5mS pins : 1(G1)-2(NC)-3(K,G3)-4(H)-5(H)-6(P)-7(G2)-8(K,G3)-9(G1) (1950年代の電電公社との共同開発品 : code = ECL-1070, CZ-504-Dの後継noval球) (参考 : Ep-Ip特性例(@Ec2=-120V)) (参考 : 三結時のEp-Ip特性例(sample data plotted for triode connection)) (参考 * NTT-ECL related high-rel, long-life, high-performance communication system receiving tubes * 6B-P16 (ECL-1179), 6B-R22 (ECL-1144), 6B-R23 (ECL---), 6R-H2 (ECL-1175) 6R-P10 (ECL-1071), 6R-R8 (ECL-1083), 6R-R21 (ECL-1084), 19M-R9 (ECL-1069), 12RLL3 (ECL-1134B) 19M-R10 (ECL-1135), 19R-LL1 (ECL-1134), 19R-P11 (ECL-1070), CZ-501D/V, CZ-504D/V) 0) 19R-P11 NEC ￥- NIB 2) 19R-P11 NEC ￥2400 NOS RedSilk top-getter, D/C=1959-10 WB 0) 19R-P11 NEC ￥- used 2) 19R-P11 NEC ￥1800 lightly-used top-getter, red-silk, D/C=1955-12, 1956-6, back-view, just-ragged OriginalBoxes 2) 19R-P11 NEC ￥1800 lightly-used top-getter, red-silk, D/C=1957-4, 1957-4, back-view, WB 3) 19R-P11 NEC ￥1800 lightly-used top-getter, red-silk, D/C=1957-9, 1957-12, 1957-12, back-view, WB 1) 19R-P11 NEC ￥1800 lightly-used top-getter, red-silk, D/C=1958-10, rear-view, WB 3) 19R-P11 NEC ￥1800 lightly-used top-gette, red-silkr, D/C=195810, 1958-12. 1958-12, back-view, WB 4) 19R-P11 NEC ￥1800 lightly-used top-getter, red-silk, D/C=1960-7 for all, back-view, WB 4) 19R-P11 NEC ￥1800 lightly-used top-getter, red-silk, D/C=1960-7 for all, back-view, WB 2) 19R-P11 NEC ￥1800 lightly-used top-gette, red-silk, D/C=1961-2, 1961-3, back-view, WB 4) 19R-P11 NEC ￥1800 lightly-used top-getter, red-silk, D/C=1962-8, 1962-11, 1962-11, 1964-10, rear-view, WB 1) 19R-P11 NEC ￥1800 lightly-used top-getter, red-silk, D/C=1967-3, rear-view, WB 2) 19R-P11 NEC ￥1400 used top-getter, red-silk, D/C=1954-2, 1955-6 WB 2) 19R-P11 NEC ￥1400 used top-getter, red-silk, D/C=1957-8, 1957-12 WB 1) 19R-P11 NEC ￥1400 used top-getter, red-silk, NTT D/C=1958-8 WB 2) 19R-P11 NEC ￥1400 used top-getter, red-silk, D/C=1961-2, 1961-5, back-view, WB 4) 19R-P11 NEC ￥1400 used top-getter, red-silk, D/C=1961-11 for all, back-view, WB 2) 19R-P11 NEC ￥1400 used top-getter, red-silk, D/C=1962-9, 1962-11 WB 裏側写真(back view) 2) 19R-P11 NEC ￥1400 used top-getter, red-silk NTT, D/C=1964-10 WB 1) 19R-P11 NEC ￥1400 used top-getter, red-silk, D/C=xxxx WB 3) 19R-P11 NEC ￥1400 used top-getter, yellow-silk NTT, D/C=1968-6 WB 1) 19R-P11 Hitachi ￥1800 lightly-used top-getter, D/C=1956-3 just-ragged OriginalBox 1) 19R-P11 HItachi ￥1400 used top-getter, NTT D/C=1959-2 WB 1) 19R-P11 HItachi ￥1400 used top-getter, NTT D/C=1958-8 WB 1) 19R-P11 Hitachi ￥1800 lightly-used top-getter, D/C=1961-9, rear-view, WB 1) 19R-P11 Hitachi ￥1400 used side-getter, NTT D/C=1962-1 WB 3) 19R-P11 Hitachi ￥1400 used twin-side-getter, NTT D/C=1962-10, 1965-3, 1965-6 WB 4) 19R-P11 TEN ￥1400 used top-getter, D/C=1955-10, 1956-3, 1956-7, 1956-8 WB 90-degree rotated view 6) 19R-P11 TEN ￥1400 used top-getter, NTT D/C=1958-10, 1960-3, 1961-3, 1966-7, 1968-3 WB 1) 19R-P11 TEN ￥1400 used top-getter, NTT D/C=1956-10 WB 2) 19R-P11 TEN ￥1400 used top-getter, D/C=FL5, FL5 WB 0) 19R-P11 TEN ￥- used
19T8/HABC80 =Triple-Diode High-mu Triode= (EIA/9E) Eh/Ih=18.9V/0.15A heater variants : 5T8(4.7V/0.6A), 6T8/A(6.3V/0.45A) 1) 19T8 RCA ￥1000 NIB 2) 19T8 USA ￥800 NIB
19Y3/PY82 =Half-wave Rectifier= (EIA/9BM - noval) Eh/Ih=19V/0.3A Ehkmax=550V(DC=+250Vmax) PIV=700V Idc=180mA Cmax=60μF pins : 1(IC)-2(IC)-3(K)-4(H)-5(H)-6(IC)-7(IC)-8(IC)-9(P) (参考 : 松下パンフレット/data-sheet : Page-1, Page-2, bundled with each retailed boxed-tube) 3) 19Y3 松下(Matsushita) ￥700 NIB TV用ワールドシリーズ箱 25) 19Y3 松下(Matsushita) ￥700 NIB 5) 19Y3 松下(Matsushita) ￥700 NIB 2) 19Y3 松下(Matsushita) ￥700 NIB just-ragged boxes
20/220 =PowerTriode= (EIA/4D) Ppmax= W Epmax= V Ef/If=3.3V/0.132A μ=3.3 Eb=135V Vc=-22.5V Ip=6.5mA rp=6.3kΩ gm=525μmho Zl=6.5kΩ Po=0.11W 0) CX-220 Cunningham ￥- NOS?/used 0) CX-220 Cunningham ￥- used 15.5/13min 0) UX-120 Radiotron ￥3300 used
20AQ3/LY88 =Halfwave HV Rectifier= (EIA/9CB - noval-TopCathode) Eh/Ih=20.2V/0.45A PIV=6500V(pulse) Pdmax=5W Esupply=250Vmax Ipmax=220mA heater variant : 16AQ3/XY88(16.4V/0.6A) 1) 20AQ3 Dmnt ￥900 NIB 1) 20AQ3 Syl ￥900 NIB 4) 20AQ3 USA ￥600 NIB
20D1 =Double Diode= (EIA/) Base=B7G Eh/Ih=9.5V/0.2A PIV=500V Idcmax=9mA/plate Ehkmax=300V 3) 20D1 Mazda ￥1300 used
20EZ7 =Twin Triode= (EIA/9MJ(old) or 9PG(later) - noval)Eh/Ih=20V/0.1A(10V/0.2A in parallel heater mode only for old 9MJ basing) Ehk=±200V(+100Vdc-max) Ppmax=1.2W Epmax=330V Ecmax=+0V/-55V op.1 : Ep=100V Ec=-1V Ip=0.5mA μ=100 rp=80kΩ gm=1.25mS op.2 : Ep=250V Ec=-2V Ip=1.2mA μ=100 rp=62.5kΩ gm=1.60mS 20V heater type 12AX7 with different basing *Basing(9MJ= old/original) : 1(H)-2(H)-3(HCT)-4(2K)-5(2G)-6(2P)-7(1P)-8(1G)-9(1K) *Basing(9PG=later version) : 1(H)-2(H)-3(IC)-4(2K)-5(2G)-6(2P)-7(1P)-8(1G)-9(1K) : not use pin #3 (参考 : Ep-Ip特性) 10) 20EZ7 Philips ￥2200 NIB lot=(5)QP w/sleeve, (5)QS w/sleeve 0) 20EZ7 RCA ￥- NIB 5) 20EZ7 Zenith(Sylvania-made) ￥2000 NIB just-ragged boxes =trustworthy med-mu Twin Triode= (EIA/9A - noval) Eh/Ih=6.3V/0.6A(12.6V/0.3A) Ppmax=5W Epmax=300V/500V(cutoff) Ikmax=35mA ECmax=-75V Icmax=7mA Rgmax=250kΩ(fixed)/1.5MΩ(self) low-microphonic, stable characteristics : suitable for a DC amplifier op : Ep=250V Ec=-4.6V Ip=6mA gm=2.35mS rp=14kΩ μ=32 op(B2pp) : Ep=250V Ec=0V Ipo=2x19,5mA Ipmax=2x21,6mA Ic=2x6.4mA Zlp-p=20kΩ D=11.5% Po=6.7W pins : 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(HCT) 6158のEp-Ip特性 see military equivallent type : CV4068, 13D3 * octal-base version of 6158 = ECC32/CV181 0) 6158 Brimar ￥- NIB 4) 6158 National(Brimar-made) ￥3800 NIB made-in England, D/C=9111(re-labeled) BlkPlates MB
20L1 =Television AF Twin Triode= Base=B8A Eh/Ih=12.6V/0.2A Ppmax=3W/unit 4W/both Epmax=250V gm=2.8mS μ=16 Ehk=250V pin=H-P2-G2-K2-P1-G1-K1-H 3) 20L1 Mazda ￥1300 used
20LF6
20P1 =Television Beam Power= (EIA/8GT* - international octal) Eh/Ih=38V/0.2A Ehkmax=-250V Ppmax=15W Epmax=400V/6kVpeak Pc2max=5W Ec2max=250V/-2kVpeak Ec1max=-1.5kV Ikmax=150mA op : Ep=150V Ec2=150V Ip=100mA gm=7.3mS (参考 : 20P1のEp-Ip特性(@Ec2=200V)) (参考 : 20P1の三結Ep-Ip特性(estimated triode connection)) pins : 1(NC)-2(H)-3(NC)-4(G2)-5(G1)-6(NONE)-7(H)-8(K)-Top(P) size : 54mmΦ x 128mmH 2) 20P1 Ediswan/Mazda ￥4700 NIB very-ragged boxes (hyy2&4mcqx) 2) 20P1 Mazda ￥4700 NOS WB (hyy2&4mcqx)
21A6 =sweep/power Pentode= (EIA/9AS - noval, top-plate) Eh/Ih=21.5V/0.3A Ehkmax=±200V Ppmax=8W Epmax=250V/550Vcutoff/7kVpulse Pc2max=4.5W Ec2max=250V/550Vcutoff Ikmax=180mA Rg1max=500kΩ (triode connection : Ppmax=10W) op : Ep=200V Ec2=200V Ec1=-28V Ec3=0V Ip=40mA Ic2=2.8mA rp=11kΩ gm=6mS μg2g1=5.5 pins : 1(IC)-2(G1)-3(K)-4(H)-5(H)-6(IC)-7(IC)-8(G2)-9(G3)-Top(P) (参考 : 三結時のEp-Ip特性(Triode connection for 6CJ6/EL81, 21A6/PL81)) see identical European type : PL81 also see heater variant EL81(6.3V/1.05A)/6CJ6(6.3V/1.05A) 1) 21A6 Matsushita ￥1000 NIB
21EX6 =Beam Power= Sweep Tubes(<30W) (EIA/5BT - octal-TopPlate) Eh/Ih=21.5V/0.6A Ppmax=22W Epmax=770V Pc2max=3.5W Ec2max=190V Ikmax=220mA op : Ep=175V Ec2=175V Ec1=-30V Ip=67mA Ic2=3.3mA rp=8.5kΩ gm=7.7mS heater variant : 6EX6(6.3V/2.25A) similar to 7867(6.3V/2.5A) 2) 21EX6 IntC ￥1200 NIB TopGtr, BlkPlate 2) 21EX6 IntC ￥1200 NIB SideGtr, BlkPlate
21GY5=Beam Power= Sweep Tubes(<30W) (EIA/12DR - compactron TopPlate) *21GY5=21JZ6のG3(BP)をKと接続したタイプ Eh/Ih=21V/0.45A Ppmax18W/Epmax770V/Pc2max3.5W/Ec2max220V/Ikmax230mA heater variant : 16GY5(16.8V/0.6A) 5) 21GY5 RCA ￥1300 NIB 1) 21GY5 RCA ￥1300 NOS WB 2) 21GY5 Phlco ￥1100 NIB 1) 21GY5 Syl ￥1100 NIB
21HB5 =Beam Power= Sweep Tubes(<30W) (EIA/12BJ - compactron) Eh/Ih=21V/0.45A Ppmax18W/Epmax770V/Pc2max3.5W/Ec2max220V/Ikmax230mA heater variant : 6HB5(6.3V/1.5A) 2) 21HB5A RCA ￥1300 NIB 5) 21HB5A RCA(GE-made) ￥1300 NIB TwinSideGtr 3) 21HB5A GE ￥1300 NIB TwinSideGtr 1) 21HB5A GE ￥1300 NIB 1) 21HB5A Syl ￥1300 NIB
21JS6/A =Beam Power= (EIA/12FY - compactron TopPlate) Eh/Ih=21V/0.6A Ppmax=28W Epmax=990V Pc2max=5.5W Ec2max=190V Ikmax=315mA heater variants : 6JS6A/B/C(6.3V/2.25A) 23JS6A(23.6V/0.6A) 31JS6A/C(31.5V/0.45A) 1) 21JS6A/23JS6A GE ￥1800 NIB 1) 21JS6A/23JS6A Ray ￥1800 NIB
21JV6=Beam Power= Sweep Tubes(<30W) (EIA/12FK - compactron) Eh/Ih=21V/0.45A heater variants : 6JV6(6.3V/1.5A), 33JV6(33V/0.3A) 5) 21JV6 RCA ￥1200 NIB *$** 1) 21JV6 GE ￥1000 NIB 1) 21JV6 Motorola ￥1000 NIB
21JZ4 == (EIA/) V/A 1) 21JZ4 GE ￥1200 NOS Lindal箱
21JZ6 =Beam Power= Sweep Tubes(<30W) (EIA/12GD - compactron TopPlate) *21JZ6=21GY5のG3(BP)電極の分離取出しタイプ Eh/Ih=21V/0.45A Ppmax18W/Epmax770V/Pc2max3.5W/Ec2max220V/Ikmax230mA heater variants : 6JZ6(6.3V/1.5A), 16CB-28(15.8V/0.6A), 30JZ6(30V/0.3A) 2) 21JZ6 RCA ￥900 NIB 1) 21JZ6 GE ￥900 NIB 1) 21JZ6 SEARS ￥900 NOS Silvertone箱
21KA6=Beam Power= Sweep Tubes(<30W) (EIA/12GH - compactron TopPlate) Eh/Ih=21V/0.45A Ehkmax=±200V(Average=100Vmax) Tbulb=220℃max Rgamax=1MΩ Ppmax=18W Epmax=770V/6.5kVpeak Pc2max=3.5W Ec2max=220V Ec3max=70V Ec1-max=-55V Ikmax230mA/800mApeak heater variant : 16KA6(15.8V/0.6A) 1) 21KA6 RCA ￥1100 NIB 1) 21KA6 GE ￥1100 NIB 1) 21KA6 GE ￥1100 NIB TwinSideGtr 1) 21KA6 Syl ￥1100 NIB
21KQ6/LL521 =Beam Power= Sweep Tubes(<30W) (EIA/9RJ - NOVAR TopPlate) Eh/Ih=21.5V/0.45A Ehkmax=±240V(±240Vaverage) Ppmax=17W Epmax=275V/6.5kVpeak Pc2max=6W Ec2max=275V Ec3max=70V Ec1-max=330Vpeak Ikmax=275mA Rg1max=500kΩ/2.2MΩ(H-deflection) heater variant : 29KQ6(29V/0.3A) 1) 21KQ6/LL521 IEC-Mullard ￥1500 NIB 5) 21KQ6 SylECG ￥1500 NIB *$** 1) 21KQ6 Matsushita ￥1500 NIB just-ragged box
21LG6 =Beam Power= Sweep Tubes(<30W) (EIA/12HL - compactron TopPlate) Eh/Ih=21V/0.6A 21LG6: Ppmax28W/Epmax900V/Pc2max5W/Ec2max200V/Ikmax375mA 21LG6A: Ppmax28W/Epmax900V/Pc2max5W/Ec2max200V/Ikmax315mA 1) 21LG6 RCA ￥1000 NIB 1) 21LG6A GE ￥1000 NIB 1) 21LG6 Syl ￥1000 NIB
21LR8 =Triode PowerPentode= (EIA/9QT - NOVAR -T12) Eh/Ih=21V/0.45A Ehk=200V Triode : Ppmax=2.5W Epmax=400V Ikmax=30mA Ik-peakmax=105mA Rgmax=2.2MΩ-self gm=3.6mS μ=58 rp=16kΩ Pentode: Ppmax=14W Epmax=400V Pc2max=2.75W Ec2max=300V Ikmax=75mA/260mApeak Rg1max=1MΩ-fixed gm=9.3mS μ21=6.5 rp=12kΩ-typ (同一電気的規格のcompactronベースタイプが 21LU8) (also see 6LR8 6LU8) heater variants : 6LR8(6.3V/1.5A), 31LR8(31.5V/0.3A) 12) 21LR8 RCA ￥1200 BulkNOS 1) 21LR8 RCA ￥1000 NOS? 3) 21LR8 RCA ￥1000 NIB 1) 21LR8 GE ￥1000 NIB 1) 21LR8 WH ￥1000 NIB 1) 21LR8 Znth ￥700 used
21LU8 =Triode PowerPentode= (EIA/12DZ - compactron -T12) Eh/Ih=21V/0.45A Ehk=200V Triode : Ppmax=2.5W Epmax=400V Ikmax=30mA Ik-peakmax=105mA Rgmax=2.2MΩ-self gm=3.6mS μ=58 rp=16kΩ Pentode: Ppmax=14W Epmax=400V Pc2max=2.75W Ec2max=300V Ikmax=75mA/260mApeak Rg1max=1MΩ-fixed gm=9.3mS μ21=6.5 rp=12kΩ-typ (同一電気的規格のNOVARベースタイプが 21LR8) (also see 6LR8 6LU8) heater variants : 6LU8(6.3V/1.5A), 16LU8(16V/0.6A) 3) 21LU8 RCA ￥1200 NIB 10) 21LU8 RCA ￥1200 BulkNOS 1) 21LU8 RCA ￥1200 NIB TopGtr 2) 21LU8 GE ￥1000 NIB 2) 21LU8 Syl ￥1000 NIB 1) 21LU8 SylECG ￥1000 NIB 1) 21LU8 Admrl ￥1000 NIB 1) 21LU8 Sears ￥1000 NIB 1) 21LU8 Lindal(GE-made) ￥1000 NIB 1) 21LU8 WH ￥1000 NIB 1) 21LU8 ? ￥500 used
22/322 =SharpCutoff RF Tetrode= (EIA/4K) Epmax=135V Ec2max=67.5V Ef/If=3.3V/0.132 A rp=325kΩ gm=500μS 0) CX322-globe Cunnghm ￥- NIB 0) UX222-globe RCA ￥3900 used? 585/315min WB 0) ER222-globe EvereadyRaytheon ￥3900 used? 600/315min WB 0) ER222-globe EvereadyRaytheon ￥3000 used 460/315min WB 1) 22 RCA ￥2700 NIB 1) 22 RCA ￥2700 NIB VeryRaggedBox
22BH3/A =Half-wave HV Rectifier= (EIA/9HP - NOVAR) Eh/Ih=22.4V/0.45A PIV=5500V Pdmax=6.5W Idcmax=180mA heater variants : 6BH3/A 17BH3/A 1) 22BH3A GE ￥800 NIB 3) 22BH3 Syl ￥800 NIB 1) 22BH3 Syl ￥800 NIB
22BW3 =Half-wave HV Rectifier= (EIA/12FX - compactron) Eh/Ih=22.4V/0.45A PIV=5000V Idc=175mA heater variant : 6BW3(6.3V/1.6A) 6) 22BW3 Syl ￥800 NIB 2) 22BW3 IntC ￥800 NIB
22DE4 =Half-wave HV Rectifier= (EIA/4CG-octal) Eh/Ih=22.4V/0.45A PIV=5500V Idc=180mA Pdmax=6.5W Edrop=32V(@Idc=350mA) heater variants : 6DE4(6.3V/1.6A) 17DE4(17V/0.6A) 1) 22DE4 RCA ￥900 NIB 2) 22DE4 GE ￥900 NIB 0) 22DE4 GE ￥- NIB (left-side one on photo) 0) 22DE4 Syl ￥- NIB (right 4-pcs on photo)
22JF6 =Beam Power=A Sweep Tubes(<30W) (EIA/9QL - NOVAR TopPlate) Eh/Ih=22V/0.45A Ppmax17W/Epmax770V/Pc2max3.5W/Ec2max220V/Ikmax275mA heater variants : 6JF6(6.3V/1.6A) 17JF6(16.8V/0.6A) same base(9QL-NOVAR) similar types : 22JU6(22V/0.45A), 22KM6(22V/0.45A) 1) 22JF6 RCA ￥1200 NIB 2) 22JF6 RCA ￥1200 NIB TwinSideGtr 1) 22JF6 RCA ￥1200 NIB TwinSideGtr 1) 22JF6 GE ￥1200 NIB 1) 22JF6 Syl ￥1200 NIB 1) 22JF6 Mot ￥1200 NIB
22JG6/A =Beam Power= Sweep Tubes(<30W) (EIA/9QU - NOVAR) Eh/Ih=22V/0.45A Ppmax17W/Epmax770V/Pc2max3.5W/Ec2max220V/Ikmax275mA heater variants : 6JG6/A(6.3V/1.6A) 17JG6/A(16.8V/0.6A) (22KV6Aと同一pin配列) 1) 22JG6A RCA ￥1200 NIB tip-top Beam-Power Novar Pp=17W 2) 22JG6A RCA ￥1200 NIB tip-top 5) 22JG6A RCA ￥1200 NIB 1) 22JG6A GE ￥1000 NIB 1) 22JG6A GE ￥1000 NIB tip-top RaggedBox 1) 22JG6 Syl ￥1000 NIB tip-top 1) 22JG6 Syl ￥1000 NIB tip-top Zenith箱 1) 22JG6 WH ￥1000 NIB
22JR6 =Beam Power= Sweep Tubes(<30W) (EIA/9QU - NOVAR) Eh/Ih=22V/0.45A Ppmax17W/Epmax770V/Pc2max3.5W/Ec2max220V/Ikmax275mA (22KV6Aと同一pin配列) 0) 22JR6 RCA ￥- NOS(Aht)
22JU6 =Beam Power= Sweep Tubes(<30W) (EIA/9QL - NOVAR TopPlate) Eh/Ih=22V/0.45A Ppmax=17W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=275mA （pin配列が 6JE6C/6LQ6/6JB6/6JF6/6MJ6/22JF6/22KM6/24JE6C/24LQ6/36MC6 と同一） also see heater variant : 6JU6(Eh/Ih=6.3V/1.6A) same base(9QL-NOVAR) similar types : 22JF6(22V/0.45A), 22KM6(22V/0.45A) 0) 22JU6 RCA ￥1000 NIB 9) 22JU6 RCA ￥1000 NIB TwinSideGtr 7) 22JU6 RCA ￥1000 NIB TwinSideGtr 構造は上記と同一、箱(lot)が異なる。 1) 22JU6 RCA ￥1000 NIB TwinSideGtr RaggedBox 1) 22JU6 GE ￥1000 NIB TwinSideGtr 3) 22JU6 GE(Syl-made) ￥1000 NIB TwinSideGtr Sylvaniaと同一構造 3) 22JU6 Syl ￥1000 NIB TwinSideGtr 6) 22JU6 Syl ￥1000 NIB TopGtr 電極構造はSideGtr品と同一 1) 22JU6 Syl ￥1000 NIB TopGtr 1) 22JU6 Syl ￥1000 NOS TopGtr WH箱 1) 22JU6 Syl ￥1000 NIB 12) 22JU6 WH ￥1000 NIB TwinSideGtr Japan 9) 22JU6 Ray ￥1000 NIB TwinSideGtr Japan
22KM6 =Beam Power= (EIA/9QL - NOVA TopPlateR) Eh/Ih=22V/0.45A Ppmax=20W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=275mA also see heater variant : 6KM6(Eh/Ih=6.3V/1.6A) same base(9QL-NOVAR) similar types : 22JF6(22V/0.45A), 22JU6(22V/0.45A) 1) 22KM6 RCA ￥1000 NIB TwinSideGtr 1) 22KM6 RCA ￥1000 NIB TwinTopGtr 1) 22KM6 RCA ￥1000 NIB 2) 22KM6 RCA ￥1200 NIB TwinTopGtr TallGlass 1) 22KM6 RCA ￥1000 NIB TwinSideGtr 1) 22KM6 RCA(Syl-made) ￥1000 NIB TwinSideGtr 1) 22KM6 GE ￥1000 NIB TwinSideGtr
22KV6A
GE-23A 1) GE-23A GE ￥1500 NIB Photo-tube
23JS6
23Z9 =Dissimilar-double Triode Pentode= (EIA/12GZ - compactron) Eh/Ih=23V/0.45A Ehkmax=±200V triode 1: Ppmax=1.25W Epmax=330V Rg1max=500kΩ op: Ep=150V Ec=-2V Ip=5.4mA rp=11kΩ gm=3.9mS μ=43 triode 2: Ppmax=1W Epmax=250V Ipmax=20mA Rg1max=1MΩ op: Ep=150V Ec=-5V Ip=5.5mA 8.5kΩ gm=2.35mS μ=20-typ pentode: Ppmax=7W Epmax=250V Pc2max=1.8W Ec2max=200V Ikmax=70mA Rg1max=1MΩ op: Ep=120V Ec2=110V Ec1=-8V Ip=46mA Ic2=3.5mA rp=11.7kΩ gm=7.1mS 0) 23Z9 RCA ￥- NIB(T) 2) 23Z9 GE ￥1200 NIB 3) 23Z9 Syl ￥1200 NIB 1) 23Z9 Syl ￥1200 NIB RaggedBox 1) 23Z9 Admrl ￥600 used
24/24A/124/224/324 (EIA/5E - UY, Top-G1) Eh/Ih=2.5V/1.75A Epmax=275V Ec2max=90V op : Ep=180V Ec2=90V Ec1=-3V Ip=4mA Ic2=1.7mA rp=400kΩ gm=1mS 0) C-324 Cnghm ￥3700 NIB 0) C-324-globe Cnghm ￥- used(xD) 0) UY-224A-globe RCA ￥- used(xD) 0) UY-224-globe RCA ￥- used 0) 24-globe Philco ￥- used 0) 24-globe Philco ￥- used 0) 24-globe Philco ￥1700 used 1020/630min 1) 24-globe Philco ￥1200 used 720/630min@@ 0) z-24-globe Znth ￥- used 1) G-24-globe Majestic ￥1200 used 700/630min 0) 224-globe Silvertone ￥2100 used 1250/630min@@ 1) 24-globe Champion ￥2000 used? 900/630min OriginalWrapper(tw01) 1) 24-globe ? ￥2000 NOS BrownBox 0) 124-globe Crosley ￥2400 used 透明ガラス 56/25min 0) 24-globe[BLUE] Arcturus,Crosley ￥- used(Sn) 0) 124-globe[BLUE] Crosley/Arcturus ￥- used(Nn) 0) 124-globe[BLUE] Arcturus ￥4700 used 50/25min 0) 124-globe[BLUE] Arcturus ￥4500 used(sT) 0) 124-globe[BLUE] Crosley/Arcturus ￥4300 used Strong 1) 124-globe[BLUE] Crosley/Arcturus ￥3700 used 850/630min@@ 1) 224-globe Rising(Japan) ￥1500 used gm=760/650min, Ik=6mA tested by KS-15750-L1, WB 2) JAN-CRC 24A-ST RCA ￥2500 NIB D/C=Mar.1941 VeryRaggedBoxes 1) JAN-CRC 24A-ST RCA ￥2500 NIB D/C=Mar.1941 sealed RaggedBox 1) 24A-ST RCA ￥2000 NIB 1) JAN-CHS 24A-ST Syl ￥2500 NIB D/C=4-10-42(1942) sealed RaggedBox 0) 24A-ST RCA ￥1700 used 1250/630min NewspaperWrapped 0) 24A-ST RCA ￥1400 used 1100/630min NewspaperWrapped 1) 24A-ST RCA-Cnghm ￥1400 used 1110(mD) 1) 24A-ST RCA-Cnghm ￥600 used 720/630min 1) 24A-ST Philco ￥2100 NIB 2) 24A-ST NU ￥600 used 890,970/630min 0) 24A-ST RCA ￥- used 0) 24A-ST RCA-Cunningham ￥- used 1) 24A-ST Cunnghm ￥600 used gm=950/630min 0) 24A-ST Philco ￥- LikeNew gm=1040/630min 1) 24A-ST Philco ￥600 used gm=820/630min 1) 24A-ST Philco ￥600 used gm=800/630min 1) 24A-ST NU ￥500 used gm=710/630min 1) 24A-ST Coronado ￥1300 used? gm=1040/630min 1) 24-ST Tsol ￥600 used gm=720/650min, Ik=4.6mA tested by KS-15750-L1, WB
HK-24/Gammatron-24
24BF11 =Dissimilar-double Pentode= Eh/Ih=24.2V/0.315A heater variants : 6BF11(6.3V/1.2A), 12BF11(12.6V/0.6A), 17BF11(16.8V/0.45A) 1) 24BF11 ElMenco(GE-made) ￥1000 NIB
24D/6813 1) 24D/6813-AL WE ￥1700 NIB Transistor date=7716
24JZ8 =Triode Pentode= (EIA/12DZ) Eh/Ih=24.2V/0.315A heater variants : 6JZ8(6.3V/1.2A) 13JZ8(12.7V/0.6A) 17JZ8(16.8V/0.45A) 25JZ8(25.2V/0.3A) 1) 24JZ8 Syl ￥1000 NIB 1) 24JZ8 WH ￥1000 used 8000/4100min *small-COMPACTRON* 1) 24JZ8 Syl ￥1000 NIB
標記 この頁の各行は、基本的に下記のように記述されております｡ 在庫数) TYPE 製造メーカ 単価 new/used状態 その他状況 メーカ略号 Amprx(Amperex), Cunnghm(Cunningham), Dmnt(Dumont), GE(General Electric), Hyt(Hytron), Krad(KenRad), L&K(Lewis and Kaufman), Mag(Magnavox), NU(National Union), Ray(Raytheon), STD(Standard), Syl(Sylvania), TFK(Telefunken), Tsol(Tung-Sol), WE(Western Electric), WH(Westinghouse), Znth(Zenith)
24LQ6/24JE6A/24JE6C
24Z-K2/24ZK2 =Fullwave Rectifier= (EIA/6E - UZ-6pin) Eac-input=125Vrms Idc=30mAmax Eh/Ih=24V/0.15A pins : 1(H)-2(P2)-3(K2)-4(K1)-5(P1)-6(H) 1) 24Z-K2 JRC(SUWA-MUSEN) ￥1200 NIB 1) 24Z-K2 マツダ(Matsuda) ￥1200 lightly-used WB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
25A6, 25A6GT/G =power pentode= (EIA/7S - octal) * note : There is no any relation between 25A6(power pentode) and 6A6(twin power triode) Eh/Ih=25V/0.3A Ppmax=5.3W Epmax=160V Pc2max=1.9W op : Ep=160V Ec2=120V Ec1=-18V Ip=33mA/36mA Ic2=6.5mA/12mA rp=42kΩ gm=2.375mS Zl=5kΩ D=10% Po=2.2W also see an electrically equivallent type : 43(6B-base, ST-14 bulb) also see upper rating types : 25C6G(Ppmax=12.5W, gm=7mS), KT33/KT33C(Ppmax>12W, gm=10mS) 1) 25A6G Philco ￥2500 NIB RaggedBox
25A7G/GT =Rectifier + Pentode= (EIA/8F - octal, ST14) * note : There is no any relation between 25A7(Rectifier, Pentode) and 6A7(PentaGridConverter) Pentode : Ppmax=2.25W Epmax=117V Pc2max=0.8W Ec2max=117V Rg1max=100kΩ Eh/Ih=25V/0.3A op : Ep=100V Ec2=100V Ec1=-15V Ip=20.5mA Ic2=4mA rp=50kΩ gm=1.8mS Zl=4.5kΩ D=9% Po=0.77W Rectifier : PIV=350V Idc=75mA Ehk=175Vmax 1) 25A7G Hytron ￥- used
25AC5G/GT =Triode Power Amp= (EIA/6Q - octal, G=ST12) Ppmax=10W Epmax=180V Eh/Ih=25V/0.3A op(dynamic couple w/6AE5GT/G) : Ep=110V Rg-driver=1MΩ Ip=45mA Ip-driver=7mA Ein=22Vrms Zl=2kΩ D=10% Po=2W op(dynamic couple w/6P5, #76) : Ep=180V Rg-driver=1MΩ Ip=27mA Ip-driver=4mA Ein=12Vrms Zl=8kΩ D=10% Po=2W op(dynamic couple w/#37, #237): Ep=110V Rg-driver=1MΩ Ip=37mA Ip-driver=5.3mA Ein=17Vrms Zl=5kΩ D=10% Po=2.7W also see a later(robust) version : 6AC5G, 6AC5GT(Epmax=250V, Eh/Ih=6.3V/0.4A) 0) 25AC5G Emerson ￥2000 NIB 2) 25AC5GT Emerson ￥2000 NIB sealed-boxes bottom-view
25AV5G/GT/GA =Beam Power= (EIA/6CK - octal) 25V/0.3A see heater variant : 6AV5(6.3V/1.2A), 12AV5(12.6V/0.6A), 17AV5(16.8V/0.45A) 1) 25AV5GA RCA ￥1000 NIB 1) 25AV5GA GE ￥1000 NIB RaggedBox 1) 25AV5GT GE ￥1000 NIB 1) 25AV5GA RCA(GE-made) ￥1000 NIB RaggedBox 1) 25AV5GT Syl ￥1000 NIB
25AX4/GT =Half-wave Rectifier= (EIA/4CG - octal) Eh/Ih=25V/0.3A PIV=4000V Idc=125mA Ipeak=600mA Edrop=32V(@Ip=250mA) see heater variant : 6AX4(6.3V/1.2A), 12AX4(12.6V/0.6A), 17AX4(16.8V/0.45A) 1) 25AX4GT GE ￥800 NIB *sw 1) 25AX4GT Syl ￥800 NIB OldRaggedBox 1) 25AX4GT Syl ￥800 NIB 1) 25AX4GT Dmnt ￥800 NIB 2) 25AX4 Chief ￥800 NIB 1) 25AX4GT Ray ￥600 used
25B5 =dynamic-coupled Power Amp= (EIA/6D - UZ6pin, ST12) Epmax=180V(output-side) Eh/Ih=25V/0.3A op(A1S):Ep-outp=180V Ep-inp=100V Ec=0V Rg=1MΩ Ip-outp=46mA Ip-inp=5.8mA gm=2.3mS μ=35 Zl=4kΩ Esig=21Vrms D=9% Po=3.8W (octal version = 25N6G(ST-12 bulb)) also see robust similar types : 6B5 and 6N6G(octal) ( both : ST-14 bulb, Epmax=325V, Eh/Ih=6.3V/0.8A) 1) 25B5 York(RCA licensed) ￥2700 NIB
25B6G =Power Pentode= (EIA/7S - octal - ST14) * note : There is no any relation between 25B6G('high power' pentode) and 6B6G(triode + 2 x diode) Ppmax=12.5W Epmax=200V Pc2max=2W Ec2max=135V Rg1max=100kΩ(fixed)/500kΩ(self) Eh/Ih=25V/0.3A op(A1S): Ep=105V Ec2=105V Ec1=-16V Ip=48/55mA Ic2=2/10mA rp=15.5kΩ gm=4.8mS Zl=1.7kΩ D=12.5% Po=2.4W op(A1S): Ep=135V Ec2=135V Ec1=-22V Ip=61/69mA Ic2=2.5/14.5mA rp=15kΩ gm=5mS Zl=1.7kΩ D=14% Po=4.3W op(A1S): Ep=200V Ec2=135V Ec1=-23V Ip=62/71mA Ic2=1.8/13mA rp=18kΩ gm=5mS Zl=2.5kΩ D=15% Po=7.1W (参考 : 25B6Gの出力・負荷特性(power-load)) similar type : 25L6GT(straight-GT), 26E6WG(Eh/Ih=26.5V/0.3A), 5824 2) 25B6G GE ￥2000 used?/NOS? D/C=652(1956), smoked-glass gm=5200, 5150/2500min, no glass-discoloration 3) 25B6G GE ￥2000 used?/NOS? smoked-glass gm= >5000/2500min
25B-B14/25BB14 =Beam Power= (EIA/9NH - Magnoval TopPlate) Ppmax=13W Epmax=-V Ipmax=-mA gm=14mS Eh/Ih=25V/0.3A pin : 1-G1 2-G1 3-KG3 4-H 5-H 6-G2 7-G2 8-KG3 9-IC Tcap-P heater variants : 6B-B14(6.3V/1.2A), 12B-B14(12.6V/0.6A), 17B-B14(16.8V/0.45A) 0) 25B-B14 Raytheon(Toshiba) ￥- NIB 0) 25B-B14 Ray(Toshiba-made) ￥- NIB 0) 25B-B14 Toshiba ￥- NIB
25BK5 =Beam Pentode= (EIA/9BQ - noval) Eh/Ih=25V/0.3A Ehk=±100V Ppmax=9W Epmax=250V Pc2max=2.5W Ec2max=250V Rgmax=0.1MΩ op : Ep=Ec2=250V Ec1=-5V Ip=37mA Ic2=10mA Zl=6.5kΩ Po=3.5W D=7% heater variants : 6BK5(6.3V/1.2A), 12BK5(12.6V/0.6A) 1) 25BK5 RCA ￥1000 used? 1) 25BK5 USA ￥800 used
25BQ6GT/GTB/GA =Beam Power= Sweep Tubes(<30W) (EIA/6AM-octal TopPlate) Eh/Ih=25V/0.3A equivallent : 25CU6(25V/0.3A) heater variants : 6BQ6GTA/GTB(6.3V/1.2A), 12BQ6GTA/GTB(12.6V/0.6A), 17BQ6GTA/GTB(16.8V/0.45A) heater variants : 6CU6(6.3V/1.2A), 12CU6(12.6V/0.6A) 1) 25BQ6GT GE ￥600 NIB 1) 25BQ6GT Syl ￥600 NIB 1) 25BQ6GT Ray ￥600 NIB 1) 25BQ6GT CBS ￥600 NIB 1) 25BQ6GTB/25CU6 RCA ￥600 NOS RCA-12BQ6GTB/12CU6箱入 2) 25BQ6GTB/25CU6 WH,Syl ￥600 NIB 1) 25BQ6GA/25CU6 GE ￥600 NIB 1) 25BQ6GA/25CU6 Philco ￥600 NIB 1) 25BQ6GT Philco ￥600 NIB
25C5 =Beam Power= (EIA/7CV - miniature) Eh/Ih=25V/0.3A Ehkmax=±200V Ppmax=7W Epmax=150V Pc2max=1.4W Ec2max=130V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=120V Ec2=110V Ec1=-8V Ip=49/50mA Ic2=4/8.5mA rp=10kΩ gm=7.5mS Zl=2.5kΩ D=10% Po=2.3W heater variants : 12C5(12.6V/0.6A), 35C5(Ppmax=5.2W, 35V/0.15A), 50C5(Ppmax=5.5W, 50V/0.15A) also see heater variants : 6CU5(6.3V/1.2A), 12CU5(12.6V/0.6A), 17CU5(16.8V/0.45A) 2) 25C5 RCA ￥700 NIB - mint 4) 25C5 GE ￥700 NIB - mint 2) 25C5 GE ￥700 NIB D/C=6135, 6143 BlkPlate RaggedBoxes 1) 25C5 USA ￥600 NIB
25C6/G =Beam Power= (EIA/7AC -octal-ST14) Eh/Ih=25V/0.3A Ppmax=12.5W Epmax=200V Pc2max=1.75W Ec2max=135V rp=9.3kΩ gm=7mS op1(A1S) : Ep=135V Ec2=135V Ec=-13.5V Ip=58mA/60mA Ic2=3.5mA/11.5mA Zl=2.0kΩ Po=3.6W D=10% op2(A1S) : Ep=200V Ec2=135V Ec=-14.0V Ip=61mA/66mA Ic2=2.2mA/9.00mA Zl=2.6kΩ Po=6.0W D=10% (参考 : 25C6GのEp-Ip特性(@Ec2=135V)) (参考 : 25C6Gの出力・負荷特性(power-load)) (参考 : 6Y6/GAの三結時のEp-Ip特性-triode connection) variants : 6Y6G(6.3V/1.25A), 50C6G(50V/0.15A) similar types : 25B6/G, 26E6WG(Eh/Ih=26.5V/0.3A), 25L6GT(straight-GT), 25W6GT, 6W6GT, 6DG6GT also see a European similar type : KT33C(gm=10mS-typ) 2) 25C6G GE,WU(GE-made) ￥1200 NIB D/C=5813, 6330 RaggedBoxes 2) 25C6G GE ￥1200 NIB made in Canada, very-ragged boxes 3) 25C6G Syl ￥1200 NIB just-ragged boxes (hyyres01x) 1) 25C6G Raytheon ￥1200 NIB D/C=039, very-ragged box 13) 25C6G WH ￥1200 NIB just-ragged boxes (hyyres01x) 0) 25C6G Tsol ￥- used
25CD6/GB =Beam Power= Sweep Tubes(<30W) (EIA/5BT - octal TopPlate) Eh/Ih=25V/0.6A heater variant : 6CD6G/GA(6.3V/2.5A) 1) 25CD6GB RCA ￥1000 NIB 1) 25CD6GB GE ￥1000 NIB 1) 25CD6GB Motorola(GE-made) ￥1000 NIB 1) 25CD6 Tsol ￥400 used RCA箱
25CG3 =Half-wave HV Rectifier= (EIA/12HF - compactron) Eh/Ih=25V/0.45A heater variants : 6CG3(6.3V/1.8A), 19CG3(19V/0.6A) 1) 25CG3 Syl ￥800 NIB 1) 25CG3 Silvertone ￥400 used
25CK3 =Half-wave HV Rectifier= (EIA/9HP - NOVAR) Eh/Ih=25.2V/0.3A heater variant : 6CK3(6.3V/1.2A) 1) 25CK3 Dmnt ￥600 NIB
25CU6 =Beam Power= Sweep Tubes(<30W) (EIA/6AM - octal TopPlate) Eh/Ih=25V/0.3A equivallent : 25BQ6(25V/0.3A) heater variants : 6CU6(6.3V/1.2A), 12CU6(12.6V/0.6A) heater variants : 6BQ6GTA/GTB(6.3V/1.2A), 12BQ6GTA/GTB(12.6V/0.6A), 17BQ6GTA/GTB(16.8V/0.45A) 1) 25CU6 CBS ￥700 NOS ragged box
25DN6 =Beam Power= Sweep Tubes(<30W) (EIA/5BT - octal TopPlate) Eh/Ih=25V/0.6A also see heater variant 6DN6(Eh/Ih=6.3V/2.5A) 1) 25DN6 Syl ￥1200 NIB 1) 25DN6 CBS ￥1200 NIB 1) 25DN6 WH ￥800 used RCA箱
25DQ6 =Beam Power= Sweep Tubes(<30W) (EIA/5BT - octal TopPlate) Eh/Ih=25V/0.6A heater variants : 6DQ6/A/B(6.3V/1.2A), 12DQ6/A/B(12.6V/0.6A), 17DQ6A/B(16.8V/0.45A) heater variants : 6GW6(6.3V/1.2A), 12GW6(12.6V/0.6A), 17GW6(25V/0.3A) 1) 25DQ6 Std ￥1200 NIB
25E5/PL36 =Beam Power= (EIA/8GT - octal TopPlate) Eh/Ih=25V/0.3A Ppmax=10W Epmax=250V/7kVpeak Pc2max=5W Ec2max=250V Ikmax=200mA Rg1max=500kΩ Ehkmax=+200V/-250V Ppmax(Triode-connection)=13W op : Ep=100V Ec2=100V Ec1=-8.2V Ip=100mA Ic2=7mA gm=14mS rp=5kΩ μg2g1=5.6 (参考 : Ep-Ip特性) (参考 : 三結時のEp-Ip特性例(triode-connection sample data) see equivallent : PL36(25V/0.3A) see heater variants : 6CM5(6.3V/1.25A), EL36(6.3V/1.25A), 50JY6(50V/0.15A) also see similar types except heater: 6G-B3A(6.3V/1.2A), 12G-B3(12.6V/0.6A) also see a just-upper-rating and same-basing type : EL360(Ppmax=15W, Ec2max=400V, Eh/Ih=6.3V/1.27A) also see a single-ended, electrically-similar, MAGNOVAL-base type : 25HX5 1) 25E5/PL36 RCA ￥1800 NIB made in Japan 2) 25E5 Syl ￥1800 NIB made in Holland 2) 25E5 Matsushita ￥1800 NIB glass-silk, 3-mica, non plate-hole 2) 25E5 Matsushita ￥1800 NIB glass-silk, 3-mica, non plate-hole 1) 25E5 Matsushita ￥1800 NIB glass-silk, 3-mica, non plate-hole 2) 25E5 Matsushita ￥1800 NIB(WB) glass-silk, 3-mica, non plate-hole 5) 25E5 Matsushita ￥1800 NIB glass-silk, 2-mica, 2X3 plate-hole 8) 25E5 Matsushita ￥1800 NIB glass-silk, 2-mica, 2X3 plate-hole, same-lot(7L 7L) 1) 25E5 Matsushita ￥1800 NIB glass-silk, 3-mica, non plate-hole just-ragged box 1) 25E5 Matsushita ￥1800 NIB glass-silk, 3-mica, non plate-hole just-ragged box 2) 25E5 Matsushita ￥1800 NIB glass-silk, 3-mica, non plate-hole just-ragged boxes 1) 25E5 Matsushita ￥1800 NIB glass-silk, 3-mica, 2X3 plate-hole 2) 25E5 Matsushita ￥1800 NIB glass-silk, 3-mica, 2X3 plate-hole 2) 25E5 Victor(=Matsushita) ￥1800 NIB glass-silk, 2X3 plate-hole 2) 25E5 Matsushita ￥1800 NIB still have cellophane wrapping (partially a little peeled-off) 4) 25E5 Matsushita ￥1800 NIB cellophane-sealed 6) 25E5 Matsushita ￥1800 NIB original-tape sealed 13) 25E5 Matsushita ￥1800 NIB still have cellophane wrapping (several's : partially) 2) 25E5 Toshiba ￥1800 NIB still cellophane-sealed 1) 25E5 Toshiba ￥1800 NIB 2x2 plate holes 1) 25E5 Toshiba ￥1800 NIB 2x2 plate holes VeryRaggedBox 2) 25E5 Toshiba ￥1000 used-like-new 2x2holes w/original-boxes 1) 25E5 Hitachi ￥1000 used-like-new smooth-plate(w/o holes) 1) 25E5 NEC ￥700 lightly-used 3) 25E5 Matsushita ￥700 used base-silk, 3-mica, non plate-hole (tested on Hickok-539B) 5) 25E5 Matsushita ￥700 lightly-used base-silk, 3-mica, non plate-hole 3) 25E5 Matsushita ￥700 lightly-used base-silk, 3-mica, non plate-hole 5) 25E5 Matsushita ￥700 used glass-silk, 3-mica, non plate-hole (tested on Hickok-539B) 3) 25E5 Matsushita ￥700 lightly-used glass-silk, 3-mica, non plate-hole 5) 25E5 Matsushita ￥700 lightly-used glass-silk, 2-mica, 2X3 plate-hole 5) 25E5 Matsushita ￥700 used glass-silk, non plate-hole, WB 2) 25E5 Matsushita ￥500 used glass-print WB 7) 25E5 Matsushita ￥500 used base-print WB 8) 25E5 Matsushita ￥500 used WB
25EC6 =Power Pentode= (EIA/7CV - miniature) Eh/Ih=25V/0.3A 1) 25EC6 GE ￥900 NIB
25EH5 =Power Pentode= (EIA/7CV - miniature) Eh/Ih=25V/0.3A Ppmax=5.5W Pc2max=2W heater variants : 6EH5(6.3V/1.2A), 35EH5(35V/0.15A, Ppmax=5W, Pc2max=1.75W), 50EH5(50V/0.15A) 1) 25EH5 Hoffman(RCA-made) ￥1200 NIB BlkPlate ClearTop(Side-Gtr) 1) 25EH5 RCA ￥700 used 2) 25EH5 Syl ￥1100 NIB(D)
25HX5 =Beam Power= (EIA/9SB - MAGNOVAL) 25V/0.3A Eh/Ih=25V/0.3A Ppmax=14W Epmax=400V/2500V-pulse Pc2max=3.5W Ec2max=300V Ikmax=220mA op : Ep=100V Ec2=100V Ec1=-8.2V Ip=100mA Ic2=7mA rp=5kΩ gm=14mS op : Ep=40V Ec2=100V Ec1=0V Ip=240mA Ic2=19mA pins : 1(G1)-2(G1)-3(G3,K)-4(H)-5(H)-6(G2)-7(G1)-8(IC)-9(P) : same as 6/50HB26 for non-use of pins #2 & #8 size : 30.2mmΦ x 89.2mmH, in max (same as 6/50HB26) different-base, electrically-similar type : 25E5/PL36 (octal, top-plate) also different-base/heater, electrically-similar type : 50JY6 except heater (octal, top-plate) also see just-upper-rating, electrically similar types : 6HB26 / 50HB26 also see a European lower gm/rating Magnoval sigle-ended power tube : PL508(Eh/Ih=17V/0.3A, gm=9mS) 10) 25HX5 Sylvania-ECG ￥offer NIB ** 5) 25HX5 SylECG ￥offer NIB 1) 25HX5 Japan ￥1000 used
25L6/G/GT =Beam Power= (EIA/7AC - octal) Eh/Ih=25V/0.3A Ppmax=10W Epmax=200V Pc2max=1.25W Ec2max=125V Po=4.3W/Zl=3kΩ see heater variants : 12L6GT(Eh/Ih=12.6V/0.6A), 50L6GT(Eh/Ih=50V/0.15A) see 6.3V heater variant : 6DG6GT(EIA/7S, Eh/Ih=6.3V/1.2A) ST-14 shape similar types with same basing : 25C6/G, 25B6G(EIA/7S), and 25W6GT also see smaller-spec. type : 35L6GT(Ppmax=8.5W, Pc2max=1W, Eh/Ih=35V/0.15A) see an upper-rating similar type : 26E6G/WG(Ppmax=12.5W, Eh/Ih=26.5V/0.3A, Po=6W@Zl=2.6kΩ) 1) 25L6G NU ￥2500 used 9200/5650min 0) JAN-CRC 25L6GT RCA ￥- NIB 1) 25L6GT RCA ￥1200 NIB(Sx) 2) 25L6GT GE ￥900 NIB(T) 2) 25L6GT/25W6GT GE ￥1000 NIB 1) 25L6GT GE ￥1000 NIB 青箱 1) 25L6GT GE ￥1000 NOS 2) 25L6GT Syl ￥1000 NIB MIL-WB ClearGlass TopGetter(Q) 1) 25L6GT Syl ￥1000 NIB 2) 25L6GT/25W6GT Syl ￥1000 NIB 1) 25L6GT Syl ￥1000 NIB Gray 1) 25L6GT Tsol ￥1000 NIB ragged box 1) 25L6GT Tsol ￥1000 NOS Emerson箱 1) 25L6GT WH ￥1000 NIB 1) JAN-CNU 25L6GT NU ￥1200 NIB MB(sD) 1) JAN-CNU 25L6GT Philco ￥1000 NIB 1) 25L6 Znth ￥1000 NIB ragged box 1) 25L6GT Ray ￥600 used SmokedGlass gm=7900/5650min 8) 25L6GT USA ￥500 used
25M-K15/25MK15 =Half-wave Rectifier= (EIA/T4C - miniature) Eh/Ih=25V/0.15A PIV=330Vmax Ipeak=420mAmax Idc=70mAmax Ehk=330Vmax pins : 1(NC)-2(NC)-3(H)-4(H)-5(P)-6(NC)-7(K) 4) 25M-K15 NEC ￥900 NIB 6) 25M-K15 NEC ￥900 NIB 8) 25M-K15 NEC ￥900 NIB 3) 25M-K15 Toshiba ￥900 NIB 8) 25M-K15 Toshiba ￥400 used
25W4/GT =Half-wave HV Rectifier= (EIA/4CG - octal) Eh/Ih=25V/0.3A Ehkmax=+200V(DCmax=+100V)/-500V PIV=3850V Idc=125mA Pp=3.5W Edrop=21V(@Idc=250mA) heater variant : 6W4GT(6.3V/1.2A) 1) 25W4GT RCA ￥700 NIB 1) 25W4GT GE ￥600 NIB *sw 1) 25W4GT GE ￥500 used Base 105/54min 1) 25W4 GE ￥500 used 108/54min 1) 25W4GT GE ￥400 used Baseクラック 1) 25W4GT Syl ￥600 NIB 2) 25W4GT Philco ￥600 NIB
25Z3 = halfwave rectifier= (EIA/4G - ) Eh/Ih=25V/0.3A 2) 25Z3 RCA ￥2600 NIB
25Z5 =separate-cathode fullwave Rectifier= (EIA/6E - UZ6pin)* 25Z5/25Z6GT have separated cathode for two units in order to be utilized in voltage doubler circuits especially in power-transformer-less radio. * 25Z5G/GT and 25Z6GT are identical electrically. Eh/Ih=25V/0.3A PIV=700V Epmax=235Vac Idcmax=75mA/plate Edrop=22V(@Idc=150mA/section) 1) 25Z5-ST RCA ￥1000 used ST 1) 25Z5-ST GE ￥1000 used ST 1) 25Z5-ST Syl ￥1000 used 109/110/54min ST 1) 25Z5-ST Syl ￥1000 used 104/105/54min ST 1) 25Z5-ST Tsol ￥1000 LightlyUsed 103/101/54min ST(tw02) 1) 25Z5-ST Delta ￥1000 LightlyUsed 104/101.103/108/54min ST(tw02) 4) 25Z5 RCA ￥1100 NIB(xQ) 1) 25Z5 RCA ￥1100 NIB 2) 25Z5 RCA-made ￥1100 NIB-WB 1) 25Z5 Syl ￥1000 NIB 1) 25Z5 Syl ￥1000 NIB ragged-box 1) 25Z5 Syl ￥1000 NIB ragged-box 1) JAN-CHS 25Z5 Syl ￥1000 NIB MB 1) 25Z5 Philco ￥1000 NIB 1) 25Z5 Syl ￥700 used-lightly very-ragged original box straight-glass 1) 25Z5 Arcturus ￥700 used 96/93/54min straight-glass
25Z6/GT =separate-cathode fullwave Rectifier= (EIA/7Q - octal) * 25Z6/25Z5 have separated cathode for two units in order to be utilized in voltage doubler circuits especially in power-transformer-less radio. * 25Z6GT and 25Z5G/GT are identical electrically. Eh/Ih=25V/0.3A PIV=700V Epmax=235Vac Idcmax=75mA/plate Edrop=22V(@Idc=150mA/section) 4) 25Z6GT RCA ￥1200 NIB(vSx) 1) 25Z6GT/G Std箱(RCA) ￥1500 NIB 1) 25Z6GT GE ￥1200 NIB 青箱(sD) 4) 25Z6GT GE ￥1000 NIB(Sx) 1) 25Z6GT Syl ￥1000 NIB 1) 25Z6GT Syl ￥1000 NIB 1) 25Z6GT Syl ￥1000 NIB 1) 25Z6GT Tsol ￥1200 NIB 1) 25Z6GT GE ￥1000 NOS Emerson箱 1) 25Z6GT NU ￥1000 NOS Emerson箱 3) 25Z6GT Emerson ￥1000 NIB 1) 25Z6GT/G Ray ￥1000 NIB(mD) 0) 25Z6GT/G RCA ￥500 used 93/93/54min 1) 25Z6GT/G Syl ￥500 used 86/83/54nin 1) 25Z6GT/G Ray ￥500 used 0) 25Z6GT/G Krad ￥500 used 92/90/54min
標記 この頁の各行は、基本的に下記のように記述されております｡ 在庫数) TYPE 製造メーカ 単価 new/used状態 その他状況 メーカ略号 Amprx(Amperex), Cunnghm(Cunningham), Dmnt(Dumont), GE(General Electric), Hyt(Hytron), Krad(KenRad), L&K(Lewis and Kaufman), Mag(Magnavox), NU(National Union), Ray(Raytheon), STD(Standard), Syl(Sylvania), TFK(Telefunken), Tsol(Tung-Sol), WE(Western Electric), WH(Westinghouse), Znth(Zenith)
26/126/226/326 =Medium mu Triode(直熱管)= (EIA/4D - UX4pin) Epmax=180V Ef/If=1.5V/1.05 A μ=8.3 (参考) #26のEpIp特性 0) 26-globe Cunnghm ￥- used 0) CX26-globe Cunnghm used 0) CX326-globe Cunnghm used 1) CX326-globe Cunningham ￥offer LikeNew Viking箱 0) CX326-globe Cunnghm ￥- used(nhybgt) 0) UX226-globe RCA ￥4900 NIB(D) 0) UX226-globe RCA ￥4700 UsedLikeNew 1070,1080/725min(vD) 0) UX226-globe RCA ￥- used RCA箱 0) UX226-globe RCA ￥- used (hhent) 6) UX226-globe RCA ￥3200 used 2) UX226-globe RCA ￥2900 used SlightlyLooseBase 900/725min 1) UX226-globe RCA ￥1500 used SlightlyLooseBase 670/725min useable 0) 226-globe GE ￥- used 35/29min 0) 26-globe Syl ￥- used 1) UX226-globe WH ￥2999 used WB 0) UX226-globe RCA ￥- used (hhent) 0) UX-226-globe WH ￥- used(Q) 0) ER226-globe EvereadyRaytheon ￥- used 4-Pillar 0) NX226-globe NU ￥- used 950/725min 1) 26-globe Philco ￥1800 used 810/725min 1) GX226-globe Airline ￥4900 usedLikeNew ReddishDarkBrownBase gm=1100/725min ClearGlass WaistGetter 0) MX226-globe Marathon ￥3700 usedLikeNew 1010/725min 0) 226-globe SIlvertone ￥- used 2) UX226-globe Marconi-Radiotron ￥3700 used? 0) UX226-globe Duratron ￥- used 0) PA226-globe Perryman ￥- used(mD) 0) 26/126-globe[BLUE] Arcturus ￥- used(Aht) 0) 126-globe[BLUE] Arcturus ￥- used 1160/725min 0) 126-globe[BLUE] Arcturus ￥5900 used 1100/725min 0) 126-globe[BLUE] Arcturus ￥5700 used 1000/725min 0) 126-globe[BLUE] Arcturus ￥5500 used 930/725min 0) 26-globe[BLUE] Arcturus ￥5700 used? 950/725min 0) X-226-globe OK (USA) ￥- used 0) 26-globe OK(Sylvania made) ￥- used 0) X-226-globe - ￥- used 0) 226-globe Speed ￥- used 0) M26-globe CeCo ￥- used 910/725min 3) 26-ST RCA ￥offer NIB VeryRaggedBox 0) 26-ST Ray ￥- NIB(T) 0) 26-ST Ray ￥- NIB 0) 26-ST Hytron ￥- NIB 0) 26-ST RCA-Cunnghm ￥- used? engraved 1) 26-ST Cunnghm ￥2700 used 0) 26-ST Cunnghm ￥- used 880/725min 0) 26-ST RCA-Cunnghm ￥- used(xD) 0) 26-ST Cunnghm ￥2400 used? 0) 26-ST RCA-Cunnghm ￥2400 used? 1) 26-ST RCA ￥600 used 21/29min 0) 26-ST GE ￥2400 used? 1) 26-ST WH-Radiotron ￥2400 used? 0) 26-ST Tsol ￥- used 0) 26-ST NU ￥- used 1160/725min 1) 26-ST NU ￥2400 used VeryClean, 920/725min 0) 26-ST Philco ￥- usedLikeNew 1220/725min 0) 26-ST Philco ￥- used 750/725min 1) 26-ST Coronado ￥2100 usedLikeNew 990/725min 0) 26-ST R.H.Macy ￥- used 0) 26-ST Emperor ￥- used 0) 26-ST Wizard ￥ used(xD) 1) 26-ST Boone ￥2400 used VeryClean 0) 26-ST Boone ￥- used (mD) 1) 26-ST Commander ￥2400 used LooseBase 1160/725min
26A6 =26V-battery RF Pentode= (EIA/7BK - miniature) 26A6=26V-battery version of 6BA6 Eh/Ih=26.5V/0.07A Ehkmax=±90V Ppmax=3W Epmax=250V Pc2max=0.4W Ec2max=250V Ec1max=+0V/-50V op : Ep=26.5V Ec2=26.5V Ec=0V Rg1=2MΩ Ip=1.7mA Ic2=0.7mA rp=250kΩ gm=2mS op : Ep=250V Ec2=100V Rk=125Ω Ip=10.5mA Ic2= 4mA rp=1MΩ gm=4mS 0) 26A6 RCA ￥- NIB 0) 26A6 RCA ￥- used WB
26A7 =26V-battery common-G2&K twin Beam Power= (EIA/8BU - octal) Eh/Ih=26.5V/0.6A Ehkmax=±90V Ppmax=2W Epmax=50V Pc2max=0.5W Ec2max=50V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=26.5V Ec2=26.5V Ec=-4.5V Ip=20mA Ic2=1.9mA gm=5.7mS op(A1S) : Ep=26.5V Ec2=26.5V Ec=-4.5V Ip=20/20.5mA Ic2=1.9/5.5mA Zl=1.5kΩ Dtot=7% Po=0.18W op(AB1pp): Ep=26.5V Ec2=26.5V Ec1=-7V Ip=19/30mA Ic2=2/8.5mA Zlpp=2.5kΩ Dtot=5% Po=0.5W pins : 1(1G1)-2(common-K,G3)-3(2G1)-4(2P)-5(common-G2)-6(H)-7(H)-8(1P) 0) 26A7 RCA ￥- used WB
26B =Medium mu Triode(直熱管)= (EIA/4D - UX4pin) Ef/If=1.5V/1.05 A op : Ep=180V Ec=-9V Ip=4.2mA rp=10.3kΩ gm=1.24mS μ=12.8 1) UX-26B-ST JRC(SUWA MUSEN) ￥1700 NIB 1) UX-26B-ST DON ￥1700 NIB just-rugged box 1) UX-26B-ST マツダ(Matsuda) ￥1000 used 2) UX-26B-ST マツダ(Matsuda) ￥1000 used 2) UX-26B-ST Elevam ￥1300 used-lightly WB 1) 26B-ST Elevam ￥1300 used-lightly WB 1) 26B-ST Oldon ￥1300 used-lightly WB
26C6 =26V-battery Duplex Diode med-mu-Triode= (EIA/7BT - miniature) 26C6=26V-battery version of 6BF6 6R7(octal) 6SR7(octal) Eh/Ih=26.5V/0.07A Ehkmax=±90V Ppmax=1W Epmax=300V Pc2,4max=1W Ec2,4max=100V/300V-cutoff Ikmax=14mA Ec3max=+0V/-50V op : Ep=26.5V Rg1=2MΩ Ip=1.1mA rp=15.5kΩ gm=1.1mS μ=17 op : Ep=250V Ec=-9V Ip=9.5mA rp=8.5kΩ gm=1.9mS μ=16 0) 26C6 RCA ￥- NIB very-ragged boxes 0) 26C6 RCA ￥- used
26D6 =26V-battery Pentagrid Converter= (EIA/7CH - miniature) 26D6=26V-battery version of 6BE6 Eh/Ih=26.5V/0.07A Ehkmax=±90V Ppmax=2.5W Epmax=250V op : Ep=26.5V Ec2,4=26.5V Ec3=-0.5V Rg1=2MΩ Ip=0.45mA Ic2,4=1.6mA Ic1=0.1mA Ik=2.15mA gm=0.27mS op : Ep=250V Ec2,4=100V Ec3=-1.5V Rg1=2MΩ Ip=3mA Ic2,4=7.8mA Ic1=0.5mA Ik=11.3mA gm=0.475mS 0) 26D6 RCA ￥- NIOS 0) 26D6 RCA ￥- used GE-boxed
26E6/G/26E6WG =Power Pentode= Octal (EIA/7S - octal) Eh/Ih=26.5V±15%(22.5V to 30V)/0.3A Ehkmax=±300V 26E6G(design center rating) : Ppmax=12.5W Epmax=200V Pc2max=1.50W Ec2max=135V 26E6WG(absolute max rating) : Ppmax=12.5W Epmax=220V Pc2max=1.75W Ec2max=150V Altitude=10000FT op(A1S) : Ep=200V Ec2=135V Ec1=-14V Ip=61/66mA Ic2=3/9mA rp=18kΩ gm=7.1mS Zl=2.6kΩ D=10% Po=6W * size(maximum) : 36.5mmφ x 79mmH 'T-11' straight glass see a similar types : 25B6G, 25C6G, 5824, 25L6GT(Ppmax=10W, Eh/Ih=25V/0.3A, Po=4.3W@Zl=3kΩ) 18) JAN-CTL 26E6WG Tsol ￥2000 NIB MB BrownBase TwinPlates-construction date=7/55, in mint condition * The 26E6WG is a ruggedized, single-ended beam Pentode used in AudioFrequency Power Output applications requiring approximately FIVE watts. The heater disign makes this type ideal for operation in AIRBORNE equipment where a 26Volt power supply is normally available. Also the RUGGEDIZED structure is capable of withstanding SEVERE SHOCK and VIBRATION such as that encountered in AIRCRAFT. * Tubes with the "EIA/7S" base means pin-compatible to "EIA/7AC" tubes except non-existence of 6th pin, and of course except electrical specifications. [EIA/7S] : 6F6, 6G6, 6K6, 26E6WG, 25A6, 25B6G, 1621, 6550, 8417 etc [EIA/7AC] : 6L6/G, 6V6, 6W6, 6Y6, 7EY6, 12A6, 25/50C6G, 1614, 1622, 1631, 5881, 7408, 7581,EL37, KT66 etc
26HU5
26LW6
26LX6
26N09 1) 26N09 Amperite ￥1900 NIB DelayRelay
26N10 1) 26N10 Amperite ￥1900 NIB DelayRelay
26Z5/W =separated-cathodes Full-wave Rectifier= (EIA/9BS - noval) Designed for airbone equipment with rugdized anti-shock anti-vibration structure. PIV=1375V Idcmax=55mA/section (110mA/2-sections,absolute-max) Eh/Ih=26.5V/0.2A Ehkmax=450V Shock-max=700G 0) 26Z5W Tsol ￥- used 101/100/54min WBq
27/127/227/327=Medium μ Triode= (EIA/5A - UY5pin) Eh/Ih=2.5V/1.75A Epmax=275V op : Ep=180V Ec=-13.5V Ip=5mA rp=9kΩ gm=1mS μ=9 (参考) #27のEpIp特性 similar to WE-244A(Eh/Ih=2V/1.6A, μ=10typ) also similar to TB-605A(Eh/Ih=2V/1.6A, μ=10typ) 1:reserved) C327-globe Cunnghm ￥3900 NIB 0) C327-globe Cunnghm ￥- used(Sn) 0) C327-globe Cunnghm ￥2700 used 1100/630min(tw01) 0) C327-globe Cunnghm ￥2200 used 940/630min(tw01) 1) C327-globe Cunnghm ￥2200 used 890/630min(tw01) 1) C327-globe Cunnghm ￥1900 used 0) C327-globe Cunnghm ￥1700 used 820/630min 0) 427-globe Deforest ￥- used 1) 427-globe Deforest ￥3100 used? 42/25min 0) UY-227-globe RCA ￥- used(Nn) 1) 27-globe RCA ￥3000 used 1200/630min 1) 27-globe RCA ￥3000 used 1170/630min(tw01) 1) 27-globe RCA ￥2700 used 99/65min 0) UY227-globe RCA ￥3000 used? 50/25min(TV-7) 0) UY227-globe RCA ￥- LikeNew 1200/630min(539B) 0) UY227-globe RCA ￥2900 used 1100/630min(539B) 1) UY227-globe RCA ￥2700 used 1030/630min 1) UY227-globe RCA ￥2700 1010/630min, Ip=5.5mA 1) UY227-globe RCA ￥2500 used 100/65min 0) UY227-globe RCA ￥2200 used(D) 1) UY227-globe RCA ￥2200 used gm=930/630min 0) UY227-globe RCA ￥- used gm=910/630min 0) UY227-globe RCA ￥- used gm=880/630min 1) UY227-globe RCA ￥1700 used gm=820/630min 1) UY227-globe RCA ￥1600 used gm=800/630min 1) 227-globe RCA ￥2200 used 1) 227A-globe GE ￥2200 used gm=42/25min 1) 227A-globe GE ￥1600 used gm=790/630min 0) 27-globe Syl ￥- used 0) SY227-globe Syl ￥2200 used 950/630min 2) SY227-globe Syl ￥1600 used 720,800/630min 1) UY227-globe WH ￥2200- used 40/25min 0) UY227-globe WH ￥- used(T) 1) UY227-globe WH ￥2400 NOS? BrownBox 1) UY227-globe WH ￥2200- used 990/630min 1) TS227-globe Tsol ￥2500 used 1070/630min 1) TS227-globe Tsol ￥2200 used 38/25min 0) UY227-globe Krad ￥2400 used 1060/630min 1) 27-globe Philco ￥2200 used 950,1030/630min(D) 2) 27-globe Philco ￥2400 used 43,44/25min(TV-7)(sD)(tw01) 2) 27-globe Philco ￥2200 used 38,39,40/25min(TV-7)(T)(tw01) 0) 27-globe Philco ￥- used(LikeNew) 0) Z-27-globe Znth ￥- used 1) UY227-globe Marconi ￥1900 used 4) UY227-globe Marconi ￥1900 used(sQ) 3) UY227-globe Radiotron(Marconi) ￥1900 WB 1) UY227A-globe Radiotron(Marconi) ￥1900 WB 2) UY227A-globe Marconi ￥1900 used(Q) 1) UY227A-globe Marconi ￥2400 used 1090/630min 0) 227-globe Silvertone ￥- NIB(D) 2) 227-globe Silvertone ￥1900 used 1) 227-globe Silvertone ￥2100 used 1025/630min 0) Y227-globe Silvertone ￥2100 used 1025/630min 1) Y227-globe Silvertone ￥1900 used 900/630min 1) 227-G-1229-globe Silvertone ￥1800 used 960/630min 1) 227-20X-globe Silvertone ￥1700 used 800/630min 1) G-27-globe Majestic ￥2100 used 106/65min カソード粉あり 1) G-27-globe Majestic ￥2200 used 1000/630min(sD) 1) G-27-globe Majestic ￥2200 used 990/630min 1) 27-globe Majestic ￥2000 used 920/630min 1) G-27-globe Majestic ￥1800 used 890/630min 1) G-27-globe Majestic ￥1800 used 860/630min 1) G-27-globe Majestic ￥1800 used 850/630min *- 1) G-27-globe Majestic ￥1700 used 825/630min *- 1) G-27-globe Majestic ￥1700 used 800/630min *- 1) 227-globe Diatron ￥2600 used 1170/630min 0) 227-globe CeCo ￥- used? 0) 27-globe Triad ￥- used 1) L227-globe ? ￥2600 used 1150/630min 0) ER227-globe ￥12000 NIB 4-pillar 0) ER227-globe ￥5300 used? 4-pillar WB(sQ) VeryStrong:gm=1100-1300/630min(539B) ClearGlass TightBase 1) ER227-globe Raytheon ￥offer used? 4-pillar 1) ER227-globe EvereadyRaytheon ￥offer LikeNew 4-pillar VikingBoxed 0) 127-globe-tipped [BLUE] Arcturus ￥９０００ used 51/25min *** 0) 127-globe-tipped [BLUE] Arcturus ￥- used 1400/630min 0) 127-globe-tipped [BLUE] Arcturus ￥- used 0) 127-globe-tipped [BLUE] Arcturus ￥- used(Sn) 0) 127A-globe-tipped [BLUE] Arcturus ￥- used 0) 127A-globe-tipped [BLUE] Arcturus ￥3500 used 700/630min @@ 0) 127-globe [BLUE] Arcturus ￥- used WB(Q) 0) 127-globe [BLUE] Arcturus ￥- used 0) 127-globe [BLUE] Arcturus ￥- used 0) 127-globe [BLUE] Arcturus ￥- used 0) 27/127-globe [BLUE] Arcturus/Crosley ￥- used (hx1c) 0) 127-globe [BLUE] Arcturus ￥- NOS WB(T) 0) 27-globe [BLUE] Arcturus ￥- used?/LikeNew(Q) 0) 27-globe [BLUE] Arcturus(DELTA-brand) ￥- used(D) 0) 127-globe [BLUE] Arcturus ￥5700 used VeryStrong(D) 0) 127-globe [BLUE] Arcturus ￥- used Strong(D) 0) 127-globe [BLUE] Arcturus ￥5000 used 1040/630min 0) 127-globe [BLUE] Arcturus ￥4600 used 990,970/630min (wD) 1) 27-globe [BLUE] Arcturus ￥4600 used 980/630min @@ 0) 127-globe [BLUE] Arcturus ￥4300 used 940/630min @@ 1) 27-globe [BLUE] Arcturus ￥4300 used 910/630min @@ 1) 27-globe [BLUE] Arcturus ￥4300 used Strong 1) 127-globe [BLUE] Arcturus ￥4300 used 910/630min @@ 1) 127-globe [BLUE] Arcturus ￥4300 used 900/630min WB 1) 127-globe [BLUE] Arcturus ￥4300 used 880/630min 1) 127-globe [BLUE] Arcturus ￥3800 used 840/630min WB 1) 127-globe [BLUE] Arcturus ￥3600 used 810/630min @ 1) 27-globe [BLUE] Arcturus ￥3500 used 800/630min ** 1) 127-globe [BLUE] Arcturus ￥3500 used 780/630min 1) 127-globe [BLUE] Arcturus ￥2500 used 650/630min(tw01) 1) 27-ST Syl ￥2400 NIB 8) 27-ST NU ￥2400 NIB MB 2) 27-ST Philco ￥2400 NIB RaggedBox 1) 27-ST Philco ￥2400 NIB 1) 27-ST Marconi ￥2400 NIB ragged box 2) 27-ST Rogers ￥2400 NIB 0) 27-ST RCA ￥- used(Qn) 1) 27-ST RCA-Victor ￥700 used 800/630min 1) 27-ST RCA ￥700 used 800/630min 1) 27-ST engraved Syl ￥1600 used 1000/630min 0) 27-ST Syl ￥- used 1080,1090/630min 1) 27-ST Syl ￥1000 used 1040/630min 1) 27-ST Tsol ￥1000 used 1000/630min 2) 27-ST Ray ￥1000 used 1000,1000/630min 0) 27-ST Ray ￥- used 1) 27-ST NU ￥1500 used mesh 1100/630min 1) 27-ST NU ￥600 used WB 0) 27-ST Philco ￥- used 1) 27-ST Sonatron ￥1000 used 960/630min 1) 27-ST Rogers-Majestic ￥1200 used? 1) 27-ST Emperor ￥800 used 2) UY-27A-ST Matsuda ￥800 used WB 1) UY-27A-ST ASIA ￥1000 like-new WB 1) UY-27-ST DON ￥1000 lightly-used WB 1) UY-27-ST DON ￥600 used WB 1) 27-ST DON ￥600 used WB
UY-27B/UY-227B=just-high μ Triode= (EIA/5A - UY5pin) Eh/Ih=2.5V/1.5A(227B), 1A(later UY-27B-ST) op : Ep=135V Ec=-3.0V Ip=3mA op : Ep=180V Ec=-4.5V Ip=3mA rp=20kΩ gm=1.5mS μ=30 1) UY-227B マツダ(Matsuda) ￥3000 used mesh-plate, gm=1640μmho Ip=3.1mA @Eg=-4V on KS-15750-L1, WB 0) UY-227B-globe マツダ(Matsuda) ￥- used WB 0) UY-27B-ST マツダ(Matsuda) ￥- used WB
27GB5/PL500 =Beam Power= (EIA/9NH - Magnoval TopPlate) Eh/Ih=27V/0.3A Rg1max=500kΩ(fixed)/2.2MΩ(self) Ppmax=12W Epmax=250V Ep-peakmax=7kV Pc2max=4W Ec2max=250V Ikmax=250mA op : Ep=75V Ec2=200V Ec1=-10V Ip=440mA Ic2=30mA heater variants : 6GB5/EL500(6.3V/1.38A), 13GB5/XL500(13.3V/0.6A), 18GB5/LL500(18V/0.45A) similar to PL504 1) 27GB5/PL500-BugleBoy Amprx ￥2700 NIB Holland HeavyGlass 2) 27GB5/PL500 RCA ￥2500 NIB 1) 27GB5/PL500 GE ￥2500 NIB Holland HeavyGlass 1) 27GB5/PL500 GE ￥2500 NIB 1) 27GB5 Syl ￥2500 NIB
27LF6
28 / AC28 =Triode= (EIA/ - UX,) Eh/Ih=15V/0.35A Ppmax=W Epmax=90V Ikmax=mA op : Ep=90V Ec=-1.5V Ip=7.5mA rp=9kΩ gm=1.17mS μ=10.5 pins : 1(H)-2(P)-3(G)-4(K,H) 0) AC28-globe[BLUE] Arcturus used ￥5100 BrownBase RaggedBox =rare=
28D7/W =Common-Cathode Twin Beam Power Amp= (EIA/8BS - loktal) Designed for airplane and mobile service use with ruggdized anti-shock, anti-vibration fabrication. Ppmax=3W/section Epmax=100V Pc2max~0.5W/section Ec2max=67.5V Ehkmax=90V Eh/Ih=28V/0.4A op:Ep=28V Ec2=28V Ec1=-3.5V Ip=12.5mA Ic2=1mA gm=3.4mS rp=4.2kΩ op(A2pp-fixed):Ep=28V Ec2=28V Ec1=-3.5V Ip=12.5mA/8.1mA Ic2=1mA/1.9mA Rg1=200kΩ Zl=4kΩ D=10% Po=0.1W op(A2pp-self) :Ep=28V Ec2=28V Rk=390Ω Ip=9mA/6.5mA Ic2=0.7mA/1.6mA Rg1=500kΩ Zl=4kΩ D=10% Po=0.08W 1) 28D7W Syl ￥1500 NOS Loktal 1) 28D7 Syl? ￥1500 NOS Loktal 1) 28D7 STD(Syl-made) ￥1500 NIB Loktal
29 =double-grid med-mu Triode= (EIA/ - UZ,) Eh/Ih=2.5V/0.8A Ppmax=W Epmax=180V Ikmax=mA op : Ep=180V Ec=-3V Ip=4.5mA rp=20kΩ gm=1.45mS μ=30 pins : 1(H)-2(P)-3(G)-4(G)-5(K)-6(H) see a lower μ type : WUNDERLICH 0) 29 Sylvania used ￥- =rare=
29GK6 =PowerPentode= (EIA/9GK - noval) Eh/Ih=28.6V/0.15A Ppmax= 13.2W Epmax= 330V Pc2max=0.2W Epmax= 330V Ep/Ec2=250V Ip/Ic2=48mA/5.5mA Zl=5.2kΩ Po=5.7W heater variants : 6GK6(6.3V/0.76A) 10GK6(10.6V/0.45A) 16GK6(15V/0.3A) (see 6BQ5/EL84 8BQ5/XL84 7189/A 7320 E84L) (also see 6BQ5 E84L 7189 6RP15 6CZ5 規格/動作例の比較) 30CW5/XL84, which had been used in some old receivers, can be also replaced by 29GK6 with easy rewiring, series resistors to compensate 1.4V heater voltage difference may be not-needed. Output power will considerably decrease due to internal resistance largeness of 29GK6's especially for the case of triode connection. 0) 29GK6 GE ￥- NIB 5) 29GK6 GE ￥1600 NIB 0) 29GK6 Syl ￥- NIB
29KQ6/PL521 =Beam Power= (EIA/9RJ - Magnoval TopPlate) Eh/Ih=29V/0.3A Ehkmax=±240V(±240Vaverage) Ppmax=17W Epmax=275V/6.5kVpeak Pc2max=6W Ec2max=275V Ec3max=70V Ec1-max=330Vpeak Ikmax=275mA Rg1max=500kΩ/2.2MΩ(H-deflection) op : Ep=40V Ec2=135V Ec1=0V Ec3=0V Ip=450mA Ic2=35mA op : Ep=50V Ec2=200V Ec1=-12V Ec3=0V Ip=550mA Ic2=50mA * 松下製29KQ6(Ppmax=17W/Pc2max=6W)-松下製29LE6(Ppmax=20W//Pc2max=5W)外観比較 * 29KQ6のプレート放熱孔有・無のバージョン heater variant : 21KQ6(21.5V/0.45A) nearly identical to 29LE6 (pin-compatible). 10) 29KQ6 Matsushita ￥2200 NIB VeryRaggedBox 20) 29KQ6 Matsushita ￥2200 NIB 6) 29KQ6 Matsushita ￥2200 NIB 1) 29KQ6 Matsushita ￥2200 NIB sealed 1) 29KQ6 GE(Matsushita-made) ￥2200 NIB 1) 29KQ6 Ray ￥2200 NIB
29LE6 =Beam Power= (EIA/9RJ - Magnoval TopPlate)successor of 29KQ6/PL521 Eh/Ih=29V/0.3A Ehkmax=±240V Rg1max=500kΩ(fixed)/2.2MΩ(self) Ppmax=20W Epmax=275V/6500Vpeak/-2650Vpeak Pc2max=5W Ec2max=275V Ec3max=70V Ec1min=-275V Ikmax=275mA op : Ep=40V Ec2=135V Ec1=0V Ec3=0V Ip=450mA Ic2=35mA op : Ep=50V Ec2=200V Ec1=-12V Ec3=0V Ip=550mA Ic2=50mA nearly identical to 29KQ6/PL521 (pin-compatible). "9RJ" base is same as 6KG6A, 40KG6A, EL509, PL509, EL519, and PL519 0) 29LE6 Matsushita ￥- NIB 0) 29LE6 RCA(Matsushita-made) ￥- NIB 1) 29LE6 RCA(Matsushita-made) ￥offer NIB 0) 29LE6 GE(Matsushita-made) ￥- NIB 0) 29LE6 Sylvania(Matsushita-made) ￥- NIB 6) 29LE6 Raytheon(Matsushita-made) ￥offer NIB 電極頂部拡大 21) 29LE6 Sylvania(Matsushita-made) ￥- NIB 3) 29LE6 Sylvania-ECG(Matsushita-made), ECG ￥- NIB RaggedBox 1) 29LE6 Sylvania(Matsushita-made) ￥offer used Original-boxed RaggedBox
30/230/330 (see VT-67/30-special) =filamentary Detector Amplifier Triode= (EIA/4D - UX) Ef/If=2V/0.06A Epmax=180V Rgmax=2MΩ op : Ep=180V Ec=-13.5V Ip=3.1mA rp=10.3kΩ gm=0.9mS μ=9.3 #30のEpIp特性 also see an electrically-identical octal-base type : 1H4G(octal, ST12) 0) 30-Inverse-globe Rogers ￥6000 NIB VeryRaggedBox =rare= 1) 30-Inverse-globe Rogers ￥6000 used? Rogers-232箱 VeryRaggedBox =rare= 0) UX230-globe Marconi ￥- used?LikeNew WB 40/23min 1) CX330-globe Cnghm ￥4700 used 720/570min 2) CX330-straight Cnghm ￥4700 used?LikeNew 28,32,32/23min *** 0) 30/VT-27 RCA ￥- NIB MB 1) 30 RCA ￥2300 NIB(T) 1) 30 RCA ￥2300 NOS gm=1000/570min 1) 30 RCA ￥2300 NOS WB 1) 30 RCA ￥2300 NOS Syl箱 4) U.S.NAVY CHS 30 Syl ￥2300 NIB D/C(packaged)=8-10-42(1942) MB RaggedBoxes 5) U.S.NAVY CHS 30 Syl ￥2300 NIB D/C(packaged)=Feb.1943 MB RaggedBoxes 8) JAN-CHS 30/VT-27 Syl ￥2300 NIB D/C=3-45(1st-packed), 5/59(2nd-packed) MB 4) U.S.NAVY CHS 30 Syl ￥2000 NOS WB 1) 230-51X-ST Silvertone ￥2200 NOS gm=48/23min(TV-7) WB 2) 30 Coronado ￥2200 NIB RaggedRedBox 1) 30 RCA-Cnghm ￥2000 usedLikeNew 1010/570min(539B)@@ 1) 30 RCA ￥2000 usedLikeNew 950/570min @@ 1) 30 RCA ￥2000 used(like new) gm=2400/1170min 1) 30 RCA ￥2000 used 42/23min 1) 30 Triangle ￥2000 used 950/570min
UZ-30-MC/UZ30MC =Detector Amplifier Twin Triode= (EIA/6C - UZ, T29bulb)
30A5(=HL94) =power Pentode= (EIA/7CV - miniature) Eh/Ih=30V/0.15A Ehkmax=±150V Ppmax=7.5W Epmax=150V Pc2max=1.5W Ec2max=150V Ikmax=100mA Rg1max=1MΩ op : Ep=100V Ec2=100V Ec1=-6.7V Ip=43mA/43mA Ic2=3mA/11mA gm=9.2mS rp=22kΩ μg2g1=7.8 Zl=2.4kΩ Po=1.9W (参考 : Ep-Ip特性(@Ec2=100V)) same basing similar type : 30M-P23 30M-P27 also similar to 35C5(Eh/Ih=35V/0.15A) 2) 30A5 Toshiba ￥1200 NIB VeryRaggedBoxes 2) 30A5 NEC ￥1200 NIB cellophane-sealed 6) 30A5 NEC ￥1200 NOS lot=3Y,3Z WB 1) 30A5 Mitsubishi ￥1200 NIB just-ragged box 0) 30A5 Japan ￥- used 4) 30A5 Toshiba ￥600 used-lightly (very-strong, tested as 25EH5 on an LS-15750 tester)
30AE3/PY88 = half-wave Rectifier= (EIA/9CB - noval-TopCathode) Eh/Ih=30V/0.3A Ein_max=250Vac(average)/550Vac(@Idc=0) Idc=220mA Ppmax=5W Ehkmax=6600Vpeak, Edrop=20V(@Ip=250mA) 30AE3 = 30R-K47 (see PY88) * 9CB-base 'Top-Cathode' noval(9-pin MT) halfwave rectifiers with similar rating: 6AF3 6AL3 6BR3 6R3 6R-K19 EY81 EY88 16AQ3 30AE3 3) 30AE3 Matsushita ￥1000 NIB cellophane-sealed 1) 30AE3 Matsushita ￥1000 NIB sealed 1) 30AE3 Victor(=Matsushita) ￥800 NIB 1) 30AE3 USA ￥900 NIB
30CW5/HL86 =power Pentode= (EIA/9CV - noval) Eh/Ih=30V/0.15A Ehkmax=±200V(100Vdc-max) Rg1max=1MΩ(self) Ppmax=14W Epmax=275V/600Vcutoff Pc2max=2W/7Wpeak Ec2max=220V/600Vcutoff Ikmax=110mA op : Ep=170V Ec2=170V Ec1=-12.5V Ip=70mA Ic2=5mA rp=23kΩ gm=10mS μg2g1=8 op(A1s) : Ep=170V Ec2=170V Ec1=-12.5V Ip=70mA/70mA Ic2=5mA/22mA Zl=2.4kΩ D=10% Po=5.6W op(AB1pp) : Ep=170V Ec2=170V Rk=120Ω Ip=53mA/115mA Ic2=6mA/41mA Zpp=3.5kΩ D=4.5% Po=13W op(A1s-triode connection) : Ep=170V Ec1=-15.1V Ip=50mA/62mA Zl=1.2kΩ Dtoto=10% Po=2.1W op(AB1pp-triode connection) : Ep=170V Rk=270Ω Ip=65mA/72mA Zl=3.5kΩ Dtoto=3.8% Po=3.9W (参考 : 三結時のEp-Ip特性(triode connection)) see heater variants : 6CW5(6.3V/0.76A) 8CW5(8V/0.6A) 10CW5(10.6V/0.45A) 15CW5(15V/0.3A) also see a European heater variant : PL84(15V/0.3A) also see a similar type : 29GK6 4) 30CW5 Toshiba ￥2400 NIB original large boxes 12) 30CW5 Toshiba ￥2200 NOS same lot(8F) WB (hyyog1ff7) 4) 30CW5 Toshiba ￥1100 lightly-used WB 4) 30CW5 Japan(Toshiba) ￥1100 lightly-used, plain boxes 4) 30CW5 Toshiba ￥1100 lightly-used WB 4) 30CW5 Japan(Toshiba,Matsushita) ￥- used poor getter-flash
30JZ6 =Beam Power= (EIA/12GD - compactron TopPlate) Eh/Ih=30V/0.3A Ppmax=18W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=230mA heater variants : 6JZ6(6.3V/1.5A), 16CB-28(15.8V/0.6A), 21JZ6(21V/0.45A) 3) 30JZ6 RCA ￥1300 NIB 2) 30JZ6 SylECG ￥1100 NIB TwinSideGtr 1) 30JZ6 Znth ￥1100 NIB 1) 30JZ6 Admiral ￥1100 NIB TwinSideGtr RaggedBox
30KD6
30MB6
30M-P23/30MP23 =PowerPentode= (EIA/7CV-miniature) Eh/Ih=30V/0.15A Ehkmax(DC)=+150V/-180V Ehkmax(AC+DC)=±385V Ppmax=7.5W Epmax=150V Pc2max=1.5W Ec2max=150V Ikmax=100mA Rg1max=500kΩ(fixed)/1MΩ(self) op: Ep=110V Ec2=110V Ec1=-7.5V Ip=50mA Ic2=3.3mA gm=10mS rp=25kΩ μg2g1=7.6 op(A1S) : Ep=110V Ec2=110V Ec1=-7.5V Ip=50/50mA Ic2=3.3/13mA Zl=2kΩ Po=2.6W D=10% pin : 1(K,G3)-2(G1)-3(H)-4(H)-5(G1)-6(G2)-7(P) same basing similar type : 30A5 0) 30MP23 Toshiba ￥- NIB 0) 30M-P23 Ray(Toshiba-made) ￥- NIB 4) 30M-P23 Ray(Toshiba-made) ￥1500 NIB
30M-P27/30MP27 =PowerPentode= (EIA/7CV - miniature) Eh/Ih=30V/0.15A Ehkmax(DC)=+150V/-180V Ehkmax(AC+DC)=±385V Ppmax=10W Epmax=165V Pc2max=1.85W Ec2max=165V Ikmax=110mA Rg1max=500kΩ(fixed)/1MΩ(self) op: Ep=130V Ec2=110V Ec1=-9V Ip=64mA Ic2=2.5mA gm=10mS rp=20kΩ μg2g1=6.5 op(A1S): Ep=130V Ec2=110V Ec1=-9V Ip=64mA/64mA Ic2=2.5mA/17mA Zl=1.6kΩ Po=4W D=12% (参考 : Ep-Ip特性(@Ec2=110V)) pin : 1(K,G3)-2(G1)-3(H)-4(H)-5(G1)-6(G2)-7(P) also see an electrically-similar noval(9pin-MT) type : 50R-P25(Eh/Ih=50V/0.15A, Ppmax=11W) 0) 30MP27 Ray(made in Japan) ￥- NIB justDirtyBox(sT) 2) 30MP27 Ray(made in Japan) ￥2400 NIB 35) 30M-P27 Toshiba ￥2000 NOS WB (hyyogn1b7) 2) 30M-P27 Matsushita ￥800 lightly-used 4) 30M-P27 Matsushita ￥800 lightly-used 1) 30M-P27 Matsushita ￥800 lightly-used Matsuda-boxed 4) 30M-P27 Matsushita ￥600 used
30R-K47/30RK47 = half-wave Rectifier= (EIA/9CB - noval-TopCathode) Eh/Ih=30V/0.3A Ein_max=250Vac(average)/550Vac(@Idc=0) Idc=220mA Ppmax=5W Ehkmax=6600Vpeak 30R-K47 = 30AE3 2) 30R-K47/30AE3 Matsushita ￥1000 NIB cellophane-sealed
31/131/231/CX331 =filamentary Power amp Triode= (EIA/4D - UX) Ef/If=2V/0.13A Epmax=180V Rgmax=500kΩ op : Ep=135V Ec=-22.5V Ip=8.0mA Rk=2.815kΩ rp=4.1kΩ gm=0.925mS μ=3.8 Zl=7kΩ Po=185mW op : Ep=180V Ec=-30V Ip=12.3mA Rk=2.44kΩ rp=3.6kΩ gm=1.05mS μ=3.8 Zl=5.7kΩ Po=375mW (参考 : Ep-Ip特性) 1) 131-globe[BLUE] Arcturus ￥6000 used?LikeNew gm=1350/580min(on 539B), 44/23min(on TV-7) IntC箱入 0) CX331-straight Cnghm ￥- used?LikeNew 38/23min *** 0) 231-globe RCA ￥5100 NIB 0) 231-globe RCA ￥4900 used 1300/580min 0) 231-straight RCA ￥4900 used 1350/580min 0) NX231-globe NU ￥- NIB RaggedGreenBox 1) 31-ST RCA￥2900 NIB RaggedBox 1) 31-ST RCA￥2900 NIB RaggedBox 1) 31-ST RCA￥2900 NIB engraved 1) 31-ST RCA￥2900 NIB RaggedBox 1) 31-ST Continental(RCA-licenced)￥2900 NIB engraved RCA-RaggedBox 0) 31-ST RCA￥- NOS original wrapping WB(D) 1) 31-ST Syl￥2700 NIB D/C=5-45 MB VeryRaggedBox 1) 31-ST Krad￥2700 NIB sealed 1) 31-ST Krad￥2700 NOS engraved w/original-wrapping WB 1) 31-ST Znth ￥2700 NIB 0) 31-ST Philco ￥- NIB 2) 31-ST Hytron￥2700 NIB sealed VeryRaggedBox 1) 31-ST Delco￥2700 NIB sealed 0) 31-ST RCA-Cunghm ￥- used 47/23min
31AL11 1) 31AL11 GE ￥1900 NIB
31JS6A/C
31LQ6
31LR8 =Triode Pentode= (EIA/9QR - NOVAR) Eh/Ih=31.5V/0.3A heater variants : 6LR8(6.3V/1.5A), 21LR8(21V/0.45A) 1) 31LR8 RCA ￥1000 NIB 1) 31LR8 Syl ￥1000 NIB
31LZ6
32/232 =filamentary tetrode / screen-grid RF amp= (EIA/4K - UX, top-G1) Ef/If=2V/0.06A Epmax=180V Ec2max=67.5V Ikmax=6mA op : Ep=135V Ec2=67.5V Ec1=-3V Ip=1.7mA Ic2=0.4mA μ=610 gm=640μmho #32のEpIp特性(@Ec2=67.5V) similar to 1B4/1B4P, 1E5/1E5G/1E5GP 0) 232-globe RCA ￥2100 used? gm=880/400min 1) G32-globe Majestic ￥1800 use? gm=680/400min 1) 32-ST-4-pillar Ray ￥3300 used 680/400min @@ 6) 32-ST RCA ￥2000 NIB 3) 32-ST RCA ￥1700 NOS 1952-10(vQv) 0) 32-ST RCA ￥- NIB 2) 32-ST GE ￥1700 NIB (sQ) 1) 32-ST RCA ￥900 used 1) 32-ST Philco ￥900 used 700/400min 1) 32-ST SuperSilvertone ￥900 used WB
32A8 =Triode Pentode= (EIA/9EX - noval) Eh/Ih=32V/0.15A heater variants : 6BM8(6.3V/0.78A), 8B8(8V/0.6A), 11BM8(10.7V/0.45A), 16A8(16/0.3A), 50BM8(50V/0.1A), UCL82(50V/0.1A) 2) 32A8 Matsushita ￥1000 NIB (hyyvsxD) 8) 32A8 Matsushita ￥400 used (hyyvsx)
32ET5/A =Beam Power=32V/0.1A (EIA/7CV - miniature) 1) 32ET5A Ray ￥1200 NIB
33 =filamentary Power Amplifier Pentode= (EIA/5K - UY) Ef/If=2V/0.26A Epmax=180V Ec2max=180V rp=55kΩ gm=1.7mS op : Ep=180V Ec2=180V Ec=-18V Ip=22mA Ic2=5mA Zl=6kΩ Po=1.4W pins: 1(F+)-2(P)-3(G1)-4(G2)-5(F-) similar to 47B (Eh/Ih=2.5V/0.5A) 0) 233-globe RCA ￥４２００ NIB 1) 33-ST RCA ￥2700 NIB VeryRaggedBox +++ 0) 33-ST Tsol ￥2700 NIB(mD) 1) 33-ST Tsol ￥2700 NIB 4) 33-ST Marconi ￥2400 NIB(Sx) 0) VT33/33-ST Krad ￥- NIB MB(Q) 0) 33-ST GE ￥- used(like new) gm=1790/900min 0) 33-ST Silvertone ￥1500 used(like new) gm=1440/900min
33A/138A(=3074A, 4074A)
33A/158M(CV1884)
33GT7 =Diode Pentode= (EIA/12FC - compactron) Eh/Ih=33.6V/0.45A 1) 33GT7 RCA ￥1200 NIB 1) 33GT7 RCA ￥1200 NIB 1) 33GT7 Syl ￥900 used
33GY7/A =Diode Pentode= (EIA/12FN - compactron) Eh/Ih=33.6V/0.45A Pentode : Ppmax=9W Epmax=400V Pc2max=3W Ec2max=150V gm=6.5mS Diode : PIV=4200V Ppmax=3.8W Idcmax=135mA Edrop=21V(@Idc=250mA) see heater variant : 50GY7/A(50V/0.3A) 1) 33GY7 Syl ￥1200 NIB 1) 33GY7A IBM ￥1400 NIB 0) 33GY7A RCA ￥- NIB (Qn) 1) 33GY7A RCA(Syl-made) ￥1200 NIB 1) 33GY7A GE ￥1000 NIB 1) 33GY7A Znth ￥1000 NIB 1) 33GY7A Ray ￥1000 NIB 2) 33GY7A RCA ￥500 used
33HE7 =Diode Pentode= (EIA/12FS - compactron) Eh/Ih=33.6V/0.45A Ehk=200V Twarmup=11sec Pentode: Ppmax=10W Epmax=500V/5kVpeak Pc2max=3.5W Ec2max=150V Ikmax=230mA/800mApeak Rg1max=1MΩ op : Ep=130V Ec2=130V Ec1=-22V Ip=60mA Ic2=2.8mA rp=6.2kΩ gm=8.8mS, μg2g1=4.2-typ Diode: PIV=4200V Idc=200mA/1.2Apeak Ep-drop=13V(@Idc=200mA) Ehk=100V,200Vpeak Ekh=500Vdc/4.2kVpeak heater variants : 6HE7(6.3V/2.7A), 12HE7(12.6V/1.35A), 33HE7(33.6V/0.45A), 38HE7(37.8V/0.45A), 58HE7(58V/0.3A) 0) 33HE7 Hitachi ￥1500 NIB 10) 33HE7 Hitachi ￥1500 NOS Top+Bottom view WB
33JR6 =Beam Power= Sweep Tubes(<30W) (EIA/9QU - NOVAR) Eh/Ih=33V/0.3A Ppmax=17W Epmax=770V Pc2max=3.5W Ec2max=220V Ikmax=275mA 0) 33JR6 RCA ￥- NIB 1) 33JR6 RCA(Syl-made) ￥1000 NIB
33JV6 =Beam Power= Sweep Tubes(<30W) (EIA/12FK - compactron) Eh/Ih=33V/0.3A Ehkmax=±200V(+100Vdc) Tbulb=220℃max Ppmax=18W Epmax=770V/+6000Vpeak-1500Vpeak(pulse) Pc2max=3.5W Ec2max=220V Ec3max=+70V Ec1max(-)=-55V Ikmax=230mA/800mApeak Rg1max=1MΩ op : Ep=130V Ec2=130V Ec1=-20V Ip=50mA Ic2=1.75mA rp=11kΩ gm=9.1mS μg2g1=4.7 pins : 1(H)-2(K)-3(G2)-4(Beam/G3)-5(NC)-6(NC)-7(P)-8(NC)-9(NC)-10(Beam/G3)-11(G1)-12(H) (参考 : EpIp特性(@Ec1=0V, Ec2-parameter)) (全コネクションが底面で、TopPlateではないので使いやすい） heater variants : 6JV6(6.3V/1.5A), 21JV6(21V/0.45A) 1) 33JV6 RCA ￥1000 NIB 1) 33JV6 GE ￥1000 NIB *compactron 1) 33JV6 Syl ￥1000 NIB 100) 33JV6 InterC(GE-made) ￥1000 NIB mint (￥9000/10-pcs, ￥16000/20-pcs, ￥70000/100-pcs)
34 =filamentary Remote-cutoff RF Pentode= (EIA/4M - UX, top-G1) Ef/If=2V/0.06A Ppmax=- Epmax=180V Ec2max=67.5V op : Ep=135V Ec2=67.5V Ec1=-3V Ip=2.8mA Ic2=1mA gm=0.6mS rp=600kΩ Amp.Factor=360 1) 34-ST Marconi ￥3000 NIB(sD) 0) 34-ST GE ￥3000 NIB 1) 34-ST Syl ￥2000 used? 760/380min 1) 34-ST Crosley ￥2000 NOS WB 1) 34-ST Legion ￥2000 NIB RCA-licensed VeryRaggedBox
34CE3 =Half-wave Rectifier= (EIA/12GK) 34.5V/0.45A PIV6000V/Idc350mA 4) 34CE3 RCA ￥1700 NIB 0) 34CE3 RCA ￥- NIB 1) 34CE3/34CD3 Syl ￥1500 NIB 0) 34CE3 Ray ￥- NIB
34CF3 1) 34CF3 USA ￥600 NIB
35/235/335 and '35/51' (see 51/551) =cathode-type Tetrode= (EIA/5E - UY, top-G1) Eh/Ih=2.5V/1.75A Epmax=275V op : Ep=180V Ec2=90V Ec1=-3V Ip=6.3mA Ic2=2.5mA gm=1.02mS 1) C-335-globe Cunningham ￥4100 NIB gm=790μmho/650min 1) 35-globe RCA-Cunningham ￥4500 NIB RaggedBox 1) 35-globe Philco ￥4100 NIB 0) 235-globe Continetal ￥- NIB 0) C335-globe Cunningham ￥- used 810/650min 1) C335-globe Cunningham ￥2800 used 710/650min 0) C335-globe RCA-Cunningham ￥- NOS? 1) C35-globe Cnghm ￥2200 used 2030/650min 0) 235A-globe Marconi ￥- used 0) NY-235-globe NU ￥2900 used 810/650min 1) 35-globe ? ￥1200 used 860/650min 5) 35-ST RCA ￥2500 NIB 0) 35-ST RCA-Victor ￥- NIB 2) 35-ST RCA ￥2500 NIB 940,990/650min @@ 1) 35A-ST WH ￥1500 NIB 870/650min @@ 1) 35-ST Marconi ￥1500 NIB 850/650min @@ 1) 35-ST Marconi ￥1500 NIB 730/650min @@ 1) 35-ST Rogers ￥1500 NIB 880/650min @@ 1) 35-ST RCA-Cunningham ￥1800 used 940/650min 0) 35-ST Syl ￥- used 0) UY-35 Champion ￥- used 0) 35 ? ￥800 used gm=860/650min 2) 35/51 Syl ￥2700 NIB 0) 35/51 Syl ￥- used 1) 35/51 Tsol ￥1000 used 870/650min
35A5 =Power Amplifier Pentode= (EIA/6AA - loktal) Eh/Ih=35V/0.15A Ppmax=8.5W Epmax=200V Pc2max=1W Ec2max=125V rp=34kΩ gm=6.1mS 動作例: Ep=200V Ec2=125V Rk=180Ω Ip=43mA Ic2=2mA Zl=5kΩ Po=3W electrically equivallent to 35L6GT(octal) also see other loktal 6AA-base small power tubes : 7A5(Ppmax=5.5W, 6.3V/0.75A) 7C5(Ppmax=12W, 6.3V/0.45A) 14A5(Ppmax=7.5W, 12.6V/0.15A) 50A5(Ppmax=10W, 50V/0.15A) 50) 35A5 InterC ￥900 NIB mint Loktal (￥7000 for 10-pcs) 1) 35A5 Syl ￥900 NIB
35B5 =Beam Power= (EIA/7BZ - miniature) Eh/Ih=35V/0.15A Ppmax4.5W/Epmax117V/Pc2max1W/Ec2max117V Po=1.5W 2) 35B5 RCA ￥1000 NIB 1) 35B5 GE ￥1000 NIB old 2) 35B5 Syl ￥900 NIB 1) 35B5 Tsol ￥900 NIB 1) 35B5 Ray ￥900 NIB 1) 35B5 RCA-made ￥600 used? Syl箱 1) 35B5 RCA ￥600 used BlkPlate
35C3 1) 35C3 Syl ￥1700 NIB 1) 35C3 Admiral-Canada ￥1700 NIB
35C5 =Beam Power= (EIA/7CV - miniature) Eh/Ih=35V/0.15A Ehkmax=±200V Ppmax=5.2W Epmax=150V Pc2max=1.1W Ec2max=130V Rg1max=100kΩ op : Ep=110V Ec2=110V Ec1=-7.5V Ip=40/41mA Ic2=3/7mA rp=13kΩ gm=5.8mS Zl=2.5kΩ D=10% Po=1.5W heater variants : 12C5(Ppmax=6W, 12.6V/0.6A), 25C5(Ppmax=7W, 25V/0.3A), 50C5(Ppmax=5.5W, 50V/0.15A) also similar to 30A5(Ppmax=7.5W, Eh/Ih=30V/0.15A) also see : 6CU5(Ppmax=7W, 6.3V/1.2A), 12CU5(Ppmax=7W, 12.6V/0.6A), 17CU5(Ppmax=7W, 16.8V/0.45A) 7) 35C5 RCA ￥1000 NIB(Sn) 1) 35C5 RCA ￥1000 1) 35C5 GE ￥800 NIB 1) 35C5 Syl ￥800 NIB 5) 35C5 USA ￥800 NIB (hyxcnt) 1) 35C5 USA ￥400 used 2) 35C5 Toshiba ￥600 lightly-used NTT WB
35EH5 =Beam Power= (EIA/7CV - miniature) Eh/Ih=35V/0.15A Ppmax=5W Epmax=150V Pc2max=1.75W Ec2max=135V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=110V Ec2=115V Rk=62Ω Ip=32/32mA Ic2=7.2/12mA rp=14kΩ gm=12mS Zl=3kΩ D=8% Po=1.2W upper-rating(Ppmax=5.5W, Pc2max=2W) heater variants : 6EH5(6.3V/1.2A), 25EH5(25V/0.3A), 50EH5(50V/0.15A) 2) 35EH5 Syl ￥1000 NIB
35FV5(=PL136) =Beam Power= (EIA/ - octal) Eh/Ih=35V/0.3A Ppmax=15W(18W for PL136) Epmax=250V/550Vcutoff/7500Vpeak Pc2max=4.5W Ec2max=250V/550Vcutoff Ikmax=0.3A op : Ep=100V Ec2=100V Ec1=-8V Ip=150mA Ic2=6mA rp=4kΩ gm=21mS μg2g1=5.5 参考 : EL136/PL136/6FV5/35FV5のEp-Ip特性例(@Ec2=100V)) heater variant : 6FV5(6.3V/1.65A) 1) 35FV5 Matsushita ￥2200 NIB 1) 35FV5 Matsushita ￥2200 NIB just-ragged box
35L6/GT =Beam Power= (EIA/7AC - octal) Eh/Ih=35V/0.15A Ppmax8.5W/Epmax200V/Pc2max1W/Ec2max125V electrically equivallent to 35A5(loktal) higher-rating types: 12L6GT(12.6V/0.6A), 25L6GT(25V/0.3A), 50L6GT(12.6V/0.6A), 6DG6GT(EIA/7S, 6.3V/1.2A) 1) 35L6GT FIBRE ￥1200 used 4) 35L6GT RCA ￥1200 NIB w/sleeve 1) 35L6GT RCA ￥1200 NIB 1) 35L6GT RCA ￥1000 NIB VeryRaggedBox 0) 35L6GT GE ￥- NIB 0) 35L6GT Syl ￥- NIB CoinBase 0) 35L6 Philco ￥- used(like new) gm=7200/3650min 1) 35L6GT Matsushita ￥1000 NIB 0) 35L6 Lafayette ￥- used(like new) gm=7450/3650min 3) 35L6GT USA ￥600 used(Nn)
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
35LR6
35TG
35W4(=HY90) =Half-wave Rectifier= (EIA/5BQ - miniature) Eh/Ih=35V/0.15A(Tap=7.5V) Ehkmax=±360V PIV=360V Idcmax=110mA(w/o panel lamp)/100mA(w/lamp + ShuntRes.)/66mA(w/ lamp & no-shuntRes.)/660mA-peak Vdrop=18V(@Idc=200mA) PanelLampSectionVoltage=17V(when lamp-fails) (参考 : panel lamp connection) 2) JRC 35W4 RCA ￥1500 NIB D/C=1958, 1960 BlkPlate MB RaggedBoxes 0) 35W4 RCA ￥- NIB(Q) 1) 35W4 RCA ￥1200 NIB ClearTop(Side-Gtr) 3) 35W4 GE ￥1000 NIB 0) 35W4 Syl ￥- NIB w/sleeve 1) 35W4 Tsol ￥1200 NIB 4) 35W4 Amprx(GE-made) ￥1000 NIB(sSx) 0) 35W4 Ray ￥- NIB(Qn) 1) 35W4 GE ￥500 used SilveryPlate Tsol箱 1) 35W4 Syl ￥1000 used? SideGtr 3) 35W4 USA ￥1000 NOS/NIB (hyyanx) 7) 35W4 USA ￥500 used strong(Nn) 4) 35W4 USA ￥500 used 4) 35W4 USA ￥500 used 1) 35W4 NEC ￥700 used-lightly
35Y4 =Half-wave Rectifier= (EIA/5AL - loktal) Eh/Ih=35V/0.15A PIV700V/Idc100mA 1) 35Y4 Tsol ￥400 used GE箱
35Z3 =Half-wave Rectifier= (EIA/4Z - loktal) Eh/Ih=35V/0.15A PIV700V/Idc100mA 1) 35Z3 WH ￥1000 NIB 1) 35Z3 Philco ￥1000 NIB
35Z4 =Half-wave Rectifier= (EIA/5AA - octal) Eh/Ih=35V/0.15A PIV700V/Idc100mA 1) 35Z4 Arcturus ￥1000 NOS? 1) 35Z4 Syl ￥1000 NOS? Emerson箱
35Z5 =Half-wave Rectifier= (EIA/6AD - octal) Eh/Ih=35V/0.15A PIV700V/Idc100mA 0) 35Z5GT RCA ￥- NIB(Sx) 0) 35Z5GT GE ￥- NOS(D) 0) 35Z5GT GE ￥- NIB SideGtr 青箱(Qn) 0) 35Z5 Syl ￥- NIB 1) 35Z5 Syl ￥1000 NIB CoinBase 1) 35Z5GT Tsol ￥1000 NIB 0) 35Z5GT USA ￥- NIB(Sn) 1) 35Z5GT Matsushita ￥1000 NIB 0) 35Z5 Philco ￥- used 1) 35Z5GT Krad(GE-made) ￥800 used-LikeNew EM=95/54min 1) 35Z5GT USA ￥600 used(sQ) 1) 35Z5GT Matsushita ￥600 used
36/236 =cathode-type Sharp-cutoff RF Tetrode= (EIA/5E - UY, top-G1) Eh/Ih=6.3V/0.3A Ppmax=0.8W Epmax=250V Pc2max=0.16W Ec2max=90V op(A) : Ep=180V Ec2=90V Ec1=-3V Ip=3.1mA rp=500kΩ gm=1.05mS μ=525 (参考 : 四極管36/336のEp-Ip特性(@Ec2=90V)) 1) 236-globe Triad ￥4700 used?LikeNew 40/26min *** 0) 36-globe RCA ￥- usedLikeNew 2) 36-globe RCA, Cunningham ￥3600 used-lightly gm=1100,1300 WB 1) 36-globe Philco ￥3600 LikeNew 44/26min(TV-7) 1) 36-globe Philco ￥3600 LikeNew gm=1080/660min(539B) 1) 236-globe SPEED ￥3200 used-lightly rattle inside base, gm=1100 WB 1) D･236-globe Delco ￥3200 used-lightly WB 1) 36-globe International ￥3200 usedLikeNew 1300/660min 10) 36-ST RCA ￥2400 NIB 2) 36-ST GE ￥1600 NIB(D) 1) 36-ST Syl ￥2300 NIB 1) 36-ST Ray ￥3500 4-pillar usedLikeNew WB 1450/660min 1) 36-ST Cnghm ￥1400 LikeNew 42/26min 1) 36-ST RCA ￥1400 used 49/26min 1) 36-ST Philco ￥1300 usedLikeNew WB 1080/660min 1) 36-ST Hytron ￥900 used
36AM3/A/B =Half-wave Rectifier= (EIA/5BQ - miniature) 36V/0.1A PIV365V/Idc82mA 1) 36AM3 GE ￥1300 NIB SilveryPlate RaggedBox 1) 36AM3A GE ￥1300 NIB MT-type 1) 36AM3B RCA ￥1500 NIB +++ 10) 36AM3B GE ￥1300 NOS bulk ClearTop 1) 36AM3B Ray ￥1300 NIB
36KD6/40KD6
36LW6
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
36MC6
37 =cathode-type Medium-mu Triode= (EIA/5A - UY 5pin) Eh/Ih=6.3V/0.3A Epmax=250V(37-ST)/180V(37/237/337-globe) op : Ep=180V Ec=-13.5V Ip=4.3mA rp=10.2kΩ gm=0.9mS μ=9.2 op : Ep=250V Ec=-18V Ip=7.5mA rp=8.4kΩ gm=1.1mS μ=9.2 (参考 : Ep-Ip特性) EIA/5A-base higher-μ, same heater(6.3V/0.3A) types : UY-76(μ=13.8), UY-6301(μ=100) 0) 237-globe RCA ￥2200 used?/LikeNew gm=925/570min WB 0) 37-globe Syl ￥- used? 1) 37-globe Philco ￥3900 NIB RaggedBox 1) 37-globe Philco ￥3900 NIB VeryRaggedBox 1) 37-globe Philco ￥2100 used 940/570min 0) 37-globe[Blue] Arcturus ￥7900 NIB sealed(sQ) 2) 37-globe[Blue] Arcturus ￥7900 NIB just-ragged box 0) 37-ST RCA ￥1800 NIB 赤箱(zAht) 1) 37-ST RCA ￥1500 NOS OriginalWrapping WB 4) 37-ST/VT-37 Tsol ￥1900 LikeNew/LightlyUsed TwinMetalRibbon-supporter WB 1) 37-ST Krad(GE-made) ￥1500 LikeNew/LightlyUsed D/C=2-07 WB 1) 37-ST Krad ￥1500 LikeNew/LightlyUsed WB 1) 37-ST CO-OP ￥1500 LikeNew/LightlyUsed WB 1) 37-ST xxx ￥1500 LikeNew/LightlyUsed WB 4) UY-37/TB-639-A Sumitomo(=NEC) ￥2000 LikeNew/LightlyUsed WB 1) 37-ST RCA ￥1500 used(like new) gm=1160/570min 1) 37-ST RCA-Cunghm ￥1300 used 37/23min 1) 37-ST Philco ￥1300 used 810/570min 1) 37-ST Philco ￥1300 used 1) 37-ST Wizard ￥1300 usedLikeNew
38/38A/238 =cathode-type Power amp Pentode= (EIA/5F - UY, top-G1) Eh/Ih=6.3V/0.3A Epmax=250V Ec2max=250V op : Ep=250V Ec2=250V Ec1=-25V Ip=22mA Ic2=3.8mA rp=100kΩ gm=1.2mS Zl=10kΩ D=8% Po=2.5W 1) 238-globe RCA ￥3000 used-lightly WB 0) ER238-globe EvereadyRaytheon ￥3800 used 1010/630min 4-pillar@@- 2) 238-globe TrailBlazer ￥3300 used engraved gm=1120,1250/630min 0) 38A[BLUE] Arcturus ￥８１００ NIB =rare=(xD) 2) 38 Radiotron/WH ￥1400 NIB 1) 38 RCA ￥1400 NIB VeryRaggedBox 1) 38 Ray ￥1400 NIB VeryRaggedBox 1) 38 Rogers ￥1400 NIB 1) 38 USA ￥1400 NIB 0) 38/VT38 NU ￥- used gm=1460/660min 1) 38-ST Hytron ￥900 used
38HE7 =Diode Pentode= (EIA/12FS - compactron) 38HE7≒38HK7(slight-difference only for diode voltage-drop and Ekh-max) Eh/Ih=37.8V/0.45A Ehk=200V Pentode: Ppmax=10W Epmax=500V/5kVpeak Pc2max=3.5W Ec2max=150V Ikmax=230mA/800mApeak Rg1max=1MΩ op : Ep=130V Ec2=130V Ec1=-22V Ip=60mA Ic2=2.8mA rp=6.2kΩ gm=8.8mS, μg2g1=4.2-typ Diode: PIV=4200V Idc=200mA/1.2Apeak Edrop=13V(@Idc=200mA) Ehk=100Vdc/200Vpeak Ekh=500Vdc/4200Vpeak (参考 : 五極部のEp-Ip,Ic2特性(Pentode: Ec2-parameter, Ec1=0V)) heater variants : 6HE7(6.3V/2.7A), 12HE7(12.6V/1.35A), 33HE7(33.6V/0.45A), 38HE7(37.8V/0.45A), 58HE7(58V/0.3A) 6) 38HE7 RCA ￥1000 NIB 3) 38HE7 GE ￥1000 NIB 1) 38HE7 Syl ￥1000 NIB 6) 38HE7 Hitachi ￥1000 NOS WB 4) 38HE7 Hitachi ￥1000 NOS view 2 WB 1) 38HE7 Znth ￥500 used
38HK7 =Diode Pentode= (EIA/12FS - compactron) 38HK7≒38HE7(slight-difference only for diode voltage-drop and Ekh-max) Eh/Ih=37.8V/0.45A Ehk=200V Pentode: Ppmax=10W Epmax=500V/5kVpeak Pc2max=3.5W Ec2max=150V Ikmax=230mA/800mApeak Rg1max=1MΩ op : Ep=130V Ec2=130V Ec1=-22V Ip=60mA Ic2=2.8mA rp=6.2kΩ gm=8.8mS, μg2g1=4.2-typ Diode: PIV=3700V Idc=200mA/1.2Apeak Edrop=11V(@Idc=200mA) Ehk=100Vdc/200Vpeak Ekh=500Vdc/3700Vpeak (参考 : 五極部のEp-Ip,Ic2特性(Pentode: Ec2-parameter, Ec1=0V)) see heater variant : 53HK7(Eh/Ih=53.2V/0.315A) 50) 38HK7 InterC ￥900 NIB mint GE,Syl,Japan,USA made (￥8000 for 10-pcs) 10) 38HK7 RCA ￥1000 NOS none 1) 38HK7 RCA ￥900 NIB 5) 38HK7 Syl ￥900 NIB 1) 38HK7 Syl ￥900 NIB
39/44(=VT-49) =cathode-type RemoteCutoff RF Pentode= (EIA/5F - UY, top-G1) Eh/Ih=6.3V/0.3A Epmax=250V Ec2max=90V op : Ep=250V Ec2=90V Ec1=-3V Ip=5.8mA Ic2=1.4mA rp=1MΩ gm=1.05mS 0) 39-globe RCA ￥4200 NIB? #239箱 0) 39/44 Champion ￥- NIB 1) 39/44/VT-49 Syl ￥600 used 1210/630min 1) 39 NU ￥400 used none gm=860/660min 0) 39-globe Syl ￥1500 used none gm=970/660min 1) 39-4pillar Ray ￥3000 used? 1) 39/44-ST Hytron ￥900 used
40 =filamentary Medium mu Triode= (EIA/4D - UX 4pin) Ef/If=5V/0.25A Ppmax=-W Epmax=180V op : Ep=180V Ec=-3V Ip=0.2mA rp=140kΩ rp=150kΩ gm=200μS μ=30 0) 40-globe Ray ￥4100 NIB ragged box ０) 40-ST RCA ￥2700 NIB Sealed(D)
40A1 =gas-filled Ballast= (EIA/8ES - octal) Ifmax=95mA Ifmin=70mA Efmax=60V Efmin=20V op : If=74mA(@Ef=20V) If=84mA(@Ef=40V) If=90mA(@Ef=60V) 9) 40A1 Emerson NIB ￥1000 Octal Ballast tube 1) 40A1 Syl NIB ￥1000 Octal Ballast
40B2 =gas-filled Ballast= (EIA/8ES - octal) Ifmax=160mA Ifmin=135mA Efmax=60V Efmin=20V op : If=140mA(@Ef=20V) If=150mA(@Ef=40V) If=155mA(@Ef=60V) 5) 40B2 Emerson NIB ￥1000 Octal Ballast tube
40KD6 : see 36KD6/40KD6
40KG6/A/PL509
41(see VT-48) =cathode-type PowerPentode= (EIA/6B - UZ 6pin) Eh/Ih=6.3V/0.4A Ppmax=8.5W Epmax=315V Pc2max=2.8W Ec2max=285V Ec1max=+0V Ehkmax=90V op(A1S) : Ep=250V Ec2=250V Ec1=-18V Ip=32/33mA Ic2=5.5/10mA rp=90kΩ gm=2.3mS Zl=7.6kΩ D=11% Po=3.4W op(AB1pp) : Ep=285V Ec2=285V Ec1=-25.5V Ip=55/72mA Ic2=9/17mA Zlpp=12kΩ D=6% Po=10.5W (参考 : Ep-Ip特性(Ec2=250V)) #41 is electrically identical with 6K6GT(octal), 7B5(loktal). 0) 41-globe Philco ￥3500 used 1640/1000min, 1450/1000min(vD) 0) 41-ST RCA ￥- NIB 0) 41-ST RCA ￥2200 NOS WB(Dx) 0) 41-ST RCA-Cunnghm ￥1700 NOS? 95/40min 0) 41-ST Syl ￥2200 NIB 1) 41-ST Syl ￥2000 NOS 1) 41-ST WH(Canada) ￥2200 NIB 0) 41-ST Marconi ￥2000 NOS(sQ) 1) 41-ST Philco ￥1600 NOS VeryDirtyPins WB 1) 41-ST RCA ￥1400 used 102/40min(TV-7) 1) 41-ST Tsol ￥1400 used 88/40min(TV-7) 1) 41-ST Znth ￥1400 used >120/40min(TV-7) 1) 41-ST Philco ￥1400 used 116/40min(TV-7) 1) 41-ST Silvertone ￥1400 used 1510/1000min 1) 41-ST Arcturus ￥1400 used 1) 41-ST Delco(Syl-made) ￥1400 used? 1690/1000min date=7-39 1) 41-ST Krad ￥1400 LightlyUsed 1) 41-ST Ray ￥3900 LikeNew 4-pillar 1800/1000min 1) UZ-41-ST Matsuda(made in Japan) ￥2000 used WB
41MH =cathode-type high-mu Triode= (EIA/-, UF5pin) Eh/Ih=4V/1A Epmax=200V op : Ep=100V Ec=0V Ip=4.8mA rp=18kΩ gm=4mS μ=72 op : Ep=200V Ec=-1.5V Ip=3.2mA (参考 : Eg-Ip特性(@Ep=50V, 100V, 150V, 200V)) similar types : AC2/HL(Mazda), MH41(MOV), 41MH(Cossor), UY6301(Japan) also see a noval type high-μ twin triode, 12BZ7 (by unit-parallel usage, resulting in near or upper 41MH) 0) 41MH Cossor ￥- used WB 1) 41MH Cossor lightly-used ￥6700 gray spray shielded, WB
41MXP/CV1122/VR122 =cathode-type power Triode= (EIA/ - B5(5-pin UF)) Eh/Ih=4V/1A(41MXP), 4V/1.1A(CV1122) CV1122: Ppmax=8W Epmax=200V op : Ep=100V Ec=0V Ip=48mA rp=1.5kΩ gm=7.5mS μ=11.2 op : Ep=200V Ec=-12.5V Ip=40mA Zload-optimum=3kΩ pins(UF): 1(P(-2(G)-3(H)-4(H)-5(K) size : 57.5mmΦ x 142mmH, in max (参考: Eg-Ip特性(Ep=50V, 100V, 150V, 200V)) (参考: Ep-Ip特性例(SAMPLE data plotted)) 0) 41MXP Cossor ￥- NIB ragged box 0) CV1122 Cossor ￥- NOS very-ragged boxes, MB 4) VR122(=41MXP) Cossor ￥offer NOS smoked-glass, WB
42 = cathode-type PowerPentode = (EIA/6B - UZ 6pin) Eh/Ih=6.3V/0.7A Ppmax=11W Epmax=375V Pc2max=2.8W Ec2max=285V op: Ep=250V Ec2=250V Ec1=-16.5V Ip=34mA Ic2=6.5mA rp=80kΩ gm=2.35mS μ=190 op(A1S) : Ep=250V Ec2=250V Ec1=-16.5V Ip=34mA Ic2=6.5mA Zl=7kΩ D=7% Po=3W op(AB2pp): Ep=375V Ec2=250V Rk=340Ω Ipo=54mA Ipmax=-mA Ic2o=8mA Ic2max=-mA Zl=10kΩ D=5% Po=19W op(AB2pp): Ep=375V Ec2=250V Ec1=-26V Ipo=34mA Ipmax=-mA Ic2o=5mA Ic2max=-mA Zl=10kΩ D=5% Po=19W op(A1S-Triode): Ep=250V Ec1=-20V Ip=31mA rp=2.7kΩ gm=2.3mS μ=6.2 Zl=3kΩ D=5% Po=0.65W op(AB2pp-Triode): Ep=350V Rk=730Ω Ip=25mAx2/30mAx2 Zlpp=10kΩ D=3% Po=9W op(AB2pp-Triode): Ep=350V Ec1=-38V Ip=24mAx2/46mAx2 Zlpp=6kΩ D=2% Po=13W (参考 : Ep-Ip特性(Ec2=250V)) (参考 : Ep-Ip特性(五結･三結比較など)) see heater variants : 2A5(2.5V/1.75A), 18(14V/0.3A) see similar types : 6F6 / 1611(octal, 6.3V/0.7A), 6AR5(miniature, 6.3V/0.4A) see a same pin-assignment and electrically-similar WE type : WE-336A(Eh/Ih=10V/0.64A) also see an octal base and electrically-similar WE type : WE-349A(octal, Eh/Ih=6.3V/1A) also see a communication-purpose Japanese high-rel. Higher-gm type : CZ-504-D(UZ, Eh/Ih=5.5V/1A, Ppmax=13.75W) 1) 42-globe Crosley-Sylvania ￥9700 used 2190/1640min GlassChipInside 0) 42-globe Philco ￥- used 1240/1640min weak 0) 42-globe Philco ￥- used 1820,2360/1640min(D) 0) 42-ST Mazda ￥3900 LikeNew gm=3170,3230/1640min(qD) 0) 42-ST RCA ￥- NIB(mD) 0) 42-ST GE(made-in England) ￥- NIB WB 85,86,87,89/50min(TV-7)(sQ) 1) 42-ST RCA ￥４１００ NIB RaggedBox(vSn) 2) 42-ST GE ￥４１００ NIB 3) 42-ST GE ￥４１００ NIB 1) 42-ST NU ￥４１００ NOS GE箱 0) 42-ST Syl ￥３９００ NIB (sQ) 1) 42-ST Syl ￥３９００ NIB 1) 42-ST Syl ￥3900 NIB D/C=052(1950) VeryRaggedBox 2) 42-ST Admiral ￥３９００ NIB 1) 42-ST Coronado ￥３９００ NIB RaggedBox 1) 42-ST Delta/Tung-Sol ￥2700 NOS 89/50min(TV-7) 0) 42-ST Ray ￥- NIB 0) 42-ST Tsol ￥- NIB(T) 1) 42-ST Tsol ￥4100 NIB 0) 42-ST Tsol ￥- NIB(D) 1) 42-ST Philco ￥3900 NOS RCA-boxed 1) 42-ST Philco ￥3900 NOS WB 2) 42-ST NEC ￥3900 NIB lot=31,31 just-ragged boxes 1) 42-ST RCA-Cnghm ￥2200 used gm=2300/1640min 1) 42-ST RCA-Cunnungham ￥1800 used engraved-base 0) 42-ST RCA ￥- used gm=2600/1640min 1) 42-ST RCA ￥2500 used 73/50 ClearGlass WaistGtr 針金サポート 1) 42-ST RCA-Victor ￥2500 used 83/50 SmokedGlass 1) 42-ST GE ￥2500 used gm=2630/1640min 1) 42-ST Syl ￥2700 used?LikeNew 2860/1640min 1) 42-ST Syl ￥2500 used 2700/1640min 0) 42-ST Syl ￥- used 2530/1640min 1) 42-ST Syl ￥2500 used 84/50 engravedBase ClearGlass WaistGtr 針金サポート 0) 42-ST Philco ￥1700 used WB gm=2200-3000(1640min) (hxzev) 1) 42-ST Philco ￥2500 used gm=3220/1640min 1) 42-ST Philco ￥2400 used gm=2800/1640min engraved-base 針金サポート 1) 42-ST Philco ￥2400 used gm=2300/1640min engraved-base 1) 42-ST Philco ￥1800 used gm=2000/1640min engraved-base 1) 42-ST Philco ￥2500 used 79/50 ClearGlass MicaSupport 0) 42-ST Philco ￥- used 0) 42-ST Philco,NU ￥- used(T) 1) 42-ST Ray ￥2500 used 84/50 BlackGlass 1) 42-ST Tsol ￥2500 used 2690/1640min BlkGlass 1) 42-ST Tsol ￥2500 used 99/50 justRattle BlackGlass ClearTop 1) 42-ST NU ￥2500 used 83/50 ClearGlass MicaSupport 1) 42-ST NU ￥1800 used gm=2180/1640min 1) 42-ST Krad ￥2500 used 75/50 BlackGlass ClearTop 1) 42-ST Krad ￥2500 used 82/50 ClearGlass 針金サポート 1) 42-ST WardsAirline ￥2500 used 73/50 ClearGlass 針金サポート GE-made 1) 42-ST Matsuda(=Toshiba) ￥2500 lightly-used WB 1) 42-ST Matsuda(=Toshiba) ￥2500 lightly-used gm=2800/1550min, Ip=26mA(on KS-15750-L1) WB 2) 42-ST NEC ￥2000 lightly-used GrayPlate WB 1) UZ-42 Asahi ￥1800 used WB 1) 42-ST RCA ￥500 used gm=1700/1640min 0) 42-ST Japan ￥800 used tested
42EC4A =Booster Diode / HV Half-wave Rectifier= (EIA/6EC4 - Magnoval) PIV=7000V Idc=440mA Pd=11W Eh/Ih=42V/0.3A pins(PY500A) : 1(IC)-2(P)-3(IC)-4(H)-5(H)-6(IC)-7(P)-8(P)-9(IC)-Top(K) 42EC4A=PY500/A heater variants : 6EC4/A, EY500/A(Eh/Ih=6.3V/2.1A) <ダンパ用-高圧半波整流管の比較> 0) 42EC4A/PY500 RCA ￥- NIB(sD) 5) 42EC4A/PY500 GE ￥1700 NIB 1) 42EC4/PY500A Ray ￥1700 NIB 2) 42EC4 Matsushita ￥1500 NIB 2) 42EC4 Matsushita ￥1500 NIB 1=still-cellophane-sealed 3) 42EC4 Matsushita ￥1500 NIB still-cellophane-sealed 1) 42EC4 Matsushita ￥1200 NIB? just-ragged box
42KN6
43 = cathode-type PowerPentode = (EIA/6B - UZ 6pin) Eh/Ih=25V/0.3A Ppmax=5.3W Epmax=160V Pc2max=1.9W Ec2max=135V op : Ep=160V Ec2=120V Ec1=-18V Ipo=33mA Ic2o=6.5mA rp=42kΩ gm=2.375mS Zl=5kΩ D=10% Po=2.2W also see an electrically equivallent type : 25A6, 25A6GT/G(G7-octal) 1) 43-ST Marconi ￥2100 NIB 1) 43-ST Rogers ￥2100 NIB 2) 43-ST RCA-Victor ￥2100 NIB 2) 43-ST RCA ￥2100 NIB D/C=913(1949) ragged-boxes 0) 43-ST RCA ￥- NIB 1) 43-ST RCA ￥2100 NIB VeryRaggedBox +++ 1) 43-ST GE ￥2100 NIB(Q) 1) 43-ST Syl ￥2100 NIB 1) 43-ST NU ￥2100 NIB 2) 43-ST Syl ￥1000 lightly-used D/C=7-26, 7-26 WB 0) 43-ST Ray ￥2300 used ST 4-pillar gm=2200/1450min 1) 43-ST Tsol ￥1000 used engraved-base RCA-boxed 1) 43-ST NU ￥1400 used 2830/1450min 1) 43-ST Triad ￥1000 used 4) 43-ST USA ￥1000 used
43IU/43-IU = 431U (British - Cossor full-wave cathode type rectifier)
45/245/345 = filamentary PowerTriode = (EIA/4D - S17, ST14) Ef/If=2.5V/1.5A Ppmax=10W Epmax=275V Rgmax=1MΩ(self) op 1 A1S : Ep=180V Ec=-31.5V Rk=Ω rp=1.65kΩ gm=2.125mS μ=3.5 Ip=31mA Zl=2.7kΩ Po=0.825W op 2 A1S : Ep=250V Ec=-50V Rk=Ω rp=1.61kΩ gm=2.175mS μ=3.5 Ip=34mA Zl=3.9kΩ Po=1.6W op 3 A1S : Ep=275V Ec=-56V Rk=1550Ω rp=1.7kΩ gm=2.05mS μ=3.5 Ip=36mA Zl=4.6kΩ Po=2.0W op 4 AB2pp(self) : Ep=275V Rk=775Ω Ipo=18mAx2 Ipmax=45mAx2 Zl=5.06kΩ D=5% Po=12.0W op 5 AB2pp(fixed) : Ep=275V Ec= -68V Ipo=14mAx2 Ipmax=69mAx2 Zl=3.2kΩ D=5% Po=18.0W (参考 : Ep-Ip特性) also see '45-special' = VT52 also see 2A3, 50/250/350 オーディオパワ管の比較1 <三極管の A1S 動作比較> globe - NOS/NIB/used 0) CX-345 globe Cunnghm ￥- NOS? 0) CX-345 globe (リアビュー 71Aとの外観比較) Cunnghm ￥- used? used 0) CX-345 globe Cunnghm ￥- used(Qn) 0) 45/245 globe RCA ￥- NIB 0) UX-245 globe RCA ￥- used(D) 1) UX-245 globe RCA ￥14000 used 1680/1170min 1) UX-245 globe RCA ￥11000 used 1510/1170min RattleInBase 0) 45 globe RCA ￥- used 0) 45 globe Majestic ￥- used 0) 45-globe Philco ￥- SlightlyUsed 下記と同一電極/マイカ構造 ClearGlass NonLooseBase LargeGetterFlash gm = 1700/1170min(539B) 1) 45-globe Sylvania ￥16000 NOS gm = 1825/1170min(539B) BrownBox 0) 45-globe Sylvania ￥- SlightlyUsed ClearGlass NonLooseBase LargeGetterFlash gm = 1700/1170min(539B) 0) UX-245 globe Radiotron ￥- used(D) 0) 245 globe WH-Radiotron ￥- used 0) UX-245 globe Radiotron ￥- used 0) NX-245 globe NU ￥- used 刻印 strong /base rattle有り 0) 45 globe Marathon ￥- used 0) 245 globe Super Airline ￥- NOS?/used? 2) G-45 globe Majestic ￥14000 used 1800/1170min 背の高さが10mm程度異なる 1) 45-globe ? ￥17000 used gm=2160/1170min 1) UX-245-globe ? ￥12000 used gm=1600/1170min 1) 45-globe Philco ￥11000 used gm=1620/1170min GetterFlash面荒れあり 1) T-245-globe Triad ￥9000 used 1410/1170min justLooseBase ST - NOS/NIB 0) 45-ST Cunningham ￥- NIB ragged-box(D) 1) 45-ST Cunningham ￥10000 NOS D/C=Sept.23,1938 WB 2:reserved) 45-ST RCA ￥12000 NIB 1950,2000/1170min RaggedBox 片方の管頂やや変色-製造時のゲッタ蒸気付着 3:reserved) 45-ST RCA ￥offer NIB 0) 45-ST RCA ￥- NIB 0) 45-ST RCA ￥- NIB 0) 45-ST RCA ￥- NIB 1925/1170min 0) 45-ST RCA ￥- NIB 2080/1170min 0) 45-ST KenRad(RCA-made) ￥- NIB 2370/1170min 0) 45-ST RCA ￥- NIB RB(Aht) 0) 45 GE ￥- NIB(T) 1) 45-ST GE ￥11000 NIB 0) 45 GE ￥- NIB RaggedBox 1) 45-ST Syl ￥9000 NOS D/C=7-13(1947) WB 0) 45 Syl ￥- NIB 0) 45 Syl ￥- NIB 0) 45 Ray ￥- NIB 2400/1170min ragged box 0) 45 Tsol ￥- NIB(D) 0) 45 NU ￥- NIB 2700/1170min 0) 45 Philco ￥- NIB 1) 45 Philco ￥11000 NIB RaggedBox 0) 45 Znth ￥- NOS?/used? 2380/1170min OB 1) 45 Hytron ￥11000 NIB 0) 45 Silvertone ￥- NIB(Q) ST - used 0) 45-ST RCA-Cunningham ￥- used(D) 1) 45-ST RCA ￥8900 used 1980/1170min 1) 45-ST RCA ￥8900 used 1940/1170min 1) 45-ST RCA ￥8900 used 1940/1170min 1) 45-ST RCA ￥8200 used 1890/1170min 1) 45-ST RCA ￥7000 used 1700/1170min 1) 45-ST RCA ￥7000 used 1700/1170min 3) 45-ST Ray-branded(RCA-made) ￥10000 LikeNew gm= , , /1170min(539B) ****# 2) 45-ST GE-branded ￥10000 LikeNew gm=83,76/47min(TV-7B/U) (photo= left two) ****# "made gor Canadian GE" is shown on their base. Their construction's are identical to each other and also to the upper Raytheon-branded #45-trio. 1) 45-ST Marconi-branded(RCA-made) ￥10000 LikeNew gm=83/47min(TV-7B/U) (photo=right) ****# This one's internal fabrication is similar to the upper Raytheon-branded trio. 1) 45-ST Marconi-branded(RCA-made) ￥5000 LookLikeNew gm=52/47min(TV-7B/U) (photo=the 2nd from the right) ****# This one's internal fabrication is identical to the upper GE tube. 1) 45-ST RCA ￥6000 used gm=66/47min(TV-7) STD-boxed 1) 45-ST RCA-Victor ￥5000 used gm=59/47min(TV-7) STD-boxed 0) 45-ST GE ￥- used strong 1) 45-ST GE ￥6000 used 1700/1170min 1) 45-ST GE ￥6000 used 1710/1170min 0) 45-ST Syl ￥- used 1) 45-ST Syl ￥6000 used 1690/1170min 1) 45-ST Syl ￥7000 used D/C=7-26(1957) gm=76/47min(TV-7) 1) 45-ST Syl ￥2500 used lot=T1R gm=40/47min(TV-7) 0) 45-ST 4-pillar Ray ￥- used engraved 0) 45-ST 4-pillar Ray ￥１４０００ used engraved gm=1810/1170min(539B) 1) 45-ST Ray ￥10000 usedLikeNew gm=2110/1170min(539B) BrownBox 1) 45-ST KenRad ￥10000 used 2390/1170min 1) 45-ST KenRad ￥7900 used 1970/1170min 1) 45-ST KenRad ￥7500 used 1890/1170min 1) 45-ST KenRad ￥6000 used 1650/1170min 1) 45-ST KenRad ￥6000 used 1600/1170min(tested by KS15750) engraved 1) 45-ST KenRad ￥3900 used 1310/1170min 0) 45-ST Philco ￥- used? 1) 45-ST Philco ￥9000 used?LikeNew 76/47min(TV-7) 1) 45-ST NU ￥9000 used?LikeNew 79/47min(TV-7) 1) 45-ST SuperSilvertone ￥8900 used 2020/1170min 1) 45-ST SuperAirline ￥7000 used 1760/1170min 1) 45-ST WARDS-SuperAirline ￥6000 used gm=63/47min(TV-7) 1) 45-ST Coronado ￥6500 used 1900/1170min ** 0) 45-ST Wizard ￥6000 used 1700/1170min ** 0) 45-ST Delco ￥3500 used 1280/1170min 0) 45-ST Arcturus ￥3700 used 1300/1170min 0) 45-ST Roytron ￥2000 used gm=>1100/1170min Getterが荒れている 1) 45-ST ? ￥10000 NOS gm=1770/1170min BrownBox 1) 45-ST TRIAD ￥4500 used engraved-base gm=1500/1170min 1) 45-ST USA ￥8900 used 2050/1170min 0) 45-ST RCA,Cnghm,Syl,Philco,Tsol,Fordom,NU ￥- used(Nn)
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
46 = filamentary Power Double Grid Triode = (EIA/5C - S17, ST16) Ef/If=2.5V/1.75A Ppmax=10W Epmax=250V(class A1)/400V(class B) Ipmax=200mApeak Triode Connection : op(A1S G2-P connected) : Ep=250V Ec=-33V Ip=22mA rp=2.38kΩ gm=2.35mS μ=5.6 Zl=6.4kΩ Po=1.25W op(B2pp G1-G2 connected) : Ep=300V Ec=0V Ipo=2x4mA Zlpp=5.2kΩ Pin=0.95W Po=16W op(B2pp G1-G2 connected) : Ep=400V Ec=0V Ipo=2x6mA Zlpp=5.8kΩ Pin=0.65W Po=20W (参考 : 三結時のEp-Ip特性 G2-P connected triode connection) 0) 46-globe Cunnghm ￥- NOS(D) 1) 46-globe Cunningham ￥7700 used?/NOS? 2030/1250min 1) 46-globe RCA ￥１８０００ NIB RaggedBox 2) 46-globe NU ￥１８０００ NIB 0) 46-globe GE ￥- used?LikeNew 0) 46-globe KenRad ￥7000 used engraved gm=1920/1250min 0) 46-globe KenRad ￥6500 used engraved gm=1780/1250min 0) 46-globe KenRad ￥- used(D) 1) 46-globe - ￥7000 used 2110/1250min 0) W46-globe WH ￥- used 1620/1250min 0) W46-globe WH ￥- used 1430/1250min 1) W46-globe WH ￥2500 used 1200/1250min 酸化物粉 1) 46-ST RCA-Victor ￥4300 NIB 1) 46-ST RCA ￥4300 NIB(Qn) 0) 46-ST RCA ￥- NOS 1) 46-ST Syl ￥3900 NIB 8) 46-ST Znth ￥3900 NIB same-lot $$$* 2) 46-ST Marconi ￥3900 NIB RaggedBox(Nn) 1) 46-ST Rogers ￥3900 NIB 1) 46-ST Radiotron/WH ￥3900 NIB 2) 46-ST Raytheon ￥3900 NIB 1) 46-ST Raytheon ￥3900 NIB 1) 46-ST KenRad ￥3900 NIB 0) 46-ST STD ￥- NIB(D)
46B1 2) 46B1 Majestic ￥4300 NIB old 赤黄黒元箱
47/147/247/347 = filamentary Power Pentode = (EIA/5B - S17, ST16) Ef/If=2.5V/1.75A Epmax=250V Ec2max=250V Rgmax=50kΩ(fixed)/500kΩ(self) op : Ep=250V Ip=31mA Ec2=250V Ic2=6mA rp=60kΩ gm=2700μmho Zl=2700Ω Po=2.7W (参考 : Ep-Ip特性(@Ec2=250V)) 0) 47-globe Cunningham ￥- used 1) 47-globe Cunningham ￥7000 used 1875/1250min 2) 247-globe RCA Radiotron ￥6800 used engraved 1) 47-globe RCA ￥6800 used 1910/1250min 2) 47-globe RCA-Radiotron ￥6300 used 1750,1750/1250min engraved 0) 247-globe RCA ￥- used(nSn) 0) 247-globe-4-pillar Ray ￥- used 0) 247-globe Arrow ￥- used 0) NY-247-globe NU ￥- NIB 0) 47-globe Philco ￥- used 0) NY-247-globe NU ￥7100 LikeNew 2230/1250min 1) 247-globe CeCo ￥6800 used 83/50min 1) 247-globe Wizard ￥4000 used1990/1250min Getter破片散/動作支障無 0) 47-ST RCA ￥- NIB RaggedBox 0) 47-ST RCA ￥- NIB RaggedBox 1) 47-ST Raytheon ￥3200 NIB RaggedBox 1) 47-ST Marconi ￥3200 NIB RaggedBox 0) 47-ST RCA ￥- used? 0) 47-ST RCA ￥- used 1) 47-ST GE ￥2500 used-lightly gm=1775/1250min 1) 47-ST Syl ￥2600 LikeNew WB 1980/1250min 3) 47-ST Ray ￥2600 NOS? WB 1) 47-ST Ray ￥2500 used 1725/1250min WB 1) 47-ST RCA? ￥2200 used 1575/1250min WB 1) 47-ST Phico ￥2400 used 1930/1250min 1) 47-ST Krad ￥2400 used 2030/1250min 1) 47-ST SuperSilvertone ￥1000 used 1160/1250min
47B = filamentary Power Pentode = (EIA/5K - 5pin, ST12)Ef/If=2.5V/0.5A op : Ep=135V Ec2=135V Ec1=-13.5V Ip=14.5mA Ic2=3mA rp=50kΩ gm=1.4mS Zl=7kΩ Po=0.7W op : Ep=180V Ec2=180V Ec1=-18.0V Ip=20.0mA Ic2=5mA rp=45kΩ gm=2.0mS Zl=7kΩ Po=1.4W similar to 33/233(Eh/Ih=2V/0.26A) 1) UY-47B ラージ(LARGE) ￥1800 used engraved WB
47BK = cathode-type Power Pentode = (EIA/5B - 5pin, ST12) Eh/Ih=2.5V/0.9A op : Ep=180V Ec2=180V Ec1=-10V Ip=15mA Ic2=2.5mA rp=130kΩ gm=1.75mS Zl=12kΩ Po=1W pins: 1(H)-2(P)-3(G1)-4(G2)-5(H) (G3,K are jointed to center-point of heater, glass-internally) 47BK = 3Y-P1(Eh/Ih=2.5V/0.9A) 1) UY-47BK エレバム(Elevam) ￥1800 used
UZ-47D = filamentary Pentode = (EIA/ - 6pin, ST12) (especially for highly-efficient supressor-grid modulation of TX tubes) Ef/If=5V/0.5A op : Ep=250V Ec2=250V Ec1=-15.3V Ip=55mA Ic2=-mA rp=23.5kΩ gm=3.4mS pins: 1(F)-2(P)-3(G2)-4(G1)-5(G3)-6(F) 0) UZ-47D Matsuda ￥- used
UZ-47G = filamentary Pentode = (EIA/ - 6pin, ST12) (especially for highly-efficient supressor-grid modulation of TX tubes) Ef/If=5V/0.25A op : Ep=135V Ec2=135V Ec1=-13.5V Ip=27mA Ic2=-mA rp=24.5kΩ gm=1.88mS pins: 1(F)-2(P)-3(G2)-4(G1)-5(G3)-6(F) 1) UZ-47G エレバム(Elevam) ￥1800 used RattleInsideBase, WB
UZ-47H = filamentary Pentode = (EIA/ - 6pin, ST12) (especially for highly-efficient supressor-grid modulation of TX tubes) Ef/If=5V/1.05A op : Ep=250V Ec2=250V Ec1=-15.3V Ip=62mA Ic2=-mA rp=21.7kΩ gm=3.60mS pins: 1(F)-2(P)-3(G2)-4(G1)-5(G3)-6(F) 0) UZ-47H Matsuda ￥- used
UZ-47K = filamentary Pentode = (EIA/ - 6pin, ST12) (especially for highly-efficient supressor-grid modulation of TX tubes) Ef/If=5V/0.5A op : Ep=150V Ec2=150V Ec1=-12V Ip=32mA Ic2=8mA rp=25kΩ gm=2.4mS pins: 1(F)-2(P)-3(G2)-4(G1)-5(G3)-6(F) 0) UZ-47K Matsuda ￥- used
48 =cathode-type Power Tetrode= (EIA/6A - ST16) Eh/Ih=30V/0.4A op : Ep=125V Ip=56mA Ec1=-20V Ec2=100V Ic2=9.5mA gm=3900μmho Zl=2.5kΩ Po=2.5W 1) 48-ST RCA ￥5000 NIB RaggedBox 1) 48-ST RCA ￥3100 UsedLightly WB 1750/1250min 0) 48-ST KenRad ￥4300 LikeNew WB 2300/1250min
49 =filamentary DualGridPowerAmp= (EIA/5C - ST14) Ef/If=2V/0.12A Epmax=135V(class A1)/180V(class B2) Ipmax=50mApeak triode connection op(A1S G2-P connected) : Ep=135V Ec1=-20V Ip=6mA rp=4.175kΩ gm=1125μmho μ=4.7 Zl=11kΩ Po=0.17W op(B2pp G1-G2 connected) : Ep=135V Ipo=2x1.3mA Ec1,2=0V Zlpp=8kΩ Po=2.3W op(B2pp G1-G2 connected) : Ep=180V Ipo=2x2mA Ec1,2=0V Zlpp=12kΩ Po=3.5W (参考 : 三結時のEp-Ip特性 G2-P connected triode connection) 2) 49-ST RCA ￥2800 NIB RaggedBox 1) 49-ST RCA ￥2400 NOS engraved-base, WB 3) 49-ST Marconi ￥2400 NIB(Qn) 1) 49-ST Philco ￥2400 NIB 1) 49-ST Arcturus ￥2400 NIB very-ragged box 2) 49-ST RCA ￥2000 used 42,46/28min
50/250/350/450 = filamentary PowerTriode = (EIA/4D - S21, ST19) Ef/If=7.5V/1.25A Ppmax=25W Epmax=450V Rgmax=10kΩ op A1S : Ep=300V Ec=-54V Ip=35mA rp=2kΩ gm=1.9mS μ=3.8 Zl=4.6kΩ Po=1.6W op A1S : Ep=350V Ec=-63V Ip=45mA rp=1.9kΩ gm=2mS μ=3.8 Zl=4.1kΩ Po=2.4W op A1S : Ep=400V Ec=-70V Ip=55mA rp=1.8kΩ gm=2.1mS μ=3.8 Zl=3.67kΩ Po=3.4W op A1S : Ep=450V Ec=-84V Ip=55mA rp=1.8kΩ gm=2.1mS μ=3.8 Zl=4.35kΩ Po=4.6W (参考 : Ep-Ip特性) also see 2A3, 45/245/345 オーディオパワ管の比較1 <三極管の A1S 動作比較> 0) C585-globe mesh Cardon ￥- NIB 0) Audion 450-globe DeForest ￥- used 0) UX-250-globe KenRad ￥- used gm=1425/950min(Hickok-539C) 0) JX-250-globe 試験の様子 - ￥- used gm=1630/950min(Hickok-539C) 0) CX-350-globe Cunnghm ￥- used STRONG(Sn) 1) CX-350-globe Cunnghm ￥４３０００ used?LikeNew gm=1530/950min 1) CX-350-globe Cunnghm ￥32000 used gm=1250/950min 1) CX-350-globe Cunnghm ￥29000 used gm=1250/950min 酸化物粉僅かにあり ゲッタフラッシュ大良 美品 1) CX-350-globe Cunnghm ￥28000 used gm=1250/950min 酸化物粉僅かにあり ゲッタフラッシュ大良 美品 1) CX-350-globe Cunnghm ￥32000 used 電極が後方へ20度位傾斜/動作支障無 gm=1410/950min 0) UX-250-globe RCA NIB ￥- 74/38min VeryRaggedBox 1) UX-250-globe RCA ￥５００００ NIB 1550/950min 1) UX-250-globe RCA ￥４３０００ used 1450/950min 0) UX-250-globe RCA used ￥- STRONG 0) UX-250-globe RCA ￥- used 1) UX-250-globe RCA ￥29000 used 1150/950min ガラス傷あり 1) UX-250-globe RCA ￥29000 used 1210/950min 1) UX-250-globe Syl ￥４３０００ used 1510/950min StrongLikeNew 1) UX-250-globe KenRad ￥４３０００ used original-box 1500/950min StrongLikeNew 0) 50-globe[4-pillar] Ray used ￥- gm=1510/950min -rare- 0) 50-ST19 RCA-Cunningham ￥- NIB MatchedPair gm=1420,1430/950min VeryRaggedBox(D) 0) 50-ST19 RCA ￥- NIB? RCA-Cunningham box 0) 50-ST19 RCA ￥- NIB 1420/950min ragged-box 0) 50-ST19 RCA ￥- used 0) 50-ST19 GE ￥- NIB 65/38min(TV-7) 2) 50-ST19 Crosley ￥３６０００ NIB RaggedBox 1) 50-ST19 Marconi ￥３６０００ NOS OriginalWrapping 0) 50-ST19 Ray ￥- used 1350/950min
50A1 =gas-filled Ballast= (EIA/9CM - noval) Ifmax=58mA Ifmin=50mA Efmax=65V Efmin=30V op : If=52mA(@Ef=30V) If=54mA(@Ef=50V) If=56mA(@Ef=65V) 0) 50A1 Syl ￥- NIB 0) 50A1 Znth(Syl) ￥- NIB (nD)
50A5 =Beam Power= (EIA/6AA - loktal) Eh/Ih=50V/0.15A Ppmax=10W Epmax=200V Pc2max=1.25W Ec2max=117V rp=35kΩ gm=8.25mS 動作例: Ep=200V Ec2=110V Ec1=-8V Ip=50/55mA Ic2=1.5/6mA Zl=3kΩ D=10% Po=4.3W also see other loktal 6AA-base small power tubes : 7A5(Ppmax=5.5W, 6.3V/0.75A) 7C5(Ppmax=12W, 6.3V/0.45A) 14A5(Ppmax=7.5W, 12.6V/0.15A) 35A5(Ppmax=8.5W, 35V/0.15A) 1) 50A5 RCA-Victor ￥900 NIB 1) 50A5 RCA ￥700 NIB RaggedBox 2) 50A5 Syl ￥700 NIB very^ragged boxes 2) 50A5 Syl ￥700 NIB 1) 50A5 Philco ￥700 NIB 1) 50A5 Syl ￥600 LikeNew WB 1) 50A5 Philco ￥600 used? 1) 50A5 WH ￥600 used? Ray箱
50B5 =Beam Power= (EIA/7BZ - miniature) Eh/Ih=50V/0.15A Ehkmax=±200V Ppmax=6W Epmax=135V Pc2max=1.25W Ec2max=117VX Rg1max=100kΩ(fixed)/500kΩ(self) op(A1S) : Ep=120V Ec2=110V Ec1=-8V Ip=49/50mA Ic2=4/8.5mA rp=10kΩ gm=7.5mS Zl=2.5kΩ D=10% Po=2.3W 5) 50B5 RCA ￥1200 NIB 1) 50B5 RCA ￥1200 NIB 6) 50B5 GE ￥1100 NIB 0) 50B5 Syl ￥- NIB 1) 50B5 Tsol ￥1100 NIB 2) 50B5 Ray ￥1100 NIB 0) 50B5 Delco ￥- NIB 1) 50B5 RCA ￥800 used Tsol箱 1) 50B5 Delco ￥500 used WB 0) 50B5 - ￥500 used RCA箱 VeryRaggedBox
50BM8 =Triode Pentode= (EIA/9EX - noval) Eh/Ih=50V/0.1A Ehkmax=±200V Triode : Ppmax=1W Epmax=250V Ikmax=15mA Rg1max=1MΩ(fixed)/3MΩ(self) op: Ep=100V Ec=0V Ip=3.5mA rp=32kΩ gm=2.2mS μ=70 Pentode: Ppmax=7W Epmax=250V Pc2max=1.8W Ec2max=250V Ikmax=50mA Rg1max=1MΩ(fixed)/2MΩ(self) op: Ep=200V Ec2=200V Ec1=-16V Ip=35mA Ic2=7mA rp=16kΩ gm=7.5mS μg2g1=9.5 op(A1S): Ep=200V Ec2=200V Rg2=470Ω Rk=330Ω Ip=35mA/37mA Ic2=7.8mA/13.3mA Zl=4.5kΩ Po=3.3W D=10% op(AB1pp): Ep=170V Ec2=170V Rk=125Ω Ip=70mA/79mA Ic2=17mA/26mA Zlpp=4.5kΩ Po=7W D=3.6% 50BM8 = UCL82 heater variants : 6BM8(6.3V/0.78A), 8B8(8V/0.6A), 11BM8(10.7V/0.45A), 16A8(16V/0.3A), PCL82(16V/0.3A), 32A8(32V/0.15A) 1) 50BM8 Sonotone(TFK-made) ￥3300 NIB <> on bottom made-in-W.Germany 2) 50BM8-BugleBoy Amperex(Mullard-made) ￥2900 NIB Gt.Britain 1) 50BM8-BugleBoy Amperex ￥2900 NIB Gt.Britain 3) 50BM8-BugleBoy Amperex ￥2900 NIB Holland 5) 50BM8/UCL82-BugleBoy Amperex ￥2900 NIB Holland 6) 50BM8 IEC Mullard ￥2900 NIB Gt.Britain Blackburn ** 2) 50BM8 Ray(Mullard-made) ￥2900 NIB 2) 50BM8 RCA ￥2500 NIB GTサイズ箱 1) 50BM8 USA ￥2000 NIB
50C5/HL92 =Beam Power= (EIA/7CV - miniature) Eh/Ih=50V/0.15A Ehkmax=±200V Ppmax=5.5W Epmax=135V Pc2max=1.25W Ec2max=117V Rg1max=100kΩ(fixed)/500kΩ(self) op(A1S) : Ep=110V Ec2=110V Ec1=-7.5V Ip=49/50mA Ic2=4/8.5mA rp=10kΩ gm=7.5mS Zl=2.5kΩ D=9% Po=1.9W heater variants : 12C5(Ppmax=6W, 12.6V/0.6A), 25C5(Ppmax=7W, 25V/0.3A), 35C5(Ppmax=5.2W, 35V/0.15A) also see heater variants (Pcmax=7W): 6CU5(6.3V/1.2A), 12CU5(12.6V/0.6A), 17CU5(16.8V/0.45A) 1) 50C5 RCA ￥1200 NIB(nSn) 10) 50C5 GE ￥1000 NIB(hxcnt) 1) 50C5 Syl ￥1000 NIB 1) 50C5 Syl ￥1000 NIB 1) 50C5 Tsol ￥1200 NIB 6) 50C5 USA,Canada ￥1000 NIB 0) 50C5 RCA ￥- NOS? 13) 50C5 USA ￥400 used (hxzev) 2) 50C5A WH ￥1000 used 2) 50C5A RCA ￥600 used 1) 50C5A RCA ￥600 used 1) 50C5 NEC ￥600 used
50C6/G =Beam Power= (EIA/7AC - octal-ST14) Eh/Ih=50V/0.15A Ppmax=12.5W Epmax=200V Pc2max=1.75W Ec2max=135V rp=9.3kΩ gm=7mS op1(A1S) : Ep=135V Ec2=135V Ec=-13.5V Ip=58mA/60mA Ic2=3.5mA/11.5mA Zl=2.0kΩ Po=3.6W D=10% op2(A1S) : Ep=200V Ec2=135V Ec=-14.0V Ip=61mA/66mA Ic2=2.2mA/9.00mA Zl=2.6kΩ Po=6.0W D=10% heater variants : 6Y6G(6.3V/1.25A), 25C6/G(25V/0.3A) (参考 : 25/50C6GのEp-Ip特性(@Ec2=135V)) (参考 : 25/50C6Gの出力・負荷特性(power-load)) (参考 : 6Y6/GAの三結時のEp-Ip特性-triode connection) similar type : 50L6GT(straight-GT) electrically similar types w/o heater : 25W6GT, 6W6GT, 6DG6GT 1) 50C6G GE(Syl-made) ￥1200 NIB Lot=B9M ClearGlass VeryRaggedBox 20) 50C6G Syl ￥1200 NIB just-ragged boxes (hyyres01x2) 1) 50C6G Raytheon ￥1200 NIB DC=552 BlackGlass RaggedBox 4) 50C6G WH ￥1200 NIB RaggedBoxes 4) 50C6G Marconi ￥1200 NIB RaggedBoxes 1) 50C6G Philco(Syl-made) ￥1200 NIB DC=5137 Lot=F1M BlackGlass extremely-RaggedBox 1) 50C6G Rogers(Syl-made) ￥1200 NIB DC=36-53(1953) Lot=A9M ClearGlass VeryRaggedBox 1) 50C6 Philco ￥900 used ClearGlass STD箱
50C-A10/50CA10
50DC4 =Half wave Rectifier= (EIA/5BQ - miniature) PIV330V/Idc120mA 1) 50DC4 RCA ￥2000 NIB (MT) 3) 50DC4 Ray ￥2000 NIB (MT)
50EH5 =Power Pentode= (EIA/7CV - miniature) Eh/Ih=50V/0.1A Ehkmax=±200V Ppmax=5.5W Epmax=135V Pc2max=1.75W Ec2max=117V rp=11kΩ gm=14.6mS Rg1max=100kΩ(fixed)/500kΩ(self) op(A1S) : Ep=110V Ec2=115V Rk=62Ω Ip=42mA/42mA Ic2=11.5mA/14.5mA Zl=3kΩ Po=1.4W D=7% heater variants : 6EH5(6.3V/1.2A), 25EH5(25V/0.3A), 35EH5(35V/0.15A, Ppmax=5W, Pc2max=1.75W) 1) 50EH5 RCA ￥1200 NIB 1) 50EH5 GE ￥1000 NIB 1) 50EH5 Ray ￥1000 NIB 2) 50EH5 CBS(GEmade) ￥800 NOS GE箱 9) 50EH5 Syl ￥800 NOS BlkPlate/バルク品 1) 50EH5 WH ￥800 NOS 1) 50EH5 Std(Tsol) ￥1100 NIB 1) 50EH5 Toshiba ￥800 NIB BlkPlate, 薄茶silk, very-ragged box 1) 50EH5 Toshiba ￥800 NIB BlkPlate, 薄茶silk, just-ragged box 1) 50EH5 Toshiba ￥800 NIB BlkPlate, 白silk, just-ragged box 1) 50EH5 Syl ￥500 used
50GY7 =Diode Pentode= (EIA/12FY - compactron) Eh/Ih=50V/0.3A pentode : Ppmax=9W Epmax=400V Pc2max=3W Ec2max=150V Ikmax=155mA Ehkmax=±200V Rg1max=1MΩ diode : PIV=4200V Ipmax=135mAdc/819mA-peak Edrop=21V(@Ip=250mA) see heater variant : 33GY7/A(33.6V/0.45A) 1) 50GY7 Mot ￥1000 NIB
50H-B26/50HB26
50HC6 =Beam Power= (EIA/7FZ - miniature) Eh/Ih=50V/0.15A Ehkmax=±200V Ppmax=5.5W Epmax=150V Pc2max=2W Ec2max=130V op : Ep=110V Ec2=115V Rk=62Ω Ip=42/42mA Ic2=11.5/14.5mA rp=11kΩ gm=14.6mS Zl=3kΩ D=7% Po=1.4W 1) 50HC6 Tsol ￥1200 NIB
50HK6 =Beam Power= (EIA/7FZ - miniature) Eh/Ih=50V/0.15A Ehkmax=±200V Ppmax=5.5W Epmax=150V Pc2max=1.1W Ec2max=130V rp=10kΩ gm=7.5mS Rg1max=100kΩ(fixed)/500kΩ(self) op(A1S) : Ep=110V Ec2=110V Ec1=-7.5V Ip=49/53mA Ic2=4/8.5mA Zl=2.5kΩ Po=1.9W D=9% 1) 50HK6 DuMont(Syl-made) ￥1200 NIB D/C=68-14 BlkPlate 0) 50HK6 WH ￥- NIB 0) 50HK6 Dmnt ￥- used
50HN5 =high-gm Beam Power= (EIA/9QW - noval) Eh/Ih=50V/0.15A Ehkmax=±200V Ppmax=12W Epmax=330V Pc2max=2.5W Ec2max=250V Ikmax=120mA Rg1max=100kΩ(fixed)/300kΩ(self) op : Ep=130V Ec2=130V Rk=56Ω Ip=70mA Ic2=5mA rp=7.5kΩ gm=17mS μ2g1=13 op(A1s) : Ep=130V Ec2=130V Rk=56Ω Ip=70mA Ic2=5mA Zl=2.0kΩ Dtot=8% Po=3W op(A1s) : Ep=140V Ec2=140V Ec1=-5.7V Ip=71mA Ic2=4mA Zl=1.7kΩ Dtot=9% Po=4W op(AB1pp) : Ep=260V Ec2=130V Rk=69Ω Ip=90/106mA Ic2=3/15mA Zlpp=5.5kΩ Dtot=1.5% Po=16.5W (参考 : 50HN5のEp-Ip特性(@Ec2=130V)) same-basing similar type : 60HL5(Eh/Ih=60V/0.1A) 1) 50HN5 GE ￥1700 NIB
50JY6 =Horizontal deflection BeamPower= (EIA/8MG - octal)Eh/Ih=50V/0.15A (50JY6=50E5相当) Ehkmax=+200Vdc(+250Vpeak)/-250Vdc(-250Vpeak) Ppmax=13W Epmax=275V/600V(cutoff)/7700Vpulse-peak Pc2max=5.5W Ec2max=275V/600V(cutoff) Ikmax=220mAdc Ec3max=70V Rg1max=500kΩ Cg1p=1.1pFmax Cinput=17.5pF Coutput=8pF * G3 intalled to control Snivets interference. also targetted to HiFi power amplifier applications (Matsushita) pins : 1(IC)-2(H)-3(G3)-4(G2)-5(G1)-6(NC)-7(H)-8(K)-TopCap(P) op : Ep=100V Ec2=100V Ec3=0V Ec1=-8.2V Ip=100mA Ic2=7mA gm=14mS rp=5kΩ μg2g1=5.6(also for triode connection) op(A1S) : Ep=250V Ec2=250V Rk=90Ω Ip=72mA Ic2=8mA Zl=3.5kΩ D=10% Po=8W op(AB1pp) : Ep=250V Ec2=250V Rk=90Ω(common) Ip=90/106mA Ic2=10.2/17mA Zlpp=5kΩ D=2.2% Po=14.5W (参考 : 25E5の三結時のEp-Ip特性例(25E5 triode-connection sample data) NOTE : ("at your-own risk" mode / when triode connection → maybe. actually / ICAS, Ppmax≧16W, Epmax≧300V) The predecessor 25E5 permits Ppmax=13W for triode-con.(10W for pentode-con., Pc2max=5W), so that, newer-designed 50JY6 probably permits approx.Ppmax=16W for triode-con.(13W for pentode-con., Pc2max=5.5W). Almost-samely fabricated plate /heater constructed 50HB26 permits Ppmax=18W for pentode-con.,with Pc2max=5W. Also as to newer-designed - EL360 permits Ppmax=18W for triode-con. (15W for pentode-con.,with Pc2max=5W). (Also as for similar electrode-sized., 29KQ6 and 29LE6, Ppmax for pentode-con. is 17W, 20W, respectively.) see heater variants : 6CM5 / EL36(6.3V/1.25A), 25E5 / PL36(25V/0.3A) see a different heater, electrically similar type : 6G-B3A(Ppmax=15W, Epmax=300V for triode con.) also see a just-upper-rating and different-basing European type : EL360(Ppmax=15W, Ec2max=400V, Eh/Ih=6.3V/1.27A) also see an upper-rating, single-ended, MAGNOVAL-base type : 50HB26(Ppmax=18W Pc2max=5W Ec2max=300V) also see a single-ended, electrically-similar, MAGNOVAL-base type : 25HX5(Ppmax=14W Pc2max=3.5W Ec2max=300V) 34) 50JY6 Sylvania(Matsushita-made) ￥1800 NIB 18) 50JY6 Raytheon(Matsushita-made) ￥1800 NIB 0) 50JY6 GE(Matsushita-made) ￥- NIB matched octet 0) 50JY6 GE(Matsushita-made) ￥- NIB matched octet 1) 50JY6 RCA(Matsushita-made) ￥1800 NIB 0) 50JY6 Syl ￥1800 NIB (hyy2G2hx) 0) 50JY6 Raytheon(Matsushita-made) ￥- NIB justRaggedBox (hygfG3hg) 2) 50JY6 Raytheon(Matsushita-made) ￥1800 NIB just-ragged boxes 1) 50JY6 Dumont(Matsushita-made) ￥1800 NIB D/C=69-46 4) 50JY6 Int-C(Matsushita-made) ￥1800 NIB ** 3) 50JY6 Matsushita ￥1800 NIB still-cellophane-sealed 1) 50JY6 Matsushita ￥1800 NIB still-cellophane-sealed, partially-broken-OuterBox 2) 50JY6 Matsushita ￥1800 NIB 2x3holes just-ragged boxes 1) 50JY6 Matsushita ￥1800 NIB 2x3holes just-ragged box 1) 50JY6 Matsushita ￥1500 NOS no-hole WB 0) 50JY6 Dmnt(Matsushita-made) ￥- used 1) 50JY6 Matsushita ￥700 used WB
50L6GT/MG =BeamPower Amplifier= (EIA/7AC - octal) Eh/Ih=50V/0.15A Ehkmax=±90V Ppmax=10W Epmax=200V Pc2max=1.25W Ec2max=125V Rg1max=100kΩ(fixed)/500kΩ(self) op(A1S) : Ep=200V Ec2=125V Rk=180Ω Ip=46mA Ic2=2.2mA rp=28kΩ gm=8mS Zl=4kΩ D=10% Po=3.8W (参考 : 50L6GTのEp-Ip特性(Pentode(@Ec2=110V), Triode)) see heater variants : 12L6GT(12.6V/0.6A) , 25L6GT(25V/0.3A) see 6.3V heater variant : 6DG6GT(EIA/7S, 6.3V/1.2A) similar to 6W6GT(6.3V/1.2A) also see smaller-spec. type : 35L6GT(Ppmax=8.5W, Pc2max=1W, 35V/0.15A) ST-14 shape similar type with same basing : 50C6 34) 50L6MG InterC ￥1200 NIB mint LargeMetalTube(￥10000 for 10-pcs) 14) 50L6GT RCA ￥1200 NIB (hyx10nt) 0) 50L6GT GE ￥- NIB SideGetter(D) 0) 50L6GT GE ￥- NIB BlkGlass 青箱(Qn) 1) 50L6GT GE ￥1000 NIB TopGtr 1) 50L6GT GE ￥1000 NOS BlkGlass RCA-boxed 1) 50L6GT Syl ￥1000 NIB 2) 50L6GT Syl ￥1000 NIB 5) 50L6GT Tsol ￥1000 NIB TopGtr e/sleeve 1) 50L6GT Tsol ￥1200 NIB 5) 50L6GT WH ￥1000 NIB 1) 50L6GT WH ￥1000 NIB @@ 1) 50L6GT Marconi ￥1000 NOS Syl箱 0) 50L6GT Realistic ￥- NIB 1) 50L6GT National ￥1000 NIB 1) 50L6GT National ￥1000 NIB GE-made 1) 50L6GT Ravac ￥1000 NIB 1) 50L6GT Sheldon ￥1000 NOS RadTel箱 1) 50L6GT CentralStates ￥800 used-LikeNew SmokedGlass gm=9900/5650min 17) 50L6GT USA ￥600 used (hyy1nevx)
50N02 1) 50N02 Ameprite ￥2000 NIB TimerRelay
50R-P25/50RP25 =Power Pentode= (EIA/9BL - noval) Eh/Ih=50V/0.15A Ehkmax(DC)=+100V/-200V Ehkmax(AC+DC)=+200V/-300V Ppmax=11W Epmax=150V Pc2max=2W Ec2max=120V Rg1max=100kΩ(fixed)/500kΩ(self) op(A1S) : Ep=110V Ec2=110V Ec=-6.7V Ip=75/75mA Ic2=6.5/18.5mA rp=8.5kΩ gm=14.5mS Zl=1.5kΩ Po=3.2W D=11% op(A1S) : Ep=120V Ec2=120V Ec=-8V Ip=80/80mA Ic2=6.5/16mA Zl=1.5kΩ Po=4.3W D=11% pins : 1(IC)-2(G1)-3(KG3)-4(H)-5(H)-6(IC)-7(P)-8(IC)-9(G2) (参考:Ep-Ip特性(@Ec2=110V)) also see an electrically-similar miniature(7pin-MT) type : 30M-P27(Eh/Ih=30V/0.15A, Ppmax=10W) 0) 50R-P25 Toshiba ￥- NIB 0) 50R-P25 Toshiba ￥- NIB ragged boxes (hyy7vt) 0) 50R-P25 Toshiba ￥- NIB very-ragged boxes (hyy1vr) 0) 50R-P25 NEC ￥- used 0) 50R-P25 NEC ￥- used just-rusty, smeared print (hssv2n) 0) 50R-P25 NEC ￥- used smeared-out print (hssv1nn)
50R-P28/50RP28 =Power Pentode= (EIA/9BL - 9T9) Eh/Ih=50V/0.15A Ehkmax=±200V(DC=+100Vmax) Ppmax=18W Epmax=265V Pc2max=2W Ec2max=265V Rg1max=100kΩ(fixed)/500kΩ(self) op(A1S) : Ep=210V Ec2=210V Ec=-11V Ip=65/72mA Ic2=6/20mA rp=15kΩ gm=11mS Zl=2.5kΩ Po=8W D=10% op(AB1pp) : Ep=210V Ec2=210V Ec=-14V Ip=72/120mA Ic2=6.5/36mA Zl=4.5kΩ Po=17W D=5% pins : 1(IC)-2(G1)-3(KG3)-4(H)-5(H)-6(IC)-7(P)-8(IC)-9(G2) 0) 50R-P28 Toshiba ￥- NIB 1) 50R-P28 Toshiba ￥4000 NIB Stll-CellophaneSealed -) 50R-P28 Toshiba ￥- lightly-used -) 50R-P28 Toshiba ￥- used 9T9 -) 50R-P28 Toshiba ￥- used
50X6 =separated-cathode Rectifier-Doubler= (EIA/7AJ - Loktal) PIV=700V(AC-235Vrms) Idcmax=75mA Eh/Ih=50V/0.15A Loktal base version of 50Y6GT 1) 50X6 RCA ￥1200 NIB 1) 50X6 RCA ￥1200 NIB VeryRaggedBox 2) 50X6 Syl ￥1200 NIB 5) 50X6 Tsol ￥1200 NIB
50Y6/GT/G =separated-cathode Rectifier-Doubler= (EIA/7Q - octal) PIV=700V(AC-235Vrms) Idcmax=75mA Eh/Ih=50V/0.15A electrically same as 25Z6GT(Eh/Ih=25V/0.3A) except heater 1) 50Y6G Sylvania ￥- used 1) 50Y6GT RCA ￥1200 NIB 1) 50Y6GT Tsol ￥1200 NIB 1) 50Y6GT NU ￥800 NOS KenRad箱 2) 50Y6GT/G RCA ￥800 LightlyUsed? RCA元箱
50Y7/GT =separated-cathode Rectifier-Doubler= (EIA/8AN - octal) 50Y7GT is electrically identical to 50Y6GT but with panel-lamp tap PIV=700V(AC-235Vrms) Idcmax=75mA Eh/Ih=50V/0.15A(w/o Panel-lamp),46V/0.15A(w/No.40 or No.47 Panel-lamp) 4) 50Y7GT Tsol ￥1200 NIB RaggedBox
51/551 (see 35/51)=cathode-type Tetrode= (EIA/7B) Eh/Ih=2.5V/1.75A op : Ep=180V Ec2=90V Ec1=-3V Ip=6.3mA Ic2=2.5mA gm=1.02mS 0) Z51-globe Zenith ￥- NIB 0) 251-globe Continental ￥4300 NIB 0) 51-globe[BLUE] Arcturus ￥- used 1) 551-globe[BLUE] Arcturus ￥5700 used gm=1125/640min 1) 551-globe[BLUE] Arcturus ￥5500 used gm=1090/640min 1) 551-globe[BLUE] Arcturus ￥5300 used gm=1040/640min 1) 551-globe[BLUE] Arcturus ￥5100 used gm=1020/640min 1) 551-globe[BLUE] Arcturus ￥5000 used gm=960/640min 0) 551-globe[BLUE] Arcturus ￥- used gm=1000,1040/640min 0) 551-globe[BLUE] Arcturus ￥- used (vSn)
52 =filamentary dual-grid PowerTriode= (EIA/5C - ST14) Ef/If=6.3V/0.3A Epmax=180V Ipmax=75mA-peak (参考 ) #52の三極管接続(G1-G2接続時、G2-P接続時)のEp-Ip特性 op A2S (G2-P connection) ：Ep=100V Ip=37mA Ec=0V μ=5.2 gm=2.7mS rp=1.93kΩ Zl=2kΩ Po=1.2W op A2S (G2-P connection) ：Ep=110V Ip=43mA Ec=0V μ=5.2 gm=3mS rp=1.74kΩ Zl=2kΩ Po=1.5W op B2pp (G1-G2 connection)：Ep=180V Ec=0V Ipo=3mA Zlp-p=10kΩ Po=5W note : 6A4 is suitable for A2/B2 driver 6) 52-ST Ray ￥19000 NIB 4-pillar engraved-base VeryRaggedBox =VeryRare= 2) 52-ST Ray ￥12000 NIB VeryRaggedBox 1) 52-ST Philco ￥12000 NIB VeryRaggedBox
53= common-cathode Highμ Twin Power Triode = (EIA/7B, 7-pin UT - ST14) Ef/If=2.5V/2A op : Ep=300V Ec1=0V Ip0=35mA Ipmax=70mA μ=35 Zl=8kΩ Po=10W electrically identical to 6A6(μ=35, Eh/Ih=6.3V/0.8A), 6N7/6N7GT/6N7G(μ=35, Eh/Ih=6.3V/0.8A), and similar to 5608/5608A(μ=32, Eh/Ih=2.5V/2A). 0) 53 Ray ￥- NOS(D) 0) 53 NU ￥2400 NIB 1) 53 Arcturus ￥2400 NIB 0) 53 Syl ￥1000 used
53HK7 =Diode Pentode= (EIA/12FS - compactron) Eh/Ih=53.2V/0.315A see heater variant : 38HK7(Eh/Ih=37.8V/0.45A) 1) 53HK7 Syl ￥1000 NIB
54/HK54
55 = cathode-type duplex-Diode medium-mu Triode = (EIA/6G - UZ-top-grid) Eh/Ih=2.5V/1A Triode : Ppmax=2W Epmax=250V op : Ep=250V Ec=-20V Ip=8mA rp=7.5kΩ gm=1.1mS μ=8.3 Zl=20kΩ Po=0.35W (参考 : EpIp特性) different heater-spec type : 85(Eh/Ih=6.3V/0.3A) different heater-spec, different-basing type : 6V7G(octal, Eh/Ih=6.3V/0.3A) same basing high-μ triode type : 2A6 (μ=100, Eh/Ih=2.5V/0.8A) 0) 55[BLUE] Arcturus ￥7000 NIB 4) 55-ST Dmnt(Syl-made) ￥1500 NIB D/C=59-39(1959) just-ragged boxes
56 = cathode-type Triode Detector Amplifier = ST (EIA/5A - UY) Eh/Ih=2.5V/1A (note: 2.5V/0.8A for Japan-made 56A, 6.3V/0.4A for US-made 56A and 56AS)) Epmax=250V Rgmax=1MΩ op : Ep=100V Ec=-5V Ip=2.5mA rp=12kΩ gm=1.15mS μ=13.8 op : Ep=250V Ec=-13.5V Ip=5mA rp=9.5kΩ gm=1.45mS μ=13.8 (参考 : EpIp特性) 56 is electrically identical to 6P5G/GT and 76 except heater spec. also identical to 6J5/G/GT(octal, Eh/Ih=6.3V/0.3A), 12J5/GT(octal, Eh/Ih=12.6V/0.15A) 0) 56-globe RCA ￥- used?LikeNew(vAht) 1) 56-globe GE ￥3100 used gm=84/37min 0) 56-globe WH ￥3100 used gm=2090/920min 1) 56-globe Marconi ￥2800 used gm=1570/920min 1) 56-globe Majestic ￥2800 used gm=1780/920min 1) 56-globe Majestic ￥3100 usedLikeNew gm=2000/920min 1) 56-globe KenRad ￥3100 used gm=2170/920min 1) 56-globe SuperAirline ￥3100 used gm=2060/920min 0) 56-globe Crosley,NU,Silvertone,Majestic ￥- used (nQn) 1) 56-globe Plato ￥2700 usedLikeNew gm=1720/920min 0) 56-globe[BLUE] Arcturus ￥6300 used? WB(hxxcvt) 1) 56ST RCA ￥2200 NIB RaggedBox 1750/920min 1) 56ST Sylvania ￥2000 NOS WB 0) 56S Ray ￥- NIB 4-pillar 0) 56AS Ray ￥- NIB 1) UY-56-ST JRC(SUWA MUSEN) ￥1800 NIB 1) 56 Arcturus ￥1500 used? gm=1830/920min 1) 56-ST RCA-Cnghm ￥1200 used gm=1590/920min 1) 56-ST RCA ￥1200 used gm=1670/920min 1) 56-ST RCA ￥1200 used gm=1580/920min 1) 56-ST Syl ￥1500 used-LikeNew 1820/920min 1) 56-ST NU ￥1200 used 1570/920min 1) 56-ST SuperSilvertone ￥1100 used 1) 56A-ST NEC ￥1300 used-lightly gm=1850/1050min(on WE-KS15740L1) WB 1) UY-56-ST Matsuda ￥1000 used gm=1470/1050min(on WE-KS15740L1) WB 1) UY-56-ST Matsuda ￥1200 lightly-used WB 1) UY-56-ST Hitachi ￥1200 lightly-used gm=1850/1050min(on WE-KS15740L1) WB 1) 56-ST DON ￥1300 lightly-used gm=2150/1050min(on WE-KS15740L1) WB 1) UY-56 Toshin-Denki ￥1000 used WB 1) 56-ST ? ￥1000 lightly-used WB
57 = cathode-type Triple Grid Detector Amplifier = (EIA/6F - UZ, top-G1) Eh/Ih=2.5V/1A Epmax=250V Ec2max=100V op :Ep=250V Ec2=100V Ec1=-3V Ip=2mA rp>1.5MΩ gm=1.225mS μ>1500 low-noise high-reliability type : 1603(UZ, Eh/Ih=6.3V/0.3A) different-heater electrically identical with 6C6(UZ, Eh/Ih=6.3V/0.3A) different-heater electrically-similar type : 77(UZ, Eh/Ih=6.3V/0.3A) also see octal-base electrically-identical types: 6J7/G, 1620(octal, Eh/Ih=6.3V/0.3A) same-base different-heater electrically-similar types: WE-310A(10V/0.32A), WE-328A(7.5V/0.425A) also see a same-basing, higher-gm, different-heater similar type: CZ-501-D(gm=3.5mS, Eh/Ih=3.5V/1A) 0) 57 RCA ￥- NIB 2) 57 Lafayette ￥1200 NIB sealed (sQ) 0) 57 NU ￥900 NIB(mD) 1) 57 Marconi ￥900 NIB 1) 57 Ray ￥900 NIB 1) 57 Tsol ￥900 NIB RaggedBox 1) 57 Admrl ￥900 NIB LightBrownBox 1) 57 Delco ￥900 NIB ragged box 1) UY-57S JRC(SUWA-MUSEN) ￥1200 NIB (5-pins) 0) 57-ST [BLUE] Arcturus ￥- used(T) 1) 57-ST [BLUE] Arcturus ￥3900 used 1250/770min 1) 57-ST RCA ￥600 used 1500/770min 1) 57 NU ￥500 used 1) Z-57 Znth ￥500 used 1135/770min 1) 57 Znth ￥500 used 33/31min 1) UZ-57 Matsuda ￥800 lightly-used gm=1400/800min(on KS-15750L1) WB 1) UZ-57 Matsushita ￥800 LikeNew gm=1380/800min(tested on a KS-15750L1) WB 1) UY-57S ELEVAM ￥600 used (5-pins) 1) UY-57S ELEVAM ￥600 used (5-pins) WB
58 = cathode-type Super Control R.F. Amplifier= (EIA/6F, UZ, top-grid) Eh/Ih=2.5V/1A Epmax=250V Ec2max=100V op : Ep=250V Ec2=100V Ec1=-3V Ip=8.2mA Ic2=3mA rp=800kΩ gm=1.6mS μ=1280 electrically identical with 6D6(UZ, Eh/Ih=6.3V/0.3A), 6U7G(octal, Eh/Ih=6.3V/0.3A) also identical to 6K7/G/GT(octal, Eh/Ih=6.3V/0.3A), 12K7/GT(octal, Eh/Ih=12.6V/0.15A) 1) 58 Ray ￥1200 NIB 5) 58 Ray ￥1000 NOS 0) 58 GE ￥1000 NIB 0) 58 NU ￥1000 NIB RaggedBox 1) 58 Krad ￥1000 NIB 4) 58-ST [BLUE] Arcturus ￥５３００ BulkNOS WB 1) 58-ST [BLUE] Arcturus ￥４７００ used WB 1500/970min 1) 58-ST [BLUE] Arcturus ￥４７００ used WB 1500/970min 1) 58-ST [BLUE] Arcturus ￥３９００ used WB 1300/970min justLooseBase 1) 58-ST [BLUE] Arcturus ￥３３００ used WB 1310/970min justLooseBase justLooseGridCap 0) 58-ST [BLUE] Arcturus ￥- used(sD) 1) UZ-58 JRC(SUWA MUSEN) ￥1200 NIB 1) UZ-58 JRC(SUWA MUSEN) ￥900 NIB? taping-base 1) 58-ST RCA ￥- used 1) 58-ST Syl ￥1000 used? gm=63/36min(TV-7) 1) Z-58 Znth ￥500 used 1150/900min 1) 58 Crosley ￥900 used gm=1540/770min 1) 58 Crosley ￥500 used 0) ER58 Eveready-Ray ￥- used engraved(mD) 0) 58 NU ￥700 used gm=53/36min(TV-7B/U) 1) 58-ST Hytron ￥600 used 1) UZ-58 Matsuda ￥900 lightly-used gm=1850/1050min(on KS-15750L1), WB 1) UZ-58 Matsuda ￥700 used engraved, gm=1430/1050min(on KS-15750L1), WB 3) 58-ST Matsushita ￥500 used WB 1) UZ-58 Matsushita ￥500 used just-loose Top cap, WB
59 =cathode-type Power Pentode= (EIA/7A - UT, ST16) Ef/If=2.5V/2A Ppmax=10W Epmax=400V Pc2max=1.5W Ec2max=200V op : Ep=250V Ec2=250V Ec1=-18V Ip=35mA Ic2=9mA μ=100 rp=40kΩ gm=2.5mS op 1 A1s : Ep=250V Ec2=250V Ec1=-18V Rk=410Ω Ip=35mA Ic2=9mA Zl=6kΩ D=7% Po=3W op 2 Triode con. A1s(G2-P, G3-K) : Ep=250V Ec=-28V Ip=26mA Zl=5kΩ Po=1.25W op 3 Triode con. B2pp(G3-P, G1-G2) : Ep=300V Ec=0V Ipo=20mA Zl=4.6kΩ Po=15W op 4 Triode con. B2pp(G3-P, G1-G2) : Ep=400V Ec=0V Ipo=26mA Zl=6kΩ Po=20W (参考 : B2級用三結時のEpIp特性(P+G3 & G1+G2)) 1) 59 RCA-Victor ￥3900 NIB VeryRaggedBox gm=2220/1260min 1) 59 RCA ￥3900 NIB RaggedBox 1) 59 RCA? ￥3700 NOS BrownBox 1) 59 NU ￥3500 NIB RaggedBox gm=2180/1260min 1) 59 Cunningham ￥3500 usedLikeNew WB gm=2180/1260min 1) 59 RCA-Victor ￥1900 used WB gm=1475/1260min 1) 59 Ray ￥3500 used WB gm=2400/1260min NewspaperWrapped 1) 59 Tsol ￥1900 used WB gm=1420/1260min 1) 59 Zenith ￥3000 used WB gm=2000/1260min
60FX5 =Power Pentode= (EIA/7CV - miniature) Eh/Ih=60V/0.1A Ppmax=5.5W Epmax=150V Pc2max=2W Ec2max=130V Rgmax=500kΩ(self)/100kΩ(fixed) op : Ep=110V Ec2=115V Rk=62Ω Ip=36/35mA Ic2=10/12mA Zl=3kΩ Po=1.3W D=8% same pin-assignment : 50C5, 50EH5, 6AS5, 6CA5 etc usage : especially for economical 115V-transformerless Audio/Guitar amp with using a preamplifier-tube 20EZ7, and a rectifier one 36AM3A/B (each two tubes for stereo) heater variant : 12FX5(12.6V/0.45A) 1) 60FX5 GE ￥1500 NIB 2) 60FX5 Syl ￥1500 NIB 3) 60FX5 Emerson ￥1500 NIB 10) 60FX5 Raytheon ￥1500 NIB 1) 60FX5 TEN(Fujitsu) ￥1500 NIB still-cellophane-sealed 4) 60FX5 TEN(Fujitsu) ￥1500 NIB GrayPlate lot=2B
60HL5 =high-gm Beam Power= (EIA/9QW - noval) Eh/Ih=60V/0.1A Ppmax=12W Epmax=330V Pc2max=2.5W Ec2max=250V Ikmax=-mA rp=7.5kΩ gm=17mS same-basing similar type : 50HN5(Eh/Ih=50V/0.15A) 5) 60HL5 Arvin ￥2200 NIB Westinghouse-made GTサイズ箱
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
61SPT/CV5081 =Power Pentode= (EIA/ - octal) Eh/Ih=6.3V/1.27A Ppmax= V Epmax=V op : Ep=250V Ec2=250V Ec1=-10.5V Ip=64mA Ic2=15mA gm=11mS pins : 1(NC)-2(H)-3(G3)-4(G2)-5(G1)-6(NC)-7(H)-8(K)-Top(P) 0) 61SPT Cossor ￥- NOS (21) 2) 61SPT Cossor ￥4100 NOS WB(T)
62BT/CV1745 =Power Pentode= (EIA/ - octal) Eh/Ih=6.3V/1.27A Ppmax=25W Epmax=8kV-peak Pc2max=5.5W op : Ep=180V Ec2=180V Ec1=-1V Ip=120mA Ic2=9.5mA pins : 1(NC)-2(H)-3(NC)-4(G2)-5(G1)-6(NC)-7(H)-8(K)-Top(P) 0) 62BT Cossor ￥3600 NOS (20)
63SPT/63-SPT =RF Pentode= (EIA/ - 9pin-loktal-B9G) Cossor-63SPT=EF50, VR91 Eh/Ih=6.3V/0.3A Ehkmax=100V Rg1max=3MΩ Rg3max=3MΩ Ppmax=3W Epmax=300V/550Vcutoff Pc2max=1.7W Ec2max=300V/550Vcutoff Ikmax=15mA op : Ep=250V Ec2=250V Ec1=-2V Ip=10mA Ic2=3mA rp=1MΩ gm=6.5mS μg2g1=75 Pins = 1(H)-2(G2)-3(P)-4(G3)-5(S)-6(K)-7(G1)-8(S)-9(H) 1) 63-SPT Cossor ￥3000 NIB just-ragged box 0) 63-SPT Cossor ￥3700 NIB 2) 63-SPT Cossor ￥2400 used WB 0) 63-SPT Cossor ￥2400 used WB
70L7/GT =Half wave Rectifier Beam-Power= PIV350V/Idc70mA Po1.8W/Rl2kΩ 1) 70L7GT GE ￥1000 used
71/71A/171/171A/071A =PowerTriode= (EIA/4D - ST14) Ef/If=5V/0.25A Ppmax= V Epmax=180V Rgmax=500kΩ(self) op : Ep=90V Ec=-16.5V(Rk=1.6kΩ) Ip=10mA rp=2.17kΩ gm=1.4mS μ=3 Zl=3kΩ Po=0.125W op : Ep=135V Ec=-27V(Rk=1.7kΩ) Ip=17.3mA rp=1.82kΩ gm=1.65mS μ=3 Zl=3kΩ Po=0.4W op : Ep=180V Ec=-40.5V(Rk=2.15kΩ) Ip=20mA rp=1.75kΩ gm=1.7mS μ=3 Zl=4.8kΩ Po=0.79W (参考 : Ep-Ip特性) European similar type : B403(UF base, Ef/If=4V/0.15A) <三極管の A1S 動作比較> (also see a similar noval type when triode-connected : 5A6(Ef/If=5V/0.23A or 2.5V/0.46A, μg2g1=6.8)) 0) 071A-globe[BLUE] Arcturus ￥- NIB 0) 471A-globe DeForest ￥- NIB MintBox 0) 471A-globe Cunnghm ￥- NOS WB 0) 71A-globe DeForest ￥- used? WB 2000/1040min 0) CX-371A-globe Cunnghm ￥- NIB (D) 0) CX-371A-globe Cunnghm ￥- used?(Q) 0) 71A-globe Cunnghm ￥- NIB 0) 71A-globe Cunnghm ￥- used? VeryStrong gm=1950 0) UX-171-globe RCA ￥- used? 80/42min(TV-7) 0) UX-171-globe RCA ￥7700 used 2000/1040min(539B) 0) 171A-globe RCA ￥- NIB 2) 171A-globe RCA ￥6900 used engraved EM=95%, 95% 1) 171A-globe RCA ￥6500 used engraved EM=85% 0) UX-171A-globe RCA ￥- used(Qn) 1) UX-171A-globe RCA ￥6500 used 54/42min(TV-7) 2) 71A-globe RCA ￥6900 used VeryStrong gm=1900,1850 1) 71A-globe RCA ￥6500 used gm=1650 0) SX-171A-globe Syl ￥- used VeryStrong gm=1850/1040min 1) 171A-globe Syl ￥6500 used engraved EM=80% 0) 71A-globe Syl ￥- used engraved gm=1830 2) TS-171A-globe Tsol ￥6900 used engraved gm=1850,1850/1040min 0) 171A-globe Comander ￥- used 1) CX-171A-globe ? ￥5700 used gm=1630/1040min 0) ER-171A-globe EvereadyRay ￥- NOS?(D) 1) 71A-globe Philco ￥5700 used 64/42min(TV-7) 0) 171A-globe Silvertone ￥7700 used VeryStrong gm=2000 1) 171A-globe Aizard ￥6300 used gm=1760 GlassChipあり 1) J-71A-globe Ceco ￥3000 used gm＜1200 1) UX-171A-globe Elevam ￥4500 used WB 0) 71A-ST Raytheon ￥１３０００ LikeNew CeramicBase w/ 4-piller Label(vQq) 0) 71A-ST Ray ￥- NIB 4-Pillar 1) 71A-ST Cunnghm ￥5500 used?/NOS? gm=2020/1040min 1) 71A-ST Cunnghm ￥5500 used gm=1890/1040min 1) 71A-ST Cunnghm ￥5000 usedLikeNew engraved 1680/1040min Ip=29.7mA(539B) 4) 71A-ST RCA-Cnnghm ￥5500 LikeNew engraved gm=1750, 1660, 1660, 1650/1040min 1) 71A-ST RCA-Cnnghm ￥3900 used gm=1500/1040min 1) 71A-ST RCA-Cnnghm ￥3900 used gm=58/42min(TV-7) 0) 71A-ST RCA/Cunnghm ￥- NIB ST 1) 71A-ST RCA ￥4500 used gm=1775/1040min 1) 71A-ST GE ￥5900 NIB VeryRaggedBox 2) Navy JAN-CHS 71A-ST Syl ￥6900 NIB MIB 1950,1820/1040min Ip=30.8,28.5mA(539B) 1) 71A-ST Syl ￥6900 NIB D/C=6-52(1956) 0) 71A-ST Syl ￥- NIB ST 0) 71A-ST Syl ￥- NIB(Qn) 1) 71A-ST Syl ￥6900 NIB VeryRaggedBox +++ 4) 71A-ST KenRad(RCA-made?) ￥6100 NOS(bulk) WB (hyyenx)*** 0) 71A-ST KenRad ￥- NIB 1) 71A-ST Krad ￥5500 LikeNew gm=1950/1040min engraved 1) 71A-ST NU ￥5500 NIB gm=2020/1040min 1) 71A-ST NU ￥5000 LikeNew engraved gm=1830/1040min 1) 71A-ST Tsol ￥5500 LikeNew gm=1930/1040min engraved 1) 71A-ST Philco ￥6200 NIB VeryRaggedBox 1) 71A-ST Arcturus ￥5000 LikeNew engraved gm=1675/1040min 1) 71A-ST WIZARD ￥5000 LikeNew engraved gm=1750/1040min 1) 71A-ST Viking ￥offer NIB 1) 71A-ST Marconi ￥3900 used 1) 71A-ST Marconi ￥5500 NOS? GE箱
75 =Triode Twin Diode= (EIA/6G, UZ 6pin, top-grid) Epmax=250V Ef/If=6.3V/0.3A op : Ep=250V Ec=-2V Ip=0.9mA rp=91kΩ gm=1.1mS μ=100 (参考 : EpIp特性) electrically identical to 6B6G except basing, and 2A6(Eh/Ih=2.5V/0.8A) except base and heater also similar to 6SQ7 single-diode, similar-triode type : 6Z-DH3A(single-diode, μ=100) same basing low-μ triode type : 85-ST(μ=8.3) 0) 75-ST RCA ￥- NIB RB 0) 75-ST WH(Westinghouse) ￥- NIB(sD) 2) 75-industrial GE ￥2200 NIB 4) 75-ST Syl ￥2200 NIB VeryRaggedBoxes 0) 75-ST RCA ￥- used 1) 75-ST RCA ￥1200 used (T)820/470min (D)90/68/54min 0) CRC 75-ST RCA ￥- used 1) 75-ST Syl ￥1400 used (T)820/470min (D)121/143/54min 1) 75-ST Philco ￥1200 used (T)700/470min (D)74/103/54min 0) 75-ST Philco ￥800 used 0) 75-ST NU ￥800 used 0) 75-ST Philco,Philco,Lafayette ￥800 used 0) 75-4-pillar-ST Ray ￥- used 890/470min, 178/168/54min
75B1 (= CV284 = 75B1) =75V regulator= (EIA/ - miniature) Vstart=110Vmin Vop=70V-80V Iop=2mAmin-22mAmax Vchange=6V(Iop=2mA-20mA) Enoise-max=15mVrms(@Iop=2mA-20mA for f=50Hz-5kHz) 0) 75B1 Mullard ￥- NIB
75C1 =75V regulator= (EIA/ - miniature) Ea=75-81V @Ia=30mA Regulation-average=5V(8Vmax) for Ia=2-60mA Rinternal=200ohm(max) see USA equivallent : 0C2 see 85V miniature type : 85A2(=0G3) see 108V miniature type : 108C1(=0B2) see 150V miniature type : 150C2(=0A2) 1) 75C1 Valvo ￥1700 NIB 10) 75C1 Dmnt ￥1500 NIB
76 =Medium μ Triode(傍熱型)= (EIA/5A - UY 5pin, ST-12) Eh/Ih=6.3V/0.3A Ehk=±90V Ppmax=1.4W Epmax=250V Rgmax=1MΩ op : Ep=100V Ec=-5.00V Ip=2.5mA rp=12kΩ gm=1.15mS μ=13.8 op : Ep=250V Ec=-13.5V Ip=5.0mA rp=9.5kΩ gm=1.45mS μ=13.8 (参考 : Ep-Ip特性) 76 is identical with 56(2.5V-heater) and 6P5G/GT(octal base) EIA/5A-base lower/higher-μ, same heater(6.3V/0.3A) types : UY-37(μ=9.2), UY-6301(μ=100) 0) 76 RCA ￥- NIB(Sx) 0) 76 RCA-Cnghm ￥- NOS? VeryStrong engraved(sD) 0) VT-76 RCA ￥- NIB 1) 76 GE(Canada) ￥2700 NIB 1) 76 Syl ￥2700 NOS 10:4-reserved) 76 NU ￥2700 NIB MB (hyy1z4vt) 1) 76 Ray ￥2500 NIB 3) 76 Tsol ￥2900 NIB 1) 76 Philco ￥2500 NIB raggedBox 2) 76 United-branded ￥2400 NOS D/C=74-37 WB 4) 76 United-branded ￥2400 NOS D/C=75-32 TopWireSupport WB * These are probably 'brand and date-code modified/updated' old-Sylvania-made ones. 10) 76 NEC ￥2400 BulkNOS same-lot WB (hyybD17) 1) 76 Cnghm ￥2200 used 1640/920min 1) 76 RCA ￥1800 used 1950/920min VeryStrong 1) 76 NU ￥1800 used 1690/920min engravedBase 1) JAN-CNU 76/VT-76 NU ￥1800 lightly-used WB 1) 76 マツダ(Matsuda) ￥1000 used 1) 76 マツダ(Matsuda) ￥800 used 2) 76 マツダ(Matsuda) ￥800 used WB 2) 76 マツダ(Matsuda) ￥800 used WB 1) 76 NEC ￥800 used 2) 76 NEC ￥800 used
77 =Triple Grid Detector Amplifier= (EIA/6F - UZ 6pin, top-G1) Eh/Ih=6.3V/0.3A Ppmax=0.75W Epmax=300V Pc2max=0.10W Ec2max=100V 動作例 Ep=250V Ec2=100V Ec1=-3V Ip=2.3mA see a low-noise type : UZ-6001 also see similar types : 6C6, 1603 same-base different-heater electrically-similar types: WE-310A(10V/0.32A), WE-328A(7.5V/0.425A) also see a same-basing, higher-gm, different-heater similar type: CZ-501-D(gm=3.5mS, Eh/Ih=3.5V/1A) 0) CRC 77 RCA ￥1500 NIB MB RB 0*) 77 KenRad ￥- NOS MB Made for WE 0) 77 Syl ￥- NIB(T) 5) 77 GE ￥1100 NIB RaggedBox 1) 77 Krad ￥1100 NIB 1) 77 Philco ￥700 used 990/770min engraved 1) 77 RCA ￥500 used weak:750/770min 0) 77 NU ￥700 used 1060/770min
78 =remote-cutoff RF Pentode= (EIA/6F - UZ 6pin, top-G1) Eh/Ih=6.3V/0.3A Ppmax=2.75W Epmax=300V Pc2max=0.35W Ec2max=125V op : Ep=250V Ec2=125V Ec1=-3V Ip=10.5mA Ic2=2.6mA rp=600kΩ gm=1.65mS identical type : NEC MC-631-A electrically identical with 6K7/6K7G/6K7GT(octal-base) also similar to 6D6-ST 0) 78 Tsol ￥1700 NIB(mQ) 0) 78 RCA ￥1700 NIB ragged box(sD) 1) 78 Philco ￥1700 NIB ragged box 1) 78 NU ￥1700 NIB RaggedBox(sD) 2) 78 Silvertone ￥1700 NIB RaggedBox(sD) 1) 78 Cnghm ￥700 used 1) 78 Cnghm ￥1000 used 1530/920min 1) 78 RCA ￥700 used 1) 78 Syl ￥700 used 1340/900min 1) 78 Syl ￥700 used 1) 78 Ray ￥700 used 1) 78 Tsol ￥600 used gm=1270/900min Top-Plateが緩い 2) 78 Philco ￥700 used 1) 78 Airline ￥700 used 1350/900min 1) 78 RCA ￥700 used 1) UZ-78 Matsuda(Japan) ￥1500 lightly-used Japan-Navy D/C=1942-12 WB
79 =Twin-Triode Power Amp= (EIA/6H, UZ 6pin, top-grid, ST-12) Eh/Ih=6.3V/0.6A Ppmax=11.5W Epmax=250V Ipmax=90mA-peak/unit op(B2pp) : Ep=250V Ec=0V Ipo=5.3mA Pin=0.38W Zl=14kΩ Po=8W electrically identical to 6Y7G(UZ, top-grid, ST12) 1) 79 NU ￥1000 NIB
80/280 = filamentary Full-Wave Diode = (EIA/4C - UX) PIV=1400V Idc=125mA Ef/If=5V/2A (参考) #80/CX380の整流特性(Idc-Edc-Eac) (参考) Eac, Idc 制限(limit) similar to 5Y3G/GT, 5CG4(cathode-type) 1) 480-globe DeForest-Audion ￥10000 used 70/79/54min 1) 80-globe Cnghm ￥10000 used 83/82/54 酸化物粉ややあり 0) 80-globe Cnghm ￥- used 0) CX380-globe Cunnghm ￥- used 0) CX-380-globe Cunnghm ￥- EM=83/92/54min used 0) CX-380-globe Cnghm ￥- used 86/80/54min(Aht) 1) CX-380-globe Cnghm ￥3000 used 52/65,59/72,75/91酸化物粉あり *(vnT) 0) UX-280-globe RCA ￥- used(nSn) 0) ER-280-globe EvereadyRaytheon ￥20000 NIB 4-pillar 1) ER-280-globe EvereadyRaytheon ￥17000 used 4-pillar 88/91/54min RattleOnBase 0) ER-280-globe EvereadyRaytheon ￥- used 4-pillar 0) ER-280-globe EvereadyRaytheon ￥10000 used 4-pillar 63/78/54min 0) X280-globe Raytheon ￥- used 4-pillar 0) NX-280-globe NU ￥- used WB 0) NX-280-globe NU ￥- used WB 0) 80-globe Philco ￥- NOS 0) 80-globe Philco ￥- used 0) 80-globe Philco ￥- used 0) 80-globe Philco ￥- used(Sx) 1) 80-globe Philco ￥9000 used79/83,70/75/54min(539B)(D) 0) JX-280-globe JRC ￥- used 1) 280-globe Duovac ￥11000 used 85/93/54min @@ 1) 280-27x-globe Silvertone ￥8000 used 69/71/54min @@ 0) 80-globe Majestic ￥- used WB 0) 80-globe Majestic ￥- used WB(vQ) 1) G-80-globe Majestic ￥9000 used WB 78/82/54min 1) 80-globe Continental ￥9000 used 84/90/54min VeryClean 1) 80-globe Commander ￥5000 used Plate-Filament近接 NonShort VeryStrong 0) 280-globe Rogers ￥- used(sT) 0) 280-globe Songbird,Airline ￥- used(mD) 0) X280-globe - ￥- used 0) 180-globe[BLUE] Arcturus ￥- used 1) 80-ST RCA ￥2900 NIB VeryRaggedBox +++ 0) 80-ST RCA ￥- NOS Bulk品 (hyyanx) 0) 80-ST GE ￥- NIB 1) 80-ST GE ￥2000 like-new WB 0) 80-ST Ray ￥- NIB/NOS(hyyenx) 0) 80-ST Tsol ￥3100 NIB(mQ) 1) 80-ST CGE ￥2200 NIB made in Italy 1) 80-ST Rogers ￥2400 NIB ragged-box 1) 80-ST Rogers ￥2200 NOS WB 0) 80-ST-4pillar Ray ￥- used engraved =rare=(Q) 0) 80-ST GE,RCA,KRad,NU,Ray,Syl,Cunnghm,RCA-Cunningham Philco ￥- used(hyxbnt) 0) 80-ST RCA-Cunningham,Tsol,RCA,Philco,KenRad,Remax,Senco ￥- used(hyxcnt) 0) 80-ST Ray ￥- used VeryClean 0) 80-ST Ray ￥1600 used Engraved 0) 80-ST Ray ￥- NOS?(engraved) EM=80/86/54min(539B) 0) 80-ST Ray ￥1200 used(engraved) EM=65/78/54min(539B) 0) 80-ST Ray ￥- used(engraved) 0) 80-ST Arcturus ￥- used(engraved) 0) 80-ST Tsol ￥- NOS?(engraved) 縦RIB 0) 80-ST Remax ￥- used 2) 80-ST RCA-Cnghm ￥1200 used engraved 1) 80-ST Tsol ￥1800 used? engraved EM=86/92/54min(539B) 1) 80-ST Tsol ￥1500 used engraved EM=77/85/54min(539B) 1) 80-ST Philco ￥1500 used EM=79/84/54min(539B) 1) KX-80 Matsuda(=Toshiba) ￥1200 used EM=97/92/54min(539B) 1) KX-80 Matsuda(=Toshiba) ￥1200 lightly-used WB 1) 80-ST NEC ￥1200 lightly-used GrayPlates WB 1) 80-ST --- ￥1000 used 0) JAN-CRC 80/VT80-ST RCA ￥1200 used EM=78/86/54min(539B) 1) 80-ST RCA ￥800 used EM=65/64/54min 1) 80-ST Cnghm ￥800 used EM=42/40/40min(TV-7) 2) 80-Straight RCA ￥2100 NIB ++ 2) 80-Straight RCA ￥2100 NIB ++ 4) 80-Straight RCA ￥2100 NIB ragged-box 1) 80-Straight GE ￥1000 NOS D/C=62-09(1962) WB 1) 80-Straight RCA ￥1500 LightlyUsed 94/99/54min 1) 80-Straight Syl ￥1900 LightlyUsed 113/110/54min 1) 80-Straight Rauland ￥1900 LightlyUsed 100/104/54min
80BK = cathode-type Halfwave Rectifier = (EIA/4B - 3pin, ST12) Eh/Ih=5V/0.7A Eac=350Vrms-max Idc=75mA electrically similar to 5G-K3 6) 80BK Matsushita ￥1800 NIB 1) 80BK NEC ￥700 used
80HK = cathode-type Half-Wave Rectifier = (EIA/T4F) (cathode type) Eac=350Vrms-max Idc=65mA Eh/Ih=5V/0.6A 13) 80HK Toshiba ￥1700 NIB 0) 80HK Toshiba ￥- NIB
80K/KX-80K = cathode-type Full-Wave Rectifier = (EIA/4AD) (cathode-type #80-ST) PIV=1400V Idc=140mA Eh/Ih=5V/1.75A(old type) or 5V/2A(later type) pins : 1(H)-2(P2)-3(P1)-4(H,K) 5) 80K Matsushita ￥2400 NIB 0) 80K Matsushita ￥- NIB 1) 80K Matsushita ￥600 used 0) 80K Matsushita ￥600 used (later type) 0) KX-80K Matsushita ￥600 used WB (older type)
81/281/381 = filamentary Half-Wave Rectifier = (EIA/4B - UY) PIV=2000V Idc=85mA Ef/If=7.5V/1.25A (参考) #81/CX-381の整流特性(Idc-Edc-Eac) 0) 281-globe Crown ￥１６０００ NIB MeshPlate MintBox(Q)=rare= 0) 281-globe Cardon ￥１３０００ NOS? VeryStrong MeshPlate =rare= 0) CX381-globe Cnghm ￥- NIB(sD) 0) CX-381-globe Cunnghm ￥- used VeryStrong(xD) 1) CX-381-globe Cunnghm ￥7500 used 104/54min 1) CX-381-globe Cunnghm ￥6500 used 0) CX-381-globe Cunnghm ￥- used(xD) 0) UX-281-globe RCA ￥- NOS/NIB(T) 1) 81-globe RCA-Cunningham ￥８９００ NIB Mint Sealed(未開封品) 1) 81-globe RCA ￥８９００ NIB Mint Sealed(未開封品) 4) X281-globe Marathon ￥８９００ NIB MX250箱(sQ) 0) UX-281-globe RCA ￥- used 0) UX-281-globe RCA ￥- used(sD) 0) UX-281-globe RCA ￥4200 used EM=100/54min 0) 181-globe Arcturus ￥- NOS?/used? 0) 81-globe VanDyke ￥- NIB(sD) 0) 81-globe Marathon ￥- NIB(sD) 1) 81-globe Bond ￥6300 NIB 1) R81-globe CeCo ￥5000 used 0) 481-globe Bond ￥- used?/NOS? 110,116/54min(mD) 1) 81-globe(4-pillar) Ray ￥12000 used 105/54min 0) ER-281-globe(4-pillar) Ray ￥１９０００ used VeryStrong EM>150/54min TwinBoxPlates AlittleLooseBase =very rare=(xD) 0) 81-ST19 Philco ￥- NOS WB #50(ST-19)と同一形状(Q) 4) 81-ST19 RCA ￥5100 NIB MB 3) 81-ST19 RCA ￥5600 NIB Mint Sealed(未開封品) 2) 81-ST19 RCA ￥4900 NIB ragged box (qT) 0) 81-ST19 RCA ￥- used?(D) 0) 81-ST16 GE ￥- used 0) 81-ST19 Tsol ￥3500 used?/NOS? 0) 81-ST16 Philco ￥- NOS WB 1) 81-ST16 Philco ￥4900 NIB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
82 =filamentary MarcuryVaporFull-Wave Diode = (EIA/4C -UX) PIV=1550V Idc=115mA Ef/If=2.5V/3A 0) 82-globe NU ￥3900 used 82/86/54min engraved 0) 82 RCA ￥2500 NIB 0) 82 Delco ￥1700 NIB 5本 very ragged box 0) 82 Delco ￥1300 used LikeNew 元箱 ragged-box(mD)
83 =filamentary MarcuryVaporFull-Wave Rectifier= (EIA/4C - UX) PIV=1550V Idc=225mA Ef/If=5V/3A 0) 83 RCA ￥- NIB(mD) 0) 83 RCA ￥- NIB(Sn) 0) 83 RCA ￥- NIB ragged-box(T) 0) JAN-CRC-83 RCA ￥- Bulk-NOS WB 0) 83 RCA ￥- NOS (nT) 1) JAN-CRC 83 RCA ￥5700 NIB date=6-17 RaggedBox *** 1) JAN 83 RCA ￥5300 NIB date=69-04 RaggedBox *** 3) 83 WesternUnion(RCA-made) ￥5000 NIB *** ０) 83 GE ￥- NIB (vvD) 0) 83 Ray ￥- NIB ragged box 2) 83 Syl ￥4700 NIB ０) 83 Syl ￥- NIB (vvQ) ０) 83 WH ￥- NIB date=6722(T:vvD) ０) 83 Cnghm ￥- used WB GoldPrint 87/87/54min(vvO) 0) 83 RCA ￥- used WB(Q) 1) 83 GE ￥2000 used EM=88/82/54min(539B) ベース緩み補正のため接着剤塗布 ０) 83 B&K,Ray,RCA ￥- used(vvT) 0) 83 GE,Syl,B&K ￥- used(T) 1) 83 Fivre ￥1500 used WB
83V =HighVacuum Full-Wave Rectifier= (EIA/4AD - UY) PIV=1400V Idc=175mA Ef/If=5V/2A 2) 83V RCA ￥3500 NIB(sT) 1) 83V Cunnghm ￥1200 used 1) 83V RCA ￥1200 used EM=76/71/54min(539B) 1) 83V Cunnghm ￥1200 used EM=79/81/54min(539B) 1) JAN-CHS 83V Syl ￥1200 used EM=80/80/54min(539B) 1) 83V Syl ￥1200 used EM=76/73/54min(539B) 0) 83V Syl ￥- used 99/98/54min 0) 83V Syl ￥- used(sD) 0) 83V Syl ￥- used 1) 83V KenRad ￥1000 used 72/68/54min
84 =HighVacuum Full-Wave Rectifier= (EIA/5D) PIV=1250V Idc=60mA Ef/If=6.3V/0.5A 1) 84/6Z4 Cnghm ￥2000 NOS engraved Phico-boxed 0) 84/6Z4-ST RCA ￥- NIB RB(vT) 2) 84/6Z4 RCA ￥2000 NIB StraightGlass 0) 84/6Z4 RCA ￥- NIB MB StraightGlass(vT) 0) 84/6Z4 GE ￥- NIB 1) 84/6Z4 Philco(Syl-made) ￥2000 NIB D/C=50-26 VeryRaggedBox 1) 84/6Z4 NU ￥2900 NIB 0) 84-straight GE ￥- NIB VeryRaggedBox 青箱 0) JAN-CHS 84/6Z4/VT84-ST Syl ￥- NIB RCA-MB 0) VT84/84/6Z4-ST Tsol ￥- NIB MB 0) 84-ST Tsol ￥- NIB 0) 84-ST Philco ￥- NIB(vT) 0) 84/6Z4-ST Cnghm ￥- used 1) KY-84 マツダ(Matsuda) ￥1900 used D/C=昭和19年6月(1944-6) WB
85 =DuplexDiode Medium-mu Triode= (EIA/6G - UZ, ST-12, top-grid) Epmax=250V Ef/If=6.3V/0.3A rp=7.4kΩ gm=1100um μ=8.3 (参考 : EpIp特性) different heater-spec type : 55 (Eh/Ih=2.5V/1A) electrically identical to 6V7G(octal) except basing same basing high-μ triode type : 2A6 (μ=100, Eh/Ih=2.5V/0.8A) 2) JAN-85-ST Tsol ￥1500 NIB 1) 85-ST Tsol ￥1500 NIB 1) 85-ST Cnghm ￥1500 NOS Krad箱 1) 85-ST RCA ￥1100 used?
85A1/0E3 (= CV431) =85V regulator= (EIA/ - Loktal) Vs=110V-125V Vop=85V±2V Ipmin=1mA Ipmax=8mA 1) 85A1 Valvo ￥1900 NIB Loktal BlkGlass justLargeOB 5) 85A1 Mullard ￥1900 NOS Loktal BlkGlass WB
85A2/0G3 (= CV449) =85V regulator= (EIA/5BO - miniature) Vs=125V Vop=85V±2V Ipmin=1mA Ipmax=10mA see 0G3 see 75V miniature type : 75C1(=0C2) see 108V miniature type : 108C1(=0B2) see 150V miniature type : 150C2(=0A2) 5) STV85/10 0G3 TFK ￥1200 NIB 3) STV85/10 85A2 Siemens ￥1200 NIB just ragged boxes 1) 0G3/85A2 Amprx ￥1200 NIB made in England 1) 85A2 Amprx ￥1000 NOS? 6) 85A2, 85A2/0G3 Amprx ￥1200 NIB 2) 85A2 Siemens ￥1200 NIB 1) 85A2/0G2 Siemens ￥1200 NIB 3) 85A2,85A2/0G3 Valvo ￥1200 NIB(T) 1) 85A2/0G3 Mullard ￥1200 NIB 2) 85A2/0G3 IEC-Mullard ￥1200 NIB 1) 85A2 Mullard ￥1000 used 2) 85A2/0G3 International C ￥1000 NIB 1) 85A2 United ￥1000 NIB made in India
89=Power Amplifier Pentode=ST (EIA/6F, ST12-UZ-top G1) Eh/Ih=6.3V/0.4A Ppmax=8W Epmax=250V Ipmax=90mApeak Pc2max≒1.3W Ec2max=250V Rg1max=1MΩ op(A1s): Ep=250V Ec2=250V Ec1=-25V/Rk=670Ω Ip=32mA Ic2=5.5mA gm=1.8mS μ=125 Zl=6.75kΩ Po=3.4W op(A1s-triode connection): Ep=250V Ec= -31V/Rk=970Ω Ip=32mA rp=2.6kΩ gm=1.8mS μ=4.7 Zl=5.5kΩ Po=0.9W (G2 and G3 tied to plate) op(Bpp-triode connection): Ep=180V Ec= 0V Ipo=6mA Zlpp=9.4kΩ Po=3.5W (G1-G2 tied as grid, and G3 tied to plate) pins : 1(H)-2(P)-3(G2)-4(G3)-5(K)-6(H)-top(G1) 参考:三結時のEp-Ip特性例(triode connection : SAMPLE data) 1) CRC 89-ST RCA ￥2200 NIB LightBrownBox 2) CRC 89-ST RCA ￥2200 NIB BrownBase(T) 1) 89-ST RCA ￥2200 NIB still-sealed VeryRaggedBox 5) 89/89Y-ST Syl ￥2000 NIB 2) 89-ST Philco ￥2000 NIB still-sealed VeryRaggedBoxes 1) 89-ST Tsol ￥2000 NIB VeryRaggedBox 1) 89-ST NU ￥2000 NIB VeryRaggedBox 0) 89-ST GoodYear ￥- NIB 1) 89-ST Meier Frank ￥1000 used ** 3) 89-ST Cnghm ￥1000 used 3) 89-ST Krad ￥1000 used
99/199/299RCA UV-199のデータ =Triode= Ef/If=3.0V-3.3V/0.06A-0.063A Epmax=90V Ip=2.5mA rp=15.5kΩ gm=0.425mS μ=6.6 2) CX-299 Cunnigham ￥6900 NIB RaggedBox UX-base 450,450/270min (on Hickock-539B) 2) CX-299 Cunnigham ￥6900 NIB RaggedBox UX-base 430,470/270min (on Hickock-539B) 2) CX-299 Cunnigham ￥4800 NOS RaggedBox UX-base 360,317/270min (on Hickock-539B) extremely dirty original boxes were discarded. 0) UX-199 RCA-Radiotron ￥- NIB VeryRaggedBox ０) V99 RCA ￥offer NIB sealed UV-base 0) V99 Silvania ￥- used? small-UV 5) X-99 RCA-Cunningham ￥4900 used? engraved 0) X-99 RCA-Cunningham ￥4900 used? engraved ０) UX-199 Continental ￥offer NIB 1) 99 Syl ￥4700 used strong 0) 99 Senco(Steam Engineering aNd CO) ￥- NIB 0) UX199 Radiotron ￥4700 used Rainbow 0) UX-199 RCA ￥- used UX=大ピン(UV=小ピン) 0) CX-299 Cunnghm ￥- used? 18,17,16/11min (TV-7) UX(sT) 1) CX-299 Cunnghm ￥4700 used 1) CX-199 Cnghm ￥4700 used 500μmho 0) UX-199 RCA ￥- used 12/11min (TV-7) UX 0) X-199 United ￥- NIB 2) CX-299 Cunnigham ￥1000 NIB RaggedBox (1)short, (1)open-filaments
100T/100TH/100TLEf/If=5V/6.3A Fmax=40MHz Ppmax=100W Ipmax=225mA Igmax=60mA 100TH : μ=38 100T/100TL : μ=14 (808,250TLとの形状比較) Eimac Power Triodes 0) 100T Eimac ￥- usedLikeNew CeramicBase FinPlate Ep/Ec/Ip=600V/0V/33.0mA 2) 100T Eimac ￥１６０００ LikeNew CeramicBase 0) 100TH Eimac ￥- NOS 0) 100TH Eimac ￥- NIB 10) JAN-CIM 100TH Eimac ￥offer NIB 0) 100TH Eimac ￥- usedLikeNew 元箱 CeramicBase FinPlate Ep/Ec/Ip=550V/0V/23.8mA 0) JAN-100TH/VT-218 Eimac ￥- NOS CeramicBase FinPlate Ep/Ec/Ip=600V/0V/23.5mA 0) JAN-CIM-100TH Eimac ￥- usedLikeNew AlBase Ep/Ec/Ip=600V/0V/22,24mA(D) 0) 100TH Eimac ￥- NIB 0) JAN-CIM-100TH/VT-218 Eimac ￥- NIB CeramicBase Ep/Ec/Ip=600V/0V/24.5mA 0) 100TH Eimac ￥- NOS CeramicBase 0) 100TH Eimac ￥- NOS CeramicBase 0) 100TH Eimac ￥- NOS CeramicBase 0) 100TH Eimac ￥- NOS AluminumBase 0) 100TH Eimac ￥- UsedLikeNew CeramicBase WB 0) 100TH L&K ￥- NIB AlBase(Q) 0) 100TH EEI ￥- NOS CeramicBase FinPlate Ep/Ec/Ip=600V/0V/24.5mA, 600V/0V/27.0mA(D) 0) JAN-100TH/VT-218 ICE ￥- NOS CeramicBase Ep/Ec/Ip=600V/0V/22.4mA 0) 100TH Eimac ￥- used AluminumBase 0) 100TH Eimac ￥- used AluminumBase 0) 100TH L&K ￥- used
101D/101F/101L/101M =Low power triode= 101D: Epmax=190V Ef/If=4.50V/1.0A μ=6.2 rp=5.6kΩ gm=1100μmho 101F: Epmax=190V Ef/If=4.15V/0.50A μ=6.5 rp=5.4kΩ gm=1200μmho 101L: Ppmax=2.0W Epmax=180V Ipmax=15mA Ef/If=4.15V/0.25A μ=6.5 rp=5.2kΩ gm=1240μmho (参考 : 101FのEp-Ip特性) also see a similar type 3A/107 also see an Ep250V-rated type : NEC TB-616-A(HO-101F) 0) 101D-ST WE ￥- NIB(gD) 0) 101D-ST WE ￥- NIB(gQ) 0) 101D-ST WE ￥19000 NOS 2pair DATE=2)952, 2)352(gQ) 0) 101D-ST WE ￥- NIB DATE=937 0) 101D-ST WE ￥２００００ NIB GlassTopSilk 赤ラベル箱 sealed(old) 1) 101D-ST WE ￥15000 used? WB 41/28min 1) 101F-TenninBall WE ￥37000 used BlkMoldBase BrownBox 1210/730min NonGtrTyp EtchedLabelOnGlass 1) 101F-TenninBall WE ￥34000 used BlkMoldBase BrownBox 1060/730min NonGtrTyp EtchedLabelOnGlass 4) 101F-ST WE ￥19000 NIB 1) 101F-ST WE ￥15000 NOS WB 1370/730min date=152 1) 101F-ST WE ￥15000 NIB 12-59 4) 101F-ST WE ￥15000 NIB WB 2) 101FA-ST WE ￥15000 NIB date=3-73 1) 101FA-ST WE ￥15000 NOS date60-26 gm=1900/1120min WE箱 *** 1) 101FA-ST WE ￥15000 NOS WB 1900/910min date=6713 1) 101M-ST WE ￥15000 NIB date=11/56 3) 101M-ST WE ￥15000 NIB 1) 101M-ST WE ￥15000 NIB ragged box
102D/102F/102L =Voltage amplifier triode= 102D: Epmax=190V Ef/If=2.1V/1.0A μ=30 rp=54kΩ gm=550μmho 102F: Epmax=190V Ef/If=2.1V/0.50A μ=31 rp=45kΩ gm=690μmho 102L: Ppmax=0.5W Epmax=180V Ipmax=7.5mA Ef/If=2.1V/0.25A μ=30 rp=39kΩ gm=800μmho 0) 102D-globe WE ￥- used 0) 102D-ST WE ￥24000 NIB(T) 0) 102D-ST WE ￥24000 NIB 1) 102F-globe WE ￥33000 NOS? 510/320min(539B) 0) 102F-ST WE ￥- NIB same-lot(Aht) 0) 102F-globe WE ￥- NOS? 1) 102F-ST WE ￥17500 NIB date=12-59 4) 102F-ST WE ￥17599 NIB date=7-59 10-59 10-59 10-59 0) 102F-ST WE ￥- BulkNOS date=5713,413,339,5739,5939 WB (vzQn) 2) 102L-ST WE ￥14000 NIB date=1-59 2) 102L-ST WE ￥10000 used? VeryStrong 1) 102L-ST WE ￥9000 usedLightly 25/14min date=839
104D =Power amplifier triode= 104D: Ep=130V Ip=25mA Po=0.16W Ef/If=4.5V/1.0A μ=2.5 rp=2.1kΩ gm=1180μmho similar to NEC TB-608-B/HO-104-F 0) 104D-globe WE ￥- used VeryStrong 0) 104D WE ￥- NIB(sQ) 0) 104D WE ￥２９０００ NIB sealed 赤ラベル箱
108C1 =108V regulator= (EIA/ - miniature) Vs=133V(w/ambient light)/210V(in complete darkness) Vop=105V(5mA)-112V(30mA) Ip=5mA-30mA see USA equivallent : 0B2, VR105-MT see 75V miniature type : 75C1(=0C2) see 85V miniature type : 85A2(=0G3) see 150V miniature type : 150C2(=0A2) 3) 108C1(=0B2) Valvo ￥1500 NIB 1) 108C1(=0B2) Valvo ￥1500 NIB
UX-109 =detector Triode for battery radio= (EIA/4D, ST-12) Ef/If=1.3V/0.08A Ppmax=W Epmax=V op) Ep=90V Ec=-4.5V Ip=2mA rp=16kΩ gm=0.53mS μ=8.5 0) UX-109 マツダ(old Toshiba) ￥- used ST
UF-109A =detector Triode for battery radio= (EIA/ -, british 4-pins, ST-12) Ef/If=1.1V/0.06A Ppmax=W Epmax=135V op) Ep=135V Ec=-4.5V Ip=5.9mA rp=11kΩ gm=0.77mS μ=8.5 1) UF-109A 理研(Riken) ￥2700 NOS D/C=1943-12(昭和18年12月), WB 6) UF-109A マツダ(old Toshiba) ￥1800 used? D/C=1936-1937(昭和11年, 12年) ST, WB 0) UF-109A マツダ(old Toshiba) ￥- used ST
UX-111 =space-charge grid detector Tetrode for battery radio= (EIA/4K, top-G1, ST-12) Ef/If=1.0V/0.07A - 1.3V/0.08A Ppmax=W Epmax=21V op) Ep=21V Ec2=-1.5V Ec1=18V Ip=1.5mA rp=6kΩ gm=0.86mS μ=5 op) Ep=21V Ec2=-3V Ec1=20V Ip=1.7mA rp=6.6kΩ gm=0.8mS μ=5.2 0) UX-111 マツダ(old Toshiba) ￥- used ST
UF-111A =detector Tetrode for battery radio= (EIA/ -, british 4-pins, top-G1, ST-12) Ef/If=1.1V/0.06A Ppmax=W Epmax=135V op) Ep=135V Ec2=45V Ec1=-1.5V Ip=1.7mA rp=450kΩ gm=0.3mS μ=120 4) UF-111A マツダ(= Toshiba) ￥2000 used? D/C=1936-1937(昭和11年, 12年) ST, WB 0) UF-111A マツダ(old Toshiba) ￥- used ST
UX-111B =space-charge grid detector Tetrode for battery radio= (EIA/4K -, top-G1, ST-12) Ef/If=1.3V/0.08A Ppmax=W Epmax=V op) Ep=20V Ec2=-1.5V Ec1=20V Ip=1mA rp=10.6kΩ gm=0.85mS μ=9 1) UX-111B ドン(Don) ￥2700 used? horizontal plate, WB 1) UX-111B Matsuda ￥2700 used? D/C=1944-6(昭和19年6月) WB
Delay-Relay Tubes (Amperite) Features : ･Hermetically sealed | ･3A rating (RESISTIVE) | ･1-115VAC/DC control | ･Fixed delay times | ･Long Life (50,000cycles @25-deg centigrade) ･Two delay types (type "NO"= Delay on Make / type "C" = Delay on Break) | ･Contact material = Silver-Cadmium Oxide | ･Two outer/base shape (8pin-Octal & 9-pin-noval) | ･Timing Torelance = +-20% | ･Repeatability = 5% | ･Isolation between contacts = 250Vrms(for 1sec-10sec delay type) / 800Vrms(for 15-300sec delay type) ･Isolation between contact and coil =500Vrms ･Five-heater types : 6V-AC/DC (4V-8V allowable) 12V-AC/DC (10V-14V allowable) 26V-AC/DC (22V-30V allowable) 50V-AC/DC (42V-58V allowable) 115V-AC/DC (90V-130V allowable) ･Common Base connections (8pin octal): 1(NC)-2(H)-3(H)-4(NC)-5(contact I)-6(NC)-7(contact II)-8(NC) ･Common Base connections (9pin noval): 1(H)-2(NC)-3(contact I)-4(contact I)-5(NC)-6(H)-7(NC)-8(contact II)-9(contact II) ･Easy Identification (definition) ex) "115NO60T" = 115(heater) NO(Delay on Make) 60(60-sec delay) T(noval="T", octal=no-code)
115C5 =DelayRelay= octal 1) 115C5 Amperite ￥1000 used octal 2) 115C5 Amperite ￥2200 NIB 1) 115C5 Amperite ￥2200 NIB 1) 115C5 Amperite ￥2200 NOS 1) 115C5T Amperite ￥2200 NOS
115C30T =DelayRelay= noval(9pin-MT) 2) 115C30T Amperite ￥2700 NOS noval WB
115C45 =DelayRelay= octal 2) 115C45 Amperite ￥2500 NOS 8-pinオクタル OB
115F30 =Delay Relay= octal 1) 115F30 Amperite ￥2800 NIB
115NO3 =DelayRelay= octal 2) 115NO3 Amperite ￥3000 NIB octal 1) 115NO3 Amperite ￥3000 NOS
115NO5 =DelayRelay= octal 1) 115NO5 Amperite ￥3000 NIB octal
115NO10 =DelayRelay= octal 1) 115NO10 Amperite ￥3000 NIB octal
115NO20 =DelayRelay= octal 1) 115NO20 Amperite ￥1500 used? octal
115NO30 =DelayRelay= octal similar to RGD-30(NEC) 2) 115NO30 Amperite ￥3000 NIB octal (sT) 19) 115NO30 Amperite ￥3000 NIB octal
115NO30T =DelayRelay= noval(9pin-MT) 4) 115NO30T Amperite ￥3000 NIB noval 5) 115NO30T Amperite ￥3000 NIB noval HP-parts
115NO45 =DelayRelay= octal 11) 115NO45 Amperite ￥3000 NIB octal 1) 115NO45 Amperite ￥3000 NIB octal
115NO45T =DelayRelay= noval(9pin-MT) 1) 115NO45T Amperite ￥3000 NIB noval
117L7 =Half-wave-Rectifier Beam-Power= (EIA/8AO) PIV350V/Idc75mA Po=0.85W/Zl=4.5kΩ 2) 117L7 USA ￥400 used
117N7/GT =Half-wave-Rectifier Beam-Power= (EIA/8AV) PIV350V/Idc75mA Po=1.2W/Zl=3kΩ 1) JAN-CRC 117N7GT RCA ￥900 NIB MB 1) 117N7GT RCA ￥900 NIB(D) 1) 117N7GT CGE ￥600 used >6000/2500min, 83/54min 1) 117N7GT Arcturus ￥600 used >4840/2500min, 90/54min
117P7/GT =Half-wave-Rectifier Beam-Power= (EIA/8AV) 3) 117P7GT Tsol ￥1000 used? NoneBox
117Z3 =Half-wave-Rectifier= (EIA/4CB) PIV330V/Idc90mA 1) 117Z3 RCA ￥900 NOS RB 1) 117Z3 GE ￥900 NIB 青箱 1) 117Z3 Silvertone ￥900 NOS
117Z6/GT =Half-wave-Rectifier= (EIA/7Q - octal) PIV700V/Idc60mA 1) 117Z6GT RCA ￥1300 NIB 1) 117Z6 GE ￥1000 NIB 1) 117Z6 Syl ￥500 used
121/A/B 1) 121A/121B WE ￥2500 NIB Ballast
UZ-133D =Triode + Pentode= (EIA/, UZ-6pin, top-G1, ST) UZ-133D = UX-109A + UY-133A Ef/If=1.1V/0.12A triode : op) Ep=135V Ec1=-4.5V Ip=5.9mA μ=8.5 pentode : op) Ep=90V Ec2=90V Ec1=-4.5V Ip=3.3mA rp=120kΩ μ=60 pins : 1(F)-2(Pp)-3(G2p)-4(G1p)-5(Pt)-6(F)-Top(Gt) 1) UZ-133D Matsuda ￥3700 lightly-used WB
UF-134/UX-134 =variable-μ Pentode for battery radio= (EIA/4M(UX), british 4-pins(UF), top-G1, ST-12) Ef/If=1.1V/0.06A Ppmax=W Epmax=V op) Ep=90V Ec2=67.5V Ec1=-1.5V Ip=4mA rp=450kΩ gm=0.37mS μ=170 1) UF-134 理研(Riken) ￥2500 NOS WB 3) UF-134A マツダ(= Toshiba) ￥1900 used? D/C=1936-1937(昭和11年, 12年) ST, WB 0) UF-134 マツダ(old Toshiba) ￥- used ST
UZ-135 =filamentary Pentagrid Converter= (EIA/, top-G4, ST-12) Ef/If=1.1V/0.13A Ppmax=W Epmax=V op) Ep=135V Ec2=135V Ec1=-3V Ec3=Ec5=67.5V Rg2=20kΩ Ip=2.2mA gc=200μmho pins : 1(F)-2(P)-3(G3,G5)-4(G2)-5(G1)-6(F)-Top(G4) 0) UZ-135 マツダ(Matsuda) ￥1500 used WB 1) UZ-135 マツダ(Matsuda) ￥2000 used D/C=1944-2 WB
KX-142/KX142 =HV Rectifier= (EIA/4AB - UX, top-plate, ST12) Eh/Ih=2.5V/1.75A PIV=12500V Ipmax=7.5mA/100mApeak similar to 2X2 2) KX-142 NEC ￥2000 NIB just-ragged boxes 1) KX-142 Zeniter(Japan, 平和電子研究所) ￥1000 used WB
150B2 =150V regulator= (EIA/ - miniature) Vs=180V(w/ ambient light)-225V(in complete darkness) Vop=150V±4V(Ip=5mA-30mA) see equivallent type : 6354 2) 150B2/6354 Amprx ￥900 used?
150C2 =150V regulator= (EIA/ - miniature) Vs=185V Vop=150V±6V(Ip=5mA-30mA) see USA equivallent : 0A2, VR150-MT see 108V miniature type : 108C1(=0B2) see 85V miniature type : 85A2(=0G3) see 75V miniature type : 75C1(=0C2) 3) 150C2 Siemens ￥1300 NIB 5) 150C2 Valvo ￥800 lightly-used WB
154V =cathode-type med-mu Triode= (EIA/-, UF5pin) Eh/Ih=4V/0.65A Epmax=200V, rp=7.5kΩ-typ gm=2mS-typ μ=15-typ 0) 154V-globe Mullard ￥4500 used WB 1) 154V-globe Mullard ￥4500 used tested WB
164V =cathode-type med-mu Triode= (EIA/-, UF5pin) Eh/Ih=4V/1A Epmax=200V op: Ep=100V Ec=0V rp=4.85kΩ gm=3.3mS μ=16 op: Ep=100V Ec=-4.5V Ip=4.5mA op: Ep=100V Ec=-6.5V Ip=6.5mA op: Ep=100V Ec=-8.5V Ip=8.5mA 0) 164V-globe Mullard ￥- used WB 0) 164V-ST Mullard ￥- used smoked-glass WB
166/UX-166 =detector Triode for battery radio= (EIA/4D -UX, ST-12) Ef/If=2V/0.06A Ppmax=W Epmax=V op) Ep=67.5V Esg=67.5V Ec=-V Ip=2mA rp=18kΩ gm=0.9mS μ=16 0) UX-166 KOTRON(Shinagawa-elec.) ￥- used ST
167/UX-167 =detector Tetrode for battery radio= (EIA/4K -UX, topG1, ST-12) Ef/If=2V/0.06A Ppmax=W Epmax=V op) Ep=67.5V Esg=67.5V Ec=-V Ip=2mA Ic2=-mA rp=300kΩ gm=0.6mS μ=300 0) UX-167 KOTRON(Shinagawa-elec.) ￥- used ST 0) UX-167 トウ/TOU(Shinagawa-elec.) ￥- used ST
169/UY-169 =power Pentode for battery radio= (EIA/5B -UY, ST-12) Ef/If=2V/0.06A Ppmax=W Epmax=V op) Ep=67.5V Esg=67.5V Ec=-6V Ip=6.5mA Ic2=-mA rp=56.5kΩ gm=1.15mS μ=65 Po=75mW 0) UY-169 KOTRON(Shinagawa-elec.) ￥- used ST 0) UY-169 トウ/TOU(Shinagawa-elec.) ￥- used ST
182B =PowerTriode= (EIA/4D) Ef/If=5V/1.25A Ppmax=W Epmax=250V rp=2kΩ μ=5 gm=2mS ex) Ep=250V Ec=-35V Ip=20mA Zl=4.5kΩ Po=1.35W <三極管の A1S 動作比較> 0) 182B-globe Sparton ￥- LikeNew 82,82/47min(D) 0) C-182-globe Sparton ￥- LikeNew 0) C-182B-globe Sparton ￥- LikeNew 1) 182B/482B-ST Sparton ￥14000 NIB
183/483 =PowerTriode= (EIA/4D) Ef/If=5V/1.25A Ppmax=W Epmax=250V rp=1.75kΩ μ=3 ex) Ep=250V Ec=-60V Ip=30mA Zl=5kΩ Po=1.8W <三極管の A1S 動作比較> 0) C183 Sparton ￥- used 63/38min(TV7) 0) 483 Sparton ￥- used 82/34min(TV7) 1) 183/483 Sparton ￥14000 NIB RaggedBox 0) 183-globe Syl ￥- NOS? 4) 183-ST Syl ￥14000 NIB sealed 2) 183/483-ST Syl ￥14000 NIB sealed 1) 183-ST Syl ￥14000 NIB RaggedBox 1) 183 Tsol ￥14000 NIB sealed ** 1) 183 Tsol ￥14000 NIB 1) 183 Tsol ￥11000 used? ０) 183/483 Ray ￥12000 NIB ragged box ０) 483 NU ￥12000 NIB
UV202/UV302
203A/VT-1 (WE)=Triode= (see VT-1 Western Electric)
203A/303A/503A =TransmittingPowerTriode= Ef/If=10V/3.25A Ppmax=100W Ipmax=175mA rp=6kΩ μ=25 (参考 : Ep-Ip特性(Amperex-203A)) similar to 295/A lower μ(12.5) types : 211/311/VT-4-C, 242/342, 261/A, 276/A 1) 503A DeForest ￥offer NOS? MetalPlate 1) 503A DeForest ￥offer NOS? MetalPlate 1) 503A DeForest ￥offer used MetalPlate 1) 203A Taylor ￥offer NOS? MetalPlate BrassBase gm=2600μmho(@Ep=150V) 1) 203A Taylor ￥12000 used 1) 203A RCA ￥16,000 NIB 1) 203A RCA ￥16000 NIB 2) 203A RCA ￥12000 used 新同品/極上 4) 203A United ￥14,000 used 新同品/極上 0) 203A/PR3B ￥- NIB 1) 203A RCA ￥18000 NOS 1953.4.10 MB 1) 203A RCA ￥16000 NOS? base傷ややあり 1) 303A United ￥18000 NIB ragged-box 1) CEP-203A Amprx ￥12,000 used?
203Z =Transmitting zero bias PowerTriode= Ef/If=10V/3.25A Ppmax=65W(for metal-plate model) Ipmax=175mA rp=16.7kΩ gm=5.9mS μ=85 (The Taylor 203Z, w/ top plate, is one of high mu versions of 203A/203B, since 1930th.) op(B2pp) : Ep=1250V Ebias=4.5V Einpp=220V Ipo=90mA Ipmax=350mA Zlpp=7.9kΩ Pin=8W Po=300W 2) 203Z Taylor ￥15000 LikeNew (rare)
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
205B/VT-2(WE) PowerTriode (see VT-2 Western Electric Duovac) 1) 205B Northern Elec used/strong ￥95000 BlkBase gm=1950@Ef=5V, Ec=-4V(539B)
205D/E/F (WE) =PowerTriode= Ef/If=4.5V/1.6A Class A: Ppmax=14W Epmax=400V Ipmax=50mA Icmax=0mA Class B: Ppmax=14W Epmax=400V Ipmax=35mA Icmax=10mA 動作例 (A1 Single) Ep=250V Ec=-22.0V Ip= 9.0mA μ=6.9 Rp=6.0kΩ gm=1.16mS Zl=6.0kΩ Po=0.500W 2ndHD=-18dB 3rdHD=-33dB Ep=300V Ec=-24.0V Ip=15.5mA μ=7.1 Rp=4.8kΩ gm=1.46mS Zl=4.8kΩ Po=0.750W 2ndHD=-20dB 3rdHD=-36dB Ep=350V Ec=-22.5V Ip=29.0mA μ=7.3 Rp=3.8kΩ gm=1.94mS Zl=3.8kΩ Po=0.875W 2ndHD=-26dB 3rdHD=-44dB Ep=375V Ec=-30.0V Ip=22.0mA μ=7.1 Rp=4.3kΩ gm=1.66mS Zl=4.3kΩ Po=1.300W 2ndHD=-20dB 3rdHD=-36dB Ep=375V Ec=-30.0V Ip=22.0mA μ=7.1 Rp=4.3kΩ gm=1.66mS Zl=8.6kΩ Po=1.200W 2ndHD=-26dB 3rdHD=-45dB Ep=400V Ec=-29.0V Ip=30.0mA μ=7.2 Rp=3.8kΩ gm=1.89mS Zl=3.8kΩ Po=1.400W 2ndHD=-23dB 3rdHD=-39dB Ep=400V Ec=-29.0V Ip=30.0mA μ=7.2 Rp=3.8kΩ gm=1.89mS Zl=7.6kΩ Po=1.300W 2ndHD=-28dB 3rdHD=-48dB (see #WE-205DのEp-Ip特性) <三極管の A1S 動作比較> 0) 205D 別写真 WE￥- NIB 0) 205D WE used ￥- BlkBase 元箱 TopGetter 0) 205D WE used ￥- BlkBase TopGetter(Qn) 1) 205D WE used ￥110000 BlkBase LittleGlassDiscoloration TopGetter(35mm-dia) gm=1850/975min@Ef=4.9V gm=1710@Ef=4.2V,both @Ec=-4V(539B) 1) 205D WE used ￥105000 BlkBase LittleGlassDiscoloration TopGetter(30mm-dia) gm=1580/975min@Ef=4.9V gm=1500@Ef=4.2V,both @Ec=-4V(539B) 1) 205D WE used ￥100000 BlkBase LittleGlassDiscoloration TopGetter(20mm-dia) gm=1750/975min@Ef=5V gm=1710@Ef=4.3V,both @Ec=-4V(539B) 0) 205D WE used ￥- BlkBase GetterLessType BlkBase PrintOnGlass gm=1700/975min@Ef=4.9V gm=1100@Ef=4.2V,both @Ec=-4V(539B)
CE-210A 1) CE-210A-globe Cetron ￥6000 NOS 1) CE-210A-globe Cetron ￥4,000 used
210DET =filamentary med-mu Triode= (EIA - , UF) Ef/If=2V/0.1A Epmax=150V, rp=13kΩ-typ gm=1.15mS-typ μ=15-typ similar types : B217(Philips), PM2DX(Mullard), L2/B(Osram), CV1021/VR21 1) 210DET-globe Cossor ￥3000 used WB
210LF/VR21/CV1021 =filamentary med-mu Triode= (EIA - , UF) Ef/If=2V/0.1A Epmax=150V op : Ep=150V Ec=-4.5V Ip=4.8mA, rp=10kΩ-typ gm=1.4mS-typ μ=14-typ similar type : PM1-LF(Mullard) 1) VR21(=210LF)-globe Cossor ￥3500 used WB 1) VR21 / 10E/7738(=210LF)-globe Cossor ￥2000 used very-rusty pins, WB
210SPT/VR49/CV1049 =filamentary HF pentode= (EIA - , British-7pin ) Ef/If=2V/0.1A Ppmax=1W Epmax=150V Pc2max=0.3W Ec2max=80V op : Ep=120V Ec2=60V Ec1=0V Ip=2.9mA rp=600kΩ gm=1.3mS op : Ep=150V Ec2=60V Ec1=0V Ip=2.95mA op : Ep=150V Ec2=60V Ec1=-1V Ip=1.75mA 1) 210SPT Cossor ￥3900 NIB very-ragged box
0) 211-78 USA ￥1000 NIB MB LAMP
211/311/VT-4-B/VT-4-C
212D/212E/4212E
213 =Fullwave Rectifier= Ef/If=5V/2A Eac-max=220Vrms Idcmax=65mA 1) UX-213 Rectron ￥15000 used
215A/VT5 =Triode= If/Ef=0.25A-dc/1.0V(nominal) op1 : Ep= 45.0V Eg=-3.00V Ip=1.0mA μ=5.7 rp=16.5kΩ gm=340micromho Zl=16.5kΩ Po= 2.2mW op2 : Ep= 67.5V Eg=-4.50V Ip=2.0mA μ=5.7 rp=14.0kΩ gm=410micromho Zl=14.0kΩ Po= 6.0mW op3 : Ep=100.0V Eg=-10.0V Ip=2.1mA μ=5.6 rp=14.5kΩ gm=390micromho Zl=14.5kΩ Po=26.0mW (参考 : Ep-Ip特性) 1) 215A WE ￥10000 NIB sealed(未開封) 1) VT5(D-80039) WE ￥10000 NIB sealed 6) VT5 WE ￥10000 NIB sealed 2) VT5 WE ￥8000 NIB 2) 215A WE ￥8000 NIB 2) 215A/CW-38015 WE ￥8000 NIB RaggedBox 1) 215A WE ￥5500 NOS?
UX-216B/CX-316B =halfwave Rectifier= Ef/If=7.5V/1.25A Eac-max=550Vrms Idc-max=65mA (米国製UX-210/CX-310-globeからグリッドを除いた整流管) (注.日本製のUX-216/Aとは仕様が全く異なる) 1) CX-316B Cunningham ￥15000 used engraved 0) UX-216B RCA ￥- used
216A =PowerTriode= Ef/If=5V～6V/1A Epmax=160V op(1933-WE) : Ep=130V Ec=-9V Ip=6.5mA rp=5.9kΩ gm=1mS μ=5.9 0) 216A WE ￥- used(D) 3) 216A WE ￥35000 used(T) gm=1400,1500,1500/975min Ef=5V, Ec=-4V tested as WE-205D on Hickok-539C 1) 216A WE ￥35000 used gm=1490/975min(Ef=5V),1400(Ef=4.3V), Ec=-4V tested as WE-205D on Hickok-539C
217/A/B/C =HalfWaveRectifier= (EIA/2C -, jumbo-4pin, top-plate, T18bulb) PIV=7500V Ipmax=150mAdc/600mA-peak Ef/If=10V/3.25AFor use as a 'condensor input' rectifier, its capacitance must be small as possible like 2μF, since this type is too-old designed/manufactured rectifier. 4) 217C Amprx ￥２４０００ NIB BrassBase VeryRaggedBox =rare= 1) UV217C RCA ￥２００００ used BrassBase 1-pin-loose =rare= RCA ￥- used NotYetTested(D)
219D =HalfWave Rectifier= 212DのGridを取った大型整流管 Idc=350mAFilament aging must be sufficiently done for this very old rectifier before high-voltage incident test onto plate electrode. Ef/If=14V/6A PIV=5000V Edc/Idc=1500V/0.25A(for two tubes) Ipmax=0.4A-instance 0) 219D WE ￥- used(D) 0) 219D WE ￥- used(Q) Hytron ￥1000 used gm=3340/1900min
220HPT =filamentary Pentode= (EIA - , UF-5pin) Ef/If=2V/0.2A Epmax=150V Ec2max=150V op : Ep=150V Ec2=150V Ec1=-4.5V Ip=8mA Zopt=17kΩ, gm=2.5mS-typ similar types : PEN220(Mazda), KT2(Marconi/Osram), PM22A(Mullard), PT2(Marconi) 1) 220HPT-ST Cossor ￥2500 used WB
220P =filamentary small-power Triode= Ef/If=2V/0.2A Epmax=150V op : Ep=150 Ec=-7.5V Ip=11mA, Zopt=9kΩ, rp=4kΩ gm=2.25mS μ=9-typ (参考 : Eg-Ip特性 (Ep = 75V, 100V, 125V, 150V)) similar to P215(Marconi), B205(Philips), PM2(Mullard) 0) 220P Cossor ￥- used WB
221D = filamentary Triode = * suffix "D" means standard radio receiving type Ef/If=5.25V/0.25A Ep(normal)=22V-135V, Ec(normal)=0V to -9V op : Ep=135V Ec=-7.5V Ip=4.5mA, rp=5.5kΩ gm=1.27mS μ=7 similar to UX/UV-201A, WE-235D 0) R-221D globe-tipped NorthernElectric ￥17,000 used == rare == Ep/Ec/Ip/gm=70V/-6V/2.75mA/725μmho @Ef/If=5V/0.34A similar to RCA-#201A 1) R-221DX globe-tipped NorthernElectric ￥18000 NIB UX-type == rare == 1) R-221DX globe-tipped NorthernElectric ￥11000 used 33/18min UX-type == rare ==
231D =filamentary LowPowerTriode= If/Ef=0.06A-dc/3.1V(nominal) op1 : Ep= 67.5V Eg=-3.0V Ip=0.93mA μ=8.5 rp=22.5kΩ gm=380micromho Zl=22.5kΩ Po= 3.0mW op2 : Ep=112.5V Eg=-6.0V Ip=1.90mA μ=8.4 rp=17.2kΩ gm=490micromho Zl=17.2kΩ Po=17.0mW op3 : Ep=135.0V Eg=-8.5V Ip=1.95mA μ=8.4 rp=17.2kΩ gm=490micromho Zl=17.2kΩ Po=35.0mW (see Ep-Ip特性) see an electrically-identical Top-Grid type = 257A 2) 231D WE ￥16000 NIB 0) 231D WE ￥- NIB 440/332min 1) JAN-231D WE ￥12000 usedLikeNew yellowLogo 500/332min 3) 231D WE ￥12000 used?LikeNew 520,550,550/332min PrintBase ClearGlass NiceLrgGtr date=6052 0) 231D WE ￥- NOS? 460/332min 1) 231D WE ￥7900 used ガラスチップが管内にあり
235D =filamentary Triode= * suffix "D" means standard radio receiving type Ef/If=5.25V/0.25A Epmax=160V(normal range : 22V-135V), Ec(normal)=0V to -9V, Ip(normal)=2mA-6mA, rp=14kΩ-7kΩ μ=8.5-9.5 similar to UX/UV-201A, NE R-221D/DX 1) 235D WE ￥19000 NIB RaggedBox(上ふた無）
239A =filamentary Triode= pre-amp/head-amp tube Ef/If=1.00V-1.25V/0.27A op: Ep=67.5V Ec=-1.5V Ip=2.8mA rp=13.2kΩ gm=0.5mS μ=6.6 Zl=5*rp=66.0kΩ Eo=8Vpeak D2nd=-46dB D3rd=-70dB op: Ep=100V Ec=-8.0V Ip=2.2mA rp=14.3kΩ gm=0.42mS μ=6.0 Zl=5*rp=71.5kΩ Eo=42Vpeak D2nd=-34dB D3rd=-55dB max:Ep=112.5V Ec=-10V Ip=2.2mA rp=14.8kΩ gm=0.42mS μ=6.2 Zl=5*rp=74kΩ Eo=52Vpeak D2nd=-34dB D3rd=-55dB max:Ep=135.0V Ec=-15V Ip=1.7mA rp=17.2kΩ gm=0.35mS μ=6.1 Zl=5*rp=86kΩ Eo=77Vpeak D2nd=-30dB D3rd=-55dB (参考: Eg-Ip特性(@Ep=67.5V, 90V, 100V, 112.5V, 135V) similar to WE-215A, and WE-264B/C 0) 239A WE ￥- NIB 0) 239A WE ￥- NIB approx. 330μmho @Ec=-6V, Ef=1.1V, Ep=Low Range=F (on Hickok-539B) (vxD) 3) 239A WE ￥offer LikeNew 340,343,368μmho @Ec=-6V, Ef=1.1V, Ep=Low Range=F (on Hickok-539B) WB 1) 239A WE ￥offer used engraved gm=24/14min
242A/B/C 342B=PowerTriode= Ef/If=10V/3.25A Fmax=6MHz *242C: Ppmax=100W Epmax=1250V Ipmax=150mA Igmax=50mA op(A1s): Ep=1000V Ec=-47V Ip=85mA Zl=7kΩ D=5% Po=12.5W op(A1s): Ep=1250V Ec=-70V Ip=68mA Zl=9kΩ D=5% Po=22.0W op(B2pp): Ep=1000V Ec=-70V Ip=16/300mA Ein=312Vp-p Pin=5.5W Zlpp=6.0kΩ Po=165W op(B2pp): Ep=1250V Ec=-90V Ip=20/300mA Ein=336Vp-p Pin=5.0W Zlpp=7.6kΩ Po=200W (see Ep-Ip特性) similar to 211/311/VT-4-C, 261/A, 276/A higher μ(25) types : 203A/303A/503A, 295/A 0) 242C Altec ￥- NIB MetalPlate BrassBase(D) 2) 242C United ￥２４８００ used SlightlyDiscolored AlminumBase CarbonPlate(Q) 1) 342B United ￥３００００ NOS
244A =cathode-type Triode= (EIA/5A - UY) Eh/Ih=2V/1.6A Ppmax=1W Epmax=180V Ecmax=+0V/-22V Ipmax=6mA(@Ep=180V)/9mA(@Ep=120V) Ep=90V Ec=-6v Ip=1.9mA μ=9.5 rp=15.1kΩ gm=630μmho Ep=120V Ec=-6v Ip=4.1mA μ=9.9 rp=11.2kΩ gm=890μmho Ep=135V Ec=-6v Ip=5.5mA μ=10.1 rp=10.0kΩ gm=1010μmho Ep=150V Ec=-8v Ip=5.1mA μ=9.8 rp=10.6kΩ gm=930μmho Ep=180V(max) Ec=-10v Ip=6.2mA μ=9.8 rp=10.0kΩ gm=980μmho (参考) WE-244AのEpIp特性 electrically similar to #27/227(Eh/Ih=2.5V/1.75A, μ=9typ) also similar to TB-605A(Eh/Ih=2V/1.6A, μ=10typ) just higher μ type : 247A(μ=15) 0) 244A-globe WE ￥- used mesh-plate 4) USN-CW 244A-ST WE ￥18000 NIB D/C=203(1952) mesh-plate プレート拡大写真 gm=1050, 1040, 1020, 1030/650μmho-min on a KS15750-L1 tube-tester BOX PRINT : 1 EA. ELECTRON TUBE, TYPE USN-CW-244A, ITEM 1 QSSR WK#10, CONT.N126S-29052, STK.#N16-T-62440, WESTERN ELEC.CO.INC., DATE PKD.1/52" 0) 244A-ST WE ￥- used mesh-plate
245A =Tetrode= Eh/Ih=2V/1.6A Eb=135V Ec2=45V Ib=4.8mA rp=18kΩ μgm=750μmho similar to RCA-24A 1) D-90319/245A-globe WE ￥22000 NIB glass-etched 'D-90319', base-engraved '245A' 2) 245A WE ￥17000 NIB
246A =Tetrode= Eh/Ih=3.3V/0.1A Ep=135V(max) Ec2=67.5V Ec1=-3V Ip=2.85mA Ic2=0.3mA μ=165 rp=325kΩ gm=510μmho Ep=180V(max) Ec2=45V Ec1=-1.5V Ip=1.55mA Ic2=0.15mA μ=335 rp=820kΩ gm=410μmho 0) 246A WE ￥- used
247A =med-mu Triode= (EIA/5A - UY) Eh/Ih=2V/1.6A Ehkmax=100V Ppmax=2W Epmax=180V Ipmax=10mA op : Ep=120V Ec=-6V Ip=1.3mA rp=23.5kΩ gm=600μS μ=14.2 Zl=120kΩ Po=22mW D=4.5% op : Ep=135V Ec=-4.5V Ip=3.2mA rp=16kΩ gm=940μS μ=15.2 Zl=80kΩ Po=21mW D=2.0% op : Ep=150V Ec=-6V Ip=2.8mA rp=17.4kΩ gm=850μS μ=14.8 Zl=87kΩ Po=32mW D=2.5% op : Ep=180V Ec=-7V Ip=3.6mA rp=15.7kΩ gm=940μS μ=14.9 Zl=78.5kΩ Po=49mW D=3.0% (参考 : Ep-Ip特性) (electrically similar to 262A/B(Eh/Ih=10V/0.32A)) lower μ type : 244A(μ=10) 2) 247A-ST WE ￥18000 NIB/WB mesh-plate 0) 247A-ST WE ￥- used
249A =Mercury Rectifier= Ef/If=2.5V/7.5A PIV=7500V Ikmax=0.64A-average/2.5A-peak/25A-surge 1) 249A WE ￥12500 used?
250TH
250TL
251A =air-cooled Transmitting Triode= glass-type height=21-11/16", diam.6" Ef/If=10V/16A Fmax=30MHz Ppmax=1kW Epmax=3kV Ipmax=0.6A Pcmax=50W IcmaxRF=15A op1(A1s) : Ep=2500V Ec=-150V Ip=240mA Pd=600W Zl=6.5kΩ Po=130W op2(B2pp) : Ep=2500V Ec=-205V Ipo=2x75mA Ipmax=2x600mA Pd=675W Zlpp=3.7kΩ Pin=100W Po=1650W -) 251A WE ￥- used
252A =Triode= Ef/If=5V/2A Ppmax≒30W Epmax=500V Ipmax=90mA(self bias), 75mA(fixed bias) Ecmax=+10Vpeak op1(A1s) : Ep=300V Ec=-45V Ip=19mA μ=5.08 rp=2.3kΩ gm=2.25mS Zl=8kΩ Po=2W op2(A1s) : Ep=400V Ec=-55V Ip=44mA μ=5.12 rp=1.65kΩ gm=3.10mS Zl=5kΩ Po=4.5W op3(A1s) : Ep=500V(max) Ec=-70V Ip=58mA μ=5.12 rp=1.50kΩ gm=3.45mS Zl=4kΩ Po=8.3W (see #WE-252AのEp-Ip特性) 0) 252A-globe WE ￥- used 0) 252A-globe WE ￥- used
253A =MarcuryVaporHalfWaveRectifier= PIV=3500V Ipmax=250mA Ef/If=2.5V/3A 0) 253A WE ￥- used engraved(D) 0) 253A WE ￥9900 engraved(D)
254
254A =Power Tetrode= 5V/3.25A similar to WH-865 0) 254A-globe WE - NOS
254B =Power Tetrode= 7.5V/3.25A similar to WH-865 0) 254B-globe WE - NOS
257A =LowPower Triode(GridTop)= Ef/If=3.1V/0.06A rp=16.5kΩ gm=510um μ=8.4(same as 231A/231D except TopGrid) (参考 : Ep-Ip特性) 4) 257A WE ￥２２０００ NIB date=3-58 =VeryRare=
259A/259B =LowNoise Tetrode= (EIA/5E - UY) Eh/Ih=2V/1.6A Ep=135V Ec2=75V Ec1=-1.5V Ip=5.3mA Ic2=1.4mA μ=400 rp=300kΩ gm=1330μmho Ep=180V(max) Ec2=90V Ec1=-1.5V Ip=7.5mA Ic2=1.7mA μ=480 rp=320kΩ gm=1500μmho Ep=250V(max) Ec2=75V Ec1=-1.5V Ip=5.7mA Ic2=1.1mA μ=610 rp=430kΩ gm=1420μmho (参考 : Ep-Ip特性) 12) 259A WE ￥１１０００ NIB(hpy10nx) 2) 259A WE ￥１１０００ NIB
261A
262A/B =Triode= Ep=180V Ip=2.8mA(Ec=-10.5V) μ=14.7 rp=16.2kΩ gm=910μmho Eh/Ih=10V/0.32A (similar to 247A(Eh/Ih=2V/1.6A)) 1) 262B WE ￥19000 NIB date=7413,7439(D)
1) 262B-switch WE ￥1500 NOS
264B/C =Low Microphonic noise Triode= Ef/If=1.5V/0.3A Eb=100V Ip=2.6mA(Ec=-7V) rp=11.8kΩ gm=0.6mS μ=7 参考 : WE-264CのEp-Ip特性 similar to 864/38064 / VT-24 (Ef/If=1.1V/0.25A) 0) 264B WE ￥- used 刻印/Engraved 18/14min(TV-7) 0) 264C WE ￥- NIB(D) 0) 264C-engraved WE ￥21000 used? WB gm=495um/270um-min Ip=1.50mA @Ef=1.45V,Ec=-5V,Ep=64V on Hockok-539B 0) 264C-engraved WE ￥17000 used? WB gm=330um/270um-min Ip=1.04mA @Ef=1.45V,Ec=-5V,Ep=64V on Hockok-539B 0) 264C-engraved WE ￥17000 used? date=713 WB gm=440um/270um-min Ip=1.47mA @Ef=1.45V,Ec=-5V,Ep=64V on Hockok-539B 0) 264C-engraved WE ￥15000 used? WB gm=390um/270um-min Ip=1.27mA @Ef=1.45V,Ec=-5V,Ep=64V on Hockok-539B 0) 264C-engraved WE ￥15000 used WB gm=370um/270um-min Ip=1.34mA @Ef=1.45V,Ec=-5V,Ep=65V on Hockok-539B 0) 264C-print WE ￥13000 used? WB gm=440um/270um-min Ip=1.73mA @Ef=1.45V,Ec=-5V,Ep=65V on Hockok-539B
0) 264B-switch WE ￥1500 NOS
271A =cathode-type power Triode= (EIA/5A, UY - S19) Eh/Ih=5V/2A Ppmax=27W Epmax=450V Ecmax=+20V(instataneous) Ipmax=60mA Ehkmax=100V pin assignment : 1-H 2-P 3-G 4-K 5-H op1 A1S: Ep=300V Ec=-25V Ip=19.5mA μ=8.2 rp=3.65kΩ gm=2250μmho Zl=14.6kΩ Po=0.9W D=4.5% op2 A1S: Ep=350V Ec=-25V Ip=34.5mA μ=8.4 rp=2.85kΩ gm=2930μmho Zl=5.70kΩ Po=1.7W D=6.0% op3 A1S: Ep=400V Ec=-30V Ip=37.5mA μ=8.3 rp=2.83kΩ gm=2920μmho Zl=6.00kΩ Po=2.4W D=6.0% op4 A1S: Ep=450V Ec=-30V Ip=57.5mA μ=8.5 rp=2.45kΩ gm=3480μmho Zl=4.90kΩ Po=3.1W D=3.1% 参考 : WE-271AのEp-Ip特性 1) 271A-globe WE ￥offer NIB VeryRaggedBox 4) 271A-globe WE ￥offer UsedLikeNew VeryStrong WB 1) 271A-globe engraved-base WE ￥offer UsedLikeNew VeryStrong: gm=65/36min(TV-7) WB 1) 271A-globe print-baseWE ￥offer UsedLikeNew VeryStrong WB date=126 1) 271A-globe engraved-base WE ￥10000 UsedLikeNew 1950/1900min カソード粉あり WB
272A =LowPowerTriode= (EIA/5A, UY - ST14) Eh/Ih=10V/0.32A (cathode-type Triode) Ppmax=2W Epmax=180V Ipmax=12mA Ehkmax=100V pin assignment : 1-H 2-P 3-G 4-K 5-H op1 A1S: Ep=100V Ec=-7.0V Ip=6.6mA μ=6.0 rp=6.3kΩ gm=950μmho Zl=12.6kΩ Po=0.03W D=4.0% op2 A1S: Ep=120V Ec=-10V Ip=6.7mA μ=5.8 rp=6.4kΩ gm=910μmho Zl=12.8kΩ Po=0.06W D=5.0% op3 A1S: Ep=160V Ec=-17V Ip=6.6mA μ=5.6 rp=6.8kΩ gm=820μmho Zl=13.6kΩ Po=0.15W D=6.3% op4 A1S: Ep=180V Ec=-21V Ip=6.2mA μ=5.5 rp=7.2kΩ gm=760μmho Zl=14.4kΩ Po=0.21W D=8.0% 参考 : WE-272AのEp-Ip特性 2) 272A-ST WE ￥17000 NIB date=539,613 32,32/24min(TV-7B/U) ０) 272A-ST WE ￥- used? gm=800μmho(539B)
274A/274B =filamentary FullWave Rectifier= Ef/If=5V/2A Eac=550V(Linput) 450V(Cinput) Ipmax=160mA(Linput) 140mA(Cinput) Cmax=4μF 0) 274A-globe WE ￥- NIB 0) 274A-engraved WE ￥- used?? 112/100/54min 0) 274A WE ￥- NOS(D) 1) 274A WE ￥offer NIB date=213 VeryRaggedBox 0) 274A WE ￥- NOS WB 0) 274A EE ￥- used 1) 274A WE ￥- used poor getter 2) 4274A Brimar ￥21000 NIB 1) 274B-engraved WE ￥offer usedLikeNew 106/97/54min ClearGlass GoodGetterFlash 0) 274B WE ￥- NIB 2) 274B WE ￥- [display] 1) 274B China ￥2200 used FatBottle, WB
275A =PowerTriode= Ef/If=5V/1.2A Ppmax(ICAS)=17W Epmax=300V Ipmax=70mAfixed-bias)/80ma(self-bias) similar to 183, 2A3(except filamentary spec.) op : Ep-250V Eg=-60V Ip=53mA gm=2.78mS μ=2.8 rp=1kΩ Zl=3k-Ω Po=2.6W op : Ep-300V Eg=-80V Ip=51mA gm=2.45mS μ=2.7 rp=1.1kΩ Zl=4.4k-Ω Po=3.5W (参考 : Ep-Ip特性) 0) 275A-globe WE ￥- used 2) 275A WE ￥29000 NOS WB 2本ともDate=#6852 2) 275A WE ￥29000 NIB 1) 275A WE ￥15000 used/NOS? 48/34min(TV-7) date=7952 glass変色ほとんどなし
276A
2) 276F WE ￥2000 NIB Relay 2) 276G WE ￥2000 NIB Relay
279A =air-cooled Transmitting Triode= glass-type height=21-11/16", diam.6" (same as 251A) Ef/If=10V/21A Fmax=20MHz Ppmax=1.2kW Epmax=3kV Ipmax=0.8A Pcmax=100W IcmaxRF=15A power enhanced type of 251A op1(A1s) : Ep=2500V Ec=-170V Ip=300mA Pd=750W Zl=4.5kΩ Po=155W op2(B2pp) : Ep=2500V Ec=-200V Ipo=150mA Ipmax=800mA Pd=900W Zlpp=2.8kΩ Pin=100W Po=2200W 0) 279A Amperex ￥- used
280A =MarcuryVaporHalfWaveRectifier= PIV=3500V Ip-peakmax=500mA(Ipmax=150mA) Ef/If=2.5V/3A 0) 280A WE ￥- used
282A/B
283/A =vari-mu Tetrode= Epmax=250V Eh/Ih=2V/1.6A Ep=250V Ec2=75V Ec=-1.5V Ip=6mA Ic2=1.5mA μ=980 rp=700kΩ gm=1.4mS 1) 283A-ST WE ￥12000 NOS engraved 1500/885min WB 1) 283A-ST WE ￥5000 used
284A/D =PowerTriode= WE-284D=RCA-845 Ef/If=10V/3.25A Ppmax=100W Epmax=1250V Ipmax=150mA Icmax=100mA op : Ep=750V Ec=-100V Ip=110mA Zl=8kΩ D=2.4% Po=11W op : Ep=1000V Ec=-160V Ip=83mA Zl=8.5kΩ D=3.6% Po=24.4W op : Ep=1250V Ec=-215V Ip=68mA Zl=12kΩ D=4.4% Po=31W 参考 : WE-284DのEpIp, EpIg特性 0) 284A WE used ￥- 0) 284D WE used ￥-
284-ST 1) 284-ST Dumont used
285A =Pentode w/ Cathode= Eh/Ih=2V/1.6A Ppmax=W Epmax=250V Ipmax=mA Pc2max=W Ec2max=V Ep=250V(max) Ec2=200V Ec=-16.5V Ip=12.4mA Ic2=2.2mA μ=140 rp=137kΩ gm=1.02mS Zl=17kΩ Po=1.35W D=23dB 0) 285A WE ￥- used
286A =VariableMu Pentode w/ Cathode= Eh/Ih=2V/1.6A Ppmax=W Epmax=250V Ipmax=mA Pc2max=W Ec2max=V Ep=250V Ec2=75V Ec=-1.5V Ip=6.3mA Ic2=1.5mA μ=1275 rp=1050kΩ gm=1.21mS 4) 286A WE ￥１５０００ NIB
287A =Marcury-vapor Halfwave 3-Element Power Thyratron= Eagmax/Ippeakmax/Ipmax=500V/6A/1.5A or Eagmax/Ippeakmax/Ipmax=2500V/2.5A/0.64A Edrop=15V Ef/If=2.5V/7A Theat=10sec similar to 323A 0) 287A WE ￥- NIB
290A =cathode-type vari-mu Pentode= Eh/Ih=10V/0.32A op : Ep=135V Ec2=75V Ec1=-1.5V Ip=5.3mA Ic2=1.4mA rp=560kΩ gm=1.21mS Gv=680 op : Ep=180V Ec2=75V Ec1=-1.5V Ip=5.4mA Ic2=1.4mA rp=950kΩ gm=1.22mS Gv=1160 op(MAX) : Ep=250V Ec2=75V Ec1=-1.5V Ip=5.5mA Ic2=1.4mA rp=1.4MΩ gm=1.23mS Gv=1730 cutoff : Ep=135V-250V Ec2=75V Ec=-19V pins : 1(H)-2(P)-3(G2)-4(G3)-5(K)-6(H)-Top(G1) 1) 290A-ST WE ￥12000 used mesh-plate D/C=926 WB
292A =Duplex-Diode Triode= 1) 292A WE ￥offer NOS engraved WB gm(T)=700/488min EM(D)=89/111/54min
293A =power Pentode= (EIA/6B - UZ, ST-14) Eh/Ih=10V/0.32A Ehkmax=150V Ppmax=5W Epmax=250V Pc2max=1W Ec2max=200V Ikmax=30mA op: Ep=135V Ec2=135V Ec=-12V Ip=12.5/13.5mA Ic2=1.9/3.2mA rp=95kΩ gm=1.140mS Zl=11kΩ Po=0.6W D=9.7% op: Ep=180V Ec2=180V Ec=-18V Ip=15.8/17.0mA Ic2=2.7/5.2mA rp=100kΩ gm=1.175mS Zl=11.5kΩ Po=1.3W D=11% op: Ep=250V Ec2=200V Ec=-18V Ip=21.5/23.5mA Ic2=3.5/5.6mA rp=100kΩ gm=1.340mS Zl=12kΩ Po=2.1W D=10% pins : 1(H)-2(P)-3(G2)-4(G1)-5(K,G3)-6(H) 0) 293A WE ￥- NIB 2) 293A WE ￥offer NIB? top-print, gm=1450μmho, 1500μmho 2) 293A WE ￥offer NOS D/C=1945, top-print
295A
297/A =Argon-filled Thyratron= 3) 297A WE ￥3900 NIB 1) 297A WE ￥3900 NIB 1) 297A WE ￥3900 NIB date=6239 1) 297A WE ￥3500 LikeNew WB
300A/300B =AudioPowerTriode=<三極管の A1S 動作比較> Ef/If=5V/1.2A 300A : Ppmax=40W Epmax=450V Ipmax=70mA(fixed-bias) 100mA(self-bias) 300B(design center) : Ppmax=36W Epmax=400V Ipmax=100mA Rgmax=50kΩ(fixed)/250kΩ(self) *300A : ops(A1s) Ep=250V Ec=-48V Ip=60mA Zl=2.7kΩ Po=4.1W 2ndHD=-30dB 3rdHD=-45dB Ep=300V Ec=-61V Ip=60mA Zl=3.4kΩ Po=5.6W 2ndHD=-30dB 3rdHD=-44dB Ep=350V Ec=-74V Ip=60mA Zl=4.0kΩ Po=7.0W 2ndHD=-30dB 3rdHD=-44dB Ep=350V Ec=-74V Ip=60mA Zl=3.0kΩ Po=8.3W 2ndHD=-26dB 3rdHD=-38dB Ep=350V Ec=-74V Ip=60mA Zl=2.0kΩ Po=10.2W 2ndHD=-21dB 3rdHD=-30dB Ep=400V Ec=-87V Ip=60mA Zl=3.5kΩ Po=12.5W 2ndHD=-26dB 3rdHD=-38dB Ep=400V Ec=-87V Ip=80mA Zl=2.5kΩ Po=12.5W 2ndHD=-25dB 3rdHD=-37dB Ep=450V Ec=-97V Ip=80mA Zl=2.0kΩ Po=17.8W 2ndHD=-21dB 3rdHD=-30dB MAXIMUM OPERATION *300B : ops op(A1s): Ep=300V Ec=-61V Ip=62/74mA rp=740Ω gm=5.3mS μ=3.9 Zl=3.0kΩ P=6W D=5% op(A1s): Ep=350V Ec=-74V Ip=60/77mA rp=790Ω gm=5.0mS μ=3.9 Zl=4.0kΩ P=7W D=5% op(A1pp): Ep=300V Ec=-61.0V Ip=100/150mA Zlpp=4.0kΩ P=10W D=4.5% op(A1pp): Ep=350V Ec=-67.5V Ip=170/200mA Zlpp=4.0kΩ P=20W D=2.0% (see #WE-300BのEp-Ip特性) (also see #WE-300A Zload-Power-Distortion/負荷抵抗-出力・歪特性(@Ep=350V, Ip=30mA-80mA)) 0) 300A WE ￥- used engraved 0) 300B WE ￥- used engraved 0) 300B WE ￥- NOS/NIB print-base 1966,1973,1976 0) 300B WE ￥- NOS/NIB print-base 2005 1) 300B WE ￥offer used print-base D/C=79-52, glass-flaw(5mm-L) on waist-surface, WB gm=4200/2900min on KS-15750-L1 tester
300R4 3) 300R4 Kadette ￥2500 NOS? Ballast @@
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
301A =filamentary FullWave Mercury Vapor Rectifier= PIV=1800V Idc=1.0A Ip-peak-max=2.0A Ef/If=5V/3A ０) 301A WE ￥- NOS 刻印 WEMB(T) ==RARE & RARE!==
304B
304TH
304TLEf/If=5V/25A(10V/12.5A) Ppmax=300W Epmax=3000V Ipmax=900mA Pgmax=50W gm=16.7mS rp=0.7kΩ μ=12 Fmax=40MHz op 1 AB1pp : Ep=1500V Ec=-118V Ipo=270mA Ipmax=572mA Zlpp=2.54kΩ Ein=118Vpeak Pin=0W Po=256W op 2 AB1pp : Ep=2000V Ec=-170V Ipo=200mA Ipmax=546mA Zlpp=5.30kΩ Ein=170Vpeak Pin=0W Po=490W op 3 AB1pp : Ep=3000V Ec=-290V Ipo=130mA Ipmax=444mA Zlpp=12.0kΩ Ein=290Vpeak Pin=0W Po=730W op 4 AB2pp : Ep=1500V Ec=-118V Ipo=270mA Ipmax=1.14A Zlpp=2.75kΩ Ein=245Vpeak Pin=39W Po=1100W op 5 AB2pp : Ep=2000V Ec=-170V Ipo=200mA Ipmax=1000mA Zlpp=4.50kΩ Ein=290Vpeak Pin=44W Po=1400W op 6 AB2pp : Ep=3000V Ec=-290V Ipo=130mA Ipmax=800mA Zlpp=9.10kΩ Ein=390peak Pin=55W Po=1800W (size : 194mmH x 90mmφ) (805との比較) Eimac Power Triodes ０) 304TL Eimac ￥３５０００ NIB FinPlates Ep/Ec/Ip/Ef=500V/0V/100mA,104mA/9.7V,10V RaggedBox(vD) ０) 304TL Eimac ￥- NIB FinPlates (Dxv) 0) 304TL Eimac ￥- NIB FinPlates (T) 0) 304TL Eimac ￥- NIB FinPlates RaggedBox (hzzcnx) 0) 304TL Eimac ￥- LikeNew in OriginalBox FinPlates(sD) 0) 304TL Eimac ￥offer NIB NonFinPlates(Dxx) 0) 304TL Eimac ￥- NIB NonFinPlates(sT) 0) 304TL Sylvania/Eimac ￥- LikeNew FinPlates w/ GridRing (sD) 0) 304T Sylvania/Eimac ￥- LikeNew FinPlates w/ GridRing 0) 304TL/VT-129 Syl ￥- NOS WB FinPlates 0) 304TL Eimac ￥- used WB NonFinPlates 0) 304TL Eimac ￥- usedLikeNew FinPlates WB
307A( = VT-225) =PowerPentode= Ef/If=5.5V/1A Ppmax=15W Epmax=500V Pc2max=6W Ec2max=300V(class-A)/250V(class-B) Ipmax=60mAdc(class-A)/45mAdc(class-B) Ic2max=25mAdc Ec1max=+30V(instantaneous) ops(@Ec3=0V): A1S: Ep=200V Ec2=200V Ec1=-15V Ip=36.5mA Ic2=3.4mA Zl=4.0kΩ Po=2.9W D2nd=-23.5dB D3rd=-24.0dB A1S: Ep=250V Ec2=250V Ec1=-20V Ip=50.0mA Ic2=4.0mA Zl=4.0kΩ Po=5.7W D2nd=-24.0dB D3rd=-23.5dB A1S: Ep=300V Ec2=300V Ec1=-30V Ip=43.0mA Ic2=2.6mA Zl=4.5kΩ Po=9.1W D2nd=-21.0dB D3rd=-17.5dB 1) 307A/VT-225 Syl ￥9500 NOS? 1) VT-225/307A KenRad ￥9500 NIB MB 1) 307A Syl ￥9500 NIB VeryRaggedBox 1) 307A KenRad? ￥7000 NOS? WB
308A/B =Audio-frequency Power Triode= Ef/If=14V/6A Pp=250W Epmax=2250V Ipmax=325mA Icmax=75mA Icmax-peak=5A Fmax=1.5MHz μ=8 rp=1070Ω gm=7.5mS op(A1S) : Ep=1000V Ec=- 80V Ip=210mA Pd=210W Zl=3kΩ Po=35W op(A1S) : Ep=1500V Ec=-155V Ip=135mA Pd=200W Zl=13kΩ Po=50W op(B2pp) : Ep=1750V Ec=-215V Ipo=30mA Ipmax=300mA Pd=240W Zl=5.2kΩ Pin=35W Po=575W 0) 308A WE ￥- used 0) 308B WE ￥- used
309A =low-noise Vari-mu Pentode= (EIA/5F -UY, top-G1, ST-12) Eh/Ih=10V/0.32A Epmax=250V op : Ep=135V Ec2=75V Ec1=-1.5V Ip=4.75mA Ic2=1.1mA rp=700kΩ gm=1.09mS amp-factor=760 op : Ep=180V Ec2=75V Ec1=-1.5V Ip=4.80mA Ic2=1.1mA rp=1.0MΩ gm=1.10mS amp-factor=1100 op : Ep=250V Ec2=75V Ec1=-1.5V Ip=4.85mA Ic2=1.1mA rp=1.3MΩ gm=1.11mS amp-factor=1450 (参考 : Ep-Ip特性(@Ec2=75V)) 2) 309A WE ￥offer NOS WB MeshPlate date=252,5652,gm=1220,1280/715min
310A/B (see 328A 348A) =Pentode= (EIA/6F -UZ TopG1, ST-12) Eh/Ih=10V/0.32A Ehkmax=150V(for 310A) / 30V(for 310B) *design center Ppmax=2W Epmax=250V Pc2max=0.4W Ec2max=180V Ikmax=10mA ops(@Ec3=0V): Ep=135V Ec2=135V Ec1=-3V Ip=5.4mA Ic2=1.2mA rp=750kΩ gm=1.8mS Ep=135V Ec2=135V Ec1=-3V Ip=5.4mA Ic2=1.2mA Zl=20kΩ D=8.5% Po=0.25W Ep=180V Ec2=135V Ec1=-3V Ip=5.3mA Ic2=1.18mA Zl=100kΩ D=6% Po=0.15W Ep=250V Ec2=135V Ec1=-3V Ip=5.6mA Ic2=1.17mA Zl=100kΩ D=6% Po=0.31W different-heater electrically-similar types: 57(Eh/Ih=2.5V/1A), 6C6(6.3V/0.3A), 77(6.3V/0.3A) also see a same-basing, higher-gm, different-heater similar type: CZ-501-D(gm=3.5mS, Eh/Ih=3.5V/1A) 0) 310A WE ￥- NIB SmallPunch MB 0) 310A WE ￥- NIB Small punch(D) 8) 310A WE ￥16000 NIB LargePunch date=9-65 12-74 etc(why13nt) 0) 310A WE ￥- NOS WB LargePunch(T) 1) 310A WE ￥13000 LikeNew LargePunch date=6313 gm=1940/1170min 1) 310A WE ￥13000 LikeNew LargePunch date=6513 gm=57/30min(TV-7B/U) 3) 310A WE ￥13000 LikeNew LargePunch date=6013,6652,6652 gm=1890,1950,1940/1170min 1) 310A WE ￥13000 LikeNew LargePunch date=6413 gm=1750/1170min 2) 310B WE ￥21000 used? SmallPunch 2010,2060/1170min date=5726 1) 310B WE ￥21000 used? SmallPunch 2080/1170min 2) 310B WE ￥16000 NIB LargePunch date=10-79 2) 310B WE ￥16000 NOS LargePunch date=6513,7413 gm=1950,2000/1170min WB 1) 310B WE ￥13000 used?LikeNew LargePunch 2140/1170min date=6113 2) 310B Syl ￥4700 NIB England <ご参考>WesternElectric-310A系の球には、以下のBASE/GridCap/Heater仕様のものがあります。 さらに、Plate形態に、Mesh, SmallPunch, LargePunchの３種類があります。 a) WE-310A/310B BASE = UZ-6pin GriDCapDia=8mmφ Eh/Ih = 10V/0.32A b) WE-328A BASE = UZ-6pin GridCapDia=8mmφ Eh/Ih = 7.5V/0.425A c) STC-4328A/5A-136A BASE = UZ-6pin GridCapDia = 8mmφ Eh/Ih = 7.5V/0.425A d) STC-4328D/5A-136D BASE = Octal-8pin GridCapDia = 8mmφ Eh/Ih = 7.5V/0.425A e) WE-348A BASE = Octal-8pin GridCapDia = 6mmφ Eh/Ih = 6.3V/0.5A
311, 311-C(United) (see 211/VT-4-C) 1) 311 United ￥23,000 NIB 1) 311 United ￥10,000 NIB Getter小 1) 311-C United ￥23,000 NOS
311B =Pentode- (311BはEh=10V,329AはEh=7.5V) (EIA/5F -UY Top-G1, ST-12) Eh/Ih=9V/0.6A, 10V/0.64A Ehkmax=150V *absolute max. Ppmax=9W Epmax=200V Pc2max=1.8W Ec2max=150V Ikmax=60mA ops(A1S @Eh=9V): Ep=135V Ec2=135V Ec1=-15V Ip=30/33mA Ic2=6.3/11.5mA rp=45kΩ gm=2.8mS Zl=3.5kΩ D=10% Po=2.0W ops(A1S @Eh=10V): Ep=135V Ec2=135V Ec1=-15V Ip=33/36mA Ic2=6.5/11mA rp=40kΩ gm=2.9mS Zl=3.5kΩ D=9.0% Po=2.0W Ep=180V Ec2=135V Ec1=-15V Ip=34/38mA Ic2=6.0/10mA rp=47kΩ gm=3.0mS Zl=4.0kΩ D=10.5% Po=2.8W 参考: EpIp特性,パワ負荷特性(EpIp & Power-Load characteristics @Eh=9V, Ec2=135V) pins: 1(H)-2(P)-3(G2)-4(K,G3)-5(H)-Top(G1) 0) 311B WE ￥- NIB(D) 2) 311B WE ￥15000 NIB date = 9-54 2) 311B WE ￥12000 NIB date = 6-60 2) 311B WE ￥11000 NIB date = 4-69, 4-70 4) 311B WE ￥10000 NIB date = 5-72 5-72 5-72 7-72 4) 311B WE ￥10000 NIB date = 12-75 1) 311B WE ￥10000 used?LikeNew date=452 gm=4100/1820min 1) 311B WE ￥8000 used?LikeNew date=6413,6413,6439 gm=3630,3750,3750/1820min 1) 311B WE ￥6000 used? gm=2710/1820min 1) 311B WE ￥6000 NOS? date=7152 2480/1820min WB 1) 311B WE ￥3900 used gm=4100,3600/1820min PoorGetter 1) 311B WE ￥3800 NIB エミッション65% 1) 311B WE ￥500 used OB 8/30min
313C =Cold Cathode Triode= Va=185Vpeak Iamax=100mApeak/35mAav Va-drop=75V(68Vmin-90Vmax)@Ia=20mA Tlife=10,000h(@Ia=10mA)-1,000h(@Ia=20mA) 2) 313C WE ￥2000 NIB D/C=6426 6) 313C WE ￥2000 NIB 1) 313C WE ￥2000 NIB 5-62 VeryRaggedBox
314A =filamentary FullWave Mercury Vapor Rectifier= Ef/If=5V/5A PIV=300V Idc=1.6A Ip-peak-max=2.5A Edrop=10V Ta=10℃-40℃(recommended ambient temp.range) 2) 314A WE ￥4100 used engraved-base WB 2) 314A WE ￥3700 used engraved-base WB
323A/B =Marcury-vapor HalfWave 3-elements Thyratron= Ef/If=2.5V/7A PIV=1250V Ib=1.5A 4) 323A WE ￥5000 NIB D/C=Jan.1944 engraved MB 0) 323A WE ￥- NIB D/C=Jan.1944 engraved MB 0) 323A WE ￥- NIB D/C=Jan.1944 engraved MB 0) 323A WE ￥- NIB D/C=Jan.1944 engraved MB 0) 323A WE ￥- NIB D/C=Jan.1944 engraved MB 0) 323A WE ￥- NIB D/C=Jan.1944 engraved MB 0) 323A WE ￥- NIB D/C=Jan.1944 engraved MB 0) 323A WE ￥- NIB D/C=Jan.1944 engraved MB 2) 323B WE ￥6300 NIB 1) 323B WE ￥6300 NIB RaggedBox 1) 323B WE ￥5900 NOS
328A/4328A = (EIA/6F -UZ TopG1, ST-12) Eh/Ih=7.5V/0.425A Ehkmax=150V Ppmax=2W Epmax=250V Ikmax=10mA Pc2max=0.4W Ec2max=180V op : Ep=135V Ec2=135V Ec1=-3V Ip=5.4mA Ic2=1.2mA rp=750kΩ gm=1.8mS Zl=20kΩ D=8.5% Po=0.25W heater variant : 310A/310B(Eh/Ih=10V/0.32A) octal-base, heater variant : 348A(Eh/Ih=6.3V/0.5A) also see a same-basing, higher-gm, different-heater similar type: CZ-501-D(gm=3.5mS, Eh/Ih=3.5V/1A) 1) 328A WE ￥18000 NIB SmallPunch date=4-57 2) 328A WE ￥18000 NIB SmallPunch date=11-59 1) 328A WE ￥15000 NOS?used? LikeNew SmallPunch 1820/1170min date=012(tw03) 1) 328A WE ￥15000 NOS?used LikeNew SmallPunch 1880/1170min date=213(tw03) 1) 328A WE ￥15000 used LikeNew SmallPunch 1830/1170min date=726 1) 4328A STC ￥15000 used LikeNew SmallPunch 2180/1170min 1) 4328A STC ￥11000 used SmallPunch 1650/1170min print=5% 19) 328A WE ￥10000 NIB LargePunch 1) 328A WE ￥18000 NOS d=352 SmallPunch 1) 328A WE ￥11000 NIB d=6-1962 1) 328A WE ￥11000 NIB d=6452 2) 328A WE ￥11000 NIB d=6625,6-68 ++ 1) 328A WE ￥11000 NOS d=6528 WB 1) 328A WE ￥10000 NOS LargePunch date=7526 1900/1170min 1) 328A WE ￥10000 NOS LargePunch date=7526 1970/1170min 1) 328A WE ￥8000 usedLikeNew LargePunch 1800,1900/1170min date=6026 1) 328A WE ￥8000 usedLikeNew LargePunch 1820/1170min date=6439 justLooseBase(bonded) 1) 328A WE ￥8000 usedLikeNew LargePunch date=7139 2020/1170min @@ 2) 328A Syl ￥4700 NIB <ご参考>WesternElectric-310A系の球には、以下のBASE/GridCap/Heater仕様のものがあります。 さらに、Plate形態に、Mesh, SmallPunch, LargePunchの３種類があります。 a) WE-310A/310B BASE = UZ-6pin GriDCapDia=8mmφ Eh/Ih = 10V/0.32A b) WE-328A BASE = UZ-6pin GridCapDia=8mmφ Eh/Ih = 7.5V/0.425A c) STC-4328A/5A-136A BASE = UZ-6pin GridCapDia = 8mmφ Eh/Ih = 7.5V/0.425A d) STC-4328D/5A-136D BASE = Octal-8pin GridCapDia = 8mmφ Eh/Ih = 7.5V/0.425A e) WE-348A BASE = Octal-8pin GridCapDia = 6mmφ Eh/Ih = 6.3V/0.5A
329A =Low Power Pentode(311A/Bの7.5Vヒーター版)= (EIA/5F -UY Top-G1, ST-12) Eh/Ih=7.5V/0.85A *Limiting Condition for Safe Operation: Epmax=180V Ec2max=150V Ikmax=60mA Ic2max=12mA operations(@Ec1=-15V Ec2=135V) Ep=135V Ip=30mA rp=43kΩ gm=2.8mS μ=122 Ep=135V Ip=30mA Zl=3.0kΩ Ein=15Vpeak Po=1.9W D2nd=-23dB D3rd=-24dB Ep=135V Ip=30mA Zl=3.5kΩ Ein=15Vpeak Po=2.0W D2nd=-27dB D3rd=-21dB Ep=135V Ip=30mA Zl=4.0kΩ Ein=15Vpeak Po=2.0W D2nd=-29dB D3rd=-19dB Ep=135V Ip=30mA Zl=6.0kΩ Ein=15Vpeak Po=1.9W D2nd=-20dB D3rd=-18dB Ep=180V Ip=31mA rp=50kΩ gm=2.9mS μ=146 Ep=180V Ip=31mA Zl=3.0kΩ Ein=15Vpeak Po=2.5W D2nd=-18dB D3rd=-30dB Ep=180V Ip=31mA Zl=4.0kΩ Ein=15Vpeak Po=2.8W D2nd=-21dB D3rd=-24dB Ep=180V Ip=31mA Zl=7.0kΩ Ein=15Vpeak Po=2.5W D2nd=-23dB D3rd=-18dB pins: 1(H)-2(P)-3(G2)-4(K,G3)-5(H)-Top(G1) 参考: 329A/311AのEpIp特性(@Ec2=135V) 1) 329A WE ￥7600 NIB 1) 329A WE ￥8000 NIB date=9-60 1) 329A WE ￥7600 NIB 3) 329A WE ￥7600 NIB date=12-78 1) 329A WE ￥7600 NIB RaggedBox d=6913 2) 329A WE ￥7000 NOS WB gm=2600,2620/1820min matched 2) 329A WE ￥6600 LightlyUsed? WB gm=57,54/31min(TV-7)
331A
332A =Transmitting Power Pentode= EIA/ - Giant 5-pin TopPlate) Ef/If=10V/5A Eb=2000V Ib=63mA gm=4000μmho Po=135W サイズ比較(GE-845, H&K-332A) 1) 332A H.K. ￥22000 NOS ==RARE==
333/A =cold-cathode gas Triode= Estarter=70V(62V-89V) Ea=60V(52V-74V) Ikmax=35mA/100mApeak Life=10000H(@Ik=10mAav)-10H(@Ik=100mAav) 1) 333A WE ￥2000 NIB
336A (see 349A)=PowerPentode= (EIA/6B - UZ, ST12) Eh/Ih=10V/0.64A Ehkmax=150V Ppmax=12W Epmax=250V Pc2max=3.5W Ikmax=50mA Ec2max=250V Ic2max=10mA op(A1S) : Ep=250V Ec2=250V Ec1=-14V Ip=32/34mA Ic2=6.5/11mA rp=42.5kΩ gm=4.25mS Zl=7kΩ D=8% Po=3.6W op(AB1pp) : Ep=250V Ec2=250V Ec1=-18V Ip=35.5/68mA Ic2=8/20.5mA Zlpp=7kΩ D=5.5% Po=8.2W op(triode-connection A1S) : Ep=250V Ec=-16V Ip=30/33mA rp=2.2kΩ gm=4.55mS μ=10 Zl=4kΩ D=4.8% Po=1.3W op(triode-connection AB1pp) : Ep=250V Ec=-18V Ip=47.5/59.5mA Zlpp=7kΩ D=3.2% Po=3W also see same-basing similar types : 2A5(2.6V/1.75A), 18(14V/0.3A), 42(6.3V/0.7A), CZ-504-D(5.5V/1A) 4:reserved) 336A WE ￥21000 NIB MB Navy 7) 336A WE ￥21000 NIB 0) 336A WE ￥- used(D) 4:reserved) 336A WE ￥- used D/C = 6652, 6652, 6652, 6739
337A =Variableμ Pentode= ST12 Eh/Ih=10V/0.32A Ppmax=2W Epmax=250V Pc2max=0.4W Ikmax=10mA Ec2max=180V Eb=135V Ec2=135V Ib=6.3mA rp=550kΩ gm=1730μmho Zl=30kΩ Po=0.23W 1) 337A WE ￥13000 NIB SmallPunch date=326 gm=1480/1080min 2) 337A WE ￥10000 NIB date=5-64 1) 337A WE ￥10000 NOS MB 2) 337A WE ￥10000 NIB 0) 337A WE ￥- NOS SmallPunch date=326 gm=1740/1080min
338A =ThreeElementsArgonFilledThyratron= ST Ppmax=2W Epmax=250V Pc2max=0.4W Ikmax=10mA Ec2max=180V Ef/If=10V/0.32A Edrop=15V Epg-max=325V Ip-peak=0.6A Tdeionize=1msec Ef/If/Tpre-heat=10V/0.5A/60sec 2) 338A WE ￥9000 NIB
339A =filamentary power Pentode= (EIA/5J)Ef/If=5V/1.2A Ppmax=35W Epmax=500V Pc2max=12W Ec2max=450V Ipmax=125mA op : Ep=Ec2=400V Ip=120mA Ec1=-90V Po=30W see an ST-16 bulb different-rating filamentary power pentode : 2E22(Ef/If=6.3V/1.5A Ppmax=30W Ec2max=250V) 0) 339A WE ￥- NIB just-ragged boxes 1:reserved) 339A WE ￥offer LikeNew gm=4020/3000min(@Ep≒125V, Ec=-8V on KS-15750-L1), WB 1:reserved) 339A WE ￥offer LikeNew gm=3740/3000min(@Ep≒125V, Ec=-8V on KS-15750-L1), WB 0) 339A WE ￥- used WB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
342B (see 242A/B/C) =PowerTriode= 1) 342B United ￥27000 NOS
346A/B/C =gass-filled cold cathode tube= Va=225Vpeak Iamax=100mApeak/35mAav Va-drop=80V(72Vmin-90Vmax)@Ia=20mA Tlife=10,000h(@Ia=10mA)-1,000h(@Ia=20mA) 1) 346C WE ￥2000 NIB
347A =Triode= Ef/If=6.3V/0.5A Ehkmax=30V Ppmax=2W Epmax=180V Ikmax=10mA op : Ep=180V Eg=-7.5V Ib=2.8mA μ=15.3 rp=18.3kΩ gm=0.84mS Zl=100kΩ Po=48mA D=3% ０) 347A WE ￥- NIB mesh
348A =Pentode= (EIA/7R - octal TopG1, ST12) (348A=310A/310B / 328A のoctalベース、6.3Vヒーター版 ) Eh/Ih=6.3V/0.5A Ehkmax=±30V Ppmax=2W Epmax=250V Pc2max=0.4W Ec2max=180V Ikmax=10mA op : Eb=135V Ec2=135V Ec1=-3V Ip=5.4mA Ic2=1.20mA rp=750kΩ gm=1.80mS Zl=20kΩ D=8.5% Po=0.25W op : Eb=180V Ec2=135V Ec1=-3V Ip=5.5mA Ic2=1.18mA rp=900kΩ gm=1.82mS Zl=100kΩ D=6% Po=0.15W op : Eb=250V Ec2=135V Ec1=-3V Ip=5.6mA Ic2=1.17mA rp=1.15MΩ gm=1.84mS Zl=100kΩ D=6% Po=0.31W similar to 6J7/G/GT(Ppmax=0.75W, 6.3V/0.3A), 1620(Ppmax=0.75W, 6.3V/0.3A) similar English types : EF37/A, 5A/157D, CV358(Ppmax=1W, Eh/Ih=6.3V/0.2A) 0) 348A-mesh WE ￥- NIB mesh 1) 348A WE ￥offer NOS mesh date=562 gm=1890/1170min WE箱 *** 1) 348A WE ￥offer NIB SmallPunch RaggedBox 1) 348A WE ￥offer NIB LargePunch 1) 348A WE ￥offer NIB LargePunch 1) 348A WE ￥offer NOS LargePunch <ご参考>WesternElectric-310A系の球には、以下のBASE/GridCap/Heater仕様のものがあります。 さらに、Plate形態に、Mesh, SmallPunch, LargePunchの３種類があります。 a) WE-310A/310B BASE = UZ-6pin GriDCapDia=8mmφ Eh/Ih = 10V/0.32A b) WE-328A BASE = UZ-6pin GridCapDia=8mmφ Eh/Ih = 7.5V/0.425A c) STC-4328A/5A-136A BASE = UZ-6pin GridCapDia = 8mmφ Eh/Ih = 7.5V/0.425A d) STC-4328D/5A-136D BASE = Octal-8pin GridCapDia = 8mmφ Eh/Ih = 7.5V/0.425A e) WE-348A BASE = Octal-8pin GridCapDia = 6mmφ Eh/Ih = 6.3V/0.5A
349A (see 336A) =PowerPentode= (EIA/7S(=7AC) - octal, ST12) Eh/Ih=6.3V/1A Ehkmax=150V Ppmax=12W Epmax=250V Pc2max=3.5W Ikmax=50mA Ec2max=250V Ic2max=10mA op(A1S) : Ep=250V Ec2=250V Rk=330Ω Ip=32/30.5mA Ic2=6.5/10.5mA rp=75kΩ gm=4.4mS Zl=7kΩ D=8.8% Po=3.3W op(AB1pp) : Ep=250V Ec2=250V Rk=200Ω Ip=55/64mA Ic2=12/19.5mA Zlpp=7kΩ D=5% Po=7.2W op(triode-connection A1S) : Ep=250V Ec1=-16V Ip=30/33mA rp=2.2kΩ gm=4.55mS μ=10 Zl=4kΩ D=4.8% Po=1.3W op(triode-connection A1S) : Ep=250V Ec1=-18V Ip=47.5/59.5mA Zlpp=7kΩ D=3.2% Po=3W see same basing similar types : 6F6/G/GT / 1611(octal, 6.3V/0.7A) / 1613(octal, 6.3V/0.7A) see different-base electrically-identical WE type : 336A(UZ, 10V/0.64A) also see different-base(UZ) similar types : 2A5(2.5V/1.75A), 18(14V/0.3A), 42(6.3V/0.7A), CZ-504-D(5.5V/1A) ０) 349A WE ￥- NIB date=12-1942,6-1944 0) 349A WE ￥- NOS? VeryStrong 0) 349A H&K ￥- NIB VeryStrong
350A/350B =BeamPower Tetrode=(350A:EIA/5AW -UY5pin TopPlate-ST16, 350B:EIA/7AC-octal-ST16) Eh/Ih=6.3V/1.6A 350A: Ppmax=30W Epmax=600V Ipmax=125mA Pc2max=4W Ec2max=300V 350B: Ppmax=27W Epmax=360V Ipmax=125mA Pc2max=4W Ec2max=270V Rg1max=100kΩ(fixed)/500kΩ(self) A1S : Ep=250V Ec2=250V Ec1=-14V Ip=93/97mA Ic2=6/15mA rp=37.5kΩ gm=8.3mS Zl=2kΩ Po=10.5W D=11% A1S : Ep=350V Ec2=250V Ec1=-18V Ip=62/81mA Ic2=2.5/16mA rp=57.5kΩ gm=7.1mS Zl=3.2kΩ Po=15.8W D=18% A1pp: Ep=250V Ec2=250V Ec1=-15V Ip=162/203mA Ic2=13/24mA rp=37.5kΩ gm=8.2mS Zlp-p=2kΩ Po=15.5W D=2.5% A1pp: Ep=270V Ec2=270V Ec1=-17.5V Ip=163/212mA Ic2=12/28mA rp=50kΩ gm=8.05mS Zlp-p=2kΩ Po=20W D=3.5% AB1pp: Ep=360V Ec2=270V Ec1=-25V Ip=68/162mA Ic2=2.5/24.5mA Zlp-p=3kΩ Po=22W D=5% A1S(triode) : Ep=250V Ec1=-20V Ip=50/56mA rp=1.25kΩ gm=6.4mS Zl=5kΩ Po=1.7W D=5% (参考 : Ep-Ip特性(Tetrode @Ec2=250V)) (参考 : Ep-Ip特性(Triode connection)) 350Aは、807, 5933/807W(Eh/Ih=6.3V/0.9A)と類似・同一ピン配列 also see an electrically similar British type : KT8/CV1079(Eh/Ih=6.3V/1.25A. B5-base, top-plate) 350Bは、6L6/G/GC(Eh/Ih=6.3V/0.9A)と類似・同一ピン配列 0) 350A WE ￥- NIB YellowSilk 0) 350A WE ￥- NIB YellowSilk date=6113 0) 350A WE ￥- NIB (刻印)Engraved RaggedBox 1) 350A WE ￥27000 NIB SilverSilkOnBase("350A Western Electric") RaggedBox 4) 350A NU(WE-type) ￥22000 NIB SilverSilkOnBase("350A National Union WE type") RaggedBox 4) 350A United(WE-type) ￥22000 NIB 1) 350B WE ￥offer NIB WEOB Date=5939 gm=6100/3900min 1) 350B WE ￥offer NIB WEOB Date=6052 1) 350B WE ￥offer NIB WEOB Date=7113 gm=6120/3900min 2) 350B WE ￥offer NIB WEOB Date=7839,7839,7839,7413 1) 350B WE ￥offer NIB WEOB Date=8339 1) 350B WE ￥offer NOS? Date=7239 写真右 0) 350B WE ￥- used?/NOS? Rattle Date=7213 写真左 0) 350B WE ￥- used? Getterが少し薄い Date=5826 写真中央 1) 350B WE ￥offer NOS 52/31min ガラス傷ややあり
352/A =Duo-Diode Triode= similar to WE-292A, RCA-6R7G Eh/Ih=10V/0.32A triode : Epmax=200V Ehkmax=100V op : Ep=135V Ip=2.1mA rp=20.5kΩ gm=0.65mS μ=13.3 Po=42mW 1) 352A WE ￥9000 NIB 1) 352A WE ￥9000 NIB 1) 352A WE ￥9000 NOS
353/A =gas-filled cold cathode Triode= Va=150Vpeak Iamax=100mApeak/35mAav Va-drop=75V(68Vmin-90Vmax)@Ia=20mA Tlife=10,000h(@Ia=10mA)-1,000h(@Ia=20mA) 2) 353A WE ￥2000 NIB Date=8-69 5) 353A WE ￥2000 NIB 1) 353A WE ￥2000 NIB date=6-56
354/A =mercury-filled Power Thyratron= 0) 354A WE - NIB
354V/NR52/CV1173 =cathode-type med-mu Triode= (EIA/-, UF5pin) Eh/Ih=4V/0.65A Ehkmax=50V Ppmax=2W Epmax=250V Ikmax=10mA Rgmax=1.5MΩ op : Ep=250V Ec=-4.5V Rk=700Ω Ip=6.5mA rp=11.5kΩ gm=3.5mS μ=40 op : Ep=250V Rp=40kΩ Rk=1.8kΩ Ip=1.9mA Gain=23.5 Eomax=42.5Vrms(D-2nd=5%) (参考 : Ep-Ip特性) size=43mmΦ x 110mmH, approx. similar to MH4, AC/HL, HL41 also similar to REN904(gm=3.5mS, μ=25-typ), K1694 electrically similar type w/ MAZDA octal base : HL41(Eh/Ih=4V/0.6A) also electrically similar to Brimar - 4D1(British 7-pin, Eh/Ih=13V/0.2A, Top-G) 1) 354V Mullard ￥4300 lightly-used gold spray-shield WB 3) NR52(=354V) Mullard ￥4300 like new gold spray-shield, just-rusty pins, KB/D(Mullard Mitcham), TopView WB 0) 354V Mullard ￥- used gold spray-shield, WB
357A/B
359A =Three electrode cold-cathode gas tube= (EIA/ -) *subminiature* Eamax-peak=165V Ik-range=4mA(life=10000hours)-40mA(life=10hours) Estarter-breakdown-average=80V(67V-89V) Estarter-drop-average=65V(52V-74V) @Istarter=10mA Eanode-drop-average=80V(66V-90V) @Ia=10mA (radioactive Kripton-85 gas inside, disposal note) 1) 359A WE ￥4000 NIB BrownBox date=59-52
371A/VT-166 (similar to RCA-217A)=High Vacuum Rectifier= PIV=25kV Ipmax-peak=1A Ef/If=5V/10.3A 1) 371A WE ￥10000 used
374A =Power Pentode= octal (T11 EIA/) Eh/Ih=3V/0.53A Ppmax=4.8W Epmax=150V Pc2max=1W Ec2max=150V pin assignment 1-NC 2-H 3-G3 4-G1 5-none 6-G2 7-H 8-P op: Ep=135V Ec2=135V Ec=-16V Ip=22/24.5mA Ic2=1.1/5.5mA gm=3.25mS rp=60kΩ Zl=4.5kΩ Po=1.8W D=12.5% op: Ep=150V Ec2=150V Ec=-18V Ip=24/26.0mA Ic2=1.2/4.8mA gm=3.40mS rp=60kΩ Zl=4.0kΩ Po=2.0W D=12.0% 2) 374A WE ￥5900 NOS WB
4) 375 PLUG WE ￥1200 NIB Ballast? date=4-57
375A =BeamPowerPentode= Octal Eh/Ih=20V/0.32A Ppmax=6W Epmax=130V Pc2max=1.3W Ec2max=130V Rgmax=100kΩ(fixed), 500kΩ(self) pin assignment 1-none 2-H 3-P 4-G2 5-G1 6-none 7-H 8-K,G3 op: Ep=90V Ec2=90V Ec=-7.50V Ip=33/34mA Ic2=3.7/11.7mA gm=6.6mS rp=7.8kΩ Zl=2.5kΩ Po=1.4W D=8% op: Ep=120V Ec2=120V Ec=-12V Ip=34/37mA Ic2=3.7/19.0mA gm=6.2mS rp=8.0kΩ Zl=2.5kΩ Po=2.5W D=14% 3) 375A WE ￥5900 NOS WB 1) 375A WE ￥5900 NOS WB 1) 375A WE ￥5900 NIB
386/A =VHF Pentode= (EIA/- lead-type, top-plate) Eh/Ih=6.3V/0.15A Ehkmax=100V Ppmax=1.85W Epmax=180V Pc2max=0.55W op : Ep=120V Ip=7.5mA rp=390kΩ gm=4mS pins : 1(H)-2(G2)-3(G1)-4(G3)-5(H)-6(K)-Top(P) electrically identical to WE-387A, electrically similar to 6AK5, 403A/B 0) 386A WE ￥- used cut-lead's
387/A =VHF Pentode= (EIA/- octal, top-plate) =rare= Eh/Ih=6.3V/0.15A Ehkmax=100V Ppmax=1.85W Epmax=180V Pc2max=0.55W Ec2max=120V Ec3max=120V op : Ep=120V Ec2=120V Ec1=-2V Ip=7.5mA Ic2=2.5mA rp=390kΩ gm=4mS pins : 1(K)-2(H)-3(G2)-4(NC)-5(G1)-6(NC)-7(G3)-8(H)-Top(P) electrically identical to WE-386A electrically similar to WE-717A, 6AK5, WE-403A/B also see data sheet 2) 387A WE ￥7300 NIB date=1949 17) 387A WE ￥4500 NOS Quality(generic)-boxed 0) 387A WE ￥- lightly-used WB 0) 387A WE ￥- used WB
393/A =mercury argon-filled Thyratron= similar to 3C23, 4G93 2) 393A WE ￥4300 NOS WB
394/A =mercury argon-filled Thyratron= similar to RCA-627 1) 394A WE ￥5400 NIB MB engraved date=9-51
396A/2C51 (see 2C51) =TwinTriode= (EIA/8CJ - noval)
397A =SHF Reflex-Klystron= Eh/Ih=6.3V/0.44A 2K56相当 4) 397A WE ￥9900 NIB (as-is: can't test)
398A/5603 =Power Pentode= (octal) similar to 374A Eh/Ih=6.3V/0.5A Ppmax=8W Epmax=150V Pc2max=2.5W Ec2max=150V Ikmax=75mA Ep=Ec2=135V Ip=50mA Ic2=4mA Rk=230Ω μ=92 gm=5.4mS rp=17kΩ Zl=2.5kΩ Po=2.2W 1) 398A WE ￥3900 NIB 青箱 1) 398A WE ￥3100 NIB BrownBox gm=3500/3450min 0) 398A WE ￥3300 NOS WB
399A/B = pentode for M1 carrier telephone apps. = (EIA/ -miniature) 399A(filament) : Ef/If=1.3V/0.2A, 399B(cathode) : Eh/Ih=1.15V/0.65A Epmax=135V Ec2max=135V Ikmax=7mA op : Ep=90V Ec2=67.5V Ec1=0V Ip=3.5mA Ic2=0.8mA rp=500kΩ gm=1.1mS pins : 1(H/F-,K,G3)-2(P)-3(G2)-4(NC)-5(H/F-,K,G3)-6(G1)-7(H/F+) 6) 399B WE ￥2200 NIB
400A/B =Pentagrid Converter= MT similar to 1R5 400A(filament) : Ef/If=1.3V/0.2A, 400B(cathode) : Eh/Ih=1.15V/0.65A Epmax=135V Ec2max=135V Ikmax=7mA Ep=105V Ec2,4=55V Rg1=3.3MΩ Ec3=3V Ip=0.7mA Ik=2.7mA 1) 400B WE ￥1900 NOS WB 4) 400B WE ￥2200 NIB
401A/B/5590 =Pentode= (EIA/ - miniature) long-life 6AJ5 Eh/Ih=6.3V/0.15A Ehkmax=90V Ppmax=1.7W Epmax=180V Pc2max=0.5W Ec2max=140V Ikmax=18mA Tbulb=120℃ op : Ep= 45V Ec2= 45V Ec1=-1.5V Ip=3.0mA Ic2=1.1mA rp=290kΩ gm=2.0mS op : Ep=120V Ec2=120V Ec1=-7.0V Ip=5.1mA Ic2=1.8mA rp=410kΩ gm=2.2mS 21) 401A WE ￥2200 NIB
403A/403B =Sharp-Cutoff Pentode= (EIA/7BD - miniature) Eh/Ih=6.3V/0.15A Ehkmax=90V(403A)/130V(403B) Rg1max=1MΩ(fixed)/2MΩ(self) 403A : Ppmax=1.70W Epmax=180V Pc2max=0.50W Ec2max=140V Ikmax=18mA Tbulb=120℃ 403B : Ppmax=1.85W Epmax=200V Pc2max=0.55W Ec2max=155V Ikmax=20mA Tbulb=130℃ op : Ep=180V Ec2=120V Rk=200Ω Ip=7.4mA Ic2=2.1mA rp=450kΩ gm=5.1mS (参考 : Ep-Ip特性(@Ec2=120V)) 403A/B is electrically similar/equivallent to : 6AK5 / 5591 / 5654 / EF95 / E95F / M8100 heater variant : 408A(Eh=20V) also see electrically-similar different-shape octal types : WE-387A(octal, top-plate), WE-717A(octal) 4) 403A WE ￥3000 NIB '50s 3) 403A WE ￥3000 NIB date=箱12-56 10) 403A WE ￥2500 NIB date=箱11-64 2) 403A WE ￥2500 NIB date=箱12-64 4) 403A WE ￥2500 NIB '60s 3) 403A WE ￥2300 NIB '70s 0) 403A WE ￥- NIB '60s 0) 403A WE ￥- NIB '70s 0) 403A WE ￥- NIB 1) 403A/6AK5 WE ￥1200 used 4500/3150min 1) 403B WE ￥2500 NIB date=6513 1) 403B WE ￥2500 NIB date=6839 1) 403B WE ￥2500 NIB date=1-69(BOX) 2) 403B WE ￥2300 NIB '70s 4) 403B WE ￥2300 NIB D/C=3-78(Box) 6) 403B WE ￥2200 NIB(hxax8nt) 4) 403B NothernElectric ￥2700 NIB 1959 18) 403B NothernElectric ￥2200 NIB 0) 403B Marconi(WE-made) ￥- NIB(T) 0) 403B WE ￥- used(D) 7) 403B WE ￥1300 used gm>4100/3150min(Sn) 2) 403B WE ￥700 used 3350,3250/3150min(xD) 1) 403B WE ￥700 used date=6813 3) 403B/6AK5 SER(Sweden Ericsson) ￥1500 used 4900,4950,4650/3150min
404A/5847 =High-gm Sharp-cutoff RF Pentode for wide-band amps= (EIA/9X - noval)Eh/Ih=6.3V/0.3A Ehkmax=55V Rg1max=50kΩ(fixed)/100kΩ(self) Ppmax(ICAS)=3.3W Epmax=200V Pc2max=0.85W Ec2max=165V Ikmax=40mA gm=13mS rp=200kΩ pins :1(G1)-2(NC)-3(H)-4(KG3)-5(NC)-6(P)-7(NC)-8(G2)-9(H) (参考 : Ep-Ip特性(@Ec2=130V)) (参考 : Ep-Ip特性(@Ec2=150V)) (参考 : 5847の三結時のEp-Ip特性例(sample data plotted for triode connection)) see equivallent : 5847/A see similar types :6R-R8/A/C also see WE-435A(high-gm tetrode), 6R-R21(high-gm tetrode) 2) 404A/5847 LM-E ￥3300 NIB GoldPin 1) 404A/5847 LM-E ￥3300 NIB GoldPin 2) 404A/5847 WE ￥3300 NIB (whx3bnx) 1) 404A WE ￥３９００ NIB date=2-39 (1952) 4) 404A WE ￥３９００ NIB date=1956 (whybvt) 2) 404A WE ￥３９００ NIB date=1-58 8) 404A WE ￥3900 NIB date=1-58(box),5813(on glass) 拡大写真 42) 404A WE ￥3300 NIB (hyx2vavt) 4) 404A WE ￥3300 NIB date=6726 1) 404A WE ￥3300 NIB date=6826 1) 404A/5847 WE ￥3100 NOS WB 0) 404A WE ￥- NIB date=3-56(T) 1) 404A WE ￥3100 NOS WB 3) 404A/5847 WE ￥2000 used (whx2q0nv) 1) 404A/5847 WE ￥1000 used just weak 6800/7800min 4) 404A/5847 Amprx ￥1200 used GoldPin (hyyanx)
405A =75V cold cathode= (leaded 0.5"x2.75" EIA/) Ebreakdown=75V(67Vmin, 89Vmax)If-average=15mA If-peak=40mA 0) 405A WE ￥- NIB rare
407A/B =medium mu TwinTriode= (EIA/407A - noval)
408A =RF Pentode (Heater=20V type 6AK5)= (EIA/7BD - miniature) Eh/Ih=20V/0.05A Ehk=90V Rg1max=1MΩ(fixed)/2MΩ(self) Ppmax=1.7W Epmax=180V Pc2max=0.5W Ec2max=140V Ikmax=18mA gm=5mS rp=340kΩ (see an equivallent type : 6028) (see different heater type 403A/403B/5591(Eh=6.3V)) 7) 408A WE ￥1800 NIB '60s 65) 408A WE ￥1300 NIB (whx6vasq) 4) 408A WE ￥600 used (hyyanz)
409A/6AS6 =dual-control Pentode= (EIA/7CM - miniature) (see 6AS6 also see 5725, WE-415A) Eh/Ih=6.3V/0.175A Ehkmax=90V Ppmax=1.7W Epmax=180V Pc2max=0.75W Ec2max=140V Ikmax=18mA op : Ep-120V Ec2=120V Ec1=-2V Ec3=0V Ip=5.2mA Ic2=3.5mA gm=3.2mS pins : 1(G1)-2(K)-3(H)-4(H)-5(P)-6(G2)-7(G3) 1) 409A WE ￥1900 NIB 1) 409A/6AS6 WE ￥1900 used?
412A =separated-cathode FullWave Rectifier= (EIA/9ET - noval) Eh/Ih=6.3V/1A Ehk-dcmax=450V PIV=1250V Ip-peak-max=300mA Idc=100mA op(capacitor-input): Eac=300V Cin=4uF Rs=150ohm/plate Idc=100mA Eout=340Vdc pins : 1(2P)-2(NC)-3(2K)-4(H)-5(H)-6(NC)-7(1K)-8(NC)-9(1P) see alterenative Bendix-6754 0) 412A WE ￥- NOS WB 5) 412A WE ￥offer NIB date='50s 一部RaggedBox (sNn) 1) 412A WE ￥offer NIB date='60s 1) 412A WE ￥12000 NOS date=213 WB EM=112/111/54min 10) 412A WE ￥9500 NOS date=6352,6352,6352,6552,6552,6613,6713,6713,6713,6726 WB EM=105/104,104/108,105/106,104/102.105/106,111/111.112/109,111/109,110/107,104/105/54min 8) 412A WE ￥9500 NIB date='70s, '80s (why5fnt) 0) 412A WE ￥- NIB D/C=2-81, 11-79 1) 412A WE ￥9500 NOS WB 1) 412A Bendix ￥7900 NOS
415A =Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.15A Ehkmax=90V Ppmax=1.7W Epmax=180V Pc2max=0.75W Ec2max=140V Ikmax=18mA op : Ep=120V Ec2=120V Ec1=-2V Ip=5.2mA Ic2=3.5mA rp=kΩ gm=3.2mS pins : 1(G1)-2(K)-3(H)-4(H)-5(P)-6(G2)-7(G3) same basing and similar to 409A, 6AS6, 5725 14) 415A WE ￥1700 NIB 6) 415A WE ￥1700 NIB date=1)6139,1)6152,4)5-69
416A/B/C/D =Disc-seal Planar Triode= 416B : Eh/Ih=6.3V/1.18A Ehkmax=45V Ppmax=7.5W Epmax=270V Ipmax=33mA Ecmax=+1.5V/-15V Icmax=15mA, gm=50mS-typ μ=200-typ op : Ep=200V Ec=8V f=4GHz gain=9dB(@Po=50mW)/5dB(Po=500mW) Bandwidth=100MHz outer shape / pins : WE-416A/B/C dimension's & pin-assignment's also see a lower power rating UHF high-mu ceramic*planar triode : 8506 (Ppmax=5W, μ=110) 2) 416B WE ￥4300 NIB(Aht) 5) 416B WE ￥offer used? 底面の拡大写真 4) 416B WE ￥offer used D/C=6126, 6152, 6213, 6226 WB 3) 416C WE ￥offer NIB date(箱)=12-78, 5-82, 9-82(-sealed-) 0) 416C WE ￥- NIB date=10-82 8) 416D WE ￥offer NIB date(箱)=6-82 for all(-sealed-)
417A/5842 =High-gm Med-mu Triode for Grounded Grid amp= (EIA/9V - noval) Eh/Ih=6.3V/0.3A Ehkmax=50V WE: Ppmax=4W Epmax=200V Ikmax=40mA op : Ep=150V Rk=62Ω Ip=22.5mA rp=1.7kΩ gm=25mS μ=43 Raytheon: Ppmax(ICAS)=4.5W Epmax=200V Ikmax=38mA Ehkmax=55V Eh/Ih=6.3V/0.3A μ=43 gm=27mS rp=1.6kΩ pins : 1-P 2-NC 3-H 4-G 5-G 6-K 7-G 8-G 9-H (参考) #417A/5842のEpIp特性 see equivallent type : 5842/417A see similar type : 6R-H2/6RH2 11) 417A WE ￥10000 NIB (hwa1v9sn) 2) 417A WE ￥10000 NIB D/C=68-39 1) 417A WE ￥7500 used? 94% gm=22500/15600min 2) 417A WE ￥offer used date=352 gm=15k,14k 0) 417A WE ￥- used(D)
418A =Video/IF Power Tetrode= (EIA/ - MAGNOVAL) similar to NEC-6BP16 Eh/Ih=6.3V/0.6A Ehkmax=90V Tbulb=130℃ Ppmax=8.5W Epmax=250V Pc2max=3W Ec2max=150V Ikmax=90mA Rgmax=50kΩ(fixed bias) op : Ep=120V Ec2=120V Ec=-1.0V Ip=47mA Ic2=20mA rp=18kΩ gm=26.5mS, Ec-cutoff=-9.5V(for Ip=10μA) op : Ep=150V Ec2=150V Rk= 27Ω Ip=50mA Ic2=20mA rp=18kΩ gm=26.5mS (参考) #418AのEpIp特性 pins : 1(H)-2(P)-3(NC)-4(K,IS)-5(G2)-6(H)-7(NC)-8(G1)-9(K,IS) size: 30.2mmΦ x 50.0mm, in max see a Japanese(NTT-spec.) equivallent type : 6B-P16 also see similar WE, NTT higher-gm tetrodes : WE-436A, WE-448A, 6B-R22 also see a different-pinout high-gm Magnoval pentode : NEC 6B-R23(NTT-spec.) also see different-pinout higher-gm Magnoval pentodes : 8233 / E55L(Ppmax=10W, gm=50mS), 8608(top plate) 1) 418A WE ￥offer NIB ClearGlass date=12-59 1) 418A WE ￥7700 NIB SmokedGlass date=61-39 15) 418A WE ￥7100 NIB SmokedGlass(hwx2zam) 1) 418A WE ￥6900 NOS? date='73 '70箱 SmokedGlass 1) 418A WE ￥6900 NOS WB gm=6750hmho(Ec=-3V) date=8139 LargeGetter SmokedGlass 0) 418A WE ￥- NIB(D) 1) 418A WE ￥5500 NOS? gm=7300μmho(Ec=-3V) date=6752(5/73箱) 1) 418A WE ￥5000 NOS? gm=7000μmho(Ec=-3V) ガラスベースにずれあり 1) 418A WE ￥6700 used gm=9000μmho(Ec=-3V) date=5839 ClearGlass 1) 418A WE ￥6500 used gm=7300μmho(Ec=-3V) date=352 ClearGlass 1) 418A WE ￥6100 used gm=6250μmho(Ec=-3V) date=352 ClearGlass 1) 418A WE ￥5100 used gm=7100μmho(Ec=-3V) date=6152 SmokedGlass 1) 418A WE ￥5500 used gm=8850μmho(Ec=-3V) date=6326 SmokedGlass 1) 418A WE ￥5500 used gm=8250μmho(Ec=-3V) date=6326 SmokedGlass 1) 418A WE ￥5500 used gm=9350μmho(Ec=-3V) date=6826 SmokedGlass 1) 418A WE ￥5000 used gm=7600μmho(Ec=-3V) date=6826 SmokedGlass 1) 418A WE ￥5000 used gm=7100μmho(Ec=-3V) date=8239 SmokedGlass 1) 418A WE ￥5000 used gm=7500μmho(Ec=-3V on Hickok-539B) date=8239 SmokedGlass 1) 418A WE ￥5000 used gm=7500μmho(Ec=-3V on Hickok-539B) date=8239 SmokedGlass 1) 418A WE ￥5000 used gm=7700μmho(Ec=-3V on Hickok-539B) date=8226 SmokedGlass 1) 418A WE ￥5500 used gm=8130μmho(Ec=-3V on Hickok-539B) date=7752 SmokedGlass 0) 418A WE ￥- lightly-used date code = 6913 & ? gm=20.5mS, 18.0mS / 13mS-minimum on a KS-15750-L1 tester(Hickok-made WE tube tester) 0) 418A WE ￥- lightly-used date code = 5952, 7052,6526, 6526, 7539 gm = 20.5mS, 19.5mS, 20.5mS, 19.7mS, 21.5mS / 13mS-minimum on a KS-15750-L1 tester 0) 418A WE ￥- used(Q)
420A/5755 写真2 (see 5755) =TwinTriode for DC amp= (EIA/9J -noval) Eh/Ih=6.3V/0.36A(12.6V/0.18A) Ehkmax=75V WE : Ppmax=1W Epmax=225V Ipmax=5mA rp=140kΩ gm=0.5mS μ=70 (参考 : WE-420AのEp-Ip特性) 0) 420A WE ￥- NIB TopGetter date=6226(D) 2) 420A WE ￥6700 NIB TopGetter date=6613,6626 3) 420A WE ￥6700 NIB TopGetter date=7-69, 7452,7452 2) 420A WE ￥5800 NIB TopGetter date=3-80 1) 420A WE ￥6900 NIB ClearTop date=12-57 0) 420A/5755 WE ￥- used Clear-Top (whx23) 0) 420A/5755 WE ￥- used Top getter(sD) 1) 420A/5755 Ray ￥1500 used Clear Top!(sT) 18) 420A/5755 Ray ￥900 NOS WHITE TopGtr(whx14)
421A (see 5998) =Twin Power Triode= (EIA/8BD - octal) Eh/Ih=6.3V/2.4A Ehkmax=130V(90V-recommended for longer life expectency)Tbulb=200℃(150℃-recommended) Ppmax=13W Epmax=250V Ikmax=125mA Rgmax=100kΩ op1 : Ep=110V Rk=90Ω Ip=100mA rp=330Ω gm=18mS μ=5.9 op2 : Ep=110V Rk=65Ω Ip=125mA rp=305Ω gm=20mS μ=6.1 (参考) #421AのEpIp特性 (also see 6AS7G(μ=2) 5998(μ=5.4) 6080(μ=2) 7802(μ=9)) 0) 421A WE ￥- NIB '60(sQn) 0) 421A WE ￥- NIB 5-63 0) 421A WE ￥- NIB(whx11nt) 0) 421A WE ￥- used 新同品 WB(D) 0) 421A WE ￥- used WB 0) 421A WE ￥- used? date=7439 WB 6100/6100/5000min NoDiscoloration 0) 421A WE ￥- used date=6826WB @@ 0) 421A WE ￥- used date=7026 WB 1) 421A WE ￥3500 used 4500/4500/5000min 0) 421A Electronic Enterprizes ￥- NIB (GD)
422A =Full-wave Rectifier= Eh/Ih=5V/3A PIV=1800V Idc=400mAmax(for Linput @Einput=up to 400Vrms) Edrop=26V(@Ip=300mA/unit) (参考) WE-422Aの整流特性(Idc-Edc-Eac) 0) 422A WE ￥- NIB(Q) 0) 422A WE ￥- NIB date=6-77, 8-77 etc(sSx) 0) 422A WE ￥- NIB(nT) 0) 422A WE ￥- NIB Date=2-62 0) 422A WE ￥- NIB Date=2-75 ガラスにメタルチップあり(製造時のもの) 0) 422A WE ￥- NIB Date=8-81 0) 422A WE ￥- NOS Bulk品/United箱 Getter面側の写真 EM=135/135/54min, 130/131/54min Date=339 526 0) 422A WE ￥- used?LikeNew 136/138/54min WB date=６１２６ 1) 422A WE ￥- usedLikeNew 126/126/54min WB date=5726 ベース内にややラトルあり。 2) 422A WE ￥offer usedLikeNew EM=126/124, 126/126/54min date=5952, 5952 0) 422A WE ￥- used?LikeNew 128/128/54min WB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
423C =100V voltage reference / Cold-cathode gas tube= (EIA/ - noval) Estart=135V(160Vmax) Eop=100V(99V-103V) Ia=4-8mA Regulation=0.75V(Ia=4-6mA) (radioactive Krypton-85 gas inside, disposal note) pins : 1(IC)-2(K)-3(K)-4(IC)-5(IC)-6(IC)-7(A)-8(A)-9(IC) see an equivallent type : WE-6140 see another WE 100V-voltage reference : WE-432A/B also see an 85V miniature type voltage reference : 5651/A(7-pins) 3) 423A/6140 WE ￥1500 NIB 2) 423A WE ￥1500 NIB 1) 423A WE ￥1200 NOS? WB 1) 423A WE ￥1200 NOS? WB date=413 7) 423C WE ￥1500 NIB 10) 423C WE ￥1500 NIB date='60s 1) 423C WE ￥1500 NIB date=6613 1) 423C WE ￥1500 NIB date=3-69 2) 423C WE ￥1500 NIB date=8-74 3) 423C WE ￥1500 NIB date=9-75
426A =Three electrode cold-cathode gas tube= (EIA/ - special, with cord tips) Eamax-peak=180V Ik-range=7.5mA(life=10000hours)-60mA(life=10hours) Estarter-breakdown-average=72V(65V-85V) Estarter-drop-average=63V(53V-72V) @Istarter=3mA Eanode-drop-average=69V(63V-75V) for Ia=10mA (radioactive Kripton-85 gas inside, disposal note) 1) 426A WE ￥3000 NIB date=10-55
427/A/B =Cold-cathode tube= Estarter=125V(115V-135V) Ea=100V(99V-103V) Ik=5mA-40mA Istarter=0.5mA-5mA see an equivallent type : WE-6141 3) 427A WE ￥1500 NIB date=3-58 2) 427A WE ￥1500 NIB date=1-59
429A =Beam Pentode= (EIA/ - MAGNOVAL) Eh/Ih=20V/0.14A Ppmax=12W Epmax=275V Pc2max=2W Ec2max=150V Ikmax=75mA Ehkmax=130V op : Eb=130V Ec2=130V Ec1=-3V Ib=41mA gm=6.6mS rp=37kΩ Zl=5kΩ pins : 1(H)-2(P)-3(NC)-4(K)-5(G2)-6(H)-7(P)-8(G1)-9(K) (参考 : Ep-Ip特性(@Ec2=130V)) 4) 429A WE ￥4800 NIB date=9-57,5-56,5-56,56-26 8) 429A WE ￥4100 NIB date=10-65 14) 429A WE ￥4100 NIB (hx1v9nt) 1) 429A WE ￥3800 NOS 1) 429A WE ￥3800 NOS NorhthermTelecom-BrownBox(not OriginalBox) 1) 429A WE ￥4100 NIB date=8-70(箱) 4) 429A WE ￥4100 NIB date=10-75(箱) 0) 429A WE ￥- NIB(D) 0) 429A WE ￥- NIB(D) 0) 429A WE ￥- used(Q) 18) 429A WE ￥2400 used (whx19)
430A/B =Three electrode cold-cathode gas tube= (EIA/ - small-4pin GT) Eamax-peak=185V Ik-range=10mA(life=10000hours)-100mA(life=10hours) Estarter-breakdown-average=70V(65V-85V) Estarter-drop-average=60V(52V-74V) @Istarter=20mA Eanode-drop-average=75V(68V-85V) @Ia=20mA (radioactive Radium Bromide gas inside, disposal note) 1) 430B WE ￥1700 NIB
431U / 43-IU =cathode-type FullWaveRectifier= (EIA/ - British 4-pin) Eh/Ih=4V/2.5A (with an indirectly heated cathode tied to one side of the heater) Epmax=350Vrms Idcmax=120mA similar type : MU12(Marconi/Osram) 2) 431U Cossor ￥offer NIB very-ragged boxes (hyy2&4mcqx)
432A/B =100V voltage reference / Cold-cathode gas tube= (EIA/ - noval) Ea_breakdown=135V(160Vmax) Ea-drop=100V(99V-103V) Ik=4-8mA Regulation=0.75V(@Ia=4-6mA) (radioactive Krypton-85 gas inside, disposal note) pins : 1(IC)-2(K)-3(K)-4(IC)-5(Starter)-6(IC)-7(A)-8(A)-9(IC) see a similar(100V-voltage reference) type : WE-423A/B/C 6) 432B WE ￥1900 NIB
435A =High-gm input-stage Tetrode= 9-pin (EIA/ - noval) Eh/Ih=6.3V/0.3A Ehkmax=50V Rg1max=50kΩ(fixed)/100kΩ(self) Ppmax=3W Epmax=190V Pc2max=0.75W Ec2max=160V Ikmax=36mA op : Ep=190V Ec2=160V Rk=630Ω Ip=12mA rp=65kΩ gm=15.5mS pins :1(G1) 2(NC) 3(H+S) 4(K) 5(NC) 6(P) 7(NC) 8(G2) 9(H) 参考 : Ep-Ip特性(@Ec2=130V) (note: similar to WE-404A(pentode) nearly same pin-assignment available) an equivallent type: NEC 6R-R21 0) 435A WE ￥- NIB 5) 435A WE ￥offer NIB 2) 435A WE ￥offer NIB D/C=8-87 0) 435A WE ￥- used (NVX)
436A =Power Tetrode= (EIA/ - MAGNOVAL) Eh/Ih=6.3V/0.45A Ehkmax=55V Epmax=210V Ppmax=5W Ec2max=175V Pc2max=2.2W Ikmax=50mA Rgmax=50kΩ(fixed)/100kΩ(self) op : Ep=130V Ec2=130V Ec1=-1.00V Ip=21.5mA Ic2=12.5mA rp=5kΩ gm=30mS op : Ep=160V Ec2=160V Ec1=-1.75V Ip=18.8mA Ic2=10.8mA rp=5kΩ gm=28mS op : Ep=190V Ec2=160V Ec1=+7.5V Rk=315Ω Ip=20.2mA Ic2=8.2mA rp=36kΩ gm=30mS pins : 1(H,IS)-2(K)-3(K)-4(G1)-5(NC)-6(H)-7(G2)-8(NC)-9(P) size: 30.2mmΦ x 50.0mm, in max (参考 : Ep-Ip特性(@Ec2=130V & 160V)) also see a loktal-base type of WE-436A : STC-5A/180M also see different pinout Magnoval high-gm Tetrodes : 6B-P16(26.5mS) 6B-R22(31.5mS) 418A(26.5mS) 448A(31.5mS) also see a different-pinout high-gm Magnoval pentode : NEC 6B-R23(NTT-spec.) also see different-pinout higher-gm Magnoval pentodes : 8233 / E55L(Ppmax=10W, gm=50mS), 8608(top plate) 5) 436A WE ￥OFFER NIB (-sealed-) 6) 436A WE ￥offer NIB date=8352/12-83(箱) 13) 436A WE ￥offer NIB date=8552/12-85(箱) 0) 436A WE ￥- NOS WB(sT) 0) 436A WE ￥- used? WB(sT) 0) 436A WE ￥- used WB(Aht) 5) 436A WE ￥４０００ used WB faded-getter/strong(Qn)
437A =PowerTriode= (EIA/ - MAGNOVAL) (see 3A/167M) Eh/Ih=6.3V/0.45A Ehkmax=50V Epmax=250V Ppmax=7W Ikmax=45mA Rgmax=50kΩ(fixed)/100kΩ(self) op: Ep=140V Ec=-2V Ip=29.0mA rp=950Ω gm=43mS μ=41 op: Ep=180V Ec=-3V Ip=25.0mA rp=960Ω gm=42mS μ=41 op: Ep=160V Ec=+7.5V Rk=262Ω Ip=36.5mA rp=900Ω gm=46mS μ=41 pins : 1(H)-2(NC)-3(G)-4(NC)-5(NC)-6(H)-7(K)-8(K)-9(P) size: 30.2mmΦ x 50.0mm, approx. (参考 : Ep-Ip特性) 0) 437A WE ￥- NOS 0) 437A WE ￥- used
443A =Three electrode cold-cathode gas tube= (EIA/ - noval) Eamax-peak=180V Ik-range=7.5mA(life=10000hours)-60mA(life=10hours) Estarter-breakdown-average=72V(65V-85V) Estarter-drop-average=63V(53V-72V) @Istarter=3mA Eanode-drop-average=69V(63V-75V) @Ia=10mA (radioactive Krypton-85 gas inside, disposal note) pins : 1(A)-2(IC)-3(IC)-4(IC)-5(Starter)-6(K)-7(IC)-8(IC)-9(IC) 4) 443A WE ￥1000 NIB
448A/448B =Tetrode= (EIA/ - MAGNOVAL) Eh/Ih=6.3V/0.45A Ehkmax=50V Ppmax=6W Epmax=150V Pc2max=1.75W Ec2max=150V Ikmax=50mA Rg1max=50kΩ(fixed)/100kΩ(self) op :Ep=135V Ec2=135V Ec1=+9.5V Rk=323Ω Ip=24.9mA Ic2=8.8mA rp=33kΩ gm=31.5mS pins : 1(P)-2(NC)-3(K)-4(G1)-5(H)-6(K)-7(K)-8(H,S)-9(G2) (参考 : Ep-Ip特性(@Ec2=135V)) see NEC 6B-R22(NTT-spec.) derived from WE448A see similar WE tetrodes : WE-418A WE-436A also see a different-pinout high-gm Magnoval pentode : NEC 6B-R23(NTT-spec.) also see different-pinout higher-gm Magnoval pentodes : 8233 / E55L(Ppmax=10W, gm=50mS), 8608(top plate) 5) 448A WE ￥offer NIB 5) 448A WE ￥offer NIB 3) 448A WE ￥offer NIB date(箱)=9-78,9-78,9-78(-sealed-) 4) 448B WE ￥offer NIB dome-top date=9/78 2) 448A WE ￥offer NIB ATT箱 date(箱)=2-85,4-85(-sealed-) 4) 448B WE ￥offer NIB Bell-marked (-sealed-) 4) 448B WE ￥offer NIB ATT-box (-sealed-) 7) 448B WE ￥offer used WB (hyysLD)
452/A =reflex Klystron= Octal 0) 452A WE ￥3900 NIB Krystron NotTested 2) 452A WE ￥3900 NOS Krystron WB NotTested
C-484 =cathode-type med-mu Triode= Eh/Ih=3V/1.4A (long warm-up time required like 'over 1-minute'.) op : Ep=150V-typ Ec=-7.5V-typ Ip=mA rp=kΩ gm=mS μ= similar to 485 / C-485 0) C-484-globe Cardon ￥- lightly-used WB 2) C-484-globe Cardon ￥2800 lightly-used engraved-base WB
485 =cathode-type med-mu Triode= Eh/Ih=3V/1.3A (warm-up improved version of #484) op : Ep=180V Ec=-9V Ip=5mA rp=9.3kΩ gm=1/35mS μ=12.5 similar to UY227, #327 2) 485 Syl ￥3900 NIB 0) 485-globe Tsol ￥3100 used gm=105/60(TV-2) 0) 485-globe Tsol ￥- used gm=97/60(TV-2) 0) 485-ST Tsol ￥2000 used gm=100/60(TV-2) 0) 485-globe Sparton ￥- used gm=30/33min(TV-7B/U)
502/A =Gas Tetrode Thyratron= Eh/Ih=6.3V/0.6A Tpreheat=10sec Ehk+max=25V Ehk-max=100V Ep-peakmax=650V PIV=1300V Eg2-peakmax=-100V Eg1-peakmax=-200V Ig2max=10mA Ig1max=10mA Ik-peakmax=1A Ik-surgemax=10A(100msec) Ikmax=0.1A 1) 502A RCA ￥1600 NIB VeryRaggedBox(Rattle) +++ 1) GL-502A GE ￥1500 NIB GT青箱 1) 502A GE ￥1500 NIB metal 橙箱 1) 502A GE ￥1500 NIB metal 橙箱(rattle)
502AX/CK502AX =filamentary mW-power Pentode= *subminiature* Ef/If=1.25V/30mA Epmax=45V Ec2max=45V Ikmax=1mA op : Ep=45V Ec2=45V Ec1=-1.25V Ip=0.45mA Ic2=0.11mA gm=0.5mS rp=250kΩ Rload=100kΩ KF=10% Po=65mW 0) CK502AX Ray ￥- NIB
506 =Filamentary Fullwave rectifier= Eacmax=2x300Vrms Idcmax=75mA Coutmax=32uF Ef/If=4V/1A size=110mmx48mmdia typ. 1) 506-globe Philips ￥１１０００ used? 86mA/40mAmin(Funke W19) justLooseBase =VeryRare=
512AX/CK512AX =filamentary Pentode for wearable instrument= *subminiature* Ef/If=0.625V/20mA Epmax=25V Ec2max=25V Ikmax=0.1mA op : Ep=22.5V Ec2=22.5V Ec1=0V Rp=1MΩ Rc2=2.7MΩ Vgain=37 0) CK512AX Ray ￥- NIB
526AX/CK526AX =filamentary Pentode= *subminiature* Ef/If=1.25V/20mA Epmax=45V Ec2max=45V Ikmax=1mA op : Ep=22.5V Ec2=22.5V Ec1=-1.5V Ip=0.45mA Ic2=0.12mA gm=0.4mS rp=220kΩ Rload=50kΩ KF=10% Po=3.75mW 0) CK526AX Ray ￥- NIB
533AX/CK533AX =mW-power amp pentode (direct heated)= (5-pin) Ef/If=1.25V/15mA Epmax=45V Ec2max=45V Ikmax=0.65mA op : Ep=22.5V Ec2=22.5V Ec1=0V Ip=0.36mA Ic2=0.09mA gm=0.45mS rp=500kΩ Rload=75kΩ KF=12% Po=1.3mW 1) CK533AX Ray ￥１6００ NIB *subminiature*
534AX/CK534AX =voltage amp pentode (direct heated)= (5-pin) Ef/If=0.625V/15mA Epmax=30V Ec2max=30V Ikmax=0.1mA op : Ep=15V Ec2=15V Ec1=-0.625V Ip=0.0092mA Ic2=0.0037mA gm=0.036mS rp=5MΩ Rload=1MΩ Egain=24 1) CK534AX Ray ￥１6００ NIB *subminiature*
542AX/CK542AX =power amp pentode (direct heated)= (5-pin) Ef/If=1.25V/15mA Epmax=30V Ec2max=30V Ikmax=0.7mA op : Ep=22.5V Ec2=22.5V Ec1=-2V Ip=0.425mA Ic2=0.13mA gm=0.325mS rp=0.15MΩ Rload=50kΩ KF=10% Po=3.75mW 0) CK542AX Ray ￥- NIB *subminiature*
547AX/CK547AX =power amp pentode (direct heated)= (5-pin) Ef/If=1.25V/10mA Epmax=45V Ec2max=45V Ikmax=0.5mA op : Ep=45V Ec2=45V Ec1=-1.25V Ip=0.17mA Ic2=0.04mA gm=0.32mS rp=1.6MΩ Rload=200kΩ KF=12% Po=3.5mW 0) CK547AX Ray ￥- NIB *subminiature*
549DX/CK549DX 1) CK549DX Ray ￥１6００ NIB *subminiature*
572B
577 =HV rectifier= Ef/If=5V/10.3A (thoriated tungsten) PIV=25kV Idc=300mA/1.5A-peak, mounting=vertical-only 2) JAN-CUE 577 United ￥3500 used? pill-getter type (hyy17s)
CK587 == (EIA/) 1) CK587 Ray ￥3000 NIB MB
631 2) JAN-CHS 631 P1 Syl ￥2900 NIB MB Strobotron
678 ０) 678J RCA ￥1000 NOS(D)
701A
705/705A =HalfWave HighVacuum Rectifier= トリタンフィラメント PIV=30000V Idc=100mA Ip-peak-max=400mA Ef/If=5V/5A 2) 705A WE ￥11000 NIB 未開封 大箱 1) 705A WE ￥10000 NOS 1) 705A WE ￥10000 NIB 5) 705A Ray ￥2700 NIB(Sx)
NL-710/6011 2) NL-710/6011 National(Varian) ￥9000/2pcs NIB 2本入り
715A/B/C
717A =mashroom-top Pentode=
718 =cathode-type med-μ triode= Eh/Ih=4V/-A similar to REN904(TFK) 1) 718 SIF ￥5000 used tested WB
723/A/B =Klystron= for 8.70GHz-9.55GHz band 1) 723A/B WE ￥5900 NIB
724A =Klystron= 1) USN-CHS 724A Syl ￥3000 NIB MB BrownBox
724B =Klystron= 2) 724B WE ￥3500 NIB MB
726A =Klystron= 1) 726A WE ￥5000 NIB MB
756 =Transmitting Power Triode= 0) 756-globe Taylor ￥8900 used CeramicBase
760 = 6858 = NL-760 =Marcury-vapor Thyratron=
800
801/801A/VT62 (see VT-62/801A) =PowerTriode= Ef/If=7.5V/1.25A Ppmax=20W Epmax=600V Ipmax=70mA μ=8typ Rgmax=100kΩ(fixed), 500kΩ(self) op(A1S) : Ep=425V Ec=-40V Ip=18mA gm=1.6mS rp=5kΩ Zl=10.2kΩ Po=1.6W op(A1S) : Ep=500V Ec=-45V Ip=24mA gm=1.725mS rp=4.6kΩ Zl=8kΩ Po=2.3W op(A1S) : Ep=600V Ec=-55V Ip=30mA gm=1.84mS rp=4.3kΩ Zl=7.8kΩ Po=3.8W op(B2pp): Ep=400V Ec=-50V Ipo=4mAx2 Ipmax=65mAx2 Zlpp=6kΩ Pin=3W Po=27W op(B2pp): Ep=500V Ec=-60V Ipo=4mAx2 Ipmax=65mAx2 Zlpp=8kΩ Pin=3W Po=36W op(B2pp): Ep=600V Ec=-75V Ipo=4mAx2 Ipmax=65mAx2 Zlpp=10kΩ Pin=3W Po=45W (see Ep-Ip特性) also see European equivallent : 3T20(Mazda) also similar to AT20/CV1361 1) 801A RCA ￥9500 NIB 1) 801A RCA ￥9500 NIB 3) VT-62/801/801A RCA ￥9000 NOS Bulk(rhxanz) 0) 801A rca ￥- NIB MB(ragged box) 1) 801A Sylvania ￥8500 LikeNew WB 1720/950min date=539 0) 801A Hytron ￥- Matchedペア 1) 801A HYTRON ￥8500 NOS JAN 0) VT-62/801A Hytron ￥8000 NIB
802 =PowerPentode= (EIA/ - UT TopPlate, ST16) Eh/Ih=6.3V/0.9A CCS : Ppin-max=15W Epmax=500V Pc2in-max=3W Ec2max=250V, gm=2.25mS-typ ICAS: Ppin-max=18W Epmax=600V Pc2in-max=3W Ec2max=250V op(CCS : A1S) : Ep=400V Ec3=0V Ec2=250V Ec1=-18V Ip=30mA Ic2=10mA Zl=10kΩ D=8% Po=5.5W op(CCS : A1S) : Ep=500V Ec3=0V Ec2=225V Ec1=-17V Ip=25mA Ic2=7mA Zl=16kΩ D=10% Po=6.5W op(ICAS : A1S) : Ep=600V Ec3=40V Ec2=250V Ec1=-18.5V Ip=30mA Ic2=8mA Zl=13.2kΩ D=9% Po=7.6W 1) 802 RCA-Deforest ￥3900 NIB 1) 802 RCA ￥3900 NIB MB 1) 802 RCA ￥3900 NIB RB 0) 802 RCA-Deforest ￥- used? 1) 802 RCA-Deforest ￥2500 used LargeGtr BlkBase 1550/1260min 1) GL-802 GE ￥3900 NOS gm=1725/1260min WB
803
804 =Transmitting Power Pentode= (EIA/ - TopPlate) Ef/If=7.5V/3A Fmax=15MHz-80MHz Class B : Ppmax=40W Epmax=1250V Pc2max=5W Ec2max=300V Pc3max=5W Ipmax=50mA op (B2S) : Ep=1000V Ec2=300V Ec3=+45V Ec1=-20V Esig=27V^peak Ip=45mA Ic2=11mA Ic1=1mA Pin=0.25W Po=16W size : 52mmΦ x 197mmH, in max 1) 804 RCA ￥6000 NOS WB 1900μmho 0) 804 RCA ￥- used MB
805
806
807 =Power Pentode= (EIA/5AW - TopPlate ST16 bulb) Eh/Ih=6.3V/0.9A Ehkmax=135V pentode connection CCS : Ppmax=25W Epmax=600V Pc2in-max=3.5W Ec2max=300V Ipmax=120mA Rg1max=100kΩ(fixed bias) ICAS : Ppmax=30W Epmax=750V Pc2in-max=3.5W Ec2max=300V Ipmax=120mA Ehkmax=135V AB1pp(CCS) : Ep=400V Ec2=300V Ec=-30V Ein=60Vp-p Ip=56mA/143mA Ic2=2mA/16mA Zlpp=6.8kΩ Po=36W AB1pp(ICAS) : Ep=750V Ec2=300V Ec=-35V Ein=70Vp-p Ip=30mA/139mA Ic2=0.5mA/16mA Zlpp=12kΩ Po=72W triode connection CCS : Pp+Pc2max=25W Epmax=400V Ipmax=125mA ICAS : Pp+Pc2max=30W Epmax=400V Ipmax=125mA AB1pp(CCS,ICAS) : Ep=400V Ec=-45V Esig-p-p=90V Ipo=64mA Ipmax=140mA Rlp-p=3kΩ Po=15W (see 三結時のEp-Ip特性 - triode connection) see variants/similar types : 5933, 6BG6G/GA, ATS 25, 5B/254M - CV428(loktal), and 1625/VT-136(Eh/Ih=12.6V/0.45A) also see a Japanese similar type : PT-1(made by Ten = Kobe Kogyo) also see WE-350A(6.3V/1.6A) also see an electrically similar British type : KT8/CV1079(Eh/Ih=6.3V/1.25A. B5-base, top-plate) size : 52mmΦ x 146mmH, in max 2) 807W(=5933) Syl ￥4300 NIB Straight-glass 807W/5933-silk Brown-Base 大型緑Syl箱 old 2) 807 Philips ￥3600 NIB VeryOld 13) 807 Philips ￥3300 NIB BrownBase 黄色元箱 VeryVeryRaggedBoxes 1) 807 Philips ￥3300 NIB 0) 807 Amprx ￥- NIB 0) 807 Amprx ￥- NIB RaggedBox 1) 807 RCA ￥3600 NIB 地図箱 ragged-box 0) 807 RCA ￥- NIB 1) 807 RCA ￥3100 NIB 0) 807 RCA ￥- NIB (hyydvq) 0) 807 RCA ￥- NOS WB(T) 2) 807 RCA ￥3000 NIB 1本は管内にGlassChipがあります 1) 807 RCA ￥2200 NOS WB FadedGetter 4) JAN 807 Radiotron ￥3000 NIB 大型元箱 made in Australia 1) 807 GE ￥2700 NIB 1) 807 GE ￥2700 NOS RCA箱 (NTB) 1) 807 GE ￥2700 NIB 青箱 GrayPlate 茶Base 1) 807 GE ￥2700 NIB 青箱 GrayPlate 濃茶Base 1) 807 GE ￥2700 NOS D/C=60-35 0) JAN-CHS 807/VT-100A WesternElectric(Syl-made) ￥- NIB RaggedBox MB(mD) 1) 807 Syl ￥2700 NOS LightBrownBase 1) 807 Syl ￥2700 NOS 0) 807 WH ￥- NIB CeramicBase 1) 807 NU ￥2700 NOS 1) 807 Hytron ￥2700 LikeNew D/C=March 1942 gm=88/48min(on TV-7/B) 1) 807 CBS ￥2700 NOS BlkPlate 濃茶Base 水色文字 1) 807 CBS ￥2700 NOS BlkPlate 茶Base オレンジ文字 1) 807 不明 ￥2700 NOS? smoke-glass 茶Base 変色無 gm=新同 1) 807 WH ￥2700 NIB MB 1) 807 WH ￥2500 used? gm=4650/2400min 2) UY-807 Toshiba ￥2700 NIB BlkPlate just-ragged boxes 4) UY-807A Toshiba ￥5100 NIB metal-base, straight-glass, BlkPlate rare 0) 807 Fivre(Italy) ￥- used Ceramicベース エミッション85%,95%(D) 0) 807 RCA ￥- used 新同品 80/48min 0) 807 RCA ￥- used 1) 807 RCA ￥1900 used 1) 807 GE ￥1700 used 濃茶Base gm=3550/2400min 1) 807 GE ￥1700 used LightBrownBase gm=3650/2400min 3) JAN-CNU 807 NU ￥1700 used LightBrownBase gm=3560,3700,3800/2400min 1) 807 FAA LikeNew ￥2200 GrayPlate gm=3800/2400min Ip=35mA JustShortGlass WB 0) 807 RCA LikeNew ￥2700 BlackPlate WB 1) JAN-CWL 807 WH LikeNew ￥2500 GrayPlate gm=4330/2400min Ip=30mA DarkBrownBase WB 1) JAN-CHY 807 Hytron LikeNew ￥2500 GrayPlate gm=3380/2400min Ip=28mA SmokedGlass WB 1) UY-807 NEC lightly-used ￥2000 D/C=1964-6, just-loose-base WB 2) UY-807 Hitachi used ￥2000 BlkPlate WB 1) UY-807 TEN lightly-used ￥2000 WB 1) UY-807 Matsushita lightly-used ￥2000 just-loose-base WB
808
809
標記 この頁の各行は、基本的に下記のように記述されております｡ 在庫数) TYPE 製造メーカ 単価 new/used状態 その他状況 メーカ略号 Amprx(Amperex), Cunnghm(Cunningham), Dmnt(Dumont), GE(General Electric), Hyt(Hytron), Krad(KenRad), L&K(Lewis and Kaufman), Mag(Magnavox), NU(National Union), Ray(Raytheon), STD(Standard), Syl(Sylvania), TFK(Telefunken), Tsol(Tung-Sol), WE(Western Electric), WH(Westinghouse), Znth(Zenith)
810
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
811/811A
812/812A
812H/812HD
813
814
815
816 =Halfwave Rectifier= (EIA/4P) PIV=7500V Idc=125mA Ef/If=2.5V/2A 0) 816 RCA ￥3500 NIB MB 1) 816 GE ￥3500 NIB 4) 816 GE ￥3500 NIB 0) 816 RCA ￥- used(D)
822
826
828
829B
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
830B
832
833/833A
834
836 =cathode-type Halfwave Rectifier= PIV=5000V Idc=250mA/1A-peak Eh/Ih=2.5V/5A (NOTE : Plate circuit return should be made to the center-tap of the heater transformer.) 0) CRC-836/VT-236 RCA ￥- NIB MB(D) 1) 836 RCA ￥3300 NIB 7) 836 Raytheon ￥3300 NIB MB 1) 836 Cetron ￥2500 NIB 1) 836 EEI ￥2500 NOS? RCA箱
837
838
841 (= VT-51) =TransmittingPowerTriode= Ef/If=7.5V/1.25A トリタンフィラメント Ppmax=12W Epmax=425V Ipmax=60mA Icmax=20mA μ=30typ op(B2pp) : Ep=350V Ec=-5V Ipo=7mA Ipmax=120mA Einpp=176V Pin=3.2W Zlpp=5.2kΩ Po=21W op(B2pp) : Ep=425V Ec=-5V Ipo=13mA Ipmax=120mA Einpp=180V Pin=3.6W Zlpp=7kΩ Po=28W #45よりGRIDピッチが小さい=High μ (see #841のEp-Ip特性) 2) 841 RCA-DeForest ￥15000 LikeNew WB 56,67/25min 1) 841 RCA-DeForest ￥15000 LikeNew WB 1) 841-globe RCA-DeForest ￥15000 NOS WB 1135/630min 4) 841 Hytron ￥12000 NIB MB 0) 841 United ￥- used CeramicBase CarbonGraphitePlate gm=1160μmho(Ef=6.3V)
842
843/VT-73
845
850
852
860
864/38064/VT-24 =Low-microphonic Triode= (EIA/4D - straight T9-bulb) Ef/If=1.1V/0.25A-DC - Low microphonic designed general purpose triode - Epmax=135V Rgmax=2MΩ op 1 : Ep= 90V Ec1=-4.5V μ=8.2 rp=13.5kΩ gm=0.610mS Ip=2.9mA op 2 : Ep=135V Ec1=-9.0V μ=8.2 rp=12.7kΩ gm=0.645mS Ip=3.5mA (864のEpIp特性) see VT-24 similar to WE-264A/B/C(Ef/If=1.5V/0.3A) 2) 38064(=864) RCA ￥5100 NIB MB(Q) ('38064' = US-Navy specified type 864 tube)
866/866A =Halfwave Mercury-Rectifier= (EIA/4P) *866 : PIV/Idc=7500V(Hg-temp=10℃-60℃, 150Hz-max) Ipmax=0.25A(av.) Vdrop=15V Ef/If=2.5V/5A *866A : PIV/Idc=5000V(Hg-temp=25℃-70℃, 1kHz-max) Ipmax=0.25A(av.) Vdrop=10V Ef/If=2.5V/5A (note) RCA-TT3 says: ------- Initial pre-heating : During initial operation, the 866 should be operated for 15 minutes with normal filament voltage and no plate voltage; the 866A, for 30 minutes with normal filament voltage and no plate voltage. This is done to distribute the mercury properly. The procedure need not be repeated unless, during subsequent handling, the mercury is spattered on the filament and plate. Filament Warming up : The filament of the 866 and 866A should be allowed to come up to operating temperature before the plate voltage is applied. For average conditions, the delay should be approximately 30 seconds. ---------- see equivallent types : 2H66/2H66A also see an electrically similar Xenon gas Halfwave Rectifier : 3B28(Ef/If=2.5V/5A, PIV=7kV, Edrop=10V) 0) 866-globe RCA ￥6000 NIB 地図箱(D) 0) 866-globe RCA ￥- WB(T) 1) 866-globe RCA used ￥4500 justLoosePlateCap Strong 2) 866-globe Taylor LikeNew ￥4500 justLoosePlateCap 1) 866-globe Taylor ￥4500 used? 0) 866A RCA ￥3000 NIB(xD) 0) 866A RCA ￥- NOS Bulk 白箱(Q) 2) JAN-CRC 866A RCA ￥4300 NIB RB(sD) 5) 866A RCA ￥4300 NIB RB (hyg1v6nx) (NTB-1) 0) 866A RCA ￥3900 NOS pre-heated 6) 866A GE ￥3900 NIB(hyycng) 1) 866A MarshallElectronics ￥3900 NIB 0) 866A Syl ￥- NIB(sD) 0) 866A Motorola ￥- NIB(D) 3) 866A Amprx ￥3900 NIB(Sn) 0) 866AX Amprx ￥- NIB(vD) 4) 866A Electronic Enterprises ￥3500 NIB pre-heated 2) 866A RCA ￥2900 used 75/40min 5) 866A RCA ￥2200 used 3)元箱(Sn) 2) 866A RCA ￥2200 used GE箱 4) 866A GE ￥2200 used 元箱(Qn) 1) 866A GE ￥2200 used WB 50.5/40min 1) 866A WH ￥2200 used(D) 3) 866A/B SolidState ￥1200 used Silicon Diode w/ OctalBase+TopCap (note) 数10年の保管を経たNOS/NIB水銀整流管は必ず60分以上のフィラメントエージングを行った上で Plate電圧印加を行ってください。866Aでは、1.25V/20分 + 2.5V/40分 推奨。 またお取り扱い･搬送時は垂直保持が必須です。
868-光電子管(0.8μm)- 1) 868 RCA ￥3300 NIB 2) GL-868 GE ￥2000 used
872 =Mercury Rectifier= (EIA/4AT) (see 8008) PIV5000V/Idc1.25A Ef/If=5V/7.5A 2) 872A RCA ￥9000 NIB (NTB) 1) 872A RCA ￥7000 NOS?/used? 1) 872A Slater/United-made ￥7000 NIB 1) 872A WH ￥6000 NOS?/used?
874 =90V Voltage Regulator= (EIA/ - UX) Vstart=125Vmin Vop=90Vdc Iop=10mA-50mA similar to 0B3(ST, Iamax=30mA) 11) 874 RCA ￥1200 NOS (rhyb) 1) 874 RCA ￥1200 NIB VeryRaggedBox
884 =gas-filled Thyratron= (EIA/6Q - octal, ST12) Eh/Ih=6.3V/0.6A Twarm-up=30sec grid-controlled rectifier ratings : Eamax=350Vpeak Iamax=75mA/300mApeak op : Ea=300V Eg=-30V Edrop=16Vpeak 6) 884 RCA ￥1200 NIB 1) 884 RCA ￥1200 NIB D/C=59-35 1) 884 RCA ￥1200 NOS 1) 884 RCA ￥1200 NOS D/C=317(1953) GE-boxed 1) 884 FAA(RCA-made) ￥1200 NIB D/C=64-30 1) 884 GE ￥1200 NIB 青箱 1) 884 WH ￥1200 NOS WB tested 1) 884 Chatham ￥1200 NIB MB VeryRaggedBox +++ 1) 884 RCA ￥700 LightlyUsed 1) 884 RCA-made ￥700 used 1) 884 Chatham ￥500 used CenterPin折れ
885-Thyratron/GasTriode- 6) 885-ST RCA ￥900 NIB RaggedBox 1) 885-ST Ray ￥900 NIB
917-光電子管(μm)- 1) 917 RCA ￥1900 NIB 1) 917 WH ￥1000 used RCA箱
918-光電子管(μm)- 1) 918 Bell Howell ￥1000 used?
921-光電子管(μm)- 1) 921 RCA ￥1000 NIB MB
922-光電子管(0.8μm)- 3) 922 RCA ￥3700 NOS
923-光電子管(μm)- 15) 923 RCA ￥2400 NIB 2) GL-923 GE ￥1500 used
924 3) 924 RCA NIB ￥1500
925 3) 925 RCA NIB ￥1500
927 1) JAN-JRC 927 RCA NIB ￥2400 MB 1) 927 GE NIB ￥2800
928 2) 928 RCA NIB ￥3500 VeryRaggedBox
929 1) 929 GE NIB ￥2500
930-- 2) 930 RCA ￥1500 NIB MB ragged box 1) 930 Syl ￥1500 NIB 1) 930 WH ￥1500 NIB
931-Photo Multiplier- 3) 931A RCA ￥3000 NIB ベージュBase 1) 931A RCA ￥3000 NIB D/C=79-09 RedBase 1) 931B RCA ￥3000 NIB ピンクBase 1) 931A RCA ￥3300 NIB 2) 931A RCA ￥3300 NIB 1) 931A RCA ￥3300 NOS
951 1) 951 SuperSilvertone ￥1500 NOS? 950箱
954 =Detector Pentode= (EIA/5BB - acorn) Ppmax=1.5W Epmax=250V Ef/If=6.3V/0.15A 12) VT-120/954 RCA ￥1100 NIB MB (rhyyc) 2) 954 RCA ￥1100 NIB RB 5) JAN-CRC 954 RCA ￥1100 NIB MB date=1942
955 =medium-mu Triode= (EIA/5BC - acorn) Ppmax=1.5W Epmax=250V μ=25 Ef/If=6.3V/0.15A エーコン球955の平均プレート特性 2) 955 RCA ￥1500 NIB mint 1) 955 RCA ￥1500 NIB 1) US-NAVY CRC 955 RCA ￥1500 NIB D/C=1943.10 1) JOZ955/VT-121 Sonotone ￥1700 NIB MB 1) 955 Sonotone ￥1500 NIB MB RaggedBox
957 =medium-mu Triode= (EIA/5BD - acorn) Epmax=135V rp=24.6kΩ gm=0.65mS μ=16 Ef/If=1.25V/0.05A 1) 957 Ray ￥2900 NIB MB BrownBox
958/A =medium-mu Triode= (EIA/5BD - acorn) Ppmax=0.6W Epmax=135V μ=12 Ef/If=1.25V/0.1A 1) JRC 958A RCA NOS ￥1200 1400/750min =Acorn= 2) 958A RCA NIB ￥1500 RB
959 =sharp-cutoff Pentode= (EIA/5BE - acorn) Epmax=135V Ec2max=67.5V rp=800kΩ gm=0.6mS μ=450 Ef/If=1.25V/0.05A 1) JRC 959 RCA NIB ￥1500 =Acorn=
991 1) 991 RCA NIB ￥1400 =Neon=
FM1000 =FM detector Heptode= (EIA/FM1000 - loktal) Eh/Ih=6.3V/0.3A 1) FM1000 NU NIB ￥1200 Loktal
1006/CK1006/VT-249 =gas-filled full-wave rectifier= (EIA/4C - ST14) mode 1 : Ef/If=1.75V/2A PIV=1600V Estart=450Vmin(half-wave)/420Vmin(full-wave) Idc=200mAmax/0mAmin op(Cinput) : Eac-input=800Vpeak(No load) Edrop=25V Edc-output=550V mode 2 : Ef/If=0V/0A PIV=1600V Estart=650Vmin(half-wave)/550Vmin(full-wave) Idc=200mAmax/70mAmin op(Cinput) : Eac-input=800Vpeak(No load) Edrop=30V Edc-output=550V 1) JAN-CRP 1006/VT-249 NU used ￥2000
CK-1122 1) CK1122 Ray NIB ￥1900 MT-boxed
1201(=7E5) =HF med-mu Triode= (EIA/8BN - loktal) Eh/Ih=6.3V/0.15A Ehkmax=90V Ppmax=4W Epmax=250V Ipmax=16mA Icmax=6mA op : Ep=180V Ec=-3V Ip=5.5mA rp=12kΩ gm=3mS μ=36 1) 1201 Syl NOS ￥1200 2820/1390min WB Loktal
1221 =non-microphonic Pentode= (EIA/6F - ST12) Eh/Ih=6.3V/0.3A identical to 6C6 & 1223 0) 1221 Syl used ￥-
1223 =non-microphonic Pentode= (EIA/7R - ST12) Eh/Ih=6.3V/0.3A electrically identical to 6C6 & 1221 except base 0) 1223 Syl used ￥-
1229 =Testrode= (EIA/4K - ST12) 1) 1229 Tsol NIB ￥1900 RaggedBox ++
1231 =Pentode= (EIA/8V-Loktal) Ppmax=-W Epmax=300V Pc2max=-W Ec2max=250V rp=540kΩ gm=6.5mS 7V/0.48A 0) 1231 Syl ￥- used
1232(=7G7) =sharp-cutoff Pentode= (EIA/8V - Loktal) Ppmax=1.5W Epmax=250V Pc2max=0.2W Ec2max=100V rp=800kΩ gm=4.5mS 6.3V/0.45A 1) 1232 Znth ￥700 used
1236C =saturation Diode= (EIA/1236A - Loktal, T9) Eac=330Vrms Idc=0.8mA Rrp=250kΩ Eh/Ih=1.9V/0.45A 3) 1236C SuperiorElectric NIB ￥1200 replace-Diode for TubeRectifier 5) 1236C Kalotron NIB ￥1200
1258 =Thyratron= (EIA/7FJ - miniature) PIV=1000V Ikpeakmax=20A Ikmax(average)=50mA Eh/Ih=6.3V/1.8A 10) 1258 Tsol NIB ￥2100 ++
1266 =Diode= (EIA/4AJ - T9) similar to 0B3/VR90 Vs=70V 1) 1266 Syl NIB ￥1500 SmokedGlass
1267 =cold cathode= (EIA/4V - T9) similar to 0A4G 0) 1267 Syl used ￥-
1275 =Fullwave rectifier= (EIA/4C - ST16) Ef/If=5V/2A PIV=1550V Idc=225mA Edrop=58V(@Idc=225mA/section:Linput) similar to 5Z3(Ef/If=5V/3A) 1) 1275 Syl lightly-used ￥3900 D/C=605, green silk, a little scratch on glass, WB 0) 1275 Syl used ￥-
1280 =Pentode= (EIA/8V - loktal)similar to 14C7 Eh/Ih=12.6V/0.15A 1) 1280 Hytron NIB ￥1200 Loktal (=QB-3.5/750)
1291 =filamentary HF Twin Triode= (EIA/7BE - loktal) 1291=3B7 Ef/If=1.4VDC/0.22A or 2.8VDC/0.11A Ppmax=2.7W/unit Epmax=180V Ikmax=15mA/unit Igmax=4mA(series-fil.)/3mA(para-fil.) op. for Ef/If=1.4V/0.22A(parallel fil. mode) op(AB2pp): Ep=90V Ec=0V Ip=10.4mA/21mA Ig=3.6mA Pg=45mW gm=1.85mS μ=20 Zlpp=8kΩ D=8% Po=1W op(AB2pp): Ep=135V Ec=0V Ip=18.2mA/22mA Ig=2.7mA Pg=28mW gm=1.9mS μ=20 Zlpp=16kΩ D=8% Po=1.5W (参考 : Ep-Ip特性) 0) 1291/3B7 Europe ￥- NOS Original wrapper/sealed
1294/VT-183 =HF diode= (EIA/4AH - loktal) 1294 = 1R4/VT-183 Eh/Ih=1.4V/0.15A Eacmax=117V Ioutmax=1mAdc Fresonance=1.5GHz 4) JAN 1294/VT-183 NU ￥1000 NIB MB 0) JAN-CHS 1294/VT-183 Syl ￥- NIB MB
1299 (= 3D6) =filamentary Beam Power= (EIA/6BB - loktal) Ef/If=1.4VDC/0.22A(2.8V/0.11A) Ppmax=4.5W Epmax=180V Pc2max=0.9W Ec2max=135V Ikmax=30mA op: Ep= 90V Ec2=90V Ec1=-4.5V Ip=9.5mA gm=2.4mS op: Ep= 90V Ec2=90V Ec1=-4.5V Ip=9.5/ 8.5mA Ic2=1.6/3.2mA Zl= 8kΩ Po=0.27W D=5% op: Ep=135V Ec2=90V Ec1=-4.5V Ip=9.8/ 9.8mA Ic2=1.2/2.0mA Zl=12kΩ Po=0.50W D=5% op: Ep=150V Ec2=90V Ec1=-4.5V Ip=9.9/10.2mA Ic2=1.0/1.8mA Zl=14kΩ Po=0.60W D=5% 0) JAN CHS 1299 Syl ￥- NIB MB ragged box 2) 1299/VT-185 Syl ￥800 used WB
1603 =LowNoise TripleGridDetector Amplifier= (EIA/6F - UZ, ST12 G1-top) Eh/Ih=6.3V/0.3A Epmax=250V Ec2max=180V *pentode connection op: Ep=100V Ec2=100V Ec3=0V Ec1=-3V Ip=2.0mA Ic2=0.5mA rp=1MΩ gm=1.185mS op: Ep=250V Ec2=100V Ec3=0V Ec1=-3V Ip=2.0mA Ic2=0.5mA rp=-MΩ gm=1.225mS op: Ep=250V Ec2=180V Ec3=0V Ec1=-3V Ip=8.3mA Ic2=2.1mA rp=0.9MΩ gm=2.0mS *triode connction op: Ep=180V Ec=-5.3V Ip=5.3mA rp=11.0kΩ gm=1.8mS op: Ep=250V Ec=-8.0V Ip=6.5mA rp=10.5kΩ gm=1.9mS op(A1pp): Ep=90V Ec=-2.5V(Rk=625Ω) Ip=4mA Zlpp=100kΩ Po=40mW different heater type : 57(Eh/Ih=2.5V/1A) octal types : 6J7(octal), 1620(octal) also see similar types : 6C6, 77 also see a low-noise similar type : UZ-6001 different-heater electrically-similar WE-made types: WE-310A/B(10V/0.32A), WE-328A(7.5V/0.425A) same base different-heater higher-gm similar types: CZ-501-D(3.5V/1A), CZ-501-V(6.3V/0.55A) 0) 1603 Industro(Tsol-made) ￥4900 NIB RaggedBox =rare=(D) 1) 1603 RCA ￥3600 used 1270/770min
1608 =class B AF/RF Power Triode= (EIA/ -ST16) Ppmax=20W Epmax=425V μ=20 Ef/If=2.5V/2.5A op B2pp: Ep=425V Ec=-15V Esignal=130Vp-p Ipo=36mA Ipmax=190mA Zl=1.2kΩ/tube(=4.8kΩ,p-p) Pin=2.2W Po=50W (参考 : EpIp特性, EpIg特性) 0) 1608 RCA ￥- NIB rare 2) 1608 RCA ￥6300 NOS lot=K3 WB rare
1609 =anti-microphonic filamentary Pentode= (EIA/ - UY, ST12) Ef/If=1.1V/0.25A Ppmax=-W Epmax=135V Pc2max=-W Ec2max=67.5V Rg1max=500kΩ(fixed) op: Ep=135V Ec2=67.5V Ec1=-1.5V Ip=2.5mA Ic2=0.65mA rp=400kΩ gm=0.725mS 1(F+)-2(P)-3(G1)-4(G2)-5(F-,G3) (参考: Ep-Ip特性(@Ec2=67.5V)) 0) 1609 RCA ￥- NIB 2) 1609 RCA ￥1900 NIB lot=Y6, Y6 w/ fully-damaged OB, WB 4) 1609 RCA ￥1900 NOS WB 2) 1609 RCA ￥1900 NOS w/ original pamphlet WB 1) 1609 WH ￥1900 NOS (same constrution/fabrication as RCA's) WB
1610 =crystal-oscillator Pentode= (EIA/ -ST16) Ef/If=2.5V/1.75A Ppmax=6W Ppinmax=9W Epmax=400V Pc2max=-W Pc2inmax=2W Ec2max=200V Ipmax=30mA gm=2.5mS-typ op : Ep=400V Ec2=150V Ec1=-50V Ip=22.5mA Ic2=7mA Ic1=1.5mA Pin=0.1W Po=5W 0) 1610 RCA ￥- NIB
1611 =special Power Pentode for ship emergency/SOS= (EIA/7S - octal) = specially selected/balanced 6F6, which was available only through Radiomarine Corporation of America, initially. The 1611 is a power pentode intended for use as a relay tube in equipment on ships for automatically announcing SOS signals. To meet the special requirements of such services, the 1611 features an Ip-Eg characteristics having suitable slope and minimized variation between tubes. Phisical characterisics of the 1611 are the same as those of Type 6F6. see 6F6, 1613for 6F6 and #1611 : Rg1max=50kΩ(oldest, fixed)～100kΩ(newer,fixed) and 500kΩ(self) Eh/Ih=6.3V/0.7A Pentode connection: op : Ep=250V Ec2=250V Ec1=-16.5V Ip=34mA Ic2=6.5mA rp=80kΩ gm=2.5mS op1(A1S) : Ep=250V Ec2=250V Ec1=-16.5V Ip=34mA/47mA Ic2=6.5mA/10.5mA Zl=7kΩ Po=3.2W D=8% op2(A1pp) : Ep=315V Ec2=285V Ec1=-24V Ip=62mA/80mA Ic2=12mA/19.5mA Zlpp=10kΩ Po=11W D=4% op3(AB2pp) : Ep=375V Ec2=250V Ec1=-26V Ip=34mA/82mA Ic2=5mA/19.5mA Zlpp=10kΩ Po=18.5W D=3.5% Triode connection: Ppmax=10W Epmax=350V op4(A1S) : Ep=250V Ec1=-20V Ip=31mA/34mA rp=2.6kΩ gm=2.6mS Zl=4kΩ Po=0.85W D=6.5% op5(AB2pp) : Ep=350V Ec1=-38V Ip=48mA/92mA Zlpp=6kΩ Po=13W D=2% socket : 1(Shell)-2(H)-3(P)-4(G2)-5(G1)-6(NONE)-7(H)-8(KG3) 0) 1611 RCA ￥- NIB very rare 30) 1611 RCA ￥offer NIB 赤箱、軍箱 very ragged-boxes, rare(hy1gy4xx)
1612 =Pentagrid Mixer(special 6L7)= (EIA/7T - octal, TopG1) Eh/Ih=6.3V/0.3A Ppmax=1.5W Epmax=250V Pc2max=1W Ec2max=100V 5) 1612 RCA ￥1000 NIB 1) 1612 RCA ￥1000 NIB MB metal 1) 1612 GE NOS? ￥1000 WhiteLogo RCA箱
1613 =RF(up to 90MHz) Power Pentode= (EIA/7S - octal) Eh/Ih=6.3V/0.7A CCS rating for Class-C telegraphy and class-C FM telephony application: gm=2.5mS @Ip=31mA class C telephony: Ppmax=7W Epmax=275V Pc2max=2W Ec2max=275V Ec1(-)max=-100V Ipmax=50mA Ic1max=5mA op : Ep=275V Ec2=200V(Rg2=7.5kΩ) Ec=-35V(Rg1=12.5kΩ) Ip=42mA Ic2=10mA Ic1=2.8mA Pin=0.16W Po=6W class C telegraphy: Ppmax=10W Epmax=350V Pc2max=2.5W Ec2max=275V Ec1(-)max=-100V Ipmax=50mA Ic1max=5mA op : Ep=350V Ec2=200V(Rg2=15kΩ) Ec=-35V(Rg1=10kΩ) Ip=50mA Ic2=10mA Ic1=3.5mA Pin=0.22W Po=9W similar to 6F6, 1611(for audio application) 1) 1613/VT-175 RCA ￥1500 NIB MB metal RaggedBox 1) 1613/VT-175 RCA ￥1500 NOS BrownBox 2) JAN 1613 RCA ￥1500 NIB D/C=75-22 MB gm-matched 2) JAN 1613 RCA ￥1500 NIB D/C=75-22 MB gm-matched
1614 =BeamPower= (EIA/7AC - octal) Eh/Ih=6.3V/0.9A Ehkmax=±200V Fmax=80MHz (CCS) Ppmax=21W Epmax=375V Pc2max=3.5W Ec2max=300V Ipmax=110mA, gm=6.05mS-typ (ICAS) Ppmax=25W Epmax=550V Pc2max=3.5W Ec2max=400V Ipmax=110mA op(AB1pp-CCS) : Ep=360V Ec2=270V Ec1=-22.5V Ip=88/132mA Ic2=15mA Zlpp=6.6kΩ D=2% Po=26.5W op(AB1pp-ICAS) : Ep=530V Ec2=340V Ec1=-36V Ip=60/160mA Ic2=20mA Zlpp=7.2kΩ D=2.5% Po=50W #1614's curves are same as ones of #807, #5933/807W also see 6L6/G/GB/GC, 1622, 5932 2) 1614 RCA ￥7000 NIB Metal 一本はやや錆あり RaggedBox 1) 1614 RCA ￥5500 NIB Metal 錆あり RaggedBox 1) GL1614 GE ￥6900 NIB 青箱 1) 1614 RCA ￥4000 used Metal gm=5900/3300min 2) 1614 RCA ￥4300 used Metal やや錆あり 6200,6480/3300min 2) 1614 RCA ￥4300 used Metal 錆あり 6990/3300min 2) 1614 RCA ￥4300 used Metal 塗装剥げあり 5750,5900/3300min Ip=52.5mA,52mA
1616 =Halfwave Rectifier= (EIA/ - ) PIV=6000V Idc=130mA Ef/If=2.5V/5A 2) 1616 RCA ￥4300 NIB Tested 2) 1616 Westinghouse ￥4300 NIB Tested 1) 1616 Westinghouse ￥3300 NIB GetterFlashが荒れている Tested 1) 1616 Westinghouse ￥3300 NIB GetterFlashが飛んでいない Tested 1) 1616 RCA ￥1500 used
1619 =BeamPower= (EIA/ - octal) (直熱ビーム管) Ef/If=2.5V/2A Ppmax=15W Epmax=400V Pc2max=3.5W Ec2max=300V gm=4.5mStyp(@Ip=50mA) op(A1S) : Ep=300V Ec2=250V Ec1=-10V Ip=44/46mA Ic2=4/6mA Zl=8.8kΩ Po=3W D=7% op(AB1pp) : Ep=400V Ec2=300V Ec1=-20V Ip=52/80mA Ic2=3.5/10mA Zlpp=14kΩ Po=17.5W D=3% op(AB2pp) : Ep=400V Ec2=300V Ec1=-16.5V Ip=75/150mA Ic2=6.5/11.5mA Zlpp=6kΩ Pin=0.4W Po=36W D=2.5% pins : 1(S)-2(F)-3(P)-4(G2)-5(G1)6(NC)-7(F)-8(Beam) (参考 : Ep-Ip特性(@Ec2=300V) (参考:三結時のEp-Ip特性例(triode connection : SAMPLE data)) Electrically(curve) similar to 1624(Ppmax=25W, Epmax=600V, UY-base, top-plate) 5) JAN-CRC 1619 RCA ￥1700 NIB 1950s, silver print, just ragged boxes 1) 1619 RCA ￥1700 NIB 1950s, silver print, just ragged boxes 10) 1619 RCA ￥1700 NIB 1960s, orange print, just ragged boxes 1) 1619 RCA ￥1700 NIB 1970s, orange print 1) 1619 RCA ￥1700 NOS 1) JAN-CKR 1619 Krad ￥1700 NIB MB 3) JAN-CKR 1619 Krad ￥1700 NIB MB(Western Electric) 1) 1619 RCA ￥1000 used 錆有 4200/2150min
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
1620 =SharpCutoffPentode(special 6J7)= (EIA/7R - octal-TopGrid) (see 6J7) Ehf/Ih=6.3V/0.3A Ppmax=0.75W Epmax=250V Pc2max=0.1W Ec2max=100V electrically similar to 6C6(UZ, Eh/Ih=6.3V/0.3A), 57(UZ, Eh/Ih=2.5V/1A) low-noise UZ-type : 1603(UZ, Eh/Ih=6.3V/0.3A) *1620 has same pin assignment and heater voltage as WE-348A and is electrically similar to it, however, allowable plate dissipation of 6J7/1620 is one third of it, be aware. similar English types : EF37/A, 5A/157D, CV358 (Ppmax=1W, Eh/Ih=6.3V/0.2A) similar to KTZ63 also similar to CV1343(Eh/Ih=4V/0.25A) 3) 1620 RCA NIB ￥3600 metal VeryRaggedBox 3) 1620 RCA NIB ￥3600 SilverLogo 1) 1620 RCA NIB ￥3400 OrangeLogo 0) 1620 RCA NIB ￥- metal(Nn) 0) 1620 GE NIB ￥- metal (hy1vant) 2) 1620 GE NIB ￥3400 metal RaggedBox 1) 1620 CBS NIB ￥3400 metal date=6135 MB 0) 1620 GE used ￥- metal(Q)
1621 =PowerPentode(6F6 special)= (EIA/7S - octal) Eh/Ih=6.3V/0.7A (pentode connection) Ppmax=7.9W Epmax=300V Pc2in-max=1.9W Ec2max=300V op(AB1pp) : Ep=300V Eg2=300V Eg1=-30V Ip=38mA/69mA Ig2=6.6mA/13mA Zlpp=4kΩ D=3% Po=5W (triode connection) Ppmax=8.3W Epmax=300V op(AB1pp) : Ep=327.5V Rk=500Ω Ip=55mA/59mA Zlpp=5kΩ D=1% Po=2W 3) 1621 RCA ￥2900 NIB(T) 5) 1621 RCA ￥2100 NIB錆あり(Qn) 0) 1621 RCA ￥1100 NIB(T)
1622 =BeamPower= (EIA/7AC - octal) (see 6L6/G/GB/GC 1614 5932) Eh/Ih=6.3V/0.9A (CCS) Ppmax=13.8W Epmax=300V Pc2max=1.4W Ec2max=250V 5) JAN-CRC-1622 RCA NIB ￥2900 2) 1622 WH NIB ￥2400
1623 =class B AF/RF/Transmitting Power Triode= (EIA/ -ST19) Ef/If=6.3V/2.5A ICAS : Ppmax=30W Epmax=1000V Ipmax=100mA μ=20 op B2pp: Ep=1000V Ec=-40V Esignal=230Vp-p Ipo=30mA Ipmax=200mA Zl=3kΩ/tube(=12kΩ,p-p) Pin=4.2W Po=145W 0) 1623 RCA ￥- NIB rare
1624 =filamentary Transmitting Beam Power= (EIA/ - UY TopPlate, ST16) Ef/If=2.5V/2A (直熱ビーム管) Ppmax=25W Epmax=600V Pc2inmax=3.5W Ec2max=300V Ipmax=90mA op(AB2pp): Ep=400V Ec2=300V Ec1=-16.5V Ip=75mA/150mA Ic2=6.5mA/11.5mA Zlpp=6.0kΩ Pin=0.4W Po=36W op(AB2pp): Ep=600V Ec2=300V Ec1=-25.0V Ip=42mA/180mA Ic2=5.9mA/15.0mA Zlpp=7.5kΩ Pin=1.2W Po=72W pins: 1(F)--2(G2)-3(G1)-4(NC)-5(G3,F)-Top(P) Electrically(curve) similar to 1619(Ppmax=15W, Epmax=400V, octal) 2) 1624 Krad NIB ￥3300 MB 4) 1624 Tung-Sol lightly-used ￥2100 WB (hyyX4s)
1625 =Beam Power= (ヒーター12.6V版の807) (EIA/5AZ. 7-pin UT, TopPlate) Eh/Ih=12.6V/0.45A CCS : Ppmax=25W Epmax=600V Pc2max=3.5W Ec2max=350V(400V for TriodeConnection) ICAS : Ppmax=30W Epmax=750V Pc2max=3.5W Ec2max=350V (参考 : 三結時のEp-Ip特性 - triode connection) also see Eh=6.3V versions 807 5933 ATS 25, and 5B/254M, 5B/255M 3) 1625 WE ￥2400 NIB MB 中身はRCA管 VeryRaggedBox 38) VT-136/1625 RCA for Western Electric ￥2400 NIB D/C=1940s 3) 1625 RCA ￥2000 NIB MB 3) JAN-CRC/USN-CRC 1625 RCA ￥1900 NIB D/C=June 1953(JAN-2pcs), May 1952(USN-1pc) VeryRaggedBoxes 1) 1625 RCA ￥1500 NIB MB マイカ粉あり 1) 1625/VT-136 RCA ￥1700 NOS WB 10) 1625 GE ￥1700 NIB D/C=1950s 1) JAN-CHS 1625/VT-136 Sylvania ￥1900 NIB D/C=Sept.1954 1) 1625 WH ￥1900 NIB 1) 1625/VT-136 Krad ￥1900 NIB MB 12) 1625/VT-136 NU ￥1900 NIB MB (hyy1n5gg) 1) 1625/VT-136 NU ￥1900 NIB MB RaggedBox 3) JAN-CHY 1625/VT-136 Hytron ￥1900 NIB date=1950s SmokedGlass VeryRaggedBoxes 1) JAN-CHY 1625/VT-136 Hytron ￥1900 NOS SmokedGlass VeryRaggedBox 2) Γ 1625 Soviet("Сделано в СССР" (Sdelano v SSSR / ソヴィエト連邦製)) ￥1900 NIB D/C=1983.11, 1983.12 4) 1625 RCA ￥1100 used gm=4070, 4120, 3800, 3910, 4150/2400min(sQn) 1) 1625 RCA ￥900 used gm=3420/2400min 0) 1625 NU ￥- used gm=3800/2400min
1626 =Transmitting Triode= (EIA/ - octal, ST12) Eh/Ih=12.6V/0.25A CCS Ppmax=5W Epmax=250V Ipmax=25mA Ic1mx=8mA μ=5 (RCA says μ=5 (gm=1.8mS-approx rp=2.8kΩ-approx (varies on bias))) (Tung-Sol says gm=2.5mS rp=2.5kΩ => μ=6.25) (see VT-137(including Western Electric supplied ones) 1) 1626 RCA ￥2200 NIB 1) 1626 RCA ￥2200 NIB MB 0) JAN-CRC 1626/VT-137 RCA ￥- NIB MB(sQ) 1) JAN-CHY 1626/VT-137 Hytron ￥1800 NOS WB 8) JAN-CTL 1626/VT-137 Tsol ￥2000 NIB MB 1) JAN-CTL 1626/VT-137 Tsol ￥2000 NIB MB ragged box 1) JAN-CHY 1626/VT-137 Hytron ￥1200 used 2250/1325min 1) USN-CRC 1626 RCA ￥1200 used 90/53min(TV-7) 1) JAN 1626/VT-137 Syl ￥1200 used 81/53min(TV-7) 1) JAN 1626/VT-137 Krad ￥1200 used 86/53min(TV-7) 1) JAN-CHY 1626/VT-137 NU ￥1200 used 2000/1325min
1629 =MagicEye= (EIA/7AL - octal) also see similar types(magic-eye) : 6E5, 6G5/G, 6U5 Eh/Ih=12.6V/0.15A Epmax=250V Etarget=100Vmin-250Vmax 2) 1629 RCA ￥1900 NIB (sQ) 1) 1629 Tsol ￥1900 NIB MB 0) GL1629 GE ￥- NIB (sQn) 0) JAN-CKR 1629/VT-138 Krad ￥- NIB (mD) 1) JAN-CRC 1629/VT-138 RCA ￥1900 used? Bright 1) 1629/VT-138 Syl ￥1900 used BrownBox
1631 =Beam Power= (EIA/7AC - octal) Eh/Ih=12.6V/0.45A (equivallent to 6L6 except heater-spec.) Ppmax=16W Epmax=360V Pc2max=2.5W Ec2max=270V Po=26.5W/Zl=6.6kΩ(push-pull) 1) JAN-CRC 1631 RCA ￥3200 NIB MB 1) JAN-CRC 1631 RCA ￥3200 NIB RB 1) JAN-CRC 1631 RCA ￥2000 NIB かなり錆あり
1632 #1632=25L6 but Eh/Ih=12.6V/0.6A 0) 1632 USA ￥- NOS
1633 =Med-mu Twin Triode (25V 6SN7GT)= (EIA/8BD - octal) #1633=6SN7 except heater : (very old 6SN7GT variant) Eh/Ih=25V/0.15A Ppmax=2.5W Epmax=300V Ikmax=20mA Ehkmax=90V Rgmax=1MΩ op : Ep=250V Ec=-8V Ip=11.5mA μ=18 rp=6.9kΩ gm=2.6mS also see different heater types : 12SN7GT, 12SX7GT(Eh/Ih=12.6V/0.3A) 8) 1633 RCA ￥offer NIB smoked glass 1940s MB VeryRageedBox 8) 1633 RCA ￥offer NIB smoked glass 1940s Red-MB VeryRageedBox 15) 1633 RCA for/as '174182' ￥offer NOS/OEM(government)-bulk BlkPlates Btm-D-Gtr smoked-glass CopperGridPost D/C=Y5E, S3E,K4E etc(1941-1943) : gm(15pcs)=2800-3210 / 2790-3280 /1640min(on 539B) 管頂部(top-view) 2) 1633 RCA ￥offer NIB D/C=K6E(1943.11), 604(1946) Smoked-glass gm=2400/2570, 2760/2740/1640min(on 539B) VeryRaggedBoxes 1) 1633 / 174182 RCA ￥offer NIB D/C=K4E(1943.7) Smoked-glass gm=3000/3030/1640min(on 539B) VeryRaggedBox 1) 1633 RCA ￥offer NIB D/C=243(1942) Smoked-glass gm=3100/3010/1640min(on 539B) VeryRaggedBox
1634 =High-mu Twin Triode (12SC7)= (EIA/8S - octal) #1634=12SC7 0) 1634 USA ￥- NOS
1635 =class-B common-cathode Twin Power Triode= (EIA/8B - octal) Eh/Ih=6.3V/0.6A for Constant wave : Ppmax=3Wx2 Epmax=300V Ipmax=90mAx2 for Music/Voice : Ppmax=4.5Wx2 Epmax=400V Ipmax=90mAx2 op(B2pp:Constant wave) : Ep=300V Ec=0V Ipo=3.3mAx2 Ipmax=27mAx2 Ic=39mA-peakx2 Zlpp=12kΩ D=5% Po=10.4W op(B2pp:Music/Voice) : Ep=400V Ec=0V Ipo=5mAx2 Ipmax=31.5mAx2 Ic=41mA-peakx2 Zlpp=14kΩ Po=17W see other common-cathode twin triode with same-base(8B) for class-Bpp : 6N7/6N7G/6N7GT/VT-96 1) 1635 RCA ￥2400 NIB MB 1) JAN-CRC 1635 RCA ￥2400 NIB SmokedGlass date=8-51 MB RaggedBox! 2) 1635 RCA ￥2400 NIB SmokedGlass SilverPrintBase RB RaggedBox! 1) JAN-CRC 1635 RCA ￥2400 NIB date=1-59 MB RaggedBox! 2) JAN-CRC 1635 RCA ￥2400 NIB (1)SilverPrintBase (1)OrangePrintBase RaggedBox! 1) JAN-CRC 1635 RCA ￥2400 NIB D/C=1951 VeryRaggedBox (hyy24fsx) 4) 1635 RCA ￥2200 NIB ClearGlass date=6804 RB just-ragged boxes (hyy24fqd) 1) 1635 RCA ￥1200 used SmokedGlass STD-boxed (hyy24fsd)
1640/6405 =Gas photo tube= 1640 = 6405 0) 1640 RCA ￥- NOS rare
1641/GL1641 =fullwave rectifier= (EIA/ , top-plates) Ef/If=5V/3A PIV=2100V Iout-max=250mAdc see an identical type : Raytheon RK-60 also see an electrically similar type : 5R4/GY 1) 1641 GeneralElectronics ￥3800 NIB MB
1642 =Med-mu TwinTriode(2C21)= (EIA/7BH - Ut, Top2G) Eh/Ih=6.3V/0.6A Ppmax=2.1W Epmax=250V op : Ep-250V Ec=-16.5V Ip=8.3mA rp=7.6kΩ gm=1.375mS μ=10.4 (参考 : 2C21/1642のEp-Ip特性) (#1642 = 2C21 = JAN #38233) 2) 1642 RCA ￥1000 NOS? Syl箱 STRONG!
1644 =Cathode-common Twin Power Pentode (=12L8)= (EIA/8BU - octal) #1644=12L8 Eh/Ih=12.6V/0.15A Ehkmax=100V Ppmax=2.5W Epmax=180V Pc2max=1W Ec2max=180V op : Ep=180V Ec2=180V Ip=13mA/13.5mA Ic2=2.8mA/4.6mA rp=160kΩ Zlpp=10kΩ Po=1.0W 0) 1644 RCA ￥- used
1649 #1649=6AC7W 0) 1649 USA ￥- NOS 1) 1649 RCA ￥2500 used
1654 =Half-wave Rectifier= (EIA/2Z) 1.4V/0.05A PIV4300V/Idc1mA 1) 1654 Std ￥1000 NIB RCA-made
1655 #1655=6SC7 0) 1655 USA ￥- NOS
1664 #1664=12C8Y 0) 1664 USA ￥- NOS
1684 (see 5844) 0) 1684(5844) IBM ￥500 used STRONG(Qn) 0) 1684(5844) IBM ￥500 used WB 0) 1684(5844) IBM ￥- used
1701(= R250) =gas-filled FullWave Rectifier= (EIA/ - ) Ef/If=1.8V/2.8A Eacmax=340V Idcmax=300mA 0) 1701-globe Valvo ￥1900 NOS WB 0) 1701-globe Valvo ￥1000 used WB
1801 =FullWave Rectifier= (EIA/ - ) Ef/If=4V/0.4A Eacmax=250Vrms x 2 Idcmax=30mA 0) 1801 Philips ￥- used WB
1802 =HalfWave Rectifier= (EIA/ - ) Ef/If=4V/0.4A Eacmax=250Vrms Idcmax=30mA 0) 1802 Philips ￥- used WB
1803 =HalfWave Rectifier= (EIA/ - ) Ef/If=4V/0.4A Eacmax=500Vrms Idcmax=30mA 0) 1803 Philips ￥- used WB
1805 =FullWave Rectifier= (EIA/ - ) Ef/If=4V/1A Eacmax=300Vrms x 2 Idcmax=100mA Eacmax=400Vrms x 2 Idcmax=75mA Eacmax=500Vrms x 2 Idcmax=60mA similar to RGN1064(Telefunken), G1064(Valvo) 0) 1805 Philips ￥- used WB
1821 =FullWave Rectifier= (EIA/ - ) Ef/If=4V/1.5A Eacmax=250Vrms x 2 Idcmax=60mA 1) 1821 Philips ￥4100 NOS TopView WB 0) 1821 Philips ￥- used WB
1875 =halfwave HV rectifier= PIV=14kV Epmax=5kVac-rms Idcmax=5mA Ef/If=4V/2.3A TopPlate 0) 1875-globe Valvo ￥- used display
1876 =halfwave HV rectifier= PIV=3500V Epmax=850Vac-rms Idcmax=5mA Ef/If=4V/0.3A 2) 1876-globe Valvo ￥3300 NOS original-wrapping
1877 =halfwave HV rectifier= PIV=15kV Epmax=5kVac-rms Idcmax=3mA Ef/If=4V/0.65A TopPlate 0) 1877-globe Phlps ￥- used display
1878 =halfwave HV rectifier= PIV=-kV Epmax=10.5kVac-rms Idcmax=2mA Ef/If=4V/0.7A TopPlate -) 1878-globe Phlps ￥- used
1878 =Fullwave HV rectifier= PIV=-kV Epmax=400Vac-rms Idcmax=110mA Ef/If=5V/1.6A TopPlate -) 1883 Miniwatt ￥- used
1926 Ballast tube(resistance tube): Iop=0.18A Eop=8V-26V (Iop=168mAmin to 192mAmax for Eop=16V) 1) 1926 Adzam(=Mazda) ￥3000 NOS Ballast
2022 2) 2022 RCA ￥2100 NIB
2050-Thyratron/Controlled Rectifier- (EIA/6BS) PIV/Idc=1300V/0.1A Ef/If=6.3V/0.6A 0) 2050 RCA ￥- NIB(Qn) 1) 2050/VT-245 RCA ￥2000 NIB MB RaggedBox 1) 2050 RCA ￥2000 NOS WB 0) 2050A RCA ￥- NIB(T) 6) 2050 Syl ￥2000 NIB(Sx) 1) JAN-CAHG 2050W Chatham ￥2000 NIB MB 1) JAN-CRP 2050/VT-245 Ray ￥2000 NOS Syl箱 1) J2050A/2050 Ray ￥2000 NIB 1) JAN 2050W Ray ￥2000 NIB MB 2) 2050W Chatham ￥1200 used? Cetron-5R4GYBの様な長袴 1) 2050W Ray ￥1200 used? Cetron-5R4GYBの様な長袴 EM=100/54min
4009 1) 4009 GRP2 STANDARD-RADIO ￥2000 - QUARZ-PLATE date=4/49
4019A/B =Triode= Epmax=190V Ef/If=4V/0.25A globe shape + inclined electrode housing, 'A'=4-pin bayonet thrust, 'B'=British STD 4pin op : Ep=130V Ec=-8V Ip=6.8mA rp=5.5kΩ gm=1.27mS μ=7 Zl=11kΩ Po=74mW D=-30dB op : Ep=190V Ec=-14V Ip=9.7mA rp=4.9kΩ Zl=11kΩ Po=240mW D=-30dB (参考 : Ep-Ip特性) similar to WE-101D, STC-3A/107, 3A/141, Philips-4606,4630 1) S4019-globe Standard/STC used ￥８９００ inclined PlateHousing
4033L
4058 - 2GHz-4GHz med-mu pencil triode - Eh/Ih=6V/0.3A Ehmax=±50V Ppmax=8W Epmax=330V Ecmax=-100V Ipmax=40mA Icmax=25mA Ikmax=55mA gm=7.3mStyp μ=40typ 1) 4058 RCA ￥2000 used MB
4070A = RK-34/RK34/CV18/'33A/138A' (see)
4143B 1) 4143B-Network WE ￥2000 NOS
4304C3B 4304CB = VT-62/CV315/CV1288/8019 also equivallent to RCA 834 except base construction
4313C - cold cathode gas-filled relay - 1) 4313C - CV75 STC ￥1200 used
4545 1) 4545 RCA used? ￥2000
4604
4611 Ef/If=6V/0.3A 1) 4611-globe Philips lightly-used ￥5200 WB
4613 =filamentary power Triode= Ef/If=4V/1A Ppmax=12W Epmax=500V/850V-cutoff Ikmax=60mA Ecmax=-2V(@Ig=+0.3μA) Rgmax=0.5MΩ op(A1s) : Ep=250V Ec=-22V Ip=48mA gm=3.5mS rp=1.7kΩ μ=6 Zl=1.6kΩ Po=2.5W D=5% op(A1s) : Ep=500V Ec=-68V Ip=24mA gm=3.0mS rp=2.0kΩ μ=6 Zl=11.5kΩ Po=5.3W D=5% op(AB1pp) : Ep=500V Ec=-70V Ip=2x20/2x37.5mA Zlpp=12kΩ Po=15W D=1% size : 51mmΦ x 148mmH, in max (参考 : Ep-Ip特性) 0) 4613-ST Philips used ￥- WB rare
4624 =filamentary power Triode= Ef/If=7.2V/1.1A Ppmax=32W Epmax=800V/1500V-cutoff Ikmax=75mA Ecmax=-7V(@Ig=+0.3μA) Rgmax=1MΩ op(A1s) : Ep=800V Ec=-90V Ip=35mA gm=2.3mS rp=3.0kΩ μ=7 Zl=11kΩ Po=9W D=5% op(B1pp) : Ep=800V Ec=-92V Ip=2x30/2x59mA Zlpp=10kΩ Po=30W D=1.1% op(AB1pp) : Ep=800V Rk=1.1kΩ Ip=2x40/2x44mA Zlpp=15kΩ Po=25W D=1.1% size : 52mmΦ x 203mmH, in max (参考 : Ep-Ip特性) 0) 4624 Philips used ￥- WB (hyydva)
4630 =filamentary low-mu Triode= Ef/If=4.2V/0.25A PhilipsMiniwatt : Ppmax=1.1W Epmax=150V/300V-cutoff Ikmax=12mA Rgmax=1MΩ op : Ep=130V Ec=-8.4V Ip=8.5mA gm=1.3mS rp=5.5kΩ μ=7 (参考 : Ep-Ip特性) similar to 3A109A/B 2) 4630-globe WLS used? ￥7300 Like-26? gm=1130,1080μmho(@Ec=-11V,Ef=1.4V)
4641 =Power Triode= Ef/If=4.0V/2.1A Eplate=1500V Iplate=15.0mA Eg1=-140V gm=2mS μ=9.2 rp=4.6kΩ Zlpp=35kΩ Po=68W Ipo=15mAx2 Ipmax=41mAx2
4654 =Power Pentode= 4654 = EL39 Eh/Ih=6.3V/1.35A Ehkmax=50V Rg1max=0.7MΩ(class-A,AB)/0.5MΩ(class-B) Ppmax=18W Epmax=600V/1200V-cutoff Pc2max=3W Ec2max=425V/1000V-cutoff Ikmax=120mA op: Ep=250V Ec2=275V Ec3=0V Rk=175Ω Ip=72mA Ic2=8mA rp=22kΩ gm=8.5mS μg2g1=11 op(A1s):Ep=250V Ec2=275V Ec3=0V Rk=175Ω Ip=72mA Ic2=8mA Zl=3.5kΩ D=11.4% Po=9.2W op(B1pp):Ep=375V Ec2=350V(Rg2=500Ω) Ec1=-32V Ec3=0V Ip=40/79mA Ic2=4.4/17mA Zlpp=5kΩ D=2.5% Po=35W op(triode-connection A1s): Ep=375V Rk=470Ω Ip=50mA Zl=3.0kΩ D=9% Po=4.5W op(triode-connection AB1pp): Ep=400V Rk=280Ω Ip=112mA Zlpp=5.5kΩ D=1% Po=13W 1) 4654 Miniwatt-Dario ￥offer NOS metal-base straight-glass TopGtr TopPlate Philips箱
4657 =high μ triode= (EIA/-, UF5pin) Eh/Ih=4V/1A Ehkmax=50V Ppmax=1.5W Epmax=200V(400V-cutoff) Egmax=-1.3V(@Ig=+0.3μA) Ikmax=15mA Rgmax=1MΩ op : Ep=200V Ec=-1.5V Ip=1mA rp=45kΩ gm=2.2mS μ=99 (note : The base center-pin is internally soldered/connected to the metal-shield and the cathode electode.) similar to W4110(Valvo), E499(Philips), REN914(TFK) 2) 4657 Philips NIB ￥5100 gold spray-shield (hyog1y7II) 2) 4657 Philips NIB ￥5100 gold spray-shield (hyjn1pf8)
4682 =Power Pentode= Eh/Ih=4.0V/1.0A op(AB1pp) : Ep=375V Ec2=250V Rk=540Ω Ip=24mAx2/29mAx2 Ic2=3.5mAx2 Zlpp=15kΩ Po=14W D=5.2%
4683 =filamentary Power Triode= (EIA/- 8pin side-contact) #4683 = an 'Epmax=350V' type of AD1 Ef/If=4.0V/0.95A Ppmax=15W Epmax=350V Ipmax=90mA Rgmax=300kΩ(fixed)/700kΩ(self) op(B1pp) : Ep=350V Rk=850Ω Ip=70/142mA Zlpp=5kΩ Po=20.0W D=2.1% op(AB1pp) : Ep=350V Rk=850Ω Ip=86/92mA Zlpp=8kΩ Po=15.6W D=2.3% size: 53mmΦ x 135mmH, in max (参考: Ep-Ip特性) 0) 4683 Philips used ￥- gray glass, WB
4684 =Power Pentode= Eh/Ih=4.0V/1.75A op(AB1pp) : Ep=375V Ec2=250V Rk=142Ω Ip=24mAx2/30mAx2 Ic2=3.2mAx2/5.3mAx2 Zlpp=13kΩ Po=12W D=2.3%
4688 =Power Pentode= Eh/Ih=4.0V/2.0A op(AB1pp) : Ep=375V Ec2=275V Rk=165Ω Ip=48mAx2/62mAx2 Ic2=5mAx2/9mAx2 Zlpp=6.5kΩ Po=28.5W D=2.25%
4689 (= EL5/375) =Power Pentode= Eh/Ih=6.3V/1.35A Ehkmax=50V Ppmax=18W Epmax=375V(600V-cutoff) Pc2max=2W(3.5W @Pout-max) Ikmax=90mA Rg1max=700kΩ op(AB1pp) : Ep=375V Ec2=275V Rk=165Ω Ip=48mAx2/62mAx2 Ic2=5mAx2/9mAx2 Zlpp=6.5kΩ Po=28.5W D=2.25% also see EL5
4694 (= EL3/375) =Power Pentode= Eh/Ih=6.3V/0.9A op(AB1pp) : Ep=375V Ec2=275V Rk=165Ω Ip=24mAx2/30mAx2 Ic2=2.5mAx2/5mAx2 Zlpp=13kΩ Po=12W D=2.3%
4699 (= EL6 spez. = EL6/425) =PowerPentode= (EIA/ - 8-pin side contact) older ST version : Eh/Ih=6.3V/1A Ehkmax=50V later straight-glass version : Eh/Ih=6.3V/1.5A Ehkmax=50V Rg1max=0.7MΩ(self)/0.5MΩ(fixed) Pentode connection Ppmax=18W Epmax=425V/800Vcutoff Pc2max=2W/5W@Pomax Ec2max=425V/650Vcutoff Ikmax=90mA Ec1max=-1.3V op: Ep=250V Ec2=250V Rk=90Ω Ip=72mA Ic2=8mA rp=20kΩ gm=14.5mS μg2g1=20 op(A1S): Ep=250V Ec2=250V Rk=90Ω Ip=72mA Ic2=8mA Zl=3.5kΩ Po=8W D=10% op(AB1pp): Ep=300V Ec2=325V Rk=100Ω Ip=110/134mA Ic2=12/28mA Zlpp=5kΩ Po=25.5W D=2.5% op(AB1pp): Ep=375V Ec2=375V/Rg2=700Ω Rk=125Ω Ip=104/128mA Ic2=13/33mA Zlpp=6kΩ Po=27.5W D=4% op(AB1pp): Ep=425V Ec2=425V/Rg2=2.2kΩ Rk=170Ω Ip=92/116mA Ic2=10/29mA Zlpp=8kΩ Po=29W D=5% Triode connection op(A1S): Ep=375V Rk=300Ω Ip=50mA Zl=4kΩ Po=4.5W D=9% op(AB1pp): Ep=400V Rk=175Ω Ip=96mA/108mA Zlpp=5.5kΩ Po=13W D=1.5% (see similar types : 6CA7/EL34 also see EL60, EL61) 4) 4699 Philips NIB ￥offer ST BlackMoldBase 0) 4699 Philips NIB ￥offer MetalBase(Q) 7) 4699 PhilipsMiniwatt used ￥offer DiskGetter MetalBase 2-pairs available gm=5700-6800/3800min(as EL34) Also tested on Funke W19 for Ip match(Aht) 2) 4699 PhilipsMiniwatt used? ￥offer DiskGetter MetalBase Ip=38.4mA,41.5mA/22mAmin(Ec=0V) Ip=11.6mA,13mA(Ec=-2V)(W19) 1) 4699 PhilipsMiniwatt used ￥offer DiskGetter MetalBase Ip=27.6mA/22mAmin(Ec=0V) Ip=9.4mA(Ec=-2V)(W19) 2) 4699 Adzam(=Mazda) used? ￥offer DiskGetter MetalBase(T) Ip=36mA,36mA,36mA/22mAmin(Ec=0V) Ip=11mA,10.5mA,11.7mA(Ec=-2V)(W19)
5514
5516
5517/CK-5517 =Gas Diode / Half-wave Rectifier= (EIA/5BU - miniature T5) 2) CK5517 Ray ￥2100 NIB 1) 5517 Ray ￥1200 used
5559 =mercury-vapor Power Thyratron= PIV=1500V Ia=2.5A Theat=300sec Ef/If=5V/4.5A 0) 5559 Amperex ￥- used
5560/FG95 =mercury-vapor 4-electrode Power Thyratron= PIV=1500V Ia=2.5A Theat=300sec Ef/If=5V/4.5A 0) 5560 Amperex ￥- used
5581 = Sound PhotoCell = 6) 5581 RCA ￥2000 NIB RaggedBox PhotoDetector ++
5583 = Sound PhotoCell = 1) 5583 RCA ￥2000 NIB LightBrownBox PhotoDetector ++
5591 =SQ RF/AF Pentode= (EIA/7BD - miniature) Eh/Ih=6.3V/0.15A Ehkmax=90V Ppmax=1.7W Epmax=180V Pc2max=0.5W Ec2max=140V Ikmax=18mA 5591 is electrically similar/equivallent to : 6AK5 / 403A, 403B / 5654 / EF95 / E95F / M8100 2) 5591/403B Ericsson ￥2000 NIB
5608A/53 =cathode-common med-mu Twin Triode= (EIA/7B - ST14) Eh/Ih=2.5V/2A Ehkmax=90V Ppmax=5.5W Epmax=350V Ipmax=20mA Icmax=5mA op : Ep=300V Ec=-6V Ip=6mA rp=13kΩ gm=2.45mS μ=32 * Principal application is in 'AC' plate voltage operated amplifiers. almost identical to 53(μ=35, Eh/Ih=2.5V/2A), 6A6(μ=35, Eh/Ih=6.3V/0.8A), 6N7G(μ=35, Eh/Ih=6.3V/0.8A) also see European octal-base class-A amplifier type ECC31/CV1285/NR72(Eh/Ih=6.3V/0.95A) 7) 5608A BarberColman(Tsol-made) ￥3200 NIB RaggedBox (for use of Wheelco Flame-Otrols) (BarberColman=Div. of Wheelco Industory) 4) 5608A/53 Tsol ￥2500 used? WB 1) 5608A/53 RCA ￥2200 used WB
5631 8) GB-5631 Syl ￥1500 NIB GoldBrand MB date=1/60 *subminiature*
5632/C3J =Xenon-filled Power Thyratron= PIV=1250V Ia=2.5A Ef/If=2.5V/8.5A equivallent = 5G32 0) 5632/C3J Amperex ￥- NIB
5636 =Sharp-cutoff Pentode= (EIA/8DC) *subminiature* Ppmax=1.1W Epmax=165V Pc2max=0.7W Ec2max=155V Ec3max=30V gm=3.2mS rp=k Ef/If=6.3V/0.15A see almost-equivallent type : 8524 0) 5636 RCA ￥- NIB
5639 =SemiRmtCutoffPentode= (EIA/8DE)*subminiature* Eh/Ih=6.3V/0.45A Ppmax=3.8W Epmax=165V Pc2max=1W Ec2max=155V gm=9mS rp=50k 1) AF-5639A Sylvania ￥2200 NIB MB GoldSilk date=9-57 1) 5639 PhilECG ￥1400 NIB MB
5642 =HalfWaveRectifier= (EIA/5642) *subminiature* Ef/If=1.25V/0.2A PIV=10000V Ipmax=0.25mA/5mapeak Fmin=5kHz 4) 5642 RCA ￥1200 NIB - mint 50) 5642 GE ￥1000 NIB 2) 5642 GE ￥1200 NIB - mint 1) 5642 GE ￥1200 NIB 8) 5642 Syl ￥1200 NIB 1) 5642 Syl ￥1200 NIB BrownBox 1) 5642 Syl ￥500 used 2) CK5642 Ray NIB ￥1200 NIB 2) 5642 松下 NIB ￥2000/2pcs NIB 2個入りOB
5647 =detector diode= (EIA/5647 - ) *subminiature* Ep=117Vrms Ioutput=9mAdc 1) 5647 Syl NIB ￥1700 MB
5651/5651W/5651WA =85V voltage reference= (EIA/5BO - miniature) Estart=107V(115Vmax) Eop=85V(83V-87V) Ia=1.5mA-3.5mA Ta=-55℃ to +90℃, TC=-4mV/℃, Stability=±0.1% voltage-fluctuation=±0.1Vmax, Cshunt=0.02uFmax, warm-up-time=3-minutes(every operation) * Anode current must be always kept in the range between 1.5mA and 3.5mA. * Shielding must be utilized to insure max.-stability under magnetic field or strong RF presence. also see an 85V 'subminiature' voltage reference : 5783 also see 100V noval voltage references : WE-423A/B/C, WE-6140 1) JAN-JRC 5651 NIB ￥700(T) 2) JAN-JRC 5651 NIB ￥700 5) 5651 RCA ￥700 NIB D/C=4-30(1954) RaggedBoxes w/sleeve 4) 5651A RCA ￥600 NIB 2) 5651A RCA ￥600 NIB - mint 11) 5651WA RCA ￥600 NIB(hyb) 1) 5651A RCA NIB ￥600 ragged-box(T) 4) 5651A RCA NIB ￥600 2) 5651A RCA NIB ￥600 3) 5651A RCA NIB ￥600(Q) 0) 5651 RCA NIB ￥- 1) 5651 RCA NOS ￥500 GE箱 6) 5651 GE NIB ￥500 5) 5651 GE NIB ￥500 - mint 1) 5651WA Tsol NIB ￥500 2) 5651 C-GE NIB ￥500 1) JHS 5651 Syl NIB ￥600 MB 1) 5651 Syl ￥500 NIB (D) 1) CK5651 Ray NIB ￥600 (T) 1) JRP 5651 Ray NIB ￥600 MB 1) CRP 5651 Ray NIB ￥600 MB 1) 5651 Matsuda ￥300 lightly-used NHK, D/C=1957-12 WB 1) 5651 Matsuda ￥300 lightly-used WB 10) 5651 Toshiba ￥300 lightly-used WB 0) JRC 5651 RCA used ￥- 2) 5651 RCA used ￥400
5654/5654W/6AK5W/E95F =ruggdized HF sharp-cutoff Pentode= (EIA/7BD - miniature) * Special-quality tube intended for use in critical industrial and military applications in which operational dependability is of primary importance. Features include a high degree of mechanical strength and a heater-cathode construction capable of withstanding many-thousand cycles of intermittent operation. Shock=450Gmax Fatigue(vib.)=2.5Gmax Altitude=18000meter-max Eh/Ih=6.3V/0.175A Ehk=±135V Fmax=400MHz Ppmax=1.65W Epmax=200V Pc2max=0.55W Ec2max=155V Ikmax=20mA Ic1max=1mA Rg1max=100kΩ op : Ep=120V Ec2=120V Ec1=-2V Ip=7.5mA Ic2=2.5mA rp=340kΩ gm=5mS 5654 is electrically similar/equivallent to : 6AK5/W / 403A, 403B / 5591 / EF95 / E95F / M8100 also see WE-408A(Eh=20V) 14) 5654/ 6AK5W USA(Ray etc) ￥800 NOS 10) 5654W USA ￥800 NIB (hxzev) 1) 5654 RCA ￥1000 NIB 5) 5654 RCA ￥1000 NIB 1) 5654/6AK5W RCA ￥1000 NIB MB 1) JRC-5654/6AK5W RCA ￥1000 NIB MB 5) 5654 RCA ￥1200 NIB BlackPlate 4) JG-5654/6AK5W GE ￥1000 NIB date=4/63 1) JG-5654 GE ￥1000 NIB MB 1) 5654 GE ￥800 NIB 5) 5654/6AK5W GE ￥1500 NIB 5-star - mint 1) 5654/6AK5W GE ￥1500 NIB 5-star 1) 5654 GE ￥800 NIB MB 2) 5654 GE ￥800 NIB MB 1) 5654W FAA-GE ￥800 NIB MB 5) GB-5654 Syl ￥2000 NIB GoldBrand 2) GB 5654 Syl ￥2000 NIB GoldBrand Gpin 3) 5654 Syl ￥800 NIB MB 1) 5654 Syl ￥800 NOS GE-MB 1) 5654 Syl ￥800 NIB 5) JHS 5654 Syl ￥800 NIB MB 2) CRP-5654/6AK5W Ray ￥800 NIB MB VeryRaggedBox 2) 5654 GE ￥800 used FIVE-STAR(10000H高信頼管) 3) 5654/6AK5W GE ￥800 used 5-STAR(10000H高信頼管) 1) 5654/6AK5W RCA ￥500 used 1) 5654/6AK5W Valvo ￥1200 used Blue 1) JG-5654 USA ￥500 used RCA箱 1) 5654 USA ￥500 used
5656 =CommonCathode Double Tetrode (A1 class or C class pushpull 400MHz RF Amp)= (EIA/9F - noval) Eh/Ih=6.3V/0.4A Ehk=100V Ppmax=3W/plate Epmax=250V Pc2max=1.5W/section Ec2max=165V Ipmax/plate=20mA Rgmax=100kΩ op: Ep=150V Ec2=120V Ec1=-2V Ip=15.5mA Ic2=2.7mA rp=60kΩ gm=5.8mS 1) JAN-JRP 5656 Ray ￥1900 NIB MB 1) 5656 Raytheon ￥1900 NIB D/C=744 1) CRP 5656 Raytheon ￥1900 NIB D/C=8/62 very-ragged box
5663 =Thyratron= (EIA/6CE - miniature) Eh/Ih=6.3V/0.15A Ikmax=20mAdc/60mApeak PIV=500Vmax 1) JAN-JRP 5663 - ￥1200 NOS Thyratron 55) 5663 GE ￥1200 NIB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
5670/5670W/2C51 =HF med-mu twin-Triode= (EIA/8CJ - noval)
5671 =forced-air cooled PowerTriode= (EIA/-) Class-B : Epmax=15kV Ipmax=6A Pd=25kW Ef/If=11V/285A 0) 5671 RCA ￥- used
5672 =PowerPentode= (EIA/2E31-5pin) *subminiature* Ef/If=1.25V/0.05A Raytheon: absolute-max : Epmax=100V Ec2max=100V Ikmax=5.5mA op : Ep=67.5V Ec2=67.5V Ec1=-6.5V Ip=3.25mA Ic2=0.95mA rp=125kΩ gm=0.65mS Zl=20kΩ D=10% Po=65mW (参考 : 三結時のEp-Ip特性(Triode-connection)) 4) 5672 Ray ￥1200 NIB 大箱(GTsize)(Sn)
5675 =med-mu Triode= (EIA/- - pencil-type) Eh/Ih=6.3V/0.135A μ=20 gm=6.2mS Fmax=3GHz 0) 5675 RCA ￥- NIB
5676 =filamentary med-mu Triode= (EIA/5676) *subminiature* Ef/If=1.25V/0.12A Epmax=135V Ipmax=10mA op: Ep=135V Ec=-5V Ip=4mA rp=9.4kΩ gm=1.6mS μ=15 2) 5676 Ray ￥1200 NIB 大箱(GTsize)
5678 =Pentode= (EIA/1AD4) *subminiature* Ppmax=-W Epmax=90V Ec2max=67.5V Ef/If=1.25V/0.05A(直熱五極管) ex) Ep=45V Ec2=45V Rg1=5MΩ(for Grid bias) Ip=0.8mA Ic2=0.22mA rp=1.2MΩ gm=0.82mS pins : 1(P)-2(G2)-3(F-/shield)-4(G1)-5(F+, G3) * SHIELD : Bulb is entirely coated with metallic shield connected to lead #3(F-). (参考 : Ep-Ip･Ig特性(@Ec2=45V)) also see similar subminiature direct-heat pentode : 1AH4 20) 5678 Ray ￥1000 NIB (hxx19yt) 10) 5678 Ray ￥1000 NIB MB 9) 5678 Ray ￥1000 NIB 大箱(GTsize)
5684/C3JA =Xenon-filled Power Thyratron= PIV=1250V Ia=2.5A Ef/If=2.5V/8.5A 0) 5684/C3JA Amperex ￥- used
5686 =BeamPower= (EIA/9G - noval) Eh/Ih=6.3V/0.35A Ppmax=8.25W Epmax=275V Pc2max=3W Ec2max=275V rp=45kΩ gm=3.1mS 動作例: Ep=250V Ec2=250V Ec1=-12.5V Ip=27mA Ic2=5mA Zl=9kΩ Po=2.7W 5) 5686 GE ￥1700 NIB MB 1960年代のもの 1) 5686 GE ￥1700 NIB MB 5-star BlkPlate 2) 5686 GE ￥1700 NIB MB 5-star BlkPlate 3) 5686 Syl ￥1700 NIB 2) 5686 Ray ￥1700 NIB MB 1960年代のもの 1) 5686 Ray ￥1700 NIB MB 1) 5686 Tsol ￥1700 usedLikeNew BlkPlates 3500/1950min
5687/5687WA/5687WB =med-mu TwinTriode= (EIA/9H - noval) Eh/Ih=6.3V/0.9A(12.6V/0.45A) RCA(absolute-max) : Ppmax=4.2W/unit(7.5W/total) Epmax=330V Igmax=6.6mA Rgmax=1MΩ Ehkmax=±100V Tung-Sol(design.cent) : Ppmax=4.2W/unit(7.5W/total) Epmax=300V Igmax=6mA Rgmax=1MΩ Ehkmax=±90V op : Ep=250V Ec=-12.5V Ip=12mA rp=3kΩ gm=5.4mS μ=16 (参考 : Ep-Ip特性) ピン配列:1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1K)-7(1G)-8(HCT)-9(1P) same-basing upper-rating high-rel. type : 6900(Epmax=600Vdc, Tbulb=300℃max) similar types with same base diagram (pin assignment) : 7044 and 7119 / E182CC similar types with higher-rp & different basing : 6350 and 6463 / ECC813 higher-gm and different-basing type : 12FV7(gm=9.6mS, μ=21.5) 5) 5687 RCA ￥3000 NIB BlkPlate 5) 5687 RCA ￥3000 NIB BlkPlates date=6343 5) 5687 RCA ￥3000 NIB BlkPlates 2) 5687 RCA ￥3000 NIB BlkPlates 1) 5687 RCA ￥2500 NIB 3) 5687 RCA ￥2500 NIB '70s(vQ) 3) 5687 RCA ￥3000 NIB BlkPlates date='58,'59(Qn) 2) 5687 RCA ￥3000 NOS BlkPlates Tsol軍箱 date='58 1) 5687 RCA ￥3000 NIB BlkPlates RCA-WB 0) 5687 RCA ￥- NIB 0) 5687 RCA ￥- NOS 4) 5687 IBM(GE-made) ￥3000 NIB BlkPlate date=61-15 IBM-parts#317292 2) 5687 GE ￥2500 NIB BlkPlate 1) 5687 GE ￥2500 NIB BlkPlate JAN印(T) 1) 5687 GE ￥3000 NIB 5-star BlkPlates 1) 5687 GE ￥3000 NIB 5-star BlkPlates ++ 10) 5687WB GE ￥2500 NIB 1970s 50) 5687WB GE ￥2500 NIB BlkPlates (hn3hg2y) 2) JAN 5687WB GE NIB MB date=9/72 *$* 4) 5687 Amprx(GE-made) ￥2500 NIB BlkPlates ++ 0) 5687WA GE ￥- NIB(Q) 3) 5687WB GE ￥2500 NIB StampedWB 3) 5687 GE ￥2500 NIB 0) 5687WB GE ￥- NIB BlkPlates MB(Sx) 4) GB-5687 Syl ￥3300 NIB GoldBrand * 2) GB-5687 Syl ￥3300 NOS GoldBrand GoldPins 7) 5687WA Syl ￥2500 NIB MB 1) JAN 5687WB PhilipsECG ￥2200 NIB MB 5) 5687 Ray ￥2500 NIB DC=6915, BlkPlate 2) 5687 Ray ￥2500 NIB BlkPlate 50) CK5687WA Ray ￥2500 NIB BlkPlates(hp3nv2gt) 4) 5687/5687WA Ray ￥2800 NOS (hp18n) bulk 2) 5687 Tsol ￥3000 NIB MB '58(hyyf) 2) 5687 Tsol ￥3000 NOS '59 RCA-白箱 4) JTL 5687WA Tsol ￥2500 NIB MB 0) 5687WA Tsol ￥- NIB MB(Q) 1) 5687 Tsol ￥2000 NOS RayMB 1) 32235610/5687WA Tsol ￥2000 used? MB 4) 5687 USA ￥1000 NOS 箱 1) 5687 Scoba(made in England) ￥1000 NIB WB BlkPlates 1) 5687 RCA ￥1700 used WB 9130/9100/4800min 1) 5687 Ray ￥1700 used? WB 1) 5687 Tsol ￥1700 used 8400/8500/4800min 3) 5687 Tsol ￥1700 used 8300/8400,8000/8350,7850/8300/4800min 1) 5687WA GE ￥1700 used? gm=9100/8900/4800min 2) 5687WA GE ￥1700 used? BlackPlates 2) 5687WA Syl ￥1700 used? BlackPlates 2) 5687WA Syl ￥1700 used? gm=8500/8500/4800min, 8500/8500/4800min=matched pair! 1) CK 5687 Ray ￥1700 lightly-used BlkPlates WB 1) 5687WA CSF(France) ￥1500 lightly-used BlkPlates WB 1) 5687 Toshiba ￥1500 used GrayPlates WB 1) 5687 Toshiba ￥1700 used BlackPlates, silk=WipedOut, WB 4) 5687 Toshiba ￥1700 used DarkGrayPlates, DC=1958s, WB
5690 =10000H separated-cathodes FullwaveRectifier= (EIA/5690 - octal) Eh/Ih=6.3V/2.4A(12.6V/1.2A) Ehkmax=±400V Tbulb=200℃max Shock=500Gmax Fatigue=2.5Gmax PIV=1120V Eac_max=350Vrms Ikmax=62.5mAx2 pins : 1(2H)-2(2H)-3(2P)-4(2K)-5(1P)-5(1H)-7(1H)-8(1K) 3) 5690 RCA ￥5500 NIB RedBase 5) 5690 RCA ￥5000 VeryLightlyUsed RedBase VeryStrong: 49-51/40min(TV-7B/U)
5691 (see 6SL7) =10000H Highμ TwinTriode= (EIA/8BD - octal) Eh/Ih=6.3V/0.6A Ehkmax=±100V Ppmax=1W Epmax=275V/330Vsupply Ecmax=-1V/-100V/-200Vpeak Icmax=2mAdc Ikmax=10mA op : Ep=250V Ec=-2V Ip=1.7mA rp=44kΩ gm=1.6mS μ=70 see almost identical type : 6113 see British MIL type : STC(Brimar) - CV1985(6SL7GT) 0) 5691 RCA ￥- NIB RedBase MB(Qn) 1) 5691 RCA ￥8100 NIB RedBase MB RaggedBox(D) 0) 5691 RCA ￥- NIB RedBase BlkPlates date=222,53-17 1) 5691 RCA ￥8100 NIB RedBase BlkPlates date=60-26 1) 5691 RCA ￥8100 NIB RedBase BlkPlates date=6252,6304 1) 5691 RCA ￥8100 NIB RedBase BlkPlates date=6217 2) 5691 RCA ￥7200 NIB RedBase (hyfn) 3) 5691 RCA ￥7200 NIB RedBase date=7022 (Qn) 0) 5691 RCA ￥- NIB RedBase date=7639,7639 (zzD) 1) 5691 RCA ￥7200 NIB RedBase ragged-box(non-top-flap) 1800/1820/1000min 0) 5691 RCA ￥6900 NOS RedBase 61/54/32min 1) 5691 RCA ￥6900 NOS RedBase BlkPlates WB date=64-04 1) 5691 RCA ￥6900 NIB RedBase GrayPlates OrangePrint 1) 5691 RCA ￥6900 NIB RedBase BlkPlates OrangePrint gm=1620/1630/1050min, Ip=2.1mA/2.2mA tested on KS-15750-L1 0) 5691 RCA ￥- used?/NOS? RedBase gm=1850/1700/1040min,1750/1750/1040min ０) 5691 RCA ￥- used?LikeNew RedBase (sQ)date=4-52 gm=1700/1700/1000min, date=57-17 gm=1750/1600/1000min, date=62-22 gm=1500/1600/1000min, date=57-13 gm=1500/1500 0) 5691 RCA ￥- used?LikeNew RedBase (sQ) date=209 gm=1620/1560/1000min, date=4-39 gm=1620/1610/1000min date=56-43 gm=1600/1620/1000min, date=5-17 gm=1550/1570/1000min 0) 5691 RCA ￥- used?LikeNew RedBase date=5-12 0) 5691 RCA ￥6900 usedLikeNew RedBase 1570/1650/1000min date=5904 2) 5691 RCA ￥6600 used RedBase Strong (vQn) 1) 5691 RCA ￥5500 LightlyUsed? RedBase GrayPlates date=68-04 BaseScratch 1) 5691 RCA ￥6600 Used?LikeNew RedBase gm=1760/1660/1000min date=70-48 1) 5691 RCA ￥6000 used RedBase BlkPlates date=6504 gm=1480/1500/1000min 1) 5691 RCA ￥5700 used RedBase GrayPlates date=65-09 gm=1490/1580/1000min 1) 5691 RCA ￥5300 used DarkBrownBase strong: gm=1620/1600/1000min 2) 5691 GE ￥6900 NIB 0) 5691 GE ￥- NOS RedBase Syl箱 1) 5691 Tsol ￥6800 NIB RedBase 1) 5691 Tsol ￥6300 NOS? RedBase 2) 5691 Tsol-made ￥3300 NOS black-cylindrical/round-plates black-glass, LightBrownBase 4) 5691 Syl ￥9300 NOS RedBase WB(Q) 0) 5691 Syl ￥4000 NIB 茶Base(Q) 0) 5691 Syl ￥- NOS 黒Base 0) 5691 WH ￥3700 NIB 黒Base 1) 5691 Ray ￥3700 NIB LightBrownBase BlkPlates OriginalWB
5692 (see 6SN7) =10000H Medium mu TwinTriode= (EIA/8BD - octal) Eh/Ih=6.3V/0.6A Ehkmax=±100V Ppmax=1.75W Epmax=275V/330Vsupply Ecmax=-1V/-100V/-200Vpeak Icmax=2mA Ikmax=15mA op : Ep=250V Ec=-9V Ip=6.5mA rp=9.1kΩ gm=2.2mS μ=20 0) 5692 RCA ￥- NIB RedBase 0) 5692 RCA ￥- NOS RedBase RB 0) 5692 RCA ￥- NOS/NIB RedBase RB,MB(hxx1cnx) 0) 5692 RCA ￥9500 NIB RedBase MB Date=57-13, 57-13, 5-09 RaggedBox(T) 0) 5692 RCA ￥- NIB RedBase MB date=8-55, 8-55(D) 0) 5692 RCA ￥- NIB RedBase MB date=9-55 1) 5692 RCA ￥12500 NIB RedBase date=56-35 2300/2210/1260min(Stark 9-66 tester) 1) 5692 RCA ￥11500 LikeNew RedBase date=8-48 1) JAN-CRC 5692 RCA ￥10500 LikeNew RedBase date=5-17, WB 0) 5692 CGE(same as RCA) ￥- NOS RedBase(D) 0) 5692 RCA ￥- used?LikeNew RedBase(Sx) 1) 5692 RCA ￥10500 LikeNew RedBase WB 2000/2080/1260min(on Stark 9-66)date=59-30 1) 5692 RCA ￥9900 usedLikeNew RedBase 2610/2500/1400min date=62-13 0) 5692 RCA ￥- usedLikeNew RedBase '50s (sD) 1) 5692 RCA ￥10500 usedLikeNew RedBase 2300/2220/1400min 60-13 1) JAN 5692 RCA ￥9000 lightly-used RedBase D/C=62-48 gm=2950/2860/1700min, Ip=7.2mA/7.1mA tested on KS-15750-L1 0) 5692 RCA ￥- usedLikeNew RedBase 1790/1960/1400min 60-04 1) 5692 RCA ￥7900 usedLikeNew RedBase 2210/2370/1400min 64-17 Baseエッジに2mmx10mm位の欠けあり 0) 5692 RCA ￥- usedLikeNew RedBase 2090/1980/1400min '60th 1) 5692 RCA ￥7900 used RedBase gm=1990/1940/1400min 1) 5692 RCA ￥7100 used ReddishBrownBase gm=2300/2200/1400min 0) 5692 RCA ￥- used ReddishBrownBase(D) 0) 5692 RCA ￥4300 NIB BlkBase BlkTiltTriangleBoxPlates(sT) 1) 5692 RCA(Syl-made) ￥3400 used BlkBase gm=2260/2260/1400min date=78-30 1) 5692 RCA(Syl-made) ￥2600 used BlkBase gm=1860/1900/1400min date=78-30 ０) 5692 GE(same as RCA) ￥11000 NIB RedBase(nAht)(vvT) 1) 5692 GE(same as RCA) ￥11000 NIB RedBase 6) 5692 GE(same as RCA) ￥9900 Used?LikeNew date=5626 RedBase WB 0) 5692 Syl ￥- NIB 茶Base(Qn) 1) 5692 Syl ￥4700 NOS 黒Base GE箱 1) 5692 CBS ￥7900 NIB LightBrownBase 1) 5692 CBS ￥7900 NIB LightBrownBase MB Date=9-60 0) 5692 CBS-Hytron ￥- NIB LightBrownBase MB Date=4-57(mD) 0) 5692 CBS-Hytron ￥7900 NIB LightBrownBase MB Date=5845,5850 (gxD) 1) 5692 CBS-Hytron ￥6700 NIB LightBrownBase MB Date=6125 1) JAN-CHY 5692 Hytron ￥6000 lightly-used RedBase WB gm=2860/2550/1700min, Ip=6.8mA/6.6mA tested on KS-15750-L1 1) 5692 WH ￥5300 used BrownBase gm=2200/2210/1400min 0) 5692 WH ￥3900 used LightBrownBase gm=2000/2250/1400min 0) 5692 WH ￥3900 used LightBrownBase gm=1930/2210/1400min
5693(6SJ7GT special) =10000H Sharp Cutoff Pentode = (EIA/8N - octal) Eh/Ih=6.3V/0.3A Ehkmax=±100V Impact=500Gmax Fatigue(vib.)=2.5Gmax Ppmax=2W Epmax=300V/330V(cutoff) Pc2max=0.3W Ec2max=125V/330V(cutoff) Ec1max=-1V/-50V Ikmax=10mA op : Ep=250V Ec2=100V Ec1=-3V Ip=3mA Ic2=0.85mA rp=1MΩ gm=1.65mS see commercial type 6SJ7/6SJ7GT (参考 : 6SJ7の三結時のEp-Ip特性(6SJ7's triode connection)) 1) 5693 Amprx ￥3900 NIB RedMetal 1) 5693 RCA ￥3900 NIB MB RedMetal WhiteLogo D/C=3-35(1953) very-ragged MIL-boxed 1) 5693 RCA ￥3900 NIB MB RedMetal WhiteLogo D/C=58-39 very-ragged MIL boxed 2) 5693 RCA ￥3900 NIB MB RedMetal WhiteLogo D/C=58-30, 58-52 just-ragged MIL boxes 2) 5693 RCA ￥3900 NIB MB RedMetal WhiteLogo D/C=58-43, 59-43 very-ragged MIL boxes gm=1620μmho/Ip=3.72mA, gm=1700μmho/Ip=3.81mA(where gm=1040μmho-minimum) 2) 5693 RCA ￥3900 NIB MB RedMetal WhiteLogo D/C=59-43, 59-43 very-ragged MIL boxes gm=1620μmho/Ip=3.70mA, gm=1580μmho/Ip=3.65mA(where gm=1040μmho-miimumn) 1) 5693 RCA ￥3900 NIB MB RedMetal WhiteLogo D/C=60-09 MIL-boxed 2) 5693 RCA ￥3900 NIB MB RedMetal OrangeLogo D/C=61-30, 61-30 very-ragged MIL/White boxes gm=1580μmho/Ip=3.40mA, gm=1650μmho/Ip=4.06mA(where gm=1040μmho-minimum) 0) 5693 RCA ￥- NIB RedMetal date=7135 etc(hxzev) 10) 5693 RCA ￥3900 NIB MB RedMetal 4) 5693 RCA ￥3900 NIB MB RedMetal(Sx) 2) 5693 RCA ￥3900 NOS D/C=104(1951),58-35(1958) gm=1540, 1500/1040min STD-boxed RedMetal 1 5693 RCA ￥3900 NIB D/C=7148 2) 5693 GE ￥3700 NIB RedMetal 2) 5693 GE ￥3700 NIB VeryRaggedBox 青箱 RedMetal 1) 5693 GE ￥3700 NIB 青箱 RedMetal date=56-98 2) 5693 Syl ￥3700 NOS RedMetal 6) 5693 Syl ￥3700 NIB RedMetal 1) 5693 Tsol ￥3700 NIB BlackMetal 2) WL 5693 WH ￥3900 NIB MB RedMetal WhiteLogo D/C=68-39, 68-39 gm=1600/1040min, 1600/1040min 2) WL 5693 WH ￥3900 NIB MB RedMetal WhiteLogo D/C=68-39, 68-39 gm=1620/1040min, 1640/1040min 1) 5693 RCA ￥2100 used 1770/1040min RedMetal 1) 5693 RCA ￥1800 used 1530/1040min 塗装剥げ RedMetal
5696 =Thyratron= (EIA/7BN) 1) 5696 RCA ￥900 NIB 11) 5696 RCA ￥1000 NIB justRaggedBox(hyybnx) 5) JRC 5696 RCA ￥1200 NIB MB 5) 5696A GE ￥900 NIB 2) 5696 IBM ￥1000 used
5702/WA/WB =Sharp-cutoff Pentode up to VHF= (EIA/5702) *subminiature* #5702 = subminiature version of 6AK5(almost electrically-identical) Eh/Ih=6.3V/0.2A Ehkmax=±200V Impact=450Gmax Vibration=2.5Gmax (design.max): Ppmax=1.1W Epmax=165V Pc2max=0.4W Ec2max=155V Ec3max=+0V Ikmax=16.5mA Rgmax=1.2MΩ op : Ep=120V Ec2=120V Rk=200Ω(Ec1k=-2V) Ip=7.5mA Ic2=2.6mA rp=340k gm=5mS This sharp-cuttoff pentode is characterized by LONG LIFE and STABLE performance, and is designed fo service where severe conditions of high temp. and mechanical shock or vibration are encountered. The flexible terminal leads may be soldered or welded directly to the circuit components w/o the use of sockets. Ep-Ip特性(Pentode接続, Ec2=120V) 三結時のEp-Ip特性(Triode-connection)(similar to #5703-triode :サブミニチュア三極管5703相当の特性となる。) 10) CK5702 Ray ￥1100 BulkNOS WB 6) CK5702WA Ray ￥1100 BulkNOS WB 4) CK5702WA Ray ￥1100 BulkNOS WB 39) 5702WA AEG(TFK-master-carton) ￥１１００ NIB(thycnt)
5703/WA/WB =Med-mu Triode up to UHF= (EIA/5703) *subminiature* Eh/Ih=6.3V/0.2A Ehkmax=±100V(Tung-Sol)/±200V(Raytheon) Impact=450Gmax Vibration=2.5Gmax Raytheon(設計最大定格) : Ppmax=1.35W Epmax=200V Ipmax=15mA Icmax=5.5mA Rgmax=1.2MΩ op : Ep=120V Rk=220Ω Ip=9.4mA rp=5.1kΩ gm=5mS μ=25.5 Tung-Sol(絶対最大定格) : Ppmax=3.3W Epmax=275V Ipmax=22mA Icmax=5.5mA μ=25.5 gm=5mS This type is characterized by LONG LIFE and STABLE performance, and is designed for service where conditions of high temperature & mechanical shock or vibration are encountered. Leads can be directly welded or soldered to circuit components or attached to sockets with lead-cutting. Ep-Ip特性 other med-mu subminiature triodes : 5718(Epmax=165V, μ=27), 5977(Epmax=180V, μ=16), 6814(Epmax=165V, μ=29) 1) CK5703WA Ray ￥1300 BulkNOS WB(Nn) 9) CK5703 Ray ￥1300 WB 大箱 7) CK5703 Ray ￥1300 WB 47) 5703WA AEG(TFK-master-carton) ￥１３００ NIB(thycnt)
5704/WA/WB =cathode-type VHF Diode= (EIA/5704) *subminiature* Ep-ac-max=165Vrms Idcmax=10mA Isurge=350mA Cload-max=8uF Ehkmax=360V Eh/Ih=6.3V/0.15A 3) CK5704 Ray ￥1300 WB 大箱 4) CK5704 Ray ￥1300 WB
5718 =MedMuTriode= (EIA/8DK) *subminiature* Eh/Ih=6.3V/0.15A Ehkmax=±200V Ppmax=3.3W Epmax=165V Ipmax=22mA Ecmax=+0V/-55V Icmax=5.5mA Rgmax=1.2MΩ op : Ep=150V Rk=180Ω Ip=13mA Rp=4.15kΩ gm=6.5mS μ=27 Ep-Ip特性 other med-mu subminiature triodes : 5703(Epmax=200V, μ=25.5), 5977(Epmax=180V, μ=16), 6814(Epmax=165V, μ=29) see almost-equivallent type : 8527 1) 5718 RCA ￥1600 NIB 2) 5718 Syl ￥2400 NIB GoldBrand OverSizedBox 4) 5718 Sonotone ￥1500 BulkNOS WB
5719 =UHF Hi-mu Triode= (EIA/8DK) *subminiature* Eh/Ih=6.3V/0.15A Ehkmax=±200V Ppmax=0.55W Ep=165V/330V(pulse) Ipmax=3.3mA Ecmax=+0V/-55V Rgmax=1.2MΩ op : Ep=150V Rk=680Ω Ip=1.85mA Rp=30.5k gm=2.3mS μ=70 Ep-Ip特性 抵抗結合データ表(ResCouplAmp) high μ subminiature triode w/ same base : 6AD4(μ=70) high μ subminiature triode w/ different base : 5744(μ=70) 9) 5719 RCA ￥1600 NIB 1) 5719 GE ￥400 NIB poor getter-flash
5722 =Noise Generating Diode= (EIA/ - miniature) Eh/Ih=2V-5.5V/1.6A@(@Eh=4.9V) Ppmax=3.5W/5W(intermittent service) Epmax=200V Ipmax=35mA On-period-max=5minutes(50%-duty) pins : 1(P)-2(NC)-3(F)-4(F)-5(NC)-6(P)-7(FCT) 2) 5722 Sylvania ￥1700 NIB
5725 =Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.175A (see 6AS6, 409A, 415A) 3) 5725 Phlps ￥1100 NIB SQ 1) USAF 5725/6189 RCA ￥1200 NIB MB 5) 5725 RCA ￥1000 NIB D/C=7239 BlkPlate w/sleeve 2) 5725 RCA ￥1000 NIB 1) GL-5725 GE ￥1300 NIB 5-stars D/C=3-43 1) 5725/6AS6W GE ￥1300 NIB 5-star 1) 5725W GE ￥1000 NIB 2) GB-5725 Syl ￥1800 NIB GoldBrand Gpin 3) 5725 Syl ￥1000 NIB MB 2) JAN-JTL 5725/6AS6W Tsol ￥1000 NIB 1) 5725 Tsol ￥1000 NOS Syl-MB 1) JTL 5725/6AS6W/6187 Tsol ￥1000 NIB MB
5726 (see EB91 6AL5) =double Diode= (EIA/6BT - miniature) Eh/Ih=6.3V/0.3A PIV=360V Idcmax/plate=10mA/60mApeak 6) 5726 RCA ￥1000 NIB(Sn) 2) 5726 RCA ￥900 NIB ragged-box 1) 5726/6AL5W/6097 RCA ￥1000 NIB D/C=58-52 1) 5726 RCA ￥600 NOS? D/C=3-09, GE箱 9) JG-5726/6AL5W/6097 GE ￥1000 NIB D/C=57-32(1957) MB 2) JG-5726 GE ￥1000 NIB MB) 1) 5726/6AL5W GE ￥700 NIB 10) 5726/6AL5W GE ￥700 NIB 2) 5726 GE ￥700 NIB MB(Q) 1) GB-5726/6AL5W Syl ￥1000 NIB GoldBrand 3) 5726 Syl ￥700 NIB 1) 5726 SylECG ￥700 NIB 1) 5726 Hytron ￥800 NIB ragged-box 1) JHY-5726 Hytron ￥800 NOS RCA箱 4) 5726 IBM ￥700 used 2) 5726 Tsol ￥500 used 1) 5726 GE ￥500 used 1) 5726 Syl ￥500 used
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
5727/2D21W/E91N(see 2D21) =Thyratron= (EIA/7BN - miniature) PIV=1300V Ia=100mA Theat=10sec Edrop=10V Eh/Ih=6.3V/0.6A 4) 5727 RCA ￥900 NIB 1) JRC 5727/2D21W RCA ￥900 NIB MB 9) 5727(2D21) RCA ￥700 NIB 2) 5727, GL5727 GE ￥1000 NIB 5star 5) 5727/2D21W GE ￥700 NIB MB 10) 5727/2D21W GE ￥700 NIB MB 2) JG 5727/2D21W GE ￥900 NIB MB 1) JAN 5727 GE ￥700 NIB MB 2) 5727 GE ￥1200 NIB 5-star 10) 5727/2D21W GE ￥700 NIB MB 3) 5727(2D21) GE ￥700 NIB 1) JHS 5727/2D21W Syl ￥700 NIB 2) CK-5727(2D21) Ray ￥700 NIB 1) 5727/2D21W Chatham ￥700 NIB 1) 5727/2D21W GI ￥700 NIB 1) 5727(2D21) RCA ￥500 NOS? 2) 5727(2D21) GE ￥500 NOS? 1) 5727(2D21) GE ￥400 used 1) 5727(2D21) GE ￥400 used 88/54min
5734 =MechanoElectronic Transducer Triode= (EIA/) +special+ Ppmax=0.4W Epmax=300V Ehkmax=90V Ipmax=5mA Eh/Ih=6.3V/0.15A gm=0.275mS μ=20 0) 5734 RCA ￥- used rare
5744 =High-mu Triode= (EIA/5744) *subminiature* Eh/Ih=6.3V/0.2A Ehkmax=±200V Design-max: Ppmax=1.3W Epmax=275V Ehkmax=200V Rgmax=1.2MΩ Icmax=1mA Ipmax=6.5mA Rgmax=1.2MΩ op : Ep=250V Rk=500Ω Ip=4.2mA rp=17.5kΩ gm=4mS μ=70 参考 : #5744のEp-Ip特性 high μ subminiature triode w/ different base : 5719(μ=70), 6AD4(μ=70) 5) 5744WB GE ￥1700 NIB 1) 5744 - ￥1000 used?
5749/6BA6W (see 6BA6) =RemoteCutoffPentode= (EIA/7BK - miniature) Eh/Ih=6.3V/0.3A Ppmax=3.1W Epmax=330V Pc2max=0.6W Ec2ma=300V (参考 : Ep-Ip特性(@Ec2=100V)) 5) 5749 RCA ￥850 NIB(Qn)++ 6) 5749/6BA6W GE ￥750 NIB(Aht) 2) 5749 GE ￥750 NIB 1) JG-5749/6BA6W GE ￥750 NIB MB 1) JHS 5749/6BA6W Syl ￥750 NIB MB 33) JAN 5749 Syl ￥750 NIB MB 1) 5749/6BA6W USA ￥400 used 1) 5749 Syl ￥500 used?
5750 (see 6BE6) =PentaGridConverter= (EIA/7CH - miniature) Eh/Ih=6.3V/0.3A Ppmax=1.1W Epmax=330V Pc2max=1W Ec2ma=110V 2) 5750 RCA ￥1000 NIB 1) JG-5750 GE ￥1000 NIB D/C=57-30 MB 4) 5750 GE ￥1000 NIB 2) JAN-5750 GE ￥1000 NIB 2) JG-5750/6BE6W GE ￥1000 NIB 2) JHS-5750/6BE6W Syl ￥900 NIB 1) JAN 5750 Syl ￥900 NIB MB 1) JAN-JHS 5750/6BE6W Syl ￥900 NIB MB 1) 5750 GE ￥500 used 1) GB-5750 Syl ￥500 used GoldBrand 1) 5750 - ￥400 used
5751 (see 6AX7 12AX7/7025) =Twin Triode= (EIA/9A - noval) (sturdy vibration-resistant industrial 12AX7) Shock=600Gmax Fatigue(vib.)=2.5Gmax Altitude=18km Eh/Ih=6.3V/0.35A(12.6V/0.175A) Ehkmax=±100V Ecmax=+0V/-55V GE(1952/GL-5751): Ppmax=1W(design)/1.1W(absolute) Epmax=300V(design)/330V(absolute) RCA : Ppmax=0.8W(absolute) Epmax=330V(absolute) Siemens : Ppmax=0.8W(absolute) Epmax=330V(absolute) Rgmax=500kΩ(fixed)/1MΩ(self) op : Ep=250V Ec=-3V Ip=1mA rp=58kΩ gm=1.2mS μ=70 (参考 : Ep-Ip特性) also see an NEC-made similar special type : 12R-HH14(μ=70) 0) 5751-command RCA ￥- NIB(D) 0) 5751-command RCA ￥- NOS? WB 0) 5751-command RCA ￥- NIB(Q) 0) 5751 RCA ￥- NIB(hyyant) 0) 5751 RCA ￥- NOS 3-mica BlkPlates date=517 0) 5751 RCA ￥- NOS 0) JAN-JRC 5751 RCA ￥- NOS 3-mica BlkPlates GE箱 date=59-31 1) 5751 RCA ￥2000 NOS? D/C=3_43 BlkPlates ０) 5751 GE ￥- NIB MB DATE=9/67 or 11/67 GrayPlate(Sx) 5) GL-5751 GE ￥3300 NIB FiveStars DATE=4_13 BlkPlates 3-mica RaggedBoxes 4) GL-5751 GE ￥3300 NIB FiveStars DATE=3_48 BlkPlates 3-mica 青箱 RaggedBoxes 0) 5751 GE ￥- NIB MB DATE=2/82 灰色プレート(T) 0) 5751 GE ￥- NIB 5-star品(T) ０) 5751 GE ￥3000 NIB 5-star(sQn) 0) 5751 GE ￥- NOS 3-mica BlkPlates date=eary'50's 0) 5751WA GE ￥- NOS 3-mica GrayPlates date=55-52(xQ) 0) JG-5751WA GE ￥- NOS 3-mica GrayPlates date=60-39(mD) 0) 5751 GE ￥- NOS 3-mica BlkPlates date=4-43 Tsol軍箱 0) 5751 GE ￥- NOS? date=58-26 3-mica BlkPlates(D) 5) 5751 GE ￥2100 NIB MB date=65-22 4) 5751 GE ￥2000 NIB MB '68 GrayPlates 1) 5751 GE ￥1600 NIB 橙OB 1) 5751 GE ￥1600 NIB date=7139 1830/1730/875min 5) 5751 GE ￥1600 NIB MB date=2/76 2) 5751 Amperex(GE-made) ￥1800 NIB OrangeGlobe 1) 5751 WH(GE-made) ￥2700 NIB 3-mica 0) 5751 Syl ￥- NIB MB 0) 5751 Syl ￥- NIB MB BlkPlates 3-mica date=931 GoldPrint 1) 5751 Syl ￥1600 NIB 1) 5751 Syl ￥1600 NIB GE-MB '68 GrayPlates 4) 5751W Syl ￥2200 NOS 3-mica GrayPlates date=6436 WB 6) 5751 Syl ￥1200 NOS GrayPlates date='74～'80 WB 1) 5751 RSD(Syl-made) ￥2200 LikeNew 3-mica GrayPlates date=6436 WB 1) CK-5751 Ray ￥1600 NIB 1) 5751 CBS ￥1600 NIB MB 2) 5751 Mot ￥1600 NIB TinyBox 0) 5751 RCA ￥- LightlyUsed 3-mica date=5935 1880/1820/875min 1) JG 5751WA GE ￥1700 lightly-used WB DATE=60-10 GrayPlates 3-mica 1) 5751 GE ￥1900 lightly-used silk=wiped-out, BlackPlates 3-mica WB 0) 5751 GE ￥- LightlyUsed 3-mica GrayPlates date=5552 1720/1730/875min 0) 5751 GE ￥- LightlyUsed 3-mica BlkPlates 1670/1520/875min 0) 5751 GE ￥- LightlyUsed 3-mica GrayPlates date='55's 1480/1520/875min 0) 5751 Syl ￥- LightlyUsed 3-mica BlkPlates 1740/1700/875min 0) 5751 GE ￥- used? FiveStars(10000H高信頼管) Date=60-13 WB(D) 1) 5751 Marconi(Canada-GEmade) ￥1000 used WB DATE=60-46 GrayPlates gm=1430/1440/875min 1) 5751 WH(C-GEmade) ￥900 used WB GrayPlatse gm=1420/1500 1) 5751 GE(Canada-GEmade) ￥1000 used WB DATE=61-49 GrayPlates gm=1400/1430 0) 5751 GE(Canada-GEmade) ￥1000 used WB DATE=62-02 GrayPlates gm=1440/1550 1) 5751 Beckman(GEmade) ￥1000 used WB GrayPlates gm=1570/1370 1) 5751WA - ￥1000 used WB GrayLongPlates gm=1550/1710 1) 5751 HP(GEmade) ￥1000 used WB DATE=66-26 GrayPlate gm=1480/1500 1) 5751 GE ￥1100 used WB GrayPlate gm=1610/1550 4) 5751 Sylvania? ￥1000 used WB GrayPlate gm=38-46/32min on TV-7B/U 0) 5751 Tsol ￥- used WB LongGrayPlates gm=1430/1440,1500/1650/875min(D) 1) 5751 Tsol ￥1700 used WB LogGrayPlates gm=1560/1540 print=0%
5755 (see 420A/5755)=TwinTriode for DC Amp= (EIA/9J - noval) Eh/Ih=6.3V/0.36A(12.6V/0.18A) Ppmax=1W Epmax=250V Ehkmax=75V op : Ep=110V Ec=-0.95V Ip=0.15mA gm=0.5mS rp=140kΩ μ=70 op : Ep=180V Ec=0V Ip=2.2mA gm=1.5mS (参考 : WE-420A/5755のEp-Ip特性) * Raytheon said, The CK5755 has several unique features of construction and test specification controls which make it suitable for applications, such as precision DC-amps, computers, and regulated power supplies which require very stable characteristics. Among the features are special cathode springs which reduce microphonic response. This characteristic is controlled by a "microphonic stability" test for balance in which the tube is tapped at shock level of 400G to 600G. Other tests which serve to control the characteristics are : 150 hour stabilization, drift, electrical stability, plate current balance, and a maximum grid current limit of 1nA-dc. These test are described under Typical Operation Conditions and Charactereistics. 0) 5755 WE ￥- NOS MB TopGtr(Qn) 6) 5755 WE ￥6700 NIB TopGtr date=6052,6213,6313,6313,6313,6313 12) JW-5755/420A WE ￥6700 NOS ClearTop date=352,(2)352,426,(2)452,452,513,(3)552,552 WB 0) 420A(JW-5755) STC(WE) ￥- NIB ClearTop JW5755のSTC-420A箱入(D) 2) 5755 WE ￥6700 NIB WhiteBox ClearTop date=213,326 2) JW-5755 WE ￥6700 NIB BrownBox TopGtr date=5-59,6-59 4) 5755 WE ￥6700 NOS BrownBox TopGtr date=5939,5939,5939,5952 1) 5755/420A WE ￥6700 NOS 1670/1760/975min ClearTop 0) JW 5755 WE ￥- NOS D/C=726 & 813, ClearTop, gm-matched pair 0) JW 5755 WE ￥- NOS D/C=613 & 713, ClearTop, gm-matched pair 0) JW 5755 WE ￥- like-new ClearTop D/C=813,713,639,652 quad 1) 5755,5755/420A WE ￥4500 NOS? 1730/1350, 1460/1540/975min ClearTop 1) 5755 WE ￥4500 used TopGetter 39.5/38/25min(TV-7) 3) 5755/420A WE ￥4500 used/LikeNew ClearTop 39.5/40.5/25min, 37/38/25min, 35.5/41/25min(TV-7) 2) JW-5755/420A WE ￥4500 used/LikeNew ClearTop D/C=539, 552 gm=1500/1500, 1600/1750 2) 5755,5755/420A WE ￥4500 used ClearTop 0) 5755/420A WE ￥- used?(Aht) 1) 5755 WE ￥4500 usedLikeNew ClearTop 1590/1575/975min date=626 0) 5755 WE ￥- used ClearTop(T) 0) 5755 WE ￥- used TopGtr(Q) 1) 5755 WE ￥4500 used? 1500/1500/975min TopGtr 3) 5755 Tsol ￥3100 NIB ClearTop(T)++ 29) 5755 Ray ￥800 NIB BlkPlate TopGtr(41) 2) JAN-CRP 5755 Ray ￥2100 NIB BlkPlate MB ClearTop date=12-1953, 10-53 1) JAN-JRP 5755 Ray ￥2100 NIB MB BlkPlate ClearTop date=3-40 1) CK 5755 Ray ￥2100 NIB MB BlkPlate ClearTop date=5907 1) 5755 Ray ￥1000 NIB 1) 420A STC(Ray-5755) ￥1500 NOS BlkPlate TopGtr 1) 5755 Canada-GE ￥1000 NIB 1) 5755 NEC ￥1000 used WB
5763=VHF Transmitting BeamPower= (EIA/9K - noval) Eh/Ih=6.0V±10%/0.75A (
center-Eh is not 6.3V) Ehkmax=±100V Tbulb=250℃max CCS(Tetrode con./RCA-abs.max): Ppmax=12W Epmax=300V Ipmax=50mA Pc2max=2W Ec2max=250V Ic2max=15mA Ic1max=5mA Ikmax=65mA as class A1 audio amplifier - μg2g1=16-typ op(A1s): Ep=250V Ec2=225V Ec1=-6.25V Ip=45mA Ic2=3.7mA rp=38kΩ gm=6.8mS Zl=5.5kΩ D=5.1% Po=2.85W op(A1s): Ep=300V Ec2=225V Ec1=-7.40V Ip=40mA Ic2=2.3mA rp=65kΩ gm=6.3mS Zl=8.5kΩ D=7% Po=4.0W op(A1pp): Ep=250V Ec2=225V Rk=68Ω Ip=84.0/84.5mA Ic2=6.9/18.0mA Zlpp=11.5kΩ D=4.2% Po=6.7W op(A1pp): Ep=300V Ec2=225V Rk=68Ω Ip=86.5/85.0mA Ic2=5.6/14.6mA Zlpp=11.5kΩ D=4.2% Po=7.5W CCS(Triode connection/Brimar-abs.max): Ppmax=12W Epmax=250V as class A1 audio amplifier op(A1s) : Ep=250V Ec=-7.5V(Rk=150Ω) Ip=50mA rp=2.1kΩgm=7.5mS μ=16 Zl=4kΩ D=5.2% Po=0.7W op(A1pp) : Ep=250V Ec=-7.25V(Rk=75Ω) Ipo=98mA Zlpp=5kΩ D=1.6% Po=1.7W (参考 : 三結時のEp-Ip特性(triode connection)) also see almost-identical types : CV4039/6062(by Brimar-section of STC) 4) JAN-JRC 5763 RCA ￥1700 NIB MB date=57-13, 2-60, 60-09, 58-04 1) JRC 5763 RCA ￥1700 NIB MB D/C=65-39 2) 5763RCA ￥1700 NOS Bulk 2) 5763RCA ￥1700 NIB RB 8) 5763 RCA ￥1700 NIB (rhxa) 1) 5763 RCA ￥1700 NIB 1) 5763 RCA ￥1700 NIB MB JRC-5763 DATE=1951-10 5) 5763 RCA ￥1700 NIB 2) 5763 GE ￥1500 NOS Bulk 26) 5763 GE(RCA-made) ￥1700 NIB date=5-26 3) 5763 GE ￥1500 NIB 1) 5763 Syl ￥1500 NIB 1) 5763 Syl ￥1500 NIB 2) 5763 Syl ￥1500 NIB MB 1) 5763 Syl ￥1500 NOS WB 18) WL-5763 WH(RCA-made) ￥1700 NIB date=62-39 1) WL-5763 WH(Syl-made) ￥1500 NIB 1) 5763 Ray ￥1500 NIB 8) 5763 Philips-ECG ￥1200 NIB MB (hyyanx) 1) JHY-5763 CBS-Hytron ￥1500 NIB MB 1) CK 5763 Ray ￥1500 NIB 5) 5763 Rogers ￥1500 NIB 3) 5763 Mot ￥1500 NIB(Q) 1) 5763 RCA ￥700 used GE箱 1) 5763 RCA ￥700 used RCA箱 1) 5763 GE ￥700 used RCA箱 1) 5763 Britain ￥1100 used 2) 5763 Britain ￥900 used ピンにハンダあり 1) 5763 GE ￥700 used 1) 5763 USA ￥700 used 1) 5763 Toshiba ￥700 used 通測用 BlackPlate WB (108V), 0C2(90V)) 7) CK5787 Ray ￥1200 NIB
5764 =UHF pulse/CW operation planar Triode= (Acorn) Ppmax=5W Epmax=1000V gm=4.5mS μ=25 Fmax=3.3GHz Tseal=175centigrade Eh/Ih=6.3V/0.425A 0) 5764 Syl ￥- NIB
5765 =UHF OSC planar Triode= (Acorn) Ppmax=5W Epmax=350V gm=4.5mS μ=25 Fmax=3.3GHz Tseal=175centigrade Eh/Ih=6.3V/0.4A 0) 5765 Syl ￥- NIB
5767/6481 =UHF pulse/CW operation planar Triode= (Acorn) Sylvania : Ppmax=6W Epmax=350V gm=4.5mS μ=25 Fmax=3.3GHz Tseal=175centigrade Eh/Ih=6.3V/0.4A Litton : Ppmax=5W Epmax=350V gm=4.5mS μ=25 Fmax=3.3GHz Tseal=200centigrade Eh/Ih=7V/0.45A 0) 5767 Syl ￥- used 0) 5767 Litton ￥- used
5768 =Hi-mu planar Triode= (Acorn) Ppmax=4W Epmax=350V gm=4.5mS μ=25 Fmax=3GHz Tseal=175degree Eh/Ih=6.3V/0.4A 0) 5768 Syl ￥- used
5783/85A3 =85V-voltage reference / gas-filled glow-discharge Diode= (T3 glass *subminiature*) Estart=115V(w/ambient light)/140V(under complete darkness) Eop=85V(80V-90V) Iop=1.5mA-3.5mA Fluctuation=±0.1V see 100V 'subminiature' voltage regulator : 5787 also see 85V miniature voltage reference : 5651/A(7-pin) also see 100V noval voltage reference : WE-423A/B/C(9-pin) 1) JAN-CRP 5783 Ray ￥1900 NIB MB大箱 11) CK5783 Ray ￥1900 NIB 大箱
5784/WA/WB =DualControlRF Pentode= (EIA/5702) *subminiature* Eh/Ih=6.3V/0.2A Ehkmax=±200V Ppmax=0.79W Epmax=165V Pc2max=0.6W Ec2max=155V Ikmax=16.5mA Rg1max=1.2MΩ op : Ep=120V Ec2=120V Ec3=0V Rk=230Ω Ip=5.5mA Ic2=4.1mA gm=3.2mS 10) 5784 Ray ￥1200 NIB (rhya)
5786 =Forced Air-cooled Transmitting Triode= Ppmax=600W Epmax=3000V Ipmax=400mA Eh/Ih=11V/12.5A 0) 5786 RCA ￥-
5787/WA/WB =100V-regulator/cold-cathode gas-filled Diode= (EIA/) *subminiature* Tbulb=225℃ Eop=100V(95-103V) Estart=135V(w/AmbientLight)/150V(for CompleteDarkness) Ia=5-25mA Regulation=±3V @Ia=5-25mA see 85V 'subminiature' voltage reference : 5783 (also see 90-110V miniature regulators : 0B2(108V), A href="#6074">6074
5794 =Fixed Tuned OSC Triode for radiosonde (pencil+resonator)= Fmax=1.7GHz Tseal=175centigrade Eh/Ih=5.2V/0.146A Ep=95V Ip=24mA Zl=50Ω Po=0.3Wtyp. 0) 5794 Syl ￥-
5794A/6562 =Fixed Tuned OSC Triode for radiosonde (pencil+resonator)= Ppmax=3.6W Epmax=120V Ipmax=34mA Fmax=1.7GHz Tseal=175centigrade Eh/Ih=5.2-6.6V/0.16A Zl=50Ω Po=0.3Wtyp. 0) 5794A(6562) RCA ￥-
5814/5814A =TwinTriode(special 12AU7)= (EIA/9A - noval) (see 12AU7 / 5963 / 6189 ) Intended for applications where dependable performance under shock and vibration is paramount. The 5814A is a "premium" versions of the 12AU7. Eh/Ih=12.6V/0.175A(6.3V/0.35A) Ehkmax=±100V Impact~600Gmax Fatigue(vib.)=2.5Gmax Ppmax=3W(/unit)/6W(both) Epmax=330V Rg1max=250kΩ(fixed)/1MΩ(self) op : Ep=250V Ec=-8.5V Ip=10.5mA rp=7.7kΩ gm=2200μmho μ= 17 (参考 : Ep-Ip特性(AB2-area)) 8) 5814A RCA ￥3100 NIB 1950年代 D/C=3-43(3), 4-30(4), 4-39(1) black-plates 2) 5814A RCA ￥1500 NIB 0) 5814A RCA ￥- NIB 1) 5814A RCA ￥2700 NIB BlkPlates 3-mica date=59-04 1) 5814A RCA ￥2700 NOS BlkBoxPlates Dgtr 3Mica date=552 ### 2) 5814A RCA-Command ￥3300 NIB BlkPlates date=67-22 4) 5814A RCA-Command ￥3300 NIB BlkPlates date=67-30 1) 5814A RCA-Command ￥3300 NIB BlkPlates 2640/2600/1950min VeryRaggedBox 2) JRC 5814A RCA ￥3100 NIB D/C=60-04 BlkPlates 1) 5814A RCA-Command ￥3300 NOS? BlkPlates 3050/3120/1950min IEC-Mullard箱 1) 5814WA RCA ￥1700 used BlkPlate gm=2360/2460/1950min 3-mica 1) 5814 RCA ￥1700 used BlkPlate gm=2600/3100/1950min 1) 5814A RCA ￥1500 usedLikeNew BlkPlate gm=2700/2510/1950min date=7013 2) 5814A GE ￥2700 NIB 1950年代 D/C=3-52 black-plates 3-mica 1) GL-5814A GE ￥2700 NIB 5-star 1950年代 D/C=4-26 black-plates 3-mica 1) GL-5814A GE ￥2700 NOS 5-star 1950年代 D/C=3-48 black-plates 3-mica RCA-boxed 1) JG 5814A GE ￥2700 NIB D/C=66-42 Gray-plates MB 1) JG 5814 GE ￥2700 NOS GrayRibbedFlatPlates Dgtr date=317 ### 1) JG 5814A GE ￥2200 NOS GrayBoxPlates Dgtr 3Mica date=5922 ### 1) JG 12AU7 GE ￥2200 NOS GrayRibbedPlates Dgtr ### 3) 5814 CGE ￥1300 NIB GrayPlates(Qn) 2) 5814 CGE ￥1500 NIB BlkPlates 0) 5814A GE ￥- NIB MB DATE=3-66(D) 2) 5814A GE ￥1500 NOS MB Syl箱(sD) 1) JG-5814WA GE ￥2200 NIB MB date=59-4 16) 5814A GE ￥2700 NIB 5-star (hyy1v2gt) 5) 5814A GE ￥1500 NIB(sQ) 1) 5814A GE ￥1500 NOS 3-mica RCAcommand箱 1) 5814A GE ￥1500 NIB 1) 5814A GE ￥1500 NIB RCA箱++ 2) JAN 5814A GE ￥1700 NIB D/C=7535 VeryRaggedBox 1) JAN 5814A GE ￥1500 NIB D/C=83-07 VeryRaggedBox 3) 5814 GE ￥1900 used BlkPlate '52 VeryStrong(Nn) 1) 5814A GE ￥1900 used FiveStar gm=2940/2800/1950min 1) 5814A GE ￥1800 used FiveStar gm=2730/2650/1950min 1) 5814A GE ￥1500 used FiveStar gm=2400/2520/1950min 1) 5814A GE ￥1500 used FiveStar gm=2400/2500/1950min 1) 5814A GE ￥1500 used FiveStar gm=2200/2200/1950min 1) 5814A GE ￥1500 used FiveStar gm=2500/2340/1950min 1) 5814A GE ￥1300 used FiveStar gm=2170/2400/1950min 1) 5814A GE ￥1000 used gm=2800/2970/1950min 1) 5814A GE-made ￥1500 used BlkPlates D-gtr gm=2670/2520/1950min 1) 12AU7 ? ￥2000 used BlkRibbedFlatPlates Dgtr ### 5) 5814A Syl ￥1300 NIB MB DATE=5-71 1) 5814A Syl ￥1300 NIB MB 2) 5814WA Syl ￥1700 NIB MB BlkPlates 1) 5814A GE ￥2700 NIB 1950年代 D/C=3-18 black-plates 1) JHS 5814A Syl ￥1900 NIB MB 3-mica GrayPlates date=6-61 1) GB-5814A Syl ￥2200 used GoldBrand gm=2660/2700/1950min 1) 5814A Syl ￥1200 used gm=2800/2800/1950min 3) 5814A ITT-Lorenz(Syl-made) ￥1000 used 1) 5814A ITT-Lorenz(Syl-made) ￥400 used 2810/1950/1950min 2) JAN-5814A PhilipsECG ￥1000 LightlyUsed BluePrint GrayPlate gm=LikeNew 3) JAN 5814A Syl ￥1700 NIB D/C=7113 GrayPlates RaggedBoxes 4) JAN 5814A PhilECG ￥1300 NIB D/C=8439 GrayPlates RaggedBoxes 1) JAN-CRP 5814 Ray ￥2700 NOS BlkRibbedFlatPlates Dgtr date=304 ### 1) JAN-CRP 5814A Ray ￥2400 NOS BlkRibbedPlates 3Mica Dgtr ### 2) JAN-CRP 5814WA Ray ￥2100 used date=5907 BlkPlate gm=2830/2880,2740/2780,3050/3040/1950min(T) 1) 5814A CBS-Hytron ￥2400 NOS? BlkRibbedPlates Dgtr date=525 ### 1) 5814A CBS-Hytron ￥2400 NOS BlkRibbedPlates Dgtr date=525 ### 1) 5814A CBS-Hytron ￥2400 NOS BlkRibbedFlatPlates Dgtr date=525 ### 1) 5814A/E82CC Siemens ￥1700 106/105/56min 1) 5814A - ￥1100 NIB 1) 5814 Dmnt ￥1700 NIB BlkPlate(T) 1) 5814 Toshiba ￥1700 used BlackPlates, silk=WipedOut, WB 1) 5814A Toshiba ￥1700 used BlackPlates, silk=WipedOut, WB 2) 5814 NEC ￥1700 used CBC(中部放送) lot=I65 GrayPlates WB 2) 5814 NEC ￥1700 used CBC(中部放送) lot=IN9 GrayPlates WB 2) 5814A NEC ￥1700 used GrayBoxPlates, yellow-silk, 3-mica, WB 1) 5814 Hitachi ￥1700 used CBC(中部放送) DC=1958-11, GrayPlates WB 1) 5814A Hitachi ￥1700 used DC=1969-1, GrayPlates WB
5819-光電子増倍管(0.44μm)- (10-stage head-on type for scintillation counters and other low-level light sources) 2) 5819 RCA ￥17,500 NOS Photo-Cell
5823 =リレー放電管= (EIA/4CK - miniature) スタータ電圧75-90V 逆耐圧225V Ik-average=25mA Ik-peak=100mA-max 3) 5823A TFK ￥1800 NIB <> 2) 5823/Z900T Amperex ￥1200 NIB 15) 5823 RCA ￥1200 NIB (hyxfnt) 5) 5823 RCA ￥1100 NIB ragged-box 1) 5823 RCA ￥1200 NIB 3) 5823 RCA ￥600 used 1) 5823 GE ￥1200 NIB
5824 =Power Pentode= (EIA/7AC - octal) 5824 = special(industrial/MIL) 25B6G Ppmax=12.5W Epmax=200V Pc2max=2W Ec2max=135V Rg1max=100kΩ(fixed)/500kΩ(self) Eh/Ih=25V/0.3A op(A1S) : Ep=135V Ec2=135V Ec1=-22V Ipo=61mA Ic2o=2.5mA rp=15kΩ gm=5.0mS Zl=1.7kΩ Po=4.3W similar types : 25L6GT, 26E6WG(Eh/Ih=26.5V/0.3A) 0) 5824 GE ￥1500 NIB straight-GT thick-base 0) 5824 GE ￥1500 NIB straight-GT button-base 0) 5824 GE ￥800 used ST-type 0) 5824 GE ￥500 used straight-GT button-base
5838 =cathode-type FullWave Rectifier= (EIA/6S - octal) PIV=1375V Idc=75mA Eh/Ih=12.6V/0.6A Ehk=450V heater variants: 5852(6.3V/1.2A), 5838(12.6V/0.6A), 5839(26.5V/0.255A) also see 6X5(Eh/Ih=6.3V/0.6A) 0) JAN-CEA-5838 Bendix ￥- NIB MB BrownBase
5839 =cathode-type FullWave Rectifier= (EIA/6S - octal) PIV=1375V Idc=75mA Eh/Ih=26.5V/0.255A Ehk=450V heater variants: 5852(6.3V/1.2A), 5838(12.6V/0.6A), 5839(26.5V/0.255A) also see 6X5(Eh/Ih=6.3V/0.6A) 0) JAN-CEA-5839 Bendix ￥5300 NIB MB
5840 =SharpCutoffPentode= (EIA/8DL) *subminiature* Impact=450Gmax Fatigue(vib.)=2.5Gmax Tbulb=220℃ Altitude=80000Ft Eh/Ih=6.3V/0.15A Ehkmax=200V Rg1max=1.1MΩ Ppmax=0.9W Epmax=165V Pc2max=0.55W Ec2max=155V Ikmax=16.5mA Ec3max=22V Ec1max=+0V/-55V op : Ep=100V Ec2=100V Rk=150Ω Ip=7.5mA Ic2=2.4mA rp=>175kΩ gm=5mS (参考 : 三結時のEp-Ip特性(Triode-connection)) see almost-equivallent type : 8530 3) 5840 GE ￥1000 NIB(T) 4) 5840 CGE ￥1000 NIB(Sx) 1) JHS 5840 Syl ￥1000 NIB MB 10) JAN 5840W Ray ￥1000 NIB D/C=4/86 MB
5842/417A (see 417A/5842)=Medium μ High-gm Triode for Grounded Grid amp= (EIA/9V) Eh/Ih=6.3V/0.3A Tbulb=160℃max Ehkmax=55V absolute-max : Ppmax(ICAS)=4.5W Epmax=200V/400V-cutoff Ikmax=38mA Ecmax(Philips)=-50V/-100Vpeak, Ecmax(Ericsson)=+0V/-25V Rgmax(Philips)=100kΩ(fixed)/300kΩ(self), Rgmax(Ericsson)=50kΩ(fixed)/100kΩ(self) op : Ep=150V Rk=60Ω Ip=25mA rp=1.7kΩ gm=25mS μ=43 pins : 1(P)-2(NC)-3(H)-4(G)-5(G)-6(K)-7(G)-8(G)-9(H) (参考) #5842/417AのEpIp特性 see similar type : 6R-H2/6RH2(NEC-Japan) 3:reserved) JW 5842 WE ￥8000 NIB date=60-39 1) JW 5842 WE ￥7000 NOS? date=852 TopTip欠けあり 1) JW 5842 WE ￥7000 NOS? date=313 1) 5842 WE ￥7000 NOS 2) 5842 WE ￥7000 NOS gm>30000/15600min 1) 5842 WE ￥7000 NOS 36/15min(TV-7) 0) 5842/417A WE ￥- NIB WEOB(ragged),MB,WB(sT) 1) JW-5842/417A WE ￥4700 NOS?/used? WB gm=25800/15600min date=313 1) JW-5842 WE ￥7000 NOS?/used? WB gm=25300/15600min date=852 1) JW 5842 WE ￥7000 NIB DC=826 1) 5842/417A WE ￥7000 used? WB gm=24600/15600min 1) JW-5842 WE ￥7000 NOS?/used? WB gm= 28000/15600min date=852 JustFadedGetter 2) 5842 Amprx ￥2900 NIB PQ-grade GoldPin 1) 5842/417A WH ￥2200 NIB 1) 5842WA Ray ￥2200 NIB MB 1) 5842WA Ray ￥2200 NIB MB 1) Jan-CRP 5842 Ray ￥2900 NIB MB WindmilGtr date=6211 1) 5842/417A RCA ￥3000 NIB Gpin 0) 5842/417A GE ￥- NOS Gpin bulk (ghxa) 0) 5842/417A Ray ￥1000 used RCA箱
5844 =common-cathode med-mu TwinTriode= (EIA/7BF - miniature) (see 1684) Eh/Ih=6.3V/0.3A Ppmax=0.5W Epmax=175V Ikmax=9mA Rgmax=50kΩ(fixed) 100kΩ(self) Ehk=180V (5844=computer version 6J6/ECC91) also see E90CC / 5920 1) 5844 GE ￥1000 NIB 4) 5844 GE ￥500 used
5845 =Temperature limited Diode for voltage regulators= (EIA/E7-1 miniature) Ianode=50uAdc Eanode=250Vdc Ef/If=3V/0.365A Rl(anode)=1MΩ 1) 5845 Marconi ￥1000 NIB 0) 5845-TT30 Bendix ￥- NIB
5847/5847A/404A (see 404A/5847)=RF/IF Sharp cutoff Pentode= (EIA/9X - noval)
5852 =cathode-type Full-wave rectifier= (EIA/6S - octal) Eh/Ih=6.3V/1.2A Ehk=450V PIV=1375V Idc=75mA, Edrop≒30V(@Ip=75mA) heater variants: 5852(6.3V/1.2A), 5838(12.6V/0.6A), 5839(26.5V/0.255A) see a same-base similar-rating generic fullwave-rectifier : 6X5(Eh/Ih=6.3V/0.6A, PIV=1250V Idcmax=80mA) see a same-base lower-rating generic fullwave-rectifier : 6ZY5G(Eh/Ih=6.3V/0.3A, PIV=1250V Idcmax=40mA) also see a same-base upper-rating generic fullwave-rectifier : 6AX5(Eh/Ih=6.3V/1.2A, PIV=1250V Idcmax=120mA) 2) JAN-CEA-5852 Bendix ￥5300 NIB MB BrownBase 4) JAN-CEA-5852 Bendix ￥5300 NIB MB BrownBase(Qn) 1) JAN-CEA-5852 Bendix ￥5300 NIB MB BrownBase
5866
5866STX 1) 5866STX National ￥1800 NIB Nixie
5867
5868
5869 =mercury-vapor Power Thyratron= PIV=13000V Ia=1A Ef/If=5V/6.5A 0) 5869/AGR9950 Amperex ￥- used
5870 =mercury-vapor Power Thyratron= PIV=27000V Ia=2.5A Ef/If=5V/14A 0) 5870/AGR9951 Amperex ￥- used
5875 =Pentode=(EIA/1AD4) *subminiature* Ppmax=W Epmax=90V Pc2max=W Ec2max=90V Ikmax=6.5mA gm=2.5mS Ef/If=1.25/0.1A 0) 5875 Tsol ￥- NOS
5876 =pencil UHF Hi-mu Triode/ground-grid RF amp=(EIA/5675) Ppmax=5.25W Epmax=300V Ikmax=25mA μ=56 gm=6.5mS rp=8.625kΩ Eh/Ih=6.3V/0.135A for class A - clas C amplifier 0) 5876 RCA ￥- NIB
5879 =AF Sharp cutoff Pentode (Low noise input Amp)= (EIA/9AD - noval) Eh/Ih=6.3V/0.15A Ehkmax=±100V Fmax=100MHz pentode connection : Ppmax=1.25W Epmax=330V Pc2max=0.25W Ec2max=330V Ec1max=+0V/-55V Rg1max=2.2MΩ op : Ep=250V Ec2=100V Ec1=-3V Ip=1.8mA Ic2=0.4mA rp=2MΩ gm=1mS triode Connection : Ppmax=1.7W Epmax=275V Ec1max=+0V/-55V Rg1max=2.2MΩ op : Ep=250V Ec=-8V Ip=5.5mA rp=13.7kΩ gm=1.53mS μ=21 (* pins #2 and #6 should be connected to ruduce hum. leakage, microphonic noise) (参考 : 五結(Ec2=100V)、三結時のEpIp特性-pentode and triode connection) E80F EF804/S EF806S EF86/6267 5879の比較 see different base, low-noise European pentodes : E80F EF806S 6267/EF86 also see different base, low-noise European pentodes : CV2901 CV4085 6084, EF804/S also see different base British low-microphonic & low-noise pentodes : 6BR7/CV4006, 6059/CV4006 and 6BS7(top-G1) 1) 5879 RCA ￥1200 NIB 25) 5879 RCA ￥1000 NOS Bulk WB (rhyy19) 2) 5879 Amprx ￥1200 NOS WHITE 24) 5879 RCA ￥1200 NIB (rhx1v9nt) 5) 5879 RCA ￥1200 NIB - mint 1) 5879 RCA ￥1200 NIB 1) 5879 RCA ￥1200 NIB 1) 5879 RCA ￥1000 NOS? GE箱 1) 5879 RCA-made ￥1000 NOS? 11) 5879 GE ￥1000 NIB(hyxcnt) 3) 5879 GE ￥1200 NIB - mint 0) 5879 GE ￥- NIB w/sleeve 1) 5879 GE ￥1000 NOS 紺箱 1) 5879 Syl ￥1000 NIB ++ 6) 5879 Syl ￥1200 NOS 黄色OB 1) 5879 Tsol ￥1200 NIB 1) 5879 Ray ￥1100 NIB 1) 5879 Ray ￥1100 NIB RaggedBox 1) 5879 RCA ￥800 lightly-used WB 1) 5879 RCA ￥500 used Amprx箱 1) 5879 RCA ￥500 used WB
5881
5886 =ElectrometerPentode=(EIA/5886) *subminiature* Eh/Ih=1.25±0.25V/0.01A Ppmax=W Epmax=45V Pc2max=W Ec2max=45V Ikmax=0.3mA op(pentode connection) : Ep=8.5V Ec2=4.5V Ec1=-2V Ip=6μA Ic2=3.6μA rp=8MΩ gm=14μmho Ig1=3fA op(triode connection) : Ep=10.5V Ec=-3V Ip=200μA rp=10.3kΩ gm=175μmho μ=1.8 Ig=250fA similar to 5889 5) JAN-CRP 5886 Ray ￥2900 NIB MB 5) JAN 5886 Ray ￥2900 NIB MB 4) CK 5886 Ray ￥2900 NIB MB 1) 5886 Ray ￥1800 NIB very-ragged-box 0) 5886 USA ￥- NIB (T) 2) 5886 Toshiba ￥1000 used w/OB
5889 =top-G1 ElectrometerPentode= *subminiature* Eh/Ih=1.25/0.01A (ultra-low grid current tube) Ppmax=W Epmax=45V Pc2max=W Ec2max=45V Ikmax=0.3mA op : Ep=12V Ec2=4.5V Ec1=-2V Ip=4μA Ic2=4μA gm=10μmho AmpFactor=250 Ic=3fAmax similar to 5886 1) CK5889 Ray ￥3300 NIB 大型赤箱 3) CK5889 Ray ￥3300 NIB 大型赤箱 1) CK5889 Ray ￥1700 used 大型赤箱 2) CK5889 Ray ￥1700 used 大型MB
5894 /'QQE06/40'/AX99035894 = RCA 829B 類似のPhilips系VHF送信管 (* Amperex catalogue said : 5894 is Radiation and/or forced-air cooled twin-tetrode of original Amperex design as HF version of conventional 829-B makes ideal multiplier, as well as straight amplifiew and modulator.) Eh/Ih=12.6V/0.9A(6.3V/1.8A) Ehkmax=100V Fmax=250MHz CCS(audio): Ppmax=2x20W Epmax=600V Pc2max=7W Ec2max=300V Ipmax=2x110mA Ic1max=2x5mA Rg1max=50kΩ gm=4.5mS-typ μg2g1=8.2-typ for Ip=30mA *AF / single-tube push-pull amplifier op(B1pp): Ep=300V Ec2=250V Ec1=-26.0V Ip=40/112mA Ic2=2.8/28mA Zlpp= 6.5kΩ Po=22.5W D=2.9% op(B1pp): Ep=450V Ec2=250V Ec1=-27.5V Ip=40/116mA Ic2=1.4/27mA Zlpp=10.0kΩ Po=35.0W D=3.1% op(B1pp): Ep=600V Ec2=250V Ec1=-27.5V Ip=40/124mA Ic2=0.9/23mA Zlpp=12.5kΩ Po=50.0W D=2.4% op(B2pp): Ep=300V Ec2=250V Ec1=-25V Ip=50/188mA Ic2=2.8/28mA Ic1=0/5.2mA Zlpp=4kΩ Po=37W D=5% op(B2pp): Ep=450V Ec2=250V Ec1=-25V Ip=50/194mA Ic2=1.9/28mA Ic1=0/5.2mA Zlpp=6kΩ Po=60W D=5% op(B2pp): Ep=600V Ec2=250V Ec1=-25V Ip=50/200mA Ic2=1.2/26mA Ic1=0/5.2mA Zlpp=8kΩ Po=86W D=5% size : 46mmΦ x 108.5mmH, in max (glass-bottom = 49mmΦ, in max) / net-weight = 60gram see CV-number/military type : CV2797 also see a same-base, upper-rating, electrically-similar type : 8643(Ppmax=2x38W) also see half-Ppmax, electrically-similar types : 6252, QQV03-20A, 6907(Ppmax=2x10W) also see one-third Ppmax, noval(MT 9pin) twin power tetrode : 6360(Ppmax=2x7W) 1) 5894 Amprx ￥5000 NIB Yellow 2) 5894 Amprx ￥5000 NIB 大型MB 0) 5894 Amprx ￥- NIB Yellow 1) 5894 Amprx ￥5000 NIB MB 2) QQE06/40(AX9903) OEM(Amperex) ￥5000 Bulk品 OriginalWrapper SameLot(hyy1v4t) 1) 5894 Amprx ￥4000 NOS? MB 0) 5894B/8737 Amprx ￥- LikeNew 1) 5894B Motorola/Amperex ￥5000 NIB (note 5894B = 8737) 2) 5894 Motorola ￥2000 used AluminumRadiator付@@ 6) 5894 Amprx ￥2000 used 1) 5894 Motorola ￥2000 used WB 1) 5894 Ray ￥2000 used 1) 5894B Amprx ￥2000 used - (note 5894B = 8737)
5895
5896 =separate-cathode HF-detector/rectifier Twin Diode= (EIA/8DJ) *subminiature* for up-to 900MHz(resonant-freq.) detector, small-power rectifier Eh/Ih=6.3V/0.3A Ehkmax=±350V Tbulb=250℃max PIV=460V Eac-input=165Vrms-max Idcmax=10mA/60mA-peak/350mA-pulse(0.2sec) 2) GB-5896 Syl ￥2400 NIB GoldBrand MB subminiature
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
5902/CV4029/SN1777A/EL71 =BeamPowerPentode= (EIA/8DL) *subminiature* Eh/Ih=6.3V/0.45A Ehkmax=±200V Rg1max=0.55MΩ(self)/0.1MΩ(fixed) Ppmax=4W Epmax=165V/330Vpeak Pc2max=1W Ec2max=155V Ec1max=+0V/-55V Ikmax=50mAdc op : Ep=110V Ec2=110V Rk=270Ω Ip=30mA Ic2=2.2mA gm=4.2mS rp=150kΩ Ec_cutoff=-40V(for Ip=0.1mA) op : Ep=110V Ec2=110V Rk=270Ω Ip=30mA Ic2=2.2mA Esig=6.4VAC Zl=3kΩ Po≧0.75W(minimum) (参考 : 5902による200V/50mA安定化電源回路(regulated power supply)) see almost-equivallent type : 8528 0) CK-5902 Ray ￥- NIB(Q) 6) 5902 Syl ￥2400 NOS WB GoldLabel 4) SN1777A(=5902) - ￥1200 NOS close-up view
5912 1) JG-5912 GE ￥2000 NIB MB (justLargeBox)
5915 =PentaGridAmplifier= (EIA/7CH - miniature) Eh/Ih=6.3V/0.3A (see replacement type 6687) 1) 5915 RCA ￥900 NIB BlkPlate HP-parts 1) 5915 RCA ￥900 NOS BlkPlate 18) 5915 RCA ￥900 NIB 1) 5915A Syl ￥900 NIB
5920( = E90CC) =10000H PQ Twin Triode= (EIA/7BF - miniature) Eh/Ih=6.3V/0.4A Ppmax=3W Epmax=300V Ikmax=15mA gm=6mS μ=27 rp=4.5kΩ also see same-base common-cathode twin-triodes : E92CC 6J6/ECC91 6MHH3 5844 5964 6045 6101 0) 5920 Amperex ￥2000 NIB 0) 5920 Matsushita ￥- NIB 5) 5920/E90CC Matsushita ￥1600 NIB SQ 特殊管箱
5930 =MIL/industrial Power Triode= (EIA/4D - UX, straight-T12bulb) Ef/If=2.5V/2.5A Ppmax=15W Epmax=360V Rgmax=50kΩ op(A1S) : Ep=250V Ec=-45V Ip=60mA rp=800Ω gm=5.25mS μ=4.2 Zl=2.5kΩ D(2nd)=5% Po=3.5W #5930 = MIL/industrial anti-shock & anti-vib. 2A3 w/straight T12-bulb (参考 : 2A3のEpIp特性とバリアント(EpIp-curve and variants)) 0) 5930 Sylvania ￥- NIB MB 0) 5930 Sylvania ￥- used
5931 (=5U4WG, see 5U4G/GA/GB) =rugged filamentary full-wave Rectifier= (EIA/5T - octal) reliable/rugged version of 5U4G/GA/GB Impact accel.=450Gmax, Fatigue(vibration accell.)=2.5Gmax Eh/Ih=5V/3A Sylvania-1952 absolute.max: PIV=1700V Ip=0.75A-peak/plate, 2.5A-transient/plate Idc-output=250mA design.max : PIV=1550V Ip=0.675A-peak/plate Idc-output=225mA Edrop=58V(@Idc=225mA/plate) Cond.-input : Eac=450Vrms Rseries-plate=75Ω/plate C=4uF Idc=225mA Choke-input : Eac=550Vrms Choke=3H Idc=225mA Sylvania-1960(improved version) AC supply frequency = 25Hz to 1kHz design.max : PIV=1700V Eacmax=600Vrms Ip=1.1A-peak/plate, 5.1A-transient/plate Edrop=47V(@Idc=275mA/plate) Cond.-input : Eac=330Vrms Rseries-plate=21Ω/plate C=40uF Idc=330mA Edc=+320V Cond.-input : Eac=500Vrms Rseries-plate=67Ω/plate C=40uF Idc=310mA Edc=+520V Choke-input : Eac<500Vrms Choke=10H Idc=390mAmax Choke-input : Eac=600Vrms Choke=10H Idc=275mA Edc=+460V also see the Rating Chart(Sylvania 1960) 2) JAN-CHS 5931(5U4GB) Rauland(Syl-made) ￥3600 NIB TopGtr BrownBase Rauland-5U4GB箱 2) JAN-CHS 5931 Syl ￥3600 NIB MB 1) JAN-CHS 5931 Syl ￥3600 NOS Syl箱
5932 (see 6L6/G/GB/GC)=BeamPower(special-6L6G)= (EIA/7S - T12) (also see 5881 6098 6384 KT-66) Ppmax=21W Epmax=400V Pc2max=2.75W Ec2max=300V Eh/Ih=6.3V/0.9A op(AB1pp) : Ep=360V Ec2=270V Ec1=-22.5V Ip=88mA/132mA Ic2=5mA/15mA Zlpp=6.6kΩ Po=26.5W op(AB2pp) : Ep=360V Ec2=270V Ec1=-25V Ip=88mA/205mA Ic2=5mA/16mA Zlpp=3.8kΩ Pin=-W Po=47W 4) 5932 Syl ￥4900 NOS WB TwinBlkPlate TopGtr (hyyagz) 20) 5932 Syl ￥4900 NOS WB SingleBlkPlate TopGtr (hyy2gx7yx) 2) 5932 Syl ￥4900 NOS D/C=1961, 1962 SingleBlkPlate TopGtr w/holes GE箱 1) JAN-CHS 5932 Syl ￥4900 NIB MB gm=5400/3300 Ip=51mA 3) 5932 Syl ￥4900 NOS D/C=6611, 6701, 6701 SingleGrayPlate SideGtr 白箱 1) 5932 Syl ￥3000 used gm=4750/3300
5933/S/WA (=807W, see 807) (EIA/5AW - octal TopPlate) =BeamPower(rugged/special-807) especially for mobile applications (anti- shock vibrations)= Eh/Ih=6.3V/0.9A Fmax=60MHz CCS: Ppmax=25W Epmax=600V Pc2max=3.5W Ec2max=300V Ehk=135V op(ICAS-AB2pp): Ep=750V Ec2=300V Ec1=-32V Ip=52mA/240mA Ic2=5mA/10mA Zlpp=6.95kΩ Pin=0.2W Po=120W op(CCS-AB2pp) : Ep=400V Ec2=300V Ec1=-25V Ip=90mA/240mA Ic2=5mA/10mA Zlpp=3.2kΩ Pin=0.3W Po=55W op(CCS-AB2pp) : Ep=600V Ec2=300V Ec1=-30V Ip=60mA/200mA Ic2=5mA/10mA Zlpp=6.4kΩ Pin=0.1W Po=80W (ICAS = Intermittent Commercial or Amateur Service / 家庭用アンプなど) CSF data for Triode connection AB1pp amplifier (data for two tubes) : op(AB1pp) : Ep=400V Ec=-45V Ipo/Ipmax=60mA/140mA Zlpp=3.0kΩ Po=15W size : 43.2mmΦ x 119mmH, in max also see WE-350A(6.3V/1.6A) also see an electrically similar British type : KT8/CV1079(Eh/Ih=6.3V/1.25A. B5-base, top-plate) 4) 5933S Tomson-CSF ￥4300 NIB 大型元箱 1) JAN-CHS 5933 Syl ￥4300 NIB MB ragged box 5) JAN-CHS 5933 Sylvania ￥3300 LikeNew WB date=1950s(code=228, 235 etc) gm/Ip=4.32mS/33.5mA, 4.27mS/29mA, 3.83mS/26mA, 3.8mS/26mA, 4.04mS/29mA (gm-min=2.4mS, on 539B) 1) JAN-CHS 5933/807W Sylvania ￥3000 NOS D/C=228(1952) Side-2x2D-getter 4) 5933WA Syl ￥4300 NIB MB ragged box 6) 5933WA ECG ￥4100 NIB MB well-matched gm/Ip, pristine boxed tubes (probably same lot) 5) JAN-5933WA PhilipsECG ￥3900 NIB MB ragged box 1) JAN-CHS 5933WA Sylvania ￥3900 NOS D/C=5750A Top-Dx2getter STD-boxed 1) JAN-CHS 5933WA Sylvania ￥3300 LikeNew gm=4380μmho/2400min Ip=32mA WB 1) GB-5933 Sylvania ￥3900 Gold-Brand LikeNew gm=3900μmho/2400min Ip=31mA WB 2) 5933 Sylvania ￥2700 lightly-used WB
5947 =Temperature limited Diode(TT2)= (EIA/- octal) Bendix said,"This temperature limited diode is designed for use as a stable reference source for voltage regulator appications, or for use in circuits requiring a tube with temperature limited emission characteristics. Temperature limited operation of the tube causes anode current to become a direct function of filament voltage, and thus small changes in applied filament voltage will produce relatively large changes in anode current. The use of a pure tungsten filament permits continuous use of the tube in the temperature limited region without change or damage to the filament during the life of the tube. Close control of critical dimensions and a process- ing schedule designed to eliminate residual gas content, provide a tube with highly stable characteristics held to close tolerance." Eanode-max=250Vdc Ianode-max=45mA Panode-max=7W Efmax/Ifmax=6.5V/2.2A(AC orDC) op : Eanode=90Vdc Ianode=1.5mAdc Ef/If=4.44V±2.5%/1.75A(AC or DC) LongTermFilamentStability=1% Life=60,000h-est.(@Ef=4.5V) (参考 : Life estimation / Ef-Ip sensitive characteristics) 6) 5947/TT2 Bendix ￥offer used? - rare -
5963 =TwinTriode for computer= (EIA/9A - noval) For "on-off" control applications involving long periods of operation under cutoff conditions Eh/Ih=12.6V/0.15A(6.3V/0.3A) Ehkmax=±90V Rgmax=500kΩ(fixed)/1MΩ(self) Ppmax=2.5W Epmax=250V Ecmax=+0V/-100V/-200Vpeak Pcinmax=0.5W Ikmax=20mA/100mApeak op : Ep=67.5V Ec=0V Ip=8.5mA rp=6.6kΩ gm=3.2mS μ=21 (参考 : EpIp特性) also see similar types : 12AU7 / 5814 / 6189 3) 5963 RCA ￥2400 NIB BlkPlate(T) 12) 5963 RCA ￥1600 NIB ragged-box 21) 5963 RCA ￥1600 NIB 2) 5963 RCA ￥2400 NOS Std箱 BlkPlates date=5-26, 57-09 1) 5963 RCA ￥2400 NIB BlkPlate 1950s white-silk 1) 5963 RCA ￥1600 NOS Std箱 GrayPlates '60's 1) 5963 Remington(RCA-made) ￥1600 NOS Std箱 GrayPlates '60's 1) 5963 RCA ￥1600 NOS GE箱 2) 5963 RCA ￥1600 NOS 10) 5963 RCA ￥1600 NIB GrayPlate 1) 5963 GE(RCA-made) ￥2400 NOS BlkPlates date=57-39 1) 5963 GE(RCA-made) ￥2400 NIB BlkPlate D/C=56-43(1956年) 1) 5963 Marshall(RCA-made) ￥2400 NIB BlkPlates D-Gtr 8) 5963 GE ￥1300 NIB 1) WL-5963 WH(GE-made) ￥1600 NIB date=65-45 +++ 5) GB-5963 Syl ￥3200 NIB GoldBrand GoldPins GoldLabel GrayPlates 8) GB-5963 Syl ￥3200 NOS(Bulk) GoldBrand GoldPins GoldLabel, WB 1) 5963 Syl ￥1600 NIB GrayPlate 1963-10 2) 5963 Syl ￥1600 NIB GrayPlate 62-51 2) 5963 Syl ￥1300 NIB MB GrayPlate 2) 5963 Syl ￥2800 NIB MB(MilitaryBox) GoldPrint GrayPlates 2) 5963 Syl ￥1300 NIB MB(MilitaryBox) GreenPrint GrayPlates 4) USN 5963 Syl ￥2500 LikeNew GoldPrint GrayPlates Dgtr date=851,938 2) JAN 5963 Philips-ECG ￥1300 NIB D/C=8226 MB 1) 5963 TungSol ￥1700 NIB 5) CK-5963 Ray ￥1300 NIB 5) WL-5963 WH(Syl-made) ￥1500 NIB date=63-48 GrayBoxedPlates 2) 5963 Mot ￥1200 NIB 1) 5963 Honeywell(RCA-made) ￥1700 NOS? GrayPlates parts#358594 FullPartsSheetOnGlass 1) 5963 StrombergCarlson(RCA-made) ￥1500 NOS? GrayPlates 1) 5963 StrombergCarlson(GE-made) ￥1300 NOS? GrayPlates 2) 5963 RCA ￥2000 used BlkPlates 98/98,96/96/56min date='50s 1) 5963 RCA ￥2000 used BlkPlates 94/96 date='50s 2) 5963 RCA ￥1600 used BlkPlates 90/98,88/99/56min date='50s 2) 5963 RCA ￥1800 used BlkPlates 86/90,84/90/56min date='50s 3) 5963 RCA ￥1600 used BlkPlates 83/84,82/82,82/82/56min date='50s 2) 5963 RCA ￥1500 used BlkPlates 80/80,74/76/56min date='50s 2) 5963 RCA ￥1300 used BlkPlates 70/72,70/80/56min date='50s 1) 5963 RCA ￥2200 used BlkPlates 3310/3300,3310/3250/1950min date=58-43,58-39(D) 3) 5963 RCA ￥1800 used? LongGrayPlates 3020/3070,2910/2840,2900/3010/1950min print =0-10% date=6222,6404 etc 14) 5963 RCA ￥1200 used GrayPlates date='62-'63 gm=2500-2900 Strong 1) 5963 RCA ￥1200 used GrayPlates 2520/2860/1950min 1) 5963 GE ￥2500 used 5-star GrayPlates 3220/3200/1950min 2) 5963 GE ￥2500 used 5-star GrayPlates 3260/3300,3200/3220/1950min 1) GL-5963 GE ￥1300 used BlkPlates 2120/2230/1950min 5) 5963 GE ￥800 used GrayPlates gm=2650->3000 trong 1) 5963 GE ￥800 used GrayPlates 2900/2940/1950min 1) USN-CHS 5963 Syl ￥1900 used GrayPlates GoldLabel 2820/2880/1950min date=902 1) 5963 Syl ￥2200 used GrayPlates GoldBrand 3060/3200/1950min 7) 5963 WH(Syl-made) ￥1600 used? LongGrayBoxPlates 2900-3100/1950min date=62-17 1) 5963 Beckman(RCA-made) ￥1600 used BlkPlates D-gtr 2630/2900/1950min date=58-43
5964 =common-cathode med-mu TwinTriode= (EIA/7BF - miniature) (similar to 6J6) Eh/Ih=6.3V/0.45A Ehkmax=±90V Ppmax=1.5W Epmax=250V PC_inmax=0.1W Ecmax=+0V/-100V/-200Vpeak Ikmax=15mA/75mApeak op : Ep=100V Rk=50ΩIp=9.5mA rp=6.5kΩ gm=6mS μ=39 6) 5964 RCA ￥1100 NIB 1) 5964 RCA ￥1100 NIB 3) 5964 RCA ￥1100 NIB MB 5) 5964 GE ￥1000 NIB 1) 5964 Syl ￥1000 NIB 1) 5964 RCA ￥1000 NOS 6J6箱 1) CK5964 Ray ￥1000 NIB 1) 5964 Beckman ￥800 used
5965 =TwinTriode for computer switching= (EIA/9A-noval) Eh/Ih=12.6V/0.225A(6.3V/0.45A) Ehkmax=180V Ppmax=2.4W/unit 4W/2-units Epmax=300V Ikmax=15mA Rgmax=0.1MΩ(fixed), 0.5MΩ(self) op : Ep=150V Rk=220Ω Ip=mA rp=7.25kΩ gm=6.5mS μ=47 (参考 : Ep-Ip特性) similar to 12AV7, 6829, 7062, E180CC 4) 5965 TFK(Telefunken) ￥2900 NIB <> 0) 5965 RCA ￥- NIB (vQ) 2) 5965 RCA ￥1800 NIB date=65-30 GrayPlates 16) 5965 RCA ￥1500 NIB(hyy1v1ng) 1) 5965 GE ￥1200 NIB MB 16) 5965 GE ￥1200 NIB ++ 73) 5965 GE ￥1000 Bulk-NOS LongGrayPlates (￥8000 for 10-pcs) 1) 5965 GE ￥1800 NIB 5-star MB ClearTop SideGtr 1) 5965 GE ￥1200 NIB MB ClearTop SideGtr 1) 5965 Beckman(GE-made) ￥1200 NOS MB ClearTop SideGtr 1) 5965 GE ￥1100 NOS 5) 5965 Syl ￥1200 NIB 4) 5965 NEC ￥1200 NIB 通信用 just-ragged boxes 1) 5965 - ￥700 used 4) 5965A Tsol(GE-made) ￥800 used ClearTop VeryStrong 両ユニット共に6300～7500/4100min
5977 =MedMuTriode= (EIA/8DK) *subminiature*
5992 =BeamPower= (EIA/7AC-octal) 6V6GT-special Aircraft/military/industrial use / 45hours run-in tested/ Heavy-gage pure-almina insulator long-life heater / 10000H operation Eh/Ih=6.3V/0.6A Ehkmax=350V Tbulb=180℃max Life=10,000H(expectancy) Ppmax=12W Epmax=300V Pc2max=2W Ec2max=275V Rgmax=0.1MΩ warm-up-time=45sec op(A1S): Ep=250V Ec2=250V Ec1=-12.5V Ip=45mA/47mA Ic2=4.5mA/7mA rp=45kΩ gm=4mS Zl=5kΩ D=8% Po=4.0W op(A1S): Ep=300V Ec2=250V Ec1=-15.0V Ip=34mA/35mA Ic2=3mA/6mA rp=55kΩ gm=3.5mS Zl=6kΩ D=12% Po=4.5W op(AB1pp): Ep=250V Ec2=250V Ec1=-15.0V Ip=2x35mA/2x39.5mA Ic2=2x2.5mA/2x6.5mA Zlpp=10kΩ D=5% Po=10W op(AB1pp): Ep=275V Ec2=275V Ec1=-19.0V Ip=2x35mA/2x46mA Ic2=2x2mA/2x6.7mA Zlpp=8kΩ D=3.5% Po=14W 平均プレート特性(EpIp) electrically similar types : octal : 6V6/GT, 7408, 6AJ6 noval(9pin) : 6BW6, 12AB5, 6094 miniature(7pin) : 6AQ5, 6005, 6095, 6669 0) 5992 Bendix ￥- NIB 4) JAN-CEA 5992 Bendix ￥6300 NIB/NOS D/C=526 very-ragged boxes WB 2) 5992/JAN-CEA 5992 Bendix ￥6300 NOS D/C=5201 very-ragged boxes WB 0) 5992 Bendix ￥3900 LikeNew WB 1) 5992 Bendix ￥3100 lightly-used WB
NL5992 =Nixie= 1) NL-5992 National ￥2200 NIB ++ 1) NL-5992 National ￥2000 NOS? ++
5993 =cathode-type Full-wave Rectifier= (EIA/5993 - noval) Aircraft/industrial use / 45hours run-in tested/ extruded-almina long-life heater / 10000H operation Eh/Ih=6.3V/0.8A Ehk=500V PIV=1250V Idc=75mA pins : 1(P2)-2(NC)-3(H2)-4(NC)-5(K)-6(NC)-7(H)-8(NC)-9(P1) 1) 5993 Bendix ￥offer NIB MB MT 1) 5993 Bendix ￥offer NIB MB MT 1) JAN-CEA 5993 Bendix ￥offer NOS BlackPlates WB 1) JAN-CEA 5993 Bendix ￥offer NOS BlackPlates MB 2) JAN-CEA 5993 Bendix ￥offer NOS BlackPlates D/C=530 WB
5998 (see 421A)=Twin Power Triode= (EIA/8BD - octal) Eh/Ih=6.3V/2.4A Ehkmax=±100V(note for SEPP amplifier) Tung-Sol : Ppmax=15W Epmax=275V Ipmax=140mA Rgmax=500kΩ (absolute max values) op : Ep=60V Ec=0V Ip=135mA-min op : Ep=120V Ec=-14V Ip=88mA gm=14mS rp=390Ω μ=5.5-typ op : Ep=200V Ec=-55V Ip=0mA to 10mA (参考) #5998のEpIp特性 (also see 6AS7G(μ=2) 421A(μ=6) 6080(μ=2) 7236(μ=4.8) 7802(μ=9)) ０) 5998 STD(TungSol-made) ￥- NIB TopGtr date=6553-3(hyfn) ０) 5998 TungSol ￥5900 NIB MB(Q) 0) 5998 TungSol ￥- NIB(T) 0) 5998 TungSol ￥- NIB Matchedペア(D) 0) 5998 TungSol ￥- NOS WB Bulk品 12,500/12,500/5,000min(Hickok-539C) ０) 5998 TungSol ￥- NIB MB ragged box(sQ) 0) 5998 TungSol ￥- NOS(Bulk) WB(Qn) 2) 5998 Chatham(like WE-made) ￥8900 used WB BtmGtr VeryStrong 一部HairlineCrackBaseにあり 5) JAN-CTL 5998 TungSol ￥4300 lightly-used WB 2) JAN 5998 Chatham(Tung-Sol) ￥4300 lightly-used D/C=6104, 6025 WB 2) 5998 IBM(Tsol-made) ￥4300 used date=6109 STRONG 1) 5998 IBM(Tsol-made) ￥900 used date=6111 WEAK
6000 =BeamPowerPentode= (EIA/6CK - octal) Eh/Ih=26.5V/0.28A Ehkmax=±100V Fmax-op=100MHz Ppmax=25W Epmax=600V Pc2max=4W Ec2max=300V Ec1=-200Vmax IIpmax=125mA Ic1max=7mA gm=8mS-typ @Ip=70mA for HF app. : base metal shell should be chassis-grounded w/ using proper clumping dvice 70MHz amp : Ep=400V Ec2=200V Ec1=-60V Rg1=12kΩ Esig=75Vpeak Ip=125mA Ic2=16mA Ic1=5mA Pin=0.40W Po=28W 70MHz amp : Ep=600V Ec2=225V Ec1=-60V Rg1=20kΩ Esig=75Vpeak Ip=100mA Ic2=18mA Ic1=3mA Pin=0.23W Po=35W (参考 : EpIp特性(@Ec2=200V) same basing types : 6AU5GT, 6AV5GA/GT, 6FW5, 6BD5 1) 6000 MU ￥6000 NIB MB-WB ragged-box 1) NL-6000 National ￥2000 NIB
UZ-6001 =LowNoise TripleGridDetector Amplifier= (EIA/6F - UZ, ST12 G1-top) Eh/Ih=6.3V/0.3A Epmax=250V (Ec2max=180V) *pentode connection op: Ep=250V Ec2=100V Ec3=0V Ec1=-3V Ip=2.3mA Ic2=0.5mA rp=-MΩ gm=1.250mS *triode connection (G2,G3 connected to P) gm=2.0mS, μ=20-typ electrically-similar type : 77 also electrically-similar types : 1603, 6C6 electrically-similar different heater type : 57(Eh/Ih=2.5V/1A) electrically-similar octal types : 6J7(octal), 1620(octal) 0) UZ-6001 Matsuda(=Toshiba) ￥3000 lightly-used WB 1) UZ-6001 Matsuda(=Toshiba) ￥3000 like-new WB
6004 =Top-plates Fullwave Rectifier= (EIA/) PIV=1400V Eacmax=375V Ikpeakmax=1.4A Idcmax=120mA Edrop=60V(@Idc=140mA) Cinput=4uF Eh/Ih=5V/2A TopCaps are Plates with low-loss phoenolic insulator sleeves pins : 1(NC)-2(F)-3(none)-4(NC)-5(none)-6(NC)-7(none)-8(F)-TopCaps(P) electrically similar to 5Y3, 5Y4, 80 0) 6004 CBS-Hytron ￥- NOS 10) JAN-CHY 6004 Hytron ￥2200 bulk-NOS
6005W/6AQ5W (see 6AQ5 6669 6095/CT) =PowerPentode= (EIA/7BZ - miniature) Ruggdized version of 6AQ5 : Shock=600Gmax Fatigue(vib.)=2.5Gmax also, specially designed heater/cathode construction to withstand thousands of cycles of intermittent operation. Eh/Ih=6.3V/0.45A Ehkmax=90V Tbulb=250℃max Rg1max=100kΩ(fixed)/500kΩ(self) (design center) Ppmax=12W Epmax=250V Pc2max=2W Ec2max=250V, μg2g1=9-typ A1s: Ep=180V Ec2=180V Ec1=-8.50V Ip=29/30mA Ic2=3/4mA rp=58kΩ gm=3.7mS Zl=5.5kΩ D=8% Po=2.0W A1s: Ep=250V Ec2=250V Ec1=-12.5V Ip=45/47mA Ic2=4.5/7mA rp=52kΩ gm=4.1mS Zl=5kΩ D=8% Po=4.5W AB1pp:Ep=250V Ec2=250V Ec1=-15V Ip=70/79mA Ic2=5/13mA rp=60kΩ gm=3.75mS Zlpp=10kΩ D=5% Po=10W pins : 1(G1)-2(KG3)-3(H)-4(H)-5(P)-6(G2)-7(G1) (参考 : 三結時のEpIp特性(triode connection)) also similar to noval(9pin-MT) types : 6BW6 12AB5(Ek/Ih=12.6V/0.2A) 1) GL-6005 GE ￥1500 NIB 青箱 BlkPlate date=2-48 8) 6005/6AQ5W GE ￥1500 NIB MB BlkPlate date=12/59 1) JG-6005/6AQ5W GE ￥1500 NIB ribbed BlackPlate 1) JG-6005/6AQ5W GE ￥1500 NIB D/C=10/52 ribbed BlackPlate 4) JG-6005/6AQ5W(/6095) GE ￥1500 LikeNew D/C=5806(3), 6235(1), ribbed BlakPlate 5) JAN-6005(/6AQ5W) GE ￥1200 NIB(MB) D/C=75-17, ribbed GrayPlate 1) JAN-6005/W(/6AQ5W) GE ￥1200 NIB(MB) D/C=81-39, ribbed GrayPlate 1) JAN 6005W Syl ￥1200 NIB MB BlackPlate date=4-75,11-78 (hpy10nx) 1) 6005W Syl ￥1200 NIB MB 1) JAN-JHS 6005/6AQ5W Syl ￥1200 NIB 1) 6005 Toshiba ￥1500 NOS 高信頼管 ribbed-BlkPlate WB 4) 6005 Toshiba ￥1500 NIB 高信頼管 ribbed-BlkPlate 1) 6005 RCA ￥1200 used? 4) 6005/6AQ5W GE ￥1200 used-LikeNew BlkPlate 2) 6005/6AQ5W USA ￥600 used 1) 6005 GE ￥450 used 3820/2600min
6011 =Thyratron= (EIA/) PIV=1500V Idc=2.5A Theat=20sec Ef/If=2.5V/9A equivallent = 5G11 0) 6011/NL-710 National ￥- used Thyratron
6012 =Thyratron= (EIA/) PIV=1300V Idc=0.5A Theat=30sec Ef/If=6.3V/2.6A 1) 6012 RCA ￥3900 LikeNew Thyratron 1) 6012 GE ￥3900 NIB Thyratron Rattle
6014/C1K/ELC1K =Thyratron= (EIA/4AX) PIV=1250V Idc=1A Theat=25sec Ef/If=2.5V/6.3A 1) 6014 Cetron ￥3900 NIB MB Thyratron 0) NL-6014 National ￥- NIB Thyratron
6015/EL6F =Halfwave Rectifier= (EIA/) Tantal anode + Xenon-gas-filled industrial tube PIV=920V Idc=6.4A Theat=60sec Ef/If=2.5V/21A 0) 6015 EI ￥- used
6018 =UHF Triode= Ppmax=5W Eppeakmax(pulse)=1500V Ip-peakmax=900mA Ipmax=12mA μ=25 Ef/If=6.3V/0.4A 0) 6018 Sylvania ￥- used
6021 =med-mu Twin Triode= (EIA/8DG) *subminiature* Eh/Ih=6.3V/0.3A Ehkmax=200V Impact=450Gmax Fatigue(vib.)=2.5Gmax Ppmax=1.1W Epmax=165V/330V(pulse) Ipmax=22mA Ec1max=+0/-55V Icmax=5.5mA Rgmax=1.1MΩ op : Ep=100V Rk=150Ω Ip=6.5mA rp=6.5kΩ gm=5.4mS μ=35 抵抗結合データ例： Ebb=200V Rp=100kΩ Rload=470kΩ Rk=2.7kΩ Ip=0.98mA Ep=99.4V Rc=270kΩ Ein=0.1Vrms Eo=2.4Vrms D=1.4% Ebb=200V Rp=100kΩ Rload=470kΩ Rk=2.7kΩ Ip=0.98mA Ep=99.4V Rc=270kΩ Ein=1.41Vrms Eo=33.5Vrms D=5% pins: 1(2P)-2(2G)-3(H)-4(2K)-5(1K)-6(H)-7(1GC)-8(1P) (see Ep-Ip特性) same basing(8DG) submini twin triodes : 6111(μ=20), 6112(μ=70), 6BG7(Epmax=100V, μ=35) see almost-equivallent type : 8525 14) 6021 RCA ￥1400 NIB 1) 6021 GE ￥1200 NIB 4) 6021 Syl ￥1200 NIB 1) 6021W Syl ￥1200 NIB (hyy1ay) 0) 6021 GE ￥- NIB MB 3) CK-6021 Ray ￥1200 NIB 1) CK-6021 Ray ￥1200 NIB 1) CK-6021 Ray ￥1200 NIB JustLargeBox 1) 6021 Syl ￥600 used
6026 =med-mu Triode= (EIA/) *subminiature* Eh/Ih=6.3V/0.2A Ehkmax=+0V Ppmax=3W Epmax=150V Ikmax=40mA Icmax=10mADC op : Ep=120V Rk=220Ω Ip=12mA rp=4kΩ gm=5.9mS μ=24 6026のEp-Ip特性 0) 6026 RCA ￥- NIB 3) 6026 Sonotone ￥1500 NIB
6028 =Sharp-Cutoff Pentode= (EIA/7BD) Eh/Ih=20V/0.05A Ehkmax=±75V Ppmax=1.7W Epmax=180V Pc2max=0.5W Ec2max=180V Ec1max=0V Ikmax=18mA op : Ep=120V Ec2=120V Rk=180Ω Ip=7.5mA Ic2=2.5mA rp=300kΩ gm=5mS (see an equivallent type : 408A) (see different heater types : 403A/403B/5591(Eh=6.3V)) (see electrically similar, 6.3V heater types : 6AK5 / 5591 / 5654 / EF95 / E95F / M8100) 1) 6028/408A WE ￥1000 used
6029 =low-mu Triode= (EIA/) *subminiature* filamentary type Ef/If=1.25V/0.2A Ppmax=1W Epmax=135V Ipmax=14mA op : Ep=90V Ec=-4V Ip=11mA rp=4.25kΩ gm=2mS μ=8.5 (参考 : CK6029のEpIp特性) 0) CK6029 Ray ￥- NIB 5) CK6029 Ray ￥1200 NOS D/C=59-05 WB 1) CK6029 Ray ￥1200 NOS D/C=59-23 WB 1) CK6029 Ray ￥1200 NOS D/C=E08 WB 3) CK6029 Ray ￥1200 NOS D/C=r14 WB 0) CK6029 Ray ￥- used
6045 =common-cathode Med-mu Twin Triode= (EIA/7BF - miniature) Eh/Ih=6.3V/0.35A Ppmax=1.6W Epmax=330V Ikmax=22mA Ehkmax=±200V op : Ep=100V Rk=50Ω Ip=9mA rp=6kΩ gm=6.4mS μ=38 also see same-base common-cathode triodes : E90CC E92CC 6MHH3 5844 5964 6101 6) 6045 Sylvania ￥1700 NIB MB date=10-53
6050 =low mu Triode= (EIA/) *subminiature* filamentary type Ppmax=-W Epmax=150V Ipmax=11mA μ=15 rp=9.3kΩ gm=1.6mS Ef/If=1.25V/0.12A 0) CK6050 Ray ￥- NIB
6057 =longlife HighMuTwinTriode= (EIA/9A - noval) 6057=M8137/CV4004 = ECC803S = 12AX7WA Eh/Ih=12.6V/0.15A(6.3V/0.3A) Ehkmax=90V Ppmax=1W Epmax=300V Ecmax=0V/-50V op : Ep=100V Ec=-1V Ip=0.5mA rp=80.0kΩ gm=1.25mS μ=100 op : Ep=250V Ec=-2V Ip=1.2mA rp=62.5kΩ gm=1.60mS μ=100 0) 6057 Brimar ￥5800 NIB 0) 6057 Brimar ￥- used 0) 6057 Brimar ￥- used?
6059/CV4006 =low-noise, low-microphonic AF Pentode= (EIA/9BC - noval) Eh/Ih=6.3V/0.15A Ehkmax=100V Rg1max=1MΩ Pentode connection : Ppmax=1.75W Epmax=300V Pc2max=0.3W Ec2max=125V Ec1max=+0V/-50V op : Ep=100V Ec2=100V Ec1=-3V Ip=2.0mA Ic2=0.65mA rp=0.9MΩ gm=0.9mS op : Ep=250V Ec2=100V Ec1=-3V Ip=2.1mA Ic2=0.60mA rp=2.5MΩ gm=1.25mS Triode connection : Ppmax=2.05W Epmax=250V Ecmax=+0V/-50V op : Ep=100V Ec1=-3V Ip=2.7mA rp=12.66kΩ gm=1.58mS μ=20 op : Ep=250V Ec1=-8V Ip=7.0mA rp=10.25kΩ gm=1.95mS μ=20 for triode-connection : similar to 6C5/6C5G pins : 1(IC)-2(G1)-3(K)-4(H)-5(H)-6(shield)-7(P)-8(G2)-9(G3) generic version : 6BR7 generic version : 6BS7 (Top-G1 type) see different base, low-noise European pentodes : E80F / 6084 EF806S 6267/EF86 also see different base, low-noise European pentodes : CV2901 CV4085 also see a different base, low-noise American pentode : 5879 0) CV4006/6059 Brimar ￥- NIB MB 0) CV4006 Brimar ￥- used WB
6060=ECC801S=12AT7special =HighMuTwinTriode= (EIA/9A - noval) 0) 6060/CV4024 Brimar ￥- NIB
6061 =ruggdized Beam Pentode= (EIA/ - noval) Brimar-6061 = ruggdized noval-type of 6V6G/GT also see almost pin-compatible type : Brimar-6BW6 0) 6061 Brimar ￥- used tested WB
6062 =RF power Pentode= (EIA/ -) Eh/Ih=6V/0.75A(±10% allowable) Ehkmax=±100V μg2g1=16typ Ppmax=12W Epmax=300V Pc2max=2W Ec2max=250V Ec1max=-125V Ipmax=50mA Ic2max=15mA Ic1max=5mA op(50MHz-B2S) : Ep=300V Ec2=250V Ec1=-60V Ip=50mA Ic2=5mA Pin=0.35W Po=8W also see English-military type : CV4039 almost equivallent to #5763(mutually interchangeable when pin#2 is not used) 0) 6062 Brimar ￥- lightly-used WB
6064(=CV4014) =sharp-cutoff RF pentode= (EIA/7DB - miniature) Ppmax=2.5W Pc2max=0.8W Epmax=Ec2max=250V Ehkmax=90V op : Ep=Ec2=250V Ip=10mA Rk=160Ω rp=1MΩ gm=7.5mS μg2g1=70 see equivallent's : CV4014, EF91, 6AM6
6067=ECC802S=12AU7special =TwinTriode= (EIA/9A - noval) 0) 6067T Brimar ￥- NIB
6072/6072A =MedMuTwinTriode= (EIA/9A - noval) (6072 = special 12AY7) Eh/Ih=6.3V/0.35A(12.6V/0.175A) Ppmax=1.65W Epmax=330V Ecmax=+0V Ehkmax=±100V Impact=600Gmax Fatigue=2.5Gmax op : Ep=250V Ec=-4V Ip=3mA rp=25kΩ gm=1.75mS μ=44 (参考 : Ep-Ip特性) 0) 6072 RCA ￥- NIB BlkPlates(Qn) 2) 6072 Leeds Northrup(GEmade) ￥3000 NIB 0) 6072 GE ￥- NIB BlkPlates 5-star(D) 0) 6072 GE ￥- NIB BlkPlates 3-mica date=6-59(Sn) 0) 6072 GE ￥- NIB BlkPlates(D) 0) JG-6072 GE ￥- NOS BlkPlates 3-mica RCA箱 0) 6072A GE ￥- NOS BlkPlates GE箱 1) 6072A GE ￥3000 NIB GrayPlates 0) 6072A GE ￥- NIB GrayPlates 1) 6072 GE ￥3000 NOS WB date=6012 3-mica 0) 6072A GE ￥- NIB MB 60年代のもの 0) 6072A Ray ￥- NIB MB 60年代のもの 0) 6072 RCA ￥- used 1600/1600/1100min 1) 6072 RCA ￥1500 used 1610/1440 0) 6072 RCA ￥1500 used 1500/1500 1) 6072 RCA ￥1200 used 1250/1200 4) JG-6072 GE ￥1700 used 1) 6072 GE ￥1700 used 1870/1960/1100min BlkPlates 1) 6072A GE ￥1700 used BlkPlates 5-star 1750/1790/1100min GE箱 1) 6072A GE ￥1600 used BlkPlates 5-star 1650/1520/1100min Raytheon箱
6073/STV150-30 =150V regulator (anti shock, vibrations)= (EIA/5BO - miniature) Ea-supplly= 185Vmin Ea-drop=151Vav(140-168V) Ia-start=75mAav Idc=5-30mA Reg.=2Vav/6Vmax @Ia=5-30mA (6073 = special VR150MT/ ruggdized 0A2 = European 150C2-MT) (octal version = 0D3/VR150-ST) 1) JRC-6073 RCA ￥1200 NIB MB 23) 6073 RCA ￥1200 NIB 一部RaggedBox 1) 6073 RCA ￥500 used
6074/STV108-30 =108V regulator (anti shock, vibrations)= (EIA/5BO - miniature) Ea-supplly= 135Vmin Ea-drop=108Vav(101-114V) Ia-start=75mAav Idc=5-30mA Reg.=1Vav(4Vmax) @Ia=5-30mA Regulation-average=1V(4Vmax) for Ia=5-30mA Cshunt=0.1uF (6074/STV108-30 = ruggdized 0B2 = European 108C1-MT) (octal version = 0C3/VR105-ST) 0) 6074 RCA ￥- NIB ragged-MIL-boxes 0) 6074 RCA ￥- used
6075 1) 6075 Syl(RCA-made) ￥3000 NOS BlkPlates RCA箱
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6080/6080WA/6080WB/6080WC-6AS7GA/6082 =Low μ Twin Power Triode= (EIA/8BD - octal) Eh/Ih=6.3V/2.5A Ehkmax=±300V Ppmax=13W Epmax=250V Ikmax=125mA Tbulb=200℃max Rgmax=1MΩ(self)/100kΩ(self) op : Ep=135V Rk=250Ω Ip=125mA rp=280Ω gm=7mS μ=2 平均プレート特性(EpIp) see electrical equivallent's : 6AS7G, 6520 also see 6AS7G/6AS7GA(μ=2) 421A(μ=6) 5998(μ=5.4) 7236(μ=4.8) 7802(μ=9) also see a 6AS7-G push-pull HiFi amplifier appeared on RCA Receiving Tube Manual RC-16, 1950. also see a Schematic - 6080 SEPP-OTL amplifier, Pout=15W(Zl=100Ω)/5W(Zl=15Ω) - by Kazuma Takesue / 武末数馬 (appeared on "Design & Building-Up of (Tube) Power Amplifier" published on 1967 by Radio Technique, Japan) 7) JAN-CEA 6080WB Bendix ￥offer NIB (rhyya) Plate material : Bendix 6080WB=CarbonGraphite others=coated nickel Supporter: Bendix #6080WB=Ceramic(gas-free!) others=mica Net Weight: Bendix #6080WB=95g, RCA #6080=60g Bendix 6080WB seems to be a #6336A/B and definitely the most robust/heavy-duty #6080 type. 2) JAN-CEA 6080WB Bendix ￥offer NIB (one has heat-radiation hole on side of each plate) rear view, side view, top & bottom view 1:reserved) JAN-CEA 6080WB Bendix ￥- LikeNew 1) JAN-CEA 6080WB Bendix ￥offer used 8) 6080 TFK ￥4100 NOS Bulk genuine-TFK(hyyanx) 24) 6080WA RCA ￥2500 NIB MB date=60-17 BlkPlates Raytheon箱 10) 6080 RCA ￥2000 NOS Bulk 4) 6080 RCA ￥2500 NIB MB BlkPlates RaggedBox(Sx) 11) 6080 RCA ￥2000 NIB GrayPlates(hyxbnt) 3) 6080 RCA ￥2000 NIB 1) 6080 RCA ￥2000 NIB 1) 6080 RCA ￥2000 NIB RaggedBox 1) 6080 RCA ￥1200 LikeNew 91/88/54min 16) 6080 GE ￥1500 NIB 0) 6080WA TungSol/Chatham ￥- NIB(rhyya) 8) 6080WB Syl ￥2500 NOS 1) CK6080 Ray ￥2500 NIB 2) 6080 Heinz&Kaufman ￥3200 NIB 美品/美箱 -rare- 2) 6080 RCA他 ￥800 used 1) 6080WB Tsol USA ￥1200 used LikeNew Ep=50V/Ec=0V/Ip=167mA,158mA 1) 6080 RCA ￥800 used CenterPin折れ 89/94/54min 3) 6080 RCA ￥800 used 85/85/54min 3) 6080 USA ￥800 used 3) 6080 Toshiba ￥1000 used? Silk has been rubbed-off. 2) 6080-HiS Toshiba ￥1000 used-lightly 1) 6080-HiS Toshiba ￥1000 used-lightly 1) 6080 Toshiba ￥1000 used 通測用HiS WB 1) 6080 Toshiba ￥1000 used 通測用Hi WB 2) 6080 Toshiba ￥1000 used 通測用Hi WB 1) 6080-NHK NEC? ￥1000 used 1) 6080 NEC ￥1000 used-lightly 2) 6080 NEC ￥1000 used-lightly WB 1) 6080 NEC ￥800 通信用 used 1960-11 WB 1) 6080 TEN ￥800 used DC1965-7 CenterPostLost WB 1) 6080 Ten ￥1200 usedLightly NHK strong 松下銀箱
6082 =Low μ Twin Power Triode= (EIA/8BD - octal) Eh/Ih=26.5V/0.6A Ehkmax=±300V Ppmax=13W Epmax=250V Ikmax=125mA Rgmax=100kΩ(fixed)/1MΩ(self) op : Ep=135V Rk=250Ω μ=2 rp=280Ω gm=7mS Ip=125mA 0) 6082 RCA ￥- NIB 0) 6082 Syl ￥- NIB 4) 6082 Tsol ￥1500 NIB D/C=6440 軍箱 just-ragged-boxes
6084/E80F =SharpCutoffPentodeSQ/10000-hours= (EIA/9BJ=9CQ - noval) (see 6267/EF86 E80F EF804 EF806 Z729) Eh/Ih=6.3V/0.3A Ehkmax=60V Ppmax=1W Epmax=300V/550V(cutoff) Pc2max=0.3W Ec2max=200V/550V(cutoff) Ikmax=7.5mA Rg1max=3MΩ op : Ep=250V Ec2=100V Ec1=-2V Ip=3mA Ic2=0.55mA rp=1.8MΩ gm=1850μmho μg2g1=25 6084/E80F EF804/S EF806S EF86/6267 5879の比較 also see different base British low-microphonic & low-noise pentodes : 6BR7/CV4006, 6059/CV4006 and 6BS7(top-G1) also see a different base American low-noise pentode : 5879 5) 6084 Amprx ￥3700 NIB PQ Gpin(Qn) 1) 6084 Amprx ￥3700 NIB 2) 6084/E80F Amprx ￥3700 NIB 太ロゴ Gpin 4) 6084/E80F Phlps ￥3700 NOS 黄色OB Gpin 1) 6084/E80F Dmnt ￥3700 NOS Gpin 1) 6084 WH ￥3400 NOS 黒金OB mesh plate 1) 6084 PhilipsMiniwatt ￥3700 NOS Gpin SQ-type Marconi箱
6085/E80CC (see E80CC 12AU7)=TwinTriodeSQ:10000-hours=(EIA/9A - noval) Eh/Ih=6.3V/0.6A(12.6V/0.3A) Philips-6085 : Ppmax=1.5W Epmax=300V/550V(cutoff) Ikmax=10mA Rg1max=2MΩ Ehkmax=±60V op : Ep=250V Ec=-5.5V Ip=6mA gm=2.7mS μ=30 Siemens-E80CC/6085 : Ppmax=2W Epmax=300V/600V(cutoff) Ikmax=12mA Rg1max=1MΩ Ehkmax=±120V op : Ep=250V Rk=920Ω Ip=6mA gm=2.7mS μ=27 (参考 : Ep-Ip特性) 2) 6085 Amperex ￥5900 NIB Gpin 3) 6085 Amprx ￥5900 NIB PQ Gpin(sQn) 1) 6085 Amprx ￥5900 NIB PQ Gpin 2) 6085 WH(England) ￥5100 NIB
6086/18042 =long-life(10000H/SQ/PQ) Pentode= (EIA/9BK - noval) Eh/Ih=18V/0.1A Ehkmax=60V Rg1max=1MΩ Ppmax=2.1W Epmax=210V/550Vcutoff Ikmax=16mA Pc2max=0.35W Ec2max=210V/550Vcutoff op : Ep=210V Ec2=120V Ec3=0V Rk=165Ω Ip=10mA Ic2=2.1mA rp=500kΩ gm=9mS μg2g1=34 op : Ep=210V Ec2sup=120V Rg2=5.6kΩ Rk=180Ω Ip=8.3mA Ic2=1.7mA rp=440kΩ gm=8.2mS Zl=20kΩ Po=0.66W D=10% see identical type : 18042 0) 18042/6086 Phlps ￥- NIB SQ
6087 =cathode-type FullWaveRectifier(special 5Y3) (see 5Y3WGT) (EIA/5L - octal) PIV=1400V Idc=125mA Eh/Ih=5V/2A see similar types : 5Y3WGT/WGTA/WGTB, 6106 also see a similar type : 5CG4 also see an electrically-similar isolated-cathode type : 6AX5GT(Eh/Ih=6.3V/1.2A, PIV=1250V Idcmax=125mA Edrop=50V) 2) 6087 GE ￥2800 NIB BrownBase WB 1) 6087 GE ￥2800 NIB BrownBase 1) 6087 GE ￥2500 used BrownBase 1) 6087/5Y3WGTB National ￥1200 lightly-used TopGtr, light-BrownBase WB
6088 =filamentary Power Pentode= (EIA/ -) *subminiature* Eh/Ih=1.25V/0.02A (直熱五極管) Ppmax=-W Epmax=67.5V Ec2max=67.5V Ikmax=1.5mA Rgmax=1.1MΩ op : Ep=Ec2=45V Ec1=-1.25V Ipo=0.65mA Ic2o=0.15mA gm=0.625mS rp=700kΩ Zl=60kΩ Po=10.5mW D=10% 20) JAN 6088 Ray ￥1200 NIB date=10/83,11/83 etc
標記 この頁の各行は、基本的に下記のように記述されております｡ 在庫数) TYPE 製造メーカ 単価 new/used状態 その他状況 メーカ略号 Amprx(Amperex), Cunnghm(Cunningham), Dmnt(Dumont), GE(General Electric), Hyt(Hytron), Krad(KenRad), L&K(Lewis and Kaufman), Mag(Magnavox), NU(National Union), Ray(Raytheon), STD(Standard), Syl(Sylvania), TFK(Telefunken), Tsol(Tung-Sol), WE(Western Electric), WH(Westinghouse), Znth(Zenith)
6094 =BeamPowerAmplifier= (EIA/9DH - noval) Eh/Ih=6.3V/0.6A Tbulb=300℃ Altitude=60000FT Ppmax=12.5W Epmax=275V Pp2max=2W Ec2max=275V Ikmax=75mA op : Ep=250V Ec2=250V Ec1=-12.5V Ip=45mA Ic2=3.5mA gm=4.1mS Zl=5kΩ Po=4.5W (参考 : Ep-Ip特性/三結、五結(@Ec2=250V)) similar to 6BW6(different pin-assignment) similar to 6095, 6005, 6AQ5(miniature(7-pin)) also similar to 6V6/GT(octal), 5992(octal) 4) 6094 Bendix ￥offer NOS Bulk Gpin(Aht) 4) 6094 Bendix ￥offer 2) 6094 Bendix ￥offer 9) 6094 Bendix ￥offer
6095/CT (see 6AQ5 6005 6669) =BeamPower Tetrode= (EIA/7BZ - miniature) Ppmax=12W Epmax=275V Pc2max=2W Ec2max=275V Eh/Ih=6.3V/0.45A op : Ep=250V Ec2=250V Ec1=-12.5V Ip=45mA Ic2=4.5mA rp=52kΩ gm=4.1mS Zload=5kΩ D=8% Po=4.5W pins : 1(G1)-2(KG3)-3(H)-4(H)-5(P)-6(G2)-7(G1) 1) 6095/CT GE ￥1500 NIB MB, ribbed BlackPlate 2) 6095/CT Syl ￥1500 NIB MB
6096/6096CT (see 6AK5W 5654) 1) 6096/CT Tsol ￥1900 NIB RaggedBox
6097 = 5726/6663/6AL5W
6098/6AR6WA (see 6AR6 6384 6889) =BeamPower Tetrode= (EIA/6BQ - octal) Eh/Ih=6.3V/1.2A Ehkmax=±200V Ppmax=21W Epmax=630V Pc2max=3.5W Ec2max=315V Ikmax=125mA op(Pentode) : Ep=250V Ec2=250V Ec1=-22.5V Ip=77mA Ic2=5mA rp=21kΩ gm=5400μmho op(Triode) : Ep,c2=200V Ec1=-12.5V Ip,c2=90mA μ=6 rp=1kΩ gm=6000μmho 三極管接続時の平均プレート特性(EpIp-TriodeConnection) 11) JAN-CTL 6098/6AR6WA Tsol ￥offer NIB RaggedBox 4) JAN-CTL 6098/6AR6WA Tsol ￥offer NIB D/C=526, 526, 526, 526(1955) gm/Ip=5360/54.2mA, 5360/54.8mA, 5494/52.9mA, 5360/51.8mA (where gm=3350min on WE cardmatic tester) 2) JAN-CTL 6098/6AR6WA Tsol ￥offer NIB 2-pairs) JAN-CTL 6098/6AR6WA Tsol ￥offer/pair NIB SideGtr 1) JAN-CTL 6098/6AR6WA Tsol ￥offer NOS gm=5500/3400min Ip=73mA IntC箱入 7-pairs) 6098/6AR6WA Tsol ￥7200/pair LikeNew WB gm/Ip-double matched within 5% 2) 6098/6AR6WA Tsol ￥offer LikeNew WB 0) 6098/6AR6WA Tsol ￥- NIB MB(Nn) 0) 6098/CT TungSol ￥- NIB MB date=3/53,6/53,10/53,10/53(Q) 1) JAN-CTL 6098/6AR6WA Tsol ￥offer NOS SideGtr 34/27min(TV-7B/U) 未使用機器からのはずし品 1) JAN-CTL 6098/6AR6WA Tsol ￥1500 NOS SideGtr 22/27min(TV-7B/U) 未使用機器からのはずし品 10) JAN-CTL 6098/CT Tsol ￥offer SquarePlate LikeNew WB gm/Ip(lot#)=6100μmho/69mA(301), 5700μmho/68mA(53-28A), 5650μmho/61mA(301). 5630μmho/69mA(247) gm/Ip(lot#)=5500μmho/68mA(223), 5350μmho/73mA(227), 5350μmho/70mA(223), 5300μmho/70mA(227) gm/Ip(lot#)=5250μmho/64mA(3-02A), 5250μmho/67mA(227) where gm-min=3400μmho on Hickok-539B 1) JAN-CTL 6098/CT Tsol ￥offer OvalGrayPlate LikeNew WB gm=5900/3400min Ip=67mA (Hickok-539B) lot=218
6100 =MediumMuTriode= (EIA/6BG - miniature) Eh/Ih=6.3V/0.15A Ehkmax=±200V Tbulb=165℃max shock=450Gmax vib.=2.5Gmax Ppmax=3.8W Epmax=330V Ipmax=20mA Igmax=5.5mA-DC Rgmax=1.25MΩ op(class-A1) : Ep=250V Ec=-8.5V Ip=10.5mA rp=7.7kΩ gm=2.2mS μ=17 op(class-C) : Ep=300V Ec=-27V Ip=25mA Ic=7mA Pin=0.35W Po=5.5W electrical equivallent types : 6C4, EC90 another industrial/military version : 6135 4) 6100-HiS Toshiba ￥1200 NIB black-plate, just-ragged boxes 0) 6100 GE ￥1000 lightly-used WB
6101 =common-cathode Med-mu Twin Triode= (EIA/7BF - miniature) Eh/Ih=6.3V/0.45A Altitube=16.5km-max Impact=500Gmax Fatigue=2.5Gmax Ppmax=0.85W Epmax=330V Rgmax=500kΩ(self) Ehkmax=±180V op : Ep=100V Rk=50Ω Ip=8.5mA rp=6.3kΩ gm=6mS μ=38 similar to 6J6/A/ECC91 also see same-base common-cathode triodes : E90CC E92CC 6MHH3 5844 5964 6045 1) USAF 6101 RCA ￥1300 NIB MB 1) 6101 WH ￥1100 NIB MB
6106/5Y3GT-special =cathode-type Fullwave Rectifier= (EIA/5L - octal) Eacmax=350V(4uF-CapInput)/500V(10H-ChokeInput) Idcmax=125mA Eh/Ih=5V/1.7A see similar types : 5Y3WGT, 6087 also see q similar type : 5CG4 also see an electrically-similar isolated-cathode type : 6AX5GT(Eh/Ih=6.3V/1.2A, PIV=1250V Idcmax=125mA Edrop=50V) 0) 6106 Bendix ￥- NIB 1) 6106 Bendix ￥offer NIB MB 2) JAN-CEA 6106 Bendix ￥2900 NIB MB D/C=4/55, just-ragged boxes
6110 =separate cathode Twin Diode= 6.3V/0.15A *subminiature* Eh/Ih=6.3V/0.15A Eac=156Vmax Idc=4.4mAmax/plate Ehkmax=±360V IMPACT=450Gmax Fatigue=2.5Gmax 1) 6110 Syl ￥900 NIB
6111 =MedMuTwinTriode= (EIA/8DG) *subminiature* Eh/Ih=6.3V/0.3A Ehkmax=200V rp=4kΩ gm=5mS μ=20-typ GE 6111: Ppmax=0.95W Epmax=165V Ipmax=22mA Rgmax=1.1MΩ Raytheon 6111WA: Ppmax=0.95W Epmax=250V Ipmax=22mA Rgmax=1.1MΩ Philips(1968) 6111: Ppmax=1.1W Epmax=165V/330Vcutoff Egmax=0V/-55V Ipmax=22mA Igmax=5.5mA Ehkmax=200V Rgmax=1MΩ Tbulb_max=220℃ pins: 1(2P)-2(2G)-3(H)-4(2K)-5(1K)-6(H)-7(1G)-8(1P) (see Ep-Ip特性) (参考:自己バイアス-抵抗結合アンプテーブル(Resistance Coupled Amplifier Data Tables)) same basing(8DG) submini twin triodes : 6021(μ=35), 6112(μ=70), 6BG7(Epmax=100V, μ=35) see almost-equivallent type : 8526 1) 6111A GE ￥2100 NIB NB RaggedBox 0) 6111WA Syl ￥- NIB MB (hyyanx) 1) JHS 6111 Syl ￥2300 NIB MB GoldBrand 5) 6111 Syl ￥1900 NOS WB 1) 6111 Ray ￥1900 NOS WB 1) 6111WA Syl ￥1200 NOS? WB
6112 =HiMuTwinTriode= (EIA/8DG) *subminiature* Eh/Ih=6.3V/0.3A Ehkmax=200V Sylvania 6112: Ppmax=0.55W Epmax=165V Ipmax=3.3mA Rgmax=1.1MΩ μ=70 gm=2.5mS rp=28kΩ Raytheon 6112WA: Ppmax=0.3W Epmax=250V Ipmax=3.3mA Rgmax=1.1MΩ pins: 1(2P)-2(2G)-3(H)-4(2K)-5(1K)-6(H)-7(1G)-8(1P) (see Ep-Ip特性) (参考:自己バイアス/ゼロバイアス-抵抗結合アンプテーブル(Resistance Coupled Amplifier Data Tables)) same basing(8DG) submini twin triodes : 6021(μ=35), 6111(μ=20), 6BG7(Epmax=100V, μ=35) 0) 6112 RCA ￥- NIB(Qn) 0) 6112 WH ￥- NIB(T) 0) 6112 Syl ￥- NIB 1) JHS 6112 Syl ￥2700 NIB MB 4) JHS 6112 Syl ￥3100 NIB GoldBrand MB 1) GB 6112 Syl ￥3100 NIB GoldBrand MB 6) CK6112 Ray ￥2700 NOS WB 1) JOZ 6112 Sonotone ￥2700 NIB D/C=6213 MB
6113 (see 6SL7) =Highμ Low-Microphonic TwinTriode= (EIA/8BD - octal) 6113 = special 6SL7 Eh/Ih=6.3V/0.3A Ehkmax=±100V Ppmax=1W Epmax=250V Ecmax=0V op : Ep=250V Ec=-2V Ip=2.3mA rp=44kΩ gm=1.6mS μ=70 see almost identical type : 5691 see British MIL type : STC(Brimar) - CV1985(6SL7GT) 3) 6113/6SL7GTB GE ￥3100 lightly-used D/C=60-28 black-glass WB
6135 =medium-mu Triode= (EIA/6BG - miniature) (special 6C4) Eh/Ih=6.3V/0.175A Ehkmax=90V Ppmax=3.5W Epmax=300V Ikmax=25mA Rgmax=0.25MΩ(fixed)/1MΩ(self) op(class-A1) : Ep=250V Ec=-8.5V Ip=10.5mA rp=7.7kΩ gm=2.2mS μ=17 also see another Hi-REL version : 6100 1) 6135 Amprx NIB ￥1000 0) 6135 GE NIB ￥-
6136 =long-life sharp cutoff RF Pentode= (EIA/7BK - miniature) (long-life high-rel. mechanical strengthen special 6AU6 with pure Tungsten heater) Eh/Ih=6.3V/0.3A Ehkmax=90V/100V(abs.max.) Cgp=0.0035pF Cin=6.5pF Cout=5.5pF Tbulb=165℃max Shock=450Gmax Fatigue(vib.)=2.5Gmax Peak-Impact=600Gmax(any direction) (design center) Ppmax=3W Epmax=300V Ppmax=0.65W Ec2max=150V/300V-cutoff Ec1max=+0V Ec3max=+0V (absolute max.) Ppmax=3.3W Epmax=330V Ppmax=0.7W Ec2max=165V Ec1max=+0V Ec3max=+0V op : Ep=100V Ec3=0V Ec2=100V Rk=150Ω Ip=5mA Ic2=2.1mA rp=500kΩ gm=3,9mS op : Ep=250V Ec3=0V Ec2=150V Rk=68Ω Ip=10.6mA Ic2=4.3mA rp=1MΩ gm=5.2mS see electrically-identical types : 6AU6, 8425/A also see another low-hum, non-microphonic type : 7543 10) 6136 GE NIB ￥1500 2) 6136 GE NIB ￥1500 1) 6136 GE NIB ￥1700 5-star 1) 6136 Tsol NIB ￥1500 1) 6136 AWV-SuperRadiotron NIB ￥1500 4) 6136 Toshiba ￥1700 NIB black-plate 1) 6136 GE used ￥1000 4300/2500min 2) 6136 USA used ￥600
6137 =long-life/dependable remote-cutoff Pentode= (EIA/8N - octal) (6137 = special 6SK7) Eh/Ih=6.3V/0.3A Ehkmax=90V Impact=600Gmax absolute max : Ppmax=3W Epmax=300V Pc2max=0.4W Ec2max=125V/300Vsupply op : Ep=250V Ec2=100V Ec1=-3V Ip=9.2mA Ic2=2.5mA rp=800kΩ gm=2mS 3) CAA 6137 31881 CAA(GE-made) NIB ￥2900 date=57-04 METAL
6140 =100V voltage reference / 2-electrode gas-filled cold cathode tube= (EIA/ - noval) Ea_start/breakdown=135V(160Vmax) Ea=100V(99V-103) Ik=4-8mA see equivallent types : WE-423A/B/C also see a 85V voltage reference : 5651/A(miniature) 1) 6140/423A WE ￥1500 NIB MB
6141 =3-electrode gas-filled cold cathode tube= (EIA/ ) Estarter=125V(115V-135V) Ea=100V(99V-103V) Ik=5mA-40mA Istarter=0.5mA-5mA see an equivallent type : WE-427A/B/C 6) 6141 WE ￥1500 NIB MB date=12-57
6143 =Corona-voltage regulator=(EIA/ ) *subminiature* Vstart=1260V Eregulated=1200V±1.5% Idc=100μAmax, Ta=-65℃ to +100℃ 1) 6143 - ￥2900 NIB LargeBrownBox
6145 =computer Power Pentode=(EIA/8V - loktal) Eh/Ih=6.3V/0.6A Ehkmax=±200V Ppmax=10W Epmax=300V Pc2max=2.5W Ec2max=300V Ikmax=-mA Ecmax=+0V op : Ep=150V Ec2=100V Ec1=0V Ec3=0V Ip=34mA Ic2=8mA gm=9.7mS rp=100kΩ (Ip=2mA @Ec1=-5.3V) pins : 1(H)-2(P)-3(G2)-4(G3)-5(S)-6(G1)-7(K)-8(H) (参考 : Ep-Ip特性 @Ec2=100V) 2) GB-6145 Sylvania ￥2500 NIB very-ragged boxes (hyy24f2t) 4) 6145 Sylvania ￥2000 NIB very-ragged boxes (hyy24fqt)
6146/A/B see S2001
6152 =low-mu Triode= (EIA/ -) *subminiature* Ppmax=1.1W Epmax=180V Ikmax=22mA gm=0.1mS rp=2M Ehkmax=+200V Eh/Ih=6.3V/0.2A (note: Tbulb=265℃max) pins = 1(P)-2(K)-3(G1)-4(H)-5(H) 0) CK-6152 Ray ￥- NIB (qqvN)
6155(=QB-3/300=RS1007)
6156
6158
6159/6159B
6173 =UHF diode= (EIA/) PIV=375V Idcmax=5.5mA Eh/Ih=6.3V/0.135A 1) 6173 RCA ￥2000 NIB MB 1) 6173 RCA ￥2000 NIB 1) 6173 Military ￥2000 NIB MB
6174 =cold-cathode halfwave rectifier= (EIA/5BU) PIV=2800V Ikmax=3mA 4) CK6174 Ray ￥1500 NIB 大箱 2) CK6174 Ray ￥1500 NIB
6186/6AG5WA/EF96 =sharp-cutoff Pentode= (EIA/7BD - miniature) Eh/Ih=6.3V/0.3A Ppmax=2.5W Epmax=330V Pc2max=0.55W Ec2max=250V (see 6AG5/WA , EF96) 6) 6186/6AG5WA JRC ￥700 NIB MB 5) 6186W Syl ￥600 NIB MB 1) 6186W Syl ￥600 NIB MB 1) 6186W RCA ￥400 used 4020/2500min 1) 6186W Syl ￥400 used 4000/2500min
6188 (see 6SU7/GT) =High Mu Twin Triode= (EIA/8BD - octal) 6188 is a ruggdized hi-mu twin triode intended especially for BALANCED high-gain DC amplifiers, where good stability, low-grid current and balanced plate current are required. Eh/Ih=6.3V/0.3A Ehkmax=±100V Ppmax=1.1W Epmax=275V rp=44kΩ op : Ep=250V Ec=-2V Ip=2.3mA rp=44kΩ gm=1.6mS μ=70 6188のEp-Ip特性 4) 6188 Syl ￥3000 NOS BlackBase, WB 1) JAN-CTL 6188/6SU7WGT Tsol ￥3900 NIB glass TopRoundHaloGtr GrayPlates LightBrownBase
6189W/12AU7WA (see 12AU7 /5814 / 5963) (EIA/9A - noval) *The 6189 is a ruggedized ver. of 12AU7, and is especially suited for use in industrial & military airborne equipment which may be subjected to severe shock and vibration. Eh/Ih=6.3V/0.3A(12.6V/0.15A) Ehkmax=±200V Tbulb=165℃max *absolute maximum : Ppmax=3W Epmax=330V Ikmax=22mA op : Ep=250V Ec=-8.5V Ip=10.5mA rp=7.7kΩ gm=2.2mS μ=17, Ec_cutoff=-24V(for Ip=10μA) (参考 : Ep-Ip特性) 2) JRC 6189/12AU7WA RCA ￥2400 NIB date=6-62 *$* 4) JRC 6189/12AU7WA RCA ￥2400 NIB date=8-62 *$* 2) 6189 RCA ￥2000 NIB * 3) 6189 GE ￥1700 NOS WB 30) 6189W/12AU7A Syl ￥1700 NIB GrayPlate MB (shx3s2) 1) JHS 6189/12AU7WA Syl ￥2000 NIB GrayPlate MB date=61-15 GoldenSilk *$* 1) 6189/12AU7WA Syl ￥1700 NIB GrayPlate MB 1) 6189 Syl ￥1700 NOS GrayPlate MB 6-67 3) 6189 Syl ￥1700 NIB * 1) 6189/12AU7WA RCA ￥1800 NOS BlackPlate RCA箱 1) 6189/12AU7WA LosGatos/Lewis & Kaufman ￥1500 NOS RCA箱 1) USAF 6189 Philco ￥1500 NOS? BlkPlate 4) 6189/12AU7WA Mazda ￥1500 used 5-stars gm=2910/2790,2500/2450,2660/2720,2930/2770/1950min date='61,'62 1) JG-6189/12AU7WA GE ￥1700 used date=5813 BlkPlates 2590/2670/1950min 1) 6189/12AU7WA GE ￥1200 used 2560/2630/1950min 1) 6189/12AU7WA GE ￥1200 lightly-used BlkPlate, silk=WipedAway, WB 1) 6189 GE ￥1000 used 2) 6189 Syl ￥1200 used 2900/2720,2730/2660/1950min 1) 6189 Syl ￥1000 used
6197 = 6CL6 =Sharp Cutoff Power Pentode for PULSE amplifier= (EIA/9BV - noval) Eh/Ih=6.3A/0.65A Ehkmax=±180V * Cg1p=0.125pF Cinput(g1 to h+k+g2+g3+IS)=11.5pF Coutput(p to h+k+g2+g3+IS)=5pF Ppmax=7.5W Epmax=300V Pc2max=2.5W Ec2max=250V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=250V Ec2=150V Ec1=-3V Ip=30mA Ic2=7mA rp=90kΩ gm=11mS μg2g1=22 see equivallents : 6CL6, 6677) also see a similar type : 6R-P22 also see an electrically-similar octal-base type : 6AG7/GT 45) 6197 RCA ￥1200 NIB GrayPlate D/C=6426 OrangeLogo 10) 6197 RCA ￥1200 NIB GrayPlate 5) 6197 RCA ￥1200 NIB GrayPlate 1) JAN-CRC 6197 RCA ￥1200 NIB MB D/C=3-66 9) 6197 RCA ￥1200 NIB * 1) 6197 RCA ￥1100 NIB MB GrayPlate 3) 6197 GE ￥1000 NOS JAN箱 BlkPlate 5) 6197 GE ￥1000 NOS BlkPlate 1) 6CL6(6197) GE ￥1000 NIB BlkPlate D/C=57-30 WhiteLogo 1) 6197 GE ￥1000 NIB * 1) 6197 Syl ￥1000 NIB * 2) 6197 USA ￥600 NOS ? BlkPlate 2) 6197 CBS ￥500 used BlkPlate 2) 6197 RCA ￥500 used? GrayPlate 1) 6197 StrombergCarlson(RCA) ￥500 used? 1) 6197 FAA(RCA) ￥500 used? 1) 6197 FAA(RCA) ￥500 used
6201 = 12AT7W (see 12AT7/ECC81/E81CC) =TwinTriode= (EIA/9A - noval) Eh/Ih=12.6V/0.15A(6.3V/0.3A) Ehkmax=±100V Ppmax=2.75W Epmax=330V Ecmax=0V/-50V Rgmax=250kΩ(fixed)/1MΩ(self) op : Ep=100V Rk=270Ω Ip=3.3mA rp=14.3kΩ gm=4mS μ=57 op : Ep=250V Rk=200Ω Ip=10mA rp=10.9kΩ gm=5.5mS μ=60 (参考 : Ep-Ip特性) (参考 : Ep-Ip特性(for class-AB2 amplifier)) similar to 6AQ8 except heater voltage and shield) also similar to 12DT8 3) 6201 Valvo ￥4300 NIB Gpin 0) 6201 RCA ￥- NOS BlkPlate 5) 6201 RCA ￥2800 NIB BlkFlatPlates w/sleeve 2) 6201 RCA ￥2800 NIB,NOS BlkFlatPlates SmeardSilk, RaggedBox+WB 2) 6201 RCA ￥2500 NIB BlkPlates date=72-39 1) 6201 GE ￥2800 NIB BlkPlates RaggedBox 2) 6201 GE ￥2800 NOS 5-star GrayPlates WB 1) 6201 GE ￥2800 NIB 5-star 2) 6201/12AT7WC GE ￥2800 NIB MB 20) 6201 GE ￥1800 NOS bulk GrayPlates (hp18n) 1) 6201 Syl ￥1500 NOS 1) CK6201/12AT7WA/B Ray ￥2800 NIB BlkPlates RaggedBox 3) 6201 National ￥1200 NIB GrayPlates USA GrayPlates ++ 1) 6201 RCA ￥1500 used BlkPlates 3400/4300/2500min 1) 6201 RCA ￥1500 used BlkPlates 3800/3640/2500min 2) 6201 GE ￥1500 used-lightly BlkPlates WB 2) 6201 GE ￥1200 used 4850/4940, 4600/4480 1) 6201 WH(GE-made) ￥1200 used? 4600/4500 1) 6201 GE ￥700 used 5-star 3-mica 2700/2900 1) 6201 GE ￥1000 used 4150/3950 1) 6201 Marconi(GE-made) ￥1000 used? 4000/3900 2) 6201 NEC ￥1200 lightly-used CBC(中部放送), GrayPlates D-Gtr, Yellow(gold)-silk WB
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6202 (see 6X4 / EZ90)=FullWave Rectifier= (EIA/5BS - miniature) * 6202 is a ruggdized dependable direct-replacement for the 6X4/EZ90. Shock=700Gmax Altitude=18000meter-max Eh/Ih=6.3V/0.6A Ehkmax=-450V PIV=1250V, Idc-max=50mA(Cinput)/67mA(Linput)@Eac=325V, Ipeak=200mA/plate Edrop=22V(@Idc=50mA/section) op(capacitor-input): Eac=325V Cin=4uF Rs=175ohm/plate Idc=50mA Eout=365Vdc op(choke input): Eac=450V Lin=8H Idc=50mA Eout=375Vdc also see heater variant : 12X4(12.6V/0.3A) 1) 6202 GE ￥1100 NOS 106/106/54min WB 0) 6202 GE ￥- used 0) 6202 GE ￥- used 104/102/54min
6203 =Full-wave Rectifier= (EIA/9CD - noval) Eh/Ih=6.3V/0.9A PIV=1250V Idcmax=70mA Ehkmax=+100V -450V, Edrop=22V(@Idc=70mA) op(capacitor-input): Eac=325V Cin=4uF Rs=150ohm/plate Idc=70mA Eout=355Vdc op(choke input): Eac=450V Lin=8H Idc=70mA Eout=375Vdc 0) 6203 GE ￥- NIB BlkPlate 8) 6203 GE ￥1500 NIB
6205 =sharp-cutoff Pentode= (EIA/ -) *subminiature* Eh/Ih=6.3V/0.15A Ehkmax=200V Ppmax=1.1W Epmax=165V Ikmax=16.5mA Pc2max=0.55W Ec2max=155V Rgmax=1.1MΩ μ= gm=5mS rp=260kΩ 6205 is identical to 5840 0) CK6205 Ray ￥- NIB
6206 =semi-remote-cutoff Pentode= (EIA/ -) *subminiature* Eh/Ih=6.3V/0.15A Ehkmax=200V Ppmax=1.1W Epmax=165V Ikmax=16.5mA Pc2max=0.55W Ec2max=155V Rgmax=1.1MΩ μ= gm=4.5mS rp=260kΩ 6206 is identical to 5899 0) 6206 Syl ￥- NIB 0) CK6206 Ray ￥- NIB
6211 =Medium mu TwinTriode= (EIA/9A - noval) Eh/Ih=6.3A/0.3A(12.6V/0.15A) Ehkmax=±90V RCA, Sylvania : Ppmax=1W Epmax=200V Ikmax=14mA Ecmax=+0V/-100V Rg1max=100kΩ(fixed)/500kΩ(self) Philips : Ppmax=1.5W Epmax=200V/600V(cutoff) op : Ep=100V Rk=470Ω Ip=4.6mA rp=7.5kΩ gm=3.6mS μ=27 (see Ep-Ip特性) 2) 6211 RCA ￥1200 NIB RaggedBox 8) 6211 GE ￥1000 NIB 2) 6211A GE ￥1000 NOS WB 5) 6211 Syl ￥1000 NOS 黄色OB 3) 6211 Syl ￥1000 NIB MB 1) 6211 Syl ￥1000 NIB 2) 6211 WH ￥1000 NIB 1) 6211/70A116 IBM(GE-made) ￥1700 NIB date=5945 WB 1) 6211 Syl ￥700 used BlkPlates
6213 =130V low power cold cathode, glow-discharge diode= (EIA/ -) *subminiature* Estart=170V Eoperate=130V Regulation=1V(1-2.5mA) 0) CK6213 Ray ￥- NIB
6216 =Beam Pentode= (EIA/9CE-noval) *vibration-resistant military aircraft usage. The 6216 is suitable for class A, B, C amplifiers, series-regulators, wide band video amplifiers, also for passive switching applications. Eh/Ih=6.3A/1.2A Rgmax=100kΩ(fixed)/500kΩ(self), Tbulb=210℃max(Tung-Sol) Cg1p=0.37pF Cinput(g1 to h+k+g2+g3+IS)=12.3pF Coutput(p to h+k+g2+g3+IS)=6.7pF * design-center rating GE 5star: Ppmax=10W Epmax=300V Pc2max=2W Ec2max=200V Ikmax=110mA Tung-Sol: Ppmax=10W Epmax=300V Pc2max=1W Ec2max=200V Ikmax=110mA op : Ep=100V Ec2=100V Ec1=-3V Ip=72mA Ic2=3mA rp=18.5kΩ gm=12.5mS op(A1S): Ep=200V Ec2=100V Ec1=-6V Ip=47/51mA Ic2=2/4mA rp=38.8kΩ gm=8.8mS Zl=4.5kΩ Po=3.8W D=10% (参考 : 三結時のEpIp特性(triode connection)) see a same-base electrically-similar European type : 6761 see a different-base lower-rating mobile/video-amp power pentode : 6677 also see different-base higher-rating electrically-similar types : 6CW5, EL86 (μg2g1=8, gm=11mS) 7) 6216 GE ￥1000 NOS MB GrayPlate, 2x3 small rectangular holes on plate 1) 6216 GE ￥1500 NIB 5-star 10) 6216 GE ￥1200 NIB MB , 2x3 small rectangular holes on plate 1) 6216 CBS(GE) ￥1000 NOS ClearTop gm=10600/6300min 0) 6216 GE ￥- NOS ClearTop, 2x3 large rectangular holes on plate, gm=10800/6300min, 11050/6300min(D) 3) 6216 GE ￥1000 NOS gm=9250/6300min, 10250/6300min, 9100/6300min 1) 6216 CBS(GE) ￥500 NOS ClearTop gm=6300/6300min
6218/E80T =ruggdized Beam deflecting tube= (EIA/) Eh/Ih=6.3V/0.15A Ep=100V Ip=1.35mA Ec1=0V Ec2=70V 6218/E80T is a premium tube 0) 6218 Amperex ￥2300 NIB
6227/E80L =10000H-SQ Power Pentode= (EIA/9AU - noval) Eh/Ih=6.3V/0.7A Ehkmax=120V Shock=500Gmax Vibration=2.5Gmax *absolute maximum Ppmax=8W Epmax=300V/600V(cutoff) Pc2max=2.6W Ec2max=300V/600V(cutoff) Ikmax=50mA Rg1max=1MΩ(self) op(A1S) : Ep=200V Ec2=200V Rk=130Ω Ip=30mA Ic2=4.1mA rp=52kΩ gm=9mS μg2g1=21.5 Zl=7kΩ D=10% Po=2.7W op(AB1pp) : Ep=200V Ec2=200V Rk=130Ω Ip=41.2/49.2mA Ic2=5.6/ 9.8mA Zlpp=9kΩ D=3.0% Po=5.7W op(AB1pp) : Ep=250V Ec2=250V Rk=150Ω Ip=47.0/59.0mA Ic2=6.4/13.2mA Zlpp=9kΩ D=4.5% Po=9.0W (参考 : TriodeConnection-EpIp(三結時のEp-Ip特性)) see equivallent type : E80L also see a different-base, electrically-similar type : 6677 also see just-lower rating electrically similar long-life loktal types : C3m(Eh/Ih=20V/0.125A, Ppmax=4W, rp=250kΩ, gm=6.5mS, μg2g1=19) C3o(Eh/Ih=6.3V/0.4A) 2) 6227 Amprx ￥4300 NIB PQ品 Gpin 5) 6227 Amprx ￥4900 NIB Gpin 3) 6227 Phlps-Miniwatt ￥4,900 NIB Gpin 4) 6227/E80L Amprx ￥4900 NIB Gpin 2) 6227/E80L Amprx ￥4900 NIB Gpin ragged box 1) 6227 Amprx ￥4900 NIB Gpin PQ 1) 6227 Amprx ￥4900 NOS Gpin PQ Siemens箱
6240G
6245 =UHF-applicable sharp cutoff Pentode= (EIA/ -) *subminiature* Eh/Ih=6.3V/0.2A Ehkmax=200V Ppmax=1.85W Epmax=200V Pc2max=0.55W Ec2max=155V Ikmax=20mA Rgmax=1MΩ, gm=3.25mS-typ 3極管接続時のEpIp特性 0) 6245 Tsol ￥- NIB
6247 =cathode type low-microphonic high mu Triode= (EIA/ -) *subminiature* Eh/Ih=6.3V/0.18A Ehkmax=200V Ppmax=1.25W Epmax=275V Ikmax=6.5mA Icmax=1mA Rgmax=1.2MΩ op : Ep=250V Ec=0V Ip=4.2mA rp=23kΩ gm=2.65mS μ=60-typ 0) CK6247WA Ray ￥- NIB 0) CK6247WA Ray ￥- used
6252/AX9910(=QQE03/20, 2B52)
6265 =Wideband Sharp Cutoff Pentode= (EIA/7CM - miniature) Eh/Ih=6.3A/0.175A Ppmax=2W Epmax=300V Pc2max=0.5W Ec2max=300V op : Ep=250V Ec2=150V Rk=100Ω Ip=7.4mA Ic2=2.9mA rp=1MΩ gm=4.6mS 2) 6265-5star GE ￥1700 NIB 1957 2) 6265-5star GE ￥1700 NIB 1959 1) 6265-5star GE ￥1700 NIB WB 1) 6265 GE ￥1200 NIB 6) 6265 GE ￥1200 NIB 4) 6265 GE ￥1200 NIB
6267/EF86
6281 =filamentary Pentode= (EIA/ -) *subminiature* Epmax=25V Ec2max=25V Ikmax=0.1mA gm=0.105mS rp=2MΩ Ef/If=0.625VDC/20mA pins = 1(P)-2(G2)-3(F+)-4-(G1)-5(F-) 0) CK-6281 Ray ￥- NOS (qqvN)
6286 =filamentary Triode= (EIA/ ) *subminiature* Ef/If=1.25V/0.125A Ppmax=0.45W Epmax=100V Ipmax=7mA op : Ep=67.5V Ec=-2V Ip=6mA gm=2.1mS μ=11.5 pins = 1(P)-2(F-)-3(G)-4(F+) (参考 : CK6286のEpIp特性) 0) CK6286 Raytheon ￥- NIB (hytvN) 4) 6286 Raytheon ￥1200 NOS D/C=733 WB 2) CK6286 Raytheon ￥1200 NOS D/C=01-K02 WB 2) CK6286 Raytheon ￥1200 NOS D/C=024 WB 1) CK6286 Raytheon ￥1200 NOS D/C=E02 WB 1) CK6286 Raytheon ￥1200 NOS D/C=y12 WB
6293
UY-6301 =low noise high-mu triode= (EIA/5A ) Eh/Ih=6.3V/0.6A Epmax=250V op : Ep=250V Rk=160Ω(Ec=-1.5V) Ip=9mA rp=13kΩ gm=7.7mS μ=100 抵抗結合アンプ表(Resistance Couple Amplifier Table) size : 38mmΦ x 105mmH similar types : AC2/HL(Mazda), MH41(MOV), 41MH(Cossor), UY6301(Japan) EIA/5A-base lower-μ, same heater(6.3V/0.3A) types : UY-37(μ=9.2), UY-76(μ=13.8) also see a noval type high-μ twin triode, 12BZ7 (by unit-parallel usage, resulting in near UY6301) 0) UY-6301 Matsuda ￥- NIB Date=昭和19年9月(Sept 1944) just-ragged boxes (hyyvt02i) 0) UY-6301 Matsuda ￥- NIB? Date=昭和19年9月(Sept 1944) very-ragged boxes (hyyvt02m) 0) UY-6301 Matsuda ￥- like-new Date=昭和17年6月(June 1942) WB (hyyvt2) 0) UY-6301 Matsuda ￥- like-new Date=昭和17年9月(June 1942) just-loose base WB (hyyvt4) 0) UY-6301 Matsuda ￥- used WB (hyyvhq) 1) UY-6301 マツダ(Matsuda) ￥5100 like-new D/C=1944-9(昭和19年9月), WB 1) UY-6301 マツダ(Matsuda) ￥5100 lightly-used D/C=1942-4(昭和17年4月), WB gm=3.47mS, Ip=2.7mA @Ec=-1.5V on KS-15750-L1 1) UY-6301 マツダ(Matsuda) ￥5100 lightly-used WB gm=3.31mS, Ip=2.8mA @Ec=-1.5V on KS-15750-L1 1) UY-6301 マツダ(Matsuda) ￥5100 used WB gm=2.84mS, Ip=2.25mA @Ec=-1.5V on KS-15750-L1
UZ-6302 =high-gm wideband Pentode= (EIA/6F ) Eh/Ih=6.3V/0.6A Epmax=250V Cinput=12.5pF Coutput=8pF op : Ep=250V Ec2=150V Rk=140Ω Ip=12mA Ic2=2.5mA gm=10mS size : 38mmΦ x 123mmH see same pin-out electrically-similar types : CZ-511, MC-658-A (gm=6mS-typ for both) 0) UZ-6302 Matsuda ￥- like-new WB (hyyvhq) 1) UZ-6302 Matsuda ￥2500 like-new D/C=昭和19年7月(1944-7) WB 1) UZ-6302 Matsuda ￥2500 like-new D/C=昭和19年3月(1944-3) WB 1) UZ-6302 Matsuda ￥2500 like-new D/C=昭和19年2月(1944-2) WB
UZ-6304 =power Pentode= (EIA/6B ) Eh/Ih=6.3V/0.7A op : Ep=250V Ec2=150V Ec1=-3V Ip=32mA Ic2=6mA rp=180kΩ gm=13mS 0) UZ-6304 Matsuda used WB (hyyvhq-2)
6336/6336A/6336B =LongLife Low-Mu High Power Twin Triode (Lower mu)= (EIA/8BD - octal) * Zirconium-coated Graphite Anode for the best Gas-gettering * Low-gas-emissive Ceramic Insulator/supporter + HardGlass for HighTemperature operation * GoldPlated Molybdenum Grid wires for Ruggdization Two or Three 6AS7G/6080WA would be exchanged to one #6336A Eh/Ih=6.3V/5A Tpreheat-min=30sec * absolute maximum rating Ppmax=30W/unit Epmax=400V Ikmax=400mA/unit Rgmax=500kΩ Ehk=300V gm=13.5mS rp=200Ω μ=2.7 ex) Ep/Ec/Ip=50V/0V/240-280mA(changes among manufacturers) 平均プレート特性(EpIp) also see higher μ type 6528/6528A(μ=9) 0) 6336 Chatham ￥- NIB ragged box MetalPlate(D) 2) 6336A Chatham ￥12000 NOS 1) 6336A Chatham ￥12000 NOS Ep/Ec/Ip1/Ip2=45V/0V/223mA/229mA 10) 6336A Tsol ￥12000 NIB 青白地+赤字のOB 11) 6336A Tsol ￥12000 NIB 青白地+赤字のOB '60s 0) 6336A Tsol ￥- NOS same lot #3226211-139(D) Ep/Ec/Ip=50V/0V/225mA,225mA(No.1) 232mA,240mA(No.2) 0) 6336A Tsol ￥12000 NIB MB d=10-63 (wD) 2) 6336A Tsol ￥12000 NIB MB 3) 6336A Tsol ￥12000 NOS OriginalWB RaggedBox 2) 6336A Tsol ￥12000 NOS WB 2) 6336A Tsol ￥12000 NOS WB Ep/Ec/Ip5/Ip2=50V/0V/245mA/260mA, 247mA/258mA 1) 6336A Tsol ￥12000 NOS RCA SupplimentaryBox 1) 6336 National(6336A Tsol-made) ￥12000 NIB 0) 6336A Tsol/Chatham ￥- NOS lot #322KD(sD) 0) 6336A Tsol ￥- used 新同品(Q) 2) CK6336A Ray ￥12000 NIB 0) 6336A Ray ￥- NIB(D) 1) 6336A Ray ￥10000 NOS RCA-rebox 1) 6336A GE ￥12000 NIB(Aht) 2) 6336A GE ￥12000 NIB date=63-30 1) 6336A GE ￥12000 NIB '60s 4) 6336A GE ￥12000 NIB WB '60s (hyycgz) 0) 6336A GE ￥- NIB VeryRaggedBoxes 2) 6336A RCA ￥12000 NIB '60s 2) 6336A RCA ￥12000 NOS 1) 6336A RCA ￥10000 LikeNew D/C=6404, no glass-discoloration 0) 6336A RCA ￥- NIB(Sn) 0) 6336A RCA ￥- NIB(Aht) 6) 6336A Cetron ￥9500 NIB MB 12) 6336B Cetron ￥6300 NIB MB DATE=8/86,2/90 (hpy10nx) 7) 6336 National(Cetron-made 6336A/B) ￥6100 NIB CarbonGraphitePlates date=(2)9034,(3)9151,(2)9223 (7) 1) 6336 National(Cetron-made 6336A/B) ￥5100 NIB CarbonGraphitePlates date=9151 CenterIndexPin折れ 2) 6336 Chatham ￥7900 usedLikeNew MetalPlates Strong as NOS 1) 6336 Chatham ￥6000 used MetalPlates(D) 1) 6336 Chatham ￥8300 used CarbonGraphitePlates VeryStrong LikeNew 2) 6336 Tsol ￥5000 used 1) 6336 Tsol/Chatham ￥4000 used MetalPlates 1) 6336A Tsol ￥7000 used Ep/Ec/Ip5/Ip2=50V/0V/220mA/185mA 1) 6336A RCA ￥7900 usedLikeNew D/C=7030(1970) 1) 6336 Ray ￥5000 used 50V/0V/172mA/176mA 1) 6336 Ray ￥5000 used 50V/0V/150mA/155mA 0) 6336B Cetron ￥- used LikeNew(Q) 2) 6336B Cetron ￥4300 used VeryStrong 4) 6336B Cetron ￥3700 used Strong 6) 6336B Cetron ￥3000 used(hyybvt) 1) 6336B Cetron ￥2000 used 50% 1) 6336B Cetron ￥2000 used 1) 6336B Cetron ￥2000 used D/C=7617 1) 6336B Cetron ￥500 used D/C=7617 ベース接合部付近にガラスクラックあり、ゲッタフラッシュ正常
6350 =Medium-mu TwinTriode= (EIA/9CZ - noval) Eh/Ih=6.3V/0.6A(12.6V/0.3A) Ehkmax=±220V * absolute max rating Ppmax=3.85W/unit Epmax=330V/1000Vpeak-pulse Ikmax=27.5mA Icmax=5.5mA Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=150VEc=-5V Ip=11mA gm=4.6mS rp=3.9kΩ μ=18 ピン配列:P-K-G-H-H-P-K-G-HCT (see Ep-Ip特性) see similar types with same basing : 6463, ECC813 also see similar types with lower rp and different basing : 5687, 7044, 7119, E182CC higher-gm and different-basing type : 12FV7(gm=9.6mS, μ=21.5) 4) 6350 RCA ￥2400 NIB GrayPlates(Qn) 0) 6350 RCA ￥- NIB BlackPlates(hyyanx) 8) 6350 Federal ￥2400 NIB BlackPlates 1) 6350 GE ￥2400 NIB 5-tar BlackPlates date=6052 5) 6350 GE ￥2400 NIB 5-tar BlackPlates 4) CK6350 Ray(GE-made) ￥2400 NIB BlackPlates 4) 6350 IBM ￥1900 NOS?/used? BlackPlates WB Glass変色～なし --gm=5800/5870/2900min, 5410/5600/2900min, 5400/5620/2900min, 5650/5810/2900min
6354 (see 150B2) =150V regulator= (EIA/ - miniature) Estart=180V Eop=150V±4V Ia-5mA-15mA Regulation=5V(@Ia=5-15mA) Tc=10mV/℃ 2) 6354 WH ￥900 NIB
標記 この頁の各行は、基本的に下記のように記述されております｡ 在庫数) TYPE 製造メーカ 単価 new/used状態 その他状況 メーカ略号 Amprx(Amperex), Cunnghm(Cunningham), Dmnt(Dumont), GE(General Electric), Hyt(Hytron), Krad(KenRad), L&K(Lewis and Kaufman), Mag(Magnavox), NU(National Union), Ray(Raytheon), STD(Standard), Syl(Sylvania), TFK(Telefunken), Tsol(Tung-Sol), WE(Western Electric), WH(Westinghouse), Znth(Zenith)
6360(=QQE03/12)Eh/Ih=12.6V/0.41A(6.3V/0.82A) Ehkmax=±100V Fmax=200MHz Tbulb=225℃max AudioFreq : Ppmax=2x7W Epmax=300V Pc2max=2W Ec2max=200V Ipmax=2x50mA Ig1max=2x4mA RadioFreq : Ppmax=2x5W Epmax=300V Pc2max=2W Ec2max=200V Ipmax=2x45mA Ig1max=2x3mA op : Ip=30mA gm=3.3mS μg2g1=7.5 As a push-pull Audio power amplifier only for music/speech : AB1pp:Ep=200V Ec2=200V Ec1=-21.5V Ip=30/66mA Ic2=2.4/14.0mA Zlpp=6.5kΩ D=3.2% Po= 7.0W AB1pp:Ep=250V Ec2=200V Ec1=-21.5V Ip=30/69mA Ic2=1.4/12.4mA Zlpp=8.0kΩ D=2.7% Po= 9.3W AB1pp:Ep=300V Ec2=200V Ec1=-21.5V Ip=30/72mA Ic2=1.2/12.6mA Zlpp=10 kΩ D=2.5% Po=12.0W AB2pp:Ep=300V Ec2=200V Ec1=-21.5V Ip=30/100mA Ic2=1.2/11.4mA Ic1max=2x0.56mA Zlpp=6.5kΩ D=5% Po=17.5W size : 22.2mmΦ x 78.4mmH, in max net-weight : 16gram (参考 : Ep-Ip特性(@Ec2=150V)) see similar European version QQV03-10 see upper-rated electrically-similar NOVAR base type : 8458/YL1240(Eh/Ih=6.75V/0.76A or 13.5V/0.38A) also see an electrically similar, filamentary/direct-heat type : 8348(YL1080)(Ef/If=1.6V/2.5A) also see an electrically similar, filamentary/direct-heat type : 7983(QQC03/14)(Ef/If=3.15V/1.65A) also see 1.5xPpmax, Septar 7-pin twin power tetrodes : 6252, QQV03-20A, 6907(Ppmax=2x10W) also see a 3xPpmax, Septar 7-pin twin power tetrode : 5894(Ppmax=2x20W) also see a Schematic - 6360-AB2 push-pull monaural-amplifier, Pout=18W - by Kazuma Takesue / 武末数馬 and Its IM(inter-modulation) distortion vs output power characteristics / 混変調歪率-出力特性 (appeared on "Design & Building-Up of (Tube) Power Amplifier" published on 1967 by Radio Technique, Japan) 1) 6360(QQE03/12) TFK ￥2700 NIB <> on bottom, (Ulm 1965.3.19) 4) 6360 TFK ￥2700 NIB <> on bottom, (Ulm 1965.7.7) Back View 4) 6360(QQE03/12) TFK ￥2700 NIB <> on bottom, (Ulm 1965.9.8) Back View 1) 6360(QQE03/12) TFK ￥2700 NIB <> on bottom, (Ulm 1965.10.20) Back View 4) 6360(QQE03/12) TFK ￥2700 NIB <> on bottom, same-lot(Ulm 1965.10.20) Back View 2) 6360(QQE03/12) TFK ￥2700 NIB <> on bottom, (Ulm 1965.8.11, Ulm 1965.12.15) Back View 2) 6360 Amprx ￥2700 NIB pinched-glass OldLargeBox, made in Holland 1) 6360 Amprx ￥2000 NIB D/C=6112 very-ragged OldLargeBox, made in Canada 9) 6360 Amprx ￥1700 NIB 5) 6360 Amprx ￥1700 NIB 2) 6360 RCA ￥1700 NIB 2) 6360 GE ￥1700 NIB 2) 6360A Syl ￥1700 NIB UK-made 0) 6360 Syl(Amperex-made) ￥- NIB w/5-pack-sleeve 1) 6360(S) Matsushita ￥2400 NIB pinched-glass, lot=3L, very-ragged silver box 1) 6360/'QQE03/12' TFK ￥2200 like new, <> on bottom, WB 2) 6360 Syl ￥1000 lightly-used WB 1) 6360 Toshiba ￥1000 lightly-used 通測用 WB 1) 6360 Toshiba ￥900 used WB 5) 6360 Matsushita ￥1000 used PinchedGlass WB 1) 6360 Hitachi ￥900 used D/C=1969-3 WB 2) 6360 Hitachi ￥900 used WB
6370 0) 6370 WH(Valvo-made) ￥2000 NIB 計数表示管(D) 1) 6370/E1T Matsushita used WB
6384 =BeamPower Amplifier= EIA/6BQ - octal) Eh/Ih=6.3V/1.2A Ehkmax=±450V Rg1max=100kΩ Ppmax=30W Epmax=750V/1500Vpeak Ikmax=125mA/0.25Apeak/1Apulse Pc2max=3.5W Ec2max=325V Twarmup=45sec Tbulb=300℃ ImpactShock=500Gmax VibrationAccel.=50Gmax Altitude=80000feet-max Life=10000H (参考 : TriodeConnection-EpIp(三結時のEp-Ip特性)) see same-basing commercial/lower-rating types : 6AR6 6098/CT see a top-plate type : 6889 Also see different pin-assignment, electrically similar types : 6L6GC, 7027A, 7581/A 0) 6384 Bendix ￥- NIB/NOS(sT) 2) 6384 Bendix ￥11000 NOS WB 0) 6384 Bendix ￥- NIB (8 from same lot) 1) JAN-CEA 6384 Bendix ￥11000 NOS date=6684 未使用機器からの取り外し品 3) 6384 Bendix ￥9000 LikeNew 1pc=6384(D/C=625), 2pcs=JAN-CEA 6384(D/C=5947, 6008) Int-C箱 2) 6384 Bendix ￥6900 used? ClearGlass@@ 0) 6384 Bendix ￥- used(D) 0) 6384 Syl ￥- used 0) 6384 Tsol ￥- NOS(D) 2) 6384 TungSol ￥7900 NIB MB(sQ) 1) 6384 TungSol ￥7900 NIB MB date=1/68 1) 6384 Tsol ￥7900 NOS D/C=6808 gm=4750/3250min, Ik=53mA @Eg1=-10V on KS-15750-L1 1) 6384 TungSol ￥7900 NOS date=7204 未使用機器からの取り外し品 2) 6384 TungSol ￥5000 used? WB gm=4200-4300,Ip=64mA,65mA(Ec=-4V:539B-Drange) ベースに製造時か不明汚れ 2) 6384 TungSol ￥5000 used? WB gm=4300-4370,Ip=65mA,66mA(Ec=-4V:539B-Drange) ベースに製造時か不明汚れ 0) 6384 TungSol ￥- NOS?/used? 1) 6384 TungSol ￥5000 used date=6734-3 0) 6384 MU ￥- used 0) 6384 CETRON ￥- NIB MB(T) 3) 6384 CETRON ￥3000 used none
6385 =Ruggdized HF med-Mu TwinTriode= (EIA/8CJ - noval) (see 396A/2C51/5670のピン互換強化型/高信頼管、ヒーター電力大) Eh/Ih=6.3V/0.5A Ppmax=1.5 W/unit Epmax=300V op: Ep=150V Ec=-2V Ip=8mA rp=7kΩ gm=5mS μ=35 also see a same-base electrically-similar type w/ different heater: 19R-LL1(19V/0.15A) also see a different-base electrically-similar type : 12R-LL3 0) 6385 Bendix ￥- NIB 0) 6385 Bendix ￥- used
6386 =Medium-Mu TwinTriode for Cascode RF amp= (EIA/8CJ - noval) Eh/Ih=6.3V/0.35A Shock=600Gmax Fatigue(vib.)=2.5Gmax * design center rating Ppmax=1.5 W/unit Epmax=300V Ikmax=18mA Ehkmax=±90V op : Ep=100V Rk=200Ω Ip=9mA rp=4.25kΩ gm=4mS μ=17 (参考 : Ep-Ip特性) (6385/396A/2C51/5670とピン互換で低μ管) 0) 6386 RCA ￥3900 NOS RB BlkPlate(T) 1) 6386 RCA(GE-made) ￥3900 NIB BlkPlate 0) 6386 GE ￥- NIB MB(Qn) 2) 6386 GE ￥8500 NIB 5-star date=56-43,58-41(nT) 2) 6386 GE ￥8100 NIB 5-star date=61-09(sD) 1) 6386 GE ￥8100 NIB 5-star date=61-04 2) 6386 GE ￥3900 NIB 5star BlkPlate 0) 6386 GE ￥- NOS WB 5-star 0) 6386 RCA ￥- used RB BlkPlate
6394/A =Low-mu Power TwinTriode= (EIA/8BD - octal) 6336/A/Bの26.5Vヒーター版 Eh/Ih=26.5V/1.2A * absolute maximum rating Ppmax=30W/unit Epmax=400V μ=2.7 1) 6394 Chatham ￥13000 NIB 1) 6394A Tsol ￥13000 NOS
6397 =RF Power Pentode= (EIA/6CL) *subminiature* Ef/If=1.25V/0.125A(2.5V0.0625A) Fmax=250MHz * absolute maximum rating Ppmax=1.5W Epmax=135V Pc2max=0.6W Ec2max=135V op : Ep=125V Ec2=125V Ec1=-7.5V Ip=7.25mA Ic2=1.2mA gm=1.95mS (参考:Ep-Ip特性(@Ec2=125V)) (参考:三結時のEp-Ip特性例(triode connection)) 0) 6397 Ray ￥1000 NIB (qvN) 4) CK6397 Ray ￥1000 NIB
6405 =Gas photo tube= 1640 = 6405 0) 6405 RCA ￥- used
6414 =med-mu TwinTriode= (EIA/9A - noval) Long life, stable performance. High zero-bias plate current, sharp-cutoff characteristics for computer applications. Eh/Ih=12.6V/0.225A(6.3V/0.45A) Ehkmax=±100V * design maximum rating Ppmax=2W/3.6W(both) Epmax=200V/500Vpeak(10mS, 10%duty) Ikmax=17mA Ecmax=+10V/-100V Icmax=1mA/50mApeak op : Ep=180V Ec=-2V Ik=8mA rp=7.65kΩ gm=5.5mS μ=42.5 (参考 : 平均プレート(EpIp)特性) similar to 6829 12) 6414/W GE ￥1600 NOS bulk (hyy3fnx) 20) 6414W GE ￥1600 Bulk-NOS (￥12000 for 10-pcs) 0) JAN-CRP 6414 Ray ￥- NIB MB(nhcjr) 0) 6414/0528 Ray ￥- NIB MB(q)
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6417 =VHF BeamPower= (EIA/9K - noval) Ef/If=12.5V/0.375A ICAS-class-C telephony : Ppmax=15W Epmax=250V Pc2inmax=1.5W Ec2max=250V Ipmax=50mA gm=7mS μg2g1=16-typ 0) 6417 RCA ￥- NIB 1) 6417 RCA ￥1900 NIB smeared silk, very-ragged box
6418 =BeamPower= (EIA/512AX) *subminiature* Ef/If=1.25V/10mA (Po=22mW @Zl=100kΩ) * absolute maximum rating Epmax=30V Ec2max=30V Ikmax=0.5mA op: Ep=22.5V Ec2=22.5V Ec1=-1.2V Ip=0.24mA Ic2=0.06mA gm=0.3mS rp=420k Zl=100kΩ D=12% Po=2.2mW pins = 1(P)-2(G2)-3(F-,G3)-4(G1)-5(F+,G3) 1) 6418 Tsol ￥1500 NIB 1) CK-6418 Ray ￥1500 NIB 1) CK-6418 Ray ￥1500 NOS ck5886箱 1) CK-6418 Ray ￥700 used
6419 =filamentary Pentode= (EIA/ -) *subminiature* Ef/If=0.625VDC/10mA * absolute maximum rating Epmax=25V Ec2max=25V Ikmax=0.1mA op: Ep=15V Ec2=15VEc1=-0.625V Ip=55μA Ic2=20μA gm=0.1mS rp=2MΩ pins = 1(P)-2(G2)-3(F-,G3)-4(G1)-5(F+,G3) 0) CK-6419 Ray ￥- NIB
ML-6420 : water-cooled 10kW-class transmitting Triode Machllet Ef/If=7V/85A ML-6421/F : forced-air-cooled 10kW-class transmitting Triode Machllet Ef/If=7V/85A ML-6422 : water-cooled 18kW-class transmitting Triode Machllet Ef/If=7V/85A ML-6423 : forced-air-cooled 18kW-class transmitting Triode Machllet Ef/If=7V/85A ML-6424 : water-cooled 30kW-class transmitting Triode Machllet Ef/If=7V/120A ML-6425/F : forced-air-cooled 30kW-class transmitting Triode Machllet Ef/If=7V/120A ML-6426 : water-cooled 55kW-class transmitting Triode Machllet Ef/If=8V/200A ML-6427 : forced-air-cooled 55kW-class transmitting Triode Machllet Ef/If=8V/200A
6436/CK1036 =cold cathode gas-filled diode= (EIA/ - ) *subminiature* PIV=1500V Ik=100uA 1) CK-6436 Ray ￥- NIB
6437 =cold cathode= (EIA/ - ) *subminiature* corona-discharge tube Eamax=2000V Ia=5uA-125uA Estart=800V Ia=25uA Ea=700V Regulation=15Vmax 1) CK-6437 Ray ￥1000 used
6442
6448 : water-cooled 20kW-class UHF(1GHz) Beam power tube Ef/If=1.35V/1000A x2
6463 =Medium-mu TwinTriode= (EIA/9CZ - noval) Eh/Ih=6.3V/0.6A(12.6V/0.3A) Ehkmax=±200V Rg1max=500kΩ(fixed) Ppmax=4.4W/unit(7.7W both) Epmax=330V/660Vcutoff Ikmax=31mA Eg1max=+1.5V Igmax=5.5mA op : Ep=250V Rk=620Ω Ip=14.5mA gm=5.2mS rp=3.85kΩ μ=20 (参考 : 平均プレート(EpIp)特性) pins : 1(P)-2(K)-3(G)-4(H)-5(H)-6(P)-7(K)-8(G)-9(HCT) (size : 67.5mmH x 22.2mmφ, in max) *ゼロバイアス時にPlate電流が大きい。コンピュータ用高信頼管 European identical type : ECC813 similar type with same basing : 6350 also see similar types with lower rp and different basing : 5687, 7044, 7119, E182CC higher-gm and different-basing type : 12FV7(gm=9.6mS, μ=21.5) 1) 6463 GE ￥1600 NIB MB 5-star(sT) 4) 6463 GE ￥1600 NIB 5-star 5) 6463 GE ￥1200 NIB 3) 6463 GE ￥1200 NOS WB 4) 6463 GE ￥1200 NOS 橙OB GrayPlate 2) 6463 GE ￥1200 NIB 6) 6463 GE ￥1200 NIB(Sx) 33) 6463 GE ￥1000 NIB MB '70s(50+) 0) 6463 CBS(GE) ￥- NIB GE-tubes inside CBS original-boxes 5) 6463 GE ￥1200 NOS 1) 6463 GE ￥500 used
6476 =Decade Counter Tube= 2) 6476A Syl ￥4700 NOS WB 5) 6476A Syl ￥4700 NIB
6481
6483 =ColdCathode Trigger Tube= (EIA/-) *subminiature* 5) 6483 CGE(made by Sylvania) ￥1500 NIB 2) 6483 Sylvania ￥1500 NIB
6485 =sharp cutoff Pentode for Wideband Amplifier= (EIA/7BK, 7CC - miniature) Eh/Ih=6.3V/0.45A Ppmax=3.2W Epmax=300V Pc2max=0.6W Ec2max=150V Ikmax=25mA op(pentode-connection) : Ep=300V Ec2=150V Rk=160Ω Ip=10mA Ic2=2.5mA gm=9mS rp=500kΩ op(triode-connection) : Ep=150V Rk=160Ω Ip=12.5mA gm=11mS rp=3.6kΩ μ=40 2) 6485 GE ￥2000 NIB 2) 6485 Syl ￥2000 NIB 1) CK-6485 Ray ￥2000 NIB 3) 6485 Ray ￥500 used? STRONG
6520 =Low-Mu Power Twin Triode= (EIA/8BD - octal) *6520 = variation-controled / high-rel. version of 6AS7G more Balanced, better Plate-current drift and better plate-grid insulation than standard 6AS7G's Eh/Ih=6.3V/2.5A Ehkmax=±300V Tbulb=200℃max Ppmax=14W/unit Epmax=300V Ikmax=125mA/unit Rgmax=100kΩ(fixed)/1MΩ(self) op : Ep=135V Rk=250Ω/unit Ip=112mA/unit gm=7mS μ=2 rp=280ohm 平均プレート特性(EpIp) also see electrical equivallent's : 6AS7G, 6080 0) 6520 Syl ￥- NIB 0) 6520 Tung-Sol ￥- NIB 1) 6520 NEC ￥2000 like-new very-ragged OB 4) 6520 NEC ￥2000 lightly used WB 2) 6520 NEC ￥2000 lightly-used D/C=1961-4,1961-12 KDD-0046,0080 lot=K4,KD WB 2) 6520 NEC ￥2000 lightly-used D/C=1962-10,1963-5 lot=L0,M5 WB 1) 6520 NEC ￥2000 lightly-used 通信用 lot=PD, WB 2) 6520 NEC ￥2000 lightly-used 通信用 lot=Q1, WB 3) 6520 NEC ￥2000 lightly-used 通信用 lot=Q2, WB 2) 6520 NEC ￥2000 lightly-used 通信用 lot=R2, WB
6524 =Twin Beam Power= (EIA/ ) Eh/Ih=6.3V/1.25A Ehkmax=135V Fmax=470MHz CCS : Ppmax=20W/unit Epmax=500V Pc2inmax=3W Ec2max=400V Ipmax=150mA gm=4.5mS μg2g1=8.5 0) 6524 RCA ￥- used
6526 =filamentary power Pentode= (EIA/ -) *subminiature* Ef/If=1.25VDC/0.125A Ppmax=1.1W Epmax=135V Pc2max=0.4W Ec2max=135V Ikmax=12mA gm=1.9mS rp=0.14M op : Ep=110V Ec2=110V Ec1=-6V Zl=10kΩ D=12% Po=0.375W pins = 1(P)-2(G2)-3(F-,G3)-4(G1)-5(F+,G3) 0) CK-6526 Ray ￥- NIB
6528/6528A =LongLife Low-Mu High Power Twin Triode (Higher mu)= (EIA/8BD - octal) * Zirconium-coated Graphite Anode for the best Gas-gettering * Low-gas-emissive Ceramic Insulator/supporter + HardGlass for HighTemperature operation * GoldPlated Molybdenum Grid wires for Ruggdization Two or Three 6080WA would be exchanged to one #6528A Eh/Ih=6.3V/5A Tpreheat-min=30sec Ppmax=30W/unit Epmax=400V Ikmax=300mA/unit gm=37mS rp=240Ω μ=9 Rgmax=500kΩ Ehk=300V ex) Ep/Ec/Ip=50V/0V/115mA(changes among manufacturers) 平均プレート特性(EpIp) also see lower μ type 6336A/6336B(μ=2.7) 6) 6528 Tung-Sol ￥8700 NIB 濃紺大箱 1) 6528 Tung-Sol ￥8300 NOS WB 1) 6528 Tung-Sol ￥8300 NIB MB 2) 6528 Raytheon ￥8300 NIB MB 6/65 1) CK6528 Raytheon ￥7000 NOS WB w/original-wrapper 1) CK6528 Raytheon ￥4300 LightlyUsed WB w/original-wrapper 1) JAN-CRP 6528 Raytheon ￥4300 LightlyUsed DC=63-16 WB 2) 6528A Raytheon ￥8300 NIB MB 8/76 1) 6528A Raytheon ￥8300 NIB MB 5/78 1) 6528A Raytheon ￥8300 NIB WB 0) 6528 Cetron ￥6800 NIB 1) 6528A Cetron ￥6800 NOS WB 1) 6528A Cetron ￥6800 NOS オリジナルラッピング 5) 6528A Cetron ￥6800 NIB MB 1) 6528A Dmnt ￥6800 NIB 0) CK6528 Rayl ￥6000 used-lightly ceramic-base w/OriginalBoxes 4) 6528 Tsol ￥3700 used 1) 6528A Tsol ￥3700 used 1) 6528A Ray ￥3700 used 10) 6528A CETRON ￥3000 used 1) 6528A Tsol(Cetron-made) ￥3000 used
6533/WA =low microphonic high-mu Triode= (EIA/8FY ) *subminiature* Ppmax=0.5W Epmax=150V Ipmax=2.5mA μ=54 gm=1.75mS Ehkmax=200V Ef/If=6.3V/0.2A Microphonic noise in audio frequency of 6533 is 20dB-less than standard tubes. 0) CK-6533WA Ray ￥- NOS
6542 =cold-cathode, gas-filled diode= (EIA/ -) *subminiature* Estart=225V Eop-dc=140-168V Idc=5-25mA pins = 1(K)-2(A)-3(K) 0) CK-6542 Ray ￥- NIB
6550/6550AEh/Ih=6.3V/1.6A Ehkmax=+200V(+100VDC)/-300V Tbulb=260℃ Rg1max=50kΩ(fixed)/250kΩ(self) pentode con.(design.max) : Ppmax=42W Epmax=660V Ec2max=440V Pc2max=6W Ec1max=+0V/-300V Ikmax=190mA op: Ep=250V Ec2=250V Ec1=-14V Ip=140 Ic2=12mA rp=15kΩ gm=11mS μg2g1=8-typ op(A1S): Ep=250V Ec2=250V Ec1=-14V Ip=140/150mA Ic2=12/22mA Zl=1.5kΩ D=7% Po=12.5W op(A1S): Ep=400V Ec2=225V Ec1=-16.5V Ip=87/105mA Ic2=4/14mA Zl=3kΩ D=13.5% Po=20W op(AB1pp): Ep=450V Ec2=310V Ec1=-29.5V Ip=150/300mA Ic2=4.5/19mA Zlpp=3.5kΩ D=1.5% Po=77W op(AB1pp): Ep=600V Ec2=300V Ec1=-32.5V Ip=100/270mA Ic2=2.5/16.5mA Zlpp=5kΩ D=3% Po=100W op(40%-ultralinear-AB1pp) : Ep=395V Rk=200Ω Ip=170/174mA Ic2=12.6/23mA Zlpp=5.6kΩ D=1.5% Po=34W op(40%-ultralinear-AB1pp) : Ep=450V Ec1=-48V Ip=150/266mA Ic2=12/38mA Zlpp=4kΩ D=2.4% Po=70W triode con.(design.max) : Ppmax=42W Epmax=500V Ikmax=190mA (参考 : GE-6550Aの三結時のEp-Ip特性( - triode connection)) other high-power HiFi Beam-power tubes/ Pentodes : 6CA7, 6G-B8, 6L6GC, 7027A, 8417 European high-power HiFi Beam-power tubes/ Pentodes : EL34, EL37, EL60/61, EL156, F2a, F2a11, KT66, KT77, KT88 オーディオパワ管の比較2(Beam,5極管) 0) 6550 Tung-Sol ￥- NIB BlkPlate 2Getter Matchedペア ST-style(G)(D) 0) 6550 Tung-Sol ￥- NIB BlkPlate 2Getter ST-style(G)(D) 0) 6550 Tung-Sol ￥- NIB Matched Pair ST-style(G) TopGetter/NonHolePlate(oldest)(D) 0) 6550 Tung-Sol ￥- NOS Matched Pair ST-style(G)(D) 0) 6550 Tung-Sol ￥- NIB MB Date=7521 ST-style(G)(Sn) 1) 6550 Tung-Sol ￥offer NOS BlkPlate LargeTopGtr ST-style, WB gm=8100/5000min, Ik=63mA (@Eg1=-6V on KS-15750-L1) ０) 6550 Tung-Sol ￥offer used BlkPlate LargeTopGtr 変色なし ST-style date=3225701-3 gm=8510,8750/6250min Ip=107mA,104mA(@Eg1=-1.4V on Hickok-539B) 1) 6550 Tung-Sol ￥offer used BlkPlate LargeTopGtr 変色なし ST-style date=3225652-3 ０) 6550 Tung-Sol ￥21000 NOS BlkPlate 3Getter FullGetter 変色なし ST-style(G) gm=14250/6250min(@Eg1=-1.4V on Hickok-539B) 0) 6550 RCA(Tung-Sol made) ￥- NIB RED ST-style(G)(D) 2) 6550 RCA(Tung-Sol made) ￥offer NIB D/C=6426a GrayPlate 3Getter ST-style RaggedBoxes 2) 6550 Syl(Tung-Sol made) ￥offer NIB GrayPlate 3Getter ST-style ０) KT88 IEC-Mullard(Tung-Sol made) NIB ￥18500 ST-style(G) 上記RCA-brand品と同一構造(Tung-Sol OEM) gm=13200,13250/6250min(@Eg1=-1.4V on Hickok-539B) matched pair ０) 6550 RCA(Tung-Sol-made) ￥18500 NOS WB date=7104,7339 GrayPlate 3Getter FullGetter 変色なし ST-style(G) gm=9500,9500/6250min Ip=104mA,109mA(@Eg1=-1.4V on Hickok-539B) ０) 6550 RCA(Tung-Sol-made) ￥18500 NOS WB date=7435 GrayPlate 3Getter FullGetter 変色なし ST-style(G) gm=10550/6250min Ip=89mA(@Eg1=-1.4V on Hickok-539B) ０) 6550 Tung-Sol ￥16500 used? GrayPlate 3Getter FullGetter 変色なし ST-style(G) gm=9020/6250min(@Eg1=-1.4V on Hickok-539B) 0) 6550 Tung-Sol ￥14000 used GrayPlate 3Getter GoodGetters 変色なし ST-style(D) gm=9300,9050/6250min Ip=95,96mA(@Eg1=-1.4V on Hickok-539B) ０) 6550 Tung-Sol ￥13000 used GrayPlate 3Getter GoodGetters 変色なし ST-style gm=8500/6250min Ip=101mA(@Eg1=-1.4V on Hickok-539B) ０) 6550 Tung-Sol ￥9000 used GrayPlate 3Getter GoodGetters 変色なし ST-style gm=8100/6250min Ip=84mA(@Eg1=-1.4V on Hickok-539B) ０) 6550 Tung-Sol ￥7000 used GrayPlate 3Getter GoodTopGetter justFadedSideGetter ST-style gm=7430/6250min(@Eg1=-1.4V on Hickok-539B) 1) JAN-CTL 6550 Tung-Sol ￥offer lightly-used D/C=6611 GrayPlate 3Getter ST-style gm=9000/5000min, Ik=77mA (@Eg1=-6V on KS-15750-L1) 1) JAN-CTL 6550 Tung-Sol ￥offer used D/C=6648 GrayPlate 3Getter ST-style 1) 6550 Tung-Sol ￥offer lightly-used D/C=7451 GrayPlate 3Getter ST-style 2) 6550 Syl(Tung-Sol made) ￥offer used GrayPlate 3Getter ST-style RCA-RaggedBoxes 0) 6550A(直管) GE ￥- NOS MB(Q) 0) 6550A GE ￥- NIB MB Straight MetalBase(hyyanx) 16) 6550A GE ￥offer NIB Straight MetalBase, NIB/boxes (hyy1x0nx) 0) 6550A GE ￥- NIB Straight MetalBase(sT) 0) 6550A GE ￥- NIB Straight MetalBase 2-matched pairs) 6550A Gold-Aero(GE-made) ￥offer NIB Straight-glass MetalBase (注)TungSol-6550の最初期は穴無しBlkPlateでシングルGetter、 次に穴無しBlkPlateでダブルGetter、最終期が穴付きGrayPlateで 3Getterである。RCA-6550は、自社生産品はなくST形状はTungSol、 GT直管形状はGEもしくはSylvaniaのOEMである。
PL-6574 =Thyratron (gas-filled tetrode)= Eh/Ih=6.3V/0.95A 2) PL6574 Valvo ￥3000 NIB BrownBase RaggedBox
6590 == (EIA/ -) *subminiature* 1) 6590 Marconi ￥1800 NIB
6611 =fully-shielded Pentode= (EIA/512AX) *subminiature* Ppmax=0.1W Epmax=50V Pc2max=0.02W Ec2max=50V gm=1mS rp=400k Ef/If=1.25V/20mA 0) CK-6611 Ray ￥- NIB
6612 =fully-shielded Pentode= (EIA/512AX) *subminiature* Ppmax=0.2W Epmax=50V Pc2max=0.05W Ec2max=50V Ikmax=5.5mA gm=3mS rp=180k Ef/If=1.25V/8mA 0) CK-6612 Ray ￥- NIB
6626/0A2W (see 0A2) =Voltage Stabilizer= 1) 6626/0A2WA RCA ￥800 NIB
6627 (see 0B2) =Voltage Stabilizer= 1) 6627/0B2WA Tsol ￥1200 NIB Chatham 1) 6627 CBS ￥600 NOS Syl箱
6660 = 6BA6 special (see 6BA6 5749) =Remote cutoff RF Pentode= (EIA/7BK - miniature) Eh/Ih=6.3V/0.3A Ppmax=3.3W Epmax=330V Pc2max=0.65W Ec2max=330V op : Ep=250V Ec2=100V Ec3=0V Rk=68Ω Ip=11mA Ic2=4.2mA rp=1MΩ gm=4.4mS 3) 6660/6BA6 GE ￥1200 NIB
6661/E90F =sharp-cutoff Pentode= (EIA/7CM - miniature) 6661 = special 6BH6(see E90F, 6BH6) Eh/Ih=6.3V/0.15A Ehkmax=±100V Ppmax=3.3W Epmax=330V Pc2max=0.55W Ec2max=330V Ec1max=+0V/-55V op : Ep=250V Ec2=150V Rk=100Ω Ip=7.4mA Ic2=2.6mA rp=1.4MΩ gm=4.6mS 0) 6661/6BH6 RCA ￥- NIB BlackPlates(T) 1) 6661/6BH6 RCA ￥1200 NIB 2) 6661 GE ￥1000 NIB 10) 6661/6BH6-communication-grade GE ￥1200 NIB 1950s
6662/E99F = 6BJ6 special (see 6BJ6) (EIA/7CM - miniature) =Remote cutoff RF Pentode= 1) 6662 GE ￥2200 NIB
6663/EAA901S = 6AL5 special (see 6AL5) (EIA/6BT - miniature) =Twin Diode= 4) 6663 GE ￥900 NIB 1) 6663/6AL5 RCA ￥900 NIB 1) 6663/6AL5 GE ￥800 NIB NOS? RCA箱 7) 6663/6AL5 GE ￥900 NIB 1) 6663-Communications-quality Syl ￥1100 NIB
6664 =high-μ Triode for mobile-communication= (EIA/5CE - miniature) 6664 = mobile-communication specified version of 6AB4 (= EC92) Eh/Ih=6.3V/0.15A Ehkmax=±100V Ppmax=2.9W Epmax=330V Ecmax=+0V/-55V op : Ep=100V Rk=270Ω Ip=3.7mA rp=15kΩ gm=4mS μ=60 op : Ep=250V Rk=200Ω Ip=10mA rp=10.9kΩ gm=5.5mS μ=60 (参考 : 6AB4のEp-Ip特性) 0) 6664 GE ￥- NIB
6669 = 6AQ5 (see 6AQ5 6005 6095) =Beam Power for mobile comm. equip.= (EIA/7BZ - miniature) Eh/Ih=6.3V/0.45A Ehkmax=100V Tbulb=225℃max Epmax=250V Ppmax=12W Pc2max=2W Ec2max=250V Ikmax=30mA Rg1maz=100kΩ(fixed)/500kΩ(self) op: Ep=250V Ec2=250VEc1=-12.5V Ip=45mA Ic2=4.5mA rp=52kΩ gm=4.1mS op1(A1S) : Ep=250V Ec2=250V Ec1=-12.5V Ip=45mA/47mA Ic2=4.5mA/7mA Zl=5kΩ Po=4.5W D=8% op2(AB1pp) : Ep=250V Ec2=250V Ec1=-15V Io=70mA/79mA Ic2=5mA/13mA Zl=10kΩ Po=10W D=5% (参考 : 三結時のEpIp特性(triode connection)) pins : 1(G1)-2(KG3)-3(H)-4(H)-5(P)-6(G2)-7(G1) 1) 6669/6AQ5A RCA ￥1200 NIB date=7043 4) 6669 GE ￥1200 NIB 1) 6669/6AQ5 Tsol ￥1200 NIB MIL-WB 1) 6669/6AQ5 ? ￥1200 used RCA箱
6676 = 6CB6 (see 6CB6) =Sharp Cutoff RF Pentode= (EIA/7CM - miniature) Ppmax=2.3W Epmax=330V Pc2max=0.55W Ec2max=330V Eh/Ih=6.3V/0.3A gm=8 mS rp=280kΩ 1) 6676/6CB6A RCA ￥700 NIB 1) 6676/6CB6 GE ￥700 NIB(Q)
6677 = 6CL6 =PowerPentode for MOBILE communication= (EIA/9BV - noval) Eh/Ih=6.3V/0.65A Ehkmax=±100V * Cg1p=0.12pF Cinput(g1 to h+k+g2+g3+IS)=11pF Coutput(p to h+k+g2+g3+IS)=5.5pF (design max) : Ppmax=8.5W Epmax=330V Pc2max=2W Ec2max=330V Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=250V Ec2=150V Ec1=-3V Ip=30/31mA Ic2=7/7.2mA rp=150kΩ gm=11mS Zl=7.5kΩ D=8% Po=2.8W (参考 : 三結時のEpIp特性(triode connection)) see equivallents : 6CL6, 6197 also see a similar type : 6R-P22 also see an electrically-similar octal-base type : 6AG7/GT also see different-base, electrically-similar types : 6227 / E80L also see different-base upper-rating mobile/video-amp power pentodes : 6216, 6761 2) 6677/6CL6 RCA ￥1300 NIB 23) 6677 GE ￥1000 NOS BlkPlate 橙OB 4) 6677/6CL6 RCA ￥1200 NOS BlkPlate RB 1) 6677/6CL6 RCA ￥1200 NIB date=6752, GrayPlate, OrageLogo 1) 6677/6CL6 RCA ￥1200 NIB date=7009, GrayPlate, very-ragged box 1) 6677/6CL6 United ￥1200 NIB date=7409 BlkPlate 1) 6677/6CL6 RCA ￥600 used? GrayPlate WB
6678 =med-mu Triode, sharp-cutoff Pentode for MOBILE comm.= (EIA/9AE - noval) 6678 = special 6U8 (high-rel. withstanding appreciable on/off cycling) Eh/Ih=6.3V/0.45A pentode : Ppmax=3W Epmax=330V Pc2max=0.55W Ec2max=330V op : Ep=250V Ec2=110V Rk=68Ω Ip=10mA Ic2=3.5mA rp=400kΩ gm=5.2mS triode : Ppmax=3.0W Epmax=330V rp=5.4kΩ op : Ep=150V Rk=56Ω Ip=18mA rp=5kΩ gm=8.5mS μ=40 similar to NEC 6R-HR4 / LD611 also see same basing electrically-similar generic types : 6AX8 6EA8 6GH8/6GH8A 6KD8 6LM8 1) 6678/6U8 RCA ￥1000 NOS RB 14) 6678 GE ￥900 NIB 1) 6678/6U8A-Communications-quality Syl ￥1200 NIB 1) 6678/6U8A GE ￥600 used? WB
6679/12AT7 (see 12AT7/A/ECC81/E81CC)
6680/12AU7A (see 12AU7/A/ECC82/E82CC)
6681/12AX7A (see 12AX7/A/ECC83/E83CC/6681/7025/A)
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
6686/E81L =10000H-SQ Power Pentode= (EIA/9AU - noval) Eh/Ih=6.3V/0.375A Ehkmax=120V Rg1max=250kΩ(fixed) Ppmax=4.5W Epmax=210V/550V(cutoff) Pc2max=1.2W Ec2max=210V/550V(cutoff) Ikmax=30mA op(A1S) : Ep=210V Ec2=210V Rk=120Ω Ip=20mA Ic2=5.3mA rp=300kΩ gm=11mS μg2g1=36 Zl=15kΩ D=5% Po=1W Triode connection : Ppmax=5.6W (参考 : TriodeConnection-EpIp(三結時のEp-Ip特性)) see identical type : E81L see electrically nearly-identical type(except heater) : 18046(Eh/Ih=20V/0.135A) also see an electrically similar long-life loktal-base type : C3g(rp=300kΩ, gm=14mS, μg2g1=41) 1) 6686/E81L RCA ￥2700 NOS National箱 メッシュPlate 5) 6686 Amprx ￥2700 NIB mesh 7) 6686 Amprx ￥2700 NIB mesh MB Gpin mesh PartiallyPinched Glass BugleBoy made in W.Germany 5) 6686 Amprx ￥2700 NOS PQ-grade mesh Gold-Pin ragged box 2) 6686 RCA ￥2700 NIB 1) 6686 Mullard ￥3100 NIB Gpin 5) 6686 GE ￥1700 NOS WB
6687/E91H/EH900S =dual control Heptode= (EIA/7CH - miniature) Eh/Ih=6.3V/0.27A Ehkmax=60V Ppmax=1W Epmax=250V Ec2max=100V (direct replacement for 5915A) 12) 6687/E91H Amprx(made in Holland) ￥1500 NIB (hyxcnt)++
6688/E180F =10000H-SQ Sharp Cutoff Pentode= (EIA/9EQ - noval) Eh/Ih=6.3V/0.3A Ehkmax=60V Ppmax=3W Epmax=210V/400V(cutoff) Pc2max=0.9W Ec2max=175V/400V(cutoff) Ikmax=25mA Rg1max=250kΩ(fixed) op : Ep=190V Ec2=160V Ec1=+9V Rk=630Ω Ip=13mA Ic2=3.3mA rp=90kΩ gm=15.9mS μg2g1=50 op : Ep=180V Ec2=150V Rk=100Ω Ip=11.5mA Ic2=2.9mA op(triode connection) : Ep=160V Ec1=+9V Rk=620Ω Ip=16.5mA rp=2.7kΩ gm=18.5mS μ=50 (参考 : Ep-Ip特性(@Ec2=150V, Ec2パラメータ)) (see an identical/equivallent type : E180F) similar to E280F, 7722 1) 6688 RCA ￥1200 NIB 0) 6688A RCA ￥1200 NIB * (rhxb) 7) 6688A RCA ￥1800 NIB Gold-pins(Aht) 1) 6688 RCA ￥1400 used? Gold-pins Amprx箱 5) JG-6688 GE ￥1200 NIB date=61-40 2) 6688 GE ￥1200 NIB 1) 6688 GE ￥1200 NIB 1) 6688 Westinghouse ￥1200 NIB 2) 6688 ECG ￥1000 NIB 2) 6688/E180F Amperex ￥1800 NIB D/C=61-32, 62-52 Gold-pins, made in USA 1) 6688A Amperex ￥1800 NIB Gold-pins 6) 6688 Amperex ￥1200 NIB 1962-2等1960年代のもの 1) JAN 6688 Amperex ￥1200 NIB date=May-67 *$** 1) 6688A Amperex ￥1200 NIB 2) 6688 Amperex ￥1200 NIB GreenSilk 1) 6688/E180F Matsushita ￥1400 lightly-used NHK, D/C=1963.5 Gold-pins WB 1) 6688A Amperex ￥800 used 1) 6688A RCA ￥800 used BlkPlates 3-mica 14500/7000min 1) 6688 GE ￥800 used Gpin D-gtr 14750/7000min
6689/E83F (see E83F) =10000H premium-quality Pentode= (EIA/9BK - noval) Eh/Ih=6.3V/0.3A Ehkmax=100V Rg1max=1MΩ(self) Tbulb=170℃max Ppmax=2.1W Epmax=210V/550Vcutoff Ikmax=16mA/80mApeak Pc2max=0.35W Ec2max=210V/550Vcutoff Pc1max=50mW -Ec1max=100V/200Vpeak op(A1S) : Ep=210V Eg2=120V Eg3=0V Rk=180Ω Ip=8.3mA Ic2=1.7mA rp=440kΩ gm=8.2mS Zl=20kΩ Po=0.66W D=10% (参考 : Ep-Ip特性(@Ec2=120V)) see electrically nearly-identical type(except heater) : 18042(Eh/Ih=18V/0.1A) also see loktal-base electrically-equivallent type : 95397(E83F w/loktal-adapter) 5) 6689/E83F Amperex ￥2200 NIB ragged-box Gpin 3) 6689 Amperex ￥2200 NIB Gpin same lot 5) 6689 Amperex ￥2200 NIB Gpin 10) 6689 GE(Amperex-made) ￥2200 NIB Gpin
6703/BD-301 =magnetron beam switching tube= (EIA/ - ) Eh/Ih=6.3V/0.3A 1) JAN 6703 Burroughs ￥1500 used WB, never-tested
6754 =separated-cathode Full-wave Rectifier= (EIA/9ET - noval) Aircraft/industrial use / 45hours run-in tested/ extruded-almina long-life heater / 10000H operation ImpactShock=500Gmax Fatigue(vib.)=50Gmax Life=10000hours-expected PIV=1450V Idc=100mA Eh/Ih=6.3V/1A Ehkmax=-500V Theat=45sec op(capacitor-input): Eac=325V Cin=4uF Rs=330ohm/plate Idc=100mA Eout=325Vdc op(choke input): Eac=450V Lin=10H Idc=100mA Eout=385Vdc pins : 1(2P)-2(NC)-3(2K)-4(H)-5(H)-6(NC)-7(1K)-8(NC)-9(1P) see alterenative WE-412A 1) 6754 Bendix ￥offer NIB MB MT 4) 6754 Bendix ￥offer bulk-NOS GopldPins WH-boxed 2) 6754 Bendix ￥offer Lightly-Used WB 1) 6754 Bendix ￥offer Lightly-Used WB
6761 =Power Pentode= (EIA/9CE - noval) *For use as output tube in telephone equip. & industria apps., particularly in boroadband amplifiers. Within its rating it is a suitable replacement for type 6216. Eh/Ih=6.3A/1A Ehkmax=110V Rg1max=100kΩ(fixed)/500kΩ(self) Tbulb=200℃max *absolute maximum rating : Ppmax=11W Epmax=275V Pc2max=1.65W Ec2max=220V Ikmax=110mA Ec1-max=-55V op(A1S) : Ep=130V Ec2=130V Rk=100Ω Ip=70mA Ic2=3.5mA rp=23kΩ gm=13mS μg2g1=8 op(A1S) : Ep=130V Ec2=130V Rk=100Ω Ip=70mA Ic2=3.5mA Zl=1.5kΩ Po=3W D=10% (参考 : Ep-Ip特性(Pentode-connection @Ec2=130V, and Triode-connection)) see a same-base and electrically-similar type : 6216 see a different-base lower-rating mobile/video-amp power pentode : 6677 also see different-base higher-rating electrically-similar types : 6CW5, EL86(μg2g1=8, gm=11mS) 4) 6761 LM-Ericsson ￥1700 NIB black plate, 2x3 large rectangular holes on plate, just-ragged boxes 0) 6761 LM-Ericsson ￥1700 NIB black plate, 2x3 large rectangular holes on plate 6) 6761 LM-Ericsson ￥1500 NOS black plate, 2x3 large rectangular holes on plate, WB 7) 6761 LM-Ericsson ￥1500 bulk-NOS black plate, 2x3 large rectangular holes on plate, WB 6) 6761 LM-Ericsson ￥1500 like-new black plate, 2x3 large rectangular holes on plate, WB 4) 6761 United(GE-made #6216) ￥1500 NOS gray plate, 2x3 small suare holes on plate, WB 0) 6761 LM-Ericsson ￥1000 used-lightly, black-plate, 2x3 large rectangular holes on plate, WB
6786 =mercury-vapor Power Thyratron= PIV=15000V Ia=10-15A Ef/If=5V/15-20A 0) 6786 Amperex ￥- used
6788 =sharp-cutoff Pentode= (EIA/8DL) *subminiature* * Premium subminiature type : Sharp-cutoff pentode for guided missile service. Intended for use as a high gain audio amplifier or regulator amplifier where high plate loads are desired at low Ip. Designed to provide dependable service under severe conditions of shock, vibration, high-temperature, and high-altitude. Eh/Ih=6.3V/0.175A Ehk=±200V(+100Vdc) Rgmax=4MΩ Impact accel.=450Gmax Fatigue(vib.)=10Gmax Tbulb=250℃max Altitude=24000m-max Ppmax=0.5W Epmax=250V/360Vpeak Pc2max=0.15W Ec2max=150V Ikmax=5.5mA-dc Ec1max=+0V/-55V op : Ep=100V Ec2=100V Eg=0V Rk=1.5kΩ Ip=0.7mA Ic2=0.1mA gm=1.1mS rp=1.2MΩ (参考 : Ep-Ip特性(@Ec2=100V)) (参考 : 抵抗結合AMP(Resistance Coupl.)) 0) 6788 Sylvania ￥- NOS WB 10) 6788 Sylvania ￥1200 NOS D/C=7326 for all, WB
6814 =medium mu Triode= (EIA/8DK) *subminiature* * Premium subminiature type : Sharp-cutoff, Med-Mu Triode also characterized by high zero bias plate current and exceptional freedom from the development of cathode interface, intended for Apps in computers. The 6814 is designed to provide dependable service(LONG-LIFE and STABLE-OPERATION) under severe conditions of shock, vibration, high- temperature, and high-altitude. Eh/Ih=6.3V/0.15A Ehk=±200V(+100Vdc) Rgmax=1MΩ Impact accel.=450Gmax Fatigue(vib.)=2.5Gmax Tbulb=160℃max Altitude=24000m-max Ppmax=2.2W Epmax=165V/600Vpeak Egmax=±5Vdc/+27.5Vpeak/-220Vpeak Igmax=5.5mAdc/110mApeak op : Ep=100V Eg=0V Rk=150Ω Ip=10mA gm=6mS rp=4.8kΩ μ=29 (参考 : Ep-Ip特性 抵抗結合AMP(Resistance Coupl.)) other med-mu subminiature triodes : 5703(Epmax=200V, μ=25.5), 5718(Epmax=165V, μ=27), 5977(Epmax=180V, μ=16) 10) 6814 Sylvania ￥1200 NIB MB
6816Self bias is not recommended. =PowerTetrode= (EIA/F75)Tpre-heat=60sec(min) CCS-Audio op-AB1pp: Ep=650V Ec2=300V Ec1=-15V Ein=30Vpp Ip=80/200mA Ic2=0/20mA Zlpp=4.33kΩ Po=50W Ep=850V Ec2=300V Ec1=-15V Ein=30Vpp Ip=80/200mA Ic2=0/20mA Zlpp=7.00kΩ Po=80W op-AB2pp: Ep=650V Ec2=300V Ec1=-15V Ein=46Vpp Ip=80/355mA Ic2=0/25mA Ic1max=15mA Pin=0.3W Zlpp=2.45kΩ Po=85W Ep=850V Ec2=300V Ec1=-15V Ein=46Vpp Ip=80/355mA Ic2=0/25mA Ic1max=15mA Pin=0.3W Zlpp=3.96kΩ Po=140W size/weight: 32.1mmΦ x 49.0mmH, in max / 56.7g 参考: Ep-Ip特性(@Ec2=300V) equivallent type : 4F16R heater variant : 4F84R, #6884 (Eh/Ih=26.5V/0.52A) conduction cooled type: 4F16, #7843 6) JAN 6816 RCA ￥9900 NIB D/C=83-17 20) JAN 6816 RCA ￥9900 NIB mint 0) 6816 Eimac used
6829 =Twin Triode for computer= (EIA/9A - noval) Eh/Ih=12.6V/0.225A or 6.3V/0.45A Ehkmax=100V * design maximum rating Ppmax=2.2W Epmax=275V/550V-cutoff Ikmax=20mA/160mA-peak Rgmax=100kΩ(fixed)/500kΩ(self) op : Ep=150V Rk=220Ω rp=7kΩ gm=6.7mS μ=47 (参考 : Ep-Ip特性) similar to 12AV7, 5965, 6414/W 3) 6829 GE ￥1700 NOS WB 1) 6829 GE ￥1700 NOS? FiveStar 7750/6500/4200min
6832 =MedMuTwinTriode for DC amplifiers= (EIA/8DG) *subminiature* Ppmax=0.1W(very small) Epmax=165V Eh/Ih=6.3V/0.4A op : Ep=100V Rk=3kΩ Ip=0.8mA μ=26 gm=1.05mS rp=25kΩ pins: 1(2P)-2(2G)-3(H)-4(2K)-5(1K)-6(H)-7(1G)-8(1P) also see same basing(8DG) submini twin triodes : 6021(μ=35), 6111(μ=20), 6112(μ=70), 6BG7(Epmax=100V, μ=35) 0) 6832 Syl ￥1200 NIB 0) 6832 Ray ￥1200 NIB
6840 =med-mu Twin Triode= (EIA/9CZ - noval) Eh/Ih=12.6V/0.4A(6.3V/0.8A) Ehkmax=100V Ppmax4W/unit(7W/both) Epmax=300V/600Vpeak Ikmax=35mA/500mApeak Icmax=2mA/70mApeak Ecmax=+1V/22Vpeak Ecmin=-75V/-300Vpeak Rgmax=100kΩ(fixed)/500kΩ(self) op: Ep=250V Rk=620Ω Ip=14mA rp=3kΩ gm=6.7mS μ=20 pins : 1(P)-2(K)-3(G)-4(H)-5(H)-6(P)-7(K)-8(G)-9(HCT) 6840 is a highly-reliable mechanically-ruggdized tube for computer applications with high 0-bias plate current similar to 6463, 6350 (same basing) 0) 6840 GE ￥- NIB 5-star 0) 6840 GE ￥- used 5-star
6844A =standard Nixie= Base-pin配列 Eionize-max=170V Esupply=170Vmin Ikpeak=4mA Esupply/Rseries=170V/15kΩ,300V/82kΩ (#8037/B5031=LongLife版、B5092=LongLife-WideAngle版でpin配列は同一,Esupply/Rseries=170V/10kΩ) 1) JAN 6844A - ￥2000 NIB MB 0) 6844A National ￥- NIB WB Nixie (1箱に2個入)(D)
6858 = 760 = NL-760 =Marcury-vapor Thyratron=
6877 =Reliable low-mu power triode= (EIA/9GB - noval) Life-Expectancy=10,000H Shock=500Gmax Fatigue=50Gmax Altitude=24,000m-max Tbulb=300℃ Eh/Ih=6.3V/0.8A Ehkmax=±450V Rgmax=1MΩ(self)/100kΩ(fixed) Twarm-up=45sec Ppmax=12W Epmax=200V/400Vpeak Ikmax=100mA/200mApeak/750mApulse Ecmax=+5V/-150V Icmax=5mA op : Ep=150V Ec=-12V Ip=75mA rp=0.58kΩ gm=6.5mS μ=3.75 (参考 : Ep-Ip特性) noval low-μ power triodes: 6C19Π-B(6S19P-V)(μ=3), 6RA2(μ=3.3), 6RA3(μ=3), 7233(μ=4). A2293/CV4079(μ=4.5) 4) JEA 6877 Bendix ￥offer NIB Red-Bank/HY-G-300 D/C=A909, A910, A919, A920 gold-plated-pins rear-view 1) JTL 6877 Tsol ￥offer NIB GreenSilk 4) JTL 6877 Tsol ￥offer NIB D/C=6611 RedSilk 0) 6877 Tsol ￥- used WB 0) 6877 Tsol ￥- used-lightly 0) 6877 Tsol ￥1000 used just discolored glass
6883, 6883B/8032/8552
6884
6887 =Twin Diode= (EIA/6BT - miniature) PIV=360V Ipeak-max=30mA Idcmax=10mA Ehkmax=±150V Eh/Ih=6.3V/0.2A Tbulb-max=120℃ 1) 6887 RCA ￥2000 NIB D/C=57-30
6888 =long-life dual-control computer Pentode= (EIA/8N - octal) Eh/Ih=6.3V/0.8A Ehkmax=+25V/-200V Tbulb=130℃max Ppmax=8W Epmax=250V/500Vpeak Ikmax=80mAdc/0.6Apeak Pc2max=Pc3max=2W Ec2max150V Ec3max=±250VDC Ec1max=+30V/-100V Ic1max=5mA Rgmax=0.5MΩ Triode connection : μ=10 @Ep=Ec2=90V Ec3=0V Ec1=-2V (参考 : Ep-Ip特性(@Ec1, Ec3パラメータ)) 30) 6888 Bendix ￥3300 NOS bulk metal base (hyy1Gext)
6889 =BeamPower Amplifier= (EIA/ - octal TopPlate) Eh/Ih=6.3V/1.2A(1.12A to 1.28A) Ehk=±450V Twarmup=45sec Tbulb=300℃ Rg1max=100kΩ Base = Glass-binded MICA ImpactShock=500Gmax VibrationAccel.=50Gmax Altitude=80000Ft-max Life=10000H(@Ep=Ec2=250V Ec1=-22.5V Ip=77mA Ic2=3.5mA) Ppmax=30W Epmax=3kV Ik-max=125mA/250mApeak/4.5Apulse Pc2max=3.5W Ec2max=850V Ec1max=+5Vdc/-200Vdc op : Ep=250V Ec2=250V Ec1=-22.5V Ip=77mA(60mA to 94mA) Ic2=3.5mA(0.5mA to 6.5mA) gm=5.4mS(4.5mS to 6.3mS) pins : 1(K)-2(none)-3(NC)-4(none)-5(G2)-6(H)-7(G1)-8(H)-Top(P) (参考 : Ep-Ip特性(pentode/beam-power connection @Ec2=250V)) (参考 : Ep-Ip特性(triode connection)) 6889 is a variant of 6384 with top plate which allows 3kV-dc incident potential, also Ec2max is strengthen as 850V instead of 325V of 6384. Also see different pin-assignment, electrically similar types : 6L6GC, 7027A, 7581/A 0) 6889 Bendix ￥- NOS 2) 6889 Bendix ￥7100 NOS D/C=6304 BlkPlate, tested WB 4) 6889 Tsol ￥7100 NIB D/C=6615 BlkPlate, red-print on base, just-small original boxes, tested 2) 6889 Tsol ￥7100 NOS D/C=6315(black-print),6615(red-print) BlkPlate, tested WB 0) 6889 Tsol ￥7100 NOS 1) 6889 Bendix ￥5000 LikeNew gm=4600/3250min, Ip=48.5mA tested on KS-15750-L1, WB 1) 6889 Tung-Sol ￥5000 LikeNew gm=4720/3250min, Ip=50mA tested on KS-15750-L1, WB 0) 6889 Bendix ￥- used
6897 =Planar Triode= (EIA/2C39-B) C-telegraph : Ppmax=100W Epmax=1000V Ipmax=125mA Pcmax=2W Icmax=50mA Eh=4.5-6.3V 1) GL-6897 GE ￥3500 used
6900 =MedMu-TwinTriode= (EIA/9H - noval) Eh/Ih=6.3V/1A(12.6V/0.5A) Ehkmax=100±500V Tbulb=300℃max LIFE=5000H Ppmax=4.25W/unit Epmax=600V Ipmax=36mA Ik-peakmax=4.5A Rgmax=1MΩ Twarm-up=45sec op : Ep=120V Ec=-2V Ip=36mA gm=11.5mS μ=18.5 (参考 : Ep-Ip特性) see its generic type : 5687(Epmax=330Vdc) see a similar type : 7044(Epmax=300Vdc) ０) 6900 Bendix ￥6900 NOS WB Gpin 6660/6880/4800min 1) 6900 Bendix ￥4900 used WB FadedGtr Gpin 6630/6550/4800min
6907
6919 =TwinDiode= (EIA/6BT - miniature) Eh/Ih=6.3V/0.2A PIV=300V Idcmax=10mA/30mApeak(/plate) 3) 6919 GE ￥1200 NIB MB 5) 6919 GE ￥600 used
6922/E88CC (EIA/9AJ - noval) Eh/Ih=6.3V/0.3A Ehkmax=+60V/-120V Ppmax=1.5W, Epmax=220V, Ikmax=20mA Pc1max=30mW Rgmax=1MΩ gm=12.5mS μ=33 Rgmax=1MΩ ex) A1S: Ep=220V Zl=20kΩ Ipmax=9.2mA Po=0.5W D=7% ex) B1pp: Ep=200V Zl=22kΩ Ipmax=2 X 9mA Po=1.2W D=3% ex) B1pp: Ep=200V Zl=10kΩ Ipmax=2 X 13.5mA Po=1.5W D=4% (参考 : E88CC/6922のEp-Ip特性) (see 6DJ8 / 7308 / 8416 / CCa / E88CC / E188CC / E288CC / PCC88 / 6ES8) 2) 6922 Amperex ￥offer NIB Gpin, made in USA 5) JAN 6922 Amprx ￥offer NIB Gpin made in USA 1) JAN 6922 Amprx ￥offer NIB PQ Gpin made in USA 1) 6922 Amprx ￥offer used date=- Gpin PQ PinchGlass gm=13800/12800/7000min Holland 1) 6922 Amprx ￥offer used date=951 Gpin PQ PinchGlass gm=12700/12250/7000min USA 1) 6922 Amprx ￥offer used date=6101 Gpin PQ PinchGlass gm=10400/11300/7000min USA 1) 6922 RCA ￥offer NIB made in W.Germany 1) 6922/E88CC RCA ￥offer NIB Gpin Germany 14000/14700/7000min 0) 6922/E88CC RCA ￥- NIB 6) 6922 RCA ￥offer NIB(Sn) 3) 6922 GE(Gt.Britain) ￥offer NIB Gpin 一部RaggedBox 4) 6922 GE ￥2900 NIB 1) 6922 Syl ￥2200 NIB Amperex箱 1) 6922 Syl ￥2200 NIB MB(sQ) 1) 6922 Syl ￥2200 NIB 1) 6922 Syl ￥2200 NIB 0) 6922 Syl ￥- NOS Gpin OB(sT) 5) 6922 RCA(Syl-made) ￥2500 NIB 1) 6922 Amprx ￥offer NIB Gpin made in Holland SlimWaistType 0) 6922 Amprx ￥- NOS Gpin MB DATE:7120(D) 0) 6922 Amprx ￥- NOS? Gpin gm=14000/14500/7750min, 14600/14600/7750min=matched pair(D) 1) 6922/E88CC GE ￥3900 NOS Gpin gm=13500/12750/7000min Amprx箱 made in England 1) 6922 Hewlett Packard ￥offer NOS GPin MB ０) 6922/E88CC Hewlett Packard/Amperex ￥- used 1) E88CC Valvo ￥offer used Gpin gm=12750/12750/7000min Amprx箱 1) 6922 Amperex ￥offer used GoldPin OB gm=11900/11000/7000min 1) 6922 Amperex ￥offer used GoldPin OB gm=10400/10450/7750min 1) 6922 Amperex ￥offer used GoldPin RCA箱 1) 6922 Amperex ￥offer used GoldPins, WhiteSilk, made in Holland, WB 2) 6922 Amperex ￥offer used Gpins, WhiteSilk, made in USA, WB 2) 6922 Amperex ￥offer used Gpins, OrangeSilk, made in USA, WB
6923/EA52 =Dsc-seal UHF Diode= (EIA/ ) Epmax=1000V(<100MHz) Ipmax=3mA Fmax=1GHz Ehf/If=6.3V/0.3A 0) 6923/EA52 Amperex ￥1800 NIB
6939(=QQE-02/5)
6943 =missile-use sharp-cutoff Pentode= (EIA/8DC) *subminiature* Eh/Ih=6.3V/0.175A Ehkmax=200V Ppmax=1W Epmax=250V Pc2max=0.33W Ec2max=150V Ikmax=15mA gm=3.6mS rp=300kΩ Rgmax=1MΩ 0) 6943 Syl ￥- NOS bulk 1) 6943 Syl ￥1800 NIB
6944 =missile-use remote cutoff Pentode= (EIA/8DC) *subminiature* Eh/Ih=6.3V/0.175A Ppmax=1W Epmax=250V Pc2max=0.36W Ec2max=150V Ikmax=15mA gm=3.2mS rp=280kΩ Rgmax=1MΩ 0) 6944 Syl ￥- NIB
6945 =beam power pentode for missile-related service= (EIA/8DL) *subminiature* Eh/Ih=6.3V/0.35A Ppmax=3W Epmax=250V Pc2max=0.33W Ec2max=150V Ikmax=>25mA gm=3.5mS rp=20kΩ Rgmax=500kΩ 0) 6945 Syl ￥- NOS
6946 =med mu triode for missile-related service= (EIA/8DK) *subminiature* Eh/Ih=6.3V/0.175A Ppmax=1.5W Epmax=250V Ikmax=15mA gm=3.8mS μ=16.5 Rgmax=1MΩ 0) 6946 Syl ￥- NOS
6947 =med mu twin triode for missile-related service= (EIA/8DG) *subminiature* Eh/Ih=6.3V/0.35A Ppmax=0.75W Epmax=250V Ikmax=13mA gm=4mS μ=35 Rgmax=1MΩ 0) 6947 Syl ￥- NOS bulk
6948 =high mu twin Triode for missile-related service= (EIA/8DG) *subminiature* 6948 = high-spec version of 6112/WA Eh/Ih=6.3V/0.35A Ppmax=0.5W Epmax=250V Ikmax=10mA gm=4mS μ=70 Rgmax=1MΩ 0) 6948 Syl ￥- NOS bulk
6973
6977/DM160 =Indicator Triode= (EIA/none) *subminiature* Ef/If=1V/30mA ON/OFF(magic-eye-like) indicator for computer Eamax=65V Iamax=0.85mA Egmax=0V(Rg=100kΩ) -Egmax=50V Rg=90kΩmin/1.1MΩmax op : Ea=50V Rg=100kΩ Eg-max_light=0V(Ia=0.585mA) Eg-min_light=-3V(Ia=5μAmax) 0) 6977 Amprx ￥1200 NIB
7025/7025A (see 12AX7/6681/7025)
7027/7027A
7032 =Gating Heptode= (EIA/ - miniature) Ppmax=1W Epmax=300V Pc2max=1.2W Ec2max=300V(cutoff) Eg3=0to-50V Eh/Ih=6.3V/0.3A 0) 7032 Int-C ￥- NIB
7034=4X150A =PowerTetrode= (EIA/F75)
7035=4X150D
7036=EH900S
7044 =Medium μ TwinTriode= (EIA/9H - noval) Eh/Ih=6.3V/0.9A(12.6V/0.45A) Ppmax=4.5W(8W/total) Epmax=300V rp=1.7kΩ gm=12mS μ=21 ピン配列:1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1K)-7(1G)-8(HCT)-9(1P) similar types with same base diagram (pin assignment) : 5687 and 7119 / E182CC (see Ep-Ip特性) see similar types with different basing : 6463 / ECC813, 12FV7 electrically similar Russian type : 6H6Π/6N6P(6.3V/0.75A) also see a similar type with higher Epmax(600Vdc) : 6900 also see another Russian type : 6H30Π/6N30P 0) 7044 Amperex ￥- NIB 10) 7044 GE ￥3000 NIB D/C=82-35 MB w/5-pack-sleeves
7054 (= 8077) =Power Pentode= (EIA/9GK - noval) Eh/Ih=12V-15V/0.275A Ehkmax=±120V Fmax=40MHz Ppmax=5W Epmax=330V Pc2max=1W Ec2max=180V Ec1max=+0V/-55V Rg1max=100kΩ(fixed)/250kΩ(self) op : Ep=250V Ec2=150V Rk=120Ω Ip=19mA Ic2=3.5mA rp=100kΩ gm=11.5mS if pin#6 is not used, can be replaced by 12BV7, 12BY7A, 7733 (base = 9BF). same bassing, different-heater power pentodes : 6GK6, 6KY6, 7KY6/9KX6, 29GK6 3) 7054 RCA ￥1000 NIB 1) 7054 RCA ￥1000 NIB
7056 =SharpCutoffPentode= (EIA/7CM - miniature) Eh/Ih=13.5V/0.15A (Eh=12V-15V available) Ppmax=2W Epmax=330V Pc2max=0.5W(@Ep<165V) Ec2max=330V op : Ep=200V Ec2=150V Rk=180Ω rp=600kΩ gm=6.2mS Ip=9.5mA Ic2=2.8mA 1) 7056 RCA ￥1200 NIB
7058 =High mu Twin Triode= (EIA/9AJ - noval) Eh/Ih=13.5V/0.155A Ppmax=1W Epmax=330V rp=61kΩ gm=1.65mS μ=100 see 12AX7/ECC83 ０) 7058 GE ￥2000 NOS WB 中身はRCA-12AX7A(7058=12.6V only 12AX7W) ０) 7058 Mot(RCA) ￥2000 NIB 中身はRCA-12AX7A(7058=12.6V only 12AX7W) 1) 7058 RCA ￥2000 used 1200/1180/875min 1) 7058 Syl ￥1000 used 2070/1490/875min
7059 =Triode Pentode= (EIA/9AE - noval) Eh/Ih=12-15V/0.195A Ehkmax=200V Pentode: Ppmax=2.8W Epmax=300V Pc2inmax=0.5W Ec2max=300V Rgmax=500kΩ(fixed)/1MΩ(self) op: Ep=250V Ec2=110V Rk=68Ω Ip=10mA Ic2=3.5mA rp=400kΩ gm=5.2mS Triode : Ppmax=2.5W Epmax=300V Rgmax=500kΩ/1MΩ op: Ep=150VRk=56Ω Ip=18mA rp=4.7kΩ gm=8.5mS μ=40 1) 7059 RCA ￥1500 NIB
7060 =Medium μ Triode, Power Pentode= prototype=6AU8 (EIA/9DA-noval) Eh/Ih=12～15V/0.28A at 13.5V Ppmax(T)/(P)=2.5W/3W Epmax(T)/(P)=300V/300V μ(T)=40 rp(T)=8.2kΩ gm(P)=7mS rp(P)=150kΩ 1) 7060 RCA ￥1200 NIB 1) 7060 Mot ￥1000 NIB 1) 7060 Mot ￥770 used OB
7061 =BeamPowerAmplifier= (EIA/9EU - noval) Eh/Ih=13.5V(12V-15V)/0.21A Ehkmax=±120V Ppmax=9W Epmax=345V Pc2in-max=2W Ec2max=310V Rg1max=100kΩ(fixed)/500kΩ(self) op(A1S) : Ep=200V Ec2=200V Ec1=-10V Ip=35.5/38mA Ic2=9/7.5mA rp=60kΩ gm=4.2mS Zl=5kΩ D=7% Po=3W (see 三極管接続時のEpIp特性(Triode-connection)) same basing(9EU) noval power pentodes : 6GC5 12AB5 6973 1) 7061 GE ￥1200 NIB 1) 7061 RCA ￥1200 NOS GE箱 1) 7061 EFJohnson ￥1200 used? RCA箱
7062/E180CC =10000H-SQ TwinTriode= (EIA/9A - noval) Eh/Ih=6.3V/0.4A(12.6V/0.2A) Ehkmax=200V Ppmax=2W Epmax=275V Ikmax=20mA μ=46 gm=6.4mS rp=7.2k-ohm (参考 : Ep-Ip特性) (see E180CC also see very similar 5965, 6829 and 12AV7) 7) 7062 Amprx ￥2400 NIB PQ date=70-23 made in Holland 3) 7062 Amprx ￥1700 used PQ Holland date=60-89, - , - print=100% gm=6900/7500,6250/6300,5900/5800/4100min 1) 7062 Amprx ￥1500 used PQ Holland print=100% gm=5550/5260/4100min 1) 7062/E180CC Amprx ￥1400 used PQ Holland print=98% gm=5190/4950/4100min 1) 7062 Amprx ￥1200 used PQ Holland print=100% gm=5000/4500/4100min
7077 =high-mu UHF Triode(Planar)= (EIA/7077 ) Eh/Ih=6.3V/0.24A Ehkmax=±50V Tmax=250℃ Rgmax=10kΩ Ppmax=1.1W Epmax=250V Ec1-max=-50V Ikmax=11mA op : Ep_supply=250V Rk=82Ω Ip=6.5mA gm=10mS rp=9Ω μ=90, Ec-cutoff=-5V(for gm=0.05mS) (参考 ： Ep-Ip特性) (参考 ： 外形図/outline drawing) also see a higher power rating UHF high-mu ceramic*planar triode : 8506 (Ppmax=5W, μ=110) 0) 7077 GE ￥- NIB Planar3) 7077 Toshiba ￥2000 used Bottom & Top View WB, also see a photo w/ 2-set of used dedicated socket/cover assembly
7079 =Twin Triode= (EIA/8DG) *subminiature* Ppmax=1.1W Epmax=165V rp=4kΩ gm=5mS μ=20 Ef/If=6.3V/0.3A 0) 7079 GE ￥- NIB
7083 =sharp-cutoff RF Pentode= (EIA/5702) *subminiature* Ppmax=1.1W Epmax=165V Pc2max=0.55W Ec2max=155V gm=5mS rp=340k Ef/If=6.3V/0.2A similar to 5702 0) 7083 GE ￥- NIB
7094
7119/E182CC (see E182CC, also see 12BH7/A) =TwinTriode= (EIA/9H - noval ) Eh/Ih=6.3V/0.64A(12.6A/0.32A) Ppmax=4.5W(8W for 2 units) Epmax=300V Ikmax=60mA Eg-max=-100V Eg+max=1V Igmax=8mA op : Ep=120V Eg=-2V Ia=36mA gm=15mS rp=1.6k-Ω μ=24 (参考 ： Ep-Ip特性) similar types with same base diagram (pin assignment) : 5687 and 7044 similar types with higher-rp & different basing : 6350 and 6463 / ECC813 electrically similar type : 6H6Π/6N6P(6.3V/0.75A) also see another Russian type : 6H30Π/6N30P 1) 7119 Mullard ￥3,100 NOS 濃紺OB 1) 7119 Amprx ￥2900 NOS WB 3) 7119 Amprx ￥2900 NIB * 1) 7119 Amprx ￥2900 NIB RaggedBox 4) 7119/E182CC Amprx ￥2900 NIB (*) 1) 7119/E182CC Amprx ￥2900 NIB HP-box 1) 7119/E182CC Philips ￥2900 NIB Holland 0) 7119 Amprx ￥2900 NIB 2本入荷 4) 7119 WH ￥2900 NIB 1) E182CC Mullard ￥3100 NIB RB
7137 =med-mu-Triode= (EIA/7BQ - miniature) Ppmax=2.25W Epmax=150V Ef/If=6.3V/0.225A μ=40 gm=8.5mS 0) 7137 GE ￥- NIB
7151/H445-1 1) 7151/H445-1 VARO ￥1000 used HV-Diode
7167 =sharp cutoff Tetrode for mobile com.= (EIA/7EW - miniature) Eh/Ih=13.5V(12V-15V available)/0.09A Ehkmax=±100V(DCmax=+50V) Ppmax=2W Epmax=180V Pc2max=0.5W Ec2max=180V Ikmax=20mA Rg1max=500kΩ op : Ep=125V Ec2=80V Ec1=-1V Ip=10mA Ic2=1.4mA rp=125kΩ gm=8mS see electrically similar type : 6CY5(Eh/Ih=6.3V/0.2A) 7717 3) 7167 GE ￥1100 NIB 1) 7167 WH ￥1100 NOS Mot-Mini箱
7189/7189A
7193( = 2C22) =VHF triode= (EIA/4AM - octal, top G, top P) Eh/Ih=6.3V/0.3A *design center maximum : Ppmax=3.3W Epmax=300V Rgmax=1MΩ op : Ep=300V Ec=-10.5V Ip=11mA rp=6.6kΩ gm=3mS μ=20 (参考 : Ep-Ip特性 (for Ec <= 0V area)) (参考 : Ep-Ip特性 (including Ec > 0V area)) also see a different-pinout electrically-similar type : 6J5/GT(rp=7.7kΩ gm=2.6mS μ=20-typ) 4) 7193 NU ￥2200 NIB D/C=1/59(box) MB 1) 7193 RCA ￥2200 NOS D/C=K1E WB 1) 7193 KenRad ￥2200 NOS WB 1) 7193 NU ￥1000 used GT型TopPlate&Grid
7199
7203=4CX250B
7233 =LowMuPowerTriode= (EIA/9FR - noval) Eh/Ih=6.3V/1A Ehkmax=±300V absolute max : Ppmax=8W Epmax=330V Ec=+0V/-135V Ik=150mAdc Rgmax=100kΩ(fixed)/1MΩ(self) op : Ep=50V Rk=22Ω Ip=120mA rp=230Ω gm=17.5mS μ=4 (平均プレート特性(Ep-Ip)) similar to 6C19Π-B(6S19P-V), 6RA2, 6RA3. A2293/CV4079 also see another noval-shape low-μ power triode : 6877(μ=3.75) also see a series-regulator-use pentode+power_triode type : 7734(triode: Ppmax=7W rp=1.1kΩ μ=5.4) 2) 7233 Amperex,GE ￥2500 NIB 共にAmperex箱入B 5) 7233 GE ￥2500 NIB 2) 7233 GE ￥2500 NIB 2) 7233 GE ￥2500 NIB 4) 7233 GE ￥2500 NIB(MB) D/C=85-35(3), 85-19(1), just-ragged boxes 11) 7233 GE ￥2500 NOS Bulk 17) 7233 GE ￥2500 NIB 2) 7233 GE ￥1300 used
7234 =HIgh voltage Pentode= (EIA/9KD - noval) Eh/Ih=6.3V/0.15A Ehkmax=±300V Ppmax=10W Epmax=8000V Pc2max=0.5W Ipmax=5mA Ic2max=2mA op : Ep=1500V Ec2=150V Ec1=-1V rp=1MΩ gm=3.8mS 1) 7234 Victoreen ￥3000 NIB D/C=1/67 very-ragged box, MB
7236 =Low-mu Power TwinTriode= (EIA/8BD - octal) Eh/Ih=6.3V/2.4A Ehkmax=100V Tbulb=150℃max Ppmax=15W(forced air-cooling to keep less 150℃) Epmax=300V Ipmax=190mA/plate Ecmax=+1V Rgmax=250kΩ op : Ep=120V Ec=-14V Ip=100mA gm=12.5mS μ=4.8 参考 : Ep-Ip特性 also see similar types : 6AS7G/6AS7GA(μ=2), 421A(μ=6), 5998(μ=5.4), 7802(μ=9) 2) 7236 TungSol ￥4900 LikeNew
7239 =Beam Pentode= (EIA/9KH - noval, top-P) Eh/Ih=6.3V/0.3A Ehkmax=V Tbulb=℃max Ppmax=4W Epmax=2200V Pc2max=0.5W Ec2max=220V op : Ep=300V Ec2=100V Ec1=-5V Ip=10.5mA Ic2=2.6mA rp=300kΩ gm=4.2mS op : Ep=100V Ec2=100V Ec1=0V Ip=42mA Ic2=13.5mA Ic1=400μA op : Ep=1500V Ec2=100V Ec1=-12V Ip=0.2mA pins : 1(G1)-2(G3)-3(IC)-4(H)-5(H)-6(G2)-7(G3)-8(IC)-9(K)-Top(P) 2) 7239 GE ￥5100 NIB HP-parts 3) 7239 GE ￥5100 NIB HP-parts 1) 7239 HP(GE-made) ￥4500 NIB HP-parts, very-ragged cylindrical box
7241 =LongLife High Power Triode (Lower mu)= Single-Plate Three-Grids Three-Cathodes construction * Zirconium-coated Graphite Anode for the best Gas-gettering * Low-gas-emissive Ceramic Insulator/supporter + HardGlass for HighTemperature operation * GoldPlated Molybdenum Grid wires for Ruggdization Four 6AS7G/6080WA would be exchanged to one #7241 Eh/Ih=6.3V/7.5A Tpreheat-min=30sec Ppmax=100W Epmax=400V Ikmax=1200mA(400mAX3) Rgmax=50kΩ gm=40mS rp=67Ω μ=2.7 ex) Ep/Ec/Ip=50V/0V/760mA (see Ep-Ip特性) 0) 7241 Tsol ￥- NIB
7242(6336Aとの比較) =LongLife High Power Triode (Higher mu)= Single-Plate Three-Grids Three-Cathodes construction * Zirconium-coated Graphite Anode for the best Gas-gettering * Low-gas-emissive Ceramic Insulator/supporter + HardGlass for HighTemperature operation * GoldPlated Molybdenum Grid wires for Ruggdization Four 5998 would be exchanged to one #7242 Eh/Ih=6.3V/7.5A Tpreheat-min=30sec Ppmax=100W Epmax=400V Ikmax=900mA(300mAX3) Rgmax=50kΩ gm=111mS rp=82Ω μ=9 ex) Ep/Ec/Ip=50V/0V/380mA (see Ep-Ip特性) 2) 7242 Tsol ￥27000 NIB 2) 7242 Tsol ￥13000 used
7247/12DW7
7266 =HF Diode= (EIA/7266 - planar) 1) 7266 RCA ￥3000 NOS 橙OB Planar
7271
7289/3CX100A5
7308=E188CC =10000H-SQ med-μTwinTriode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.335A Ehkmax=+60V/-120V(Sylvania-abs.max), +100V/-150V(Siemens-abs.max) (absolute max) Ppmax=1.65W Epmax=250V/400Vcutoff Pcmax=30mW Ikmax=22mA/110mApeak Ecmax(-)=-110V/-200Vpeak Rgmax=500kΩ(fixed)/1MΩ(self), Tbulb=+165℃max op: Ep=100V Ec=+9V Rk=680Ω Ip=15mA rp=2.6kΩ gm=12.5mS μ=33 op(A1S): Ep=220V Ec=-6.3V Ip=6.5mA/9.2mA Zl=20kΩ D=7% Po=0.5W op(AB1pp): Ep=200V Ec=-5.8V Ip=2x5mA/2x9mA Zlpp=22kΩ D=3% Po=1.2W op(AB1pp): Ep=200V Ec=-5.8V Ip=2x5mA/2x13.5mA Zlpp=10kΩ D=4% Po=1.5W (参考: Ep-Ip特性) (see 6DJ8 / 6922 / 8416 / CCa / E88CC / E188CC / E288CC / PCC88 / 6ES8) 5) 7308 Tektronix(Amperex-made) ￥offer NIB Gpin SupplyParts for Oscilloscope 0) 7308 Amperex ￥offer NIB Gpin PQ(T) 1) 7308 Amperex ￥offer NOS Gpin Syl軍箱 2) 7308 Syl ￥3200 NOS MB 1) 7308/E188CC Matsushita ￥6000 like-new Gpin pinched-glass DC=1962-9, NHK-lot w/OB 1) 7308/E188CC Matsushita ￥6000 like-new Gpin pinched-glass NHK-lot w/OB 4) 7308/E188CC Matsushita ￥4500 lightly-used Gpin pinched-glass DC=1960s, NHK-lot, WB 2) 7308/E188CC Matsushita ￥4500 lightly-used Gpin pinched-glass DC=1962-6, 1962-8, NHK-lot, WB 1) USN-CEP 7308 Amperex ￥3000 used Gpin D/C=65-47 WB
7320/E84L =10000H-SQ BeamPower= 9-pin MT (EIA/9CV-noval) Eh/Ih=6.3V/0.76A Ppmax=13.5W Epmax=450V Ikmax=100mA Pc2max=2.2W Ec2max=450V (参考 : Ep-Ip特性(@Ec2=300V)) see an identical type : E84L see an electrically similar type : 7189/A see lower-rating similar types : 6BQ5, 6R-P15 also see Russian 6BQ5/7189 type : 6Π14Π/6P14P(Epmax=400V for Pd<=8W) also see different pinout lower-rating electrically similar type : 6GK6 6BQ5 E84L 7189 6RP15 6CZ5 規格/動作例の比較 1) 7320 Philips ￥4500 NIB SQ(Special Quality)(D) ０) 7320 Amprx ￥- NIB PQ(Premium Quality)(D) 5) 7320 CGE ￥4500 NIB made in England/United Kingdom(qSn)
7322/H225-25 1) 7322/H445-2 VARO ￥1000 used HV-Diode
7355
7360 =BeamDeflectionModulator= (EIA/9KS - noval) Eh/Ih=6.3V/0.35A Ehkmax=±180V, Fmax=100MHz Rg1max=500kΩ(fixed)/2.2MΩ(self) Ppmax=1.5W/unit Epmax=300V Pc2max=0.5W Ec2max=250V Ed1max=±100V Ed2max=±100V op : Ep=150V Ed1=Ed2=25V Ec2=175V Rk=150Ω Ip=4.25mAx2 Ic2=2.1mA gm(G1P)=5.4mS. gm(D1P,D2P)=0.8mS (参考 : Ep-Ip特性(@Ec2=175V, Ed=25V)) (also see other sheet-beam tubes (for television) : 6JH8, 6ME8, 6AR8) 4) 7360 RCA ￥4300 NIB(bhtnv) 1) 7360 CGE ￥4100 NIB 0) 7360 RCA ￥- used(D)
7370 =medium mu twin Triode= (EIA/9H - noval) Ef/If=20V/0.26A or 40V/0.13A Ppmax4.75W/Epmax330V/mu16/gm5.4mS 1) 7370 GE ￥1800 NOS WB
7377(= QQE-04/5 or YL1360)
7403(see 3D21WB) =Pulse Beam Power Tetrode= (EIA/8JU - octal TopPlate) Eh/Ih=6.3V/1.7A Ehkmax=450V Ppmax=40W Epmax=4000V Pc2max=3.5W Ec2max=850V Ec1max=+5Vdc Ec1min=-200Vdc Pc1max=-W Ikmax=175mA Ikpeakmax=350mA(sinus)Ikpeak-max=10A Rgmax=100kΩ Theater-warmup=45sec Temperature-bulb=300℃ ImpactShock=500Gmax / Fatigue(vib.)=50Gmax LifeTime=5000H(@Ep=600V Ec2=300V Ec1=0V Rk=825Ω Eh=6.3V) : expectancy Pins:(1)H (2)H (3)none (4)G2 (5)none (6)G1 (7)none (8)K (Top)Plate (see 三極管接続時のEpIp特性(Triode-connection) - NOTE: strangely Ec1-value may be +10V shifted than "real"-Ec1 value, as same as 3D21WB(T)-curve case - from basis of "correct" STC-3D21A curve.. ) similar to 3D21WB(Eh/Ih=12.6V/0.85A or 6.3V/1.7A, slim-glass) except heater spec and glass shape. 4) 7403 TungSol ￥offer NIB raggedBox 1) 7403 Bendix ￥offer used 7) 7403 Bendix ￥offer used 2) 7403 Bendix ￥offer used
7408 =BeamPower Pentode= GT(EIA/7AC - octal) Eh/Ih=6.3V±0.6V/0.45A Ehkmax=±200Vpeak(+100Vdc) Ppmax=14W Epmax=350V Pc2max=2.2W Ec2max=315V Rgmax=100kΩ(fixed)/500kΩ(self) op : Ep=60V Ec2=250V Ec1=0V Ip=100mA Ic2=22mA op(A1s) : Ep=250V Ec2=250V Ec1=-12.5V Ip=45mA/47mA Ic2=4.5mA/7mA rp=50kΩ gm=4.1mS Zl=5kΩ Po=4.5W D=7% pins : 1(NC)-2(H)-3(P)-4(G2)-5(G1)-6(none)-7(H)-8(K,G3) (see 三極管接続時のEpIp特性(Triode-connection)) #7408 is a direct replacement of 6V6GT, but features additional controlled zero-bias characteristics. also see Bendix-5992 0) 7408 RCA ￥- NIB 1) 7408 RCA ￥offer NOS GrayPlate, double-waist getter, WB 4) 7408 GE ￥offer NOS ButtonBase, GrayPlate, TopGtr, WB 2) 7408 GE ￥offer NOS GrayPlate, TopGtr, WB 1) 7408 WH ￥offer NIB D/C=61-30, Black-plate, TopGtr, very-ragged box 1) 7408 WH ￥offer NIB D/C=61-30, Black-plate, TopGtr, just-ragged box 0) 7408 RCA ￥- used
7427 =PhotoConductive Cell= (EIA/9LN) 3) 7427 GE ￥1100 NIB(T)++
7457 =forced-air-cooled metal-ceramic Beam Power= Ppmax=115W Epmax=1000V Pc2max=4.5W Ec2max=300V Ipmax=180mA Eh/Ih=6.3V/3.2A -) 7457 RCA -
7462 =metal-ceramic UHF hi-mu Triode= Ppmax=1.1W Epmax=250V Ikmax=11mA μ=94 gm=10.5mS Eh/Ih=6.3V/0.24A / similar to 7077 -) 7462 GE -
7475 =Voltage Stabilizer= Estart<140V Eop=90V-110V Idcmax=8mA Idcmin=1mA Echange=3V(@Idc=1mA-8mA) Rac=700ohm 1) 7475 Stella ￥1600 NIB WB B4base StraightGlass 6) 7475 Stella ￥1600 NOS WB B4base StraightGlass 1) 7475 Philips ￥800 used WB B4base
ML-7479A:Machlett=AM-BC. PowerTriode= 55kW CW/Ppmax=50kW Epmax=12.5kV Ef/If=13V/205A Fmax=15MHz ML-7480A:Machlett=AM-BC. PowerTriode= 80kW CW/Ppmax=80kW Epmax=16kV Ef/If=8V/200A Fmax=15MHz ML-7482 :Machlett =Tx PowerTriode= 440kW CW/Ppmax=200kW Epmax=20kV Ef/If=14.5V/450A Fmax=30MHz
7486 =metal-ceramic UHF hi-mu Triode= Ppmax=1W Epmax=250V Ikmax=11mA μ=82 gm=10.5mS Eh/Ih=6.3V/0.24A -) 7486 GE -
7533 =tunable OSC Triode= Ppmax=3.6W Epgmax=130V Eh/Ih=6V/0.16A -) 7533 RCA -
7534/E130L (see E130L/E180L) =10000H SQ wide-band power Pentode= (EIA/8KE - octal) Eh/Ih=6.3V/1.7A Ehkmax=+100V/-200V Rg1max=500kΩ(fixed)/1MΩ(self) Ppmax=27.5W Epmax=900V/2kVcutoff Pc2max=5W Ec2max=250V/550Vcutoff Pc1max=0.1W Ikmax=300mA op : Ep=250V Ec2=150V Ec1=-15.5V Ip=100mA Ic2=4mA rp=10kΩ gm=27.5mS μg2g1=6.5 op(A1S) : Ep=250V Ec2=150V Ec1=-15.5V Ip=100mA Ic2=4mA /18mAmax Zl=2.7kΩ Po=11.5W D=10% op(AB1pp): Ep=300V Ec2=150V Ec1=-17V Ip=160mA/364mA Ic2=5mA/44mA Zlp-p=1.6kΩ Po=60W D=5% Triode-con.: Ppmax=27.5W Ep,c2max=250V (Ec2-dc MUST be less-than-equal 250V ABSOLUTELY) (Triode-connection(三結) Ep-Ip characteristics) 1) 7534 Amprx ￥6000 NIB 2) 7534 Amprx ￥6000 NIB just ragged boxes 1) 7534/E130L Amprx ￥6000 NIB 4) 7534/E130L Amprx, TFK ￥3900 used-lightly, 4 have same internal construction, WB 1) 7534 Amprx ￥3900 used made in Germany bottom view WB 1) 7534 Amprx ￥3900 used made in Germany center-post=lost bottom view WB
7543/L =low-hum, non-microphonic SharpCutoff RF Pentode= (EIA/7BK - miniature) # 7543 = low-hum, non-microphonic version of 6AU6 Eh/Ih=6.3V/0.3A Ehkmax=±200V(DC=+100Vmax) *Pentode connection : Ppmax=3W Epmax=300V Pc2max=0.65W Ec2max=300V Ec1max=+0V op : Ep=100V Ec2=100V Rk=150Ω Ip=5mA Ic2=2.1mA rp=500kΩ gm=3.9mS op : Ep=250V Ec2=150V Rk=68Ω Ip=10.6mA Ic2=4.3mA rp=1MΩ gm=5.2mS *Triode connection : Ppmax=3.2W Epmax=250V Ec1max=+0V op : Ep=250V Rk=330Ω Ip=12.2mA gm=4.8mS μ=36 also see other long-life, high-rel. types : 6136, 8425/A 1) 7543L Syl ￥1700 NIB MB 0) 7543 National ￥- NIB MB made in Germany(actually, Russia), supplier=Richardson 1980s 10) 7543 National ￥1500 NIB/MB made in Germany(Richardson supplied; actually Soviet/Russian-made) D/C=8521
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
7550 =pulse-dedicated Twin Triode= (EIA/8DG) *subminiature* Eh/Ih=6.3V/0.5A Ehkmax=200V Ppmax=1.55W Epmax=250V Pcmax=0.4W Ecmax-dc=0V Ec-maxmin=±100V Rgmax=500kΩ -) CK7550 Ray ￥-
7551 =BeamPower= (EIA/9LK - noval) Eh/Ih=13.5V(12-15V)/0.36A Ehkmax=100V Ppmax=10W Epmax=300V Pc2inmax=2W Ec2max=250V Ipmax=70mA gm=5.3mS Rg1max=100kΩ op(AB1pp) : Ep=300V Ec2=250V Ec1=-21V Ip=20mAx2/62.5mAx2 Ic2=1mAx2/7mAx2 Zlpp=5kΩ Po=20.5W D=5% heater variant : 7558(Eh/Ih=6.3V/0.8A) 0) 7551 RCA ￥2000 NIB 0) 7551 GE ￥2000 NOS Bulk WB 0) 7551 Motorola ￥- NIB 4) 7551 Motorola ￥1500 NIB (3)Syl-made Gray-Plate, (1)RCA-made Blk-Plate
7552/7553/7554 =metal-ceramic pencil Hi-mu Triode= Ppmax=2.5W Epmax=250V Ecmax=-50V Ipmax=25mA Ehkmax=50V Eh/Ih=6.3V/0.225A 7552 RCA - μ=80 gm=13.5mS Fmax=1.5GHz 7553 RCA - μ=80 gm=13mS Fmax=1GHz 7554 RCA - μ=70 gm=16mS Fmax=5GHz
7558 =BeamPower= (EIA/9LK - noval) Eh/Ih=6.3V/0.8A Ppmax=10W Epmax=375V Pc2max=2W Ec2max=300V gm=5.3mS Rg1max=100kΩ op(AB1pp) : Ep=300V Ec2=250V Ec1=-21V Ip=20mAx2/62.5mAx2 Ic2=1mAx2/7mAx2 Zlpp=5kΩ D=5% Po=20.5W heater variant : 7551(Eh/Ih=13.5V/0.36A) 6) 7558 RCA ￥1900 NIB 5) 7558 RCA ￥1900 NIB
7561 =Power Pentode= (EIA/ - octal) Eh/Ih=25V/0.3A Ppmax=13W Epmax=350V Pc2max=2W Ec2max=200V Ikmax=150mA Rgmax=100kΩ(fixed)/500kΩ(self) gm=10.5mS μg2g1=7.7-typ op(AB1pp) : Ep=350V Ec2=150V Ec1=-17.2V Ip=27mAx2/61mAx2 Ic2=0.5mAx2/5.5mAx2 Zlpp=5kΩ D=2% Po=22W 0) 7561 TFK ￥- used rare
CK7570 =storage CRT= Raytheon CK7571 =storage CRT= Raytheon CK7572 =dual-gun storage CRT= Raytheon CK7575 =dual-gun storage CRT= Raytheon
7576 =Hi-mu Triode for grounded-grid VHF amp= (EIA/5703) *subminiature* Ppmax=4.1W Epmax=250V Pcmax=0.2W Ecmin=-55V Icmax=10mA μ=46 gm=10.7mS Ef/If=6.3V/0.45A -) CK7576 Ray ￥- BulkNOS
7580 =forced-air-cooled metal-ceramic transmitting BeamPower= (EIA/ ) Ppmax=250W Epmax=2000V Pc2max=12W Ec2max=500V Ehkmax=150V Eh/Ih=6V/2.6A Fmax=500MHz 0) 7580 RCA ￥- NIB 0) 7580 RCA ￥- used
7581
7586 =MediumMuTriode= (EIA/12AQ) * Nuvistor * Ef/If=6.3V/0.135A Ehkmax=±100V Ppmax=1W Epmax=110V/330V-cutoff Ec1max=+4Vpeak/-55V Ikmax=15mA Rg1max=500kΩ(fixed)/1MΩ(self) op : Ep=75V Rk=100Ω Ip=10.5mA μ=35 gm=11.5mS rp=3kΩ, Ec-cutoff=-7V(@Ic=10μA) op : Ep=40V Ec=0V Ip=7.5mA μ=35 gm=11.5mS rp=3kΩ (参考 : #ニュービスタ7586のEp-Ip特性) see variants 7895 8056 8393 also see higher-μ Nuvistors 6CW4(μ=65), 6DS4(μ=65) 14) 7586 RCA ￥2900 NIB Nuvistor(rhx10) 4) 7586 RCA ￥2900 NIB Nuvistor - mint 1) 7586 SylECG ￥2600 NIB
7587 =SharpCutoffTetrode= (EIA/12AS) * Nuvistor * Eh/Ih=6.3V/0.15A Ehkmax=±100V Tbulb=150℃max Ppmax=2.2W Epmax=250V/330V-cutoff Pc2max=0.2W Ec2max=110V/330V-cutoff Ec1max=+2V/-55V Ikmax=20mA Ic1max=2mA Rg1max=500kΩ(fixed)/1MΩ(self) ImpactAccl.=1000Gmax Vib.Accl.=2.5Gmax op : Ep=125V Ec2=50V Rk=68Ω Ip=10mA Ic2=2.7mA rp=200kΩ gm=10.6mS, Ec-cutoff=-4.5V(@Ic1=10μA) (参考 : #ニュービスタ7587のEp-Ip特性(@Ec2=50V)) size : 11.2mmΦ x 26.7mmH, in max 11) 7587 RCA ￥2300 NIB
7588 =500MHz metal-ceramic Triode= (EIA/7296) Ppmax=5.5W Epmax=300V Ikmax=30mA μ=175 gm=45mS Eh/Ih=6.3V/0.4A -) 7588 GE -
7591
7643/E80CF =10000H-SQ Long Life Ruggdized Triode-Pentode= (EIA/9AE - noval) Eh/Ih=6.3V/0.33A Ｅhkmax=±100V Tbulb=170℃max Fmax=300MHz(triode) *Triode section ; Ppmax=1.75W Epmax=275V/550Vcutoff Pcmax=0.1W Ecmax=+30Vpeak Ikmax=18mA/100mApeak Rgmax=500kΩ op : Ep=100V Rk=120Ω Ip=14mA μ=18 gm=5mS *Pentode section : Ppmax=2.15W Epmax=275V/550Vcutoff Pc2max=0.7W(Pp>1.2W)/0.8W(Pp<1.2W) Ec2max=200V/550Vcutoff Ikmax=18mA Pc1max=0.1W Rg1max=500kΩ(fixed)/1MΩ(auto) op : Ep=170V Ec2=170V Rk=155Ω Ip=10mA Ic2=2.8mA gm=6.2mS μg2g1=40 rp=400kΩ (see E80CF ECF80 6BL8) 5) 7643 RCA ￥3300 NOS RB W-Germany Gold-pins 5本スリーブ同一ロット 3) 7643 Amprx ￥3300 used?/NOS? Like New -Germany Gold-pins 3) 7643 Amprx ￥2200 used -Germany Gold-pins 1) 7643/E80CF Matsushita ￥3000 like new NHK GoldPins w/OB 1) 7643/E80CF Matsushita ￥2200 lightly-used Gold-pins, NHK D/C=1961.12 GoldPins WB 2) 7643/E80CF Matsushita ￥2200 lightly-used Gold-pins, NHK, D/C=1961.12 WB 1) 7643/E80CF Matsushita ￥2200 lightly-used Gold-pins, NHK, D/C=1962.2 WB 2) 7643/E80CF Matsushita ￥2200 lightly-used Gold-pins, NHK WB
7693/E90F =sharp cutoff ruggdized HF Pentoder= (EIA/) Eh/Ih=6.3V/0.15A μ=50 gm=4.6mS Ep=250V Ip=7.4mA rp=1.4MΩ Ec2=150V Ic2=2.9mA 7693/E90F is a premium 6BH6/6661, especially for mobile (see E90F, 6661, and 6BH6) 0) 7693 Amperex ￥2000 NIB
7694/E99F =vari-slope ruggdized HF Pentoder= (EIA/) Eh/Ih=6.3V/0.15A μ=27 gm=3.6mS Ep=250V Ip=9.2mA Ec1=-20V rp=1MΩ Ec2=100V Ic2=3.3mA 7694/E99F is a premium 6BJ6/6662, especially for mobile 0) 7694 Amperex ￥2000 NIB
7695 =BeamPower= (EIA/9PX≒9MQ - noval/9T9) Eh/Ih=50V/0.15A Ehkmax=±200V * Cg1p=0.75pF Cinput(g1 to h+k+g2+g3+IS)=14pF Coutput(p to h+k+g2+g3+IS)=9pF Ppmax=16W Epmax=150V Pc2max=2.5W Ec2max=150V Rg1max=100kΩ(fixed)/500kΩ(self) op: Ep=130V Ec2=130V Ec1=-11V Ip=100mA Ic2=5mA gm=11mS rp=7kΩ op(A1S): Ep=130V Ec2=130V Ec1=-11V Ip=100mA/108mA Ic2=5mA/15mA Zl=1.1kΩ Po=4.5W D=11% op(A1S): Ep=140V Ec2=140V Rk=100Ω Ip=100mA/100mA Ic2=5mA/14mA Zl=1.1kΩ Po=4.5W D=11% op(AB1pp): Ep=130V Ec2=130V Ec1=-12V Ip=195mA/220mA Ic2=9mA/24mA Zlpp=1.8kΩ Po=10W D=6% op(AB1pp): Ep=140V Ec2=140V Rk=50Ω Ip=210mA/220mA Ic2=9mA/20mA Zlpp=1.5kΩ Po=10W D=4% op(SEPP-OTL) : Ep=280V Rc2=4kΩ Zl=500Ω Po=5W D=10% 参考:Ep-Ip特性(@Ec2=130V) 参考:Ep-Ip特性(@Ec2=140V) 参考:三結時のEp-Ip特性例(triode connection : SAMPLE data) 参考:Power, Load, Distortion(5結A1s@Ep=Ec2=130V) heater variant : 7754(Eh/Ih=6.3V/1.2A) (6GM5はICを除き同一ピン配列) 4) 7695-9T9 RCA(Sylvania-made) ￥2700 NIB BlackPlate 1) 7695-9T9 RCA(Sylvania-made) ￥2700 NIB BlackPlate 6) 7695-9T9 RCA(Sylvania-made) ￥2700 NIB BlackPlate, smeared-away silk, just-ragged boxes 14) 7695-9T9 GE(Sylvania-made) ￥2700 NIB BlackPlate, almost-smeared-out silk, just-ragged boxes 2) 7695-9T9 Sylvania ￥2700 NIB BlackPlate 9) 7695-9T9 Sylvania ￥2700 Bulk-NOS BlackPlate WH-boxed 1) 7695-9T9 Zenith(Sylvania-made) ￥2700 NIB BlackPlate, just-ragged box 2) 7695-9T9 Motorola(Sylvania-made) ￥2700 NOS BlackPlate WH-boxed
7699 =common G2, common K, twin power tetrode= (EIA/ - noval) for wide-band push-pull amp(UHF/distributed amp) with long life and high reliability Eh/Ih=6.3V/0.6A(12.6V/0.3A) Ehkmax=±90V Tbulb=225℃max Fmax=500MHz Ppmax=2x3W Epmax=275V Ipmax=2x45mA Ikmax=2x50mA Pc2max=2x1.25W Ec1max=-100V op : Ep=150V Ec2=150V Ip=25mA gm=10.5mS μg2g1=31 op(CCS): Ep=200V Ec2=150V Ec1=-3.5V Ip=28mA/31.6mA Ic2=6mA/15.4mA gm=7.5mS Zlpp=17.4kΩ Po=2.66W D=2% (参考 : Ep-Ip特性(@Ec2=200V)) pins : 1(1G1)-2(K,S)-3(2G1)-4(H)-5(H)-6(1P)-7(G2)-8(2P)-9(HCT) very similar types : 6939, QQE02/5 also see an upper-rating MAGNOVAL 500MHz twin power pentode : 1B15 also see an electrically similar, filamentary/direct-heat type : 8408(YL1130)(Ef/If=1.1V/3.1A) 6) 7699 Amprx ￥2900 NIB * 3) 7699 Amprx ￥2900 NIB PQ 2) 7699 Amprx ￥2900 NIB RaggedBox Gpin 1) 7699 Amprx ￥2900 NIB Gpin, smeared-silk, just-ragged box
7701 =RF class-C BeamPowerPentode= (EIA/9MS - noval) Eh/Ih=13.6V(12Vmin-15Vmax)/0.16A Ehkmax=±100V Fmax=175MHz Ppmax=9W Epmax=350V Pc2max=3.5W Ec2max=300V Ipmax=45mA Ic2max=17mA Ic1max=3.3mA(DC) op : Ep=250V Ec2=250V Ec1=-12.5V Ip=28mA Ic2=3.1mA rp=31kΩ gm=3.6mS 1) 7701 GE ￥1900 NOS WB 2) 7701 CMC(GE-made) ￥1900 NIB
7716 =Triode Pentode=(EIA/9DX - noval) Eh/Ih=13.6V/0.35A Triode : Ppmax=1W Epmax=330V gm=2.9mS rp=35kΩ μ=102 Pentode: Ppmax=5W Epmax=330V Pc2max=1.1W gm=10mS rp=70kΩ 2) 7716 CMC(GE-made) ￥1900 NIB
7717 (see 6CY5) =Sharpcutoff RF Tetrode= (EIA/7EW - miniature) Ppmax=2W Epmax=180V Pc2max=0.5W Ec2max=180V Eh/Ih=6.3V/0.2A see electrically similar type : 7167(Eh/Ih=13.5V/0.09A) also see another RF tetrode w/ same pinout & Epmax=275V : 6EV5 1) 7717/6CY5 RCA ￥1200 NIB
7719 =computer med-mu Triode= (EIA/9MX - noval) Eh/Ih=6.3V/0.45A(12.6V/0.225A) Ehkmax=±200V(DC=+100Vmax) Ppmax=6W Epmax=330V Ikmax=40mA Tbulb=175℃max op(small Ip) : Ep=300V Ec=-10.5V Ip=4mA rp=7.1kΩ gm=3.5mS μ=25 op(large Ip) : Ep=300V Ec=-9.2V Ip=15mA rp=2.9kΩ gm=9.0mS μ=26 pins : 1(P)-2(G)-3(K)-4(H)-5(H)-6(P)-7(G)-8(K)-9(HCT) (参考 : Ep-Ip特性) (参考 : Eg-Ip/gm/μ特性) different-basing lower-μ types : 12B4A(μ=6.5), 6S4/6S4A(μ=16.5), 12A4(μ=20) different-basing upper-rating triodes : 6RA6(Ppmax=10W, μ=16), 6RA9(Ppmax=10W, μ=16.5) 6) 7719 EAI(Tung-Sol made) ￥2400 BulkNOS D/C=6626-3(3pcs), 6639-3(1pc), 6608-3(1pc), WB 3) 7719 Tung-Sol ￥2200 LikeNew D/C=6204-3, 6738-3, and ?, WB 2) 7719 Tung-Sol ￥1800 used-lightly D/C=6204-3 WB 4) 7719 Tung-Sol ￥1800 used-lightly D/C=6341-3 WB 14) 7719 Tung-Sol ￥1800 used-lightly D/C=6351-3 WB 0) 7719 Tsol ￥- used WB
7720 =metal-ceramic UHF Triode= (EIA/7462) Ppmax=1W Epmax=250V Ikmax=11mA μ=90 gm=10.5mS Eh/Ih=6.3V/0.24A -) 7720 GE -
7721 = D3a
7722 = E280F
7728 =med-mu Twin Triode= (EIA/9A - noval) = 12AT7 Ppmax=2.8W Epmax=330V gm=5.5mS rp=10.9kΩ μ=60 Eh/Ih=12.6V/0.15A(6.3V/0.3A) 0) 7728 GE ￥- NIB
7729 =high-mu Twin Triode= (EIA/9A - noval) =12AX7 Ppmax=1.1W Epmax=330V gm=1.6mS rp=62.5kΩ μ=100 Eh/Ih=12.6V/0.15A(6.3V/0.3A) 0) 7729 GE ￥- NIB 0) 7729 Ray ￥- NIB 0) 7729 Ray ￥- used
7730 =med-mu Twin Triode= (EIA/9A - noval) = 12AU7 Ppmax=3W Epmax=330V gm=2.2mS rp=7.7kΩ μ=17 Eh/Ih=12.6V/0.15A(6.3V/0.3A) 1) 7730 GE ￥2900 NOS RCA箱
7733 =wideband Sharp-Cutoff Pentode= (EIA/9BF - noval) - 7733 is premium improved hirel.-version of type 12BY7A. - with continuous-wound coil heater, special cathode-sleeve material, 48H burn-in, gold-plated pins, etc. Eh/Ih=6.3V/0.6A(12.6V/0.3A) Ehk=±200Vpeak(100Vaverage) Rg1max=250kΩ(fixed)/1MΩ(self) design max : Ppmax=6.5W Epmax=330V Pc2max=1.2W Ec2max=190V Ec1max=+0V/-55V op : Rp=250V Ec2=180V Rk=100Ω Ip=24mA Ic2=5mA rp=90kΩ gm=12mS, μg2g1=31.5 (参考 : Ep-Ip特性(@Ec2-parameter)) see identical type : 12BV7 also see electrically-similar NTT high-rel type : 6R-P10 if pin#6 is not used, can be replaced by 7054, or 8077 (base = '9GK') for less Pp=5W applications. 0) 7733 CBS ￥- NIB gold-pins 14) 7733 CBS ￥2100 LikeNew gold-pins D/C=61A30 0) 7733 CBS ￥- used gold-pins
7734 =Pentode + power Triode= (EIA/9LC - noval) - for industrial series regulators - Eh/Ih=6.3V/0.9A Ehkmax=+100V/-200V Pentode: Ppmax=1W Epmax=330V Pc2max=0.5W Ec2max=275V Rgmax=2.2MΩ(self) op : Ep=150V Ec2=150V Ec1=-2V Ip=5.5mA Ic2=1.7mA rp=340kΩ gm=3.2mS Ec1(cutoff)=-8V Triode : Ppmax=7W Epmax=275V Ikmax=50mA/175mA-peak Rgmax=2.2MΩ, Ip(@Ep=50V, Ec=0V)=70mA op : Ep=150V Ec=-21V Ip=35mA rp=1.08kΩ gm=5mS μ=5.4 Ec(cutoff)=-42V pins : 1(G2p)-2(Kt)-3(Gt)-4(H)-5(H)-6(Pt)-7(Kp,G3p)-8(G1p)-9(Pp) also see commercial version : 6GE8 also see a series-regulator-use single power-triode : 7233(Ppmax=8W rp=220Ω μ=4) 0) 7734 GE ￥- NIB 50) 7734 GE ￥2000 NIB BlkPlate D/C=74-23, MB w/sleeve 2) 7734 GE ￥2000 NIB BlkPlate 0) 7734 GE ￥- used
7735 =カメラチューブ= 2) 7735 RCA ￥7800 NIB(スチロールパック)
7737/E186F =10000H-SQ RF Pentode= (EIA/9MZ - noval) Eh/Ih=6.3V/0.32A Ehkmax=60V Rg1max=250kΩ(fixed)/500kΩ(self) Ppmax=3W Epmax=210V/400V-cutoff Pc2max=0.7W Ec2max=175V/400V-cutoff Ikmax=25mA op : Ep=190V Ec2=160V Ec3=0V Ec1=+9V Rk=630Ω Ip=13mA Ic2=3.3mA rp=100kΩ gm=16.5mS μg2g1=53 op : Ep=180V Ec2=150V Ec3=0V EC1=0V Rk=100Ω Ip=11.5mA Ic2=2.9mA gm=15.9mS pins : 1(K)-2(G1)-3(K)-4(H)-5(H)-6(IC)-7(P)-8(G3,S)-9(G2) 4) 7737 Phlps ￥3700 NOS PQ品 黄色OB 1) 7737/E186F Matsushita ￥1700 used GoldPins, lot=6A WB
7754 =BeamPower= (EIA/9MQ≒9PX) Eh/Ih=6.3V/1.2A Ehkmax=±200V Ppmax=16W Epmax=150V Pc2max=2.5W Ec2max=150V gm=11mS rp=7kΩ Rg1max=100kΩ op(SEPP-OTL) : Ep=280V Rc2=4kΩ Zl=500Ω Po=5W D=10% heater variant : 7695(Eh/Ih=50V/0.15A) (規格が異なるビーム管6GM5はICを除き同一ピン配列の9T9管) 0) 7754-9T9 Syl ￥- NIB
7788/E810F =10000H-SQ wideband Pentode= (EIA/9NK - noval) Eh/Ih=6.3V/0.34A Ehkmax=100V Rg1max=200kΩ(fixed)/600kΩ(self) * Cg1p=0.036pF Cinput(g1 to h+k+g2+g3+IS)=14.5pF Coutput(p to h+k+g2+g3+IS)=3.5pF Ppmax=5W Epmax=250V/400Vcutoff Pc2max=1W Ec2max=200V/400Vcutoff Pc1max=10mW Ec1ma=±50Vpeak/-25Vdc Ikmax=50mA op : Ep=135V Ec2=165V Ec1=+12.5V Rk=360Ω Ip=35mA Ic2=5mA rp=42kΩ gm=50mS μg2g1=57 op : Ep=120V Ec2=150V Ec1=0V Rk=47Ω Ip=35mA (参考 : Ep-Ip特性(@Ec2=100V, Ec3=0V)) also see E810F also see high-gm HF pentode : D3a/7721(Ppmax=4W, gm=35mS, μg2g1=77) also see high-gm HF pentode : E280F/7722(Ppmax=4W, gm=26mS, μg2g1=60) also see another high-gm video amp pentode : EL802(Ppmax=6W, gm=40mS, μg2g1=70) 1) E810F/7788 Siemens ￥4000 NIB 4) 7788/E810F Phlps ￥4300 NIB gold-pins 1) 7788/E810F Phlps ￥4300 NOS PQ品 黄色OB 2) 7788 Phlps ￥4300 NIB SQ Gpin 1) 7788 Amprx ￥4000 NOS? PQ品 Gpin 新品同様 2) JAN 7788 Amprx ￥4000 NIB PQ品 Gpin MB *$* 8) 7788 Amprx ￥4000 NIB PQ品 Gpin ragged box 6) 7788 Amprx ￥4000 NIB Gpin * 1) 7788 Amprx ￥4000 NIB PQ Gpin 1) 7788 Amprx ￥4000 NOS PQ品 1) 7788/E810F Amprx ￥4000 NIB PQ品 ragged box 5) 7788 Amprx ￥3100 NIB date=0/86 1) 7788 Amprx ￥2700 NOS?/used? strong 1) 7788 Amprx ￥3300 NOS? Gpin RCA箱 5) 7788 RCA ￥4000 NIB gold-pins, made in Holland, w/ sleeve 4) 7788 RCA ￥4000 NIB gold-pins, w/ sleeve 6) 7788 RCA ￥4000 NIB Gpin 1) 7788 RCA ￥4000 NIB Gpin 5) 7788 United ￥3800 NIB Gpin USA 1) 7788 National ￥2900 NIB Gpin made in China 1) 7788/E810F Amprx ￥2000 used Gpin. made in Holland WB
7802 =Low μ Twin Power Triode= (EIA/8BD - octal) 6080(μ=2)と同一形状/同一ピン配列でμ=9 Eh/Ih=6.3V/2.5A(Twarm-up=30sec-min) Ehk=±300V Ppmax=13W Epmax=250V Ipmax=160mA Icmax=5mA Rgmax=50kΩ(fixed)/500kΩ(self) Rgmin=500Ω op : Ep=100V Ec=-4V Ip=115mA±30mA gm=20mS±3.5mS μ=8.5±2 (参考 : Ep-Ip特性) (see similar types : 6080 421A 5998 7236 6AS7G/GA) 1) 7802 Tsol ￥3700 NIB(Q) 4) 7802 Tsol ￥3700 NIB(Q)
7843
7844
7867 =Audio BeamPower Pentode= (EIA/5BT - octal) Eh/Ih=6.3V/2.5A Ehkmax=±200V(DC=+100Vmax) Tbulb=225℃max Ppmax=24W Epmax=700V Pc2=3.6W Ec2max=175V Ikmax=220mA Rg1max=500kΩ op : Ep=250V Ec2=90V Ec=-10V Ip=80mA Ic2=1mA rp=12kΩ gm=10mS op(A1s) : Ep=250V Ec2=90V Rk=120Ω Ip=80/81mA Ic2=1/6mA Zl=3kΩ Po=7.5W D=10% op(A1pp) : Ep=250V Ec2=90V Rk=60Ω Ip=160/166mA Ic2=2/10.5mA Zlpp=5kΩ Po=16W D=1.4% op(AB1pp) : Ep=250V Ec2=150V Rk=200Ω Ip=114/128mA Ic2=2/17mA Zlpp=6kΩ Po=28W D=3.0% op(AB1pp) : Ep=450V Ec2=150V Ec1=-35V Ip=58/210mA Ic2=1.4/36mA Zlpp=5kΩ Po=65W D=5.5% pins : 1(none)-2(H)-3(KG3)-4(none)-5(G1)-6(none)-7(H)-8(G2)-Top(P) size : 39.7mmΦ x 127mmH, in max similar to 6EX6 also see same base, similar type : 6CD6G/GA also see same base, similar rating type : 6BG6G also see a different base, electrically similar type : 6CB5/A 6) 7867 Tsol ￥2500 NIB 2) 7867 Tsol ￥2500 NOS
7868
7895 =HighMuTriode= (EIA/12AQ) * Nuvistor * Ef/If=6.3V/0.135A Ehkmax=±100V Ppmax=1W Epmax=110V/330V-cutoff Ecmax=+2V/-55V Ikmax=15mA Rgmax=500kΩ(fixed)/1MΩ(self) op : Ep=110V Rk=150Ω Ip=7mA rp=6.8kΩ gm=9.4mS μ=64 (参考 : EpIp特性) also see variants 7586 8056 8393 7) 7895 RCA ￥2900 NIB
7898 =HighMuTwinTriode= (EIA/9EP - noval) Eh/Ih=13.5V(12V-15V)/0.15A Ehkmax=±100V Ppmax=2.75W Epmax=330V Ecmax=+0V/-55V Rgmax=250kΩ(fixed)/1MΩ(self) op : Ep=250V Rk=200Ω Ip=10mA rp=10.9kΩ gm=5.5mS μ=60 pins : 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(Do not use) (参考 : EpIp特性) 3) 7898 RCA ￥1900 NIB 1) 7898 RCA ￥1500 used 6700/6500/4400min 1) 7898 RCA ￥500 used 7500/3700/4400min
7905 =Filamentary BeamPowerPentode= (EIA/9PB-noval)* Quick-Heating-Filament Type for Mobile-Communications Equipment Ef/If=6.3V/0.65A Fmax=175MHz Tbulb=225℃max (電力増幅用"直熱"５極管) Ppmax=10W Epmax=300V Ec2max=250V Pc2max=1.5W Rg1max=100kΩ op(class A1) : Ep=200V Ec2=185V Ec1=-6V Ip=36mA Ic2=2.5mA μg2g1=11.5 gm=6.7mS op(class C / f=175MHz-ICAS)： Ep=300V Ec2=160V Ec1=-36V Ip=50mA Ic1=2mA Ic2=2.5mA Pin=1W Po=5.5W (参考 : Ep-Ip特性(@Ec2=185V)) pins : 1(F-)-2(G1)-3(G2)-4(LC)-5(LC)-6(P)-7(G3)-8(G2)-9(F+), where LC is center of filament. 8) 7905 RCA ￥1900 NIB 5) 7905 RCA ￥1900 NIB clear-top/side-getter, D/C=73-48, w/a plain-5-pack sleeve, MB 6) 7905 RCA ￥1900 NIB clear-top/side-getter, D/C=73-48, just-ragged boxes, MB 8) 7905 RCA(Syl-made) ￥1900 NIB clear-top/side-getter 1) 7905 GE ￥1700 NOS WB
7963 =twin triode= (EIA/8DG) *subminiature* Eh/Ih=6.3V/0.35A Ehkmax=±200V Rgmax=1.1MΩ Tbulb=180℃max Ppmax=1.1W Epmax=165V/330Vpeak Ipmax=3-22mA Ec1max=+0V/-55V Icmax=5.5mAdc (note: Tube-testers' short inspection with using over-50Vpeak must not be used, since the usage may give serious-damage on grid-cathode isolation integrity.) op : Ep=100V Rk=270Ω Ip=7.5mA rp=3.1kΩ gm=13mS μ=40, Ec_cutoff=-6.5V(Ip=20μA) 0) 7963 GE ￥1100 NIB 0) 7963 Syl ￥900 NOS WB
7983( = QQC03/14)
7984 =RF BeamPowerPentode= (EIA/12EU - compactron) Eh/Ih=13.5V(±1.5V)/0.58A Ehkmax=±100V Tbulb=220℃ op: Ep=200V Ec2=125V Ec1=-7.5V Ip=125mA Ic2=4.5mA gm=13.5mS CCS: Ppmax=20W Epmax=600V Ec2max=250V Pc2max=3W Ipmax=150mA Ic1max=6mA op(C @175MHz): Ep=315V Ec2=165V Ec1=-74V Ipmax=150mA Ic2=8.5mA Ic1=3.7mA Pin=2W Po=26.5W ICAS: Ppmax=25W Epmax=750V Ec2max=250V Pc2max=3W Ipmax=150mA Ic1max=6mA op(C @175MHz): Ep=375V Ec2=160V Ec1=-80V Ipmax=150mA Ic2=8.5mA Ic1=4mA Pin=2W Po=32W IMS: Ppmax=35W Epmax=750V Ec2max=250V Pc2max=3W Ipmax=180mA Ic1max=6mA op(C @175MHz): Ep=450V Ec2=200V Ec1=-60V Ipmax=180mA Ic2=12mA Ic1=4mA Pin=2W Po=46W *CCS=Continuous Commercial Service *ICAS=Intermittent Commercial & Amateur Service *IMS=Intermittent Mobile Service (参考 : Ep-Ip特性(@Ec2=200V)) (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data)) size : 40mmΦ x 73mmH approx. see a lower rating type (w/ same base) 8156 3) 7984 GE ￥2700 NIB just-smaller-boxes (hyt16btm) 6) 7984 GE ￥2700 NIB just-ragged large-boxes (hyt16btm) 3) 7984 GE ￥2700 NIB just-ragged large GE-com. boxes (hyt16btm) 12) 7984 GE ￥2700 NIB just-ragged smaller GE-com. boxes (hyt16btm) 2) 7984 GE ￥2700 NIB 1) 7984 GE ￥2700 NIB 1) 7984 GE ￥2700 NIB 0) 7984 GE ￥- NIB matched-pair 1) 7984 Syl ￥2700 NIB 1) 7984 GE ￥2300 NOS? 1) 7984 GE ￥1600 used 5800/3200min @@
8000
8001 = 4E27(filamentary Transmitting Power Pentode)
8003
8005
8008 =MercuryRectifier= see electrically same type : 872 Ef/If=5V/7.5A PIV=5kV Idc=1.25Amax/5Apeak 3) 8008 GE ￥１１０００ NIB 17) 8008 RCA,GE,Amperex etc ￥４１００ used
8012/A
8020 =Halfwave Rectifier= PIV=40kV Ppmax=75W Idcmax=100mA Idc-peakmax=750mA Ef/If=5V/5.5A-6.5A Efmax=5.8V 1) GL8020 GE ￥3900 NIB
8025/A
8032/A
8042(=4652)
8045G
8056 =medium mu Triode= (EIA/12AQ) * Nuvistor * Eh/Ih=6.3V/0.135A Ehkmax=±100V Shock(Impact)=1000Gmax Fatigue(vib.)=2.5Gmax Ppmax=0.45W Epmax=50V Icmax=2mA Ikmax=15mA Rgmax=10MΩ op : Ep=24V Rk=100Ω Ip=8.7mA rp=1.53kΩ gm=7.5mS μ=11.5 (参考 : #ニュービスタ8056のEp-Ip特性) also see variants 7586 7895 8393 6) 8056 RCA ￥2100 NIB Nuvistor 3) 8056 Tektronix(RCA-made) ￥2100 NIB Nuvistor 2-pairs)8056 Tektronix(RCA-made) ￥4500/pair NIB matched-pair Nuvistor =rare=
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
8068
8077 (= 7054) =PowerPentode= (EIA/9GK - noval) Eh/Ih=12V-15V/0.275A Ehkmax=±120V Ppmax=5W Epmax=330V Pc2max=1W Ec2max=180V Ec1max=+0V/-55V Rg1max=100kΩ(fixed)/250kΩ(self) op : Ep=250V Ec2=150V Rk=120Ω Ip=19mA Ic2=3.5mA rp=100kΩ gm=11.5mS if pin#6 is not used, can be replaced by 12BV7, 12BY7A, 7733 (base = 9BF). same bassing, different-heater power pentodes : 6GK6, 6KY6, 7KY6/9KX6, 29GK6 2) 8077/7054 RCA ￥1700 NIB 2) 8077 GE ￥1500 NOS WB 1) 8077/7054 Syl ￥1500 NIB 1) 8077/7054 Mot ￥1500 NIB 2) 8077 RCA ￥1200 used 9300,9620/5650min
8102 =Triode Pentode=(EIA/9PJ - noval) Eh/Ih=13.5V(±1.5V)/0.23A Ppmax2.5W/Epmax330V/Pc2max0.55W/Ec2max330V 1) 8102 GE ￥1500 NIB
8106 =Beam Pentode for mobile communication= (EIA/9PL - noval) Eh/Ih=13.5V(±1.5V)/0.25A Ppmax=6W Epmax=330V Pc2max=1.25W Ec2max=300V Ic1max=3mA Ikmax=40mA op : Ep=300V Ec2=150V Ec1=-3.5V Ip=16mA Ic2=3.2mA rp=90kΩ gm=9mS 3) 8106 RCA ￥2300 NIB 1) 8106 GE ￥2000 NOS RCA箱
8117
8136 =Sharp cutoff Pentode= (EIA/7CM - miniature) * 8136 = hirel., long-life service targetted version of 6DK6. Eh/Ih=6.3V/0.3A Ehkmax=+200V/-300V Ppmax=2.2W Epmax=330V Pc2max=0.65W Ec2max165V op : Ep=125V Ec2=125V Rk=56Ω Ip=10.8mA Ic2=2.9mA gm=9.8mS (参考 : Ep-Ip特性(@Ec2=125V) - note: just different from 6DK6's) 6) 8136 RCA ￥2300 NIB 10) 8136 GE ￥1900 NIB * 2) 8136 GE ￥1200 used
8156 =BeamPower= (EIA/12EU - compactron) Eh/Ih=13.5V(±1.5V)/0.3A Tbulb=220℃max CCS : Ppmax=11W Epmax=500V Ipmax=100mA Pc2max=2.5W Ec2max=250V Ig1max=+5mAdc op(C @175MHz): Ep=250V Ec2=185V Ec1=-70V Ipmax=100mA Ic2=11mA Ic1=3.5mA Pin=1W Po=14W ICAS : Ppmax=13W Epmax=600V Ipmax=100mA Pc2max=2.5W Ec2max=250V Ig1max=+5mAdc op(C @175MHz): Ep=300V Ec2=180V Ec1=-80V Ipmax=95mA Ic2=10mA Ic1=4mA Pin=1W Po=15.5W IMS : Ppmax=15W Epmax=600V Ipmax=100mA Pc2max=2.5W Ec2max=250V Ig1max=+5mAdc op(C @175MHz): Ep=400V Ec2=170V Ec1=-60V Ipmax=90mA Ic2=10mA Ic1=3mA Pin=1W Po=21W (IMS = Intermittent Mobile service) op : Ep=200V Ec2=125V Ec1=-9V Ip=75mA Ic2=3.5mA gm=7.6mS (参考 : Ep-Ip特性(@Ec2=170V)) size : 30mmΦ x 59mmH approx. see an upper rating type (w/ same base) 7984 1) 8156 GE ￥2300 NIB 3) 8156 GE ￥2300 NIB 5) 8156 GE ￥2300 NIB 5本同一ロット 5) 8156 GE ￥2300 NIB
8165 = 4-65A
8168 = 4CX1000
8223 = E288CC
8233 =high-gm, wideband Power-Pentode= (EIA/9PZ - Magnoval) Eh/Ih=6.3V/0.6A Ehk=200V shock=500Gmax vib.=2.5Gmax (10000hours SpecialQuality) * Cg1p=0.11pF Cinput(g1 to h+k+g2+g3+IS)=18pF Coutput(p to h+k+g2+g3+IS)=4pF Ppmax=10W Epmax=200V/400V(cutoff) Pc2max=1.5W Ec2max=175V/350V(cutoff) Ikmax=75mA Rgmax=125kΩ op : Ep=125V Ec2=125V Ec1=-3V Ip=60mA Ic2=5.5mA rp=20kΩ gm=45mS μg2g1=30 op : Ep=140V Ec2=140V Rk=270Ω Ip=50mA Ic2=5.5mA gm=45mS op(triode connection) : Ep=125V Ec=-3V Ip=55.5mA rp=600Ω gm=50mS μ=30 see equivallent E55L pins(MAGNOVAL) : 1(P)-2(G3)-3(G2)-4(H)-5(H)-6(G3)-7(K)-8(G1)-9(K) also, electrically near-equivallent to 8608 参考 : 8608, 8233/E55LのEp-Ip特性(Ec2=125V) 参考 : 8233/E55L 三結時のEp-Ip特性 - triode connection also see different pinout Magnoval high-gm Pentode : 6B-R23(34mS) also see different pinout Magnoval high-gm Tetrodes : 6B-P16(26.5mS) 6B-R22(31.5mS) 418A(26.5mS) 436A(30mS) 448A(31.5mS) 1) 8233 GE ￥4500 NIB Gpin 2) 8233/E55L HP(Mullard) ￥5700 NIB Gpin 3) 8233/E55L Tektronix(Mullard) ￥5700 NIB Tektronix parts No.=154-0361-00 Gpin 0) 8233 National Electronics ￥- NIB MB Date=2/90 4本共 5) 8233 Amprx ￥4900 NIB GoldPins, Date=67-36, 67-20, 57-20, 67-49, 67-24 MB 1) 8233 Amprx ￥4900 NIB MB Date=2/89 2) 8233 Amprx ￥4900 NIB MB Gpin 1) 8233 Amprx ￥4900 NIB MB Gpin 1) 8233 Amprx ￥4900 NIB MB(D) 2) 8233 ECG ￥4500 NIB Gpin 2) 8233 Sylvania ￥4900 NIB GoldPins, one=made in USA, one=made in Germany 2) 8233 A.T.C. ￥3900 LightlyUsed 3) 8233 Amprx ￥3900 LightlyUsed
8236 =BeamPower=(EIA/8JC) Eh/Ih=6.3V/2.5A Ppmax=50W Epmax=1000V Pc2max=3.2W Ec2max=200V 1) 8236 Tsol ￥8900 NIB SmallGlassChips =rare=
8255 = E88C, EC88
8298
8334 =HIgh-Rel, High mu Triode for grid-grounded UHF amp=(EIA/7DK - miniature) Eh/Ih=6.3V/0.225A Ehk=±100V Impact=500Gmax Fatigue(vib.)=2.5Gmax Altitube=24000m-max Ppmax=4.4W Epmax=330V Ikmax=33mA Rgmax=1MΩ op : Ep=200V Ec=0V Rk=100Ω Ip=18mA gm=10.75mS μ=55 Ec-cutoff=-7V(@Ip=20uA) (参考 : Ep-Ip特性) same basing different-μ types : 6T4(μ=13), 6DZ4(μ=14), EC93(μ=15), 6AF4/EC94(μ=16), 6DX4(μ=30), 6AN4(μ=70) also see a different pinout electrically-similar miniature triode : 8532/W(rp=4.8kΩ gm=11mS μ=52) 38) 8334 GTE-Sylvania ￥1200 NIB MB
8348/YL1080
8393 =Medium mu Triode=(EIA/12AQ) * Nuvistor * Eh/Ih=13.5V/0.06A mu=35 also see variants 7586 7895 8056 2) 8393 National ￥2900 NIB
8408/YL1130Ef/If=1.1V/3.1A Rg1max=100kΩ Ppmax=2x4W Epmax=300V(200MHz) 200V(500MHz) Pc2max=2.5W Ec2max=200V Ipmax=2x45mA Ig1max=2x3mA op : Ep=175V Ec2b=175V Rg2=100Ω Ec1=-22V Ip=80mA Ic2=12mA Ic1=2.4mA gm=7mS μg2g1=26 op : Ep=275V Ec2b=275V Rg2=8.2kΩ Ec1=-25V Ip=80mA Ic2=13mA Ic1=2.5mA (直熱四極管 : direct-heat UHF tetrode(1.1V/3.1A)) pins : 1(2G1)-2(F2)-3(F1)-4(2P)-5(1G2,2G2)-6(1P)-7(F1)-8(F2)-9(1G1) size : 22.2mmΦ x 72.8mmH, in max / weight = 16gram also see electrically-similar cathode types : QQE02/5, 6939, 7699(Eh/Ih=12.6/0.3A or 6.3V/0.6A) 0) 8408 TFK ￥- NIB 5) 8408 Amprx ￥3900 NIB made in Holland, GoldPin 2) 8408 Amprx ￥3900 NOS made in Holland, GoldPin WB
8416 =TwinTriode for Cascode Amplifier= (EIA/9AJ) * E88CCのEh/Ih=12.6V/0.15A 版オシロスコープ用SQ/PQ管 (Tektronix Oscilloscope front-end tube) Eh/Ih=12.6V/0.15A Ppmax=1.5W Epmax=220V Ikmax=20mA Pc1max=30mW Rgmax=1MΩ gm=12.5mS μ=33 Rgmax=1MΩ (see 6DJ8 / 6922 / 7308 / CCa / E88CC / E188CC / E288CC / PCC88 / 6ES8) 5) 8416 Amprx ￥3300 NIB PQ-grade GoldPin 5) 8416 Amprx ￥3300 NIB Gpin (*) 3) 8416 Amprx ￥3300 NIB Gpin PQ/Tektronix-parts 3) 8416 Amprx ￥3000 NOS PQ-grade GoldPin WB 4) 8416 Amprx ￥3000 NOS PQ-grade GoldPin WB 4) 8416 Amprx ￥3000 NOS PQ-grade バルク GoldPin 1) 8416 Amprx ￥3000 NOS PQ-grade GoldPin 1) 8416 Amprx ￥3000 NOS GoldPin 1) 8416 Amprx ￥700 NOS WB 15000/7000/7000min GoldPin 6) 8416 Amprx ￥1800 lightly-used PQ D/C=(2)70-24, (4)72-48 GoldPin WB 4) 8416 Amprx ￥1800 used PQ-grade WB gm>11,000/>11,000/7000min GoldPin
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
8417
NL8421/5092 =Nixie= 2) 8421/5092 National ￥2200 NIB ++ 1) 8421/5092 National ￥2000 NOS? ++
NL8422/5991 =Nixie= 1) 8422/5992 National ￥2000 NOS? ++
8425/6AU6-SQ (see 6AU6/A) =SharpCutoff RF Pentode= (EIA/7BK - miniature) Eh/Ih=6.3V/0.3A Ppmax=3.5W Epmax=330V Pc2max=0.75W Ec2max=330V rp=1.1MΩ gm=6.2mS also see long-life mechanical-strengthen premium version of 6AU6/A : 6136 also see low-hum, non-microphonic type : 7543 1) 8425/6AU6A Tektronix ￥1000 used 4000/2500min
8426/12AU6-SQ (see 12AU6/A) =SharpCutoff RF Pentode= (EIA/7BK - miniature) Eh/Ih=12.6V/0.15A Ppmax=3.5W Epmax=330V Pc2max=0.75W Ec2max=330V rp=1.1MΩ gm=6.2mS 9) 8426
8431 =med mu TwinTriode= (EIA/9AJ - noval) Ppmax=3.5W Epmax=200V gm=12.5mS μ=33 Eh/Ih=12.6V/0.18A 0) 8431 GE ￥- used
8441 =high mu Triode= (EIA/12AQ) * Nuvistor * Ppmax=1W Epmax=250V rp=6.8kΩ gm=9.4mS μ=64 Eh/Ih=6-8.5V/-A 0) 8441 GE ￥- NIB
8444 =sharp-cutoff RF Pentode= (EIA/8DC) *subminiature* Ppmax=1.1W Epmax=165V rp=260kΩ gm=9mS Eh/Ih=6.3V/0.125A 0) 8444 GE ￥- NIB
8445 =Triode Pentode= (EIA/9AE - noval) Pentode : Ppmax=1.7W Epmax=330V Pc2max=0.5W Ec2max=200V rp=400kΩ gm=6.2mS Eh/Ih=6.75V/0.44A Triode : Ppmax=2W Epmax=330V gm=7mS μ=43 0) 8445 GE ￥- used
8446 =Triode Pentode= (EIA/9FA - noval) Pentode : Ppmax=1.7W Epmax=330V Pc2max=0.5W Ec2max=200V rp=400kΩ gm=6.2mS Eh/Ih=6.75V/0.44A Triode : Ppmax=2W Epmax=330V gm=7mS μ=43 0) 8446 GE ￥- used
8447 =duplex-Diode hi-mu Triode= (EIA/9CF - noval) Ppmax=2.5W Epmax=300V rp=10.9kΩ gm=5.5mS μ=60 Eh/Ih=6.75V/0.38A(13.5V/0.19A) 0) 8447 GE ￥- used
8448 =sharp-cutoff Pentode= (EIA/9BF - noval) Ppmax=6.5W Epmax=330V Pc2max=1.2W Ec2max=190V rp=93kΩ gm=11mS Eh/Ih=6.75V/0.52A(13.5V/0.26A) 0) 8448 STD(GE) ￥- used
8456 =low-mu Triode= (EIA/12AQ) * Nuvistor * Ppmax=0.45W Epmax=50V rp=1.53kΩ gm=7.5mS μ=11.5 Eh/Ih=6-8.5V/-A 0) 8456 GE ￥- NIB
8457 =Twin Tetrode= (EIA/9PW - noval) Ppmax=7W/section Epmax=300V Pc2max=2W/total Ec2max=200V rp=-kΩ gm=-mS Eh/Ih=6.75V/0.76A(13.5V/0.38A) 0) 8457 GE ￥- NIB
8458/YL1240
8463/YL1000Ef/If=1.1V/1.05A (1.1V/0.88A for YL1000) Fmax=200MHz gm=4.5mS-typ μg2g1=8-typ for Ep=120V Ec2=120V Ip=30mA class-C(175MHz) : Ppmax=5W Epmax=300V Pc2max=1W Ec2max=300V Ipmax=40mA Ikmax=50mA op(class C @ 50MHz) : Ep=300V Ec2=150V Ec1=-35V Ip=40mA Ic2=3.5mA Ic1=0.85mA Pin=0.5W Pout=8.0W op(class C @175MHz) : Ep=250V Ec2=150V Ec1=-35V Ip=35mA Ic2=2.5mA Ic1=0.20mA Pin=1.0W Pout=3.6W pins : 1(NC)-2(G3)-3(G1)-4(F)-5(F)-6(G2)-7(G3)-8(P)-9(P) size : 22.2mmΦ x 66.7mmH, in max (参考 : Ep-Ip特性(@Ec2=180V)) 2) 8463 Amprx ￥3500 NIB made in Gt.Britain, Amprx-WB 1) 8463 Amprx ￥3500 NIB Gold-pins, made in Gt.Britain, D/C=BZ1-R4E2(Mitcham-1974.5), 74-38, Amprx-WB 3) 8463 Mullard ￥3500 NIB Gold-pins, made in Gt.Britain, code=BZ1-R4B3(Mitcham-1974.2),R4D2,R4F2 ragged-boxes 2) 8463 Mullard ￥3500 LikeNew Gold-pins, made in Gt.Britain, code=BJ1-R3L3(Mitcham-1973.12),R3L2, WB
8489 =Triode Pentode= (EIA/9DA - noval) Pentode : Ppmax=2.3W Epmax=330V Pc2max=0.55W Ec2max=330V rp=170kΩ gm=7mS Eh/Ih=6.3V/0.45A Triode : Ppmax=2.8W Epmax=330V rp=4.7kΩ gm=4.5mS μ=21 0) 8489 GE ￥- used
8506 =high-mu UHF Ceramic Triode= (EIA/T5F) Eh/Ih=6.3V/0.4A Ehkmax=±50V Tenvelope=250℃max Ppmax=5W Epmax=300V Ec-max=-50V Icmax=2mA Ikmax=40mA op : Ep=200V Rk=40Ω Ip=25mA gm=29mS μ=110, Ec-cutoff=-3.5V(for Ib=50μA) (参考 ： Ep-Ip特性) (参考 ： 外形図/outline drawing) also see a lower power rating UHF high-mu ceramic*planar triode : 7077 (Ppmax=1.1W, μ=90) also see a higher power rating 4GHz high-mu ceramic*planar triode : WE-416B/C/D (Ppmax=7.5W, μ=200) 0) 8506 Toshiba ￥25000 NIB HiS 1) 8506 Toshiba ￥3000 used Top-View WB, also see a photo w/ a used dedicated socket
8524 =RF MMT Pentode= (EIA/8DC) Ppmax=0.55W Epmax=165V gm=3.2mS 6.3V/0.15A see almost-equivallent type : 5636 0) 8524 GE ￥- NIB
8525 =UHF med-mu twin Triode= (EIA/8DG) *subminiature* Eh/Ih=6.3V/0.3A Ehkmax=±200V Tbulb=220℃max Ppmax=0.7W Epmax=165V Ipmax=22mA Icmax=5.5mA Rgmax=1.1MΩ op : Ep=100V Rk=150Ω Ip=6.5mA rp=6.5kΩ gm=5.4mS μ=35 see almost-equivallent type : 6021 0) 8525 Toshiba ￥- NIB
8526 =VHF med-mu twin Triode= (EIA/8DG) *subminiature* Eh/Ih=6.3V/0.3A Ehkmax=±200V Tbulb=220℃max Ppmax=0.95W Epmax=165V Ipmax=22mA Icmax=5.5mA Rgmax=1.1MΩ op : Ep=100V Rk=220Ω Ip=8.5mA rp=4kΩ gm=5mS μ=20 see almost-equivallent type : 6111 0) 8526 GE ￥- NIB
8527 =RF med-mu Triode= (EIA/8DK) *subminiature* Eh/Ih=6.3V/0.15A Ehkmax=±200V Tbulb=220℃max Ppmax=3.3W Epmax=165V Ipmax=22mA Icmax=5.5mA Rgmax=1.2MΩ op : Ep=100V Rk=150Ω Ip=8.5mA rp=4.65kΩ gm=5.8mS μ=27 op : Ep=150V Rk=180Ω Ip=13mA rp=4.15kΩ gm=6.5mS μ=27 (参考 : EpIp特性) see almost-equivallent type : 5718 0) 8527 Toshiba ￥- NOS
8528 =RF Beam Power Pentode= (EIA/8DE) *subminiature* 6.3V/0.45A Ehkmax=±200V Tbulb=220℃max Altitude=60000ft-max Ppmax=3.7W Epmax=165V Pc2max=0.4W Ec2max=155V Ec1max=+0V/-55V Ikmax=50mA Rg1max=0.55MΩ op : Ep=110V Ec2=110V Rk=270Ω Ip=30mA Ic2=2.2mA rp=15kΩ gm=4.2mS Zl=3kΩ Po=1W (参考 : EpIp特性(@Ec2=110V)) see almost-equivallent type : 5902 0) 8528 Toshiba ￥3900 NIB 2) 8528 Toshiba ￥3900 NIB just-ragged boxes 0) 8528 Toshiba ￥- NOS
8529 =RF semi-remote-cutoff Pentode= (EIA/8DE) *subminiature* 6.3V/0.15A Ehkmax=±200V Tbulb=220℃ Ppmax=0.85W Epmax=165V Pc2max=0.25W Ec2max=155V Ec1max(-)=55V Ikmax=16.5mA Rg1max=1.1MΩ op : Ep=100V Ec2=100V Ik=120Ω Ip=7.2mA Ic2=2mA rp=260kΩ gm=4.5mS see almost-equivallent type : #5899 0) 8529 Toshiba ￥- NIB
8530 =RF sharp-cutoff Pentode= (EIA/8DE) *subminiature* 6.3V/0.15A Ehkmax=±200V Tbulb=220℃ Rg1max=1.1MΩ Ppmax=0.85W Epmax=165V Pc2max=0.25W Ec2max=155V Ec3max=22V Ec1max=+0V/-55V Ikmax=16.5mA op : Ep=100V Ec2=100V Ik=120Ω Ip=7.5mA Ic2=2.4mA rp=260kΩ gm=5mS see almost-equivallent type : 5840 0) 8530 Toshiba ￥- NOS
8532/W =High-mu Triode= (EIA/7BQ) 8532/W=premium 6J4 / Impact=400Gmax Fatigue(vib.)=5Gmax Altitude=80000FTmax Eh/Ih=6.3V/0.4A Ehkmax=±100V Fmax=500MHz Ppmax=2.5W Epmax=150V Ikmax=20mA Ecmax=+0V/-55V op : Ep=150V Rk=100Ω rp=4.8kΩ gm=11mS μ=52.5 (参考 : Ep-Ip特性) also similar to 6M-H1 also see a different pinout high-mu UHF miniature triode : 8334/W(Ppmax=4.4W Epmax=330V rp=5kΩ gm=10.75mS μ=55) 1) 8532W RCA ￥900 NIB 1) 8532W Syl ￥700 NIB 1) 8532W Syl ￥250 used
8552
8608 =VHF Hi-gm Power Pentode= (EIA/ - Magnoval-TopPlate) (from 1965-tentative data) : * The 8608 is used in the final stage of the vertical amp. in the Tek.549, 556 and 3A7, which was created by Amperex at Tektronix' request ? a modification of the 8233 bringing the plate connection out to a top contact in order to reduce Cout. Eh/Ih=6.3V/0.6A Ehkmax=180V Rg1max=0.15MΩ Ppmax=10W Epmax=150V/300Vcutoff Pc2max=1.5W Ec2max=150V Ikmax=75mA Ec1max=0V Ec1min=-55V op: Ep=125V Ec2=125V Ec1=-3V Ec3=0V Ip=50mA Ic2=5.5mA gm=45mS rp=20kΩ μg2g1=30 Rinput=100Ω(@100MHz) op(triode-connection): Ep,c2=125V Ec1=-3V Ec3=0V Ip=55.5mA rp=600Ω gm=50mS μ=30 pins(MAGNOVAL) : 1(IC)-2(G3)-3(G2)-4(H)-5(H)-6(G3)-7(K)-8(G1)-9(K)-TopCap(P) size : 30.2mmΦ x 73.1mmH, in max electrically near-equivallent/near-pin-compatible to 8233, E55L 参考 : 8608, 8233/E55LのEp-Ip特性(Ec2=125V) 参考 : 8233/E55L 三結時のEp-Ip特性 - triode connection also see different pinout Magnoval high-gm Pentode : 6B-R23(34mS) also see different pinout Magnoval high-gm Tetrodes : 6B-P16(26.5mS) 6B-R22(31.5mS) 418A(26.5mS) 436A(30mS) 448A(31.5mS) 7) 8608 Tektronix ￥4900 NIB GoldPins Tektronix Parts No.=154-0491-00 1) 8608 Amprx ￥4900 NIB GoldPins
8643
8844 =ビジコンカメラ/撮像管(camera tube)= 15) 8844 Toshiba ￥3100 NOS 拡大写真(magnified image) 2) 8844 Hitachi ￥3100 NIB
8906
8950
9001 =UHF Detector amp Pentode=(EIA/7BD - miniature) Eh/Ih=6.3V/0.15A Ppmax=0.5W Epmax=250V Pc2max=0.1W Ec2max=100V op : Ep=90V Ec2=90V Ec1=-3V Ip=1.2mA Ic2=0.5mA rp=1MΩ gm=1.1mS op : Ep=250V Ec2=100V Ec1=-3V Ip=2mA Ic2=0.7mA rp>1MΩ gm=1.4mS 12) 9001 RCA ￥1200 NIB (hyxcnt) 1) 9001 CBS ￥1200 NIB
9002 =UHF medium-mu Triode= (EIA/7BS - miniature) Eh/Ih=6.3V/0.15A Ppmax=1.6W Epmax=250V op : Ep=250V Ec=-7V Ip=6.3mA rp=11.4kΩ gm=2.2mS μ=25 (参考 : Ep-Ip特性) 3) 9002 RCA ￥1200 NIB MB 7) 9002 RCA ￥1200 NIB MB 3) VT-202/JRC-9002 RCA ￥1200 NIB MB 2) JRC 9002 RCA ￥1200 NIB/MB very-ragged boxes 2) JAN 9002 RCA ￥1200 NIB/MB D/C=12-66 ragged boxes 1) 9002 Hytron ￥1000 NIB MB 2) 9002 - ￥800 used 1) 9002 RCA ￥800 used 1) 9002 RCA ￥800 used
9003 =RemoteCutoffPentode= (EIA/7BD - miniature) Eh/Ih=6.3V/0.15A Ppmax=1.7W Epmax=250V Pc2max=0.3W Ec2max=250V op : Ep=250V Ec2=100V Ec1=-3V Ip=6.7mA Ic2=2.7mA rp=700kΩ gm=1.8mS 2) 9003 RCA ￥840 NOS 4) 9003 RCA ￥840 NOS old-WB 4) 9003 RCA ￥400 used
9004 =HF Diode= (EIA/4BJ) ACORN Eh/Ih=6.3V/0.15A 1) CRC-9004 RCA ￥1200 NIB MB
9006 =HF Diode= (EIA/6BH) MT Eh/Ih=6.3V/0.15A 3) 9006 KenRad ￥700 NIB MB 1) 9006 USA ￥700 NIB MB 1) 9006 Krad ￥700 NIB MB 1) 9006 RCA ￥400 used
18040 =Pentode for telephone-service= (EIA/ - Loktal) Eh/Ih=18V/0.2A Ehkmax=50V Ppmax=4.5W Epmax=250V Pc2max=1.2W Ec2max=250V Ikmax=50mA Rg1max=150kΩ(fixed)/300kΩ(self) op : Ep=210V Ec2=210V Ec3=0V Rk=120Ω Ip=20mA Ic2=5.3mA gm=11mS rp=300kΩ Po=1.0W D=5% pin=1(H)-2(P)-3(G2)-4(G3,S1)-5(S2)-6(G1)-7(K)-8(H) similar type : 95397(Eh/Ih=6.3V/0.3A, noval-on-LoctalBase) 0) 18040 Phlps ￥- used
18042(=6086) =10000H Pentode for telephone-service= (EIA/9BK - noval) Eh/Ih=18V/0.1A Ehkmax=100V Ppmax=2.1W Epmax=210V Pc2max=0.35W Ec2max=210V Ikmax=16mA Rg1max=1MΩ(self) op : Ep=210V Ec2=120V Ec3=0V Rk=165Ω Ip=10mA Ic2=2.1mA gm=9mS rp=500kΩ μg2g1=38 op : Ep=210V Ec2=120V Ec3=0V Rk=180Ω Ip=8.3mA Ic2=1.7mA gm=8.2mS rp=440kΩ Po=0.66W pins : 1(G2)-2(G1)-3(K)-4(H)-5(H)-6(P)-7(IC)-8(IC)-9(G3,S) (参考 : 18042のEp-Ip特性(@Ec2=120V)) see electrically nearly-identical type(except heater) : E83F / 6689(Eh/Ih=6.3V/0.3A) also see loktal-base electrically-equivallent type : 95397(E83F w/loktal-adapter, Eh/Ih=6.3V/0.3A) 6) 18042 Valvo(Philips-made) ￥2200 NIB gold-plated pins, mesh-shield 2) 18042 Valvo(Philips-made) ￥2200 NOS gold-plated pins, mesh-shield, WB 4) 18042 Valvo ￥1900 NIB silver-plated pins, mesh-shield 36) 18042 Siemens ￥1900 NIB lot=781 silver-plated pins, mesh-shield 0) 18042 Phlps ￥- used
18045 =10000H-SQ Pentode for telephone-service= (EIA/9AU - noval) Eh/Ih=18V/0.135A Ehkmax=120V Rg1max=1MΩ(self) Ppmax=4.5W Epmax=210V/550Vcutoff Pc2max=1.2W Ec2max=210V/550Vcutoff Ikmax=30mA op : Ep=210V Ec2=210V Ec3=0V Rk=120Ω Ip=20mA Ic2=5.3mA gm=11mS rp=300kΩ Zl=15kΩ Po=1W D=5% Triode connection : Ppmax=5.6W pins : 1(S)-2(G1)-3(K)-4(H)-5(H)-6(S)-7(P)-8(G2)-9(G3) heater variants : E81L / 6686(Eh/Ih=6.3V/0.375A) / 18046(Eh/Ih=20V/0.135A) 0) 18045 Phlps ￥- used
18046 =10000H-SQ Pentode for telephone-service= (EIA/9AU - noval) Eh/Ih=20V/0.135A Ehkmax=120V Rg1max=250kΩ(fixed)/500kΩ(self) Ppmax=4.5W Epmax=210V/550Vcutoff Pc2max=1.2W Ec2max=210V/550Vcutoff Pc1max=0.1W Ikmax=30mA op : Ep=210V Ec2=210V Ec3=0V Rk=120Ω Ip=20mA Ic2=5.3mA gm=11mS rp=300kΩ μg2g1=36 Zl=15kΩ Po=1W D=5% Triode connection : Ppmax=5.6W pins : 1(S)-2(G1)-3(K)-4(H)-5(H)-6(S)-7(P)-8(G2)-9(G3) (参考 : TriodeConnection-EpIp(三結時のEp-Ip特性)) heater variants : E81L / 6686(Eh/Ih=6.3V/0.375A) / 18045(Eh/Ih=18V/0.135A) also see an electrically similar long-life loktal-base type : C3g(Eh/Ih=6.3V/0.37A, rp=300kΩ, gm=14mS, μg2g1=41) 7) 18046 Valvo ￥2400 NIB gold-plated pins, mesh 2) 18046 Valvo ￥2200 NIB silver-plated pins, mesh 8) 18046 Valvo ￥2200 NIB silver-plated pins, mesh 10) 18046 Tungsram ￥2000 bulk-NOS silver-plated pins, mesh 1) 18046 Zaerix ￥2000 used? GoldPlated-pins Philips箱
18048(=C3m) =LongLife Pentode for telephone-service= (EIA/ - Loktal) Eh/Ih=20V/0.125A Ehkmax=120V Ppmax=4W Epmax=300V Pc2max=1W Ec2max=300V Pc3max=1W Ec3max=300V Pc1max=50mW Ec1max(-)=100V Ikmax=30mA Rg1max=500kΩ(self) op : Ep=225V Ec2=155V Ec3=0V Rk=250Ω Ip=16mA Ic2=3mA gm=6.5mS rp=250kΩ μg2g1=19 pin=1(H)-2(P)-3(G3)-4(G2)-5(NC)-6(G1)-7(K,S)-8(H) equivallent type : C3m heater variant : C3o(6.3V/0.4A) 0) 18048 Phlps ￥- used SQ-10000H
38064 = 864
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
38150
38205 =105V regulator= (EIA/4AJ - octal) see 0C3/VR105-ST 1) CRC 38205/ VR105/30 RCA ￥1200 NIB RB 1) 38205 RCA ￥600 used ST VR-105
38233 = 1642 =2C21 (twin triode)
38250 =150V regulator= (EIA/4AJ - octal) see 0D3/VR150-ST 3) 38250 RCA ￥600 used ST VR-150 2) 38250 RCA ￥400 used ST VR-150 Guide折 1) USN-CHS 38250 Syl ￥600 used ST VR-150
95397 =10000H-SQ Pentode= (EIA/8V - LOKTAL) * 95397 = 8pin(B8G)-LOKTAL-base version of E83F/6689 * Eh/Ih=6.3V/0.3A Ehkmax=100V Rg1max=1MΩ(self) Tbulb=170℃max Ppmax=2.1W Epmax=210V/550Vcutoff Ikmax=16mA/80mApeak Pc2max=0.35W Ec2max=210V/550Vcutoff Pc1max=50mW -Ec1max=100V/200Vpeak op:Ep=210V Ec2=120V Ec3=0V Rk=165Ω Ip=10mA Ic2=2.1mA rp=500kΩ gm=9mS μg2g1=38 op:Ep=210V Ec2=120V Ec3=0V Rk=180Ω Ip=8.3mA Ic2=1.7mA rp=440kΩ gm=8.2mS μ21=34 Zl=20kΩ D=10% Po=0.66W (参考 : E83F/6689のEp-Ip特性(@Ec2=120V)) pins : 1(H)-2(P)-3(G2)-4(G3)-5(NC)-6(G1)-7(K)-8(H) see noval-base electrically euivallent types : E83F, 6689 see noval-base different-heater, electrically-equivallent type : 18042(Eh/Ih=18V/0.1A) same-basing(loktal) lower-gm sharp-cuttoff pentodes : 7V7(5.8mStyp), 7G7(4.5mStyp) 0) 95397 Phlps NOS ￥- loktal 42) 95397 Phlps NOS ￥2000 loktal-base, mint condition, 拡大写真 * code = VE3-⊿4C1(E83F rev.3 - Philips Heerlen factory, March 1st-week 1964)
1) 32235539(322-35539) Tsol ￥2500 used? MT
1) 32235809(322-35809) ? ￥2500 used? BlkPlates MT
A106 =filamentary Triode= Ef/If=1.0V-1.3V/0.06A Epmax=100V Ip-saturate=10mA Ipmax=6mA op : Ep=100V Ec=-1V Ip=6mA rp=15kΩ gm=0.4mS μ=6-typ size : 46mmφ x 85mmH, in max 0) A106-globe Philips ￥- used WB
A109 =filamentary Triode= Ef/If=1.0V-1.3V/0.06A Epmax=120V Ip-saturate=10mA Ipmax=4mA op : Ep=100V Ec=-1V Ip=3mA rp=22.5kΩ gm=0.4mS μ=9-typ size : 38mmφ x 79mmH 0) A109-globe Philips ￥- used WB
A406 =filamentary Triode= Ef/If=3.4V-4.0V/0.06A Epmax=100V op : Ep=100V Ec=-7V Ip=3mA rp=15kΩ gm=0.4mS μ=6-typ (参考 : Eg-Ip特性(Ep = 20V, 40V, 60V, 80V, 100V)) size : 46mmφ x 85mmH, in max 0) A406-globe Philips ￥- used very old, WB
A408 =filamentary Triode= Ef/If=3.6V-4V/0.08A Ppmax=0.7W Epmax=150V Rg1max=2MΩ op : Ep=150V Ec=-4V Ip=-mA rp=10kΩ gm=1.5mS μ=10-typ size : mmφ x mmH, in max similar to A415(Philips), RE084(Telefunken) 0) A408-globe VALVO ￥- used WB 1) A408-globe VALVO ￥4700 used WB
A409 =filamentary Triode= Ef/If=4V/0.065A Epmax=150V op : Ep=150V Ec=-9V Ip=3.5mA rp=10kΩ gm=0.9mS μ=9-typ (参考 : Eg-Ip特性(Ep = 50V, 100V, 150V)) size : 42mmφ x 83mmH, in max similar to H406(Valvo), RE074(Telefunken), DZ908(Mazda) 1) A409-globe Philips ￥7000 LikeNew brown base, w/OB 1) A409-globe Philips ￥7000 LikeNew brown base, w/OB 1) A409-globe Philips ￥7000 LikeNew brown base, w/OB 1) A409-globe Philips ￥7000 LikeNew brown base, w/OB 1) A409-globe Philips ￥7000 LikeNew w/OB 1) A409-globe Philips ￥5100 Lightly-used WB 2) A409-globe Philips ￥5100 Lightly-used WB 1) A409-globe Philips ￥5100 Lightly-used WB 0) A409-globe Philips ￥- used WB
A410 =filamentary Triode= Ef/If=3.4-4V/0.06A Ep=20-100V(150Vmax) op : Ep=150V Ec=-3V Ip=3.5mA rp=20kΩ gm=0.5mS μ=10-typ (参考 : Eg-Ip特性(Ep = 50V, 100V, 150V)) size : 42mmφ x 83mmH, in max 1) A410-globe Philips ￥3900 used brown base, WB 1) A410N-globe Philips ￥3900 used Ep/Ec/Ip=150V/-4V/5.5mA Triode
A415 =filamentary Triode= Ef/If=4V/0.085A Ep=50-150V op : Ep=150V Ec=-4V Ip=4mA rp=10kΩ gm=1.5mS μ=15 (参考 : Eg-Ip特性(Ep = 50V, 100V, 150V)) size : 42mmφ x 83mmH, in max similar to A408(VALVO), RE084(Telefunken) 2) A415-globe Philips ￥4500 used Ip>5mA, >5mA @Eg=-4V on Funke W20 : Ipmin=2.8mA 2) A415-globe Philips ￥4500 used Ep/Ec/Ip=150V/-3V/9.5mA,10.5mA Triode 1) A415-globe Philips ￥4500 used WB 2) A415-globe Philips ￥4500 used WB
A425 =filamentary Triode= Ef/If=4V/0.065A Epmax=200V op : Ep=200V Ec=-2.5V Ip=2.4mA rp=20.8kΩ gm=1.2mS μ＝25 (参考 : Eg-Ip特性(Ep = 100V, 150V, 200V)) size : 42mmφ x 83mmH, in max similar to RE034(Telefunken), W406(Valvo) 0) A425-globe Philips ￥- used WB 1) A425-globe Philips ￥4800 used WB 1) A425-globe Philips ￥4800 used WB 1) A425-globe Philips ￥4800 used WB
A428 =Triode= Eh/Ih=4V/A similar to REN904 1) A428-globe ??? ￥- used mesh plate, just-loose base, WB
A2134 =Power Pentode= (EIA/ -miniature) Ef/If=6.3V/0.635A Pentode connection Ppmax=9W Epmax=300V Pc2max=3W Ec2max=300V rp=23.2kΩ gm=9.5mS op1(A1S) : Ep=165V Ec2=165V Rk=150Ω Ip=53mA Ic2=9mA Zl=3kΩ D=10% Po=4.1W op2(AB1pp) : Ep=250V Ec2=165V Rk=300Ω/valve Ip=66/80mA Ic2=10/24mA Zlpp=7.5kΩ D=4.5% Po=13.3W Triode connection Ppmax=12W Epmax=300V rp=835Ω gm=12mS μ=10 op3(AB1pp) : Ep=165V Rk=330Ω/valve Ip=65/74mA Zlpp=3kΩ D=1.4% Po=2.6W A2134 = CV2179 = CV4062 (五結時の平均プレート特性(Ep-Ip)(pentode connection: Eg2=100V 130V 165V)) (三結時の平均プレート特性(Ep-Ip)(triode connection)) 0) A2134 GEC NIB ￥-
A2293/CV4079/CV8089 =PowerTriode= (EIA/ - noval) Eh/Ih=6.3V/0.95A Ehkmax=250V Ppmax=15W Epmax=300V(500V @Ip=0mA) Ikmax=120mA op : Ep=150V Ip=100mA rp=375Ω gm=12mS μ=4.5 pins : 1(K)-2(K)-3(P)-4(H)-5(H)-6(G)-7(K)-8(NC)-9(P) A flying lead type CV4038 is its CV-type original. (平均プレート特性(Ep-Ip)) similar to 6C19Π-B(6S19P-V), 6RA2, 6RA3. 7233 also see another noval-shape low-μ power triode : 6877(μ=3.75) 0) A2293 GEC ￥- NOS (vNL) 2) A2293 GEC ￥offer NIB 2) A2293 GEC ￥offer NIB 2) A2293 GEC ￥offer NIB 8) A2293 GEC ￥offer NIB 20) CV4079(=A2293) GEC ￥offer NIB 拡大写真１ 拡大写真２ 5) A2293 GEC ￥offer NIB PartiallyJustRaggedBox 4) A2293 GEC ￥offer used? 4) A2293 GEC ￥offer used? 1) A2293 GEC ￥offer LikeNew
A2426/CV4082 =pulse modulator Tetrode= (EIA/ -octal) Eh/Ih=6.3V/1.32A Ehkmax=±150V Tbulb=240℃ Cpg1=0.75pF Cin=14pF Cout=8.5pF Ppmax=15W Epmax=6kV/8kV-pulse Pc2max=3.5W Ec2max=800V Ikmax=120mA/10A-pulse Ipmax=7.5A-pulse Pc1max=0.5W Ec1max=±200V Rg1max=500kΩ op : Ep=250V Ec2=250V Rk=270Ω Ip=50mA Rg2=15kΩ Rl=2kΩ μg2g1=7.5-typ gm=8mS-typ pins : 1(IC)-2(H)-3(IC)-4(G2)-5(G1)-6(IC)-7(H)-8(K,BaseShell)-Top(P) size : 34mmΦ x 100mmH (参考 : Ep-Ip特性(@Ec2=400V)) 1) A2426 GEC ￥3300 NOS D/C=8112 GEC-plain-box 1) A2426 Genalex(GEC) ￥3300 LikeNew D/C=7838 WB 2) A2426 GEC ￥3300 LikeNew D/C=7025, 7713 WB
A2521(=6CR4/CV2543) =grounded-grid UHF triode= (EIA/9BX - noval) Eh/Ih=6.3V/0.3A (6.3V/0.37A for CV2453) Ehkmax=100V Fmax=1.25GHz Tbulb=200℃ Ckh-g=3.5pF Cpg=1.6pF Ckh-g=0.06pF Ppmax=2.5W Epmax=250V/1000Vpeak -Ecmax=20V Ikmax=25mAdc/700mApeak(tw<2μs) Igmax=6mAdc op : Ep=130V Ec=-1V Ip=16mA gm=15mS μ=60 (参考 : Ep-Ip特性) same-basing, lower-gm/just-higher-μ type : 6AM4 same-basing, lower-gm/lower-μ type : 6AJ4 different-basing, electrically similar types : 6CM4/ EC86/ E86C/ EC806S, 6DL4/ EC88/ E88C 0) A2521 GEC ￥2000 NIB just-ragged boxes 4) A2521 GEC ￥2000 NIB D/C=1960s square-gtr just-ragged boxes
A2900 =TwinTriode= (EIA/ - noval) (A2900 = special 12AT7/ECC81) 0) A2900 GEC ￥- used WB (vgNL)
A4110 =cathode-type Triode= (EIA/ - noval) A4110(Valvo)=E428(Philips)=E424N(Philips)=REN904(TFK) Eh/Ih=4V/1A 1) A4110 Valvo ￥6000 NIB very-ragged box
Aa =filamantary Triode= Ef/If=3.8V/0.5A Ppmax=1.5W Epmax=250V Ikmax=mA Rgmax=700kΩ op : Ep=220V Ec=-2V Ip=3mA rp=30kΩ gm=1mS μ=30 2) Aa-globe Valvo NOS ￥９０００ bottom排気 1) Aa-globe Valvo NOS ￥９０００ bottom排気
AC/HL =cathode-type Triode= Eh/Ih=4V/1A Ppmax=-W Epmax=200V Ipmax=12mA op : Ep=100V Ec=0V rp=11.7kΩ gm=3mS μ=35 (参考 : Eg-Ip特性(@Ep=50V, 100V, 150V, 200V)) similar to MH4, 354V(Mullard), K1694 electrically similar type w/ MAZDA octal base : HL41(Eh/Ih=4V/0.6A) also electrically similar to Brimar - 4D1(British 7-pin, Eh/Ih=13V/0.2A, Top-G) 1) AC/HL-globe Mazda used ￥5200 spray-shielded, WB 1) AC/HL-ST Mazda lightly-used ￥3900 WB Ip=5.4mA, gm=4mS @Ep=200V Eg=-3V on Funke W20
AC/PEN =power Pentode= (EIA/-, British-5pin or British-7pin) Eh/Ih=4V/1A Ppmax=8W Epmax=250V Ec2max=250V Rg1max=MΩ op : Ep=100V Ec2=100V Ec1=0V gm=2.5mS op : Ep=200V Ec2=200V Rk=300Ω Ip=24mA Ic2=-mA Zlopt=8.0kΩ Po=2.0W op : Ep=250V Ec2=250V Rk=250Ω Ip=32mA Ic2=-mA Zlopt=7.5kΩ Po=3.3W pins(B5) : 1(P)-2(G1)-3(H)-4(H)-5(K)-SidePin(G2) pins(B7) : 1(NC)-2(G1)-3(G2)-4(H)-5(H)-6(K)-7(P) size : 58mmΦ x 134mmH, in max similar to Pen4VA(Mullard) 0) AC/PEN-B7 Mazda NIB ￥- 1) AC/PEN-B7 Mazda like-new ￥3100 clear-glass WB 0) AC/PEN-B7 Mazda used ￥- WB 1) AC/PEN-B5 MAZDA like-new ￥3100 B5base+SideScrewPin type, clear-glass WB 0) AC/PEN-B5 MAZDA used ￥- B5base+SideScrewPin type, WB
AC2/HL =cathode-type Triode= Eh/Ih=4V/1A Ppmax=-W Epmax=200V Ipmax=12mA op : Ep=100V Ec=0V rp=11.7kΩ gm=6.5mS μ=75 (参考 : Eg-Ip特性(@Ep=50V, 100V, 150V, 200V)) similar types : AC2/HL(Mazda), MH41(MOV), 41MH(Cossor), UY6301(Japan) also see a noval type high-μ twin triode, 12BZ7 (by unit-parallel usage, resulting in near AC2/HL) 1) AC2/HL-ST Mazda used ￥4300 spray-shielded, WB 0) AC2/HL Mazda used ￥- WB
AC2/PEN =power Pentode= (EIA/-, British-5pin or British-7pin) Eh/Ih=4V/1.75A Ppmax=10W Epmax=250V Ec2max=250V Rg1max=1MΩ op : Ep=100V Ec2=100V Ec1=0V gm=8.0mS op : Ep=250V Ec2=250V Ec1=-5.3V(Rk=140Ω) Ip=32mA Ic2=6mA Zlopt=6.7kΩ Po=3.5W pins(B5) : 1(P)-2(G1)-3(H)-4(H)-5(K)-SidePin(G2) pins(B7) : 1(NC)-2(G1)-3(G2)-4(H)-5(H)-6(K)-7(P) size : 54mmΦ x 133mmH, in max similar type : KT41 0) AC2/PEN-B7 MAZDA NIB ￥- 1) AC2/PEN-B7 MAZDA like-new ￥3300 smoked-glass WB 0) AC2/PEN-B7 MAZDA used ￥- WB 1) AC2/PEN-B5 MAZDA like-new ￥3300 B5base+SideScrewPin type, smoked-glass WB 0) AC2/PEN-B5 MAZDA used ￥- B5base+SideScrewPin type, WB
AC2/PEN DD =twin diode + power Pentode= (EIA/-, British-7pin, Top G1) Eh/Ih=4V/2A Ppmax=10W Epmax=250V Ec2max=250V Rg1max=1MΩ op : Ep=100V Ec2=100V Ec1=0V gm=8.0mS op : Ep=250V Ec2=250V Ec1=-5.3V(Rk=140Ω) Ip=32mA Ic2=6mA Zlopt=6.7kΩ Po=3.5W size : 54mmΦ x 146mmH, in max similar to PT4D 0) AC2/PEN-DD MAZDA NIB ￥- 1) AC2/PEN-DD MAZDA NIB ￥3500 just-ragged box 1) AC2/PEN-DD MAZDA NOS ￥3300 WB
AC5/PEN DD =twin diode + power Pentode= (EIA/-, British-7pin, Top G1)Eh/Ih=4V/2A Ppmax=10W Epmax=250V Ec2max=250V op : Ep=100V Ec2=100V Ec1=0V gm=9.0mS op : Ep=250V Ec2=250V Ec1=-8.5V(Rk=175Ω) Ip=40mA Ic2=7.5mA Zl=5.2kΩ Po=4.85W D=5% op : Ep=250V Ec2=250V Ec1=-8.5V(Rk=175Ω) Ip=40mA Ic2=7.5mA Zl=4.5kΩ Po=5.80W D=7% size : 54mmΦ x 142mmH, in max 1) AC5/PEN-DD MAZDA NIB ￥4300 very-ragged box
AC701/K =Med-mu Triode for condenser microphone pre-amplifier= (EIA/ - ) *subminiature* *very-high input impedance, low-microphonic noise, and low-distortion tube especially for condenser microphones. Eh/Ih=4V/0.1A Ehkmax=±100V Ppmax=0.5W Epmax=120V/250V(cutoff) Ikmax=5mA Rgmax=180MΩ op(Condenser-mic. pre-amp): Eb=120V Rp=50kΩ Ec=-1.6V Rg=150MΩ Cg=50pF Ip=1.35mA Rl=100kΩ Eo=9V D=0.4% (参考 : Ep-Ip特性) 0) AC701 TFK NOS ￥- WB 0) AC701K TFK used ￥- for Neumann-mic WB
AD1/AD1n/'Eb III' =PowerTriode= AD1 : Ef/If=4V/0.95A Ppmax=15W Epmax=250V Ecmax=-2V Ipmax=90mA Rg1max=300kΩ(fixed)/700kΩ(self) op : Ep=250V Ec=-45V Ip=60mA rp=0.67kΩ gm=6mS μ=4 Zl=2.3kΩ Po=4.2W AD1n : Eh/Ih=4V/2A(cathode type) Ppmax=15W Epmax=250V/550V(cutoff) Ikmax=90mA Rg1max=300kΩ(fixed)/700kΩ(self) op : Ep=250V Ec=-45V Ip=60mA rp=1.035kΩ gm=4.3mS μ=4.4 Zl=2.3kΩ Po=4.2W Eb III : industrial robust version of AD1 (see AD1のEp-Ip特性) electrically similar to 2A3(UX4pin, Ef/If=2.5V/2.5A), 6A3(UX4pin, Ef/If=6.3V/1A), 6B4G(octal, Ef/If=6.3V/1A) (also see Valvo AD1's under test on Funke W20) push-pull amplifier sample : Valvo AD1-pp monaural-amplifier / L-ch, and / R-ch 2) Eb III TFK NIB ￥offer just-ragged boxes, Ip=70mA, 76mA/36mAmin(@Ep=250V, Eg=-45V) on Funke W-20 2) AD1 Valvo lightly-used ￥offer Funke W-20 tested. WB 2) AD1 Valvo lightly-used ￥offer large getter-flash type, Funke W-20 tested, WB 1) AD1 Valvo used ￥offer just-loose base WB 1) AD1/400 Loewe used ￥offer Ip=58mA/36mAmin(@Ep=250V, Eg=-45V) on Funke W-20, WB 1) AD1 Tungsram NIB? ￥24000 GrayGlass Ip=53mA/36mAmin(@Ep=250V, Eg=-45V) on Funke W-20, very-ragged box 1) AD1 Tungsram NIB? ￥24000 GrayGlass Ip=51mA/36mAmin(@Ep=250V, Eg=-45V) on Funke W-20 1) AD1 Tungsram used-lightly ￥20000 GrayGlass Ip=58mA/36mAmin(@Ep=250V, Eg=-45V) on Funke W-20, WB 1) AD1 Valvo NOS? ￥10000 GrayGlass Ip=36mA/36mAmin(@Ep=250V, Eg=-45V) on Funke W-20, very-ragged box 1) AD1 Tungsram used ￥3000 GrayGlass ベース剥離 LowEmission 12mA on W19 1) AD1n Tesla used? ￥25000 (cathode type triode)
AF7 =HF Pentode= (EIA/ - ) Eh/Ih=4V/0.65A Ehkmax=50V Ppmax=1W Epmax=250V(550V-cutoff) Pc2max=0.3W Ec2max=100V(400V-cutoff) Ikmax=6mA Rg1max=1.5MΩ op : Ep=250V Ec2=100V Rk=500Ω Ip=3mA Ic2=1.1mA, rp=2MΩ gm=2.1mS heater variant : CF7(Eh/Ih=13V/0.2A), NF2(Eh/Ih=12.6V/0.195A) 0) AF7 Telefunken ￥- NIB 1) AF7 Siemens ￥4900 NIB ragged-box
AL4 =Power Pentode= (EIA/ - ) Eh/Ih=4V/1.75A Ehkmax=50V Ppmax=9W Epmax=250V/550V Pc2max=1.5W Ec2max=260V/550V(cutoff) Ikmax=50mA Rg1max=1MΩ op(A1s) : Ep=250V Ec2=250V Rk=150Ω Ip=36mA Ic2=5mA, gm=9.5mS, Zl=7kΩ Po=4.5W op(AB1pp) : Ep=250V Ec2=250V Rk=140Ω Ip=24mAx2/28.5mAx2 Ic2=2.8mAx2/4.6mAx2 Zlpp=10kΩ Po=8.2W D=3.1% electrically similar types (different base/heater) : APP4B/C, EL3N, 6M6G 2) AL4 Philips ￥4700 NIB WB 8) AL4 Philips ￥4700 NIB WB 1) AL4 Tungsram ￥3100 lightly-used just-loose base, WB
APP4B/C =Power Pentode= (EIA/ - , B7) Eh/Ih=4V/1.95A Ppmax=W Epmax=250V Pc2max=W Ec2max=250V op : Ep=250V Rk=150Ω Ip=36mA Ic2=4mA, gm=10mS, Zl=7kΩ Po=3.6W pins : 1(G3)-2(G1)-3(G2)-4(H)-5(H)-6(K)-7(P) similar to KT41 electrically similar types (different base/heater) : AL4, EL3N, 6M6G 2) APP4C Tungsram ￥5300 NIB
AR8 = HL23DD(twin diode + med-mu triode)
ARP12 = VP23(=ZA7023, CV1331)
1) ARTH2 ZA/2985 - used ￥1000 赤spay-shield splayに傷多し not-tested
AT20/CV1361 =Filamentary Power Triode= (EIA/ - British 4-pins, ST) Ef/If=6V/1.1A Ppmax=20W Epmax=600V op : Ep=500V Ec=-30V Ip=45mA op : Ep=500V Ec=-27.5V rp=3.2kΩ gm=3.2mS μ=10 Lmax=165mm Dmax=67mmΦ electrically similar to 3T20, 801A, VT-62 2) AT20 Mazda ￥offer used large-ST WB 0) AT20 Mazda ￥offer used large-ST 0) AT20 Cossor ￥offer used
ATS 25 / ATS 25A =PowerBeamTetrode= (EIA/ - ) Ppmax=25W Epmax=600V Pc2max=3.5W Ec2max=300V Eh/Ih=6.3V/0.9A similar to 807, 5933/807W, 1625/VT-136(Eh/Ih=12.6V/0.45A), 5B/254M - CV428(loktal base) 3) ATS25 Military used ￥3000 CeramicBase
AUTOMOTIVE : see Wunderlich A/B
AX1 =FullwaveGasFilledRectifier= Epmax=500VACx2 Idc=125mA Ef/If=4V/2A 0) AX1 Valvo ￥- used
AX50 =FullwaveGasFilledRectifier= Epmax=500VACx2 Idc=250mA Ef/If=4V/3.75A 0) AX50 Valvo ￥- used
AZ1 =FullwaveRectifier= Epmax=300VACx2 Idc=100mA Ef/If=4V/1.1A Epmax=500VACx2 Idc=60mA 1) AZ1-globe TFK ￥5000 used WB 1) AZ1-globe TFK ￥5000 used WB 1) AZ1-straight TFK ￥2000 used
AZ3 =FullwaveRectifier= Epmax=385VACx2 Idc=125mA Ef/If=4V/1.85A 0) AZ3 Philips ￥- used
AZ4 =FullwaveRectifier= Epmax=400VACx2 Idc=150mA Ef/If=4V/2.2A 0) AZ4 Philips ￥- used 1) AZ4 Ultron ￥4700 NIB very-ragged box (hyy2&4mcqx)
AZ11 =FullwaveRectifier= Epmax=300VACx2 Idc=100mA Ef/If=4V/1.1A Epmax=500VACx2 Idc=60mA 1) AZ11-globe-mesh TFK ￥- used 1) AZ11-globe-mesh Valvo ￥- used 5) AZ11 TFK NIB ￥3300 1) AZ11-ST Valvo NIB ￥2900 1) AZ11 TFK used ￥4100
AZ12 =FullwaveRectifier= Epmax=300VACx2 Idc=200mA Ef/If=4V/2.2A Epmax=500VACx2 Idc=120mA 0) AZ12 TFK ￥- used
AZ31 =FullwaveRectifier= Epmax=300VACx2 Idc=100mA Cmax=60uF R=100ohm- Ef/If=4V/1.1A Epmax=400VACx2 Idc=75mA Cmax=60uF R=100ohm- Epmax=500VACx2 Idc=60mA Cmax=60uF R=100ohm- 1) AZ31 PhilipsMiniwatt NIB ￥2900 OctalBase
AZ41 =FullwaveRectifier= Epmax=500VACx2 Idc=60mA Ef/If=4V/0.75A 0) AZ41 TFK ￥- used
AZ50 =FullwaveRectifier= Ef/If=4V/3A Epmax=300VACx2 Idc=300mA Epmax=400VACx2 Idc=275mA Epmax=500VACx2 Idc=250mA Rsource=100Ω Cout=16μFmax Rsource=150Ω Cout=32μFmax Rsource=200Ω Cout=64μFmax size : 51mmΦ x 150mmH (参考) AZ50の整流特性(Idc-Edc-Eac) see a European similar type : FW4/500 also see a higher PIV type : U18/20 1) AZ50 Valvo ￥offer NIB (hyy17ox)
B / type-B =gas-filled fullwave rectifier= non-filament EP=275V Idc=60mA later up-rated version = type BH 1) type-B Ray lightly-used ￥3300 Gas-Rectifier 動作不明 side view, WB 1) type-B Ray used ￥2200 Gas-Rectifier 動作不明 side view, bottom view, WB
1) B04 Tungsram used ￥1200
B205 =filamentary small-power Triode= (EIA/ - UF4pin ) Ef/If=2V/0.15A Epmax=150V rp=4.2kΩ-typ gm=1.2mS-typ μ=5-typ (参考 : Eg-Ip特性(Ep = 50V, 100V, 150V)) similar to B405(Philips), 220P(Cossor), P215(Marconi, Mazda), PM2(Mullard) also similar to CV1662, RE152 0) B205-globe Philips ￥- used WB 2) B205-globe Philips ￥4700 used WB
B228 =filamentary Triode= (EIA/ - UF4pin ) Ef/If=2V/0.1A op : Ep(max)=150V Ec=-2V Ip=2mA rp=23kΩ gm=1.2mS μ=28 (参考 : Eg-Ip特性(@Ep= 100V, 150V)) size : 41mmΦ x 81mmH, in max similar to HL2, HL2/K(MOV), PM1HL(Mullard), 210HF(Cossor) also similar to KC1(TFK) also see larger-rp / higher-μ type : H210(rp=50kΩ, μ=35) 0) B228-globe Philips ￥- used WB 1) B228-globe Philips ￥5000 used gold-SprayShield WB
B403 =filamentary small-power Triode= (EIA/ - UF4pin ) Ef/If=4V/0.15A op : Ep(max)=150V Ec=-30V Ip=15mA rp=2kΩ gm=1.5mS μ=3 Zl=4kΩ Po=0.5W (参考 : Eg-Ip特性(@Ep=50V, 100V, 150V)) USA similar type : 71A/171A/471A(UX base, Ef/If=5V/0.25A) 0) B403-globe Philips ￥- used WB 2) B403-globe Philips ￥4800 used
B405 =filamentary small-power Triode= (EIA/ - ) Ef/If=4V/0.15A op : Ep(max)=150V Ec=-18V Ip=11mA rp=3kΩ gm=1.6mS μ=5 (参考 : Eg-Ip特性(Ep = 50V, 100V, 150V)) size : 46mmΦ x 91mmH, in max B405(Philips) = TM-BF-2(military) = P414(Tungsram) = RE114(TFK) also similar to B205(Philips, Ef=2V) 0) B405-globe PhlpsMiniwatt ￥- used 2) B405-globe Philips ￥4900 used 2) B405-globe Philips ￥4900 used
B406 =filamentary small-power Triode= Ef/If=4V/0.1A Epmax=150V op : Ep=150V Ec=-15V Ip=8mA rp=4.5kΩ gm=1.3mS μ=6 (参考 : Eg-Ip特性(Ep = 50V, 100V, 150V)) size : 46mmΦ x 91mmH, in max B406(Philips)=L410(Valvo) also similar to RE114 0) B406-globe PhilipsMiniwatt ￥3900 used Ep/Ec/Ip=150V/-10V/18.5mA Triode made in Holland 2) B406-globe PhilipsMiniwatt ￥3900 used
B409 =filamentary small-power Triode= Ef/If=4.0V/0.15A Ppmax=3W Epmax=250V(400V-cutoff) Ikmax=15mA Rgmax=1MΩ op : Ep=250V Ec=-18V Ip=12mA rp=5kΩ gm=1.8mS μ=9-typ (参考 : Eg-Ip特性(Ep = 150V, 200V, 250V)) (参考 : Ep-Ip特性) size : 46mmΦ x 91mmH, in max B409(Philips) = L413(Valvo) = RE134(Telefunken) = D9(RadioFotos/Grammont) also see other similar types : PM4(Mullard), U415(Zenith(Italy)) 0) B409-globe Philips ￥- used 1) B409-globe Philips ￥5000 used black glass, WB
B424 =filamentary med-mu Triode= (EIA/ - ) Ef/If=4V/0.1A Epmax=200V op : Ep=200V Ec=-3V Ip=6mA rp=9kΩ gm=2.5mS μ=24-typ (参考 : Eg-Ip特性(Ep = 100V, 150V, 200V)) size : 46mmΦ x 92mmH, in max similar to A411(Valvo), A430(Triotron), PM3D(Mullard) 1) B424-globe Philips ￥5000 BulkNOS WB gm=2800μmho @Eg=-2V on KS-15750-L1(Ep≒140V) 0) B424-globe PhlpsMiniwatt ￥- used WB
B438 =filamentary med-mu Triode= (EIA/ - ) Ef/If=4V/0.1A Epmax=200V op : Ep=200V Ec=-2.5V Ip=0.2mA gm=2mS μ=38-typ size : 38mmΦ x 78mmH, in max (参考 : Eg-Ip特性(Ep = 100V, 150V, 200V)) 1) B438-globe Philips ￥5000 lightly-used WB
B1700/A =current-regulating Ballast tube= (EIA/ - octal) *ST shape - ballast tube 2) B-1700A Tamura-denki/田村電気 ￥1000 like-new WB
Ba =filamentary Triode= Ef/If=3.5V/0.5A Ppmax=1.5W Epmax=230V/400V(cutoff) Ikmax=mA Rgmax=600kΩ op : Ep=220V Ec=-3V Ip=3mA rp=25kΩ gm=0.6mS μ=15 4) Ba-globe Valvo NOS ￥９５００ TipTop SprayShield OriginalWrapper 8) Ba-globe Valvo NOS ￥８５００ bottom排気 1) Ba-globe Valvo NOS ￥８０００ bottom排気 管内にガラスチップあり/NoGas/High-Emission
BH / type-BH =gas-filled fullwave rectifier= non-filament EP=350V Ik=125mA Edrop=90V former lower-rated version = type B 1) Type-BH Ray used ￥3300 Gas-Rectifier 動作不明 1) Type-BH Ray used ￥2200 Gas-Rectifier 動作不明、ラトルあり 1) Type-BH Ray used ￥2000 Gas-Rectifier 動作不明、Glassロット折れ
Bi =cathode-type Triode= Eh/Ih=4V/1.1A Ppmax=3W Epmax=230V/400V(cutoff) Ikmax=mA Rgmax=250kΩ op : Ep=220V Rk=300Ω Ip=10mA rp=11kΩ gm=2.5mS μ=27.5 French equivallent type : PTT100 0) Bi-globe Valvo used ￥- SprayShield
1) Type-BR Eveready-Raytheon used ￥2000
1) BRK GE NIB ￥1500 4V/0.75A ReproducerLamp
C3b =Hi-gm Wideband Pentode= pin= Ppmax=2W Epmax=250V Pg2max=0.7W Ec2max=250V Ik=30mA Rgmax=MΩ Eh/Ih=4V/1.1A 動作例: Ep=220V/8mA Ec2=150V/3.5mA Rk=175Ω gm=3.5mS 1) C3b - used
C3e =Hi-gm Wideband Pentode= pin= Ppmax=4W Epmax=300V Pg2max=1.5W Ec2max=300V Ik=45mA Rgmax=MΩ Eh/Ih=18V/0.24A 動作例: Ep=220V/14mA Ec2=200V/3.5mA Rk=140Ω gm=4.1mS 1) C3e Siemens used ￥4100 太管
C3g =Hi-gm Wideband Pentode= Loktal Eh/Ih=6.3V/0.37A Ehkmax=120V Ppmax=3.5W Epmax=220V Pg2max=Pg3max=0.7W Ec2max=Ec3max=220V Ik=30mA Rgmax=0.5MΩ op : Ep=220V/13mA Ec2=150V/4.7mA Rk=115Ω Zl=15kΩ Po=1.2W D=10% op : Ep=220V Ec2=150V Rk=115Ω Ip=13mA Ic2=3.3mA gm=14mS rp=300kΩ μg2g1=41 op(triode connection) : Ep=220V Rk=180Ω Ip=17mA gm=17mS rp=2.3kΩ μ=40 pins : 1(H)-2(G3,S)-3(P)-4(G2)-5(K)-6(G1)-7(K)-8(H) (参考 : Triode-connection(三結) Ep-Ip characteristics) also see electrically similar noval types : 6686 E81L(rp=300kΩ, gm=11mS, μg2g1=36) 18046(Eh/Ih=20V/0.135A) 20) C3g Siemens NIB ￥3900 10) C3g Siemens NIB ￥3900 (hyyaPn) No.=154258, 154263, 154264, 154265, 154269, 154270, 355582, 355583, 355585, 355590 3) C3g Siemens NIB ￥3900 2) C3g Siemens NOS ￥3900 gm=11850,11800/5750min 1) C3g ITT NOS ￥3900 gm=10500/5750min 1) C3g Lorenz NOS ￥3900 10300/5750min
C3m =AF,RF Universal Pentode= Loktal Eh/Ih=20V/0.125A Ehkmax=120V Rgmax=0.5MΩ Epmax=300V/550Vcutoff Ppmax=4W Pg2max=Pg3max=1W Ec2max=Ec3max=300V/550Vcutoff Ikmax=30mA op : Ep=220V Ec2=150V Rk=250Ω Ip=16mA Ic2=3mA gm=6.5mS rp=250kΩ μg2g1=19 op : Ep=220V/17.4mA Ec2=150V/5mA Rk=250Ω Zl=10kΩ Po=1.5W D=10% Triode connection(P+G2+G3): Ppmax=5W Epmax=300V/550Vcutoff Ikmax=30mA op(triode connection) : Ep=220V Rk=500Ω Ip=18.5mA gm=7.2mS rp=2.5kΩ μ=18 pins : 1(H)-2(P)-3(G3)-4(G2)-5(NC)-6(G1)-7(K,S)-8(H) (参考 : Triode-connection(P+G2+G3 三結) Ep-Ip characteristics) heater variant : C3o(6.3V/0.4A) equivallent type : 18048 also see just-upper rating electrically similar long-life noval types : 6227 E80L(Eh/Ih=6.3V/0.75A, Ppmax=8W, rp=90kΩ, gm=9mS, μg2g1=21.5) 5) C3m Siemens NIB ￥4100 10) C3m Siemens NIB ￥4100 sealed 2) C3m Siemens NIB ￥4100 sealed, serial #1083590, #1083591 2) C3m Siemens NIB ￥4100 sealed, serial #1083592, #1083593 6) C3m Siemens NIB ￥4100 stll-sealed 5) C3m Siemens NIB ￥4100 2) C3m Siemens NIB ￥4100 2) C3m Siemens NOS ￥3900 gm=5520,5850/2500min 1) C3m ITT-Lorenz NOS ￥3900 gm=5650/2500min 1) C3m Lorenz NOS ￥3900 gm=5800/2500min 1) C3m TFK NOS? ￥3900 gm=4950/2500min
C3o =AF,RF Universal Pentode= Loktal Eh/Ih=6.3V/0.4A Ehkmax=120V Rgmax=0.5MΩ Epmax=300V/550Vcutoff Ppmax=4W Pg2max=Pg3max=1W Ec2max=Ec3max=300V/550Vcutoff Ikmax=30mA op : Ep=220V Ec2=150V Rk=250Ω Ip=16mA Ic2=3mA gm=6.5mS rp=250kΩ μg2g1=19 op : Ep=220V/17.4mA Ec2=150V/5mA Rk=250Ω Zl=10kΩ Po=1.5W D=10% Triode connection(P+G2+G3): Ppmax=5W Epmax=300V/550Vcutoff Ikmax=30mA op(triode connection) : Ep=220V Rk=500Ω Ip=18.5mA gm=7.2mS rp=2.5kΩ μ=18 pins : 1(H)-2(P)-3(G3)-4(G2)-5(NC)-6(G1)-7(K,S)-8(H) (参考 : 五結(Ec2=150V)、P+G2+G3三結のEp-Ip特性) - pentode/triode connection heater variant : C3m 18048(20V/0.125A) also see just-upper rating electrically similar long-life noval types : 6227 E80L(Eh/Ih=6.3V/0.75A, Ppmax=8W, rp=90kΩ, gm=9mS, μg2g1=21.5) 0) C3o Siemens NIB ￥4300 8) C3o Siemens NIB ￥4300 lot='5.Juni 79 28'(同一ロット) (yellow-ribbon Numbers = #065974, #065975, #065976, #065977, #065979, #065981, #065982, #065983) 10) C3o Siemens NIB ￥4300 lot=001084(同一ロット) (yellow-ribbon Numbers = #67832, #67833, #67835, #67836, #67866, #67867, #67872, #67874, #67875, #67877) 2) C3o Siemens NIB ￥4300 lot=001085(同一ロット) (yellow-ribbon Numbers = #067107, #067115) 0) C3o Siemens used ￥2000
C-202/C202
1) C-2080A GE NOS ￥6800 WB
Ca =Power Triode= Ppmax=5W Epmax=230V (Epmax-cutoff=400V) Ikmax=-mA Rgmax=500kΩ μ=6.8 gm=1.65mS rp=4.1kΩ 3.65V/1.1A op A1S : Ep=220V Ec=-12V Ik=20mA D=14.6% 0) Ca Siemens used ￥- =rare=
CBL1 =Twin diode + Beam Power= (EIA/-, P : 8-pin side-contact, Top-G1) Eh/Ih=44V/0.2A Ehk=175Vmax Rg1max=1MΩ (pentode) Ppmax=9W Epmax=250V(550V-cutoff) Pc2max=2W Ec2max=250V(550V-cutoff) Ikmax=70mA (diode) PIV=350V Idc=0.8mAmax/5mA-peak op: Ep=200V Ec2=200V Ec1=-8.5V Ip=45mA Ic2=6mA gm=8mS rp=40kΩ μg2g1=13.5 op(A1S) : Ep=200V Ec2=200V Ec1=-8.5V(Rk=170Ω) Ip=45mA Ic2=6mA Zl=4.5kΩ Po=4W D=10% pins(P:side-contact) : 1(NC)-2(H)-3(H)-4(K,G3,M)-5(D1)-6(D2)-7(G2)-8(P)-Top(G1) size : 52mmΦ x 130mmH, in max heater variant with just different spec.'s : EBL1(Eh/Ih=6.3V/1.18A, Ikmax=55mA, Ehkmax=50V, μg2g1=23) 0) CBL 1 Philips ￥1000 used WB 0) CBL 1 MAZDA ￥1000 used WB
CCa =High-gm LowNoise TwinTriode for Cascode Amplifier= (EIA/9AJ - noval) 10000H-PremiumQuality type Eh/Ih= 6.3V/0.3A Ehkmax=+100V/-150V Rgmax=1MΩ Ppmax=1.5W Epmax=220V(250V for Pp<0.8W)/400V(for Ip=0mA) Ikmax=20mA Ikpeak=100mA(200us) Pcmax=30mW op : Ep=100V Ec=+9V Rk=680Ω Ip=15mA rp=3kΩ gm=12.5mS μ=33 op : Ep=90V Ec=0V Rk=120Ω Ip=12mA gm=11.5mS (参考 : EpIp特性) (see 6DJ8 / 6922 / 7308 / 8416 / E88CC / E188CC / E288CC / PCC88 / 6ES8) 10) CCa Siemens NIB ￥10900 Goldpins (hyyanz) =rare=
CE-1-C == 1) CE-1-C Central Electric(Cetron) ￥2700 used WB
1) CE-23A Cetron ￥2200 NIB
1) CE-31V Cetron ￥2500 NIB
1) CE-220 ContinentalElectric ￥2000 used NotTested(tw02)
CE-A59RX/CEA59RX =gas-filled Photo tube= (EIA/ - octal) SpectralResponse=S4, Wavelength=0.4μm(min) sensitivity=7.5μA/lm(min) Idark=5nA(@23℃) Ea-max=90V(DC) AmpFactor≦5.5 Top=75℃max pins : 1(NC)-2(NC)-3(none)-4(A)-5(none)-6(NC)-7(none)-8(K) 1) A59RX Cetron ￥1300 NOS? 茶base
CF7 =RF Pentode= Eh/Ih=13V/0.2A Ppmax=1W Epmax=250V Pc2max=0.3W Ec2max=125V Ehkmax=125V Rg1max=1.5MΩ op : Ep=200V Ec2=100V Rk=500Ω Ip=3mA Ic2=1.1mA gm=2.1mS rp=2MΩ heater variant : AF7(Eh/Ih=4V/0.65A) almost equivallent type : NF2(Eh/Ih=12.6V/0.195A) 1) CF7 TeKaDe ￥2900 NIB
CK502/AX =filamentary power Pentode= *subminiature* Ef/If=1.25V/30mA Epmax=45V Ec2max=45V Ehkmax=125V Ikmax=1mA op : Ep=22.5V Ec2=22.5V Ec1=0V Ip=0.27mA Ic2=0.07mA rp=220kΩ gm=0.385mS Zl=150kΩ Po=1.2mW op : Ep=45V Ec2=45V Ec1=-1.25V Ip=0.45mA Ic2=0.11mA rp=250kΩ gm=0.5mS Zl=100kΩ Po=6mW 1) CK502AX Ray ￥1900 NIB
1) CK539DX Ray ￥1900 NIB *subminiature*
1) CK549DX Ray ￥1900 NIB *subminiature*
CK1006(gas rectifier) => see 1006
1) CK1123 Ray ￥1800 NIB ===================================== [ CV-code球 と 一般球の対応 ] ===================================== CV-11 => see UXCV-11/CV-11
CV18 = RK-34/RK34/4070A/'33A/138A' (see)
CV24 = HL41(triode)
CV66 = EC54/RL37
CV138 = 6AM6
CV140 = MIL 6AL5/ EB91 = 5726 1) CV140 KB/EN MC Thorn-AEI ￥2000 NIB MB
CV181 = ECC32
CV245 = MIL 328A 1) CV245/4328D ValveElectronic/STC ￥4700 NIB
CV249 = 3A/107A
CV303 =vari-μ HF Pentode= (EIA/ - loktal) CV303 = EF22 = 6H2(Sweden) = 6F22(Sweden) Eh/Ih=6.3V/0.2A±0.08A Ppmax=2W Epmax=300V(550V-cutoff) Pc2max=0.3W Ec2max=300V Ikmax=10mA op : Ep=250V Ec2=100V Ec1=-2.5V Ip=6mA rp=1.2MΩ gm=2.2mS op : Ep=300V Ec2=100V Ec1=0V, Ip=10.5mA to 15.5mA op : Ep=300V Ec2=100V Ec1=-6V, Ip=1.3mA to 2.7mA pins : 1(H)-2(P)-3(G2)-4(G3,S)-5(NONE)-6(G1)-7(K)-8(H) 5) CV303/6H2/6F22 SER(LM Ericsson) NIB ￥1500 ragged inner-wrapping 15) CV303/6H2/6F22 SER(LM Ericsson) NIB ￥1500 ragged inner-wrapping
CV345 = 12E1
CV358 =LF Pentode= (EIA/7R - octal, topG1) Eh/Ih=6.3V/0.2A op : Ep=250V Ec2=100V Ec1-2V Ip=3mA gm=1.8mS identical to 5A/157D, and EF37/EF37A : close to EF36 same-pinout similar USA types : 6J7/G/GT(Ppmax=0.75W), 1620(Ppmax=0.75W), WE-348A(Ppmax=2W) also similar to CV1343(Eh/Ih=4V/0.25A) 2) CV358 Brimar(STC's brand) ￥2200 NOS WB SprayShield StraightOctal BrownBase 4) CV358 ITT(STC-made) ￥2200 NIB SprayShield StraightOctal DarkBrownBase 3) CV358 ITT(STC-made) ￥2200 NIB SprayShield StraightOctal DarkBrownBase code=KB/FE(STC Oldway-plant)
CV378(=GZ37/U54/53KU) =FullWave Rectifier= PIV=1600V Idc=250mA(capacitor-input)/350mA(choke-input) Ef/If=5V/2.8A see identical type GZ37 also see nearly-identical type GZ33 4) CV378 ValveElectronic/ ￥9000 NIB MB 3) CV378 Mullard ￥9000 NIB MB 1) CV378 Mullard used ￥offer with an original box 2) CV378 Mullard used ￥offer WB 2) CV378 Mullard used ￥2700 WB
CV391 = 5B/255M (≒loktal-base version of 6L6)
CV428 = 5B/254M (≒loktal-base version of 807)
CV431 (= 85A1 / 0E3 =85V regulator= (EIA/ - Loktal) Vs=110V-125V Vop=85V±2V Ipmin=1mA Ipmax=8mA 1) CV431(85A1) ValveElectronic/ ￥1200 NIB MB
CV449 ( = 85A2 / 0G3) =85V regulator= (EIA/5BO - miniature) Vs=125V Vop=85V±2V Ipmin=1mA Ipmax=10mA 1) CV449 - ￥900 used
CV450 = EL38
CV455 ( = 12AT7/ECC81) =Twin Triode= 2) CV455(12AT7/ECC81) Mullard ￥3900 NIB MB(octal-size box) KB/DA B-coded supplier=GE-England
CV466 =RF Pentode= (EIA/-) *subminiature* proto-type=VX8046 Eh/Ih=6.3V/0.2A Ppmax=1,5W Epmax=190V/350V(cutoff) Pc2max=1W Ec2max=190V/350V(cutoff) Ikmax=14mA op : Ep=100V Ec2=100V Ec1=-2V Ip=7.5mA Ic2=2.5mA rp=0.25MΩ gm=5.5mS μg2g1=28 pins : 1(G1)-2(G3)-3(H)-4(P)-5(G2)-6(H)-7(K)-8(P) size : 10.16mmΦ x 38mmL similar to EF73 10) CV466 ValveElectronic(Mullard Micham-plant made) ￥1200 NIB MB
CV491 ( = 12AU7/E82CC / ECC802S) =TwinTriode= 1) CV491(E82CC/ECC802S) Telefunken ￥6000 <> 2500/2530/1950min Siemens箱
CV492 = 12AX7/WA
CV586 = EL37
CV587 ( = 6Q7G) =Double Diode High mu Triode= (EIA/7V - octal, top-grid) 2) CV587(6Q7G) Thorn-AEI, STC ￥1300 used WB
CV1025=DET25
CV1040 = PX25
CV1052 = EL32
CV1067 = L63(≒6J5/G)
CV1073 = H63(≒6F5/G)
CV1079 = KT8/KT8C
CV1116 =HF Pentode= (EIA/-, Mazda-octal, Top-G1) * proto-type = V872 Eh/Ih=6.3V/0.63A Ppmax=W Epmax=250V Pc2max=1.5W Ec2max=250V op : Ep=200V Ec2=200V Ec1=-4.0V gm=4.0mS pins : 1(H)-2(K)-3(P)-4(G2)-5(G3)-6(Metallising)-7(NONE)-8(H)-Top(G1) similar to 6F32 0) CV1116 AEI(EdisonSwan(Mazda-brand)) ￥- NOS WB 10) CV1116 Valve Electronic : Thorn-AEI(Mazda-included) ￥1300 KB/EN NIB/MB very-ragged boxes
CV1122 = 41MXP
CV1127 = PEN46/VT127
CV1133 =HalfWaveRectifier= PIV=7kV Idcmax=60mA Ef/If=4V/1.35A 2) CV1133KB/EN Thorn-AEI ￥1000 used WB
CV1137 = EC52(transmitting/VHF triode)
CV1168 = PX4
CV1296( = MU14) =HalfWaveRectifier= Eacmax=500V Idcmax=120mA Ef/If=4V/2.5A 2) CV1296 - ￥１９８００ NIB
CV1306 = HL23DD(twin diode + med-mu triode)
CV1331 = VP23/ARP12/ZA7023
CV1343 =HF Pentode= (EIA/7R - octal) * proto-type = KTZ73(Eh/Ih=6V/0.16A) Eh/Ih=4V/0.25A Ppmax=W Epmax=250V Pc2max=W Ec2max=100V op : Ep=100V Ec2=100V Ec1=-1.5V Ip=5mA Ic2=0.9mA gm=2.2mS pins : 1(Metallizing)-2(H)-3(P)-4(G2)-5(G3)-6(NC)-7(H)-8(K)-Top(G1) similar to KTZ63, 6J7/G, 1620(Eh/Ih=6.3V/0.3A) also similar to EF37A, 5A/157D, and CV358 10) CV1343 M.O.V(Marconi-Osram Valve) ￥3000 NIB D/C=77-24, aluminum-sheet shield
CV1361 = AT20
CV1863 = MIL 5Z4G 1) CV1863 Zaerix ￥1500 used? 116/120/54min as GZ34
CV1884 = 33A/158M(transmitting twin power Triode w/ 8-pin loktal base)
CV1947/6L6G(Brimar) =power Pentode= (EIA/7AC - octal) Eh/Ih=6.3V/0.9A Ppmax=21W Epmax=400V Pc2max=2.75W Ec2max=300V op : Eh=6.3V Ep=250V Ec2=250V Ec1=-14V, Ih=0.84A to 0.96A, Ip=58mA to 86mA, Ic2=8mAmax, gm=5.2mS to 6.8mS CV1947 = MIL 6L6G(VT-115A) similar to EL37/CV586(Eh/Ih=6.3V/1.4A) just-upper rating, electrically-similar type : KT66(Eh/Ih=6.3V/1.3A) 1) 6L6G Brimar ￥11000 NIB smoked-glass, just-ragged box gm=6000μmho/3600μmho-min, Ik=61mA @Eg1=-3V on KS-15750-L1 2) CV1947/FE Brimar ￥offer used like-new black-glass, just-loose base, WB gm/Ik=5900μmho/57mA, 6000μmho/60mA on KS-15750-L1, where gm-min=3600μmho 0) CV1947 ValveElectronic/Brimar ￥- used 0) CV1947 ValveElectronic/Mullard ￥- used
CV1985(6SL7GT/Y) =twin Triode= (EIA/8BD - octal) Eh/Ih=6.3V/0.3A Ehkmax=100V Ppmax=1.1W/unit Epmax=275V op : Ep=250V Ec=-2V rp=44kΩ gm=1.6mS μ=70 op : Eh=6.3V Ih=0.275A to 0.325A, Ep=250V Ec=-2V Ip=1.4mA to 3.2mA, gm=1.2mS to 2.0mS, μ=55 to 85 CV1985 ≒ MIL 6SL7GT(VT-229), 5691, 6113 also similar to ECC35 Eh/Ih=12.6V/0.15A type : VT-289(12SL7GT) 1) CV1985(6SL7GTY) STC(Brimar) ￥offer NOS KB/FB brown base, ragged original box gm=1700/1680/1050min, Ip=2.2mA/2.2mA(@Eg=-0.7V) on KS-15750-L1 1) CV1985(6SL7GTY) STC(Brimar) ￥offer NOS KB/FB brown base, ragged original box gm=1650/1640/1050min, Ip=2.35mA/2.25mA(@Eg=-0.7V) on KS-15750-L1, top view 0) CV1985(6SL7GTY) STC(Brimar) ￥offer NOS KB/FB brown base, ragged original box 0) CV1985/6SL7GT STC(Brimar) ￥offer NIB KB/FE black base very-ragged box
CV1988(6SN7GT/Y) =twin Triode= (EIA/8BD - octal) Eh/Ih=6.3V/0.6A Ppmax=2.75W/unit Epmax=330V Ikmax=20mA/unit op : Eh=6.3V Ep=250V Ec=-8V, Ih=0.55A to 0.65A, Ip=5.5mA to 12.5mA, gm=2.075mS to 3.125mS, μ=18 to 23 CV1988 = MIL 6SN7GT/GTY(VT-231) 2) CV1988/6SN7GTY Brimar ￥offer NIB(like-new) black-glass, brown base, smeared-out silk, very-ragged boxes coded 5960-99-000-1988, VALVE ELECTRONIC gm=3000/3000/1700min, 2510/2600/1700min (tested on KS-15750-L1) 1) CV1988/6SN7GTY Brimar ￥offer NIB black-glass, brown base, smeared silk, very-ragged boxes coded 5960-99-000-1988, VALVE ELECTRONIC gm=2740/2700/1700min, Ip=6.2mA/6.05mA @Eg=-4.2V (tested on KS-15750-L1) 0) CV1988 Brimar ￥- used WB ===================================== [ CV-code球 と 一般球の対応 ] =====================================
CV2031 =HF Pentode= (EIA/7DB - miniature) Eh/Ih=6.3V/0.3A Ehkmax=±150V Ppmax=3W Epmax=300V(550V-cutoff) Pc2max=0.9W Ec2max=300V(450V-cutoff) op : Ep=250V Ec2=250V Ec1=-2V Ip=10mA Ic2=2.5mA gm=7.6mS μg2g1=75 pins : 1(G1)-2(K)-3(H)-4(H)-5(P)-6(G3,S)-7(G2) similar to 6AM6, EF91, CV2195, CV4014, Z77 also similar to M8083 3) CV2031(KB/D) ValveElectronic(Mullard-Mitcham) ￥2200 NIB
CV2195 =HF Pentode= (EIA/7DB - miniature) Eh/Ih=6.3V/0.3A Ppmax=3W Epmax=300V/550V(cutoff) Pc2max=0.9W op : Ep=115V Ec2=115V Ec1=0V Rk=0Ω Ip=over-9.5mA op : Ep=150V Ec2=250V Rk=120Ω gm=7.2mS-8mS op : Ep=250V Ec2=250V Ec1=-2V Ip=10mA Ic2=2.6mA rp=1MΩ gm=7.5mS pins : 1(G1)-2(K)-3(H)-4(H)-5(P)-6(G3,S)-7(G2) similar to 6AM6, EF91, CV2031, CV4014, Z77 also similar to M8083 7) CV2195 - ￥900 used
CV2797(= 5894 / 5894A / AX9903 / QQE06-40) =Transmitting Twin Power Tetrode= (EIA/7BP* - Septar 7pin) Eh/If=12.6V/0.9A(6.3V/1.8A) Ehk=100V Fmax=250MHz CCS: Ppmax=2x20W Epmax=600V Pc2max=2x3.5W Ec2max=300V Pc1max=2x1W Ic1max=2x5mA Ikmax=2x140mA Rg1max=50kΩ(fixed)/100kΩ(self) gm=4.5mS μg2g1=8typ op(AB1pp) : Ep=300V Ec2=250V Ec1=-26V Ip=40/112mA Ic2=2/28mA Zlpp=6.5kΩ D=2.9% Po=22.5W op(AB1pp) : Ep=600V Ec2=250V Ec1=-27V Ip=40/124mA Ic2=0.9/23mA Zlpp=12.5kΩ D=2.4% Po=50W op(AB2pp) : Ep=300V Ec2=250V Ec1=-25V Ip=50/188mA Ic1=5.2mA Ic2=2.8/28mA Zlpp=4kΩ D=5% Po=37W op(AB2pp) : Ep=600V Ec2=250V Ec1=-25V Ip=50/200mA Ic1=5.2mA Ic2=1.4/26mA Zlpp=8kΩ D=5% Po=86W size : 46mmΦ x 104.5mmH, in max also see a same-base, electrically-similar RCA type : 829B also see an upper-rating, electrically-similar type : 8643 10) CV2797 EEV(English Electric Valve Corp.) ￥5000 NIB CV-Military Boxed
CV2901 =low noise Pentode= (EIA/9CQ - noval) CV2901 = EF86/6267 Z729 also similar to CV4085, EF806S 4) CV2901/EF86 - ￥2900 NIB MB
CV3711(=N78) =Power Pentode= (EIA/ -miniature) Ef/If=6.3V/0.64A Pentode connection Ppmax=9W Epmax=250V Pc2max=3W Ec2max=250V μ=420 gm=10.5mS rp=40kΩ op1(A1S) : Ep=250V Ec2=250V Rk=120Ω Ip=35mA Ic2=5.5mA Zl=7kΩ D=9.2% Po=4W op2(AB1pp) : Ep=250V Ec2=250V Rk=120Ω Ip=70/73mA Ic2=11/16.5mA Zl=9kΩ D=4.6% Po=9W op3(AB1pp) : Ep=350V Ec2=275V Rk=270Ω Ip=70mA/51mA Ic2=11mA/2010mA Zl=18kΩ D=4.8% Po=12.6W Triode connection Ppmax=12W Epmax=250V μ=24 gm=11.4mS rp=2.1kΩ op4(AB1pp) : Ep=300V Rk=220Ω Ip=67/73mA Zl=5kΩ D=1.5% Po=4.4W op5(AB1pp) : Ep=350V Rk=330Ω Ip=57/65mA Zl=8kΩ D=1.6% Po=6.3W 三結時の平均プレート特性(Triode-connection EpIp) 0) CV3711(=N78) GEC NIB ￥-
CV3889 = EL41/6CK5 (rimlock)
1) CV3995 - ￥900 used
1) CV3998(=E180F) Philips ￥2000 NIB Gpin 1) CV3998/E180F - ￥1100 used Gpin
CV4004 = M8137
CV4006 = 6BR7/CV4006, 6059/CV4006 and similar to 6BS7(top-G1)
CV4014(=6064, 6AM6, EF91) =sharp-cutoff RF pentode= (EIA/7DB - miniature) Eh/Ih=6.3V/0.3A Ehkmax=90V Ppmax=2.5W Pc2max=0.8W Epmax=Ec2max=250V op : Ep=Ec2=250V Ip=10mA Rk=160Ω rp=1MΩ gm=7.5mS μg2g1=70 similar to M8083 also similar to CV2031, CV2195 8) CV4014 ValveElectronic(KB/Z : MO-Valve, Hammersmith) ￥1200 NIB MB
CV4024(=E81CC, 12AT7W) =twin Triode= (EIA/ -) 1) CV4024(12AT7) ? ￥1200 used 3880/3450/2500min 1) CV4024/12AT7WA Mullard used ￥2100
CV4033 =High-mu Twin Triode w/ flying leads= (EIA/ -) Ppmax=2.8W Epmax=380V Ehkmax=100V rp=10.9kΩ gm=5.5mS μ=60typ Eh/Ih=12.6V/0.15A(6.3V/0.3A) electrically same as CV4024/12AT7 * Flexible flying leads can be welded or soldered directly to other electronic devices/parts. 4) CV4033 England ￥3300 NOS Flying lead BlueBoxed =rare=
CV4039 =RF power Pentode= (EIA/ -) Eh/Ih=6V/0.75A(±10% allowable) Ehkmax=±100V μg2g1=16typ Ppmax=12W Epmax=300V Pc2max=2W Ec2max=250V Ec1max=-125V Ipmax=50mA Ic2max=15mA Ic1max=5mA op(50MHz-B2S) : Ep=300V Ec2=250V Ec1=-60V Ip=50mA Ic2=5mA Pin=0.35W Po=8W similar to #5763 1) CV4039/6062 Brimar ￥2800 NIB BlkRibbedPlate VeryRaggedBox
CV4046 = TT15
CV4055 = 6CH6/EL821/7D10
CV4062/CV2179(=A2134) =Power Pentode= (EIA/ -miniature) Eh/Ih=6.3V/0.635A Pentode connection Ppmax=9W Epmax=300V Pc2max=3W Ec2max=300V gm=9.5mS rp=23.2kΩ op1(A1S) : Ep=165V Ec2=165V Rk=150Ω Ip=53mA Ic2=9mA Zl=3kΩ D=10% Po=4.1W op2(AB1pp) : Ep=250V Ec2=165V Rk=300Ω/valve Ip=66/80mA Ic2=10/24mA Zlpp=7.5kΩ D=4.5% Po=13.3W Triode connection Ppmax=12W Epmax=300V μ=10 gm=12mS rp=835Ω op3(AB1pp) : Ep=165V Rk=330Ω/valve Ip=65/74mA Zlpp=3kΩ D=1.4% Po=2.6W (五結時の平均プレート特性(Ep-Ip)(pentode connection)) (三結時の平均プレート特性(Ep-Ip)(triode connection)) 10) CV4062(=A2134) GEC NIB ￥offer coded KB/Z(MO-valve made) (hyyVzz)
CV4068 =trustworthy med-mu Twin Triode= (EIA/9A - noval) Eh/Ih=6.3V/0.6A(12.6V/0.3A) Ppmax=5W Epmax=300V/500V(cutoff) Ikmax=35mA Ecmax=-75V Icmax=7mA Rgmax=250kΩ(fixed)/1.5MΩ(self) low-microphonic, stable characteristics : suitable for a DC amplifier op : Ep=250V Ec=-4.6V Ip=6mA rp=14kΩ gm=2.35mS μ=32 pins : 1(2P)-2(2G)-3(2K)-4(H)-5(H)-6(1P)-7(1G)-8(1K)-9(HCT) 6158/CV4068のEp-Ip特性 see identical types : 6158, 13D3 * octal-base version of CV4068 = ECC32/CV181 4) CV4068/6158 Brimar ￥3900 NOS BlackRibbedPlates WB similar to 12AU7
CV4070( = 6AQ4 / EC91) =VHF Grounded-grid triode= (EIA/7DT - miniature) Eh/Ih=6.3V/0.3A Ehkmax=150V Ppmax=2.5W Epmax=250V Ikmax=15mA -Egmax=-100V Ep=250V Ip=10mA Ec1=-1.5V gm=8.5mS μ=100 rp=12kΩ 2) CV4070/6AQ4 - ￥900 used
CV4079 = A2293 (see)
CV4082 = A2426 (see)
CV4085 =ruggdized audio Pentode= (EIA/9CQ - noval) *low-hum, low-microphonic, stable characteristics Eh/Ih=6.3V/0.2A Ehkmax=100V Shock=500Gmax Vib.=2.5Gmax pentode connection : Ppmax=1W Epmax=300V/550V(cutoff) Ec2max=250V/550V(cutoff) Ikmax=6mA Rg1max=3MΩ(self) op : Ep=250V Ec2=140V Ec1=-2V Ip=3mA Ic2=0.6mA rp=2.5MΩ gm=2mS μg2g1=38 triode connection : Ppmax=1.2W (P, G2, G3 are connected) op : Ep=250V Ec1=-5V Ip=4mA rp=16.5kΩ gm=2mS μ=33 pins : 1(G2)-2(S)-3(K)-4(H)-5(H)-6(P)-7(S)-8(G3)-9(G1) 三結時の平均プレート特性(Triode-connection EpIp) same-basing electrically-similar types : E80F EF806S 6267/EF86 also similar to CV2901 = Z729 also see different base British low-microphonic & low-noise pentodes : 6BR7/CV4006, 6059/CV4006 and 6BS7(top-G1) also see a different base American low-noise pentode : 5879 3) CV4085-KB/Z MOV ￥4900 NIB mesh D/C=8243 3) CV4085-KB/Z MOV ￥4900 NIB mesh D/C=8318, 8333, 8337 4) CV4085 Mullard ￥3700 lightly-used mesh, still sitting on CV1040 SE amplifiers.
CV8089 = A2293 (see)
1) CVX850 - ￥1500 used wb BlkPlate
1) CWA GE ￥3900 NIB 115-125V/750W ProjectionLamp
CY-501-F/CY501F = MC-656-B
CZ-501-D/CZ501D, CZ-501-V/CZ501V =long-life Pentode= (EIA/6F - UZ top-G1, ST12) CZ-501-D : Eh/Ih=3.5V(3.15V-3.85V)/1A CZ-501-V : Eh/Ih=6.3V/0.55A op : Ep=250V Ec2=130V Ec1=-2.5V Ip=7mA Ic2=[LTE]2.5mA rp=1MΩ gm=3.5mS±1mS μ=3500 pins : 1(H)-2(P)-3(G2)-4(G3)-5(K)-6(H)-Top(G1) CZ-501-D = NEC/Sumitomo MC-656-C same-basing, lower-gm, different-heater similar types: WE-310A/B, WE-328A, 6C6, 1603, 57, 77 see a higher-gm type : MC-658-A/CZ-511-D(Eh/Ih=6.3V/0.6A, gm=6mS-typ) see a same-base & higher-gm type : UZ-6302(Eh/Ih=6.3V/0.6A, gm=10mS-typ, for TV-receiver on 1940s) (successor/後継miniature球 = 19M-R9, 19M-R10(Eh/Ih=19V/0.1A)) (参考 * NTT-ECL related high-rel, long-life, high-performance communication system receiving tubes * 6B-P16 (ECL-1179), 6B-R22 (ECL-1144), 6B-R23 (ECL---), 6R-H2 (ECL-1175) 6R-P10 (ECL-1071), 6R-R8 (ECL-1083), 6R-R21 (ECL-1084), 19M-R9 (ECL-1069), 12RLL3 (ECL-1134B) 19M-R10 (ECL-1135), 19R-LL1 (ECL-1134), 19R-P11 (ECL-1070), CZ-501D/V, CZ-504D/V) -D version - 1) CZ-501D Hitachi ￥3300 NIB D/C=1960-10 2) CZ-501D NEC ￥3500 LikeNew D/C=1959-5, 1961-10 gm=3600μmho/1100min, 3510μmho/1100min (tested as WE-310A @Eh=3V on KS-15750-L1 tester) 2) CZ-501D NEC ￥3300 LikeNew D/C=1951-8, 1951-8 gm=3020μmho/1100min, 3080μmho/1100min (tested as WE-310A @Eh=3V on KS-15750-L1 tester) 1) CZ-501-D NEC ￥2500 used D/C=1950-9, WB 5) CZ-501-D NEC ￥2500 used Date-Code = 1952-3, 1952-3, 1954-1, 1956-5, 1957-1 1) CZ-501-D NEC ￥2500 used Date-Code = 1955.6 gm=2940/1100min, Ik=9.1mA(Eg1=-3.7V) tested as WE-310A with Eh=3V on KS-15750-L1 1) CZ-501-D NEC ￥2500 used D/C=1959-4, WB 2) CZ-501-D NEC ￥2500 used D/C=1959-8, 1959-5, WB 1) CZ-501-D NEC ￥2500 used Date-Code = 1961.5 gm=3500/1100min, Ik=9.4mA(Eg1=-3.7V) tested as WE-310A with Eh=3V on KS-15750-L1 1) CZ-501-D NEC ￥1500 used D/C=1958-5, wasted getter-flash, rear-view, WB 1) CZ-501D Hitachi ￥2000 used D/C=1952-6, WB 3) CZ-501D Hitachi ￥2000 used WB Date-Code = 1953.7, 1955.10, 1960-8 2) CZ-501-D TEN ￥2000 used D/C=1951-8, 1952-8 WB gm=1810μmho/1100min, 1680μmho/1100min (tested as WE-310A @Eh=3V on KS-15750-L1 tester) -V version - 1) CZ-501-V NEC ￥offer NOS D/C=昭和28年8月(1953-8), WB 2) CZ-501-V NEC ￥offer NOS D/C=1960-3, WB 2) CZ-501-V NEC ￥offer lightly-used D/C=昭和26年11月(1951-11), 昭和28年9月(1953-9), WB 0) CZ-501-V NEC ￥- used
CZ-504-D/CZ504D =power Pentode= (EIA/6B - UZ, ST14) Eh/Ih=5.5V(4.95V-6.05V)/1A Ehkmax=±100V absolute max : Ppmax=13.75W Epmax=350V Pc2max=2.6W Ec2max=285V op : Ep=250V Ec2=200V Ec1=-13.5V Ip=40mA Ic2=[LTE]13mA rp=90kΩ gm=3.5mS±1mS μ=315 pins : 1(H)-2(P)-3(G2)-4(G1)-5(G3,K)-6(H) equivallent type : MB-655-A heater variants: CZ-504-V, MB-655-D (Eh/Ih=6.3V/1A) successor noval type (co-developed with NTT) : 19R-P11(Eh/Ih=19V/0.2A) same-basing, different-heater similar power pentodes : WE-336A, 2A5, 42 appearance : CZ-504-D, MB-655-A, and UZ-42 (参考:ヒーター直列抵抗0.82Ω～1Ω/2Wを接続し6.3V巻線からの給電でヒーターサージ電流抑制・長寿命化に適) (参考 * NTT-ECL related high-rel, long-life, high-performance communication system receiving tubes * 6B-P16 (ECL-1179), 6B-R22 (ECL-1144), 6B-R23 (ECL---), 6R-H2 (ECL-1175) 6R-P10 (ECL-1071), 6R-R8 (ECL-1083), 6R-R21 (ECL-1084), 19M-R9 (ECL-1069), 12RLL3 (ECL-1134B) 19M-R10 (ECL-1135), 19R-LL1 (ECL-1134), 19R-P11 (ECL-1070), CZ-501D/V, CZ-504D/V) 63) CZ-504D Hitachi ￥3900 NOS date=1950s, matched-pairs are available, WB 1) CZ-504D Hitachi ￥3900 NOS D/C=209 2) CZ-504-D NEC ￥3500 used black-ribbed-plate Date-Code = 1950-4, 1955-10 REAR-VIEW 1) CZ-504-D NEC ￥3500 used-LikeNew black-ribbed-plate Date-Code = 1951-5 NTT(電電公社)-specified gm=3500/1550min(as #42 and Eh=5.0V-5.7V, on WE/Hickok KS-15750-L1 tester) 0) CZ-504-D Hitachi ￥- used a little smooth BlackPlate, a little cathode-powder 1) CZ-504-D TEN ￥3500 lightly-used black-ribbed-plate Date-Code = 1953-9 NTT-specified gm=3000/1550min, Ip=40mA(as #42 and Eh=5V, on WE/Hickok KS-15750-L1 tester) 0) CZ-504-D TEN ￥- used black-ribbed-plate, poor getter-flash
CZ-504-V/CZ504V =Power Pentode= (EIA/6B - UZ, ST14) Eh/Ih=6.3V/1A op : Ep=250V Ec2=200V Ec1=-13.5V Ip=40mA Ic2=13mA rp=90kΩ gm=3.5mS equivallent type : MB-655-D pins : 1(H)-2(P)-3(G2)-4(G1)-5(G3,K)-6(H) (size : 118mmH x 44.5mmφ approx.) heater variants: CZ-504-D, MB-655-A (Eh/Ih=5.5V/1A) 0) CZ-504-V NEC ￥- used WB
CZ-511 =VHF Pentode= (EIA/6F - UZ top-G1, ST12) Eh/Ih=6.3V/0.6A op : Ep=250V Ec2=130V Ec1=-2V Ip=11mA Ic2=-mA rp=-MΩ gm=6mS lower gm type : CZ-501D(Eh/Ih=3.5V/1A, gm=3.5mS-typ) pins : 1(H)-2(P)-3(G2)-4(G3)-5(K)-6(H)-Top(G1) also see equivallent type : MC-658 also see a same pin-out & higher-gm type : UZ-6302(gm=10mS-typ, for TV-receiver on 1940s) 1) CZ-511 NEC ￥3300 lightly-used D/C=1949-4, WB
D3a =Hi-gm(35mS-typ) HF Pentode= (EIA/9EQ - noval) D3a=7721 10000H Special Quality Eh/Ih=6.3V/0.315A Ehkmax=+60V/-120V Tbulb=190℃max Ppmax=4W Epmax=220V(400V-cutoff) Pc2max=1W Ec2max=180V Ikmax=30mA Rg1max=500kΩ(self) op(pentode) : Ep=190V Ec2=160V Ec1=+10V Rk=400Ω Ip=22mA Ic2=6mA rp=120kΩ gm=35mS op(triode conn.) : Ep=160V Ec=+10V Rk=470Ω Ip=24mA rp=1.9kΩ gm=41mS μ=77 (参考 : 五結時のEpIp特性(Pentode-connection @Ec2=150V, Ec3=0V)) (参考 : 三結時のEpIp特性(Triode-connection)) same-basing similar types : E280F, E282F(μg2g1=27) also see similar-basing, electrically-similar type : E810F / 7788 also see another high-gm video amp pentode : EL802(Ppmax=6W, gm=40mS, μg2g1=70) 0) D3a Siemens ￥- NIB 4) D3a / CV10804 Siemens(Philips-made) ￥7900 NIB GoldPins rear-view D/C=X6-1B(metal-tag/ Philips-Sittard plant, Feb.1st-week 1976), 282(glass-print/ Feb.1982), 2/82(box-print/ Feb.1982) 0) D3a Siemens ￥- used
D9 =filamentary small-power Triode= Ef/If=4.0V/0.12A Ppmax=-W Epmax=-V Ikmax=-mA Rgmax=-MΩ op : Ep=150V Ec=-4V Ip=10mA rp=10kΩ gm=1.5mS μ=15-typ size : mmΦ x mmH, in max D9(RadioFotos/Grammont) = B409(Philips) = L413(Valvo) = RE134(Telefunken) also see other similar types : PM4(Mullard), U415(Zenith(Italy)) 1) D9-globe RadioFotos/Grammont ￥7000 lightly-used Philips箱
D42 =diode for super-heterodyne detector= (EIA/ - ) Eh/Ih=4V/0.6A Eacmax=75Vrms Idcmax=15mA 1) D42 Marconi ￥2000 used
DA30/CV1178 =low-μ PowerTriode= Ef/If=4V/2.0A old(globe) : Ppmax=25W Epmax=400V later(globe, dome) : Ppmax=30W Epmax=500V op : Ep=100V Ec=0V rp=580Ω gm=6.9mS μ=4 op(A1S) : Ep=350V Ec=-85V Ip=60.0mA Zl=4.5kΩ Po=5.9W op(A1S) : Ep=400V Ec=-102V Ip=62.5mA Zl=4.5kΩ Po=8.0W op : Ep=500V Ec=-134V Ip=60mA rp=910Ω gm=3.85mS μ=3.5 Zl-optimum=6kΩ Po=11.0W op : Eb=634V Rk=2.3kΩ Ip=60mA rp=910Ω gm=3.85mS μ=3.5 Zl-optimum=6kΩ (see Ep-Ip特性) size : 66mmΦ x160mmH (dome type) similar to PX25A(Osram), DO30(Mullard), V503(Ediswan/Mazda) 2) DA30-dome GEC ￥offer NOS WB 2) DA30-dome Osram ￥offer LikeNew Colomor boxed, Glass Top view Ip=20mA, 19mA @Ep=250V, Eg=-75V on Funke W20 Testing View 0) DA30-dome Marconi ￥offer used WB
DAF96(=1AH5) =battery-type diode pentode= (EIA/ - miniature) Ef/If=1.4V/25mA (direct-heat) Ppmax=30mW Epmax=120V Pc2max=10mW Ec2max=90V Ec1max=-0.2V Ikmax=1mA Rg1max=3MΩ PIV(diode)=100V Idiode=0.2mAmax/1.2mA-peak-max op(pentode-con): Ebb=64V Rp=1MΩ Rg2=2.7MΩ Rg1=10MΩ Rl=2.2MΩ Ip=42μA Ic2=13μA A=63 D=1.8%(@Eo=5V) op(triode-con) : Ebb=64V Rp=1MΩ Rg1=10MΩ Rl=2.2MΩ Ip=38μA A=13 D=1.5%(@Eo=5V) pins : 1(-F,G3)-2((IC)-3(D)-4(G2)-5(P)-6(G1)-7(+F) 1) DAF96 Mullard ￥900 used
DC10A2 =decade counter tube= (EIA/ ) 2) DC10A-2 JRC(Japan Radio Co.) ￥2000 NIB D/C=1957-2 & 11, never-tested, Rear-View
DE2/200 =high voltage Fullwave Rectifier= Ef/If=4.0V/4A PIV=5.7kV Ein-max=2000Vrms Iout-max=100mA size : 77.5mmΦ(glass) x 176mmH (参考) DE2/200の整流特性 (Iout-Eout characteristics @Ein=parameter) 1) DE2/200 Philips ￥5200 like-new WB -) DE2/200 Philips ￥offer used WB
DE5/D.E.5 =filamentary triode= (EIA/ - B4) Ef/If=5V-6V/0.25A Epmax=140V Ep=60V-120V rp=7kΩ-typ gm=1mS-typ μ=7-typ (参考 : Eg-Ip特性(Ep=140V, 120V, 100V, 80V, 60V, 40V)) 1) DE5-globe Marconi ￥8000 used TipTop type WB -rare-
DE5A/D.E.5A =filamentary triode= (EIA/ - B4) Ef/If=5V-6V/0.25A Ppmax=W Ep=60V-120V rp=4kΩ-typ gm=0.88mS-typ μ=3.5-typ (参考 : Eg-Ip特性(Ep=150V, 120V, 100V, 80V, 60V)) 1) DE5A-globe Marconi ￥8000 used WB -rare-
1) DEK-500W/120V Syl ￥1000 NOS 電球 BluePaintTop
標記 この頁の各行は、基本的に下記のように記述されております｡ 在庫数) TYPE 製造メーカ 単価 new/used状態 その他状況 メーカ略号 Amprx(Amperex), Cunnghm(Cunningham), Dmnt(Dumont), GE(General Electric), Hyt(Hytron), Krad(KenRad), L&K(Lewis and Kaufman), Mag(Magnavox), NU(National Union), Ray(Raytheon), STD(Standard), Syl(Sylvania), TFK(Telefunken), Tsol(Tung-Sol), WE(Western Electric), WH(Westinghouse), Znth(Zenith)
DER/D.E.R./CV1642 =filamentary triode= (EIA/ - B4) Ef/If=1.8V/0.35A Ppmax=W Epmax=80V rp=32kΩ-typ gm=0.28mS-typ μ=9-typ 1) DER-globe-TipTop Osram ￥8000 used WB -rare-
DET25/CV1025/E1175/VT25/10E7312 =filamentary Power Triode= Ef/If=7.5V/1A-3A(1.9A-typ) Fmax=15MHz Ppmax=36W Epmax=1200V, rp=4.8kΩ-typ gm=2.1mS-typ μ=10-typ (@Ep=1200V, Ip=30mA) size : 54mmφx 160mmH (in max) 1) CV1025/E1175 STC-branded(MO-V made) ￥15000 LikeNew WB 1) VT25 MOV ￥- lightly-used WB
DET28 =filamentary transmitting power triode= (EIA/ - B9G) Ef/If=7.7V/1.15A Ppmax=25W Epmax=V rp=kΩ-typ gm=mS-typ μ=typ op : Ep=600V Ec=-60V Ip=100mA pins (9-pins loktal): 1(F)-2(G)-3(IC)-4(IC)-5(IC)-6(IC)-7(G)-8(IC)-9(F)-TopCap(P) 2) DET28 MWT(=MOV) ￥6300 NIB? 0) DET28 MWT(=MOV) ￥5000 lightly-used WB
DF33 =vari-μ RF Pentode= (EIA/ - octal ) DF33=1N5GT Ef/If=1.4V/50mA op : Ep=90V Ec2=90V Ec1=0V Ip=1.2mA Ic2=0.3mA rp=1.5MΩ gm=0.75mS 1) DF33 Mullard ￥2000 used WB
DF61 =filamentary RF Pentode= (EIA/) *subminiature* Ef/If=1.25V/25mA Cpg1<0.01pF Cin=3.1pF Cout=3.6pF Ppmax=-W Epmax=90V Pc2max=-W Ec2max=67.5V/90Vsupply-max Ikmax=2.5mA op : Ep=45V Ec2=45V Ec1=0V Ip=0.8mA Ic2=0.2mA rp=1.4MΩ gm=0.75mS μg2g1=21 op : Ep=67.5V Ec2=67.5V Ec1=0V Ip=1.7mA Ic2=0.45mA rp=1.6MΩ gm=0.95mS μg2g1=21 size : 6.4mm x 9.75mm x 38.1mmH, max with lead 38mm-length-min (参考: DF61 - pinout & size) 6) DF61 Philips ￥1300 NIB
DF62=1AD4 =fully-shielded filamentary sharp-cutoff RF Pentode= *subminiature* Ef/If=1.25V/100mA Ppmax=0.55W Epmax=90V Pc2max=0.2W Ec2max=90V Ikmax=8.5mA op : Ep=90V Ec2=90V E1=-1.6V Ip=5.7mA Ic2=1.5mA gm=2.6mS rp=500kΩ μg2g1=18 Ec1cutoff=-7V(gm=.01mS) 0) DF62/1AD4 Philips ￥- NOS WB
=RF Pentode= DF91=1T4 1.4V/50mA 0) DF91 Mullard ￥- used
DF96=1AJ4 =RF Pentode= (EIA/7DP - miniature) Ef/If=1.4V/25mA Ppmax=0.25W Epmax=120V Pc2max=0.1W Ec2max=90V Ikmax=2.2mA Rg1max=3MΩ op: Ep=64V Rg2=0Ω Ec2=64V Ec1=0V Ip=1.65mA Ic2=0.55mA rp=0.7MΩ gm=0.85mS op: Ep=85V Rg2=39kΩ Ec2=64V Ec1=0V Ip=1.65mA Ic2=0.55mA rp=1MΩ gm=0.85mS pins: 1(G3,F-,IS)-2(P)-3(G2)-4(IC)-5(G3,F-,IS)-6(G1)-7(F+) 1) DF96 Mullard ￥900 used
=RF Pentode= DF97=1AN5 1.4V/25mA 0) DF97 Mullard ￥- used
=Pentagrid Converter= DK92=1AC6 1.4V/50mA 0) DK92 TFK ￥- used
=Pentagrid Converter= DK96=1AB6 1.4V/25mA 0) DK96 TFK ￥- used
== DK97= V/mA 1) DK97 TFK ￥900 used
DL91(=1S4) =Power Pentode= (EIA/7AV - miniature) Ef/If=1.4V/100mA 0) DL91 Phlps ￥- used
DL92(=3S4) =Power Pentode= (EIA/7BA - miniature) Ef/If=1.4V/100mA(2.8V/50mA) 0) DL92 TFK ￥- used <>
DL93(=3A4) =Power Pentode= (EIA/7BB - miniature) Ef/If=1.4V/200mA(2.8V/100mA) 0) DL93 Phlps ￥- NIB 0) DL93 Phlps ￥- used
DL94(=3V4) =Power Pentode= (EIA/6BX - miniature) Ef/If=1.4V/100mA(2.8V/50mA) 1) DL94 TFK ￥1100 used <>
DL95(=3Q4) =Power Pentode= (EIA/7BA - miniature) Ef/If=1.4V/100mA(2.8V/50mA) 0) DL95 Phlps ￥- used
DL96(=3C4) =Power Pentode= (EIA/6BX - miniature) Ef/If=1.4V/100mA(2.8V/50mA) 0) DL96 TFK ￥- used <>
DL97(=3Y4) =Power Pentode= (EIA/7BA - miniature) Ef/If=1.4V/50mA(2.8V/25mA) 0) DL97 Phlps ￥- used
DL98(=3B4) =Power Pentode= (EIA/7CY - miniature) Ef/If=1.25V/330mA(2.5V/165mA) 0) DL98 Phlps ￥- used
DM10B2 =decade counter tube= (EIA/ ) sample of spec. & inspection sheet 1) DM10B-2 JRC(Japan Radio Co.) ￥2000 NIB D/C=1957-11, never-tested, Rear-View
DO24 =PowerTriode= Ef/If=4V/2A Ppmax=25W Epmax=400V Ikmax=mA rp=1.39kΩ-typ gm=6.5mS-typ μ=9-typ Zl-optimum=4kΩ similar type : PX25(Marconi/Osram) also similar to LK4200(Valvo), F410(Philips), U4E/U4E8(M.P.Pedersen) 0) DO24 Mullard ￥- used =VeryRare=
DO25 =LowMuPowerTriode= Ef/If=6V/1.8A Ppmax=25W Epmax=400V Ikmax=mA rp=1.15kΩ-typ gm=2.6mS-typ μ=3-typ (参考 : EpIp特性) <三極管の A1S 動作比較> 1) DO25 Mullard ￥７００００ used? LargeGlobeShape LikeNew/VeryStrong WB =VeryRare=
2) DR2000 RCA ￥1500 NIB 0-9表示管
21) DR2010 RCA ￥900 used? 0-9表示管
1) DR2110V1 RCA￥1500 NIB
DV2 =Audio/Radio Triode= Ef/If=5V/0.25A Ep=67.5V-90V(157.5Vmax) op : Ep=90V Ec=-1.5V Ip=4.8mA rp=9.6kΩ gm=0.83mS μ=8 similar to UV201A, C301A 1) DV2-Audion DeForest ￥12000 used IsolantiteBase 280μmho(Ef=3V,Ec=-13V) 1) DV2-Audion DeForest ￥9000 used IsolantiteBase 210μmho(Ef=3V,Ec=-13V) 1) DV2-Audion DeForest ￥3000 used IsolantiteBase ElectrodeShort Fil=OK [DISPLAY]
DV5 =Audio/Radio Triode= Ef/If=5V/0.25A op : Ep=135V Ec=-3V Ip=6.9mA rp=9.7kΩ gm=1mS μ=9.7 1) DV5-Audion DeForest ￥3000 used IsolantiteBase ElectrodeShort Fil=OK [DISPLAY]
DW4/350 =filamentary FullWaveRectifier= (British-4pin Base) Ef/If=4V/2A Epmax=2x350Vrms Idcmax=120mA Cmax=16μF size : 51mmΦ x 142mmH 1) DW4/350 Colomour ￥offer NOS WB (hyy2&4mcqx)
1) DWZ GE ￥2000 NIB 30V/375W QuarzlineLamp
DY80 =high-voltage half-wave revtifier= (EIA/9Y - noval) Ef/If=1.25V/0.2A PIV=23kV Iout=1mA/10mA-peak Cfilter=5000pFmax similar to 1X2C/1BX2 1) DY80 TFK ￥1300 NIB 2) DY80 Lorenz ￥1000 NIB
DY86 =high-voltage half-wave revtifier= (EIA/9DT - noval) Ef/If=1.4V/0.55A PIV=22kV Iout=0.5mA/40mA-peak Cfilter=2000pFmax DY86=1S2 2) DY86 Tungsram ￥1600 NIB
DY802 =high-voltage half-wave revtifier= (EIA/- noval) Ef/If=1.4V/0.6A PIV=25kV Iout=0.5mA/50mA-peak Cfilter=3000pFmax 1) DY802 Siemens ￥1500 NIB 2) DY802/1BQ2 Siemens ￥1500 NIB 2) DY802 Valvo ￥1500 NIB 1) DY802 Valvo ￥1500 NIB
2) DYG 30V/250W CGE ￥1000 NIB projector-lamp CeramicBase
DZ813 =filamentary Triode= Ef/If=4V/0.06A Ppmax=- Epmax=150V op : Ep=100V Ec=-3V Ip=1.6mA / rp=13kΩ-typ gm=1.05mS-typ μ=14-typ(@Ec=0V) similar to PM3(Mullard), A410N(Philips), G405(Tungsram) 1) DZ813-globe Mazda ￥3500 used Ep/Ec/Ip=150V/-4V/6.5mA Triode
DZ908 =filamentary Triode= Ef/If=4V/0.06A Epmax=150V Ip-saturation=15mA, rp=8kΩ-typ gm=1.1mS-typ μ=9-typ op : Ep=100V Ec=-4V Ip=2.5mA (参考 : Eg-Ip特性(Ep = 50V, 100V, 180V), attached spec.-sheet) similar to A409(Philips), H406(Valvo), RE074(TFK), PM3X(Mullard), G407(Tungsram) 0) DZ908-globe Mazda ￥7000 NIB black-mold base, very-ragged box 1) DZ908-globe MetalMazda ￥7000 NIB black-mold base, very-ragged box 1) DZ908-globe MicroMetal ￥5000 used BrassBase Ep/Ec/Ip=150V/-5V/10.5mA(>100%)
E2b =Telecommunication Power Tetrode= Ppmax=10W Epmax=300V Ikmax=75mA Pc2max=1.5W Ec2max=250V Eh/Ih=18V/0.36A gm=10.5mS rp=40kΩ 0) E2b Siemens used ￥-
E2c =Telecommunication Power Tetrode= Eh/Ih=18V/0.36A Ppmax=10W Epmax=275V/400V-cutoff Ikmax=75mA Pc2max=1.5W Ec2max=210V/400V-cutoff op : Ep=220V Ec2=200V Rk=70Ω Ip=42mA Ic2=7mA gm=10.5mS rp=40kΩ size : 50mmΦ x 138mmH, in max 0) E2c Siemens used ￥- 6) E2c Siemens ￥5100 NIB ragged boxes
E2d =Telecommunication Power Tetrode= Eh/Ih=4V/1.5A Ppmax=10W Epmax=275V/400V-cutoff Ikmax=75mA Pc2max=1.5W Ec2max=275V/400V-cutoff Rg1max=250kΩ op : Ep=250V Ec2=250V Rk=155Ω Ip=35mA Ic2=4.5mA gm=8mS rp=60kΩ size : 50mmΦ x 138mmH, in max 1) E2d Siemens used ￥-
E2e =Telecommunication Power Tetrode= Eh/Ih=18V/0.36A Ehkmax=80V Ppmax=10W Epmax=300V/400V-cutoff Ikmax=75mA Pc2max=1.5W Ec2max=300V Ikmax=75mA Rg1max=200kΩ op(A1S) : Ep=220V Ec2=200V Rk=70Ω Eck=-3.3V Ip=42mA Ic2=5mA gm=10.5mS rp=40kΩ μg2g1=22 Zl=6.5kΩ Po=2W (参考 : Tetrode Ep-Ip特性(@Ec2=200V)) (参考 : Triode Ep-Ip特性(triode-connection)) size : 43mmΦ x 103mmH, in max 12) E2e Siemens ￥7300 NIB mint 1) E2e Siemens ￥4300 NIB discolored-SprayShield, very-ragged-box 0) E2e Siemens ￥- used
E37A/E37B(=5957) =Hydrogen Thyratron for Airborne Radar= (EIA/ - 4-pin, TopAnode) Eh/Ih=6.3V/6.5A Eanode=2.5kVmin(supply) Eanode=±8kVmax Iamax=100mA(av)/83A(peak) RiseTime=1.2A/μs Egrid=175Vmin op: Enetwork=8kVpeak Rep.=4500PPS Tw=250nS Znetwork=50.2Ω Etrigger=200V Po=311kW Ipmax=94mAav/83Apeak (size : 108mmH x 38mmφ, approx.) 2) E37A Bomac NIB RaggedBox
E55L (see 8233) =10000H-SQ Wideband Power Pentode= (EIA/9PZ - Magnoval) Eh/Ih=6.3V/0.6A Ehkmax=200V pentode : Ppmax=10W Epmax=200V Ikmax=75mA Pc2max=1.5W Ec2max=175V Rg1max=125kΩ ex) Ep=Ec2=125V Ec=-3V Ip=50mA Ig2=5.5mA gm=45mS rp=20kΩ μg1g2=30 ex) Ep=Ec2=140V Rk=270Ω Ip=50mA Ig2=5.5mA gm=45mS triode connection : Ppmax=10W Epmax=175V Ikmax=75mA Rg1max=125kΩ ex) Ep=125V Ec=-3V Ip=55.5mA gm=50mS rp=600Ω μ=30 pins(MAGNOVAL) : 1(P)-2(G3)-3(G2)-4(H)-5(H)-6(G3)-7(K)-8(G1)-9(K) also see electrically near-equivallent power-pentode : 8608(near-pin-compatible, with top-plate) 参考 : 8608, 8233/E55LのEp-Ip特性(Ec2=125V) 参考 : 8233/E55L 三結時のEp-Ip特性 - triode connection also see different pinout Magnoval high-gm Pentode : 6B-R23(34mS) also see different pinout Magnoval high-gm Tetrodes : 6B-P16(26.5mS) 6B-R22(31.5mS) 418A(26.5mS) 436A(30mS) 448A(31.5mS) 2) E55L HP(Mullard) ￥5700 NIB 2) E55L Mullard ￥5700 NIB Bulk 12) E55L(8233) Mullard ￥4300 used very strong Gpin 1) E55L(8233) Mullard ￥3500 used very strong glass傷あり Gpin
E80CC (see 6085) =10000H-SQ TwinTriode= (EIA/9A - noval) Eh/Ih=6.3V/0.6A(12.6V/0.3A) Ehkmax=120V Ppmax=2W Epmax=300V/600V(cutoff) Ikmax=12mA/150mApeak Rg1max=0.6MΩ(fixed)/1MΩ(self) op : Ep=250V Rk=920Ω Ip=6mA rp=10kΩ gm=2.7mS μ=27 (参考 : Ep-Ip特性) 0) E80CC TFK ￥8000 NIB MB Gold-pins sealed oldest-box 2) E80CC TFK ￥7500 NIB MB Gold-pins sealed w/ cellophane 2) E80CC TFK ￥7500 NIB MB Gold-pins date= May-1968 2) E80CC Siemens ￥5900 NIB Gold-pins (Qn) 5) E80CC Siemens ￥4700 NIB SilverPin date=5/77,12/77(Qn)++ 3) E80CC/6085 Siemens ￥4700 NIB(Sx) 3) E80CC Miniwatt ￥5900 NIB SQ Gold-pins (Q) 7) E80CC Philips ￥5900 NIB Gold-pins (hyydnx) 2) E80CC Philips ￥5700 NOS PQ Gold-pins WB(D) 1) E80CC Philips ￥7500 NIB PQ Gold-pins pinched-glass 大型OB 1) E80CC Valvo ￥7100 NIB Gold-pins RedPrint 1) E80CC Valvo ￥7100 NIB Gold-pins RedLabel 5) E80CC Valvo ￥5900 NIB Gold-pins (Sx) 2) E80CC Valvo ￥5900 NIB Gold-pins STAAR箱 5) E80CC Valvo ￥4900 used? LikeNew Gold-pins 4) E80CC Valvo ￥4300 used? LikeNew 1) E80CC Valvo ￥4900 used? LikeNew Gold-pins 3030/3080/1900min
E80CF
E80F =10000H-SQ Pentode= (EIA/9CQ=9BJ - noval) Eh/Ih=6.3V/0.3A Ehkmax=+60V/-120V Ppmax=1.3W Epmax=300V Ikmax=9mA Pc2max=0.4W Ec2max=200V op : Ep=250V Ec2=100V Rk=550Ω Ip=3mA Ic2=0.65mA gm=1.85mS rp=1.5MΩ μg2g1=25 pins: 1(G2)-2(IS)-3(K)-4(H)-5(H)-6(P)-7(IS)-8(G3)-9(G1): EF86/6267/EF806Sと同一配列.(注 EF804/Sとは全く異なる） (参考 : Ep-Ip特性(@Ec2=108V)) (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data)) (see 6084, 6267/EF86, EF804, EF806, Z729, CV2901, CV4085) E80F EF804/S EF806S EF86/6267 5879の比較 also see different base British low-microphonic & low-noise pentodes : 6BR7/CV4006, 6059/CV4006 and 6BS7(top-G1) also see a different base American low-noise pentode : 5879 1) E80F TFK ￥4200 NOS Gpin Valvo箱 0) E80F Siemens ￥- NIB Gpin(sQn) 2) E80F Valvo ￥3700 NIB D/C=1968.6.24, gold-pins 2) E80F Valvo ￥3700 NIB Gpin 16) E80F Valvo ￥2700 used/LikeNew Gpin 1) E80F TFK ￥3600 used/LikeNew Gpin 0) E80F/6084 GE ￥- NIB 1) E80F Valvo ￥2000 lightly-used red-silk, Gpins, WB 1) E80F Philips ￥2400 lightly-used pinched-glass, Gpins, WB 1) E80F Mullard(Philips-made) ￥2000 lightly-used Gpins, WB *注意： EF80とE80Fは全く異なる管です。規格・pin配列共に、全く互換性はありません。 (EF80 is NEVER compatible to E80F. These are completely different from each other at specs. & pin assignments.)
E80L (see 6227) =10000H-SQ Power Pentode= (EIA/9AU - noval) Eh/Ih=6.3V/0.75A Ehkmax=120V Ppmax=8W Epmax=300V Ikmax=50mA Pc2max=2.6W Ec2max=300V Rg1max=1MΩ(self) op(A1S) : Ep=200V Ec2=200V Rk=130Ω Ip=30mA Ic2=4.1mA rp=52kΩ gm=9mS μg2g1=21.5 Zl=7kΩ D=10% Po=2.7W op(AB1pp) : Ep=200V Ec2=200V Rk=130Ω Ip=41.2/49.2mA Ic2=5.6/ 9.8mA Zlpp=9kΩ D=3.0% Po=5.7W op(AB1pp) : Ep=250V Ec2=250V Rk=150Ω Ip=47.0/59.0mA Ic2=6.4/13.2mA Zlpp=9kΩ D=4.5% Po=9.0W (参考 : TriodeConnection-EpIp(三結時のEp-Ip特性)) also see a different-base, electrically-similar type : 6677 also see just-lower rating electrically similar long-life loktal types : C3m(Eh/Ih=20V/0.125A, Ppmax=4W, rp=250kΩ, gm=6.5mS, μg2g1=19) C3o(Eh/Ih=6.3V/0.4A) 5) E80L/6227 Amperex ￥4900 NIB Gpin 6) E80L/6227 Mullard ￥4900 NIB Gpin 1) E80L Philips ￥4900 NIB Gpin 1) E80L Philips ￥4900 NOS Gpin Siemens箱 3) E80L Siemens ￥4900 NIB Gpin SealedBox 4) E80L Siemens ￥4900 NIB Gpin 8) E80L Valvo ￥4900 NIB Gpin 3) E80L SB-Elektronik ￥3900 NIB Gpin 2) E80L PhilipsMiniwatt ￥1700 used pinched-glass, red-silk, bottom-code="WP", WB Ip=20mA, 20mA @Ep=200V, Ec2=200V, Ec1=-4.5V, minimum=18mA (tested on Funke W20) 2) E80L Philips ￥2700 used Gpin gm=7400,7500/4200min 1) E80L Philips ￥2500 used Gpin gm=5900/4200min 1) E80L PhlpsMW ￥2600 used Gpin gm=7120/4200min
E81L (see 6686) =10000H-SQ Power Pentode= (EIA/9AU -noval) Eh/Ih=6.3V/0.375A Ehkmax=120V Rg1max=250kΩ(fixed)/500kMΩ(self) Ppmax=4.5W Epmax=210V/550Vcutoff Pc2max=1.2W Ec2max=210V/550Vcutoff Ikmax=30mA op : Ep=210V Ec2=210V Rk=120Ω Ip=20mA Ic2=5.3mA rp=300kΩ gm=11mS μg2g1=36 op(A1S) : Ep=Ec2=210V Rk=120Ω Ip=20mA Ig2=5.3mA Zl=15kΩ D=5% Po=1.0W Triode connection : Ppmax=5.6W pins : 1(S)-2(G1)-3(K)-4(H)-5(H)-6(S)-7(P)-8(G2)-9(G3) (参考 : TriodeConnection-EpIp(三結時のEp-Ip特性)) see electrically nearly-identical type(except heater) : 18046(Eh/Ih=20V/0.135A) also see an electrically similar long-life loktal-base type : C3g(rp=300kΩ, gm=14mS, μg2g1=41) 1) E81L Siemens ￥2900 NIB Gpin 1) E81L Valvo ￥2900 NIB Gpin 8130/4600min 1) E81L Valvo ￥2900 NIB Gpin 6) E81L Valvo ￥2900 NIB Gpin 1) E81L Valvo ￥2900 NIB Gpin 1) E81L Philips ￥2900 NIB Gpin 39) E81L Adzam(=Mazda) ￥2200 NIB Gpin (mhx46) 2) E81L Valvo ￥2200 used/LikeNew Gpin 1) E81L MiniwattDario ￥2000 LikeNew Gpin
E83CC (= 12AX7WA) =10000H-SQ high-μ twin triode= (EIA/9A -noval) Eh/Ih=12.6V/0.15A(6.3V/0.3A) Ehkmax=±200V Tbulb=170℃max Ppmax=1.2W Epmax=330V/600V-cutoff Ecmax=+0.5V/-55V Ikmax=9mA Rgmax=1.2MΩ(fixed)/2.2MΩ(auto) op : Ep=250V Rk=1.6kΩIp=1.25mA rp=62.5kΩ gm=1.6mS μ=100 1:reserved) E83CC Valvo NIB ￥9800
E83F (see 6689) =10000H-SQ Pentode= (EIA/9BK -noval) Eh/Ih=6.3V/0.3A Ehkmax=100V Rg1max=1MΩ(self) Tbulb=170℃max Ppmax=2.1W Epmax=210V/550Vcutoff Ikmax=16mA/80mApeak Pc2max=0.35W Ec2max=210V/550Vcutoff Pc1max=50mW -Ec1max=100V/200Vpeak op : Ep=210V Ec2=120V Ec3=0V Rk=165Ω Ip=10mA Ic2=2.1mA rp=0.5MΩ gm=9mS μg2g1=38 pins : 1(G2)-2(G1)-3(K)-4(H)-5(H)-6(P)-7(IC)-8(IC)-9(G3,S) (参考 : Ep-Ip特性(@Ec2=120V)) see electrically nearly-identical type(except heater) : 18042(Eh/Ih=18V/0.1A) also see loktal-base electrically-equivallent type : 95397(E83F w/loktal-adapter) 1) E83F Valvo NIB ￥2500 Gpin 1) E83F Valvo NIB ￥2500 Gpin RaggedBox 2) E83F Phlps NIB ￥2500 Gpin SQ 1) E83F Tungsram NIB ￥1500 SilverPin 13) E83F Adzam(=Mazda) used ￥1200 SQ Gpin VeryStrong gm=5800-7700/4200min print=70-90% 1) E83F Valvo used ￥1500 Gpin VeryStrong gm=7400/4200min *note : E83F has no relation with EF83(different spec. & pin assignment).
E84L (see 7320 7189 6BQ5/EL84 6GK6) =10000H-SQ Power Pentode= (EIA/9CV - noval) Eh/Ih=6.3V/0.76A Ehkmax=100V Tbulb=225℃max Ppmax=13.5W Epmax=Ec2max=450V/600Vcutoff Ikmax=75mA Pc2max=2.2W Pc1max=0.5W op: Ep=250V Ec2=250V Rk=135ΩIp=48mA Ic2=5.5mA rp=40kΩ gm=11.3mS μg2g1=19 op(A1S): Ep=Ec2=250V Rk=135Ω Zl=4.5kΩ Ip=50.6mA Ig2=10mA Po=5.7W D=10% op(AB1pp): Ep=Ec2=300V Rk=130Ω Zlpp=8kΩ Ip=2x46mA Ig2=2x11mA Po=17W D=4% (参考 : Ep-Ip特性(@Ec2=300V)) see electrically similar types : 7320, 7189/A see lower-rating similar types : 6BQ5, 6R-P15 also see Russian 6BQ5/7189 type : 6P14P(Epmax=400V for Pd<=8W) also see different pinout lower-rating electrically similar type : 6GK6 6BQ5 E84L 7189 6RP15 6CZ5 規格/動作例の比較 2) E84L/7320 Siemens ￥offer NIB 0) E84L Siemens ￥- NIB(D) 0) E84L Siemens ￥- NOS?(D)
E86C = 10000H-SQ UHFTriode = (EIA/9KG noval) Eh/Ih=6.3V/0.165A Ehkmax=100V fmax=800MHz * 10000H long-life high-rel. tube Ppmax=2.4W, Epmax=250V(440V-cutoff), Ikmax=20mA, Pc1max=20mW -Egmax=50V Rgmax=1.2MΩ op : Ep=175V Rk=125Ω Ip=12mA gm=14mS μ=68 (参考 : Ep-Ip特性) see equivallent SQ type EC806S also see regular type EC86 7) E86C Phlps ￥2400 NIB Gpin SQ 5) E86C Siemens ￥2400 NIB Gpin 1) E86C Siemens ￥2000 LightlyUsed Gpin Phlps箱
E88C =10000H-SQ Triode for grounded Grid Amp= (EIA/9NY - noval) Eh/Ih=6.3V/0.155A Ehkmax=+60V/-125V Ppmax=2.6W, Epmax=200V(400V-cutoff), Ikmax=16.5mA, Pc1max=50mW Rgmax=1MΩ, fmax=800MHz op : Ep=160V Ec=-1.25V Ip=12.5mA rp=5.2kΩ gm=13.5mS μ=70 (参考 : Ep-Ip特性) see regular types : EC88, 6DL4 4) E88C Siemens ￥2400 NIB GoldPins 1) E88C Philips ￥1500 used GoldPins 12620/7500min
E88CC =10000H-SQ TwinTriode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.3A Ehkmax=+60V/-120V Ppmax=1.5W Epmax=220V Ikmax=20mA Pc1max=30mW Rgmax=1MΩ gm=12.5mS μ=33 Rgmax=1MΩ ex) A1S: Ep=220V Zl=20kΩ Ipmax=9.2mA Po=0.5W D=7% ex) B1pp: Ep=200V Zl=22kΩ Ipmax=2 X 9mA Po=1.2W D=3% ex) B1pp: Ep=200V Zl=10kΩ Ipmax=2 X 13.5mA Po=1.5W D=4% (参考 : E88CC/6922のEp-Ip特性) see 6DJ8 / 6922 / 7308 / 8416 / CCa / E188CC / E288CC / PCC88 / 6ES8 also see 6H1Π/6N1P(Soviet/Russian type) 0) E88CC/6922 TFK ￥- NIB <> Gpin 0) E88CC TFK ￥- NIB <> Gpin ０) E88CC Mullard ￥- NIB 2) E88CC Siemens ￥offer NIB Gpin BlueSealBox 15) E88CC/6922 Siemens ￥offer NIB Gpin (hxx1v1nt) 1) E88CC Valvo ￥offer NIB Gpin RedLabel 3) E88CC Valvo ￥offer NIB GoldPins 2) E88CC Valvo ￥4600 NIB SilverPins 0) E88CC/6922 Valvo ￥- NIB Gpin 5) E88CC Valvo ￥offer NIB 1) E88CC/6922 Valvo ￥3900 used Gpin gm=12900/12900/7000min RedPrint WB 2) E88CC Phlps ￥offer NIB Gpin SQ D-getter 3) E88CC Phlps ￥offer NIB Gpin SQ 2) E88CC/6922 Syl ￥2900 NIB 1) E88CC/6922 Siemens ￥3900 NOS? Gpin 1) E88CC/6922 Siemens ￥3900 used? Gpin pinに黒ずみあり 2) E88CC/6922 Siemens ￥3900 used Gpin LikeNew gm=>120/>120/60min, >120/114/60min(TV-7B/U) 1) E88CC/6922 Siemens ￥2900 used Gpin 1) E88CC/6922 Siemens ￥4300 used Gpin gm=14200/14700/7000min WB 1) E88CC Siemens ￥3300 used Gpin print=80% WB 0) E88CC/6922 Mullard ￥- used Gpin Strong WB (sTn) 2) E88CC RSD(Phlps-made) ￥3900 lightly-used Gpin D/C=⊿6A3 WB 2) E88CC/6922 Philips ￥3900 used Gpin gm=12250/12250, 12100/12250/7000min WB 2) E88CC/6922 Philips ￥3300 used Gpin gm=10600/10600, 11320/12100/7000min WB 1) E88CC Philips ￥3000 used Gpin WB 3) E88CC/6922 Philips ￥1200 used Gpin gm＜50% Syl箱
E90CC( = 5920) =10000H-SQ common-cathode computer TwinTriode)= (EIA/7BF - miniature) *When stringent requirements regarding freedom from hum & microphoniy are to be met, E90CC should not be applied. Eh/Ih=6.3V/0.4A Ehk=100V Ppmax=2W Epmax=300V(600V-cutoff) Ikmax=15mA/75mApeak Igmax=0.25mA Rgmax=0.5MΩ(fixed)/1MΩ(self) op : Ep=100V Ec=-2.1V Ip=8.5mA gm=6mS μ=27 (参考 : Ep-Ip特性) also see same-base common-cathode twin-triodes : E92CC 6J6/ECC91 6MHH3 5844 5964 6045 6101 2) E90CC TFK ￥2000 used 5) E90CC Valvo ￥2800 NIB 2) E90CC Valvo ￥2800 NIB SQ, green logo 5) E90CC Philips ￥2800 NIB SQ 1) E90CC Philips ￥2800 NOS SQ 1) E90CC PhilipsMiniwatt ￥1000 used SQ pinched-glass 松下5920箱入 1) E90CC Valvo ￥1200 used GreenPrint 4100/3700/3150min WB 1) E90CC Valvo ￥1200 used green logo, WB
E90F(=6661) =ShockVibration-resistant SQ SharpCutoff RF Pentode= (EIA/7CM - miniature) Eh/Ih=6.3V/0.15A Ehkmax=135V Ppmax=2.6W Epmax=330V Ikmax=15mA Pc2max=0.35W Ec2max=275V Rg1max=0.5MΩ μg2g1=48 gm=4.6mS rp=1MΩ-typ also see 6BH6 1) E90F Valvo ￥2200 NIB 1) E90F Valvo ￥2200 NIB 1) E90F Valvo ￥2200 NIB
E91H(=6687) =SQ DualControl Heptode= (EIA/7CH -miniature) Eh/Ih=6.3V/0.27A Ehkmax=120V Ppmax=1W Epmax=250V Ikmax=20mA Pc1=0.5W Pc2+4max=1W Pc3=0.5W Ec2+4max=100V Rg1,g3max=0.5MΩ 1) E91H/6687 Mullard NIB ￥2000 very-ragged box 1) E91H Valvo NIB ￥2000 2) E91H Adzam(=Mazda) NIB ￥2000 SQ
E92CC =10000H-SQ common-cathode computer TwinTriode= (EIA/7BF - miniature) *When stringent requirements regarding freedom from hum & microphoniy are to be met, E92CC should not be applied. Eh/Ih=6.3V/0.4A Ehk=100V Ppmax=2W Epmax=300V Ikmax=15mA Igmax=0.25mA Rgmax=0.5MΩ gm=6mS μ=45 (参考 : Ep-Ip特性) also see same-base common-cathode triodes : E90CC / 5920 6J6/ECC91 6MHH3 5844 5964 6045 6101 20) E92CC TFK ￥2800 NIB <> 4) E92CC TFK ￥2200 used/LikeNew 2) E92CC MiniwattDario ￥2000 LikeNew, green logo
E95F =Pentode= (EIA/7BD - miniature) Eh/Ih=6.3V/0.175A Ppmax=1.65W Epmax=200V Ikmax=20mA Pc2max=0.55W Ec2max=155V Rg1max=0.1MΩ Ehkmax=135V μg2g1=- gm=5mS rp=0.3MΩ-typ E95F is electrically similar/equivallent to : 6AK5 / 403A, 403B / 5591 / 5654 / EF95 / M8100 1) E95F Amprx ￥2000 NIB 1) E95F Philips ￥2000 NIB
E130L/7534/E180L
E180CC =7062 =10000H-SQ TwinTriode= (EIA/9A - noval) (also see very similar 5965 and 12AV7) SQ: 10000H LIFE (under Ebp=+150V Ebg=+150V Rp=2.6kΩ Rg=1.5MΩ(Ig=+100μA) Ehk=-200V) Eh/Ih=6.3V/0.4A(12.6V/0.2A) Ehkmax=+100V/-200V Rgmax=0.5MΩ(fixed)/1MΩ(self) Tbulb=170℃max (absolute max) Ppmax=2W/unit Epmax=275V/600Vcutoff Ikmax=20mA/200mApulse Ecmax=+1V Icmax=2mA/50mApulse op: Ep=100V Ec=-0.80V Ip=8.5mA rp=6.4kΩ gm=7.8mS μ=50 op: Ep=150V Ec=-1.85V Ip=8.5mA rp=7.2kΩ gm=6.4mS μ=46 size=22mmΦ x 66.7mmH (参考 : Ep-Ip特性) 0) E180CC Amperex ￥- NIB made in Holland (nll) 0) E180CC InternationalC ￥- NIB made in Holland (nll) 1) E180CC RSD(Philips-made) ￥1900 used pinched-glass, code=⊿8K(Philips-Heerlen, Nov.1968) WB
E180F (see 6688) =10000H-SQ Wideband Pentode= (EIA/9EQ - noval) Eh/Ih=6.3V/0.3A Shock=500Gmax Fatigue=2.5Gmax Ppmax=3W Epmax=210V Pc2max=0.9W Ikmax=25mA Rg1max=0.25MΩ(fixed)/0.5MΩ(self) Ehkmax=60V op(triode connection) : Ep=160V Rk=620Ω Ip=16.5mA rp=2.4kΩ gm=21mS μ=50 (参考 : Ep-Ip特性(@Ec2=150V, Ec2パラメータ)) similar to E280F, 7722 5) E180F/6688 Mullard ￥2900 NIB Gpin OversizedOB 2) E180F Philips ￥2900 NIB Gpin WhiteFeaturedOriginalBox 0) E180F TFK ￥- NIB OldestBox-sealed 6) E180F Valvo ￥2100 NOS? WB Gpin RedPrint 10) E180F Valvo ￥1900 NOS Gpin bulk-NOS 1) E180F Siemens ￥1900 NIB Gpin 2) E180F Valvo ￥1400 used/LikeNew Gpin 1) E180F Valvo ￥1400 used Gpin TFK箱 3) E180F Siemens ￥1400 used/LikeNew Gpin 2) E180F United ￥1500 NIB Gpin FatGlass made in England 2) E180F PhilipsMiniwatt ￥1400 lightly-used NHK, Gpin D/C=⊿0K3 WB 1) E180F Philips ￥1400 used Gpin WB
E181CC =SQ TwinTriode for computer= (EIA/9A - noval) Eh/Ih=6.3V/0.4A(12.6V/0.2A) Ehk=100V Ekh=200V Ppmax=2W, Epmax=275V Ikmax=20mA Icmax=0.5mA Rgmax=0.5MΩ gm=5.6mS μ=32 rp=5.7kΩ 0) E181CC Philips ￥- NOS Holland (nll)
E182CC (see 7119) =10000H-SQ TwinTriode= (EIA/9H - noval) Eh/Ih=6.3V/0.64A(12.6V/0.32A) Ehk=200V Ppmax=4.5W (8W- for 2 units) Epmax=300V Ikmax=60mA/400mApeak Icmax=8mA Rgmax=0.5MΩ(fixed) op : Ep=120V Ec=-2V Ip=36mA rp=1.6kΩ gm=15mS μ=24 (参考 ： Ep-Ip特性) similar types with same base diagram (pin assignment) : 5687 and 7044 electrically similar type : 6H6Π/6N6P similar types with higher-rp & different basing : 6350 and 6463 / ECC813 also see similar Russian types :6H6Π/6N6P, 6H30Π/6N30P 2) E182CC/7119 Mullard ￥3100 NIB made in Holland RaggedBoxes 4) E182CC Mullard(USA-made) ￥2900 NOS-WB (hyyQss) 0) E182CC Philips ￥- NIB 3) E182CC Valvo ￥2200 used VeryStrongLikeNew print=90% 1) E182CC PhilipsMiniwatt ￥2000 used WB
E188CC=7308 =10000H-SQ TwinTriode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.335A Ehkmax=+100V/-150V HumVoltage=50μVmax Noise Factor F=4.6dB @200MHz Ppmax=1.65W(2W/total) Epmax=250V/550V(cutoff) Ikmax=22mA Pc1max=30mW Rgmax=0.5MΩ op : Ep=100V Ec=+9V Rk=680Ω Ip=15mA gm=12.5mS μ=33 op(A1S) : Ep=220V Ec=-6.5V Ipmax=9.2mA Zl=20kΩ Po=0.5W D=7% op(B1pp) : Ep=200V Ec=-6V Ipmax=2x9.0mA Zl=22kΩ Po=1.2W D=3% op(B1pp) : Ep=200V Ec=-6V Ipmax=2x13.5mA Zl=10kΩ Po=1.5W D=4% 参考 : Ep-Ip特性 (see 6DJ8 / 6922 / 7308 / 8416/CCa / E88CC / E288CC / PCC88 / 6ES8) ０) E188CC Valvo ￥- NIB Gpin STAAR箱 (wD) ０) E188CC Valvo ￥- NIB Gpin RedPrint (vT) 1) E188CC Valvo ￥offer NIB Gpin 0) E188CC Philips ￥- NIB Gpin SQ(sT) 1) E188CC Adzam(=Mazda) ￥offer NOS Gpin SQ Green箱 1) E188CC PhilipsMiniwatt ￥4200 used Gpin Pinched-Glass, NHK-lot, WB 3) E188CC PhilipsMiniwatt ￥3700 used Gpin, NHK-lot, WB
E235L (= 7751) =10000H-SQ Power Pentode= (EIA/7AC - octal) Eh/Ih=6.3V/1.2A Ppmax=15W Epmax=400V Pc2max=5.5W Ec2max=300V Ikmax=220mA Rg1max=500kΩ Ehkmax=+200V/-250V op : Ep=100V Ec2=100V Rk=75Ω Ip=100mA Ic2=5.2mA rp=5kΩ gm=14mS μg2g1=5.6 op(B1pp) : Ep=250V Ec2=170V Ec1=-34V Ip=2x12mA/2x84mA Ic2=2x1mA/2x28mA Zlpp=3kΩ D=6% Po=30W 2) E235L Siemens ￥1200 used 50%
E236L =10000H-SQ Power Pentode= (EIA/ - octal, top-plate) Eh/Ih=6.3V/1.2A Ppmax=15W Epmax=400V Pc2max=5.5W Ec2max=300V Ikmax=220mA Rg1max=500kΩ Ehkmax=+200V/-250V op : Ep=100V Ec2=100V Rk=75Ω Ip=100mA Ic2=5.2mA rp=5kΩ gm=14mS μg2g1=5.6 op(B1pp) : Ep=250V Ec2=170V Ec1=-34V Ip=2x12mA/2x84mA Ic2=2x1mA/2x28mA Zlpp=3kΩ D=6% Po=30W 1) E236L Siemens ￥2200 NIB
E280F (= 7722) =10000H-SQ Hi-gm HF Pentode= (EIA/9EQ - noval) E280F=7722 Fmax=300MHz Eh/Ih=6.3V/0.315A Ehkmax=+60V/-120V Rg1max=500kΩ Tbulb=180℃max Ppmax=4W Epmax=220V/400Vcutoff Pc2max=1.1W Ec2max=180V/400Vcutoff Ikmax=30mA Ec1max=+2V/-50V Ic1max=5mA op(pentode) : Ep=190V Ec2=160V Ec1=+8V Rk=370Ω Ip=20mA Ic2=6mA rp=100kΩ gm=26mS op(triode conn.) : Ep=160V Ec=+8V Rk=400Ω Ip=24.5mA rp=1.8kΩ gm=33mS μ=60 参考 : EpIp特性 (@Ec2=15-V,Ec3=0V) 参考 : 三結時のEpIp特性 (Triode connection) same-basing similar types : D3a, 6688, E180F also see another high-gm video amp pentode : EL802(Ppmax=6W, gm=40mS, μg2g1=70) 1) E280F/7722 Siemens ￥9300 NIB GoldPins 4) E280F/7722 Siemens ￥9300 NIB GoldPins 1) E280F Valvo ￥3300 used 1) E280F/7722 Siemens ￥4900 used GoldPins 1) E280F Miniwatt ￥4900 lightly-used GoldPins code=B7-7K, WB
E282F =10000H-SQ Hi-gm HF Pentode= (EIA/9EQ - noval) Eh/Ih=6.3V/0.35A Ehkmax=100V Rg1max=500kΩ Fmax=250MHz Tbulb=180℃max Ppmax=4.2W Epmax=200V/400Vcutoff Pc2max=1.4W Ec2max=150V/400Vcutoff Ikmax=50mA triode connection: Ppmax=5W op(pentode) : Ep=125V Ec2=125V Ec1=+12V Rk=300Ω Ip=35mA Ic2=11mA gm=26mS μg2g1=27 op(triode conn.) : Ep=125V Ec=+12V Rk=350Ω Ip=40mA rp=800Ω gm=32mS μ=25.5 参考 : 三結時のEpIp特性(EpIp-curve on triode connection) 2) E282F Siemens ￥9700 NIB Gpin STAAR箱
E283CC (see 12AX7/ECC83/6681/7025) =10000H-SQ HighMuTwinTriode= (different pin connection from 12AX7's) Eh/Ih=6.3V/0.33A Ppmax=1.2W Epmax=300V Ikmax=9mA μ=100 gm=1.6mS E283CCのEpIp特性 抵抗結合アンプテーブル(resistance couple amplifier) pins : 1(1K)-2(2G)-3(2P)-4(H)-5(H)-6(2K)-7(S)-8(1P)-9(1G) 2) E283CC Siemens ￥8000 NIB 2) E283CC Siemens ￥8000 NIB sealed 2) E283CC Siemens ￥8000 NIB MB date=11/64 RedSilk(D) 2) E283CC Siemens ￥8000 NIB '60s(D) 4) E283CC Philips ￥8000 NIB SQ(Q) 1) E283CC Philips ￥8000 NIB Germany
E288CC =10000H-SQ TwinTriode for Cascode Amplifier= (EIA/9AJ - noval) Eh/Ih=6.3V/0.475A Ehkmax=150V Ppmax=3W Epmax=250V(450V-cutoff) Ecmax(-)=-50V Ikmax=40mA/400mApeak Rgmax=1MΩ op : Ep=60V Ec=0V Rk=80Ω Ip=15mA rp=1.85kΩ gm=14mS μ=25 op : Ep=100V Ec=+9V Rk=350Ω Ip=30mA rp=1.4kΩ gm=20mS μ=25 E288CCのEpIp特性 similar to 6DJ8 / 6922 / 7308 / 8416 / CCa / E88CC / E188CC / PCC88 / 6ES8 0) E288CC Siemens ￥- NIB Gpin(Aht) 0) E288CC TFK ￥- NIB Gpin(D) 0) E288CC Phlps ￥- NIB Gpin(vD) 4) E288CC RT(Philips) ￥offer NIB Gpin date=68-32
E406 =filamentary PowerTriode= Ef/If=4V/1A Ppmax=12W Epmax=250V Ep=250V Ec=-24V Ip=48mA rp=1.5kΩ gm=4mS μ=6 Zl=-kΩ Po=-W (参考 : E406のEpIp特性) 0) E406 Philips ￥- used WB
E406N =filamentary PowerTriode= E406N(Philips) = LK4112(Valvo) Ef/If=4V/1A Ppmax=12W Epmax=250V/500V(cutoff) Ikmax=70mA Rg1max=600kΩ(self)/100kΩ(fixed) Ep=250V Ec=-24V Ip=48mA rp=1.7kΩ gm=3.5mS μ=6 Zl=2.50kΩ Po=1.75W Ep=500V Ec=-68V Ip=24mA rp=2.0kΩ gm=3.0mS μ=6 Zl=11.5kΩ Po=5.20W (参考 : E406のEpIp特性) <三極管の A1S 動作比較> 1) E406N PhilipsMiniwatt ￥４３０００ NOS? 1) E406N RT ￥15000 used Ip=38mA(@Ep=250V, Eg=-24V on Funke W20 : 100% = 48mA)
E408N =filamentary PowerTriode= E408N(Philips)=LK4110(Valvo) Ef/If=4V/1A Ppmax=12W Epmax=400V/650V(cutoff) Ikmax=60mA Rg1max=600kΩ(self)/100kΩ(fixed) Ep=400V Ip=30mA Ec=-36V rp=3kΩ gm=2.7mS μ=8 Zl=6kΩ Po=2.60W 0) E408N Philips ￥- used WB
E409 =cathode-type small-power Triode= E409(Philips)=L4100(Valvo) Eh/Ih=4V/1A Ppmax=3W Epmax=200V/400V(cutoff) Ikmax=30mA Rg1max=1MΩ(self)/500kΩ(fixed) op : Ep=200V Ec=-16V Ip=12mA rp=7kΩ gm=1.3mS μ=9 Zl=27kΩ Po=0.22W size : 47mmΦ x 91mmH, in max (参考 : E409のEp-Ip特性) 0) E409 Philips ￥- used WB 2) E409 Philips ￥4700 used gold-SprayShielded, tested WB 1) E409 Philips ￥4700 used gold-SprayShielded, tested WB
E415 =cathode-type Triode= E415(Philips)=A4100(Valvo)=H4100(Valvo)=REN804(TFK) Eh/Ih=4V/1A Ehkmax=50V Ppmax=1.5W Epmax=200V/400V(cutoff) Ikmax=15mA Rg1max=2MΩ(self)/1MΩ(fixed) Ep=200V Ec=-8V Ip=6mA, rp=11kΩ gm=1.4mS μ=15-typ size : 47mmΦ x 91mmH, in max (参考 : E415のEp-Ip特性) 1) E415 Philips ￥7000 NIB 0) E415 Philips ￥- used brown base, horizontal anode alignment, WB 2) E415 Philips ￥5000 used WB 2) E415 Philips ￥5000 used WB
E424 =cathode-type Triode= Eh/Ih=4V/1A Ehkmax=50V Ppmax=1.5W Epmax=200V/400V(cutoff) Ikmax=15mA Rg1max=2MΩ(self)/1MΩ(fixed) Ep=200V Ec=-6V Ip=6mA, rp=13kΩ gm=1.8mS μ=24-typ size : 47mmΦ x 91mmH, in max (参考 : E424のEp-Ip特性) similar to REN904(TFK), T425(RadioFotos) 1) E424 Philips ￥6000 NIB very-ragged box 1) E424 Philips ￥5000 used mesh WB 1) E424 Philips ￥5000 used WB
E424N =cathode-type Triode= E424N(Philips)=A4110(Valvo)=E428(Philips)=REN904(TFK)=MH4(MOV)=354V(Mullard) Eh/Ih=4V/1A Ehkmax=50V Ppmax=1.5W Epmax=200V/400V(cutoff) Ikmax=15mA Rg1max=2MΩ(self)/1MΩ(fixed) Ep=200V Ec=-3.5V Ip=6mA, rp=12.5kΩ gm=2.4mS μ=30-typ size : 46mmΦ x 100mmH, in max (参考 : E424NのEp-Ip特性) 0) E424N Philips ￥- used tested on W19, WB 2) E424N Philips ￥5000 used WB
E428 =cathode-type Triode= E428(Philips)=A4110(Valvo)=E424N(Philips)=REN904(TFK) Eh/Ih=4V/1A Ehkmax=50V Ppmax=1.5W Epmax=200V/400V(cutoff) Ikmax=15mA Rg1max=2MΩ(self)/1MΩ(fixed) Ep=200V Ec=-3.5V Ip=6mA, rp=11.5kΩ gm=2.4mS μ=28-typ size : 50mmΦ x 97mmH, in max (参考 : E428のEpIp特性) 0) E428 Philips ￥- used WB 1) E428 Philips Miniwatt ￥3700 lightly-used peeled-off gold spray-shield WB gm=2700μmho Ip=5.8mA(≒100%) @Eg=-2V on KS-15750-L1(Ep≒140V)
E438 =cathode-type Triode= E438(Philips)=W4100(Valvo)=REN1004(TFK)=354VX(Mullard) Eh/Ih=4V/1A Ppmax=1.5W Epmax=200V/400V(cutoff) Ikmax=15mA Rgmax=1MΩ(fixed)/2MΩ(self) (NOTE : Ecmax=-1.3V for negligible Ig) op : Ep=200V Ec=-3V Ip=2mA rp=38kΩ gm=1mS μ=38 (参考 : E438のEpIp特性) identical/similar type : REN1004(TFK) 1) E438-globe Miniwatt ￥3500 used Ep/Ec/Ip=150V/-2V/1.65mA Triode GoldenSprayShield-ハゲあり 1) E438-globe Philips Miniwatt ￥4100 used mesh-plate 2) E438-globe Philips Miniwatt ￥4100 used mesh-plate
E499 / E438N =cathode-type high-μ Triode= (EIA/-, UF5pin) E499 / E438N(Philips) = REN914(TFK) = W4110(Valvo) Eh/Ih=4V/1A Ehkmax=50V Ppmax=1.5W Epmax=200V/400V(cutoff) Ikmax=15mA Rgmax=500kΩ(fixed)/1MΩ(self) (NOTE : Ecmax=-1.3V for negligible Ig) op : Ep=200V Ec=-1.5V Ip=1.0mA rp=40kΩ gm=2.5mS μ=100 (参考 : Eg-Ip特性(Ep= 100V, 150V, 200V)) (参考 : Ep-Ip特性) also similar to 4657(Philips) 0) E438N Philips ￥- used 1) E499 Philips ￥4700 used gold-spray type, tested WB 0) E499 Philips ￥- used
E810F =10000H-SQ high-gm(50mS) wideband Pentode= (EIA/9NK - noval) Eh/Ih=6.3V/0.34A Ehk=100V Ppmax=5W Epmax=250V Pc2max=1W Ec2max=200V Pc1max=10mW Ipmax=35mA Ilmax=50mA Rg1max=200kΩ op : Ep=135V Ec2=165V Ec3=0V Ec1=+12.5V Rk=360Ω Ip=35mA Ic2=5mA gm=50mS μg2g1=60 (参考 : Ep-Ip特性)(@Ec2=100V, Ec3=0V) also see 7788 also see high-gm HF pentode : D3a/7721(Ppmax=4W, gm=35mS, μg2g1=77) also see high-gm HF pentode : E280F/7722(Ppmax=4W, gm=26mS, μg2g1=60) also see another high-gm video amp pentode : EL802(Ppmax=6W, gm=40mS, μg2g1=70) 1) E810F/7788 Siemens ￥4000 NIB 4) E810F RT(Philips-made) ￥2400 lightly-used GoldPins D/C=⊿5H4,⊿0I5,⊿0K5,⊿0K5 WB 1) E810F Philips ￥2400 used GoldPins WB 1) E810F Siemens ￥2800 used Gpins wb
E1175 = DET25/CV1025/VT25/10E7312 =filamentary Power Triode= (EIA/ - )
EA50 / 10E/105 / CV1092 =TV Diode= (EIA/ - ) Eh/Ih=6.3V/0.15A Mullard : Edmax=50V Idmax=5mA Ekkmax=50V Philips : PIV=560V Idmax=5mA/30mA-peak Ehkmax=100V 2) EA50 Mullard ￥1000 NIB 2) EA50 / 10E/105 Philips ￥1000 NIB
EAA91 =Twin Diode= (EIA/6BT - miniature) Ein=2x150Vrms Idc=9mA Eh/Ih=6.3V/0.3A EAA91=6AL5 1) EAA91 TFK ￥1800 NIB sealed 1) EAA91 TFK ￥1800 NIB 2) EAA91 TFK ￥1500 NIB Getter未スパッタ 1) EAA91/6AL5 Adzam(=Mazda) ￥1000 NIB 2) EAA91 Valvo ￥700 used very clean
EAA901S/5726 =RF Twin-Diode= (miniature) Eh/Ih=6.3V/0.3A Diode/rectifier Ein=2x165V Rseries=300Ω Cload=8uF Iout>=16mA 1) EAA901S TFK ￥2700 NIB OldestBox-sealed (xD)
EABC80(=6AK8) =Triple-Diode Pentode= (EIA/9E - noval) Eh/Ih=6.3V/0.45A 1) EABC80 TFK ￥1900 NIB 2) EABC80/6AK8 Siemens ￥1800 NIB(T)
EAF42 =Diode Pentode= (8-pin Rimlock) Eh/Ih=6.3V/0.2A 0) EAF42/6CT7 Siemens ￥1700 NIB
EAF801 =remote-cutoff RF/IF Pentode w/ Diode= (noval) Eh/Ih=6.3V/0.3A Ehkmax=±100V Pentode : Ppmax=2.25W Epmax=300V Pc2max=0.45W Ec2max=300V Ikmax=16.5mA Rg1max=3MΩ(self) rp=900kΩ gm=4.5mS-typ Diode: PIV=200V Idc=0.8mA 1) EAF801 TFK ￥2500 NIB sealed 1) EAF801 Siemens ￥1900 NIB 1) EAF801 Tungsram ￥1500 NIB 3) EAF801 RFT ￥1500 NIB 大箱
EAM86 =Tuning/Modulation Indicator= Eh/Ih=6.3V/0.3A 4) EAM86 TFK <> ￥2400 NIB 3:cellophane 1) EAM86 Valvo ￥2200 NIB
EB41 =small-current Full-wave Rectifier= (8-pin Rimlock-base) Eh/Ih=6.3V/0.3A Ekhmax=150V Ekh-peak-max=330V PIV=420V Vtr=150Vrms Idc=9mA Idc-peak=54mA Cload-max=8uF Rseries-min=300Ω 1) EB41 PhilipsMiniwatt ￥2800 NIB 1) EB41 PhilipsMiniwatt ￥2800 NIB 2) EB41 Valvo ￥1200 used mesh
EB91 =Twin Diode= (EIA/6BT - miniature) EB91=6AL5 3) EB91/6AL5 Siemens ￥1000 NIB 0) EB/EAA91/6AL5 Siemens ￥1000 NIB 1) EB91 Mullard ￥1300 NIB 2) EB91 Mullard ￥1300 NIB 中型オリジナルbox
EBC33 =TwinDiode med-mu Triode= (EIA/ - octal - top-grid) Eh/Ih=6.3V/0.2A Ehkmax=150V Triode: Ppmax=1.5W Epmax=300V/550Vcutoff Iknax=10mA Rgmax=1MΩ(fixed)/3MΩ(auto) op : Ep=100V Ec=-2.1V Ip=2mA rp=19kΩ gm=1.6mS μ=30 op : Ep=250V Ec=-5.5V Ip=5mA rp=15kΩ gm=2.0mS μ=30 pins : 1(MS)-2(H)-3(Pt)-4(Pd1)-5(Pd2)-6(NONE)-7(H)-8'K)-Top(Gt) size : 32mmΦ x 100mmH, in max (参考 : 三極管部のEp-Ip特性(EpIp curve for triode section)） 0) EBC33 Mullard ￥- used WB 1) EBC33 Mullard ￥2100 NOS ST, red-spray WB
EBC41 =TwinDiode Triode= (EIA/ - rimlock) electrically EBC41=EBC81(noval) Eh/Ih=6.3V/0.23A Ehkmax=100V Triode: Ppmax=0.5W Epmax=300V/550Vcutoff Ipmax=5mA Rgmax=3MΩ op : Ep250V Ec=-3V Ip=1.0mA rp=58kΩ gm=1.2mS μ＝70 (参考 : 三極管部のEp-Ip特性(EpIp curve for triode section)） size : 22mmΦ x 60mmH, in max also see an American separated cathode twin-diode higher-gm triode noval type : 6BN8(gm=2.5mS, μ=70) also see a TripleDiode + high-mu triode noval type : 6T8/A(6.3V/0.45A, gm=1.2mS, μ=70) 0) EBC41 Philips ￥- NOS
EBC81 =TwinDiode Triode= (EIA/9Z - noval) EBC81=6BD7A electrically EBC81 = old EBC41(rimlock) Eh/Ih=6.3V/0.23A Ehkmax=100V Triode: Ppmax=0.5W Epmax=300V/550Vcutoff Ipmax=5mA Rgmax=3MΩ op : Ep250V Ec=-3V Ip=1.0mA rp=58kΩ gm=1.2mS μ＝70 (参考 : 三極管部のEp-Ip特性(EpIp curve for triode section)） size : 22mmΦ x 61.1mmH, in max also see an American separated cathode twin-diode higher-gm triode type : 6BN8(gm=2.5mS, μ=70) also see a TripleDiode + high-mu triode type : 6T8/A(6.3V/0.45A, gm=1.2mS, μ=70) 5) EBC81/6BD7A Siemens ￥1300 NIB
EBC90 =TwinDiode Triode= (EIA/7BT - miniature) EBC91=6AT6 1) EBC90 - ￥1000 used
EBC91 =TwinDiode Triode= (EIA/7BT - miniature) EBC91=6AV6 1) EBC91 Lorenz ￥1300 NIB
EBF80 =TwinDiode remote-cutoff Pentode= EBF80=6N8 / Rimlock 1) EBF80 TFK ￥1900 NIB Cellophane sealed 2) EBF80/6N8 Siemens ￥1300 NIB 4) EBF80 Mullard ￥1300 NOS made in Holland Rimlock 3) EBF80 Tungsram ￥1000 NIB
EBF89 =TwinDiode remote-cutoff Pentode= (EIA/9HE - noval) EBF89=6DC8 also see similar type 6AD8 2) EBF89/6DC8 Siemens ￥1500 NIB 1) EBF89 Valvo ￥1500 NIB 1) EBF89 Siemens ￥1500 NOS TFK箱 1) EBF89 Siemens ￥1000 used 2450/1800min,98/79/54min
Eb III : see AD1
EBL1 =Twin diode + Beam Power= (EIA/-, P : 8-pin side-contact, Top-G1) Eh/Ih=6.3V/1.18A Ehk=50Vmax (diode) PIV=350V Idc=0.8mAmax/5mA-peak (pentode) Ppmax=9W Epmax=250V/550Vcutoff Pc2max=2.5W Ec2max=250V/550Vcutoff Ikmax=55mA Rg1max=1MΩ op: Ep=250V Ec2=250V Ec1=-6V Ip=36mA Ic2=4mA gm=9mS rp=50kΩ μg2g1=23 op(A1S): Ep=250V Ec2=250V Ec1=-6V(Rk=150Ω) Ip=36mA Ic2=4mA Zl=7kΩ Po=4.5W D=10% pins(P:side-contact) : 1(NC)-2(H)-3(H)-4(K,G3,M)-5(D1)-6(D2)-7(G2)-8(P)-Top(G1) size : 46mmΦ x 132mmH, in max heater variant with just different spec.'s : CBL1(Eh/Ih=44V/0.2A, Ikmax=70mA, Ehkmax=175V, μg2g1=13.5) 0) EBL1 Philips ￥2200 Bulk-NOS WB 2) EBL1 Philips ￥1000 used WB 2) EBL1 Miniwatt-Dario(Philips) ￥1000 used WB 1) EBL1 Dario(Philips) ￥1000 used WB 1) EBL1 Miniwatt(Philips) ￥1000 used WB 1) EBL1 MAZDA ￥1000 used WB 1) EBL1 Claude-Radio ￥1000 used WB 1) EBL1 Tungsram ￥1000 used WB 0) EBL 1 Tungsram ￥1000 used WB
EBL21 =Twin diode + Beam Power= (EIA/-, 8-pin loktal) Eh/Ih=6.3V/0.8A Ehk=50Vmax (pentode) Ppmax=11W Epmax=300V/550Vcutoff Pc2max=3.5W Ec2max=300V/550Vcutoff Ikmax=60mA Rg1max=1MΩ (diode) PIV=350V Idc=0.8mAmax/5mA-peak op: Ep=250V Ec2=275V Ec1=-6.2V Ip=44mA Ic2=5.8mA gm=9.5mS rp=50kΩ μg2g1=23 op(A1S) : Ep=250V Ec2=275V Ec1=-6.2V(Rk=125Ω) Ip=44mA Ic2=5.8mA gm=9.5mS rp=50kΩ Po=5.5W D=10% pins : 1(H)-2(P)-3(G1)-4(G2)-5(D2)-6(D1)-7(K,G3)-8(H) size : 32mmΦ x 96mmH, in max heater variant : UBL21(Eh/Ih=55V/0.1A, Epmax=Ec2max=250V, Ikmax=75mA, Ehkmax=150V, μg2g1=9) 0) EBL21 Philips ￥2700 Bulk-NOS WB 8) EBL21 Bentley Acoustic ￥2500 NIB 0) EBL21 Philips ￥1000 used WB
Ec =cathode-type Telecommunication Power Triode= Eh/Ih=18V/0.7A Ppmax=25W Epmax=300V Ikmax=-mA gm=10.5mS rp=680ohm 0) Ec Siemens used ￥-
EC50 = gas-triode/Thyratron = (EIA/ ) PIV=1000V Eh/Ih=6.3V/1.3A 0) EC50 RT ￥- used
EC52/CV1137/VR137/'10E/394' = RF Triode = (EIA/ Loktal-B9G) Ef/If=6.3V/0.43A fmax=400MHz Ppmax=7.5W Epmax=400V, Cin=5.2pF Cout=1.3pF Cgp=3.1pF op : Ep=250V Ec=-2.6V Ip=10mA rp=9.2kΩ gm=6.5mS μ=60 pins : 1(H)-2(G)-3(K)-4(P)-5(NC)-6(NC)-7(NC)-8(NC)-9(H) size : 38mmΦ x 78mmH, in max (参考 : Ep-Ip特性) 2) CV1137(= MIL EC52) Mullard ￥5300 NIB MB 6) VR137/'10E/394'(= Royal AirForce EC52) Mullard ￥5300 NIB MB 2) VR137/'10E/394'(= Royal AirForce EC52) Mullard ￥5300 NIB MB 0) EC52 Mullard ￥- used WB
EC53 = UHF Triode = (EIA/ , top-P & top-G) Ef/If=6.3V/0.25A Ehkmax=40V fmax=600MHz Ppmax=2.5W Epmax=250V Ikmax=20mA Egmax=-1.5V(for Ic=+0.3μA) op : Ep=200V Ec=-3.3V Ip=7.5mA rp=11.4kΩ gm=2.9mS μ=33, gm=4mS for Ec=+0V size : 16mmΦ x 54mmH in max 1) EC53 Mullard ￥2700 just-ragged box 0) EC53 Mullard ￥- used
EC54/CV66/RL37 = grounded-grid VHF Triode = (EIA/ Loktal-B9G) Ef/If=6.3V/0.43A fmax=300MHz Ppmax=3W Epmax=250V Ikmax=25mA op : Ep=250V Ec=-1.5V Ip=10mA rp=11.1kΩ gm=9mS μ=100 pins : 1(H)-2(G)-3(G)-4(P)-5(P)-6(G)-7(G)-8(K)-9(H) 0) EC54 Mullard ￥- used 0) CV66 Mullard ￥- used WB
EC55 = disc-seal Triode = (EIA/ ) Ef/If=6.3V/0.4A fmax=3GHz Ppmax=10W Epmax=350V Ikmax=40mA Pcmax=0.1W gm=6mS μ=30 0) EC55 Phlps ￥- used
EC56 = disc-seal Triode = (EIA/ ) Ef/If=6.3V/0.65A fmax=4GHz Ppmax=10W Epmax=300V Ikmax=35mA Pcmax=0.5W gm=17mS μ=43 0) EC56 Phlps ￥- used
EC57 = disc-seal Triode = (EIA/ ) Ef/If=6.3V/0.65A fmax=4GHz Ppmax=10W Epmax=300V Ikmax=35mA Pcmax=1W gm=17mS μ=43 0) EC57 Phlps ￥- used
EC80(=6Q4) = UHF Triode = (EIA/9S - noval) Eh/Ih=6.3V/0.43A Ehkmax=100V fmax=500MHz Ppmax=4W Epmax=300V Ikmax=15mA Ec1max=-1.3V Rgmax=300kΩ op ; Ep=250VEc=-1.5V Ip=15mA rp=6.7kΩ gm=12mS μ=80 (参考 : Ep-Ip特性) size : 22mmΦ x 56mmH, in max 2) EC80 Valvo ￥2900 NIB Valvo Gpin
EC81(=6R4) = 750MHz UHF Triode(SQ) = (EIA/9R - noval) Eh/Ih=6.3V/0.175A Ehkmax=100V fmax=750MHz Ppmax=5W Epmax=300V/550V-cutoff Ikmax=30mA Igmax=7.5mA Ec-max=-100V Rgmax=1MΩ op : Ep=150V Ec=-2V Ip=30mA rp=2.9kΩ gm=5.5mS μ=16 (参考 : Ep-Ip特性) 2) EC81 Valvo ￥2000 NIB Gpins 0) EC81 Philips ￥- NIB
EC84(=6AJ4) = UHF med-mu Triode = (EIA/9BX - noval) Eh/Ih=6.3V/0.225A Ppmax=2W Epmax=225V Ik=20mA gm=10mS μ=42 rp=4.2kΩ 0) EC84 RFT ￥- NIB
EC86(=6CM4) = UHF high-mu Triode = (EIA/9KG/ - noval) Eh/Ih=6.3V/0.175A fmax=800MHz Ppmax=2.2W Epmax=220V Ikmax=20mA gm=14mS μ=68 (参考 : Ep-Ip特性) see heater variant : PC86(3.8V/0.3A) see SQ type : E86C, EC806S different-base, electrically-similar type : A2521/6CR4 0) EC86 TFK ￥1900 NIB sealed(Q) 1) EC86 TFK ￥1700 NIB 1) EC86 Valvo ￥1600 NIB 1) EC86 Lorenz ￥1600 NIB Gpin 1) EC86 Belvu(Valvo-made) ￥1500 LikeNew D/C=D0H Gpins WB 1) EC86 Miniwatt ￥1500 LikeNew D/C=6411 Gpins WB
EC88(=6DL4) = grounded-grid UHF preamp Triode =(EIA/9NY - noval) Eh/Ih=6.3V/0.165A Ppmax=2W Epmax=175V(550V-cutoff) Ikmax=13mA Ec-max=-50V Rgmax=1MΩ op : Ep=160V Rk=100Ω Ip=12.5mA rp=4.8kΩ gm=13.5mS μ=65 (参考 : Ep-Ip特性) see heater variant : PC88(3.8V/0.3A) see SQ type : E88C different-base, electrically-similar type : A2521/6CR4 6) EC88 Lorenz ￥1700 NIB Gpin 1) EC88 Lorenz ￥1500 NIB 1) EC88 TFK ￥2700 NIB Gpin(T) 1) EC88 TFK ￥2900 NIB Gpin sealed 3) EC88 Siemens ￥2200 NIB Gpin 1) EC88 Siemens ￥1600 NIB 1) EC88 Valvo ￥2200 NIB Gpin 1) EC88 Mazda ￥1600 NIB 1) EC88 Miniwatt(Valvo-made) ￥1400 lightly-used Gpins code=D4I2
EC90 (see 6C4/W) =150MHz RF Power Triode(SQ)= (EIA/6BG - miniature) Eh/Ih=6.3V/0.15A Ehkmax=150V Ppmax=3.5W Epmax=300V Ikmax=30mA -Egmax=-100V op 1: @50MHz Ep=300V Ip=16.2mA Ec1=-27V +Ig=3.8mA Po=3.6W eff=67% op 2: @100MHz Ep=300V Ip=17.1mA Ec1=-27V +Ig=2.9mA Po=3.3W eff=55% 0) EC90 Philips ￥- NIB
EC91/6AQ4 ( = CV4070 / 6AQ4) =VHF Grounded-grid High mu triode= (EIA/-miniature) Eh/Ih=6.3V/0.3A Ppmax=2.5W Epmax=250V Ikmax=15mA -Egmax=-100V Ehkmax=150V Ep=250V Ip=10mA Ec1=-1.5V rp=12kΩ gm=8.5mS μ=100 0) EC91 Mullard ￥- NIB 0) EC91 IntC(Mullard-made) ￥- NIB
EC92 (see 6AB4) = RF amp Triode = (EIA/5CE - miniature) Eh/Ih=6.3V/0.15A Ppmax=2.5W Epmax=300V Ikmax=15mA gm=5.6mS μ=60 EC92 is 1/2 of 12AT7/ECC81 1) EC92 TFK ￥3900 NIB <> 1) EC92 TFK ￥2500 NIB 1) EC92 TFK ￥2500 NIB 3) EC92/6AB4 Siemens ￥2500 NIB 1) EC92/6AB4 Siemens ￥2200 NOS TFK箱 1) EC92 Siemens ￥1300 used 4100/2500min 1) EC92 Brimar ￥1200 used 3070/2500min 1) EC92 Mazda ￥1200 used 3630/2500min 1) EC92 Valvo ￥1200 lightly-used code=D6J WB 1) EC92 Miniwatt ￥1200 lightly-used code=≠9B WB 1) EC92 RSD ￥1000 lightly-used WB
EC93(=6BS4) = OSC Triode = (EIA/7DK - miniature) Eh/Ih=6.3V/0.2A Fmax=1GHz Ppmax=2.25W Epmax=150V Ikmax=20mA rp=1.9kΩ gm=8mS μ=15 similar to 6AF4/EC94 same basing different-μ types : 6T4(μ=13), 6DZ4(μ=14), 6DX4(μ=30), 8334(μ=55), 6AN4(μ=70) 2) EC93 TFK ￥2000 NIB 1) EC93 Siemens ￥1600 NIB
EC94(=6AF4) = OSC Triode = (EIA/7DK - miniature) Eh/Ih=6.3V/0.225A Fmax=1GHz Ppmax=2W Epmax=150V Ikmax=20mA gm=6.6mS μ=15 0) EC94 RFT ￥- used
EC95 =vari-gm VHF Triode= (EIA/7FP - miniature) Eh/Ih=6.3V/0.18A Ppmax=2.2W Epmax=250V Ikmax=20mA 0) EC95 Phlps ￥- used
EC97(=6FY5) =VHF Triode= (EIA/7FP - miniature) Eh/Ih=6.3V/0.215A Ehkmax=100V Rgmax=1MΩ Ppmax=2.2W Epmax=200V/550Vcutoff Ec2-max=-50V Ikmax=20mA op : Ep=135V Ec=-1.0V Ip=11.0mA gm=13.0mS rp=5kΩ μ=65 op : Ep=135V Ec=-5.0V Ip=0.10mA gm=0.13mS rp=-kΩ μ=- 0) EC97 Phlps ￥- used
EC806 =UHF Triode= (EIA/ -noval) Eh/Ih=6.3V/0.165A Fmax=800MHz Ppmax=2.4W Epmax=250V Ikmax=20mA gm=14mS μ=68 similar to 6CM4, EC86, E86C 0) EC806 Phlps ￥- NIB
EC806S =UHF triode =(EIA/- noval) Eh/Ih=6.3V/0.165A Ehk=100V Tbulb=165℃max Fmax=800MHz 10000H long-life Ppmax=2.4W Epmax=250V/440V-cutoff Ikmax=20mA Pgmax=20mW Egmax=-50V Rgmax=1.2MΩ op : Ep=175V Rk=125Ω Ip=12mA gm=14mS op : Ep=185V Ec=+8V Rk=800Ω Ip=12mA gm=14mS rp=4.8kΩ μ=68typ pins : 1(P)-2(G)-3(K)-4(H)-5(H)-6(G)-7(K)-8(G)-9(P) (参考 : Ep-Ip特性) see equivallent SQ type : E86C also see regular type : EC86 2) EC806S/E86C TFK ￥5900 NIB Gpin STD-box <>
EC900(=6HA5) = Hi-gm RemoteCutoff Triode = (EIA/7GM - miniature) Eh/Ih=6.3V/0.18A Ppmax=2.2W, Epmax=200V, Ikmax=20mA, gm=14.5mS, μ=72 1) EC900 TFK ￥2200 NIB sealed
EC8010 =10000H SQ 1GHz GroundedGrid high-mu Triode = (EIA/9NY - noval) *Note : "Electrode Short Test" by ordinary tube testers shouldn't be done because of the low Egk-isolation of this tube. Eh/Ih=6.3V/0.28A Ehkmax=±100V Rgmax=500kΩ Tbulb=150℃ Fmax=1000MHz Absolute maximum : Ppmax=4.2W Epmax=200V/400Vcutoff Pcmax=0.04W Ec-max=-20V Ikmax=35mA op : Eb= 200V Rp=2.4kΩ(Ep≒140V) Rk=47Ω Ip=25mA gm=28mS μ=60 size : 22.2mmΦ x 56.2mm, in max net-weight=11gram (参考 : Ep-Ip特性) also see same-base (EIA/9NY), lower rating & lower-gm types ; 6DL4 / EC88(Ppmax=2W, gm=13.5mS, μ=65), E88C(Ppmax=2.6W, gm=13.5mS, μ=70) also see a video power pentode as triode-connection: EL802(Ppmax=6W, Epmax=300V, gm=40mS, μg2g1=70) 0) EC8010 Philps ￥1400 NOS? WB (hyy27vo) 0) EC8010 Philps ￥900 used WB
ECC31/CV1285/NR73 = common-cathode med-mu TwinTriode = (EIA/8B -octal, ST) Eh/Ih=6.3V/0.95A Ppmax=5W Epmax=300V Ikmax=50mA Rgmax=1.5MΩ op : Ep=250V Ec=-4.6V Ip=6mA rp=14kΩ gm=2.3mS μ=32 pins : 1(NC)-2(H)-3(P1)-4(G1)-5(G2)-6(P2)-7(H)-8(K) ECC31 = common-cathode version of ECC32 similar to 6N7G(within class-A(Eg<0) area) also see USA 7pin-UT-base types : 6A6(Eh/Ih=6.3V/0.8A), 53(Eh/Ih=2.5V/2A), 5608A(Eh/Ih=2.5V/2A) also see lower-μ Top-plates & UT-base types : 33A/138A, RK34 (Ppmax=5Wx2, μ=14) 2) ECC31 Mullard ￥offer NIB 2) ECC31 Mullard ￥offer lightly-used red-print, WB, Top View 0) ECC31 Mullard ￥- lightly-used WB 0) ECC31 Mullard ￥- used WB
ECC32/CV181 = med-mu TwinTriode = (EIA/8BD -octal, ST) Eh/Ih=6.3V/0.95A Ehkmax=50V Ppmax=5W Epmax=300V Ikmax=50mA Rgmax=1.5MΩ op : Ep=250V Ec=-4.6V Ip=6mA rp=14kΩ gm=2.3mS μ=32 (参考 : Ep-Ip特性) * noval(MT-9pin) version of ECC32/CV181 = CV4068 / 6158 / 13D3 (common cathode version = ECC31) also see a lower-μ loktal-base type : 33A/158M(Ppmax=6Wx2, μ=14) 0) ECC32 Mullard ￥- NIB 2) ECC32 Mullard ￥-offer NIB brown-base 2) CV181(=ECC32) Mullard ￥-offer NIB Blackburn, military ragged-boxes 1) CV181(=ECC32) Mullard ￥-offer NIB black-base, WB gm1/gm2=2790μmho/2790μmho, Ip1/Ip2=5.55mA/6.1mA @Ep≒125V, Eg=-2V on KS-15750-L1 tester 1) CV181(=ECC32) Mullard ￥-offer NOS tested on KS15750-L1, WB 1) CV181(=ECC32) Mullard ￥-offer lightly-used Mitcham WB 0) CV181(=ECC32) Mullard ￥- used 0) CV181(=ECC32) Mullard ￥- used
ECC33 = TwinTriode = (EIA/8BD -octal) Eh/Ih=6.3V/0.4A Ehkmax=100V Ppmax=2.5W Epmax=300V/550Vcutoff Ikmax=20mA Rgmax=1.5MΩ op : Ep=250V Ec=-4V Ip=9mA rp=9.7kΩ gm=3.6mS μ=35 (参考 : Ep-Ip特性) 0) ECC33 Brimar ￥- used
ECC34 = med-mu TwinTriode = (EIA/8BD -octal) Eh/Ih=6.3V/0.4A Ehkmax=50V Ppmax=3.25W Epmax=300V(550V-cutoff) Ikmax=50mA Rgmax=2MΩ op : Ep=250V Ec=-16V Ip=10mA rp=5.2kΩ gm=2.2mS μ=11.5 (参考 : Ep-Ip特性) size : 46mmΦ x 106mmH, in max similar to 2C50(μ=10, Eh/Ih=12.6V/0.3A) 1) ECC34 Mullard ￥16000 NIB just-ragged box 0) ECC34 Mullard ￥- used WB
ECC35 = TwinTriode = (EIA/8BD -octal) Eh/Ih=6.3V/0.4A Ehkmax=90V Ppmax=1.5W Epmax=300V/550Vcutoff Ikmax=50mA Rgmax=1.5MΩ op : Ep=250V Ec=-2.5V Ip=2.3mA rp=34kΩ gm=2mS μ=68 (参考 : Ep-Ip特性) similar to CV1985 also similar to 6SL7GT, 5691 also see a higher-mu type : 2C52(μ=100, Eh/Ih=12.6V/0.3A) 2) ECC35 Mullard ￥offer NIB 0) ECC35 Valvo ￥- NIB 0) ECC35 Mullard ￥- used 0) ECC35 Brimar ￥- used 0) ECC35 Valvo ￥- used 1) ECC35 Mazda ￥3700 used BrownBase WB
ECC40 = high-mu TwinTriode =(EIA/ - Rimlock-8pin) Eh/Ih=6.3V/0.6A Ehkmax=+100V/-175V Tbulb=125℃ Ppmax=1.5W Epmax=300V/550Vcutoff Pcmax=0.1W Ikmax=10mA Rgmax=1MΩ op : Ep=250V Ec=-5.6V Ip=6mA rp=11kΩ gm=2.9mS μ=32 op(A1s) : Ep=250V Ec=-5.6V Ip=6mA Zl=15kΩ D=8.5% Po=0.28W op(A1pp) : Ep=250V Rk=560Ω Ip=2x5.2mA/2x5.6mA Zlpp=30kΩ D=1% Po=0.52W pins : 1(H)-2(1P)-3(1G)-4(1K,E)-5(2P)-6(2G)-7(2K)-8(H) (参考 : Ep-Ip特性) 4) ECC40 Valvo ￥2200 NIB RimLock(nSn) 20-pcs) Rimlock B8A socket McMurdo ￥1570/pc NOS
ECC81 (see 12AT7)=high-mu TwinTriode= (EIA/9A - noval) Eh/Ih=6.3V/0.3A(12.6V/0.15A) Ehkmax=90V Ppmax=2.5W Epmax=300V Ikmax=15mA rp=11kΩ μ=60 gm=5.5mS Rgmax=1MΩ 0) ECC81 - ￥- NIB
ECC82 (see 12AU7)=med-mu TwinTriode= (EIA/9A - noval) Eh/Ih=6.3V/0.3A(12.6V/0.15A) Ppmax=2.75W, Epmax=300V, Ikmax=20mA, rp=7.7kΩ, μ=17, gm=2.2mS 0) ECC82/B329 Marconi ￥1500 used
ECC83 (see 12AX7)=high-mu TwinTriode= (EIA/9A - noval) Ppmax=W Epmax=V Ikmax=mA rp=kΩ μ= gm=mS Eh/Ih=6.3V/0.3A(12.6V/0.15A) 0) ECC83 - ￥- NIB
ECC84(=6CW7) = TwinTriode = (EIA/9DD - noval) Eh/Ih=6.3V/0.33A Ehkmax=+100V/-200V(unit 2), ±100V(unit1) Fmax=220MHz Ppmax=2W Epmax=180V(550V-cutoff) Ikmax=22mA Ecmax=-50V Rgmax=500kΩ op : Ep=90V Ec=-1.5V Ip=12mA gm=6mS μ=24 (参考 : Ep-Ip特性) pins : 1(2K)-2(2G,IS)-3(2P)-4(H)-5(H)-6(1G)-7(1Kinput)-8(1Koutput)-9(1P) cascode amplifier : section 1 is for grounded cathode amp, section 2 is for grounded grid amp heater variant : PCC84(7V/0.3A) 1) ECC84 Siemens ￥1300 NIB ragged box(T) 2) ECC84 Valvo ￥1300 NIB 2) ECC84 RSD ￥1000 NIB 5) ECC84/6CW7 Ultron ￥600 NIB
ECC85 (see 6AQ8) =TwinTriode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.435A Ppmax=2.5W Epmax=300V rp=9.7kΩ μ=57 gm=5900μmhos (参考 : Ep-Ip特性) heater variants : 6AQ8/ECC85(6.3V/0.435A) 9AQ8(9V/0.3A) PCC85(9V/0.3A) 17EW8/HCC85(17.5V/0.15A) also similar to 6DT8, 12DT8 also similar to 6EV7 5) ECC85 TFK ￥6300 NIB cellophane-sealed 1) ECC85 TFK ￥5500 NIB 1) ECC85 TFK ￥5500 NOS WB print=100% gm=4780/4830/2500min<> 3) ECC85 TFK ￥5500 NIB 0) ECC85/6AQ8 Siemens ￥- NIB(T) 0) ECC85 Siemens ￥- NIB old(D) 1) ECC85 Valvo ￥3600 NIB +++ 46) ECC85 TFK ￥2800 used Strong <>mark WB print=0-50% 0) ECC85 TFK ￥- used VeryStrong <>mark WB(Q) 2) ECC85 Siemens ￥1200 used 1) ECC85 Valvo ￥2000 used 4250/3770/2500min 1) ECC85/6AQ8 Amprx ￥1200 used OB (strong) 1) ECC85/6AQ8 Amprx ￥1500 used Bugle Boy made in Holland 1) ECC85/6AQ8 Amprx ￥1200 used made in England 2) ECC85/6AQ8 Harman Kardon ￥1200 used made in Holland 1) ECC85 PhilipsMiniwatt ￥1300 used 1) ECC85/6AQ8 Fisher ￥1200 used made in England
ECC86 (= 6GM8) = battery-direct HF-TwinTriode = (EIA/9AJ - noval) Eh/Ih=6.3V/0.33A Ehkmax=±30V Ppmax=0.6W Epmax=30V Ikmax=20mA Rgmax=1MΩ (参考 : Ep-Ip特性) RF amplifier operation : I : Ep=6.3V Ebc=0V Rg=100kΩ Ip=0.9mA rp=5kΩ gm=2.6mS μ=13 II : Ep=12.6V Ebc=0V Rg=100kΩ Ip=2.5mA rp=3.4kΩ gm=4.6mS III : Ep=25V Ebc=0V Rg=100kΩ Ip=7.5mA rp=2.1kΩ gm=7.8mS (size : 55.6mmH x 22mmφ in max) 5) ECC86 TFK ￥3800 NIB sealed(Qn) 1) ECC86 TFK ￥3300 NIB 3) ECC86 Siemens ￥2200 NIB 1) ECC86 Mullard ￥1200 used
ECC91(=6J6) =Medium mu TwinTriode(cathode common)= (EIA/7BF - miniature) Eh/Ih=6.3V/0.45A Ehkmax=100V Ppmax=1.5Wx2 Epmax=300V(550V-cutoff) Ikmax=25mA Igmax=8mA Rgmax=500kΩ op : Ep=100V Rk=100Ω Ip=8.5mAx2 rp=7.1kΩ gm=5.3mS μ=38 (参考 : Ep-Ip特性) also see same-base common-cathode triodes : E90CC E92CC 6J6 6M-HH3 5844 5964 6045 6101 2) ECC91/6J6 Mullard ￥1200 used 6420/6100,5010/4750/3340min
ECC99 =med-mu TwinTriode= (EIA/9A - noval) Eh/Ih=6.3V/0.8A(12.6V/0.4A) Ehkmax=200V Ppmax=5W Epmax=400V Ikmax=60mA op : Ep=150V Ec=-4V Ip=18mA rp=2.3kΩ gm=9.5mS μ=22 (参考 : Ep-Ip特性) different-base, electrically similar types : 5687, 7044, 7119, E182CC electrically similar type : 6H6Π/6N6P(6.3V/0.75A) also see another Russian type : 6H30Π/6N30P 0) ECC99 JJ ￥1800 NIB 0) ECC99 JJ ￥800 used
ECC189(= 6ES8) =Twin Triode= (EIA/9DE - noval) Eh/Ih=6.3V/0.365A Ppma=1.8W Epmax=130V/550V(cutoff) Ecmax=-50V Ikmax=22mA Ehk=50Vrms(unit 1,2)/130Vdc(unit 2) op : Ep=90V Ec=-1.2V Ip=15mA rp=2.5kΩ gm=12.5mS μ=31 (参考 : Ep-Ip特性) heater variants : 4ES8(4V/0.6A), 5ES8(5.6V/0.45A), PCC189/7ES8(7.6V/0.3A) see similar types :6DJ8(ECC88) / 6922 / 7308 / 8416 / CCa / E88CC / E188CC / E288CC / PCC88 1) ECC189 MiniwattDario ￥1700 lightly-used code=±4E2 WB
ECC801/S =10000H high-mu twin triode= (EIA/9A - noval) ECC801S= premiun/10000H long-life 12AT7 Eh/Ih=6.3V/0.3A(12.6V/0.15A) Ehkmax=±100V Ppmax=2.8W Epmax=330V/600V(cutoff) Ikmax=18mA Ecmax=-55V Rgmax=0.25MΩ(fixed)/1MΩ(self) IMPACT=500Gmax Fatigue=2.5Gmax op : Ep=250V Rk=200Ω Ip=10mA rp=11kΩ gm=5.5mS μ=60 ０) ECC801S TFK ￥offer NIB OldestType <> ０) ECC801S TFK ￥８０００ NIB <>(T) 1) ECC801S TFK ￥８０００ NOS <> WB print=90%+ 3) ECC801S TFK ￥4000 used <> WB print=100% 2) ECC801S Siemens ￥5500 NIB(Sx) 2) ECC801S Siemens ￥4900 NOS WB(Q) 1) ECC801S Siemens ￥5300 NOS WB VeryStrong 4600/4700/2500min print=100% 6) ECC801S Siemens ￥3100 used WB (shyy15)
ECC802/S ( = E82CC / CV491) =10000H med-mu twin triode= (EIA/9A - noval) ECC802S= premiun/10000H long-life 12AU7 Eh/Ih=6.3V/0.3A(12.6V/0.15A) Ehkmax=±100V Ppmax=3W Epmax=330V/600V(cutoff) Ikmax=22mA Ecmax=+0V/-55V Icmax=5mA Rgmax=0.5MΩ(fixed)/1MΩ(self) IMPACT=500Gmax Fatigue=2.5Gmax op : Ep=250V Rk=800Ω Ip=10.5mA rp=7.7kΩ gm=2.2mS μ=17 0) ECC802S-1 TFK ￥8900 NIB <>(xD) ０) ECC802S TFK ￥offer NIB OldestType <> 0) ECC802S-1 Siemens ￥7300 NIB(T) 1) ECC802S Siemens ￥7300 NIB 3700/3770/1950min 4) ECC802S Tesla ￥2000 used print=90%-100%
ECC803/S =10000H high-mu twin triode= (EIA/9A - noval) ECC803S = M8137/CV4004 = 6057= premiun/10000H long-life 12AX7/ECC83 Eh/Ih=6.3V/0.3A(12.6V/0.15A) Ehkmax=±200V IMPACT=500Gmax Fatigue=2.5Gmax Ppmax=1.2W Epmax=330V/600V(cutoff) Ikmax=9mA Ecmax=+0.5V/-55V Rgmax=1.2MΩ(fixed)/2.2MΩ(self) op : Ep=250V Rk=1.6kΩ Ip=1.25mA rp=62.5kΩ gm=1.6mS μ=100 (参考 : Ep-Ip特性) (参考 : 抵抗結合増幅表(Rk-bias)(res-coupled amp table) (参考 : 抵抗結合増幅表(Rg-bias)(res-coupled amp table) ０) ECC803S TFK ￥offer NIB OldestType <> 1) ECC803S/E83CC Siemens ￥9000 1550/1620/875min 0) ECC803S-1 - ￥-
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
ECC808(=6KX8) =Low-hum AF TwinTriode= (EIA/ - noval) TwinTriode for Low Microphonic noise, Low Hum, and Low Flicker noise tape recorder headamps Eh/Ih=6.3V/0.34A Ehkmax=±100V Rg1max=1MΩ(fixed)/2MΩ(self)/22MΩ(R-series only) Ppmax=0.5W Epmax=300V/550Vcutoff Ikmax=4mA Ec-max=-1.3V(@Ig=+0.3μA) op : Ep=250V Ec=-1.9V Ip=1.2mA rp=62kΩ gm=1.6mS μ=100 op : Eb=250V Rg=1MΩ Rp=220kΩ Rk=1.7kΩ Ip=0.56mA Rg-next=680kΩ D=0.56% Eout=69Vmax op : Eb=250V Rg=1MΩ Rp=220kΩ Rk=2.5kΩ Ip=0.49mA Rl=220kΩ D=4.4% Eout=55Vmax pins : 1(2G)-2(2K)-3(2P)-4(H)-5(H)-6(S)-7(1P)-8(1K)-9(1G) (参考 : Ep-Ip特性) (size : 49.2mmH x 22.2mmφ in max) also see similar types : 12AX7/ECC83, E283CC, ECC803S 0) ECC808 TFK ￥８０００ NIB cellophane sealed(Q) ０) ECC808 TFK ￥- NIB sealed 1) ECC808 TFK ￥81００ NIB <> 2) ECC808 TFK ￥81００ NIB <> 2) ECC808 TFK ￥6100 LikeNew <> 1440/1500,1420/1440 WB print=60-75% 1) ECC808 TFK ￥4300 used <> 1110/1300/875min GoodPrint 1) ECC808 Siemens ￥5300 NIB 1) ECC808 Valvo ￥5300 NIB
ECC812 =TwinTriode= (EIA/ -noval) Ppmax=1.5W Epmax=300V Ikmax=15mA Ehkmax=150V rp=5.8kΩ μ=58 gm=10mS Eh/Ih=6.3V/0.43A 0) ECC812 Mazda ￥- used
ECC813 =med-mu TwinTriode= (EIA/9CZ -noval) Eh/Ih=6.3V/0.6A(12.6V/0.3A) Ehkmax=±200V Rg1max=500kΩ(fixed) Ppmax=4.4W/unit(7.7W both) Epmax=330V/660V(cutoff) Ikmax=31mA Eg1max=+1.5V Igmax=5.5mA op : Ep=250V Rk=620Ω Ip=14.5mA gm=5.2mS rp=3.85kΩ μ=20 ECC813 = 6463 similar to 6350 also see similar types with lower rp and different basing : 5687, 7044, 7119, E182CC higher-gm and different-basing type : 12FV7(gm=9.6mS, μ=21.5) 0) ECC813 RFT ￥1200 NIB 2) ECC813 RFT ￥1200 NIB 0) ECC813 RFT ￥500 used
ECC865 =Twin Triode= (EIA/9AJ - noval) Eh/Ih=6.3V/0.435A similar to ECC85, 6AQ8 1) ECC865 WF ￥3300 used Gpin WB
ECC2000 = Special Twin Triode w/ neutrode= (10-pin MT) Eh/Ih=6.3V/0.325A Ppmax=2.7W, Epmax=250V, Ikmax=40mA, gm=22mS(I-Non-neutrode), 17.5mS(II-neutrode), μ=27(I),28(II) 1) ECC2000 TFK ￥5800 NIB Gpin 1) ECC2000 Siemens ￥4900 NIB Gpin 3) ECC2000 Siemens ￥4900 NIB Gpin 2) ECC2000 Valvo ￥4900 NIB Gpin justRaggedBox 2) ECC2000 Valvo ￥4900 NIB Gpin STAAR箱
ECC8100 = Special Twin Triode w/ neutrode= (9-pin MT) Eh/Ih=6.3V/0.325A Ppmax=2.5W, Epmax=250V, Ikmax=40mA, gm=16.5mS(I-neutrode), 20mS(II-Non-neutrode), μ=28(I),29(II) 1) ECC8100 TFK ￥5400 NIB Gpin sealed 2) ECC8100 TFK ￥5100 NIB Gpin 2) ECC8100 Siemens ￥4900 NIB Gpin 10) ECC8100 MiniwattDario ￥3900 NOS? Gpin EuropeanStd.Boxed
ECF80(=6BL8) =Triode Pentode= (EIA/9AE - noval) Eh/Ih=6.3V/0.43A Ehk=100V (Triode) Ppmax=1.5W Epmax=250V Ikmax=14mA Rgmax=0.5MΩ gm=5mS μ=20 (Pentode) Ppmax=1.7W Epmax=250V Pc2max=0.5W Ec2max=200V Ikmax=14mA Rgmax=0.5MΩ gm=6.2mS μg2g1=47 (参考 : Units' Ep-Ip特性) see electrically equivallent types : 6BL8 7643 E80CF heater variants : PCF80(9V/0.3A) 4BL8/XCF80(4.6V/0.6A) 8A8(8.4V/0.3A) 9A8(9V/0.3A) (size : 56.2mmH x 22.2mmφ, in max) 1) ECF80 TFK ￥2200 NIB cellophane sealed 5) ECF80 TFK ￥1900 NIB <> 1) ECF80 Siemens ￥1200 NIB 7) ECF80 Valvo ￥1200 NIB lot=878, "±"coded = Philips-RadioTechnique plant made 3) ECF80 Mullard ￥1500 NIB 新ロゴ 1) ECF80 Mullard ￥1500 NIB 旧ロゴ 1) ECF80 HeathKit ￥1200 NIB オリジナルWB 1) ECF80 Mullard ￥1100 used? 1) ECF80 Tungsram ￥1100 NIB
ECF82(=6U8) =Triode Pentode= (EIA/9AE - noval) Eh/Ih=6.3V/0.45A Ehk=100V (Triode) Ppmax=2.7W Epmax=300V Ikmax=20mA Rgmax=1MΩ gm=8.5mS μ=40 (Pentode) Ppmax=2.8W Epmax=300V Pc2max=0.5W Ec2max=300V Ikmax=20mA Rgmax=1MΩ gm=5.2mS μg2g1=35 see heater variants : 5U8(4.7V/0.6A), 5KD8(5.6V/0.45A), PCF82/9U8(9.5V/0.3A) similar type : 6KD8(6.3V/0.4A) also see same basing similar types : 6AX8 6EA8 6GH8/6GH8A 6LM8 also similar to 6R-HR4 2) ECF82 Philips ￥2000 NIB 1) ECF82 WF ￥2000 NIB 1) ECF82 TFK ￥2000 NOS <> WF箱 2) ECF82/6U8A TeeRad(Toshiba) ￥1500 NIB
ECF83 =AF low-mu Triode Pentode= (EIA/ - noval) Eh/Ih=6.3V/0.4A Ehk=100V (Triode) Ppmax=1W Epmax=300V Ikmax=16mA Rgmax=3MΩ Ehk=100V op : Ep=60V Ec=-3.7V Ip=6.5mA rp=3kΩ gm=8.5mS μ=11 (Pentode) Ppmax=1W Epmax=300V Pc2max=0.2W Ec2max=200V Ikmax=6mA Rgmax=22MΩ(self) op : Ep=60V Ec2=50V Ec1=-2.3V Ip=3mA Ic2=1.25mA rp=600kΩ gm=1.3mS μg2g1=10 pins : 1(Kt)-2(Gt)-3(Pt)-4(H)-5(H)-6(Pp)-7(G2p)-8(Kp,G3p,shield)-9(G1p) (size : 61.7mmH x 22.2mmφ, in max) 3) ECF83 TFK ￥2200 NIB sealed<> 1) ECF83 TFK ￥2000 NIB
ECF86(=6HG8) =common-cathode VHF Triode Pentode= (EIA/9MP - noval) Eh/Ih=6.3V/0.39A Ehkmax=100V (Triode) Ppmax=1.5W Epmax=125V Ikmax=15mA Rgmax=0.5MΩ gm=5.7mS μ=17 (Pentode) Ppmax=2W Epmax=250V Pc2max=0.5W Ec2max=150V Ikmax=18mA Rgmax=0.5MΩ gm=12mS μg2g1=70 heater variants : PCF86(8V/0.3A), 5HG8/LCF86(5.3V/0.45A), 7HG8(7.2V/0.3A) 0) ECF86 TFK ￥2200 NIB sealed
ECF802 =Triode Pentode= (EIA/9DC - noval) Eh/Ih=6.3V/0.43A Ehk=100V (Triode) Ppmax=1.4W Epmax=250V Ikmax=10mA Rgmax=3MΩ gm=5.5mS μ=47 (Pentode) Ppmax=1.2W Epmax=250V Pc2max=0.8W Ec2max=250V Ikmax=15mA Rgmax=0.56MΩ gm=11mS μg2g1=55 heater variants : 5JW8(4.7V/0.6A), 6LX8/LCF802(6V/0.45A), 6JW8(6.3V/0.43A), PCF802/9JW8(9V/0.3A) 1) ECF802 Lorenz ￥1800 NIB
1) ECG 5547/2N3899 ECG ￥2000 NIB Transistor YellowBoxed
ECH42(=6CU7) =Triode Hexode= (Rimlock-8pin) Eh/Ih=6.3V/0.23A Ehk=100V (Triode) Ppmax=0.8W Epmax=175V Ikmax=6mA Rgmax=3MΩ Ehk=100V gm=2.8mS μ=22 (Hexode) Ppmax=1.5W Epmax=300V Pc2+4max=0.3W Ec2+4max=125V Ikmax=10mA Rgmax=3MΩ gm=mS μg2g1= 1) ECH42 Mullard ￥2900 NIB 1) ECH42 TFK ￥2900 NIB 8) ECH42 TFK ￥2900 NIB still-sealed 4) ECH42 TFK ￥2400 NIB opened ◇-marked, very-ragged boxes 1) ECH42 Siemens ￥2400 NIB
ECH43 1) ECH43 Valvo ￥1700 NIB
ECH81(=6AJ8) =Triode Heptode= (EIA/9CJ - noval) Eh/Ih=6.3V/0.3A Ehk=150V (Triode) Ppmax=0.8W Epmax=250V Ikmax=6.5mA Rgmax=3MΩ Ehk=150V gm=3.7mS μ=22 (Heptode) Ppmax=1.7W Epmax=300V Pc2+4max=1W Ec2+4max=125V Ikmax=12.5mA Rgmax=3MΩ gm=mS μg2g1= 1) ECH81/6AJ8 Mullard ￥1800 NIB 1) ECH81 TFK ￥1800 NIB <> 1) ECH81 TFK ￥1600 NOS <> WB 4) ECH81/6AJ8 Siemens ￥1600 NIB(Qn) 3) ECH81 Valvo ￥1600 NIB +++ 1) ECH81 TFK ￥1300 used 1230/950min,4750/2300min<>
ECH83(=6DS8) =Triode Heptode= (EIA/9CA - noval) Eh/Ih=6.3V/0.3A Ehk=150V (Triode) Ppmax=0.8W Epmax=250V Ikmax=6.5mA Rgmax=3MΩ Ehk=150V, gm=2.2mS-typ μ=20-typ (Heptode) Ppmax=-W Epmax=50V Pc2+4max=-W Ec2+4max=50V Ikmax=5mA Rgmax=3MΩ, gm= μg2g1= 1) ECH83/6DS8 Siemens ￥1600 NIB 3) ECH83 Tungsram ￥1200 NIB
ECH84(=6JX8) =Triode Heptode= (EIA/ - noval) Eh/Ih=6.3V/0.3A Ehk=100V (Triode) Ppmax=1.3W Epmax=250V Ikmax=10mA Rgmax=3MΩ gm=3.7mS μ=50 (Heptode) Ppmax=1.7W Epmax=250V Pc2+4max=0.8W Ec2+4max=250V Ikmax=12.5mA Rgmax=3MΩ gm=mS μg2g1= 1) ECH84 TFK ￥1800 NIB <> 1) ECH84 TFK ￥1800 NIB <> RaggedBox 3) ECH84/6JX8 Siemens ￥1600 NIB 2) ECH84 Valvo ￥1600 NIB
ECL80(=6AB8) =Triode Pentode= (EIA/9AT - noval) Eh/Ih=6.3V/0.3A 5極部:Ppmax=3.5W Epmax=400V Pc2max=1.2W Ec2max=250V Ikmax=25mA 3極部:Ppmax=1W Epmax=200V Ikmax=8mA μ=20 4) ECL80 TFK ￥2700 NIB OldType sealed(Q)++ 2) ECL80 TFK ￥2500 NIB sealed 1) ECL80 TFK ￥1800 NIB 1) ECL80 TFK ￥1800 NIB 3) ECL80 Siemens ￥1500 NIB(Sx) 2) ECL80 Mazda ￥1500 NIB 2) ECL80 Tungsram ￥1200 NIB 1) ECL80 Raphone ￥1200 used 4) ECL80 Mullard ￥1200 used
ECL82(=6BM8) =Triode Pentode= Eh/Ih=6.3V/0.78A 5極部:Ppmax=5W Epmax=300V Pc2max=2W Ec2max=300V Ikmax=50mA 3極部:Ppmax=1W Epmax=300V Ikmax=15mA μ=70 ECL82=6BM8 (see 6BM8/ECL82)
ECL84(=6DX8) =Triode Pentode= (EIA/9HX - noval) Eh/Ih=6.3V/0.72A 5極部:Ppmax=4W Epmax=250V Pc2max=1.7W Ec2max=250V Ikmax=40mA 3極部:Ppmax=1W Epmax=250V Ikmax=12mA μ=65 heater variants : 10DX8(10.2V/0.45A) PCL84(15V/0.3A) 15DQ8(15V/0.3A) 0) ECL84 Amprx ￥- NIB 1) ECL84 TFK ￥2900 NIB cellophane sealed
ECL85(=6GV8) =Triode Pentode= (EIA/9LY - noval) Eh/Ih=6.3V/0.9A Ehkmax=200V 5極部:Ppmax=7W Epmax=250V Pc2max=1.8W Ec2max=250V Ikmax=75mA 3極部:Ppmax=0.5W Epmax=250V Ikmax=15mA μ=50 (参考 : 五極部三結のEp-Ip特性(Pentode section Triode-connection, sample data)) heater variants : 6GV8(6.3V/0.9A), 9GV8(9.5V/0.6A), 10GV8/LCL85(11.6V/0.45A), 18GV8(18V/0.3A), PCL85(18V/0.3A) ECL85/6GV8 is almost same as ECL805 pins =1(Pt)-2(Gt)-3(Kt)-4(H)-5(H)-6(Pp)-7(G2p)-8(Kp,G3p,IS)-8(G1p) 1) ECL85/6GV8 Amprx ￥2000 NIB 2) ECL85 Siemens ￥2000 NIB 2) ECL85 Hoges ￥2000 NIB 2) 6GV8(ECL85) RCA(Holland) ￥2000 NIB 1) 6GV8(ECL85) RCA(Holland) ￥1800 NIB RaggedBox 1) 6GV8/ECL85 RCA ￥1800 NIB 1) 6GV8 Miniwatt ￥1800 NIB
ECL86 =Triode Pentode= (EIA/9LZ - noval) Eh/Ih=6.3V/0.7A 5極部:Ppmax=9W Epmax=300V Pc2max=1.8W Ec2max=300V Ikmax=55mA 3極部:Ppmax=0.5W Epmax=300V Ikmax=4mA μ=100 equivallent : 6GW8 heater variants : 14GW8, PCL86(13.3V/0.3A) 1) ECL86 TFK ￥3100 NIB sealed 1) ECL86 TFK ￥3100 NIB 1) ECL86 Philips ￥2700 NIB 1) ECL86 Europe ￥1000 used D/C=6403 WB
ECL91 3) ECL91 Siemens ￥1500 NIB 1) ECL91 Valvo ￥1500 NIB
ECL805 =Triode Power-Pentode/vertical deflection= (EIA/9LY - noval) Eh/Ih=6.3V/0.875A Ehkmax=200V (Triode) Ppmax=0.5W Epmax=300V/550V(cutoff) Ikmax=15mADC/100mA(pulse: duty=4%, tw=0.8ms) Rgmax=1MΩ gm=5.5mS μ=60 (Pentode) Ppmax=8W/10.5W(design max) Epmax=300V/550V(cutoff)/2kV(pulse: duty=4%, tw=0.8ms) Pc2max=1.5W/2W(design max) Ec2max=250V/550V(cutoff) Ikmax=75mA Rgmax=1MΩ(fixed)/2.2MΩ(self) ECL805 is almost same as ECL85 / 6GV8 pins =1(Pt)-2(Gt)-3(Kt)-4(H)-5(H)-6(Pp)-7(G2p)-8(Kp,G3p,IS)-8(G1p) heater variant: PCL805 1) ECL805 TFK ￥2800 NIB sealed 2) ECL805 TFK ￥2400 NIB 2) ECL805 Siemens ￥2000 NIB
Ed =Telecommunication Power Triode= <三極管の A1S 動作比較> Ef/If=4V/1A Ppmax=20W Epmax=300V/500V-cutoff Ikmax=80mA Ec1max=-1.3V(for Ic=+0.3μA) Rg1max=1MΩ op : Ep=100V Ec=-10V Ip=55mA gm=5.5mS rp=730Ω μ=4 op : Ep=200V Ec=-35V Ip=70mA gm=6.5mS rp=620Ω μ=4 op : Ep=300V Ec=-63V Ip=60mA gm=5.8mS rp=670Ω μ=3.9 op(A1s) : Ep=300V Rk=720Ω Ip=65mA gm=6mS rp=650Ω μ=3.9 Zl=2.5kΩDtot=5% Po=4W (参考 : Ep-Ip特性) 0) Ed Siemens used ￥-
EF6 =Pentode=(EIA/-, 8pin-SideContact-TopG1) Eh/Ih=6.3V/0.2A Ehkmax=100V Rg1max=1MΩ(fixed)/3MΩ(self) Ppmax=1W Epmax=300V/550V(cutoff) Pc2max=0.3W Ec2max=125V/550V(cutoff) Ikmax=6mA op : Ep=200V Ec2=100V Ec1=-2V Ip=3mA Ic2=0.8mA gm=1.8mS rp=2MΩ μ=3600 (参考 : Ep-Ip特性(pentode connection @Ec2=100V, triode-connection)) (size : 90mmH x 32mmφ, in max) electrically almost identical to EF36 (octal) octal-base - electrically close ones : EF37/A 5A/157D CV358 0) EF6 Philips ￥- lightly-used 1) EF6-ST Tungsram ￥2800 NIB red-spray, side-contact, just-ragged-box
EF14 =Pentode= (octal) Eh/Ih=6.3V/0.47A Ppmax=5W Epmax=300V Pc2max=0.7W Ec2max=200V Ec3max=300V Ikmax=30mA Rgmax=500kΩ gm=7mS rp=200kΩ 1) EF14 - ￥3900 used? 2) EF14 TFK ￥3900 used?
EF22 =vari-μ HF Pentode= (EIA/ - lokctal) EF22 = CV303 = 6H2(Sweden) = 6F22(Sweden) Eh/Ih=6.3V/0.2A Ehkmax=50V Rg1max=3MΩ Ppmax=2W Epmax=300V(550V-cutoff) Pc2max=0.3W Ec2max=300V(550V-cutoff) Ikmax=10mA Ec1max=-1.3V(Ig1=+0.3μA) op : Ep=250V Ec2=100V Ec1=-2.5V Ip=6mA Ic2=1.7mA rp=1.2MΩ gm=2.2mS μg2g1=17 pins : 1(H)-2(P)-3(G2)-4(G3,S)-5(NONE)-6(G1)-7(K)-8(H) size : 29mmΦ x 80mmH in max. 0) EF22 Philips NIB ￥- 0) EF22 Philips used ￥- WB
EF36 =Pentode=(EIA/7R, octal-TopG1) Eh/Ih=6.3V/0.2A Ehkmax=100V Rg1max=1MΩ(fixed)/3MΩ(self) Ppmax=1W Epmax=300V/550V(cutoff) Pc2max=0.3W Ec2max=200V/550V(cutoff) Ikmax=6mA op : Ep=200V Ec2=100V Ec1=-2V Ip=3mA Ic2=0.8mA gm=1.8mS rp=2MΩ μ=3600 pins : 1(M)-2(H)-3(P)-4(G2)-5(G3)-6(NONE)-7(H)-8(K)-Top(G1) (参考 : 抵抗結合増幅器表(五結・三結)(ressistance-coupled amplifier)) (size : 100mmH x 27mmφ～32mmφ) 8-pin side contact base, electrically almost identical type = EF6 can be directly replaced by EF37/A(low-microphonic and low-hum version of EF36) close to 5A/157D / CV358 2) EF36-ST Mullard ￥3000 NOS red-spray(partially peeled-off), w/original wrapping, WB 2) EF36-ST Mullard ￥3000 NOS red-spray(slightly peeled-off) WB w/ original wrapper 1) EF36-ST Tungsram ￥2500 NOS red-spray WB 0) EF36 Philips ￥- used 2) EF36 Mullard ￥2200 used WB 0) EF36 Mullard ￥- used
EF37/A =Low-microphonic Pentode=(EIA/7R - octal, topG1) Eh/Ih=6.3V/0.2A Ehkmax=100V Rg1max=1MΩ(fixed)/3MΩ(self) Ppmax=1W Epmax=300V/550V(cutoff) Pc2max=0.3W Ec2max=125V/550V(cutoff) Ikmax=6mA op : Ep=200V Ec2=100V Ec1=-2V Ip=3mA Ic2=0.8mA gm=1.8mS rp=2MΩ μ=3600 op(triode connection) : Ep=150V Ec=-3V Ip=6mA rp=10kΩ gm=2.8mS μ=28 pins : 1(M)-2(H)-3(P)-4(G2)-5(G3)-6(NONE)-7(H)-8(K)-Top(G1) (size : 100mmH x 27mmφ～32mmφ) (参考 : Ep-Ip特性(pentode-connection @Ec2=100V)) (参考 : Ep-Ip特性(triode-connection) (参考 : 抵抗結合増幅器表(五結・三結)(ressistance-coupled amplifier)) EF37 is an anti-microphonic type of EF36. electrically identical to 5A/157D, and CV358 same-pinout similar USA types : 6J7/G/GT(Ppmax=0.75W), 1620(Ppmax=0.75W), WE-348A(Ppmax=2W) also similar to CV1343(Eh/Ih=4V/0.25A) 2) EF37 Mullard ￥offer NOS ST-shape, red spray-shield WB 2) EF37A RadioTechnique ￥offer NIB ST-shape, red spray-shield 2) EF37A Mullard ￥offer NIB red spray-shield made in Gt.Britain code=EP2-B0D3(Blackburn 1970-4) 2) EF37A Mullard ￥offer NIB red spray-shield made in Gt.Britain code=EP2-B9L5(Blackburn 1969-12) 2) EF37A Mullard ￥offer NOS red spray-shield made in Gt.Britain code=EP2-B9L5(Blackburn 1969-12) WB 2) EF37A Mullard ￥offer NOS red spray-shield made in USA WB 2) EF37A Mullard ￥offer NOS gray spray-shield made in Gt.Britain WB 2) EF37A Mullard ￥offer NOS gray spray-shield made in Gt.Britain WB 0) EF37 Philips ￥- used
EF39/CV1053 =vari-mu Pentode=(octal-TopGrid) Eh/Ih=6.3V/0.2A Ehkmax=100V Ppmax=2W Epmax=300V Pc2max=0.3W Ec2max=125V(@Ia=6mA)/300V(@Ia=3mA) Ikmax=10mA Rgmax=3MΩ op : Ep=250V Ec2=100V Ec1=-2.5V(Rk=325Ω) Ip=6mA Ic2=1.7mA rp=1.25MΩ gm=2.2mS similar to 6K7/G 1) EF39 Mullard ￥1700 NIB
EF40 =low-noise low-microphonic Pentode= (8-pin Rimlock) Eh/Ih=6.3V/0.2A Ppmax=1W Epmax=250V Pc2max=0.2W Ec2max=250V Ikmax=6mA, gm=1.85mS different-base electrically-similar type : EF86/6267 0) EF40 Adzam(=Mazda) ￥1900 NIB
EF41(=6CJ5) =Pentode= (8-pin Rimlock) Eh/Ih=6.3V/0.2A Ppmax=2W Epmax=250V Pc2max=0.3W Ec2max=250V Ikmax=10mA, gm=2.2mS Also see UF41(Eh/Ih=12.6V/0.1A) 0) EF41 Mullard ￥2900 NIB (mD) 1) EF41 Valvo ￥2900 NIB RaggedBox 1) EF41 Mullard ￥1400 used 1) EF41 Telefunken ￥1400 used-lightly WB 1) EF41 Philips ￥1400 used-lightly WB
EF42 =wide-band amplifier Pentode= (8-pin Rimlock) Eh/Ih=6.3V/0.33A Ehkmax=100V Ppmax=3.5W Epmax=300V/550V-cutoff Pc2max=0.7W Ec2max=300V/550V-cutoff Ikmax=25mA Rg1max=1MΩ op : Ep=250V Ec2=250V Ec3=0V Ec1=-2V Ip=10mA Ic2=2.4mA gm=9mS μg2g1=83 rp=500kΩ pins : 1(H)-2(P)-3(Shield)-4(G3)-5(G2)-6(G1)-7(K)-8(H) (参考 : Ep-Ip特性(@Ec2=250V)) size : 60mmH x 22mmΦ Also see UF42(Eh/Ih=21V/0.1A) 18) EF42 siemens ￥1900 NIB mint 2) EF42 Philips(France) ￥1900 NIB rimlock 10) EF42 Siemens ￥1900 NIB D/C=Dec.1973 with a 10-pcs sleeve 10) EF42 Siemens ￥1900 NIB mint, with a 10-pcs sleeve 10) EF42 Haltron ￥1900 NIB mint, with a 10-pcs sleeve 4) M2462-700(=EF42) Sweden-MIL ￥1400 like-new WB 1) EF42 Philips ￥1200 used rimlock
EF43 =vari-gm Pentode= (8-pin Rimlock) Eh/Ih=6.3V/0.33A Ehkmax=100V Ppmax=3.75W, Epmax=300V/550Vcutoff Pc2max=0.7W Ec2max=250V Ikmax=20mA Rg1max=1MΩ op : Ep=250V Ec2=135V Ec1=-2V rp=500kΩ gm=6.4mS op : Ep=250V Ec2=135V Ec1=-28V rp=-MΩ gm=0.064mS 0) EF43 Siemens ￥- NIB 4) EF43 Valvo ￥1900 NOS "IMPORT" code=UH1-G3J(EF43-rev.1, Mullard Fleetwood, Oct.1963) WB
EF50 =RF Pentode= (EIA/ - 9pin-loktal-B9G) EF50=63-SPT(Cossor), VR91 Eh/Ih=6.3V/0.3A Ehkmax=100V Ppmax=3W Epmax=300V Pc2max=1.7W Ec2max=300V Ikmax=15mA Rg1max=3MΩ op : Ep=250V Ec2=250V Ec1=-2V Ip=10mA Ic2=3mA rp=1MΩ gm=6.5mS μg2g1=75 (参考 : Ep-Ip特性(pentode-connection @Ec2=250V)) Pins = 1(H)-2(G2)-3(P)-4(G3)-5(S)-6(K)-7(G1)-8(S)-9(H) size : 39mmΦ x 78mmH, in max 0) EF50 Mullard ￥2900 NIB 2) EF50 Mullard ￥2700 NIB red-can just-ragged boxes 5) EF50 ADZAM(=MAZDA) ￥2700 NIB red-can 1) EF50 Mullard ￥2000 lightly-used red-can WB 0) EF50 Phlps ￥1000 used
EF80(=6BX6) =RF/IF, VideoAmp Pentode= (EIA/9AQ - noval) Eh/Ih=6.3V/0.3A Ppmax=2.5W Epmax=300V Pc2max=0.7W Ec2max=300V Ikmax=15mA Rg1max=500kΩ(fixed)/1MΩ(self) op : Ep=250V Ec2=250V Ec1=-3.5V Ip=10mA Ic2=2.8mA rp=650kΩ gm=6.8mS μg2g1=50 Pins = 1(K)-2(G1)-3(K)-4(H)-5(H)-6(Shield)-7(P)-8(G2)-9(G3) see same-base and electrically-similar types : EF800, 6BX6 see same-base remote cutoff / variable-gm types : 6BY7 / EF85 also see same-base higher-gm pentodes: 6EH7 / EF183(remote-cutoff), 6EJ7 / EF184(sharp-cutoff) 1) EF80 TFK ￥2400 NIB <> 1) EF80 TFK ￥1500 used <> Hoges箱 4) EF80/6BX6 Siemens ￥1900 NIB 2) EF80 Valvo ￥1900 NIB 1) EF80 Valvo ￥1900 NIB RaggedBox 1) EF80 Valvo ￥1700 NOS TFK箱 1) EF80 Valvo ￥1700 NOS Ray箱 4) 6BX6/EF80 Ray ￥1700 NIB 1) EF80(6BX6) Mullard ￥2400 NIB Mesh 1) EF80 TFK ￥1500 used <> 8100/4500min 1) EF80 Siemens ￥1000 used 6150/4500min 1) EF80(6BX6) Brimar ￥1000 used 1) EF80(6BX6) Mullard ￥1600 used Mesh *注意： EF80とE80Fは全く異なる管です。規格・pin配列共に、全く互換性はありません。 (EF80 is NEVER compatible to E80F. These are completely different from each other at spec. & pin-out. )
EF83 =RemoteCutoff AF Pentode= (EIA/9CQ=9BJ - noval) Eh/Ih=6.3V/0.2A Ehkmax=50V Ppmax=1W Epmax=300V Pc2max=0.2W Ec2max=300V Ikmax=6mA Rg1max=3MΩ op : Ep=250V Ec2=50V Ec1=-1.6V Ip=4mA Ic2=1.15mA rp=1.26MΩ gm=1.6mS μg2g1=10 same basing as EF86 / 6267 / E80F / EF806S (size : 55.6mmH x 22mmφ, in max) 1) EF83 Siemens ￥1500 NIB 1) EF83 Valvo ￥1500 NIB 2) EF83 Valvo ￥1500 NIB
EF85(=6BY7) =RemoteCutoff RF Pentode= (EIA/9AQ - noval) Eh/Ih=6.3V/0.3A Ehkmax=150V Ppmax=2.5W Epmax=300V Pc2max=0.65W Ec2max=300V Ikmax=15mA Rg1max=3MΩ op : Ep=250V Ec2=100V Ec1=-2V Ip=10mA Ic2=2.5mA rp=600kΩ gm=6mS μg2g1=26 (size : 66.7mmH x 22mmφ, in max) heater variant : UF85(Eh/Ih=19V/0.1A) also see same-base sharp-cutoff types : 6BX6, EF80, EF800 same-base higher-gm pentodes: 6EH7 / EF183(remote-cutoff), 6EJ7 / EF184(sharp-cutoff) 1) EF85 TFK ￥2900 NIB sealed 1) EF85 Mullard ￥2500 NIB 1) EF85 Siemens ￥1800 NIB
EF86 = 6267
EF89(=6DA6) =RemoteCutoff RF Pentode= (EIA/9BA - noval) Eh/Ih=6.3V/0.2A Ehkmax=100V Ppmax=2.25W Epmax=300V Pc2max=0.45W Ec2max=300V Ikmax=16.5mA Rg1max=3MΩ op : Ep=250V Ec2=85V Ec1=-1.2V Ip=9mA Ic2=3mA rp=750kΩ gm=4mS μg2g1=21 2) EF89 TFK ￥1900 NIB <> 1) EF89 TFK ￥1500 NIB 1) EF89 TFK ￥1400 NOS 1) EF89/6DA6 Siemens ￥1500 NIB(D) 1) EF89 Valvo ￥1500 NIB 2) EF89 Valvo ￥1500 NIB +++ 4) EF89 Phlps ￥1500 NIB 2) EF89 RSD ￥1200 NIB 1) EF89 Valvo ￥1000 used
EF91(=6AM6, CV4014) =RF Pentode= (EIA/7DB - miniature) Eh/Ih=6.3V/0.3A Ehkmax=50V Ppmax=2.5W Epmax=300V Pc2max=0.65W Ec2max=300V Ikmax=15mA Rg1max=1MΩ op : Ep=250V Ec2=250V Ec1=-2V Ip=10mA Ic2=2.55mA rp=1MΩ gm=7.65mS μg2g1=70 pins : 1(G1)-2(K)-3(H)-4(H)-5(P)-6(G3,S)-7(G2) (size : 54mmH x 19mmφ, in max) similar to M8083 also similar to CV2031, CV2195, Z77 4) EF91/6AM6 Mullard ￥1900 NIB ++ 3) EF91 Amprx ￥1700 NIB ++ 2) EF91/Z77(6AM6) Marconi ￥1700 NIB
EF92(=6CQ6) =RF Pentode= (EIA/7DR - miniature) Eh/Ih=6.3V/0.2A Fmax=160MHz Ppmax=2.5W Epmax=250V Pc2max=0.6W Ec2max=250V Ikmax=15mA, gm=2.5mS 0) EF92 Phlps ￥- NIB
EF94 (=6AU6)=SharpCutoff Pentode= (EIA/7BK - miniature) Eh/Ih=6.3V/0.3A Ehkmax=50V Ppmax=3W Epmax=300V Pc2max=0.65W Ec2max=150V Ikmax=20mA Rg1max=2MΩ op : Ep=250V Ec2=150V Ec=-1V Ip=10.8mA Ic2=4.3mA rp=1MΩ gm=5.2mS μg2g1=36 (size ; 54mmH x 19mmφ, in max) 6) EF94(6AU6) Siemens ￥1900 NIB 1) EF94/6AU6A Tungsram ￥1000 NIB 1) EF94(6AU6A) Valvo ￥1500 used?
EF95 =LN high-slope VHF Pentode= (EIA/7BD - miniature) Eh/Ih=6.3V/0.175A Ehkmax=120V Ppmax=1.7W Epmax=300V Pc2max=0.5W Ec2max=180V Ikmax=18mA Rg1max=3MΩ op : Ep=120V Ec2=120V Ec=-2V Ip=7.5mA Ic2=2.5mA rp=250kΩ gm=5.0mS μg2g1=35 op : Ep=180V Ec2=120V Ec=-2V Ip=7.7mA Ic2=2.4mA rp=400kΩ gm=5.1mS μg2g1=35 (size : 45mmH x 19mmφ, in max) (参考 : 五結時のEp-Ip特性(@Ec2=120V)) (参考 : 三結時のEp-Ip特性(triode-connection)) EF95 is electrically similar/equivallent to : 6AK5 / 403A, 403B / 5591 / 5654 / E95F / M8100 2) EF95 Siemens ￥1400 NIB 5) EF95/6AK5 Siemens ￥1400 NIB
EF96 =sharp-cutoff Pentode= (EIA/7BD - miniature) Eh/Ih=6.3V/0.3A Ppmax=2W Epmax=300V Pc2max=0.5W Ec2max=300V rp=800kΩ gm=5mS (see 6AG5, 6186) 0) EF96 Phlps ￥- NIB
EF97(=6ES6) =Battery-direct HF Pentode=(EIA/7EN - miniature) Eh/Ih=6.3V/0.3A Ehkmax=50V Philips : Ppmax=0.5W Epmax=50V Pc2max=0.5W Ec2max=50V Ikmax=15mA Rg1max=22MΩ Siemens : Epmax=30V Ec2max=30V op : Ep=25V Ec2=6.3V Ec1=-0.85V Ip=2.7mA Ic2=0.8mA rp=60kΩ gm=1.9mS op : Ep=12.6V Ec2=6.3V Ec1=-0.85V Ip=2.5mA Ic2=0.9mA rp=120kΩ gm=1.8mS op : Ep=6.3V Ec2=3.2V Ec1=-0.85V Ip=0.8mA Ic2=0.3mA rp=60kΩ gm=0.9mS (size : 54mmH x 19mmφ, in max) 2) EF97 Siemens ￥1200 NIB
EF98(=6ET6) =Battery-direct IF/AF Pentode=(EIA/7EN - miniature) Eh/Ih=6.3V/0.3A Ehkmax=50V Philips : Ppmax=0.5W, Epmax=50V Pc2max=0.5W Ec2max=50V Ikmax=15mA Rg1max=22MΩ Siemens : Epmax=30V Ec2max=30V op : Ep=25V Ec2=6.3V Ec1=-0.75V Ip=2.2mA Ic2=0.6mA rp=90kΩ gm=2.1mS μg2g1=4.1 op : Ep=12.6V Ec2=6.3V Ec1=-0.75V Ip=2mA Ic2=0.7mA rp=200kΩ gm=2mS μg2g1=4.1 op : Ep=6.3V Ec2=3.2V Ec1=-0.8V Ip=0.6mA Ic2=0.2mA rp=100kΩ gm=1mS μg2g1=3.2 (size : 54mmH x 19mmφ, in max) 3) EF98 TFK ￥1700 NIB sealed
EF183 (=6EH7) =RemoteCutoff RF Pentode= (EIA/9AQ - noval) Eh/Ih=6.3V/0.3A Ppmax=2.5W, Epmax=250V Pc2max=0.65W Ec2max=250V Ikmax=20mA, gm=12.5mS 1) EF183 Miniwatt ￥1700 NIB 1) EF183 TFK ￥1400 used 8250/4900min<>
EF184 (=6EJ7) =RF Pentode= (EIA/9AQ - noval) Eh/Ih=6.3V/0.3A Ppmax=2.5W, Epmax=250V Pc2max=0.9W Ec2max=250V Ikmax=25mA, gm=15mS 3) EF184 TFK ￥3100 NIB sealed 1) EF184 TFK ￥2400 NIB <>(T) 1) EF184 TFK ￥2400 NIB <> 3) EF184 TFK ￥2400 NOS <> Siemens箱 11) EF184 Siemens ￥1900 NIB mesh(hyydvg) 1) EF184 Siemens ￥1900 NIB 2) EF184 Valvo ￥1900 NIB
EF410 Eh/Ih=6.3V/0.2A 1) EF410 TFK ￥2900 NIB <> Rimlock 1) EF410 TFK ￥2900 NIB sealed
EF731 =RF Pentode= (EIA/ -) *subminiature* Eh/Ih=6.3V/0.15A Ppmax=1W Epmax=100V Ikmax=15mA Pc2max=0.5W Ec2max=100V Ehk=100V Rg1max=1MΩ gm=4.5mS rp=260kΩ 0) EF731 Valvo ￥- NIB Subminiature
EF732 =RF/AF Pentode= (EIA/ -) *subminiature* Ef/If=6.3V/0.15A Ppmax=1W Epmax=100V Ikmax=15mA Pc2max=0.5W Ec2max=100V Ehk=100V Rg1max=1MΩ gm=5mS rp=230kΩ 2) EF732 Valvo ￥2600 NIB Subminiature
EF800 =10000H RF/IF Pentode= (EIA/9AQ - noval) Eh/Ih=6.3V/0.275A Ehkmax=+100V/-60V Rg1max=500kΩ(fixed) Ppmax=1.7W Epmax=Ec2max=250V/550Vcutoff Ikmax=12.5mA Pc2max=0.45W Ec1max=+0V/-30V op : Ep=170V Ec2=170V Rk=160Ω Ip=10mA Ic2=2.5mA rp=400kΩ gm=7.5mS μg2g1=50 (参考 : Ep-Ip特性(@Ec1=-1V, Ec2-parameter)) same-base and electrically-similar types : EF80, 6BX6 same-base higher-gm pentodes: 6EH7 / EF183(remote-cutoff), 6EJ7 / EF184(sharp-cutoff) 2) EF800 TFK ￥3200 NIB OldestBox-sealed 1) EF800 TFK ￥2400 NIB <> 4) EF800 TFK ￥1000 used <> Strong print=70% 3) EF800 Siemens ￥1700 NOS?
EF802 =RF/IF Pentode for Wideband Amp= (EIA/ - noval) Eh/Ih=6.3V/0.285A Ppmax=2.1W Epmax=250V Ikmax=16mA Pc2max=0.55W Ec2max=250V gm=8mS 5) EF802 TFK ￥3000 NIB
EF804/EF804S =AF Pentode= (EIA/ - noval) 1000H-LongLife Vib-shock-Proof TightTolerance Eh/Ih=6.3V/0.17A Ppmax=1W Epmax=300V Ikmax=6mA Pc2max=0.2W Ec2max=200V gm=2mS recommended substitution = E80F/6084 (注1:置換推奨のE80Fと異なるpin配列) (注2:規格酷似EF86/6267/EF806Sとも異なるpin配列） Pins = 1(G3)-2(Shield)-3(K)-4(H)-5(H)-6(Shield)-7(P)-8(G2)-9(G1) (参考 : Ep-Ip特性(pentode-connection @Ec2=140V)) see identical type : 6084 see different-base electrically-similar types : 6267/EF86, E80F, EF806, Z729, CV2901, CV4085) E80F EF804/S EF806S EF86/6267 5879の比較 1) EF804 TFK ￥7500 NIB sealed old 3) EF804 TFK ￥7300 NIB old 2) EF804 TFK ￥6900 NIB <>(T) 2) EF804 TFK ￥6900 NIB <> 1) EF804 TFK ￥6900 NIB Silver 1) EF804 TFK ￥6900 NIB Gray ０) EF804S TFK ￥- NIB OldestBox-sealed (xvD) 2) EF804S TFK ￥5900 NOS? <> print=95%(sQ) 4) EF804S TFK ￥5900 used? <> print=95% 2) EF804S TFK ￥5900 LikeNew <> print=95%
EF805S =RemoteCutoffWidebandPentode= (EIA/ - noval) 10000H-LongLife TightTolerance Eh/Ih=6.3V/0.285A Ppmax=2W Epmax=250V Ikmax=16mA Pc2max=0.5W Ec2max=250V gm=6.5mS Pins = 1(K)-2(G1)-3(K)-4(H)-5(H)-6(Shield)-7(P)-8(G2)-9(G1) 2) EF805S TFK ￥4100 NIB OldestBox-sealed 4) EF805S TFK ￥3600 NIB(Qn) 3) EF805S 1 Siemens ￥2900 NIB
EF806S =AF Pentode= (EIA/9CQ - noval) 10000H-LongLife TightTolerance Eh/Ih=6.3V/0.2A Ehk=100V Ppmax=1W Epmax=300V Pc2max=0.2W Ec2max=200V Ikmax=6mA Rg1max=3MΩ op : Ep=250V Ec2=140V Ec3=0V Rk=500Ω p=3.2mA Ic2=0.6mA rp=2.5MΩ gm=2mS μg2g1=38 Pins = 1(G2)-2(Shield)-3(K)-4(H)-5(H)-6(P)-7(Shield)-8(G3)-9(G1) : EF86/6267とpin互換。 (参考 : Ep-Ip特性(pentode-connection @Ec2=140V)) (参考 : EF86/6267の三結時のEp-Ip特性(triode-connection)) same-basing electrically-similar types : 6084, 6267/EF86, E80F, Z729, CV2901, CV4085 different-basing electrically-similar type : EF804/S (参考 : E80F EF804/S EF806S EF86/6267 5879の比較) also see different base British low-microphonic & low-noise pentodes : 6BR7/CV4006, 6059/CV4006 and 6BS7(top-G1) also see a different base American low-noise pentode : 5879 4) EF806S TFK ￥8900 NIB <> 1) EF806S United ￥3000 NIB MeshPlate SilverPins made in England
2) EFS-A PIELEFORK Murata ￥1000 used piezo-electronic tuning fork
EH90 =Heptode= (EIA/7CH - miniature) Eh/Ih=6.3V/0.3A Ppmax=1W, Epmax=300V Pc2max=1W Ec2max=300V Ikmax=14mA, gm=1.2mS see equivallent type : 6CS6 3) EH90 TFK ￥1700 NIB sealed
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
EL1 =Power Pentode= (EIA/-, P8A 8-pin side-contact,top-G1) Eh/Ih=6.3V/0.4A Ppmax=6W-8W Epmax=V Ikmax=mA Pc2max=W Ec2max=V op: Ep=250V Ip=25mA Ec1=-14V Ec2=200V Ic2=2.5mA gm=2.5mS μ=125 rp=50kΩ Zl=8kΩ Po=2.0W 0) EL1 PhilipsMiniwatt ￥- used 1) EL1 TFK ￥- used mesh-plate inclined-electrode, glass-chip inside glass-envelope
EL2 =Power Pentode= (EIA/-, P8A 8-pin side-contact,top-G1) Eh/Ih=6.3V/0.2A Ehkmax=100V Rg1max=600kΩ(fixed)/1MΩ(self) Ppmax=8W Epmax=250V(550V-cutoff) Ikmax=45mA Pc2max=1.6W Ec2max=250V(550V-cutoff) op: Ep=250V Ip=32mA Ec1=-18V Ec2=250V Ic2=5mA gm=2.8mS μ=196 rp=70kΩ Zl=8kΩ Po=3.6W (参考 : Ep-Ip特性(三結:triode-connection)) similar type : EL32(octal base) 0) EL2 PhilipsMiniwatt ￥- used
EL3NG/EL3N =Power Pentode= (EIA/-, P8A 8-pin side-contact) Eh/Ih=6.3V/0.9A Ehkmax=100V Rg1max=1MΩ Ppmax=9W Epmax=250V(550V-cutoff) Pc2max=2.5W Ec2max=275V(550V-cutoff) Ikmax=55mA op: Ep=250V Ec2=250V Ec1=-6V Ip=36mA Ic2=4mA rp=50kΩ gm=9mS μg2g1=23 A1S: Ep=250V Ec2=250V Rk=150Ω/Ec1=-6V Ip=36mA Ic2=4mA Zl=7kΩ Po=4.5W D=10% AB1pp: Ep=250V Ec2=250V Rk=140Ω Ip=48mA/57mA Ic2=5.6mA/9.2mA Zlpp=10kΩ Po=8.2W D=3.1% different base type : EL33(octal-base) electrically similar types (different base/heater) : AL4, APP4B/C also similar type : 6M6G(Eh/Ih=6.3V/1.2A, octal-base) size : 46mmΦ x 115mmH, in max 4) EL3N PhilipsMiniwatt ￥3300 used-lightly made in Holland, lot=MS12-A2D(3pcs), A2E(1pc), rear-side and bottom view 0) EL3N PhilipsMiniwatt ￥- used 1) EL3N Tungsram ￥3000 used WB
EL5 =Power Pentode= (EIA/ - 8-pin side-contact) Eh/Ih=6.3V/1.35A Ehkmax=50V Rg1max=700kΩ Ppmax=18W Epmax=250V(550V-cutoff) Ikmax=90mA Pc2max=3W Ec2max=275V(550V-cutoff) op: Ep=250V Ec2=275V Ec1=-14V Ip=72mA Ic2=7mA rp=22kΩ gm=8.5mS μ=185 op(A1S): Ep=250V Ec2=275V Ec1=-14V(or Rk=175Ω) Ip=72mA Ic2=7mA Zl=3.5kΩ Po=8.8W op(AB1pp): Ep=250V Ec2=275V Rk=120Ω Ip=116/130mA Ic2=12.5/21mA Zlpp=4.5kΩ Po=19.5W Dtot=5.1% (参考: Ep-Ip特性(@Ec2=275V)) later octal-base version = EL35(Epmax=375V, Ec2max=250V) similar to 6L6(octal) 4) EL5 PhilipsMiniwatt ￥6000 NIB SmokedGlass ST 0) EL5 Philips ￥- lightly-used SmokedGlass WB 1) EL5 Valvo ￥4000 used SmokedGlass smeared-silk original-boxed 0) EL5 Valvo ￥- used SmokedGlass smeared silk 1) EL5 Valvo ￥4000 used SmokedGlass WB
EL6 =Power Pentode= (EIA/ - 8-pin side-contact) Eh/Ih=6.3V/1.3A Ppmax=18W Epmax=250V Ikmax=90mA Pc2max=3W Ec2max=275V op: Ep=250V Ip=72mA Ec1=-7V(or Rk=90ohm) Ec2=250V Ic2=8mA gm=14.5mS μ=290 rp=20kΩ Zl=3.5kΩ Po=8.2W see 4699=EL6 spez.(EL6/425) 0) EL6 Philips ￥- NIB
EL6C =Xenon Gas Filled Rectifier= PIV=725V Ipmax=6.4A Eac-in=15V-250V Ef/If=2.5V/17A(±2A) 1) EL6C Electrons Inc ￥5000 NIB sealed
EL8 =Power Pentode= Eh/Ih=6.3V/0.5A Ppmax=5W Ep=250V Pc2max=1.5W Ec2max=250V Ep=Ec2=250V Ip=20mA Ic2=3.2mA gm=5.5mS Rk=320Ω Po=2W Zl=12.5kΩ 0) EL8 Valvo ￥- NIB
EL11/EL11N =Power Pentode= Eh/Ih=6.3V/0.9A Ppmax=9W Ep=250V Pc2max=1.2W Ec2max=250V Ep=Ec2=250V Ip=36mA Ic2=4mA gm=9mS Rk=150Ω Po=4.5W Zl=7kΩ PushPull: Ep=Ec2=250V Ip=2x24mA Ic2=2x2.8mA Rk=140Ω Po=8.2W Zl=10kΩp-p 1) EL11 Siemens ￥3900 NIB ragged-box 0) EL11 Valvo ￥- NIB 0) EL11N Philips ￥- NIB 1) EL11 RFT ￥3300 LikeNew WB, top view, bottom view
EL12 =Power Pentode= Eh/Ih=6.3V/1.8A(Philips) Ef/If=6.3V/1.2A(Valvo) Ppmax=18W Ep=250V Pc2max=3W Ec2max=250V Single: Ep=Ec2=250V Ip=72mA Ic2=8mA gm=14.5mS Rk=90Ω Po=8.2W Zl=3.5kΩ PushPull: Ep=Ec2=250V Ip=2x45mA Ic2=2x5.1mA Rk=90Ω Po=14.5W Zl=5kΩp-p 0) EL12 Valvo ￥- NIB
EL12/325 =Power Pentode= Eh/Ih=6.3V/1.2A(Valvo) Ppmax=18W Ep=325V Pc2max=3W Ec2max=325V PushPull: Ep=Ec2=325V Ip=2x55mA Ic2=2x7mA Rk=200ohmx2 Po=28W Zl=5kΩp-p 0) EL12/325 Valvo ￥- NIB
EL12/375 =Power Pentode= Eh/Ih=6.3V/1.2A(Valvo) Ppmax=18W Ep=350V Pc2max=3W Ec2max=350V PushPull: Ep=Ec2=350V Ip=2x55mA Ic2=2x7mA Rk=200ohmx2 Po=31W Zl=5kΩp-p 0) EL12/375 Valvo ￥- NIB 2) EL12/375 RSD ￥5300 NIB Pan-boxed
EL32/CV1052/British VT-52/ '10E/11398' =Power Pentode=(EIA/ - octal) EL32 = EL2(different base) Eh/Ih=6.3V/0.2A, Ehkmax=50V Top grid-1 Ppmax=8W Epmax=250V/550Vcutoff Pc2max=1.6W Ec2max=250V/550Vcutoff Ikmax=45mA Eg1max=-1.3V Rg1max=1MΩ(self)/0.6MΩ(self) op(A1S) : Ep=250V Ec2=250V Ec1=-18V Ip=32mA Ic2=5mA gm=2.8mS rp=70kΩ Zl=8kΩ Po=3.6W D=10% op(AB1pp): Ep=Ec2=250V Ip=2x27.5mA/2x32mA Ic2=2x4.4mA/2x8mA Rk=310Ω Zlpp=8kΩp-p Po=7W D=1.5% op(triode connection) : Ep=250V Ec=-20V Ip=30mA gm=2.6mS rp=3.1kΩ μ=8 pins : 1(NC)-2(H)-3(P)-4(G2)-5(NC)-6(NC)-7(H)-8(K,G3)-TopCap(G1) (参考 : Ep-Ip特性(@Ec2=250V)) (参考 : Ep-Ip特性(三結:triode-connection)) similar type : EL2(P8 : side contact) 0) EL32-ST Phlps ￥- used 12) EL32/CV1052 Phlps ￥1000 NOS WB D/C=P8J4(Papesa:Philips Fapesa Argentina plant-made, 1968.10.4th week) none-silk, straight-glass smoked 0) CV1052/EL32 ValveElectronic ￥- used straight-glass
EL33/EL33A =Power Pentode= (EIA/ - octal) Eh/Ih=6.3V/0.9A Ehkmax=50V Rg1max=1MΩ Ppmax=9W Epmax=250V/550Vcutoff Pc2max=1.2W/2.5W(max.sig.) Ec2max=275V/550Vcutof) Ikmax=55mA op : Ep=250V Ec2=250V Ec1=-6V Ip=36mA Ic2=4mA rp=50kΩ gm=9mS μg2g1=23 op(A1s): Ep=250V Ec2=250V Ec1=-6V(Rk=150Ω) Ip=36mA Ic2=4mA Zl=7kΩ D=10% Po=4.5W op(A1pp): Ep=250V Ec2=250V Rk=140Ω Ip=48mA/57mA Ic2=5.6mA/9.2mA Zlpp=10kΩ D=3.1% Po=8.2W op(A1s-triode con.): Ep=250V Ec=-8.5V Ip=20mA rp=3kΩ gm=6.5mS μ=20 Zl=7kΩ D=5% Po=1.1W pins : 1(NC)-2(H)-3(P)-4(G2)-5(G1)-6(none)-7(H)-8(K,G3) 参考 : Ep-Ip特性(triode connection) different base type : EL3N(8-pin side-contact) EL33 ≒ 6M6G(Eh/Ih=6.3V/1.2A) EL33A = EL3NG 0) EL33/CV1438(6AG6) Valve Electronic ￥3300 NIB 1) EL33 Mullard used ￥2700 smoked-glass WB
EL34 = 6CA7
EL35 =Power Pentode= (EIA/7AC - octal) Eh/Ih=6.3V/1.35A Ehkmax=50V Ppmax=18W Epmax=375V Ikmax=90mA Pc2max=3W Ec2max=250V op : Ep=250V Ec2=250V Ec1=-15.5V Ip=72mA Ic2=8mA gm=8mS rp=15.5kΩ op(A1S): Ep=250V Ec2=250V Rk=180Ω Ip=72mA Ic2=8mA gm=8mS Zl=2.5kΩ Po=6W D=10% op(AB1pp): Ep=270V Ec2=270V Rk=135Ω Ip=-mA/-mA Ic2=16mA/25mA Zlpp=5kΩ Po=17W D=6% op(AB1pp): Ep=360V Ec2=270V Rk=250Ω Ip=-mA/-mA Ic2=8.5mA/17.5mA Zlpp=7kΩ Po=21W Dtot<3% op(AB1pp): Ep=360V Ec2=270V Ec1=-26V Ip=88mA/140mA Ic2=8.5mA/19.5mA Zlpp=6.25kΩ Po=26W Dtot<3% older 8-pin side-contact base version = EL5(Epmax=250V, Ec2max=275V) similar to 6L6 0) EL35 Mullard ￥4100 lightly-used mesh plate, WB
EL36(=6CM5) =Power Pentode=(EIA/8GT - octal) Eh/Ih=6.3V/1.25A Ppmax=12W Epmax=250V Pc2max=4W Ec2max=250V Ikmax=200mA, gm=14mS (参考 : Ep-Ip特性) see heater variants : 25E5(25V/0.3A), 50JY6(50V/0.15A), PL36(25V/0.3A) similar to 6G-B3A(Eh/Ih=6.3V/1.2A) : pin #1(IC), #3(IC)を用いなければ同一pin配列 pins : 1(IC)-2(H)-3(IC)-4(G2)-5(G1)-6(none)-7(H)-8(K,G3)-TopCap(P) also see a just-upper-rating and same-basing type : EL360(Ppmax=15W, Ec2max=400V, Eh/Ih=6.3V/1.27A) 3) EL36/6CM5 Siemens ￥2500 NIB OctalSweepTube 1) EL36/6CM5 Valvo ￥2500 NIB OctalSweepTube
EL37/CV586 =Power Pentode= (EIA/7AC - octal) Eh/Ih=6.3V/1.4A Ehk=75V Rhkmax=5kΩ, Rg1max=500kΩ(self)/100kΩ(fixed) Pentode conn: Ppmax=25W Epmax=Ec2max=400V/800Vcutoff Pc2max=6W Ec1max=-1.3V(@Ig1=0.3μA) Ikmax=125mA op : Ep=250V Ec2=250V Ec1=-13.5V Ip=100mA Ic2=13.5mA rp=13.5kΩ gm=11mS μg2g1=10 op(A1S): Ep=250V Ec2=250V Ec1=-13.5V Ip=100mA Ic2=13.5mA Zl=2.5kΩ Po=10.5W D=10% op(AB1pp): Ep=400V Ec2=400V Ec1=-36V Ip=100mA/276mA Ic2=12mA/72mA Zlpp=3.25kΩ Po=69W D=2.5% Triode conn: Ppmax(T)=28W, Epmax(T)=400V (NOTE as a direct couple driver: Ppmax(T)=12.5W for Epmax(T)=500V) op : Ep=300V Ec=-23V Ip=50mA rp=1.4kΩ gm=6.4mS μ=9 op : Ep=400V Ec=-36V Ip=37.5mA rp=2kΩ gm=4.5mS μ=9 op(AB1pp) : Ep=400V Rk=245Ω Ip=140mA/160mA Zlp-p=4kΩ Po=20.6W D=4.3% pins : 1(none)-2(H)-3(P)-4(G2)-5(G1)-6(none)-7(H)-8(K,G3) (参考 : 三結時のEp-Ip特性( - triode connection)) similar to CV1947(Eh/Ih=6.3V/0.9A) also similar to 6L6G/VT-115A(Eh/Ih=6.3V/0.9A) just-upper rating, electrically-similar type : KT66(Epmax=Ec2max=500V, Eh/Ih=6.3V/1.3A) other high-power HiFi Beam-power tubes/ Pentodes : 6CA7, 6G-B8, 6L6GC, 6550/A, 7027A, 8417 European high-power HiFi Beam-power tubes/ Pentodes : EL34, EL37, EL60/61, EL156, F2a, F2a11, KT77, KT88 (参考 : circuit diagram of Crown SXA (EL37 UL-pp stereo amplifier)) 0) CV586/DA(EL37) Mullard ￥- NIB MB 1-pair) CV586/10CV586/DA(EL37) Mullard ￥offer NIB D/C=1967/2, GrayGlass, BrownBase, VALVE ELECTRONIC MB gm/Ip=9500μmho/83mA, 9300μmho/80mA (@Ep～130V, Ec=-3V on KS-15750-L1, gm=3600μmho-minimum) 1) CV586(EL37) Mullard ￥offer NOS brown base WB 3) EL37 Mullard lightly-used ￥offer D/C=B0F,B0G,B9H smoked-glass WB 4) EL37 Mullard used ￥offer smoked-glass gm=4500,5000,5000,5000/3150min(Hickok 539B) 0) EL37 Mullard ￥- used + 0) EL37 Amprx ￥- used + 0) CV586(EL37) Mullard ￥- used WB
EL38 =Power Pentode for TV time-base output= (EIA/8EW -octal ST-TopPlate) Eh/Ih=6.3V/1.4A Ehkmax=100V Rhkmax=20kΩ Ppmax=25W Epmax=800V/1200V-cutoff Pc2max=8W Ec2max=400V/800V-cutoff Ikmax=200mA Rg1mx=500kΩ op : Ep=275V Ec2=275V Ec3=0V Ec1=-9V Ip=91mA Ic2=11mA rp=20kΩ gm=14mS μg2g1=16.5 参考 : Ep-Ip特性(pentode @Ec2=275V) 参考 : Ep-Ip特性(triode connection) heater variant : PL38(Eh/Ih=30V/0.3A) pins : 1(G3)-2(H)-3(NC)-4(G2)-5(G1)-6(NC)-7(H)-8(K)-TopCap(P) size(Mullard) : 45.5mmΦ x 141mmH, in max 20) CV450/EL38 Mullard ￥4900 NIB lot=Hm1-B6K2(EL38 rev.1 - Blackburn 2nd-week Nov.1966) 2) EL38/CV450 Mullard ￥4900 NIB 1) EL38 Mullard ￥4000 NOS WB 0) EL38 Mullard ￥- used
EL39 (see 4654) =Power Pentode= ST-TopPlate or GT-TopPlate Eh/Ih=6.3V/1.35A Ppmax=-W Epmax=-V Pc2max=-W Ec2max=-V Ikmax=-mA rp=-kΩ gm=-mS μg2g1=- Rg1mx=-kΩ Ehkmax=-V op : Ep=600V Ec2=300V Ec1=-24V Ip=30mA Ic2=3mA gm=5mS AmpFactor=150 rp=30kΩ op(AB1pp) : Ep=600V Ec2=300V Ec1=-20V Ip=2x30mA/2x73mAmax Ic2=-mA/-mAmax Zlpp=10kΩ Po=55W pins : 1(NC)-2(H)-3(NC)-4(G2)-5(G1)-6(G3)-7(H)-8(K)-TopCap(P) 0) EL39 Philips ￥- used rare 5) EL39 PhilipsMiniwatt ￥offer NIB metal-base straight-glass rare VeryRaggedBox
EL41/CV3889(=6CK5) =Power Pentode=(8-pin Rimlock) Eh/Ih=6.3V/0.71A Ehkmax=50V Ppmax=9W Epmax=300V/550V-cutoff Pc2max=3.3W Ec2max=300V/550V-cutoff Ikmax=55mA gm=10mS op: Ep=250V Ec2=250V Rk=170Ω Ip=36mA Ic2=5.2mA rp=40kΩ gm=10mS μg2g1=22 op(A1s): Ep=250V Ec2=250V Rk=170Ω Ip=36mA Ic2=5.2mA Zl=7kΩ Dtot=10% Po=3.9W op(AB1pp): Ep=250V Ec2=250V Rk=85Ω Ip=72/79mA Ic2=10.4/16mA Zlpp=7kΩ Dtot=4.6% Po=9.4W size : 22mmΦ x 76mmH, in max 1) EL41(6CK5) Mullard ￥2400 NIB 0) EL41 Valvo ￥- NIB (mD) 1) EL41 BRM(service) ￥2400 NIB 1) CV3889(=EL41) Valve Electronic ￥2700 NIB just-ragged box
EL42 =Power Pentode=(8-pin Rimlock) Eh/Ih=6.3V/0.2A Ehkmax=100V Rg1max=2MΩ Ppmax=6W Epmax=300V/550V-cutoff Pc2max=2W Ec2max=300V/550V-cutoff Ec1max=-1.3V Ikmax=35mA op : Ep=200V Ec2=200V Rk=360ΩIp=22.5mA Ic2=3.5mA rp=90kΩ gm=3.2mS μg2g1=11 op(A1s) : Ep=225V Ec2=225V Rk=360ΩIp=26.0mA Ic2=4.1mA Zl=9kΩ Dtot=12% Po=2.8W op(AB1pp) : Ep=250V Ec2=250V Rk=310ΩIp=40/43mA Ic2=6.4/13.4mA Zlpp=15kΩ Dtot=5.5% Po=7W pins : 1(H)-2(P)-3(IC)-4(NONE)-5(G2)-6(G1)-7(K,G3)-8(H) size : 22mmΦ x 60mmH, in max 1) EL42 Siemens ￥2400 NIB 0) EL42 Valvo ￥- NIB(vD) 2) EL42 Philips ￥2400 NIB VeryRaggedBox
EL50 =Power Pentode= ST-TopPlate Eh/Ih=6.3V/1.35A Ppmax=18W Epmax=800V Ikmax=120mA Pc2max=3W Ec2max=425V op : Ep=400V Ec2=425V Ec3=0V Ec1=-33V Ip=45mA Ic2=5.5mA rp=30kΩ gm=6mS op(AB1pp): Ep=800V Ec2=400V Ec1=-37.5V Ip=30mA/140mA Ic2=2x2.5mA/40mA Zlpp=16kΩ Po=84W D=6.6% (size ; 135mmH x 51mmφ, in max) 0) EL50 Philips ￥- used
EL51 =Power Pentode= ST-TopPlate Eh/Ih=6.3V/1.9A Ehkmax=50V Rg1max=350kΩ(fixed)/700kΩ(self) Ppmax=45W Epmax=Ec2max=750V/1500Vcutoff Pc2max=7W(25W @Po-max) Ec1max=-1.3V Ikmax=200mA op: Ep=500V Ec2=500V Ec1=-22V Ip=95mA Ic2=12mA rp=33kΩ gm=11mS μg2g1=16 op: Ep=750V Ec2=750V Ec1=-42V Ip=40mA Ic2=6mA rp=55kΩ gm=7mS μg2g1=16 op(AB1pp): Ep=Ec2=500V Rk=100Ω Ip=174mA/220mA Ic2=26mA/46mA Zlpp=4.8kΩ Po=67.5W D=5% op(AB1pp): Ep=Ec2=750V(common Rg2=1kΩ) Ec1=-42V Ip=80mA/300mA Ic2=5mA/70mA Zlpp=6kΩ Po=140W D=5% (参考 : EL51の三結時のEp-Ip特性-triode connection) (size ; 170mmH x 60mmφ, in max) 4) EL51 Miniwatt ￥15000 NOS same-lot w/original-wrapper, 25E5/PL36との外観比較 0) EL51 PhilipsMiniwatt ￥- used
EL60 =Power Pentode 9-pin LOKTAL METAL BASE EL34= (size : 111mmH x 38mmφ, in max) (see 6CA7/EL34(octal type) also see 4699) other high-power HiFi Beam-power tubes/ Pentodes : 6G-B8, 6L6GC, 6550/A, 7027A, 8417 European high-power HiFi Beam-power tubes/ Pentodes : EL37, EL156, F2a, F2a11, KT66, KT77, KT88 4) EL60-MetalBase Valvo-branded ￥offer NOS?/used? VeryStrong ガラス変色僅少 BaseCode=M91-58E,M92-L3C,M91-58E,M91-58A print>90% DiskGetter Metal-9pinLoktalBase Ip=>60mA,>60mA,>60mA,57mA/22mAmin(@Ec1=0V) Ip=28mA,24.5mA,23.1mA,21.5mA(@Ec1=-2V) Ep=200V Ec2=60V(Funke W19) 2) EL60-MetalBase PhilipsMiniwatt ￥offer LightlyUsed VeryStrong ガラス変色少 print>90% code=5UM91,5UM91 print=70% DiskGetter Metal-9pinLoktalBase Ip=>50mA,47.5mA/22mAmin(@Ec1=0V) Ip=22.7mA,21.3mA(@Ec1=-2V) Ep=200V Ec2=60V(Funke W19) 6) B9G-socket European-made ￥- NOS Ceramic 9-pin Loktal
EL61 =Power Pentode 9-pin LOKTAL METAL BASE EL34= (see 6CA7/EL34 also see 4699) 0) EL61 Phlps ￥- used 2) EL61 PhlpsMiniwatt ￥offer NOS OriginalWrapper 2) B9G-socket European-made ￥- NOS Ceramic 9-pin Loktal
EL81(=6CJ6) =Power Pentode= (EIA/9AS - noval, top-plate) Eh/Ih=6.3V/1.05A Ppmax=8W Epmax=250V/550V(cutoff)/7kVpulse Pc2max=4.5W Ec2max=250V/550V(cutoff) Ikmax=180mA (Pp+Pc2)max=10W Ec1max=-1.3V Rg1max=500kΩ op: Ep=170V Ec2=170V Ec3=0V Ec1=-24V Ip=45mA Ic2=2.4mA rp=11kΩ gm=6.3mS μg2g1=5 op: Ep=200V Ec2=200V Ec3=0V Rg2=1kΩ Ec1=-31.5V Ip=54/178mA Ic2=4/22mA Zlpp=2.5kΩ Po=20W D=6.5% pins : 1(IC)-2(G1)-3(K)-4(H)-5(H)-6(IC)-7(IC)-8(G2)-9(G3)-Top(P) (参考 : 三結時のEp-Ip特性(Triode connection for 6CJ6/EL81, 21A6/PL81)) also see heater variant PL81 / 21A6(21.5V/0.3A) 4) EL81/6CJ6 Siemens ￥2100 NIB 1) EL81 Adzam(=Mazda) ￥2100 NIB 5) EL81 Philips ￥2100 NIB 1) EL81/6CJ6 Ultron ￥1700 NIB *注意： EL81とE81Lは全く異なる管です。規格・pin配列共に、全く互換性はありません。 (EL81 is NEVER compatible to E81L. These are completely different from each other at spec. & pin-out. )
EL82 =Power Pentode= (EIA/9CV - noval) Eh/Ih=6.3V/0.8A Ehkmax=100V Rgmax=1MΩ(auto)/400kΩ(fixed) Ppmax=9W Epmax=250V/550V-cutoff/2.5kV-peak Pc2max=2.5W Ec2max=250V/550V-cutoff Ikmax=75mA op(A1s) : Ep=170V Ec2=170V Ec1=-10.4V Ip=53mA Ic2=10mA rp=20kΩ gm=9mS μg2g1=10 op(A1s) : Ep=170V Ec2=170V Ec1=-10.4V Ip=53mA Ic2=10mA Zl=3kΩ Po=4.0W D=10% op(A1s) : Ep=200V Rk2=680Ω Ec1=-13.9V Ip=45mA Ic2=8.5mA Zl=4kΩ Po=4.2W D=10% op(AB1pp) : Ep=170V Ec2=170V Rk=100Ω Ip=92/100mA Ic2=17.4/34mA Zlpp=4kΩ Po=9W D=5% op(AB1pp) : Ep=200V Ec2=200V Rk=135Ω Ip=90/104mA Ic2=17.0/38mA Zlpp=4kΩ Po=12W D=5% (参考 : 平均プレート特性(EpIp @Ec2 parameter)) pins : 1(NC)-2(G1)-3(KG3)-4(H)-5(H)-6(IC)-7(P)-8(IC)-9(G2) see heater variant PL82(16.5V/0.3A) 1) EL82 TFK ￥3000 NIB sealed 0) EL82 Phlps ￥- NIB
EL83 =video output Power Pentode=(EIA/9AR - noval) Eh/Ih=6.3V/0.71A Ehkmax=100V Ppmax=9W Epmax=300V/550Vcutoff Pc2max=2W Ec2max=300V/550Vcutoff Ikmax=70mA Rg1max=500kΩ(fixed)/1MΩ(self) op: Ep=250V Ec2=250V Ec1=-5.5V Ip=36mA Ic2=5mA rp=140kΩ gm=10mS μg2g1=24 pins : 1(G2)-2(G1)-3(K)-4(H)-5(H)-6(G3)-7(P)-8(IS)-9(IC) 参考:三結時のEp-Ip特性例(triode connection : SAMPLE data) see an equivallent type : 6CK6 heater variants : PL83(15V/0.3A) 1) EL83 TFK ￥2700 NIB 4) EL83 Valvo ￥2200 NIB old RaggedBox 1) EL83 Valvo ￥2200 NIB RedBox 1) EL83 Valvo ￥2200 NIB
EL84 = 6BQ5
EL85 =Power Pentode=(EIA/9CR - noval) Eh/Ih=6.3V/0.2A Ehkmax=100V Ppmax=6W Epmax=300V Pc2max=1W Ec2max=300V Ikmax=35mA Rg1max=2MΩ op : Ep=250V Ec2=250V Ec1=-13.5V Ip=24mA Ic2=4.1mA rp=100kΩ gm=3.1mS μg2g1=11 op(A1s): Ep=Ec2=250V Rk=470Ω(or Ec1=-13.5V) Ip=24mA Ic2=4.1mA Zl=11kΩ Po=2.55W D=10% op(AB1pp): Ep=Ec2=250V Rk=310Ω(common) Ipmax=44.2mA Ic2max=14.2mA Zlpp=12kΩ Po=6.8W D=5.4% pins : 1(G1)-2(G1)-3(K)-4(H)-5(H)-6(G3)-7(P)-8(G3)-9(G2) size : 22.2mmΦ x 67mmH, in max see same base & electrically identical type : 6BN5 2) EL85(6BN5) Amprx ￥1700 NIB +++
EL86(=6CW5) =Power Pentode=(EIA/9CV - noval) Eh/Ih=6.3V/0.76A Ehkmax=200V Rg1max=500kΩ (pentode connection) Ppmax=12W Epmax=250V/550Vcutoff Pc2max=1.75W Ec2max=250V/550Vcutoff Ikmax=100mA op : Ep=170V Ec2=170V Ec1=-12.5V Ip=70mA Ic2=3.5mA gm=11mS μg1g2=8 rp=26kΩ op(A1s) : Ep=200V Ec2=200V Rk=215Ω Ip=64mA/64mA Ic2=3.2mA/11.4mA Zl=2.5kΩ D=10% Po=5.3W op(AB1pp) : Ep=220V Ec2=220V Rk=270Ωx2 Ip=59mAx2/69mAx2 Ic2=2.7mAx2/9.7mAx2 Zlpp=3.0kΩ D=3.3% Po=15.7W op(AB1pp) : Ep=250V Ec2=250V Rk=390Ωx2 Ip=51mAx2/64mAx2 Ic2=2.4mAx2/8.7mAx2 Zlpp=3.5kΩ D=4.2% Po=17.4W (triode connection) Ppmax=13W Epmax=250V/550Vcutoff Ikmax=100mA op : Ep=170V Ec=-12.5V Ip=74mA gm=12mS μ=8 rp=0.67kΩ 三極管接続時の平均プレート特性(EpIp) see a heater variant : PL84(=15CW5)(15V/0.3A) also see heater variants : 8CW5(8V/0.6A) 10CW5(10.6V/0.45A) 15CW5(15V/0.3A) 30CW5(30V/0.15A) also see different-base lower-rating electrically-similar types : 6216, 6761(μg2g1=8, gm=13mS) ０) EL86 TFK ￥- NIB sealed (vvD) 1) EL86 TFK ￥2500 NIB RaggedBox 3) EL86 TFK ￥2500 NIB 10) EL86/6CW5 Siemens ￥1900 NIB ** 5) EL86/6CW5 Siemens ￥1900 NIB 1) EL86 Siemens ￥1900 NIB 2) EL86/6CW5 Siemens ￥1900 NIB 4) EL86 Siemens ￥1900 NIB WB 4) EL86 Phlps(Mullard-made) ￥2700 NIB WB 2) EL86 Valvo ￥1900 NIB 1) EL86 Valvo ￥1900 NOS TFK箱 1) EL86 Egro ￥1200 NIB 2) EL86 Valvo ￥1200 used Strong 2) EL86 Miniwatt ￥1000 used
EL90(=6AQ5) =Beam Power Tetrode= (EIA/7BZ - miniature) Eh/Ih=6.3V/0.45A Ehk=90V Ppmax=12W Pg2max=2W Ikmax=-mA Rgmax=MΩ rp=52kΩ gm=4.1mS 4) EL90 Siemens ￥1700 NIB 1) EL90 Valvo ￥1700 NIB
EL91(=6AM5) =RF Pentode= (EIA/6CH - miniature) Eh/Ih=6.3V/0.2A Ppmax=4W Epmax=250V Pc2max=0.6W Ec2max=250V Ehkmax=-150V Rg1max=700kΩ(self) op : Ep=250V Ec2=250V Ip=16mA Ic2=2.4mA rp=130kΩ gm=2.6mS μg1g2=12 op(A1s) : Ep=250V Ec2=250V Rk=740Ω Ip=16mA Ic2=2.4mA Zl=16kΩ Po=1.4W D=10% op(A1pp): Ep=250V Ec2=250V Rk=600Ω Ip=22/25.6mA Ic2=3.2/8.2mA Zl=24kΩ Po=4.0W D=3.2% op(B1pp): Ep=250V Ec2=250V Ec1=-19V Ip=10/32.0mA Ic2=1.3/9.0mA Zl=20kΩ Po=4.8W D=3.3% pins : 1(G1)-2(KG3)-3(H)-4(H)-5(P)-6(NC)-7(G2) size : 19mmΦ x 54mmH, in max 10) EL91 Amperex ￥1500 NIB RaggedBox 7) EL91/6AM5 Mullard ￥1500 NIB just-ragged boxes 1) EL91/6AM5 Mullard ￥1500 NIB just-ragged large box 0) EL91 Brimar ￥- used
EL95(6DL5) =PowerPentode= (EIA/7DQ - miniature) Eh/Ih=6.3V/0.2A Ehkmax=100V Rg1max=2.2MΩ Ppmax=6W Epmax=300V/550Vcutoff Pc2max=1.25W Ec2max=300V/550Vcutoff Ikmax=35mA op : Ep=250V Ec2=250V Ec1=-9.0V Ip=24mA Ic2=4.5mA gm=5.4mS rp=70kΩ μg2g1=17 op : Ep=200V Ec2=200V Rk=230Ω Ip=23mA Ic2=4.2mA Zl= 8.0kΩ Vinput=4.5Vrms D=10% Po=2.3W op : Ep=250V Ec2=250V Rk=320Ω Ip=24mA Ic2=4.5mA Zl=10.0kΩ Vinput=5.0Vrms D=10% Po=3.0W 参考 : 三結時のEp-Ip特性(Triode connection) heater variant : PL95 (4.5V/0.3A) ０) EL95 TFK ￥1900 NIB <>(vvD) 2) EL95 TFK ￥1700 NIB very-ragged boxes 1) EL95 Amprx ￥1700 NIB 3) EL95 Siemens ￥1700 NIB 2) EL95 Valvo ￥1700 NIB 1) EL95 Lorenz ￥1700 NIB 2) EL95 TFK ￥1500 use/LikeNew
EL152 =85W-TransmittingPentode= Eh/Ih=6.3V/1.55A Ehk-max=200V fmax=120MHz Tbulb=300℃max Pentode connection: Ppmax=40W Epmax=1000VDC/3000Vpeak Pc2max=5W Ec2max=300VDC/800Vcutoff Ikmax=230mA Pc1max=1W Ec1max=-300V Rg1max=25kΩ Pc3max=1W Ec3max=-400V Rg3max=25kΩ - プレート変調時: Epmax=800VDC, Ec2max=250VDC/800Vcutoff op: Ep=800V Ec2=250V Ip=50mA gm=4mS μg2g1=5 op(audio-amp.) A1s: Ep=300V Ec2=250V Ec1=-24V Ipo=130mA Ic2=3.5mA/20mA Zl=2kΩ D=10% Po=18W AB1pp: Ep=250V Ec2=250V Ec1=-28V Ip=100mAx2/120mAx2 Ic2=5.0mAx2/17,5mAx2 Zlpp=3kΩ D=4% Po=28.5W AB1pp: Ep=400V Ec2=250V Ec1=-28V Ip=100mAx2/120mAx2 Ic2=3.0mAx2/16.0mAx2 Zlpp=5kΩ D=5% Po=50W AB1pp: Ep=600V Ec2=300V Ec1=-48V Ip=60mAx2/65mAx2 Ic2=1.6mAx2/14.0mAx2 Zlpp=5kΩ D=10% Po=90W AB1pp: Ep=800V Ec2=300V Ec1=-51V Ip=50mAx2/120mAx2 Ic2=0.9mAx2/13.0mAx2 Zlpp=8kΩ D=10% Po=120W Triode connection : Ppmax=40W Epmax=400VDC/800Vpeak Ipo-max=30mA, rp=2.5kΩ gm=2mS μ=5-typ see a heater variant : FL152(Eh/Ih=12.6V/0.75A) (size ; 95.5mmH x 40mmφ, in max) (Triode-connection(三結) Ep-Ip characteristics) also see the original type : LS50(Eh/Ih=12.6V/0.7A) also see a Russian type of LS50 : Russian GU-50/ ГУ-50 10) EL152 Telefunken ￥１００００ NIB RaggedBox
EL153 =70W-TransmittingTetrode= Eh/Ih=6.3V/1.5A Ehk-max=200V fmax=200MHz Tbulb=300℃max Ppmax=40W Epmax=650V/1000Vcutoff Pc2max=5W Ec2max=300V/800Vcutoff Pc1max=1W Ec1-max=-300V Ikmax=230mA Rg1max=250kΩ(Tbulb<200℃)/25kΩ(Tbulb<300℃) op : Ep=600V Ec2=250V Ec1=-49V Ip=50mA Ic2=0.3mA gm=4mS rp=20kΩ μg2g1=4.75 (size ; 95.5mmH x 40mmφ, in max) (Ep-Ip特性(@Ec2=250V)) 3) EL153 Telefunken ￥１００００ NIB
EL156 =Beam Power Tetrode= Eh/Ih=6.3V/1.9A Ehk-max=50V Rhk_max=1kΩ Rg1max=100kΩ Tbulb=240℃max Ppmax=50W(auto bias)/40W(fixed bias) Epmax=800V/1600Vcutoff Pc2max=8W(no-signal)/12W(speech and/or music signal) Ec2max=450V/800Vcutoff Ikmax=180mA (Note: below-described Rk and current are for one each tube / EL156の下記動作例 カソード抵抗、電流は1球毎の値) op: Ep=440V Ec2=350V Rk=150Ω Ip=100mA Ic2=16mA rp=20kΩ gm=11mS μg2g1=15 op(A1s) : Ep=350V Ec2=250V Rk= 60Ω Ip=120mA/116mA Ic2=15mA/24mA Ein= 6.0Vrms Zl= 4.0kΩ D=8.0% Po=15W op(A1s) : Ep=450V Ec2=280V Rk= 90Ω Ip=112mA/108mA Ic2=17mA/25mA Ein= 8.5Vrms Zl= 3.8kΩ D=7.5% Po=24W op(AB1pp): Ep=600V Ec2=300V Rk=160Ω Ip=80mA/ 95mA Ic2=10.0mA/18mA Ein=13.5Vrms Zlpp=8.5kΩ D=4% Po=65W op(AB1pp): Ep=600V Ec2=350V Rk=200Ω Ip=80mA/100mA Ic2=10.5mA/24mA Ein=18.5Vrms Zlpp=7.6kΩ D=4% Po=80W op(AB1pp): Ep=800V Ec2=300V Ec1=-20V Ip=45mA/100mA Ic2=4.5mA/20mA Ein=15.0Vrms Zlpp=11 kΩ D=5% Po=105W op(AB1pp): Ep=800V Ec2=350V Ec1=-24V Ip=45mA/120mA Ic2=5.0mA/25mA Ein=18.0Vrms Zlpp=9.5kΩ D=6% Po=130W [Triode-Connection] Ppmax=50W Epmax=500V Ikmax=180mA op(AB1pp) : Ep=500V Rk=250Ω Ip=110mA/120mA Ein=22.0Vrms Zlpp=2.8kΩ D=2% Po=30W (Triode-connection(三結) Ep-Ip characteristics) size : 122.5mmH x 48mmφ, in max net-weight : 85gram other high-power HiFi Beam-power tubes/ Pentodes : 6CA7, 6G-B8, 6L6GC, 6550/A, 7027A, 8417 European high-power HiFi Beam-power tubes/ Pentodes : EL34, EL37, EL60/61, F2a, F2a11, KT66, KT77, KT88 4) EL156 Telefunken ￥３２０００ NIB OldBoxType Matched-Quad 2) EL156 Telefunken ￥３２０００ NIB OldBoxType 5) EL156 Telefunken ￥３２０００ NIB 4) EL156 Telefunken ￥３１０００ NIB RaggedBox(Aht) 0) EL156 Telefunken ￥- NIB Ip=71mA,71mA/33min(Ep/Ec2/Ec1=200V/100V/0V) on Funke W19(D) 3) EL156 Siemens(Telefunken-made) ￥３００００ NIB 美品 3) EL156 Siemens(Telefunken-made) ￥３００００ NIB 美品 4) EL156 Siemens(Telefunken-made) ￥３００００ NIB 美品 2) EL156 Siemens(Telefunken-made) ￥２９０００ NIB VeryRaggedBox 0) EL156 Siemens(Telefunken-made) ￥- NIB 72,74,76,76mA/33mAmin on Funke W19 1) EL156 Telefunken ￥２４０００ LightlyUsed 1) EL156 Telefunken ￥２２０００ used 元箱 Ip=66.5mA/33min(Ep/Ec2/Ec1=200V/100V/0V) on Funke W19 1) EL156 Telefunken ￥２２０００ used Ip=77mA/33mAmin on W19 1) EL156 Telefunken ￥２２０００ used Ip=75mA/33mAmin on W19 1) EL156 Telefunken ￥２２０００ used Ip=71mA/33mAmin on W19 1) EL156 Telefunken ￥２００００ used Ip=70mA/33mAmin on W19 aLittleBaseCrack 1) EL156 Telefunken ￥１５０００ used 1) EL156 Telefunken ￥９０００ used Ip=72mA/33mAmin on W19 Baseが半分近く割れている｡socket装着問題無 1) EL156 Siemens(Telefunken-made) ￥２２０００ used?
EL183 =Video Power Pentode= Eh/Ih=6.3V/0.6A(12.6V/0.3A) Ppmax=6W Epmax=250V Pc2max=2W Ec2max=250V Ikmax=60mA Rgmx=1MΩ Ehkmax=200V gm=25mS rp=20kΩ 1) EL183 Mullard ￥2500 NIB 2) EL183 Phlps ￥2300 NIB
EL360 =Power Pentode=(EIA/8GT - octal+TopPlate) Eh/Ih=6.3V/1.27A Ehkmax=200V *pentode connection : Ppmax=15W Epmax=800V Pc2max=5W Ec2max=400V Ikmax=200mA Rg1max=500kΩ op : Ep=250V Ec2=250V Ec1=-46V Ip=48mA Ic2=5.5mA gm=6.9mS rp=13.5kΩ μg2g1=5 *triode connection : Ppmax=18W Epmax=400V op(triode con.) : Ep=100V Ec=-8V Ip=100mA gm=14.5mS rp=380Ω μ=5.5 (参考 : 三結時のEp-Ip特性(Triode connection)) pins : 1(IC)-2(H)-3(IC)-4(G2)-5(G1)-6(NC)-7(H)-8(KG3)-Top(P) (size ; 110mmH x 33mmφ, in max) see just-lower-rating and same-basing types : EL36, 6CM5(Ppmax=13W, Ec2max=250V, Eh/Ih=6.3V/1.25A) also see : PL36, 25E5(Ppmax=13W, Ec2max=250V, Eh/Ih=25V/0.3A) also see a just-lower-rating & just-different-basing Japanese type: 50JY6(Ppmax=13W, Ec2max=275V, Eh/Ih=50V/0.15A) 8) EL360 Sylvania(made in England) ￥2000 NIB just-ragged boxes 3) EL360 United ￥2000 NIB 0) EL360 various ￥800 used rubbed-away silk, WB (hyycvv2) 0) EL360 United ￥800 used WB (hyycvv31)
EL504 =Sweep Power Pentode= (EIA/9NH - Magnoval TopPlate) Eh/Ih=6.3V/1.38A Ehkmax=220V Rg1max=0.5MΩ (Design.max) Ppmax=21W Epmax=250V/550Vcutoff/7kVpeak Pc2max=6W Ec2max=250V/550Vcutoff Ikmax=250mA op : Ep=50V Ec2=200V Ec1=-10V Ip=420mA Ic2=37mA (size ;104.4mmH x 30.2mmφ, in max) heater variant PL504 similar to 6GB5 1) EL504 TFK ￥2800 NIB 1) EL504 TFK ￥2800 NIB 2) EL504 Siemens ￥2200 NIB 4) EL504 Valvo ￥2200 NIB 2) EL504 Lorenz ￥1900 NIB
EL505 =Sweep Pentode= (EIA/9RJ - Magnoval TopPlate) Eh/Ih=6.3V/2A Pentode connection : Ppmax = 25W(design.center) / 34W(design.max) Epmax = 7000V-peak Triode connection : Pp+g2max = 26W(design.center) / 35W(design.max) heater variant : PL505(40V/0.3A) almost same as 6KG6/A, EL509 0) EL505 Philips ￥- used TopGtr 0) EL505 Mullard ￥- used TopGtr WB 0) EL505/6KG6 Amperex ￥- used TopGtr
EL508 =Frame Output Pentode= (EIA/ - Magnoval) Eh/Ih=6.3V/0.825A Ehkmax=100V (Design.max)Ppmax=16W Epmax=400V/700Vcutoff/2.5kVpeak Pc2max=4W Ec2max=275V/700Vcutoff Ikmax=100mA Rg1max=1MΩ pins : 1(G1)-2(IC)-3(G2)-4(H)-5(H)-6(P)-7(K,G3)-8(G1)-9(IC) (プレートがガラス底面にある。) 1) EL508 Valvo ￥2500 used?
EL509
EL519
EL802(=6LD6) =High-gm(40mS) Video-OutputPower Pentode= (EIA/9NW - noval) Eh/Ih=6.3V/0.8A Ehkmax=100V/-200V Rg1max=100kΩ(fixed)/500kΩ(self) Ppmax=6W, Epmax=300V/550V-cutoff Pc2max=2.5W Ec2max=300V/550V-cutoff Ikmax=100mA op : Ep=170V Ec2=170V Rk=36Ω Ec3=0V Ip=30mA Ic2=6.5mA gm=40mS μg2g1=70 pins : 1(K)-2(G1)-3(G3)-4(H)-5(H)-6(G2)-7(P)-8(G2)-9(G3) size : 22.2mmΦ x 66.7mmH, in max (参考 : Ep-Ip特性例(@Ec2=170V)) heater variant PL802(16V/0.3A) also see high-gm HF pentode : D3a/7721(Ppmax=4W, gm=35mS, μg2g1=77) also see high-gm HF pentode : E280F/7722(Ppmax=4W, gm=26mS, μg2g1=60) also see high-gm wideband pentodes : E810F, 7788(Ppmax=5W, gm=50mS, μg2g1=57) also see an American high-gm video pentode w/ similar pinout : 12GN7(Ppmax=7.5W, gm=36mS) 21) EL802 Philips ￥1900 NIB 6) EL802 MINIWATT-DARIO/RTC(Philips-made) ￥1900 NIB code=ACG9 ⊿5E3(EL802 f.rev.=9, Philips-Heerlen, May-3rd-W, 1965)
EL803 =Wideband Power Pentode= (EIA/ - noval) Eh/Ih=6.3V/0.65A Ehkmax=120V Rg1max=0.5MΩ(fixed)/1MΩ(self) Tbulb=200℃max Ppmax=9W, Epmax=250V/550V-cutoff Pc2max=2W Ec2max=250V/550V-cutoff Ikmax=70mA op : Ep=170V Ec2=170V Ec1=-2.3V Ec3=0V Ip=36mA Ic2=5mA gm=10.5mS rp=60kΩ μg2g1=22 op : Ep=200V Ec2=200V Ec1=-3.5V Ec3=0V Ip=36mA Ic2=5mA gm=10.5mS rp=60kΩ μg2g1=22 pins : 1(G2)-2(G1)-3(K)-4(H)-5(H)-6(G3,S)-7(P)-8(NC)-9(NC) (参考 : Ep-Ip特性例([TFK]@Ec2=200V)) size : 22.2mmΦ x 78.4mmH, in max 4) EL803 TFK ￥2400 NIB old-OVP(sealed) 2) EL803 TFK ￥2000 NIB BlackPlate <> 1) EL803 TFK ￥1800 usedLikeNew GrayPlate <>
EL803S =10000H long-life Wideband Power Pentode= (EIA/ - noval) Eh/Ih=6.3V/0.65A [Telefunken: absolute maximum ratings] Ppmax=7.2W Epmax=275V/600Vcutoff Pc2max=1.7W Ec2max=275V/600Vcutoff Ikmax=45mA Ehkmax=140V [AEG(later-TFK) : maximum ratings] Ppmax=6.5W Epmax=250V/550Vcutoff Pc2max=1.5W Ec2max=250V/550Vcutoff Ikmax=40mA Ehkmax=120V op : Ep=200V Ec2=200V Rk=110Ω Ip=32mA Ic2=4.7mA gm=10mS rp=60kΩ μg2g1=22 pins : 1(G2)-2(G1)-3(K)-4(H)-5(H)-6(G3,S)-7(P)-8(NC)-9(NC) (参考 : Ep-Ip特性例([AEG]@Ec2=200V)) 0) EL803S TFK ￥- NIB sealed
EL805 =vert-def. Power Pentode= (EIA/ - noval) Eh/Ih=6.3V/0.76A Ehkmax=100V Rg1max=1MΩ(fixed)/2.2MΩ(self) design center : Ppmax=8W Epmax=300V/550Vcutoff/2kVpeak Pc2max=1.5W Ec2max=250V/550Vcutoff Ikmax=75mA design maximum : Ppmax=10.5W Pc2max=2.0W op(pulse) : Ep=50V Ec2=170V Ec1=-1V Ip=200mA Ig2=35mA op(pulse) : Ep=65V Ec2=210V Ec1=-1V Ip=285mA Ig2=45mA pins : 1(G1)-2(NC)-3(G2)-4(H)-5(H)-6(P)-7(K,G3)-8(G1)-9(NC) (参考 : Ep-Ip特性例(@Ec2=170V)) size : 22.2mmΦ x 67.3mmH, in max 5) EL805 TFK ￥1800 NIB <>
EL821(6CH6) =video amp Power Pentode= (EIA/9BA -noval) Eh/Ih=6.3V/0.75A Ehkmax=90V Rg1max=100kΩ(fixed)/220kΩ(self) Tbulb=250℃max Ppmax=12W Epmax=275V/550V-cutoff Pc2max=2.5W Ec2max=275V/550V-cutoff Ikmax=60mA op : Ep=250V Ec2=250V Ec1=-4.5V Ip=40mA Ic2=6mA gm=11mS rp=50kΩ μg1g2=26 pins : 1(IC)-2(G1)-3(K)-4(H)-5(H)-6(IC)-7(P)-8(G2)-9(G3) similar to 6BQ5 size : 22.2mmΦ x 67.5mmH, in max 0) EL821 Mazda ￥- used
ELL1 =Twin Power Pentode= Eh/Ih=6.3V/0.45A Ppmax=W Epmax=250V Ikmax=mA Pc2max=0.7W Ec2max=275V op(AB1pp): Ep=250V Ip=2x15mA Ec1=-20V Ec2=250V Ic2=2x2.5mAt Zlpp=16kΩ D=3.7% Po=5.4W gm=1.8mS μ=250 rp=14kΩ/unit-typ 0) ELL1 PhilipsMiniwatt ￥- used
ELL80 =common K-G3 Twin AudioFreq. Power Pentode= (EIA/9NJ - noval) Eh/Ih=6.3V/0.55A Ppmax=6W, Epmax=300V Pc2max=1.25W Ec2max=300V Ikmax=40mA, gm=6mS, rp=80kΩ, μg2g1=17typ ex) B1-pp: Ep=Ec2=250V Ec1=-12V Ipmax=28.5mA X 2 Ic2max=8.8mS X 2 Zl=10kΩ Po=9.2W D=5% also see American type : 6HU8 1) ELL80 TFK ￥6900 NIB sealed 1) ELL80 Amperex ￥5900 NIB smeared-silk very-ragged-box 1) ELL80 TFK ￥3300 used gm=6000/6000/3300min
0) EM1 Phlps ￥- NIB TuningIndicator
0) C/EM2 Phlps ￥- NIB TuningIndicator
0) EM3 Phlps ￥- NIB TuningIndicator
EM4 =Two System Tuning Indicator= (EIA/ - ) Eh/Ih=6.3V/0.2A Ep1max=300V Ep2max=300V Vlmax=300V Vlmin=165V Ikmax=3mA Rgmax=3MΩ Ehkmax=100V similar to EM34 0) EM4 Phlps ￥- NIB TuningIndicator
EM71 =Tuning Indicator= (EIA/- Loktal) Eh/Ih=6.3V/0.3A Ehkmax=100V Ppmax=0.5W Epmax=300V/550Vcutoff Vlmax=250V Vlmin=150V Ikmax=6mA Rgmax=3MΩ 2) EM71 Sonotone ￥2900 NIB very-ragged boxes 0) EM71 Lorenz ￥- NOS? WB 0) EM71 Brimar ￥- used WB
EM80 / 6E1Π/6E1P(Russian)(=6BR5) =AM Tuning Indicator= (EIA/9DB - noval) Eh/Ih=6.3V/0.3A Ppmax=0.5W Epmax=300V Vlmax=300V Vlmin=165V Ikmax=3mA Rgmax=3MΩ Ehkmax=100V 1) EM80 TFK ￥3000 NIB sealed 2) EM80 Sovtek ￥2300 NIB 12) 6E1Π/6E1P(EM80) Sovtek, Reflector, etc ￥2000 NOS WB
EM81(=6DA5) =Tuning Indicator= (EIA/9DB - noval) Eh/Ih=6.3V/0.3A Ppmax=0.2W Epmax=300V 0) EM81 Phlps ￥- NIB sealed
EM83 =Tuning Indicator= (EIA/ - noval) Eh/Ih=6.3V/0.3A Ppmax=0.5W Epmax=300V Vlmax=300V Vlmin=100V Ikmax=8mA Rgmax=3MΩ Ehkmax=100V size : 22.3mmΦ x 67.3mmH, in max 0) EM83 RFT ￥- NIB very-ragged boxes 2) EM83 RFT ￥2900 NIB BackView
EM84(=6FG6) =Tuning Indicator= (EIA/9GA - noval) Eh/Ih=6.3V/0.21A Ppmax=0.2W Epmax=300V Vlmax=300V Vlmin=170V Ikmax=3mA Rgmax=3MΩ Ehkmax=100V 2) EM84 TFK ￥3000 NIB 1=StllCellophaneSealed just-ragged boxes 1) EM84 TFK ￥1000 used JustDark 1) EM84/6FG6 Mullard ￥3000 NIB
EM87(=6HU6) =Tuning Indicator= (EIA/9GA - noval) Eh/Ih=6.3V/0.3A Ehkmax=250V Ppmax=0.6W Epmax=300V Rgmax=3MΩ Ikmax=5mA Vl=300Vmax/170Vmin 0) EM87 Phlps ￥- NIB
EN91 (= 2D21, 5727) =tetrode Thyratron= (EIA/7BN - miniature) PIV=1300V/PFV=650V Ikmax=100mA/500mA-peak/10A-surge(1sec) Eh/Ih=6.3V/0.6A 1) EN91(2D21) Mullard ￥1700 NIB RB
ER =Gas-filled Triode= (EIA/ - ) Ef/If=4V/0.7A * "ER" means "Electron Relay". 1) ER Moorhead ￥4100 used Brass-base, TipTop WB
ER2 =Gas-filled Cold-Cathode Relay= (EIA/ - noval) 2) ER2 Elesta ￥1200 lightly-used, made in Switzerland, WB
ER21A =Gas-filled Cold-Cathode Relay= (EIA/ - noval) ER21A = Z805U 2) ER21A Elesta ￥2400 NOS? WB Switzerland 1) ER21A Elesta ￥1200 used WB Switzerland
EY81(=6R3) =Halfwave Rectifier= (EIA/9CB - noval, top-cathode) Eh/Ih=6.3V/0.81A Ehkmax=-600V-average PIV=5000V Idc=150mA/450mA-peak heater variant : 17Z3/PY81(17V/0.3A) * 9CB-base 'Top-Cathode' noval(9-pin MT) halfwave rectifiers with similar rating: 6AF3 6AL3 6BR3 6R3 6R-K19 EY81 EY88 16AQ3 30AE3 0) EY81 Philips ￥- used
EY86 =Halfwave HV Rectifier= (EIA/ - ) PIV=27kV Iomax=0.8mA Cload-max=2000pF Eh/Ih=6.3V/0.09A 1) EY86 TFK ￥2500 NIB sealed 1) EY86 TFK ￥1900 NIB <> 1) EY86 TFK ￥1900 NIB <>
EY87 =Halfwave HV Rectifier= (EIA/ - ) PIV=5kV(50Hz) Iomax=3mA Cload-max=0.2uF Eh/Ih=6.3V/0.09A 1) EY87(6S2A) Mullard ￥1500 NIB
EY88 =Halfwave Rectifier= (EIA/9CB - noval-TopCathode) Eacmax=250V Iomax=220mA Ppmax=5W Eh/Ih=6.3V/1.55A see an equivallent: 6AL3 also see a heater varinat: PY88(30V/0.3A) * 9CB-base 'Top-Cathode' noval(9-pin MT) halfwave rectifiers with similar rating: 6AF3 6AL3 6BR3 6R3 6R-K19 EY81 EY88 16AQ3 30AE3 1) EY88 TFK ￥2900 NIB sealed OldestType
EY500/A =HV Half-wave Rectifier= (EIA/6EC4 -Magnoval) Eh/Ih=6.3V/2.1A pins(EY500A) : 1(IC)-2(P)-3(IC)-4(H)-5(H)-6(IC)-7(P)-8(P)-9(IC)-Top(K) see an equivallent type : 6EC4/A also see heater variants : 42EC4/A, PY500/A(Eh/Ih=42V/0.3A) <ダンパ用-高圧半波整流管の比較> 1) EY500A Siemens ￥2400 NIB
EYY13 =separated-cathode Full-wave Rectifier= (EIA/ ) Eh/Ih=6.3V/2.5A(heater in parallel connection) Eac=550Vx2 Idc=250mAmax(125mA/unit) Eac=400Vx2 Idc=350mAmax(175mA/unit) Rsource=80Ωmin/unit for L.T.E. 350Vac Rsource=100Ωmin/unit for over 350Vac to 550Vac Cload=32μFmax * Size and socket/base 7) EYY13 RFT(FUNKWERK ERFURT) ￥3300 NIB just-ragged dark-brown boxes 0) EYY13 RFT(FUNKWERK ERFURT) ￥3300 NIB very-ragged dark-brown boxes 1) EYY13 RFT(FUNKWERK ERFURT) ￥2500 NOS WB 0) EYY13 RFT ￥2000 used
EZ2 =FullwaveRectifier= Eac-in=350V-max, Iout=60mA-max, Rin=-ohm, Cload=-μF, Ef/If=6.3V/0.4A 0) EZ2 Phlps ￥- NOS
EZ3 =FullwaveRectifier= Eac-in=400V-max, Iout=100mA-max, Rin=-ohm, Cload=-μF, Ef/If=6.3V/0.65A 0) EZ3 Phlps ￥- NOS
EZ4 =FullwaveRectifier= Eac-in=400V-max, Iout=175mA-max, Rin=-ohm, Cload=-μF, Ef/If=6.3V/0.9A 6) EZ4 Valvo ￥4900 NOS WB
EZ11 =FullwaveRectifier= Eac-in=250V-max, Iout=50mA-max, Rin=-ohm, Cload=-μF, Eh/Ih=6.3V/0.29A 0) EZ11 Phlps ￥- NOS
EZ12 =FullwaveRectifier= Eac-in=500V-max, Iout=100mA-max, Rin=-ohm, Cload=-μF, Eh/Ih=6.3V/0.85A 10) EZ12 TFK ￥２９００ NIB StraightGlass
EZ40(=6BT4) =FullwaveRectifier= Rimlock type Eac-in=350V-max, Iout=90mA-max, Rin=300-ohm, Cload=50μF, Eh/Ih=6.3V/0.6A (also see noval(9-pin) types : 6V4 / EZ80) 1) EZ40 Siemens ￥1500 NIB(Sx) 3) EZ40 Valvo ￥1500 NIB(vQ)
EZ80 =FullwaveRectifier= (EIA/9M - noval) Eac-in=350V-max, Iout=90mA-max, Rin=300-ohm, Cload=50μF, Eh/Ih=6.3V/0.6A (see 6V4) 1) EZ80 Valvo ￥2300 NIB 0) EZ80(6V4) Mazda ￥- NIB
EZ81
EZ90(=6X4, 6202) =FullwaveRectifier= (EIA/5BS - miniature) Eh/Ih=6.3V/0.6A also see heater variant : 12X4(12.6V/0.3A) 3) EZ90/6X4 TransRadio ￥500 used
EZ150 =separated-cathode FullwaveRectifier= Eh/Ih=6.3V/3A Cinput: Eacmax=400Vrms/Idcmax=550mA Rin=100Ω Cin=16μF Cinput: Eacmax=500Vrms/Idcmax=450mA Rin=100Ω Cin=16μF Cinput: Eacmax=600Vrms/Idcmax=380mA Rin=100Ω Cin=16μF Linput: Eacmax=500Vrms/Idcmax=600mA Rin=50Ω Lin=5H Linput: Eacmax=600Vrms/Idcmax=560mA Rin=50Ω Lin=5H size : 48mmΦx123mmH(later version) 3) EZ150 TFK ￥1８０００ NIB
1) Type F CeCo ￥2000 used GoodFil. Short(P-G) [DISPLAY] @@
F2a =High-gm Broadband PowerTetrode= Eh/Ih=6.3V/2A Ehkmax=120V Tbulb=220℃max Ppmax=30W Epmax=600V/1000V(cutoff) Pc2max=5W Ec2max=425V/600V(cutoff) Ikmax=140mA Rgmax=300kΩ [Tetrode connection] op : Ep=250V Ec2=250V Rk=55Ω Ip=100mA Ic2=14.5mA rp=23kΩ gm=18mS μg2g1=17.5 op(A1S): Ep=250V Ec2=250V Rk=60Ω Ip=97mA/95mA Ic2=14mA/20mA Zl=2.2kΩ Po=10W D=10% op(AB1pp): Ep=250V Ec2=250V Rk=2x140Ω Ip=114mA/128mA Ic2=16mA/32mA Zlpp=5kΩ Po=20W D=5% op(AB1pp): Ep=330V Ec2=330V Rk=2x160Ω Rg2=2x1kΩ Ip=136mA/160mA Ic2=20mA/33mA Zlpp=5kΩ Po=32W D=4% op(AB1pp): Ep=425V Ec2=425V Rk=2x250Ω Rg2=2x3kΩ Ip=120mA/154mA Ic2=18mA/30mA Zlpp=6kΩ Po=40W D=5% op(B1pp) : Ep=250V Ec2=250V Ec1=-11V Ip=60mA/140mA Ic2=9mA/32mA Zlpp=4kΩ Po=20W D=2.5% op(B1pp) : Ep=330V Ec2=330V Ec1=-15V Rg2=2x1kΩ Ip=76mA/160mA Ic2=11mA/33mA Zlpp=5kΩ Po=32W D=3% op(B1pp) : Ep=425V Ec2=425V Ec1=-22V Rg2=2x3kΩ Ip=50mA/160mA Ic2=8mA/31mA Zlpp=6kΩ Po=40W D=2.5% [Triode connection] op : Ep=250V Rk=55Ω Ip=115mA rp=800Ω gm=21mS μ=17 op(A1S): Ep=330V Rk=140Ω Ip=90mA/94mA Zl=1.5kΩ Po=5.5W D=10% op(AB1pp): Ep=250V Rk=2x200Ω Ip=100mA/108mA Zlpp=3kΩ Po=6W D=1% op(AB1pp): Ep=330V Rk=2x200Ω Ip=140mA/152mA Zlpp=3kΩ Po=12W D=1.5% op(AB1pp): Ep=425V Rk=2x300Ω Ip=130mA/146mA Zlpp=5kΩ Po=20W D=2.5% (参考 : 三結時のEp-Ip特性(triode connection)) other high-power HiFi Beam-power tubes/ Pentodes : 6CA7, 6G-B8, 6L6GC, 6550/A, 7027A, 8417 European high-power HiFi Beam-power tubes/ Pentodes : EL34, EL37, EL60/61, EL156, KT66, KT77, KT88 1) F2a Siemens ￥1６０００ NIB 1) F2a Siemens ￥1６０００ NIB 0) F2a Siemens ￥1６０００ NIB(D) 3) F2a Siemens ￥９０００ used
F2a11 =High-gm Broadband PowerTetrode= Eh/Ih=6.3V/2A Ehkmax=120V Tbulb=220℃max Ppmax=30W Epmax=600V Pc2max=5W Ec2max=425V Ikmax=140mA Rgmax=300kΩ op : Ep=250V Ec2=250V Rk=55Ω Ip=100mA Ic2=14.5mA rp=23kΩ gm=18mS μg2g1=17.5 electrically same as F2a (参考 : 三結時のEp-Ip特性(triode connection)) F2a11の外形・ベース(outer shape, base pin assignment) 4) F2a11 Siemens ￥18000 NIB MintBox(hhqc-gt) 4) F2a11 Siemens ￥9000 used WB Iplate = 66.5mA, 73mA, 60mA(center-guide lost), 66mA(w/hole on metal base) where 36mA is minimum : tested on Funke W20 @ Ep=200V Ec2=100V Ec1=0V
F410 =PowerTriode= Ef/If=4V/2A Ppmax=25W Epmax=550V, gm=8mS-max rp=1.25kΩ-min op : Ep=550V Ec=-36V Ip=45mA rp=2.5kΩ gm=4mS μ=10 Zl=7kΩ Po=5.9W (see Philips-F410/Valvo-LK4200のEp-Ip特性) (see Philips-F410/Valvo-LK4200のEg-Ip特性(@Ep=550V)) F410(Philips) = LK4200(Valvo) (TM-BF25 = French military version of F410) similar type : U4E/U4E8(M.P.Pedersen) also similar to PX25/CV1040(Marconi/Osram), DO24(Mullard) 0) F410 Philips used ￥- WB
0) F52983 WE ￥1500 New?/used? (404Aと同一ピン配列) (vQz)
FG154 =double-grid gas-filled Thyratron= Ef/If=5V/7A (Cathode-filamentary type) Twarmup=10sec Temp_ambient=-20℃min/+50℃max Peak-Voltage-Drop=16V Eamax=500Vpeak(Inverse)/500Vpeak(forward) Econtrol-grid-max=-300V(before conduction) / -10V(during conduction) Eshield-grid-max=-50V(before conduction) / -5V(during conduction) Iamax=2.5A/10Ainstantaneous Icontrol-grid_max=0.25A/1Ainstantaneous 3) FG154 GE ￥13900 VeryLightlyUsed Thyratron TopPlate+SideGrid Pins
1) FKT/EYH Osram ￥3200 NIB HalogenLamp 250W 120V
FL152 =85W TransmittingPentode= Eh/Ih=12.6V/0.75A Ehk-max=200V fmax=120MHz Tbulb=300℃max Pentode connection: Ppmax=40W Epmax=1000VDC/3000Vpeak Pc2max=5W Ec2max=300VDC/800Vcutoff Ikmax=230mA Pc1max=1W Ec1max=-300V Rg1max=25kΩ Pc3max=1W Ec3max=-400V Rg3max=25kΩ - プレート変調時: Epmax=800VDC, Ec2max=250VDC/800Vcutoff op: Ep=800V Ec2=250V Ip=50mA gm=4mS μg2g1=5 op(audio-amp.) A1s: Ep=300V Ec2=250V Ec1=-24V Ipo=130mA Ic2=3.5mA/20mA Zl=2kΩ D=10% Po=18W AB1pp: Ep=250V Ec2=250V Ec1=-28V Ip=100mAx2/120mAx2 Ic2=5.0mAx2/17,5mAx2 Zlpp=3kΩ D=4% Po=28.5W AB1pp: Ep=400V Ec2=250V Ec1=-28V Ip=100mAx2/120mAx2 Ic2=3.0mAx2/16.0mAx2 Zlpp=5kΩ D=5% Po=50W AB1pp: Ep=600V Ec2=300V Ec1=-48V Ip=60mAx2/65mAx2 Ic2=1.6mAx2/14.0mAx2 Zlpp=5kΩ D=10% Po=90W AB1pp: Ep=800V Ec2=300V Ec1=-51V Ip=50mAx2/120mAx2 Ic2=0.9mAx2/13.0mAx2 Zlpp=8kΩ D=10% Po=120W Triode connection : Ppmax=40W Epmax=400VDC/800Vpeak Ipo-max=30mA, rp=2.5kΩ gm=2mS μ=5-typ size : 40mmφ x 95.5mmH (Triode-connection(三結) Ep-Ip characteristics) see a heater variant : EL152(Eh/Ih=6.3V/1.55A) also see the original type : LS50(Eh/Ih=12.6V/0.7A) also see a Russian type of LS50 : Russian GU-50/ ГУ-50 1) FL152 Telefunken ￥１００００ BulkNOS WB No.3629/41/65/04 (1965年4月)写真左 2) FL152 Telefunken ￥１００００ BulkNOS WB No.5006,5217/1968/06(1968年6月)写真中央+右
FW4/500 =Fullwave Rectifier= Ef/If=4V/3A PIV=1600V Epmax=500Vrmsx2 Idcmax=250mARseries=200Ωmin(@Ep=500Vrmsx2)/150Ωmin(@Ep=350Vrmsx2) (参考) FW4/500の整流特性(Idc-Edc-Eac) see an European similar type : AZ50 also see a higher PIV type : U18/20 2) FW4/500 10E-549 Mullard NIB ￥offer 1) FW4/500 Mullard lightly-used ￥3700 smeared-away silk, WB 1) FW4/500 Mullard lightly-used ￥3700 smeared-away silk, WB EM = 94/86/54min @SH=65 on KS-15750-L1
G-4/G-4-S505 =Fullwave Detector= Eh/Ih=2.5V/1A Ep=50V Ik=40mA 1) G-4-S-globe Majestic ￥4200 NIB VeryRaggedBox, Spray-shielded -rare- 1) G-4-globe Majestic ￥3300 LikeNew spray-shield GE箱 -rare- ** 1) G-4-globe Majestic ￥3300 used -rare- **
1) G-9/100kHz Xtal Collins(James Knights co.-made) ￥1000 NIB D/C=3-55, f=100kHz * N16-C-99999-1137, CRYSTAL UNIT, QUARTZ, 1 EACH, NObsr-57357, Collins Radio Company
3) G240/2D - CV2174 STC ￥1000 used not-tested * three electrode gas-filled relay(Ikmax=30mAdc)
G407 =filamentary audio Triode= Ef/If=4.0V/0.06A Ppmax=W Epmax=V Ikmax=mA similar to RE074(TFK), H406(Valvo), A409(Philips), DZ908(Mazda), G407(Tungsram) 1) G407 Tungsram ￥4000 used WB
G505 =HalfwaveRectifier= Epmax=400V Ik=60mA Ef/If=4V/1A 0) G505 Valvo ￥- NIB MeshPlates
G506 =FullwaveRectifier= Epmax=300Vx2 Ik=75mA Ef/If=4V/1A 0) G506 Valvo ￥- NIB MeshPlates
G1064 =FullwaveRectifier= G1064 = RGN1064 = 1805 similar to 4G106(TeKaDe) Epmax=500Vx2 Ik=60mA Ef/If=4V/1A 1) G1064-globe Valvo ￥7100 used-lightly mesh-plates 2) G1064 Valvo ￥6000 NOS? ClearGlass 1) G1064-ST Valvo ￥5300 used-lightly mesh-plates slightly-loose-base
G1883 =FullwaveRectifier= Epmax=400Vx2 Ik=110mA Ef/If=5V/1.6A 0) G1883 Valvo ￥- used
G2004 =FullwaveRectifier= Epmax=350Vx2 Ik=160mA Ef/If=4V/2A 0) G2004 Valvo ￥- used
G4004 =FullwaveRectifier= G4004 = RGN4004 Epmax=350Vx2 Ik=300mA Eh/Ih=4V/4A 0) G4004 Valvo ￥- used
1) GR16 Amprx ￥2400 NIB MT
ГУ-15/GU-15/GU15Ef/If=4.4V/0.68±0.06A(2.2V/1.36±0.12A) Tbulb=℃max Fmax=60MHz Ppmax=15W Epmax=400V/700Vcutoff Pc2max=4W Ec2max=250V/400Vcutoff Pc1max=0.4W Ipmax=85mA (size : 94mmH x 45mmφ, typ) (参考 : 三結時のEp-Ip特性例(triode connection : SAMPLE data)) 4) ГУ-15/GU-15 Ulyanov/Russia ￥2100 NIB D/C=V-76(May 1976) just-ragged military boxed 0) ГУ-15/GU-15 Ulyanov/Russia ￥- lightly-used
ГУ-50/GU-50/GU50
ГУ-81М/GU-81M/GU81M
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
GZ32 =FullwaveRectifier= (EIA/ - octal, ST-shape) PIV=1400V Eh/Ih=5V/2A(Philips) 5V/2.3A(Mazda, RT) Condenser Input: Vacmax/Idcmax=300V/300mA, 350V/250mA, 500V/125mA Cload/Rseries=60uF/150ohm, 32uF/100ohm, 16uF/50ohm Vac/Vdc/Idc/Cload/Rseries=300V/280V(93%)/300mA/16uF/50ohm Vac/Vdc/Idc/Cload/Rseries=350V/360V(103%)/250mA/16uF/50ohm Choke Input : Vacmax/Idcmax=400V/300mA, 500V/250mA @Lload=10H Vac/Vdc/Idc/Lload=400V/290V(73%)/300mA/10H (size : 122mmH x 46mmφ) 7) GZ32 Miniwatt-Dario(Philips) ￥5900 NOS bulk (hyyant) 5) GZ32 Miniwatt-Dario(Philips) ￥5900 NOS bulk 1) GZ32 Thorn-AEI ￥1000 used EM=88/88/54min (カソード粉がやや多い) WB
GZ33 (see CV378) =FullwaveRectifier= (EIA/ - octal, ST-shape) PIV=1400V Eh/Ih=5V/3A Capacitor Input: Vacmax/Idcmax=500V/250mA Cmax=60uF Cload/Rseries=60uF/140Ω @Eac=400V Cload/Rseries=60uF/250Ω @Eac=500V Choke Input : Vacmax/Idcmax=500V/300mA @L=10H (size : 142mmH x 45mmφ) 0) GZ33 Mullard ￥- NIB
GZ34(=5AR4)
GZ37 (see CV378) =FullwaveRectifier= (EIA/ - octal, ST-shape) PIV=1600V Eh/Ih=5V/2.8A Capacitor Input: Vacmax/Idcmax=500V/250mA Cmax=4uF Cload/Rseries=4uF/75Ω @Eac=500V Vac/Vdc/Idc/Cload/Rseries=500V/486V(97%)/250mA/4uF/75ohm Choke Input : Vacmax/Idcmax=500V/350mA @L=10H Vac/Vdc/Idc/Lload=500V/381V(76%)/350mA/10H (size : 142mmH x 57.5mmφ) 0) GZ37 Philips ￥- NIB
H63/CV1073/VT73 =cathode-type high-μ Triode= (EIA/5M* - TopGrid - octal) Eh/Ih=6.3V/0.3A Ppmax=-W Epmax=250V Ikmax=mA op : Ep=250V Ec=-2V Ip=0.95mA rp=66kΩ gm=1.5mS μ=100 (参考 : Ep-Ip特性) pins : 1(metalizing)-2(H)-3(NC/None)-4(P)-5(NC/None)-6(NC/None)-7(H)-8(K)- Top(G) size : 40mmφ x 114mmH similar to an American type: 6F5G also see different-base / electrically-same American types : 6SF5(octal) 7B4(loktal) also see med-μ type L63(μ=20) 5) H63 Marconi ￥2000 NIB just-ragged boxes 0) H63 Marconi ￥1000 lightly-used just-ragged original-plain boxes
H210 =filamentary just-high-μ Triode= (EIA/ - UF4pin ) Ef/If=2V/0.1A op : Ep=150V Ec=-1.5V Ip=2mA rp=50kΩ gm=0.7mS μ=35 moderate μ type = HL210(μ=20-typ) similar to B228(Philips) 1) H210-globe Marconi ￥3000 used tested WB 0) H210-globe Marconi ￥- used WB 1) H210-ST Hivac-England ￥2200 used gold-spray(dirty, partially removed and discolored) WB
H406 =filamentary audio Triode= Ef/If=3.8-4.0V/0.065A Ppmax=W Epmax=120V Ikmax=mA rp=9kΩ-typ gm=1.1mS-typ μ=10-typ (参考 : RE074のEg-Ip特性(@Ep = 50V, 100V)) size(maximum) : mmφ x mmH, in max identical with RE074(TFK) also similar to A409(Philips), DZ908(Mazda) 2) H406 Valvo ￥4300 lightly-used tested, top-view, WB 1) H406 Valvo ￥4300 lightly-used tested WB
HF94(=12AU6) =Pentode= (EIA/ -miniature) Ef/If=12.6V/0.15A Ehkmax=100V Ppmax=3W Epmax=300V Ikmax=20mA Pc2max=0.65W Ec2max=150V Rg1max=0.1MΩ, gm=5.2mS rp=1MΩ 1) HF94 Lorenz ￥1500 NIB
HF100
HF200
HF300
HGS*-**** =industrial Mercury wetted-relays= 2) HGS-1005 CP-Clare ￥2900 NIB RaggedBoxes octal-base 2) HGSM-1140 CP-Clare ￥2900 NIB RaggedBoxes square-box w/pins 1) HGS-5003 CP-Clare ￥2900 NIB RaggedBox octal-base 1) HGS-1023 CP-Clare ￥2100 NOS WhiteBox octal-base, just-rough-surface
HL2(CV1673)/HL2K(CV1050/VT-50) =low-microphonic filamentary Triode= (EIA/ - ) * HL2/K = compact and low-microphonic version of HL2 Ef/If=2V/0.1A Ppmax=-W Epmax=150V Ipmax=-mA op(HL2/CV1673) : Ep=100V Ec=0V Ip=3.2mA(±0.96mA) rp=18kΩ gm=1.5mS(-0.3mS,+0.38mS) μ=27(±5) op(HL2K/CV1050) : Ep=100V Ec=0V Ip=3.2mA(±0.9mA) rp=16.5kΩ gm=1.7mS(±0.3mS) μ=26.5(±3.5) (参考 : Eg-Ip特性(@Ep75V, 100V, 125V, 150V)) size : HL2(globe) 45mmΦ x 100mmH, 42mmΦ x 105mmH, etc size : HL2/K 28mmΦ x 85mmH similar types : B228(Philips), PM1HL(Mullard), 210HF(Cossor) 1) HL2-globe GECOVALVE ￥5100 NIB Ep/Ec/Ip=150V/-2V/5.6mA Triode RaggedBox 5) HL2/K / CV1673 Osram ￥4900 NOS pinched-top straight glass, smeared label/etching, WB 4) VT50/HL2K/ CV1050 MOV ￥4900 NOS pinched-top straight glass, smeared label/etching, WB 1) HL2-globe MO-Valve ￥3000 used almost-removed spray-shield, WB
HL23DD/AR8/CV1306/ZA7022 =twin diode + cathode-type med-mu Triode= (EIA/-, MAZDA octal) Eh/Ih=2V/0.05A Epmax=150V op : Ep=100V Ec=0V Ip=2.3mA rp=21kΩ gm=1.2mS μ=25 op : Ep=120V Ec=1.5V Ip=0.6mA (参考 : Eg-Ip特性(@Ep=75V, 100V, 125V, 150V)) size(HL23DD) : 32mmΦ x 95mmH(incl. pins), in max 1) AR8/ZA7022(=HL23DD) Mazda ￥2500 NOS gray-spray-shield, WB 1) AR8/ZA7022(=HL23DD) Mazda ￥2500 NOS gray-spray-shield, WB 1) AR8(=HL23DD) Mullard ￥2500 NOS gold-spray-shield, WB 2) AR8/ZA7022(=HL23DD) Mazda ￥2000 used gray-spray-shield, WB
HL41/HL.41/CV24 =cathode-type med-mu Triode= (EIA/-, MAZDA octal) Eh/Ih=4V/0.65A Epmax=250V op : Ep=100V Ec=0V Ip=8mA rp=10.3kΩ gm=3.5mS μ=36 op : Ebb=250V Ec=-3.1V(Rk=1.4kΩ) Rp=50kΩ Ip=2.2mA Gain=27 Eout=45Vrms D=2.5% (参考 : Eg-Ip特性(@Ep=100V, 150V, 200V, 250V)) electrically similar to AC/HL, MH4, 354V(Mullard) also electrically similar to REN904(gm=3.5mS, μ=25-typ), K1694 also electrically similar to Brimar - 4D1(British 7-pin, Eh/Ih=13V/0.2A, Top-G) size : 32mmΦ x 94mmH(incl. pins), in max 20) HL41(10E/163) AM(Mazda-made) ￥4500 NIB gray spray-shield, just-ragged MIL boxes 4) HL41/CV24 Mazda ￥4500 NOS gray spray-shield, dirty/just-rough surface, WB 3) CV24/HL41(10E/163) Mazda ￥4500 NOS gray spray-shield, dirty/just-rough surface, partially coating-removed, WB 0) HL41 Mazda ￥4500 NOS gray spray-shield, dirty/just-rough surface, WB
HL94(=30A5) =Power Pentode= (EIA/ - miniature) Ef/If=30V/0.15A Ppmax=7.5W, Epmax=150V Pc2max=1.5W Ec2max=150V Ikmax=100mA, gm=9.2mS,rp=22kΩ similar to 30M-P23 1) HL94 EU/USA ￥1500 NIB
HL210 =filamentary med-mu Triode= (EIA/ - ) Ef/If=2V/0.1A Epmax=150V op : Ep=100V Ec=0V rp=23kΩ gm=0.87mS μ=20-typ (参考 : Eg-Ip特性(@Ep=75V, 100V, 125V, 150V)) just-higher-μ type : H210(μ=35-typ) similar types : PM1HF(Mullard), CV1303 1) HL210-globe Osram ￥3000 used WB 1) HL210-globe Osram ￥3000 used tested WB
HO-101-F/HO101F(NEC) = TB616A/TB-616-A
HO-104-F/HO104F(NEC) = TB608B/TB-608-B
HP-45B =Hydrogen Thyratron= (EIA/ - ) (Thyratron for HP 212A pulse generator) Eh/Ih=6.3V/2.7A similar to 3C45 / 6130 2) HP-45B Kuthe Laboratories Inc.(USA) ￥1000 used D/C=532 slightly-loose base, not-tested WB
HT-50K/HT50K =Pentode= (EIA/ - octal, ST12) Eh/Ih=6.3V/A Ppmax=W Epmax=V Pc2max=W Ec2max=V 6) HT-50K Zeniter(Japan, 平和電子研究所) ￥offer like-new smoked-glass, rare WB
HY25
HY40
HY60
HY61(=807)
HY65
HY69
HY75
HY90 =HalfWaveRectifier= (EIA/5BQ - miniature) HY90=35W4 Eh/Ih=35V/0.15A(Tap=7.5V) Ehkmax=±360V PIV=360V Idcmax=110mA(w/o panel lamp)/100mA(w/lamp + ShuntRes.)/66mA(w/ lamp & no-shuntRes.)/660mA peak Vdrop=18V(@Idc=200mA) PanelLampSectionVoltage=17V(when lamp-fails) (参考 : panel lamp connection) 5) HY90/35W4 Mullard ￥1500 NIB - mint
HY114/114A/114B/VT-234/2C24 =triode= (EIA/ - octal, top G, top P) Ef/If=1.4V/0.155A Ppmax=1.8W Fmax=300MHz μ=13typ op(class C) : Ep=180V Ec=-30V Ip=12mA Ic=2.5mA Po=1.4W pins : 1(NC)-2(F)-3(NC)-4(NC)-5(NC)-6(NC)-7(F)-8(NC)-Top1(P)-Top2(G) also see VT-234 2) JAN-114B/VT-234(HY-114B) Hytron ￥2500 NIB D/C=June-1943
HY1269
J253 =med-μ triode= Eh/Ih=4.0V/1A Ppmax=W Epmax=V Ikmax=mA rp=kΩ gm=mS μ=-typ similar to REN904 1) J253 Thermion ￥5000 used mesh, WB
K40N =vari-μ RF tetrode= (EIA/ -, British-4pin, Top-P) Ef/If=2V/0.18A Ppmax=- Epmax=150V Pc2max=-W Ec2max=90V Ikmax=-mA op : Ep=150V Ec2=90V Ec1=0V Ip=2.5mA Ic2=0.5mA rp=230kΩ gm=1.4mS similar to PM12M(Mullard) 1) K40N EverReady ￥3900 NOS Mullard-boxed
K250/K-250 =high-vacuum half-wave rectifier= (EIA/ -, UX, Top-P) Ef/If=5V/3.25A PIV=- Epmax=20000V Ipmax=120mA 0) K250 東芝通信 ￥3700 used 昭和20年3月 WB
K251/K-251 =high-vacuum half-wave rectifier= (EIA/ -, UX, Top-P) Ef/If=10V(??)/4A(??) PIV=- Epmax=20kV(??) Ipmax=120mA(??) 0) K251 東芝通信 ￥3700 used 昭和19年9月 WB
K1694 =med-μ triode= Eh/Ih=4.0V/1A Ppmax=W Epmax=200V Ikmax=mA rp=kΩ gm=mS μ=-typ similar to REN904 also similar to MH4, 354V(Mullard) electrically similar type w/ MAZDA octal base : HL41(Eh/Ih=4V/0.6A) also electrically similar to Brimar - 4D1(British 7-pin, Eh/Ih=13V/0.2A, Top-G) 2) K1694 RWN-NEUHAUS ￥4000 NIB 0) K1694 RWN-Neuhaus ￥4000 NIB
KC1 =battery-amp filamentary Triode= Ef/If=2V/0.065A Ppmax=0.5W Epmax=150V Ikmax=4mA Egmax=-0.2V(for Ig L.T.E. 0.3μA) Rgmax=2MΩ Ep=90V Ec=-1.5V Ip=0.3mA rp=60kΩ gm=400umho μ=24 Ep=135V Ec=-1.5V Ip=1.2mA rp=40kΩ gm=600umho μ=24 (参考 : Ep-Ip特性) similar to B228(Philips) 0) KC1 Telefunken ￥- NOS(sD) 0) KC1 Valvo ￥- used WB 1) KC1-globe Tungsram ￥2700 used WB
KE-04 lamp : 4V/0.75A 1) KE-04 Kondoh NIB
KL2 =filamentary SmallPowerPentode= (EIA/ - 8pin side-contact) Ef/If=2V/0.265A Rg1max=1.5MΩ(auto)/1MΩ(fixed) Ppmax=2.5W Epmax=135V Pc2max=0.5W Ec2max=135V Ec1max=-0.2V Ikmax=25mA op(A1s) : Ep= 90V Ec2= 90V Ec1=-7.5V Ip=11mA Ic2=0.9mA gm=1.8mS rp=30kΩ Zl=6kΩ Po=0.35W op(A1s) : Ep=135V Ec2=135V Ec1=-12V Ip=18mA Ic2=2.0mA gm=2.0mS rp=30kΩ Zl=6kΩ Po=0.80W size : 47mmΦ x 95mmH, in max globe-glass type 0) KL2 Philips ￥- used WB
KL4 =filamentary SmallPowerPentode= (EIA/ - 8pin side-contact) Ef/If=2V/0.15A Rg1max=1MΩ Ppmax=1.0W Epmax=135V Pc2max=0.3W Ec2max=135V Ec1max=-0.2V Ikmax=10mA op(A1s) : Ep= 90V Ec2= 90V Ec1=-2.6V Ip=4.7mA Ic2=0.8mA gm=1.8mS rp=150kΩ Zl=19kΩ Po=0.16W D=10% op(A1s) : Ep=135V Ec2=135V Ec1=-5.0V Ip=7.0mA Ic2=1.1mA gm=2.1mS rp=130kΩ Zl=19kΩ Po=0.44W D=10% op(B1pp) : Ep=135V Ec2=135V Ec1=-8.0V Ip=2x1.5/2x4.9mA Ic2=2x0.3/2x0.8mA Zlpp=35kΩ Po=0.80W D=7.8% size : 42mmΦ x 100mmH, in max ST-glass 2) KL4 Philips ￥3900 NIB SideContact
KT2 =filamentary Battery PowerTetrode= Ef/If=2V/0.2A Epmax=150V Ec2max=150V Ikmax=9.5mA op : Ep=100V Ec2=100V Ec1=0V gm=2.5mS op(A1S): Ep=100V Ec2=100V Ec1=-3.0V Ip=3.8mA Ic2=0.8mA Zl=16kΩ Po=0.200W op(A1S): Ep=120V Ec2=120V Ec1=-3.0V Ip=6.2mA Ic2=1.3mA Zl=12kΩ Po=0.250W op(A1S): Ep=150V Ec2=150V Ec1=-4.5V Ip=7.5mA Ic2=1.7mA Zl=17kΩ Po=0.500W op(AB1pp): Ep=150V Ec2=132V(V-grade)/140V(W-grade)/147V(X-grade) Ec1=-7.5V Ip=2.7mA/12mA Ic2=0.5mA/2.7mA Zlpp=25kΩ Po=1.000W size : 45mmΦ x 115mmH (typ.) similar types : 220HPT(Cossor), PEN220(Mazda), PM22A(Mullard), PT2(Marconi) 0) KT2 Marconi ￥- NIB 0) KT2 Marconi ￥2200 NIB very-ragged boxes 2) KT2 Marconi ￥2200 NIB very-ragged boxes 0) KT2 Marconi ￥- used WB 0) KT2 Marconi ￥- used smeared silk, WB 1) KT2 Osram ￥1400 lightly-used WB
KT8/KT8C(=CV1079) =PowerPentode= (EIA/- British 5pin, top-plate) KT8 is an electrically-copied / differet-basing version of American 807/UY-807 Eh/Ih=6.3V/1.25A(1.40A-max) Fmax=65MHz Ppmax=25W Epmax=600V Pc2max=3.5W Ec2max=300V op : Ep=250V Ec2=250V Ec1=-10V±2.5V Ip=100mA Ic2=12.5mA-max gm=6.5mS±1.5mS pins : 1(G2)-2(G1)-3(H)-4(H)-5(K)-Top(P) size: 57mmΦ x 145mmH, in max different-basing electrically-similar types : 807/2B33, 5933(807W), 5B/254M - CV428(loktal base) also electrically-similar to WE-350A 2) KT8 GEC ￥7800 NIB 0) KT8C GEC ￥- lightly-used ceramic-base WB 0) CV1079(=KT8C) GEC ￥- used ceramic-base WB
KT32 =Power Tetrode= (EIA/- octal) Eh/Ih=26V/0.3A Ppmax=9W Epmax=135V Pc2max=-W Ec2max=135V Ikmax=mA op: Ep=110V Ec2=110V Ec1=-V Ip=50mA gm=9.0mS op(A1S): Ep=90V Ec2=90V Rk=95Ω Ipo=44mA Ic2o=4mA Zl=1.6kΩ Po=1.2W op(A1S): Ep=110V Ec2=110V Rk=95Ω Ipo=60mA Ic2o=4mA Zl=1.6kΩ Po=2.3W op(A1S): Ep=135V Ec2=135V Rk=95Ω Ipo=75mA Ic2o=5mA Zl=1.3kΩ Po=3.5W op(AB1pp): Ep=135V Ec2=135V Rk=200Ω/tube Ip=2x50mA/2x67.5mA Ic2=2x4mA/2x10mA Zlpp=2.5kΩ Po=7.5W 0) KT32 Marconi ￥- used WB 1) KT32 unknown ￥2500 used WB
KT33 =Power Tetrode= (EIA/- octal) Eh/Ih=26V/0.3A Ppmax=12.25W Epmax=200V Pc2max=-W Ec2max=200V Ikmax=mA op : Ep=175V EC2=175V Ec1=-V Ip=70mA gm=10.0mS op(A1S): Ep=150V Ec2=150V Rk=188Ω Ipo=44mA Ic2o=8mA Zl=3.0kΩ Po=3.0W op(A1S): Ep=175V Ec2=175V Rk=188Ω Ipo=52mA Ic2o=9mA Zl=3.0kΩ Po=4.0W op(A1S): Ep=200V Ec2=200V Rk=188Ω Ipo=60mA Ic2o=10mA Zl=3.0kΩ Po=5.0W an American similar type : 25C6G(gm=7mS-typ) also see lower-rating similar types : 25A6G(Ppmax=5.3W Epmax=165V, octal), 43(Ppmax=5.3W Epmax=165V, UZ-6pin) 0) KT33 Marconi ￥- used WB
KT33C/CV1503/VR503 =Power Tetrode= (EIA/- octal) Eh/Ih=25V/0.3A or 13V/0.6A Ppmax=13W Epmax=200V Pc2max=-W Ec2max=200V Ikmax=mA op: Ep=175V EC2=175V Ec1=-7V Ip=-mA gm=10.0mS op(A1S): Ep=150V Ec2=150V Ec1=-9.9V(Rk=190Ω) Ipo=44mA Ic2o=8mA Zl=3.0kΩ Po=3.0W D=8% op(A1S): Ep=200V Ec2=200V Ec1=-13.3V(Rk=190Ω) Ipo=60mA Ic2o=10mA Zl=3.0kΩ Po=5W D=8% op(AB1pp): Ep=150V Ec2=150V Ec1=-13.2V(Rk=240Ω/pc) Ipo=80mA Ic2o=12mA Zlpp=4kΩ Po=7.5W D=3.9% op(AB1pp): Ep=200V Ec2=200V Ec1=-19.1V(Rk=240Ω/pc) Ipo=113mA Ic2o=18mA Zlpp=4kΩ Po=15.5W D=7.5% pins : 1(HCT)-2(H)-3(P)-4(G2)-5(G1)-6(NC)-7(H)-8(K) size : 45mmΦ x 119mmH, in max (参考 : Ep-Ip特性(@Ec2=175V) also see an American similar type : 25C6G(gm=7mS-typ) 0) KT33C GEC ￥4700 NIB WB 2) KT33C/CV1503 GEC ￥4700 NOS lot=UL, rear-view, top/bottom-view, WB 2) KT33C GEC ￥4700 NOS lot=QB and QC, rear-view, top/bottom-view, WB 3) CV1503/KT33C GEC ￥4700 NOS BackView light-blue boxes 0) KT33C GEC ￥- used WB
KT36 =Power Tetrode= (EIA/- octal) Eh/Ih=26V/0.3A Ehk=200Vrms pentode connection : Ppmax=10W Epmax=250V/4kVpeak Pc2max=3W Ec2max=200V op : Ep=150V Ec2=150V Ec1=-10V gm=11mS triode connection : Ppmax=13W Epmax=200V op : Ep=150V Ec1=-10V rp=800Ω gm=10.5mS μ=7.5 (参考 : 三結時のEp-Ip特性(Triode connection) pins : 1(NC)-2(H)-3(NC)-4(G2)-5(G1)-6(NC)-7(H)-8(K)-Top(P) size : 45mmΦ x 133mmH, in max 0) KT36 Marconi ￥1800 used WB 5) KT36 MO-V(Marconi, Osram, GEC) ￥1800 used rear-view WB
KT41/CV1181/NR59/ARP25 =Power Tetrode= (EIA/-, B7(British-7pin)) Eh/Ih=4V/2A Ppmax=10W Epmax=250V Pc2max=2W Ec2max=250V Ikmax=mA Rgmax=500kΩ(self) op : Ep=250V Ec2=250V Ec1=-4.4V Ip=40mA gm=10.5mS op(A1S): Ep=250V Ec2=200V Ec1=-3.5V(Rk=90Ω) Ip=32mA Ic2=6.5mA Zl=8.5kΩ Po=3.2W op(A1S): Ep=250V Ec2=225V Ec1=-4.0V(Rk=90Ω) Ip=35mA Ic2=7.5mA Zl=7.5kΩ Po=3.5W op(A1S): Ep=250V Ec2=250V Ec1=-4.4V(Rk=90Ω) Ip=40mA Ic2=8.5mA Zl=6.0kΩ Po=4.3W op(AB1pp): Ep=250V Ec2=250V Rk=90Ω Ip=56mA/60mA Ic2=12mA/20mA Zlp-p=10kΩ Po=8.6W pins : 1(NC)-2(G1)-3(G2)-4(H)-5(H)-6(K)-7(P) size : 42mmΦ x 98mmH(excluding B7-pins) similar to AC2/PEN(Mazda) similar to APP4B/C 4) KT41(10E/18) OSRAM-A.M. ￥3900 NIB rear-view 3) KT41(10E/18) OSRAM-A.M. ￥3900 NIB just-ragged boxes
KT44 =BeamPower= 'EIA/-, British-7pin, Top-P) Eh/Ih=4V/2A Ppmax=21.5W Epmax=V Ikmax=mA op: Ep=250V Ec2=250V Ec1=-25.0V Ip=85mA Ic2=20mA gm=6.3mS Zl=2.2kΩ D=9% Po=7.5W 0) KT44 England made(Cossor, Marconi/MWT etc) ￥4500 NOS 計5本
KT45 =BeamPower= (EIA/-, British-7pin, Top-P) Eh/Ih=4V/2A Ppmax=21.5W Epmax=V Ikmax=mA gm=2300μmhos op: Ep=300V Ec2=300V Ec1=-15.0V Ip=85mA Ic2=6.3mA gm=6.3mS Zl=2.2kΩ D=9% Po=7.25W 0) KT45 England made(Cossor Marconi etc) ￥4500 NOS 計5本
KT55 =BeamPowerTetrode= (EIA/ , octal) *KT55 is designed for a series-stabilizers or an audio output amplifier Eh/Ih=52V/0.3A Ehkmax=250V/350V-peak Tbulb=225℃ Ppmax=25W Epmax=400V Pc2=4.5W Ec2max=300V Tetrode connection op : Ep=200V Ec2=150V Ec1=-13.5V Ip=125mA Ic2=7.5mA rp=5kΩ gm=19mS op(AB1pp) : Ep=215V Ec2=190V Rk=2x185Ω(Ec=-25V) Ip=220mA/225mA Ic2=15mA/45mA Zlpp=2kΩ D=2% Po=25W Triode connection : Ppmax=26.5W op : Ep=200V Ec=-20V rp=400Ω gm=20mS μ=7.5 op(AB1pp) : Ep=200V Rk=2x185Ω(Ec=-19V) Ip=205mA Zlpp=1.5kΩ D=2% Po=11W op(AB1pp) : Ep=225V Rk=2x185Ω(Ec=-22V) Ip=240mA Zlpp=1.5kΩ D=-% Po=15W pins : 1(IC)-2(H)-3(P)-4(G2)-5(G1)-6(NONE)-7(H)-8(K/Beam) size : 52mmΦ x 143mmH, in max (参考 : 三結時のEp-Ip特性(triode connection)) 0) KT55 Osram ￥- NOS smoked-glass WB 0) KT55 MOV ￥- used smoked-glass WB
KT61 =Power Tetrode= (EIA/7AC - octal) Eh/Ih=6.3V/0.95A Tetrode con.: Ppmax=10W Epmax=275V Pc2max=1.9W Ec2max=275V Ipmax=40mA Ic2max=7.5mA op: Ep=Ec2=250V Ip=40mA gm=10.5mS-typ op(A1s): Ep=250V Ec2=250V Rk=90Ω Ip=40mA Ic2=7.5mA Zl=6kΩ D=8% Po=4.3W op(AB1pp): Ep=250V Ec2=250V Ec1=-6V(Rk=90Ω) Ip=56mA Ic2=12mA Zlpp=10kΩ D=4% Po=8.6W op(AB1pp): Ep=275V Ec2=275V Rk=80Ω Ip=72mA Ic2=12mA Zlpp=10kΩ D=6.5% Po=11.5W Triode con. : Ppmax=10W Epmax=350V Ipmax=40mA op: Ep=250V Ip=30mA gm=13mS-typ op(AB1pp): Ep=350V Rk=150Ω Ip=63mA Zlpp=6kΩ D=2.0% Po=6W size : 42mmΦ x 102mmH(excluding pins) (参考 : 三結時のEp-Ip特性(triode connection)) Loktal type : KT81 electrically similar to 6M6G, 6V6G/GT 1) KT61 Osram NIB ￥4700 (6V6)
KT63 = 6F6G
KT66
KT67/CV437 =high-gm HF power Tetrode= (EIA/- , B9G) Eh/Ih=6.3V/1.5A Cpg1=0.08pF Cin=17.5pF Cout=9pF Tetrode connection : Ppmax=22W Epmax=600V Pc2max=3W Ec2max=300V Rg1max=100kΩ(fixed)/270kΩ(self) op : Ep=250V Ec2=180V Ip=80mA gm=13mS Triode connection : Ppmax=25W Epmax=300V pins : 1(H)-2(G2)-3(P)-4(NC)-5(IS)-6(K)-7(G1)-8(IS)-9(H) size : 45mmΦ x 95mmH, in max (参考 : 三結/五結時のEp-Ip特性(triode connection and pentode connection(@Ec2=180V))) 2) KT67 Marconi(GEC-made) ￥4700 NIB D/C=7148, 7240 glass-top & base-bottom 0) KT67 GEC ￥- NOS just-rusty base WB 3) KT67 GEC ￥4700 NOS D/C=7152 WB Back View 4) KT67 GEC ￥4100 NOS just rusty, WB 0) KT67 GEC ￥- used WB
KT71 = 50L6GT
KT77
KT81 =power Tetrode= (EIA/ - Loktal) Eh/Ih=6.3V/0.95A Ppmax=W Epmax=250V Pc2max=W Ec2max=250V Ikmax=mA, gm=10.8mS-typ op : Ep=250V Ec2=250V Ec1=-4.4V(Rk=90Ω) Ip=40mA Ic2=7.5mA Zl=6kΩ Po=4.3W pins : 1(H)-2(P)-3(G2)-4(IC)-5(IC)-6(G1)-7(K)-8(H) electrically equivallent to KT61(octal type) also electrically similar to 6M6G, 6V6 similar loktal type : 7C5(if pins 4 & 5 are unused, can be replaced with grid-bias modification) 0) KT81 GEC ￥- NIB 4) KT81 GEC ￥7000 NIB just-ragged boxes 0) KT81 GEC ￥- used
KT88
KT90 =power Pentode= (EIA/7AC - octal) Eh/Ih=6.3V/1.6A Ehkmax=300Vdc *pentode connection : Ppmax=50W Epmax=750V Pc2max=8W Ec2max=650V Ikmax=230mA op : Ep=250V Ec2=250V Ec1=-14V Ip=145mA Ic2=8mA gm=14mS rp=11kΩ op : Ep=400V Ec2=300V Ec1=-27V Ip=90mA Ic2=4.7mA gm=8.8mS rp=25kΩ *triode connection : Ppmax=50W Epmax=600V Ikmax=230mA op : Ep=250V Ec1=-14V Ip=153mA gm=15mS rp=650Ω μ=9 pins : 1(NC)-2(H)-3(P)-4(G2)-5(G1)-6(NC)-7(H)-8(KG3) electrically similar to KT88 6550/A also see 6GB8 8417 also see a power triode similarly-rated : 8045G 0) KT90 Ei ￥- NIB(?) very-ragged boxes (hyy1bvt) 0) KT90 Ei(Yugo) ￥3900 lightly-used WB (hyy2cvt) 0) KT90 Ei(Yugo) ￥3100 used WB (hyy2cvm)
KTW63 = 6J7GT
KTZ63. 'KTZ63/6J7G' (see 6J7G) =HF Tetrode(KTZ63), Screened DetectorPentode('KTZ63/6J7G')=(EIA/ - octal, topG1) Eh/Ih=6.3V/0.3A for type KTZ63 op : Ep=250V Ec2=100V Ec1=-3V Ip=2mA Ic2=0.5mA pins : 1(NC)-2(H)-3(P)-4(G2)-5(NC)-6(NC)-7(H)-8(KG3)-Top(G1) for type 'KTZ63/6J7G' Epmax=250V Ec2max=125V op : Ep=250V Ec2=100V Ec1=-3V gm=1.23mS op : Ep=250V Ec2=100V Ec1=-2V Ip=1mA Ic2=0.25mA Rg2=1MΩ Rk=2.2kΩ Zl-optimum=250kΩ op(triode connection) : Ep=250V Ec=-3V Ip=3mA Rk=1kΩ rp=10.5kΩ Zl-optimum=50kΩ pins : 1(IS)-2(H)-3(P)-4(G2)-5(G3)-6(NC)-7(H)-8(K)-Top(G1) similar to EF37/A 1) KTZ63 Marconi NIB ￥2700 1) KTZ63 Marconi NIB ￥2700 RaggedBox
KTZ63M = 6J7GT
1) KS14392 Sheldon NIB ￥2400 ExtremelyRaggedBox RelayTube
6) L5A/176K STC/Brimar used ￥1700 Gpin
L63/CV1067/CV1932 =Triode= (EIA/6Q* - octal) Eh/Ih=6.3V/0.3A Ppmax=2.5W Epmax=250V op: Ep=250V Ec=-8V Ip=9mA rp=7.7kΩ gm=2.6mS μ=20 op: Ep=250V Rk=600Ω Rp=50kΩ Ec=-1.9V Ip=3.2mA V-Gain=16 Eout=35Vpeak Dtot=2% op: Ep=250V Rk=600Ω Rp=50kΩ Ec=-1.9V Ip=3.2mA V-Gain=16 Eout=55Vpeak Dtot=5% size(ST): 40mmΦ x 107mm, in max size(straight): 34mmΦ x 98mm, in max (参考: Ep-Ip特性) pins : 1(metalized)-2(H)-3(P)-4(NC)-5(G)-6(None)-7(H)-8(K) see an American equivallent type: 6J5/G/GT also see a different-base electrically-equivallent American type: 7A4(loktal) also see a high-μ British type H63/CV1073(μ=100) 2) L63-ST Marconi NOS ￥5200 smoked-glass WB 2) L63-ST MOV NOS ￥5200 smoked-glass WB 4) CV1932(=L63)-ST MOV NOS ￥5200 smoked-glass WB 2) CV1067(=L63) GEC NOS ￥3900 straight-glass, brown-base (hyyo417sx) 2) CV1067(=L63) GEC NOS ￥3900 straight-glass, brown-base D/C=6919 WB 1) CV1067(L63) GEC NOS ￥3900 straight-glass, brown-base, WB (hyyo417sx) 1) CV1067(=L63) GEC NOS?/lightly-used ￥3000 straight-glass, brown-base WB 1) L63 - used ￥1700 straight-glass, MetalBase
L77 = 6C4
L410 =filamentary small-power Triode= Ef/If=4.0V/0.15A Ppmax=W Epmax=150V Ipmax=mA Rgmax=kΩ op : Ep=100V Ec=0V Ip=mA rp=8.5kΩ gm=1.76mS μ=15-typ L410(Valvo) = B406(Philips) = RE114(Telefunken) 1) L410-globe Valvo ￥4800 used WB 1) L410-globe Valvo ￥4800 used WB
L413 =filamentary small-power Triode= Ef/If=4.0V/0.15A Ppmax=3W Epmax=250V Ipmax=mA Rgmax=kΩ op : Ep=200V Ec=-16V Ip=12mA rp=5kΩ gm=1.8mS μ=9-typ L413(Valvo) = B409(Philips) = RE134(Telefunken) = D9(RadioFotos/Grammont) L413S : for 'series' filament w/ DC 0) L413-globe Valvo ￥- used WB 1) L413-globe Valvo ￥6000 lightly-used tested WB 1) L413S-globe Valvo ￥6000 lightly-used tested WB 0) L413S-globe Valvo ￥- lightly-used WB
L415 =filamentary small-power Triode= Ef/If=3.8V-4.0V/0.15A Ppmax=W Epmax=V similar to RE134(TFK) 1) L415 Tungsram ￥4500 used tested WB
1) Type LA Ray used ￥5000 1800μmho @Ec=-6V,Ef=5V(539B) @@
6) Lambda-6B Mudox used ￥1200 Nixie WB
LD611/LD-611 = 6H-HR4/6RHR4
LK4112 =PowerTriode= Ef/If=4V/1A Ppmax=12W Epmax=500V op : Ep=250V Ec=-24V Ip=48mA rp=1.7kΩ gm=3.6mS μ=6 Zl=2.5kΩ Po=1.75W (see Valvo-LK4112のEg-Ip特性(@Ep=250V, 500V)) equivallent type : E406N(Philips) 0) LK4112 Valvo lightly-used ￥- WB
LK4200 =PowerTriode= Ef/If=4V/2A Ppmax=25W Epmax=550V, gm=8mS-max rp=1.25kΩ-min op : Ep=550V Ec=-36V Ip=45mA rp=2.5kΩ gm=4mS μ=10 Zl=7kΩ Po=5.9W (see Philips-F410/Valvo-LK4200のEp-Ip特性) (see Philips-F410/Valvo-LK4200のEg-Ip特性(@Ep=550V)) LK4200(Valvo) = F410(Philips) similar type : U4E/U4E8(M.P.Pedersen) also similar to PX25/CV1040(Marconi/Osram), DO24(Mullard) 2) LK4200/F410 Valvo lightly-used ￥offer Funke W-20 tested. WB
2) LN152 Marconi NIB ￥1300
LP2 =filamentary small-power Triode= (EIA/ -, UF-4pin ) Ef/If=2V/0.2A Epmax=150V op : Ep=100V Ec=0V Ip=9mA rp=3.9kΩ gm=3.85mS μ=15-typ op : Ep=100V Ec=-3.0V Ip=5mA op : Ep=120V Ec=-4.5V Ip=6mA op : Ep=150V Ec=-6.0V Ip=7mA (参考 : Eg-Ip特性(Ep = 75V, 100V, 125V, 150V)) similar types : 220PA(Cossor), CV1166 1) LP2-globe Osram ￥4300 used rear-view/inclined anode-housing, WB
LS5A/CV1650 =power Triode= (EIA/) Ef/If=4.25V-5.25V/0.8A Ppmax=13.5W Epmax=400V, rp=2.75kΩ gm=0.91mS μ=2.5 op : Ep=200V Ec=-15V Ip=12.8mA 0) LS5A Marconi ￥- used WB
LS6A =power Triode= (EIA/) Ef/If=6V/2A Ppmax=25W Epmax=400V op : Ep=100V Ec=0V rp=1.3kΩ gm=2.3mS μ=3 op : Ep=400V Ec=-91V Ip=63mA Zl=3.25kΩ Po=5W 0) LS6A Osram ￥- used WB
LS7/CV1660 =Triode= (EIA/) Ef/If=4V/0.15A Ppmax=-W Epmax=150V op : Ep=130V Ec=-4V Ip=7mA-11mA rp=5kΩ gm=2mS-2.9mS μ=12(10.5-13.5) size: 60mmΦ x 127mmH, in max 2) LS7B Marconi ￥offer NIB 0) LS7 Osram ￥- used WB
LS8A/CV1676 =Triode= (EIA/) Ef/If=4V/0.15A Ppmax=-W Epmax=-V op : Ep=130V Ec=-8V Ip=26mA rp=2kΩ gm=3.0mS μ=6 similar to 3A/109B, 4019B/S4019B 0) LS8A Osram ￥- used WB
LS9B/CV1658 =Triode= (EIA/) Ef/If=2V/0.15A Ppmax=-W Epmax=-V op : Ep=150V Ec=-1.5V Ip=8mA rp=50kΩ gm=0.6mS μ=30 0) LS9B Marconi ￥- used WB
LS50
2) LS894 STC NOS ￥1900 WB
0) M30HG USA used? ￥- BallastTube SmokedGlass ST-type
M2057/M-2057
M8083 =SQ RF Pentode= (EIA/7DB - miniature) Eh/Ih=6.3V/0.3A Ehkmax=150V Ppmax=3W, Epmax=300V(550V-cutoff) Pc2max=0.9W Ec2max=300V(450V-cutoff) Ikmax=16.5mA op : Ep=250V Ec2=200V Ec1=-2V Ip=10mA Ic2=2.6mA gm=7.6mS rp>500kΩ μg2g1=70 pins : 1(G1)-2(K)-3(H)-4(H)-5(P)-6(G3,S)-7(G2) (参考 : 三結時のEp-Ip特性例(triode connection)) similar to 6AM6, CV4014, EF91 4) M8083 Phlps NIB ￥2500 Holland 4) M8083 Phlps NIB ￥2500 made-in England, just-ragged boxes
M8100 =SQ RF/AF Pentode= (EIA/7BD - miniature) Eh/Ih=6.3V/0.175A Ehkmax=130V Fmax=400MHz Ppmax=1.65W Epmax=310V Pc2max=0.55W Ec2max=155V Ec1max=+0V/-55V Ic1max=4mA Ikmax=20mA Rg1max=3MΩ Tbulb-max=165℃ Shock-max =2.5G-continuous/500G-short_time M8100 is electrically similar/equivallent to : 6AK5 / 403A, 403B / 5591 / 5654 / EF95 / E95F 5) M8100 Phlps NIB ￥2900 1) M8100/CV4010 Phlps NIB ￥2900 MB BlkPlate Gt.Britain
M8136 =SQ med-mu twin triode= (EIA/9A - noval) Eh/Ih=6.3V/0.3A(12.6V/0.15A) Ehkmax=180V Ppmax=2.75W/unit Epmax=300V Ikmax=20mA similar/equivallent to : 12AU7WA/E82CC/6680, 6189, ECC802S 1) M8136 Mullard used ￥3900 smeared-silk WB
M8137/CV4004 =SQ high-mu twin triode= (EIA/9A - noval) Eh/Ih=6.3V/0.3A(12.6V/0.15A) Ehkmax=200V Ppmax=1.1W/unit Epmax=330V/550V-cutoff Ikmax=20mA op : Ep=250V Ec=-2V Ip=1mA gm=1.6mS μ=95 similar/equivallent to : 12AX7WA/E83CC/6681/7025A, 6057, ECC803S 2) M8137 Mullard NIB ￥9200 smeared-silk WB
MB-655-A/MB655A =Power Pentode= (EIA/6B - UZ, ST14) Eh/Ih=5.5V/1A op : Ep=250V Ec2=200V Ec1=-13.5V Ip=40mA Ic2=13mA rp=90kΩ gm=3.5mS pins : 1(H)-2(P)-3(G2)-4(G1)-5(G3,K)-6(H) (size : 118mmH x 44.5mmφ approx.) equivallent type : CZ-504-D heater variants: CZ-504-V, MB-655-D (Eh/Ih=6.3V/1A) appearance : CZ-504-D, MB-655-A, and UZ-42 1) MB-655-A NEC ￥offer used-LikeNew gm=3500/1550min(as #42 and Eh=5.0V-5.7V, on WE/Hickok KS-15750-L1 tester)
MB-655-D/MB655D =Power Pentode= (EIA/6B - UZ, ST14) Eh/Ih=6.3V/1A op : Ep=250V Ec2=200V Ec1=-13.5V Ip=40mA Ic2=13mA rp=90kΩ gm=3.5mS pins : 1(H)-2(P)-3(G2)-4(G1)-5(G3,K)-6(H) (size : 118mmH x 44.5mmφ approx.) equivallent type : CZ-504V heater variants: CZ-504-D, MB-655-A (Eh/Ih=5.5V/1A) 1) MB-655-D NEC ￥offer used D/C=1949.3 WB, rear-view
MC-538C/MC538C =Pentode= (EIA/ - UT TopPlate, ST16) Eh/Ih=6.3V/1A op : Ep=V Ec2=V Ec1=V Ip=mA Ic2=mA rp=-MΩ gm=-mS pins : 1(H)-2(S)-3(G2)-4(G1)-5(G3)-6(K)-7(H)-Top(P) (size : 145mmH x 52mmφ approx.) similar to RCA-802(Eh/Ih=6.3V/0.9A) 3) MC-538-C NEC, Sumitomo-Elec. ￥offer NIB manufactured date=around 1942, Imperial-Navy-Anchor marked (NEC/Nippon Electric Corp.= Sumitomo Corp. group company/subsidiary)
MC-631-A/MC631A(=UZ-#78) =detector amp Pentode= (EIA/6F - UZ 6pins, top-G1, ST12) Eh/Ih=6.3V/0.3A Ppmax=2.75W Epmax=300V Pc2max=0.35W Ec2max=125V op : Ep=250V Ec2=125V Ec1=-3V Ip=10.5mA Ic2=2.6mA rp=600kΩ gm=1.65mS electrically identical with 6K7/6K7G/6K7GT(octal-base) also similar to 6D6-ST 1) MC-631-A/UZ-78 NEC ￥2000 used
MC-656A/MC656A =detector amp Pentode= (EIA/5F - UY top-G1, ST12) Eh/Ih=2.5V/1A op : Ep=200V Ec2=100V Ec1=-1.5V Ip=5mA Ic2=-mA rp=1MΩ gm=2mS pins : 1(H)-2(P)-3(G2)-4(K,G3)-5(H)-Top(G1) 0) MC-656-A NEC ￥1700 used
MC-656B/MC656B=CY-501F =detector amp Pentode= (EIA/5F - UY top-G1, ST12) Eh/Ih=4.5V/0.5A op : Ep=250V Ec2=100V Ec1=-1.5V Ip=5mA Ic2=-mA rp=1.5MΩ gm=2mS pins : 1(H)-2(P)-3(G2)-4(K,G3)-5(H)-Top(G1) 0) MC-656-B/CY-501-F Sumitomo ￥- used rare 2) CY-501-F / MC-656-B Sumitomo ￥offer lightly-used WB
MC-656C/MC656C=CZ-501D =detector amp Pentode= (EIA/6F - UZ top-G1, ST12) Eh/Ih=3.5V/1A op : Ep=250V Ec2=130V Ec1=-2.5V Ip=6.5mA Ic2=-mA rp=1MΩ gm=3.5mS pins : 1(H)-2(P)-3(G2)-4(G3)-5(K)-6(H)-Top(G1) 1) MC-656-C / CZ-501-D Sumitomo(=NEC) ￥3000 used WB gm=2100μmho/1100min (@Eg1=-3.7V, Eh=3V on LS-15750-L1 tester as WE-310A) 2) MC-656-C / CZ-501-D Sumitomo(=NEC) ￥3000 used bottom view, WB gm=2760μmho, 1830μmho/1100min, Ik=8.5mA/4.4mA (@Eg1=-3.7V, Eh=3V on LS-15750-L1 tester as WE-310A) 1) MC-656-C/CZ-501D Sumitomo(NEC) ￥3500 lightly-used NEC箱(hyy17s) 0) MC-656-C NEC ￥- used
MC-657A/MC657A=CZ-502D =detector amp Pentode= (EIA/6F - UZ top-G1, ST12) Eh/Ih=3.5V/1A op : Ep=250V Ec2=130V Ec1=-2.5V Ip=10mA Ic2=-mA rp=800kΩ gm=3.5mS pins : 1(H)-2(P)-3(G2)-4(G3)-5(K)-6(H)-Top(G1) 0) MC-657-A NEC ￥- used
MC-658A/MC658A/CZ-511 =VHF Pentode= (EIA/6F - UZ top-G1, ST12) Eh/Ih=6.3V/0.6A op : Ep=250V Ec2=130V Ec1=-2V Ip=11mA Ic2=-mA rp=-MΩ gm=6mS lower gm type : CZ-501D(Eh/Ih=3.5V/1A, gm=3.5mS-typ) pins : 1(H)-2(P)-3(G2)-4(G3)-5(K)-6(H)-Top(G1) also see equivallent type : CZ-511 also see a same pin-out & higher-gm type : UZ-6302(gm=10mS-typ, for TV-receiver on 1940s) 3) MC-658-A Sumitomo(住友通信) ￥5000 NIB D/C=1944.8 Rear-View 2) MC-658-A 品川電機(Shinagawa-electric) ￥3700 lightly-used D/C=1944.11.19, Very-ragged original-boxes 1) MC-658-A 品川電機(Shinagawa-electric) ￥3700 lightly-used D/C=1944.11.19, with an NEC box 1) MC-658-A Sumitomo(住友通信) ￥3700 lightly-used D/C=昭和19年8月(1944-8), WB 1) MC-658-A NEC ￥3000 used D/C=1947 1) MC-658-A NEC ￥3000 used just-loose base NEC箱(hyy17s) 1) MC-658-A Shinagawa-electric ￥3000 used
MH4/NR31/VR37 =cathode-type med-mu Triode= (EIA/-, UF5pin) Eh/Ih=4V/1A Epmax=200V op : Ep=100V Ec=0V Ip=7.3mA rp=11.1kΩ gm=3.6mS μ=40 (参考 : Eg-Ip特性(@Ep=50V, 100V, 150V, 200V)) similar to AC/HL, 354V(Mullard) also similar to REN904(gm=3.5mS, μ=25-typ), K1694 electrically similar type w/ MAZDA octal base : HL41(Eh/Ih=4V/0.6A) also electrically similar to Brimar - 4D1(British 7-pin, Eh/Ih=13V/0.2A, Top-G) 0) MH4 Osram ￥- NOS gray spray-shield(rough surface), WB 1) VR37 10E/9598 MO Valve ￥offer NIB 1) MH4 Haltron ￥offer NIB 0) MH4 Marconi ￥- used 2) MH4 Marconi/Osram ￥3300 used WB 2) NR31(Royal Navy) Marconi, Osram ￥3300 used WB 2) NR31(Royal Navy) Marconi/Osram ￥3300 used WB
MH41/CV1505/VR505/CV1678/'10E/631' =cathode-type high-mu Triode= (EIA/-, UF5pin) Eh/Ih=4V/1A Epmax=200V op : Ep=100V Ec=0V Ip=7.3mA rp=13.3kΩ gm=6mS μ=80 (参考 : Eg-Ip特性(@Ep=50V, 100V, 150V, 200V)) (参考 : Ep-Ip特性) similar types : AC2/HL(Mazda), MH41(MOV), 41MH(Cossor), UY6301(Japan) also see a noval type high-μ twin triode, 12BZ7 (by unit-parallel usage, resulting in near MH41) 4) MH41-ST Osram ￥15000 NIB 1) MH41-ST Marconi ￥12000 NOS spray-shielded, very-ragged Osram boxed 1) MH41-globe Gecovalve ￥9800 used mesh, tested WB 0) MH41 Marconi ￥- used WB 1) VR505/'10E/631'(Royal AirForce) MOV ￥6,000 used? WB
MHD4 =common-cathode twin diode + med-mu Triode= (EIA/-, B7(British 7pin)) Eh/Ih=4V/1A Triode : Epmax=250V op : Ep=200V Ec=-3V Ip=3.8mA op : Ep=100V Ec=-1V Ip=2.8mA rp=18.2kΩ gm=2.2mS μ=40 op : Eb=350V Rk=400Ω Rp=50kΩ Ip=4,0mA Eout=34Vrms op : Eb=350V Rk=750Ω Rp=50kΩ Ip=3.2mA Eout=21Vrms op : Eb=250V Rk=400Ω Rp=50kΩ Ip=2.8mA Eout=25Vrms-max op : Eb=250V Rk=750Ω Rp=50kΩ Ip=2.2mA Eout=15Vrms-max size : 44.5mmΦ x 125mmH spray-shield : metallization = optional order (参考 : Triode Ep-Ip特性) higher-gm triode with B7-base and Eh/Ih=13V/0.2A spec. : Brimar- 4D1(gm=4mS, μ=40) 14) MHD4 MOV ￥2700 NIB spray-metallic-shielded type, but shield-coating has been lost almost entirely 0) MHD4 MOV ￥- NIB spray-metallic-shielded type 塗装剥がれ多し 4) MHD4 MOV ￥2700 NIB none-metalization, brown-boxes (hyy2&4mcqx) 0) MHD4 Osram ￥- used non spray-shielded, carbonized type WB
MHL4/VR38 =cathode-type med-mu Triode= (EIA/-, UF5pin) Eh/Ih=4V/1A Epmax=200V(Marconi), 250V(Osram) op : Ep=200V Ec=-6V Ip=7mA op : Ep=150V Ec=-4V Ip=5.5mA op : Ep=100V Ec=-3V Ip=2.5mA op : Ep=100V Ec=0V Ip=8.5mA rp=8kΩ gm=2.5mS μ=20 (参考 : Eg-Ip特性(@Ep=50V, 100V, 150V, 200V)) (参考 : Ep-Ip特性) electrically similar USA octal-base(Eh/Ih=6.3V/0.3A) types : 6C5, 6J5/G 1) MHL4 Osram ￥5000 NOS spray shielded, WB 1) MHL4 Marconi ￥5000 NIB spray shielded, very-ragged box 1) MHL4 Osram like-new ￥3900 WB Ip=6.1mA, gm≒2mS @Ep=150V Eg=-4V on Funke W20 0) MHL4 Marconi ￥- lightly-used tested on Funke W-20
ML4/CV1732/NR57 =cathode-type med-mu power Triode= (EIA/-, UF5pin) Eh/Ih=4V/1A Epmax=200V op : Ep=200V Ec=-11V Ip=16mA op : Ep=150V Ec=-8V Ip=13mA op : Ep=100V Ec=-6V Ip=7mA op : Ep=100V Ec=0V Ip=26.5mA rp=2.86kΩ gm=4.2mS μ=12 (参考 : Eg-Ip特性(@Ep=50V, 100V, 150V, 200V)) (参考 : Ep-Ip特性) heater variant = ML6(Eh=6V/6.3V) 1) ML4 Osram ￥4700 NOS WB 0) ML4 Marconi ￥- used WB
ML6/VT105(England)/CV1105 =cathode-type med-mu power Triode= * ML6 = heater variant of ML4 Eh/Ih=6.3V/0.7A or 6V/0.7A(MIL:CV1105/VT105) Ppmax=5W Epmax=250V op : Ep=200V Ec=-11V Ip=16mA op : Ep=150V Ec=-8V Ip=13mA op : Ep=100V Ec=-6V Ip=7mA op : Ep=100V Ec=0V Ip=26.5mA rp=2.86kΩ gm=4.2mS μ=12 op : Ep=200V Ec=-8V Ip=25mA rp=-kΩ gm=3.8mS μ=- 1) VT105(10E/216)=ML6 Marconi ￥offer NIB(WB) ceramic base gm=3050μmho/Ip=14.5mA @Ep=138V,Ec=-8V, Eh=5.5V on KS-15750-L1 1) VT-105(10E/216) England(MO-Valve?) ￥2500 used WB 0) ML6/CV1105 Marconi ￥- used ceramic base WB 0) ML6 Zaerix ￥- used ceramic base, Funke W-20 tested, WB
ML-322 =UHF-Diode= PIV=800V Ipmax-peak=0.6A Ppmax=15W(average) Ef/If=6.3V/0.95A 1) ML-322 Machalet ￥5000 NOS
MPT4 =Power Pentode= Ef/If=4V/1A Ppmax=8W Epmax=250V Pc2max=-W Ec2max=200V gm=3mS (@Ep=Ec2=100V, Ec1=0V) op : Ep=250V Ec2=200V Ec1=-10.5V Ip=32mA Ic2=5.5mA (参考 : 五結時のEp-Ip特性(@Ec2=200V)) 3) MPT4 Osram ￥offer used
MSP4 =detector/amplifier Pentode= (EIA/ - British-7pin, Top-P) Eh/Ih=4V/1A Ppmax=-W Epmax=250V Pc2max=-W Ec2max=100V op : Ep=250V Ec2=100V Ec1=-1.75V(Rk=400Ω) Ip=3.3mA Ic2=1mA Rl=25kΩ gm=2.4mS pins : 1(metallizing)-2(G1)-3(G3)-4(H)-5(H)-6(K)-7(G2)-Top(P) 1) MSP4 Marconi ￥3600 NIB very-ragged box
MS-PEN-B =amplifier Pentode= (EIA/ - British-7pin, Top-P) MS-PEN-B is a top-G1 version of MS-PEN(top-P) Eh/Ih=4V/1A Ppmax=-W Epmax=200V Pc2max=-W Ec2max=100V op : Ep=200V Ec2=100V Ec1=-1.5V Ip=4.8mA Ic2=1.3mA rp=800kΩ gm=2.8mS pins : 1(metallizing)-2(P)-3(G3)-4(H)-5(H)-6(K)-7(G2)-Top(G1) 1) MS-PEN-B Cossor ￥3100 NOS Marconi-boxed
MU12 =cathode-type Fullwave Rectifier= Eh/Ih=4V/2.5A (with an indirectly heated cathode tied to one side of the heater) Epmax=350VAC Idcmax=120mA, Edc-out=340V(@Idc=120mA), Edc-out=410V(@Idc=60mA), C=4uF similar to 431U(Cossor) 0) MU12 Marconi ￥- NIB
MU14 =cathode-type Fullwave Rectifier= Eh/Ih=4V/2.5A (with an indirectly heated cathode tied to one side of the heater) Epmax=500VAC Idcmax=120mA, Edc-out=540V(@Idc=120mA), Edc-out=620V(@Idc=60mA), C=4uF 0) MU14 Marconi ￥3000 NIB
1) N RRF used ￥2000 70μmho(Ef=3.5V/60mA)
N78/CV3711 =Power Pentode= (EIA/ -miniature) Eh/Ih=6.3V/0.64A Ehkmax=150V Pentode connection Ppmax=9W Epmax=250V Pc2max=3W Ec2max=250V μ=420 gm=10.5mS rp=40kΩ op1(A1S) : Ep=250V Ec2=250V Rk=120Ω Ip=35mA Ic2=5.5mA Zl=7kΩ Po=4W D=9.2% op2(AB1pp): Ep=250V Ec2=250V Rk=120Ω Ip=70mA/73mA Ic2=11mA/16.5mA Zlpp=9kΩ Po=9W D=4.6% op3(AB1pp): Ep=350V Ec2=275V Rk=270Ω Ip=70mA/51mA Ic2=11mA/20mA Zlpp=18kΩ Po=12.6W D=4.8% Triode connection Ppmax=12W Epmax=250V μ=24 gm=11.4mS rp=2.1kΩ op4(AB1pp): Ep=300V Rk=220Ω Ip=67mA/73mA Zlpp=5kΩ Po=4.4W D=1.5% op5(AB1pp): Ep=350V Rk=330Ω Ip=57mA/64.5mA Zlpp=8kΩ Po=6.3W D=1.6% 三結時の平均プレート特性(Triode-connection EpIp) 2) N78 GEC NIB ￥3300 3) N78 GEC NIB ￥3300 1) N78 AWV NOS ￥3000 0) N78 Marconi used ￥- 1) N78 GEC lightly-used ￥2000
15) NeonLamp/ResistanceLamp-2watt(105-125V/3500ohm) GE NOS ￥2000 UX-base 大型 写真/点灯の様子
NF6 =RF Pentode= (EIA/ -) TFK : Eh/Ih=12.6V(13V)/0.2A (P(side-contact)-base) JRC : Eh/Ih=6.3V/0.43A (octal base) op : Ep=200V Ec2=100V Ec1=-2V Ip=3.2mA Ic2=1.1mA rp=1.8MΩ gm=2.3mS similar types w/P-base : NF2(Eh/Ih=12.6V/0.195A), CF7(Eh/Ih=13V/0.2A), AF7(Eh/Ih=4V/0.6A) 1) NF6 日本無線(JRC) used ￥2000 spray-shielded type, WB 0) NF6 日本無線(JRC) used ￥2000 WB
3) NL-716 National NOS ￥3300 Syl箱
NL-760 =Mercury-vapor Thyratron= (EIA/4BZ, 6807, super-jumbo 4-pin) Ef/If=2.5V/21A Tfilament_warmup=60sec Temp=-40℃ to +80℃ Idcmax=6.4A/77Ainstantaneous PIV=1500V PFV=1500V Edrom=12V(for Ia=20Apeak) Ec-max=-500V(before conduction)/-10V(during conduction) equivallent type : 760, 6858 5) NL-760 National NIB ￥6000 w/ original Black & Orange boxes
2) NL-845 National NIB ￥1900 Nixie *
NR31 = MH4
0) P215 Tungsram(made in England) ￥1000 used not-tested
P215 =filamentary small-power Triode= Ef/If=2V/0.15A Epmaxx=150V op : Ep=135V Ec=-6V Ip=5mA Po=150mW-typ, rp=5kΩ gm=1.4mS μ=7-typ similar to 220P(Cossor), B205(Philips), PM2(Mullard) 1) P215 Marconi ￥6000 like new, WB 0) P215 Osram ￥3500 used WB
P220
P250A
P414 =filamentary Triode= (EIA/ - ) Ef/If=4V/0.15A op : Ep(max)=150V Ec=-16V Ip=12mA rp=1.7kΩ gm=3mS μ=5.1 size : 46mmΦ x 91mmH, in max P414(Tungsram) = TM-BF-2(military) = B405(Philips) = RE114(TFK) 1) P414-globe Tungsram ￥4500 used WB
P-503A/P503A
P610 =filamentary small-power Triode= Ef/If=6V/0.1A Ppmax=-W Epmax=150V Ikmax=mA op : Ep=100V Ec=0V rp=3.5kΩ gm=2.28mS μ=8 0) P610 Marconi ￥- used
P625 =filamentary Power Triode= Ef/If=6V/0.25A Ppmax=6W Epmax=250V Ikmax=mA op : Ep=100V Ec=0V rp=2.4kΩ gm=2.5mS μ=6 op : Ep=150V Ec=-12V Ip=14.5mA op : Ep=200V Ec=-18V Ip=19mA op : Ep=250V Ec=-24V Ip=24mA <三極管の A1S 動作比較> 0) P625 Osram ￥- used
P625A =filamentary Power Triode= Ef/If=6V/0.25A Ppmax=5W Epmax=200V Ikmax=mA op : Ep=100V Ec=0V rp=1.6kΩ gm2.3mS μ=3.7 op : Ep=200V Ec=-39V Ip=25mA (参考 : Ep-Ip特性) 1) P625A Osram ￥offer NOS OriginalBox? 1) P625A Osram ￥offer used gm=1850μmho(@Eg=-20V, Ep≒126V on KS-15750-L1)
PABC80(=9AK8) =Triple Diode Triode= (Noval) Eh/Ih=9.5V/0.3A (Triode) Ppmax=1W Epmax=300V Ikmax=-mA Rgmax=-MΩ Ehk=-V gm=1.5mS μ=70 (Diode 1) PIV=350V Iforwardmax=6mA (Diode 2,3)PIV350V Iforward=75mA 1) PABC80 TFK ￥1800 NIB sealed 1) PABC80 RWN ￥1800 NIB TFK箱
PC86(=4CM4) =UHF Triode= (EIA/9KG - noval) Eh/Ih=3.8V/0.3A Ppmax=2.2W Epmax=220V Ikmax=20mA Rgmax=1MΩ Ehk=100V gm=14mS μ=68 (参考 : Ep-Ip特性) see heater variants : EC86(6.3V/0.175A), 6CM4(6.3V/0.17A) (参考:ヒーター直列抵抗8.2Ω/2Wを接続し6.3V巻線からの給電でヒーターサージ電流を大幅抑制=長寿命化に適) 2) PC86 TFK ￥2800 NIB sealed 1) PC86 TFK ￥2800 NOS Valvo箱 <> 1) PC86 Siemens ￥1700 NIB 2) PC86 Valvo ￥1700 NIB 1) PC86 Ultron ￥1400 NOS Valvo箱 1) PC86 TFK ￥2000 used Gpin 1) PC86 ATES ￥1800 used? Gpin 1) PC86 Philips ￥1500 lightly-used Gpins D/C=6426 WB
PC88(=4DL4) =UHF Triode=(EIA/9NY - noval) Eh/Ih=3.8V/0.3A Ppmax=2W Epmax=175V Ikmax=13mA Rgmax=1MΩ Ehk=100V gm=12.5mS μ=65 (参考 : Ep-Ip特性) see heater variants : EC88(6.3V/0.165A), 6DL4(6.3V/0.165A) 2) PC88 TFK ￥2800 NIB sealed 1) PC88 TFK ￥2700 NIB Gpin <> 1) PC88/4DL4 Siemens ￥2700 NIB Gpin 2) PC88 Siemens,STAAR ￥2000 NOS? Gpin 2本入り箱 1) PC88 Siemens ￥2000 NOS? 2) PC88 Valvo ￥2700 NIB Gpin 1) PC88 Valvo ￥2300 NOS Gpin Lorenz箱 1) PC88 Hoges ￥1800 NIB 1) PC88 TFK ￥1700 used Gpin 10360/7500min 1) PC88 Siemens ￥1700 used Gpin 9200/7500min 1) PC88 Philips ￥1700 lightly-used Gpins D/C=⊿3L3 WB 1) PC88 RSD ￥1000 used 11800/7500min
PC92(=3AB4) =HF Triode= (EIA/5CE - miniature) Eh/Ih=3.1V/0.3A Ppmax=2.5W Epmax=250V Ikmax=15mA Rgmax=1MΩ Ehk=250V gm=7.2mS μ=67 1) PC92 EuroValve ￥1300 NIB 1) PC92 TFK ￥1900 NIB 1) PC92 TFK ￥1900 NIB 1) PC92 TFK ￥1300 used?
PC95(4GK5) =vari-mu Triode= (EIA/7FP - miniature) Eh/Ih=3.6V/0.3A Ppmax=2.2W Epmax=250V Ikmax=20mA Rgmax=1MΩ Ehk=100V gm=10.5mS μ=80 0) PC95 TFK ￥- NIB
PC97(=4FY5) =VHF Triode= (7pin-MT) Eh/Ih=4.5V/0.3A Ppmax=2W Epmax=200V Ikmax=20mA Rgmax=1MΩ Ehk=100V gm=13mS μ=65 1) PC97 TFK ￥1800 NIB sealed 1) PC97 Siemens ￥1200 NIB
PC900 =VHF Triode= (7pin-MT) Eh/Ih=3.9V/0.3A Ppmax=2.2W Epmax=200V Ikmax=20mA Rgmax=1MΩ Ehk=100V gm=20mS μ=84 1) PC900 TFK ￥2400 NIB <> 1) PC900 TFK ￥2400 NIB <> 1) PC900 Valvo ￥1900 NIB
PCC84(=7AN7) =RF cascade Twin Triode= (EIA/9DD - noval) Eh/Ih=7V/0.3A Ehk=+100V/-250V(unit 2), ±100V(unit 1) Ppmax=2W Epmax=180V/550V-cutoff Ikmax=22mA Rgmax=0.5MΩ op : Ep=90V Ec=-1.5V Ip=12mA gm=6mS μ=24 (参考 : Ep-Ip特性) pins : 1(2K)-2(2G,IS)-3(2P)-4(H)-5(H)-6(1G)-7(1Kinput)-8(1Koutput)-9(1P) cascode amplifier : section 1 is for grounded cathode amp, section 2 is for grounded grid amp heater variants : ECC84 / 6CW7(6.3V/0.33A) 1) PCC84 TFK ￥2400 NIB sealed 1) PCC84 Valvo ￥1800 NIB 1) PCC84 Mullard ￥800 used
PCC85(=9AQ8) =RF Twin Triode= (EIA/9AJ - noval) Eh/Ih=9V/0.3A Ppmax=2.5W Epmax=250V Ikmax=15mA Rgmax=1MΩ Ehk=100V gm=6.7mS μ=48 heater variants : 6AQ8/ECC85(6.3V/0.435A) 9AQ8(9V/0.3A) PCC85(9V/0.3A) 17EW8/HCC85(17.5V/0.15A) 1) PCC85 TFK ￥2700 NIB sealed 1) PCC85 TFK ￥2200 NIB
PCC88(=7DJ8) =Twin Triode= (EIA/9DE - noval) Eh/Ih=7V/0.3A Ppmax=1.8W Epmax=130V Ikmax=25mA Rgmax=1MΩ Ehk=50V gm=12.5mS μ=33 (see 6DJ8 / 6922 / 7308 / 8416 / CCa / E88CC / E188CC / E288CC / 6ES8) (参考 : 6DJ8/ECC88/PCC88のEp-Ip特性) 0) PCC88 Telefunken ￥3700 NIB セロファンシール品/sealed(hyyanx) 0) PCC88 TFK ￥- NIB <> 1) PCC88 TFK ￥1700 used <> 9250/9250/7750min 1) PCC88 TFK ￥1700 used <> WB 1) PCC88 Siemens ￥2400 NIB 2) PCC88/7DJ8 Siemens ￥2400 NIB 1) PCC88 Siemens ￥500 used 11200/6900/7750min 2) PCC88 Valvo ￥2400 NIB 1) PCC88 Amprx ￥2400 NIB 4) PCC88 Phlips ￥2400 NIB 1) PCC88 Hoges ￥1900 NIB 1) PCC88 Hoges ￥1200 used? Siemens箱 1) PCC88 ? ￥1000 used 11200/9650/7750min
PCC189(=7ES8) =RF Twin Triode= (EIA/9DE - noval) Eh/Ih=7.6V/0.3A Ppmax=1.8W Epmax=130V Ikmax=22mA Rgmax=0.5MΩ Ehk=80V gm=12.5mS μ=31 similar to PCC88/7DJ8 heater variants : 4ES8(4V/0.6A) 5ES8(5.6V/0.45A) 6ES8/ECC189(6.3V/0.365A), also see 6DJ8/ECC88(6.3V/0.365A) 2) PCC189 TFK ￥2400 NIB sealed 1) PCC189 Valvo ￥1500 NIB 1) PCC189 Valvo ￥900 used
PCF80(=8A8/9A8) =Triode Pentode= (EIA/9DC=9AE - noval) Eh/Ih=9V/0.3A Rgmax=0.5MΩ (Triode) Ppmax=1.5W Epmax=250V Ikmax=14mA Ehk=100V gm=5mS μ=20 (Pentode) Ppmax=1.7W Epmax=250V Pc2max=0.5W Ec2max=200V Ikmax=14mA Ehk=80V gm=6.2mS mu-g2g1=47 heater variant : 4BL8(4.6V/0.6A) ECF80(6.3V/0.45A) 6BL8(6.3V/0.45A) 8A8(8.4V/0.3A) 9A8(9V/0.3A) 1) PCF80 TFK ￥2200 NIB <> 1) PCF80 TFK ￥1100 used Valvo箱 1) PCF80 Valvo ￥1500 NIB 1) PCF80 Valvo ￥1500 NIB 3) PCF80 Mazda ￥1500 NIB 1) PCF80 Tungsram ￥1100 NIB 1) PCF80 TFK ￥1100 used <>
PCF82(=9U8/9GH8A) =Triode Pentode= (EIA/9AE - noval) Eh/Ih=9.5V/0.3A Ehk=90V (Triode) Ppmax=2.7W Epmax=300V Ikmax=20mA Rgmax=1MΩ gm=8.5mS μ=40 (Pentode) Ppmax=2.8W Epmax=300V Pc2max=0.5W Ec2max=300V Ikmax=20mA Rgmax=1MΩ gm=5.2mS μg2g1=35 heater variants : 5U8(4.7V/0.6A), 5KD8(5.6V/0.45A), 6KD8(6.3V/0.4A), 6U8/A(6.3V/0.45A) 2) PCF82 TFK ￥2200 NIB 3) PCF82 Mazda ￥1500 NIB
PCF86(≒7HG8) =common-cathode VHF Triode Pentode= (EIA/9MP - noval) Eh/Ih=8V/0.3A Ehk=100V Rgmax=0.5MΩ (Triode) Ppmax=1.5W Epmax=250V Ikmax=15mA gm=5.7mS μ=17 (Pentode) Ppmax=2W Epmax=250V Pc2max=0.5W Ec2max=150V Ikmax=18mA gm=12mS μg2g1=70 heater variants : 6HG8(6.3V/0.32A), ECF86(6.3V/0.39A), 5HG8(5.3V/0.45A), 7HG8(7.2V/0.3A) 3) PCF86 TFK ￥2200 NIB sealed 3) PCF86/7HG8 Siemens ￥1200 NIB 2) PCF86 Valvo ￥1200 NIB 1) PCF86 Valvo ￥1200 NIB
PCF200(=8X9) =Triode Pentode= (dekal) Eh/Ih=8.5V/0.3A Ehk=150V Rgmax=1MΩ (Triode) Ppmax=1.5W Epmax=250V Ikmax=18mA gm=5.2mS μ=57 (Pentode) Ppmax=2.1W Epmax=250V Pc2max=0.75W Ec2max=250V Ikmax=20mA gm=14mS μg2g1=53 heater variants : 6X9(6.3V/0.41A), ECF200(6.3V/0.41A) 1) PCF200 TFK ￥2200 NIB 2) PCF200/8X9 Siemens ￥1400 NIB 1) PCF200 Phlps ￥800 used
PCF201(=8U9) =Triode Pentode= (EIA/10K - dekal) Eh/Ih=8.5V/0.3A Ehk=150V Rgmax=1MΩ (Triode) Ppmax=1.5W Epmax=250V Ikmax=18mA gm=4.8mS μ=17.5 (Pentode) Ppmax=2.1W Epmax=250V Pc2max=0.7W Ec2max=250V Ikmax=20mA gm=12.6mS μg2g1=45 1) PCF201 TFK ￥1900 NIB sealed 4) PCF201 Siemens ￥1300 NIB 2) PCF201 Valvo ￥1300 NIB
PCF801(=8GJ7) =cathode-common Triode Pentode= (EIA/9QA - noval) Eh/Ih=8.5V/0.3A Ehk=100V Rgmax=1MΩ (Triode) Ppmax=1.5W Epmax=250V Ikmax=18mA gm=9mS μ=20 (Pentode) Ppmax=2W Epmax=250V Pc2max=-W Ec2max=250V Ikmax=18mA gm=11mS μg2g1=55 heater variants : 4GJ7(4.1V/0.6A), 5GJ7(5.6V/0.45A), 6GJ7/ECF801(6.3V/0.41A) 2) PCF801 TFK ￥1500 NIB 7) PCF801/8GJ7 Siemens ￥1200 NIB 1) PCF801 Valvo ￥1200 NOS TFK箱
PCF802(=9JW8) =Triode Pentode= (EIA/9DC - noval) Eh/Ih=9V/0.3A Ehk=100V (Triode) Ppmax=1.4W Epmax=250V Ikmax=10mA Rgmax=3MΩ gm=5.5mS μ=47 (Pentode) Ppmax=1.2W Epmax=250V Pc2max=0.8W Ec2max=250V Ikmax=15mA Rgmax=0.56MΩ gm=11mS μg2g1=55-typ heater variants : 5JW8(4.7V/0.6A), 6LX8/LCF802(6V/0.45A), 6JW8(6.3V/0.43A), ECF802(6.3V/0.43A) 1) PCF802 TFK ￥2000 NIB <>
PCF803=separated-cathode Triode Pentode= (EIA/ - noval) PCF801同等で三極部・五極部のカソードが独立したタイプ Eh/Ih=8.5V/0.3A Ehk=100V (Triode) Ppmax=1.5W Epmax=250V Ikmax=18mA Rgmax=0.5MΩ gm=9mS μ=20 (Pentode) Ppmax=2W Epmax=250V Pc2max=-W Ec2max=250V Ikmax=18mA Rgmax=1MΩ gm=11mS μg2g1=55 1) PCF803 TFK ￥2400 NIB sealed 1) PCF803 TFK ￥2000 NIB <>
PCH200(=9V9) =Triode Heptode= (10-pin decal) Eh/Ih=8.5V/0.3A (Triode) Ppmax=1.5W Epmax=250V Ikmax=20mA Rgmax=2MΩ Ehk=70V gm=8.8mS μ=50 (Heptode) Ppmax=0.5W Epmax=100V Pc2+4max=0.5W Ec2max=50V Ikmax=8mA Rg1,3max=3MΩ Ec1=0V/-1.8V Ia=1.5mA/20uA 1) PCH200 TFK ￥1500 NIB <> 2) PCH200 Valvo ￥1300 NIB 1) PCH200 Valvo ￥1300 NOS TFK箱
PCL81 =common-Cathode Triode Power-Pentode= (noval) Eh/Ih=12.6V/0.3A Ehk=220V (Triode) Ppmax=1W Epmax=250V Ikmax=8mA Rgmax=1.5MΩ gm=2.2mS μ=70 (Pentode) Ppmax=6.5W Epmax=250V Pc2max=1.5W Ec2max=250V Ikmax=45mA Rg1max=1.2MΩ gm=8.75mS rp=6.7kΩ μg2g1= ex) AB1-pp: Ep=230V Ec2=200V Rk=200ohm(common) Zlpp=7kΩ Ip=2x34.5mA Ig2=2x13.5mA Po=10W D=5.5% pins : 1(Gt)-2(G2p)-3(common-KG3p)-4(H)-5(H)-6(Pp)-7(Pt)-8(common-KG3p)-9(G1p) heater variant : UCL81(39V/0.1A) (参考 : PCLタイプ球(Ih=0.3A トランスレス三極・五極複合管)の比較表) 4) PCL81 TFK ￥1700 NIB Cellophane sealed 1) PCL81 TFK ￥1700 NIB 1) PCL81 Siemens ￥1300 NIB 2) PCL81 Siemens ￥1300 NIB
PCL82(=16A8) =Triode Power-Pentode= (EIA/9EX - noval) Eh/Ih=16V/0.3A (Triode) Ppmax=1W Epmax=250V Ikmax=15mA Rgmax=1MΩ Ehk=200V gm=2.2mS μ=70 (Pentode) Ppmax=5W Epmax=250V Pc2max=1.8W Ec2max=250V Ikmax=50mA Rgmax=1MΩ Ehk=200V gm=7.5mS rp=16kΩ mu-g2g1=9.5 ex) AB1-pp: Ep=230V Ec2=200V Rk=200Ω(common) Zl=7kΩ Ip=2x34.5mA Ig2=2x13.5mA Po=10W D=5.5% heater variants : 6BM8(6.3V/0.78A), 8B8(8V/0.6A), 11BM8(10.7V/0.45A), 32A8(32V/0.15A), 50BM8(50V/0.1A), UCL82(50V/0.1A) (参考 : PCLタイプ球(Ih=0.3A トランスレス三極・五極複合管)の比較表) 1) PCL82 TFK ￥2200 NIB <> 2) PCL82/16A8 Siemens ￥1900 NIB 2) PCL82 Valvo ￥1900 NIB 1) PCL82 Valvo ￥1000 used 1) PCL82 Valvo ￥1000 used Hoges箱 1) PCL82 Siemens(TFK-made) ￥1500 NOS? TFK箱 <> 1) PCL82 ? ￥1500 used VeryStrong
PCL84 =Triode Power-Pentode= (EIA/9HX - noval) Eh/Ih=15V/0.3A (Triode) Ppmax=1W Epmax=300V Ikmax=12mA Rgmax=1MΩ Ehk=150V gm=4mS μ=65 (Pentode) Ppmax=4W Epmax=300V Pc2max=1.7W Ec2max=250V Ikmax=40mA Rgmax=1MΩ Ehk=200V gm=11mS rp=100kΩ μg2g1=36 American type : 15DQ8 heater variants : 6DX8(6.3V/0.72A) ECL84(6.3V/0.72A) 10DX8(10.2V/0.45A) (参考 : PCLタイプ球(Ih=0.3A トランスレス三極・五極複合管)の比較表) 1) PCL84 TFK ￥2200 NIB <> 1) PCL84 TFK ￥2200 NIB <> 3) PCL84/16DQ8 Siemens ￥1900 NIB 1) PCL84 Valvo ￥1900 NIB 1) PCL84 Hoges ￥1200 NIB 3) PCL84 Philips(Mullard-made) ￥1200 used WB 1) PCL84 Lorenz ￥900 used Siemens箱
PCL85(=18GV8) =Triode Power-Pentode/Vertical deflector= (EIA/9LY - noval) Eh/Ih=18V/0.3A (Triode) Ppmax=0.5W Epmax=250V Ikmax=15mA Rgmax=1MΩ Ehk=200V gm=5.5mS μ=50 (Pentode) Ppmax=7W Epmax=250V Pc2max=1.5W Ec2max=250V Ikmax=75mA Rgmax=1MΩ Ehk=200V gm=-mS rp=-kΩ mu-g2g1=- (参考 : 五極部三結のEp-Ip特性(Pentode section Triode-connection, sample data)) heater variants : 6GV8(6.3V/0.9A), ECL85(6.3V/0.9A), 9GV8(9.5V/0.6A), 10GV8/LCL85(11.6V/0.45A), 18GV8(18V/0.3A) similar to PCL805 (参考 : PCLタイプ球(Ih=0.3A トランスレス三極・五極複合管)の比較表) 0) PCL85 Siemens ￥- NIB <>
PCL86 =Triode Power-Pentode= (EIA/9LZ - noval) Eh/Ih=13.3V/0.3A (Triode) Ppmax=0.5W Epmax=300V Ikmax=4mA Rgmax=1MΩ Ehk=100V gm=1.6mS μ=100 (Pentode) Ppmax=9W Epmax=300V Pc2max=1.8W Ec2max=300V Ikmax=55mA Rgmax=1MΩ Ehk=200V gm=10.5mS rp=45kΩ mu-g2g1=21 ex) A1S: Ep=Ec2=230V Rk=125Ω Zl=5.1kΩ Ip=40.7mA Ic2=10.5mA Po=4.1W D=10% equivallent : 14GW8 heater variants : 6GW8, ECL86(6.3V/0.7A) (参考 : PCLタイプ球(Ih=0.3A トランスレス三極・五極複合管)の比較表) 1) PCL86/14GW8 Siemens ￥1900 NIB 1) PCL86/14GW8 Siemens ￥1900 NIB 1) PCL86 Valvo ￥1900 NIB 1) PCL86 Valvo ￥1900 NOS TFK箱 1) PCL86 Valvo ￥1000 used
PCL200 =Triode Power-Pentode= (EIA/ - 10pin-Decal) Eh/Ih=15.5V/0.3A (Triode) Ppmax=1.7W Epmax=250V Ikmax=15mA Rgmax=0.5MΩ Ehk=200V gm=5.2mS μ=55 (Pentode) Ppmax=6W Epmax=250V Pc2max=2.5W Ec2max=250V Ikmax=85mA Rgmax=0.5MΩ Ehk=200V gm=28mS rp=22kΩ mu-g2g1= (参考 : PCLタイプ球(Ih=0.3A トランスレス三極・五極複合管)の比較表) 2) PCL200 TFK ￥2000 NIB 3) PCL200 TFK ￥2000 NIB 6) PCL200 Siemens ￥1600 NIB
PCL805 =Triode Power-Pentode/vertical deflection= (EIA/9LY noval) Eh/Ih=17.5V/0.3A (Triode) Ppmax=0.5W Epmax=300V Ikmax=15mA Rgmax=1MΩ Ehk=200V gm=5.5mS μ=60 (Pentode) Ppmax=8W Epmax=300V Pc2max=1.5W Ec2max=250V Ikmax=75mA Rgmax=1MΩ Ehk=200V gm=mS rp=kΩ mu-g2g1= (参考 : 同等球PCL85の五極部三結のEp-Ip特性(Pentode section Triode-connection, sample data)) heater variant: ECL805 similar to PCL85 / 18GV8 also see ECL85 / 6GV8 (参考 : PCLタイプ球(Ih=0.3A トランスレス三極・五極複合管)の比較表) 2) PCL805 Siemens ￥1700 NIB 1) PCL805 Siemens ￥1700 NIB 1) PCL805 Valvo ￥1700 NIB 1) PCL805 Valvo ￥1700 NIB 1) PCL805/PCL85 Mazda ￥1000 used
PD510 =Shunt-Stabilizer Triode= (EIA/ - Magnoval) Eh/Ih=7.3V/0.3A Ppmax=30W/40W(ab.max) Ep=25kV Ip=1.6mA Ecmax=-150V Escreen_max=50V Ehkmax=+250V/-650V 1) PD510 Siemens ￥1600 NIB
PEN4VA =output Pentode= (EIA/-, British-5pin+SidePin) Eh/Ih=4V/1.35A Ehkmax=50V Theat_up=40sec Ppmax=9W Epmax=250V Pc2max=1.5W Ec2max=250V Ikmax=50mA Rg1max=300kΩ(fixed)/700kΩ(self) op : Ep=250V Ec2=250V Rk=500Ω Ip=36mA Ic2=3mA rp=40kΩ gm=2.8mS op(A1S) : Ep=250V Ec2=250V Rk=500Ω Ip=36mA Ic2=3mA Zl=6kΩ Po=3.8W pins : 1(P)-2(G1)-3(H)-4(H)-5(K)-G2(SidePin) size : 50mmΦ x 137mmH similar to AC/PEN(Mazda) 1) PEN4VA Mullard ￥4600 NIB very-ragged box
PEN45 =Beam Power= (EIA/-, Mazda-octal) Eh/Ih=4V/1.75A Ehk=Vmax Ppmax=10W Epmax=250V Pc2max=W Ec2max=250V Ikmax=mA Rg1max=1MΩ op : Ep=100V Ec2=100V Ec1=0V gm=9mS op(A1S) : Ep=250V Ec2=250V Ec1=-8.5V(Rk=175Ω) Ip=40mA/41.5mA Ic2o=7.5mA Zl=5.2kΩ Po=4.85W op(A1S) : Ep=250V Ec2=250V Ec1=-8.5V(Rk=175Ω) Ip=40mA/42.5mA Ic2o=7.5mA Zl=4.5kΩ Po=5.80W pins : 1(H)-2(K)-3(P)-4(G2)-5(G1)-6(shield)-7(NONE)-8(H) (参考 : Eg1-Ip特性(@Ep=Ec2=100V, 150V, 200V, 250V)) size : 45mmΦ x 110mmH 0) PEN45 Mazda ￥- NIB 4) PEN45 Mazda ￥4200 NIB Top and Bottom 16) PEN45 Mazda ￥4200 bulk-NOS WB 0) PEN45 Mazda ￥- used WB
PEN45DD =Twin diode + Beam Power= (EIA/-, Mazda-octal, top-G1) Eh/Ih=4V/2A Ehk=Vmax Ppmax=10W Epmax=250V Pc2max=W Ec2max=250V Ikmax=mA Rg1max=1MΩ op : Ep=100V Ec2=100V Ec1=0V gm=9mS op(A1S) : Ep=250V Ec2=250V Ec1=-8.5V(Rk=175Ω) Ip=40mA/41.5mA Ic2o=7.5mA Zl=5.2kΩ Po=4.85W op(A1S) : Ep=250V Ec2=250V Ec1=-8.5V(Rk=175Ω) Ip=40mA/42.5mA Ic2o=7.5mA Zl=4.5kΩ Po=5.80W pins : 1(H)-2(K)-3(P)-4(G2)-5(D2)-6(shield)-7(D1)-8(H)-Top(G1) (参考 : Eg1-Ip特性(@Ep=Ec2=100V, 150V, 200V, 250V)) size : 45mmΦ x 134mmH 5) PEN45DD Mazda ￥3300 Bulk-NOS WB(Brussels Halfin) 0) PEN45DD Mazda ￥- lightly-used WB
PEN46 / VT127 / CV1127 =Beam Power Tetrode= (EIA/-, Mazda-octal, top-P) Eh/Ih=4V/1.75A Ehk=Vmax Ppmax=20W Epmax=330V/3000Vpeak Pc2max=3W Ec2max=220V Ikmax=mA Rg1max=MΩ op : Ep=100V Ec2=100V Ec1=0V gm=8.5mS op : Ep=315V Ec2=210V Ec1=-6.9V(Rk=90Ω) Ip=63mA Ic2=14mA pins : 1(H)-2(K)-3(NC)-4(G2)-5(G1)-6(NC)-7(NONE)-8(H)-Top(P) (参考 : Eg1-Ip特性(@Ep=300V / Ec2= 150V, 180V, 220V)) size : 54mmΦ x 129mmH, in max 0) CV1127(=PEN46) Thorn-AEI ￥3900 NIB 4) CV1127(=PEN46) Thorn-AEI ￥3900 NIB 2) PEN46 Mazda ￥2400 lightly-used WB 0) PEN46 Mazda ￥2000 used WB
PEN220 =filamentary Pentode= (EIA/-, UF-5pin) Ef/If=2V/0.2A Epmax=150V Ec2max=150V op : Ep=100V Ec2=100V Ec1=0V gm=2.5mS-typ op : Ep=120V Ec2=120V Ec1=-2.5V Ip=5mA Ic2=1mA Zl=17kΩ D=10% Po=0.37W similar types : 220HPT(Cossor), KT2(Marconi/Osram), PM22A(Mullard), PT2(Marconi) 1) PEN220-globe Mazda ￥4300 used WB
PEN384 =beam power= (EIA/-, Mazda-octal) Eh/Ih=38V/0.2A Ppmax=10W Epmax=250V Ec2max=250V op : Ep=100V Ec2=100V Ec1=0V gm=12.5mS-typ op : Ep= 85V Ec2= 95V Ec1=-7V(Rk=240Ω) Ip=27mA Ic2=2.0mA Zl=2.6kΩ Po=1.0W D=7% op : Ep=110V Ec2=110V Ec1=-7V(Rk=160Ω) Ip=40mA Ic2=2.9mA Zl=2.2kΩ Po=1.8W D=7% size : 54mmΦ x 120mmH, in max pins : 1(H)-2(K)-3(P)-4(G2)-5(G1)-6(metallizing/shield)-7(NONE)-8(H) 1) PEN384 Mazda ￥4900 NIB very-ragged box
PEN428 =output pentode= (EIA/-, British-7pin) Eh/Ih=4V/2,1A Ppmax=-W Epmax=375V Ec2max=275V op : Ep=100V Ec2=100V Ec1=0V gm=8mS op(AB1pp) : Ep=375V Ec2=275V Ec1=-20.5V Ip=2x48mA Zlpp=6.5kΩ Po=8W D=7% size : mΦ x mmH, in max pins : 1(NC)-2(G1)-3(G2)-4(H)-5(H)-6(KG3,S)-7(P) 1) PEN428 Mullard ￥6100 NIB very-ragged box
PF83 =RemoteCutoff Audio Pentode= Eh/Ih=4.5V/0.3A Ppmax=1W Epmax=300V Pc2max=0.2W Ec2max=300V Ikmax=6mA Rg1max=3MΩ Ehk=100V gm=1.6mS rp=1.25MΩ μg2g1=- identical basing with PF86/EF86 1) PF83 TFK ￥2400 NIB sealed 2) PF83 TFK ￥2400 NIB 1) PF83 TFK ￥2200 NIB ragged-box 3) PF83 Siemens ￥1600 NIB
PF86(=4HR8) =Audio Pentode= Eh/Ih=4.5V/0.3A Ppmax=1W Epmax=300V Pc2max=0.2W Ec2max=200V Ikmax=4mA Rg1max=3MΩ Ehk=100V gm=2.2mS μg2g1=38 4) PF86 TFK ￥2900 NIB sealed 1) PF86 TFK ￥2000 NIB <> 1) PF86 TFK ￥1800 NIB mesh 2) PF86 Siemens ￥1800 NIB 1) PF86 Valvo ￥1800 NIB 1) PF86 Lorenz ￥1800 NIB
PFL200(=17Y9) =Dissimilar double Pentode= (EIA/10L - dekal) Eh/Ih=17V/0.3A L-section : Ppmax=5.1W Epmax=250V Pc2max=2.5W Ec2max=250V Ikmax=60mA Rg1max=1MΩ Ehk=200V op : Ep=170V Ec2=170V Ec1=-2.7V Ip=30mA Ic2=7mA rp=33kΩ gm=22mS μg2g1=38 F-section : Ppmax=1.5W Epmax=250V Pc2max=0.5W Ec2max=250V Ikmax=15mA Rg1max=1MΩ Ehk=200V op : Ep=150V Ec2=150V Ec1=-2.1V Ip=10mA Ic2=3mA rp=150kΩ gm=8.5mS μg2g1=38 1) PFL200 Mullard ￥1000 used 1) PFL200/16Y9(PFL200/17Y9) Valvo ￥1000 used
PH-250/PH250(=UX250/CX350) =Power Triode= (EIA/4D) Ef/If=7.5V/1.25A 1) PH250 PhilipsMiniwatt ￥- used DUD(burnt out)
PL21/PL17/PL57(=2D21, 5727) =Thyratron= (EIA/7BN) PL21=2D21 PL57=PL5559 PL17=ST shape(OldFashioned w/TopAnode) 1) PL21(=2D21) Valvo ￥1200 NIB 1) PL21(=2D21) Valvo ￥1200 NIB +++
PL36 =Sweep Pentode= (EIA/8GT - octal TopPlate) Eh/Ih=25V/0.3A Ppmax=10W Epmax=250V Eppeakmax=7kV Pc2max=4W Ec2max=250V Ikmax=200mA Ehk=200V (参考 : Ep-Ip特性) see equivallent 25E5 also see heater variants : 6CM5(6.3V/1.25A), EL36(6.3V/1.25A), 50JY6(50V/0.15A) also see a just-upper-rating and same-basing type : EL360(Ppmax=15W, Ec2max=400V, Eh/Ih=6.3V/1.27A) 2) PL36(25E5) TFK ￥2200 NIB 3) PL36(25E5) Siemens ￥1800 NIB 1) PL36(25E5) Mullard ￥1800 NIB 旧ロゴ 1) PL36(25E5) Mullard ￥1800 NIB 新ロゴ 1) PL36/25E5 IEC-Mullard ￥1800 NIB 1) PL36 Hoges ￥1500 NIB 1) PL36 Tungsram ￥1500 NIB 1) PL36 Adzam(=Mazda) ￥1500 - 1) PL36 TFK ￥1000 used 1) PL36 Amprx ￥1000 used BB GE-25E5箱
PL38 =Power Pentode for TV time-base output= ST-TopPlate Eh/Ih=30V/0.3A Ehkmax=100V Rhkmax=20kΩ Ppmax=25W Epmax=800V/1200V-cutoff Pc2max=8W Ec2max=400V/800V-cutoff Ikmax=200mA Rg1mx=500kΩ op : Ep=275V Ec2=275V Ec3=0V Ec1=-9V Ip=91mA Ic2=11mA rp=20kΩ gm=14mS μg2g1=16.5 pins : 1(G3)-2(H)-3(NC)-4(G2)-5(G1)-6(NC)-7(H)-8(K)-TopCap(P) (参考 : Ep-Ip特性(pentode @Ec2=175V)) heater variant : EL38(Eh/Ih=6.3V/1.4A) 2) PL38 Mullard ￥3700 NIB just-ragged boxes 2) PL38 Mullard ￥3700 NIB just-ragged boxes 4) PL38 Mullard ￥3700 NOS plain light-blue boxes 0) PL38 Mullard ￥- used WB
PL81 =Sweep Pentode= (EIA/9AS - noval, top plate) Eh/Ih=21.5V/0.3A Ehkmax=200V Ppmax=8W Epmax=250V/550V-cutoff/7kV-pulse Pc2max=4.5W Ec2max=250V/550V-cutoff Ikmax=180mA Ec1max=-1.3V(@Ic1=+0.3mA) Rg1max=500kΩ op: Ep=200V Ec2=200V Ec3=0V Ec1=-28V Ip=40mA Ic2=2.8mA rp=11kΩ gm=6mS μg2g1=5.3 op(AB1pp): Ep=170V Ec2=170V Ec3=0V Rg2=1kΩ Ec1=-27.0V Ip=40/146mA Ic2=3/20mA Zlpp=2.5kΩ Po=13.5W D=5.2% op(AB1pp): Ep=200V Ec2=200V Ec3=0V Rg2=1kΩ Ec1=-31.5V Ip=50/174mA Ic2=4/25mA Zlpp=2.5kΩ Po=20W D=5.2% triode connection : (Pp+Pc2)max=10W pins : 1(IC)-2(G1)-3(K)-4(H)-5(H)-6(IC)-7(IC)-8(G2)-9(G3)-Top(P) size : 22mmΦ x 83.3mmH, in max (参考 : 三結時のEp-Ip特性(Triode connection for 6CJ6/EL81, 21A6/PL81)) see identical EIA type : 21A6 also see heater variant EL81(6.3V/1.05A) 2) PL81 TFK ￥2400 NIB sealed OldestType 2) PL81 TFK ￥1800 NIB sealed 1) PL81 TFK ￥1500 NIB 1) PL81/21A6 Siemens ￥1500 NIB 1) PL81/21A6 Siemens ￥1500 NIB 1) PL81 Siemens ￥1300 NOS 1) PL81 Valvo ￥1500 NIB
PL82(=16A5) =Power Pentode= (EIA/9CV - noval) Eh/Ih=16.5V/0.3A Ehkmax=200V Rgmax=1MΩ(auto)/400kΩ(fixed) Ppmax=9W Epmax=250V/550V-cutoff/2.5kV-peak Pc2max=2.5W Ec2max=250V/550V-cutoff Ikmax=75mA op(A1s) : Ep=170V Ec2=170V Ec1=-10.4V Ip=53mA Ic2=10mA rp=20kΩ gm=9mS μg2g1=10 op(A1s) : Ep=170V Ec2=170V Ec1=-10.4V Ip=53mA Ic2=10mA Zl=3kΩ Po=4.0W D=10% op(A1s) : Ep=200V Rg2=680Ω Ec1=-13.9V Ip=45mA Ic2=8.5mA Zl=4kΩ Po=4.2W D=10% op(AB1pp) : Ep=170V Ec2=170V Rk=100Ω Ip=92/100mA Ic2=17.4/34mA Zlpp=4kΩ Po=9W D=5% op(AB1pp) : Ep=200V Ec2=200V Rk=135Ω Ip=90/104mA Ic2=17.0/38mA Zlpp=4kΩ Po=12W D=5% (参考 : 平均プレート特性(EpIp @Ec2 parameter)) pins : 1(NC)-2(G1)-3(KG3)-4(H)-5(H)-6(IC)-7(P)-8(IC)-9(G2) see heater variant EL82(6.3V/0.8A) 1) PL82 TFK ￥2400 NIB sealed OldestType 1) PL82 TFK ￥1800 NIB 1) PL82 TFK ￥1800 NIB 5) PL82 Siemens ￥1400 NOS 0) PL82 Tungsrams ￥- NIB matched-pair available 8) PL82 Tungsram ￥1400 NIB 7) PL82 Tungsram ￥1400 NIB
PL83(=15A6) =Video Output Pentode= (EIA/9AR - noval) Eh/Ih=15V/0.3A Ehkmax=200V(DC=150Vmax) Rg1max=500kΩ(fixed)/1MΩ(self) Ppmax=9W Epmax=250V/550V-cutoff Pc2max=2W Ec2max=250V/550V-cutoff Ikmax=70mA op : Ep=200V Ec2=200V Ec1=-3.5V Ec3=0V Ip=36mA Ic2=5mA Rgmax=0.1MΩ gm=10.5mS μg2g1=24 pins : 1(G2)-2(G1)-3(K)-4(H)-5(H)-6(G3)-7(P)-8(IS)-9(IC) 参考:三結時のEp-Ip特性例(triode connection : SAMPLE data) heater variants : EL83(6.3V/0.71A), 6CK6 1) PL83 TFK ￥2400 NIB sealed OldestType 1) PL83 TFK ￥1600 NIB <>
PL84(=15CW5) =Power Pentode= (EIA/9CV - noval) Eh/Ih=15V/0.3A Ehkmax=200V Rg1max=1MΩ(self/auto) *design center(audio / Philips 1960.6.6-final) : Ppmax=12W Epmax=250V/550Vcutoff Pc2max=1.75W/6Wpeak Ec2max=250V/550Vcutoff Ikmax=100mA op(A1s): Ep=170V Ec2=170V Ec1=-12.5V Ip=70mA Ic2=3.5mA rp=26kΩ gm=11mS μg2g1=8 op(A1s): Ep=170V Ec2=170V Rk=130Ω Ip=75/76mA Ic2=4.0/16.5mA Zl=2kΩ Po=5.1W D=10% op(A1s): Ep=200V Ec2supply=200V Rg2=470Ω Rk=215Ω Ip=65/64mA Ic2=3.2/11.4mA Zl=2.5kΩ Po=5.3W D=10% op(AB1pp): Ep=200V Ec2=200V Rk=120Ω Ip=120/129mA Ic2=6/37mA Zlpp=3kΩ Po=14.3W D=3.8% op(AB1pp): Ep=230V Ec2=200V Rk=130Ω Ip=112/122mA Ic2=4.6/35mA Zlpp=4kΩ Po=17.5W D=5.4% pins : 1(IC)-2(G1)-3(KG3)-4(H)-5(H)-6(IC)-7(P)-8(IC)-9(G2) size : 22mmΦ x 77.8mmH, in max see a heater variant : EL86(=6CW5)(6.3V/0.76A) UL84(45V/100mA) also see heater variants : 6CW5(6.3V/0.76A) 8CW5(8V/0.6A) 10CW5(10.6V/0.45A) 30CW5(30V/0.15A) 1) PL84 TFK ￥1500 used <> 1) PL84/16CW5 Siemens ￥1700 NOS 8) PL84/15CW5 Siemens ￥1700 NOS 1) PL84 Philips(Mullard-made) ￥1000 used
PL95 =Power Pentode= (EIA/7DQ - miniature) Eh/Ih=4.5V/0.3A Ehkmax=200V Rg1max=2.2MΩ Ppmax=6W Epmax=300V/550Vcutoff Pc2max=1.25W Ec2max=300V/550Vcutoff Ikmax=35mA op : Ep=250V Ec2=250V Ec1=-9.0V Ip=24mA Ic2=4.5mA gm=5.4mS rp=70kΩ μg2g1=17 op : Ep=200V Ec2=200V Rk=230Ω Ip=23mA Ic2=4.2mA Zl= 8.0kΩ Vinput=4.5Vrms D=10% Po=2.3W op : Ep=250V Ec2=250V Rk=320Ω Ip=24mA Ic2=4.5mA Zl=10.0kΩ Vinput=5.0Vrms D=10% Po=3.0W 参考 : 三結時のEp-Ip特性(Triode connection) heater variant : EL95 / 6DL5 (6.3V/0.2A) 2) PL95 TFK ￥2200 NIB sealed 1) PL95 TFK ￥1900 NOS <> 1) PL95 Lorenz ￥1500 NIB
PL345(=3C45) =Thyratron= (EIA/A4-9 - T12) 1) PL345/3C45 Valvo ￥7000 NIB
PL500(=27GB5) =Beam Power= (EIA/9NH - Magnoval TopPlate) Eh/Ih=27V/0.3A Rg1max=500kΩ(fixed)/2.2MΩ(self) Ppmax=12W Epmax=250V Ep-peakmax=7kV Pc2max=4W Ec2max=250V Ikmax=250mA op : Ep=75V Ec2=200V Ec1=-10V Ip=440mA Ic2=30mA heater variants : 6GB5/EL500(6.3V/1.38A), 13GB5/XL500(13.3V/0.6A), 18GB5/LL500(18V/0.45A) 0) PL500 Phlps ￥- NIB Holland HeavyGlass
PL504 =Sweep Pentode= (EIA/9NH - Magnoval TopPlate) Eh/Ih=27V/0.3A Ehkmax=±250V Rg1max=0.5MΩ (design center) : Ppmax=16W Epmax=250V/550Vcutoff/7kV-peak Pc2max=5W Ec2max=250V/550Vcutoff Ikmax=250mA (design max) : Ppmax=21W Pc2max=6W op : Ep=50V Ec2=200V Ec1=-10V Ip=420mA Ic2=37mA similar to 27GB5/PL500 heater variant : EL504(6.3V/1.38A) 1) PL504/28GB5 Siemens ￥2000 NIB 1) PL504 Heninger ￥2000 NIB 1) PL504 GE ￥700 used
PL505 =Sweep Pentode= (EIA/9RJ - Magnoval TopPlate) Eh/Ih=40V/0.3A Pentode connection : Ppmax = 25W(design.center) / 34W(design.max) Epmax = 7000V-peak Triode connection : Pp+g2max = 26W(design.center) / 35W(design.max) heater variant : EL505(6.3V/2A) almost same as 40KG6/A, PL509 0) PL505 Philips ￥- used TopGtr WB 0) PL505 Telefunken ￥- used TopGtr WB
PL508(=17KW6) =Frame output Pentode= (EIA/- single-ended Magnoval) Eh/Ih=17V/0.3A Ehk=220V Rg1max=1MΩ(fixed)/2.2MΩ(auto) (design.center) : Ppmax=12W Epmax=400V/700Vcutoff/2.5kVpeak Pc2max=3W Ec2max=275V/700Vcutoff Ikmax=100mA (design.maximum) : Ppmax=16W Pc2max=4W (p.101 "AEG-Telefunken TECHINISCHE DATEN", 1968) op(impulse measurement) : Ep=50V Ec2=190V Ec1=-1V Ip=320mA Ic2=60mA op : Ep=190V Ec2=190V Ec1=-17V I=60mA Ic2=5mA gm=9mS μg2g1=8 pins : 1(G1)-2(IC)-3(G2)-4(H)-5(H)-6(P)-7(K,G3)-8(G1)-9(IC) (プレートがガラス底面pinに出ている) size : 30.2mmΦ x 83.2mmH, in max heater variant : EL508(6.3V/0.83A) also see higher gm /perveance Magnoval sigle-ended power tubes : 25HX5, 50HB26(gm=14mS) 6) 17KW6/PL508 Philips ￥2500 NIB made in Gt.Britain(Mullard-plant) 2) PL508 Valvo ￥1300 used 1) PL508 Philips ￥1300 used
PL509 =Sweep Pentode= (EIA/9RJ - Magnoval TopPlate) Eh/Ih=40V/0.3A Ehk=250V Tbulb=300℃max (design.center) : Ppmax=30W Epmax=400V/700Vcutoff/7kVpeak Pc2max=7W Ec2max=275V/700Vcutoff Ikmax=500mA/1.2Apeak Rg1max=0.5MΩ(fixed)/2.2MΩ(self) Rg3max=10kΩ (design.maximum) : Ppmax=40W Epmax=8kVpeak Pc2max=9W Ppmax(Triode Connection)=31W(design.center)/42W(design.maximum) see 40KG6A also see EL509 EL519 and 6KG6A also see similar types : PL505(40V/0.3A) EL505(6.3V/2A) 2) PL509 Siemens ￥4700 NIB 1) PL509 Mazda ￥3900 NIB 1) PL509 ITT ￥3900 NIB HeavyGlass 1) PL509 Valvo ￥1900 used ITT箱 HeavyGlass 1) PL509 Phlps ￥1900 used WB HeavyGlass
PL519 =Sweep Pentode= (EIA/9RJ - Magnoval TopPlate) Eh/Ih=40V/0.3A Ehk=250V Tbulb=300℃max (design.center) : Ppmax=35W Epmax=700Vcutoff/7kVpeak Pc2max=7W Ec2max=275V/700Vcutoff Ikmax=500mA/1.5Apeak Rg1max=0.5MΩ(fixed)/2.2MΩ(self) Rg3max=10kΩ (design.maximum) : Ppmax=45W Epmax=8kVpeak Pc2max=9W Ppmax(Triode Connection)=36W(design.cent)/46W(design.max) (参考 : PL519のEp-Ip特性例(@Ec2=190V)) 9) PL519 Valvo(Mullard-made) ￥4900 NIB TopTwinGetter B-coded HeavyGlass 7) PL519 Valvo(Philips-made) ￥4900 NIB TopGetter HeavyGlass 2) PL519 Siemens ￥2000 used WB HeavyGlass 1) PL519 Phlps ￥2000 used WB HeavyGlass
PL521(=29KQ6, and similar to 29LE6) =Sweep Pentode= (EIA/9RJ - Magnoval TopPlate) Eh/Ih=29V/0.3A Ppmax=17W Epmax=275V Pc2max=6W Ec2max=275V Ikmax=275mA 0) PL521 Phlps ￥- NIB
PL802 =high-gm(40mS) Video-OutputPower Pentode=(=16LD8) (EIA/9NW - noval) Eh/Ih=16V/0.3A Ehkmax=200V Ppmax=6W, Epmax=300V Pc2max=2.5W Ec2max=300V Ikmax=100mA, Rg1max=100kΩ(fixed)/500kΩ(self) op : Ep=170V Ec2=170V Rk=36Ω Ec3=0V Ip=30mA Ic2=6.5mA gm=40mS μg2g1=70 pins : 1(K)-2(G1)-3(G3)-4(H)-5(H)-6(G2)-7(P)-8(G2)-9(G3) Also see EL802(variant : Eh/Ih=6.3V/0.8A) 0) PL802 Philips ￥- NIB
PL805 =Power Pentode= Eh/Ih=15V/0.3A Ehk=200V Ppmax=10.5W Epmax=300V Pc2max=2W(FixedBias) Ec2max=250V Ikmax=75mA Rgmax=1MΩ(fixed)/2.2MΩ(self) 1) PL805 Valvo ￥1500 NIB 1) PL805 Lorenz ￥1500 NIB
PM1HF/P.M.1H.F./PM-1HF =filamentary Triode= Ef/If=2V/0.1A Epmax=150V op : Ep=100V Ec=-2V Ip=0.9mA / rp=22.5kΩ gm=0.8mS μ=18(@Ec=0V) op : Ep=150V Ec=-3V Ip=1.9mA 0) PM1HF Mullard ￥- used WB
PM1HL/P.M.1HL =filamentary Triode= (EIA/ -, UF-4pin) Ef/If=2V/0.1A Epmax=150V op : Ep=100V Ec=0V rp=18.5kΩ gm=1.5mS μ=28 op : Ep=150V Ec=-3V Ip=1.4mA similar types : B228, 210HL(Cossor), HL210(Osram), HL2(MOV) ("PM" = Philips-Mullard) 1) PM1-HL-globe Mullard ￥3000 used gold spray, WB 1) PM1-HL-globe Mullard ￥3000 used gold spray, WB
PM1LF/P.M.1LF =filamentary Triode= (EIA/ -, UF-4pin) Ef/If=2V/0.1A PM1-LF (= 210LF(Cossor)/VR21 = L210 = CV1021) Epmax=150V op : Ep=100V Ec=-4.5V Ip=2.5mA gm=0.9mS-typ op : Ep=150V Ec=-4.5V Ip=4.8mA rp=10kΩ gm=1.4mS μ=14 ("PM" = Philips-Mullard) 1) PM1-LF-globe Mullard ￥5000 NOS WB Ip=4.5mA(@Ep=150V Ec=-4.5V, tested on Funke W-20) 1) PM1-LF-globe Mullard ￥5000 NOS WB Ip>5mA(@Ep=150V Ec=-4.5V), Ip=3.4mA(@Ep=100V Ec=-4.5V) tested on Funke W-20 1) PM1-LF-globe Mullard ￥3700 used WB
PM2/P.M.2/PM-2 =filamentary small-power Triode= Ef/If=2V/0.2A Ppmax=3W Epmax=150V Ipmax=20mA op : Ep=100V Ec=-7.5V Ip=4mA / rp=4.4kΩ gm=1.7mS μ=7.5(@Ec=0V) op : Ep=150V Ec=-12V Ip=6.6mA (参考 : EpIp特性) similar types : B205(Philips), 220P(Cossor), P215(Marconi) 0) PM2 Mullard ￥- used WB 1) PM2 Mullard ￥4600 used WB
PM3/P.M.3/PM-3 =Triode= Ef/If=3.6V(4Vmax)/0.075A Ppmax=- Epmax=150V op : Ep=100V Ec=-3V Ip=1.6mA / rp=13kΩ gm=1.05mS μ=14(@Ec=0V) similar to DZ813(MAZDA), A410N(Philips), RE064(TFK), A408(Valvo) ("PM" = Philips-Mullard) 1) PM3 Mullard ￥5700 NOS 2) PM3 Mullard ￥5700 NOS
PM4/P.M.4/PM-4 =filamentary small-power Triode= Ef/If=4V/0.1A Ppmax=3W Epmax=150V Ipmax=20mA op : Ep=100V Ec=-5V Ip=5.5mA / rp=4kΩ gm=2.0mS μ=8.0(@Ec=0V) op : Ep=150V Ec=-8V Ip=10mA (参考 : EpIp特性) ("PM" = Philips-Mullard) similar to B409(Philips), L413(Valvo), RE134(TFK), U415(Italy-Zenith), D9(RadioFotos/Grammont) 1) PM4-globe Mullard ￥- used WB
PM12M =vari-μ RF tetrode= (EIA/ -, British-4pin, Top-P) Ef/If=2V/0.18A Ppmax=- Epmax=150V Pc2max=-W Ec2max=90V Ikmax=-mA op : Ep=150V Ec2=90V Ec1=0V Ip=2.5mA Ic2=0.5mA rp=230kΩ gm=1.4mS similar to K40N(EverReady) 1) PM12M Mullard ￥4900 NIB very-ragged box
PM24 =Output Pentode= Ef/If=4V/0.15A Ppmax=- Epmax=150V Pc2max=-W Ec2max=150V Ikmax=-mA gm=1.75mS (@Ep=Ec2=100V, Ec1=0V) op : Ep=100V Ec2=100V Ec1=-6V Ip=12mA 0) PM24 Mullard ￥- used
PM24A =Output Pentode= Ef/If=4V/0.275A Ppmax=5W Epmax=300V Pc2max=-W Ec2max=200V Ipmax=30mA gm=2mS (@Ep=Ec2=100V, Ec1=0V) op : Ep=100V Ec2=100V Ec1=-9V Ip=10mA 1) PM24A Mullard ￥offer used
PM24B =Output Pentode= Ef/If=4V/1A Ppmax=12W Epmax=400V Pc2max=-W Ec2max=300V Ipmax=40mA gm=2.1mS (@Ep=Ec2=100V, Ec1=0V) op : Ep=100V Ec2=100V Ec1=-9V Ip=10mA 0) PM24B Mullard ￥- used
PM24C =Output Pentode= Ef/If=4V/1A Ppmax=12W Epmax=400V Pc2max=-W Ec2max=300V Ipmax=40mA gm=2.1mS (@Ep=Ec2=100V, Ec1=0V) op : Ep=100V Ec2=200V Ec1=-35V Ip=50mA -) PM24C Mullard ￥- used
PM24D =Output Pentode= Ef/If=4V/2A Ppmax=25W Epmax=500V Pc2max=-W Ec2max=200V Ipmax=100mA gm=4mS (@Ep=Ec2=100V, Ec1=0V) op : Ep=100V Ec2=200V Ec1=-35V Ip=50mA -) PM24D Mullard ￥- used
PM24M =Pentode= Ef/If=4V/1A Ppmax=7.5W Epmax=250V Pc2max=-W Ec2max=250V Ipmax=-mA gm=3mS Ip= 7mA(@Ep=Ec2=250V, Ec1=0V) op : Ep=100V Ec2=150V Ec1=-9V Ip=20mA -) PM24M Mullard ￥- used
PT-1 =Power Pentode= (EIA/ - UY TopPlate ST16) Eh/Ih=6.3V/0.9A see similar type : 807 1) PT-1 TEN(=Kobe Kogyo, Japan) ￥3900 used UY-base, WB rare 1) PT-1 TEN(=Kobe Kogyo, Japan) ￥3500 used UY-base heater continuity testing view, WB ceramic-supporters at top-mica are partialy broken inside glass(particles rattle when lightly-shaken)
PT2 =filamentary Pentode= (EIA - , UF-5pin) Ef/If=2V/0.2A Epmax=150V Ec2max=150V op : Ep=150V Ec2=150V Ec1=-4.5V Ip=6.5mA op : Ep=100V Ec2=100V Ec1=-3.0V Ip=3.0mA, gm=2.5mS-typ(@Ec1=0V) similar types : PEN220(Mazda), KT2(Marconi/Osram), PM22A(Mullard), 220HPT(Cossor) 0) PT2-globe Marconi ￥4900 used WB 1) PT2-globe Marconi ￥4900 used WB
PT4D =twin-diode, output Pentode= (EIA - , British-7pin) Ef/If=4V/2A Ppmax=6W Epmax=200V Ec2max=200V op : Ep=100V Ec2=100V Eg1=0V rp=21kΩ gm=1.9mS μ=40 op : Ep=200V Ec2=200V Ec1=-18V Ip=32mA Ic2=7.5mA gm=7mS similar to AC2/PEN-DD pins : 1(Pd2)-2(P)-3(Pd1)-4(H)-5(H)-6(K)-7(G2)-Top(G1) 1) PT4D Ferranti ￥3900 NIB very-ragged box
PTT100 =cathode-type Triode= Eh/Ih=4V/1.1A Ppmax=3W Epmax=230V/400V(cutoff) Ikmax=mA Rgmax=250kΩ op : Ep=220V Rk=300Ω Ip=10mA rp=11kΩ gm=2.5mS μ=27.5 equivallent type : Bi 2) PTT100 RadioTechnique ￥5100 NIB 0) PTT100-globe RadioTechnique NOS ￥- SprayShielded
1) PV81 Mullard ￥1000 used TopPlate
PX4/CV1168 =PowerTriode= <三極管の A1S 動作比較> Ef/If=4V/1.0A old-type : Ppmax=12W Epmax=250V Ipmax=mA μ=5 gm=6.0mS rp=830ohm later-type : Ppmax=15W Epmax=300V Ipmax=50mA μ=5 gm=6.0mS rp=830ohm (see Ep-Ip特性(later type)) 0) PX4-globe Osram used(D) 0) PX4-globe Marconi ￥- used? Ip=36mA, 40mA/16mA-min(on Funke-W19)(D) 0) PX4-dome GEC/Osram ￥39000 usedLightly(mD) Ep/Ec/Ip/gm=134V/-15V/42mA,40mA/3610,3200μmho 2) CV1168-dome(KB/R) Ferranti ￥20000 used rear view, top view, bottom view gm=4000μmho, 4400μmho @Eg=-10V, Ef=3.9V on KS-15750-L1(Ep≒140V)
PX25/CV1040 =PowerTriode= <三極管の A1S 動作比較> Ef/If=4V/2.0A Ppmax=25W Epmax=400V op : Ep=400V Ec=-31V(Rk=530Ω) Ip=62.5mA rp=1265Ω gm=8mS μ=9.5, Zl-optimum=3.2kΩ (see Ep-Ip特性) similar type : DO24(Mullard) also similar to LK4200(Valvo), F410(Philips), U4E/U4E8(M.P.Pedersen) 2) PX25-globe Zaerix-branded(MOV-made) ￥offer NIB(D) Top View, Bottom View 2) CV1040(PX25) MOV ￥offer NIB MB dome type(D) 2) CV1040(PX25) MOV ￥offer used dome type, still on monaural amplifiers
PX25A =PowerTriode= Ef/If=4V/2.0A Ppmax=25W Epmax=400V op : Ep=100V Ec=0V rp=580Ω gm=6.9mS μ=4 op : Ep=300V Ec=-75V Ip=50mA op : Ep=350V Ec=-85V Ip=60mA op : Ep=400V Ec=-100V Ip=62.5mA rp=860Ω gm=3.7mS μ=3.2 Zl-optimum=4.5kΩ op : Eb=500V Rk=1.6kΩ Ip=62.5mA rp=860Ω gm=3.7mS μ=3.2 Zl-optimum=4.5kΩ (see Ep-Ip特性) similar to DA30(Osram), CV1178, NR56/DO30(Mullard), V503(Ediswan/Mazda) 2) PX25A Osram ￥offer NIB Ip=59mA, 47mA(@Ep=200V, Eg=-50V) on Funke W20 (100% : Ip=22mA) 2) PX25A GEC ￥offer like New WB Ip=42mA, 31mA(@Ep=200V, Eg=-50V) on Funke W20 (100% : Ip=22mA), Testing view 0) PX25A Mullard ￥offer used WB 0) PX25A Osram ￥offer used WB
PY33 =Halfwave Rectifier= Eh/Ih=29V/0.3A PIV=700V Eacmax=250V Idc=325mA Idc-peak=2.6A Ehk=625V Rseries=25Ω Cmax=200uF 0) PY33 Mullard ￥- NOS
PY80 =Halfwave HV Rectifier= Eh/Ih=19V/0.3A PIV=4kV Idc=180mA Idc-peak=400mA Ehk=650V Cmax=4uF 0) PY80 Miniwatt ￥- NIB
PY82/19Y3 =Halfwave Rectifier= Eh/Ih=19V/0.3A PIV=700V Idc=180mA Idc-peak=-mA Ehk=550V Rseries=100Ω Cmax=60uF size : 22.2mmΦ x 77.8mmH, in max 1) PY82 Tungsram ￥1100 NIB
PY83 =Halfwave HV Rectifier= Eh/Ih=20V/0.3A PIV=5kV Idc=175mA Idc-peak=500mA Ehk=-V Rseries=-Ω Cmax=-uF 0) PY83/17Z3 Siemens ￥1200 NIB 0) PY83 ? ￥1000 used
PY88(=30AE3) =Halfwave HV Rectifier= (EIA/9CB - noval-TopCathode) Eh/Ih=30V/0.3A PIV=6kV Idc=220mA Idc-peak=550mA Pd=5W Ehk=6.6kV Rseries=-Ω Cmax=-uF also see heater variants : EY88 6AL3(6.3V/1.55A) also see a similar type:30AE3 size : 22.2mmΦ x 88.9mmH, in max 1) PY88 Valvo ￥1200 NIB
PY500/A =Booster Diode/Half-wave Rectifier= (EIA/6EC4 - Magnoval) Eh/Ih=42V/0.3A PIV=6kV Idc=440mA Idc-peak=1000mA Pd=11W Ehk=6.3kV Rseries=-Ω Cmax=-uF pins(PY500A) : 1(IC)-2(P)-3(IC)-4(H)-5(H)-6(IC)-7(P)-8(P)-9(IC)-Top(K) see an equivallent type : 42EC4/A also see heater variants : 6EC4/A, EY500/A(Eh/Ih=6.3V/2.1A) size : 30.2mmΦ x 115.2mmH, in max 1) PY500A Siemens ￥2400 NIB 1) PY500A Mazda ￥2400 NIB 3) PY500/A Phlps ￥1000 used WB
PZ similar to #47/#247 1) PZ-globe Crosley(Arcturus) ￥6400 used? gm=2150/1250min Normal(Transparent)Glass 0) PZ-globe[BLUE] Crosley-Arcturus ￥- (sSnD)
QB2/75
QB2/250
QB3/200
QB4/1100
QE05/40 (=6146)
QQC03/14 = 7983 (200MHz direct-heat 7Wx2 twin tetrode)
QQE02/5 (=6939)
QQE03/12 (=6360)
QQV03-10
QQV03-20A (=6252)
1) QRS-RedTop QRS ￥5900 used 1) QRS-RedTop QRS ￥2500 used short & open-fil [DISPLAY]
QS75/20 (= CV284 = 75B1) =75V regulator= (EIA/ - miniature) Vs=110Vmin Vop=70V-80V Iop=2mAmin/22mAmax Vchange=6V(Iop=2mA-20mA) Enoise-max=15mVrms(@Iop=2mA-20mA for 50Hz-5kHz) size : 19mmΦ x 54mm, in max 1) QS75/20=CV284 - ￥2000 NOS WB
QS150/15 (= CV287) =150V regulator= ((EIA/ - miniature) Vs=177V Vop=145-155V Iop=2mAmin/15mAmax Vchange=5V(Iop=2mA-15mA) Rign.=250kΩ size : 19mmΦ x 54mm, in max 0) QS150/15 Marconi ￥- NIB 1) QS-150-15 EnglishElectronocs ￥1000 NIB WB
QV04-7
R120 =cathode-type PowerTriode= (EIA/6Q , octal) Eh/Ih=6.3V/1.45A Ehkmax=50V Ppmax=15W Epmax=300V Ikmax=90mA Rgmax=700kΩ op : Ep=250V Ec=-35V(Rk=600Ω) Ip=60mA gm=6.4mS rp=840Ω μ=5.4 Zl=2.5kΩ Po=3.5W D=10% pins : 1(NC)-2(H)-3(P)-4(NC)-5(G)-6(NONE)-7(H)-8(K) : EIA/6Q相当(6AC5, 6C5, 6J5, 6L5, 6P5などと同一配列) (参考 : Ep-Ip特性) see an American electrically-similar cathode type : 6A5G(Eh/Ih=6.3V/1A : Sylvania) also see American electrically-similar filamentary types : 2A3, 6A3, 6B4G 2) R120 Radio-Technique ￥22000 NIB 2:reserved) R120 Radio-Technique ￥17500 NOS Top & Bottom, WB 0) R120 Radio-Technique ￥- lightly-used WB 0) R120 Philips ￥- used WB 2) R120 Radio-Technique ￥17500 lightly-used metallic-plate anode, WB gm/Ip = 4400μmho/34.0mA, 4320μmho/32.5mA @Eg=-20V Ep≒140V on KS-15750-L1 2) R120 Radio-Technique ￥17500 lightly-used metallic-plate anode, WB gm/Ip = 4130μmho/32.5mA, 4600μmho/36.0mA @Eg=-20V Ep≒140V on KS-15750-L1 2) R120 Radio-Technique ￥17500 lightly-used metallic-plate anode, WB, top view gm/Ip = 4530μmho/32mA, 4630μmho/34mA @Eg=-20V Ep≒140V on KS-15750-L1 0) R120 Radio-Technique ￥- used just-low emission(63%, 62% on W20 @Ep=250V, Eg=-35V), metallic-plate anode, WB 2) R120 Radio-Technique ￥3500 used low emission(28%, 25% on W20 @Ep=250V, Eg=-35V), oldest mesh plate, WB
1) R212HA 浜フォト ￥3000 NOS?/used? Date=92.01
'Radio-Micro' = R36 =filamentary Triode= Ef/If=3.2V-3.8V/0.06A(thoriated-tungsten filament) (later : Ef/If=3.0V-3.5V/0.06A) Ep=40V-80V Ipmax=10mA rp=25kΩ-35kΩ μ=9-12 (参考 : profile/data card) (参考 : Eg-Ip特性(Ep=30V, 60V, 90V)) size(maximum) : 38mmφ x 100mmH(incl. pins) 1) 'Radio Micro'-globe La-Radiotechnique(RT) ￥4000 used "f4" etched on glass
RE034 =filamentary audio Triode= Ef/If=3.8-4.0V/0.065A Ppmax=0.5W Epmax=200V Ikmax=mA rp=20kΩ-typ gm=1.2mS-typ μ=25-typ (参考 : Eg-Ip特性(@Ep=100V, 150V, 200V)) size(maximum) : 47mmφ x 95mmH, in max similar to A425(Philips), W406(Valvo) 0) RE034 TFK ￥- used WB
RE074 =filamentary audio Triode= Ef/If=3.8-4.0V/0.065A Ppmax=0.6W Epmax=120V Ikmax=mA rp=9kΩ-typ gm=1.1mS-typ μ=10-typ (参考 : Eg-Ip特性(@Ep = 50V, 100V)) size(maximum) : 47mmφ x 95mmH, in max electrically identical with H406(Valvo) also similar to A409(Philips), DZ908(Mazda), G407(Tungsram) 1) RE074 TFK ￥4900 lightly-used Ef=4V WB 1) RE074 TFK ￥4900 lightly-used WB 0) RE074 TFK ￥- used WB
RE084 =filamentary audio Triode= Ef/If=3.8-4.0V/0.085A Ppmax=0.7W Epmax=150V Ikmax=mA rp=8kΩ-typ gm=2.0mS-typ μ=16-typ (参考 : Eg-Ip特性(@Ep=100V, 150V)) size(maximum) : 47mmφ x 113mmH(incl. pins) similar to A408(VALVO), A415(Philips) 4) RE084 TFK ￥１２０００ NIB MB 1944製 (戦後のラッカ塗 刻印焼消あり)ガラストップにTelefunken-RE084ロゴ(Q) 1) RE084 TFK ￥5000 lightly-used WB 1) RE084 TFK ￥5000 lightly-used WB 1) RE084 TFK ￥5000 lightly-used WB
RE83 == Ppmax=W Epmax=V Ikmax=mA Ef/If=V/A 0) RE83 TFK ￥- used
RE89 == Ppmax=W Epmax=V Ikmax=mA Ef/If=V/A 0) RE89 TFK ￥- used
RE114 =filamentary small-power Triode= Ef/If=3.8V-4.0V/0.15A Ppmax=3W Epmax=150V op : Ep=100V Ec=0V Ip=20mA, rp=3.5kΩ gm=1.4mS μ=5-typ (参考 : Eg-Ip特性(@Ep=100V, 150V)) RE114(Telefunken) = B405(Philips) = TM-BF-2(military) = P414(Tungsram) also similar to L410(Valvo) 1) RE114 TFK ￥5000 used tested WB 1) RE114 TFK ￥5000 used tested WB
RE134 =filamentary small-power Triode= Ef/If=3.8V-4.0V/0.15A Ppmax=3W Epmax=200V op : Ep=200V Ec=-11V Ip=12mA, rp=6.2kΩ gm=1.6mS μ=10-typ RE134(Telefunken) = B409(Philips) = L413(Valvo) = D9(RadioFotos/Grammont) RE134S : for 'series' filament w/ DC also similar to L415(Tungsram) 1) RE134 TFK ￥5300 used tested WB 1) RE134 TFK ￥5300 used tested WB 1) RE134 TFK ￥5300 used tested WB 0) RE134 TFK ￥- used WB 0) RE134S TFK ￥- used WB
RE154 =filamentary small-power Triode= Ef/If=3.8V-4.0V/0.17A Ppmax=W Epmax=120V, rp=7.5kΩ gm=0.65mS μ=5-typ 1) RE154 TFK ￥5000 used tested WB
REN804 =cathode-type med-μ triode= REN804(TFK)=E415(Philips)=A4100(Valvo) Eh/Ih=3.8V-4.0V/1A Ppmax=1.5W Epmax=200V Ikmax=mA rp=7kΩ gm=2.3mS μ=16-typ 0) REN804 TFK ￥- used WB 2) REN804 TFK ￥4900 used tested WB 2) REN804 TFK ￥4900 used tested WB
REN904 =cathode-type med-μ triode= Eh/Ih=3.8V-4.0V/1A Ppmax=1.5W Epmax=200V Ikmax=mA rp=7.1kΩ gm=3.5mS μ=25-typ (参考 : Eg-Ip特性(@Ep=100V, 150V, 200V)) similar to K1694, A4110(Valvo), E424(Philips), T425(RadioFotos) also similar to MH4(gm=3.6mS, μ=40-typ), 354V(gm=3.0mS, μ=36-typ) also similar to 718(SIF), J253(SIF), W380(SIF) electrically similar type w/ MAZDA octal base : HL41(Eh/Ih=4V/0.6A) 0) REN904 TFK ￥１００００ NIB 1) REN904-globe manufacturer? ￥6900 used non-spray type, mesh-plate, EM=100%, WB 1) REN904-globe TFK ￥6900 used silver-spray type WB 2) REN904-globe TFK ￥6900 used gold-spray type WB 2) REN904-globe TFK ￥6300 used mesh, tested WB 1) REN904-globe TFK ￥6300 used mesh WB 1) REN904-globe TFK ￥6300 used mesh WB 1) REN904-globe TFK ￥6300 used mesh WB 1) REN904-globe Mazda servicepublic ￥6300 used mesh WB
REN914 =cathode-type high-μ Triode= REN914(TFK) = E499(Philips) = W4110(Valvo) Eh/Ih=4V/1A Ehkmax=50V Ppmax=1.5W Epmax=200V/400V(cutoff) Ikmax=15mA Rgmax=500kΩ(fixed)/1MΩ(self) op : Ep=200V Ec=-1.5V Ip=1.0mA rp=40kΩ gm=2.5mS μ=100 also similar to 4657(Philips), W380(Marathon) 0) REN914 TFK ￥- used
REN924 =cathode-type Diode, high-μ Triode= Eh/Ih=4V/1A Ppmax=W Epmax=V Ikmax=mA 1) REN924 TFK ￥5000 NOS silver-spray-shielded WB 0) REN924 TFK ￥- used
REN1004 =cathode type med-μ Triode= Eh/Ih=3.8V-4V/1A Ppmax=1.5W Epmax=200V op : Ep=200V Ec=-4V Ip=6.5mA, rp=22kΩ gm=1.5mS μ=33-typ (参考 : Eg-Ip特性(@Ep=100V, 150V, 200V)) similar type : E438(Philips) 0) REN1004 TFK ￥5000 lightly-used WB 1) REN1004-globe TFK ￥5000 used, 4V WB
REN1104 =cathode-type small-power Triode= Eh/Ih=3.8V-4V/1A Ppmax=3W Epmax=200V, rp=6.7kΩ gm=1.5mS μ=10-typ (参考 : Eg-Ip特性(@Ep=100V, 200V)) 0) REN1104 TFK ￥5000 used WB 2) REN1104 TFK ￥5000 used WB
RGA-30(B-2024) =delay tube= (EIA/ , )Eh=6.3V/0.8A delay-time=30sec contact-capacity=250V/3A Hold-time=10minutes(minimum) pins : 1(NC)-2(H)-3(H)-4(NC)-5(contact-1)-6(NC)-7(contact-2)-8(NC) size : 32.5mmΦ x 95mm, in max similar to 6NO30(Amperite) 1) RGA-30(B-2024) NEC ￥1500 lightly-used D/C=1959-10 WB
RGA-60(B-2037) =delay tube= (EIA/ , )
RGA-120(B-2038) =delay tube= (EIA/ , ) Eh=6.3V/0.8A delay-time=120sec contact-capacity=450V/3A Hold-time=15minutes(minimum) pins : 1(NC)-2(H)-3(H)-4(NC)-5(contact-1)-6(NC)-7(contact-2)-8(NC) size : 32.5mmΦ x 95mm, in max similar to 6NO120(Amperite) 1) RGA-120(B-2038) NEC ￥1500 lightly-used WB
RGD-30(B-2004) =delay tube= (EIA/ , ) Eh=117V/0.04A delay-time=30sec contact-capacity=250V/3A Hold-time=10minutes(minimum) pins : 1(NC)-2(H)-3(H)-4(NC)-5(contact-1)-6(NC)-7(contact-2)-8(NC) size : 32.5mmΦ x 95mm, in max similar to 115NO30(Amperite) 1) RGD-30(B-2004) NEC ￥1500 lightly-used WB
RGN354 =half-wave rectifier=(EIA/ , ) Eh/Ih=4V/0.3A Eac=250Vrms Idcmax=25mA similar to #1802/1810(Philips), G354(Valvo) 2) RGN354-globe TFK ￥4000 used WB 0) RGN354 TFK ￥- used WB
RGN504 =full-wave rectifier=(EIA/ , ) Eh/Ih=4V/0.5A Eac=250Vrms x 2 Idcmax=30mA similar to #1801(Philips), G504(Valvo) 1) RGN504 TFK ￥2500 lightly-used WB
RGN1064 =full-wave rectifier=(EIA/ , ) Eh/Ih=4V/1.1A Eac=500Vrms x 2 Idcmax=70mA Eac=400Vrms x 2 Idcmax=90mA Eac=300Vrms x 2 Idcmax=120mA similar to #1805(Philips), G1064(Valvo), similar to 4G106(TeKaDe) 0) RGN1064-globe TFK ￥- used mesh WB 1) RGN1064-globe TFK ￥8000 used mesh, tested WB
RH-2/RH2/SOLA/SORA/ソラ =sharp-cutoff detector Pentode=(EIA/8N, octal) Eh/Ih=12V/0.175A Ppmax=-W Epmax=-V op(A1S) : Ep=100V Ec2=100V Rk=350Ω Ip=4.5mA Ic2=1.2mA gm=1.9mS op(A1S) : Ep=250V Ec2=100V Rk=330Ω Ip=5.0mA Ic2=1.2mA gm=2.0mS electrically similar to 12SJ7(Eh/Ih=12.6V/0.15A) 1) RH-2 マツダ(old Toshiba) ￥offer NIB D/C=19-8(1944, 昭和19年8月) just-rusty on shield-cover, orange+black box 1) RH-2 マツダ ￥offer NIB D/C=19-10(1944, 昭和19年10月) just-rusty on shield-cover, stamped original WB 2) RH-2 マツダ ￥offer NIB D/C=19-12(1944, 昭和19年12月) just-rusty on shield-cover, stamped original WB 1) RH-2 マツダ ￥offer used? D/C=19-7(1944, 昭和19年7月) rusty on shield-cover, WB 2) RH-2 マツダ ￥offer used? D/C=19-10(1944, 昭和19年10月) rusty on shield-cover, WB 1) RH-2 マツダ ￥offer used? D/C=19-12(1944, 昭和19年12月) rusty on shield-cover, WB 1) RH-2 マツダ ￥offer used? D/C=19-8(1944, 昭和19年8月) w/ very-ragged original thin-paper box 1) SOLA/ソラ マツダ ￥offer used D/C=昭和20年7月(1945-7) non-shield type, WB
RH4/RH-4 =RF Pentode=(EIA/8BK, octal) Eh/Ih=12V/0.25A Ppmax=-W Epmax=-V op(A1S) : Ep=250V Ec2=100V Rk=300Ω Ip=5.5mA Ic2=1.8mA rp=1MΩ gm=4.0mS electrically similar to 12SH7 0) RH-4 Matsuda(マツダ) ￥- used WB 1) RH-4 Matsuda(マツダ) ￥offer used WB
RH8/RH-8 =RF Pentode=(EIA/8BK, octal) Eh/Ih=12V/0.25A Ppmax=-W Epmax=-V op(A1S) : Ep=250V Ec2=150V Rk=160Ω Ip=10.0mA Ic2=1.6mA gm=8.0mS electrically similar to 6AC7, 6AB7(both : BASE=8N, Eh/Ih=6.3V/0.45A) 0) RH-8 マツダ ￥- used WB
RK-10/RK10
RK-11/RK11
RK-12/RK12
RK-18/RK18
RK-19/RK19
RK-20/RK20/20A
RK-21/RK21
RK-22/RK22
RK-24/RK24 (=VT-67/30-special, HY-24) =Detector Amplifier Triode= (EIA/4D - UX) Ef/If=2V/0.12A Ppmax=1.5W Epmax=180V op : Ep=180V Ec=-13.5V Ip=8mA rp=5kΩ gm=1.6mS μ=8 Zl=12kΩ Po=250mW see lower-gm similar types : 30, 1H4G(octal, ST12) 0) RK-24 Raytheon ￥- used
RK-34/RK34/CV18/'33A/138A'/4074A
RK-60 =fullwave rectifier= (EIA/ , top-plates) Ef/If=5V/3A PIV=2100V Iout-max=250mAdc see an identical type : 1641 / GE- GL1641 also see an electrically similar type : 5R4/GY 2) RK-60 Raytheon ￥3800 NIB just-ragged boxes 0) RK-60 Raytheon ￥- NIB very-ragged boxes
RL12P35
RL12P50
RL12T15 =CathodeType Power Triode= Eh/Ih=12.6V(10.8V-14.5V)/0.55A Ehkmax=100V Ppmax=15W/20W(30sec) Epmax=500V(DC)/900V(cutoff) Ikmax=100mA rp=3kΩ μ=14.5 gm=4.8mS SidePin=Cathode (size : 106mmH x 46mmφ) (参考 : Ep-Ip特性) 4) RL12T15 Telefunken ￥7000 NOS WB
RMC-22 =delay tube= (EIA/ , 7-pin miniature) Eh=48V/0.1A delay-time=22sec contact-capacity=125V/0.5A Hold-time=10minutes(minimum) pins : 1(contact-1)-2(NC)-3(H)-4(contact-2)-5(H)-6(NC)-7(contact-1) size : 19mmΦ x 69mm, in max 1) RMC-22 NEC ￥1300 NIB 9) RMC-22 NEC ￥1300 NIB D/C=1970-2
RS237
RS241 =PowerTriode= Ef/If=3.8V/0.6A Ppmax=15W Epmax=400V Ipmax=50mA μ=17 gm=3.5mS rp=4.9kΩ (参考 : Ep-Ip特性) <三極管の A1S 動作比較> 1) RS241-globe Telefunken ￥offer LikeNew 1) RS241-globe Telefunken used ￥offer Ip=31mA/24mAmin(@Ep=200V, Eg=0V) on Funke W-20, WB
RS242 =PowerTriode= Ef/If=3.8V/0.72A Ppmax=12W Epmax=400V Ipmax=70mA μ=17 gm=3mS rp=5.7kΩ <三極管の A1S 動作比較> 4) RS242-globe Telefunken ￥２９０００ NIB MB sealed 2) RS242-globe Telefunken ￥２６０００ used?/NOS? 2) RS242-globe Telefunken ￥２６０００ used?/NOS?
RS291
RS3841) RS384 Telefunken ￥１００００ NOS bulk [DISPLAY] 1/2-OpenFilaments
RS613
RS1003
RS1007
RV2,4 P700 == 1) RV2,4 P700 Germany ￥ NOS? 2) RV2,4 P700 Germany ￥ NIB
RV25 =Modulator/AudioPowerTriode= Ppmax=180W Epmax=1300V Ipmax=-mA Ef/If=13.6V/4.4A μ=6.7 gm=3mS rp=2.5kΩ 0) RV25 Telefunken ￥- used
RV239 =Modulator/AudioPowerTriode= <三極管の A1S 動作比較> Ppmax=32W Epmax=800V Ipmax=-mA Ef/If=7.2V/1.1A μ=3.3 gm=1.8mS rp=1.8kΩ 0) RV239 Telefunken ￥- used
RV258 =Modulator/AudioPowerTriode= Ppmax=32W Epmax=800V Ipmax=-mA Ef/If=7.2V/1.1A μ=7 gm=2mS rp=3.5kΩ 0) RV258 Telefunken ￥- used 1) RV258 Telefunken ￥offer used DOME TopGtr
RV278 =Bclass Audio/Modulator PowerTriode= <三極管の A1S 動作比較> Ppmax=50W Epmax=1300V Ipmax=-mA Pgmax=2W Ef/If=10V/3.25A μ=50 gm=2.8mS rp=18kΩ 2) RV278 Telefunken ￥offer NOS WB １本はベースラトルあり
RX21/RX21A =Mercury Vapor rectifier= PIV=11kV Idc=750mA Edrop=15V Ef/If=2.5V/10A 0) RX21A Eimac ￥3700 LightlyUsed(sT)
S11E12/7971 =special-quality Beam Tetrode for stabilized Power Supply= (EIA/ -StraightGlass octal) （電気的には12E1, 12E14と類似規格で耐ショック・耐振動仕様。許容プレート損失は7W低い28W）(see 12E1, 12E14) S11E12 = CV4060 = STC 'L.5B/280D' The S11E12 is an SQ tube especially for series regulator, with anti-shock, anti-resonance, long life, and high stability. Eh/Ih=6.3V/1.6A Ehkmax=+150V/-350V Shock=500Gmax, Fatigue(vib.)=2Gmax Ppmax=28W Epmax=800V Pc2max=5W Ec2max=300V Ikmax=300mA Eg1max(-)=-100V Rg1max=100kΩ(fixed) op : Ep=Ec2=150V Ec1=-8.5V Ip=200mA Ic2=12mA gm=13.5mS μg2g1=5.5 Triode connection : Pp+Pc2max=30W pins : 1(IC)-2(H)-3(P)-4(G2)-5(G1)-6(BeamPlate)-7(H)-8(K) (6&8 should be connected at the tube socket bottom.) S11E12の3極管接続平均プレート特性 (almost same as 12E1's and 12E14's except Ppmax-limit) 10) S11E12/CV4060 STC ￥offer NIB SideGtr raggedBox 4) S11E12 ITT ￥offer NIB DateCode=79** SideGtr, made in England 0) S11E12 Ediswan ￥- NIB SideGtr 3) S11E12 ITT ￥offer NOS? DateCode=7912 SideGtr, made in England
S2001/AEh/Ih=6.3V/1A * S2001/A = the Matsushita-manufactured customized #6146/2B46 for Trio(Kenwood) HAM-transmitter product's (design center) Ppmax=27W Epmax=600V Pc2max=- Ec2max=250V op : Ep=600V Ec2=200V Ec1=-70V Ip=150mAmax Ic2=10mA Ic1=2.8mA Po=63W(@60MHz) nearly identical to 6146/2B46 1) S2001 Matsushita used ￥1800 2) S2001A Matsushita LightlyUsed ￥3700 gm-matched-pair 1) S2001A Matsushita LightlyUsed ￥3700
S2002Eh/Ih=6.3V/2A Ehkmax=250V Tbulb=300℃max Ppmax=30W Epmax=700V Pc2max=7W Ec2max=275V Ikmax=500mA (compactron-base = S2002, octal-base = S2003) similar type w/ same pin assignment : 6JS6A/B/C MAGNOVAL-base electrically similar types : 6KG6/A, 40KG6A, EL509, PL509 compactron-base electrically-similar types :6/20/27LF6/A, 8950, M2057 0) S2002 Matsushita NIB ￥5000 silk has been almost smeared away, very-ragged plain boxed 0) S2002 Matsushita used ￥- WB 0) S2002 Matsushita used ￥- WB (hyyzvtII) 2) S2002 Matsushita lightly-used ￥3800 lot=6I, 6I WB (hyync5) 2) S2002 Matsushita used ￥2500 lot=6I, 6I WB (hyync7) 0) S2002 Matsushita used ￥- just-faded getter flash, WB (hyynvt)
S2003Eh/Ih=6.3V±0.6V/2A Ehkmax=150V Tbulb=250℃max Ppmax=45W Epmax=600V Pc2max=9W Ec2max=275V Ec3max=+50V Ikmax=550mA/1Apeak op : Ep=200V Ec2=110V Ec1=-21.5V Ip=100mA Ic2=1.5mA gm=14.5mS μg2g1=3.7 (compactron-base = S2002, octal-base = S2003) MAGNOVAL-base electrically similar types : 6KG6/A, 40KG6A, EL509, PL509 octal-base electrically similar types : 6/26/36LW6, 26HU5 pins : 1(G3)-2(H)-3(G2)-4(K)-5(G1)-6(-)-7(H)-8(-)-Top(P) (setting 'JR-50342' for KS-15750-L1, 'HS5-0341' for TV-7B/U) 1) S2003 Matsushita NIB ￥offer lot=9D just-ragged box 2) S2003 Matsushita lightly-used ￥offer lot=9C, 9C WB, bottom view gm/Ip = 6200μmho/62mA, 5750μmho/62mA (@Ep≒130V, Ec1=-35V tested on KS-15750-L1(JR-50342)) 3) S2003 Matsushita lightly-used ￥offer lot=9D, 9F, 9G WB (hyytt2) 3) S2003 Matsushita lightly-used ￥offer lot=7C, 7E, 7E WB (hyyt3e) 4) S2003 Matsushita lightly-used ￥offer lot=6B, 7J, 8C, xx, Top & Bottom view, WB 1) S2003 Matsushita used ￥offer lot=6B WB 1) S2003 Matsushita used ￥offer lot=9H WB 0) S2003 Matsushita used ￥offer lot=9G, 9G, 9H, 9H, 9H WB (hyyvn3) 2) S2003 Matsushita used ￥offer lot=9H, 9H WB 1) S2003 Matsushita used ￥offer lot=8I WB 1) S2003 Matsushita used ￥offer lot=6C, CenterIndexBroken WB 0) S2003 Matsushita used ￥- smeared-out silk, lot=8C, 8C WB (hyyvm0)
S4019( = 4019A/B) =Triode=
SG215/CV3702 =filamentary tetrode= (EIA/-. British-4pin) Ef/If=2V/0.15A op : Ep=150V Ec2=60V Ec1=-1.5V Ip=1.5mA rp=440kΩ gm=1.1mS pins : 1(G2)-2(G1)-3(F)-4(F)-Top(P) similar to CV1018, 215SG, Z21 1) SG215 Mazda NIB ￥3200 very-ragged box
Simplex 2Amp =gas-filled rectifier= (EIA/- ) Ef/If=V/A Epmax=V 1) Simplex 2Amp VARTA used ￥3000 TipTop WB
SK-180 =triode= (EIA/- ) Ef/If=V/A Epmax=V similar to 12A/112A 4) SK180 雄工社 used ￥2000 engraved-base, vermilion-stamp "自の魂" on top
1) SN4 Syl ￥2700 NIB ガス放電管
SP61 =HF pentode= (EIA/- octal base) Eh/Ih=6.3V/0.6A Epmax=250V Ec2max=250V op : Ep=250V Ec2=250V Ec1=-2.1V Ip=11.1mA Ic2=2.8mA gm=8.4mS Basing : 1(H)-2(K) -3(P)-4(G2)-5(G3)-6(Shield)-7(NC)-8(H) and Top-G1 2) SP61 Mazda NOS ￥2200 SprayShield Small-ST OctalBase 2) SP61 Mazda used ￥1700 SprayShield Small-ST OctalBase 1) SP61 Mazda used ￥1100 SprayShield Small-ST OctalBase print無
SRS-552N
STV85/10 = 85A2/0G3
STV100/60Z II =voltage regulator= (EIA/ - B4-base) Vs=135V/125V Vop=100V(98V-101V) Ia=5mA-60mA Ikmax=65mA also see MAGNOVAL type : ZZ1040 STV100/60Z 1) STV100/60Z II TFK ￥1200 NIB just-ragged-boxes
STV150/30 = 0A2
1) STV280/40 STV ￥2000 used
1) T-12A 1240KC/A-30866 NothernEngineeringLaboratories used? ￥3000
T20
1) T21 Taylor ￥4900 NIB
1) T21 Sperry ￥2500 NIB RaggedBox
1) T22 Sperry ￥2900 NIB RaggedBox
T40
T55
T125
T425 =cathode-type Triode= Ef/If=4V/1A Ehkmax=V similar to REN904(TFK), E424(Philips) 1) T425 RadioFotos(Grammont) ￥5000 used WB
1) TB1 ? ￥25000 used Base荒れあり TipTop ClearGlass TightBrassBase TightPins = VeryRare =
TB-35(= Lewis 3D23)
TB-600A =filamentary Triode= (EIA/4D - ) Ef/If=4V/0.25A op : Ep=130V Ec=-8V Ip=8mA rp=6kΩ gm=1.2mS μ=7 0) TB-600-A NEC ￥- used WB
TB-601A =filamentary Triode= (EIA/4D - ) Ef/If=2V/0.25A op : Ep=130V Ec=-1.5V Ip=0.8mA rp=50kΩ gm=0.6mS μ=30 0) TB-601-A NEC ￥- used WB
TB-602A =filamentary Triode= (EIA/4D - ) Ef/If=4V/0.25A op : Ep=130V Ec=-8V Ip=20mA rp=2kΩ gm=3mS μ=6 0) TB-602-A 住友眞空管(Sumitomo=NEC) ￥- used WB
TB-605A =cathode-type Triode= (EIA/5A - ) Eh/Ih=2V/1.6A op : Ep=135V Ec=-6V Ip=6mA rp=10kΩ gm=1mS μ=10 similar to WE-244A(Eh/Ih=2V/1.6A, μ=10typ) also similar to 27/227(Eh/Ih=2.5/1.75A, μ=9typ) 1) TB-605-A 住友眞空管(Sumitomo=NEC) ￥5000 used WB rear-view gm=1050μmho/650μmho-min, Ip=6.2mA(@Eg=-9V : tested as "WE-244A" on KS-15750-L1)
TB-608B/HO-104F =filamentary Triode= (EIA/4D - ) Ef/If=4V/0.5A op : Ep=250V Ec=-13.5V Ip=20mA rp=5kΩ gm=1.4mS μ=7 similar to WE-104F/104D 2) TB-608-B/HO-104-F 住友眞空管(=NEC) ￥offer NIB 0) TB-608-B NEC ￥- used WB
TB-612B/HO-102F =filamentary Triode= (EIA/4D - ) TB-612B(HO-102F) = Ep250V-rated version of NEC-102F/WE-102F Ef/If=2.1V/0.5A op : Ep=250V Ec=-3V Ip=2mA rp=50kΩ gm=0.7mS μ=35 0) TB-612-B NEC ￥- used WB
TB-616A/TB-616B/HO-101F =filamentary Triode= (EIA/4D - ) TB-616A(HO-101F) = Ep250V-rated version of NEC-101F/WE-101F Ef/If=4V/0.5A op : Ep=250V Ec=-6V Ip=9mA rp=10kΩ gm=1.5mS μ=15 1) TB-616-A/HO-101-F NEC ￥offer lightly-used DC=1948-2 WB 0) TB-616-B NEC ￥- used WB
TB-639-A/TB639A(住友眞空管/NEC) = UY-37-ST
TC-552A/TC-552B
TM15 =Triode= (EIA/ - ) Ef/If=5.3V/1.2A Epmax=V Ec=-V Ipmax=mA rp=kΩ gm=mS 1) TM15 ? ￥- used? Globe 試験データ付属 = rare =
'TM BF 2'/TM-BF-2/TMBF2 =Triode= (EIA/ - ) TMBF2 = French military version of B 405(Philips) (similar to Dario 'TB 06'/TB06) -'B 405'/B405 - Ef/If=4V/0.15A op : Ep(max)=150V Ec=-18V Ip=10mA rp=2.1kΩ gm=2.4mS μ=5 similar types : P414(Tungsram), RE114(Telefunken) 1) TM-BF-2(globe) Dario(Radiotechnique) ￥7000 NIB VeryRaggedBox
'TM BF 25'/TM-BF-25/TMBF25 =power Triode= (EIA/ - ) TMBF25 = French military version of Philips F410(= Valvo LK4200)
TT15/CV4046 =RF Twin Beam Tetrode= (B9G - 9pin Loktal) Ef/If=6.3V/1.6A Ehkmax=220V Ppmax=2x7.5W Epmax=400V Pc2max=2x1.25W Ec2max=200V Ikmax=2x400mApeak Fmax=160MHz (250MHz=reduced power) wt=85g The metal-skirt is connected to the center spigot and should be earthed. op: Ep=250V Ec2=135V Ip=30mA rp=100kΩ gm=3.9mS μg1g2=6.5 op(AB1pp): Ep=300V Ec2=175V Ec1=-21V Ip=25mAx2/50mAx2 Ic2=1.3mAx2/7mAx2 Zlpp=7kΩ D=2.25% Po=16.8W op(AB1pp): Ep=400V Ec2=175V Ec1=-25V Ip=16.5mAx2/46mAx2 Ic2=0.7mAx2/5.9mAx2 Zlpp=10kΩ D=4.2% Po=22.7W TT15/CV415 = STC-44A/160M (size : 85mmH x 45mmφ) 4) TT15/CV415 GEC ￥4700 lightly-used double pentode, tested on AVO mark IV, WB 6) CV4046/TT15 M.O.Valve ￥4700 used gold-pins 4) B9G-socket European-made ￥1000 NOS Ceramic
TT21
TT22
TW-1/TW1/CY1 =half wave rectifier= (EIA/-, O5A/B5 or side-contact base) Eh/Ih=20V/0.2A Eac-max=250V Idc-max=80mA Ehkmax=400V 1) TW1 Dario ￥2000 used WB
TW-75
TW-150
TY66G/TY-66G =Thyratron triode= Eh/Ih=6.3V/0.4A PIV/PFV=250V Ipmax=75mA/300mA-peak similar to 884 1) TY-66G マツダ ￥800 lightly-used (hyy17s) 1) TY-66G GT NEC ￥800 used WB
TZ20
TZ40
U4E =PowerTriode= U4E : Ppmax=25W Epmax=550V Ipmax=-mA Ef/If=4V/2A μ=10 gm=3.8mS rp=2.65kΩ U4E8 : just lower μ version of U4E similar types : F410(Philips), LK4200(Valvo) also similar to PX25/CV1040(Marconi/Osram), DO24(Mullard) 1) U4E8 M.P.Pedersen(Denmark) used ￥offer Ip=30mA(@Ep=100V, Eg=0V) on Funke W-20, WB
U10 =FullWaveRectifier= Ef/If=4V/1A Emax=AC250Vrms x 2 Iout-max=60mA 0) U10-ST Marconi ￥- used WB
U12 =FullWaveRectifier= Ef/If=4V/2.5A Emax=AC350Vrms x2 Iout-max=120mA 0) U12-globe Marconi ￥- used WB 0) U12-ST Osram ￥- used WB
U14 =FullWaveRectifier= Ef/If=4V/2.5A Emax=AC500Vrms x 2 Iout-max=120mA 0) U14-ST Marconi ￥- used WB
U15 =HalfWaveRectifier= Ef/If=6V/2A Emax=1500Vrms Iout-max=200mA 2) U15 - ￥１９８００ NIB (RECTIFIER) 1) U15 - ￥１９８００ NIB (RECTIFIER)
U16 =HV HalfWaveRectifier= Ef/If=2V/0.25A Emax=5000Vrms Iout-max=2mA 0) U16 Marconi ￥2500 NIB
U18/20 =FullWaveRectifier= PIV=2.4kV Iout-max=275mA Ef/If=4V/2.8A Ep=500Vrmsx2/Rseries=180ohm/Cinput=16uF : Eout=520V/Iout=250mA-max/Ripple=10% Ep=850Vrmsx2/Rseries=180ohm/Cinput=16uF : Eout=1060V/Iout=125mA-max/Ripple=10% (参考) U18/20の整流特性(Idc-Edc-Eac) also see European similar types (up to AC-500Vrmsx2) : AZ50, FW4/500 2) U18/20 Marconi ￥offer NOS WB
U329=25BR3 1) U329 Osram ￥1300 used TopPlate
U415 =small power Triode= (EIA/ - , B4) Ef/If=4V/0.15A op : Ep=150V Ec=-10.5V Ip=5mA rp=7.4kΩ gm=1.4mS μ=10-typ similar to PM4(Philips-Mullard), B409(Philips), L413(Valvo), RE134(TFK), D9(RadioFotos/Grammont) 1) U415-globe Zenith(Italy) ￥5000 used WB, rear view
UF80=17C8 1) UBF80 PhlpsMiniwatt ￥500 used
UBF89(=19FL8=10FD12) =twin-diode, vari-mu Pentode= (EIA/9HE - noval) Eh/Ih=19V/0.1A Ehkmax=100V pentode : Ppmax=2.25W Epmax=250V Pc2max=0.45W Ec2max=250V Ikmax=15.5mA Ecmax=-1.3V op : Ep=200V Ec2=100V Ec3=0V Ec1=-1.5V Ip=11mA Ic2=3.3mA rp=600kΩ gm=4.5mS μg2g1=20 5) UBF89 TFK ￥1800 NIB <>
UBL21 =Twin diode + Beam Power= (EIA/-, 8-pin loktal) Eh/Ih=Eh/Ih=55V/0.1A Rg1max=1MΩ *pentode: Ppmax=11W Epmax=250V(550V-cutoff) Pc2max=3.5W Ec2max=250V(550V-cutoff) Ikmax=75mA op : Ep=200V Ec2=200V Ec1=-13V rp=25kΩ gm=8mS μg2g1=9 op(A1S): Ep=100V Ec2=100V Ec1=-5.3V(Rk=140Ω) Ip=32.5mA Ic2=5.5mA Zl=3kΩ Po=1.35W D=10% op(A1S): Ep=200V Ec2=200V Ec1=-13V(Rk=200Ω) Ip=55mA Ic2=9.5mA Zl=3.5kΩ Po=4.8W D=10% *diode : PIV=350V Idc=0.8mAmax/5mA-peak pins : 1(H)-2(P)-3(G1)-4(G2)-5(D2)-6(D1)-7(K,G3)-8(H) size : 32mmΦ x 96mmH, in max heater variant w/ just different spec.'s : EBL21(6.3V/0.8A Ehk=50Vmax, Epmax=Ec2max=300V, Ikmax=60mA, μg2g1=23) 0) UBL21 Philips ￥1000 used WB
1) UCH31 Mullard ￥1300 used
UCH42(=14K7) =common-cathode Triode-Hexode= (EIA/8GY - Rimlock) Eh/Ih=14V/0.1A PIVdiode=200V Idide=0.8mAmax hexode : Ep=200V Esg=85V Ec=-2V Ip=3mA Isg=3mA triode : Ep=200Vsupply Rp=22kΩ Rg=47kΩ Ig=200μA gm=0.75mS 1) UCH42 TFK ￥2200 NIB <> 1) UCH42 TFK ￥2200 NOS <> original-wrap 1) UCH42/14K7 Siemens ￥2000 NIB 1) UCH42 Mullard ￥1300 used
UCH81(=19D8,19AJ8) =common-cathode Triode-Heptode= (EIA/9CA - noval) Eh/Ih=19V/0.1A Ehkmax=100V heptode : Ppmax=1.7W Epmax=250V Psgmax=1W Esgmax=125V Ikmax=12.5mA, gm=0.775mS-typ triode : Ppmax=0.8W Epmax=250V Ikmax=6.5mA, gm=3.7mS-typ μ=22-typ 5) UCH81-2 TFK ￥2000 NIB <> 1) UCH81 Tngsrm ￥1400 NIB
UCL81 =common Cathode Triode Power-Pentode= (noval) Eh/Ih=39V/0.1A Ehk=220V (Triode) Ppmax=1W Epmax=250V/550V-cutoff Ikmax=8mA Rgmax=1.5MΩ op : Ep=150V Ec=-1.9V Ip=1.3mA gm=1.6mS μ=56 (Pentode) Ppmax=6.5W Epmax=250V/550V-cutoff Pc2max=1.5W Ec2max=250V Ikmax=45mA Rg1max=1.2MΩ op : Ep~200V Ec2=200V Ec1=-7V Ip=30mA Ic2=1.8mA gm=8.75mS rp=22kΩ Zl=7kΩ Po=2.4W D=10% pins : 1(Gt)-2(G2p)-3(common-KG3p)-4(H)-5(H)-6(Pp)-7(Pt)-8(common-KG3p)-9(G1p) heater variant : PCL81(12.6V/0.3A) 3) UCL81 TFK ￥2000 NOS?/lightly-used <> on bottom
UCL82 =hi-mu-Triode power-Pentode= (EIA/9EX - noval) Eh/Ih=50V/0.1A Ehkmax=±200V Pentode: Ppmax=7W Epmax=250V Pc2max=1.8W Ec2max=250V Ikmax=50mA Rg1max=1MΩ(fixed)/2MΩ(self) op : Ep=170V Ec2=170V Ec1=-11.5V Ip=41mA Ic2=9mA rp=16kΩ gm=7.5mS μg2g1=9.5 op(A1S): Ep=200V Ec2=200V Rg2=470Ω Rk=330Ω Ip=35mA/37mA Ic2=7.8mA/13.3mA Zl=4.5kΩ Po=3.3W D=10% op(AB1pp): Ep=170V Ec2=170V Rk=125Ω Ip=35mAx2/39.5mAx2 Ic2=8.5mAx2/13mAx2 Zlpp=4.5kΩ Po=7W D=3.6% Triode: Ppmax=1W Epmax=250V Ikmax=15mA Rg1max=1MΩ(fixed)/3MΩ(self) op: Ep=100V Ec=0V Ip=3.5mA rp=32kΩ gm=2.2mS μ=70 UCL82 = 50BM8 heater variants : 6BM8(6.3V/0.78A), 8B8(8V/0.6A), 11BM8(10.7V/0.45A), 16A8(16V/0.3A), PCL82(16V/0.3A), 32A8(32V/0.15A) 2) UCL82 TFK ￥3300 NIB <> on bottom 8) UCL82 TFK ￥3300 NIB <> on bottom VeryRaggedBox 1) UCL82/50BM8 TFK ￥3300 NIB <> on bottom VeryRaggedBox 4) UCL82 Tungsram ￥1700 NIB 1) UCL82 Mullard ￥1400 used
UF41 =vari-gm Pentode= (EIA/ - 8-pin rimlock) Eh/Ih=12.6V/0.1A Ehkmax=150V Ppmax=2W Epmax=250V/550V-cutoff Pc2max=0.3W Ec2max=250V/550V-cutoff Ikmax=10mA Rg1max=3MΩ op : Ep=100V Ec2=100V Rk=325Ω Ip=6mA Ic2=1.75mA rp=600kΩ gm=2.2mS μg2g1=18 UF41=12AC51 Also see EF41(Eh/Ih=6.3V/0.2A) 1) UF41 Mullard ￥1300 used
UF42 =hi-gm RF Pentode= (EIA/ - 8-pin rimlock) Eh/Ih=21V/0.1A Ehkmax=150V Ppmax=2W Epmax=250V/550V-cutoff Pc2max=0.5W Ec2max=250V/550V-cutoff Ikmax=15mA Rg1max=1MΩ op : Ep=170V Ec2=170V Ec3=0V Ec1=-2V Ip=10mA Ic2=2.8mA rp=300kΩ gm=8mS μg2g1=52 pins : 1(H)-2(P)-3(Shield)-4(G3)-5(G2)-6(G1)-7(K)-8(H) (参考 : Ep-Ip特性(@Ec2=170V)) UF42=Z142 similar to 10F1, 10F3 Also see EF42(Eh/Ih=6.3V/0.33A) 5) UF42 Philips ￥1800 NIB mint, with a 5-pcs sleeve 10) UF42 Philips ￥1800 NIB with 5-pcs sleeves 4) UF42 Mullard ￥1300 used
UF85 =vari-gm Pentode= (EIA/ - noval) Eh/Ih=19V/0.1A Ehkmax=150V Ppmax=2.5W Epmax=250V/550V-cutoff Pc2max=0.65W Ec2max=250V/550V-cutoff Ikmax=15mA Rg1max=3MΩ op : Ep=170V Ec2=100V Ec3=0V Ec1=-2V Ip=9.7mA Ic2=2.6mA rp=300kΩ gm=5.9mS Also see EF85(Eh/Ih=6.3V/0.3A) 1) UF85 TFK ￥1300 used
UM84 =Electron Ray Indicator/MagicEye= (EIA/ - noval) Eh/Ih=12V/0.1A Ehkmax=+50V/-250V Ppmax=0.5W Epmax=250V Edmax=250V El=250Vmax/170Vmin Ikmax=3mA Egmax=-1.3V Rgmax=3MΩ op : Eb=170V El=170V Rp,d=470kΩ Rg=3MΩ LightLength=20mm±5mm(@Evg=0V Ia+d=0.3mA Il=0.6mA) / LightLength=0mm(@Ebg=-15V Ia+d=0.04mA Il=1.05mA) pins : 1(G)-2(IC)-3(K,G1)-4(H)-5(H)-6(L)-7(D)-8(IC)-9(Anode) UM84=12FG6 2) UM84 ? ￥2000 used Bar表示管
UXCV-11/CV-11 =Transmitting Triode= (CV11 = Jumbo 4-pin base, UXCV11 = UX 4-pin base) Ef/If=10V/2.5A Fmax=30MHz audio ratings : Ppmax=65W Epmax=1500V Ipmax=150mA (Icmax=25mA/6A(RF)) rp=3.5kΩ gm=4mS μ=14-typ op(audio B1pp) : Ep=1000V Ec=-70V Ip=30/240mA Zlpp=8kΩ Po=185W op(audio B1pp) : Ep=1250V Ec=-90V Ip=30/240mA Zlpp=11.2kΩ Po=200W op(audio B1pp) : Ep=1500V Ec=-70V Ip=30/225mA Zlpp=14.4kΩ Po=215W (参考 : Ep-Ip特性) similar types: RCA-830B(Ef/If=10V/2A, Ppmax=60W, μ=25), RCA-8005(Ef/If=10V/3.25A, Ppmax=75W, μ=20) 4) CV-11 United used ￥offer pill-type-getter =rare= 0) UXCV-11 United used ￥- pill-type-getter
UY41=31A3 1) UY41 Philips ￥1300 used
1) UY86 Mullard ￥1300 used TopPlate
UY6301=UY-6301 UZ6001=UZ-6001 UZ6302=UZ-6302 UZ6304=UZ-6304
V503/V-503 =PowerTriode= Ef/If=4V/2.0A Ppmax=25W Epmax=450V op : Ep=100V Ec=0V rp=425Ω gm=10mS μ=4.25 op(AB1pp) : Ep=400V Ec=-85.0V Ip=50mAx2/105mAx2 gm=4.5mS Zl=3.7kΩ Po=32W op(AB1pp) : Ep=450V Ec=-96.5V Ip=55mAx2/115mAx2 gm=4.5mS Zl=4.0kΩ Po=40W (see Ep-Ip特性) similar to DA30(Osram), CV1178, NR56/DO30(Mullard), PX25A(Osram) 0) V503 Mazda ￥- used WB
VP4B =HF Pentode= (EIA / - British-7pin) Eh/Ih=4V/0.65A Epmax=250V Ec2max=250V op : Ep=250V Ec2=200V Ec1=-2.8V Ip=7.4mA Ic2=1.85mA rp=1.00MΩ gm=2mS op : Ep=250V Ec2=250V Ec1=-4.0V Ip=8.8mA Ic2=2.20mA rp=0.85MΩ gm=2mS pins: 1(metallizing)-2(P)-3(G3)-4(H)-5(H)-6(K)-7(G2)-Top(G1) size : 38mmΦ x 122mmH, in max similar to A50P(EverReady), AC/VP2(Mazda) 1) VP4B Mullard ￥3300 NIB spray-shielded very-ragged box
VP23/VP.23(= CV1331, ARP12, ZA7023) =filamentary battery HF Pentode= (EIA / ) Eh/Ih=2V/0.05A op : Ep=120V Ec2=60V Ec1=-2V Ip=1mA Ic2=0.35mA gm=0.8mS pins: 1(F)-2(NONE)-3(P)-4(G2)-5(G3)-6(metallizing/shield)-7(NONE)-8(F)-Top(G1) size : 32mmΦ x 95mmH, in max 1) ZA7023/ARP12(=VP23) EdisonSwan ￥2000 used? spray-shielded WB
VR21 = 210LF =Triode=
VR37 = MH4(=NR31, 10E/9598, CV1037, #7413) =Triode=
VR75/30 = 0A3 =75V regulator= 1) VR75/30 Brimar ￥1800 NIB octal
VR90/30 = 0B3 =90V regulator=
VR91(= EF50, 63SPT, CV1091, VT250, 10E/92, 10E/287) =HF Pentode= (Loktal/B9G-base) Eh/Ih=6.3V/0.3A Ppmax=3W Epmax=300V Pc2max=1.7W Ec2max=300V gm=6.5mS Fmax=125MHz 4) VR91(10E/92) Mullard ￥2000 like-new, silver-can, WB 1) VR91(10E/92) Mullard ￥1800 like-new, none-silk, silver-can, WB 1) VR91(10E/92)↓A Mullard ￥1800 used not-tested, WB
1) VR92/ 10E/105 - ￥1000 used (VR92 = EA50 (diode) : Eh/Ih=6.3V/0.15A, Ep=200V/Ip=5mA) *subminiature*
VR99A(= CV1581, 10E/757, ECH35) =common-cathode Hexode Triode= (EIA/ - , octal, top-G1) Eh/Ih=6.3V/0.3A Ehkmax=100V hexode : Ppmax=1.2W Epmax=300V Pc2max=0.6W Ec2max=125V Ikmax=15mA Rg1-kmax=3MΩ op : Ep=250V Ec2=Ec4=100V Rk=215Ω Rg3=50kΩ Ic3=0.2mA Ec1=-2V Ip=3mA Ic2+Ic4=3mA rp=1.3MΩ gm=0.65mS triode : Ppmax=1.5W Epmax=100V Rgmax=100kΩ op : Ep=100V Ec=0V Ip=3.3mA gm=2.8mS μ=24 pins : 1(NC)-2(H)-3(Ph)-4(G2h,G4h)-5(G3h,Gt)-6(Pt)-7(H)-8(K)-Top(G1h) 1) VR99A(10E/757) Mullard ￥2000 lightly-used WB
VR105-ST, VR105/30(= 0C3) =105V regulator= (EIA/4AJ - octal) 4) JAN-CHY VR105-30/VT-200 Hytron ￥1200 NIB MB RaggedBox 1) VR105-30 RCA ￥1200 NIB VeryRaggedBox
VR137 = EC52
VR105-MT(= 0B2), VR105/50 =105V regulator= (EIA/5BO - miniature) also see a European type : 108C1 1) VR105-50S JRC ￥1200 used-lightly Large-7pin-miniature-base 1) VR105-MT Toshiba ￥800 lightly-used 2) VR105MT Toshiba ￥800 lightly-used WB 2) VR105MT(0B2) NEC ￥800 used 1) VR105MT(0B2) NEC ￥500 used 1) VR105MT(0B2) NEC ￥500 used WB
VR105-ST(= 0C3) =105V regulator= (EIA/4AJ - octal) 1) VR105-ST Toshiba ￥1200 lightly-used WB
VR122/CV1122 = 41MXP
VR137/CV1137 = EC52
VR150-GT =150V regulator= (EIA/4AJ - octal) 1) VR150-GT Toshiba ￥700 lightly-used WB
VR150-ST(= 0D3) =150V regulator= (EIA/4AJ - octal) 1) VR150-ST Toshiba ￥1200 lightly-used WB 1) VR150 RCA ￥1000 used not-tested
VR150-MT(= 0A2) =150V regulator= (EIA/5BO -miniature) also see a European type : 150C2 8) VR150-MT NEC ￥1000 NIB 2) VR150-MT Toshiba ￥800 used-lightly WB
VRB135/60 =135V Voltage Regulator= (EIA/ - UX, ST-16) Vstart=180Vmin Vop=135Vdc Iop=10mA-60mA size: 50mmΦ x 135mmH, in max 1) VRB135/60 マツダ(Matsuda/Japan) ￥1200 used 定電圧放電管 ST
VR505/V.R.505 = MH41 =high-μ triode=
価格は全て"単価"です。左端は在庫数です。 All prices are described in JPY(Japanese yen) for ONE EACH tube
VT-1 (WE) =Triode= Ef/If=2.2V-2.5V/1.1A op : Ep=60V Ip=2mA rp=20kΩ μ=6-typ 12AX7, 71A-STとの外観比較 0) VT-1 WE ￥- NIB 2 0) VT-1 WE ￥- NIB 1 0) VT-1 WE ￥- NOS 1 0) VT-1 WE ￥- used 0) VT-1 WE ￥- used 0) VT-1 WE ￥- used 0) VT-1 WE ￥- used 0) VT-1 WE ￥- used 2 1) VT-1 WE?NE? ￥- used BrownMoldBase =VeryRare=(tw01) 0) VT-1 WE ￥- used 0) VT-1 WE ￥- used [DISPLAY]フィラメント断線 2
VT-2(WE) =PowerTriode= WE-VT2 : (Ef=6.5-7,5V)/If=1.35A Epmax=400V op : Ep=350V Ec=-20V μ=6.5 to 7 and Zout=3000Ω to 4500Ω Duovac VT-2 : Ef=7.0V If=1.35A Ppmax=15W Ep=350V-typ Po-RF=7.5W μ=8.0-typ (a Duovac data sheet included in original boxes) 0) VT-2 WE ￥- NIB 0) VT-2 WE ￥- used 0) VT-2 WE ￥- used 0) VT-2 WE used ￥- gm=1350@Ef=6.3V, Ec=-4V, Ep=150V(539B) 2) VT-2 WE used ￥59000 VeryStrongLikeNew(Qn) 1) VT-2 Duovac NOS ￥29000 ThoriatedTungstenFilaments WB gm=1470/975min(at Ef=5V), 1250μmho(at Ef=4.3V) 1) VT-2 Duovac used ￥2000 open-filament(DUD) WBThe major difference between WE-VT-2 and WE-#205D is in the filament current. VT-2's filaments should be controlled at the current. The nominal current is 1.35 ampares. The voltage varies from 6.5 to 7.5 volts normally among tubes. And the filamentary power varies from 8.8 to 10 watts. As for the #205D, they should be controlled at the voltage which is 4.5V. The current is 1.6 ampare for the #205D, namely, 7.2 watts for filamentary power nominally.
VT-24 =Low-microphonic Triode= (EIA/4D - straight T9-bulb) Epmax=135V Ef/If=1.1V/0.25A op 1 : Ep= 90V Ec1=-4.5V μ=8.2 rp=13.5kΩ gm=0.610mS Ip=2.9mA op 2 : Ep=135V Ec1=-9.0V μ=8.2 rp=12.7kΩ gm=0.645mS Ip=3.5mA (864のEpIp特性) VT-24 = 864/38064 similar to WE-264A/B/C(Ef/If=1.5V/0.3A) 2) VT-24/864 Hytron ￥4900 NIB MB (hyy14) 4) JAN-CHY 864/VT-24 Hytron ￥4900 NIB RaggedBox 1) JAN-CHY 864/VT-24 Hytron ￥4900 NIB sealed 1) JAN-CHY 864/VT-24 Hytron ￥3800 NOS very-ragged box 1) VT-24/864 Hytron ￥3800 NIB very-ragged box 1) VT-24/864 Hytron ￥3800 NIB very-ragged box 4) VT-24/864 Hytron ￥2000 used-lightly (hyyagx)
VT25/VT-25(Europe)=DET25
VT-25/VT-25A (see 10/10Y/210/310/410) =PowerTriode= Ef/If=7.5V/1.25A 参考:VT-25AのEp-Ip特性例(SAMPLE data plotted) VT-25 0) VT-25 WE ￥- NIB CeramicBase MB (sQ) 4) VT-25 WE ￥１７７００ NOS CeramicBase Bulk WB 0) VT-25/10Y Syl ￥- NIB MB(Sx) VT-25A 4:reserved) VT-25A WE ￥１９８００ NIB CeramicBase MB 1) VT-25A WE ￥１８０００ NOS CeramicBase WB 1650/790min 0) VT-25A WE(Hytron製) ￥15,000 NOS MB 金メッキグリッド/茶Base(T) 0) VT-25A WE(Hytron-made) ￥- NIB MB GoldGrid BrownBase(Q) 1) VT-25A GE ￥１２０００ UsedLikeNew WB GoldGrid BrownBase 1750/790min
VT-48(see 41) =power pentode= (EIA/6B - UZ 6pin) Eh/Ih=6.3V/0.4A Ppmax=8.5W Epmax=315V Pc2max=2.8W Ec2max=285V Ec1max=+0V Ehkmax=90V VT-48 = Military type of #41 electrically identical with 6K6GT(octal), 7B5(loktal). 6) VT-48/#41 Sylvania ￥1700 NIB MB ST very-ragged boxes, Top View 1) VT-48/#41 Sylvania ￥1900 lightly-used WB
VT-49(=39/44) =RemoteCutoff RF Pentode= (EIA/5F - UY, top-G1) Eh/Ih=6.3V/0.3A Epmax=250V Ec2max=90V op : Ep=250V Ec2=90V Ec1=-3V Ip=5.8mA Ic2=1.4mA rp=1MΩ gm=1.05mS 1) VT-49 WE ￥2000 NIB very-ragged box
2) VT50 England ￥1700 used European/small-signal
VT-51 (see 841) =PowerTriode= (EIA/4D - UX) Ef/If=7.5V/1.25A, μ=30typ Audio class A : Ppmax=12W Epmax=425V/1250V-supply op : Ebb=425V Ec=-6V Ip=0.7mA rp=63kΩ gm=0.45mS μ=28 Rl=250kΩ D=5% Eout=126V op : Ebb=1000V Ec=-9V Ip=2.2mA rp=40kΩ gm=0.75mS μ=30 Rl=250kΩ D=5% Eout=225V Audio class B : Ppmax=15W Epmax=425V Ipmax=60mA op(B2pp) : Ep=350V Ec=-5V Ipo=7mA Ipmax=120mA Einpp=176V Pin=3.2W Zlpp=5.2kΩ Po=21W op(B2pp) : Ep=425V Ec=-5V Ipo=13mA Ipmax=120mA Einpp=180V Pin=3.6W Zlpp=7kΩ Po=28W RF class B : Ppmax=15W Epmax=450V Ipmax=50mA Icmax=4A-peak RF class C : Ppmax=15W Epmax=450V Ipmax=60mA Ecmax=-200V Icmax=20mA-dc/5A-peak (see #841のEp-Ip特性) 2) VT-51-globe Hytron ￥15000 NIB MB(Q) 1) VT-51-globe Taylor ￥15000 NIB ThoriatedTungsten 4) VT-51/841 Hytron ￥12000 NIB MB(Q) 2) VT-51-ST Hytron ￥12000 NIB ThoriatedTungsten
VT-52 (see 45/245/345/445) =PowerTriode= Epmax=V Ipmax=mA Ppmax=W Ef/If=7V/1.18A. filaments construction : VVV or VV (practically sufficiently operable at 10% derated Ef condition: Ef/If=6.3V/1A, but not recommended) op(A1S) : Ep=220V Ec=-43.5V Ipo=29mA rp=1.65kΩ gm=2.3mS μ=3.8 Zl=3.8kΩ Po=1.00W 参考:VT-52のEp-Ip特性例(SAMPLE data plotted) 4) VT-52 WE ￥33000 NIB engraved シール品 MB(mQ) 0) VT-52 WE ￥- NIB engraved(D) 2) VT-52 WE ￥30000 NOS engraved 1725/1170min, 2130/1170min #1625箱 *** 1) VT-52 Sylvania ￥１１０００ used? engraved STRONG 77/47min(on TV7 Ef=7.5Vrange) 74/47min(Ef=6.3Vrange) 1) VT-52 NU ￥１１０００ used? engraved STRONG 88/47min(on TV7 Ef=7.5Vrange) 83/47min(Ef=6.3Vrange)
1) VT-54 Syl ￥2,200 NIB MB RaggedBox
VT-62 ( = MIL 801/801A) =PowerTriode= Ppmax=20W Ipmax=70mA Ef/If=7.5V/1.25A see equivallent type : 801/801A also see European equivallent : 3T20(Mazda) also similar to AT20/CV1361 8) VT-62/801/801A RCA ￥9000 NOS Bulk(rhyant) 0) VT-62/801A Hytron ￥- NIB 2) VT-62 Hytron ￥8000 NIB 2) VT-62/801A Hytron ￥8000 NIB VeryRaggedBoxes 試験風景(testing view) 2) VT-62 Taylor ￥8000 NIB VeryRaggedBoxes 試験風景(testing view)
VT-62/8019/CV315/CV1062/CV1288/4304CB/'TB-1/60'
VT-65(= 6C5) =med-mu Triode= (EIA/6Q - octal) 1) VT-65 Krad ￥1000 used metal 1) VT-65 Krad ￥1000 used metal
VT-67/30-special (= Raytheon RK-24, Hytron HY-24) =Triode= Ef/If=2V/0.12A Ppmax=1.5W Epmax=180V op(A1S) : Ep=180V Ec=-13.5V Ip=8mA rp=5kΩ gm=1.6mS μ=8 Zl=12kΩ Po=250mW * VT-67 is more-power and longer-life version of #30 see lower-gm similar types : 30, 1H4G(octal, ST12) 0) VT-67/30-special Tsol ￥- NIB MB CeramicBase(Sx) 1) VT-67/30-special Tsol ￥3800 NIB MB BrownBase 5) VT-67/30-special Hytron ￥3800 NIB MB BrownBase 2) VT-67/30-special Hytron ￥3800 NIB MB BrownBase VeryRaggedBox +++
VT-73 = 843
1) VT-93 (= 6B8) RCA ￥1000 used 1350/720min(P) 100/94/54min(D)
VT105(England)/10E216=ML6 =Triode=
0) VT-116 WE ￥- NOS 1) VT-116(6SJ7) Krad ￥1200 used 2060/1040min
2) VT-127 /"4 20"/10E/231 AM(Raytheon made) ￥3900 NIB ST管 MB
VT-127/VT-127A
VT-137/JAN-1626(see 1626) =Transmitting Triode= Eh/Ih=12.6V/0.25A Epmax=250V Ecmin=-150V Ipmax=25mA Icmax=8mA Ppmax=5W Ppin-max=6.25W (RCA says μ=5 (gm=1.8mS-approx rp=2.8kΩ-approx (varies on bias))) (Tung-Sol says gm=2.5mS rp=2.5kΩ => μ=6.25) 1) VT-137/1626 WE ￥2800 NIB MB 10) VT-137 WE(Hytron-made) ￥2800 NIB MB パッケージ外観
1) VT-162 - ￥1000 used plate-cap保修品 not-tested
VT-198(=6G6/G) =PowerPentode= (EIA/7S - octal) Eh/Ih=6.3V/0.15A Ehkmax=90V [RCA, GE] pentode connection : Ppmax=2.75W Epmax=300V Pc2max=0.75W Ec2max=300V op : Ep=180V Ec2=180V Ec1=-9V Ip=15mA Ic2=2.5mA rp=175kΩ gm=2.3mS Zl=10kΩ Po=1.1W D=10% [RCA, GE] triode connection : Ppmax=3.5W Epmax=300V op : Ep=180V Ec=-12V Ip=11mA rp=4.75kΩ gm=2mS μ=9.5 Zl=12kΩ Po=0.25W D=5% 0) VT-198A KenRad(for Bendix) ￥- used
VT-225 (=307A)
VT-234(= HY114) =VHF triode= (EIA/ - octal, top G, top P) Ef/If=1.4V/0.15A Ppmax=2.5W Fmax=300MHz μ=12 pins : 1(NC)-2(F)-3(NC)-4(NC)-5(NC)-6(NC)-7(F)-8(NC)-Top1(P)-Top2(G) 1) JAN-114B/VT-234 Hytron ￥2500 NIB RaggedBox
1) VT-235/NU614 Philco ￥2000 used? 4) VT-235 Hytron ￥2000 used?
2) VT-237 Sonotone ￥1200 NIB MB
1) VT-269/717A WE ￥3000 NIB
VY2 = cathode-type Half-Wave Rectifier = (EIA/ - 5pin side-contact ) Eh/Ih=30V/0.05A Eac=250Vrms-max Idc=20mA-max Ehkmax=550V Cload=8μFmax size : 29mmΦ x 78mmH in max. * socket/base 0) VY2 TFK ￥- used 2) VY2 TFK ￥2000 used WB
W150=6CJ5 1) W150 Marconi(Mullard-made) ￥ NIB
W380 =cathode Triode= Eh/Ih=4.0V/0.06A Ppmax=W Epmax=200V Ikmax=mA rp=kΩ-typ gm=mS-typ μ=typ similar to REN904(Telefunken) 1) W380 Marathon ￥5500 used mesh, tested WB
W406 =filamentary audio Triode= Ef/If=3.6-4.0V/0.06A Ppmax=W Epmax=200V Ikmax=mA rp=20kΩ-typ gm=1.2mS-typ μ=25-typ (参考 : RE034のEg-Ip特性(@Ep=100V, 150V, 200V)) size(maximum) : mmφ x mmH, in max similar to A425(Philips), RE034(Telefunken) 2) W406 Valvo ￥4300 used WB
W4110 =high-μ Triode= (EIA/-, UF5pin) W4110(Valvo) = REN914(TFK) = E499(Philips) Eh/Ih=4V/1A Ehkmax=50V Ppmax=1.5W Epmax=200V/400V(cutoff) Ikmax=15mA Rgmax=500kΩ(fixed)/1MΩ(self) op : Ep=200V Ec=-1.5V Ip=1.0mA rp=40kΩ gm=2.5mS μ=100 also similar to 4657(Philips) 1) W4110 Valvo ￥5000 NOS Ip=7.4mA/3.4mA-min(@Ep=200V, Ec=0V)
WD11/WD-11 => see 11/WD11
WD12/WD-12 => see 12/WD12
WUNDERLICH A/Wunderlich A =double-grid Triode= (EIA/- UY+topG or UZ) Eh/Ih=2.5V/1A(type A,B) 6.3V/0.4A(type A-Automotive, B-Automotive) Ppmax=W Epmax=250V Ikmax=mA op : Ep=250V Ec=-16.5V Ip=7mA rp=10.2kΩ gm=0.9mS μ=9.2 pins(UY type) : 1(H)-2(P)-3(G)-4(K)-5(H)-top(G') pins(UZ type) : 1(H)-2(P)-3(G)-4(G')-5(K)-6(H) 1) Wunderlich A AUTOMOTIVE[Blue]-globe Arcturus NIB ￥30000 reddishBrownBase RaggedBox UZ(6-pin) =rare= 1) Wunderlich A AUTOMOTIVE[Blue]-globe Arcturus used ￥15000 reddishBrownBase UZ(6-pin) -@@
WUNDERLICH B/Wunderlich B =diode+double-grid Triode= (EIA/- UZ, topDiodePlate) Eh/Ih=2.5V/1A(type A,B) 6.3V/0.4A(type A-Automotive, B-Automotive) Ppmax=W Epmax=250V Ikmax=mA op : Ep=250V Ec=-16.5V Ip=7mA-typ pins : 1(H)-2(Ptriode)-3(G)-4(G')-5(K)-6(H)-Top(Pdiode) 0) Wunderlich B AUTOMOTIVE[Blue]-globe Arcturus NIB ￥- reddishBrownBase =VeryRare=
XXD =Twin Triode= (EIA/8AC - Loktal) Eh/Ih=12.6V/0.15A op : Ep=250V Ec=-10V Ip=9mA rp=7.6kΩ gm=2.1mS μ=16 pins : 1(H)-2(2K)-3(2P)-4(2G)-5(1G)-6(1P)-7(1K)-8(H) similar to 14AF7 0) XXD Tsol ￥- used
XXL =Triode= (EIA/ - Loktal) Eh/Ih=6.3V/0.3A op : Ep=250V Ec=-8V Ip=8mA rp=8.7kΩ gm=2.3mS μ=20 pins : 1(H)-2(P)-3(NC)-4(NC)-5(NC)-6(G)-7(K)-8(H) similar to 7A4 2) XXL Sylvania ￥1500 used? 1) XXL Philco ￥700 used
Z2a =FullWaveRectifier= PIV=V Ipmax=mA Eh/Ih=4V/1.1A 2) Z2a Siemens ￥１４０００ NIB SprayShield TipTop シールドの剥げややあり
Z2b =FullWaveRectifier= PIV=1300V Eac-max=2x400V Ikmax=100mA Eh/Ih=4V/1.6A 0) Z2b Siemens ￥９７００ NIB yellow-ribbon(T) 6) Z2b Siemens ￥９３００ NOS LongGlass GrayRoughMetalBase WB 管内に一部GlassChipあり 1) Z2b Siemens(Austria) ￥９３００ NOS LongGlass GrayRoughMetalBase WB
Z2c =FullWaveRectifier= PIV=1200V Eac-max=2x400Vrms Ikmax=300mA Eh/Ih=4V/4A 0) Z2c Siemens ￥- NIB yellow-ribbon(Nn) 1) Z2c Siemens ￥１５０００ NIB yellow-ribbon HairlineCrackOnBaseCeramic 0) Z2c Siemens ￥- used-lightly yellow-ribbon
Z2d =FullWaveRectifier= PIV=V Ipmax=mA Eh/Ih=18V/0.25A 2) Z2d Siemens ￥１４０００ NOS SprayShield TipTop OriginalWrapper
Z2e =FullWaveRectifier= PIV=700V Ipmax=40mA Eh/Ih=18V/0.24A 2) Z2e Siemens ￥１４０００ NIB
Z77 (= EF91, CV4014, 6AM6) =RF Pentode= (EIA/7DB - miniature) Eh/Ih=6.3V/0.3A Ehk=150Vmax [pentode connection] Ppmax=2.5W Epmax=250V Pc2max=0.8W Ec2max=250V op : Ep=250V Ec2=250V Ip=10mA rp=300kΩ gm=7.5mS [triode connection] Ppmax=2.5W Epmax=250V Pc2max=0.8W Ec2max=250V op : Ep=250V Ec1=-2V rp=10kΩ gm=7.5mS μg1g2=75 also similar to CV2031, CV2195 also similar to M8083 3) Z77 Osram ￥1200 used
Z152 (= 6BX6) =RF/IF, VideoAmp Pentode= (EIA/9AQ - noval) *6BX6 spec. Ppmax=2.5W, Epmax=300V Pc2max=0.65W Ec2max=300V Ikmax=15mA Eh/Ih=6.3V/0.3A op : Ep=170V Ec2=170V Ec1=-2V Ip=10mA Ic2=2.5mA rp=400kΩ gm=7.2mS μg2g1=50 5) Z152 Marconi ￥1200 used 1) Z152 Pinnacle(W.Germany) ￥1200 used
Z550M (= 8453) =cold cathode gas-filled decade NUMERICAL indicator= 2) Z550M Amperex ￥3900 VeryRaggedBox
Z729 =low noise audio-freq. Pentode= (EIA/9CQ - noval) Eh/Ih=6.3V/0.2A Ehkmax=150V Rg1max=1MΩ(fixed)/2MΩ(self) *pentode con.: Ppmax=1W Epmax=300V/550Vcutoff Pc2max=0.2W Ec2max=250V Ikmax=6mA op : Ep=250V Ec2=140V Ec1=-2V Ip=3mA Ic2=0.55mA rp=2MΩ gm=1.85mS μg2g1=38 *triode con.(P,G2,G3 connected): Ppmax=1.2W Epmax=250V op : Ep=250V Ec1=-5V Ip=3mA Ic2=4mA rp=16.5kΩ gm=2mS μ=33 Z729 = CV2901 Z729 ≒ CV4085 also see similar types : 6084 6267/EF86 EF806 E80F) different pin-out electrically-similar type : EF804/S 0) Z729 Emitron ￥- NIB WB mesh made in England
Z803U (= 6779/CV2434) =gas-filled cold-cathode RELAY= (EIA/ - noval) 1) Z803U Mullard ￥2200 NIB
Z805U = ER21A (see) =Gas-filled Cold-Cathode Relay= (EIA/ - noval) 0) Z805U Mullard ￥- NIB
6) ZM1000 TFK(Telefunken) ￥2700 NIB Nixie(Sx) 0) ZM1000 Mullard ￥- NIB Nixie(Q) *
0) ZM1005 Amperex ￥1900 NIB Nixie (1)
2) ZM1010 Philips ￥1500 NIB(Qn)
1) ZM1020 Adzam(=Mazda)(Mullard-made) ￥2100 NIB Nixie(Q) 0) ZM1020 Philips ￥4200/pair NOS Nixie WB(2個入)
0) ZM1030 Mullard ￥- NIB RedNixie(D) 1) ZM1030 Valvo ￥2900 NIB RedNixie
1) ZM1175 Mullard ￥2700 NIB Nixie(T)
1) ZM1182 Siemens ￥3100 NIB Nixie BigOB
2) ZZ1000 Philips ￥1700 NIB **
2) ZZ1031 TFK ￥2800 NIB **
ZZ1040 (= STV100/60Z) =voltage regulator= (EIA/ - B9base=MAGNOVAL) Vs=135V/125V Vop=100V(98V-101V) Ia=5mA-60mA Ikmax=65mA/200mA(f=120Hz)/10A-peak Cparallel-max=0.05μF Life-expected = 20000-hours pins : 1(A)-2(K)-3(NC)-4(A)-5(K)-6(Z)-7(A)-8(K)-9(NC) size/weight : 30.2mmφmax x 57mmHmax / 22gram also see STV100/60Z II(B4-base) 0) ZZ1040 TFK ￥1200 NIB VeryRaggedBox 6) ZZ1040 STV100/60Z TFK ￥1200 NIB just-ragged-boxes
1) 4SNIA35963 RCA ￥5000 NOS
ソラ/SOLA/SORA : see RH-2/ソラ
自の魂/Mizukara no Tamashii(one's-own spirit) : see SK180/SK-180(雄工社/Yuhkosha)(≒12A)
コンパクトロン半波整流管のピン・コンパチビリティ・・・etc EIA/12BL, 12FX, 12GA, 12GK, 12HFベースのコンパクトロン形状のダンパー/半波整流管では、ソケットで "IC"ピンや"NC"ピンは不慮の放電等のリスクを避けるため、中継ピンなどには他用しません。そして、 『ピン1(H), 4(P), 7(K), 10(P), 12(H)のみを用いれば、全て実質・同一ピン配列／ピン・コンパチブル』に なります。ただし当然ながらヒーター、最大プレート損失、最大DC出力電流などの規格値は球毎に異なります。 *(EIA/12BL - compactron) pins : 1(H)-2(NC)-3(NC)-4(P)-5(NC)-6(NC)-7(K)-8(NC)-9(NC)-10(P)-11(NC)-12(H) "6AX3" (6.3V/1.2A, 5.3W, 160mAdc) "6BJ3" (6.3V/1.2A, 4W, 140mAdc) *(EIA/12FX - compactron) pins : 1(H)-2(NC)-3(NC)-4(P)-5(IC)-6(IC)-7(K)-8(IC)-9(IC)-10(P)-11(NC)-12(H) "6BW3" (6.3V/1.6A, 6.5W, 175mAdc) "6BZ3" (6.3V/1.2A, 6.5W, 200mAdc) "6CD3" (6.3V/2.5A, 12W, 350mAdc) *(EIA/12GA - compactron) pins : 1(H)-2(NC)-3(NC)-4(P)-5(IC)-6(NC)-7(K)-8(NC)-9(IC)-10(P)-11(NC)-12(H) "6BE3" (6.3V/1.2A, 6.5W, 200mAdc) "6BE3/6BZ3" (6.3V/1.2A, 6.5W, 200mAdc) *(EIA/12GK - compactron) pins : 1(H)-2(IC)-3(IC)-4(P)-5(IC)-6(IC)-7(K)-8(IC)-9(IC)-10(P)-11(IC)-12(H) "6CE3" (6.3V/2.5A, 11W, 350mAdc) "6CE3/6CD3/6DT3" (6.3V/2.5A, 11W, 350mAdc) *(EIA/12HF - compactron) pins : 1(H)-2(IC)-3(NC)-4(P)-5(IC)-6(IC)-7(K)-8(IC)-9(IC)-10(P)-11(NC)-12(H) "6CG3" (6.3V/1.8A, 6.5W, 350mAdc) "6DQ3" (6.3V/1.8A, 9W, 400mAdc) "6DT3" (6.3V/2.4A, 9W, 350mAdc) "6CG3/6BW3/6DQ3" (6.3V/1.8A, 6.5W. 350mAdc) "6CG3/6CD3"
真空管価格リスト 半導体(トランジスタ等) 固定抵抗器 パーツ 測定器類 マニュアル
-1pc.jpg){kind=link}
-SELLORENZ-NIB-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-Syl-NIB-MB-vrb-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-DC912-1pc.jpg){kind=link}
-6pcs.jpg){kind=link}
-1pc-jrb.jpg){kind=link}
-3pcs-vrb.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
.jpg){kind=link}
-GEC-NIB-No1.jpg){kind=link}
-GEC-NIB-No2.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-STC-NOS-2pcs-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NEC(1)-5pcs-WB.jpg){kind=link}
.jpg){kind=link}
-Toshiba-used-NHK_DC715-1pc-WB.jpg){kind=link}
-Toshiba-used-BtmView.jpg){kind=link}
.jpg){kind=link}
-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-cellophane-1pc.jpg){kind=link}
-NIB-10pcs.jpg){kind=link}
-NIB-2pcs.jpg){kind=link}
-NEC-LU-1pc-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-B2F3-B2F3-144144-144143-2pcs-WB.jpg){kind=link}
-13513554-1pc-WB.jpg){kind=link}
-1pc.jpg){kind=link}
tinychip_1)lot4D-2pcs-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-vLU-NiGNi-1pc.jpg){kind=link}
.jpg){kind=link}
-Russia-NIB-1pc-jrb.jpg){kind=link}
.jpg){kind=link}
-used-DC50_13-1pc.jpg){kind=link}
-NIB-3pcs.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
.jpg){kind=link}
-NIB-DC483-1pc.jpg){kind=link}
.jpg){kind=link}
KJ(5704)-3pcs.jpg){kind=link}
-NIB-TopGtr.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-sampled.jpg){kind=link}
-metal-MB-2pcs.jpg){kind=link}
-6AH4-DsideGtr.jpg){kind=link}
-6AH4-FlatPlate.jpg){kind=link}
-6AH4-FlatPlate.jpg){kind=link}
-6AH4-FlatPlate.jpg){kind=link}
-6AH4-LongGlass-DsideGtr.jpg){kind=link}
-6AH4-LongGlass-DsideGtr.jpg){kind=link}
-6AH4-OvalPlate3Mica.jpg){kind=link}
-6AH4-OvalPlateRingGtr.jpg){kind=link}
-6AH4-OvalPlateDiscGtr.jpg){kind=link}
-LU-BP-LongGlass-TopGtr-1pc-WB.jpg){kind=link}
.jpg){kind=link}
-sampled.jpg){kind=link}
-sampled.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-5pcs.jpg){kind=link}
-NIB-w_sleeves-10pcs.jpg){kind=link}
Conrac(PhilBox_GEmade-1)-NIB-3pcs.jpg){kind=link}
-NOS-3pcs.jpg){kind=link}
=ThornAEI-NOS-1pc-MullardBoxed.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NOS-GEboxed-1pc.jpg){kind=link}
-NIB-GP-1pc.jpg){kind=link}
-NIB-DCLJ(1959_6)-SvPlt.jpg){kind=link}
-NIB-jrb-3pcs.jpg){kind=link}
-NIB-5930_5935-2pcs-jrb.jpg){kind=link}
-NIB-6030-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-TopGtr-1pc.jpg){kind=link}
.jpg){kind=link}
-NIB-lotQ243J(2)-BP_GP2pcs.jpg){kind=link}
-1pc.jpg){kind=link}
-sampled.jpg){kind=link}
-BP-TwinSideGtr-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
-sampled.jpg){kind=link}
.jpg){kind=link}
-NIB-DC5922-1pc.jpg){kind=link}
.jpg){kind=link}
-NIB-2pcs.jpg){kind=link}
-NIB-DC62_04_13_13_48-GP-4pcs.jpg){kind=link}
-NIB-DC052-GP-1pc.jpg){kind=link}
-NIB-USA-3pcs.jpg){kind=link}
-NOS-1pc-LindalBoxed.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
&6BJ6(@Ec2=100V).jpg){kind=link}
-NIB-RB-2pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NOS-EC7726-RayBox-1pc.jpg){kind=link}
-pair.jpg){kind=link}
-quad.jpg){kind=link}
.jpg){kind=link}
-NIB-BugleBoy-3pcs.jpg){kind=link}
-NIB-DC6811-2pcs.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
-RCA(2)-NOS-SylMBboxed-3pcs.jpg){kind=link}
-used-1pc.jpg){kind=link}
-used-GP-4pcs.jpg){kind=link}
.jpg){kind=link}
-DC1_52-QUAD-1.jpg){kind=link}
-DC1_52-QUAD-2.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
-EpIp.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-DC9_39-1pc.jpg){kind=link}
-NIB-BP-5pcs.jpg){kind=link}
-NIB-GP-1pc-2.jpg){kind=link}
-NIB-BlkPlate-5pcs.jpg){kind=link}
-NIB-BP-1pc.jpg){kind=link}
-GP-5pcs.jpg){kind=link}
-EpIp.jpg){kind=link}
-BP-SG-1pc.jpg){kind=link}
-NIB-DC5425-RB-1pc.jpg){kind=link}
.jpg){kind=link}
-USED-NonSilk-1pc.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
-DC2_17-3pcs.jpg){kind=link}
-RCA-NIB(MB)-1pc-jrb.jpg){kind=link}
-LU-2pcs-WB.jpg){kind=link}
-6C10-1.jpg){kind=link}
-6C10-2.jpg){kind=link}
IV73(1)V73-3pcs-WB.jpg){kind=link}
X73(2)VIII73-5pcs-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-sold-4pcs.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
-2pcs.jpg){kind=link}
-2pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NOS-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
_6CK6(T)-sampled.jpg){kind=link}
-EpIp.jpg){kind=link}
-NIB-BP-1pc.jpg){kind=link}
_2J03(1)-jrb-4pcs.jpg){kind=link}
_8K03(2)-jrb-4pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-5pcs-jrb.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NOS-5pcs-WB.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
-LU-B6D2-WB-1pc.jpg){kind=link}
157012500-LU-⊿3B4-WB-1pc.jpg){kind=link}
-LU-⊿1I3-WB-1pc.jpg){kind=link}
![[工業用]mark](6DJ8-Matsushita-usd-Industrial-5pcs-WB(2).jpg){kind=link}
.jpg){kind=link}
-NIB-Gpins-2pcs-VRB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-1pc-jrb.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-LU-4pcs-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NOS-lot0_4C-5pcs-WB.jpg){kind=link}
-NOS-lot0_5C-8pcs-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-VRB-10pcs.jpg){kind=link}
-20pcs-WB.jpg){kind=link}
-2100-24_8-DC713-1pc.jpg){kind=link}
-GE-U-VeryRusty-1pWB.jpg){kind=link}
-NIB-vrb-2pcs.jpg){kind=link}
.jpg){kind=link}
-NIB-2pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-sold-5pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-LightlyUsed-DC339-RCA-boxed-1pc.jpg){kind=link}
.jpg){kind=link}
-NOS-1pc RCA boxed.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-4pcs-wSleeve.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
-NIB-wSleeve-5pcs.jpg){kind=link}
-NIB-RB-3pcs.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
-NOSq-RCAboxed-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-sampled.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-BTM.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-used-4500_3150min-1pc.jpg){kind=link}
.jpg){kind=link}
-LU-DC013-SmokedG-1pc-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NOS-5pcs-WB.jpg){kind=link}
.jpg){kind=link}
-DC8_13-2pcs-jrb.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-LargeBottle-TwinTopGtr-2pcs.jpg){kind=link}
.jpg){kind=link}
-Toyo-NOS-1pc-WB.jpg){kind=link}
.jpg){kind=link}
-NIB-1pc-vrb.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-Reflector-LU-4pcs-WB.jpg){kind=link}
.jpg){kind=link}
-NOS-25pcs-WB.jpg){kind=link}
-Svetlana-LU-IX75-2pcs-WB.jpg){kind=link}
-Novosibirsk-LU-DC9005-1pc-WB.jpg){kind=link}
-lot2Y-LightlyUsed-4pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-3pcs.jpg){kind=link}
-NIB-10pcs-wSleeve.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
_496(5)-6pcs-jrb.jpg){kind=link}
.jpg){kind=link}
-NEC-NIB-jrb-2pcs.jpg){kind=link}
_6RHR4-NEC-LN-4pcs-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-BACK.jpg){kind=link}
.jpg){kind=link}
-EpIp.jpg){kind=link}
.jpg){kind=link}
19709(3)-4pcs-WB.jpg){kind=link}
.jpg){kind=link}
-NIB-metal-1pc.jpg){kind=link}
.jpg){kind=link}
-EpIp.jpg){kind=link}
-RB-1pc.jpg){kind=link}
-BFP-Smoked-BtmG.jpg){kind=link}
-NIB-DC62_17-BP-BtmG.jpg){kind=link}
-NIB-BlkTP-TGtr.jpg){kind=link}
-6SN7GT-1948.jpg){kind=link}
-6SN7GTA-DC4_35-BFP-TwinDG-2450-2330.jpg){kind=link}
-6SN7GTB-1957.jpg){kind=link}
-6SN7GTA-50th-pair.jpg){kind=link}
-BP-WFG-DC5049-2500-2450-HC-1pc.jpg){kind=link}
-6SN7GT-3hole-3.jpg){kind=link}
-DC326-TwinBlkBoxP-LrgToG-74_74_50min.jpg){kind=link}
-BTP-TG-SG-DC5439-2730-2900.jpg){kind=link}
-BTP-TG-SG-DC339R-2400-2530.jpg){kind=link}
-DC544-BTP-TG-ThinB-82_90_50min.jpg){kind=link}
-BTP-TG-SG-DC552-2460-2300.jpg){kind=link}
-BTP-TG-SG-DC626-2300-2200.jpg){kind=link}
-FullFlashed-DC5248.jpg){kind=link}
.jpg){kind=link}
-NOS-RCAboxed-1pc.jpg){kind=link}
.jpg){kind=link}
-NOS-DC626.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
-used-1pc-GEboxed.jpg){kind=link}
.jpg){kind=link}
-NOS-OW-SmokedGlass-2pcs.jpg){kind=link}
-NIB-DC5714-BlkG-3pcs.jpg){kind=link}
-LikeNew-SG-DC52_19-SYLb.jpg){kind=link}
-DC1_22-BG-4000-1pc.jpg){kind=link}
-BG-4280-1pc.jpg){kind=link}
.jpg){kind=link}
-BP.jpg){kind=link}
.jpg){kind=link}
-LghtlyUsed-BlkGlass-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NOS-BP-GEboxed-1pc.jpg){kind=link}
-NIB-BP-1pc.jpg){kind=link}
-NIB-BP-1pc.jpg){kind=link}
-NIB-BP-OrangeL-1pc.jpg){kind=link}
-NIB-BP-1pc.jpg){kind=link}
-NIB-DarkGP-1pc.jpg){kind=link}
-NOS-BP-STDboxed-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-1pc-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-DC641-3pcs.jpg){kind=link}
-NIB-Loktal-MB-2pcs.jpg){kind=link}
-LikeNew-LongGlass_2x2Holes-1pc-WB.jpg){kind=link}
-BlkBoxP-2x2Holes-ShortG-1pc-WB.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
-used-1pc-WB.jpg){kind=link}
-2pcs.jpg){kind=link}
.jpg){kind=link}
-NIB-4pcs-PWB.jpg){kind=link}
-LU-1pc-WB.jpg){kind=link}
-4pcs-jrb.jpg){kind=link}
-4pcs-jrb.jpg){kind=link}
-2pcs-jrb.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-used-UnitedBoxed-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-used-Cf2-B4E3-1pc.jpg){kind=link}
BQ(1)-3pcs.jpg){kind=link}
-CT-used-5pcs.jpg){kind=link}
-NIB-1pcs.jpg){kind=link}
-NOS-1pc-WB.jpg){kind=link}
-LU-NiPlates-1pc-WB.jpg){kind=link}
-used-1pc.jpg){kind=link}
-GBP-DC139-1860_2020.jpg){kind=link}
-BP-1420_1380-1340_1400-2pcs.jpg){kind=link}
-LU-4pcs-WB.jpg){kind=link}
-NIB-1pc-2.jpg){kind=link}
-NIB-3pcs-wSleeve.jpg){kind=link}
-NIB-2pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-LU1pWB.jpg){kind=link}
-LU7J1pWB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-TOP.jpg){kind=link}
.jpg){kind=link}
-TOP.jpg){kind=link}
-8440.jpg){kind=link}
-8440-TOP.jpg){kind=link}
-8418.jpg){kind=link}
-8418-TOP.jpg){kind=link}
.jpg){kind=link}
BP(2)SP-WB-3pcs.jpg){kind=link}
-NIB-4pcs.jpg){kind=link}
-NOS-GP-BtmDGtr-1pc.jpg){kind=link}
-NOS-BFP-TGF-WFG-1pc.jpg){kind=link}
NOS(1)-2pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-BFP-BtmG-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-4pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-5pcs.jpg){kind=link}
-NIB-5pcsBottom.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-BACK.jpg){kind=link}
-NIB-jrb-5pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
GE(1)-NIB-sold-5pcs.jpg){kind=link}
-NIB5813_6330-2pcs-jrb.jpg){kind=link}
sample.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-GL-2x3holes-2pcs.jpg){kind=link}
.jpg){kind=link}
-NIB-DC6104-BP-CT-1pc.jpg){kind=link}
-NIB-FatG_TopG-jrb-3pcs.jpg){kind=link}
-NIB-3Gtr-jrb-1pc.jpg){kind=link}
![127-globe [BLUE]](Arcturus-127.jpg){kind=link}
![127-globe [BLUE]](Arcturus-127-blue.jpg){kind=link}
![127-globe [BLUE]](Arcturus-127-trio.jpg){kind=link}
![127-globe [BLUE]](Arcturus-127-8.jpg){kind=link}
-NIB-Holland-3pcs-VRB.jpg){kind=link}
![AC28-globe[BLUE]](AC28_Blue-Arcturus-LU-1pc-WB.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-lotNR_ABT-Top2SideGtr-7pcs-wSleeve.jpg){kind=link}
.jpg){kind=link}
![131-globe[BLUE]](131globeBLUE-Arcturus-engraved-1350_580min-1pc.jpg){kind=link}
-NIB-engraved-1pc.jpg){kind=link}
.jpg){kind=link}
-NIB-10pcs.jpg){kind=link}
-OuterShape.jpg){kind=link}
-STC-NOS-12pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
![37-globe[Blue]](37-Blue-Arcturus-NIB-1pc-jRB.jpg){kind=link}
-DC2_07-LikeNew-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-sampled.jpg){kind=link}
-NIB-TwinTopGtr-2pcs-jrb.jpg){kind=link}
-LikeNew-DC7_39-1690_1000-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-1pc-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-WG-square-1pc.jpg){kind=link}
BP(3)GP-TG-4pcs.jpg){kind=link}
-NIB-2pcs.jpg){kind=link}
-NIB-DC6814-BP-1pc-RB.jpg){kind=link}
.jpg){kind=link}
-NIB-2pcs.jpg){kind=link}
-NIB-2pcs.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
-NIB-2pcs-jrb.jpg){kind=link}
-NIB-DC69_46-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
![551-globe[BLUE]](Arcturus-551.jpg){kind=link}
-WB-1pc.jpg){kind=link}
-WB-1pc.jpg){kind=link}
-WB-1pc.jpg){kind=link}
-WB-1pc.jpg){kind=link}
-WB-1pc.jpg){kind=link}
-WB-1pc.jpg){kind=link}
-WB-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-England-used-1pc-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-WE-NIB-1pc.jpg){kind=link}
-etched.jpg){kind=link}
-engraved.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
6739(1)-4pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-sampled.jpg){kind=link}
-2pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-10pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-8pcs.jpg){kind=link}
-NIB-DC64_30-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
604-SG-2400_2570-2760_2740-2pcs.jpg){kind=link}
-SG-3000_3010-VRB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-EpIp.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-Matsushita-NIB-5pcs.jpg){kind=link}
.jpg){kind=link}
-NIB-2pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
_6235(1)-4pcs.jpg){kind=link}
-GE-NIB(MB)-ribbedGP-DC7517-4pcs.jpg){kind=link}
-GE-NIB(MB)-ribbedGP-DC8139-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NEC-used-DC195909-1pc-WB.jpg){kind=link}
-DC9111-4pcs-MB.jpg){kind=link}
-NIB-DC57_30-BP-WL-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-Matsushita-used-1pc-WB.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-4pcs.jpg){kind=link}
-6483.jpg){kind=link}
.jpg){kind=link}
-NIB-ST-2pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NOS-GP-7523-4pcs-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-Gpin-1pc.jpg){kind=link}
-NIB-4pcs.jpg){kind=link}
-LN-GP-2pcs-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
&Sockets-used(2set).jpg){kind=link}
2.jpg){kind=link}
-DC8535(3)_8519(1)-4pcs-jrb.jpg){kind=link}
-NIB-1pc-VRB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
.jpg){kind=link}
-EpIp.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-Germany(Russia)-DC8521-6pcs.jpg){kind=link}
RCA_(3)Sylvania-4pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-1pc.jpg){kind=link}
.jpg){kind=link}
-NIB=ThickBase-1pc.jpg){kind=link}
-4pcs-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-BP-1pc.jpg){kind=link}
-NOS-BP-WHboxed-2pcs.jpg){kind=link}
.jpg){kind=link}
-BulkNOS-WB-6pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-sample.jpg){kind=link}
-NOS-4pcs-Jl00-WB.jpg){kind=link}
-8012.jpg){kind=link}
-8012-tested.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
70_24(4)72_48-USA-Gpin-6pcs-WB.jpg){kind=link}
-EpIp.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-Gpins-6pcs.jpg){kind=link}
-NOS-Gpins-2pcs-WB.jpg){kind=link}
.jpg){kind=link}
-Philips-NIB-50pcs.jpg){kind=link}
-Philips-NIB(TopBottom).jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-side.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-1pc.jpg){kind=link}
.jpg){kind=link}
-KBAC_KBFB-England-used-2pcs-WB.jpg){kind=link}
-NIB-10pVRB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-2pcs.jpg){kind=link}
-2pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-1pc-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-LU-PhlpsBox-1pc.jpg){kind=link}
.jpg){kind=link}
-LikeNew-1pc.jpg){kind=link}
.jpg){kind=link}
-EpIp.jpg){kind=link}
(@Ec2=170V).jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-sampled.jpg){kind=link}
.jpg){kind=link}
-LU-DC⊿6A3-Gpin-2pcs-WB.jpg){kind=link}
-used-⊿8K-pinchedGlass-1pc-WB.jpg){kind=link}
-NOS-4pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-Mullard-NIB-2pcs.jpg){kind=link}
-Mullard-NIB-6pcs.jpg){kind=link}
-Mullard-NIB-2pcs.jpg){kind=link}
-Mullard-NIB-2pcs-17717-vrb.jpg){kind=link}
.jpg){kind=link}
-NIB-lot878-7pcs.jpg){kind=link}
-NIB-2pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-SwedenMIL-LikeNew-4pcs-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-Mullard-NOS-BrownBase-1pc-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-6pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-Sovtek-NOS-12pcs-WB.jpg){kind=link}
-used-D6J-1pc-WB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-NIB-100kHxXtal-DC3_55-1pc-MB.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-Mazda-NOS-1pc-01.jpg){kind=link}
-Mazda-NOS-1pc-02.jpg){kind=link}
-NIB-20pcs.jpg){kind=link}
-NOS-4pcs.jpg){kind=link}
-CV24-NOS-3pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-VT234-DCJune1943-NIB-2pcs.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-GEC-NOS-lotUL-2pcs.jpg){kind=link}
-GEC-NOS-lotUL-REAR.jpg){kind=link}
-GEC-NOS-lotUL-TopBtm.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-pp-Williamson-1949_version.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-GEC-NOS-0102.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
-England-used-1pc.jpg){kind=link}
.jpg){kind=link}
